Please Read Before Installing
RF Tabletop Keypads
HRT-
5KP-A, -C 10KP-A, -C 15KP-A, -C 6LKP-A, -C
5RL-A, -C 10RL-A, -C 15RL-A, -C 6LRL-A, -C
120/127 V ~ , 50/60 Hz (9 V adapter, -A and -C models)
Batteries: 2 AAA size, 1.5V each (-C models)
Installation Instructions
Overview
RF Tabletop Keypads are for use with HomeWorks sys-
tems. The keypad buttons are programmed with a per-
sonal computer using the HomeWorks Utility.
Up to 32 keypads, each with a unique address, can be
assigned to each HomeWorks RF Processor.
Important Notes
Codes: Install in accordance with all local and national
electrical codes.
Power: Battery-powered models (-C only): Use only high
quality alkaline batteries, two (2) size AAA, 1.5V each.
Caution - Do not use rechargeable batteries.
Using improperly rated batteries could damage
the RF Tabletop Keypad.
All models (-A, -C): Use only the adapter provided by
Lutron with your RF Tabletop Keypad.
Caution - Using an adapter not rated for the
following specifications could damage the key-
pad and possibly overheat the adapter.
• Input: 120/127 VAC, 50/60 Hz
• Output: 9 VDC/300 mA Class 2
Environment: Ambient operating temperature:
32-104°F (0-40°C), 0-90% humidity, non-condensing.
Indoor use only.
Faceplates: Do not paint controls or faceplates.
Cleaning: To clean, wipe with a clean damp cloth. DO
NOT use any chemical cleaning solutions.
RF Device Placement: RF Tabletop Keypads must be
located within 30 feet (10m) of an RF Signal Repeater or
an RF Processor.
Setup: RF Tabletop Keypads will not function until they
are addressed and programmed. See the HomeWorks
Utility online help.

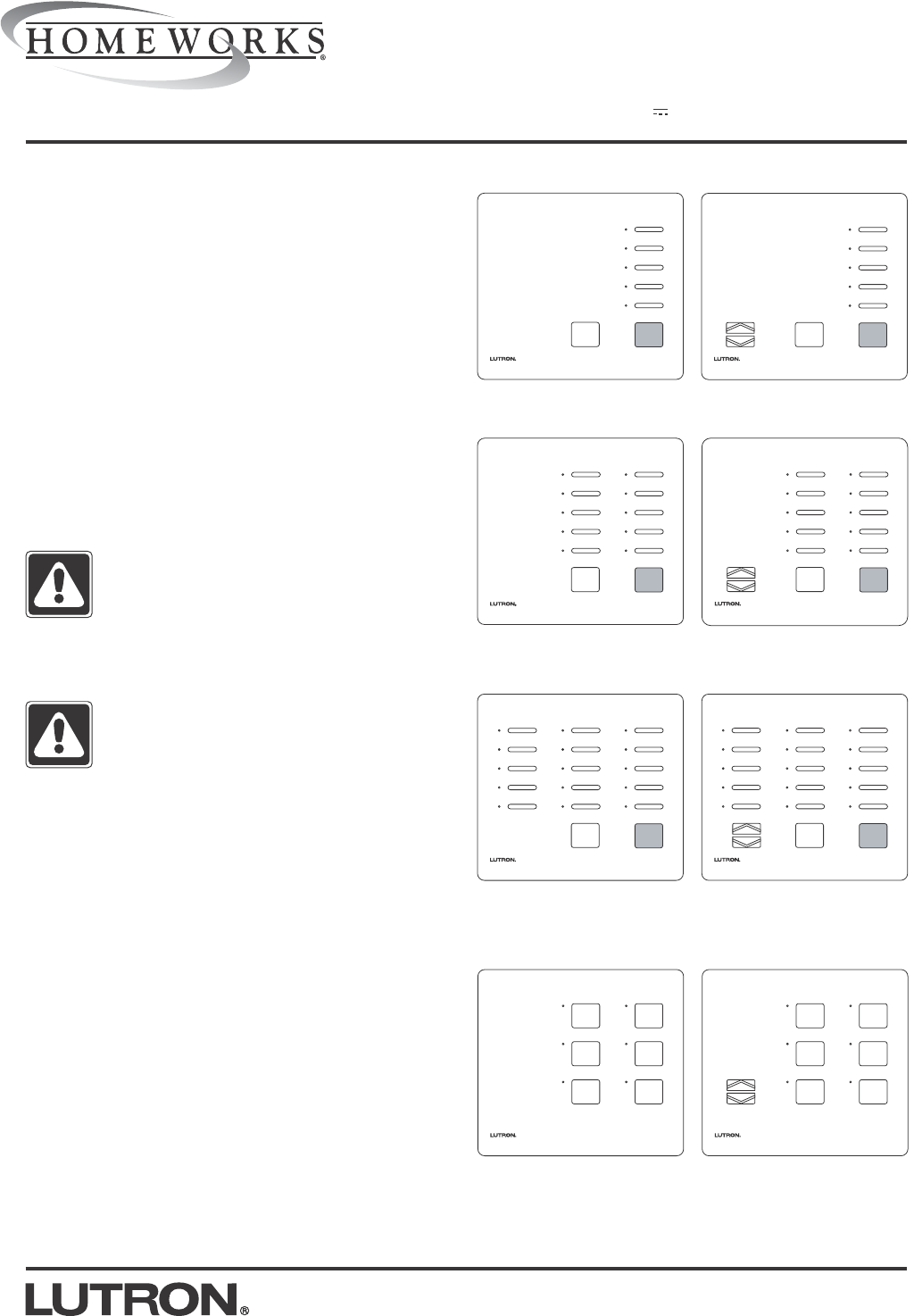

HRT-5KP HRT-5RL
HRT-10KP HRT-10RL
HRT-15KP HRT-15RL
HRT-6LKP HRT-6LRL
2
Installation

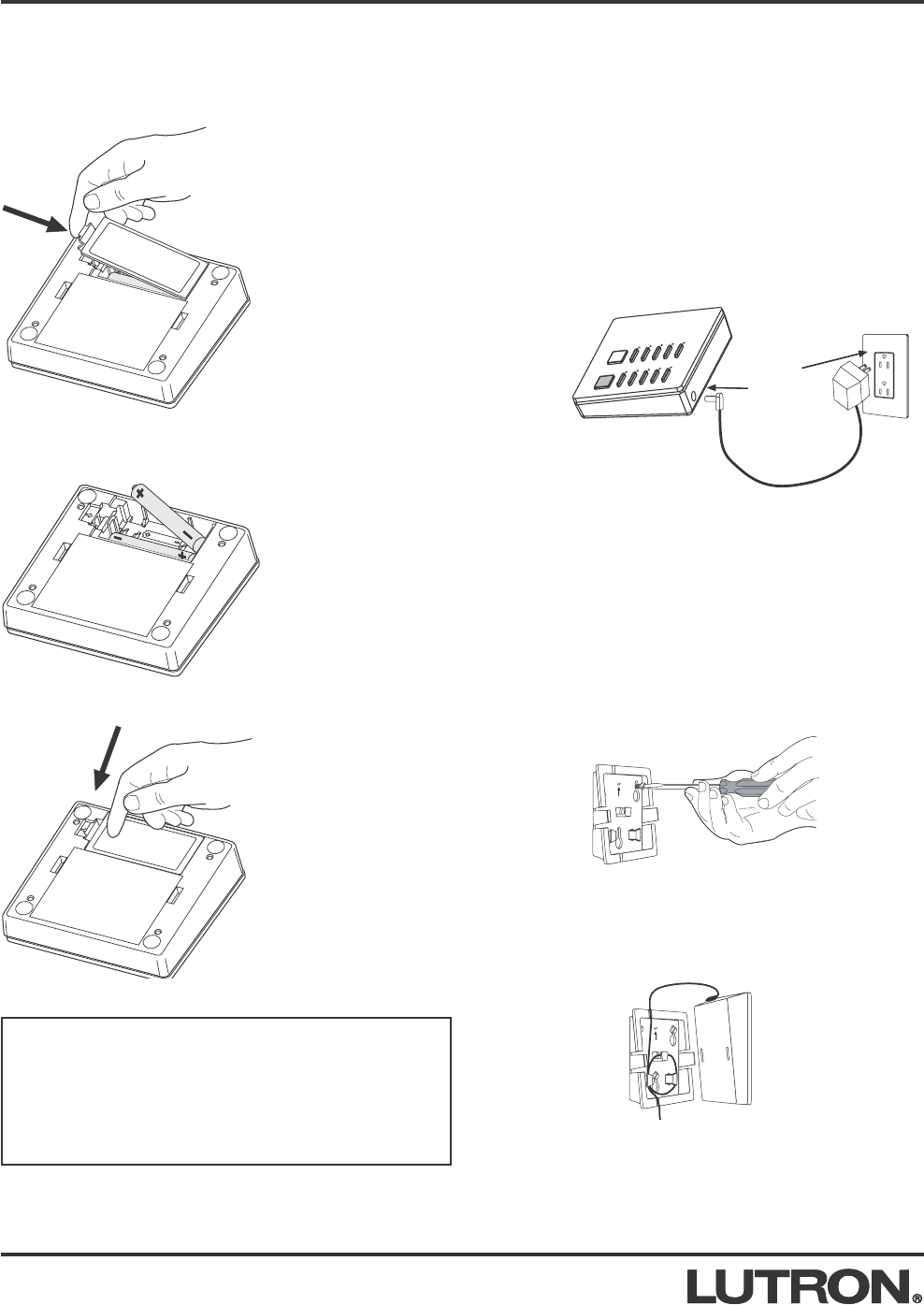

Battery Installation (-C Models)
1. Remove battery cover.
2. Install batteries as shown. Use two 1.5V AAA
alkaline batteries only.
3. Replace battery cover.
Adapter Installation (All Models)
Mounting Diagram
RF Tabletop Keypads may be wall mounted using the
supplied wall bracket.
Plug in power
cord and
adapter
1. Attach wall bracket to wall using the supplied
screws and wall anchors.
2. Wrap excess adapter cord (if using) around the
cord holder. Align keypad and snap onto wall
bracket.
Note: Battery-powered models only
• The RF Tabletop Keypad goes to “sleep” after a
short period of inactivity.
• Press any button to “wake up” the keypad.
Refer to battery
installation diagram
molded inside battery
compartment.
1. Find a suitable location for the RF Tabletop
Keypad. Place the keypad in a convenient and
accessible location. Note: RF Keypads must be
located within 30 feet (10m) of an RF Signal
Repeater or an RF Processor.
2. Apply power to the RF Tabletop Keypad.
3
Symptom Cause and Action
No power available to keypad.
• Verify adapter is plugged in.
Faulty adapter.
• Replace adapter.
Dead, low, or no batteries in keypad.
• Replace the batteries.
Batteries are incorrectly installed.
• Install batteries as indicated inside the keypad.
Batteries are not making contact with the battery terminals.
• Adjust the batteries so they make contact with the ter-
minals.
Batteries are low.
• Replace the batteries.
Keypad is out of system communications range.
• Move the keypad to within 30 ft. (10m) of an RF Signal
Repeater or RF Processor.
Button being pressed has not been programmed.
• See the HomeWorks Utility online help for programming
details.
Keypad has not been addressed.
• See the HomeWorks Utility online help for setup details.
Keypad has an address, but does not have a valid pro-
gramming database.
• See the HomeWorks Utility online help for programming
details.
LEDs on an adapter-powered keypad do not light.
A battery-powered keypad will not “wake up” when a but-
ton is pressed.
A battery-powered keypad “wakes up” but goes to “sleep”
quickly after a button press.
A battery-powered keypad’s LEDs cycle up and down dur-
ing “wake up”, but the system lights do not respond to but-
ton presses.
Button presses on keypad cause the keypad to quickly
flash all its LEDs simultaneously.
Button presses on keypad cause the keypad to slowly
flash all its LEDs simultaneously.
Troubleshooting Guide
RF Keypads will not control other system devices until the keypads are addressed and programmed. See the
HomeWorks®Utility online help.
