Lutron Electronics Company Inc Electronic control with RF communication
User Manual
Install in accordance with all local and
national electrical codes.
Caution! These controls
must not be used to control
equipment that is not visible
from every control location. They must
also not be used to control equipment
that could create hazardous situations
such as entrapment if operated
accidentally. Examples of such
equipment which must not be operated
by these controls include (but are not
limited to) industrial doors, microwave
ovens, heating pads, etc. It is the
installer’s responsibility to ensure that
the equipment being controlled is visible
from every control location and that
only suitable equipment is connected to
these controls.
Environment: Ambient operating
temperature: 32 to 104 °F (0 to 40 °C),
0 to 90% humidity, non-condensing.
Indoor use only.
Spacing: If mounting one control above
another, leave at least 4½ in. (114 mm)
vertical space between them.
Faceplates: Use Lutron Stanza
faceplates for best color match and
aesthetic appearance. Do not paint
controls or faceplates.
Cleaning: To clean, wipe with a clean
damp cloth. DO NOT use any chemical
cleaning solutions.
Wallboxes: Lutron recommends using
3.5 in. (89 mm) deep wallboxes for
easier installation.
RF Device Placement: RF keypads
must be located within 20 feet (6 m)
of an RF signal repeater or a device
configured as a repeater.
Stanza RF keypads cannot control
any device in the system until they are
addressed and programmed. When
powered and unaddressed, they turn
on their button backlights to indicate
proper operation.
Installation
Caution! Locate and remove
fuse or lock circuit breaker in
the OFF position before pro-
ceeding. Wiring with power ON
may result in personal injury or
death.
1. Turn power OFF at fusebox or circuit
breaker.
2. Prepare wires. When making
wire connections, follow the
recommended strip lengths and
combinations for the supplied wire
connector.
Note: Wire connectors provided are
suitable for copper wire only.
Wire Connector:
• Strip insulation 3/8 in. (9.5 mm) for #14
AWG (1.5 mm2) wire
• Strip insulation 1/2 in. (12.7 mm) for
#16 or 18 AWG (1.0 mm2 or 0.75 mm2)
wire
Twist wire connector tight.
3. Wire controls as follows:
a. Connect the black control wire to
the Hot/Live wire coming from the
panel.
b. Connect the white control wire to
the Neutral wire coming from the
panel.
4. Push all wires back into the wallbox
and loosely fasten the control to the
wallbox using the control mounting
screws provided. Do not pinch the
wires.
5. Attach Lutron Stanza faceplate
adapter and faceplate.
a. Install faceplate adapter onto front
of control(s).
b. Tighten control mounting screws
until faceplate adapter is flush to
wall (do not over-tighten).
c. Snap faceplate onto faceplate
adapter, and verify that control is
aligned properly.
d. If control(s) is (are) misaligned,
loosen mounting screws
appropriately.
6. Restore power. Check for correct
local operation (see Operation).
Keypad will not control a remote
device until it is addressed.
Operation

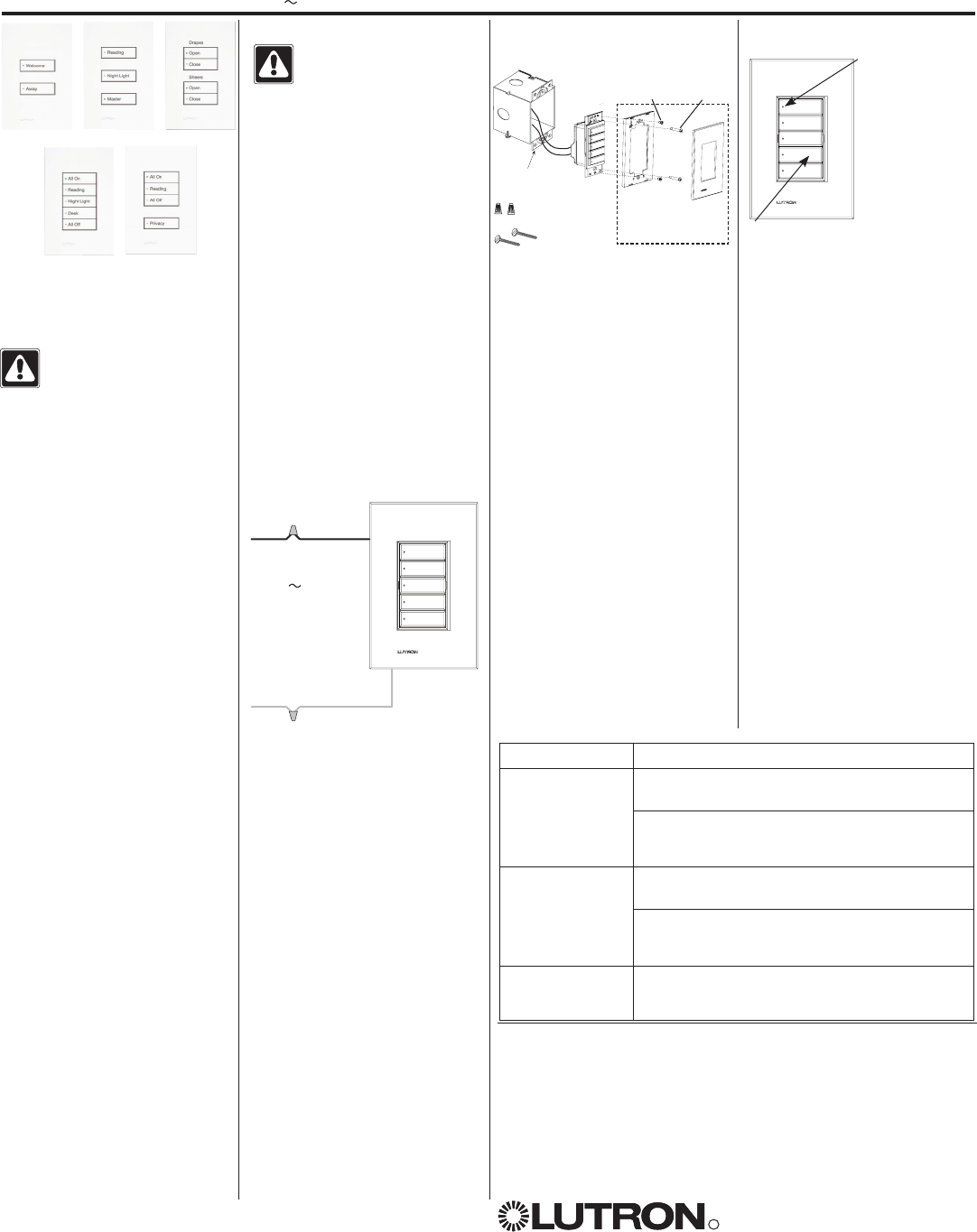

Installation Instructions
Please Read Before Installing
StanzaTM StanzaTM Keypads
SZ-2B, SZ-3B,
SZ-4B, SZ-5B,
SZ-3/1B
120 V 50 / 60 Hz 0.5 W
Important Notes
SZ-3B
Mounting Diagram
Control
mounting
screws
Wallbox Control
Included:
Wire Connectors (2)
Mounting Screws (2)
Faceplate
adapter
mounting
screws
Faceplate/adapter purchased
separately.
SZ-2B SZ-4B
SZ-5B SZ-3/1B
Black
White
Hot/
Live
Neutral
120 V
50 / 60 Hz
Status LEDs
Indicate current
scene selected;
all glow softly
as night lights
when scene is not
selected
Keypad Buttons
Can be programmed to control one or
more zones or contact closure outputs
Buttons are backlit for easy location in
a darkened room.
Returning the Dimmer/Switch to
Factory Settings
1. Triple-tap a button on the keypad
quickly (within 1 second).
2. Press and hold the same button on
the keypad for 5 seconds (until the
status LEDs ash) .
3. Triple-tap the same button on the
keypad quickly again.
Notes
• Returning to factory settings will clear
all programming from the keypad, and
will prevent it from being controlled
over RF.
• After being returned to factory
defaults, the device will need to be re-
addressed as part of a system.
Troubleshooting Guide
Symptom Cause and Action
Keypad LEDs do not
light
Power not present
• Circuit breaker OFF or tripped. Perform short circuit check.
Wiring error
• Check wiring to be sure it agrees with installation instructions
and wiring diagrams.
Lights do not respond
to a button press
Improper programming
• Check programming in the Stanza software.
Out of RF range
• Ensure device is within 20 feet (6 m) of another device
configured as a repeater.
All status LEDs flash
when each keypad
button is pressed
Keypad is not addressed to the system
• Address device as part of a Stanza system.
Lutron Electronics Co., Inc.
Made and printed in the U.S.A.
P/N 030-995 Rev. A 6 /08
Technical support: USA, Canada, Caribbean: 1.800.523.9466
Mexico: +1.888.235.2910
Central/South America: +1.610.282.6701
Warranty: 1-year limited warranty standard. 2-year parts and labor warranty, with
8-year pro-rated parts replacement on commissioned systems.
These products may be covered under one or more of the following U.S. patents: 5,248,919;
5,637,930; 5,838,226; 5,848,054; 5,905,442; 6,687,487; 6,803,728; and corresponding foreign
patents. U.S. and foreign patents pending. Lutron and the sunburst logo are registered
trademarks and FASS and Stanza are trademarks of Lutron Electronics Co., Inc.
© 2008 Lutron Electronics Co., Inc.
R
FCC Information
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of the
FCC rules. Operation is subject to the following: (1) This device
may not cause harmul interference, and (2) this device must
accept any interference received, incouding interference that
may cause undesired operation.
