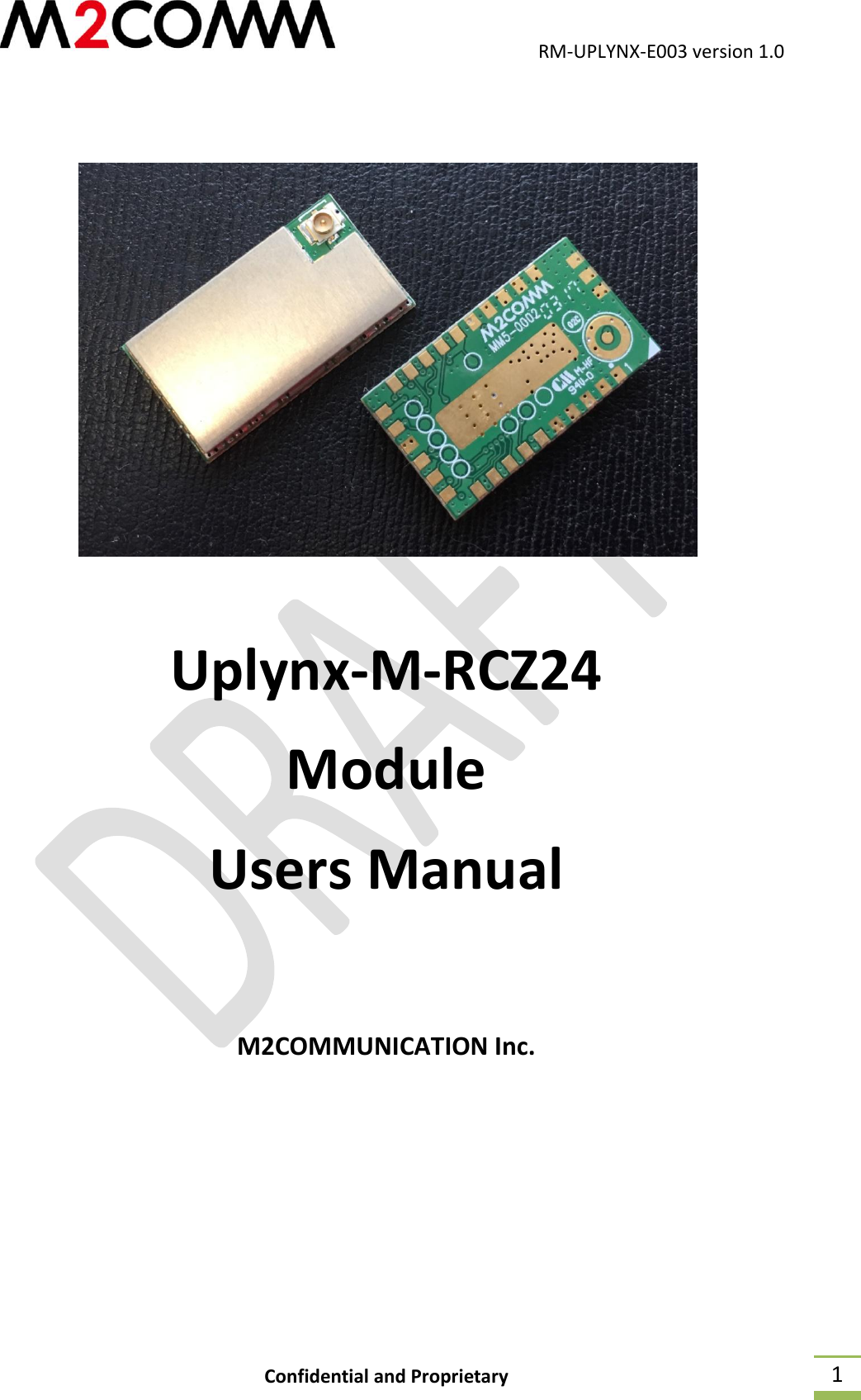

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 1 Uplynx-M-RCZ24 Module Users Manual M2COMMUNICATION Inc.

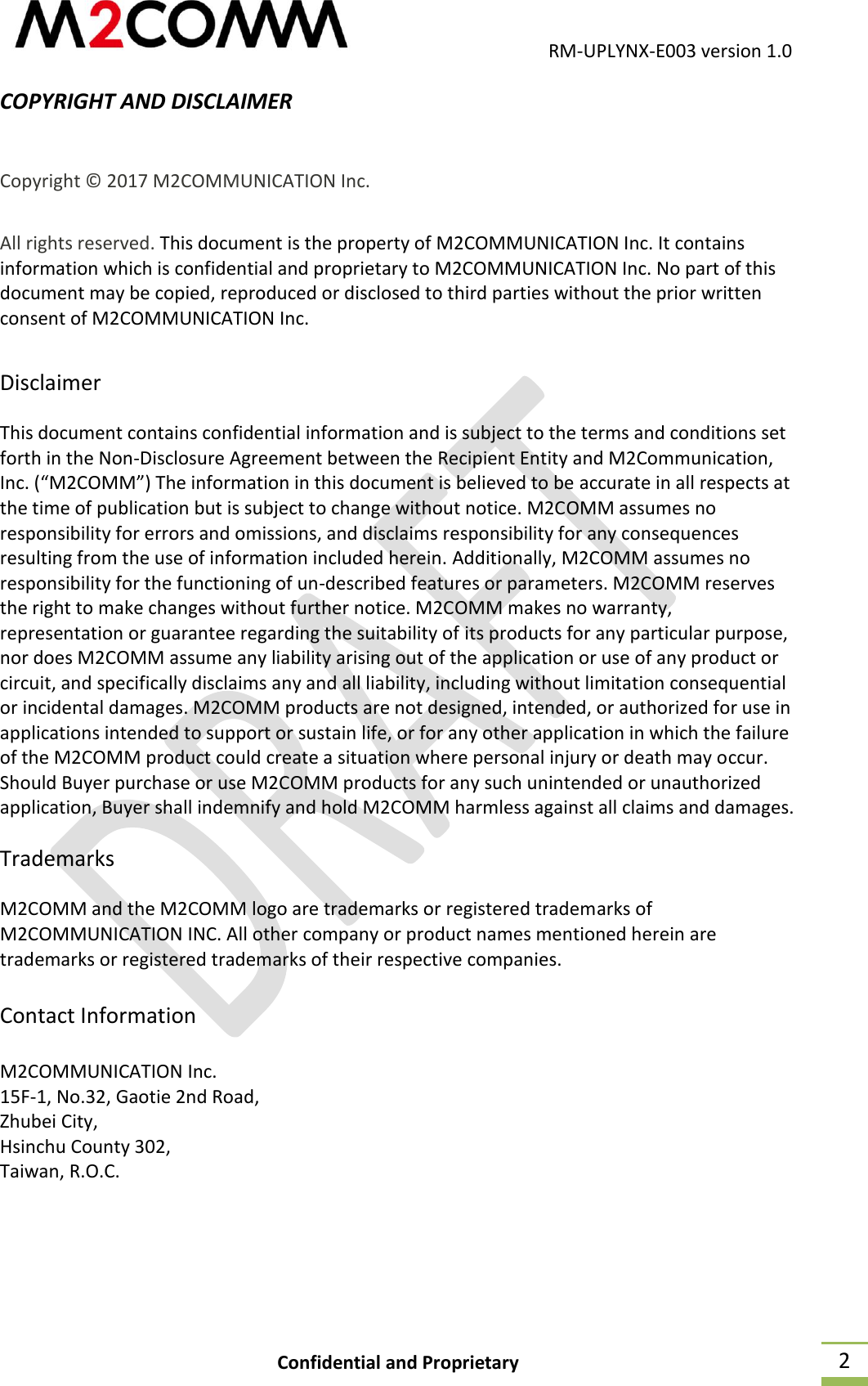

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 2 COPYRIGHT AND DISCLAIMER Copyright © 2017 M2COMMUNICATION Inc. All rights reserved. This document is the property of M2COMMUNICATION Inc. It contains information which is confidential and proprietary to M2COMMUNICATION Inc. No part of this document may be copied, reproduced or disclosed to third parties without the prior written consent of M2COMMUNICATION Inc. Disclaimer This document contains confidential information and is subject to the terms and conditions set forth in the Non-Disclosure Agreement between the Recipient Entity and M2Communication, Inc. (“M2COMM”) The information in this document is believed to be accurate in all respects at the time of publication but is subject to change without notice. M2COMM assumes no responsibility for errors and omissions, and disclaims responsibility for any consequences resulting from the use of information included herein. Additionally, M2COMM assumes no responsibility for the functioning of un-described features or parameters. M2COMM reserves the right to make changes without further notice. M2COMM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does M2COMM assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. M2COMM products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the M2COMM product could create a situation where personal injury or death may occur. Should Buyer purchase or use M2COMM products for any such unintended or unauthorized application, Buyer shall indemnify and hold M2COMM harmless against all claims and damages. Trademarks M2COMM and the M2COMM logo are trademarks or registered trademarks of M2COMMUNICATION INC. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Contact Information M2COMMUNICATION Inc. 15F-1, No.32, Gaotie 2nd Road, Zhubei City, Hsinchu County 302, Taiwan, R.O.C.

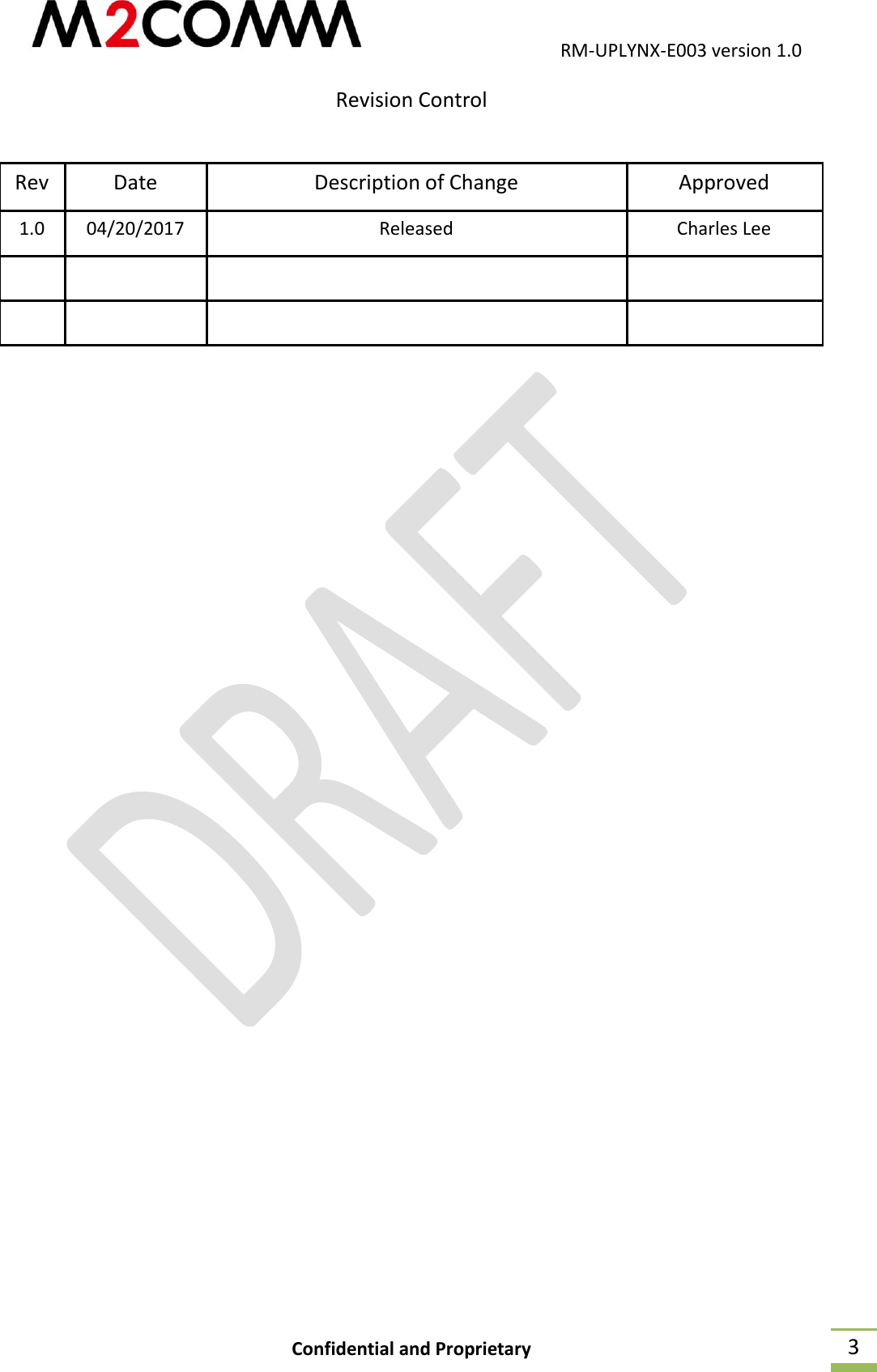

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 3 Revision Control Rev Date Description of Change Approved 1.0 04/20/2017 Released Charles Lee

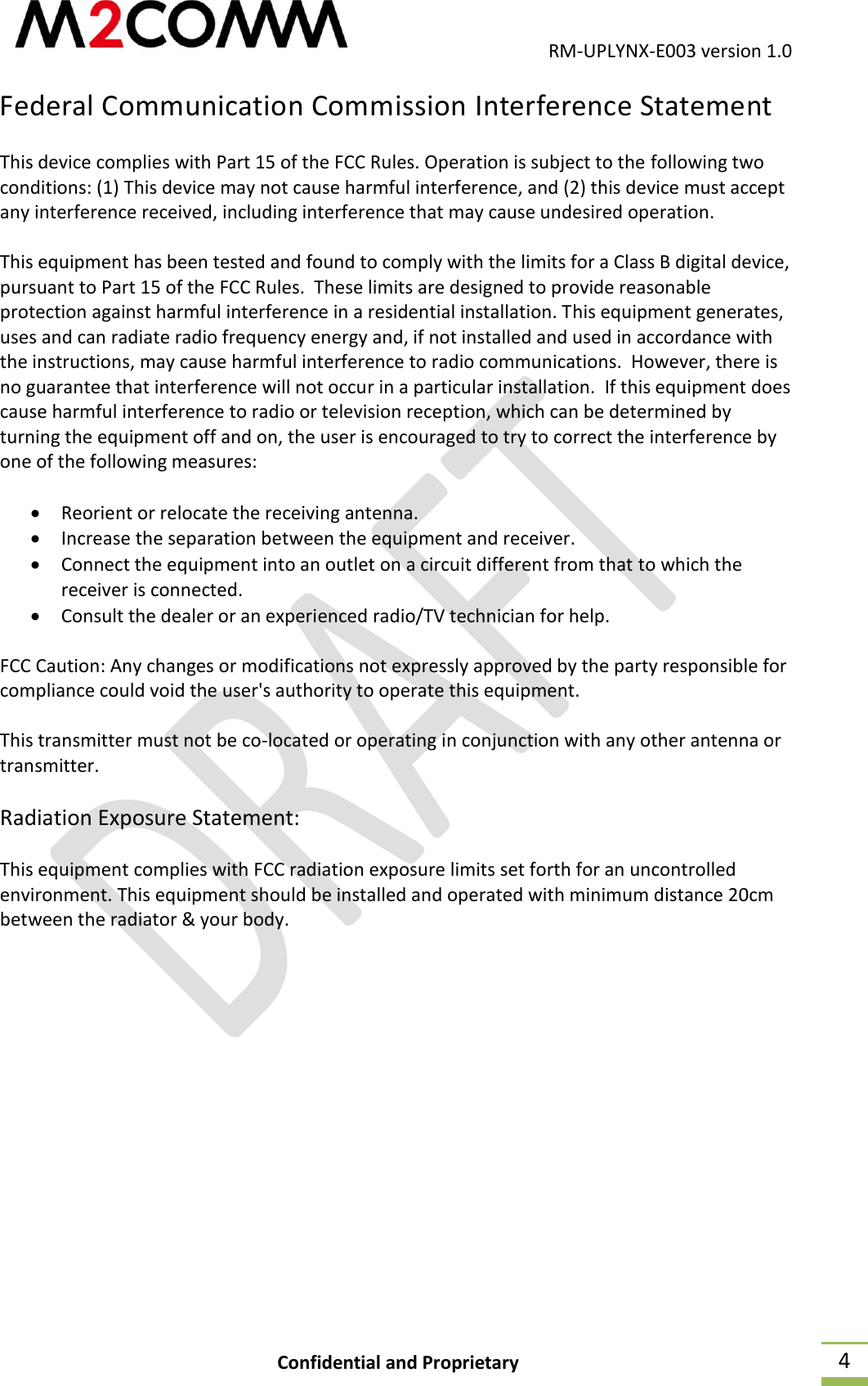

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 4 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

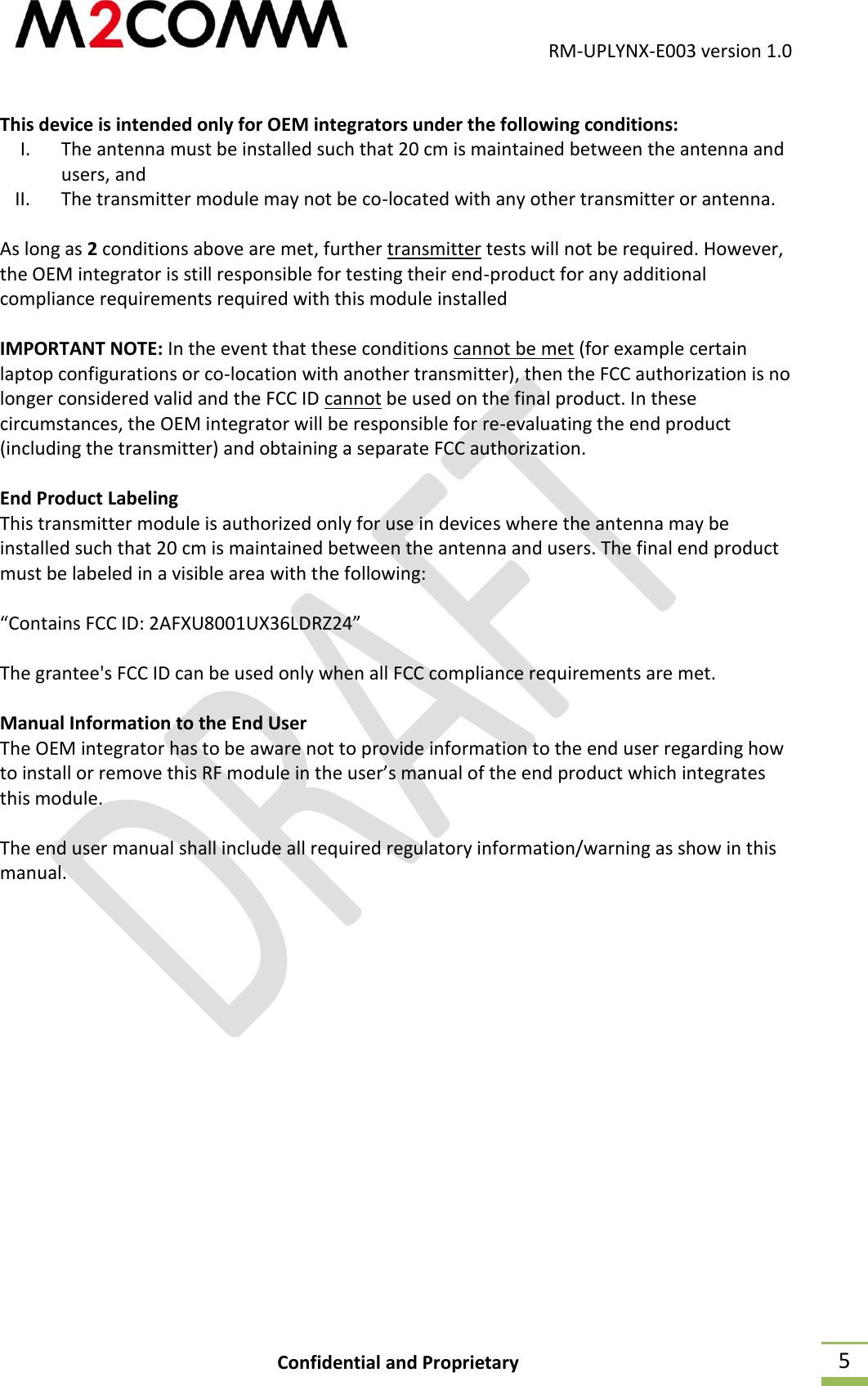

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 5 This device is intended only for OEM integrators under the following conditions: I. The antenna must be installed such that 20 cm is maintained between the antenna and users, and II. The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter tests will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm is maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AFXU8001UX36LDRZ24” The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

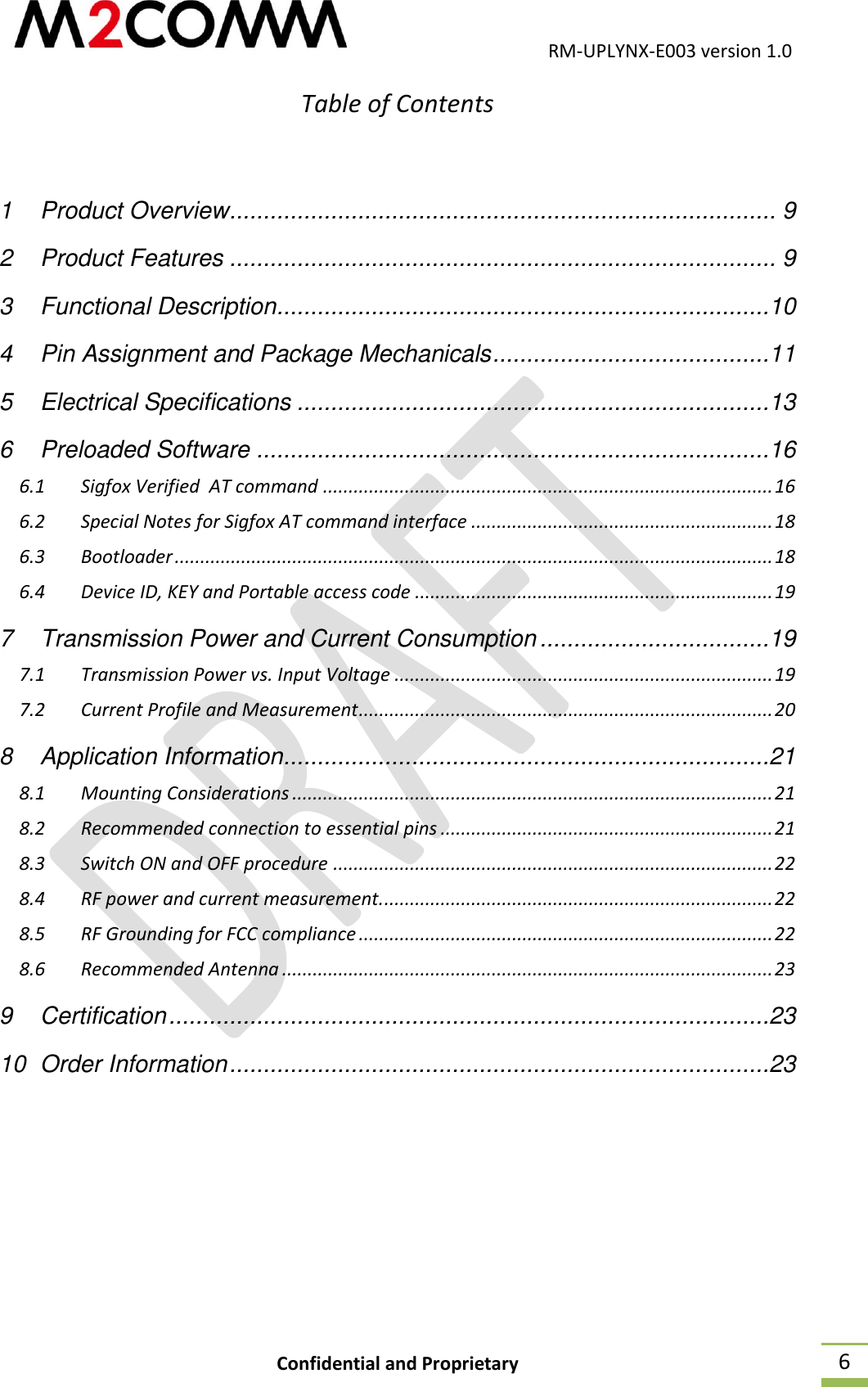

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 6 Table of Contents 1 Product Overview ................................................................................. 9 2 Product Features ................................................................................. 9 3 Functional Description .........................................................................10 4 Pin Assignment and Package Mechanicals .........................................11 5 Electrical Specifications ......................................................................13 6 Preloaded Software ............................................................................16 6.1 Sigfox Verified AT command ........................................................................................ 16 6.2 Special Notes for Sigfox AT command interface ........................................................... 18 6.3 Bootloader ..................................................................................................................... 18 6.4 Device ID, KEY and Portable access code ...................................................................... 19 7 Transmission Power and Current Consumption ..................................19 7.1 Transmission Power vs. Input Voltage .......................................................................... 19 7.2 Current Profile and Measurement ................................................................................. 20 8 Application Information ........................................................................21 8.1 Mounting Considerations .............................................................................................. 21 8.2 Recommended connection to essential pins ................................................................. 21 8.3 Switch ON and OFF procedure ...................................................................................... 22 8.4 RF power and current measurement. ............................................................................ 22 8.5 RF Grounding for FCC compliance ................................................................................. 22 8.6 Recommended Antenna ................................................................................................ 23 9 Certification .........................................................................................23 10 Order Information ................................................................................23

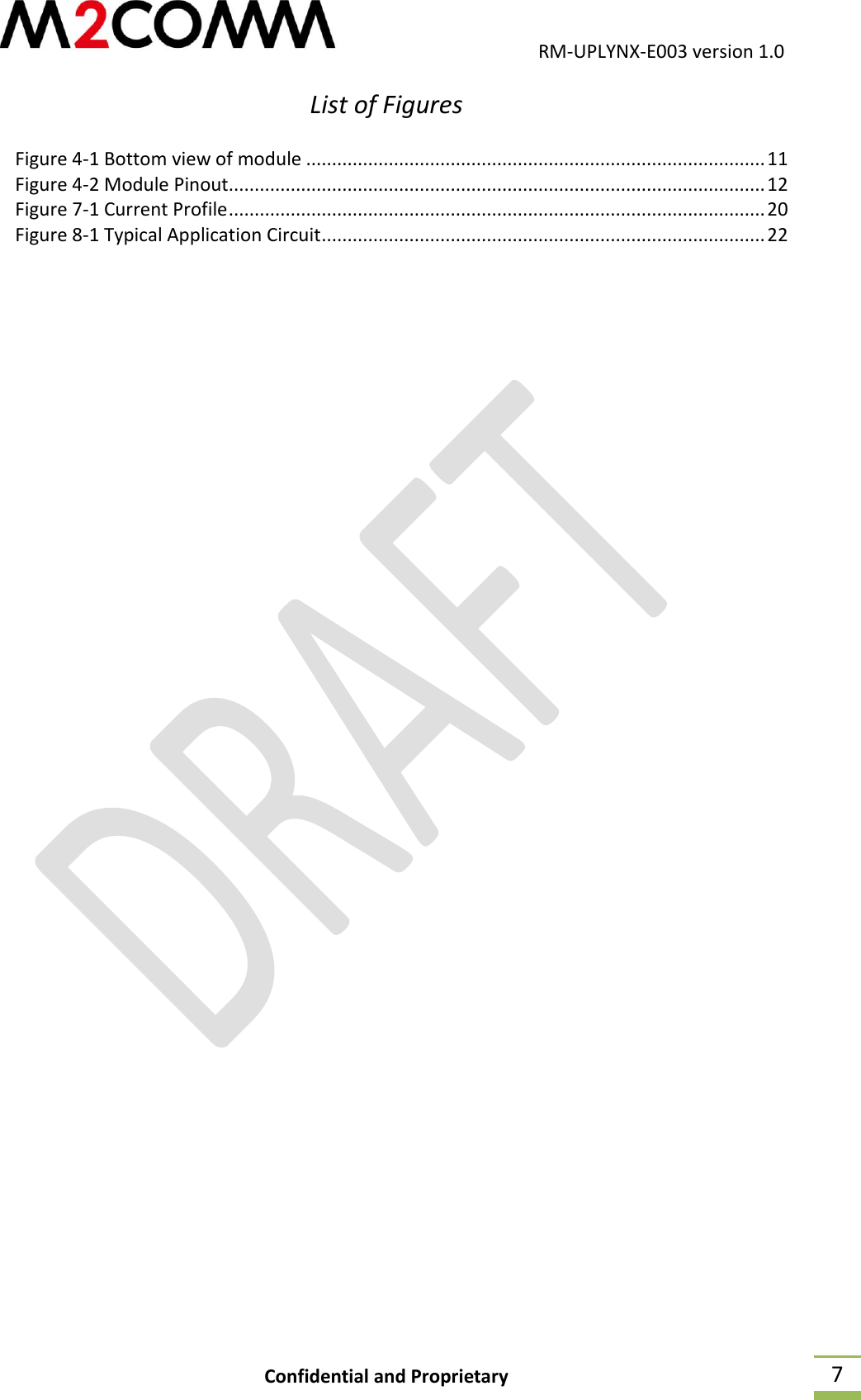

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 7 List of Figures Figure 4-1 Bottom view of module ......................................................................................... 11 Figure 4-2 Module Pinout........................................................................................................ 12 Figure 7-1 Current Profile ........................................................................................................ 20 Figure 8-1 Typical Application Circuit ...................................................................................... 22

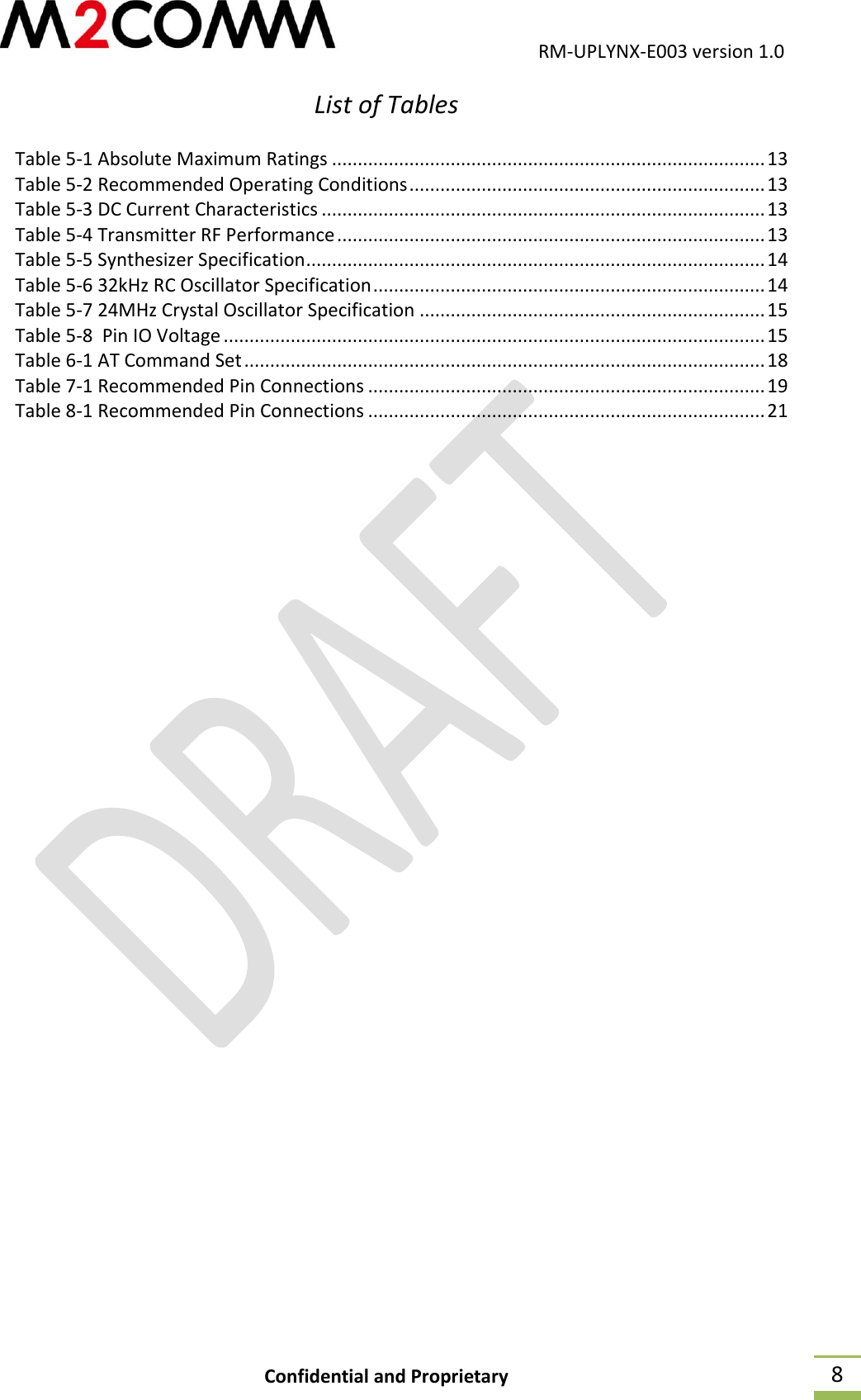

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 8 List of Tables Table 5-1 Absolute Maximum Ratings .................................................................................... 13 Table 5-2 Recommended Operating Conditions ..................................................................... 13 Table 5-3 DC Current Characteristics ...................................................................................... 13 Table 5-4 Transmitter RF Performance ................................................................................... 13 Table 5-5 Synthesizer Specification ......................................................................................... 14 Table 5-6 32kHz RC Oscillator Specification ............................................................................ 14 Table 5-7 24MHz Crystal Oscillator Specification ................................................................... 15 Table 5-8 Pin IO Voltage ......................................................................................................... 15 Table 6-1 AT Command Set ..................................................................................................... 18 Table 7-1 Recommended Pin Connections ............................................................................. 19 Table 8-1 Recommended Pin Connections ............................................................................. 21

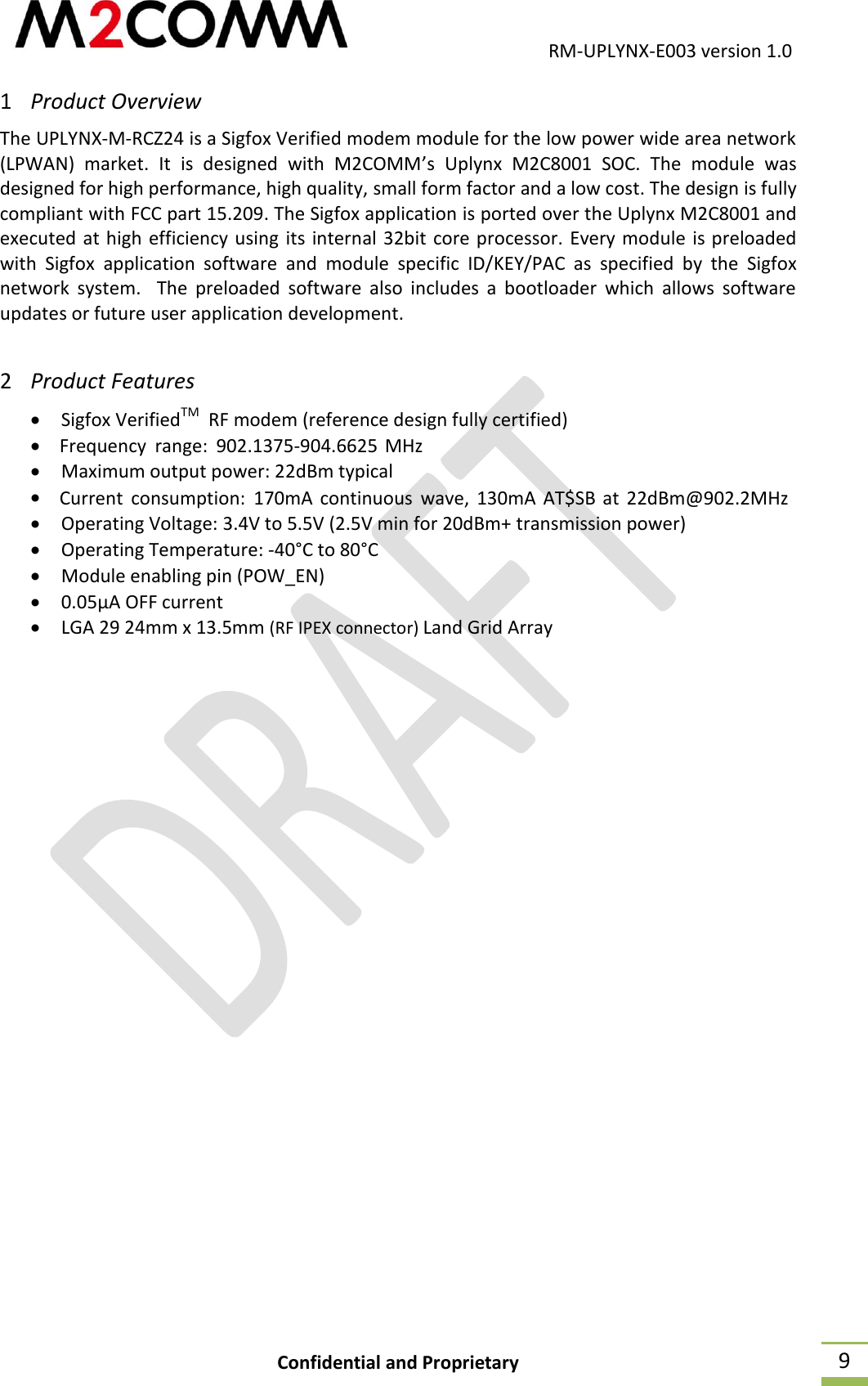

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 9 1 Product Overview The UPLYNX-M-RCZ24 is a Sigfox Verified modem module for the low power wide area network (LPWAN) market. It is designed with M2COMM’s Uplynx M2C8001 SOC. The module was designed for high performance, high quality, small form factor and a low cost. The design is fully compliant with FCC part 15.209. The Sigfox application is ported over the Uplynx M2C8001 and executed at high efficiency using its internal 32bit core processor. Every module is preloaded with Sigfox application software and module specific ID/KEY/PAC as specified by the Sigfox network system. The preloaded software also includes a bootloader which allows software updates or future user application development. 2 Product Features  Sigfox VerifiedTM RF modem (reference design fully certified)   Maximum output power: 22dBm typical   Operating Voltage: 3.4V to 5.5V (2.5V min for 20dBm+ transmission power)  Operating Temperature: -40°C to 80°C  Module enabling pin (POW_EN)  0.05µA OFF current  LGA 29 24mm x 13.5mm (RF IPEX connector) Land Grid Array Frequency range: 902.1375-904.6625 MHzCurrent consumption: 170mA continuous wave, 130mA AT$SB at 22dBm@902.2MHz

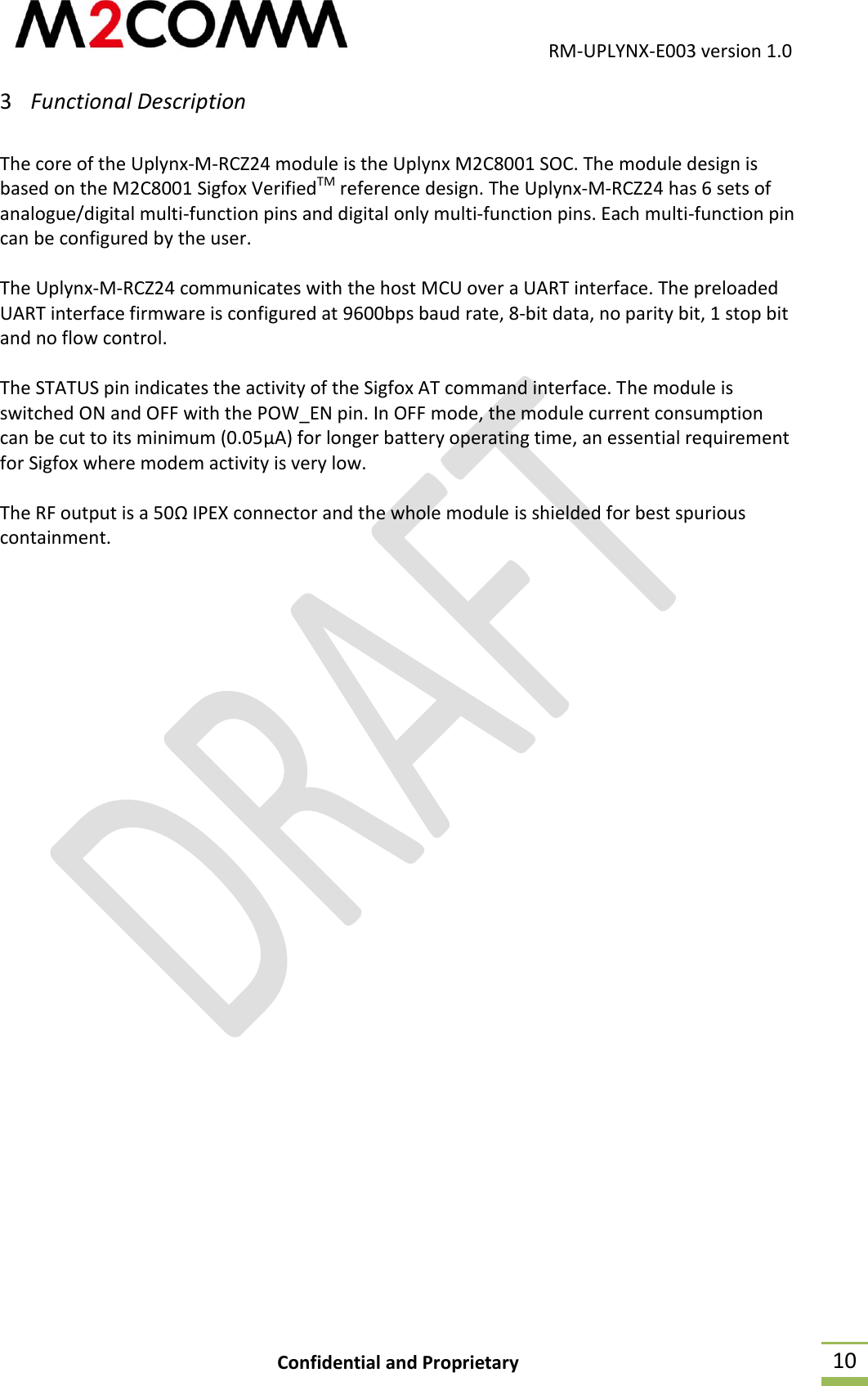

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 10 3 Functional Description The core of the Uplynx-M-RCZ24 module is the Uplynx M2C8001 SOC. The module design is based on the M2C8001 Sigfox VerifiedTM reference design. The Uplynx-M-RCZ24 has 6 sets of analogue/digital multi-function pins and digital only multi-function pins. Each multi-function pin can be configured by the user. The Uplynx-M-RCZ24 communicates with the host MCU over a UART interface. The preloaded UART interface firmware is configured at 9600bps baud rate, 8-bit data, no parity bit, 1 stop bit and no flow control. The STATUS pin indicates the activity of the Sigfox AT command interface. The module is switched ON and OFF with the POW_EN pin. In OFF mode, the module current consumption can be cut to its minimum (0.05µA) for longer battery operating time, an essential requirement for Sigfox where modem activity is very low. The RF output is a 50Ω IPEX connector and the whole module is shielded for best spurious containment.

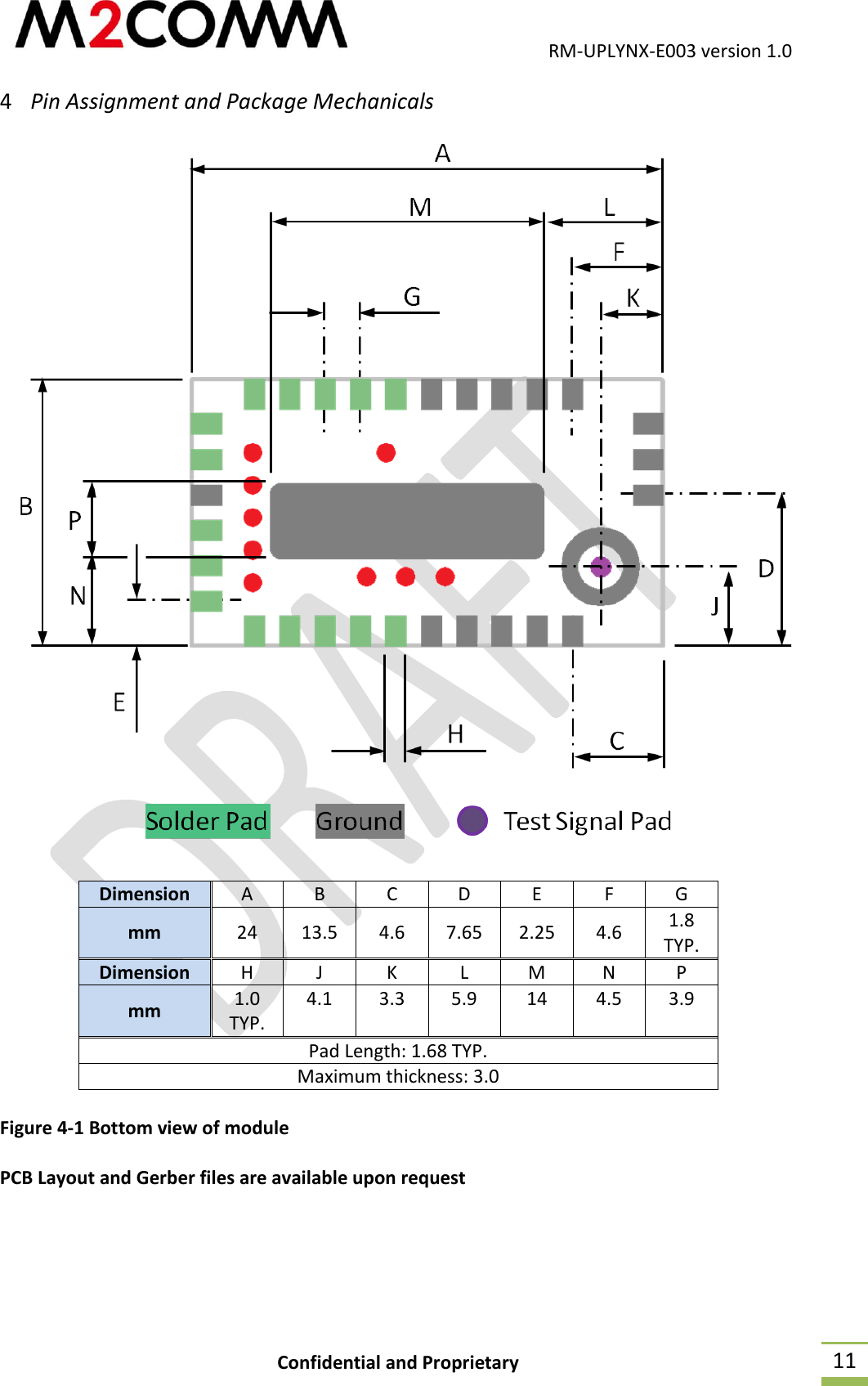

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 11 4 Pin Assignment and Package Mechanicals Dimension A B C D E F G mm 24 13.5 4.6 7.65 2.25 4.6 1.8 TYP. Dimension H J K L M N P mm 1.0 TYP. 4.1 3.3 5.9 14 4.5 3.9 Pad Length: 1.68 TYP. Maximum thickness: 3.0 Figure 4-1 Bottom view of module PCB Layout and Gerber files are available upon request
RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 12 Pad Name IO Description VDD VDD Power VSS GND GND VLDO O Operating voltage monitor point RESET_N I Reset: When asserted LOW sets module to INITIAL state POW_EN I Enable: Logic low for Disable; Logic high for Enable UART_TX O UART Tx data (9600bps) UART_RX I UART Rx data (9600bps) TX_OUT O 50Ω antenna output GPIO [0:5] IO Reserved STATUS O Logic High: AT Command Interface ready Logic Low: Module busy JDAT I JTAG Interface JCLK I JTAG Interface Figure 4-2 Module Pinout

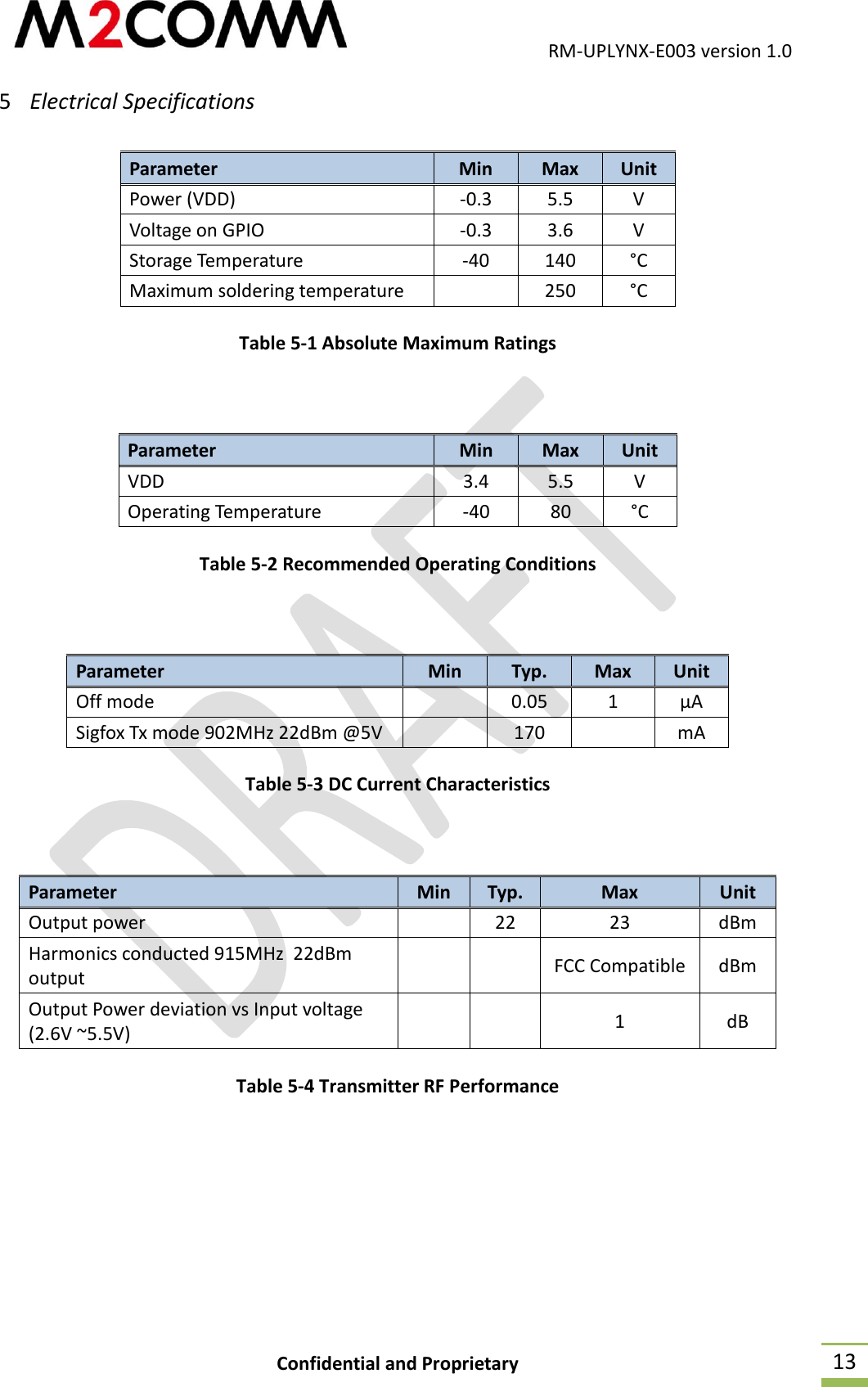

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 13 5 Electrical Specifications Parameter Min Max Unit Power (VDD) -0.3 5.5 V Voltage on GPIO -0.3 3.6 V Storage Temperature -40 140 °C Maximum soldering temperature 250 °C Table 5-1 Absolute Maximum Ratings Parameter Min Max Unit VDD 3.4 5.5 V Operating Temperature -40 80 °C Table 5-2 Recommended Operating Conditions Parameter Min Typ. Max Unit Off mode 0.05 1 µA Sigfox Tx mode 902MHz 22dBm @5V 170 mA Table 5-3 DC Current Characteristics Parameter Min Typ. Max Unit Output power 22 23 dBm Harmonics conducted 915MHz 22dBm output FCC Compatible dBm Output Power deviation vs Input voltage (2.6V ~5.5V) 1 dB Table 5-4 Transmitter RF Performance

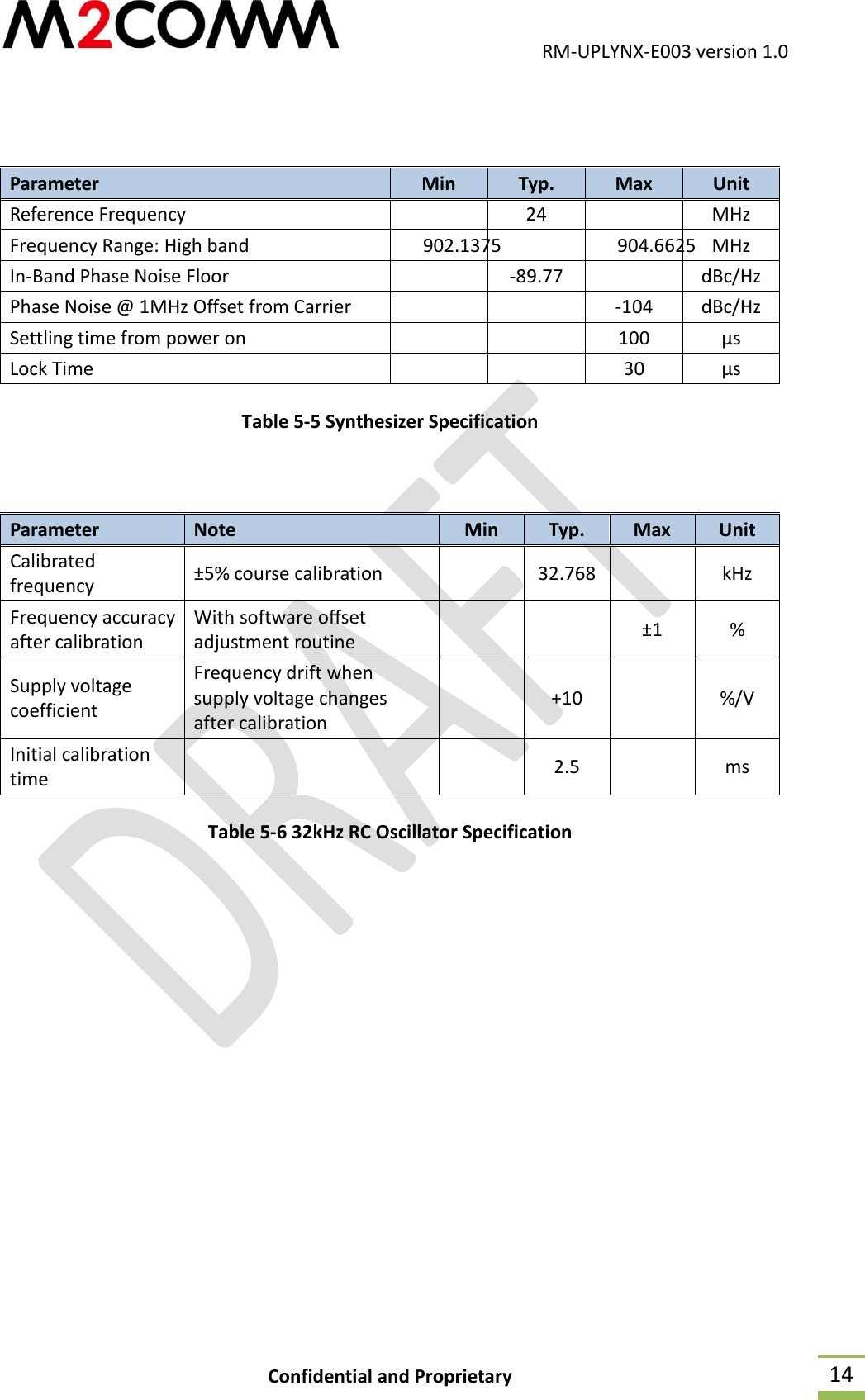

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 14 Parameter Min Typ. Max Unit Reference Frequency 24 MHz Frequency Range: High band MHz In-Band Phase Noise Floor -89.77 dBc/Hz Phase Noise @ 1MHz Offset from Carrier -104 dBc/Hz Settling time from power on 100 µs Lock Time 30 µs Table 5-5 Synthesizer Specification Parameter Note Min Typ. Max Unit Calibrated frequency ±5% course calibration 32.768 kHz Frequency accuracy after calibration With software offset adjustment routine ±1 % Supply voltage coefficient Frequency drift when supply voltage changes after calibration +10 %/V Initial calibration time 2.5 ms Table 5-6 32kHz RC Oscillator Specification 902.1375 904.6625

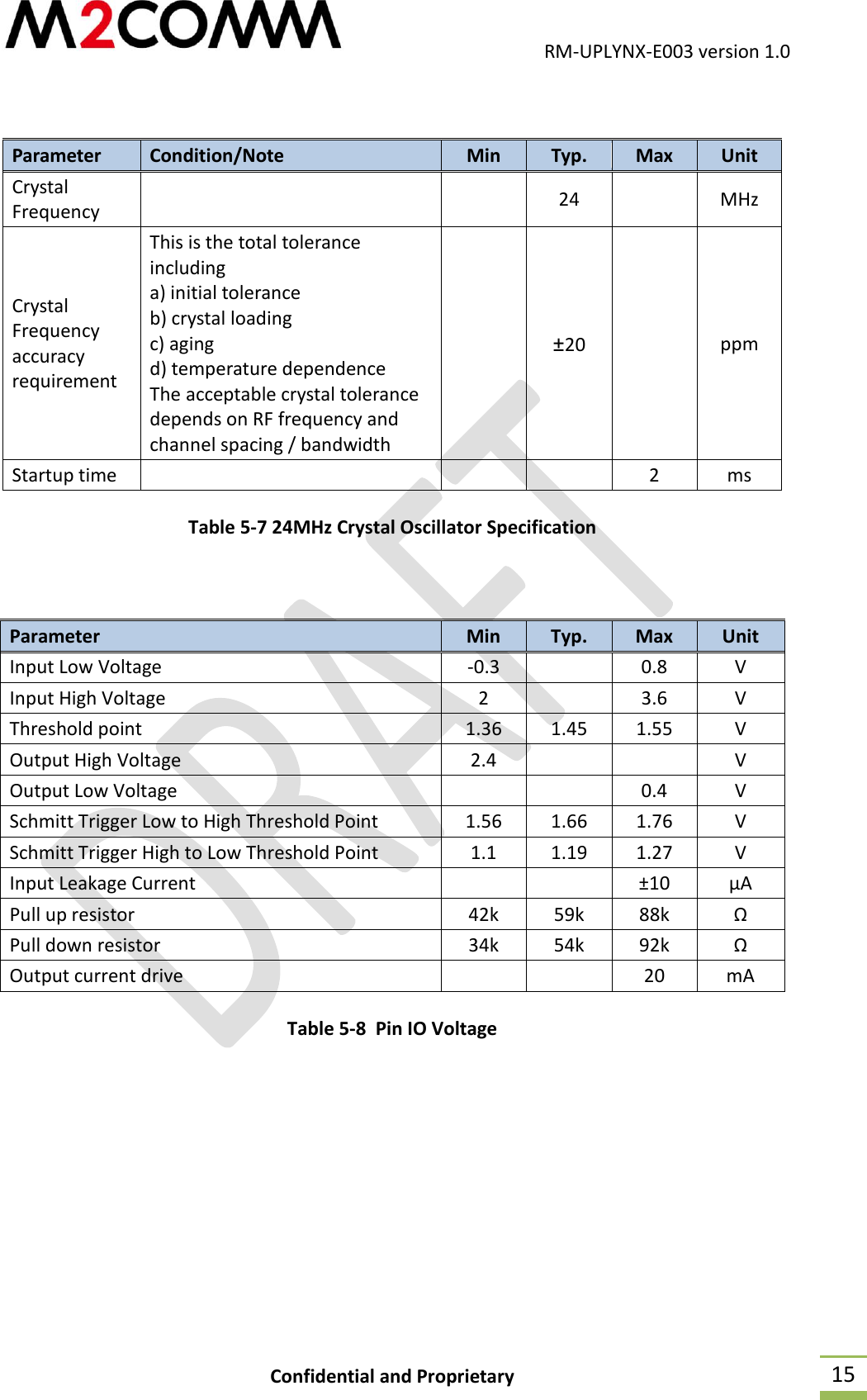

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 15 Parameter Condition/Note Min Typ. Max Unit Crystal Frequency 24 MHz Crystal Frequency accuracy requirement This is the total tolerance including a) initial tolerance b) crystal loading c) aging d) temperature dependence The acceptable crystal tolerance depends on RF frequency and channel spacing / bandwidth ±20 ppm Startup time 2 ms Table 5-7 24MHz Crystal Oscillator Specification Parameter Min Typ. Max Unit Input Low Voltage -0.3 0.8 V Input High Voltage 2 3.6 V Threshold point 1.36 1.45 1.55 V Output High Voltage 2.4 V Output Low Voltage 0.4 V Schmitt Trigger Low to High Threshold Point 1.56 1.66 1.76 V Schmitt Trigger High to Low Threshold Point 1.1 1.19 1.27 V Input Leakage Current ±10 µA Pull up resistor 42k 59k 88k Ω Pull down resistor 34k 54k 92k Ω Output current drive 20 mA Table 5-8 Pin IO Voltage

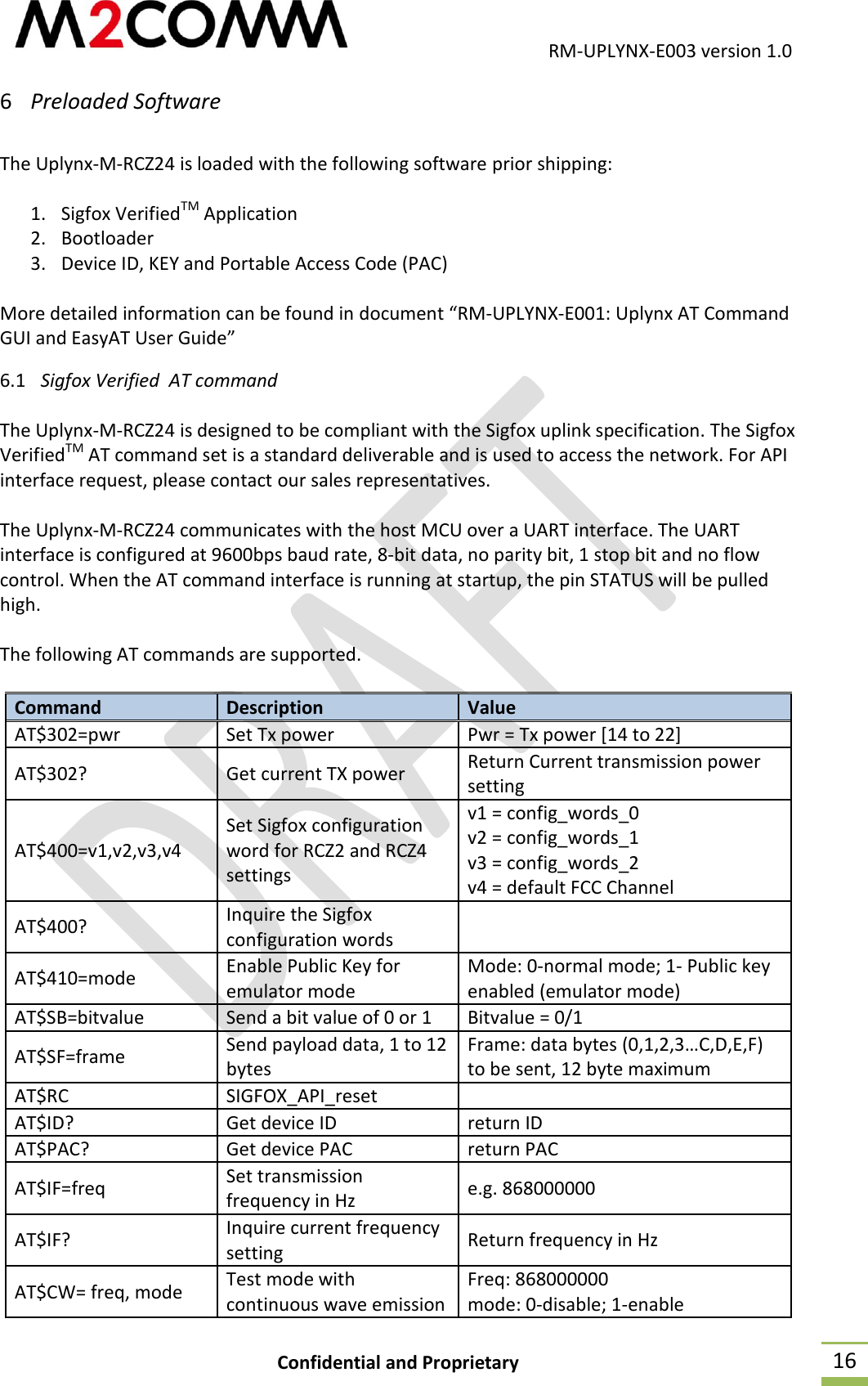

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 16 6 Preloaded Software The Uplynx-M-RCZ24 is loaded with the following software prior shipping: 1. Sigfox VerifiedTM Application 2. Bootloader 3. Device ID, KEY and Portable Access Code (PAC) More detailed information can be found in document “RM-UPLYNX-E001: Uplynx AT Command GUI and EasyAT User Guide” 6.1 Sigfox Verified AT command The Uplynx-M-RCZ24 is designed to be compliant with the Sigfox uplink specification. The Sigfox VerifiedTM AT command set is a standard deliverable and is used to access the network. For API interface request, please contact our sales representatives. The Uplynx-M-RCZ24 communicates with the host MCU over a UART interface. The UART interface is configured at 9600bps baud rate, 8-bit data, no parity bit, 1 stop bit and no flow control. When the AT command interface is running at startup, the pin STATUS will be pulled high. The following AT commands are supported. Command Description Value AT$302=pwr Set Tx power Pwr = Tx power [14 to 22] AT$302? Get current TX power Return Current transmission power setting AT$400=v1,v2,v3,v4 Set Sigfox configuration word for RCZ2 and RCZ4 settings v1 = config_words_0 v2 = config_words_1 v3 = config_words_2 v4 = default FCC Channel AT$400? Inquire the Sigfox configuration words AT$410=mode Enable Public Key for emulator mode Mode: 0-normal mode; 1- Public key enabled (emulator mode) AT$SB=bitvalue Send a bit value of 0 or 1 Bitvalue = 0/1 AT$SF=frame Send payload data, 1 to 12 bytes Frame: data bytes (0,1,2,3…C,D,E,F) to be sent, 12 byte maximum AT$RC SIGFOX_API_reset AT$ID? Get device ID return ID AT$PAC? Get device PAC return PAC AT$IF=freq Set transmission frequency in Hz e.g. 868000000 AT$IF? Inquire current frequency setting Return frequency in Hz AT$CW= freq, mode Test mode with continuous wave emission Freq: 868000000 mode: 0-disable; 1-enable

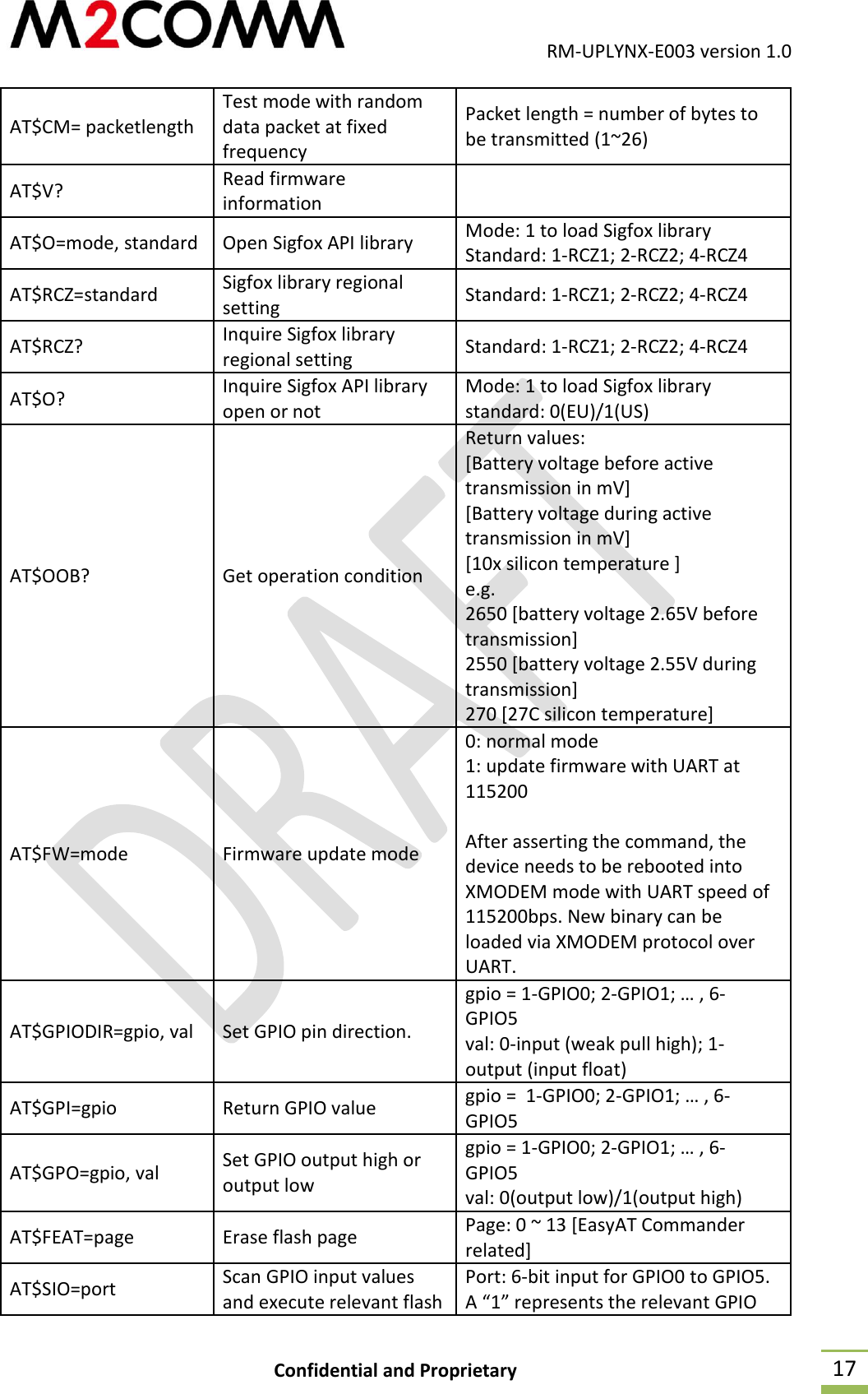

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 17 AT$CM= packetlength Test mode with random data packet at fixed frequency Packet length = number of bytes to be transmitted (1~26) AT$V? Read firmware information AT$O=mode, standard Open Sigfox API library Mode: 1 to load Sigfox library Standard: 1-RCZ1; 2-RCZ2; 4-RCZ4 AT$RCZ=standard Sigfox library regional setting Standard: 1-RCZ1; 2-RCZ2; 4-RCZ4 AT$RCZ? Inquire Sigfox library regional setting Standard: 1-RCZ1; 2-RCZ2; 4-RCZ4 AT$O? Inquire Sigfox API library open or not Mode: 1 to load Sigfox library standard: 0(EU)/1(US) AT$OOB? Get operation condition Return values: [Battery voltage before active transmission in mV] [Battery voltage during active transmission in mV] [10x silicon temperature ] e.g. 2650 [battery voltage 2.65V before transmission] 2550 [battery voltage 2.55V during transmission] 270 [27C silicon temperature] AT$FW=mode Firmware update mode 0: normal mode 1: update firmware with UART at 115200 After asserting the command, the device needs to be rebooted into XMODEM mode with UART speed of 115200bps. New binary can be loaded via XMODEM protocol over UART. AT$GPIODIR=gpio, val Set GPIO pin direction. gpio = 1-GPIO0; 2-GPIO1; … , 6- GPIO5 val: 0-input (weak pull high); 1-output (input float) AT$GPI=gpio Return GPIO value gpio = 1-GPIO0; 2-GPIO1; … , 6- GPIO5 AT$GPO=gpio, val Set GPIO output high or output low gpio = 1-GPIO0; 2-GPIO1; … , 6- GPIO5 val: 0(output low)/1(output high) AT$FEAT=page Erase flash page Page: 0 ~ 13 [EasyAT Commander related] AT$SIO=port Scan GPIO input values and execute relevant flash Port: 6-bit input for GPIO0 to GPIO5. A “1” represents the relevant GPIO

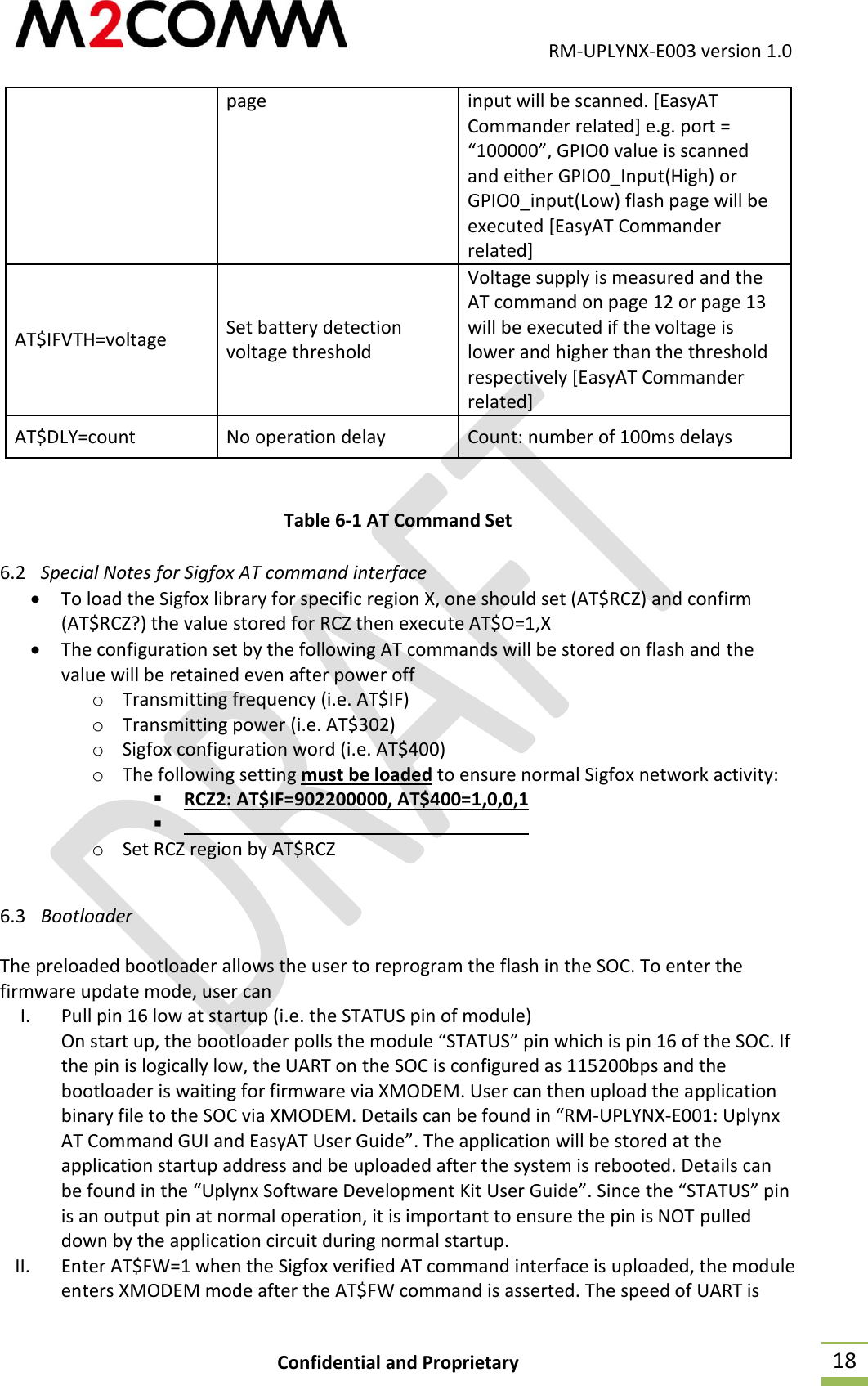

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 18 page input will be scanned. [EasyAT Commander related] e.g. port = “100000”, GPIO0 value is scanned and either GPIO0_Input(High) or GPIO0_input(Low) flash page will be executed [EasyAT Commander related] AT$IFVTH=voltage Set battery detection voltage threshold Voltage supply is measured and the AT command on page 12 or page 13 will be executed if the voltage is lower and higher than the threshold respectively [EasyAT Commander related] AT$DLY=count No operation delay Count: number of 100ms delays Table 6-1 AT Command Set 6.2 Special Notes for Sigfox AT command interface  To load the Sigfox library for specific region X, one should set (AT$RCZ) and confirm (AT$RCZ?) the value stored for RCZ then execute AT$O=1,X  The configuration set by the following AT commands will be stored on flash and the value will be retained even after power off o Transmitting frequency (i.e. AT$IF) o Transmitting power (i.e. AT$302) o Sigfox configuration word (i.e. AT$400) o The following setting must be loaded to ensure normal Sigfox network activity:  RCZ2: AT$IF=902200000, AT$400=1,0,0,1  o Set RCZ region by AT$RCZ 6.3 Bootloader The preloaded bootloader allows the user to reprogram the flash in the SOC. To enter the firmware update mode, user can I. Pull pin 16 low at startup (i.e. the STATUS pin of module) On start up, the bootloader polls the module “STATUS” pin which is pin 16 of the SOC. If the pin is logically low, the UART on the SOC is configured as 115200bps and the bootloader is waiting for firmware via XMODEM. User can then upload the application binary file to the SOC via XMODEM. Details can be found in “RM-UPLYNX-E001: Uplynx AT Command GUI and EasyAT User Guide”. The application will be stored at the application startup address and be uploaded after the system is rebooted. Details can be found in the “Uplynx Software Development Kit User Guide”. Since the “STATUS” pin is an output pin at normal operation, it is important to ensure the pin is NOT pulled down by the application circuit during normal startup. II. Enter AT$FW=1 when the Sigfox verified AT command interface is uploaded, the module enters XMODEM mode after the AT$FW command is asserted. The speed of UART is

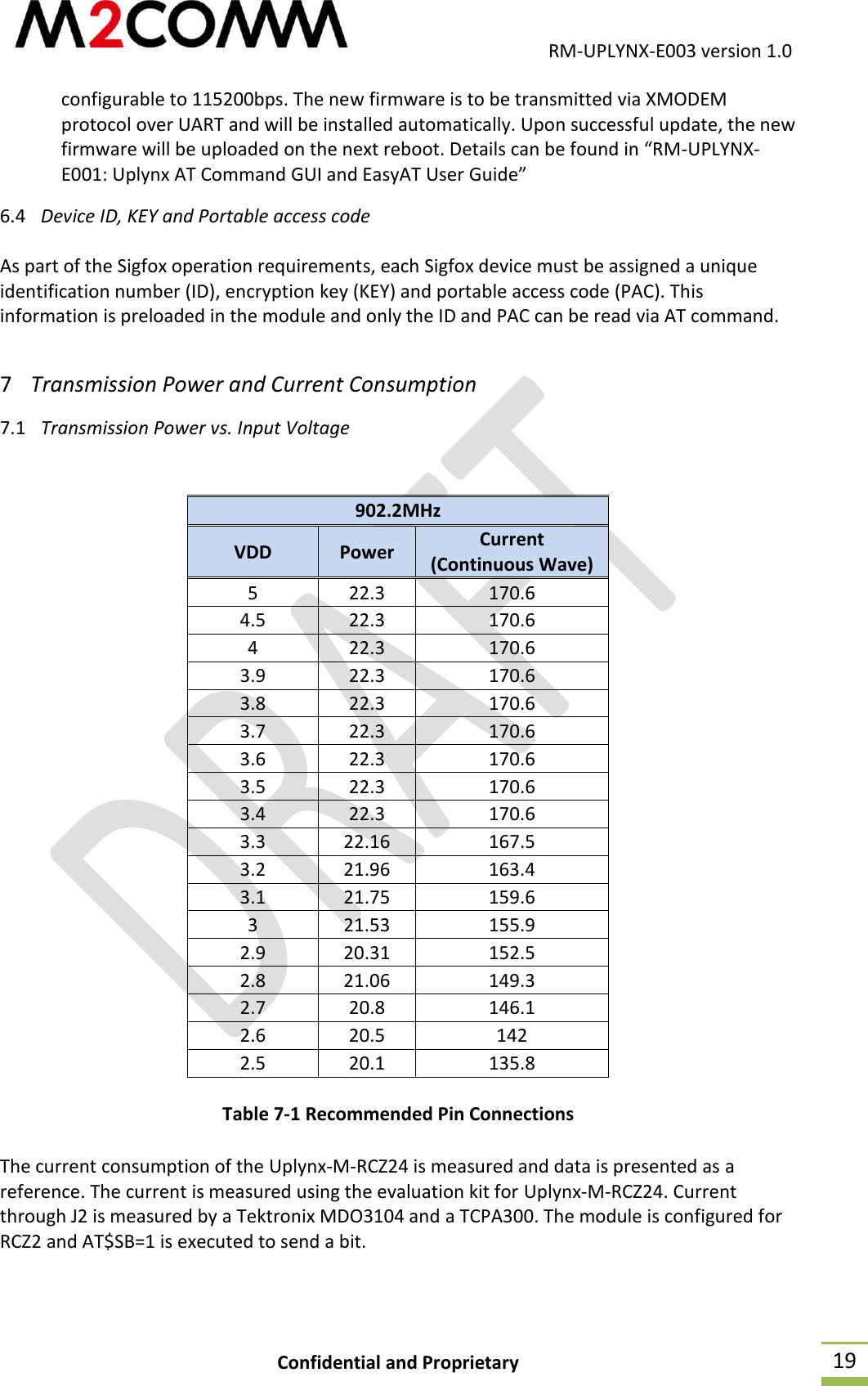

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 19 configurable to 115200bps. The new firmware is to be transmitted via XMODEM protocol over UART and will be installed automatically. Upon successful update, the new firmware will be uploaded on the next reboot. Details can be found in “RM-UPLYNX-E001: Uplynx AT Command GUI and EasyAT User Guide” 6.4 Device ID, KEY and Portable access code As part of the Sigfox operation requirements, each Sigfox device must be assigned a unique identification number (ID), encryption key (KEY) and portable access code (PAC). This information is preloaded in the module and only the ID and PAC can be read via AT command. 7 Transmission Power and Current Consumption 7.1 Transmission Power vs. Input Voltage 902.2MHz VDD Power Current (Continuous Wave) 5 22.3 170.6 4.5 22.3 170.6 4 22.3 170.6 3.9 22.3 170.6 3.8 22.3 170.6 3.7 22.3 170.6 3.6 22.3 170.6 3.5 22.3 170.6 3.4 22.3 170.6 3.3 22.16 167.5 3.2 21.96 163.4 3.1 21.75 159.6 3 21.53 155.9 2.9 20.31 152.5 2.8 21.06 149.3 2.7 20.8 146.1 2.6 20.5 142 2.5 20.1 135.8 Table 7-1 Recommended Pin Connections The current consumption of the Uplynx-M-RCZ24 is measured and data is presented as a reference. The current is measured using the evaluation kit for Uplynx-M-RCZ24. Current through J2 is measured by a Tektronix MDO3104 and a TCPA300. The module is configured for RCZ2 and AT$SB=1 is executed to send a bit.

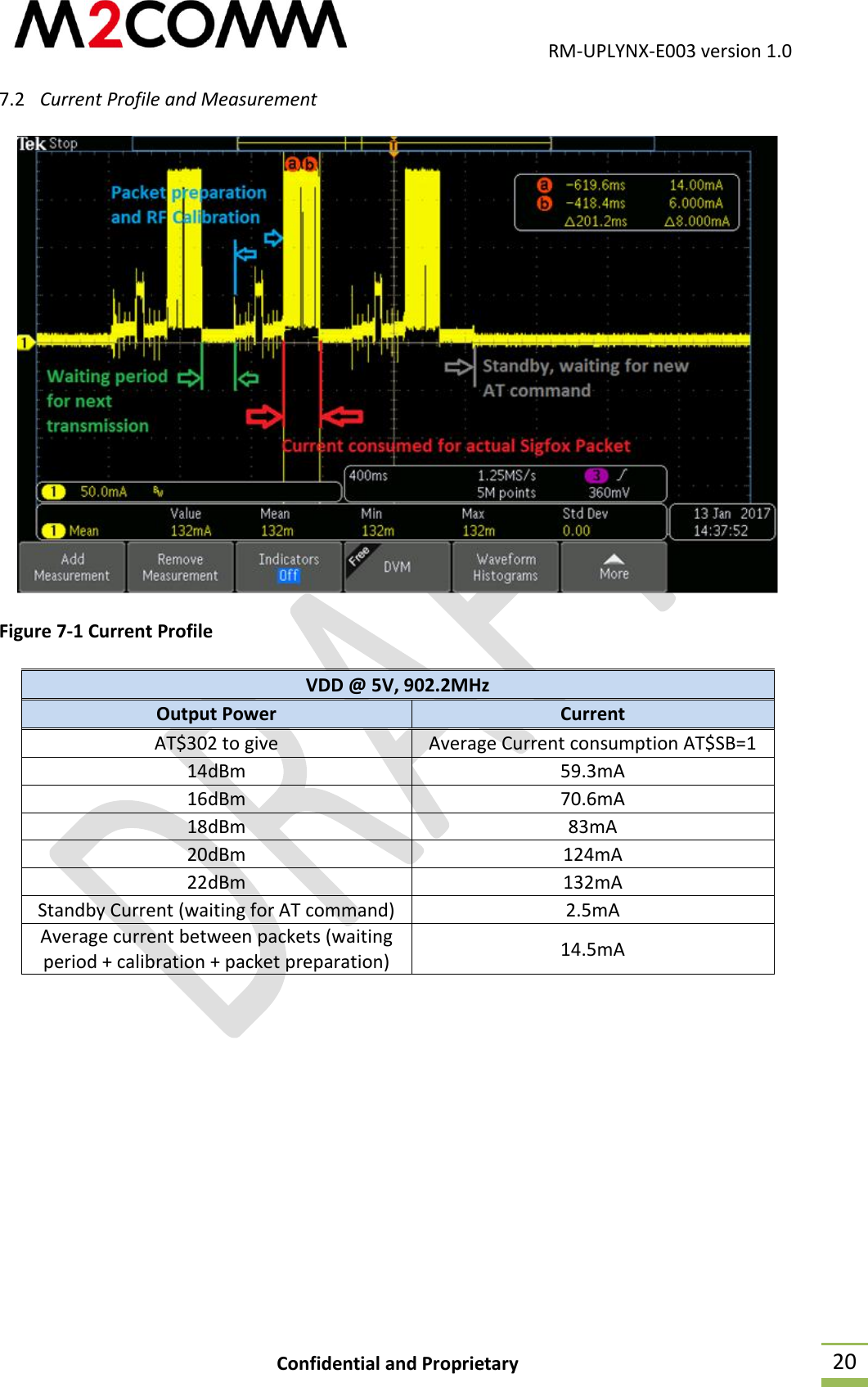

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 20 7.2 Current Profile and Measurement Figure 7-1 Current Profile VDD @ 5V, 902.2MHz Output Power Current AT$302 to give Average Current consumption AT$SB=1 14dBm 59.3mA 16dBm 70.6mA 18dBm 83mA 20dBm 124mA 22dBm 132mA Standby Current (waiting for AT command) 2.5mA Average current between packets (waiting period + calibration + packet preparation) 14.5mA

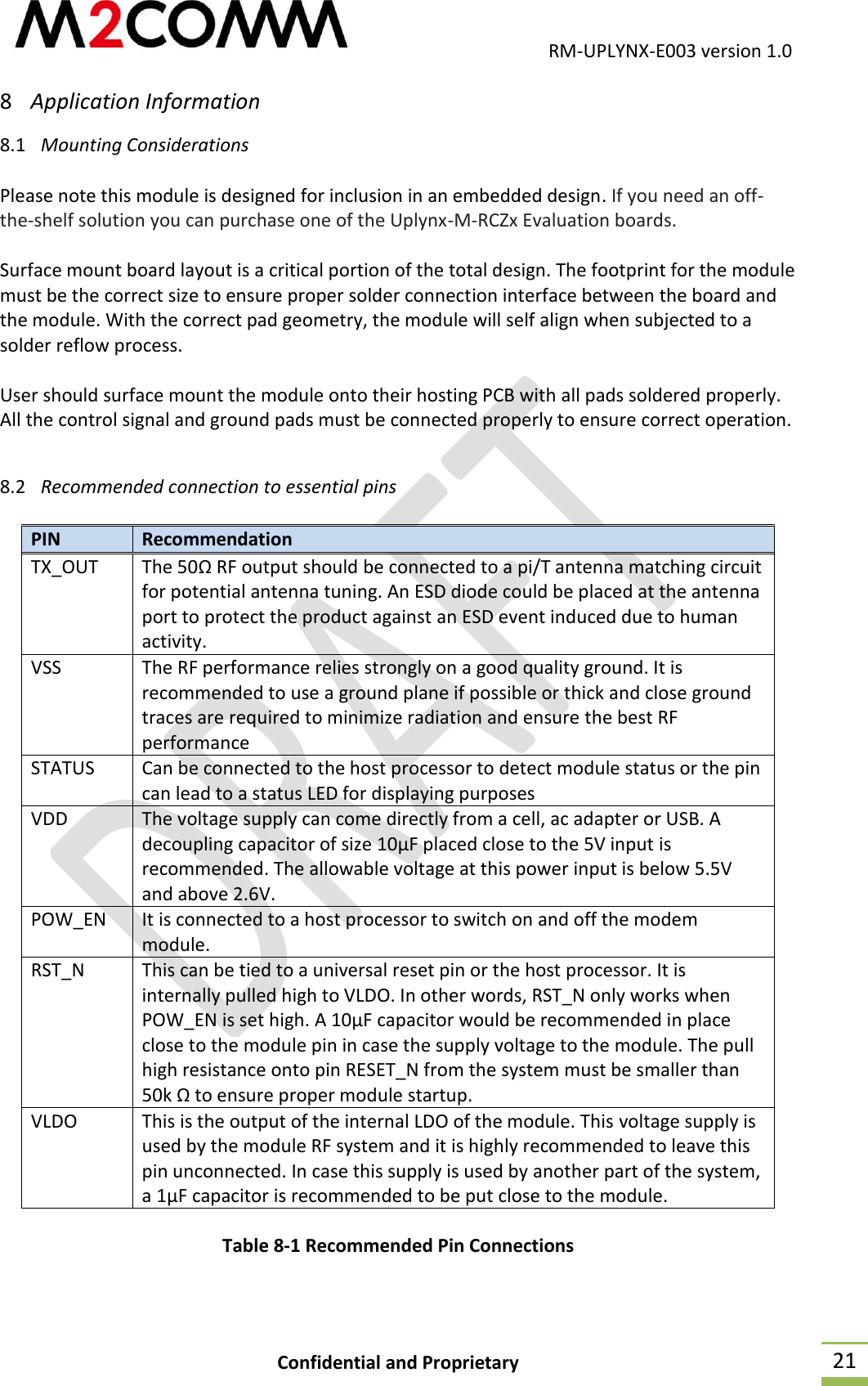

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 21 8 Application Information 8.1 Mounting Considerations Please note this module is designed for inclusion in an embedded design. If you need an off-the-shelf solution you can purchase one of the Uplynx-M-RCZx Evaluation boards. Surface mount board layout is a critical portion of the total design. The footprint for the module must be the correct size to ensure proper solder connection interface between the board and the module. With the correct pad geometry, the module will self align when subjected to a solder reflow process. User should surface mount the module onto their hosting PCB with all pads soldered properly. All the control signal and ground pads must be connected properly to ensure correct operation. 8.2 Recommended connection to essential pins PIN Recommendation TX_OUT The 50Ω RF output should be connected to a pi/T antenna matching circuit for potential antenna tuning. An ESD diode could be placed at the antenna port to protect the product against an ESD event induced due to human activity. VSS The RF performance relies strongly on a good quality ground. It is recommended to use a ground plane if possible or thick and close ground traces are required to minimize radiation and ensure the best RF performance STATUS Can be connected to the host processor to detect module status or the pin can lead to a status LED for displaying purposes VDD The voltage supply can come directly from a cell, ac adapter or USB. A decoupling capacitor of size 10µF placed close to the 5V input is recommended. The allowable voltage at this power input is below 5.5V and above 2.6V. POW_EN It is connected to a host processor to switch on and off the modem module. RST_N This can be tied to a universal reset pin or the host processor. It is internally pulled high to VLDO. In other words, RST_N only works when POW_EN is set high. A 10µF capacitor would be recommended in place close to the module pin in case the supply voltage to the module. The pull high resistance onto pin RESET_N from the system must be smaller than 50k Ω to ensure proper module startup. VLDO This is the output of the internal LDO of the module. This voltage supply is used by the module RF system and it is highly recommended to leave this pin unconnected. In case this supply is used by another part of the system, a 1µF capacitor is recommended to be put close to the module. Table 8-1 Recommended Pin Connections

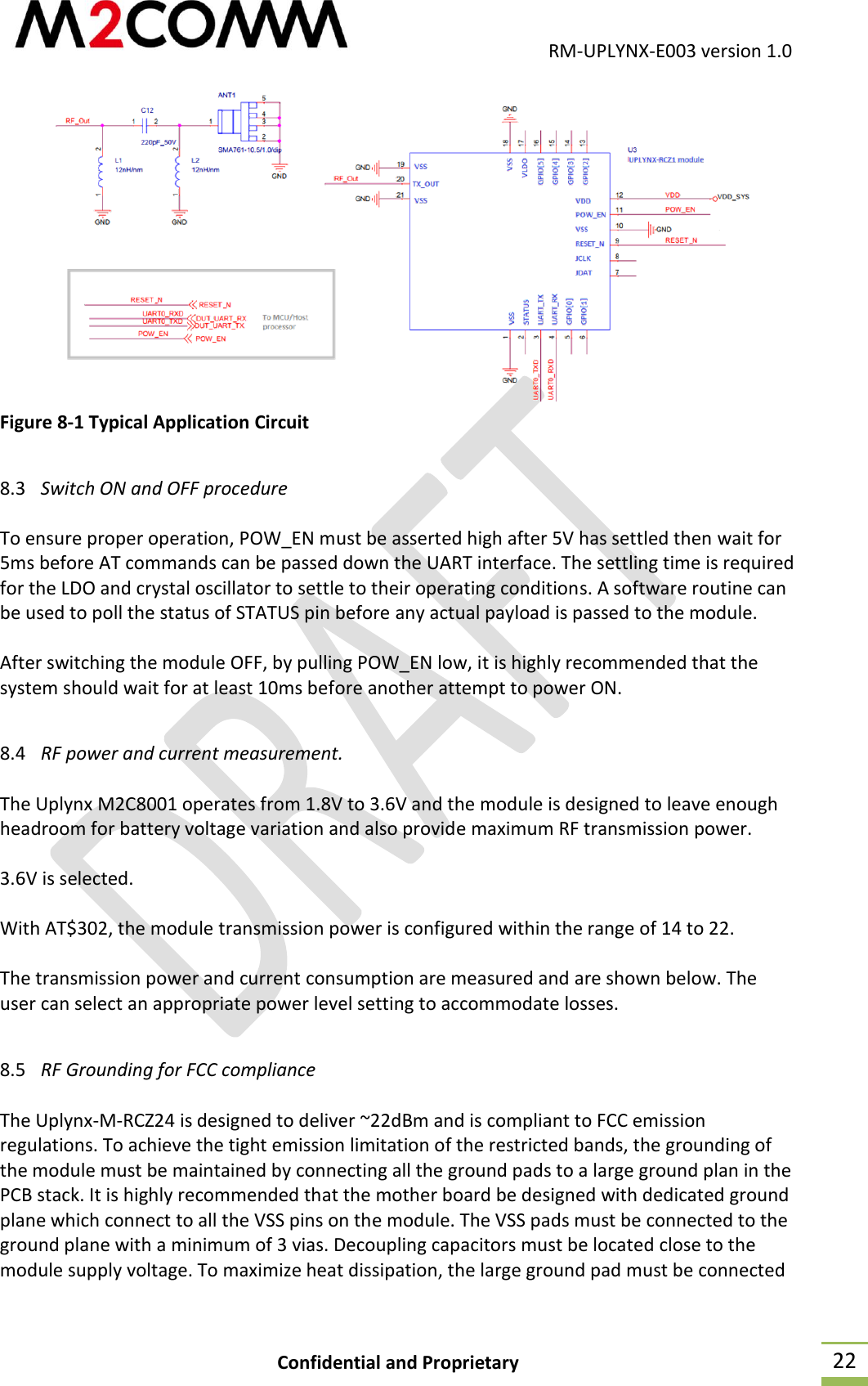

RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 22 Figure 8-1 Typical Application Circuit 8.3 Switch ON and OFF procedure To ensure proper operation, POW_EN must be asserted high after 5V has settled then wait for 5ms before AT commands can be passed down the UART interface. The settling time is required for the LDO and crystal oscillator to settle to their operating conditions. A software routine can be used to poll the status of STATUS pin before any actual payload is passed to the module. After switching the module OFF, by pulling POW_EN low, it is highly recommended that the system should wait for at least 10ms before another attempt to power ON. 8.4 RF power and current measurement. The Uplynx M2C8001 operates from 1.8V to 3.6V and the module is designed to leave enough headroom for battery voltage variation and also provide maximum RF transmission power. 3.6V is selected. With AT$302, the module transmission power is configured within the range of 14 to 22. The transmission power and current consumption are measured and are shown below. The user can select an appropriate power level setting to accommodate losses. 8.5 RF Grounding for FCC compliance The Uplynx-M-RCZ24 is designed to deliver ~22dBm and is compliant to FCC emission regulations. To achieve the tight emission limitation of the restricted bands, the grounding of the module must be maintained by connecting all the ground pads to a large ground plan in the PCB stack. It is highly recommended that the mother board be designed with dedicated ground plane which connect to all the VSS pins on the module. The VSS pads must be connected to the ground plane with a minimum of 3 vias. Decoupling capacitors must be located close to the module supply voltage. To maximize heat dissipation, the large ground pad must be connected
RM-UPLYNX-E003 version 1.0 Confidential and Proprietary 23 to the “mother” PCB. Special care must be paid to the solder mask on the mother board to ensure highest yield. 8.6 Recommended Antenna Vendor Part number Type Taoglas TI.09.B.0151 Dipole antenna Antenova SRF2I019 ISM Flat Patch RF Antenna 9 Certification  Sigfox RCZ24 reference design certification  FCC 10 Order Information Part Number Description UPLYNX-M-RCZ24 Uplynx Sigfox Verified RCZ24 modem module 3.3V UPLYNX-M-RCZ24-1.5V* Uplynx Sigfox Verified RCZ24 modem module 1.5V *Please contact our sales representatives for detail information. Related products Part Number Description UPLYNX-M-RCZ24-EVB Uplynx Sigfox Verified RCZ24 modem Evaluation Kit
