MD Consumer Electric MC-SKW1501 Induction Cooker User Manual
Guangdong MD Consumer Electric Manufacturing Co., Ltd Induction Cooker Users Manual
Contents
User Manual 2
Model: MC-ESH13L
Manual of Multi-function lnduction Cooker
Thank you for purchasiong the Midea induction cooker. Please this instuction
manual carefullybefore using and keep it cautiously in order to refer to in future
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS .................................................................. 1
AD DITIONAL SAFEGUARS ................................................................ 2
Product Introduction ............................................................................... 3
Designations of parts ............................................................................. 3
Performance Parameters ....................................................................... 3
Operation Instructions ............................................................................ 3
Suitable cookware .................................................................................. 5
Cleaning and Maintenance ..................................................................... 5
Trouble shooting ..................................................................................... 6
Special Declaration ................................................................................. 6
IMPORTANT SAFEGUARDS
1. Read all instructions before use the induction cooker.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs in water or
other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair,
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an applian ce containing hot oil
or other hot liquids.
12. Do not use appliance for other than intended use.
When using electrical appliances, basic safety precautions should always be
followed including the following:
1
13. WARNING To prevent electric shock, unplug before cleaning.
14. This appliance has polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit into a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician, Do not attempt to
modify the plug in any way.
15. Do Not cook on broken-Top If cook-top should break, cleaning solution and
spillovers may penetrate the broken cook-top and create a risk electric shock.
16. Metallic objects such as knives, forks, spoons and lids should not be placed
on the plate to avoid this vessel to heat.
17. Any other servicing should be performed by an authorized services representative.
18. If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
19. The appliances are not intended to be operated by means of an external timer
or separate remote-control system.
20. The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety;
21. Children should be supervised to ensure that they do not play with the appliance.
Save These Instructions.
1. A short power-supply cord should be used to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
2. Longer extension cords are available and may be used if care is
exercised in their use.
3. If a longer extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be
at least as great as the electrical rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally.
AD DITIONAL SAFEGUARDS
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR
IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
2
Product Introduction
Midea MC-ESH13L series multi-functional induction cookers, with micro-
computerized control and complete functions, are able to meet various
kinds of cuisine demands by electromagnetic heating, really the optimal
choice.
Performance Parameters
Model Applied
voltage/frequency
Rated
power
Dimension
(mm)
Weight
(kg)
MC-ESH13L 110-120V～ 60Hz 1300W 350*290*60 2.55
Designations of parts
Operation Instructions
1. Put the pot on the hotplate.
Put the pot in the center of the ceramic plate. Please note that it is in the
midpoint.
Affirm the air vent and air entry without any jam, without any metallic
objects all around.
Supply cord
Ceramic plate
adjust the firepower
by revolve the knob
Air entry
Airvent
3
2. Plug in
After the power supply is connected, the buzzer sounds, The LED indicator
lamp flickers and display "-", indicating that the unit is in a state of power off.
3. Power on:
Flip the control knob, the buzzer sounds. The LED display “0”, indicating
that the unit is in a state of standby.
4. Heating:
Revolve the control knob switch to right, when the unit is in a state of
standby, the buzzer sounds , the LED display hyper-0, the induction cooker
start the heating.
You can adjust the power level by revolve the control knob switch to left
or right.
The LED display 0-6 shows the level of heating.
When the unit is in the heating state, revolve the control knob switch to left
until the LED display “0”, the unit will exit the heating mode and return the
state of standby.
5. Timer:
The have 2 kinds of timer: manual and default.
When the unit is heating, if you set the time without use manual or set the
time for 0, the unit can use default timer.
When the unit is heating, press the “+” or “-“ key can enter the “Timer” mode,
the original timer is 30mins, you can increase or decrease the time 1 minute
by pressing the “+” or “-“ key once, If you hold “+” or “-“ key ,the time can
increase or decrease 10 minutes. The range of timer: 0-99 minutes.
Under the timer state, if you have not press the “+” or “-“ key within 5
seconds, the unit will set the time count down.
Under the timer state, you can cancel the time function by set the time to 0.
Under the timer state, if you wish to re-set the time, you can press the “+”
or “-“ key to enter the timer state.
The induction cooker will turn-off automatically when the timer runs out.
The buzzer sounds.
6. Shut down
After using, press the knob, the unit will stop heating.
Heating level
Defalut time for
turn off(hours)
1 2 3 456
2 2 2 222
4
Suitable cookware
Iron oil frying
pan
Stainless steel por Iron pan Iron kettle
Iron pIateEnamel cooking
utensil
Enamel stainless
steel kettle
1. Please use the pots sold along with the unit by recommend. It is better
not to use other alternatives so as to avoid any unfavorable influence
on the operational performance. If using other pots, please observe the
following conditions:
Requirement for pot materials: containing magnetic inducting materials;
Shape requirement: plat bottom, with the diameter within the range of
12 cm and 18 cm.
2.
4.
After first use, some white spots would appear at the bottom of the pot.
This is normal. Please pour some vinegar into the pot, heat it at about
60-80℃, then wipe the spots away with brush.
3. The induction cooker can identify mostly pot except the non-magnetism
steels.
If the have no cookerware or the unsuitability cookerware. The buzzer
sounds about 10 seconds, it will turn off.
Cleaning and Maintenance
Please pull out the plug and wait the remain heat is cool before maintenance.
1. Ceramic panel and control panel
Slight stains: Please wipe off plate with soft moistened cloth .
Tough stains: Please clean with soft moistened cloth dipped in little
toothpaste or neutral liquid cleaner and clean with soft moistened cloth
until no residue exists.
During the cleaning, never clean the cooker surface with a rigid brush.
2. The induction cooker body shall be cleaned lightly with soft dry cloth.
The dust around the air entry and air outlet can be cleaned with a
flexible brush or cleaner.
5
Trouble shooting
1. Power cord replacement
If the supply cord is damaged, it must be repaired by the manufacturer or
authorized service agent.
2. Trouble shooting
6

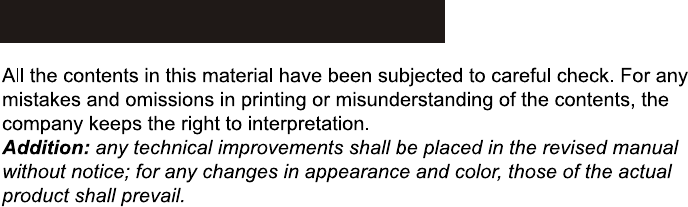

Special Declaration
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits
for Class B ISM equipment, pursuant to Part 18 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: - Reorient or
relocate the receiving antenna. - Increase the separation between the
equipment and receiver. - Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected. - Consult the
dealer or an experienced radio TV technician for help.
