MEERA MTNTBDUO 7inch Tablet PC User Manual

MEERA INTERNATIONAL LIMITED 7inch Tablet PC

Contents

User Manual

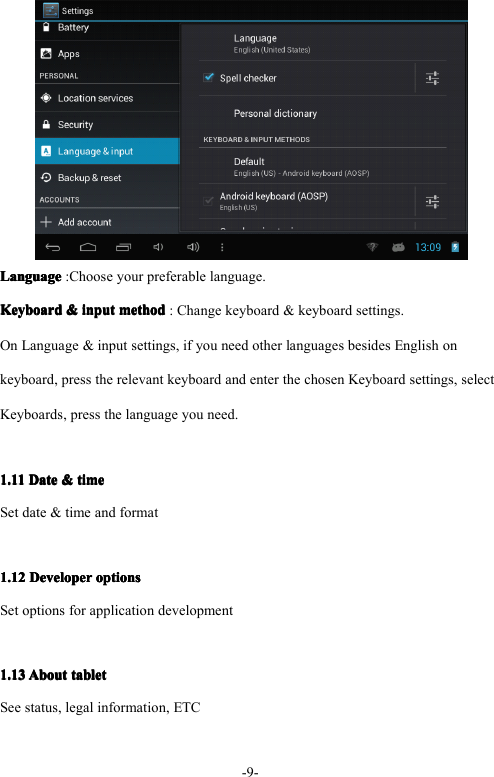

- 9 -LanguageLanguageLanguageLanguage : Choose your preferable language.KeyboardKeyboardKeyboardKeyboard &&&& inputinputinputinput methodmethodmethodmethod : Change keyboard & keyboard settings.On Language & input settings, if you need other languages besides English onkeyboard, press the relevant keyboard and enter the chosen Keyboard settings, selectKeyboards, press the language you need.1.111.111.111.11 DateDateDateDate &&&& timetimetimetimeSet date & time and format1.121.121.121.12 DeveloperDeveloperDeveloperDeveloper optionsoptionsoptionsoptionsSet options for application development1.131.131.131.13 AboutAboutAboutAbout tablettablettablettabletSee status, legal information, ETC

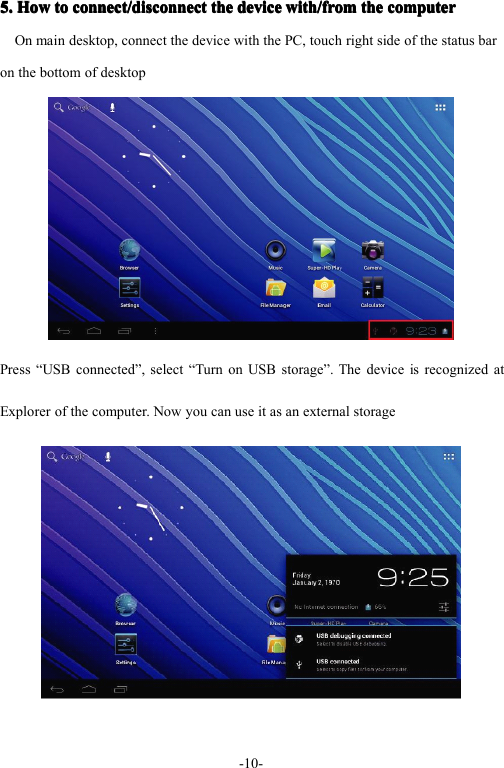

- 10 -5.5.5.5. HowHowHowHow totototo connect/disconnectconnect/disconnectconnect/disconnectconnect/disconnect thethethethe devicedevicedevicedevice with/fromwith/fromwith/fromwith/from thethethethe computercomputercomputercomputerOn main desktop, connect the device with the PC, touch right side of the status baron the bottom of desktopPress “ USB connected ” , select “ Turn on USB storage ” . The device is recognized atExplorer of the computer. Now you can use it as an external storage
- 11 -After finishing your work, press “ Turn off USB stotage ” to unmount it.6.6.6.6. HowHowHowHow totototo installinstallinstallinstall Applications(.apkApplications(.apkApplications(.apkApplications(.apk file)file)file)file) intointointointo thethethethe devicedevicedevicedeviceMethodMethodMethodMethod 1.1.1.1.1. Connect the device with internet. See above [1.Wireless & networks] in orderto connect internet.2. Run “ Getjar ” and search the applications you want to install.3. Follow the instruction on the screen for installation.MethodMethodMethodMethod 2.2.2.2.1. On your computer, search application file(.apk)that you want to install into thedevice2. Download the file(.apk) into your computer3. Connect the device with your computer.

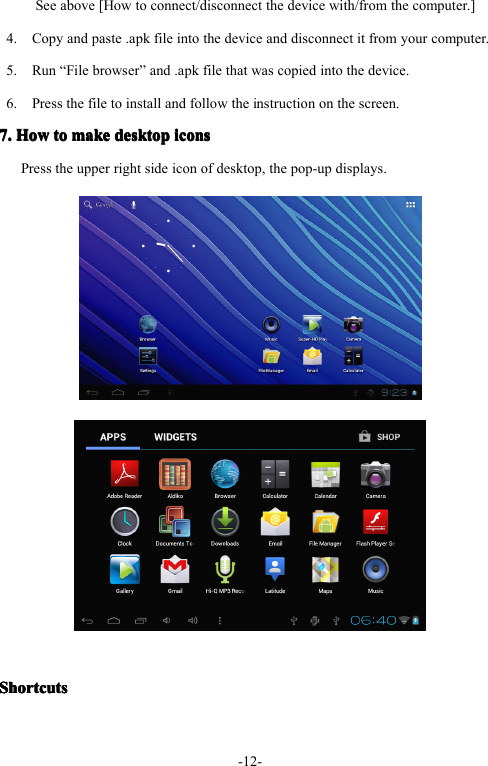

- 12 -See above [How to connect/disconnect the device with/from the computer.]4. Copy and paste .apk file into the device and disconnect it from your computer.5. Run “ File browser ” and .apk file that was copied into the device.6. Press the file to install and follow the instruction on the screen.7.7.7.7. HowHowHowHow totototo makemakemakemake desktopdesktopdesktopdesktop iconsiconsiconsiconsPress the upper right side icon of desktop, the pop-up displays.ShortcutsShortcutsShortcutsShortcuts

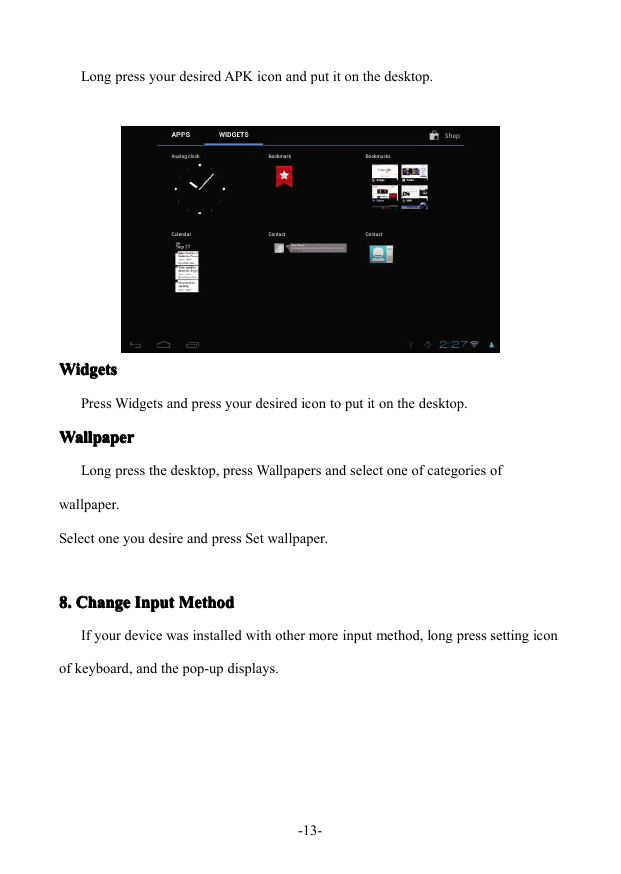

- 13 -Long press your desired APK icon and put it on the desktop.WidgetsWidgetsWidgetsWidgetsPress Widgets and press your desired icon to put it on the desktop.WallpaperWallpaperWallpaperWallpaperLong press the desktop, press Wallpapers and select one of categories ofwallpaper.Select one you desire and press Set wallpaper.8.8.8.8. ChangeChangeChangeChange InputInputInputInput MethodMethodMethodMethodIf your device was installed with other more input method, long press setting iconof keyboard, and the pop-up displays.

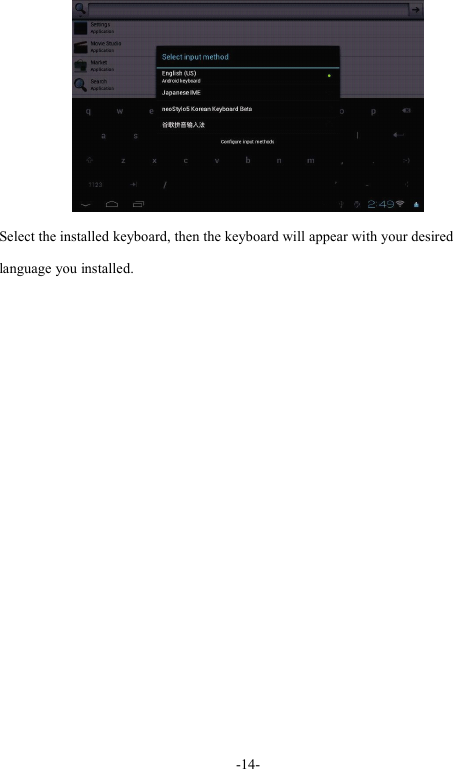

- 14 -Select the installed keyboard, then the keyboard will appear with your desiredlanguage you installed.

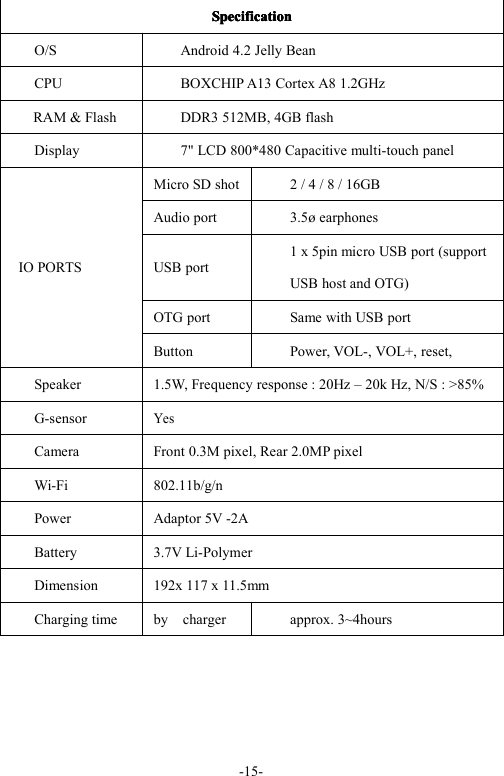

- 15 -SpecificationSpecificationSpecificationSpecificationO / S Android 4. 2 Jelly BeanCPU BOXCHIP A13 Cortex A8 1.2GHzRA M & Flash DDR3 512MB , 4GB flashDisplay 7" LCD 800*480 Capacitive multi- touch panelIO PORTSMicro SD shot 2 / 4 / 8 / 16GBAudio port 3.5 ø earphonesUSB port1 x 5pin micro USB port (supportUSB host and OTG)OTG port Same with USB portButton Power, VOL-, VOL+, reset,Speaker 1.5W, Frequency response : 20Hz – 20k Hz, N/S : >85%G-sensorYesCamera Front 0.3M pixel , Rear 2.0MP pixelWi-Fi 802.11b/g/nPower Adaptor 5V -2ABattery 3.7V Li-PolymerDimension 192 x 117 x 1 1.5 mmCharging time by charger approx. 3~4hours

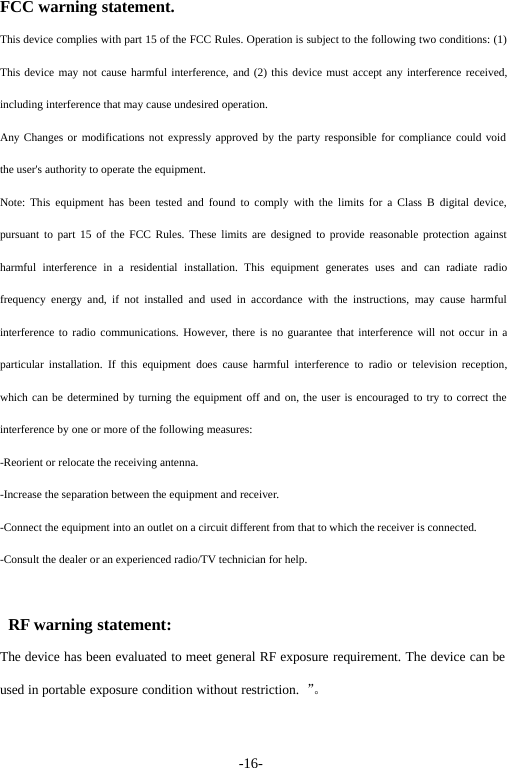

-16-FCC warning statement.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposure requirement. The device can beused in portable exposure condition without restriction. ”。
