MERIT TECHNOLOGY MT-202-1 2 CH 2.4 GHz FHSS RADIO CONTROL SYSTEM User Manual MT 202
SHANGHAI MERIT TECHNOLOGY CORP. 2 CH 2.4 GHz FHSS RADIO CONTROL SYSTEM MT 202
User Manual
![](/img.php?id=3990477&img=bg1.png)
1
1
2
3

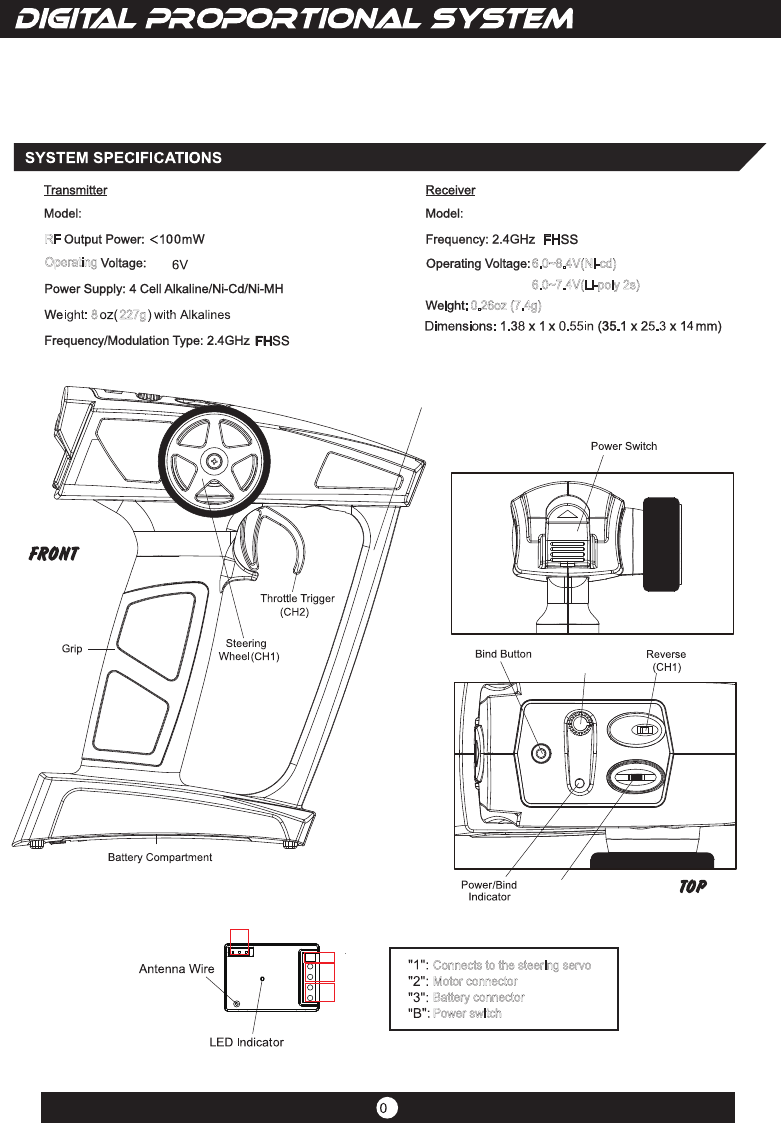

B
Steering Dual Rate
Lever (D/R)
Steering Trim
Lerer (CH1)
Connects to the steering servo
Motor connector
Battery connector
Power switch
CONNECTION
MT-202
MT-202
227g
Operating
RF
6.0~8.4V(Ni-cd)
Antenna (Built in)
6.0~7.4V(Li-poly 2s)
0.26oz (7.4g)
8
MR-202
2CH 2.4GHZ FHSS RADIO CONTROL SYSTEM
DC
![](/img.php?id=3990477&img=bg2.png)
2
MT-202
:
1.CH1(Steering) Trim:
Steering neutral adjustments can be made by moving the steering trim lever to the left or right.
When you install a servo, always check to be sure the servo is at its neutral position. Adjust the servo horn position
and linkage so both are parallel. Be sure the steering trim on the transmitter is at the neutral position.
2.CH1(Steering Dual-Rate)D/R:
Use this function to adjust the steering travel of your model. If the model understeers while cornering, add steering by
rotating the CW side of the D/R knob. When the model oversteers, take away steering by rotating the C.CW side of the
D/R knob.
3.CH1(Steering)Reverse:
If the servo operate in the opposite direction,moving the reverse lever
for the servo reversing.
4.Low Battery Indicator:
If the transmitter battery voltage drops below 4.2V the LED will be flashed.
MR-202:Receiver+ESC for 1/18 Car
1.CH1(Steering)Output:Connect the servo for steering operation.
2.Battery connector: Connects to the battery.Red is plus+,Black is minus-. For Ni-cd battery 5~7cells(6.0~8.4V) or
Lithium-Poly battery 2S(7.4V)
3.Motor connector:Connect to the motor.
4.CH2(Throttle) Operation:Forward 、reverse and brake are all linear.
When switched to reverse operation just returning the throttle trigger from the brake position to the neutral position.
5.Low-battery&Heat protection:When the battery voltage drops below 5.5V or the FET are over heat,the motor will shut
off and the LED will be rapid flash.
MT-202&MR-202 Bind:
Binding Process
1.Turn the transmitter power on while pressing the bind sw.
2.The transmitter Red LED will flashing for 20 seconds.
3.Plug the battery into the MR-202, then turn on the power while the transmitter LED is flashing.
4.When the LED on the receiver unit is steady light ,binding is complete.
5.When the binding procedure is successful, the LED on the receiver will stay solid red when both the transmitter and
receiver are turned on.
TX LED Display
LED ON:Power on
LED Rapid Flash:Battery low
LED Slow Flash:Bind mode
RX LED Display
LED OFF:Indicates that the power is off or no signal reception
LED ON:Receiving signals
LED Rapid Flash:Battery low or heat protector is detected.
