META System S p A T2PLUS OBD device (On Board Diagnostic device) with Bluetooth 4.0 low energy User Manual 5040XXXXXX Ist Mon T 2 EN indd
META System S.p.A. OBD device (On Board Diagnostic device) with Bluetooth 4.0 low energy 5040XXXXXX Ist Mon T 2 EN indd
User Manual
T.2+ INSTALLATION MANUAL EN
5040XXXXXX

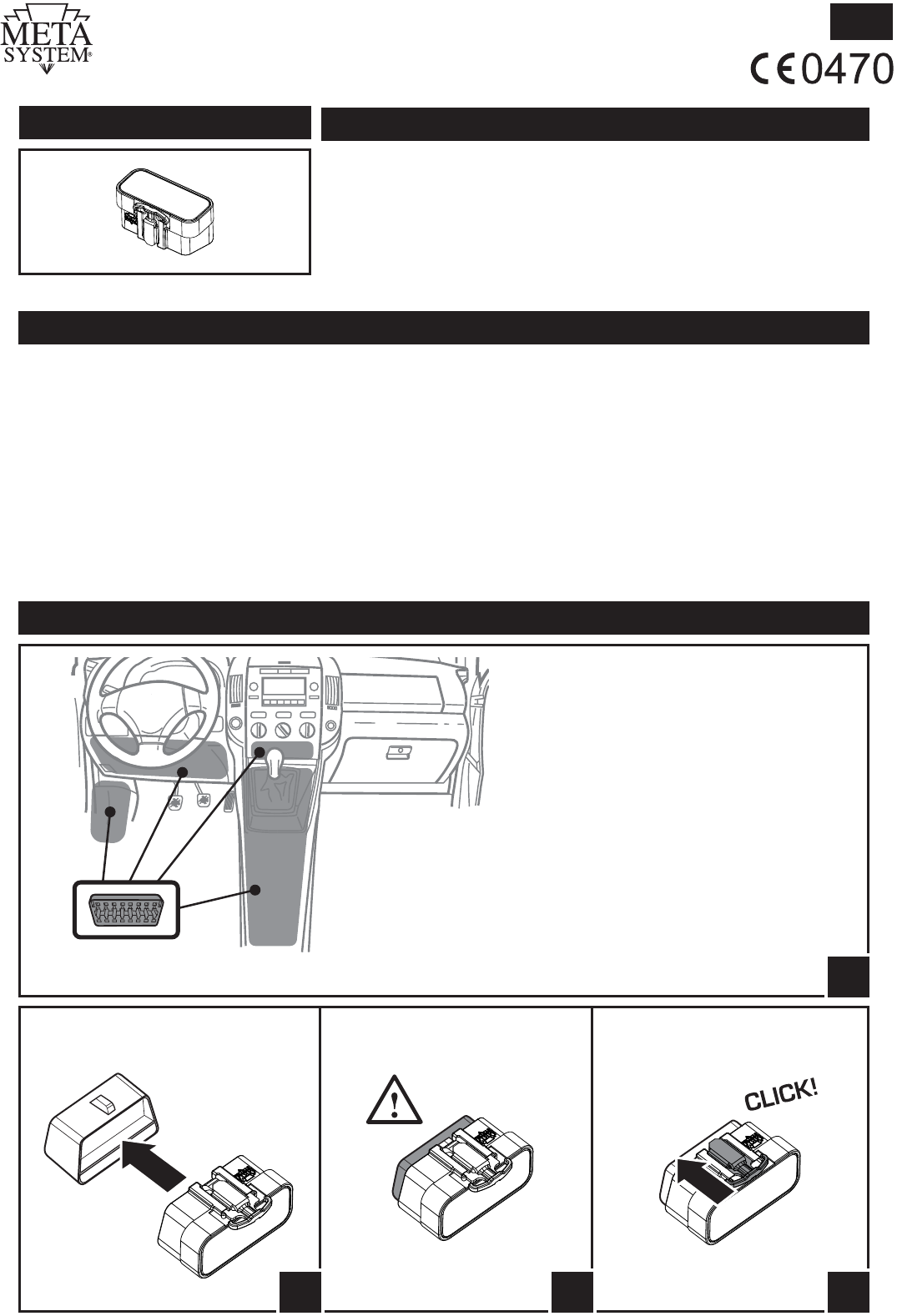

KIT COMPOSITION
INSTALLATION
Power Supply: ..................................................................................12Vdc (9V-14V)
Working temperature: ..........................................................from -30°C to +80°C
IP: .....................................................................................................................................40
Application classi cation: ...........................................passenger compartment
TECHNICAL SPECIFICATIONS
WARNINGS
• ALL INSTALLATION OPERATIONS MUST BE CARRIED OUT WITH THE MOTOR OFF.
• Before starting installation, detect the OBD port location referring to the use and maintenance manual of the
vehicle.
• If the OBD connector should be used for other purpose, such as maintenance, remove T2+ and, after tempo-
rary operation, reconnect the T2+ to OBD connector.
• Strictly comply with operations indicated in this manual.
• Installation sta are not authorised to remove warranty seals and/or access the inside of the product.
• The device must be connected to OBD port on board to the vehicle, provided with protected power supply
by means a 5 A fuse maxiumum activation current.
• The manufacturer assumes no responsibility for damages caused to property and/or people, caused
by the incorrect installation of the product.
TELEMATIC CONTROL UNIT
1
2c2b
OBD PORT
By using user manual of the vehicle nd
the OBD connector on your car.
Typically OBD plug can be located:
• near the breaks unit
• near the fuse box
• under the dashboard
• in the middle console
Plug the connector into the vehi-
cle’s OBD.
Lock the Secondary Lock to se-
cure the device.
2a
Check that the device is fully
connected and does not unlock.
Hereby, Meta System S.p.A., declares that this T.2+ is in compliance with the essential requirements and other
relevant provisions of Directive R&TTE (1999/5).
The declaration of conformity may be consulted at http://docs.metasystem.it
APPROVAL
REMOVING THE PRODUCT
3b
The instructions in this manual do not refer to speci c vehicle models but apply to all vehicles in general. Any
information provided by Meta System regarding a type (model) of vehicle is to be considered purely indicative.
Installation, positioning, product securing and electrical connections, and possibly the removal, must be carried
out in a workmanlike manner on each motor vehicle. The installer is obliged to and bears responsibility for ca-
refully verifying the individual vehicle model on which operations are carried out. Failure to comply with that
stipulated above can render the warranty of the device null and void.
STANDARDS APPLICABLE TO THE VEHICLE
3a
Unlock the Secondary Lock to release the device. Remove the device.
LEGENDA
: Identi cation number of identify body.
: Direct current of power supply.
: Conformity mark to European certi cation.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired
operation.
Changes or modi cations not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC APPROVAL
