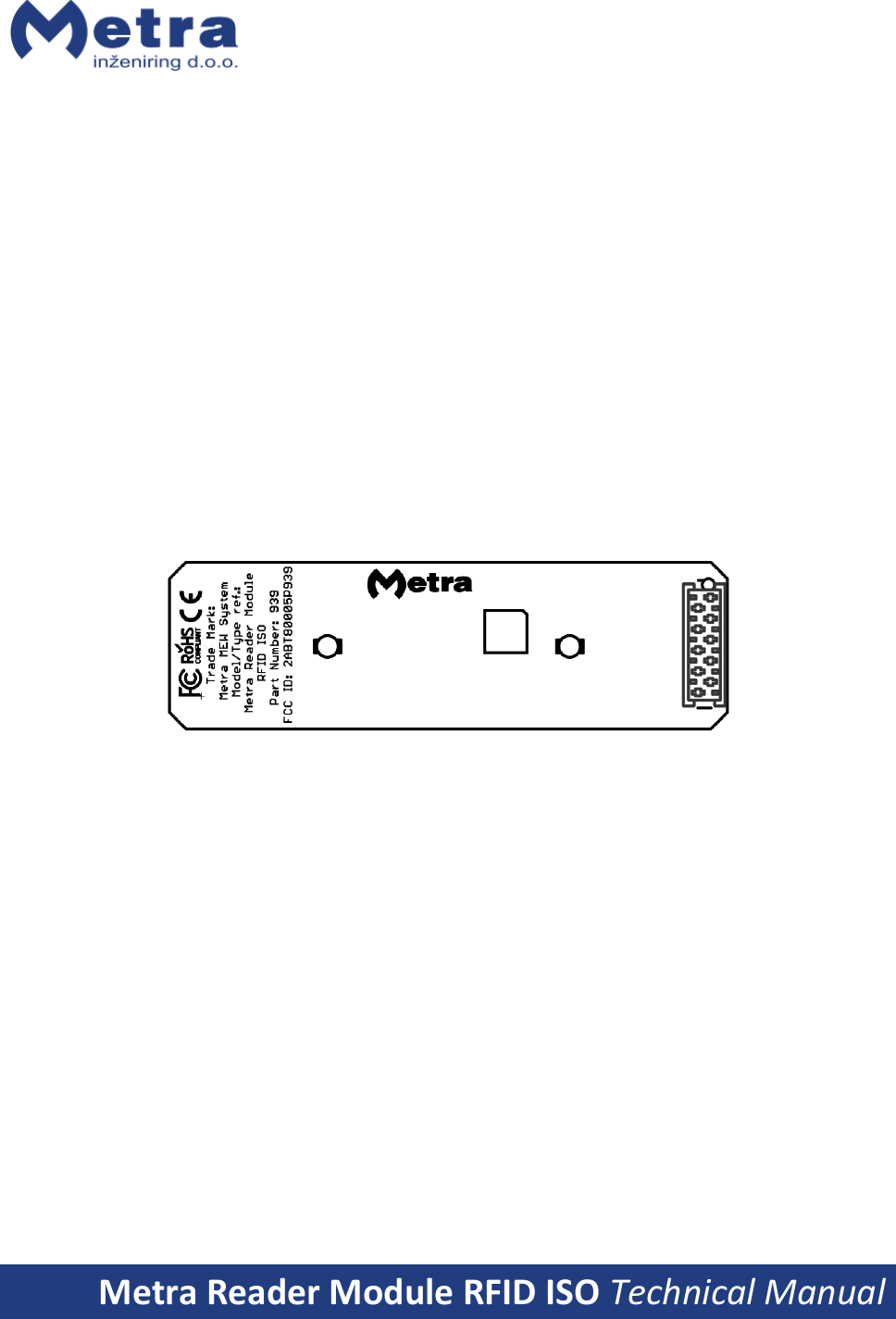

METRA INZENIRING D.O.O Metra Reader Module RFID ISO Technical Manual

Technical Manual

           Metra Reader Module RFID ISO Technical Manual

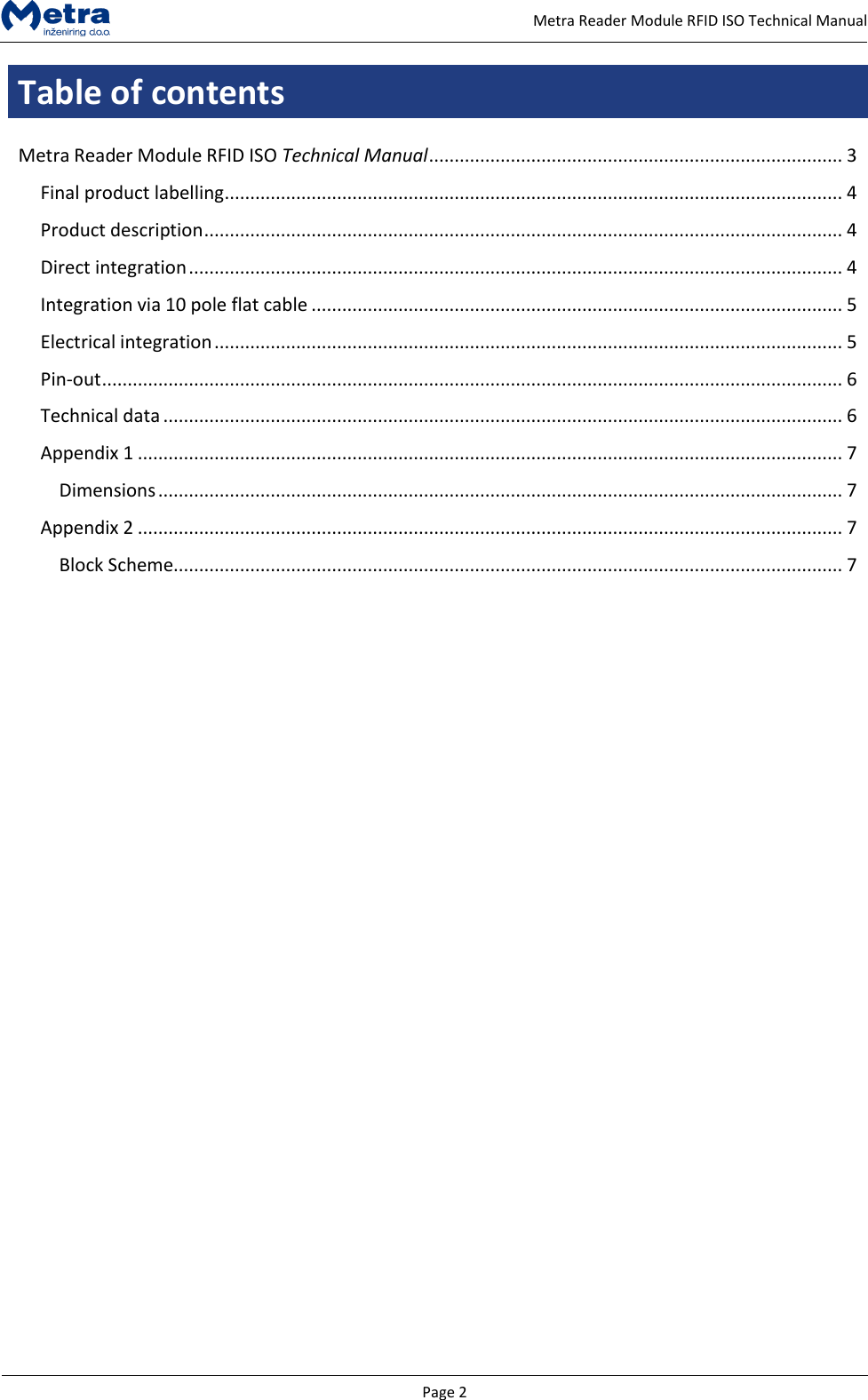

  Page 2     Metra Reader Module RFID ISO Technical Manual Table of contents  Metra Reader Module RFID ISO Technical Manual ................................................................................. 3 Final product labelling ......................................................................................................................... 4 Product description ............................................................................................................................. 4 Direct integration ................................................................................................................................ 4 Integration via 10 pole flat cable ........................................................................................................ 5 Electrical integration ........................................................................................................................... 5 Pin-out ................................................................................................................................................. 6 Technical data ..................................................................................................................................... 6 Appendix 1 .......................................................................................................................................... 7 Dimensions ...................................................................................................................................... 7 Appendix 2 .......................................................................................................................................... 7 Block Scheme................................................................................................................................... 7

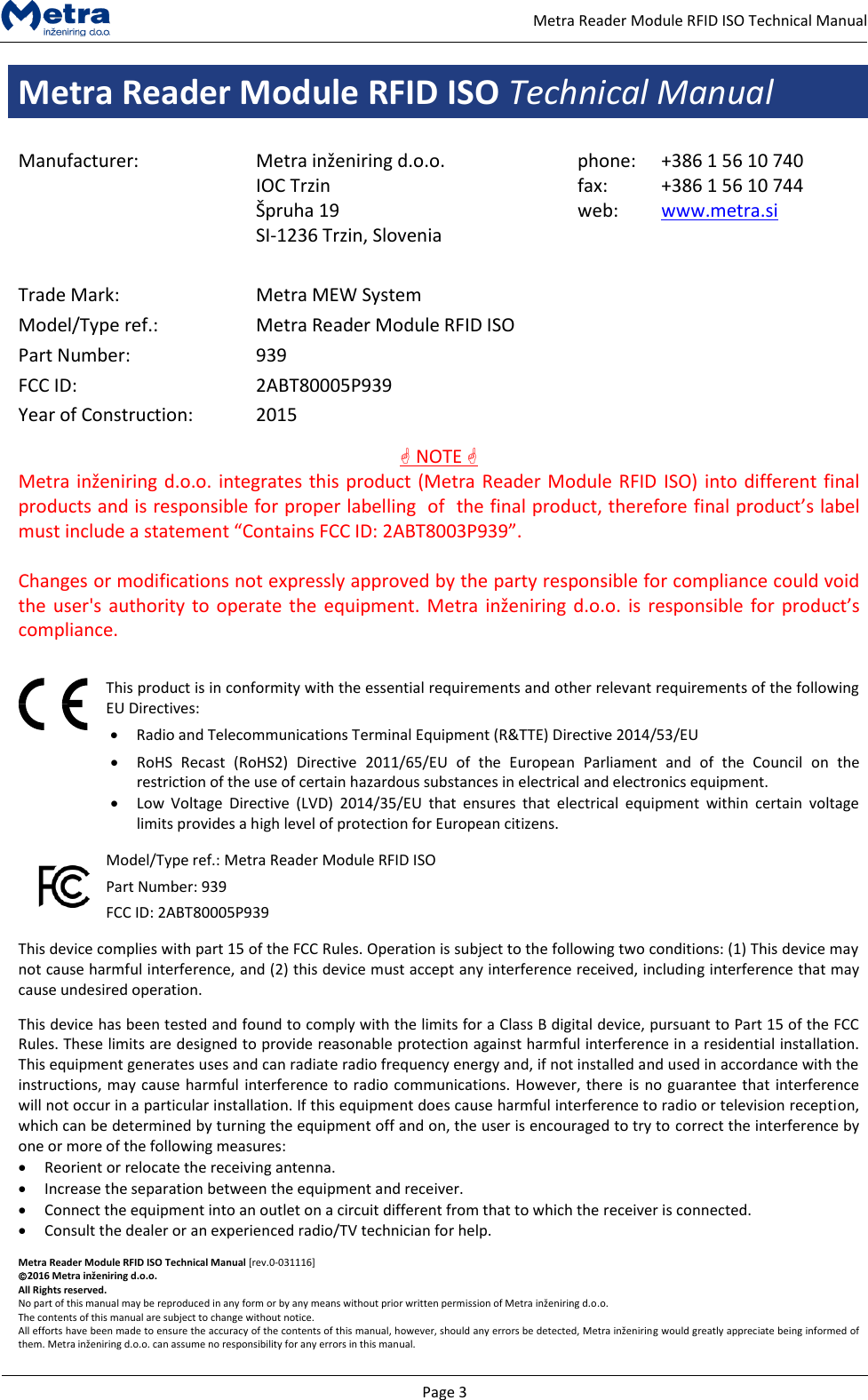

  Page 3     Metra Reader Module RFID ISO Technical Manual Metra Reader Module RFID ISO Technical Manual  Manufacturer: Metra inženiring d.o.o. IOC Trzin  Špruha 19 SI-1236 Trzin, Slovenia phone: fax: web: +386 1 56 10 740 +386 1 56 10 744 www.metra.si    Trade Mark: Metra MEW System Model/Type ref.: Metra Reader Module RFID ISO Part Number: 939 FCC ID: 2ABT80005P939 Year of Construction: 2015  NOTE  Metra inženiring d.o.o. integrates this product (Metra Reader Module RFID ISO) into different final  products and is responsible for proper labelling  of  the final product, therefore final product’s label  must include a statement “Contains FCC ID: 2ABT8003P939”.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's  authority to operate the equipment. Metra inženiring d.o.o. is responsible for product’s compliance.    This product is in conformity with the essential requirements and other relevant requirements of the following EU Directives:  Radio and Telecommunications Terminal Equipment (R&TTE) Directive 2014/53/EU  RoHS  Recast  (RoHS2)  Directive  2011/65/EU  of  the  European  Parliament  and  of  the  Council  on  the restriction of the use of certain hazardous substances in electrical and electronics equipment.  Low  Voltage  Directive  (LVD)  2014/35/EU  that  ensures  that  electrical  equipment  within  certain  voltage limits provides a high level of protection for European citizens.  Model/Type ref.: Metra Reader Module RFID ISO Part Number: 939 FCC ID: 2ABT80005P939  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   Consult the dealer or an experienced radio/TV technician for help.  Metra Reader Module RFID ISO Technical Manual [rev.0-031116] 2016 Metra inženiring d.o.o. All Rights reserved. No part of this manual may be reproduced in any form or by any means without prior written permission of Metra inženiring d.o.o. The contents of this manual are subject to change without notice. All efforts have been made to ensure the accuracy of the contents of this manual, however, should any errors be detected, Metra inženiring would greatly appreciate being informed of them. Metra inženiring d.o.o. can assume no responsibility for any errors in this manual.

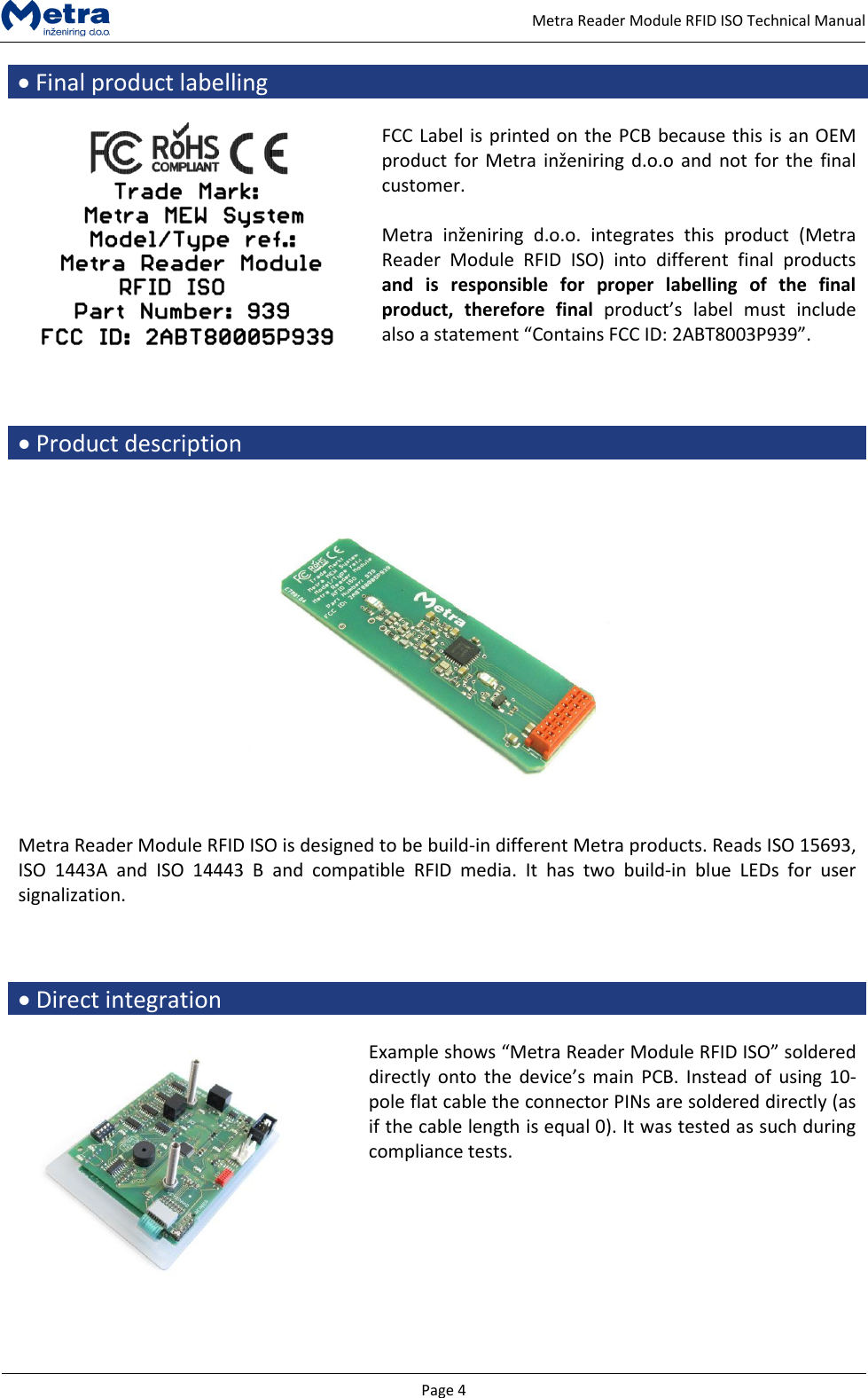

  Page 4     Metra Reader Module RFID ISO Technical Manual  Final product labelling   FCC Label is printed on the PCB because this is an OEM product for Metra inženiring d.o.o  and not  for the final customer.  Metra  inženiring  d.o.o.  integrates  this  product  (Metra Reader  Module  RFID  ISO)  into  different  final  products and  is  responsible  for  proper  labelling  of  the  final product,  therefore  final product’s  label  must  include also a statement “Contains FCC ID: 2ABT8003P939”.     Product description   Metra Reader Module RFID ISO is designed to be build-in different Metra products. Reads ISO 15693, ISO  1443A  and  ISO  14443  B  and  compatible  RFID  media.  It  has  two  build-in  blue  LEDs  for  user signalization.     Direct integration   Example shows “Metra Reader Module RFID ISO” soldered directly onto the  device’s main  PCB.  Instead of using  10-pole flat cable the connector PINs are soldered directly (as if the cable length is equal 0). It was tested as such during compliance tests.

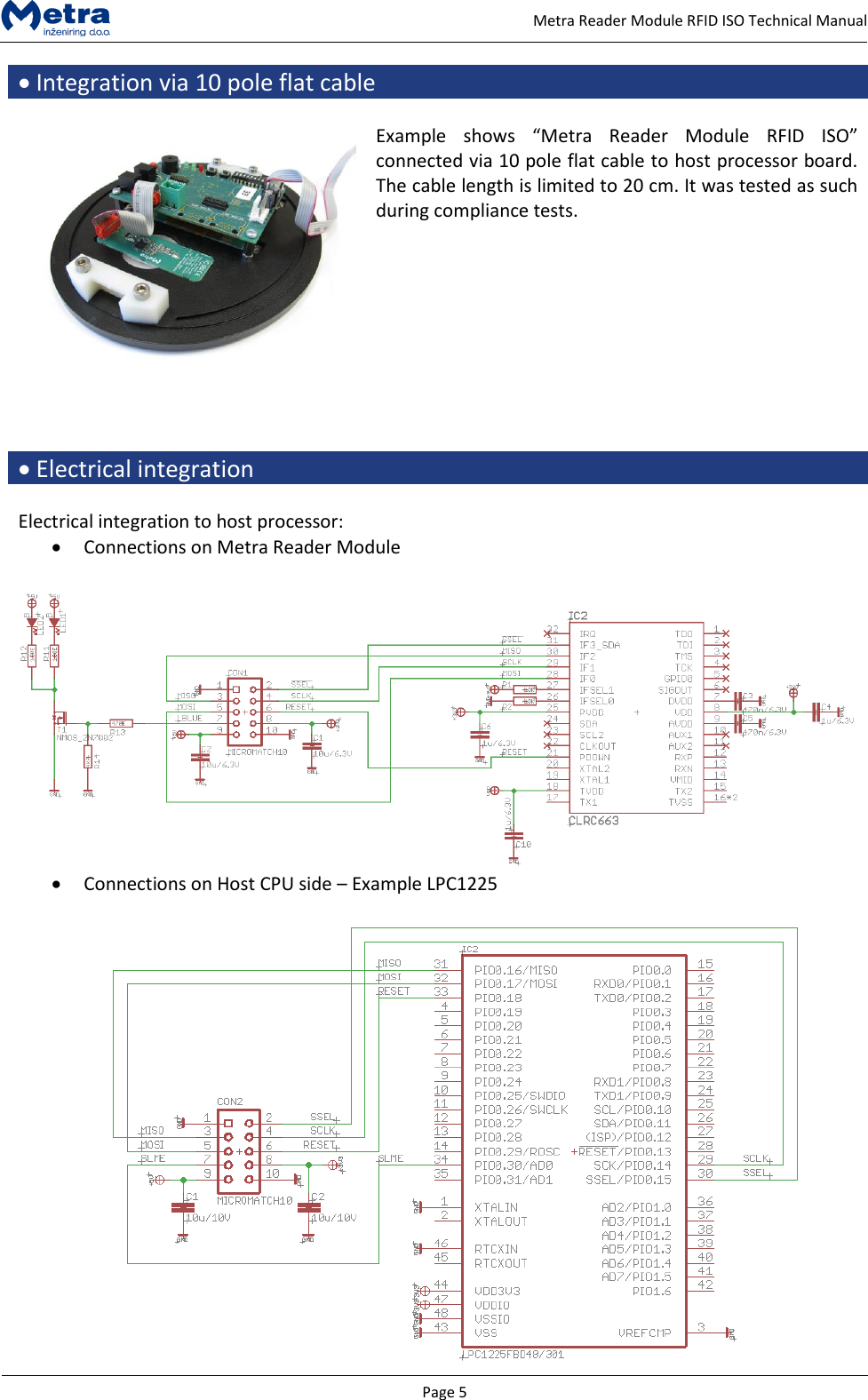

  Page 5     Metra Reader Module RFID ISO Technical Manual  Integration via 10 pole flat cable   Example  shows  “Metra  Reader  Module  RFID  ISO” connected via 10 pole flat cable to host processor board. The cable length is limited to 20 cm. It was tested as such during compliance tests.      Electrical integration  Electrical integration to host processor:  Connections on Metra Reader Module    Connections on Host CPU side – Example LPC1225

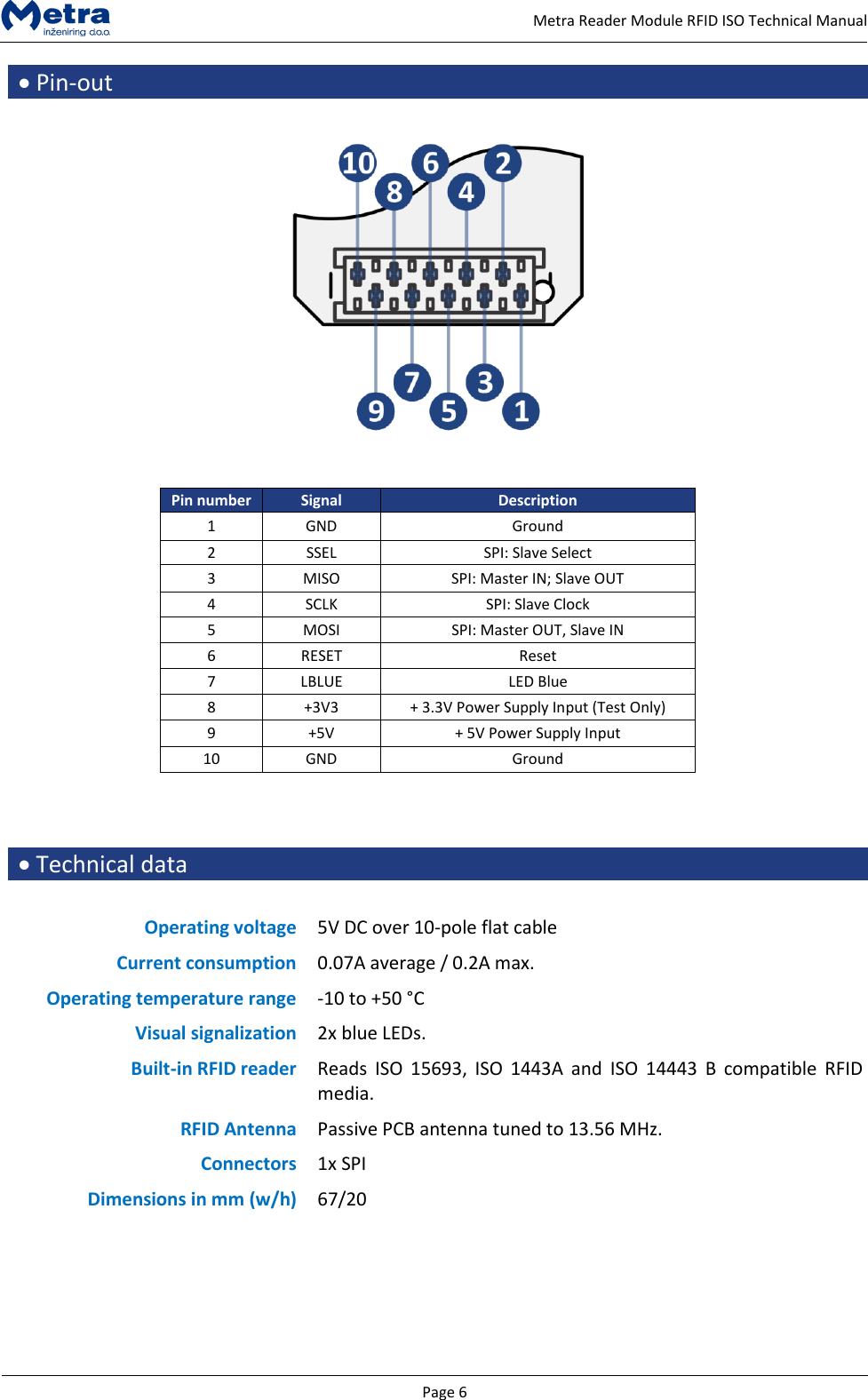

  Page 6     Metra Reader Module RFID ISO Technical Manual  Pin-out     Pin number Signal Description 1 GND Ground 2 SSEL SPI: Slave Select 3 MISO SPI: Master IN; Slave OUT 4 SCLK SPI: Slave Clock 5 MOSI SPI: Master OUT, Slave IN 6 RESET Reset 7 LBLUE LED Blue 8 +3V3 + 3.3V Power Supply Input (Test Only) 9 +5V + 5V Power Supply Input 10 GND Ground     Technical data  Operating voltage 5V DC over 10-pole flat cable Current consumption 0.07A average / 0.2A max. Operating temperature range -10 to +50 °C Visual signalization 2x blue LEDs. Built-in RFID reader Reads  ISO  15693,  ISO  1443A  and  ISO  14443  B  compatible  RFID media. RFID Antenna Passive PCB antenna tuned to 13.56 MHz. Connectors 1x SPI Dimensions in mm (w/h) 67/20

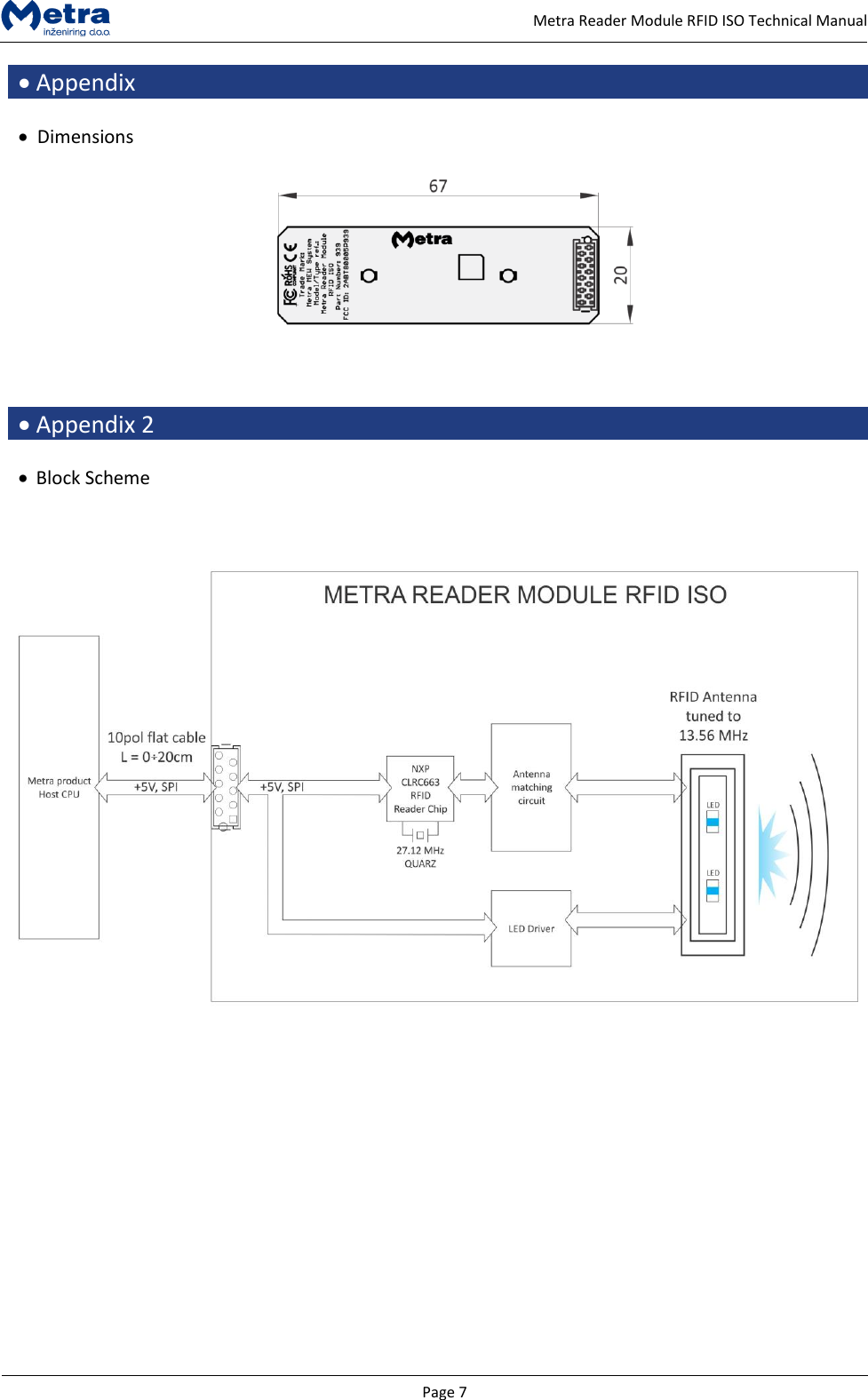

  Page 7     Metra Reader Module RFID ISO Technical Manual  Appendix    Dimensions       Appendix 2    Block Scheme
