METRA INZENIRING D O O 0005P939 Metra Reader Module RFID ISO User Manual Technical Manual

METRA INZENIRING D.O.O Metra Reader Module RFID ISO Technical Manual

Technical Manual

Metra Reader Module RFID ISO Technical Manual
Page 2
Table of contents
Metra Reader Module RFID ISO Technical Manual ................................................................................. 3
Final product labelling ......................................................................................................................... 4
Product description ............................................................................................................................. 4
Direct integration ................................................................................................................................ 4
Integration via 10 pole flat cable ........................................................................................................ 5
Electrical integration ........................................................................................................................... 5
Pin-out ................................................................................................................................................. 6
Technical data ..................................................................................................................................... 6
Appendix 1 .......................................................................................................................................... 7
Dimensions ...................................................................................................................................... 7
Appendix 2 .......................................................................................................................................... 7
Block Scheme................................................................................................................................... 7
Page 3
Metra Reader Module RFID ISO Technical Manual
Manufacturer:
Metra inženiring d.o.o.
IOC Trzin
Špruha 19
SI-1236 Trzin, Slovenia
phone:
fax:
web:
+386 1 56 10 740
+386 1 56 10 744
www.metra.si
Trade Mark:
Metra MEW System
Model/Type ref.:
Metra Reader Module RFID ISO
Part Number:
939
FCC ID:
2ABT80005P939
Year of Construction:
2015
NOTE
Metra inženiring d.o.o. integrates this product (Metra Reader Module RFID ISO) into different final
products and is responsible for proper labelling of the final product, therefore final product’s label
must include a statement “Contains FCC ID: 2ABT8003P939”.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. Metra inženiring d.o.o. is responsible for product’s
compliance.
This product is in conformity with the essential requirements and other relevant requirements of the following
EU Directives:
Radio and Telecommunications Terminal Equipment (R&TTE) Directive 2014/53/EU
RoHS Recast (RoHS2) Directive 2011/65/EU of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in electrical and electronics equipment.
Low Voltage Directive (LVD) 2014/35/EU that ensures that electrical equipment within certain voltage
limits provides a high level of protection for European citizens.
Model/Type ref.: Metra Reader Module RFID ISO
Part Number: 939
FCC ID: 2ABT80005P939
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Metra Reader Module RFID ISO Technical Manual [rev.0-031116]
2016 Metra inženiring d.o.o.
All Rights reserved.
No part of this manual may be reproduced in any form or by any means without prior written permission of Metra inženiring d.o.o.
The contents of this manual are subject to change without notice.
All efforts have been made to ensure the accuracy of the contents of this manual, however, should any errors be detected, Metra inženiring would greatly appreciate being informed of
them. Metra inženiring d.o.o. can assume no responsibility for any errors in this manual.
Page 4

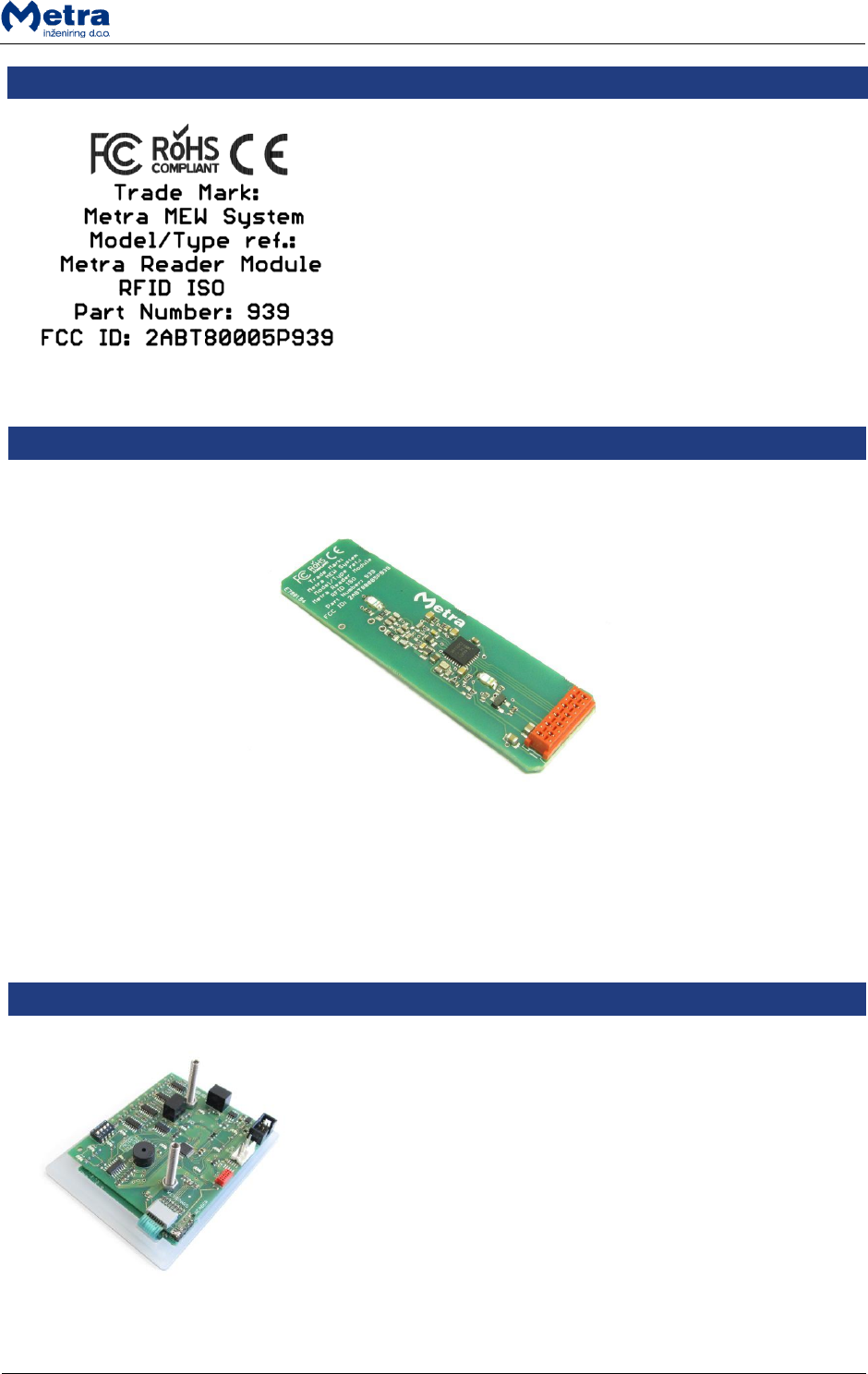

Final product labelling
FCC Label is printed on the PCB because this is an OEM
product for Metra inženiring d.o.o and not for the final
customer.
Metra inženiring d.o.o. integrates this product (Metra
Reader Module RFID ISO) into different final products
and is responsible for proper labelling of the final
product, therefore final product’s label must include
also a statement “Contains FCC ID: 2ABT8003P939”.
Product description
Metra Reader Module RFID ISO is designed to be build-in different Metra products. Reads ISO 15693,
ISO 1443A and ISO 14443 B and compatible RFID media. It has two build-in blue LEDs for user
signalization.
Direct integration
Example shows “Metra Reader Module RFID ISO” soldered
directly onto the device’s main PCB. Instead of using 10-
pole flat cable the connector PINs are soldered directly (as
if the cable length is equal 0). It was tested as such during
compliance tests.
Page 5
Integration via 10 pole flat cable
Example shows “Metra Reader Module RFID ISO”
connected via 10 pole flat cable to host processor board.
The cable length is limited to 20 cm. It was tested as such
during compliance tests.
Electrical integration

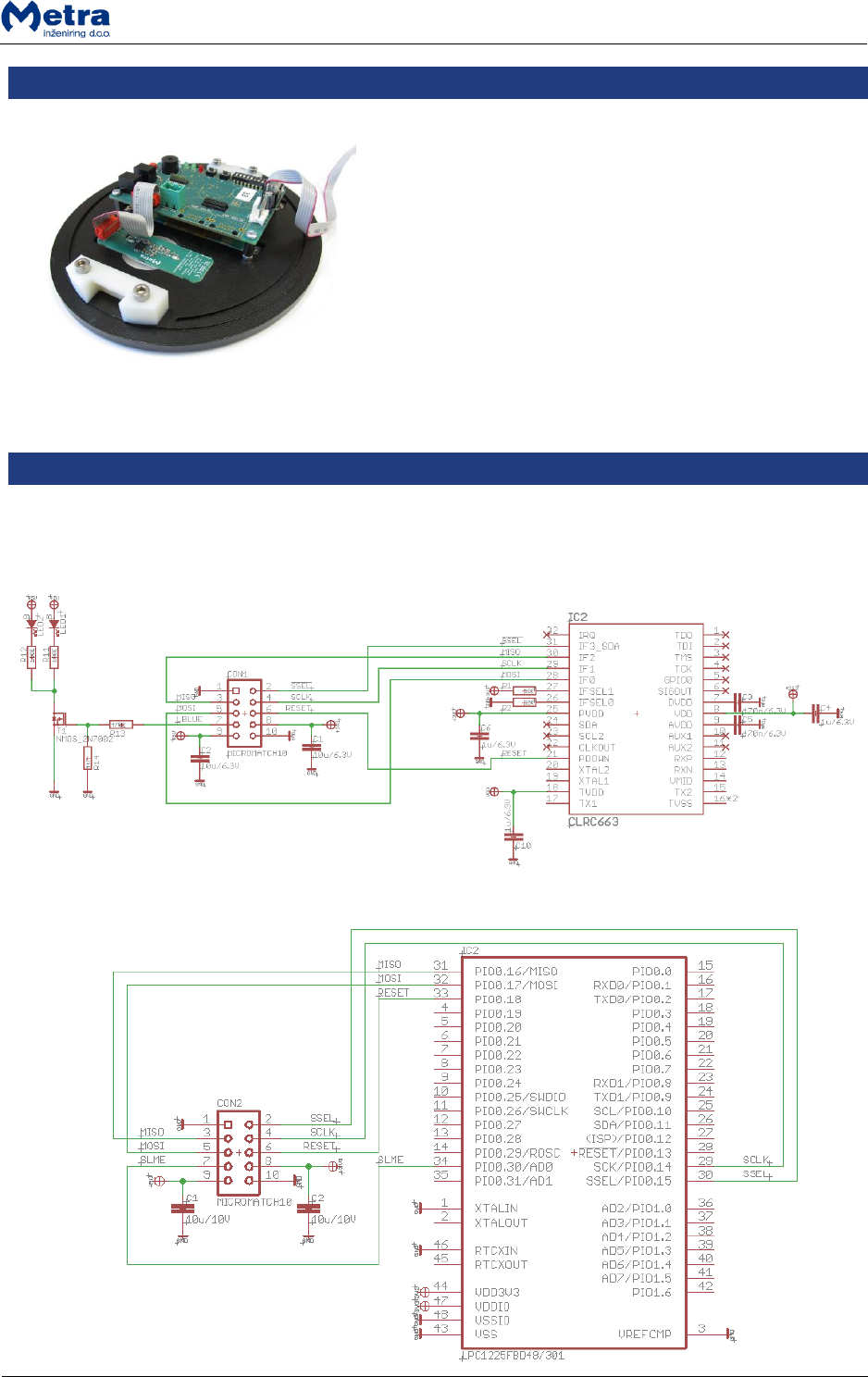

Electrical integration to host processor:
Connections on Metra Reader Module
Connections on Host CPU side – Example LPC1225
Page 6

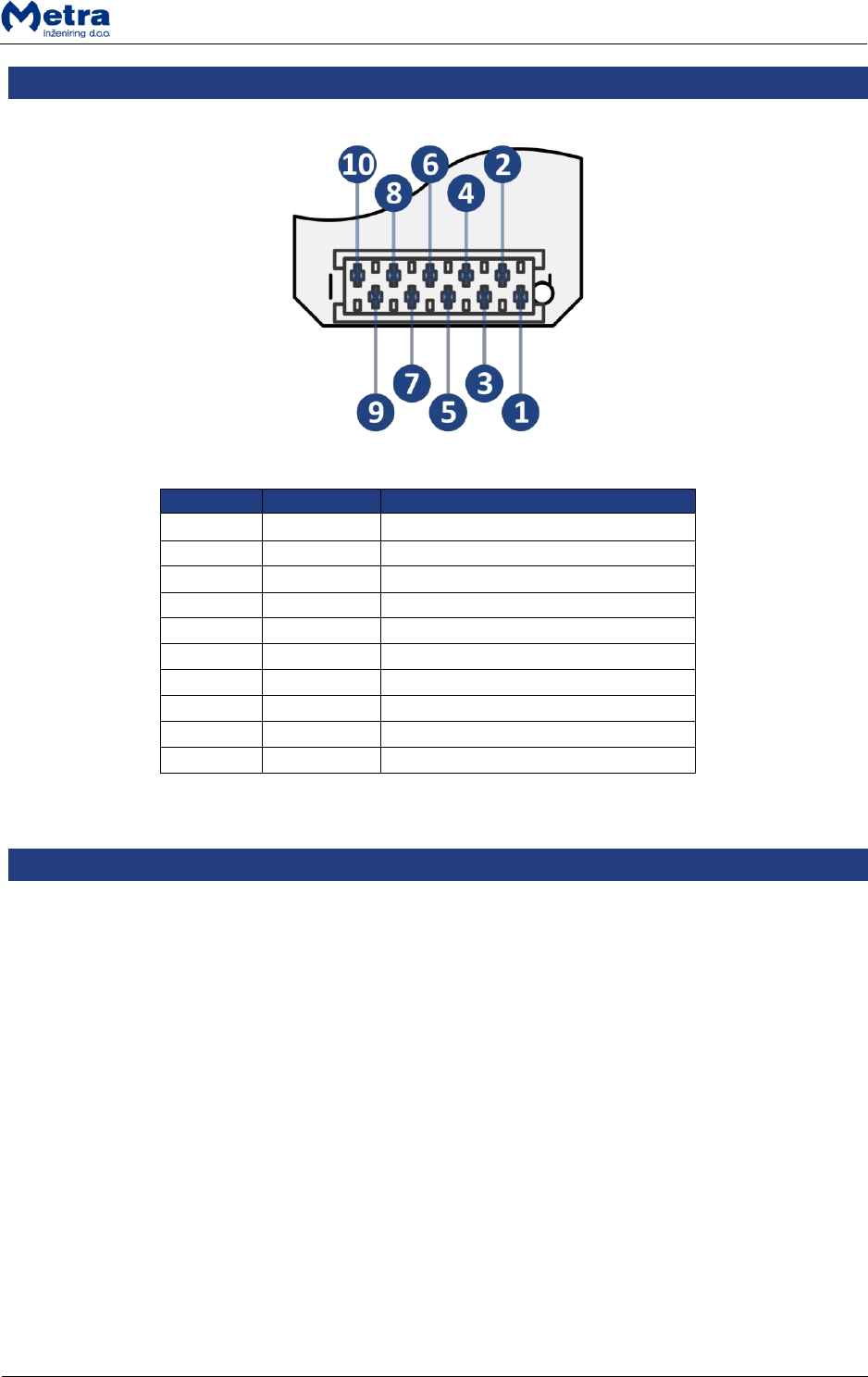

Pin-out
Pin number
Signal
Description
1
GND
Ground
2
SSEL
SPI: Slave Select
3
MISO
SPI: Master IN; Slave OUT
4
SCLK
SPI: Slave Clock
5
MOSI
SPI: Master OUT, Slave IN
6
RESET
Reset
7
LBLUE
LED Blue
8
+3V3
+ 3.3V Power Supply Input (Test Only)
9
+5V
+ 5V Power Supply Input
10
GND
Ground
Technical data
Operating voltage
5V DC over 10-pole flat cable
Current consumption
0.07A average / 0.2A max.
Operating temperature range
-10 to +50 °C
Visual signalization
2x blue LEDs.
Built-in RFID reader
Reads ISO 15693, ISO 1443A and ISO 14443 B compatible RFID
media.
RFID Antenna
Passive PCB antenna tuned to 13.56 MHz.
Connectors
1x SPI
Dimensions in mm (w/h)
67/20
Page 7
Appendix

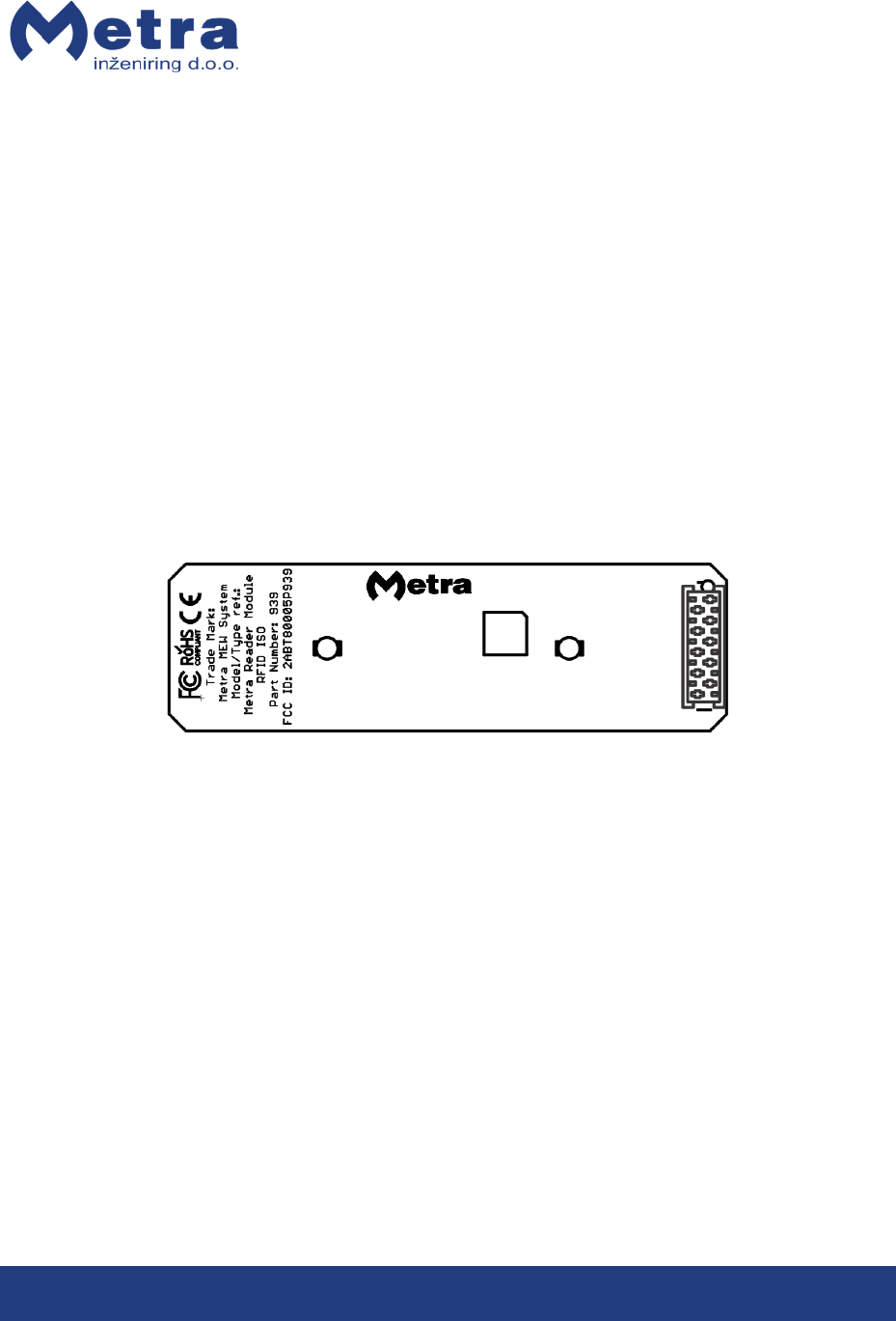

Dimensions
Appendix 2

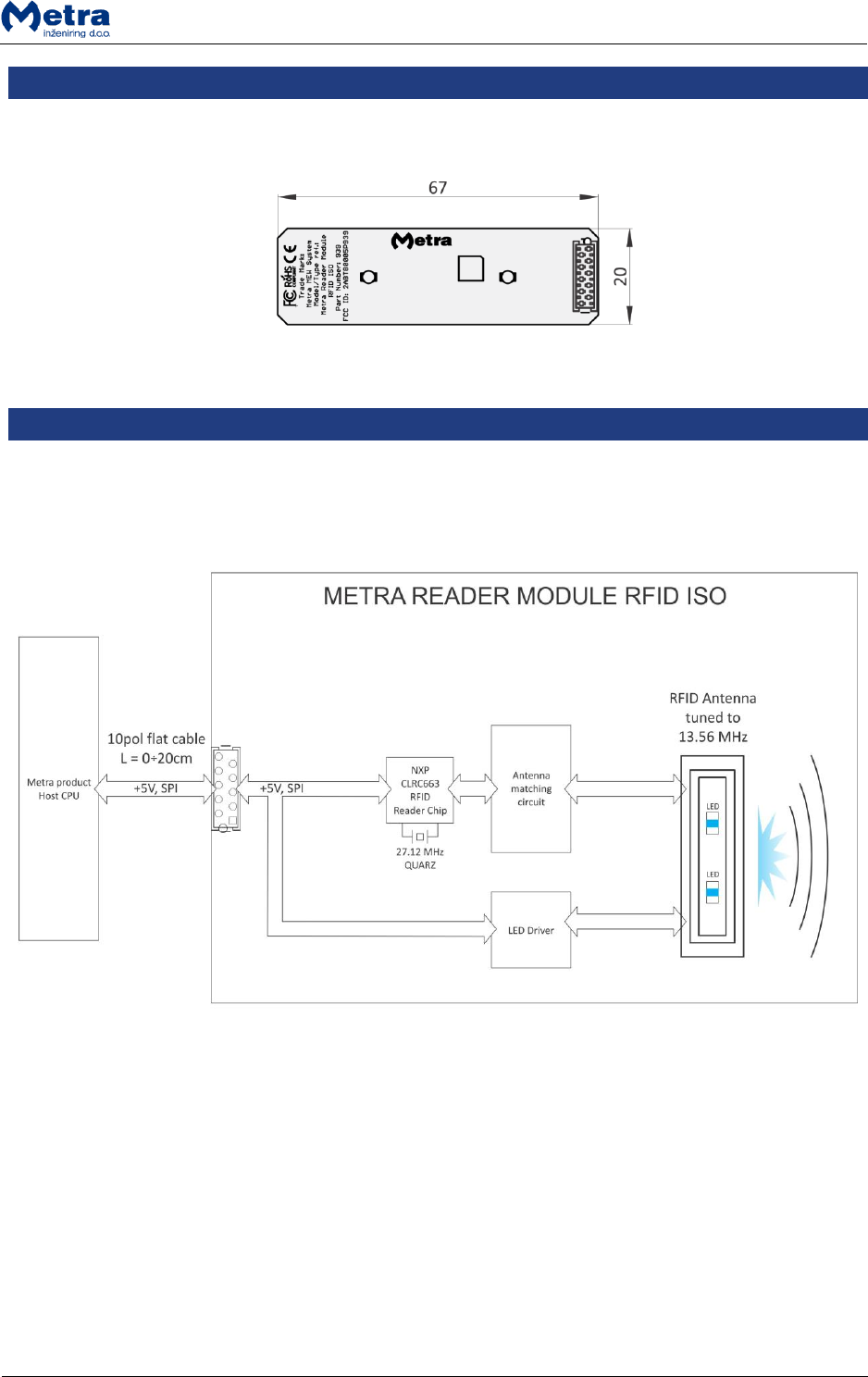

Block Scheme
