MINEW TECHNOLOGIES C3 Digital Broadcasting Device(iBeacon) User Manual

Shenzhen Minew Technologies Co.,Ltd. Digital Broadcasting Device(iBeacon) Users Manual

Users Manual

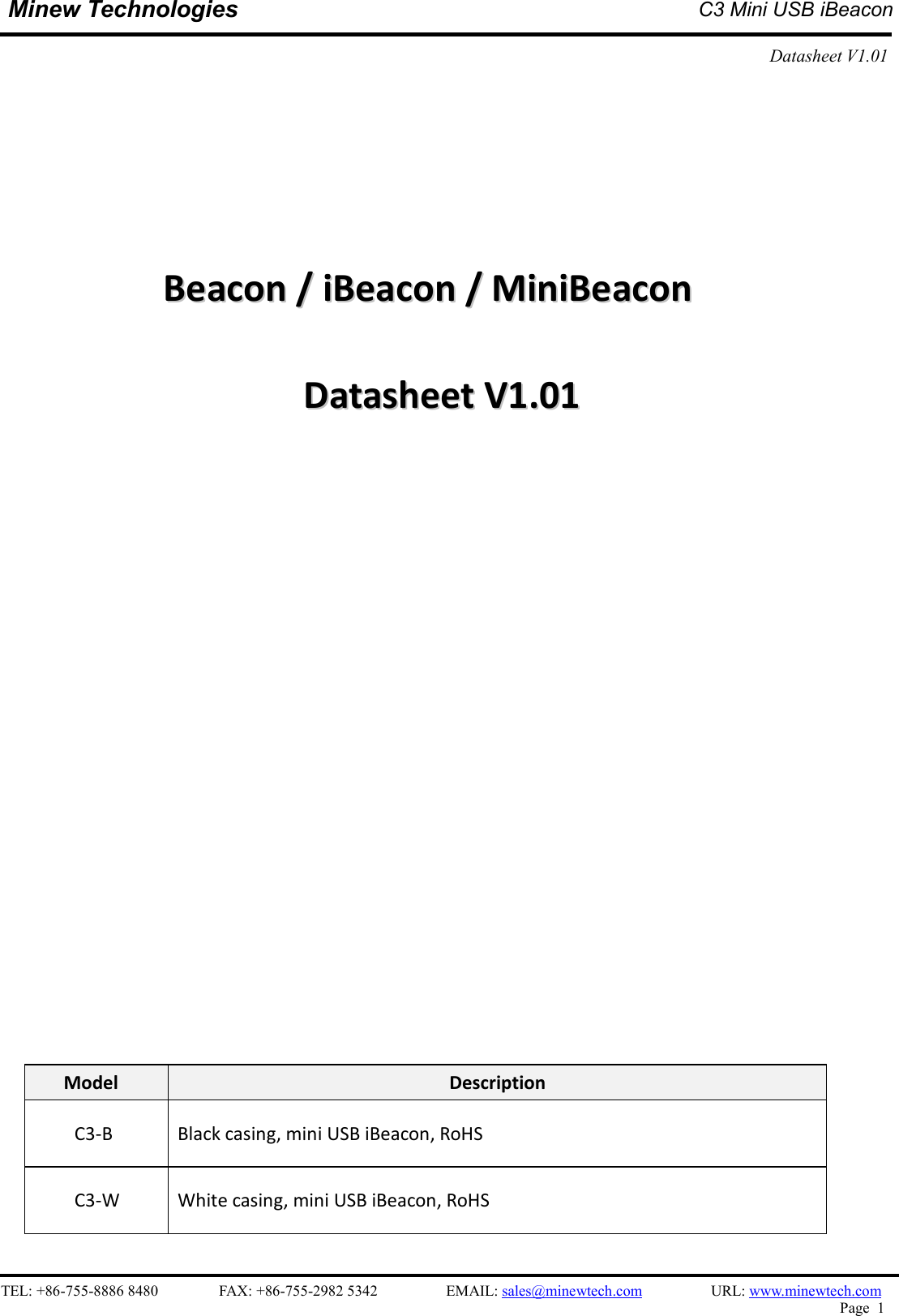

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 1 Minew Technologies C3 Mini USB iBeacon Datasheet V1.01 BBeeaaccoonn // iiBBeeaaccoonn // MMiinniiBBeeaaccoonn DDaattaasshheeeett VV11..0011 Model Description C3-B Black casing, mini USB iBeacon, RoHS C3-W White casing, mini USB iBeacon, RoHS

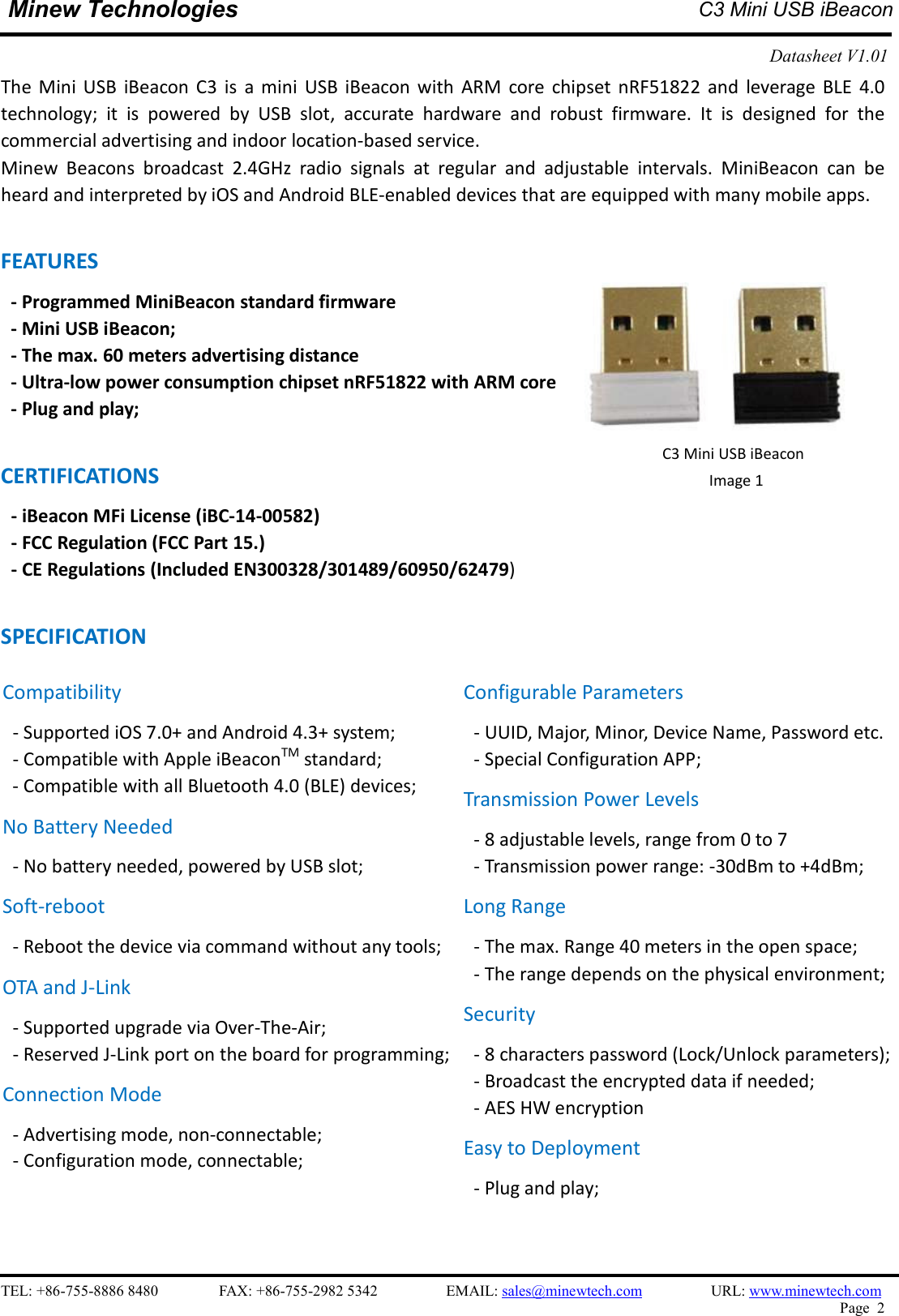

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 2 Minew Technologies C3 Mini USB iBeacon Datasheet V1.01 The Mini USB iBeacon C3 is a mini USB iBeacon with ARM core chipset nRF51822 and leverage BLE 4.0 technology; it is powered by USB slot, accurate hardware and robust firmware. It is designed for the commercial advertising and indoor location-based service. Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps. FEATURES - Programmed MiniBeacon standard firmware - Mini USB iBeacon; - The max. 60 meters advertising distance - Ultra-low power consumption chipset nRF51822 with ARM core - Plug and play; CERTIFICATIONS - iBeacon MFi License (iBC-14-00582) - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479) SPECIFICATION C3 Mini USB iBeacon Image 1 Compatibility - Supported iOS 7.0+ and Android 4.3+ system; - Compatible with Apple iBeaconTM standard; - Compatible with all Bluetooth 4.0 (BLE) devices; No Battery Needed - No battery needed, powered by USB slot; Soft-reboot - Reboot the device via command without any tools; OTA and J-Link - Supported upgrade via Over-The-Air; - Reserved J-Link port on the board for programming; Connection Mode - Advertising mode, non-connectable; - Configuration mode, connectable; Configurable Parameters - UUID, Major, Minor, Device Name, Password etc. - Special Configuration APP; Transmission Power Levels - 8 adjustable levels, range from 0 to 7 - Transmission power range: -30dBm to +4dBm; Long Range - The max. Range 40 meters in the open space; - The range depends on the physical environment; Security - 8 characters password (Lock/Unlock parameters); - Broadcast the encrypted data if needed; - AES HW encryption Easy to Deployment - Plug and play;
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 3 Minew Technologies C3 Mini USB iBeacon Datasheet V1.01 CONFIGURABLE PARAMETERS Characteristic Item Default Settings 0xFFF1 UUID E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) 0xFFF2 Major 0 0xFFF3 Minor 0 0xFFF4 Measured Power -59 (0xC5) 0xFFF5 Transmission Power 7 (4dBm) 0xFFF6 Change Password minew123 (Must be 8 characters) 0xFFF7 Broadcasting Interval 1(100mS) 0xFFF8 Serial ID Random (Unique serial ID for beacon) 0xFFF9 iBeacon Name MiniBeacon_ (the maximum 14 characters) 0xFFFE Connection Mode 0 (connectable, configuration mode) 0xFFFF Soft Reboot minew123 (it is same as the value of Change Password) ELECTRONIC PARAMETERS Item Value Remarks Case Color White, Black Other colors can be customized Battery Model Null Powered by USB slot Operation Voltage 4.5-5.5V DC Transmission Circuit 10.5mA (Max.) Tested at 0dBm transmission power Transmission Range 60 meters Maximum Antenna 50ohm On board / PCB Antenna Net Weight 2.0g With battery but without package Size 18 x 14 x 6 mm Null TECHNICAL SUPPORT Item Version File Name Updated Date Datasheet V1.01 C3_MiniBeacon Datasheet_1.01.pdf 25th May, 2015 Instruction V2.03 Instructions_MiniBeacon_V2.03.pdf 25th May, 2015 SDK V1.0 Android Reference Source Code; iOS Reference Source Code; 28th February, 2015 APP Tools V2.0 iBeaconCFG; iBeaconDFU; 3rd March, 2015 * Minew sales team will send you these documents after the sample arrived.

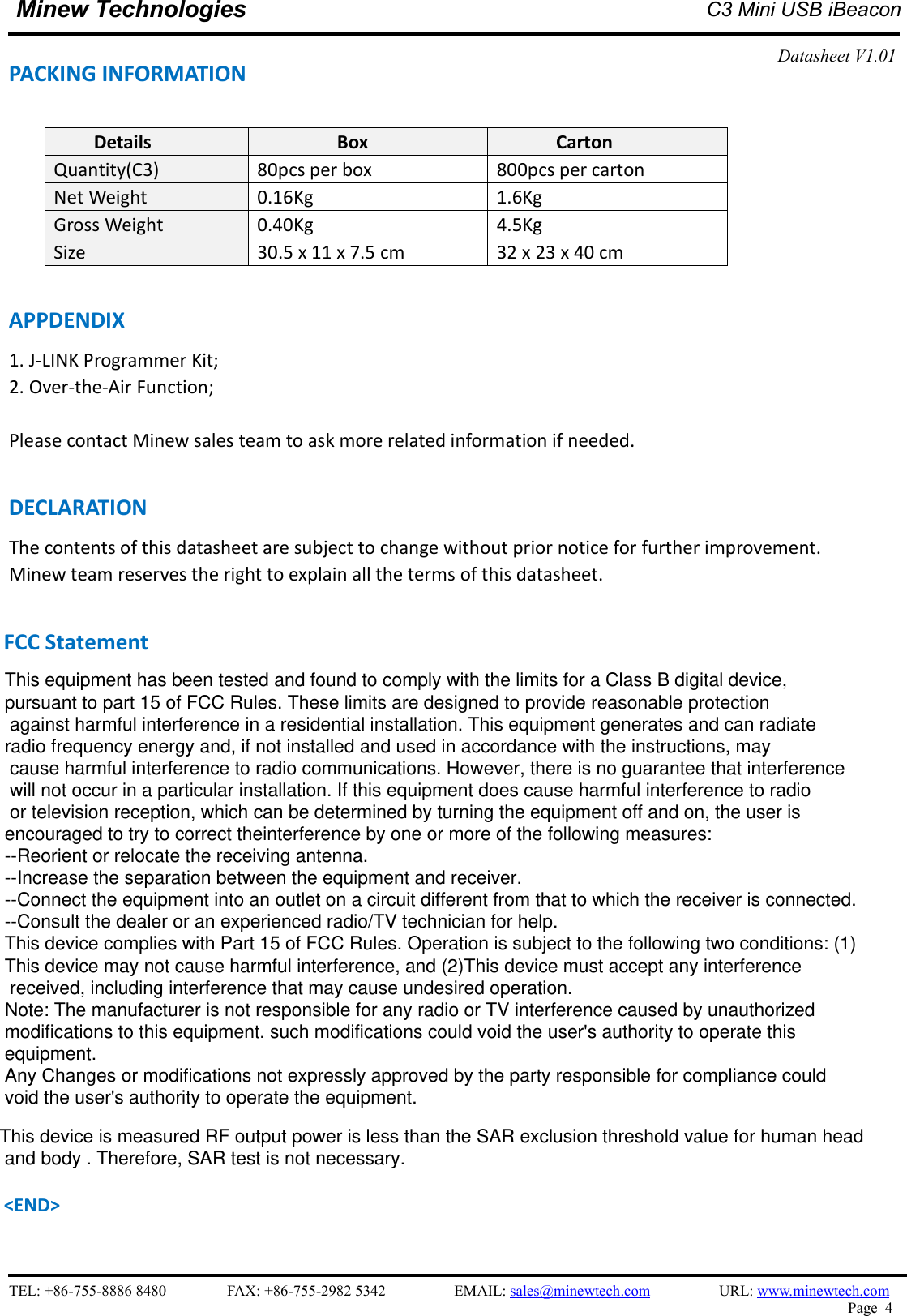

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 4 Minew Technologies C3 Mini USB iBeacon Datasheet V1.01 PACKING INFORMATION Details Box Carton Quantity(C3) 80pcs per box 800pcs per carton Net Weight 0.16Kg 1.6Kg Gross Weight 0.40Kg 4.5Kg Size 30.5 x 11 x 7.5 cm 32 x 23 x 40 cm APPDENDIX 1. J-LINK Programmer Kit; 2. Over-the-Air Function; Please contact Minew sales team to ask more related information if needed. DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet. <END> This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user's authority to operate this equipment. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device is measured RF output power is less than the SAR exclusion threshold value for human head and body . Therefore, SAR test is not necessary.FCC Statement
