Minew Technologies C3 Mini USB iBeacon
Datasheet V1.01
B
Be
ea
ac
co
on
n
/
/
i
iB
Be
ea
ac
co
on
n
/
/
M
Mi
in
ni
iB
Be
ea
ac
co
on
n
D
Da
at
ta
as
sh
he
ee
et
t
V
V1
1.
.0
01
1
Model Description
C3-B Black casing, mini USB iBeacon, RoHS
C3-W White casing, mini USB iBeacon, RoHS
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 2
Minew Technologies C3 Mini USB iBeacon
Datasheet V1.01
The Mini USB iBeacon C3 is a mini USB iBeacon with ARM core chipset nRF51822 and leverage BLE 4.0
technology; it is powered by USB slot, accurate hardware and robust firmware. It is designed for the
commercial advertising and indoor location-based service.
Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be
heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
- Programmed MiniBeacon standard firmware
- Mini USB iBeacon;
- The max. 60 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Plug and play;
CERTIFICATIONS
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)
SPECIFICATION

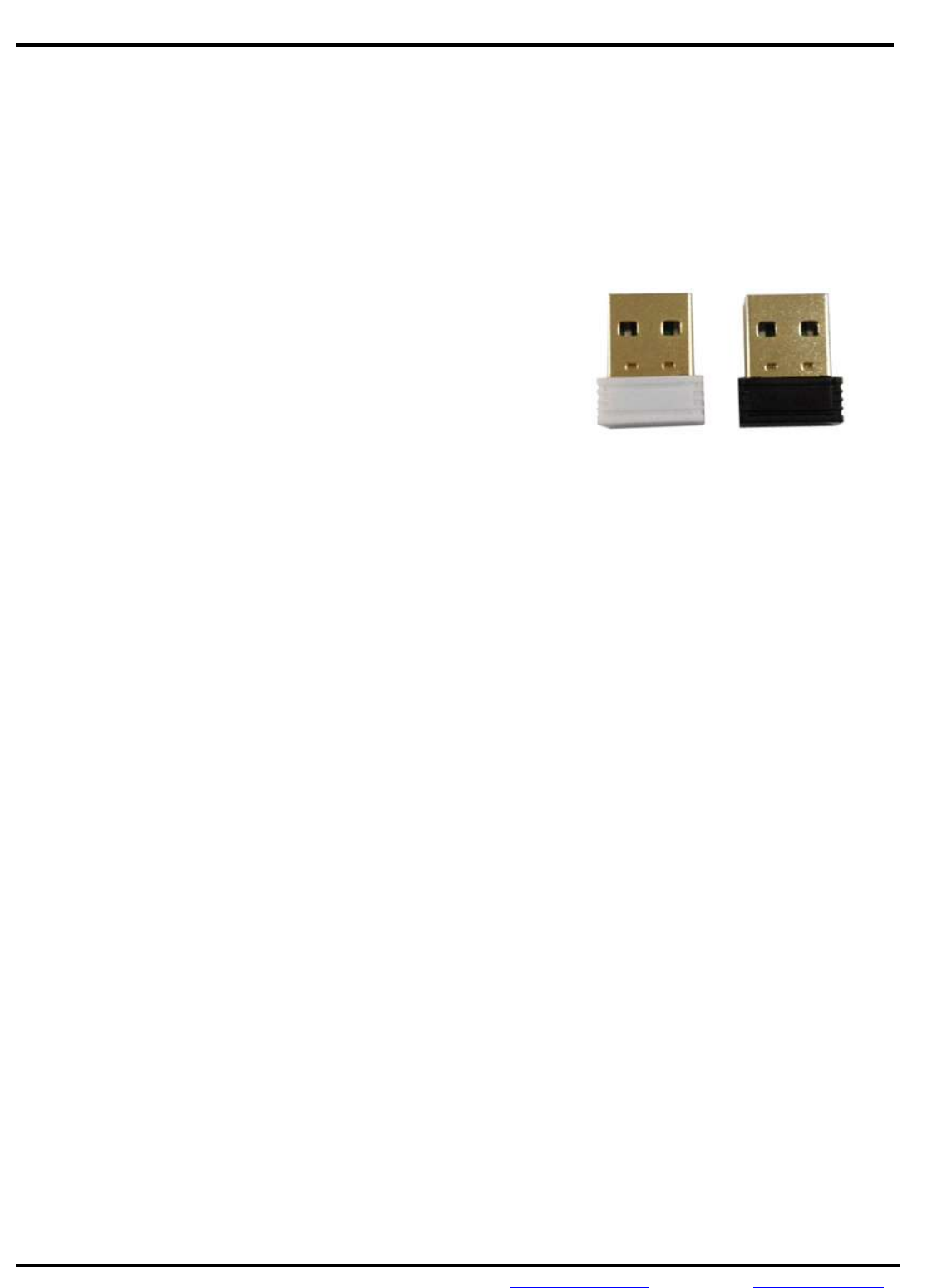

C3 Mini USB iBeacon
Image 1
Compatibility
- Supported iOS 7.0+ and Android 4.3+ system;
- Compatible with Apple iBeaconTM standard;
- Compatible with all Bluetooth 4.0 (BLE) devices;
No Battery Needed
- No battery needed, powered by USB slot;
Soft-reboot
- Reboot the device via command without any tools;
OTA and J-Link
- Supported upgrade via Over-The-Air;
- Reserved J-Link port on the board for programming;
Connection Mode
- Advertising mode, non-connectable;
- Configuration mode, connectable;
Configurable Parameters
- UUID, Major, Minor, Device Name, Password etc.
- Special Configuration APP;
Transmission Power Levels
- 8 adjustable levels, range from 0 to 7
- Transmission power range: -30dBm to +4dBm;
Long Range
- The max. Range 40 meters in the open space;
- The range depends on the physical environment;
Security
- 8 characters password (Lock/Unlock parameters);
- Broadcast the encrypted data if needed;
- AES HW encryption
Easy to Deployment
- Plug and play;
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 3
Minew Technologies C3 Mini USB iBeacon
Datasheet V1.01
CONFIGURABLE PARAMETERS
Characteristic
Item Default Settings
0xFFF1 UUID E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)
0xFFF2 Major 0
0xFFF3 Minor 0
0xFFF4 Measured Power -59 (0xC5)
0xFFF5 Transmission Power 7 (4dBm)
0xFFF6 Change Password minew123 (Must be 8 characters)
0xFFF7 Broadcasting Interval 1(100mS)
0xFFF8 Serial ID Random (Unique serial ID for beacon)
0xFFF9 iBeacon Name MiniBeacon_ (the maximum 14 characters)
0xFFFE Connection Mode 0 (connectable, configuration mode)
0xFFFF Soft Reboot minew123 (it is same as the value of Change Password)
ELECTRONIC PARAMETERS
Item Value Remarks
Case Color White, Black Other colors can be customized
Battery Model Null Powered by USB slot
Operation Voltage 4.5-5.5V DC
Transmission Circuit 10.5mA (Max.) Tested at 0dBm transmission power
Transmission Range 60 meters Maximum
Antenna 50ohm On board / PCB Antenna
Net Weight 2.0g With battery but without package
Size 18 x 14 x 6 mm Null
TECHNICAL SUPPORT
Item Version File Name Updated Date
Datasheet V1.01 C3_MiniBeacon Datasheet_1.01.pdf 25
th
May, 2015
Instruction V2.03 Instructions_MiniBeacon_V2.03.pdf 25
th
May, 2015
SDK V1.0 Android Reference Source Code;
iOS Reference Source Code; 28th February, 2015
APP Tools V2.0 iBeaconCFG; iBeaconDFU; 3rd March, 2015
* Minew sales team will send you these documents after the sample arrived.
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 4
Minew Technologies C3 Mini USB iBeacon
Datasheet V1.01
PACKING INFORMATION
Details Box Carton
Quantity(C3) 80pcs per box 800pcs per carton
Net Weight 0.16Kg 1.6Kg
Gross Weight 0.40Kg 4.5Kg
Size 30.5 x 11 x 7.5 cm 32 x 23 x 40 cm
APPDENDIX
1. J-LINK Programmer Kit;
2. Over-the-Air Function;
Please contact Minew sales team to ask more related information if needed.
DECLARATION
The contents of this datasheet are subject to change without prior notice for further improvement.
Minew team reserves the right to explain all the terms of this datasheet.
