MINEW TECHNOLOGIES C6 Digital Broadcasting Device (iBeacon/Eddystone) User Manual

Shenzhen Minew Technologies Co.,Ltd. Digital Broadcasting Device (iBeacon/Eddystone)

User Manual

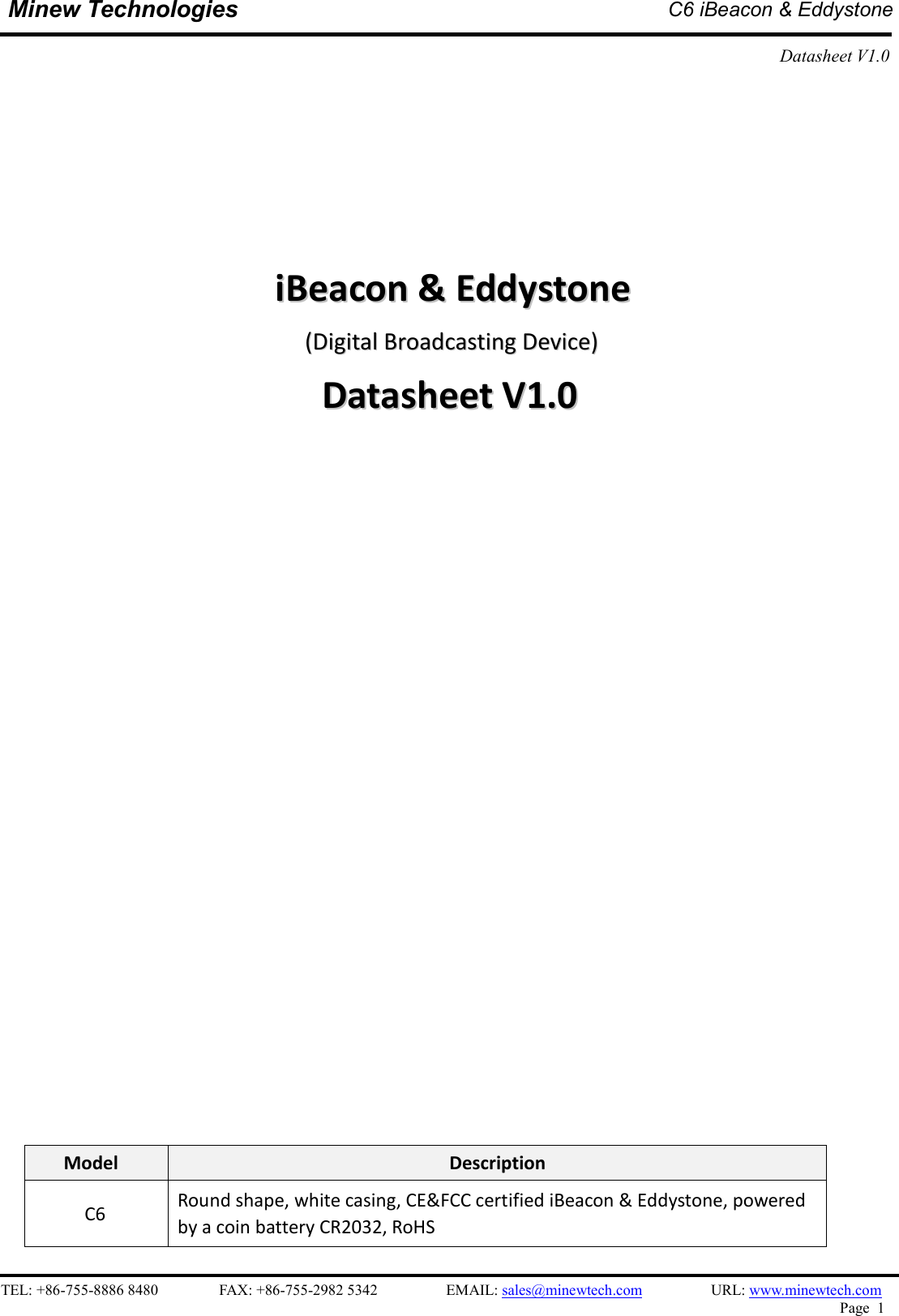

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 1 Minew Technologies C6 iBeacon & Eddystone Datasheet V1.0 iiBBeeaaccoonn && EEddddyyssttoonnee ((DDiiggiittaall BBrrooaaddccaassttiinngg DDeevviiccee)) DDaattaasshheeeett VV11..00 Model Description C6 Round shape, white casing, CE&FCC certified iBeacon & Eddystone, powered by a coin battery CR2032, RoHS

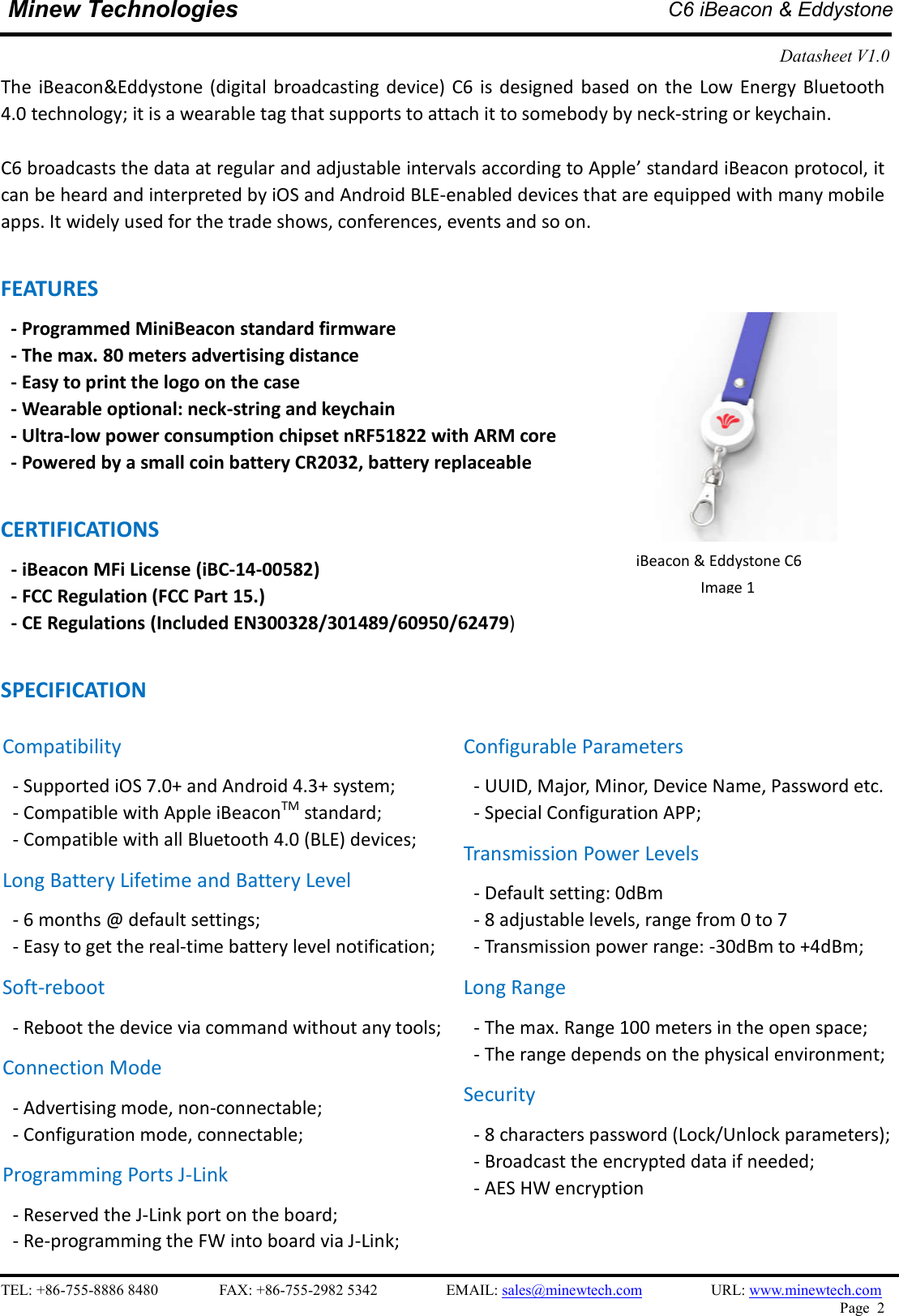

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 2 Minew Technologies C6 iBeacon & Eddystone Datasheet V1.0 The iBeacon&Eddystone (digital broadcasting device) C6 is designed based on the Low Energy Bluetooth 4.0 technology; it is a wearable tag that supports to attach it to somebody by neck-string or keychain. C6 broadcasts the data at regular and adjustable intervals according to Apple’ standard iBeacon protocol, it can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps. It widely used for the trade shows, conferences, events and so on. FEATURES - Programmed MiniBeacon standard firmware - The max. 80 meters advertising distance - Easy to print the logo on the case - Wearable optional: neck-string and keychain - Ultra-low power consumption chipset nRF51822 with ARM core - Powered by a small coin battery CR2032, battery replaceable CERTIFICATIONS - iBeacon MFi License (iBC-14-00582) - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479) SPECIFICATION iBeacon & Eddystone C6 Image 1 Compatibility - Supported iOS 7.0+ and Android 4.3+ system; - Compatible with Apple iBeaconTM standard; - Compatible with all Bluetooth 4.0 (BLE) devices; Long Battery Lifetime and Battery Level - 6 months @ default settings; - Easy to get the real-time battery level notification; Soft-reboot - Reboot the device via command without any tools; Connection Mode - Advertising mode, non-connectable; - Configuration mode, connectable; Programming Ports J-Link - Reserved the J-Link port on the board; - Re-programming the FW into board via J-Link; Configurable Parameters - UUID, Major, Minor, Device Name, Password etc. - Special Configuration APP; Transmission Power Levels - Default setting: 0dBm - 8 adjustable levels, range from 0 to 7 - Transmission power range: -30dBm to +4dBm; Long Range - The max. Range 100 meters in the open space; - The range depends on the physical environment; Security - 8 characters password (Lock/Unlock parameters); - Broadcast the encrypted data if needed; - AES HW encryption
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 3 Minew Technologies C6 iBeacon & Eddystone Datasheet V1.0 TURN ON C6 Please DO take out the battery sheet from the beacon device before using. CONFIGURABLE PARAMETERS Characteristic Item Default Settings 0xFFF1 UUID E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) 0xFFF2 Major 0 0xFFF3 Minor 0 0xFFF4 Measured Power -59 (0xC5) 0xFFF5 Transmission Power 6 (0dBm) 0xFFF6 Change Password minew123 (Must be 8 characters) 0xFFF7 Broadcasting Interval 9(900mS) 0xFFF8 Serial ID Random (Unique serial ID for beacon) 0xFFF9 iBeacon Name MiniBeacon_ (the maximum 14 characters) 0xFFFE Connection Mode 0 (connectable, configuration mode) 0xFFFF Soft Reboot minew123 (it is same as the value of Change Password) ELECTRONIC PARAMETERS Item Value Remarks Case Color white Other colors can be customized Battery Model 1pc x CR2032 Coin battery, 1pc x 3.0V Operation Voltage 1.8-3.6V DC Transmission Circuit 10.5mA (Max.) Tested at 0dBm transmission power Transmission Range 80 meters Maximum Antenna 50ohm On board / PCB Antenna Accessories Double adhesive 1pc, high-strength, 3M brand; Net Weight 16.0g With battery Size 42 x 31 x 11 mm Null TECHNICAL SUPPORT Item Version File Name Updated Date Datasheet V1.0 C6_MiniBeacon Datasheet_1.0.pdf 10th August, 2015 Instruction V2.03 Instructions_MiniBeacon_V2.03.pdf 25th May, 2015 SDK V1.0 Android Reference Source Code; iOS Reference Source Code; 28th February, 2015 APP Tools V2.0 iBeaconCFG; iBeaconDFU; 3rd March, 2015 * Minew sales team will send you these documents after the sample arrived.

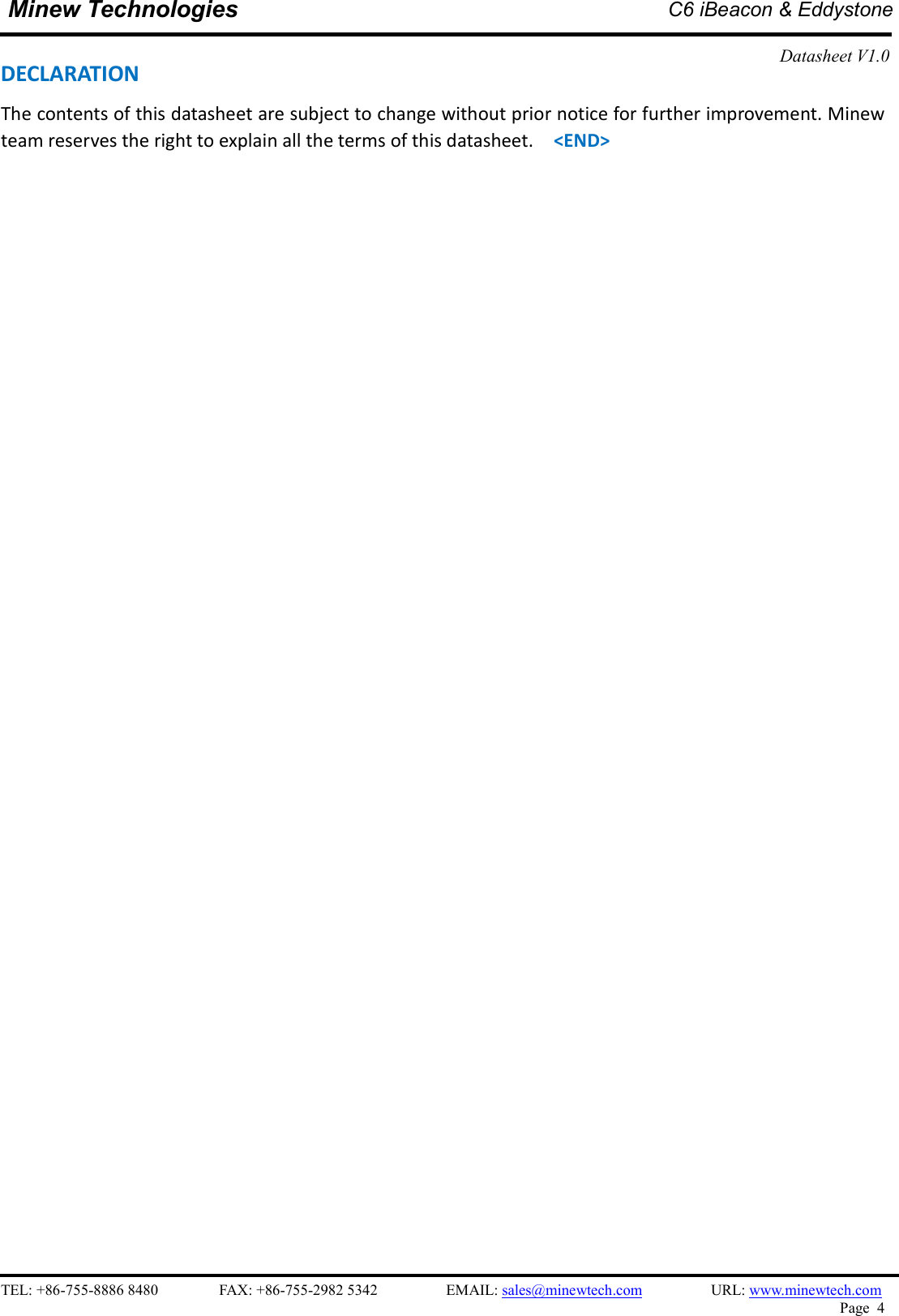

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com Page 4 Minew Technologies C6 iBeacon & Eddystone Datasheet V1.0 DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet. <END>
FCCCautionThisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:-Reorientorrelocatethereceivingantenna.-Increasetheseparationbetweentheequipmentandreceiver.-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
