MINEW TECHNOLOGIES D15N Digital Broadcasting Device (iBeacon/Eddystone) User Manual

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Digital Broadcasting Device (iBeacon/Eddystone) Users Manual

User Manual

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 1 E8 TagBeacon UFO Beacon_D15N UUFFOO BBeeaaccoonn MMooddeell:: DD1155NN DDaattaasshheeeett VV33..00 Part # Description D15N-6001A 204780001, UFO beacon with hidden push button, Bluetooth 5.0, pre-flashed MiniBeacon Plus software supports broadcasting iBeacon and Eddystone simultaneously

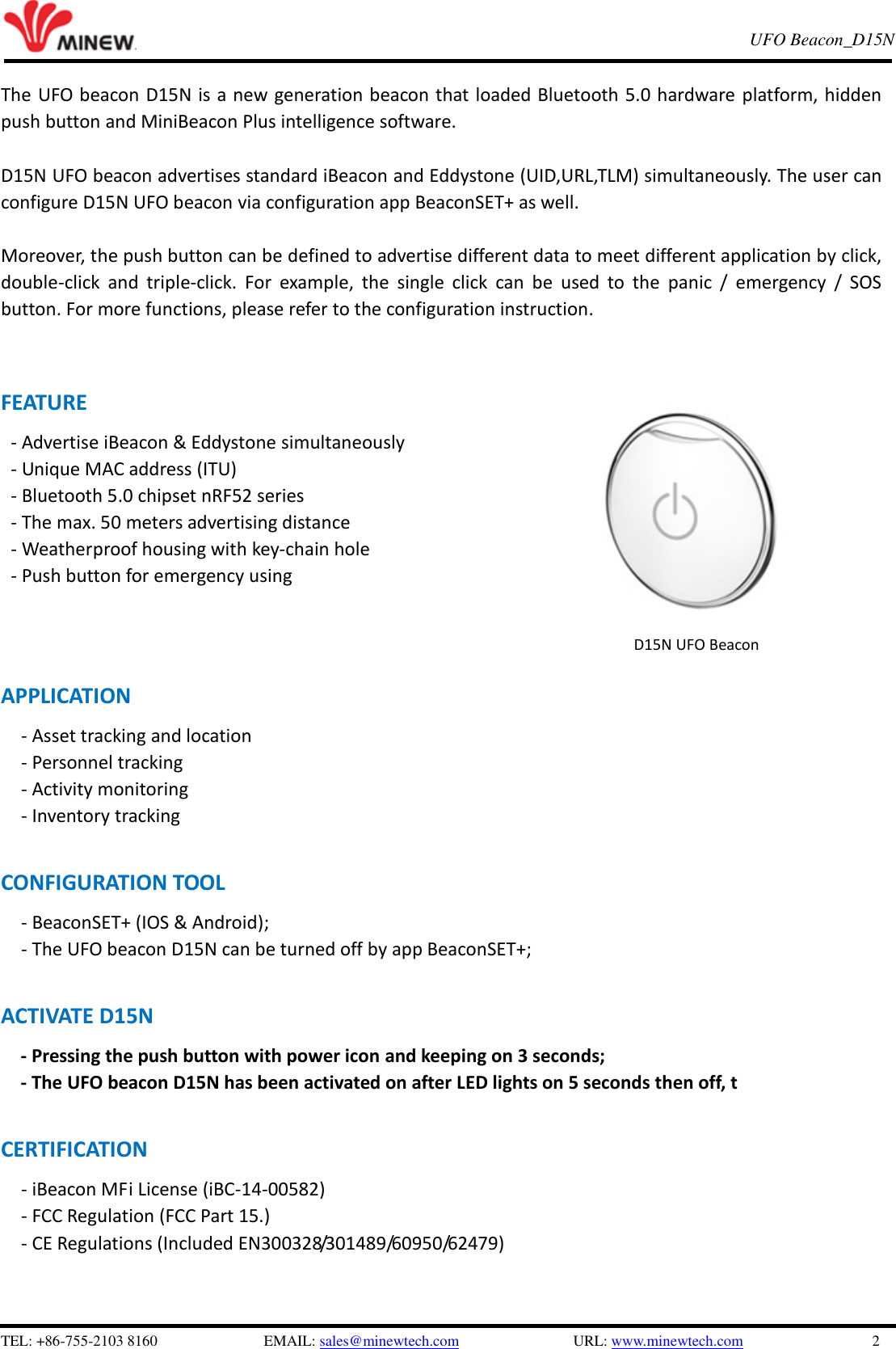

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 2 E8 TagBeacon UFO Beacon_D15N The UFO beacon D15N is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hidden push button and MiniBeacon Plus intelligence software. D15N UFO beacon advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously. The user can configure D15N UFO beacon via configuration app BeaconSET+ as well. Moreover, the push button can be defined to advertise different data to meet different application by click, double-click and triple-click. For example, the single click can be used to the panic / emergency / SOS button. For more functions, please refer to the configuration instruction. FEATURE - Advertise iBeacon & Eddystone simultaneously - Unique MAC address (ITU) - Bluetooth 5.0 chipset nRF52 series - The max. 50 meters advertising distance - Weatherproof housing with key-chain hole - Push button for emergency using APPLICATION - Asset tracking and location - Personnel tracking - Activity monitoring - Inventory tracking CONFIGURATION TOOL - BeaconSET+ (IOS & Android); - The UFO beacon D15N can be turned off by app BeaconSET+; ACTIVATE D15N - Pressing the push button with power icon and keeping on 3 seconds; - The UFO beacon D15N has been activated on after LED lights on 5 seconds then off, t CERTIFICATION - iBeacon MFi License (iBC-14-00582) - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479) D15N UFO Beacon

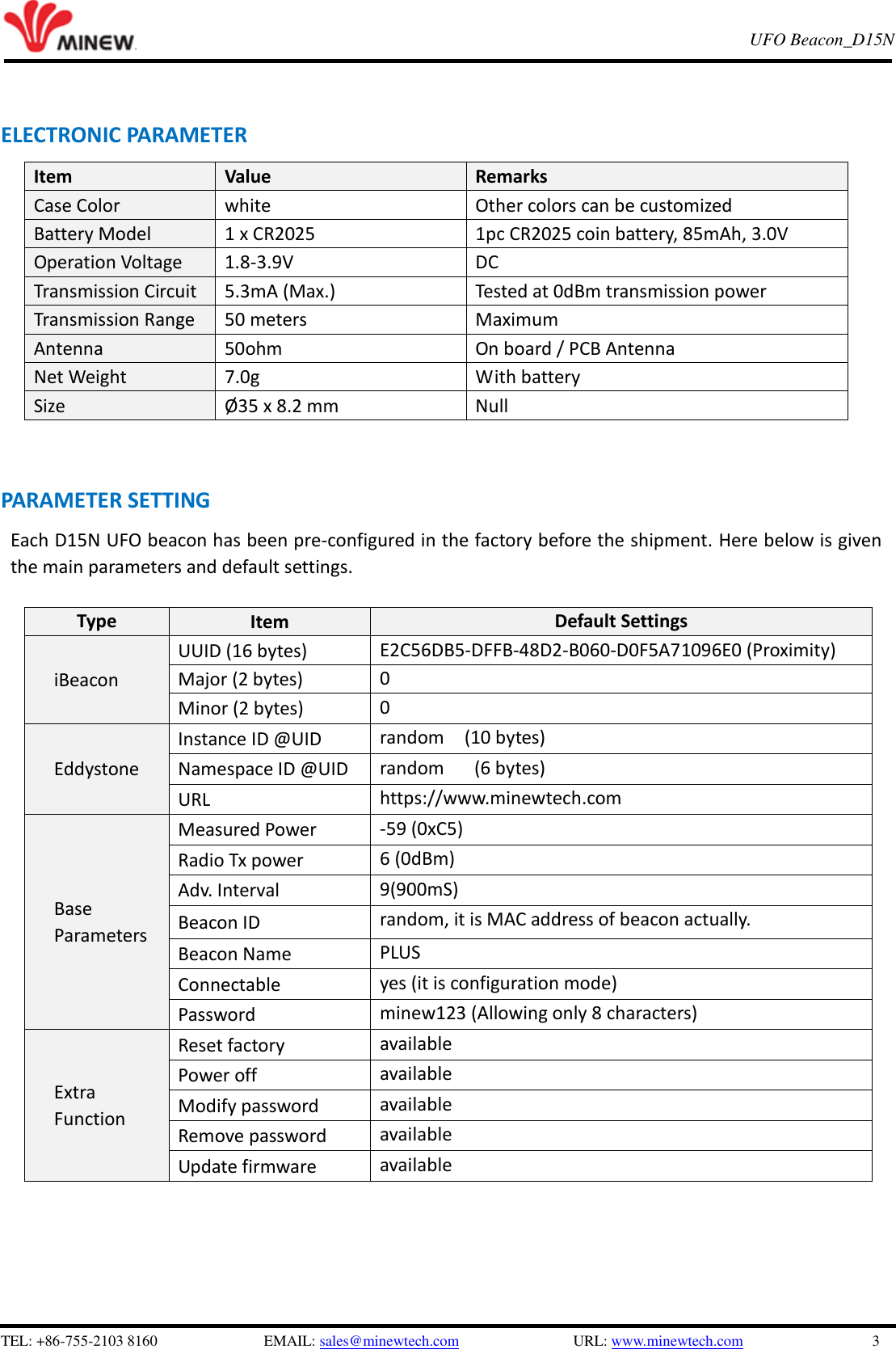

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 3 E8 TagBeacon UFO Beacon_D15N ELECTRONIC PARAMETER Item Value Remarks Case Color white Other colors can be customized Battery Model 1 x CR2025 1pc CR2025 coin battery, 85mAh, 3.0V Operation Voltage 1.8-3.9V DC Transmission Circuit 5.3mA (Max.) Tested at 0dBm transmission power Transmission Range 50 meters Maximum Antenna 50ohm On board / PCB Antenna Net Weight 7.0g With battery Size Ø35 x 8.2 mm Null PARAMETER SETTING Each D15N UFO beacon has been pre-configured in the factory before the shipment. Here below is given the main parameters and default settings. Type Item Default Settings iBeacon UUID (16 bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) Major (2 bytes) 0 Minor (2 bytes) 0 Eddystone Instance ID @UID random (10 bytes) Namespace ID @UID random (6 bytes) URL https://www.minewtech.com Base Parameters Measured Power -59 (0xC5) Radio Tx power 6 (0dBm) Adv. Interval 9(900mS) Beacon ID random, it is MAC address of beacon actually. Beacon Name PLUS Connectable yes (it is configuration mode) Password minew123 (Allowing only 8 characters) Extra Function Reset factory available Power off available Modify password available Remove password available Update firmware available

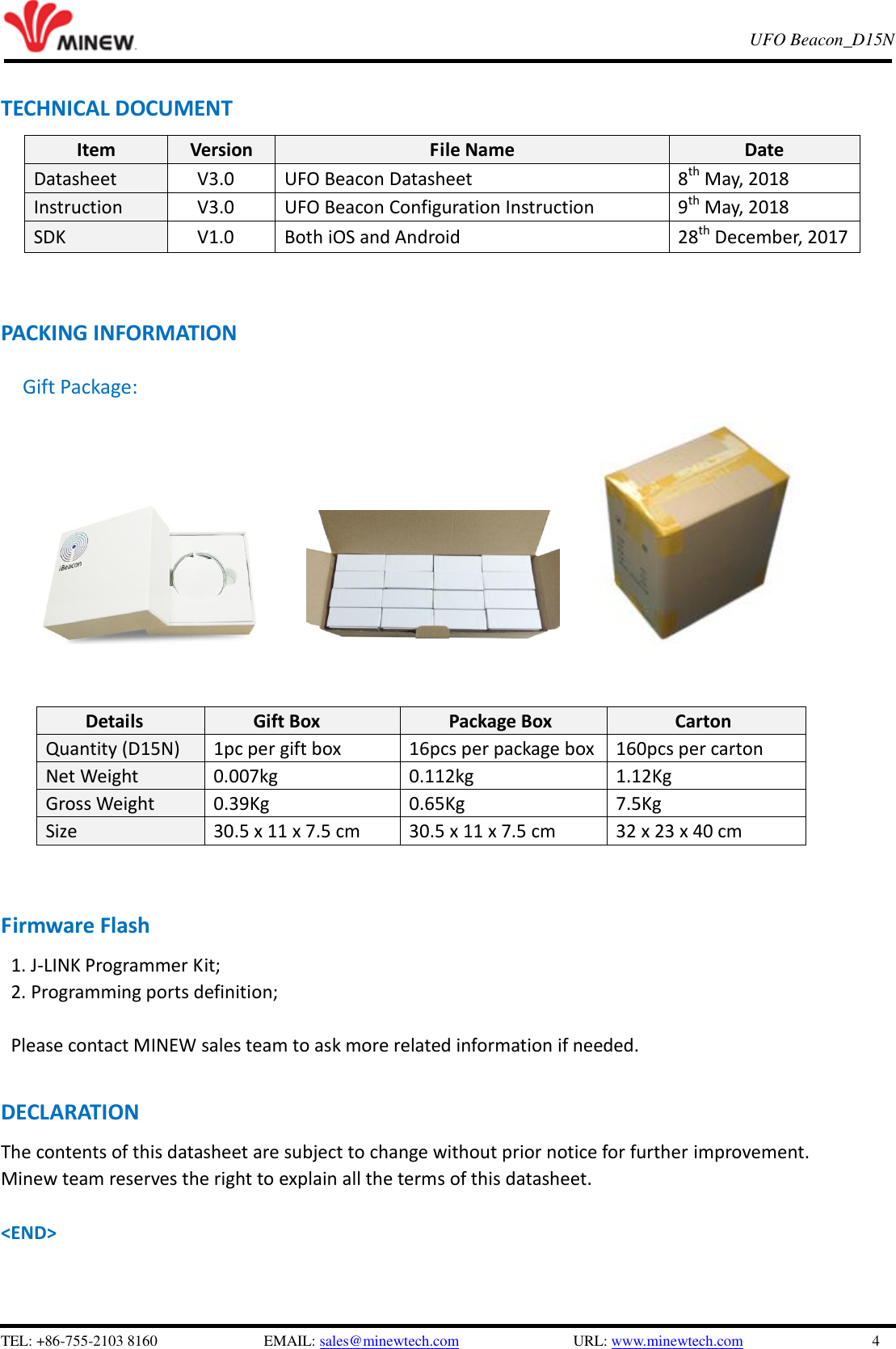

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 4 E8 TagBeacon UFO Beacon_D15N TECHNICAL DOCUMENT Item Version File Name Date Datasheet V3.0 UFO Beacon Datasheet 8th May, 2018 Instruction V3.0 UFO Beacon Configuration Instruction 9th May, 2018 SDK V1.0 Both iOS and Android 28th December, 2017 PACKING INFORMATION Gift Package: Details Gift Box Package Box Carton Quantity (D15N) 1pc per gift box 16pcs per package box 160pcs per carton Net Weight 0.007kg 0.112kg 1.12Kg Gross Weight 0.39Kg 0.65Kg 7.5Kg Size 30.5 x 11 x 7.5 cm 30.5 x 11 x 7.5 cm 32 x 23 x 40 cm Firmware Flash 1. J-LINK Programmer Kit; 2. Programming ports definition; Please contact MINEW sales team to ask more related information if needed. DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet. <END>

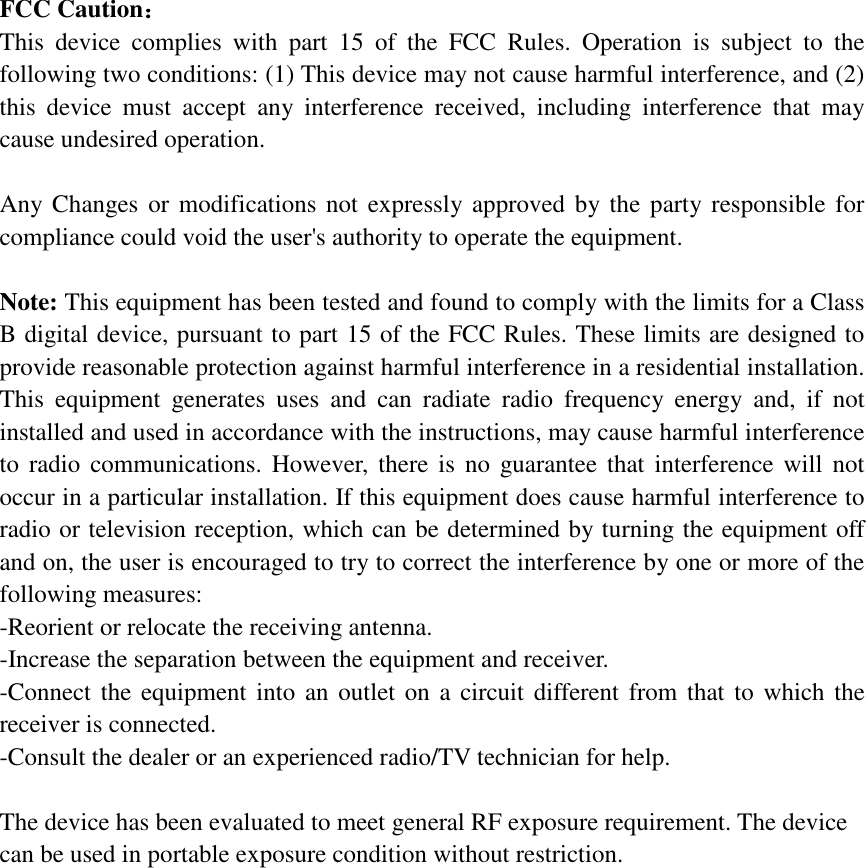

FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
