MINEW TECHNOLOGIES E4 Digital Broadcasting Device (iBeacon/Eddystone) User Manual

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Digital Broadcasting Device (iBeacon/Eddystone)

User Manual

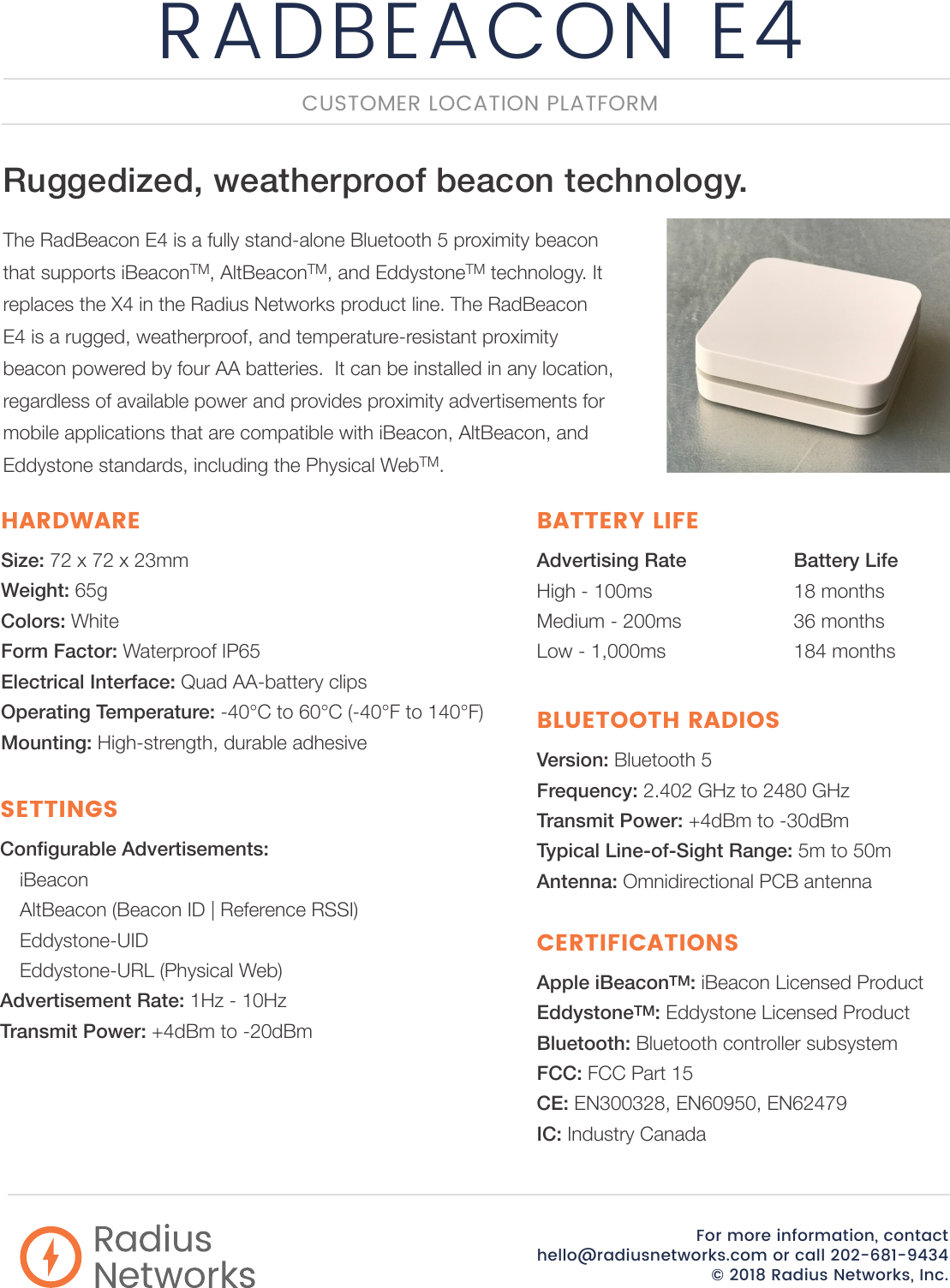

RADBEACON E4For more information, contact hello@radiusnetworks.com or call 202-681-9434© 2018 Radius Networks, Inc.RadiusNetworksCongurable Advertisements: iBeaconAltBeacon (Beacon ID | Reference RSSI)Eddystone-UIDEddystone-URL (Physical Web)Advertisement Rate: 1Hz - 10HzTransmit Power: +4dBm to -20dBmSETTINGSRuggedized, weatherproof beacon technology. The RadBeacon E4 is a fully stand-alone Bluetooth 5 proximity beacon that supports iBeaconTM, AltBeaconTM, and EddystoneTM technology. It replaces the X4 in the Radius Networks product line. The RadBeacon E4 is a rugged, weatherproof, and temperature-resistant proximity beacon powered by four AA batteries. It can be installed in any location, regardless of available power and provides proximity advertisements for mobile applications that are compatible with iBeacon, AltBeacon, and Eddystone standards, including the Physical WebTM.CUSTOMER LOCATION PLATFORMSize: 72 x 72 x 23mmWeight: 65gColors: WhiteForm Factor: Waterproof IP65Electrical Interface: Quad AA-battery clipsOperating Temperature: -40°C to 60°C (-40°F to 140°F)Mounting: High-strength, durable adhesiveHARDWAREApple iBeaconTM: iBeacon Licensed ProductEddystoneTM: Eddystone Licensed ProductBluetooth: Bluetooth controller subsystemFCC: FCC Part 15CE: EN300328, EN60950, EN62479IC: Industry CanadaCERTIFICATIONSAdvertising Rate Battery LifeHigh - 100ms 18 monthsMedium - 200ms 36 monthsLow - 1,000ms 184 monthsBATTERY LIFEVersion: Bluetooth 5Frequency: 2.402 GHz to 2480 GHzTransmit Power: +4dBm to -30dBmTypical Line-of-Sight Range: 5m to 50mAntenna: Omnidirectional PCB antennaBLUETOOTH RADIOS

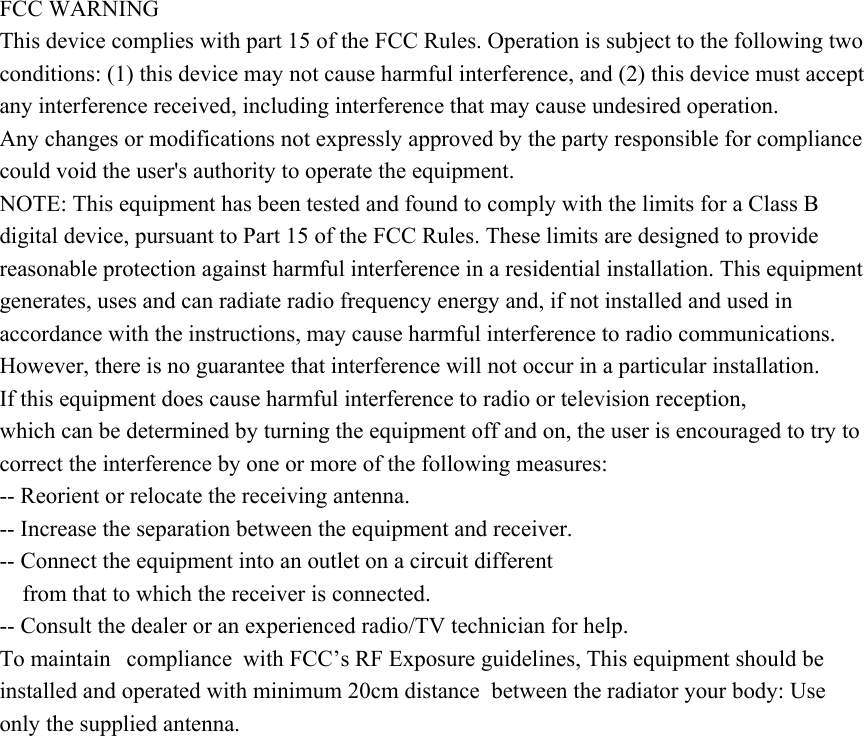

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator your body: Use only the supplied antenna.

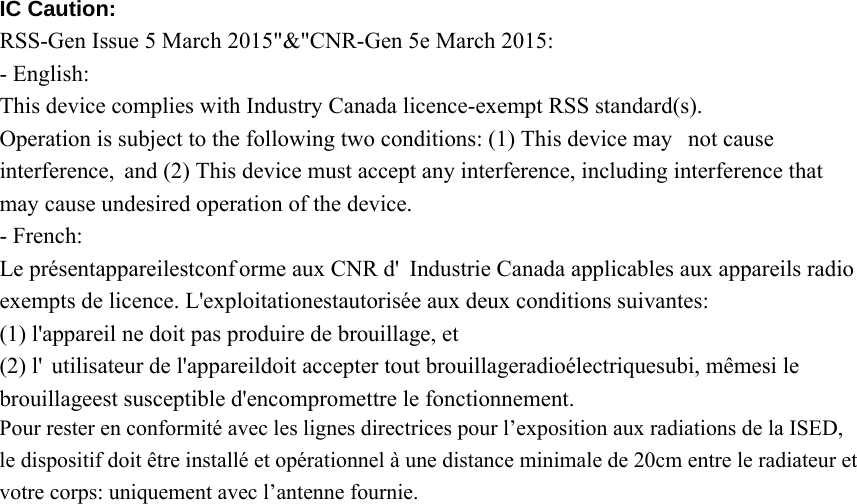

IC Caution: RSS-Gen Issue 5 March 2015"&"CNR-Gen 5e March 2015: - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: Le présentappareilestconf orme aux CNR d' Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l' utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. Pour rester en conformité avec les lignes directrices pour l’exposition aux radiations de la ISED, le dispositif doit être installé et opérationnel à une distance minimale de 20cm entre le radiateur et votre corps: uniquement avec l’antenne fournie. 
