MOBASE ELECTRONICS DD4TX1306-TFL Folding Transmitter User Manual
Daedong Co. Ltd. Folding Transmitter
users manual
INFORMATION DOCUMENT
RELATING TO CE TYPE-APPROVAL
OF VEHICLE RF REMOTE KEYLESS ENTRY IN ATAS SYSTEM
AS SEPARATE TECHNICAL UNIT
DaeDong CO., LTD.
- 2013.02.05 -
Title : NO.
Date
1. GENERAL
1.1. Make
DaeDong Co.,Ltd.
1.2. Model No.
- Transmitter : DD4TX1306-TFL
1.3. Name and address of manufacturer
DaeDong Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
1.4. Address of assembly plant
DaeDong Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
Information Document
Title : NO.
Date
2. PRODUCT SPECIFICATION
2.1 TF F/L 4B Folding Transmitter
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
Operating temperature range - 20 ~ + 60℃ with Battery
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Frequency 315MHz
Modulation FSK
- 40 ~ + 85℃ without Battery
Storage temperature range
Code Rolling Code(Hopping Algorithm)
ITEM
SPECIFICATION
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Information Document
Title : NO.
Date
2.3 Operating summary
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock, trunk state.
⑥ RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TRUNK button is pushed for more than 1 sec, then
TRANSMITTER sends the TRUNK DATA.
③ If PANIC button is pushed for more than 1 sec, then
TRANSMITTER sends the PANIC DATA.

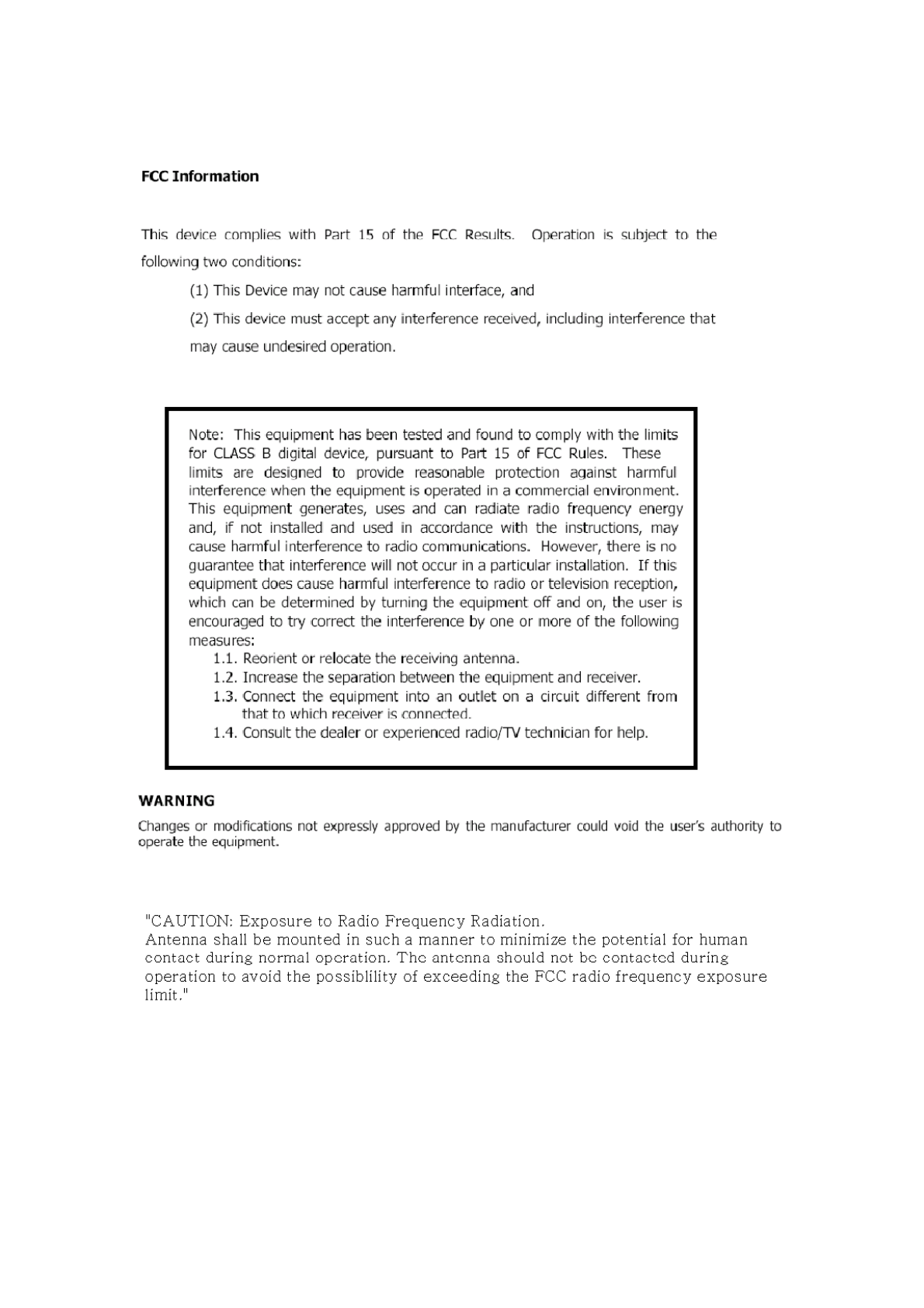

2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
Information Document
Title : NO.
Date
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TRUNK in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.

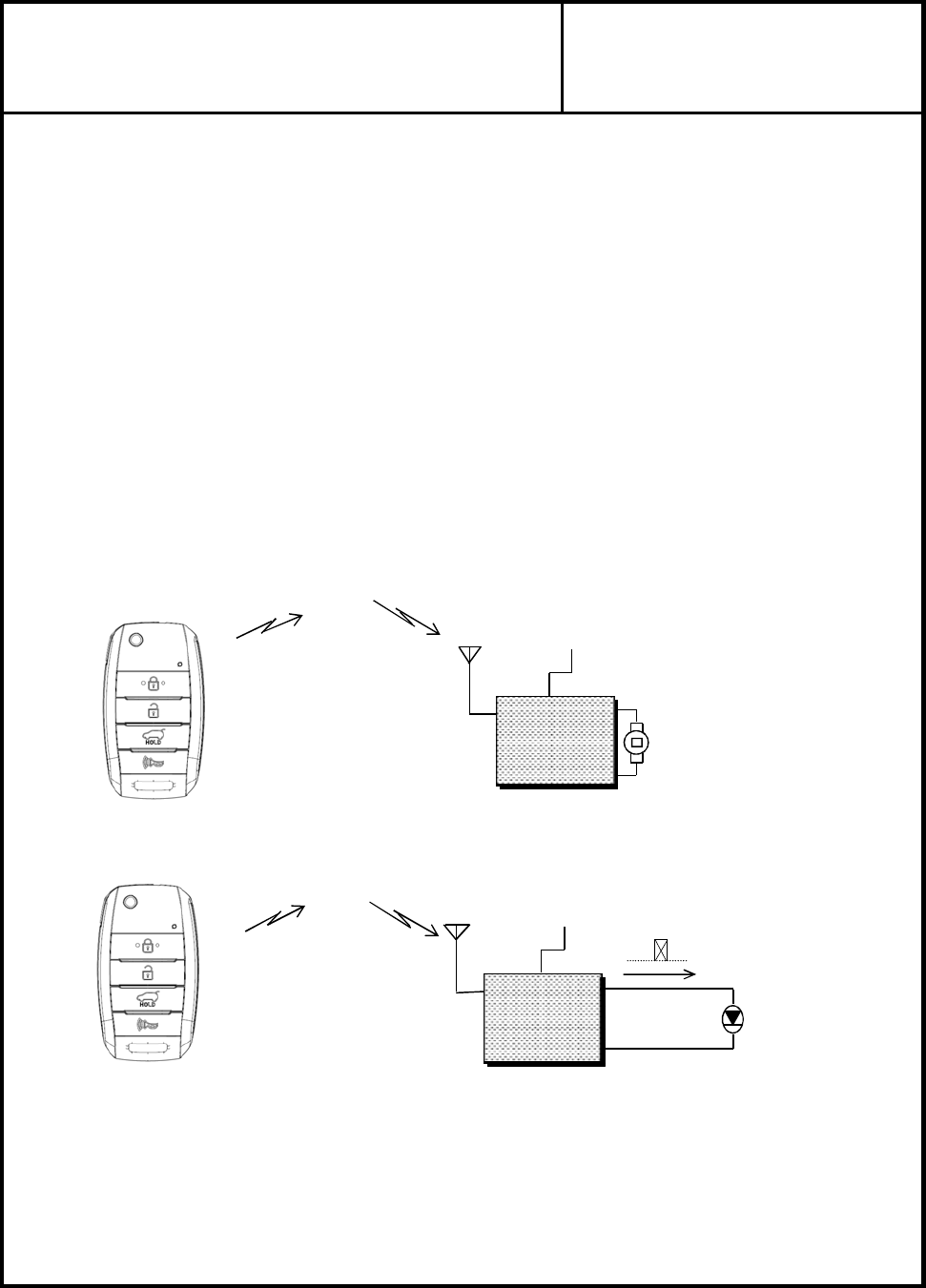

3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
Information Document
ANTENNA
ROLLING CODE
ANTENNA
RECEIVER
BATTERY
lamp
ROLLING CODE
LOCK or UNLOCK
or TRUNK DATA
BATTERY
DOOR
ACTUATOR
RECEIVER
