MOBASE ELECTRONICS DDBCM1307-SL BCM Receiver User Manual
Daedong Co. Ltd. BCM Receiver
User Manual
Information Document (5 sheets:
including this sheet)
Attachment 1 - System diagram (1 sheet)
Attachment 2 - TRANSMITTER Diagram (1 sheet)
Attachment 3 - Schematic of the Receiver (1 sheet)
Attachment 4 - Layout of the Receiver (1 sheet)
Attachment 5 - Part List (1 sheet)
CONTENTS LIST
INFORMATION DOCUMENT NO. DDBCM1307-SL
RELATING TO CE TYPE-APPROVAL
OF VEHICLE RF REMOTE KEYLESS ENTRY IN BCM SYSTEM
AS SEPARATE TECHNICAL UNIT
DAE DONG CO., LTD.
- 2013.02.05 -
Title : NO.
Date
0. GENERAL
0.1. Make
DAE DONG Co.,Ltd.
0.2. Model No.
: DDBCM1307-SL
0.3. Name and address of manufacturer
DAE DONG Co.,Ltd.
424, Sinwon-ro, Wonsi-dong, Danwon-gu Ansan-si, Gyeonggi-do, Korea
0.4. Address of assembly plant
DAE DONG Co.,Ltd.
424, Sinwon-ro, Wonsi-dong, Danwon-gu Ansan-si, Gyeonggi-do, Korea
Information Document
Title : NO.
Date
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.1.2 RECEIVER : It receives the ROLLING CODE and decodes that,
thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
2.2.2 RECEIVER
Rated Supply Voltage
Below than 5.5mA
Operating Temperature - 30 ~ + 80℃
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Standby Current
Electric field strength 10mW (315.00MHz)
(in alarm setting condition)
Specification
Item
DC 9 ~ 16V Operating Voltage
DC 12V
Max Humidity 95%
Operating temperature range -20 ~+60℃
Frequency 315.00MHz
Code Rolling Code(Hopping Algorithm)
Storage temperature range -30 ~ 80℃
Modulation FSK
ITEM
SPECIFICATION
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Information
Information Document
Title : NO.
Date
2.3 Operating summary
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock Tail-Gate state.
⑥ RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TAIL-GATE button is pushed for more than 1 sec, then
TRANSMITTER sends the TAIL-GATE DATA.

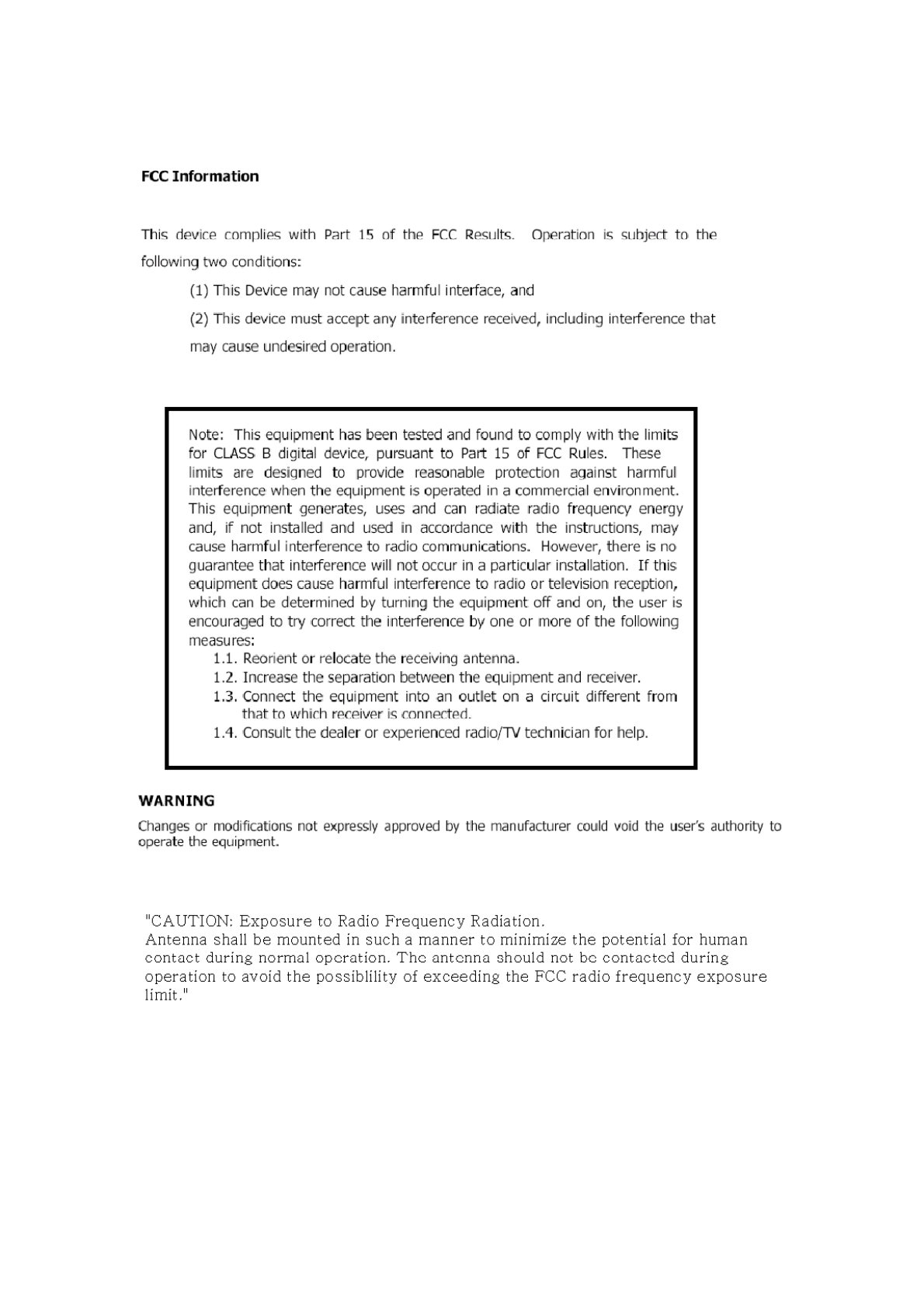

2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
Information Document
Information Document
Title : NO.
Date
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.

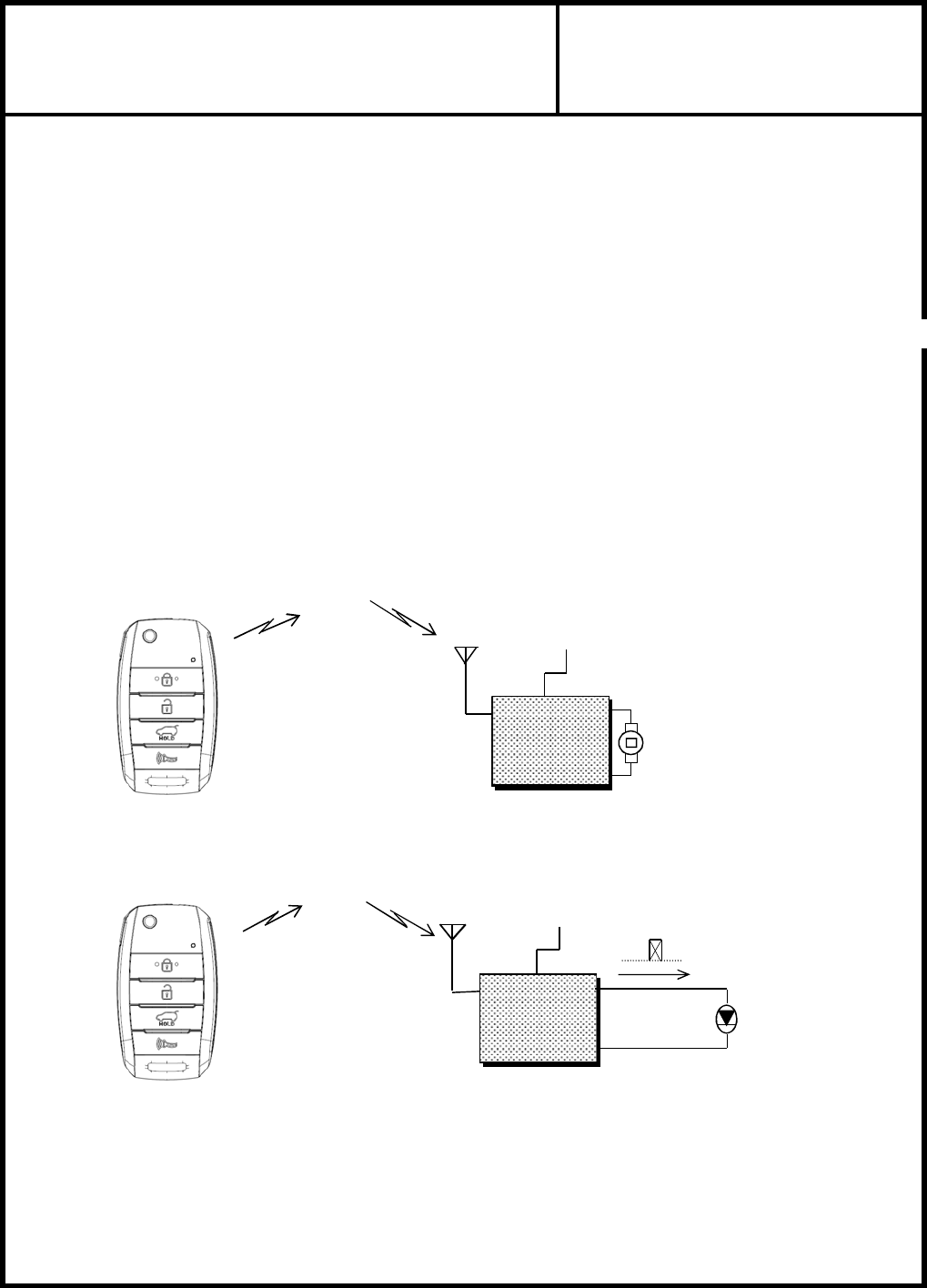

3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
Information Document
Information Document
Information Document
Information Document
ANTENNA
ROLLING CODE
(315.00MHz)
ANTENNA
RECEIVER
BATTERY
lamp
ROLLING CODE
(315.00MHz)
LOCK or UNLOCK or TAIL-GATE DATA
BATTERY
DOOR
ACTUATOR
RECEIVER
