MOBASE ELECTRONICS SEKS-07RX Remote Keyless Entry System User Manual SEKS 007 Manual rev01
Daedong Co. Ltd. Remote Keyless Entry System SEKS 007 Manual rev01
Users Manual
Title : NO. : SCE-0406
Date : 25. JUN. 2004
0. GENERAL
0.1. Make
Shinchang Electrics Co.,Ltd.
0.2. Model No.
- Transmitter : SEKS-07Tx
- Receiver
: SEKS-07Rx
0.3. Name and address of manufacturer
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
0.4. Address of assembly plant
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
Page 1 of 13
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operations.
Information Document
Title : NO. : SCE-0406
Date : 25. JUN. 2004
1. PRODUCT SPECIFICATION
1.1 Scope of Remote Keyless Entry in ETACS system.
1.1.1 Key part : Transmitter is inside of the remote key, and it
sends the rolling code to the receiver by radio frequency.
1.1.2 Receiver : It receives the rolling code and decodes that,
thereafter receiver drives the actuator and horn.
1.2 Specification
1.2.1 Transmitter
1.2.2 Receiver
Page 2 of 13
Storage temperature range -30 ~ 80?
Modulation FM
Item Specification
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature range -20 ~+60?
Electric field strength 0.01mW
Frequency 433.92MHz
Code Rolling Code(Hopping Algorithm)
- 30 ~ + 80?
Max Humidity 95%
Battery life 2 Year(Lithium 3V 1EA)
Below than 6mA
(in alarm setting condition)
Standby Current
Specification
Item
DC 9 ~ 16V Operating Voltage
DC 12V Rated Supply Voltage
Operating Temperature
Information Document
Information Document
Title : NO. : SCE-0406
Date : 25. JUN. 2004
2. USER MANUAL
2.1 Name : ETACS system
- This system is ETACS and includes RKE.
- RKE in ETACS system is intended for auto door lock or unlock / panic in vehicle.
- This ETACS system is to be installed on motor vehicles as *OE item.
* OE : Original Equipment.
* ETACS : Electronic Time & Alarm Control System.
* RKE : Remote Keyless Entry.

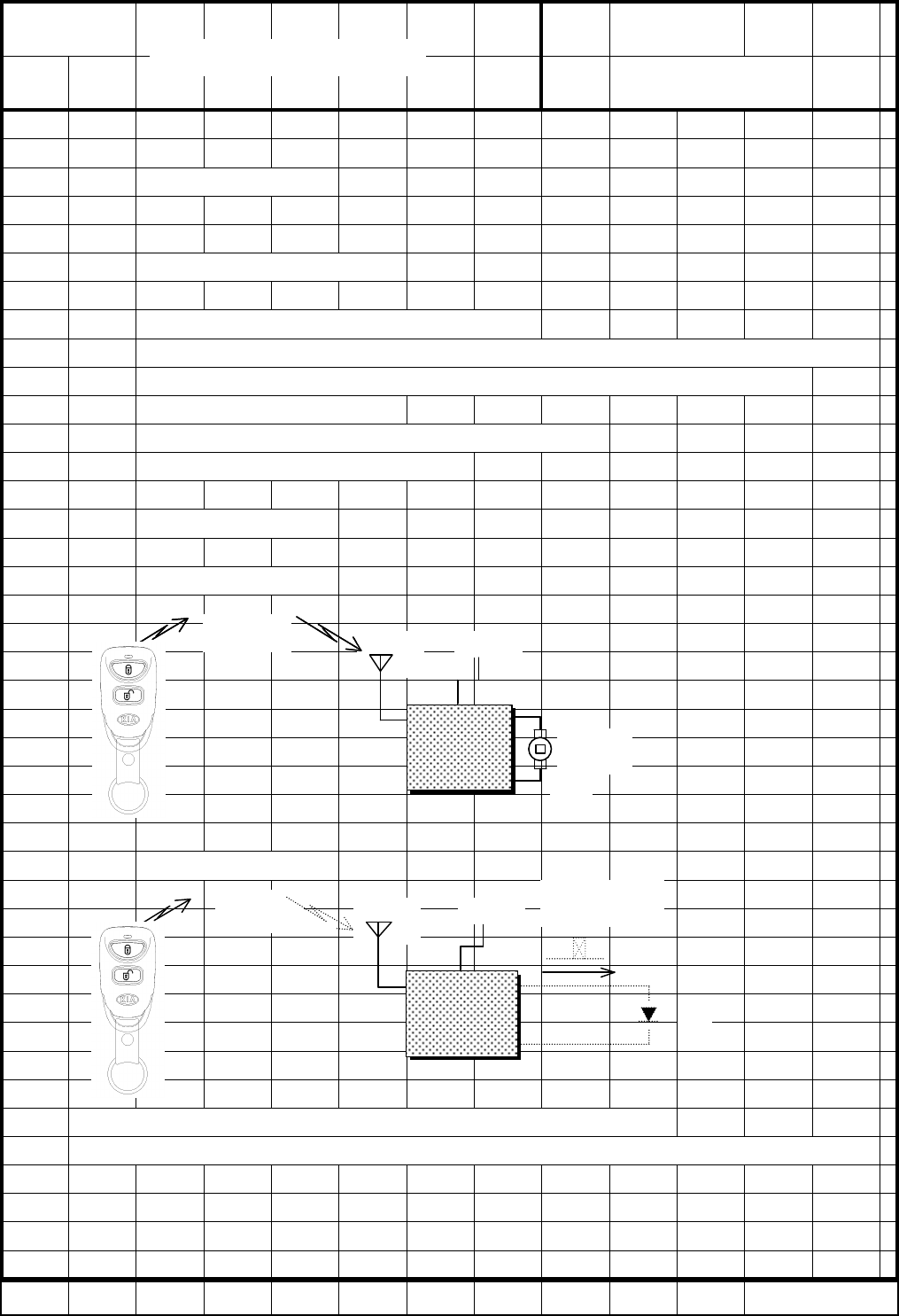

2.2 System construction
2.2.1 System in vehicle
2.2.1 System for test
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock / panic output signal.
Page 3 of 13
Information Document
Information Document
Information Document
Information Document
ANTEN
RECEIVER
BATTERY
DOOR
ACTUATOR
ROLLING
ANTENNA
RECEIVER
BATTERY
DOOR
ACTUATOR
ROLLING
CODE
ANTENNA
RECEIVER
BATTERY
LOCK or UNLOCK
DATA
LED
ROLLING
CODE
Title : NO. : SCE-0406
Date : 25. JUN. 2004
2.3 Operating summary
? Transmitter's button is pushed.
? Transmitter sends the code by radio frequency.
? Receiver gets the code and decodes it.
? Receiver judges the code whether it is right code or not.
? Receiver checks door lock or unlock / panic state.
? Receiver drives the actuator.
? Receiver drives the horn
2.3.1 Lock & Unlock & Panic
If transmitter's button is pushed,
Transmitter sends the code.
2.4 Caution
? Danger of explosion if battery is incorrectly replaced.
? Replace only with the same or equivalent type recommended by the manufacturer.
? Dispose of used batteries according to the manufacturer's instructions.
Page 4 of 5
Information Document
Information Document
NO. PART NAME QT'Y REMARKS
?ETACS 1
?TRANSMITTER 1
Page 6 of 13

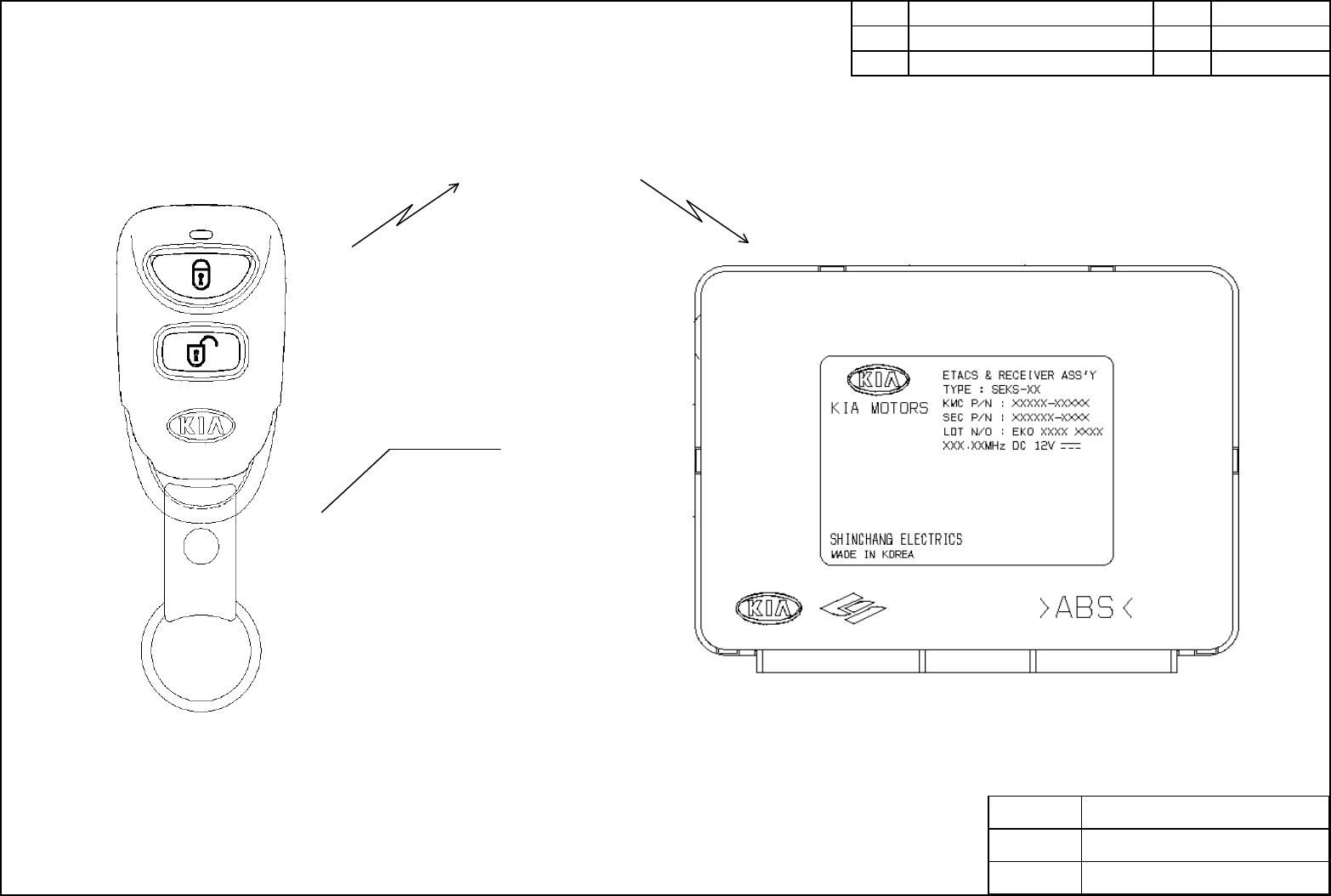

NAME RKE SYSTEM IN ETACS
TITLE SYSTEM DIAGRAM
SCALE FREE
433.92MHz
LOCK & UNLOCK
& PANIC BUTTON
Page 5 of 5
SA ETACS LHD
SA ETACS RHD
