MOBASE ELECTRONICS SEKS-AMFLARX Remote Keyless Entry System User Manual NYO SEKS AMFLARX Manual
Daedong Co. Ltd. Remote Keyless Entry System NYO SEKS AMFLARX Manual
User manaul
0. GENERAL
0.1. Make
Shinchang Electrics Co.,Ltd.
0.2. Model No.
- Transmitter : SEKS-AM11ATx
- Receiver : SEKS-AMFLARX
0.3. Name and address of manufacturer
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
0.4. Address of assembly plant
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
![](/img.php?id=1509917&img=bg2.png)
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.1.2 RECEIVER : It receives the ROLLING CODE and decodes that,
thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
2.2.2 RECEIVER
Specification
Item
DC 9 ~ 16V Operating Voltage
DC 12V Rated Supply Voltage
Below than 5.5mA
Operating Temperature - 30 ~ + 80℃
Max Humidity 95%
Standby Current (in alarm setting condition)
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Electric field strength 10mW (433.92MHz)
Frequency 315.00 MHz
Code Rolling Code(Hopping Algorithm)
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature range -20 ~+60℃
ITEM SPECIFICATION
Rated supply voltage DC 3V
Storage temperature range -30 ~ 80℃
Modulation FSK
![](/img.php?id=1509917&img=bg3.png)
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicl
e
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.
3.2 SYSTEM CONSTRUCTION

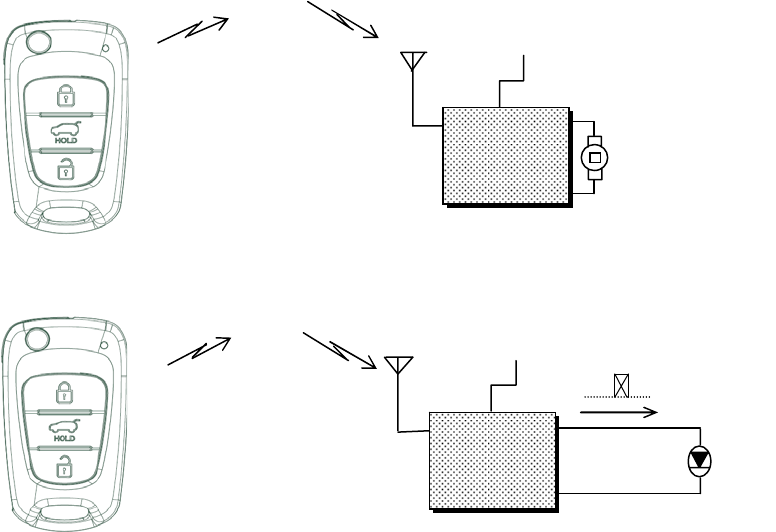

3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
ANTENNA
ROLLING CODE
(315 MHz)
ANTENNA
RECEIVER
BATTERY
lamp
ROLLING CODE
(315 MHz)
LOCK or UNLOCK or TAIL-GATE DATA
BATTERY
DOOR
ACTUATOR
RECEIVER
![](/img.php?id=1509917&img=bg4.png)
2.3 Operating summary
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock Tail-Gate state.
⑥ RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TAIL-GATE button is pushed for more than 1 sec, then
TRANSMITTER sends the TAIL-GATE DATA.
2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
![](/img.php?id=1509917&img=bg5.png)
G
G
G
G
G
G
G
G
G
G
G

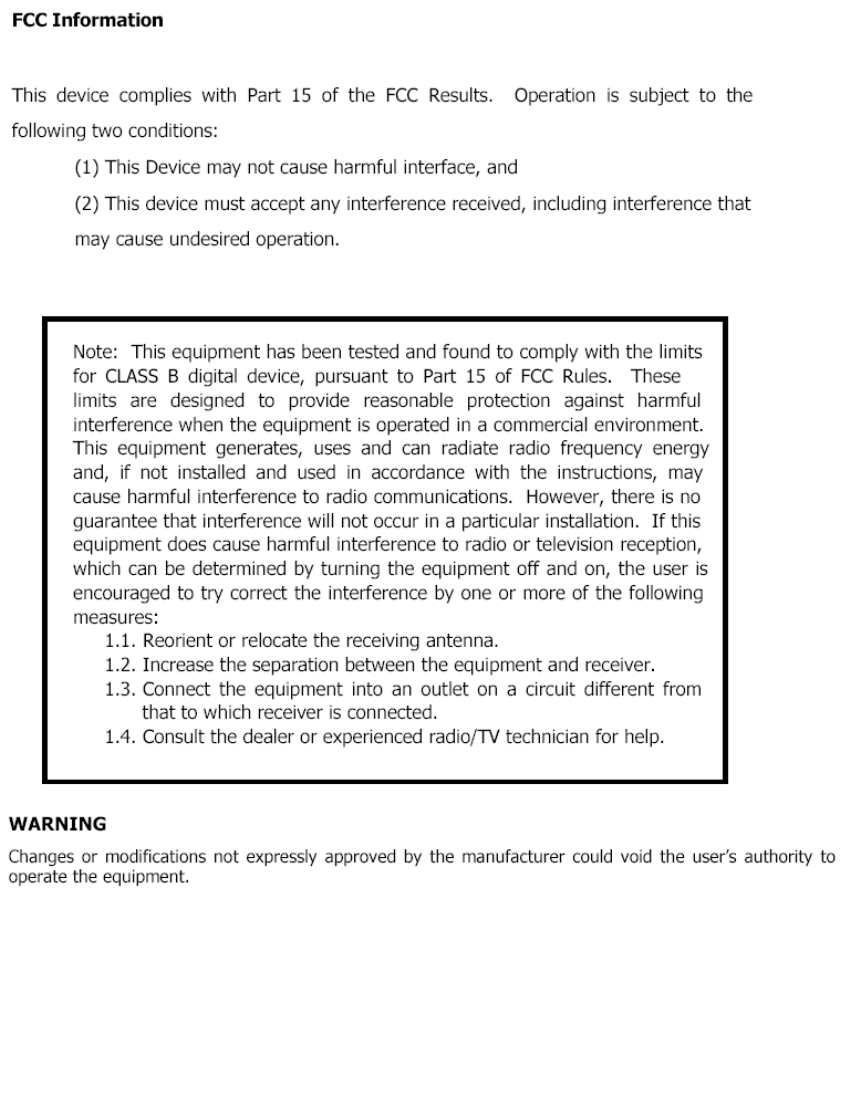

"CAUTION: Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human
contact during normal operation. The antenna should not be contacted during
operation to avoid the possiblility of exceeding the FCC radio frequency exposure
limit.
