Daedong Co. Ltd. Low Power Communication Device REV
Users Manual
1. GENERAL
1.1. Make
Shinchang Electrics Co.,Ltd.
1.2. Model No.
- Receiver
: SEKS-SL13MYARX
1.3. Name and address of manufacturer
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-dong, Danwon-gu, Ansan-si, Kyungki-do, 425-090, Korea
1.4. Address of assembly plant
Shinchang Electrics Co.,Ltd.
734-2, Wonshi-dong, Danwon-gu, Ansan-si, Kyungki-do, 425-090, Korea
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.1.2 RECEIVER : It receives the ROLLING CODE and decodes that,
thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
2.2.2 RECEIVER
Specification
Item
DC 12V Rated Supply Voltage
Below than 5.5mA
Operating Temperature - 30 ~ + 80℃
Max Humidity 95%
Standby Current (in alarm setting condition)
Code Rolling Code(Hopping Algorithm)
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Electric field strength 10mW (433.92MHz)
Operating temperature range -20 ~+60℃
Frequency 315 MHz
Storage temperature range -30 ~ 80℃
Modulation FSK
ITEM
SPECIFICATION
Rated supply voltage DC 3V
2.3 Operating summary
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock Tail-Gate state.
⑥ RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TAIL-GATE button is pushed for more than 1 sec, then
TRANSMITTER sends the TAIL-GATE DATA.

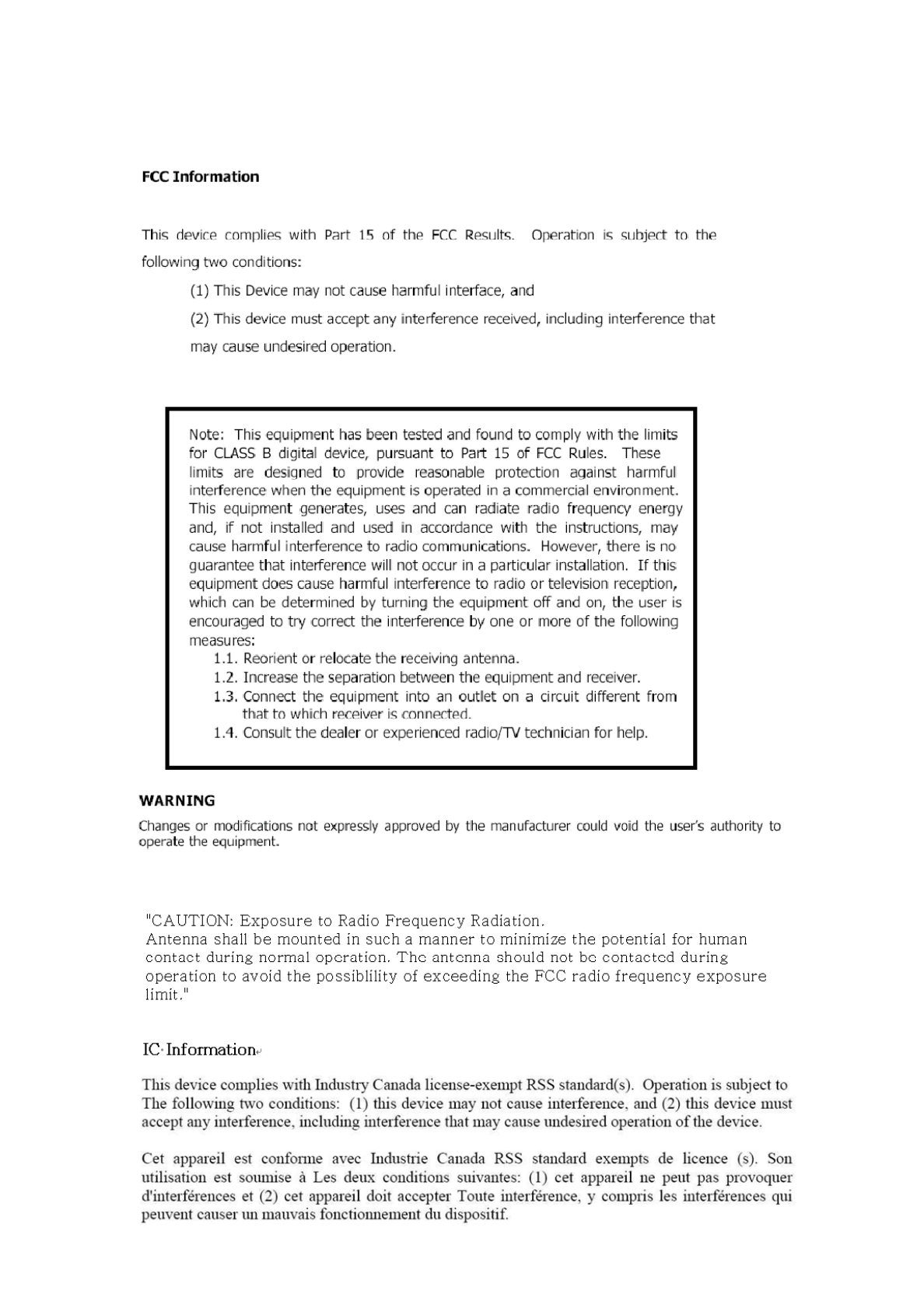

2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
②
Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.

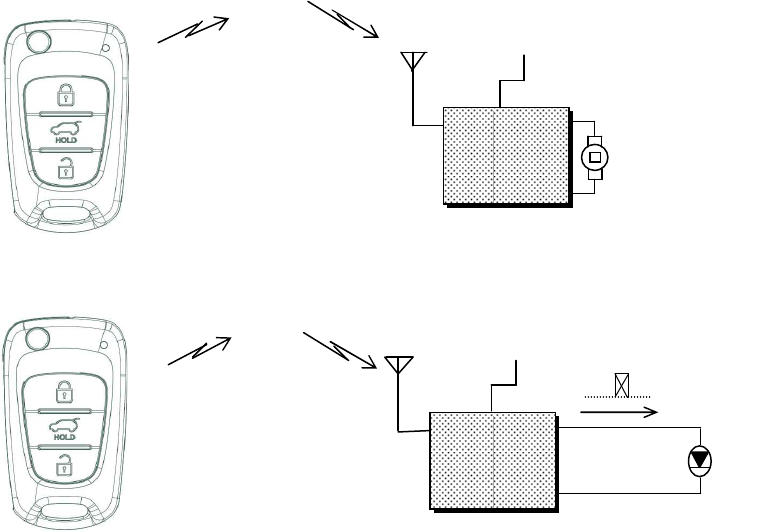

3.2 SYSTEM CONSTRUCTION
SYSTEM IN VEHICLE
SYSTEM FOR TEST
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
ANTENNA
ROLLING CODE
(315 MHz)
ANTENNA
RECEIVER
BATTERY
lamp
ROLLING CODE
(315 MHz)
LOCK or UNLOCK or TAIL-GATE DATA
BATTERY
DOOR
ACTUATOR
RECEIVER
