MOBASE ELECTRONICS SYEC3TX1804 Remote Keyless Entry Transmitter User Manual
SEOYON ELECTRONICS CO., LTD. Remote Keyless Entry Transmitter
User Manual
Title : NO.
Date
SHT/SHTS : 2/11
0. GENERAL
0.1. Make
SEOYON ELECTRONICS Co.,Ltd.
0.2.
Model No.
- Transmitter :
3BT -
4BT -
- Receiver : Body Control Module
0.3. Name and address of manufacturer
SEOYON ELECTRONICS Co.,Ltd.
100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, Republic
of Korea
0.4. Address of assembly plant
SEOYON ELECTRONICS Co.,Ltd.
100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, Republic
of Korea
Remote Keyless Entry Transmitter
SYEC3TX1804
Remote Keyless Entry Transmitter
SYEC4TX1804
Information Document
Title : NO.
Date
SHT/SHTS : 3/11
2. PRODUCT SPECIFICATION
2.1 Scope of RKE, Body Control Module
2.1.1 Folding TX KEY : It has the RKE functions.
Data is transmitted with radio frequency
2.1.2 BCM(RX) : ECU is control the whole BCM funtion with RKE
2.2 SPECIFICATIONS
2.2.1 Transmitter
2.2.2 RECEIVER
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Electric field strength 10mW (433.92MHz)
Code Rolling Code(Hopping Algorithm)
Operating voltage range DC 2.5 ~ 3.2V
ITEM
SPECIFICATION
Rated supply voltage DC 3V
Operating temperature range - 10 ~ + 60℃ with Battery
Frequency 433.92MHz
Storage temperature range - 30 ~ + 85℃ without Battery
Modulation FSK
Below than 5.5mA
Operating Temperature - 30 ~ + 80℃
Max Humidity 95%
Standby Current (in alarm setting condition)
Specification
Item
DC 9 ~ 16V Operating Voltage
DC 12V Rated Supply Voltage
Information Document
Title : NO.
Date
SHT/SHTS : 4/11
2.3 Operating summary
-RKE
①
TRANSMITTER's button is pushed.
②
TRANSMITTER sends the code by radio frequency.
③
RECEIVER gets the code and decodes it.
④
RECEIVER judges the code whether it is right code or not.
⑤
RECEIVER checks door lock or unlock, trunk state.
⑥
RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
①
If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
②
If TRUNK button is pushed for more than 1 sec, then
TRANSMITTER sends the TRUNK DATA.
③
If PANIC button is pushed for more than 1 sec, thed
TRANSMITTER sends the PANIC DATA.
2.4 Caution
①
Danger of explosion if battery is incorrectly replaced.
②
Replace only with the same or equivalent type recommended by the manufacturer.
③
Dispose of used batteries according to the manufacturer's instructions.
Information Document
Title : NO.
Date
SHT/SHTS : 5/11
3. USER MANUAL
3.1 ITEM : Body Control Module
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TRUNK in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module
*RKE : Remote Keyless Entry.

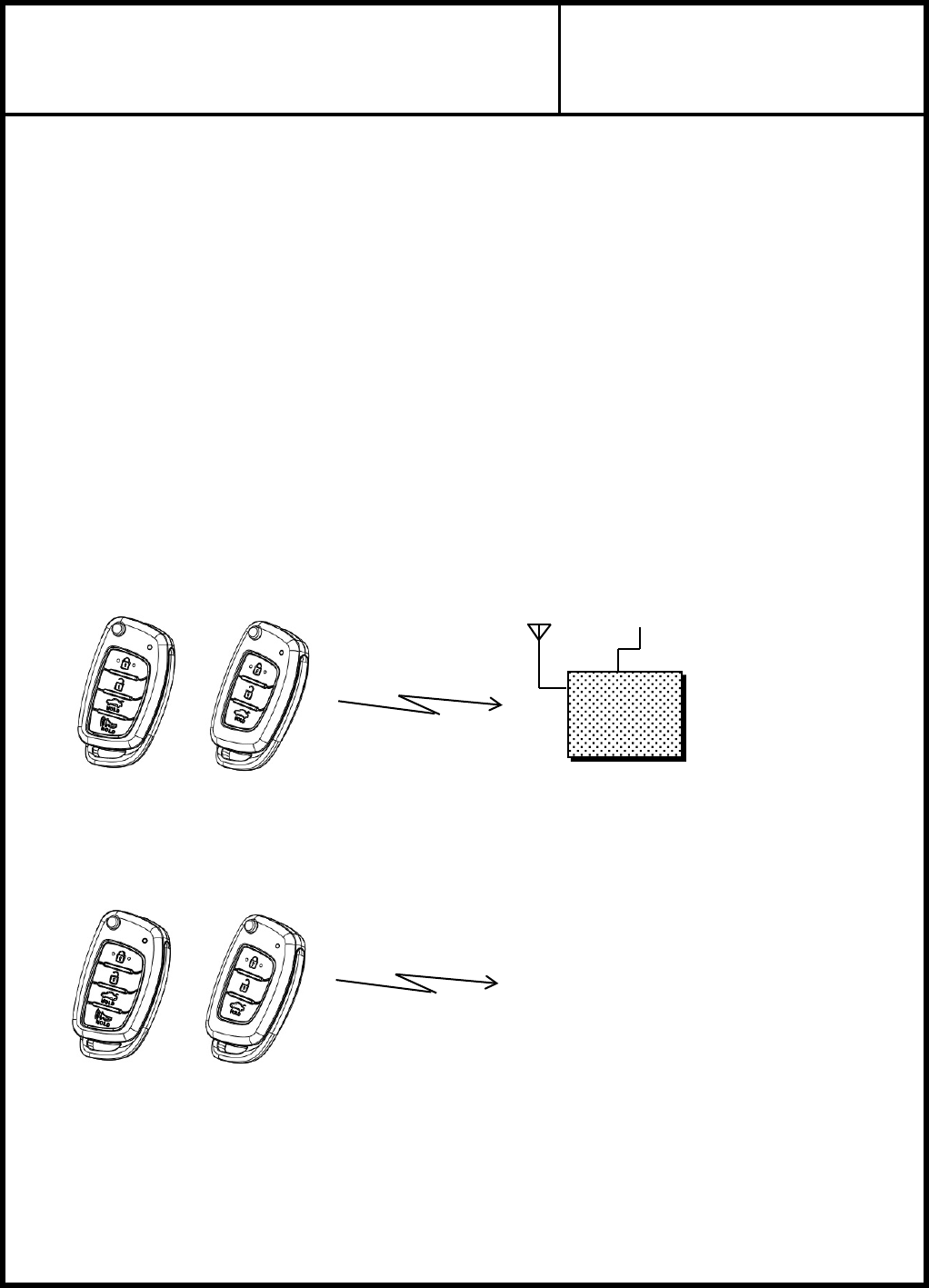

3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
①
if press button on the transmitter, RF signal is transmitted and turns on the LED
* It shows the status of operation through the LED used.
Information Document
Information Document
Information Document
Information Document
Radio Frequency
(433.92MHz)
ANTENNA
BATTERY
BCM
Radio Frequency
(433.92MHz)
Class B
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
