MOBASE ELECTRONICS SYEC4FOB1608 FOB-SMART KEY User Manual
SEOYON ELECTRONICS CO., LTD. FOB-SMART KEY
User Manual
![](/img.php?id=3055733&img=bg1.png)
적용차종
PD
페이지(SHT/SHTS)
1/11
작성처
전자설계2팀
INFORMATION DOCUMENT NO.
Title : RELATING TO CE TYPE-APPROVAL
AS SEPARATE TECHNICAL UNIT
OF VEHICLE RF REMOTE KEYLESS ENTRY IN SMART KEY SYSTEM
Information Document
Attachment 1 - System diagram
Attachment 2 - Fob block diagram
Attachment 3 - Schematic of fob
Attachment 4 - Layout of fob
Attachment 5 - Part List
목차
(5 sheets: Include cover)
(1 sheet)
(1 sheet)
(Each 1 sheet)
(1 sheet)
(1 sheet)
신 규 작 성
전 PAGE
2016.05.13
임현수
부호
변 경 내 역
관련 PAGE
개정일자
작성자
제정일자
2016. 05. 13
참고자료
구분
작 성
검 토
승 인
결
재
![](/img.php?id=3055733&img=bg2.png)
Title :
Information Document
NO.
Date
0. GENERAL
0.1. Make
SEOYON ELECTRONICS Co.,Ltd.
0.2. Model No.SYEC4FOB1608
- Transmitter : FOB
- Receiver : SMART KEY SYSTEM
0.3. Name and address of manufacturer
SEOYON ELECTRONICS Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
0.4. Address of assembly plant
SEOYON ELECTRONICS Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
SHT/SHTS : 2/11
![](/img.php?id=3055733&img=bg3.png)
Title :
Information Document
NO.
Date
2. PRODUCT SPECIFICATION
SHT/SHTS : 3/11
2.1 Scope of RKE, passive entry control, passive start control in SMART Key system.
2.1.1 FOB KEY : It has the functions for passive entry and passive start including
RKE functions. It also has the TP for emergency authentication for passive start
2.1.2 SMART Key system : It is an ECU to control the whole smart key system.
It has the functions such as passive entry control, passive start control, RKE functions.
2.2 SPECIFICATIONS
2.2.1 FOB KEY
2.2.2 RECEIVER
ITEM
SPECIFICATION
Rated supply voltage
DC 3V
Operating voltage range
DC 2.5 ~ 3.2V
Operating temperature range
- 10 ~ + 60℃ with Battery
Storage temperature range
- 40 ~ + 85℃ without Battery
Modulation
FSK
Frequency
433.92MHz
Code
Rolling Code(Hopping Algorithm)
Electric field strength
10mW (433.92MHz)
Battery life
2 Year(10Times/Day)(Lithium 3V 1EA)
Item
Specification
Rated Supply Voltage
DC 12V
Operating Voltage
DC 9 ~ 16V
Operating Temperature
- 30 ~ + 80℃
Max Humidity
95%
Standby Current
Below than 5.5mA
(in alarm setting condition)
![](/img.php?id=3055733&img=bg4.png)
Title :
Information Document
NO.
Date
2.3 Operating summary
-RKE
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock, trunk state.
⑥ RECEIVER drives the actuator.
- Passive Start
① the SSB button of SMK is pressed to start the engine.
SHT/SHTS : 4/11
② The indoor ANT of the car transmits the code via the Low Frequency.
③ Fob(receiver) decrypts the received code from SMK.
④ Fob transmits the code via radio frequency.
⑤ SMK should check the boot state.
⑥ SMK controls a start-up operation and the transition of supply power.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TRUNK button is pushed for more than 1 sec, then
TRANSMITTER sends the TRUNK DATA.
2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
![](/img.php?id=3055733&img=bg5.png)
ICLE
TEST
formation Document
Information Document
Information Document
Title :
In Information Document
NO.
Date
SHT/SHTS : 5/11
3. USER MANUAL
3.1 ITEM : SMK system
- This system is SMK and inculdes RKE.
- RKE in SMK system is intended for auto door lock or unlock or TRUNK in vehicle.
- This SMK system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*SMK : Smart Key System
*RKE : Remote Keyless Entry.

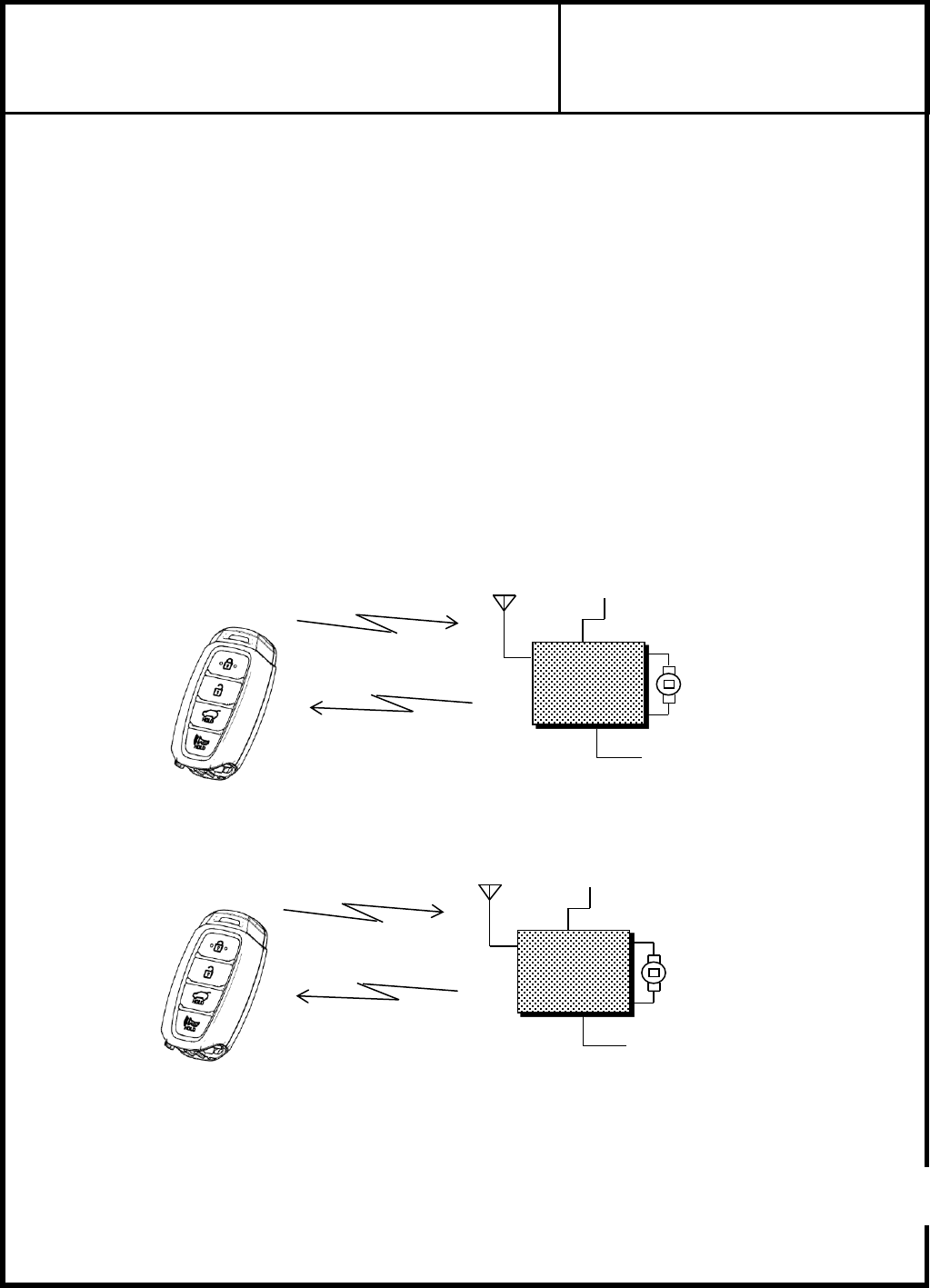

3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEH
Radio Frequency
(433.92MHz)
Low Frequency
ANTENNA BATTERY
SMK
LF ANT
3.2.2 SYSTEM FOR
(134.2KHz)
Radio Frequency
(433.92MHz)
Low Frequency
(134.2KHz)
ANTENNA BATTERY
SMK
SSB
SSB
LF ANT
① When the lamp of "B+" is 'On', it means that power is supplied.
② When the SSB is pressed in position of INT1 ANT Switch on,
it means a start-up function that ACC_RLY and IGN1_RLY lamp is 'On'(SSB_SW1, SW_2 'On').
③ When the SSB is pressed repeatively, ACC_RLY and IGN1_RLY is 'On' and 'Off', repeatively.
* It shows the status of operation through the lamp used.
