MOBOTIX PROX Box with Radar User Manual manual part 2

MOBOTIX AG Box with Radar manual part 2

Contents

manual_part_2

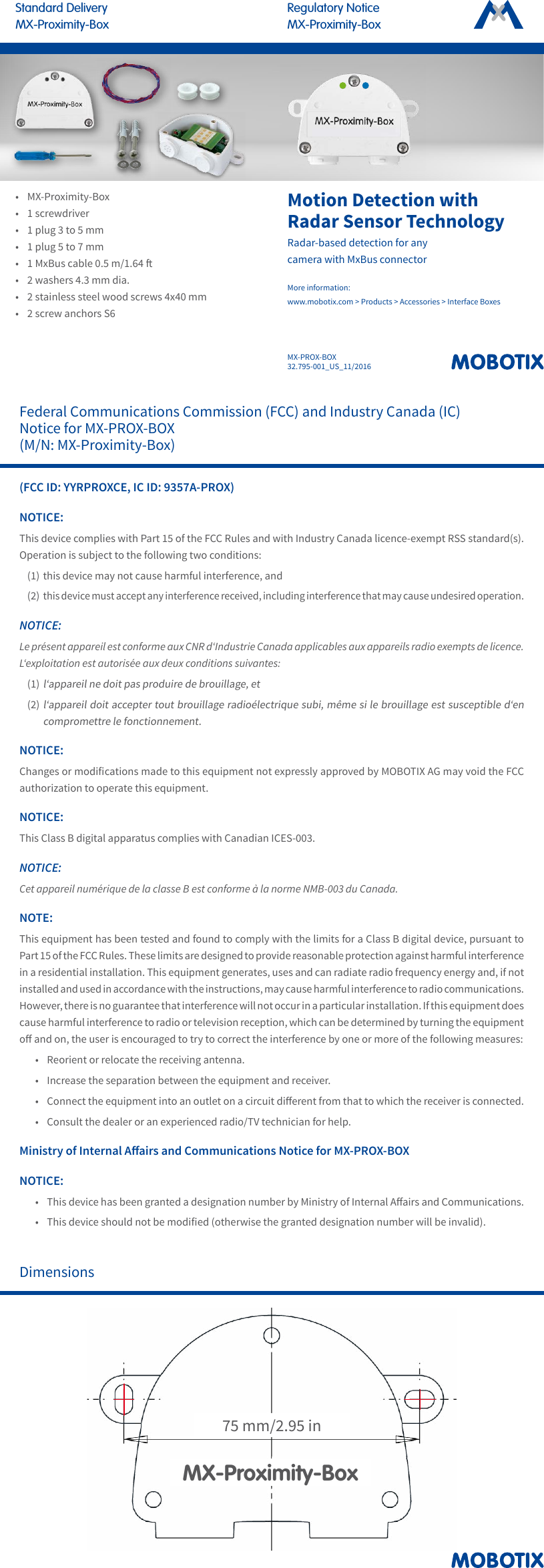

MX-PROX-BOX32.795-001_US_11/2016Regulatory NoticeMX-Proximity-BoxStandard DeliveryMX-Proximity-BoxFederal Communications Commission (FCC) and Industry Canada (IC) Notice for MX-PROX-BOX (M/N: MX-Proximity-Box)(FCC ID: YYRPROXCE, IC ID: 9357A-PROX)NOTICE:This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.NOTICE:Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de licence. L‘exploitation est autorisée aux deux conditions suivantes:(1) l‘appareil ne doit pas produire de brouillage, et(2) l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en compromettre le fonctionnement.NOTICE:Changes or modications made to this equipment not expressly approved by MOBOTIX AG may void the FCC authorization to operate this equipment.NOTICE:This Class B digital apparatus complies with Canadian ICES-003.NOTICE:Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Ministry of Internal Aairs and Communications Notice for MX-PROX-BOXNOTICE:• This device has been granted a designation number by Ministry of Internal Aairs and Communications.• This device should not be modied (otherwise the granted designation number will be invalid).Dimensions75 mm/2.95 inMX-Proximity-BoxMotion Detection with Radar Sensor TechnologyRadar-based detection for any camera with MxBus connector More information: www.mobotix.com > Products > Accessories > Interface Boxes• MX-Proximity-Box• 1 screwdriver• 1 plug 3 to 5 mm• 1 plug 5 to 7 mm• 1 MxBus cable 0.5 m/1.64 • 2 washers 4.3 mm dia.• 2 stainless steel wood screws 4x40 mm• 2 screw anchors S6

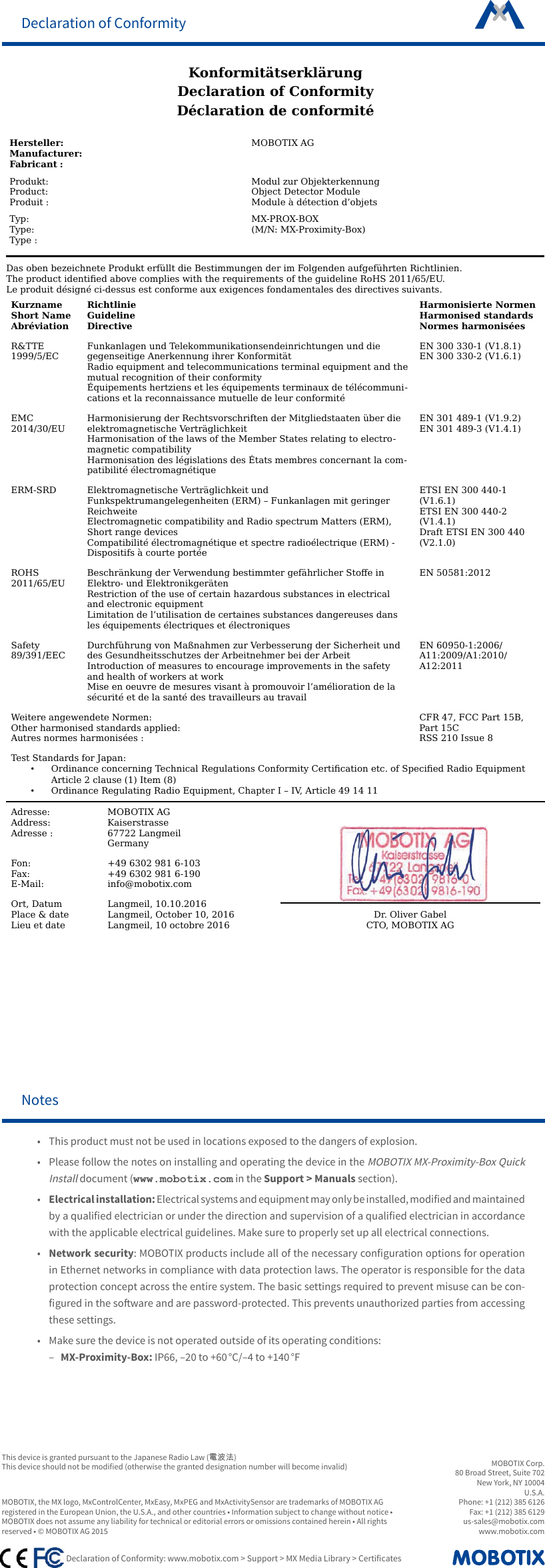

MOBOTIX Corp.80 Broad Street, Suite 702New York, NY 10004U.S.A.Phone: +1 (212) 385 6126 Fax: +1 (212) 385 6129 us-sales@mobotix.comwww.mobotix.com Declaration of Conformity: www.mobotix.com > Support > MX Media Library > CerticatesMOBOTIX, the MX logo, MxControlCenter, MxEasy, MxPEG and MxActivitySensor are trademarks of MOBOTIX AG registered in the European Union, the U.S.A., and other countries • Information subject to change without notice • MOBOTIX does not assume any liability for technical or editorial errors or omissions contained herein • All rights reserved • © MOBOTIX AG 2015Notes• This product must not be used in locations exposed to the dangers of explosion.• Please follow the notes on installing and operating the device in the MOBOTIX MX-Proximity-Box Quick Install document (www.mobotix.com in the Support > Manuals section).• Electrical installation: Electrical systems and equipment may only be installed, modied and maintained by a qualied electrician or under the direction and supervision of a qualied electrician in accordance with the applicable electrical guidelines. Make sure to properly set up all electrical connections.• Network security: MOBOTIX products include all of the necessary conguration options for operation in Ethernet networks in compliance with data protection laws. The operator is responsible for the data protection concept across the entire system. The basic settings required to prevent misuse can be con-gured in the soware and are password-protected. This prevents unauthorized parties from accessing these settings.• Make sure the device is not operated outside of its operating conditions: – MX-Proximity-Box: IP66, –20 to +60 °C/–4 to +140 °FDeclaration of ConformityKonformitätserklärungDeclaration of ConformityDéclaration de conformitéHersteller:Manufacturer:Fabricant :MOBOTIX AGProdukt:Product:Produit :Modul zur ObjekterkennungObject Detector ModuleModule à détection d’objetsTyp:Type:Type :MX-PROX-BOX(M/N: MX-Proximity-Box)Das oben bezeichnete Produkt erfüllt die Bestimmungen der im Folgenden aufgeführten Richtlinien.The product identied above complies with the requirements of the guideline RoHS 2011/65/EU.Le produit désigné ci-dessus est conforme aux exigences fondamentales des directives suivants.KurznameShort NameAbréviationRichtlinieGuidelineDirectiveHarmonisierte NormenHarmonised standardsNormes harmoniséesR&TTE1999/5/ECFunkanlagen und Telekommunikationsendeinrichtungen und die gegenseitige Anerkennung ihrer KonformitätRadio equipment and telecommunications terminal equipment and themutual recognition of their conformityÉquipements hertziens et les équipements terminaux de télécommuni-cations et la reconnaissance mutuelle de leur conformitéEN 300 330-1 (V1.8.1)EN 300 330-2 (V1.6.1)EMC2014/30/EUHarmonisierung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische VerträglichkeitHarmonisation of the laws of the Member States relating to electro-magnetic compatibilityHarmonisation des législations des États membres concernant la com-patibilité électromagnétiqueEN 301 489-1 (V1.9.2)EN 301 489-3 (V1.4.1)ERM-SRD Elektromagnetische Verträglichkeit und Funkspektrumangelegenheiten (ERM) – Funkanlagen mit geringer ReichweiteElectromagnetic compatibility and Radio spectrum Matters (ERM), Short range devicesCompatibilité électromagnétique et spectre radioélectrique (ERM) - Dispositifs à courte portéeETSI EN 300 440-1 (V1.6.1)ETSI EN 300 440-2 (V1.4.1)Draft ETSI EN 300 440 (V2.1.0)ROHS2011/65/EUBeschränkung der Verwendung bestimmter gefährlicher Stoe in Elektro- und ElektronikgerätenRestriction of the use of certain hazardous substances in electrical and electronic equipmentLimitation de l’utilisation de certaines substances dangereuses dans les équipements électriques et électroniquesEN 50581:2012Safety89/391/EECDurchführung von Maßnahmen zur Verbesserung der Sicherheit und des Gesundheitsschutzes der Arbeitnehmer bei der ArbeitIntroduction of measures to encourage improvements in the safety and health of workers at workMise en oeuvre de mesures visant à promouvoir l’amélioration de la sécurité et de la santé des travailleurs au travailEN 60950-1:2006/ A11:2009/A1:2010/ A12:2011Weitere angewendete Normen:Other harmonised standards applied:Autres normes harmonisées :CFR 47, FCC Part 15B, Part 15CRSS 210 Issue 8Test Standards for Japan:•Ordinance concerning Technical Regulations Conformity Certication etc. of Specied Radio Equipment Article 2 clause (1) Item (8)•Ordinance Regulating Radio Equipment, Chapter I – IV, Article 49 14 11Adresse:Address:Adresse :MOBOTIX AGKaiserstrasse67722 LangmeilGermanyDr. Oliver GabelCTO, MOBOTIX AGFon:Fax:E-Mail:+49 6302 981 6-103+49 6302 981 6-190info@mobotix.comOrt, DatumPlace & dateLieu et dateLangmeil, 10.10.2016Langmeil, October 10, 2016Langmeil, 10 octobre 2016This device is granted pursuant to the Japanese Radio Law (電波法)This device should not be modied (otherwise the granted designation number will become invalid)
