User Manual
ENGLISH
Smart display (MTXNC10BD)
USER’S MANUAL
Please read this manual carefully before operating your set and retain it for future reference. Designs and specifica-
tions are subject to change without prior notice.
The screens shown in this manual may differ from the actual screens of the product.
The design and specification of this product may change without prior notification for product improvement.
When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use.
Rev.2.0
ESPAÑOL
2
Table of Contents
Precautions for safety
Safety notes
5
Key Product Features
Key Product Features
6
Component Names and Functions
Head Unit
7
Steering Wheel
9
Using the System for the First Time
Turning the System On/Off
10
Turning the System ON
10
Turning the System Off
10
AV On/Off
10
Resetting the System
10

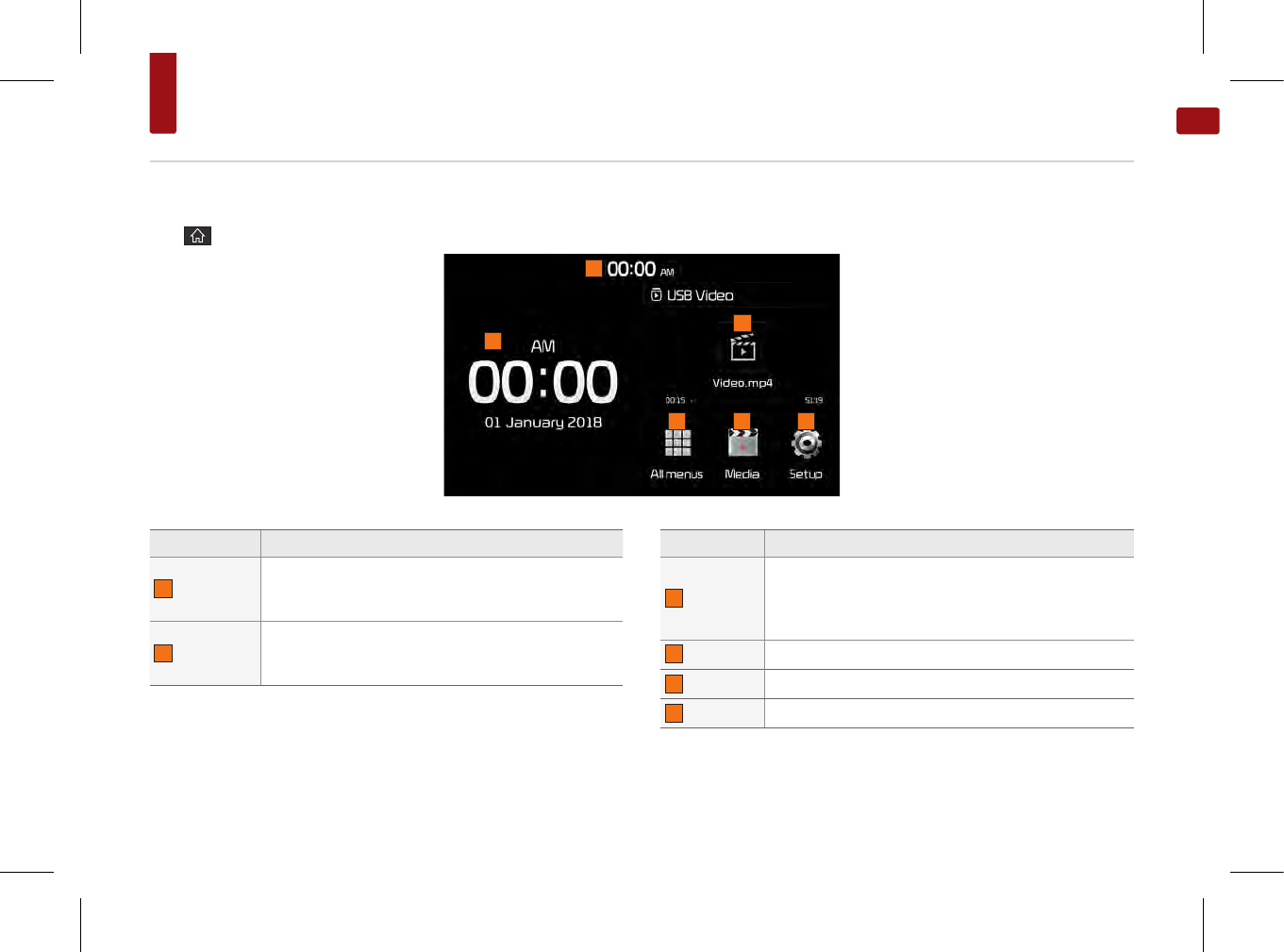

Home Screen
11
FM/AM
Basic Screen
12
Listening to FM/AM radio
13
Auto Tuning
13
Manual Tuning
13
Selecting preset lists
13
Scan
13
Autostore
13
Sound Settings
13
USB
About USB
14
USB Music
Playing USB Music
15
Searching USB Music Files
15
Repeat
15
Shuffle
15
List
15
Sound Settings
15
USB Video
Playing USB Video
16
Searching USB Video Files
16
Repeat
16
List
16
Sound Settings
16
Display Settings
16
iPod® Music
About iPod®
17
Playing iPod® Music
18
Searching iPod® Music Files
18
Repeat
18
Shuffle
18
List
18
Sound Settings
18

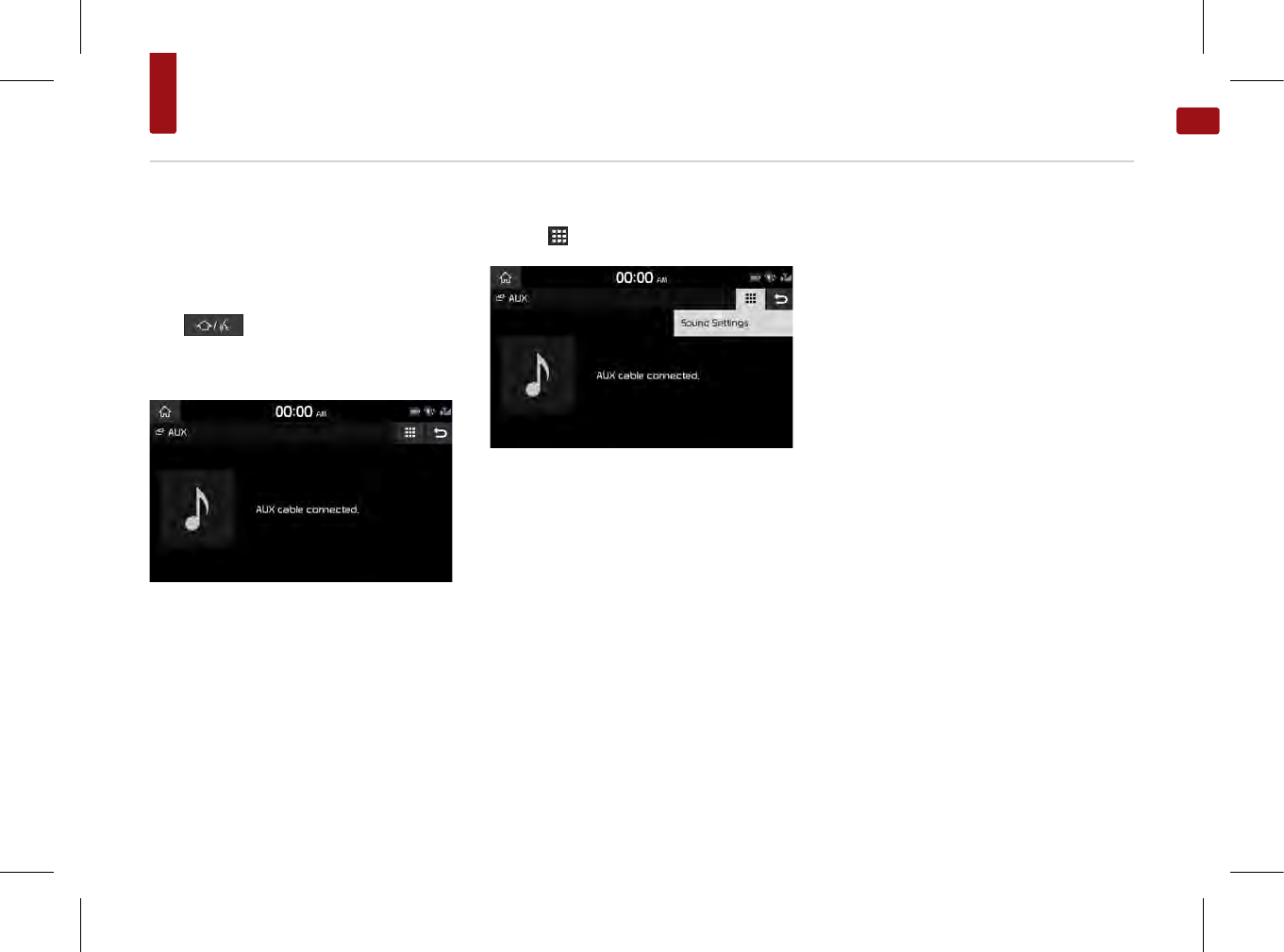

AUX
Playing an AUX source
19
Using the Menu Buttons
19

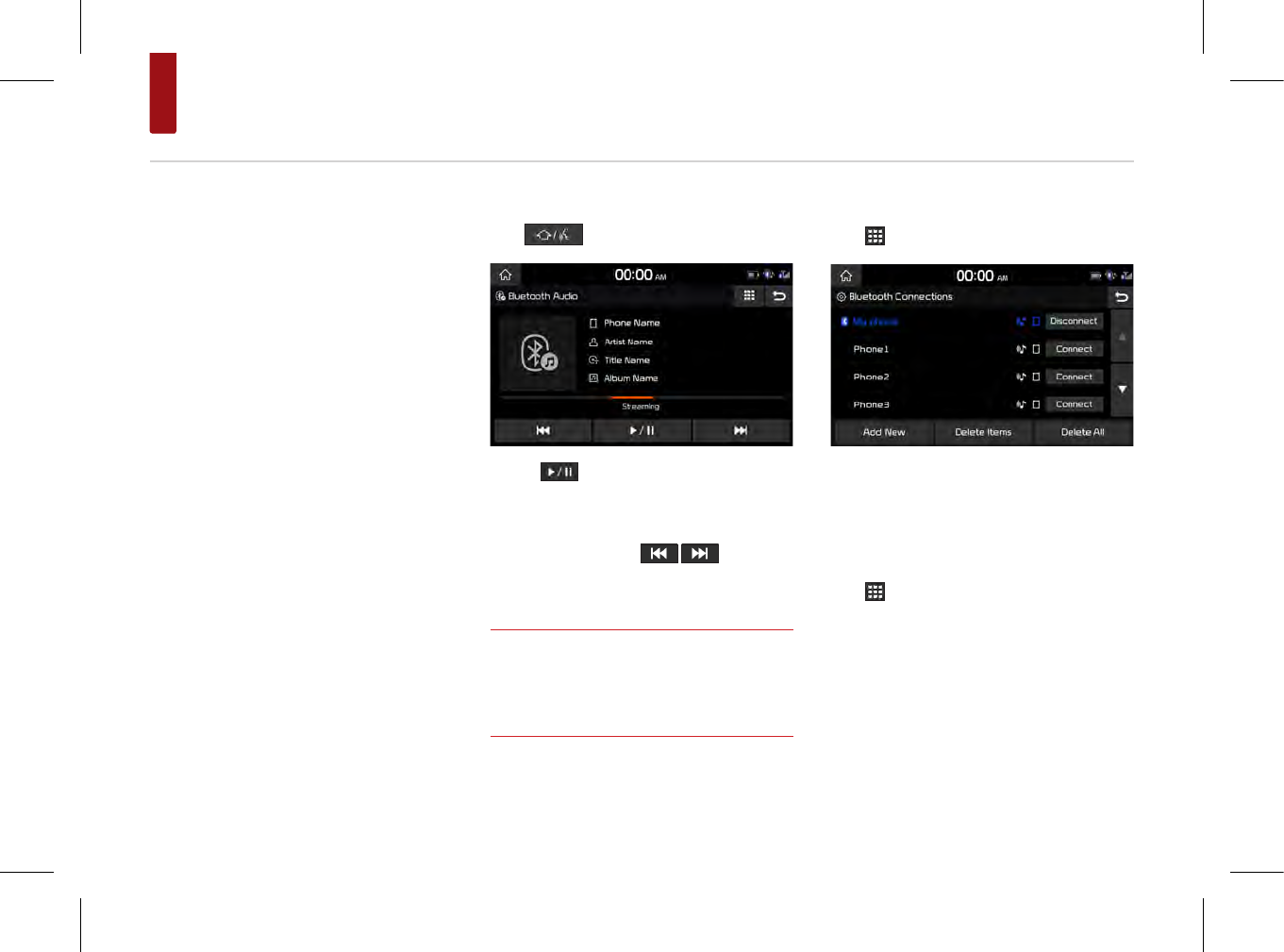

Bluetooth® Audio
Before playing the Bluetooth® audio
20
Playing Bluetooth® audio
20
Searching Bluetooth® audio Files
20
Connection Settings
20
Sound Settings
20
Bluetooth® Wireless Technology
Before Using the Bluetooth® Handsfree
21
What is Bluetooth® Wireless Technology?
21
3
Table of Contents
ENGLISH
Precautions for Safe Driving
21
Cautions upon Connecting
Bluetooth® Phone
21
Bluetooth® Connection
When no Phones Have Been Paired
22
When a Phone is Already Paired
22
When your phone is connected
22

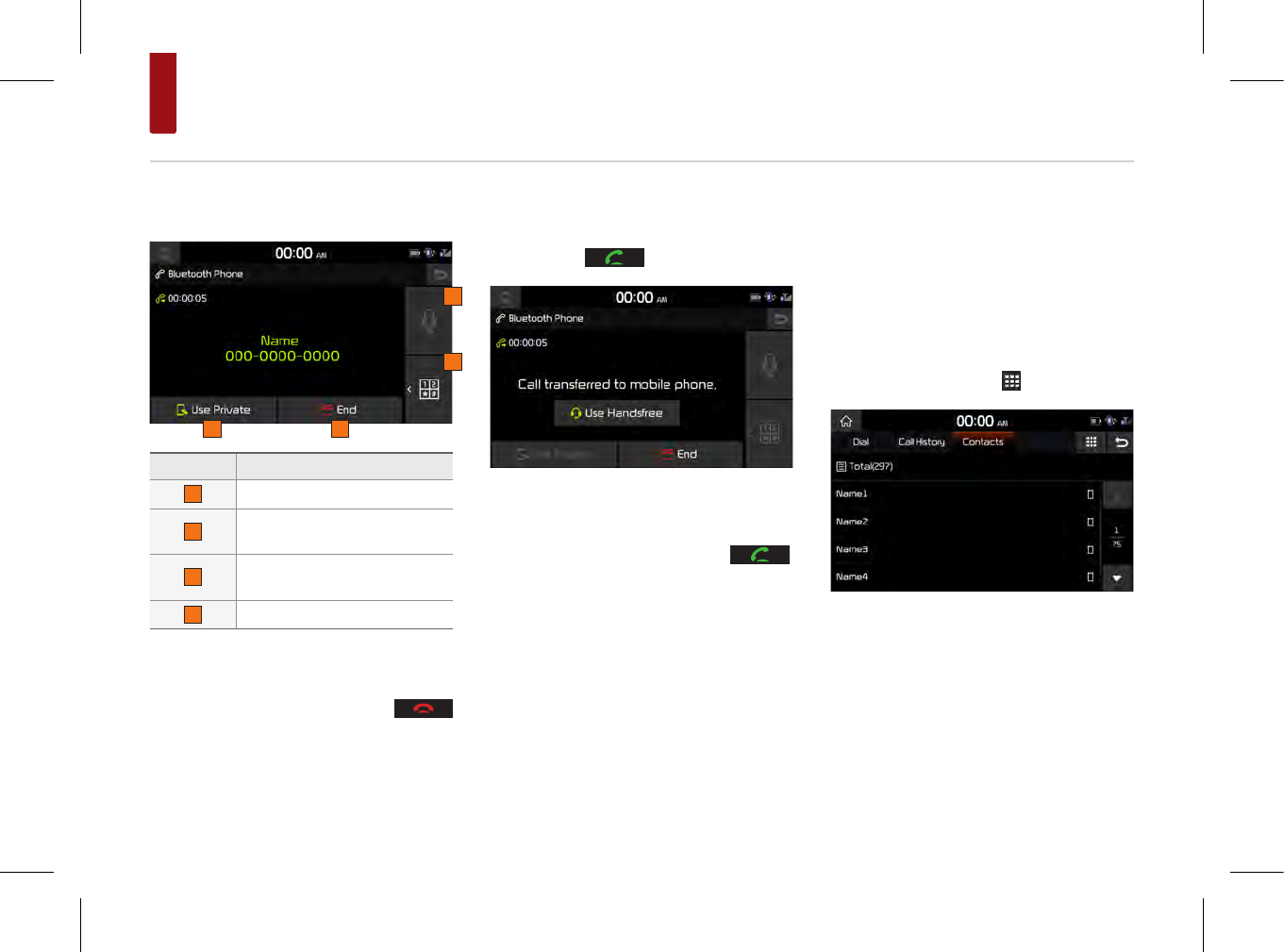

Bluetooth® Phone

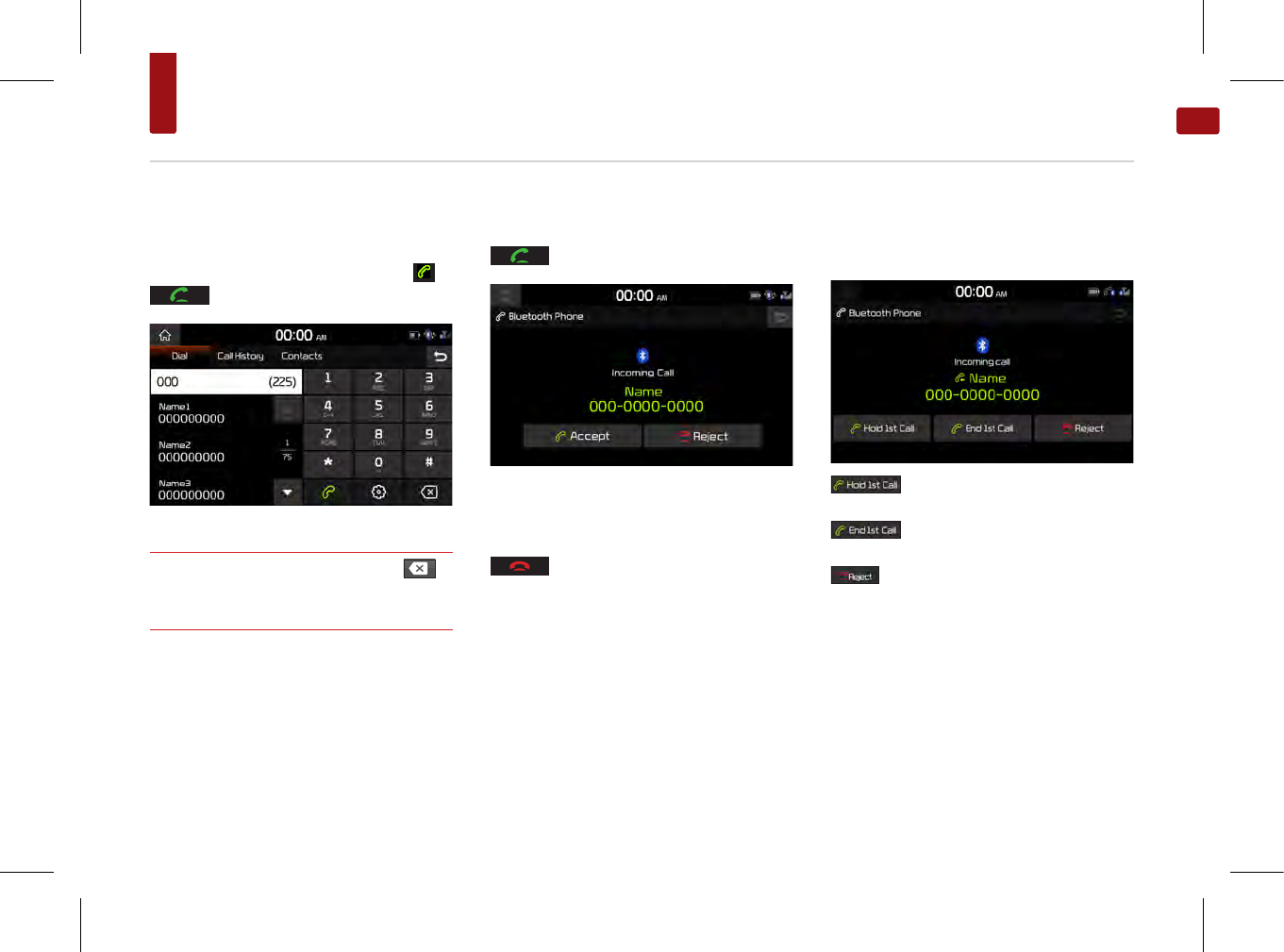

Making/Answering Calls
23
Calling by Dialing a Number
23
Answering a Call
23
Rejecting a Call
23
Switching to Call Waiting
23
Operating Menus during a Call
24
Ending a Call
24
Switching Call to Bluetooth® Phone
24
Switching Call to Handsfree
24

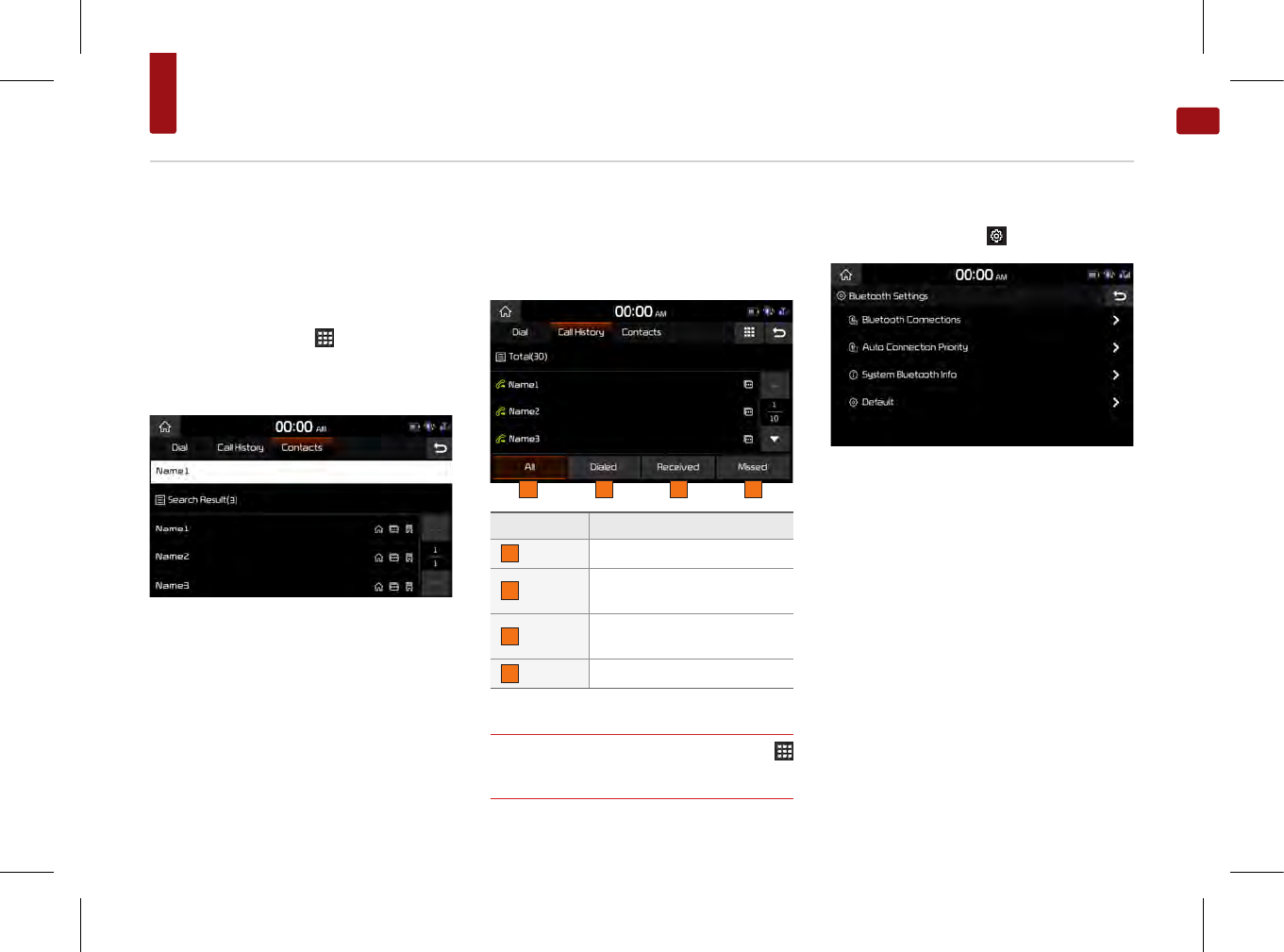

Contacts
24
Downloading Contacts
24
Making a Call from Contacts
25
Searching for Contacts
25
Call History
25
Viewing Call History
25
Bluetooth settings
25
Android Auto™
About Android Auto™
26
What you need?
26
Before starting Android Auto™
26
Installing the Android Auto™ Application
26
Setting the system
26
Starting mode
26
Home Screen
26

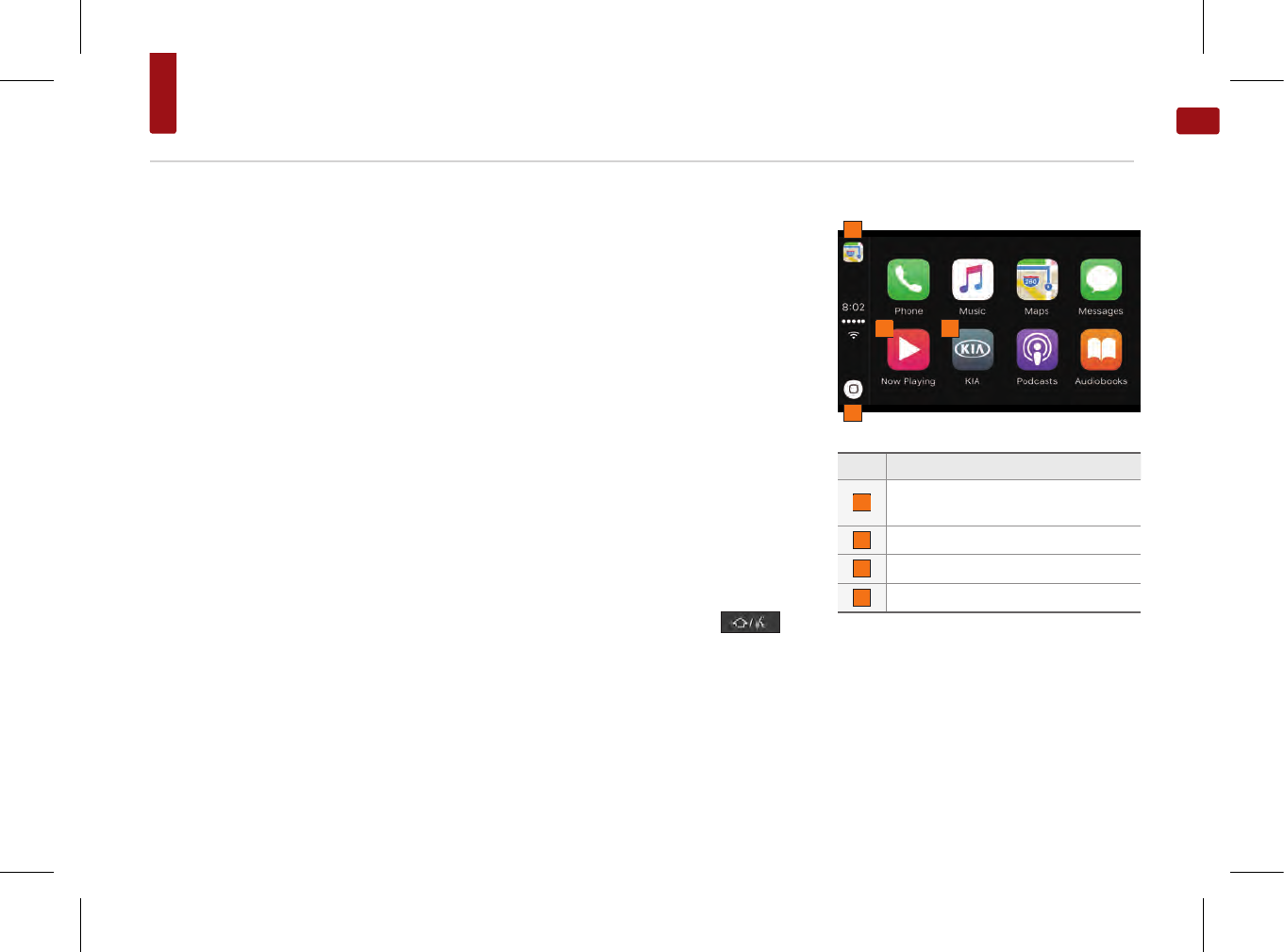

Apple CarPlay
About Apple CarPlay
27
What you need?
27
Before starting Apple CarPlay
27
Setting Siri on the iPhone
27
Setting the system
27
Starting mode
27
Home Screen
27

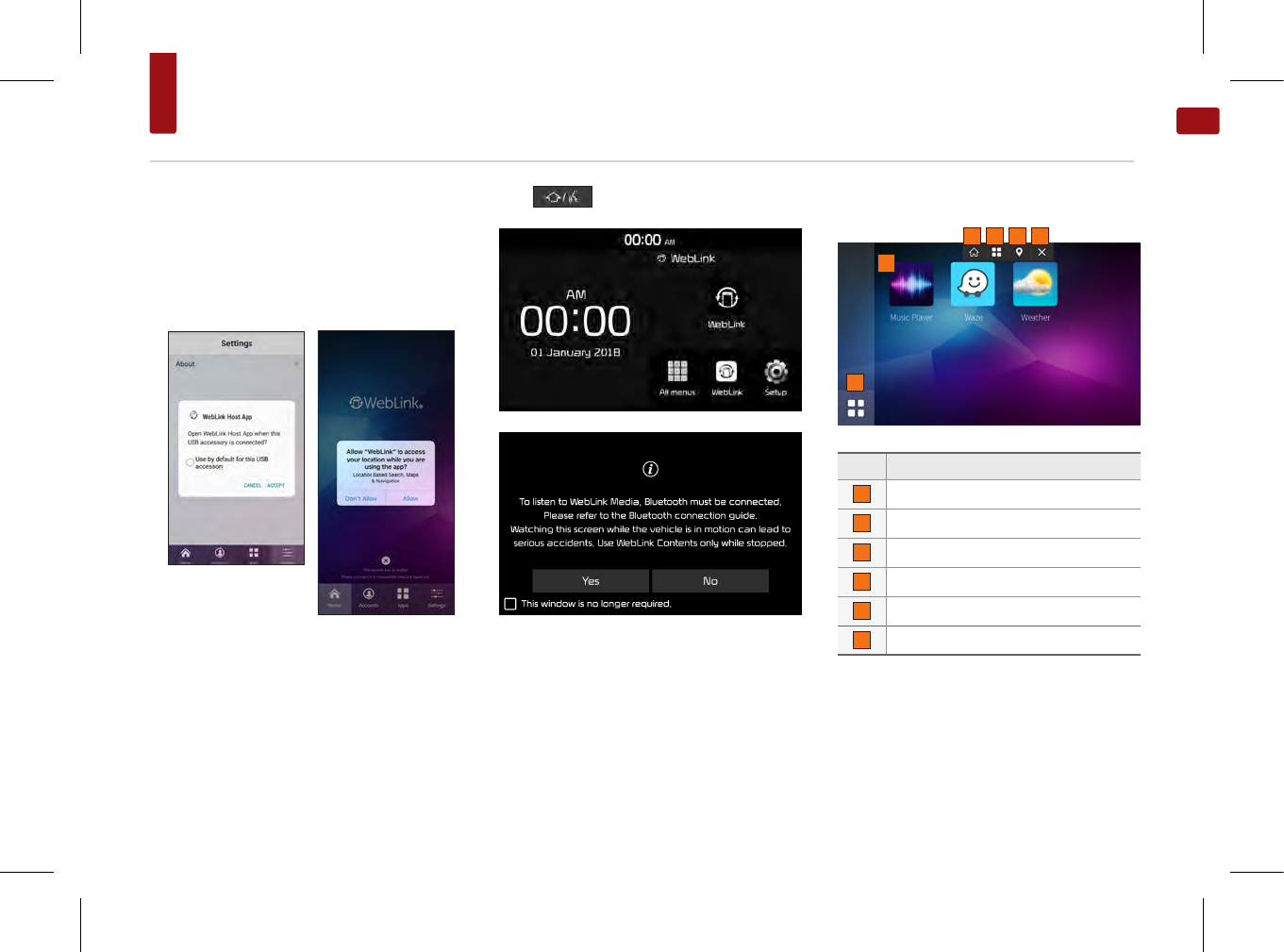

WebLink
About WebLink
28
What you need?
28
Before Using WebLink
28
Installing the WebLink Application
28
Setting the system
28
Starting Mode
29
Home Screen
29
Setup
Starting Mode
30
Sound
30
Position
30
Equalizer
30
Priority
31
Resetting Sound Settings
31
Beep
31

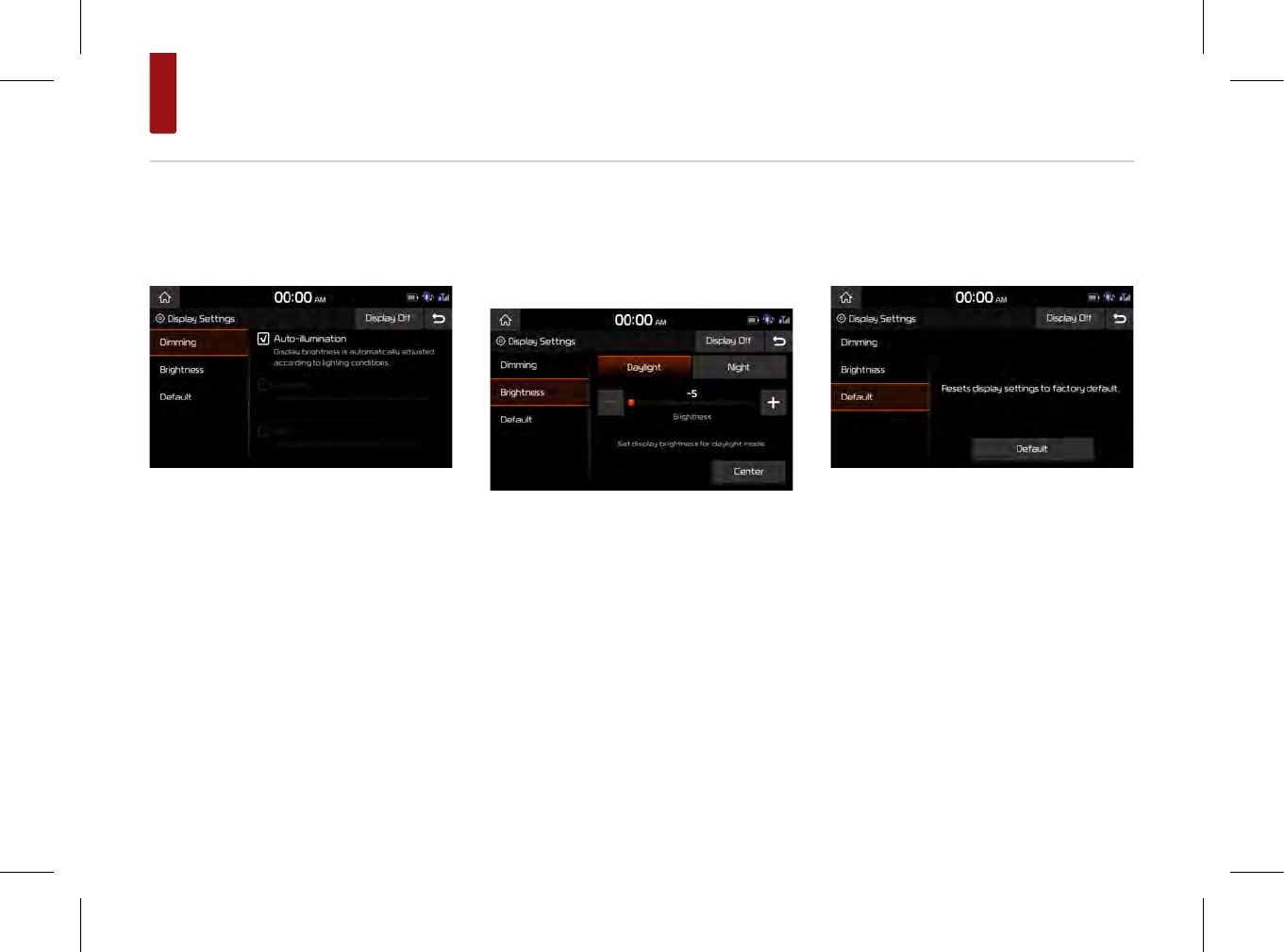

Display
32
Dimming
32
Brightness
32
Resetting Display Settings
32
Display Off
32

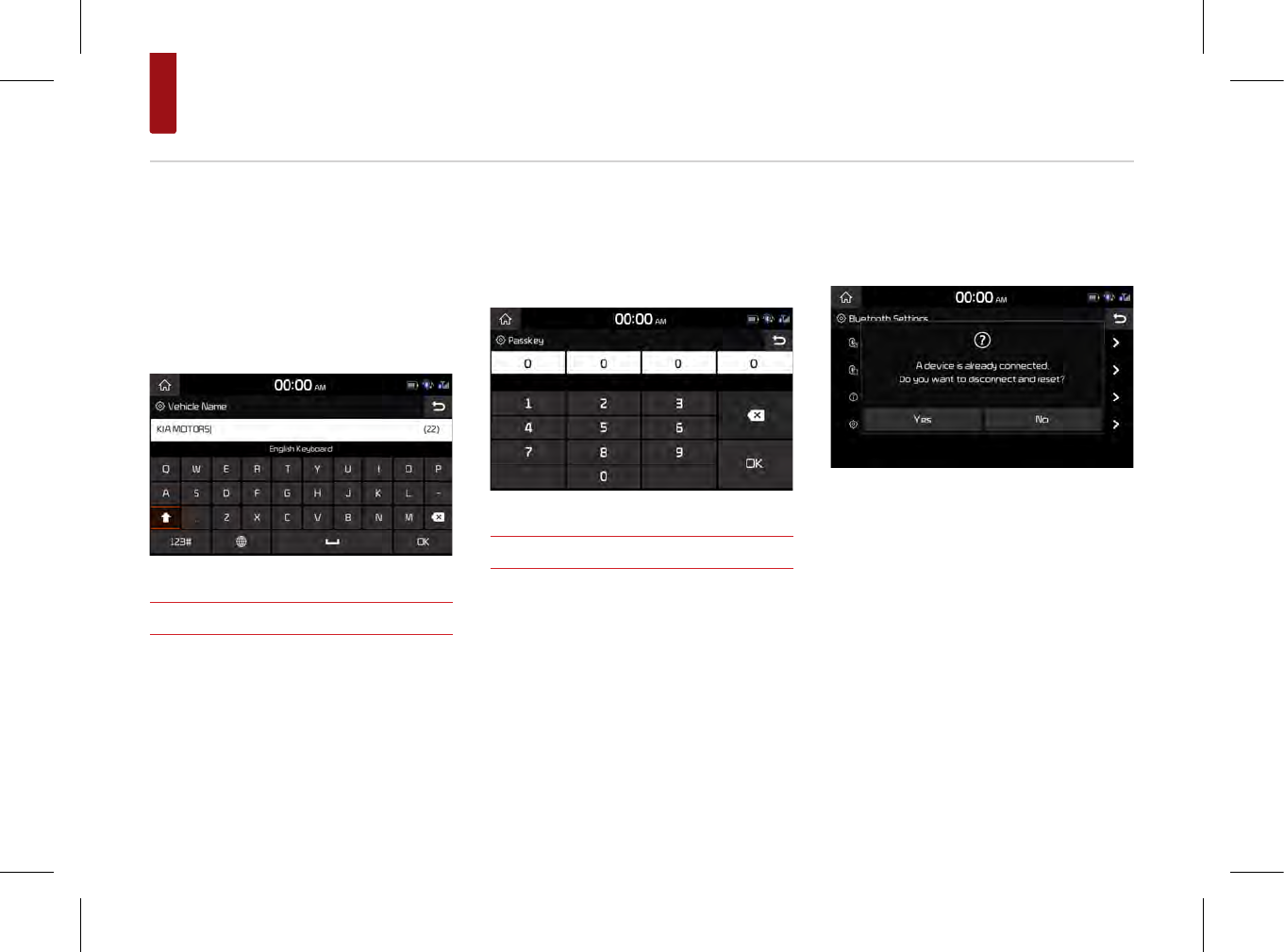

Bluetooth®
33
4
Table of Contents
Bluetooth® Connections
33
Auto Connection Priority
33
System Bluetooth® Info
34
Resetting Bluetooth® Settings
34

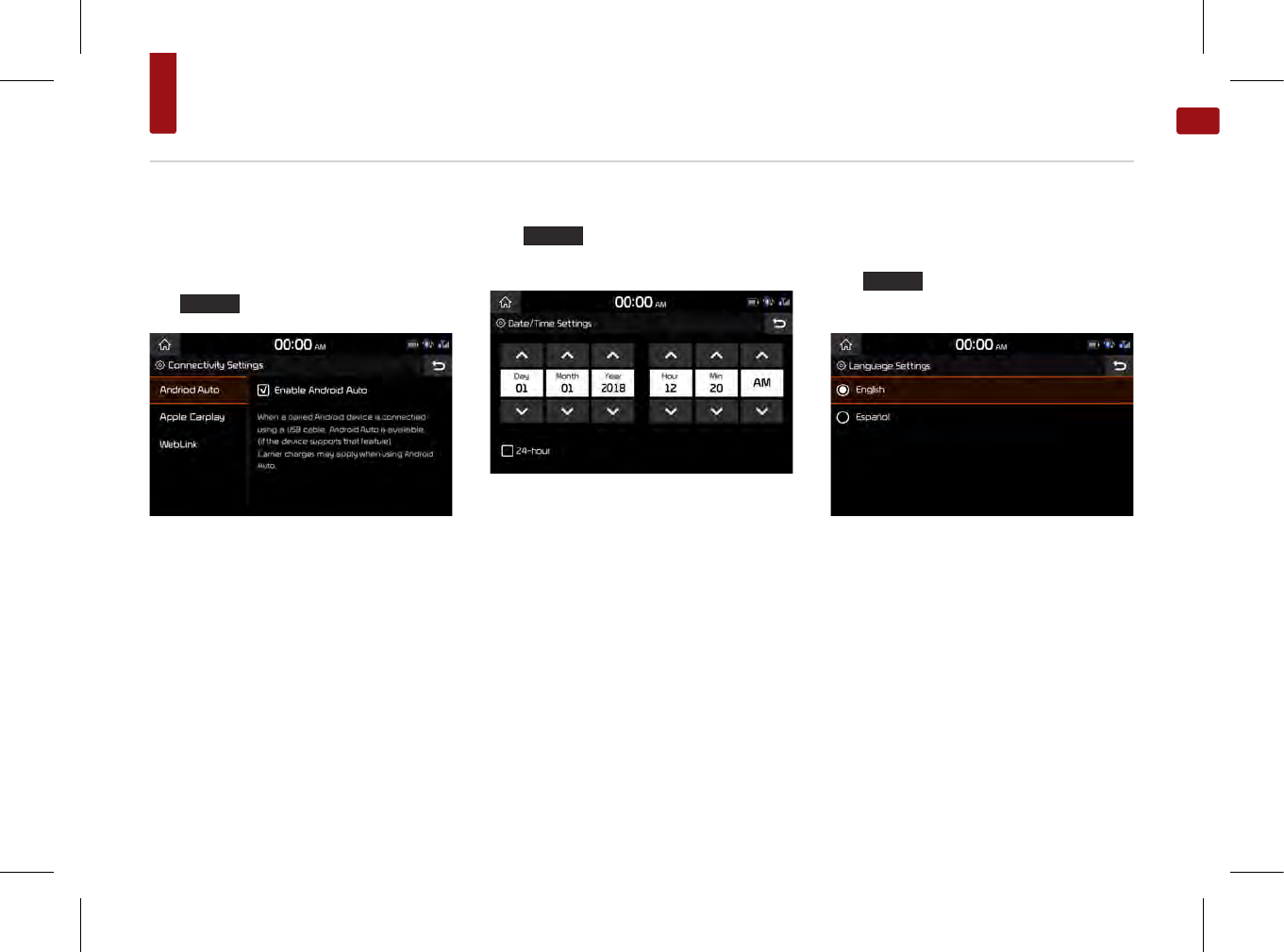

Connectivity
35
Date and Time
35
Language
35

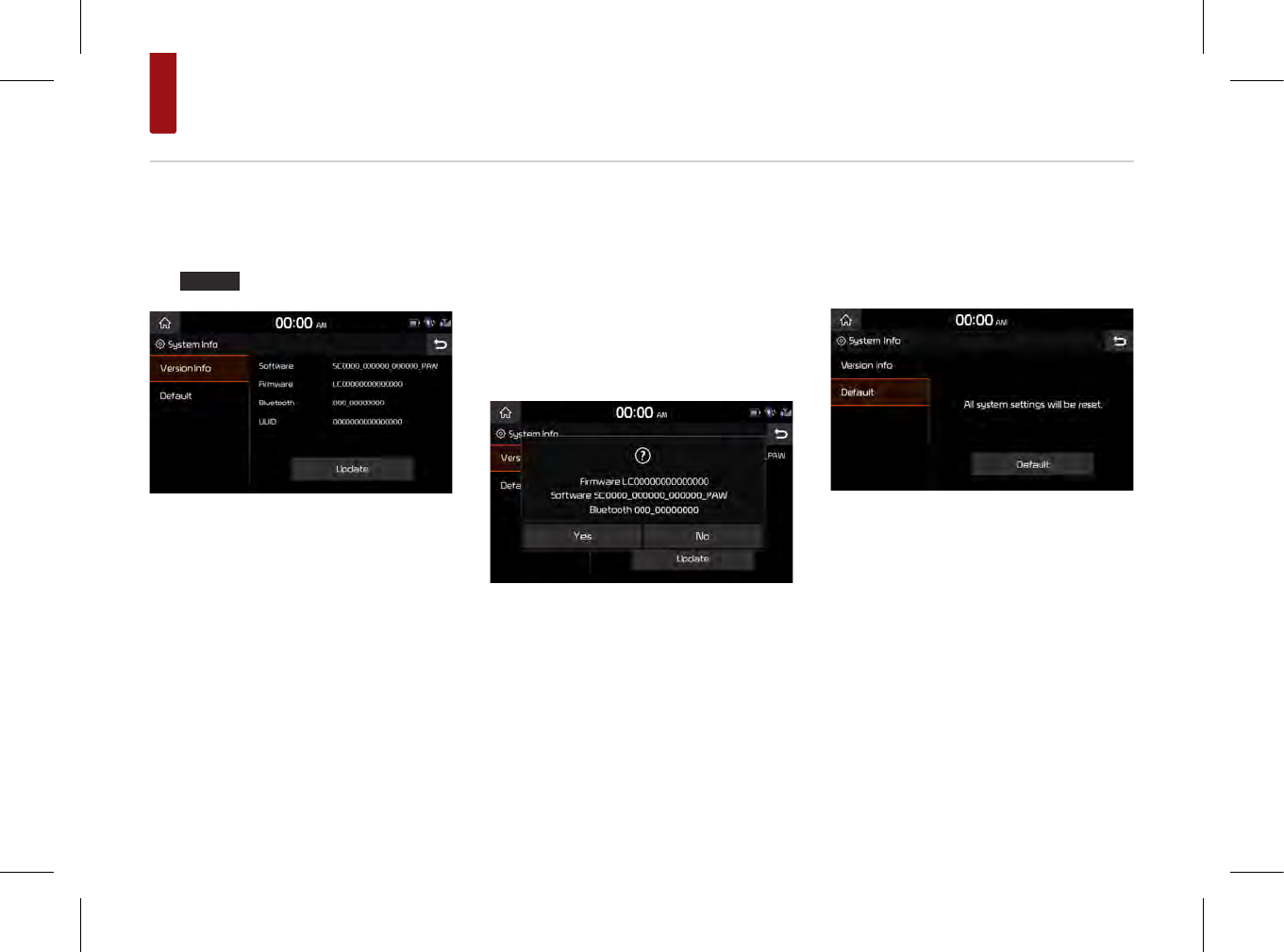

System
36
System Update
36
Resetting the System
36
Specification
USB MP3 Specification
37
Video and Image Specification
37
TFT-LCD
38
Radio
38
Bluetooth® Wireless Technology
38
Common
38
Trouble shooting
Trouble shooting
39
Limited Warranty
Limited Warranty
42
FCC Warning
FCC Warning
44
5
Precautions for safety
ENGLISH
Safety notes
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with the arrowhead symbol
within an equilateral triangle is intended
to alert the user about the presence of uninsu-
lated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral tri-
angle is intended to alert the user to
the presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
Always operate the vehicle in a safe manner. Do
not become distracted by the vehicle while driv-
ing and always be fully aware of all driving condi-
tions. Do not change settings or any functions.
Pull over in a safe and legal manner before
attempting such operations.
To promote safety, certain functions are disabled
unless the hand brake is on.
To reduce the risk of electric shock, do not
remove the cover or back of this product. There
are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock, do not
expose this product to dripping or splashing
water, rain, or moisture.
When driving your vehicle, be sure to keep the
volume of the unit low enough to allow you to
hear sounds coming from the outside.
Do not drop it and avoid heavy impacts at any-
time.
The driver should not watch the monitor while
driving. If the driver watches the monitor while
driving, it may lead to carelessness and cause an
accident.
6
Key Product Features
Key Product Features
Button Description
Display Wide TFT-LCD Display
Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.
Radio
Digital Tuner Feature
Digital Tuner using PPL method that supports memory of 12 broadcast stations for each AM and FM modes.
Radio broadcast station name
Displays broadcast station names for key locations.
Multimedia
Player
Support for various Media Formats
Support for various media formats, including Radio, MP3, USB, iPod® and Bluetooth® Audio Streaming modes.
Miscellaneous
Bluetooth® Wireless Technology
Convenient use of Bluetooth® Handsfree by using buttons within the steering wheel remote controller.
Digital Screen Control Features
Easy control of features through touch screen options.
Steering Wheel Remote Controller
Control over audio features and Bluetooth® through the steering wheel remote controller for maximum convenience.
Android Auto™
Android Auto™ brings the most useful apps from your phone to your vehicle´s screen, optimized for easy glancing and control while driving.
Apple CarPlay
CarPlay puts key iPhone apps - the ones you want to use while driving - on your car’s built-in display. With CarPlay, you can get turn-by-turn direc-
tions, make phone calls, exchange text messages, listen to music, and more.
WebLink
T
he WebLink Host app turns your vehicle into a connected car by letting you easily enjoy your favorite apps on the go. Once you’ve downloaded the app,
simply use your smartphone to connect to your car’s WebLink-compatible multimedia receiver, and then launch popular navigation, media, weather, and
even calendar apps.
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth®
The Bluetooth
®
Wireless Technology word mark
and logos are registered trademarks owned by
Bluetooth
®
Wireless Technology SIG, Inc.
DC Symbol
DC 12V
Speaker 4Ω
Pulse 10A
-Minus Ground
DC Symbol
DC 12V
Speaker 4Ω
Pulse 10A
-Minus Ground
DC Symbol
DC 12V
Speaker 4Ω
Pulse 10A
-Minus Ground
DC Symbol
DC 12V
Speaker 4Ω
Fuse 10A
-Minus Ground
DC Symbol
DC 12V
Speaker 4Ω
Pulse 10A
-Minus Ground
7
Component Names and Functions
ENGLISH

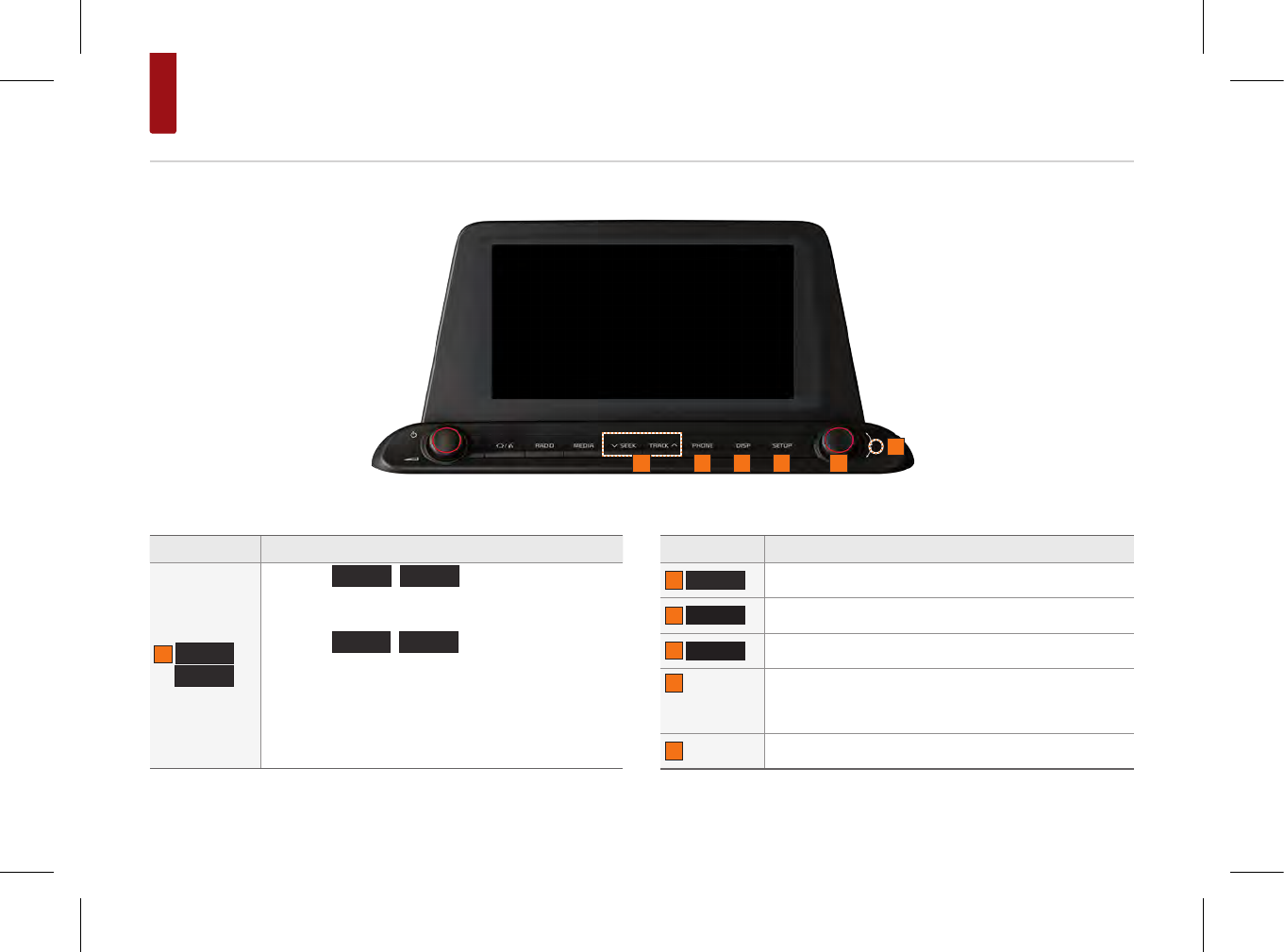

Head Unit
Name Description
1 Power /
Volume
Knob
••Power on
When power is off, press to turn power on.
••Power off
When power is on, press and hold to turn power off.
••Audio off
When power is on, press to turn Audio off.
••Turn left/right to control volume.
2
••Press to display the Home menu screen.
••Press and hold to activate the Google voice or the Siri
function when your Android phone or iPhone is con-
nected to the unit. (optional)
Name Description
3
RADIO
••Operates FM/AM mode.
••Each time the key is pressed, mode is changed in order
of FM1 ▶ FM2 ▶ AM ▶ FM1.
4
MEDIA
••Operates available media
(USB, iPod®, Bluetooth® Audio, AUX).
••If the media is not connected, corresponding modes will
be disabled.
1 2 43
8
Component Names and Functions
Name Description
5
∨ SEEK
TRACK ∧
When the
∨ SEEK
,
TRACK ∧
keys are pressed shortly.
••In FM/AM mode, searches broadcast frequencies.
••In Media mode, changes the track, file or chapter.
When the
∨ SEEK
,
TRACK ∧
keys are pressed and
held.
••FM/AM mode : automatically searches broadcast frequen-
cies and channels. Once released, searches and begins
playing the next broadcast frequency.
••Media mode: rewinds or fast forwards the track or file(ex-
cept AUX).
Name Description
6
PHONE
Display the Phone screen.
7
DISP
Turns off the screen.
8
SETUP
Displays the Setup mode.
9 Tune /
ENTER
Knob
••FM/AM mode : changes the frequency.
••MEDIA (USB/iPod®) mode : changes the track, file or title.
(except AUX)
10 Reset Resets the system.
10
6 8 975
Head Unit
9
Component Names and Functions
ENGLISH
Steering Wheel
Name Description
1
MODE
••Operates FM ▶ AM ▶ Available Media
(USB Music/USB Video/iPod®/Bluetooth® Audio/AUX/
Android Auto/Apple CarPlay).
••If the media is not connected, corresponding modes will
be disabled.
••Press and hold the key to turn the Audio system on/off.
••When power is off, press the key to turn power back on.
2
MUTE
Mutes the sound.
Name Description
3 + - Controls the volume.
4
∧
∨
When keys are pressed shortly
••FM/AM mode: plays previous/next preset channel if it is
saved.
••Media mode: changes the track, file or chapter.
When keys are pressed and held
••In FM/AM mode: changes frequencies while pressed.
Upon release, scans and receives the next frequency.
••Media mode: rewinds or fast forwards the track or file.
5
When pressed shortly.
••When pressed in the phone screen, displays the last call.
••When pressed in the dial screen, makes a call.
••When pressed in the incoming call screen, answers the
call.
••When pressed during single call, switches call back to
mobile phone (Private).
••When pressed during 3way call, swap call.
••When pressed twice, redials the last call.
When pressed and held.
••When pressed during a Bluetooth® Handsfree call,
switches call back to mobile phone (Private).
••When pressed while calling on the mobile phone,
switches call back to Bluetooth® Handsfree (Operates
only when Bluetooth® Handsfree is connected).
••When pressed, redials the last call.
6 •
•When pressed during a call, ends the phone call.
•
•When pressed in the incoming call screen, rejects the call.
1
2
3
4
5
6
10
Using the System for the First Time
Turning the System On/Off
Turning the System On
Press the engine start button. If the brakes are
not pressed, then the ACC and system will turn
on. If the brakes are pressed, then the IGN and
system will turn on and the ignition will start. In
both instances, the following safety warning will
be displayed.
Pressing the PWR key on the head unit will dis-
play the safety warning page.
Press the [Confirm] button to display the most
recent mode.
Turning the System Off
Press the engine start button again or press and
hold the power key on the head unit to turn the
system off.
NOTE
• If the system is turned off while the Handsfree is
being used, then the call will automatically switch
back to the mobile phone.
AV On/Off
Press the PWR key on the head unit when the AV
is on. Press the PWR key or press the menu key
to turn on AV.
While AV is turned off, the TUNE / ENTER knob
will be disabled.
Resetting the System
This feature is used to reset the system in the
occurrence of an unforeseen error or problem.
Press the reset hole using a clip or pin.
11
Using the System for the First Time
ENGLISH
Home Screen
Press ▶ Press the menu button you want to use.
1
2
4 5 6
3
Name Description
1 Time bar
••Displays the current time.
••Touch the area to move to the date/time settings
screen.
2 Time widget
••Displays the current time and date.
••Touch the area to move to the date/time settings
screen.
Name Description
3 AV widget
••Displays brief information of radio or media currently
playing.
••Touch the area to move to the media screen currently
playing.
4 All Menus Shows all of the items in the system menu.
5 Media Display the media screen.
6 Setup Moves to the setting screen.
12
FM/AM
Basic Screen
Name Description
1 Home Moves to the home screen.
2 Mode Tab Press the tab to change mode.
3 Menu Displays the Sound Settings menu.
4 Back Moves to the previous screen.
5 Preset Displays saved presets.
6 Frequency Displays the current frequency.
7 Preset No. Displays the current preset number.
Name Description
8 Seek down Single tap: seek down.
Long tap: fast seek down.
9 Seek up Single tap: seek up.
Long tap: fast seek up
10 Scan Plays frequencies with superior reception for 5 seconds
each.
11 Autostore Saves frequencies with superior reception to Preset list.
2
13 4
10
8911
7
6
5
13
FM/AM
ENGLISH
Listening to FM/AM radio
Press the
RADIO
key to change the mode in
order of FM1 ▶ FM2 ▶AM ▶ FM1 .
Auto Tuning
Press the button to automatically
search for frequencies.
Manual Tuning
Turn the TUNE / ENTER knob to manually select
the frequency.
The stations move up and down step by step.
Selecting preset lists
From the lists, select the frequency you want to
listen to.
Scan
Press the [Scan] button to save frequencies.
Plays frequencies saved to presets for 5 seconds
and moves to the next saved frequency.
Autostore
Press the [Autostore] button to save frequencies
with superior reception.
Sound Settings
Press ▶ [Sound Settings].
For details, refer to the “Sound” on the page 30.
14
USB
About USB
Connect the USB device after turning on the
engine. The USB device may become damaged
if it is already connected when the ignition is
turned on.
•
•Files that are not standard format files will not
be played.
•
•For MP3 files, only music files with com-
pression rates CBR (32Kbps~320Kbps), VBR
(48Kbps~288Kbps) can be played.
•
•Heed caution to static electricity when con-
necting/disconnecting external USB devices.
•
•Encoded MP3 Players will not be recognized
when connected as an external device.
•
•When connecting an external USB device, the
device may not properly recognize the USB is
in some states.
•
•Only USB devices formatted as FAT 32 are
supported, and NTFS/exFAT file system are not
supported.
•
•Some USB devices may not be supported due
to compatibility issues.
•
•Avoid contact between the USB connector
with bodily parts/foreign objects.
•
•Repeated connecting/disconnecting of USB
devices within short periods of time may
result in product malfunction.
•
•Insert USB device after starting the car. If the
car is started while USB device is inserted, it
may damage USB device.
•
•The amount of time required to recognize the
external USB device may differ depending
on the type, size, or file formats stored on the
USB. Such differences in required time are not
indications of malfunction.
•
•The device may not recognize the USB device
if separately purchased USB hubs and exten-
sion cables are being used. Connect the USB
directly with the multimedia terminal of the
vehicle.
•
•When application programs are installed to
specific USBs, files may not properly play.
•
•The device may not operate normally if MP3
Players, cellular phones, digital cameras, or
other electronic devices (USB devices not rec-
ognized as portable disk drives) are connected
with the device.
•
•Charging through the USB may not work for
some mobile devices.
•
•The device may not support normal opera-
tion when using a USB memory type besides
Metal Cover Type USB Memory.
•
•The device may not support normal operation
when using formats such as HDD Type, CF, or
SD Memory.
•
•The device will not support files locked by
DRM (Digital Rights Management).
•
•USB memory sticks used by connecting an
Adaptor (SD Type or CF Type) may not be
properly recognized.
15
USB Music
ENGLISH
Playing USB Music
Once a USB is connected, USB Music mode will
operate automatically.
Press ▶[Media] ▶[USB Music].
•
•Press
▶
to play files.
•
•Press
ll
to pause the file.
NOTE
• If the USB is not connected, or there is no media file
in USB then the USB media button will be disabled.
Searching USB Music Files
While playing ▶ Press to play the
previous/next file.
•
•Pressing and holding will rewind
or fast forward the current file.
•
•While is being pressed, the track
will rewind or fast-forward at high speeds.
Once the key is released, the USB Music will
begin playing at normal speed.
Repeat
Press [Repeat].
Each time the button is pressed, the option is
changed from Repeat Folder ( ) ▶ Repeat
All ( ) ▶Repeat One( ).
Shuffle
Press [Shuffle].
Each time the button is pressed, the option is
changed from Shuffle On
( )
▶ Off.
List
Press to display USB Music list screen.
It is possible to search files by touching the
screen.
Sound Settings
Press ▶ [Sound Settings].
For details, refer to the “Sound” on the page 30.
16
USB Video
Playing USB Video
Once a USB is connected, USB Video mode will
operate automatically.
Press ▶[Media] ▶[USB Video].
•
•Press
▶
to play files.
•
•Press
ll
to pause the file.
NOTE
• If the USB is not connected, or there is no media file
in USB then the USB media button will be disabled.
Searching USB Video Files
While playing ▶ Press to play the
previous/next file.
•
•Pressing and holding will rewind
or fast forward the current file.
•
•While is being pressed, the track
will rewind or fast-forward at high speeds.
Once the key is released, the USB Video will
begin playing at normal speed.
Repeat
Press [Repeat].
Each time the button is pressed, the option is
changed from Repeat Folder ( ) ▶ Repeat
All ( ) ▶Repeat One( ).
NOTE
• Press the [Info] button to display the file
information.
List
Press to display USB Video list screen.
It is possible to search files by touching the
screen.
Sound Settings
Press ▶ [Sound Settings].
For details, refer to the “Sound” on the page 30.
Display Settings
Press ▶ [Display Settings].
For details, refer to the "Display" on the page 31.
17
iPod® Music
ENGLISH
About iPod®
iPod® is a registered trademark of Apple Inc.
•
•Some iPods with unsupported communica-
tion protocols may not properly operate with
the system.
•
•If the iPod® malfunctions due to an iPod®
device defect, reset the iPod® and try again. (To
learn more, refer to your iPod® manual.)
•
•During ACC ON state, connecting the iPod®
through the iPod® cable (The cable that is
supplied when purchasing iPod®/iPhone
product.) will charge the iPod® through the
system.
•
•The use of genuine iPod® cables supplied by
Apple is recommended. (The use of other
products may result in noise or abnormal
operation.)
•
•Within iPhones, streaming audio and iPod®
control may occasionally conflict. If problems
persist, remove the iPhone and connect again.
•
•Use iPod® with complete synchronization
to iTunes. Unauthorized song addition may
cause abnormal operation.
•
•If iPod® and Bluetooth® are connected simul-
taneously with the same iPhone, you cannot
use Bluetooth® audio function.
•
•If iPod® touch or iPhone is used, iOS4.2 or a
later version is recommended.
18
iPod® Music
Playing iPod® Music
Press ▶[Media] ▶ [iPod].
•
•Press
▶
to play files.
•
•Press
ll
to pause the file.
NOTE
• If the iPod® is not connected, or there is no media
file in iPod® then the iPod® Music button will be
disabled.
Searching iPod® Music Files
While playing ▶ Press to play the
previous/next file.
•
•Pressing and holding will rewind
or fast forward the current file.
•
•While
is being pressed, the track
will rewind or fast-forward at high speeds.
Once the key is released, the iPod® Music will
begin playing at normal speed.
Repeat
Press [Repeat].
Each time the button is pressed, the option is
changed from Repeat All( ) ▶ Repeat One
( ) ▶Off ( ).
Shuffle
Press [Shuffle].
Each time the button is pressed, the option is
changed from
Shuffle On
( )
▶ Off.
List
Press the button to display iPod® list screen.
It is possible to search by Playlists, Artists, Albums,
Songs and Others.
Sound Settings
Press ▶ [Sound Settings].
For details, refer to the “Sound” on the page 30.
19
AUX
ENGLISH
Playing an AUX source
If an external device connector is connected
with the AUX terminal, then AUX mode will auto-
matically operate.
Press ▶[Media] ▶[AUX] button to play
auxiliary device while a different source is play-
ing.
Using the Menu Buttons
Press the button to set Sound.
For details, refer to the “Sound” on the page 30.
20
Bluetooth® Audio
Before playing the
Bluetooth® audio
•
•Music saved in the mobile phone can be played
in the car through Bluetooth® audio streaming.
•
•Bluetooth® audio can be played only when a
Bluetooth® phone or Bluetooth® audio device
has been connected. To play Bluetooth® audio,
connect the Bluetooth® phone to the car
system. For more information on connecting
Bluetooth®, please refer to the user’s manual
[Bluetooth® Connection] on page 22.
•
•If Bluetooth® is disconnected while playing
Bluetooth® audio, the audio stream will be inter-
rupted.
•
•The audio streaming function may not be sup-
ported in some mobile phones. Only one func-
tion can be used at a time, either the Bluetooth®
handsfree or the Bluetooth® audio function.
For example, if you convert to the Bluetooth®
handsfree while playing Bluetooth® audio, the
music stream is interrupted.
•
•Playing music from the car is not possible when
there are no music files saved in the mobile
phone.
Playing Bluetooth® audio
Press ▶ [Media] ▶[Bluetooth Audio].
•
•Press to play/pause files.
Searching Bluetooth® audio Files
While playing ▶ Press to play the
previous/next file.
NOTE
• The title/artist info may not be supported in some
mobile phones. When it is not supported, only the
symbol will be displayed.
• The play/pause feature may operate differently
depending on the mobile phone.
Connection Settings
Press ▶ [Connections Settings].
For details of Connections Settings, refer to the
"Bluetooth® connection" on the page 22.
Sound Settings
Press ▶ [Sound Settings].
For details, refer to the “Sound” on the page 30.
21
Bluetooth® Wireless Technology
ENGLISH
Before Using the Bluetooth®
Handsfree
What is Bluetooth®
Wireless Technology?
•
•Bluetooth® Wireless Technology refers to a
short-distance wireless networking technol-
ogy which uses a 2.45GHz frequency to con-
nect various devices within a certain distance.
•
•Supported within PCs, external devices,
Bluetooth® phones, PDAs, various electronic
devices, and automotive environments,
Bluetooth® Wireless Technology to be trans-
mitted at high speeds without having to use a
connector cable.
•
•Bluetooth® Handsfree refers to a device which
allows the user to conveniently make phone
calls with Bluetooth® mobile phones through
the Multimedia system.
•
•The Bluetooth® Handsfree feature may not be
supported in some mobile phones.
Precautions for Safe Driving
•
•Bluetooth® Handsfree is a feature that enables
drivers to practice safe driving. Connecting the
head unit with a Bluetooth® phone allows the
user to conveniently make calls, receive calls,
and manage the phone book. Before using
Bluetooth® Wireless Technology, carefully read
the contents of this user’s manual.
•
•Excessive use or operations while driving may
lead to negligent driving practices and be the
cause of accidents. Do not operate the device
excessively while driving.
•
•Viewing the screen for prolonged periods of
time is dangerous and may lead to accidents.
When driving, view the screen only for short
periods of time.
Cautions upon Connecting
Bluetooth® Phone
•
•Before connecting the head unit with the
mobile phone, check to see that the mobile
phone supports Bluetooth® features.
•
•If you do not want automatic connection with
your Bluetooth® device, turn the Bluetooth®
feature off on the Bluetooth® device.
•
•Park the vehicle when connecting the head
unit with the mobile phone.
•
•Some Bluetooth® features may occasionally
not operate properly depending on the firm-
ware version of your mobile phone. If such
features can be operated after receiving a S/W
upgrade from your mobile phone manufac-
turer, unpair all devices and pair again before
use.
22
Bluetooth® Connection
When no Phones Have Been
Paired
Press on the steering wheel or press
PHONE
▶ [Add New].
When searching from the Bluetooth® device, the
car name is ‘KIA MOTORS’ and the default pass-
key is ‘0000’.
When a Phone is Already Paired
Press on the steering wheel or press
PHONE
▶ [Connect].
NOTE
• When a Bluetooth® device is connected, a new
device cannot be paired. If you want to pair a new
phone, first disconnect the connected Bluetooth®
device.
When your phone is connected
Press on the steering wheel or press
PHONE
to display the following screen.
NOTE
• Once Bluetooth® connection is successful, the
name of the connected mobile phone will be
displayed on the phone screen and Bluetooth®
handsfree functions will be ready to be operated.
• Some functions may not be supported due to
limited Bluetooth® compatibility between the car
system and mobile phone.
23
Bluetooth® Phone
ENGLISH
Making/Answering Calls
Calling by Dialing a Number
Enter number on the Dial Pad ▶ Press or
on the steering wheel.
NOTE
• If you press the wrong number, press to
delete one digit of the entered number. Press and
hold the dial pad 0 "+" to enter a "+".
Answering a Call
Incoming call notice ▶ Press [Accept] or
on the steering wheel.
Rejecting a Call
Incoming call notice ▶ Press [Reject] or
on the steering wheel.
Switching to Call Waiting
If there is a waiting call, the following screen is
displayed.
: Holds current call and answers new
call.
: Ends current call and answers new
call.
: Rejects new call and maintains current
call.
24
Bluetooth® Phone
Operating Menus during a Call
Button Description
1 Turns the Mic On/Off.
2 Display dial pad screen for enter-
ing ARS numbers.
3 Switches a voice call from the car
handsfree to the mobile phone.
4 Ends a call.
Ending a Call
While on a call ▶ Press [End] or the
key on the steering wheel.
Switching Call to Bluetooth® Phone
During handsfree call ▶ Press [Use Private] or
press and hold on the steering wheel.
Switching Call to Handsfree
During call on mobile phone ▶
Press [Use Handfree] or press and hold
on the steering wheel.
Contacts
In Phone screen ▶ Press [Contacts].
Downloading Contacts
Up to 2,000 mobile phone contacts can be
updated.
In Contacts screen ▶ Press ▶[Download].
1
2
3 4
25
Bluetooth® Phone
ENGLISH
Making a Call from Contacts
In Contacts screen ▶ Press the contact you want
to call.
Searching for Contacts
In Contacts screen ▶ Press ▶ [Search] ▶Enter
the name or number ▶ [OK]
▶ Press the contact
you want to call.
Call History
Viewing Call History
In Phone screen ▶ Press [Call History].
Button Description
1 All Displays all calling list.
2 Dialed Displays the outgoing calling
list.
3 Received Displays the incoming calling
list.
4 Missed Displays the missed calling list.
NOTE
• To download or update the call history, press
▶ [Download].
Bluetooth settings
In Phone screen ▶ Press .
For details, refer to the "Bluetooth" on the page
33.
1 2 3 4
26
Android Auto™
About Android Auto™
Android Auto™ brings the most useful apps from
your phone to your vehicle´s screen, optimized
for easy glancing and control while driving. You
will be able to control things like navigation,
maps, calls, text messages, and music, all from
your vehicle´s screen.
To learn about Android Auto™ and its features,
visit the Android website at http://www.android.
com/auto/
What you need?
1. An Android phone running Android 5.0
(Lollipop) or higher with a data plan.
2. A vehicle that’s compatible with Android
Auto™.
3. A genuine USB cable.
Before starting Android Auto™
Installing the Android Auto™
Application
Install Android Auto™ Application into your
mobile phone.
Setting the system
Before connecting your mobile phone, check
whether Android Auto™ is set to be used in Setup
▶ [Connectivity].
Starting mode
Connect your phone to your car using a USB
cable ▶ Press ▶ [Media] ▶ [Android
Auto].
Home Screen
No Description
1Microphone
2Navigation suggestions and recent places
3Reminders, messages, calls, and other
alerts
4Maps and navigation
5Calls and messages
6Home screen
7Music and audio
8Exits Android Auto
1
4
2
3
65 7 8
27
Apple CarPlay
ENGLISH
About Apple CarPlay
•
•CarPlay puts key iPhone apps - the ones you
want to use while driving - on your vehicle’s
built-in display. With CarPlay, you can get
turn-by-turn directions, make phone calls,
exchange text messages, listen to music, and
more. Apple CarPlay is available on select
automobiles navigation systems, and works
with iPhone 5 or higher with iOS 7.1 or higher.
•
•You can operate CarPlay using your vehicle’s
built-in controls - a touchscreen, a rotary knob
controller, or both. To learn how to operate
your display, refer to the user guide that came
with your vehicle. Or just use Siri voice control
to tell CarPlay what you want. In fact, Siri often
steps in automatically to help you, depending
on the app you’re using.
•
•For more information & troubleshooting, refer
to the iPhone manual or visit the Apple website.
What you need?
1. An iPhone5 or higher.
2. A car that’s compatible with iPhone.
3. A Genuine USB cable from Apple.
Before starting Apple CarPlay
Setting Siri on the iPhone
Siri must be enabled on your iPhone. If Siri is
turned off, a notice will be displayed.
Go to Settings ▶ Siri & Search ▶ Turn on Siri.
Setting the system
Before connecting your mobile phone, check
whether Apple CarPlay is set to be used in Setup
▶
[Connectivity].
Starting mode
Connect your phone to your car using a USB
cable. The CarPlay Home screen will be displayed
automatically.
When in a different mode, Press ▶
[Media] ▶ [Apple CarPlay].
Home Screen
No Description
1Displays the 3 most recently used
menus.
2Home button
3Displays current audio source
4Returns to your car’s Home screen
1
2
3 4
28
WebLink
About WebLink
The WebLink Host app turns your vehicle into a
connected car by letting you easily enjoy your
favorite apps on the go. Once you’ve down-
loaded the app, simply use your smartphone
to connect to your car’s WebLink-compatible
multimedia receiver, and then launch popular
navigation, media, weather, and even calendar
apps.
What you need?
1. A smart phone with a data plan.
2. A vehicle that’s compatible with WebLink.
3. A USB cable.
Before Using WebLink
Installing the WebLink Application
Install the WebLink Host application and the
applications supported by WebLink Host appli-
cation into your mobile phone.
NOTE
• For details, visit the Abalta website (http://www.
abaltatech.com).
Setting the system
Before connecting your mobile phone, check
whether WebLink is set to be used in Setup ▶
[Connectivity].
29
WebLink
ENGLISH
Starting Mode
Connect your mobile phone to your vehicle
using a USB cable.
In your phone, touch [Accept].
Press ▶ [WebLink] ▶ Yes.
Home Screen
No Description
1Displays the WebLink Home screen
2Available applications
3Returns to the system Home screen
4Displays the WebLink Home screen
5Displays the Waze Home screen
6Minimizes the menu bar
1
2
3456
30
Setup
Starting mode
Press
SETUP
to display the Setup screen.
Sound
This menu is used to adjust the sound effects for
the whole system.
Press
SETUP
▶ [Sound].
Position
In the Sound Settings screen ▶ Press [Position]
▶ Set the desired sound position.
Use the , , , buttons to adjust set-
tings.
Press to restore sound to the center position.
Equalizer
In the Sound Settings screen ▶ Press [Equalizer]
▶ Set the desired sound balance .
Use the , buttons to adjust settings.
Press [Center] to restore sound to the center
position.
31
Setup
ENGLISH
Priority
In the Sound Settings screen ▶ Press [Priority]
▶ Set the desired option.
Resetting Sound Settings
In the Sound Settings screen ▶ Press [Default]
▶ [Default] ▶ [Yes].
Beep
In the Sound Settings screen ▶ Press the [Beep]
to turn on/off.
Display
This menu allows you to set the display settings
for the whole system.
Press
SETUP
▶ [Display].
32
Setup
Dimming
In the Display Settings screen ▶ Press [Dimming]
▶ Set the desired mode.
Brightness
In the Display Settings screen ▶ Press
[Brightness] ▶ Select the mode ▶ Set the
desired brightness .
Press [Center] to restore brightness to the center
position.
Resetting Display Settings
In the Display Settings screen ▶ Press [Default]
▶ [Default] ▶ [Yes].
Display Off
In Display Setting screen ▶ Press [Display Off ] to
turn display off.
Touch anywhere on the screen to turn display
on.
33
Setup
ENGLISH
Bluetooth®
This menu allow you to set Bluetooth® settings.
Press
SETUP
▶ [Bluetooth].
Bluetooth® Connections
In the Bluetooth® Settings screen ▶ Press
[Bluetooth Connections].
Name Description
1 Connect/
Disconnect
Connect /disconnect a
Bluetooth® device.
2 Add New Pair a new Bluetooth® device.
3 Delete
Items
Delete a paired Bluetooth®
device.
4 Delete All Delete all paired Bluetooth®
device.
Auto Connection Priority
In the Bluetooth® Settings screen ▶ Press [Auto
Connection Priority] ▶ Select the Bluetooth®
device you wish to set priority connection.
If you press [No Phone Selected] button, the
most recently connected Bluetooth® phone will
connect automatically.
1
2 3 4
34
Setup
System Bluetooth® Info
Changing Vehicle Name
In the Bluetooth® Settings screen ▶
Press [System Bluetooth Info] ▶
[Vehicle name:KIA MOTORS] ▶ Enter the name
▶ [OK].
NOTE
• The default device name is KIA MOTORS.
Changing Passkey
In the Bluetooth® Settings screen ▶
Press [System Bluetooth Info] ▶ [Passkey:0000]
▶ Enter the passkey ▶ [OK].
NOTE
• The default passkey is 0000.
Resetting Bluetooth® Settings
In the Bluetooth® Settings screen ▶ Press
[Default] ▶ [Default] ▶ [Yes].
35
Setup
ENGLISH
Connectivity
This menu allows you to set the car connectivity
of your system.
Press
SETUP
▶
Press [Connectivity].
Date and Time
Press
SETUP
▶ [Date/Time] ▶ Adjust the date
and time.
24-hour : Converts the digital clock display to 24
hours.
Language
This menu allows you to set the language of the
system.
Press
SETUP
▶ [Language] ▶Select the desired
language.
36
Setup
System
This menu allows you to view system informa-
tion and reset settings specified by the user.
Press
SETUP
▶ [System].
System Update
Download the latest update file onto a USB
device and connect the device to the USB termi-
nal.
In the System Info screen ▶ Press [Version Info] ▶
[Update] ▶ [YES] ▶ The system will then reboot
automatically.
Resetting the System
In the System Info screen ▶ Press [Default] ▶
[Default] ▶ [Yes] ▶ All settings and data will be
initialized to the factory default state.
37
Specification
ENGLISH
USB MP3 Specification
Category Description
MP3 File Specification Response Specification: Support MPEG 1/2/4
Recommended Bitrate and
Sampling Frequency
Response Sampling Frequency : 32, 44.1, 48
(KHz)
Response Bitrate: MPEG1/L3 32 - 320 Kbps
32/44.1/48 Khz
ID3 TAG ID3 v1.1 and ID3 v2.x TAG
Detailed Specification
•
•Max Directory Layers: 2 layers
•
•Max length of folder names and file
names: 255 Byte
•
•Characters supported for folder/file
names: English, Spanish and numbers
•
•Max number of folders recognized from
one USB device: 255 folders
(including ROOT)
•
•Max number of files recognized from
one USB device:
- Music : 1000
- Video : 1000
Video Specification
Category Description
File Format AVI, MP4, WMV
Video Codec H.264, WMV9
Video Resolution Up to 1280 x 720
(WMV9 : up to 720x480)
Audio Codec MP3, WMA, AAC
38
Specification
TF T-LCD
Screen Size 8inch (176.4 x 99.36 mm)
Resolution 384,000 pixels (Resolution : 800 x 480)
Viewing Angle Left/Right, Top/Bottom: (80°, 80°, 80°, 80°)
Internal Lighting LED
Radio
Channels FM: 87.5~107.9MHz Step(200kHz)
AM: 530~1710kHz (Step10kHz)
Sensitivity FM : Under 10 dBuV / AM: Under 35dBu
EMF
Distortion Factor Within 2%
Bluetooth® Wireless Technology
Frequency Range : 2402 ~ 2480 Mhz
Supported Bluetooth®
Specification 2.1+EDR
Supported Profile HFP(1.5), A2DP(1.3), AVRCP(1.3), PBAP(1.1.1)
Bluetooth® Power Class2
Number of Channels 79 channels
Common
Power Supply DC 14.4V Operating Power DC 9V ~ DC 16V
Sleep Current LESS THAN 1mA
Operating
Temperature
-20 ~ +70 ℃
(-4 ~ +158℉)
Storage
Temperature
-30 ~ +80 ℃
(-22 ~ +176℉)
Dimension W 320mm x H 182.7mm x D 211mm
Current
Consumption 10A
39
Trouble shooting
ENGLISH
1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions listed below.
3. If the problems persist, contact your dealer
Problem Possible Cause
There are small red, blue, or green dots on the
screen
Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency may
occur within 0.01% of total pixels.
The sound or image is not working •
•Has the Switch for the vehicle been turned to [ACC] or [ON]?
•
•Has the SYSTEM been turned OFF?
The screen is being displayed but sound is not
working
•
•Has the volume been set to a low level?
•
•Has the volume been muted?
When the power is turned on, the corners of the
screen are dark
•
•The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a
malfunction.
•
•If the screen is very dark, contact your nearest dealer for assistance.
Sound is working from only one speaker Are the positions of Fader or Balance sound controls adjusted to only one side?
Sound does not work in AUX mode Are the audio connector jacks fully inserted into the AUX terminal?
The external device is not working Is the external device connected with a standard connector cable?
When turning power on, the most recent mode
screen is not displayed
Within modes that play files by reading external sources, such as USB, iPod®, or Bluetooth® streaming mode, the
most recently played mode screen prior to turning off power may not properly load.
•
•If the corresponding device is not connected, the mode operated prior to the most recent mode will operate.
•
•If the previous mode still cannot be properly played, the mode operated prior to that will operate.
40
Trouble shooting
Problem Possible Cause Countermeasure
The power does not
turn on.
The fuse is disconnected. •
•Replace with a suitable fuse.
•
•If the fuse is disconnected again, please contact your point of purchase or service centre.
Device is not properly connected. Check to see that the device has been properly connected.
The system does not
play. The vehicle battery is low. Charge the battery if the problem persists, contact your point of purchase or service centre.
The image colour/ tone
quality is low.
The brightness, and contrast levels are
not set properly. Properly adjust the brightness, and contrast levels through Display Setup.
Sound does not work.
The volume level is set to the lowest
level. Adjust the volume level.
The connection is not proper. Check to see that the device has been properly connected.
The device is currently fast-forwarding,
rewinding, scanning, or playing in slow
mode.
The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing
in slow mode.
41
Trouble shooting
ENGLISH
Problem Possible Cause Countermeasure
The sound or image
quality is low.
Vibration is occurring from where the
conversion switch has been installed. The sound may be short circuited and the image distorted if the device vibrates.
Image colour/tone quality is low. The device will return to normal once vibrations stop.
The USB does not work
USB memory is damaged. Please use after formatting the USB into FAT 32 format.
USB memory has been contaminated. Remove any foreign substances on the contact surface of the USB memory and multimedia
terminal.
A separately purchased USB HUB is being
used. Directly connect the USB memory with the multimedia terminal on the vehicle.
A USB extension cable is being used. Directly connect the USB memory with the multimedia terminal on the vehicle.
A USB which is not a Metal Cover Type
USB Memory is being used. Use standard USB Memory.
An HDD type, CF, SD Memory is being
used. Use standard USB Memory.
There are no music files which can be
played.
Only MP3, WMA file formats are supported. Please use only the supported music file for-
mats.
The iPod® is not rec-
ognised even though it
has been connected
There are no titles which can be played. Use iTunes to download and save MP3 files into the iPod®.
The iPod® firmware version has not been
properly updated. Use iTunes to update the firmware version and reconnect the iPod® with the device.
The iPod® device does not recognise
downloads. Reset the iPod® and reconnect with the device.
42
Limited Warranty
LIMITED WARRANTY
ORIGINAL HEAD UNIT SUPPLIED BY VEHICLE DEALER
WHAT THIS WARRANTY COVERS
1. Vehicle Dealer Shop (“Dealer”) warrants to you that the Hardware will be free from defects in workmanship and materials under Normal use (“Defects”)
from the original date of the registration of the motor vehicle (“Warranty Period”). During the Warranty Period the Hardware will be repaired or replaced at
DEALER’s choice (“Limited Warranty”) without charge to you for either parts or labour. This Limited Warranty covers the replacement of the head unit includ-
ing of the Hardware only.
Period Warranty Mileage Warranty
3years 100,000 Km
*Whichever Occurs earlier.
*The term of the warranty shall commence from the date of delivery of the new vehicle to the first purchaser.
WHAT THIS WARRANTY DOES NOT COVER
2. The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone liquids, proximity or
exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty
does not cover physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may accompany or be installed on
the Hardware.
The Limited Warranty does not cover the installation, removal or maintenance of the Hardware or any costs related herewith.
HOW TO MAKE A WARRANTY CLAIM
3. In order to make a claim of a Defect, you must contact DEALER. If a defect arises and a valid claim under this Limited Warranty is received by DEALER after the
first 3yrs/100,000 km of the Warranty Period, DEALER is entitled to charge you for any reasonable shipping and handling costs made in connection with the
repair or replacement of the Hardware. You must comply with any other return procedures stipulated by DEALER, if any.
43
Limited Warranty
ENGLISH
DEALER LIMITED WARRANTY
YOUR LEGAL RIGHTS
4. Some countries may not allow the exclusion or limitation of damages. If any part of this Limited Warranty is held to be invalid or
unenforceable, the remainder of the Limited Warranty shall nonetheless remain in full force and effect.
5. This Limited Warranty is the only express warranty made to you and is provided in place of any other express warranties or similar obligations (if any) created
by any advertising, documentation, packaging, or other communications.
6. Except for the Limited Warranty and to the maximum extent permitted by applicable law, DEALER and its suppliers provide the Hardware “AS IS AND WITH
ALL FAULTS”, and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied
warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses,
of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of or failure to provide
support or other services, information, software, and related content through the Hardware or otherwise arising out of the use of the Hardware. Also, there is
no warranty or condition of quiet enjoyment, quiet possession, or non-infringement with regard to the Hardware.
7. This Limited Warranty does not affect any legal rights under applicable national legislation governing the sale of consumer goods.
8. This Limited Warranty cannot be transferred to any other person.
LIMITATION OF LIABILITY
9. Neither DEALER nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise
(including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits, business
interruption or the like) arising out of the use of or inability to use the Hardware even if DEALER has been advised of the possibility of such damages.
10. Notwithstanding any damages that you might incur for any reason whatsoever, the entire liability of DEALER and any of its suppliers shall be limited to the
amount actually paid by you for the Hardware.
11. DEALER shall not be liable for
(I) any fraud on the part of its employees and/or agents; or
(II) any fraudulent misrepresentation on the part of its employees and/or agents.
12. Notwithstanding the above, neither party’s liability for death or personal injury resulting from its own negligence shall be limited.
44
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
•Reorient or relocate the receiving antenna.
•
•Increase the separation between the equipment and receiver.
•
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
•Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not expressly approved by the party responsible for compliance could void your authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or oper-
ating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
