User Manual
Buzz
PTM-ICN
WIRELESS
band
PTM-ICN with call & missing vibration
User Manual
Bluetooth wristband PTM-ICN USB cable User manual
HOW TO USE
CHARGING
Make sure the product is fully charged before you start using it.
The product is not functional while charging.
1. Charging
LED light turns steady blue while the battery is charging.
When the product is fully charged (about 2 hours), LED light turns o.
ENCLOSURES

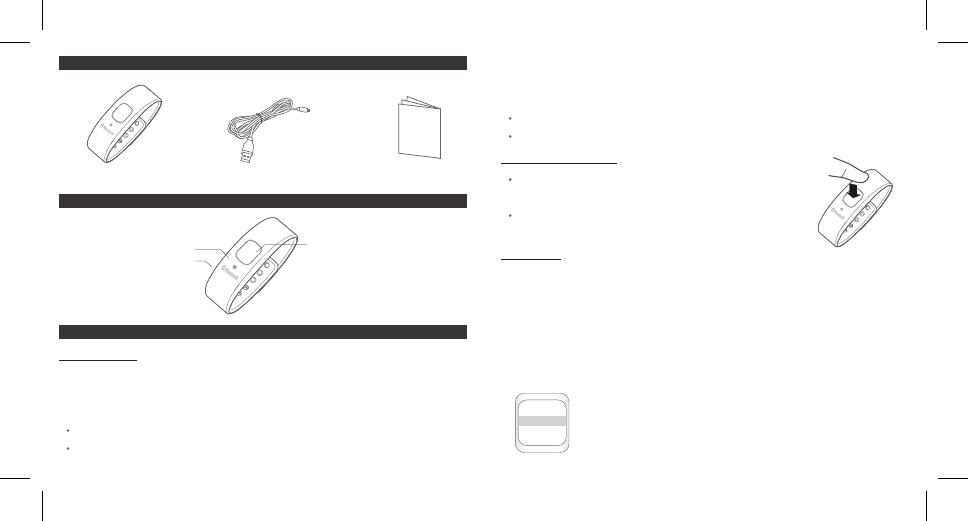

PRODUCT COMPONENTS
-1- English English
2. Low Battery Warning
When the battery is low, the product vibrates 4 times every 30 seconds.
3. Operating and Charging Duration
Charging: Approx. 2 hours
Standby mode: Approx. 90 hours
POWER ON/ OFF
Power On : Press and hold MFB for 3 seconds.
A blue LED blinks 3 times until power is on.
Power O : Press and hold MFB for 4 seconds.
A blue LED blinks 4 times until power is o.
PAIRING
[Note] Before you use the product, you need to pair it with your mobile phone rst.
1. Make sure the product is turned o.
2. Press and hold MFB button for 6 seconds until blue LED turns on steadily.
3. Set your Bluetooth mobile phone to discover the product.
For most mobile phones, you can nd Bluetooth mode by selecting Setting/
Tools- Connections- Bluetooth.
(For further information, please refer to your mobile phone’s manual)
-2-
Charging Port
Multifunction Button
Indication LED
3. reference
Input PIN Code
0000
Active Dev List
Model Name
MB20
Connectivity
Bluetooth
......
4. When your mobile phone nds the product, conrm it by selecting “yes” or “ok”.
Input PIN Code
0000
Active Dev List
Model Name
PTM-ICN
Connectivity
Bluetooth
......
5. After entering pin code “0000” from your keypad, press “yes” or “ok”.
Input PIN Code
0000
Active Dev List
Model Name
MB20
Connectivity
Bluetooth
......
6. In the case of an unsuccessful pairing, repeat steps 3 to 5.
7. When pairing is completed, the product vibrates once shortly.
EASY PAIRING:
If you use headset for the rst time, headset will go pairing mode
directly.
Auto connection: The product supports auto connection that makes it possible
to be automatically connected to the last connected device
after turning on, by pressing and holding MFB about 2 seconds.
When the product is o, press and hold MFB about 3 seconds.
BASIC OPERATION
Incoming Call Alert : The product vibrates twice every 2 seconds when your
mobile phone receives an incoming call.
By pressing MFB once, the product stops vibration.
Rejecting a Call : To reject a call, press MFB for 2 seconds.
Out-of-range Alert /Auto Connection : When the product loses connection due
to out-of-range failure (10m), it vibrates 3 times every 10 seconds.
When it returns within connectable range,it tries auto reconnection. With
completing auto reconnection, the product vibrates shortly once.
[Note] Before using your product: The product does not support conversation function.
After connecting the product with your mobile phone, you might hear no sound
from the mobile phone depending on your mobile phone maker. In this case, set the
sound to a mobile phone or ear phone from your mobile phone’s Bluetooth menu.
LED INDICATION
Status Blue LED Indication
Power On Blue LED blinks 3 times
Power O Blue LED blinks 4 times
Pairing Mode Blue LED blinks steadily
Connectable Mode Blue LED blinks once every 5 seconds
Connected Mode Blue LED blinks twice every 5 seconds
Charging in Progress Blue LED turns on
Charging Complete Blue LED turns o
SPECIFICATIONS
Model Name PTM-ICN
Bluetooth Core Spec Bluetooth Specication 2.0
-3- -4-
English English
5. reference
4. reference
Prole Headset Prole, Handsfree Prole 1.5
Carrier Frequency 2402MHz to 2480MHz
Modulation Method GFSK, 1Mbps, 0.5BT Gaussian
Maximum Data Rate Asynchronous : 2178.1 kbps / 177.1 kbps
Synchronous : 1306.9 kbps / 1306.9 kbps
Bluetooth Class Class 2
Hopping 1600 hops/sec, 1MHz Channel Space
Transmit Power 0 dBm
Coverage Range 10 Meters
Receiver Sensitivity -82 dBm / 0.1 % BER
Continuous Talk Time 90 Hours
Weight 19 g
Dimension 21.1(W) x 120.1(L) x 105.1(H) mm
Charging Voltage DC 5.0 ~ 5.3 V
Charging Time 2 Hours
Operating Temperature -10° to +50°C
Storage Temperature -20° to +80°C
Battery Lithium Polymer 3.7V 55mAH
SAFETY AND GENERAL INFORMATION
1. Please read this guidebook carefully and follow the instruction.
2. To avoid any damage or malfunction of the unit, do not drop it from high place.
3. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture
and other liquid directly, then do not operate it normally to avoid any electrical shock, explosion and damage
of the unit.
4. Do not place or keep the unit near the heat sources such as direct sun light, radiators, stoves or other
apparatus which produce heat.
It may cause explosion, degrade of performance and reduce battery life.
5. Do not modify, repair & disassemble unit at discretion. [especially battery: it may cause an explosion]
6. Do not place the heavy objects on the unit.
7. Use only supplied and approved charger.
8. Replacement or service must be done at a qualied service center or manufacturer.
9. Unplug this unit when unused for long period of time or during lightening storms.
[CAUTIONS] ELECTRIC SHOCK HAZARD :
The battery used in this device may present a risk of re or chemical
burn if mis-treated.
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received , including interference that may cause undesired
operation.
[Note] The manufacturer is not responsible for AzNY interference, for example RADIO or TV interference,
caused by unauthorized modications to this equipment. Such modications could void the user’s
authority to operate the equipment.
EU
This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).
Here by MOVON Corporation, declares that this product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Please note that this product uses radio frequency bands not harmonized within EU. Within the EU this
product is intended to be used in Austria, Belgium, Denmark, Finland, France,Germany, Greece, Ireland, Italy,
Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway
and Switzerland. Bluetooth is a trademark owned by the Bluetooth SIG, Inc.
WARRANTY
The condition of this warranty and our responsibilities under this warranty are as follows:
Supplier’s warranty is non-transferable. And this warranty is limited to the original purchaser only.
- You must be able to prove the date of original purchase of the unit with a dated receipt.
-5- -6-
English English
- The warranty is not applicable if the product has been subject to physical abuse, improper installation,
modication or repair by unauthorized third party.
- The responsibility of supplier’s products shall be limited to the repair or replacement of the product at it’s
sole discretion.
- Specically exempt from any warranty are limited-life consumable components subject to normal wear and
tear such as batteries, decorates and other accessories.
- A supplier will not take any responsibility if the failure of the unit has resulted from accident, abuse, misuse or
any unauthorized repair, modication or disassemble.
- Modication and repair of the unit should be done by authorized and qualied service personnel, center or
returned to the manufacturer
- This warranty gives you specic legal rights and you may also have other rights which vary under local laws.
WEEE SYMBOL INFORMATION
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems) This marking
shown on the product or its literature, indicates that it should not be disposed with other household wastes at
the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.
[IMPORTANT NOTE] To comply with RF exposure requirements, this device may not be co-located with
any other transmitter or antenna.
