MOVON MDAS10 Driving Assistant System User Manual mdas10 menual EN 1203 19 Converted 1

MOVON Corporation Driving Assistant System mdas10 menual EN 1203 19 Converted 1

Users Manual

(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.

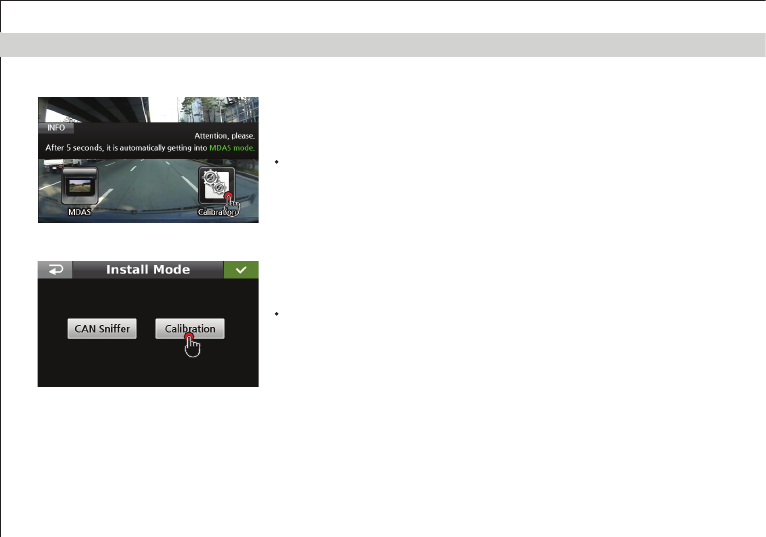

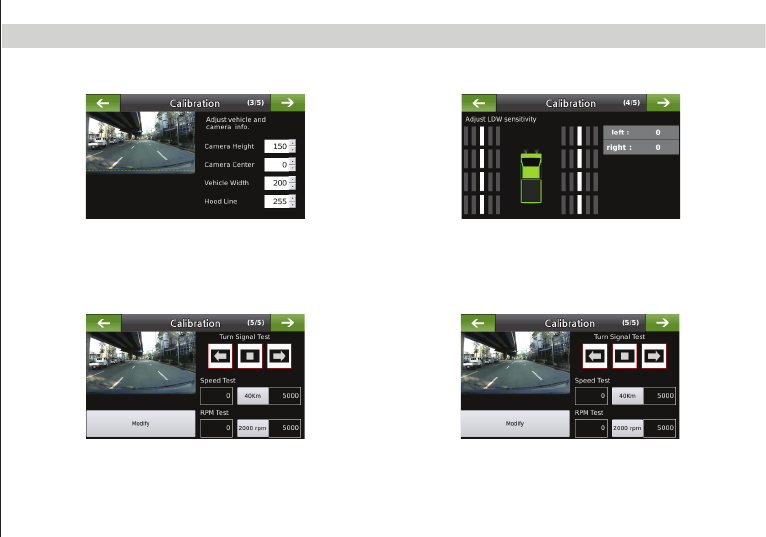

press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).

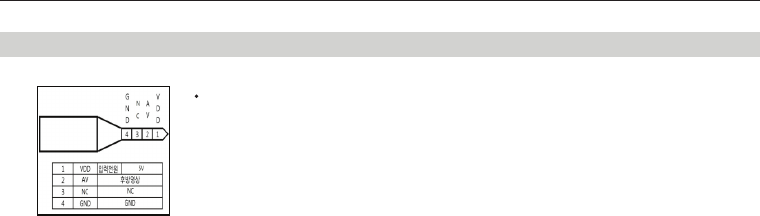

Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification

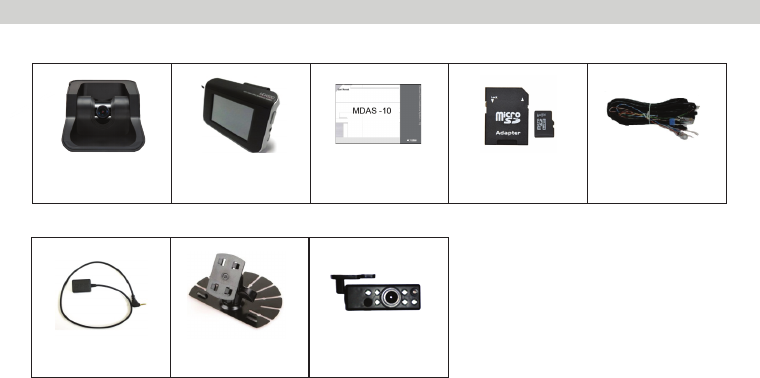

1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable

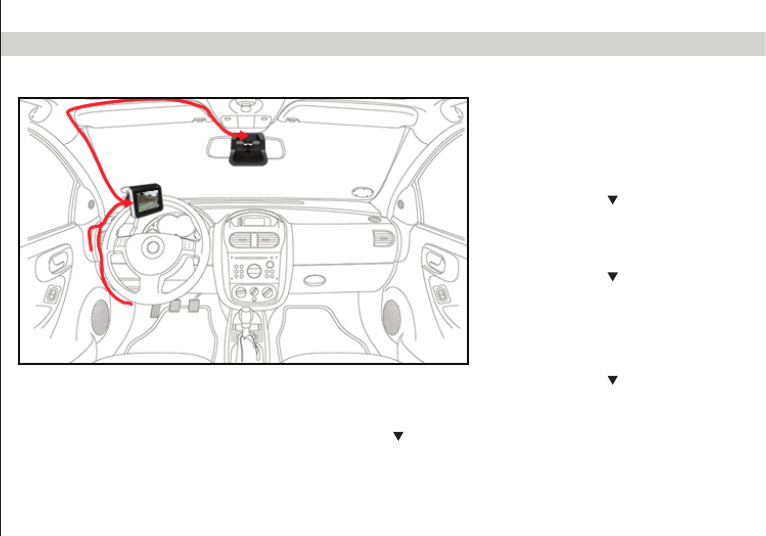

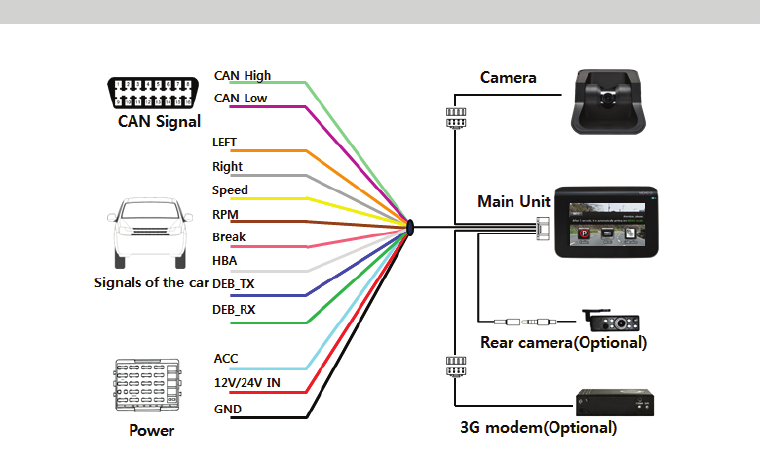

2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.

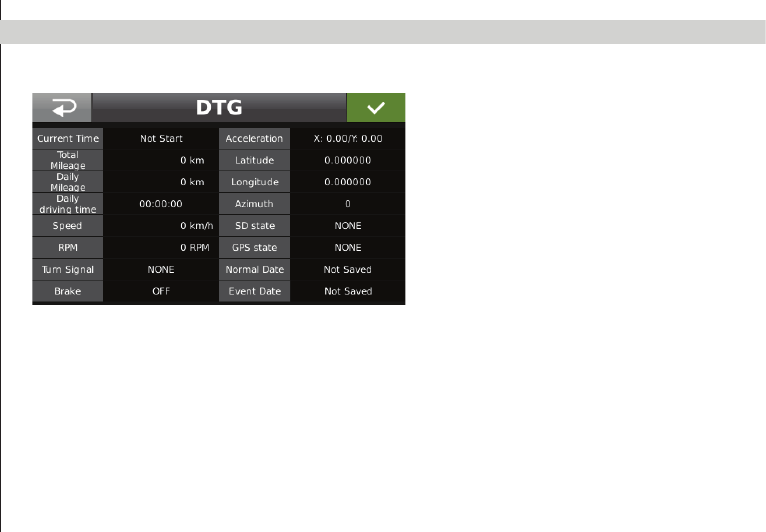

3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)

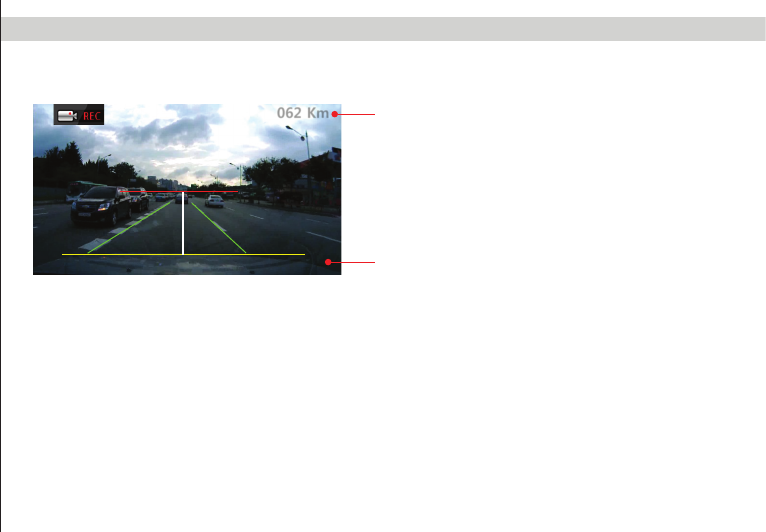

3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph

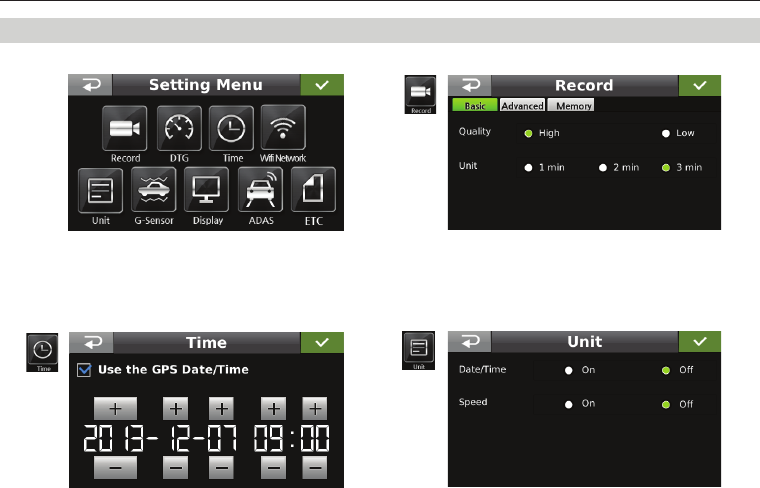

Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen

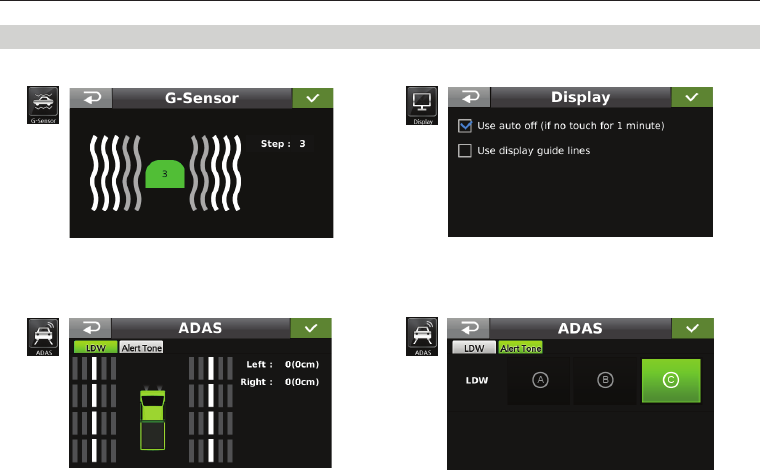

G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date

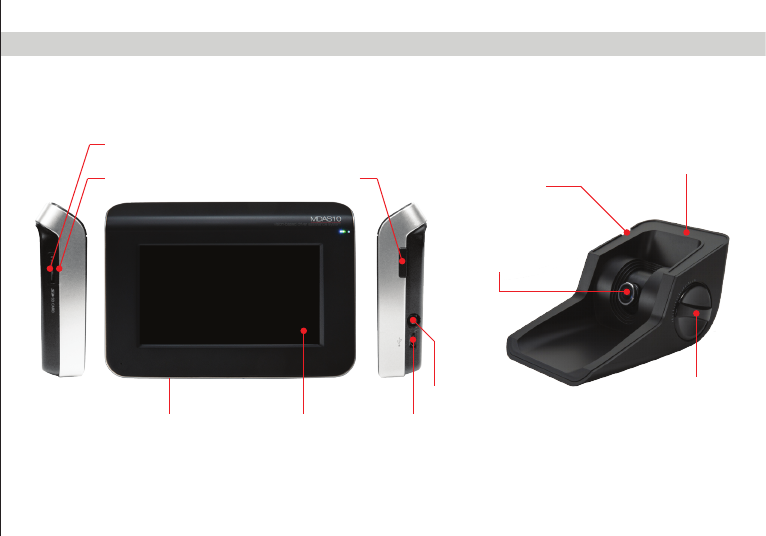

Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10

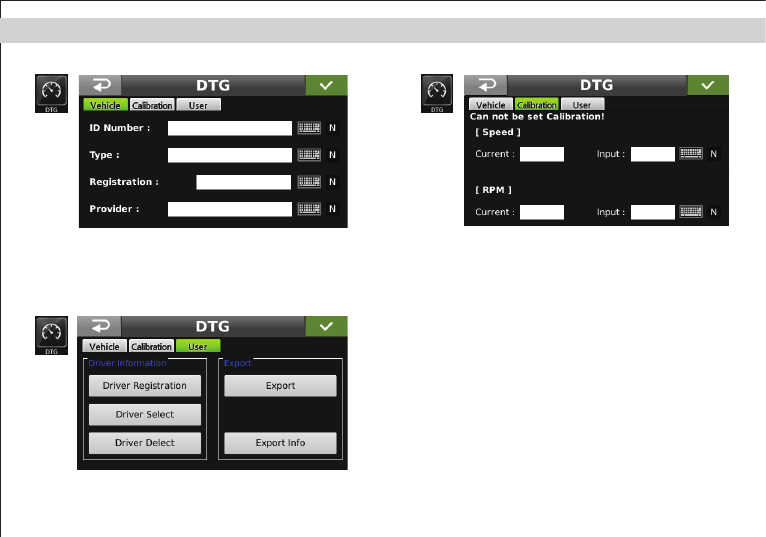

Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration

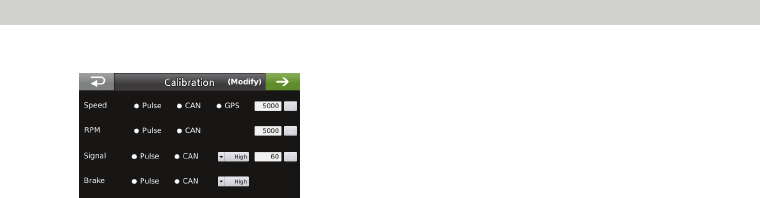

If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.

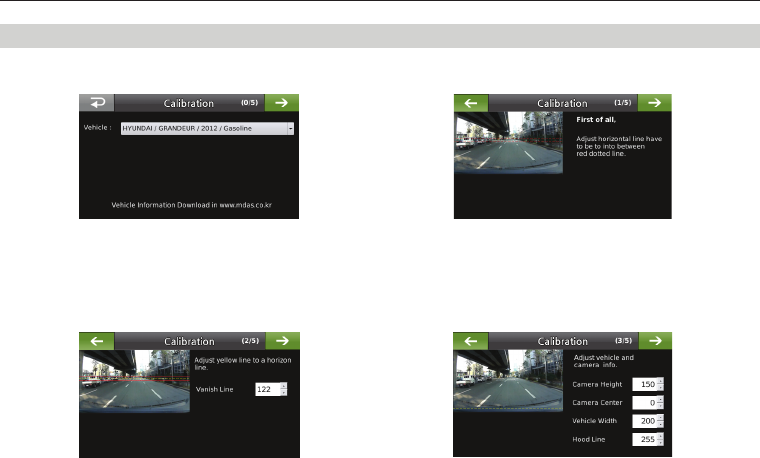

Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
(Movon Driver Assistance System – 10)
Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10).
Please read the manual carefully before installing and using MDAS-10.
MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting drivers by preventing drowsy or
reckless driving, and recording driving information with the three functions listed below
Entering calibration mode
Lane departure warning(LDW)
Provides Lane Departure Warning (LDW) for safe driving.
It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes
unintentionally. (*activated at 60 km/h (38 mph))
2 Channel HD Dash cam
Records scenes before and after an accident along with imminent crash situations based on gravity
sensor and 720P recording performance. MADS-10 can record rearview scenes (480P) with an external
back-up camera and the screen can be used as a rearview display.
Digital Tacograph
Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS location,
accumulated mileage, daily mileage, etc. Can benefit fleet managements and improve drivers’ driving
behavior as a result of reducing accidents and saving fuel.
1) Introduction 1. About MDAS-10
2. Specification
3. Components
4. Part description
2) Installation 1. Cabling overview
2. Installing
2.1 Installing rear-view cameras
3. Calibration
3) Function 1. Lane departure warning
2. Dash cam
3. Digital tachograph
4) Operation 1. Set-up menu
5) Warranty information
Any inappropriate or illegal activities or violation of traffic rules on the roads are drivers’ responsibility. Movon Corp.
will not compensate any damage nor accept responsibility related to behaviors mentioned.
After attaching the optional rear camera to preferred location on the rear windshield,
connect camera cable to the main cable’s 2.5ø slot.
press Calibration icon after MOVON logo disappearsAfter the car engine’s on,
Initial calibration screen is the same as the picture on left.
Press Calibration once more to proceed to configuration.
If the rear screen converts into the full screen in the PIP situation, LDWS should be not activated.
Users can change recording time in DVR Setting.
Caution
Before inserting or separating micro SD card, please turn off MDAS-10. If you do not, the recording images can become corrupted.
It is recommended for micro SD card’s reliability to low-level format the SD Card periodically (approximately every 3-4 months).
Caution : If using an external rear camera outside of the car, ensure that the external
rear camera’s connector is following MDAS-10’s cable pin specification indicated
on the picture.
In addition, if the camera’s power consumption exceeds 5V, it will be powered from
a separate power source(eg. rear lamp cables)
Please be aware of Movon’s policy that private information and traffic related laws are users' responsibility.
MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves.
Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy.
The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for
upgrading or editing purposes.
The product software is able to be modified for upgrading for better performance without informing in advanced.
Please refer to the http://www.movon.co.kr or http://www.mdas.co.kr for latest updated information.
Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved.
Table of contents
1
1.Introduction - 2) Specification
1.Introduction - 4) Part description1.Introduction - 3) Components
1.Introduction - 1) Introduction
Major functions
CPU Cortex A8 Series
MDAS camera
Screen 4.3 inch, 480x272 pixel, touch screen panel
Camera 1M pixel, Diagonal 103.2°C
Power
Video
Audio
MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps)
AAC/MP3
Format
Camera
Lens
Angle adjuster
Speed
Distances between the wheels
Double sided tape
Camera cable
Body
110 x 85 x 70 mm
135 x 85 x 20 mm
Size
Storage
DC 12V/24V support (Consumption: 900mA)
4~32GB Micro SD card support
Operating Temperature -20~65˚C
Etc Built-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS,
Input Power port (Micro USB or Rear Connector), Camera port(micro USB)
MDAS main User manual
GPS module
(Option)
Universal 4-pin
mount (Option)
Rear-view camera
(Option)
Micro SD card 8G
& reader MDAS cable
2.Installation - 1) Cabling overview
2.Installation - 3) calibration
2.Installation - 3) calibration
2.Installation - 3) calibration
Lane Departure Warning
1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when
driving over 60km/h(38 mph).
2. When MDAS-10 recognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green
lines when the car stays in its lane and displays red lines when the car departs its lane.
3. You can change the distance between the vehicle and the lane markings through sensibility adjustment.
(Refer to Set-up menu in Operation chapter)
4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation.
5. LDW will not be activated if you turn on left or right blinkers.
(If the LDW is activated, please read the direction light connection of FAQ)
1. Normal mode: Records front and rear driving scenes simultaneously in real-time and recorded videos can be found in ory_rec folder.
2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds before and after of the event are saved in
evt_rec folder.
3. Manual mode: If you press on the screen, the videos are recorded for 30 seconds from the time and saved urs_rec folder.
4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP
(Picture in Picture) through button on the LCD of main body.(Press the PIP screen to switch into the full screen)
6. Recorded video play: You can play recorded videos through MDAS-10, MV(MDAS Viewer), VLC player, and players that play avi
files. (MV is included in SD card also it can be downloaded in Notice on www.mdas.co.kr. You can find the player in Notice board.)
7. MDAS DVR viewer works normally on computers with 2Ghz CPU and 2GB RAM.
8. File name can be expressed like ORY_20131201_205940_D (Type, date, time, D:dual S:single camera).
(ORY : Ordinary video recorded in real-time, EVT: Event video recorded, USR: Manual video)
Users can allocate recording spaces of the normal mode/event mode/manual mode and format the SD card.
1. MDAS-10 digital tachograph is designed in compliance with national standard and has obtained certification.
2. The driving information such as speed, mileage, time, RPM and GPS location can be transferred to MDAS-10 via
CAN or analog communication.
3. The driving information can be displayed after touching the DTG button as shown above.
4. DTG viewer needs to be downloaded from http://www.mdas.co.kr in order to check the stored driving information.
5. You can check the moving route and location in real time via Fleet Management Service by MOVON provided.
If you need the Fleet Managements Service, please call (+82) 2-2050-4676
6. All driving data can be recorded up to six months and the last ten seconds of the event data will be also recorded automatically.
5. Recording time(Normal+Event videos)
3.Function - 1) Lane Departure Warning
062 Km
0.81 m
1.24 m
If REC button shows blue color , it indicates video is not recorded. So, please ensure that the icon is red before using.
Digital Tachograph
Record Setting
3.Function - 2) 2CH Dash cam 3.Function - 3) Digital Tachograph
Time Setting
4.Operation - 1) Set-up menu
Tachograph Setting - 1
Tachograph Setting - 3
Tachograph Setting - 2
/ MDAS-10’s Main Screen
G-Force sensor setting LCD’s display setting
LDW setting - 2LDW setting - 1
Wi-Fi Setting - 1 Miscellaneous Setting
Quick Guide
-3- -4-
-5- -6-
-7-
-9- -10-
-11-
-13-
-15- -16-
-17- -18-
-19- -20-
3
4
5
6
7
8
10
14
15
16
17
21
MDAS -10
2.Installing - 2.1) Installing rear-view cameras
Use auto off : Turns off the LCD display 1 minutes after MDAS-10
is powered on.
Use guide Line : Checks if LDW-related virtual Line is displayed.
4.Operation - 1) Set-up menu
4.Operation - 1) Set-up menu 4.Operation - 1) Set-up menu
Product Warranty
Product Warranty Card
MDAS-10
-21-
The warranty period applies from the date of purchase by the first customer and is transferable only between end-users.
The product warranty card and a copy of dated receipt “Proof of Purchase” are required. Otherwise,
MDAS-10 is not covered by the limited product warranty.
The warranty covers only manufacturing defects only which are occurred within warranty period.
We confirm this product warranty complies with Consumer Laws under Korea Consumer Agency.
After-sales Service center location : Movon Corp. ( T. +82 (02) 2050 4640 )
Please download and back up all saved data before sending MDAS-10 to our After-sales Service center. We exclude all
liability for loss of data.
Warranty Period / MDAS-10 : 1 year : 20,000Km / Movon-providing microSD card : 3 months
Movon-providing rear view camera : 6 months
Model
Serial No.
Customer Name Phone
Phone
Address
Name
Address
Seller
Purchasing Date
Touch LCD MINI USB
GPS
Reset hole Screen On/Off button
Micro SD card slot
Main cable port
Do not modify nor disassemble the product.
Do not install in disregard of installation instructions. It is recommended to go to a professional installation shop.
Do not operate while driving, it is prohibited by law. If it is necessary, operate after stopping at a secure area.
Do not sepa
If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover.
rate micro SD card from MDAS-10 while the power is on. Separate after turning off MDAS-10 if it is necessary.
Do not touch the screen directly with sharp objects. Movon is not liable for damage of the screen.
Operating temperature is -20~65℃(4~149 ℉). MDAS-10 may not operate properly and be damaged in excess
of the temperature parameters.
Lane departure warning system may not work properly due to camera locations and angle, excessive tint, etc.
* Precaution
Step : 1 Remove the adhesive tape from the camera
and attach to the center of front windshield
from inside. And connect camera cable to the main
cable
* The location of camera that should be within
+/-5cm from the center.
Step 2 : Remove the adhesive tape from MDAS-10
body and attach to a preferred location or
attach to the mount using 4 pin connector.
Step 3 : Connect CAN High/Low cables to those
corresponsive cables. If CAN signal is
unavailable, connect speed, left/right turn
signals, RPM(if needed) directly into
corresponsive vehicle cables.
Step 4 : Find accessory/ignition power(ex: clock, cigar) in fuse box and connect to ACC cable and fix the ground(GND) cable on a
uncoated metallic part of the car body.
Step 5 : Connect the main cable to MDAS-10 after finishing connecting signals with the car and GPS.
-8-
2.Installation - 2) Installing
8G 6 hours 13 hours 26 hours16G 32G
KC Certified : MSIP-CMM-MVN-MDAS10
Driver Registration : Registering a driver
Driver Select : Selecting a driver
Driver Delete : Deleting a driver
Type : Car type
ID Number : Car VIN Number Calibration
If the current car data(Speed, RPM) is not correct, users
can modify changed values.
Registration : Car registration no.
Provider : Registration no. of Transport Operator
Advanced : Ordinary or event recording On/Off.
Voice recording On/Off.
Memory : Memory-size setting
You can format SD card in this menu.
for recording hours.
Basic : Video quality and recording hour unit change.The image shows all available menu settings. However,
You may have limited access to menu settings on MDAS-10.
Export : Exports driving information to an external device
Export Info : Exported Information
Checking if GPS data/ time is functionoing and setting time.
Change sensitivity of G-Force sensor. The lower numbers
in Step, the more sensitive.
Select the auto maker (ex: GM, Ford, etc.), and then select
the vehicle model in accordance with year of manufacture.
If the vehicle model is not listed, go to www.mdas.co.kr and
register/sign-up in order to download the appropriate data
file for the vehicle. Then, insert micro SD card after copying
the data file on it.
* Turn off power before inserting/separating micro SD card.
* If the vehicle’s signal is not correct, you can modifty
the data by clicking “modify” in the final screen. So,
if a car signal is not received from the supposed data
connection, you can select a different type of data
you need.
Enable WiFi : Checks if Wi-Fi is activated.
Adjust the camera knob to locate the yellow line on the
horizon or between the red lines. You can enlarge the
image by clicking the scene frame.
2.Installation - 3) calibration
Firmware Update : Updates a Firmware.
Default Setting : Initializes MDAS-10.
Setting for LDW-alerting sound.
Multiple choices available from A to C.
Sensitivity setting for LDW.
The closer each line is towards a car, the more sensitive.
Adjust yellow dot line to locate on the vanish line Adjust the hood line to locate the boundary between the road
and vehicle hood. Then input the vehicle width (From the edge
of right tire to the edge of left tire on the road) and Input the
camera height (From the road to the camera lens)
Lane departure warning(LDW) sensitivity adjustment.
If you want to change the warning timing, please click the
lane marker. Default value is 0 (at 3) and every unit changes
10 CM length from its side.
Test signal connections
Turn on right/left turn signal and check if red light is on
the screen. And press brake pedal and check if the red light
is on the screen.
In order to correct speed value, please press “40km” at
24mph(40km/h). Likewise, for RPM, press “2000rpm) at
2000rpm
-12-
-14-
If the camera is attached away from the center line of
the vehicle, please adjust how far it is located from the
center. Its unit is centimetre. (- is left side, + is right side)
Test signal connections
OSD Setting
Data/time, speed are displayed on MDAS-10’s LCD.
Select speed unit, Km/h or mph (Initial value is Km/h)
* Icon explanation
Voice recording is unavailableSD card is not inserted SD card has a problem
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
-22-

Navigation menu
