MOX GROUP M5 Mobile Phone User Manual

Mobile Phone

Model Name: M5

Brand Name: MOX

FCC ID: 2ABBS-M5

1

Table

Table of

of

of Contents

Contents

1.

1. Foreword

Foreword

...............................................

5

2.

2. Quick

Quick

Quick start

start

............................................

9

Icon Explain .............................................. 9

Knowing the Keys

...............................

9

Install SIM card ...................................... 10

Install T-flash card .................................

11

Installing Battery ....................................

11

Battery Charging ....................................

11

Switching on/off ..................................... 12

3.

3. Call

Call

Call function

function

function .......................................

.......................................

....................................... 14

14

Dialing telephone ................................... 14

Receiving telephone ............................. 15

call in the menu ..................................... 15

4.

4. Messages

Messages

Messages ............................................

............................................

............................................ 17

17

Write message ....................................... 17

Inbox ....................................................... 17

Drafts ...................................................... 18

Outbox .................................................... 18

Sent messages ...................................... 19

Service messages ................................. 19

SMS settings .......................................... 19

5.

5. Phonebook

Phonebook

Phonebook .........................................

.........................................

......................................... 21

21

Quick search .......................................... 21

Browse contacts .................................... 21

Add new contact .................................... 22

6.

6. Call

Call

Call center

center

center ..........................................

..........................................

.......................................... 23

23

Call history ............................................. 23

2

Call settings ........................................... 23

7.

7. Settings

Settings

Settings ...............................................

...............................................

............................................... 27

27

Dual SIM settings .................................. 27

Phone settings ....................................... 27

Network settings .................................... 29

Security Settings ................................... 29

Connectivity ........................................... 32

Restore factory settings ........................ 34

8.

8. Multimedia

Multimedia

Multimedia ..........................................

..........................................

.......................................... 35

35

Image viewer .......................................... 35

Video recorder ....................................... 36

Video player ........................................... 37

Audio player ........................................... 37

Sound recorder ...................................... 38

FM radio ................................................. 39

9.

9. Extra

Extra

Extra ..................................................

..................................................

.................................................. 40

40

Torch ....................................................... 40

Calculator ............................................... 40

Calendar ................................................. 40

Alarm ....................................................... 41

10.

10. File

File

File manager

manager

manager ...................................

...................................

................................... 42

42

11.

11. Services

Services

...........................................

43

Homepage .............................................. 43

Bookmarks ............................................. 43

Input URL ............................................... 43

Recent pages ......................................... 43

Settings ................................................... 44

12.

12. Fun&Games

Fun&Games

....................................

45

13.

13. Input

Input

Input methods

methods

methods ................................

................................

................................ 46

46

3

14.

14. Phone

Phone

Phone maintenance

maintenance

maintenance .......................

.......................

....................... 47

47

15.

15. Accessories

Accessories

....................................

49

16.

16. Environment

Environment

Environment ...................................

...................................

................................... 50

50

17.

17. TechnicalSpecifications

TechnicalSpecifications

TechnicalSpecifications ...............

...............

............... 51

51

4

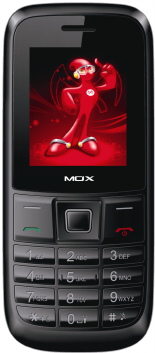

Mobile appearance picture

5

1.

1. Foreword

Foreword

Honorific mobile phones user, thank you for

choosing our mobile phone!

Our cellular phones is according with the

communication industry standards of PRC, and

also according with the standards of European,

and are approved for GSM networks.

Your phone may be used internationally with

various networks depending on your roaming

arrangements with your service provider.

To

use this phone you must subscribe to a GSM

service from a provider. We have included many

features in this device but their function depends

on the features available with your subscribed

wireless network. Please contact your service

provider for more information.

We strongly recommend you carefully read and

understand this manual before using your phone

in order to keep it under best conditions for your

effective usage and utmost satisfaction.

Safety

Never attempt to disassemble your phone.

You

alone are responsible for how you use your phone

and any consequences of its use.

As a general rule, always switch off your phone

wherever the use of a phone is prohibited.

Use of your phone is subject to safety measures

designed to protect users and their environment.

Do not use your phone in damp areas (bathroom,

swimming pool … ). Protect it from liquids and other

moisture.

Do not expose your phone to extreme

temperatures lower than - 10 ° C and higher than +

6

50°C.

The physicochemical processes created by

chargers impose temperature limits when

charging the battery. Your phone automatically

protects the batteries in extreme temperatures.

Do not leave your phone within the reach of small

children (certain removable parts may be

accidentally ingested).

Electrical safety

Only use the chargers listed in the manufacturer

’

s

catalogue. Using any other charger may be

dangerous; it would also invalidate your warranty.

Line voltage must be exactly the one indicated on

the charger ’ s serial plate.

Aircraft safety

When traveling by plane, you will need to switch

your phone off when so instructed by the cabin

crew or the warning signs. Using a mobile phone

may be dangerous to the operation of the aircraft

and may disrupt the phone network.

Its use is illegal and you could be prosecuted or

banned from using cellular networks in the future if

you do not abide by these regulations.

Explosive materials

Please comply with warning signs at petrol station

when personnel asking you to switch your phone

off.

You

will need to comply with radio equipment

usage restrictions in places such as chemical

plants, fuel depots and at any location where

blasting operations are under way.

Electronic equipment

To

avoid the risk of demagnetization, do not let

electronic devices close to your phone for a long

time.

7

Electronic medical equipment

Your phone is a radio transmitter which may

interfere with electronic medical equipment or

implants, such as hearing aids, pacemakers,

insulin pumps, etc. It is recommended that a

minimum separation of 15cm be maintained

between the phone and an implant. Your doctor or

the manufacturers of such equipment will be able

to give you any advice you may need in this area.

Hospitals

Always make sure that your phone is switched off

in hospitals when so instructed by warning signs

or by medical staff.

Road safety

Do not use your phone when driving. In order to

give your full attention to driving, stop and park

safely before making a call.

You

must comply with

any current legislation.

Distance of operation

This phone model has been tested and meets

radiofrequency exposure guidelines when used

As follows:

· Against the ear: place or receive a phone call and

hold the phone as you would a wire line telephone.

· Body worn: when transmitting, place the phone in

a carry accessory that contains no metal and

positions the phone a minimum of 0.5cmformyour

body. Use of other accessories may not ensure

compliance with radiofrequency exposure

guidelines. If you do not use a body worn

accessory and are not holding the phone at the

ear, position the phone a minimum of 0.5cmfrom

your body,

· Data operation: when using a data feature,

8

position the phone a minimum of 0.5cmfromyour

body for the whole duration of the data

transmission.

9

2.

2. Quick

Quick

Quick start

start

Icon

Explain

Icon

Function

Function description

description

Network

Network signal

signal

signal strength:

strength:

strength: number

of the more stronger the signal;

Battery

Battery capacity

capacity

number of the more power the more

full;

SMS

SIM1/SIM2 have unread SMS

Missed call

SIM1/SIM2 have missed calls

Used

Used profiles

profiles

Different icons show different icon:

General, Silent, Me e ting, Outdoor ,

Headset

Plug in headset

Alarm

Alarm function opened

Key

Key lock

lock

Show key and screen lock

Knowing

the

Keys

1.

Left

soft

key/Right

soft

key:

Implement the

functions shown in the lower left/right hand corner.

10

2.Green

key:

Press after dialing to connect by

SIM Card. Press if there is an incoming call to

answer. Press from standby to go to call records

list.

3.

Red

key:

Long press to switch phone on/off;

Press to end, reject call; or to exit a menu.

4.

OK

key:

Confirm or accept selection in menu

access.

5.Navigation

Keys:

Press the up/down /left/right

direction in menu to scroll, browse or in edit page

to move cursor. In idle mode, press the

up/down/left/right direction keys to select the

shortcut function showed on the bottom of the

screen, and then press the OK key to confirm.

6.0-9

alphanumeric

keys:

Press corresponding

keys to input numbers when dialing or numbers

and characters when editing.

In the idle screen, long press 0 key to open or

close the torch.

7.

＊(Star)

(Star)

Key:

Press in standby to input “ * ”

character; in the idle screen, Long press * key to

lock or unlock key pad.

8.

#

Key:

Press in standby to input “ # ” character;

in the idle screen, long press from standby to

activate or deactivate silent mode.

Install

SIM

card

This phone supports two GSM SIM cards. Find

SIM card ’ s groove in t he back of the phone and

slide it completely there. During installation,

please make sure the chip is facing downwards

and pay attention to slot direction.

Note

：

1.Keep

SIM

card

out

of

children

’

s

touch.

11

2.

Any

abrasion

or

folding

could

Easily

damage

SIM

card,

so

please

be

extremely

careful

when

you

insert,

R

emove

and

preserve

it.

3.

Please

make

sure

that

you

have

cut

off

the

power

supply

and

have

taken

out

battery

before

you

remove

SIM

card.

Install

T-flash

card

1. First switch off the phone and remove the

battery.

2. Push the metal card holder toward the bottom of

the phone and l ift the released end of the holder.

3. Place the memory card into the holder with the

metal contacts face down and push the holder

until it locks into place.

Note

:

1.

T

o

avoid

damag

ing

memory

card

,

please

do

not

plug

memory

card

fast

or

frequently.

2.

Please

regularly

backup

information

in

the

cards

on

other

equipment

when

you

use

Cards

like

T-flash!

Improper

use

or

othe

r

uncertain

factors

may

cause

the

damage

or

loss

to

the

content

in

the

cards.

Installing

Battery

Align the battery chip with the metallic salient point

in battery jar, insert the battery until it is inserted

into the battery jar. Slide battery cover into back of

the phone until it is locked.

Battery

Charging

Unclose dustproof soft gum of attachment mode

on the bottom of the phone, insert one end of the

charger, i.e., the charging plug into attachment

mode and the other end into electrical outlet,

Screen will display the charging sign. After

12

charging is finished, just pull out the plug.

Note:

1.

Please

use

the

standard

battery

and

charger,

or

may

explode.

2.

If

the

battery

is

completely

discharged,

the

battery

icon

should

be

in

charge

after

2

to

3

minutes

to

appear.

Generally

based

on

the

current

state

of

the

phone

(if

boot,

call,

etc.)

of

different

charging

time

for

2

to

5

hours.

3.

Please

use

the

charger,

charging

as

much

as

possible

to

avoid

using

USB

cable.

4.

To

ensure

optimal

battery

performance,

the

completion

of

two

to

three

times

the

battery

charge

and

discharge

cycles.

Several

new

battery

initial

charge,

please

charge

more

than

10

hours

straight.

Switching

on/off

Long p ress the

the

Red

key

to switch your phone on

or off.

1. If there is no SIM card, SIM card is defective, or

SIM card contact is loose, you will be prompt with

a warning after powering on, shut down and check

your SIM and its installation.

2. If inserted one GSM SIM card only into the

phone, meanwhile phone code and PIN code is

turn on. When switched on, after entering the PIN

code and phone code, the phone enter the

standby mode by the current SIM.

3. If inserted two GSM SIM cards, meanwhile

phone code, PIN1 code and PIN2 code are all

turned on. When switched on, you will be

prompted to enter the code one by one. After

switched on, the phone will automatically search

the network.

4. If the phone detected authorized network, the

13

screen will display network name and signal

strength ；If there is no authorized network is

found ，the phone can only make emergency calls

or use non-communications features.

14

3.

3. Call

Call

Call function

function

Dialing

telephone

1. Direct dial

In standby mode, press the corresponding

numeric keys to enter the phone number that you

want to dial, including necessary area codes.

Short Press the Right soft key [Clear] to delete

one character, and Long Press delete all inputs, if

inserted only one SIM card, press the Green key

can directly to dial, if inserted two SIM card, press

the Green key into the SIM select screen.

2 . Making an International Call:

To

make an international call, long press * key

until the prefix symbol " ＋" of international call

displays in screen.

3 . Dialing from Phonebook

Enter the Phonebook via the menu, use the

Up/Down Navigator keys to scroll to the desired

contact, or press the first letter of the name of the

desired contact as saved in your phonebook for

quick access to names beginning with the letter

then scroll to the desired, press the green key to

dial.

4 . Dialing from Call history

Enter the Call center (press the Green key from

standby or via the menu), use the Up/ Down

navigator keys to scroll to the desired contact,

press the green key can direct dial.

5 . Dial emergency service

You

can directly dial the emergency service

number without SIM card. Different networks use

different urgency service numbers, so for details

15

please inquire the network operation company .

Receiving

telephone

When there is an incoming call, the phone will give

corresponding alert, if your network supports caller

ID, the screen will display caller

’

s name or number

(depending on whether there is information of the

caller in your phonebook).

1. Press the green key or press the Left soft key

and confirm [ Answer ] to answer the incoming call.

2. If function of [ call center /call set ting / Advanced

setting / Answer mode] is selected as [Any - key],

p ress the any key to answer the incoming call

except the Right soft key or the Red key.

3. If you do not want to answer an incoming call,

press the Red key or the Right soft key [Reject] to

reject it.

You

can also press the Red key to end a

call.

4. During a call, you can press the Up/Down

navigator key to adjust receiver volume.

call

in

the

menu

During a call, press the right soft key can also

open / close the hands - free function , press the left

soft-key into the options:

-

Swap*:

Is maintained in the current call and

switch between calls

-Conference*:

Into the multi-party conference call,

you can follow the prompts to answer the waiting

call , to add multi- session conference call will be

maintained ; and the party conference in private

conversation , the call to keep all other parties ; the

parties to keep the party ; the end of the current

Calls and all calls remain .

-End

End

single

call*

:

end off the current call.

16

-End

all

calls*

:end off the current call and the hold

call

-Transfer*:

the function need network support.

-New

New

call:

enter the dial-up interfaces.

-Phonebook

:

enter the phonebook list of

interfaces.

-

Message

s

:

access to the message menu.

-Sound

recorder

:

record the current call.

Note:

Recording

of

the

call,

in

some

countries

is

illegal.

Therefore,

when

you

talk

to

Recording,

should

seek

prior

approval

from

the

other

party's

consent.

-

Mute:

mute on or off, open the case in the quiet

do not send local voice.

-Vloume

Vloume

:

into the volume screen, you can press

the up/down navigation to adjust volume.

Note:

Denotes

menu

items

only

appear

in

specific

circumstances.

Such

as:

[

Swap

]

exist

only

in

the

state

of

the

phone

and

call

the

phone

only

appears

to

be

suspended.

At

the

same

time

for

the

conferencing,

you

need

to

the

appropriate

service

provider

to

subscribe.

17

4.

4. Messages

Messages

Message service is a network dependent function,

which allows you to send, receive and edit all

kinds of messages. Please contact the network

operator for more details.

Write

message

Edit a new message, save or send it to the

recipient.

Note:

T

o

send

SMS,

you

need

to

set

the

correct

SMS

service

center

number

which

can

be

obtained

from

network

provider.

While editing, press the # key to change input

method, a text message can be up to 612

characters in length.

Press the OK Key , into add recipient interface, you

can enter number and add from phonebook, you

can add one number or more number, press the

Left Soft key [Options] to select options when

editing:

-Send

to

:

Enter the destination number is sent, or

press OK into the address book to find the

necessary records, you can select the type of SIM

card, confirmed, you can send

-

Input

method:

you can select input method.

-

Save

to

Drafts

:

Save the edited message to the

outbox

-Advanced:

you can select insert number, insert

name, insert bookmark.

Inbox

Received SMS messages can be stored either in

phone or in SIM1/SIM2 memory, and are

accessed here.

18

When you have received a message, the tones or

vibration to alert you and message mark will also

be shown on the screen. Press the Left soft key

[Read] or the OK key to read the new message,

press the Right soft key [Back] to return, and you

can also access the inbox to read the new

message.

If the message memory is full, the indication

“ Memory full ” and the message icon will be shown

on the screen and flashed. Before you can receive

new messages, delete some of your old

messages in the inbox folder. If the capacity of

new messages is beyond the capacity of the inbox,

the information will be lost and incomplete.

In message list, press the OK key to read the

selected message, press the Left soft key [Options]

to make the following menu:

-View:

view the current message

-Reply:

Reply SMS to the message sender

directly.

-Call

Sender

:

Select to call the sender number

-Forward:

forward the current message to other

number.

-Delete:

Delete the messages.

-Delete

all:

delete all messages in inbox.

-Save

to

phonebook:

Save the information in the

sender number to the phonebook.

-

Filter

by:

you can select SIM1/phone to filter the

message in the inbox.

Drafts

Not send SMS, will be stored in the mail within, the

operation is the same with inbox

Outbox

Not send SMS or sent successfully SMS, will be

19

stored in the mail within, the operation is the same

with inbox

Sent

messages

If SMS sent successfully, then be stored in the

letter box. Automatically save messages need to

select [ SMS Settings → Save sent message ],

other operation is the same with inbox

Service

messages

Inbox: received service messages will be stored in

the box.

Service messages

Enable push: you can select accept all push

messages or disable.

Enable service loading: you can select prompt,

Auto launch or disable.

SMS

settings

SIM

setting:

you can setting SIM parameter ,

including the center number, Validity period and

Message type .

Delivery report: Open the function, after a

successful send text messages, the system will

return to report .

Reply path: If the network allows, open the

function , the recipient receives a text message,

the system will send a confirmation message .

Voicemail server: When you can not answer the

phone, automatically incoming calls to voice mail

number, you can let the other party to your

message, a message stored in the network's voice

mail system, and afterwards, you can access the

voice mail system to listen to a message.

Into the voice mail sub-menu, you can see the

current voice message (up to the establishment of

two voice mail)

20

Voice mail function needs the support of network

operator, you may need to subscribe to the service.

For details, please contact with the operator .

Memory

status

:

can view the memory storage

status.

Save

sent

message:

open the function, After the

success of SMS will be automatically saved in the

Outbox .

Preferred

storage:

you can choose to give

priority to messages stored in SIM card or mobile

phone.

21

5.

5. Phonebook

Phonebook

The Phone for your well-prepared high-capacity

phone storage space.

You

can use the phone's

contacts feature to save the contact name,

number and caller ring-tone . The phone can save

20 0 phonebook records, SIM card number of

records stored phone numbers vary because of

their capacity.

Quick

search

In order to facilitate you to quickly search the

phone book to the desired number, the phone

prompts you to quickly find features .

In the contact list interface, you press # key to

switch input method, enter the contact name of the

first characters to locate search .

After searching for the name, press the Green key

to dial the number and press the Red key to end

dialing.

Browse

contacts

IInthephonebooklistscreen,presstheup/down

navigation key to select the contact record, press

the green key to dial the number in the record, then

the red key to end the dialing. Press the OK Key to

display the details of the selected record. In the

phonebook list screen, select either the phonebook

record, press the left key to perform the following

operation :

-View:

view the select

-Send

text

message

:

send SMS to the select

number

-Call

:

call the select number

-Edit

:

you can edit the select record 。

22

-

Delete:

D elete th e select record

-

Copy:

this record can copy to “ SIM1 ” “ SIM2 ” or

“ phone ”

-Phonebook

settings

:

Preferred storage: you can set the preferred

storage as SIM or Phone or all.

Extra numbers : set this number to own number

Memory Status : Query "SIM1", "SIM2", "phone"

memory address book using status

Add

new

contact

-SIM1

：New records added to the SIM1, each

name can only be stored under a number.

-SIM2

：New records added to the SIM 2 , each

name can only be stored under a number.

-

P

hone

：you can input name, number and set

caller ring-tone. T his Records stored in your

phone .

23

6.

6. Call

Call

Call center

center

This phone can record all received , dialed and

missed calls as well as their call time. Only when

related function is supported by network and

phone is switched on and in network service area,

it can record the answered and missed calls. Call

records may be accessed by pressing the Green

key from standby or accessing through the menu.

Access the Call Center menu using the normal

menu path, the submenus are as follow:

Call

history

Missed/dialed/Received/all calls

In the call history list , Once on the call records list,

press the Green key to make a call; press the OK

key to view the details of current call record; press

the left soft key to make the following options:

-View

:

View the details of current call record.

-Call

:

call current record.

-Send

text

message

:

send SMS to the select

number

-

Save

to

phonebook

:

Store the number as a

phonebook entry.

-Delete

:

Delete the current call record.

-Edit

before

call

:

Edit number before the call

history

Call

settings

-SIM

call

settings

Call waiting:

Y

ou can choose to Activate, Deactivate or Query

status of this feature.

Activate this feature, if you call any other incoming

call, the phone beeps, and the screen will display

the caller number or name and call waiting

24

information.

Call divert:

This feature allows you to play to your phone calls

transferred to your voice mailbox or another phone

number you specify. This function needs the

support of network operator, please contact the

network operator.

Transfer in the following ways, each way can be

set to enable, disable, and query status. When

turned on, the on-screen prompts to transfer the

phone number.

Divert all voice call: Transfer all voice calls to your

settings in the phone number or voice mail

Divert if unreachable: When your phone is off or

not on the network service area, the transfer of all

voice calls to your phone number or set voice mail

Divert if no answer: No answer transfer all voice

calls to your phone number or set voice mail

Divert if busy: When the call is busy, the transfer of

all voice calls to your phone number or set voice

mail

Divert all data calls: Transfer all the data calls to

the phone number you set, this function is

supported by the network operator, please contact

the network operator.

Cancel all diverts: cancel all call forwarding type.

Ca ll barring:

Set limits each case to answer or dial the phone.

Network operators must first apply for international

calling features, and limit access network

password, to set the limit function.

This function needs the support of network

operator, please contact the network operator.

Call restrictions can be set for activate , deactivate

25

and query status

Line switching:

Can switch to Line 1 or Line 2, Line 1 is default, if

you choose line 2, then there may be no phone

call.

-Advanced

-Advanced settings

settings

Auto redial:

You

can enable or disable this feature, the feature

is turned on, after the dial-up, then if the other

party does not answer the phone over a period of

time will be automatically re-dial, redial the

number up to 10 times, in this period, the user can

not call any other phone , to end the re-dial, simply

press the right soft key to cancel.

C all time reminder: Can set the prompt type

Off: When the phone call, no minutes of tone.

Single: Select 1-3000 seconds after the prompt

enter either of the time, when you call the phone at

the time when prompted.

Periodic: Select 30-60 seconds after the input in

any one time, when you call for every minute the

phone will be reminded of the time.

Auto quick end:

In order to save the cost of calls , you can turn on

auto quick end function , set automatically end time ,

when the time to call , the mobile phone will

automatically hang up

Answer mode:

Any key: Select the feature, all incoming calls, in

addition to the red key and right soft keys, all keys

can answer the call

Auto answer when headset: Enable this feature,

when the phone is in headset mode, there are

26

about 2 seconds after the incoming call, the phone

will automatically answer the call.

27

7.

7. Settings

Settings

Dual

SIM

settings

You

can choose dual-mode card, only SIM1 open

or SIM2 open .

Phone

settings

Time

and

date

Set home city :

You

can choose a phone provided

in the city as the current time zone of your location

S et time/ date: Under this you can set the phone to

the current date and time. The phone allows you to

set the date range of calendar 2000 to 2030 .

Set format : Under this you can set the time and

date display format

L

anguage

Under this you can choose the language provided

by the phone .

Pref.

input

method

Y

ou can set default input method.

Display

W allpaper: The standby interface is used to set

the background wallpaper.

You

can choose from the built-in wallpaper can

also be selected from File Manager image file .

Power on display: The animation can be set to

boot , you can choose preset animation for mobile

phones , but also into the File Manager , select the

desired animation.

Power off display: The animation can be set to

shutdown , set with the power on display

Show date and time:

You

can set the idle screen

time display on or off .

Dedicated

key

Y

ou can change navigation keys function

28

corresponding to the shortcut in the idle screen

Flight

mode

This optiona l mode in which the phone is normal

mode or flight mode, flight mode if you choose , the

phone can only use some of the functions of

non- communications

Misc.

settings

Under this function can be left / right navigation

key on the backlight to adjust the brightness and

backlight time

User

profiles

The phone provides you with five profiles : general,

silent, meeting, outdoor. I t

’

s help you according to

the different events and environments in different

custom ring tones. according to different

scenarios, choose a different profile, then you only

need to personalize your profile and activate.

Note:

The

factory

setting

various

modes

set

has

been

done

and

has

been

the

general

pattern

of

the

default

start

Activate:

Start the selected profile.

Customize:

You

can set all kinds of effects to your

own needs. In the Settings screen, press the

down navigation key to move the highlight to the

item needs to be set .

Alert type: Press the left/right navigation key to

select: vibrate only, vibrate and ring, vibrate then

ring or ring only.

Ring type: Press the left/right navigation key to

select: Repeat, Ascending, Beep once

Incoming call: There are ten built-in ring tones to

choose for you, and you may also to choose your

favorite audio file as your ring - tone from file

management.

29

Ring-tone volume: Press the left/right navigation

key to adjust the ring-tone volume.

Message ring-tone: There are five built-in ring

tones to choose for you, and you may also to

choose your favorite audio file as your ring - tone

from file management.

Message volume: Press the left/right navigation

key to adjust the ring-tone volume.

Keypad: Press the left/right navigation key to

select click, or tone.

Key-tone volume: Press the left/right navigation

key to adjust the key-tone volume.

Power on/off: Phone preset five tone to choose for

you, you can also choose silent to turn off the

power on/off tone.

System alert:

Y

ou can set whether to open system

alert tone.

Reset:

restore the default settings.

Network

settings

Can be set automatically or manually select the

network, select Automatic, the phone will be SIM

card based on the network where the first

selection, select Manual , you need to select the

SIM card registered with the network operator can

use the same network

Security

Settings

SIM

security

You

can use the PIN code, PIN2 code, set the

boot password and set security features to protect

information security.

PIN password (PIN1) is the SIM card PIN. If the

user don ’ t changes the password ,the original

password is 1234 or 0000. If you enable the boot

PIN code, then after each start 4-digit PIN code is

30

necessary to input, PIN code can be amended, to

protect their SIM card is not used by others. Note

that, if the input PIN code wrong three times, the

phone card will automatically lock and unlock

prompted to enter PUK code, this time close to the

edge of danger, so if unauthorized modification of

the PIN code, we must bear in mind.

PUK password (PUK1) from consists of 8 digits,

which users can not change. PIN code when the

phone is locked, and when prompted enter the

PUK password , do not act rashly, because the

PUK code input opportunities is only 10 times and

if enter the wrong words for 10 times, SIM card will

be permanently locked, that is scrapped. Part of

the SIM card PUK code is never used when the

user comes with the card, while the other part of

the network operators will need to obtain the PIN

code if you do not know the PUK code locked, do

not random input, then the correct way is to call

the SIM card hotline operators, after a simple user

data are verified, you can obtain the PUK

password to unlock the phone lock, the service is

free of charge.

Note

：

Please

use

this

feature

with

caution,

if

forget

PUK

password,

please

contact

the

network

operator.

If

input

PUK

code

in

error

for

10

times

consecutive

ly

,

SIM

card

will

be

scrapped.

PIN lock

Under this you can enable or disable PIN

password , PIN code on or off are required to enter

the correct PIN password . When open this feature,

every time you turn the phone prompts you to

enter the PIN password .

31

Change PIN

If the current PIN password is already open, you

can make changes to the PIN password . First

enter the old PIN password , after repeated twice

to determine and identify new password.

Change PIN2

PIN2 （PersonalIdentificationNumber2 ）password is

to enter a particular function (such as setting a

fixed number, set the call billing, etc.) to enter the

personal identification number.

Pin2 password is provided by suppliers for SIM

card to another password, used to qualify the dial

personal identification password , Mainly used to

eliminate the call cost information, set the phone

calls and the billing currency unit, the cost limit

function, limited dial-up ("Security settings "---"

limited dial-up" can only be opened after the

phone call which can be used to set the number

and do not call this). My phone's S IM card

predictive value is 12345. Pin2 after input error

password 3 will be locked, needed Puk2 to unlock.

PIN2 password is used to set the phone billing. If

you enter three times wrong, the phone will need

PUK2 unlock password , the process described in

the previous PIN password , PUK password the

same. However, both the password and network

SIM card billing and modify the internal data, it will

not open, and even if PIN2 password locked, it will

not affect the normal use of mobile phones. Thus,

PIN2 password , and not to deliberately ignore

PUK2 password .

Note:

Please

use

this

feature

with

caution,

If

32

input

PUK

code

in

error

for

10

times

consecutive

ly

,

SIM

card

will

be

scrapped.

Change operation with the PIN1.

Phone

security

Under this password there you can set the phone

to avoid unauthorized use of your mobile phone

Phone lock

Under this you can enable or disable phone

password , phone password on or off are required

to enter the correct phone password . When open

this feature, every time you turn the phone

prompts you to enter the phone password .

Change password

Y

ou can make changes to the phone password .

First enter the old phone password , after repeated

twice to determine and identify new password.

Auto

keypad

lock

Under this you can set the time to open or close

the keyboard lock keyboard lock feature. Set the

keyboard lock time, the idle screen, mobile phone

within the set time the keyboard does not perform

any operation, it will be automatically locked, then

you can press the # key to unlock .

Note:

Keyboard

locked

and

the

backlight

is

off,

to

be

selected

button

lights

up

the

screen,

then

press

the

#

key

to

unlock

Connectivity

Bluetooth

The phone supports Bluetooth , users can turn the

feature on according to demand .

Bluetooth technology can connect electronic

devices wirelessly. Because Bluetooth

communic ate by radio, so in your phone and

another Bluetooth device do not need to in the

33

opposite direction, please maintain the maximum

distance that between two devices is not more

than 10 meters during communicating. In some

countries or regions may be developed within a

number of provisions restricting the use of

Bluetooth devices, please contact your local

authorities.

Power : Press the OK key or the left soft key to

open or close the Bluetooth function. If close some

function, then you will end all the Bluetooth

connection. Bluetooth connection will consume

battery power, reducing cell phone operation time,

when using the phone to perform other operations,

please consider this factor.

V isibility : Press the OK key or the left soft key to

switch on or off , if you select on , other Bluetooth

devices can find the phone ; if you select off, other

Bluetooth devices can ’ t find the phone.

My device : Select to add new equipment, search

for Bluetooth devices within range of the signal.

After the Bluetooth device is found, you can select

the matching connections.

Search audio device: Search within signal range

of Bluetooth hands-free devices, such as

Bluetooth headsets.

My name: Display the Bluetooth device name of

the machine can access to vies and edit.

Advanced:

Audio path: set the audio path, is leave in phone or

forward to Bluetooth headsets.

Storage : set storage location in phone or memory

card.

My address : Display the Bluetooth device

address.

34

Data

account

You

c an choose the Internet account.

You

c an add

Internet accounts by yourself .

In the Internet interface, press [Options], you can

do operations as followed:

Edit: Edit selected network count.

Add PS account: Mobile support 6 maximum

data account. E very account to edit the

information : account name, APN, user name,

password, auth type, SIM selection, advanced

settings etc.

Delete: delete the selected Internet account

Change default: select this function to restore

default.

Restore

factory

settings

Reset the parameter value mobile phone, make

your phone reset to default settings. Please enter

a privacy password (initial password is 1234),

restore factory settings.

35

8.

8. Multimedia

Multimedia

Camera

Your phone is fitted with camera allows you to take

photos whenever possible.

You

can store the

pictures in phone or customize the wallpaper.

In the multimedia menu, select the camera into the

camera preview screen, Press the OK key to take

photo, press the right soft key to return, press the

left soft key to option:

Switch

to

video

recorder:

select the function can

directly switch to video preview screen.

Photos:

select the function into image viewer.

Camera

settings:

Press the OK key to adjust the

following options, including Anti-flicker and Delay

timer, Profile that is complete, press the left soft

key or the OK key to confirm the current setting .


settings:

can set the image quality and

image size.

W

hite

balance:

can set white balance

Scene

mode:

can set the photo mode as auto or

night.

Storage:

Can choose phone or memory card as

the storage location

Restore

default:

select the function and

confirmed, the camera parameters can be

restored to the default location

After taking pictures, press the back button to

return camera preview screen, press the left soft

key to enter options, can take pictures to send or

delete


viewer

This feature is convenient for users to view the

photos stored in albums, press the OK key to open

36

the picture, press the left soft key to open the

option menu:

View:

open the current image to view.


information:

can display the current image

information.

Browse

style:

can set to list style or Matrix style.

Send

：Pictures can be selected through

"Bluetooth" method to send.

Rename:

Change the name of the selected

picture.

Delete

：Delete the select image.

Storage

：Can choose phone or memory card as

the storage location

Note:

When

no

pictures

in


viewer

,

the

options

menu

only

displays

the

brows

e

style

and

storage.

Video

recorder

In the multimedia menu, select the video recorder

into the video preview screen, Press up/down

navigation key to adjust [Focal distance], press the

left soft key into options menu:

Switch

to

camera:

select the function can

directly switch to camera preview screen.

Camcorder

settings:

Press the OK key to adjust

the Anti-flicker.

Video

settings:

Can set the video quality

Storage:

Can choose view image in the phone or

memory card location

Press the OK key to start recorder, recording ,

press the OK key to pause or resume recording;

Press the right soft key to stop recording, the

screen will be auto save video and auto back to

37

the video preview screen.

Video

player

This feature can be played stored in the mobile U

disk or video files, supported formats to 3gp, mp4,

Avi file player.

I n the multimedia menu, select the video player

into the video list, press left soft key open the

option menu:

Play

：Play the current video file

Send:

can be selected video through "Bluetooth"

method to send.

Rename

：Change the name of the selected video .

Delete

：Delete the select video .

Storage

：Can choose phone or memory card as

the storage location

Audio

player

Play the audio files saved in the phone or memory

card.

In playing interface, press the OK key to start or

pause playing, press the up navigation key into

the play list screen, press the down navigation

key to stop play, press the left/right navigat ion

key to switch previous/next song; press the */#

key to adjust the volume,

In playing interface, press the red key or the right

soft key to exit player interface, Phone into the

background playing mode, while the idle screen

shows the name of the music.

Press the left soft key into the play list, play the left

soft key into option menu :

Play

：play the current song.

Details

：can view the current song information,

include song size and time.

38

Refresh

list:

can refresh the play list.

Settings

：

Pre. P lay list: Press the left/right navigation key to

switch phone or memory card.

List auto gen.: Select this option enabled, each

time the player list will automatically update .

Repeat:

You

can choose play mode repeat all,

repeat one or off.

Shuffle: When you select on , the player will not

play in order by list .

Background play: Select ON when playing the exit

music player can continue playing .

Sound

recorder

Enter the recording screen, press the left key into

options menu:

New

record:

when you choose the function, start

new record, In recording, press the left soft key to

pause/ continue record, press the right soft key to

stop record, the screen will be prompted to save

video, press the left soft key to save and return to

the record screen, press the right soft key to not

save and directly Back to the record screen.

Play*:

can play the current recording.

Rename*:

Change the name of the current

recorder file

Delete*:

Delete the current recording.

List:

Display recorder files list

Settings:

you can set storage location and audio

quality.

Use

as*:

You can set the current recorder as

coming call ring-tone.

Send*:

Can be current recorder through

“ Bluetooth ” method to send.

39

FM

radio

FM radio is supported by the phone. Access the

function only when you have plugged the

earphone.

In FM radio interface, press the up/down

navigation key to move forward/backward 0.1

MHZ. , press the left/right navigation key to move

forward/backward auto search until the search to

the channel so far. P ress the ok key to

open/close the FM function, Press the */# key to

adjust play volume. Press the right soft key or red

key to exit FM radio , and FM plays in the

background. Press the left soft key to the option

menu:

Channel

list

：Display channel list

Manual

input

：Manual enter frequency to identify,

Radio interface automatically skip to the frequency

to listen.

Auto

search

：Can auto search channel and save

channel

Settings:

Background

play

：Phone back to the idle screen

after Select the function, FM plays in the

background.

Note:

Quality

of

radio

subscription

is

possible

influenced

by

environment

like

indoor

or

under

shield.

You

can

improve

this

situation

as

following:

stand

closer

to

the

window,

adjust

the

position

of

earphone

line

or

adjust

the

channel

manually

40

9.

9. Extra

Extra

Torch

I nto the Torch interface, press the OK key or the

left soft key to on/off the Torch. Standby interface,

long press the 0 key, Torch on or off quickly

Calculator

Into the calculator, the calculator interface:

Press 0 - 9 numeric keys to enter the number to be

calculated,

Press the navigation key to select the location on

the screen corresponding to add, subtract, multiply

and divide symbols for computing

Press the # key for a decimal point.

Press the right soft key to clear the last bit can be

input or the result (no input figures, has withdrawn

from the calculator function)

Press the left soft key or the OK button to display

the results.

Calendar

Choose to enter the calendar, the screen will

display the system date on the calendar month,

and have a background box marked the current

date. Press the navigation key to select the date,

calendar information on the screen will be updated

accordingly.

Select any date, press the left soft key to enter

options to the following:

Jump

to

date:

Jump the selected date.

Go

to

today:

the date of the input query calendar

information

Go

to

weekly/monthly

view:

can set the

calendar display mode through week or month.

41

Alarm

You

can use the phone as alarm clock, this feature

allows you to set time arrives, make the phone

ring or vibrate to remind issue.

When the alarm is turned on state, the alarm

symbol is displayed in the top of the screen.

When the alarm clock for reminders, press the left

soft key to terminate the alarm reminder, press the

right soft key is the alarm clock to sleep .

The phone number of alarm clocks available , both

in the off or silent mode , set the alarm clock

function has been effective.

Select any of the alarm clock , press the left soft

key or OK key to the following:

1, can be turned on or off the selected alarm to

open before the alarm clock icon will be displayed

2, set the alarm, reminder time

3 , according to the time you need to set the alarm

clock to remind the period of a day, week or

custom to be reminded of a few days

4, the selected option when the alarm time to

remind ring-tone

5 , you can set the alarm time to remind the

selected mode : ring and vibration, ring , vibration

6 , you can set sleep time

Set the required entry, press the right soft key to

save and return directly .

42

10.

10. File

File

File manager

manager

In document management, you can open files in

the Phone or Memory card, you can select file or

folder to press the left soft key into [Options], you

can do the following ( Perform different file

operations are also different, depending on the

specific operation by the file ) :

-Open:

open the file or folder.

-

New

Folder:

the folder in the selected directory

New Folder.

-Rename:

you can rename the select folder.

-

Delete:

delete the selected file or folder.

-

Use

as

:

if the selected file is audio files, can set

the file use as SIM1/SIM2 incoming call; if the

selected file is image file, can set the file use as

wallpaper, Screen saver, Power on display or

Power off display.

-Sea

r

ch

:

memory card can be customized to find

all the documents.

-S

ort

by

:

can "name", “ time ” , "size" , "type" or

“ none ” .

-Send:

the select file can send by bluetooth

-

Copy

:

you can copy the select file to other

folders.

-Move:

you can move the select file to other

folders.

-

Details

:

you can view the select file information.

Note:

Memory card as the default save path, order to

facilitate the use of multimedia features, please

copy the appropriate files to Audio, My music,

Photos, Videos etc. folders.

43

11.

11. Services

Services

The Internet is the combination of wireless

communications and Internet application

platform that enables you to get rich by phone

and ecommerce and other Internet information

resources application.

Note:

1.

Your

ISP

may

not

support

some

features,

in

order

to

ensure

the

normal

operation

of

the

browser,

make

sure

your

SIM

card

is

supported

and

open

Internet

access.

2.

If

you

browse

the

web,

you

need

to

charge

fees

to

traffic.

Homepage

This is the W AP settings you set in the

hom e page address , if you have no other set

will have a direct connection to the phone

pre-set or the default home page.

Bookmarks

In this menu, the display has all the bookmarks in

the bookmark, you can add and save you

frequently visit the site name and address for

future quick access .

Input

URL

Enter the need to access the WAP services, and

URL addresses, complete, can be connected to

the WAP site you want to connect. From the

surface in the bookmarks, web history, other than

to provide you a flexible way to access the

network.

Recent

pages

List of pages you have recently visited records to

facilitate your browsing history in selected cases,

44

can directly select [Enter] to access the page, the

record could be deleted.

Settings

Homepage:

Into th e function, you can se lec t

default homepage or user-defined .

Select

profile:

Y

ou can select always

ask/SIM1/SIM2.

Data

account:

Into the function, you can set

correspond SIM card data account.

Browser

options:

Clear the temporary buffer

information and cookie, it ’ s can avoid congestion

and improve web browsing speed, periodically

clear.

Preferences:

You

can set the appropriate

parameters, including the display time, display

pictures, cache and cookie.

45

12.

12. Fun&Games

Fun&Games

F1

race

T he phone for you built-in games for a racing.

For specific operations, please refer to the

directions of the game.

Games

settings

Select this function, you can set the game sound

effect and volume etc.

46

13.

13. Input

Input

Input methods

methods

This phone provides diversified input modes for

you to enter letter information when editing SMS

and adding phonebook.

Use the # key to switch between different input

methods.

When editing the key controls:

The

Left

soft

key:

Generally represents

confirmation.

The

Right

soft

key:

Press to clear one character,

long press to clear all.

The

End/Power

key:

Return to the idle screen.

[*]

key:

In every input status, press this key to call

out punctuation and symbol input frame.

ABC

(abc)

input

method

Each key is used to input several characters. Fast

and repeatedly press key until your required

character appears.

When you need to input English punctuation and

some special signs, press the [*] numeric key to

call out special sign input box in English input

status

Press the [0] key to input blank once.

The

Numeric

input

method

To

input numerical values, press the respective

numeric keys.

47

14.

14. Phone

Phone

Phone maintenance

maintenance

Mobile is a high-precision electronic products,

please carefully maintained. The following

suggestions can help you maintain phone, to

extend the lifespan: - P hone and its accessories

should be placed out of the reach of children.

- Keep the device dry. Rain, humidity or moisture

will corrode the circuit board. If the phone is

accidentally flooded, shall promptly remove the

battery, and immediately sent to a local authorized

service center for processing. - Do not

place your phone in dusty places, this may affect

the normal use of mobile phones.

- LCD display is easily damaged cell phone parts,

mobile phone dropped onto the ground should be

avoided or be strong vibration; prohibit the use of

sharp objects to touch the screen.

- Do not place the phone where the temperature is

too high. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or

melt plastic shell phone.

- Do not place the phone where the temperature is

too low. Otherwise, when the phone temperature

to normal temperature, moisture will be generated

internally, could damage the device electronic

circuit boards. - Do not drop,

knock or severe shaking the phone, so as not to

damage the internal circuit boards and precision

mobile structure.

- Do not use chemicals, cleaning solvents or strong

detergents to clean the device, apply a soft cloth

soaked in soapy water and gently scrub.

- Do not use paint pigment cell phone to avoid

48

moving parts and be stuck to proper operation.

- Use a clean soft lens cleaning cloth. Such as:

camera lens.

-R eplacement antenna, use only the supplied or

designated by the antenna. Use of unauthorized

antennas, cell phone accessories or modifications,

could damage the device and may violate

regulations governing radio devices.

49

15.

15. Accessories

Accessories

Use only batteries, chargers, and accessories

approved by the manufacturer with this device.

Use of any other types will invalidate the warranty

and may be dangerous. Check with your dealer for

available accessories.

You

may opt to buy:

Extra

Battery

Extra batteries of various capacities are available

from our company or through your dealer.

Charger

Plug,

charger

cable

Charger plug used to connect with the charger

cable for charging on wall outlets. Also you can

use the charger cable to connect with the other

devices such as the personal computers to charge

the phone.

Charging time is about 2 to 3 hours. The charging

condition is displayed on screen.

You

may use

your phone while charging.

Earphone

A

mini, practical, hands-free device; you can use

its button to answer and end calls. Some models

may also come with a volume control knob.

Do not plug or unplug the earphone when

connecting dialed or incoming calls.

Please to adjust the incoming call alert volume to

the felicitousness before you plug in the earphone.

50

16.

16. Environment

Environment

Packaging

To

facilitate the recycling of packaging materials,

please obey the sorting rules instituted locally for

this type of waste.

Batteries

Spent batteries must be deposited at the

designated collection points.

The

product

The crossed-out waste bin mark affixed to the

product means that it belongs to the family of

electrical and electronic equipment.

To

promote the recycling and recovery of waste

electrical and electronic equipment (WEEE) and at

the same time safeguard the environment,

European regulations require you to obey the

sorting rules instituted locally for this type of

waste.

51

17.

17. TechnicalSpecifications

TechnicalSpecifications

Weight: 6 2 g (including the Battery and Battery

cover)

Dimensions: 106*45*14.5mm

Battery: Li-ion Battery, 3.7V

Band: 850/900/1800/1900

Battery Capacity: 10 00mAh

Talk Time: about 4 h

Standby Time: about 260 h

Note: Actual operating conditions depend on the

local network environment, SIM, and user

behavior.

Warning: Any consequence caused by misuse,

abuse, or not following any and all of the

above-written suggestions and instructions shall

not hold the producer in any way responsible to

any degree.

Announcement: The manufacturer reserves the

right to change or upgrade specifications or

software versions without prior or separate notice.

Trademarks mentioned or used in this material

belong to their respective owners.

FCC RF EXPOSURE INFORMATION:

WARNING!! Read this information before using your phone

In August 1986 the Federal Communications Commission (FCC) of the United States with its

action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure

to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those

guidelines are consistent with the safety standard previously set by both U.S. and international

standards bodies. The design of this phone complies with the FCC guidelines and these

international standards. Use only the supplied or an approved antenna. Unauthorized antennas

modifications, or attachments could impair call quality, damage the phone, or result in violation

of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes

into contact with the skin, a minor burn may result. Please contact your local dealer for

replacement antenna.

BODY-WORN OPERATION:

This device was tested for typical body-worn operations with the back of the phone kept 0.5cm

from the body. To comply with FCC RF exposure requirements, a minimum separation distance

of 0.5cm must be maintained between the user's body and the back of the phone, including the

antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories

containing metallic components shall not be used. Body-worn accessories

that cannot maintain 0.5cm separation distance between the user’s body and the back of the

phone, and have not been tested for typical body-worn operations may not comply with FCC RF

exposure limits and should be avoided.

For more information about RF exposure, please visit the FCC website at www.fcc.gov

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When

it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for

hand-held wireless phones. Those guidelines are consistent with the safety standards previously

set by both U.S. and international standards bodies:

<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP> (1996)

Those standards were based on comprehensive and periodic evaluations of the relevant

scientific literature. For example, over 120 scientists, engineers, and physicians from universities,

government health agencies, and industry reviewed the available body of research to develop

the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with

your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The

design of your phone complies with the FCC guidelines (and those standards).

Use only the supplied or an approved replacement antenna. Unauthorized antennas,

modifications, or attachments could damage the phone and may violate FCC regulations.

NORMAL POSITION:

Hold the phone as you would any other telephone with the antenna pointed up and over your

shoulder.

TIPS ON EFFICIENT OPERATION:

For your phone to operate most efficiently:

• Extend your antenna fully.

• Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna

affects call quality and may cause the phone to operate at a higher power level than otherwise

needed.

RF Exposure Information:

FCC RF Exposure requirements: The highest SAR value reported under this standard

during product certification for use next to the body with the minimum separation distance

of 0.5cm is 1.074W/kg; next to the head is 0.815W/kg. This transmitter must not be

collocated or operating in conjunction with any other antenna or transmitter.

This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user’s

authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help

Do not use the device with the environment which below minimum -10℃ or over maximum

50℃, the device may not work.

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

MOX GROUP M5 Mobile Phone User Manual

MOX GROUP LIMITED Mobile Phone

user manual

Navigation menu

Namespaces

Views

Navigation
