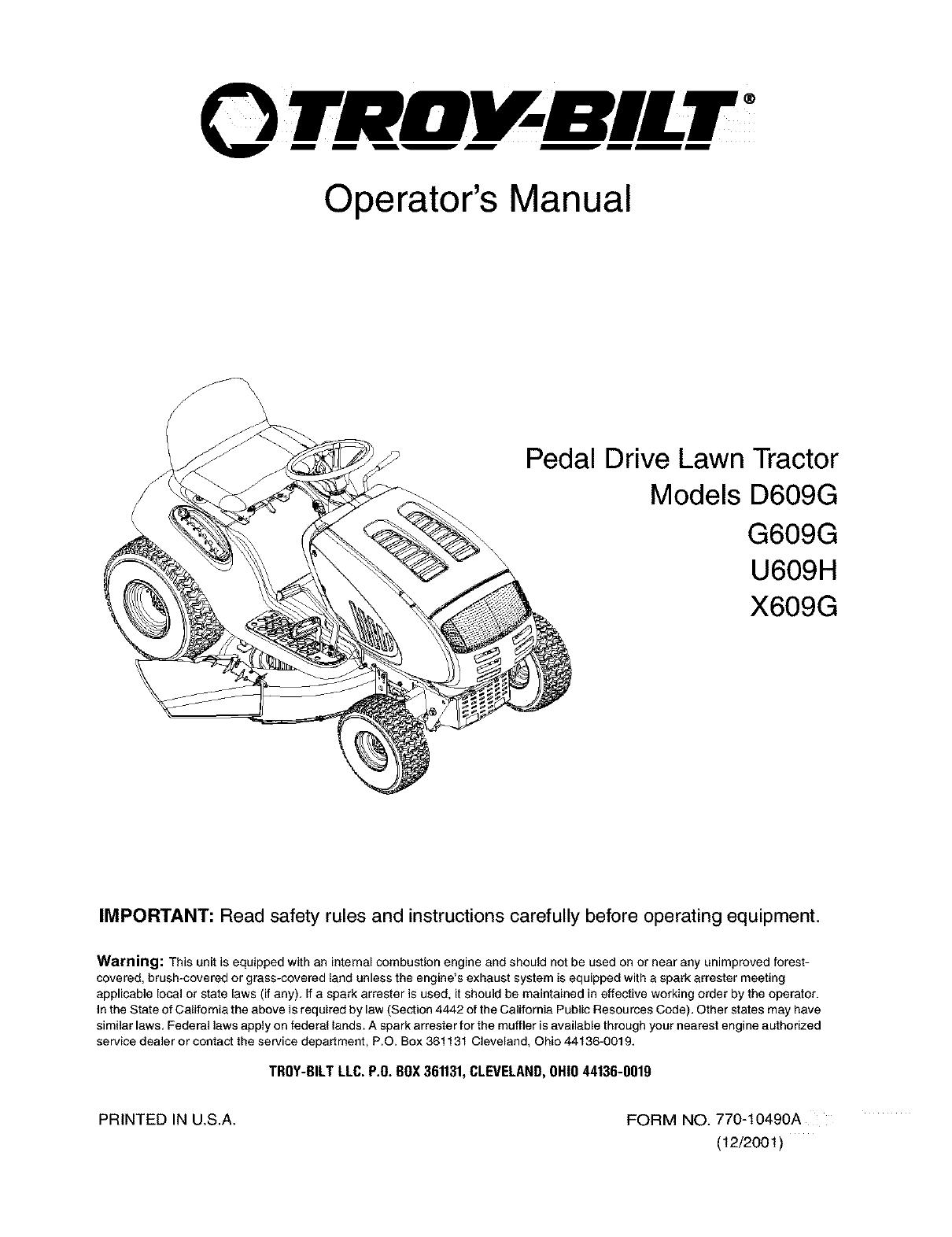

Operator's Manual

Pedal Drive Lawn Tractor

Models D609G

G609G

U609H

X609G

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning: This unit is equipped with an internal combustion engine and should net be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

TROY-BILTLLC.P.O.BOX361131,CLEVELAND,OHIO44136-0019

PRINTED IN U.S.A. FORM NO. 770-10490A

(12/2001)

TABLEOFCONTENTS

Content Page

Important Safe Operation Practices ................................................................... 3

Slope Gauge ...................................................................................................... 7

Tractor Set-up .................................................................................................... 8

Know Your Lawn Tractor ................................................................................... 9

Operating Your Lawn Tractor ............................................................................ 12

Making Adjustments .......................................................................................... 15

Maintaining Your Lawn Tractor .......................................................................... 17

Service .............................................................................................................. 18

Off-Season Storage ........................................................................................... 22

Troubleshooting ................................................................................................. 23

Parts List ............................................................................................................ 24

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new lawn tractor. It will help you assemble, prepare and

maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. The information on the

model plate is very important if you need help from our Customer Support Department or an

authorized dealer.

You can locate the model number by looking beneath the seat. A sample model plate is explained

below. For future reference, please copy model number and serial number of the equipment in the

space below.

(Model Numbe D (Serial Number)

Www.troybiIt.comCLEVELAND, OH44136

330-558-7220

866-840-6483

Copy the model number here:

Copy the serial number here:

ENGINEINFORMATION

The engine manufacturer is responsible for all engine-related issues with regards to performance, power-

rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's

Manual packed separately with your unit for more information.

CALLINGCUSTOMERSUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, please call the Customer Support Department.

Call 1-866-840-6483 or 1-330-558-7220 to reach a Customer Support representative. Please

have your unit's model number and serial number ready when you call. See previous section to

locate this information. You will be asked to enter the serial number in order to process your call.

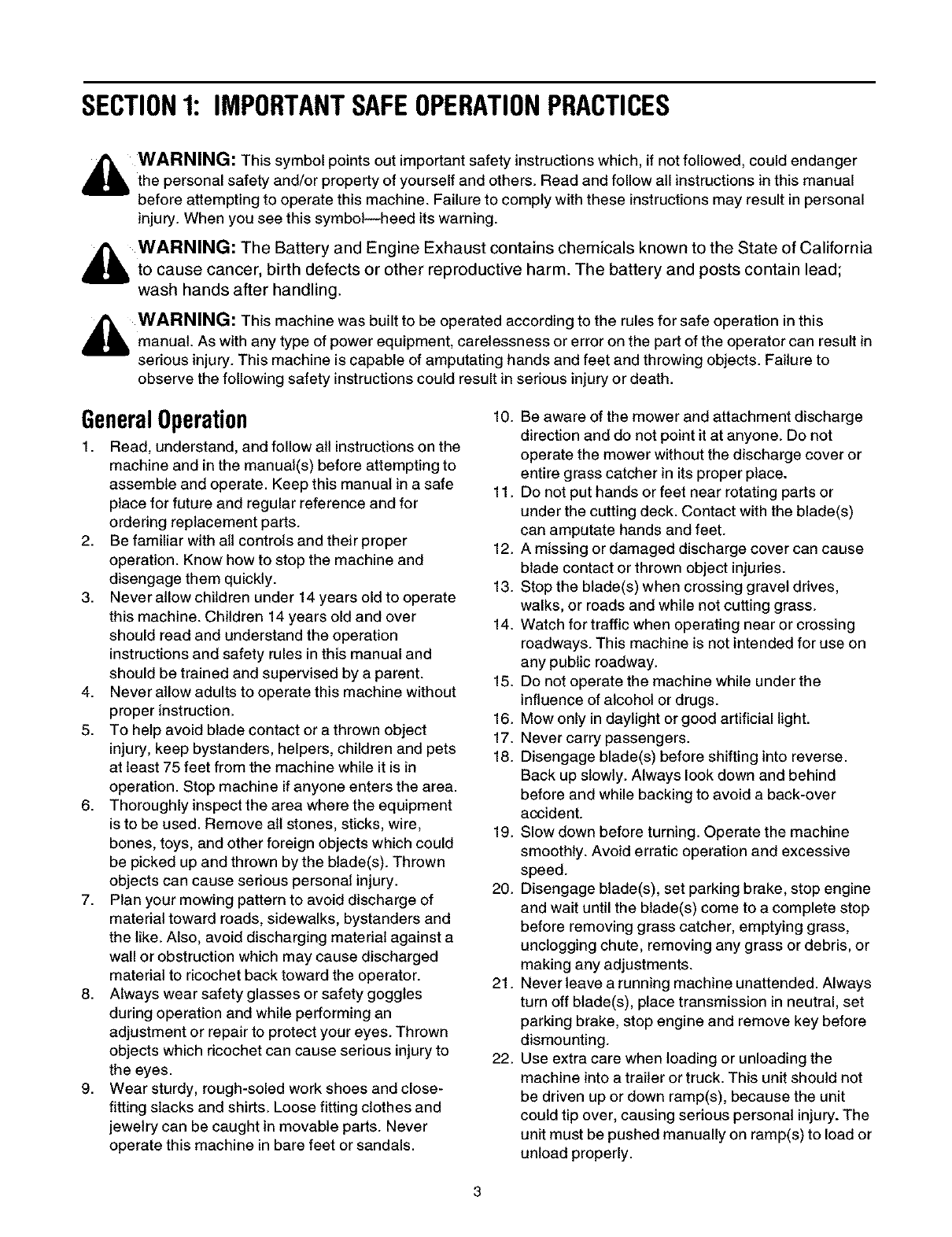

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

_ WARNING: This symbol points out important safety instructions which, if not followed, could endanger

the personal safety and/or property of yourself and others. Read and follow all instructions in this manual

before attempting to operate this machine. Failure to comply with these instructions may result in personal

injury. When you see this symbol--heed its warning.

,_ WARNING: The Battery and Engine Exhaust contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm. The battery and posts contain lead;

wash hands after handling.

_ WARNING: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can result in

serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to

observe the following safety instructions could result in serious injury or death.

GeneralOperation

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference and for

ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 14 years old to operate

this machine. Children 14 years old and over

should read and understand the operation

instructions and safety rules in this manual and

should be trained and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. To help avoid blade contact or a thrown object

injury, keep bystanders, helpers, children and pets

at least 75 feet from the machine while it is in

operation. Stop machine if anyone enters the area.

6. Thoroughly inspect the area where the equipment

is to be used. Remove all stones, sticks, wire,

bones, toys, and other foreign objects which could

be picked up and thrown by the blade(s). Thrown

objects can cause serious personal injury.

7. Plan your mowing pattern to avoid discharge of

material toward roads, sidewalks, bystanders and

the like. Also, avoid discharging material against a

wall or obstruction which may cause discharged

material to ricochet back toward the operator.

8. Always wear safety glasses or safety goggles

during operation and while performing an

adjustment or repair to protect your eyes. Thrown

objects which ricochet can cause serious injury to

the eyes.

9. Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Loose fitting clothes and

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

10. Be aware of the mower and attachment discharge

direction and do not point it at anyone. Do not

operate the mower without the discharge cover or

entire grass catcher in its proper place.

11. Do not put hands or feet near rotating parts or

under the cutting deck. Contact with the blade(s)

can amputate hands and feet.

12. A missing or damaged discharge cover can cause

blade contact or thrown object injuries.

13. Stop the blade(s) when crossing gravel drives,

walks, or roads and while not cutting grass.

14. Watch for traffic when operating near or crossing

roadways. This machine is not intended for use on

any public roadway.

15. Do not operate the machine while under the

influence of alcohol or drugs.

16. Mow only in daylight or good artificial light.

17. Never carry passengers.

18. Disengage blade(s) before shifting into reverse.

Back up slowly. Always look down and behind

before and while backing to avoid a back-over

accident.

19. Slow down before turning. Operate the machine

smoothly. Avoid erratic operation and excessive

speed.

20. Disengage blade(s), set parking brake, stop engine

and wait until the blade(s) come to a complete stop

before removing grass catcher, emptying grass,

unclogging chute, removing any grass or debris, or

making any adjustments.

21. Never leave a running machine unattended. Always

turn off blade(s), place transmission in neutral, set

parking brake, stop engine and remove key before

dismounting.

22. Use extra care when loading or unloading the

machine into a trailer or truck. This unit should not

be driven up or down ramp(s), because the unit

could tip over, causing serious personal injury. The

unit must be pushed manually on ramp(s) to load or

unload properly.

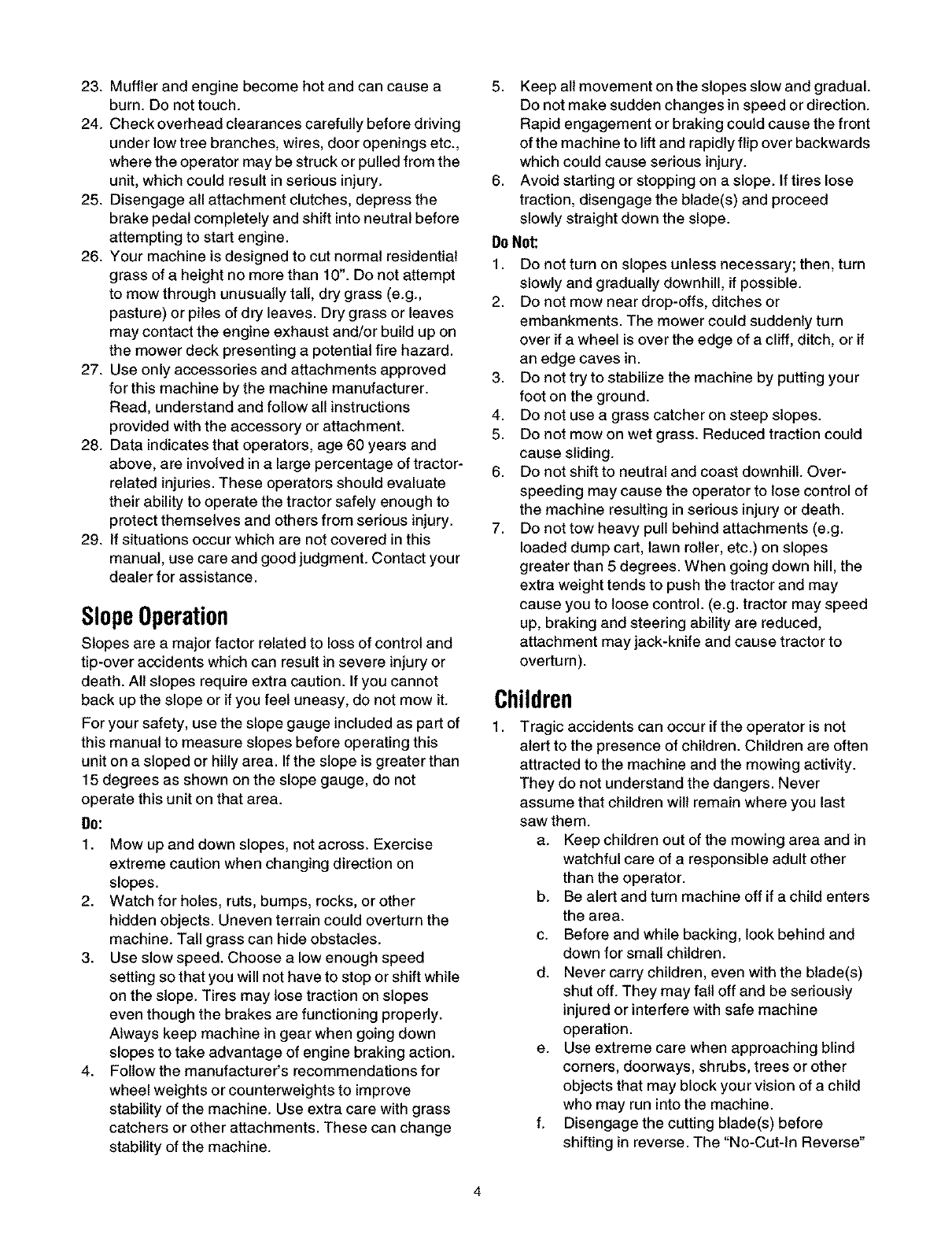

23. Mufflerandenginebecomehotandcancausea

burn.Donottouch.

24.Checkoverheadclearancescarefullybeforedriving

underlowtreebranches,wires,dooropeningsetc.,

wheretheoperatormaybestruckorpulledfromthe

unit,whichcouldresultinseriousinjury.

25. Disengageallattachmentclutches,depressthe

brakepedalcompletelyandshiftintoneutralbefore

attemptingtostartengine.

26.Yourmachineisdesignedtocutnormalresidential

grassofa heightnomorethan10".Donotattempt

tomowthroughunusuallytall,drygrass(e.g.,

pasture)orpilesofdryleaves.Drygrassorleaves

maycontacttheengineexhaustand/orbuildupon

themowerdeckpresentingapotentialfirehazard.

27. Useonlyaccessoriesandattachmentsapproved

forthismachinebythemachinemanufacturer.

Read,understandandfollowallinstructions

providedwiththeaccessoryorattachment.

28. Dataindicatesthatoperators,age60yearsand

above,areinvolvedinalargepercentageoftractor-

relatedinjuries.Theseoperatorsshouldevaluate

theirabilitytooperatethetractorsafelyenoughto

protectthemselvesandothersfromseriousinjury.

29. Ifsituationsoccurwhicharenotcoveredinthis

manual,usecareandgoodjudgment.Contactyour

dealerforassistance.

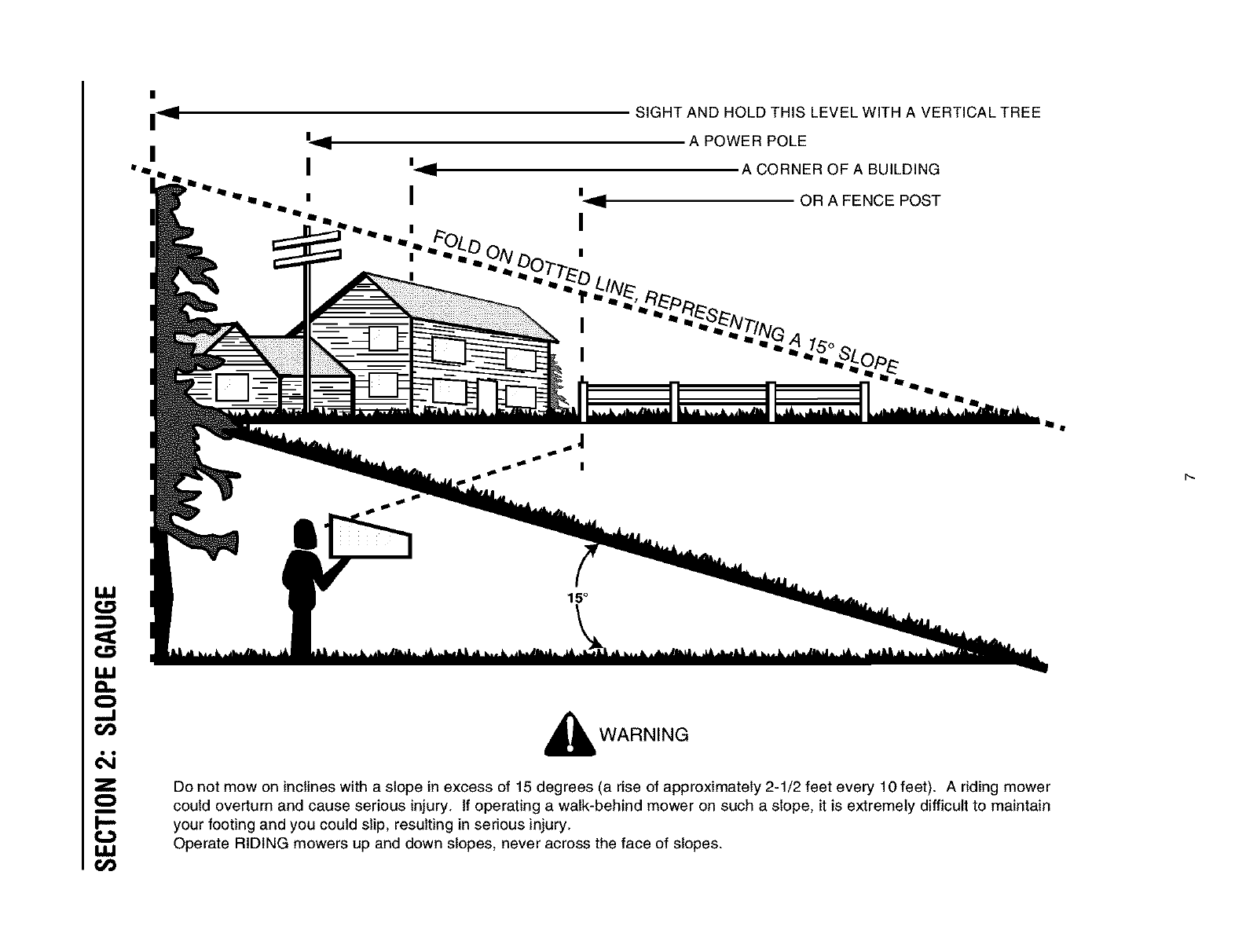

SlopeOperation

Slopes are a major factor related to loss of control and

tip-over accidents which can result in severe injury or

death. All slopes require extra caution. If you cannot

back up the slope or if you feel uneasy, do not mow it.

For your safety, use the slope gauge included as part of

this manual to measure slopes before operating this

unit on a sloped or hilly area. If the slope is greater than

15 degrees as shown on the slope gauge, do not

operate this unit on that area.

De:

1. Mow up and down slopes, not across. Exercise

extreme caution when changing direction on

slopes.

2. Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

3. Use slow speed. Choose a low enough speed

setting so that you will not have to stop or shift while

on the slope. Tires may lose traction on slopes

even though the brakes are functioning properly.

Always keep machine in gear when going down

slopes to take advantage of engine braking action.

4. Follow the manufacturer's recommendations for

wheel weights or counterweights to improve

stability of the machine. Use extra care with grass

catchers or other attachments. These can change

stability of the machine.

5. Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction.

Rapid engagement or braking could cause the front

of the machine to lift and rapidly flip over backwards

which could cause serious injury.

6. Avoid starting or stopping on a slope. If tires lose

traction, disengage the blade(s) and proceed

slowly straight down the slope.

DoNot

1. Do not turn on slopes unless necessary; then, turn

slowly and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or

embankments. The mower could suddenly turn

over if a wheel is over the edge of a cliff, ditch, or if

an edge caves in.

3. Do not try to stabilize the machine by putting your

foot on the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could

cause sliding.

6. Do not shift to neutral and coast downhill. Over-

speeding may cause the operator to lose control of

the machine resulting in serious injury or death.

7. Do not tow heavy pull behind attachments (e.g.

loaded dump cart, lawn roller, etc.) on slopes

greater than 5 degrees. When going down hill, the

extra weight tends to push the tractor and may

cause you to loose control. (e.g. tractor may speed

up, braking and steering ability are reduced,

attachment may jack-knife and cause tractor to

overturn).

Children

1. Tragic accidents can occur if the operator is not

alert to the presence of children. Children are often

attracted to the machine and the mowing activity.

They do not understand the dangers. Never

assume that children will remain where you last

saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other

than the operator.

b. Be alert and turn machine off if a child enters

the area.

c. Before and while backing, look behind and

down for small children.

d. Never carry children, even with the blade(s)

shut off. They may fall off and be seriously

injured or interfere with safe machine

operation.

e. Use extreme care when approaching blind

corners, doorways, shrubs, trees or other

objects that may block your vision of a child

who may run into the machine.

f. Disengage the cutting blade(s) before

shifting in reverse. The "No-Cut-In Reverse"

feature emphasises not to cut in reverse and

to avoid back-over accidents; do not defeat it.

g. Keep children away from hot or running

engines. They can suffer burns from a hot

muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

Never allow children under 14 years old to operate

the machine. Children 14 years old and over should

read and understand the operation instructions and

safety rules in this manual and should be trained

and supervised by a parent.

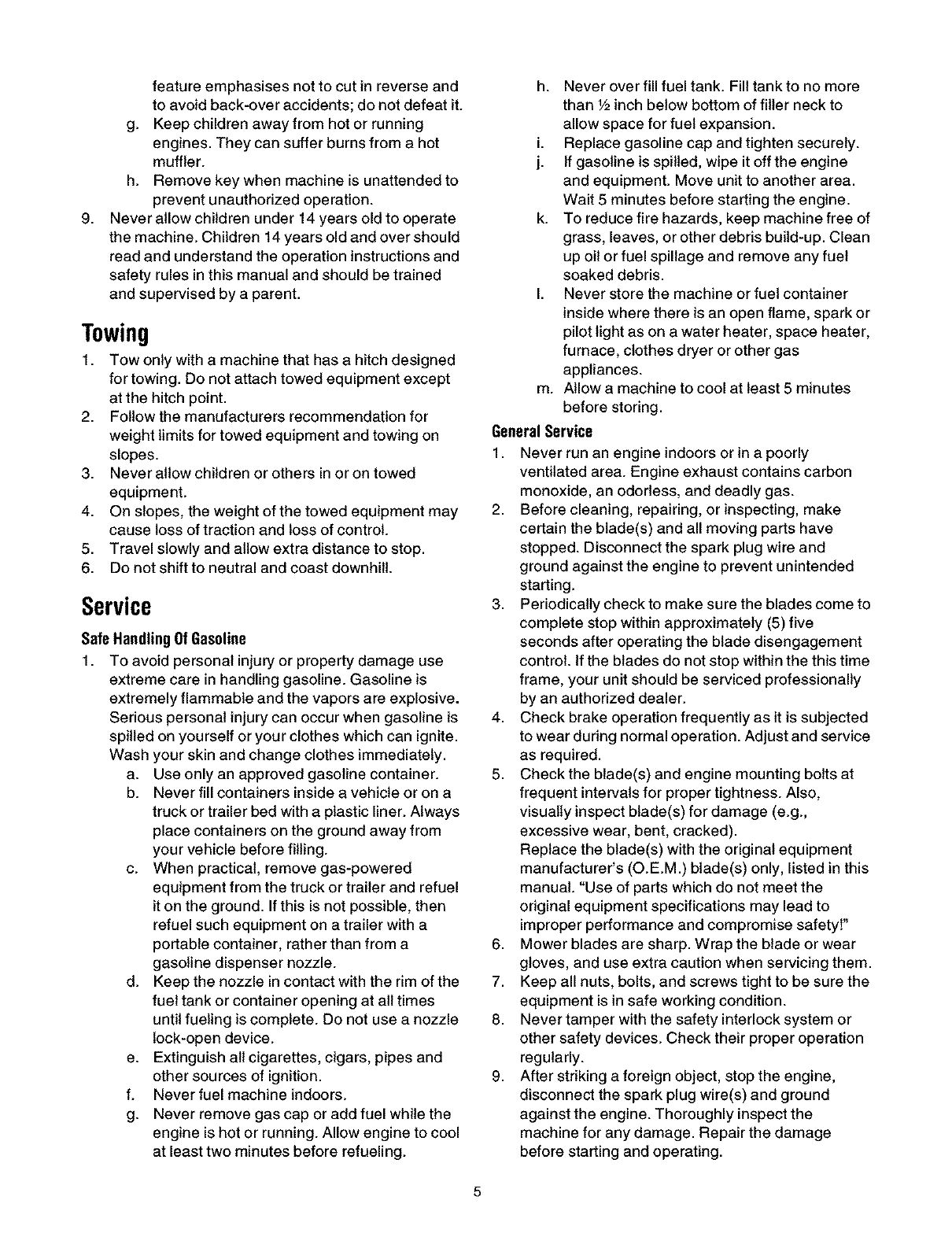

Towing

1. Tow only with a machine that has a hitch designed

for towing. Do not attach towed equipment except

at the hitch point.

2. Follow the manufacturers recommendation for

weight limits for towed equipment and towing on

slopes.

3. Never allow children or others in or on towed

equipment.

4. On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

5. Travel slowly and allow extra distance to stop.

6. Do not shift to neutral and coast downhill.

Service

Safe HandlingOfGasoline

1. To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injury can occur when gasoline is

spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Never fill containers inside a vehicle or on a

truck or trailer bed with a plastic liner. Always

place containers on the ground away from

your vehicle before filling.

c. When practical, remove gas-powered

equipment from the truck or trailer and refuel

it on the ground. If this is not possible, then

refuel such equipment on a trailer with a

portable container, rather than from a

gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the

fuel tank or container opening at all times

until fueling is complete. Do not use a nozzle

lock-open device.

e. Extinguish all cigarettes, cigars, pipes and

other sources of ignition.

f. Never fuel machine indoors.

g. Never remove gas cap or add fuel while the

engine is hot or running. Allow engine to cool

at least two minutes before refueling.

h. Never over fill fuel tank. Fill tank to no more

than ½ inch below bottom of filler neck to

allow space for fuel expansion.

i. Replace gasoline cap andtighten securely.

j. If gasoline is spilled, wipe it off the engine

and equipment. Move unit to another area.

Wait 5 minutes before starting the engine.

k. To reduce fire hazards, keep machine free of

grass, leaves, or other debris build-up. Clean

up oil or fuel spillage and remove any fuel

soaked debris.

I. Never store the machine or fuel container

inside where there is an open flame, spark or

pilot light as on a water heater, space heater,

furnace, clothes dryer or other gas

appliances.

m. Allow a machine to cool at least 5 minutes

before storing.

GeneralService

1. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless, and deadly gas.

2. Before cleaning, repairing, or inspecting, make

certain the blade(s) and all moving parts have

stopped. Disconnect the spark plug wire and

ground against the engine to prevent unintended

starting.

3. Periodically check to make sure the blades come to

complete stop within approximately (5) five

seconds after operating the blade disengagement

control. If the blades do not stop within the this time

frame, your unit should be serviced professionally

by an authorized dealer.

4. Check brake operation frequently as it is subjected

to wear during normal operation. Adjust and service

as required.

5. Check the blade(s) and engine mounting bolts at

frequent intervals for proper tightness. Also,

visually inspect blade(s) for damage (e.g.,

excessive wear, bent, cracked).

Replace the blade(s) with the original equipment

manufacturer's (O.E.M.) blade(s) only, listed in this

manual. "Use of parts which do not meet the

original equipment specifications may lead to

improper performance and compromise safetyF

6. Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

8. Never tamper with the safety interlock system or

other safety devices. Check their proper operation

regularly.

9. After striking a foreign object, stop the engine,

disconnect the spark plug wire(s) and ground

against the engine. Thoroughly inspect the

machine for any damage. Repair the damage

before starting and operating.

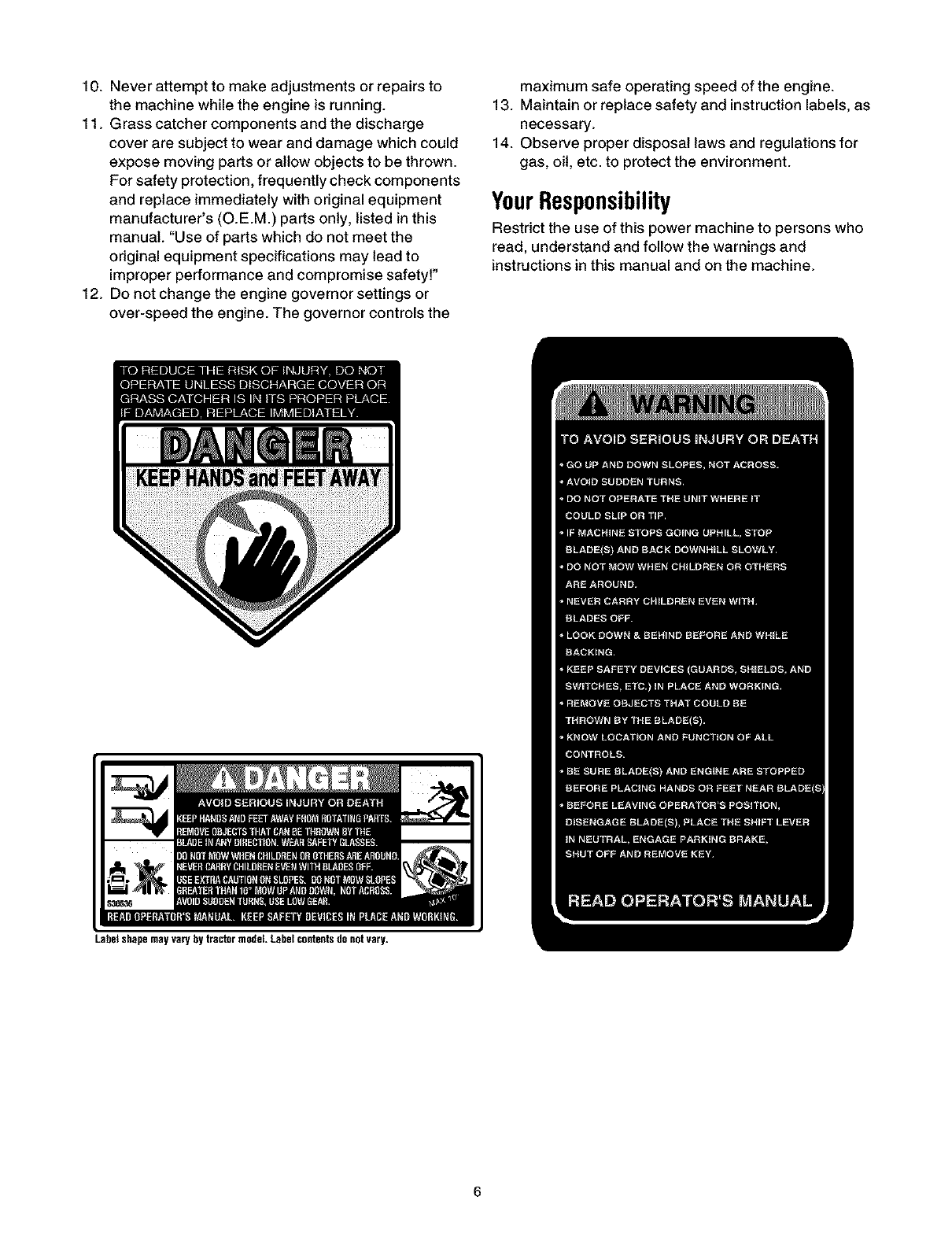

10.Neverattempttomakeadjustmentsorrepairsto

themachinewhiletheengineisrunning.

11.Grasscatchercomponentsandthedischarge

coveraresubjecttowearanddamagewhichcould

exposemovingpartsorallowobjectstobethrown.

Forsafetyprotection,frequentlycheckcomponents

andreplaceimmediatelywithoriginalequipment

manufacturer's(O.E.M.)partsonly,listedinthis

manual."Useofpartswhichdonotmeetthe

originalequipmentspecificationsmayleadto

improperperformanceandcompromisesafetyF

12.Donotchangetheenginegovernorsettingsor

over-speedtheengine.Thegovernorcontrolsthe

Label shapemay vary by tractor model.Label contentsdo notvary.

maximum safe operating speed of the engine.

13. Maintain or replace safety and instruction labels, as

necessary.

14. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

YourResponsibility

Restrict the use of this power machine to persons who

read, understand and follow the warnings and

instructions in this manual and on the machine.

I,LI

..I

I.LI

iq SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

A POWER POLE

A CORNER OFA BUILDING

OR A FENCE POST

_IL WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower

could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain

your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

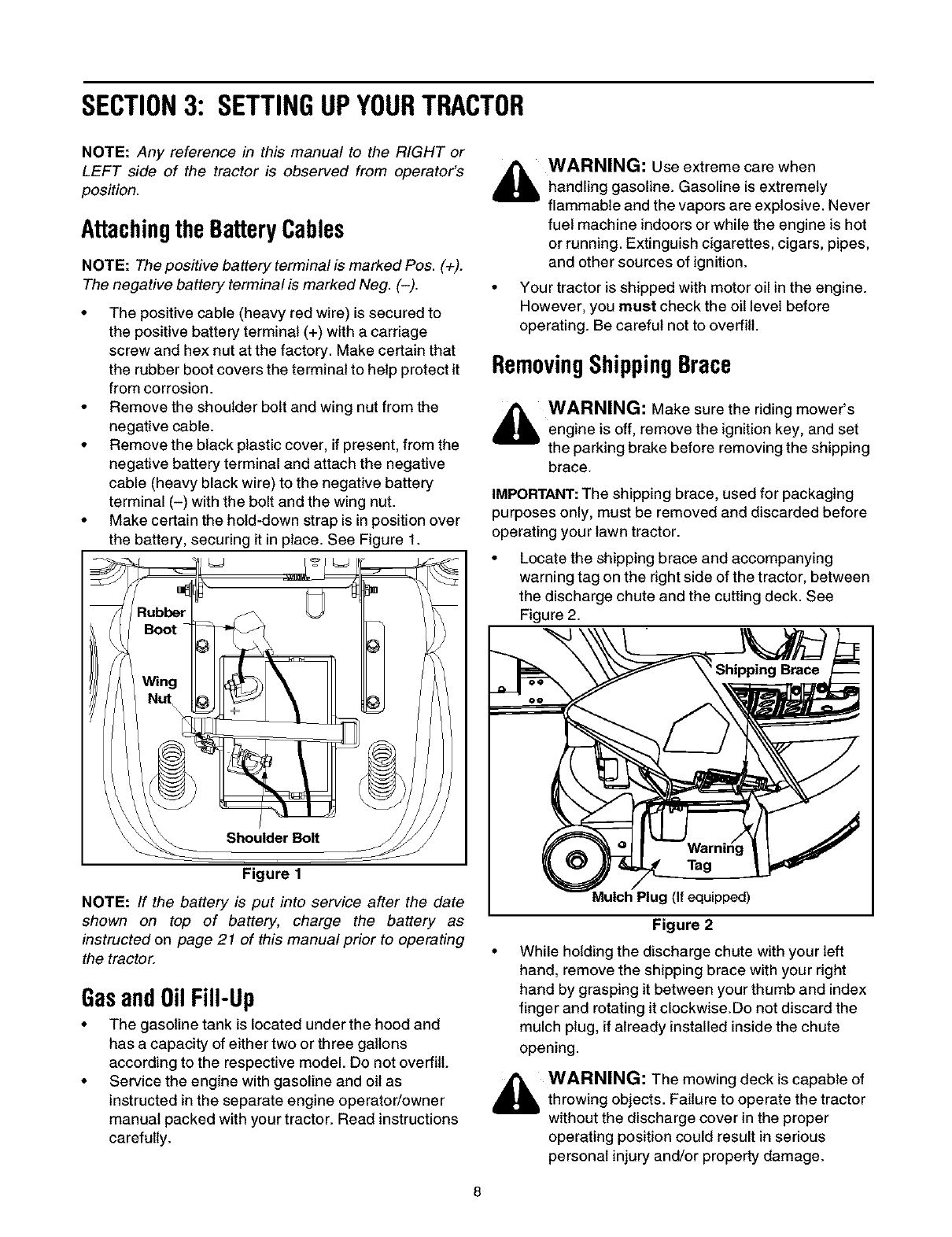

SECTION3: SETTINGUPYOURTRACTOR

NOTE: Any reference in this manual to the RIGHT or

LEFT side of the tractor is observed from operator's

position.

Attachingthe BatteryCables

NOTE: The positive battery terminal is marked Pos. (+).

The negative battery terminal is marked Neg. (-).

• The positive cable (heavy red wire) is secured to

the positive battery terminal (+) with a carriage

screw and hex nut at the factory. Make certain that

the rubber boot covers the terminal to help protect it

from corrosion.

• Remove the shoulder bolt and wing nut from the

negative cable.

• Remove the black plastic cover, if present, from the

negative battery terminal and attach the negative

cable (heavy black wire) to the negative battery

terminal (-) with the bolt and the wing nut.

• Make certain the hold-down strap is in position over

the battery, securing it in place. See Figure 1.

4_b WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Never

fuel machine indoors or while the engine is hot

or running. Extinguish cigarettes, cigars, pipes,

and other sources of ignition.

• Your tractor is shipped with motor oil in the engine.

However, you must check the oil level before

operating. Be careful not to overfill.

RemovingShippingBrace

,_ WARNING: Make sure the riding mower's

engine is off, remove the ignition key, and set

the parking brake before removing the shipping

brace.

IMPORTANT:The shipping brace, used for packaging

purposes only, must be removed and discarded before

operating your lawn tractor.

• Locate the shipping brace and accompanying

warning tag on the right side of the tractor, between

the discharge chute and the cutting deck. See

Figure 2.

Figure 1

NOTE: If the battery is put into service after the date

shown on top of battery, charge the battery as

instructed on page 21 of this manual prior to operating

the tractor.

GasandOilFill-Up

• The gasoline tank is located under the hood and

has a capacity of either two or three gallons

according to the respective model. Do not overfill.

• Service the engine with gasoline and oil as

instructed in the separate engine operator/owner

manual packed with your tractor. Read instructions

carefully.

Mulch Plug (if equipped)

Figure 2

While holding the discharge chute with your left

hand, remove the shipping brace with your right

hand by grasping it between your thumb and index

finger and rotating it clockwise.Do not discard the

mulch plug, if already installed inside the chute

opening.

,_ WARNING: The mowing deck is capable of

throwing objects. Failure to operate the tractor

without the discharge cover in the proper

operating position could result in serious

personal injury and/or property damage.

SECTION4: KNOWYOURLAWNTRACTOR

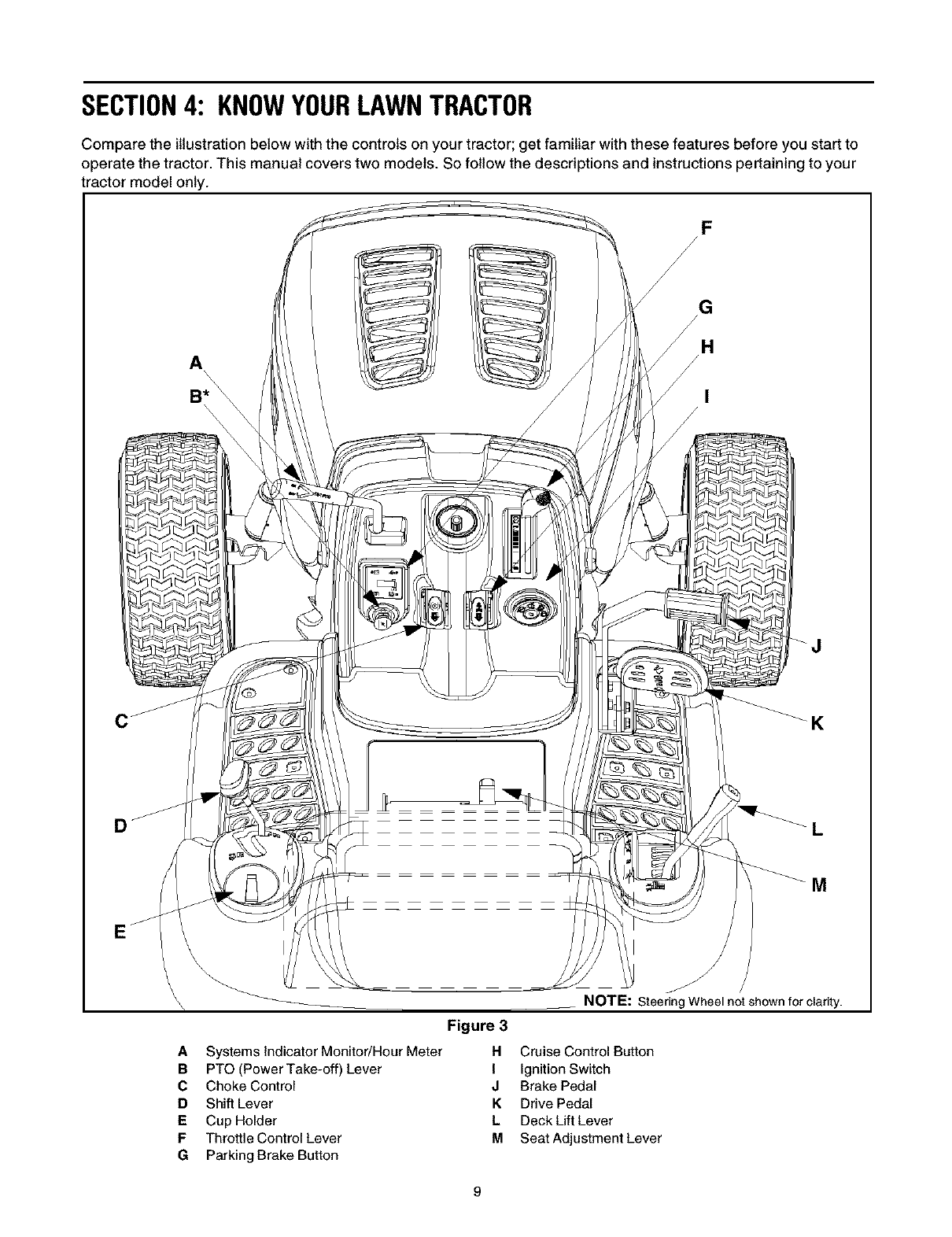

Compare the illustration below with the controls on your tractor; get familiar with these features before you start to

operate the tractor. This manual covers two models. So follow the descriptions and instructions pertaining to your

tractor model only.

ASystemslndicator Monitor/Hour Meter

B PTO (Power Take-off) Lever

C Choke Control

D Shift Lever

E Cup Holder

F Throttle Control Lever

G Parking Brake Button

_ NOTE: Steering Wheel not shown for clarity.

Figure 3

HCruise Control Button

I Ignition Switch

J Brake Pedal

K Drive Pedal

L Deck Lift Lever

MSeat Adjustment Lever

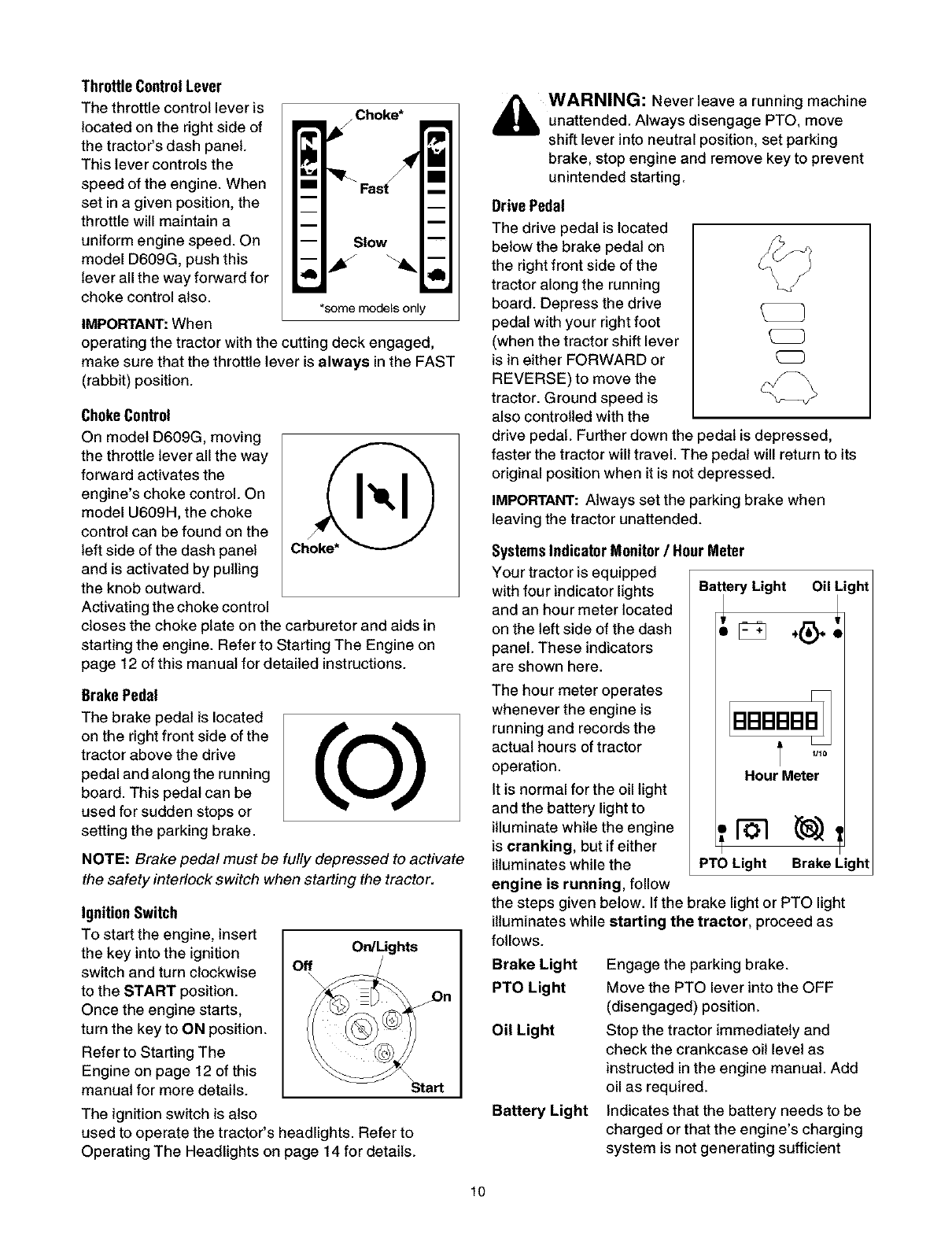

Throttle ControlLever

The throttle control lever is

located on the right side of

the tractor's dash panel.

This lever controls the

speed of the engine. When

set in a given position, the

throttle will maintain a

uniform engine speed. On

model D609G, push this

lever all the way forward for

choke control also.

/Choke*

*some models only

IMPORTANT: When

operating the tractor with the cutting deck engaged,

make sure that the throttle lever is always in the FAST

(rabbit) position.

ChokeControl

On model D609G, moving

the throttle lever all the way

forward activates the

engine's choke control. On

model U609H, the choke

control can be found on the

left side of the dash panel

and is activated by pulling

the knob outward.

Activating the choke control

Choke*

closes the choke plate on the carburetor and aids in

starting the engine. Refer to Starting The Engine on

page 12 of this manual for detailed instructions.

BrakePedal

The brake pedal is located

on the right front side of the

tractor above the drive

pedal and along the running

board. This pedal can be

used for sudden stops or

setting the parking brake. I(o)

NOTE: Brake pedal must be fully depressed to activate

the safety interlock switch when starting the tractor.

Ignition Switch

To start the engine, insert

the key into the ignition On/Lights

switch and turn clockwise Off

to the START position.

Once the engine starts,

turn the key to ON position.

Refer to Starting The

Engine on page 12 of this

manual for more details.

The ignition switch is also

used to operate the tractor's headlights. Refer to

Operating The Headlights on page 14 for details.

WARNING: Never leave a running machineunattended. Always disengage PTO, move

shift lever into neutral position, set parking

brake, stop engine and remove key to prevent

unintended starting.

Drive Pedal

The drive pedal is located

below the brake pedal on

the right front side of the

tractor along the running

board. Depress the drive

pedal with your right foot

(when the tractor shift lever _)

is in either FORWARD or

REVERSE) to move the

tractor. Ground speed is

also controlled with the

drive pedal. Further down the pedal is depressed,

faster the tractor will travel. The pedal will return to its

original position when it is not depressed.

IMPORTANT: Always set the parking brake when

leaving the tractor unattended.

SystemsIndicator Monitor/HourMeter

Your tractor is equipped

with four indicator lights

and an hour meter located

on the left side of the dash

panel. These indicators

are shown here.

The hour meter operates

whenever the engine is

running and records the

actual hours of tractor

operation.

It is normal for the oil light

and the battery light to

illuminate while the engine

is cranking, but if either

illuminates while the

engine is running, follow

the steps given below. If the brake lightor PTO light

illuminates while starting the tractor, proceed as

follows.

Brake Light Engage the parking brake.

PTO Light Move the PTO lever into the OFF

(disengaged) position.

Oil Light Stop the tractor immediately and

check the crankcase oil level as

instructed in the engine manual. Add

oil as required.

Battery Light Indicates that the battery needs to be

charged or that the engine's charging

system is notgenerating sufficient

B= ery Light Oil Light

Hour Meter

PTO Light Brake Light

amperage. Refer to Battery charging

procedure on page 21 or have the

engine's charging system checked by

an authorized dealer.

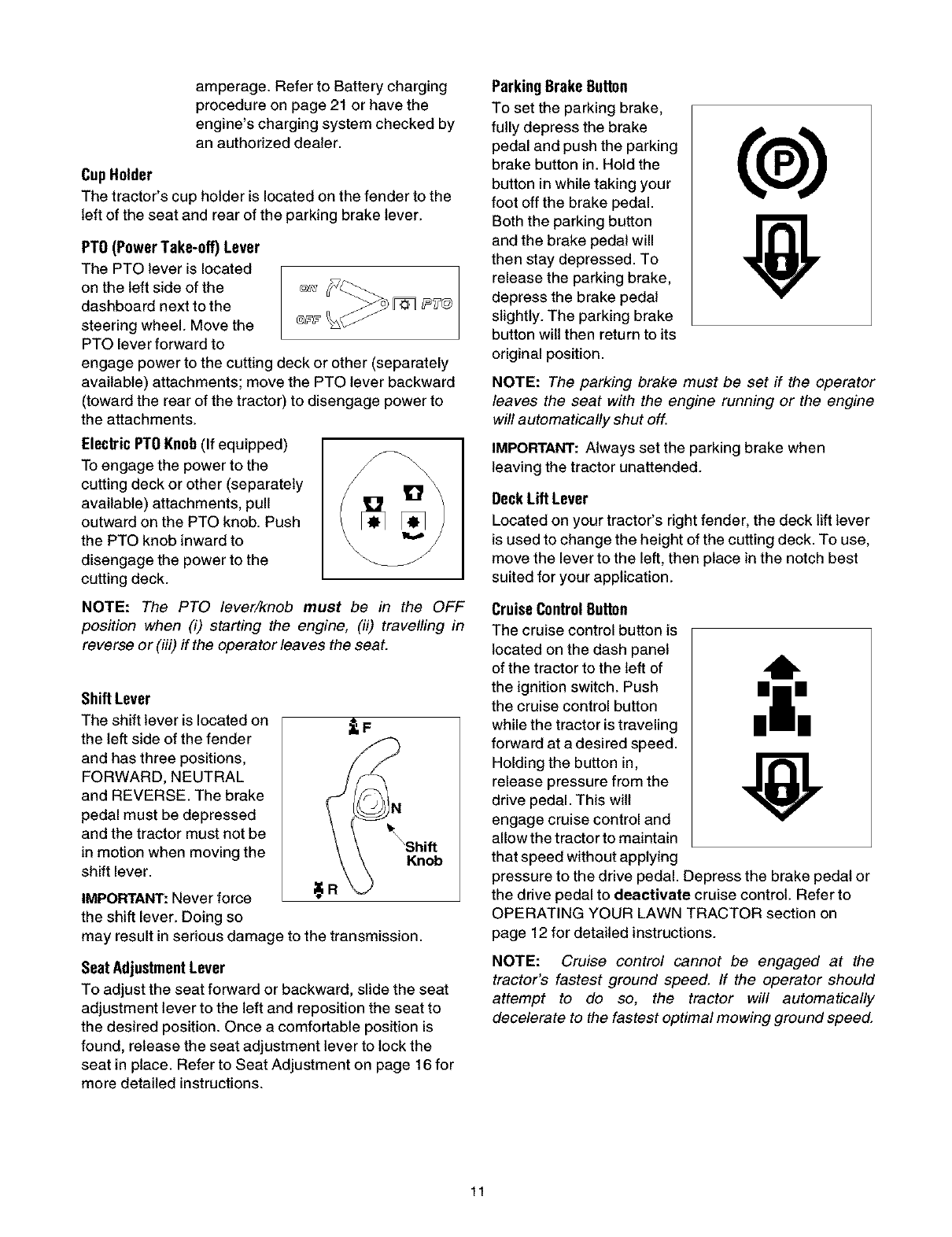

Cup Holder

The tractor's cup holder is located on the fender to the

left of the seat and rear of the parking brake lever.

PTO (PowerTake-off) Lever

The PTO lever is located

on the left side of the ®_ _

dashboard next to the _ _ _@

steering wheel. Move the ®_=_=

PTO lever forward to

engage power to the cutting deck or other (separately

available) attachments; move the PTO lever backward

(toward the rear of the tractor) to disengage power to

the attachments.

Electric PT0 Knob(If equipped)

To engage the power to the

cutting deck or other (separately

available) attachments, pull

outward on the PTO knob. Push

the PTO knob inward to

disengage the power to the

cutting deck.

NOTE: The PTO lever/knob must be in the OFF

position when (i) starting the engine, (ii) travelling in

reverse or (iii) if the operator leaves the seat.

Shift Lever

The shift lever is located on

the left side of the fender

and has three positions,

FORWARD, NEUTRAL

and REVERSE. The brake

pedal must be depressed

and the tractor must not be

in motion when moving the

shift lever.

_,F

Knob

IMPORTANT: Never force

the shift lever. Doing so

may result in serious damage to the transmission.

SeatAdjustmentLever

To adjust the seat forward or backward, slide the seat

adjustment lever to the left and reposition the seat to

the desired position. Once a comfortable position is

found, release the seat adjustment lever to lock the

seat in place. Refer to Seat Adjustment on page 16 for

more detailed instructions.

ParkingBrakeButton

To set the parking brake,

fully depress the brake

pedal and push the parking

brake button in. Hold the

button in while taking your

foot off the brake pedal.

Both the parking button

and the brake pedal will

then stay depressed. To

release the parking brake,

depress the brake pedal

slightly. The parking brake

button wilt then return to its

original position.

NOTE: The parking brake must be set if the operator

leaves the seat with the engine running or the engine

will automatically shut off.

IMPORTANT: Always set the parking brake when

leaving the tractor unattended.

DeckLift Lever

Located on your tractor's right fender, the deck lift lever

is used to change the height of the cutting deck. To use,

move the lever to the left, then place in the notch best

suited for your application.

CruiseControlButton

The cruise control button is

located on the dash panel

of the tractor to the left of

the ignition switch. Push ;i;

the cruise control button

while the tractor is traveling

forward at a desired speed.

Holding the button in,

release pressure from the

drive pedal. This will

engage cruise control and

allow the tractor to maintain

that speed without applying

pressure to the drive pedal. Depress the brake pedal or

the drive pedal to deactivate cruise control. Refer to

OPERATING YOUR LAWN TRACTOR section on

page 12 for detailed instructions.

NOTE: Cruise control cannot be engaged at the

tractor's fastest ground speed. If the operator should

attempt to do so, the tractor will automatically

decelerate to the fastest optimal mowing ground speed.

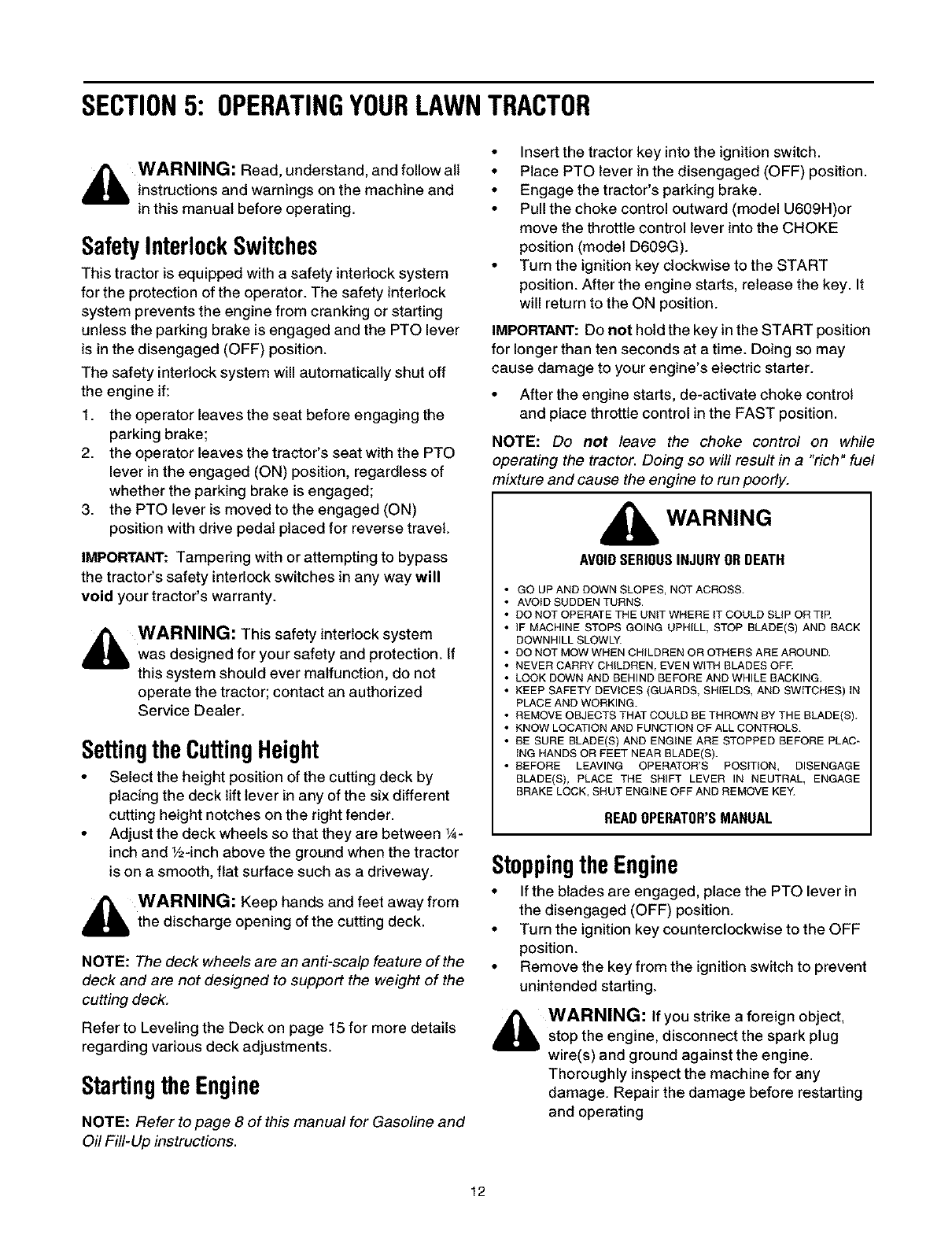

SECTION5: OPERATINGYOURLAWNTRACTOR

_WARNING: Read, understand, and follow all

instructions and warnings on the machine and

in this manual before operating.

SafetyInterlockSwitches

This tractor is equipped with a safety interlock system

for the protection of the operator. The safety interlock

system prevents the engine from cranking or starting

unless the parking brake is engaged and the PTO lever

is in the disengaged (OFF) position.

The safety interlock system will automatically shut off

the engine if:

1. the operator leaves the seat before engaging the

parking brake;

2. the operator leaves the tractor's seat with the PTO

lever in the engaged (ON) position, regardless of

whether the parking brake is engaged;

3. the PTO lever is moved to the engaged (ON)

position with drive pedal placed for reverse travel.

IMPORTAWI': Tampering with or attempting to bypass

the tractor's safety interlock switches in any way will

void your tractor's warranty.

,_ WARNING: This safety interlock system

was designed for your safety and protection. If

this system should ever malfunction, do not

operate the tractor; contact an authorized

Service Dealer.

Settingthe CuttingHeight

•Select the height position of the cutting deck by

placing the deck lift lever in any of the six different

cutting height notches on the right fender.

• Adjust the deck wheels so that they are between _A-

inch and I/2-inch above the ground when the tractor

is on a smooth, flat surface such as a driveway.

_ll WARNING: Keep hands and feet away from

the discharge opening of the cutting deck.

NOTE: The deck wheels are an anti-scalp feature of the

deck and are not designed to support the weight of the

cutting deck.

Refer to Leveling the Deck on page 15 for more details

regarding various deck adjustments.

Startingthe Engine

NOTE: Refer to page 8 of this manual for Gasoline and

Oil Fill-Up instructions.

• Insert the tractor key into the ignition switch.

• Place PTO lever in the disengaged (OFF) position.

• Engage the tractor's parking brake.

• Pull the choke control outward (model U609H)or

move the throttle control lever into the CHOKE

position (model D609G).

• Turn the ignition key clockwise to the START

position. After the engine starts, release the key. It

will return to the ON position.

IMPORTAWI': Do not hold the key in the START position

for longer than ten seconds at a time. Doing so may

cause damage to your engine's electric starter.

• After the engine starts, de-activate choke control

and place throttle control in the FAST position.

NOTE: Do not leave the choke control on while

operating the tractor. Doing so will result in a "rich" fuel

mixture and cause the engine to run poorly.

WARNING

AV010SERIOUSINJURYORDEATH

•GO UP AND DOWN SLOPES, NOT ACROSS.

• AVOIDSUDDEN TURNS.

• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIP.

• IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AND BACK

DOWNHILL SLOWLY.

• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.

• NEVER CARRY CHILDREN, EVEN WITH BLADES OFE

• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.

• KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND SWITCHES) tN

PLACE AND WORKING.

• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE(S).

• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.

• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE PLAC*

tNG HANDS OR FEET NEAR BLADE(S).

• BEFORE LEAVING OPERATOR'S POSmON, DISENGAGE

BLADE(S), PLACE THE SHIFT LEVER IN NEUTRAL, ENGAGE

BRAKE LOCK, SHUT ENGINE OFF AND REMOVE KEY.

READOPERATOR'SMANUAL

Stoppingthe Engine

• If the blades are engaged, place the PTO lever in

the disengaged (OFF) position.

• Turn the ignition key counterclockwise to the OFF

position.

• Remove the key from the ignition switch to prevent

unintended starting.

_ll WARNING: If you strike a foreign object,stop the engine, disconnect the spark plug

wire(s) and ground against the engine.

Thoroughly inspect the machine for any

damage. Repair the damage before restarting

and operating

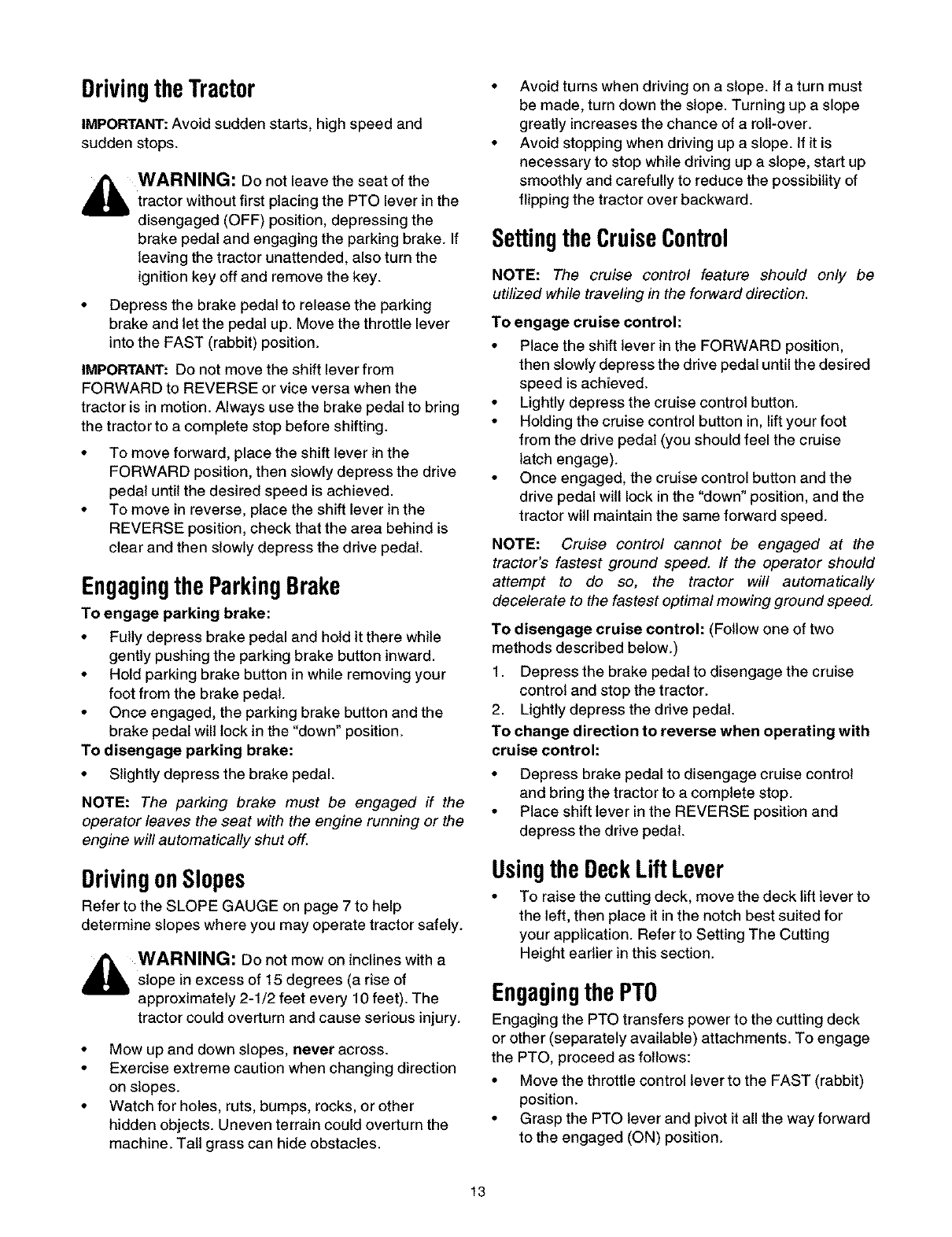

DrivingtheTractor

IMPORTANT: Avoid sudden starts, high speed and

sudden stops.

,_ WARNING: Do not leave the seat of the

tractor without first placing the PTO lever in the

disengaged (OFF) position, depressing the

brake pedal and engaging the parking brake. If

leaving the tractor unattended, also turn the

ignition key off and remove the key.

• Depress the brake pedal to release the parking

brake and let the pedal up. Move the throttle lever

into the FAST (rabbit) position.

IMPORTANT: Do not move the shift lever from

FORWARD to REVERSE or vice versa when the

tractor is in motion. Always use the brake pedal to bring

the tractor to a complete stop before shifting.

• To move forward, place the shift lever in the

FORWARD position, then slowly depress the drive

pedal until the desired speed is achieved.

• To move in reverse, place the shift lever in the

REVERSE position, check that the area behind is

clear and then slowly depress the drive pedal.

EngagingtheParkingBrake

To engage parking brake:

• Fully depress brake pedal and hold it there while

gently pushing the parking brake button inward.

• Hold parking brake button in while removing your

foot from the brake pedal.

• Once engaged, the parking brake button and the

brake pedal will lock in the "down" position.

To disengage parking brake:

• Slightly depress the brake pedal.

NOTE: The parking brake must be engaged if the

operator leaves the seat with the engine running or the

engine will automatically shut off.

DrivingonSlopes

Refer to the SLOPE GAUGE on page 7 to help

determine slopes where you may operate tractor safely.

,_ WARNING: Do not mow on inclines with a

slope in excess of 15 degrees (a rise of

approximately 2-1/2 feet every 10 feet). The

tractor could overturn and cause serious injury.

• Mow up and down slopes, never across.

• Exercise extreme caution when changing direction

on slopes.

• Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Avoid turns when driving on a slope. If a turn must

be made, turn down the slope. Turning up a slope

greatly increases the chance of a roll-over.

Avoid stopping when driving up a slope. If it is

necessary to stop while driving up a slope, start up

smoothly and carefully to reduce the possibility of

flipping the tractor over backward.

Settingthe CruiseControl

NOTE: The cruise control feature should only be

utilized while traveling in the forward direction.

To engage cruise control:

•Place the shift lever in the FORWARD position,

then slowly depress the drive pedal untilthe desired

speed is achieved.

•Lightly depress the cruise control button.

•Holding the cruise control button in, liftyour foot

from the drive pedal (you should feel the cruise

latch engage).

• Once engaged, the cruise control button and the

drive pedal will lock in the "down" position, and the

tractor will maintain the same forward speed.

NOTE: Cruise control cannot be engaged at the

tractor's fastest ground speed. If the operator should

attempt to do so, the tractor will automatically

decelerate to the fastest optimal mowing ground speed.

To disengage cruise control: (Follow one of two

methods described below.)

1. Depress the brake pedal to disengage the cruise

control and stop the tractor.

2. Lightly depress the drive pedal.

To change direction to reverse when operating with

cruise control:

•Depress brake pedal to disengage cruise control

and bring the tractor to a complete stop.

•Place shift lever in the REVERSE position and

depress the drive pedal.

Usingthe DeckLiftLever

•To raise the cutting deck, move the deck lift lever to

the left, then place it in the notch best suited for

your application. Refer to Setting The Cutting

Height earlier in this section.

EngagingthePTO

Engaging the PTO transfers power to the cutting deck

or other (separately available) attachments. To engage

the PTO, proceed as follows:

• Move the throttle control lever to the FAST (rabbit)

position.

• Grasp the PTO lever and pivot it all the way forward

to the engaged (ON) position.

• Keep the throttle lever in the FAST (rabbit) position

for the most efficient use of the cutting deck or other

(separately available) attachments.

NOTE: The operator must remain on the tractor seat at

all times of operation, ff the operator leaves the seat

without moving the PTO lever into the disengaged

(OFF) position, the tractor's engine will automatically

shut off, regardless of whether the parking brake is

engaged or not

IMPORTANT: The engine wilt automatically shut off if

the PTO lever is moved into the engaged (ON) position

with the drive pedal in position for reverse travel. Refer

to Safety Interlock Switches on page 12.

Mowing

WARNING: To help avoid blade contact or a

thrown object injury, keep by-standers,

helpers, children and pets at least 75 feet from

the tractor while it is in operation. Stop the

tractor if anyone enters the area.

This tractor is equipped with one of two high quality

cutting decks. The following information will be helpful

when using the cutting deck with your tractor.

WARNING: Plan your mowing pattern to

avoid discharge of materials toward roads,

sidewalks, by-standers and the like. Also, avoid

discharging material against a wall or

obstruction which may cause discharged

material to ricochet back toward the operator.

• Do not mow at high ground speed, especially if a

mulch kit or grass collector is installed.

• For best results it is recommended that the first two

laps be cut with the discharge thrown towards the

center. Then reverse the direction to throw rest of

the discharge to the outside. This will give a better

appearance to the lawn.

• Do not cut the grass too short. Short grass invites

weed growth and yellows quickly in dry weather.

• Mowing should always be done with the engine at

full throttle.

• Under heavier conditions it may be necessary to go

back over the cut area to get a clean cut.

• Do not attempt to mow heavy brush and weeds and

extremely tall grass. Your tractor is designed to

mow lawns, not clear brush.

• Keep the blades sharp and replace the blades

when worn. Refer to Cutting Blades on page 21 for

blade sharpening instructions.

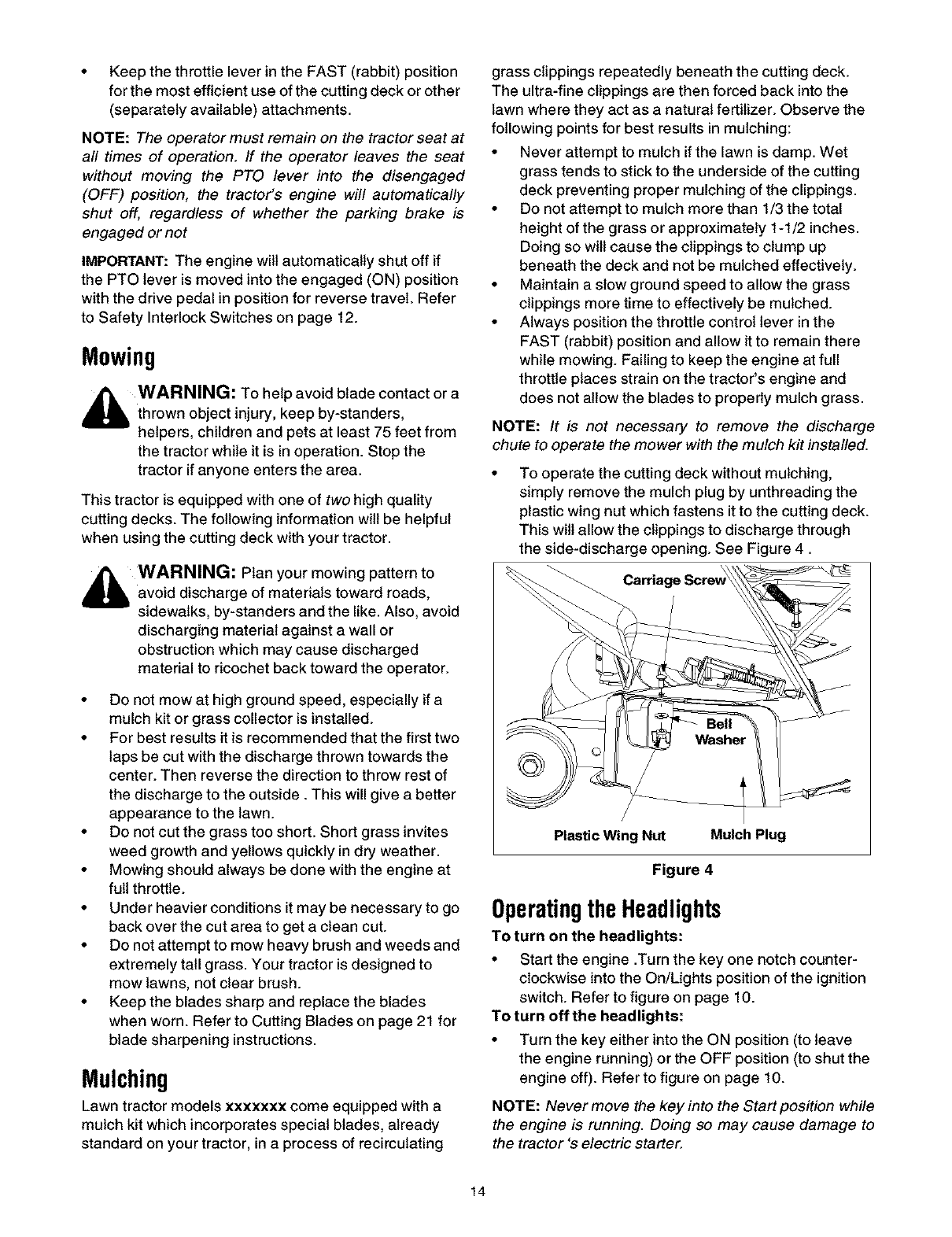

Mulching

Lawn tractor models xxxxxxx come equipped with a

mulch kit which incorporates special blades, already

standard on your tractor, in a process of recirculating

grass clippings repeatedly beneath the cutting deck.

The ultra-fine clippings are then forced back into the

lawn where they act as a natural fertilizer. Observe the

following points for best results in mulching:

• Never attempt to mulch if the lawn is damp. Wet

grass tends to stick to the underside of the cutting

deck preventing proper mulching of the clippings.

• Do not attempt to mulch more than 1/3 the total

height of the grass or approximately 1-1/2 inches.

Doing so will cause the clippings to clump up

beneath the deck and not be mulched effectively.

• Maintain a slow ground speed to allow the grass

clippings more time to effectively be mulched.

• Always position the throttle control lever in the

FAST (rabbit) position and allow it to remain there

while mowing. Failing to keep the engine at full

throttle places strain on the tractor's engine and

does not allow the blades to properly mulch grass.

NOTE: It is not necessary to remove the discharge

chute to operate the mower with the mulch kit installed.

To operate the cutting deck without mulching,

simply remove the mulch plug by unthreading the

plastic wing nut which fastens it to the cutting deck.

This will allow the clippings to discharge through

the side-discharge opening. See Figure 4.

Plastic Wing Nut Mulch Plug

Figure 4

OperatingtheHeadlights

To turn on the headlights:

• Start the engine .Turn the key one notch counter-

clockwise into the On/Lights position of the ignition

switch. Refer to figure on page 10.

To turn off the headlights:

• Turn the key either into the ON position (to leave

the engine running) or the OFF position (to shut the

engine off). Refer to figure on page 10.

NOTE: Never move the key into the Start position while

the engine is running. Doing so may cause damage to

the tractor's electric starter.

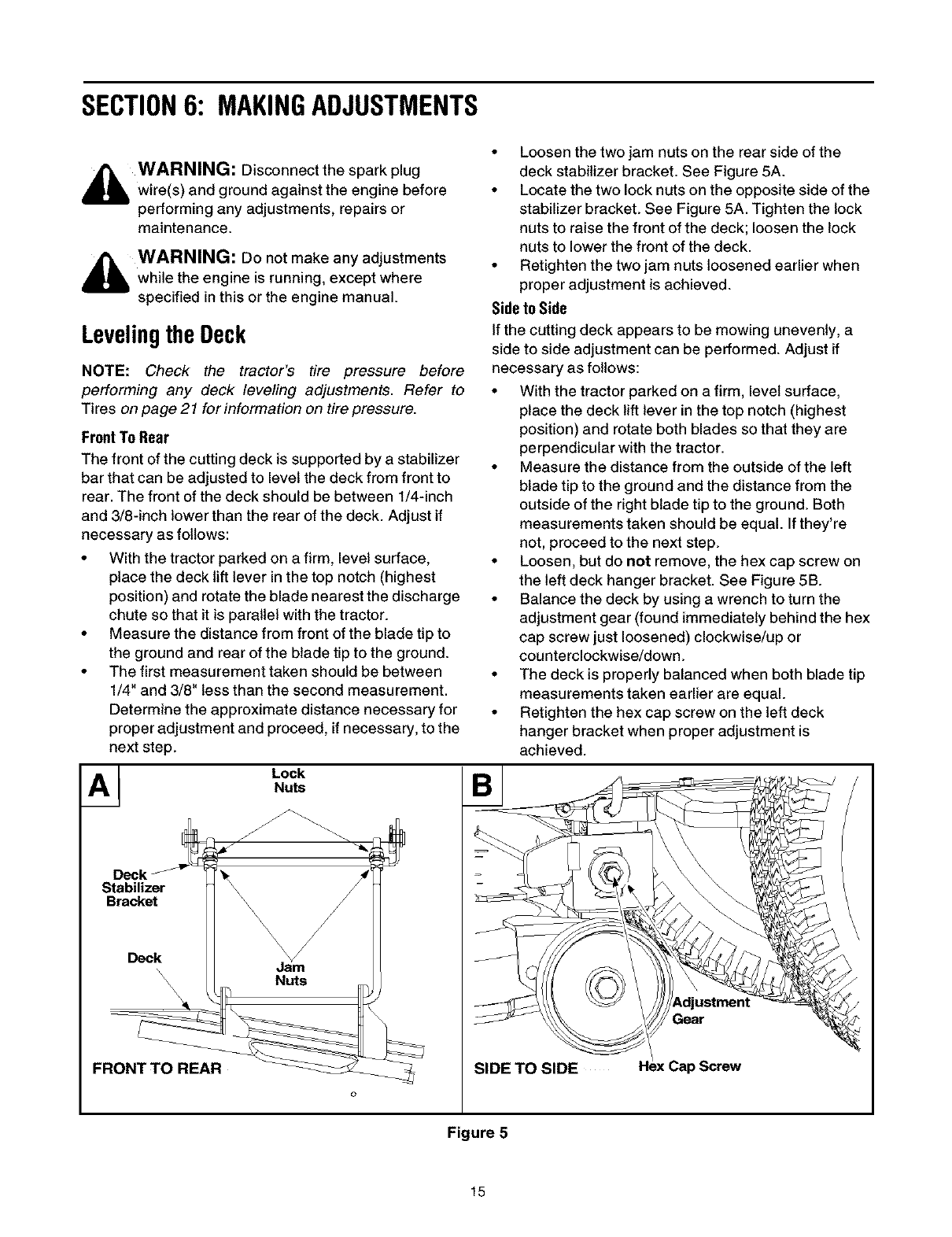

SECTION6: MAKINGADJUSTMENTS

_WARNING: Disconnect the spark plug

wire(s) and ground against the engine before

performing any adjustments, repairs or

maintenance.

_WARNING: DO not make any adjustments

while the engine is running, except where

specified in this or the engine manual.

• Loosen the two jam nuts on the rear side of the

deck stabilizer bracket. See Figure 5A.

• Locate the two lock nuts on the opposite side of the

stabilizer bracket. See Figure 5A. Tighten the lock

nuts to raise the front of the deck; loosen the lock

nuts to lower the front of the deck.

• Retighten the two jam nuts loosened earlier when

proper adjustment is achieved.

Sidetn Side

LevelingtheDeck

NOTE: Check the tractor's tire pressure before

performing any deck leveling adjustments. Refer to

Tires on page 21 for information on tire pressure.

FrnntTn Bear

The front of the cutting deck is supported by a stabilizer

bar that can be adjusted to level the deck from front to

rear. The front of the deck should be between 1/4-inch

and 3/8-inch lower than the rear of the deck. Adjust if

necessary as follows:

• With the tractor parked on a firm, level surface,

place the deck lift lever in the top notch (highest

position) and rotate the blade nearest the discharge

chute so that it is parallel with the tractor.

• Measure the distance from front of the blade tip to

the ground and rear of the blade tip to the ground.

• The first measurement taken should be between

1/4" and 3/8" less than the second measurement.

Determine the approximate distance necessary for

proper adjustment and proceed, if necessary, to the

next step.

If the cutting deck appears to be mowing unevenly, a

side to side adjustment can be performed. Adjust if

necessary as follows:

• With the tractor parked on a firm, level surface,

place the deck lift lever in the top notch (highest

position) and rotate both blades so that they are

perpendicular with the tractor.

• Measure the distance from the outside of the left

blade tip to the ground and the distance from the

outside of the right blade tip to the ground. Both

measurements taken should be equal. If they're

not, proceed to the next step.

• Loosen, but do not remove, the hex cap screw on

the left deck hanger bracket. See Figure 5B.

• Balance the deck by using a wrench to turn the

adjustment gear (found immediately behind the hex

cap screw just loosened) clockwise/up or

counterclockwise/down.

• The deck is properly balanced when both blade tip

measurements taken earlier are equal.

• Retighten the hex cap screw on the left deck

hanger bracket when proper adjustment is

achieved.

At Lock

Nuts

Stabilizer

Bracket

Deck

FRONTTO REAR SIDE TO SIDE

Figure 5

SeatAdjustment

,_ WARNING: Before operating this machine,

make sure the seat is engaged in the seat stop,

stand behind the machine and pull back on

seat until fully engaged into stop.

• Move the seat adjustment lever to the left and slide

the seat forward or rearward. Make sure seat is

locked into position before operating the tractor.

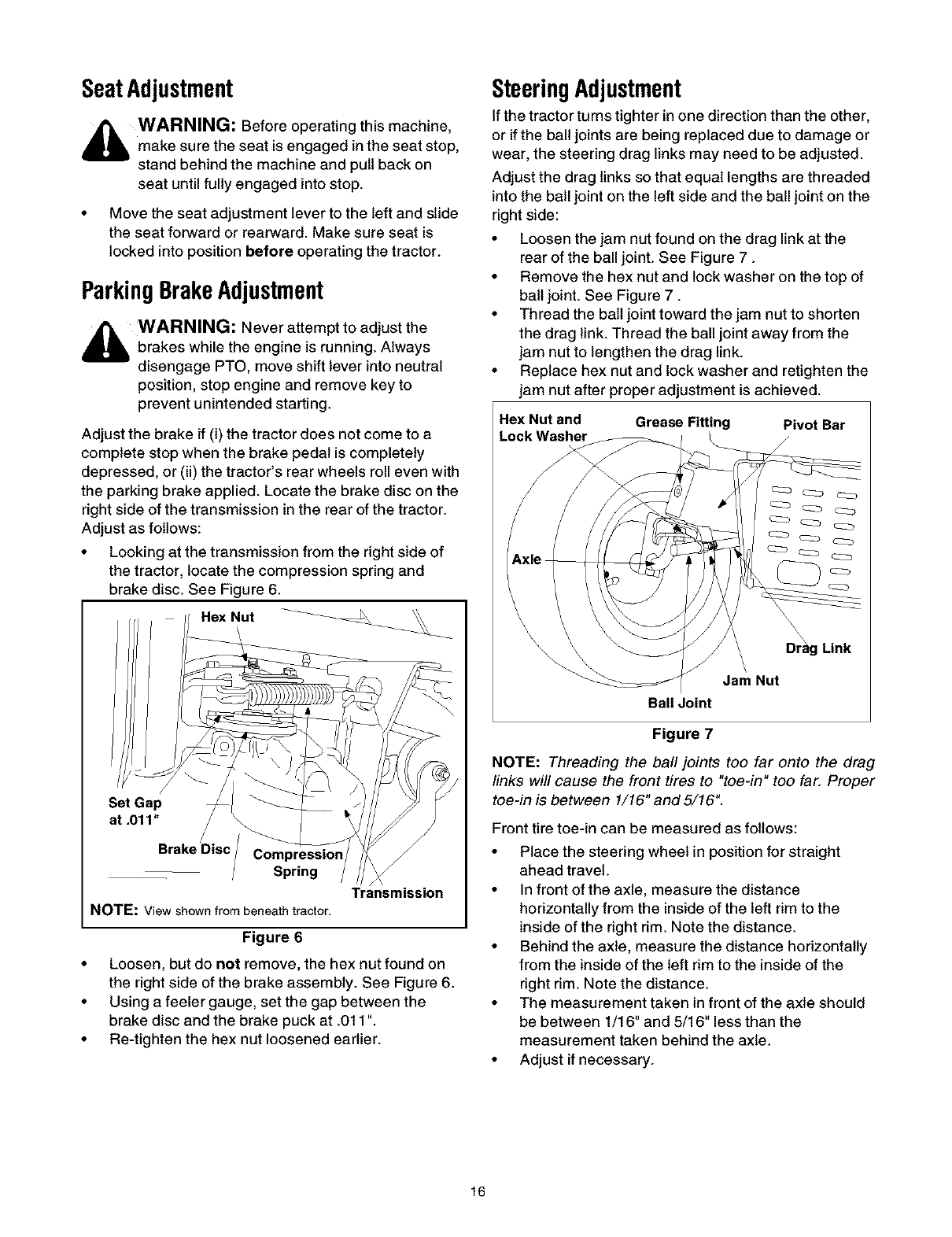

ParkingBrakeAdjustment

,_ WARNING: Never attempt to adjust the

brakes while the engine is running. Always

disengage PTO, move shift lever into neutral

position, stop engine and remove key to

prevent unintended starting.

Adjust the brake if (i) the tractor does not come to a

complete stop when the brake pedal is completely

depressed, or (ii) the tractor's rear wheels roll even with

the parking brake applied. Locate the brake disc on the

right side of the transmission in the rear of the tractor.

Adjust as follows:

• Looking at the transmission from the right side of

the tractor, locate the compression spring and

brake disc. See Figure 6.

Hex Nut --___

Set Gap

at .011"

Brake Disc Compression

Spring

NOTE: View shown from beneath tractor.

Transmission

Figure 6

• Loosen, but do not remove, the hex nut found on

the right side of the brake assembly. See Figure 6.

• Using a feeler gauge, set the gap between the

brake disc and the brake puck at .011 ".

• Re-tighten the hex nut loosened earlier.

SteeringAdjustment

If the tractor turns tighter in one direction than the other,

or ifthe ball joints are being replaced due to damage or

wear, the steering drag links may need to be adjusted.

Adjust the drag links so that equal lengths are threaded

into the ball joint on the left side and the ball joint on the

right side:

• Loosen the jam nut found on the drag link at the

rear of the ball joint. See Figure 7.

• Remove the hex nut and lock washer on the top of

ball joint. See Figure 7.

• Thread the ball joint toward the jam nut to shorten

the drag link. Thread the ball joint away from the

jam nut to lengthen the drag link.

• Replace hex nut and lock washer and retighten the

jam nut after proper adjustment is achieved.

Hex Nut and Grease Fitting Pivot Bar

Lock Washer

Dr_g Link

Jam Nut

Ball Joint

Figure 7

NOTE: Threading the ball joints too far onto the drag

links will cause the front tires to "toe-in" too far. Proper

toe-in is between 1/16" and 5/16".

Front tiretoe-in can be measured as follows:

• Place the steering wheel in position for straight

ahead travel.

• In front of the axle, measure the distance

horizontally from the inside of the left rim to the

inside of the right rim. Note the distance.

• Behind the axle, measure the distance horizontally

from the inside of the left rim to the inside of the

right rim. Note the distance.

• The measurement taken in front of the axle should

be between 1/16" and 5/16" less than the

measurement taken behind the axle.

• Adjust if necessary.

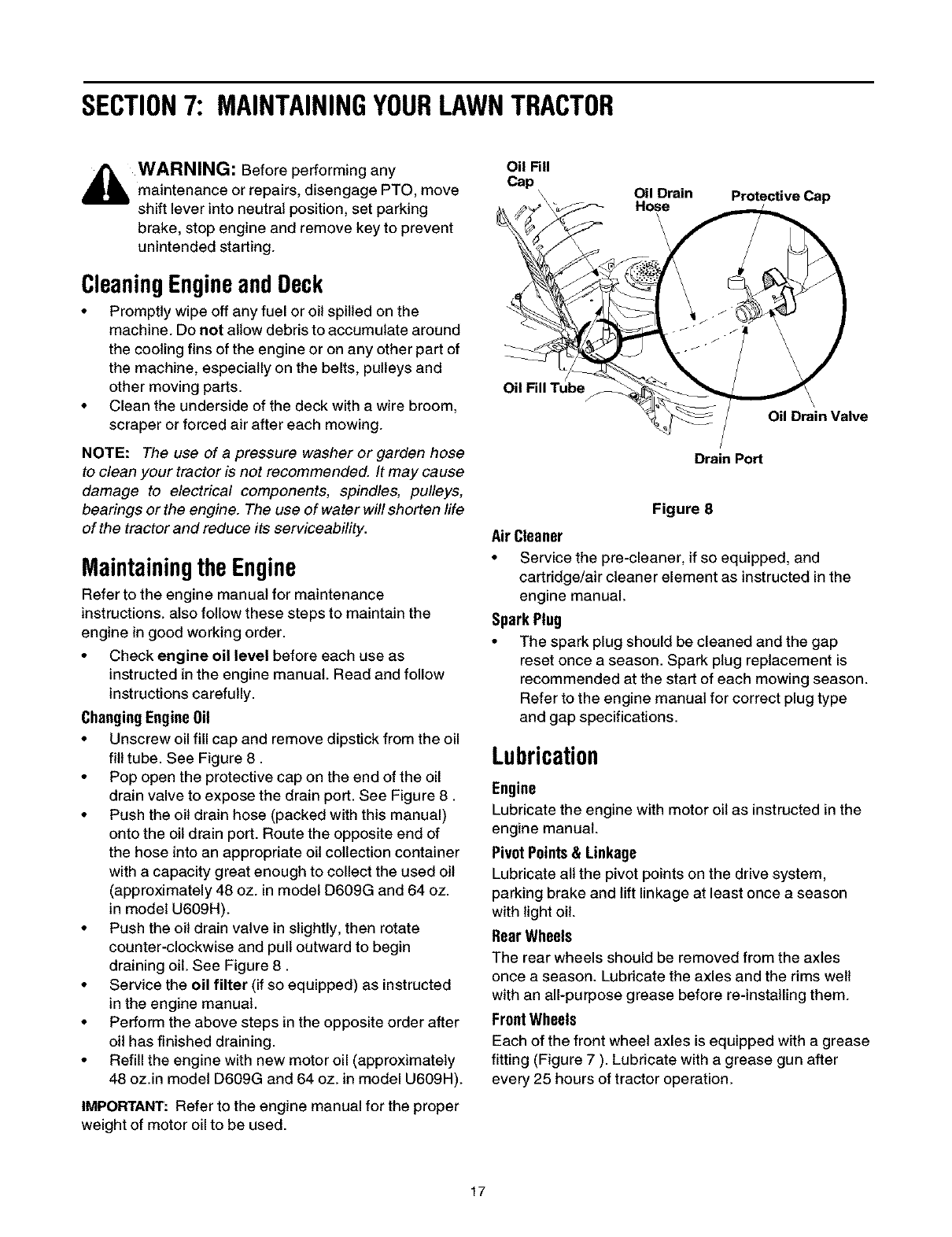

SECTION7: MAINTAININGYOURLAWNTRACTOR

_WARNING: Before performing

any

maintenance or repairs, disengage PTO, move

shift lever into neutral position, set parking

brake, stop engine and remove key to prevent

unintended starting.

CleaningEngineandDeck

•Promptly wipe off any fuel or oil spilled on the

machine. Do not allow debris to accumulate around

the cooling fins of the engine or on any other part of

the machine, especially on the belts, pulleys and

other moving parts.

• Clean the underside of the deck with a wire broom,

scraper or forced air after each mowing.

NOTE: The use of a pressure washer or garden hose

to clean your tractor is not recommended. It may cause

damage to electrical components, spindles, pulleys,

bearings or the engine. The use of water will shorten life

of the tractor and reduce its serviceability.

Maintainingthe Engine

Refer to the engine manual for maintenance

instructions, also follow these steps to maintain the

engine in good working order.

• Check engine oil level before each use as

instructed in the engine manual. Read and follow

instructions carefully.

ChangingEngineOil

• Unscrew oil fill cap and remove dipstick from the oil

fill tube. See Figure 8.

• Pop open the protective cap on the end of the oil

drain valve to expose the drain port. See Figure 8.

• Push the oil drain hose (packed with this manual)

onto the oil drain port. Route the opposite end of

the hose into an appropriate oil collection container

with a capacity great enough to collect the used oil

(approximately 48 oz. in model D609G and 64 oz.

in model U609H).

• Push the oil drain valve in slightly, then rotate

counter-clockwise and pull outward to begin

draining oil. See Figure 8.

• Service the oil filter (if so equipped) as instructed

in the engine manual.

• Perform the above steps in the opposite order after

oil has finished draining.

• Refill the engine with new motor oil (approximately

48 oz.in model D609G and 64 oz. in model U609H).

IMPORTANT: Refer to the engine manual for the proper

weight of motor oil to be used.

Oil RII

Cap Oil Drain

Hose

Protective Cap

Oil Fill Tube

Oil Drain Valve

Drain Port

Figure 8

Air Cleaner

• Service the pre-cleaner, if so equipped, and

cartridge/air cleaner element as instructed in the

engine manual.

SparkPlug

• The spark plug should be cleaned and the gap

reset once a season. Spark plug replacement is

recommended at the start of each mowing season.

Refer to the engine manual for correct plug type

and gap specifications.

Lubrication

Engine

Lubricate the engine with motor oil as instructed in the

engine manual.

PivotPoints& Linkage

Lubricate all the pivot points on the drive system,

parking brake and lift linkage at least once a season

with light oil.

RearWheels

The rear wheels should be removed from the axles

once a season. Lubricate the axles and the rims well

with an all-purpose grease before re-installing them.

FrontWheels

Each of the front wheel axles is equipped with a grease

fitting (Figure 7 ). Lubricate with a grease gun after

every 25 hours of tractor operation.

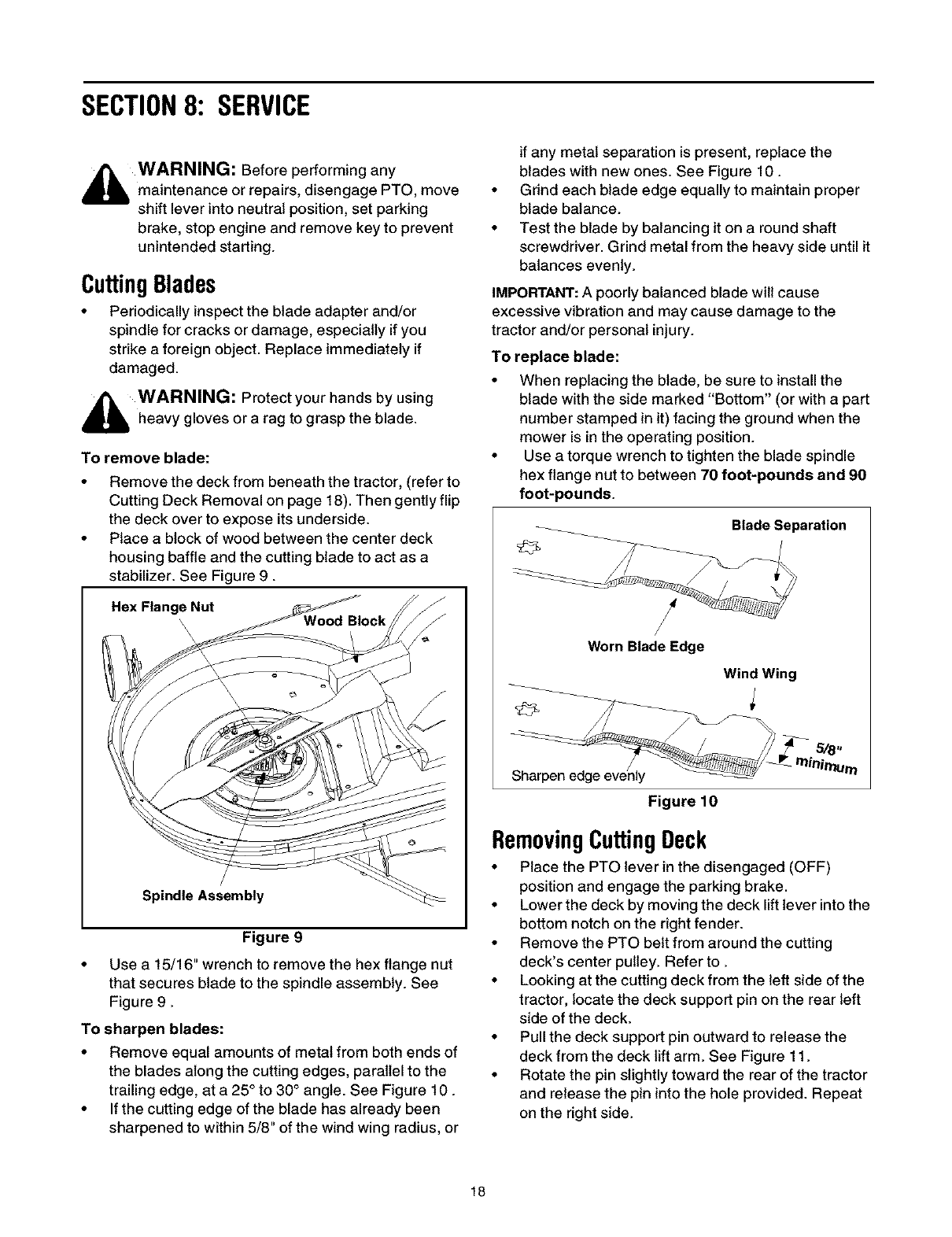

SECTION8: SERVICE

_lb WARNING: Before performing

any

maintenance or repairs, disengage PTO, move

shift lever into neutral position, set parking

brake, stop engine and remove key to prevent

unintended starting.

CuttingBlades

• Periodically inspect the blade adapter and/or

spindle for cracks or damage, especially if you

strike a foreign object. Replace immediately if

damaged.

,_ WARNING: Protect your hands by using

heavy gloves or a rag to grasp the blade.

To remove blade:

• Remove the deck from beneath the tractor, (refer to

Cutting Deck Removal on page 18). Then gently flip

the deck over to expose its underside.

• Place a block of wood between the center deck

housing baffle and the cutting blade to act as a

stabilizer. See Figure 9.

Hex Flange Nut

Spindle Assembly

Figure 9

•Use a 15/16" wrench to remove the hex flange nut

that secures blade to the spindle assembly. See

Figure 9.

To sharpen blades:

•Remove equal amounts of metal from both ends of

the blades along the cutting edges, parallel to the

trailing edge, at a 25° to 30° angle. See Figure 10.

•If the cutting edge of the blade has already been

sharpened to within 5/8" ofthe wind wing radius, or

if any metal separation is present, replace the

blades with new ones. See Figure 10.

• Grind each blade edge equally to maintain proper

blade balance.

• Test the blade by balancing it on a round shaft

screwdriver. Grind metal from the heavy side until it

balances evenly.

IMPORTANT: A poorly balanced blade will cause

excessive vibration and may cause damage to the

tractor and/or personal injury.

To replace blade:

• When replacing the blade, be sure to install the

blade with the side marked "Bottom" (or with a part

number stamped in it) facing the ground when the

mower is in the operating position.

• Use a torque wrench to tighten the blade spindle

hex flange nut to between 70 foot-pounds and 90

foot-pounds.

Blade Separation

Worn Blade Edge

Wind Wing

Figure 10

RemovingCuttingDeck

• Place the PTO lever in the disengaged (OFF)

position and engage the parking brake.

• Lower the deck by moving the deck lift lever into the

bottom notch on the right fender.

• Remove the PTO belt from around the cutting

deck's center pulley. Refer to.

• Looking at the cutting deck from the left side of the

tractor, locate the deck support pin on the rear left

side of the deck.

• Pull the deck support pin outward to release the

deck from the deck lift arm. See Figure 11.

• Rotate the pin slightly toward the rear of the tractor

and release the pin into the hole provided. Repeat

on the right side.

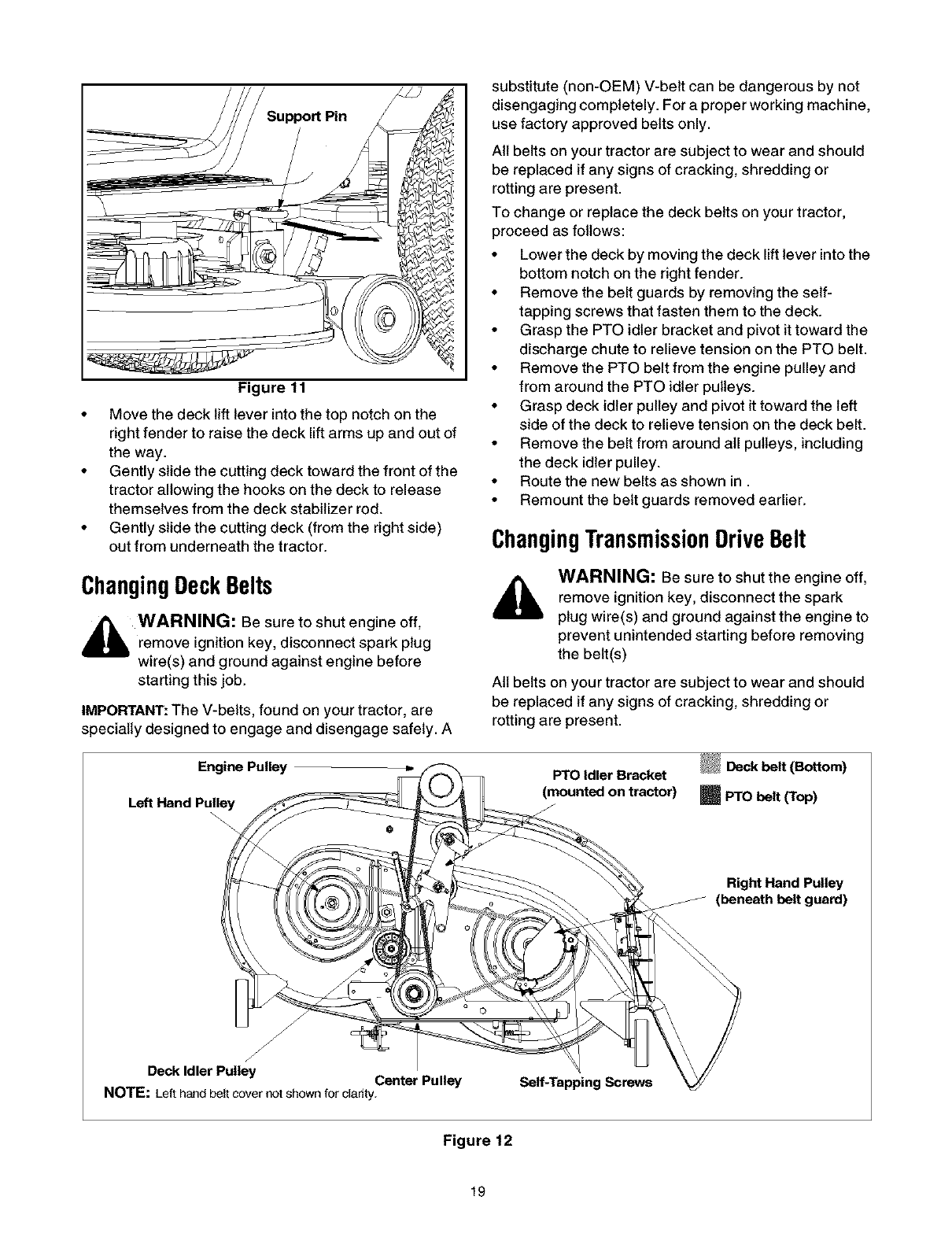

Figure 11

•Move the deck lift lever into the top notch on the

right fender to raise the deck lift arms up and out of

the way.

• Gently slide the cutting deck toward the front of the

tractor allowing the hooks on the deck to release

themselves from the deck stabilizer rod.

• Gently slide the cutting deck (from the right side)

out from underneath the tractor.

substitute (non-OEM) V-belt can be dangerous by not

disengaging completely. For a proper working machine,

use factory approved belts only.

All belts on your tractor are subject to wear and should

be replaced if any signs of cracking, shredding or

rotting are present.

To change or replace the deck belts on your tractor,

proceed as follows:

• Lower the deck by moving the deck lift lever into the

bottom notch on the right fender.

• Remove the belt guards by removing the self-

tapping screws that fasten them to the deck.

• Grasp the PTO idler bracket and pivot it toward the

discharge chute to relieve tension on the PTO belt.

• Remove the PTO belt from the engine pulley and

from around the PTO idler pulleys.

• Grasp deck idler pulley and pivot it toward the left

side of the deck to relieve tension on the deck belt.

• Remove the belt from around all pulleys, including

the deck idler pulley.

• Route the new belts as shown in.

• Remount the belt guards removed earlier.

ChangingTransmissionDriveBelt

ChangingDeckBelts

,_ WARNING: Be sure to shut engine off,

remove ignition key, disconnect spark plug

wire(s) and ground against engine before

starting this job.

IMPORTANT: The V-belts, found on your tractor, are

WARNING: Be sure to shut the engine off,

remove ignition key, disconnect the spark

plug wire(s) and ground against the engine to

prevent unintended starting before removing

the belt(s)

specially designed to engage and disengage safely. A

Engine Pulley

Left Hand Pulley

All belts on your tractor are subject to wear and should

be replaced if any signs of cracking, shredding or

Deck belt (Bottom)

mPTO belt (Top)

rotting are present.

PTO Idler Bracket

Right Hand Pulley

(beneath belt guard)

Deck Idler Pulley Center Pulley

NOTE: Left hand belt cover not shown for clarity. Self-Tapping Screws

Figure 12

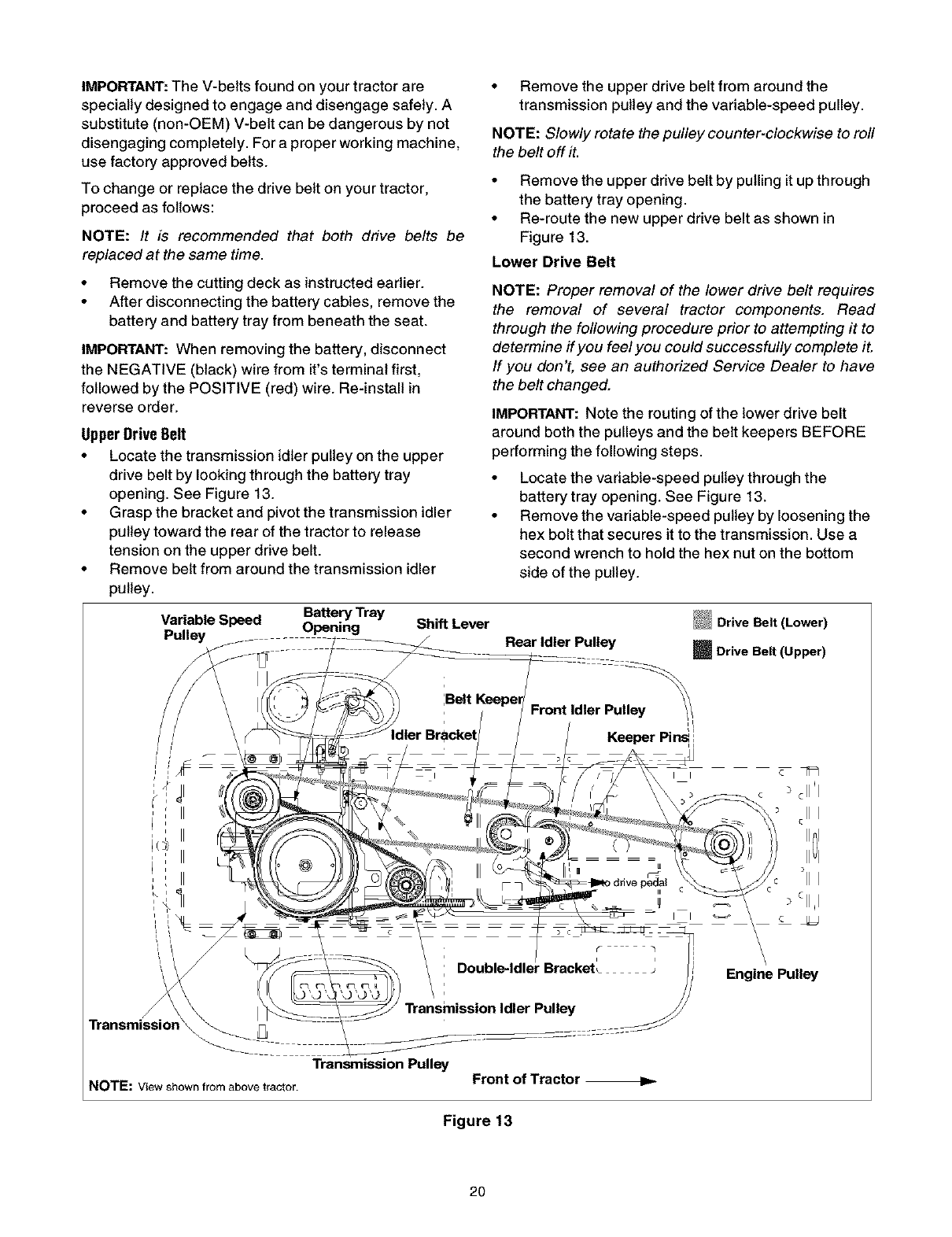

IMPORTANT:The V-belts found on your tractor are

specially designed to engage and disengage safely. A

substitute (non-OEM) V-belt can be dangerous by not

disengaging completely. For a proper working machine,

use factory approved belts.

To change or replace the drive belt on your tractor,

proceed as follows:

NOTE: It is recommended that both drive belts be

replaced at the same time.

• Remove the upper drive belt from around the

transmission pulley and the variable-speed pulley.

NOTE: Slowly rotate the pulley counter-clockwise to roll

the belt off it.

• Remove the upper drive belt by pulling it up through

the battery tray opening.

• Re-route the new upper drive belt as shown in

Figure 13.

Lower Drive Belt

• Remove the cutting deck as instructed earlier.

• After disconnecting the battery cables, remove the

battery and battery tray from beneath the seat.

IMPORTANT: When removing the battery, disconnect

the NEGATIVE (black) wire from it's terminal firsL

followed by the POSITIVE (red) wire. Re-install in

reverse order.

UpperDrive Belt

• Locate the transmission idler pulley on the upper

drive belt by looking through the battery tray

opening. See Figure 13.

• Grasp the bracket and pivot the transmission idler

pulley toward the rear of the tractor to release

tension on the upper drive belt.

• Remove belt from around the transmission idler

pulley.

NOTE: Proper removal of the lower drive belt requires

the removal of several tractor components. Read

through the following procedure prior to attempting it to

determine if you feel you could successfully complete it.

If you don't, see an authorized Service Dealer to have

the belt changed.

IMPORTANT: Note the routing of the lower drive belt

around both the pulleys and the belt keepers BEFORE

performing the following steps.

• Locate the variable-speed pulley through the

battery tray opening. See Figure 13.

• Remove the variable-speed pulley by loosening the

hex bolt that secures it to the transmission. Use a

second wrench to hold the hex nut on the bottom

side of the pulley.

Battery Tray

Variable Speed Opening Shift Lever

Pulley Rear Idler Pulley

Drive Belt (Lower)

Drive Belt (Upper)

Keeper PinsI

I I

Engine Pulley

Transmissio_

Transmission Pulley Front of Tractor

NOTE: V_ewshownfrom above tractor.

Figure 13

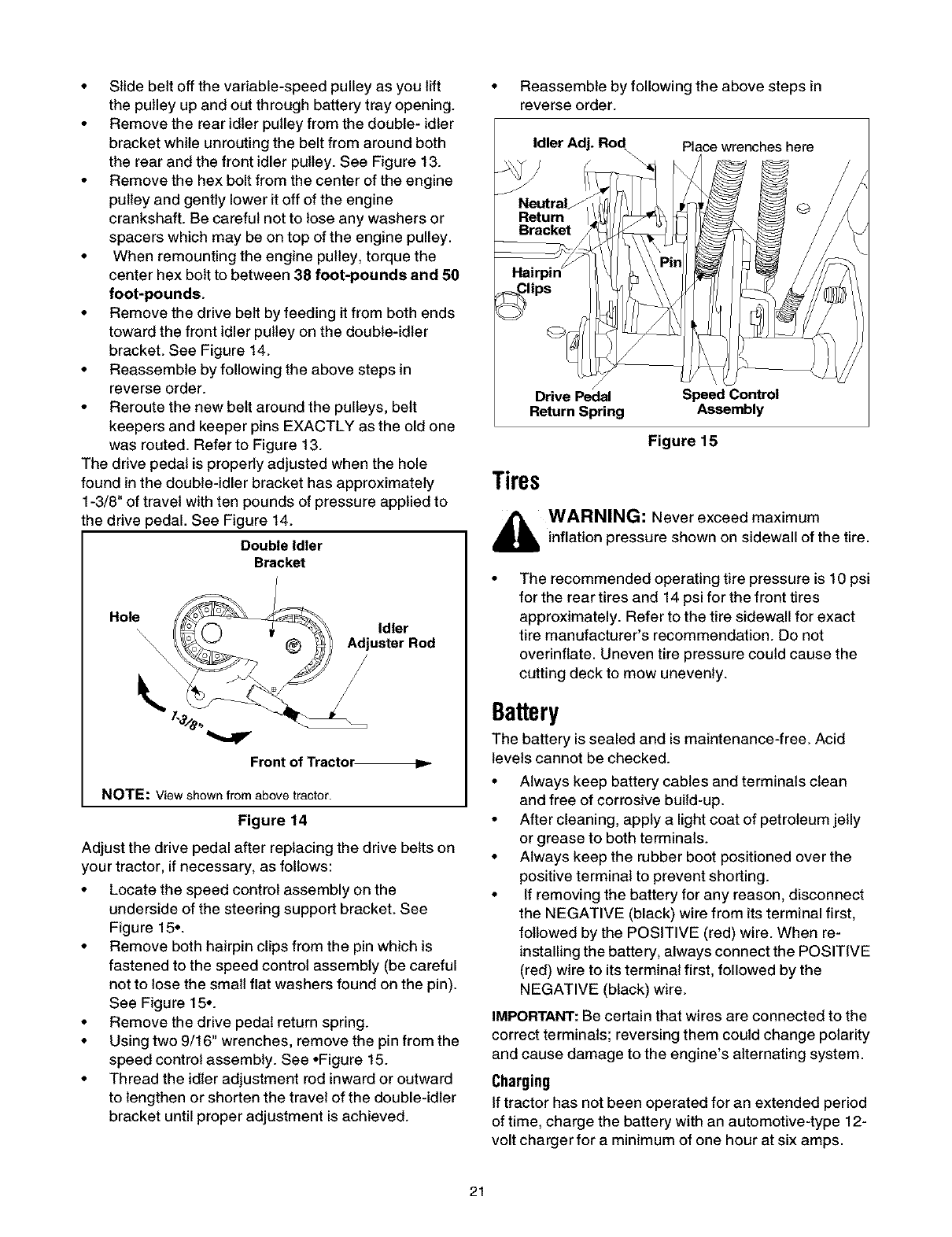

• Slide belt off the variable-speed pulley as you lift

the pulley up and out through battery tray opening.

• Remove the rear idler pulley from the double- idler

bracket while unrouting the belt from around both

the rear and the front idler pulley. See Figure 13.

• Remove the hex bolt from the center of the engine

pulley and gently lower it off of the engine

crankshaft. Be careful not to lose any washers or

spacers which may be on top of the engine pulley.

• When remounting the engine pulley, torque the

center hex bolt to between 38 foot-pounds and 50

foot-pounds.

• Remove the drive belt by feeding it from both ends

toward the front idler pulley on the double-idler

bracket. See Figure 14.

• Reassemble by following the above steps in

reverse order.

• Reroute the new belt around the pulleys, belt

keepers and keeper pins EXACTLY as the old one

was routed. Refer to Figure 13.

The drive pedal is properly adjusted when the hole

found in the double-idler bracket has approximately

1-3/8" of travel with ten pounds of pressure applied to

the drive pedal. See Figure 14.

Double Idler

Bracket

Frontof Tractor_

NOTE: View shown from above tractor.

Figure 14

Adjust the drive pedal after replacing the drive belts on

your tractor, if necessary, as follows:

• Locate the speed control assembly on the

underside of the steering support bracket. See

Figure 15..

• Remove both hairpin clips from the pin which is

fastened to the speed control assembly (be careful

not to lose the small flat washers found on the pin).

See Figure 15..

• Remove the drive pedal return spring.

• Using two 9/16" wrenches, remove the pin from the

speed control assembly. See .Figure 15.

• Thread the idler adjustment rod inward or outward

to lengthen or shorten the travel of the double-idler

bracket until proper adjustment is achieved.

• Reassemble by following the above steps in

reverse order.

Idler Adj. Rod Place wrenches here

Drive Pedal Speed Control

Return Spring Assembly

Figure 15

Tires

,_ WARNING: Never exceed maximum

inflation pressure shown on sidewall of the tire.

The recommended operating tire pressure is 10 psi

for the rear tires and 14 psi for the front tires

approximately. Refer to the tire sidewall for exact

tire manufacturer's recommendation. Do not

overinflate. Uneven tire pressure could cause the

cutting deck to mow unevenly.

Battery

The battery is sealed and is maintenance-free. Acid

levels cannot be checked.

• Always keep battery cables and terminals clean

and free of corrosive build-up.

• After cleaning, apply a light coat of petroleum jelly

or grease to both terminals.

• Always keep the rubber boot positioned over the

positive terminal to prevent shorting.

• If removing the battery for any reason, disconnect

the NEGATIVE (black) wire from its terminal first,

followed by the POSITIVE (red) wire. When re-

installing the battery, always connect the POSITIVE

(red) wire to its terminal first, followed by the

NEGATIVE (black) wire.

IMPORTANT: Be certain that wires are connected to the

correct terminals; reversing them could change polarity

and cause damage to the engine's alternating system.

Charging

If tractor has not been operated for an extended period

of time, charge the battery with an automotive-type 12-

volt charger for a minimum of one hour at six amps.

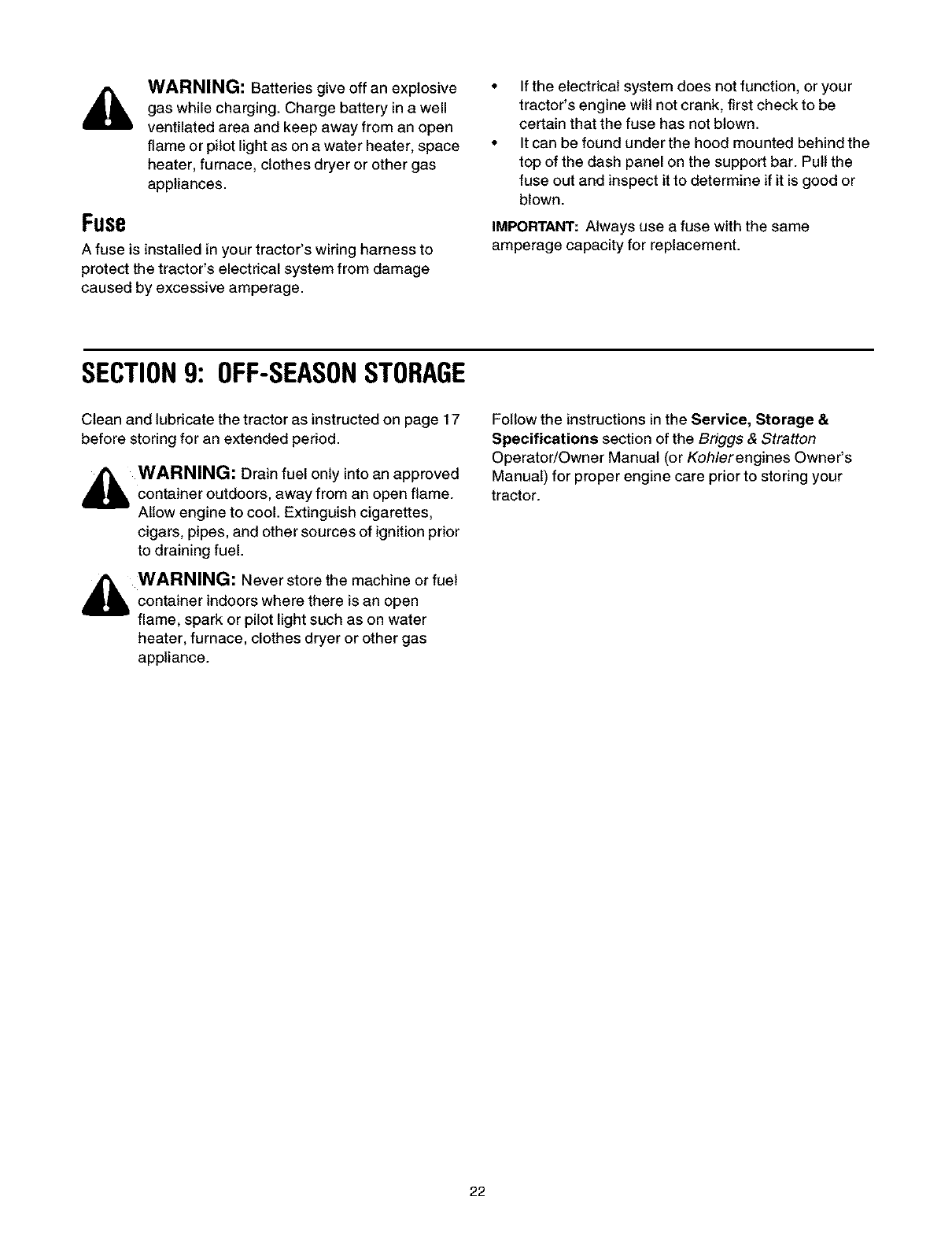

WARNING: Batteries give off an explosive •

gas while charging. Charge battery in a well

ventilated area and keep away from an open

flame or pilot light as on a water heater, space "

heater, furnace, clothes dryer or other gas

appliances.

Fuse

A fuse is installed in your tractor's wiring harness to

protect the tractor's electrical system from damage

caused by excessive amperage.

If the electrical system does not function, or your

tractor's engine will not crank, first check to be

certain that the fuse has not blown.

It can be found under the hood mounted behind the

top of the dash panel on the support bar. Pull the

fuse out and inspect it to determine if it is good or

blown.

IMPORTANT: Always use a fuse with the same

amperage capacity for replacement.

SECTION9: OFF-SEASONSTORAGE

Clean and lubricate the tractor as instructed on page 17

before storing for an extended period.

_b WARNING: Drain fuel only into an approved

container outdoors, away from an open flame.

Allow engine to cool. Extinguish cigarettes,

cigars, pipes, and other sources of ignition prior

to draining fuel.

4_ WARNING: Never store the machine or fuel

container indoors where there is an open

flame, spark or pilot light such as on water

heater, furnace, clothes dryer or other gas

appliance.

Follow the instructions in the Service, Storage &

Specifications section of the Briggs &Sfratton

Operator/Owner Manual (or Koh/erengines Owner's

Manual) for proper engine care prior to storing your

tractor.

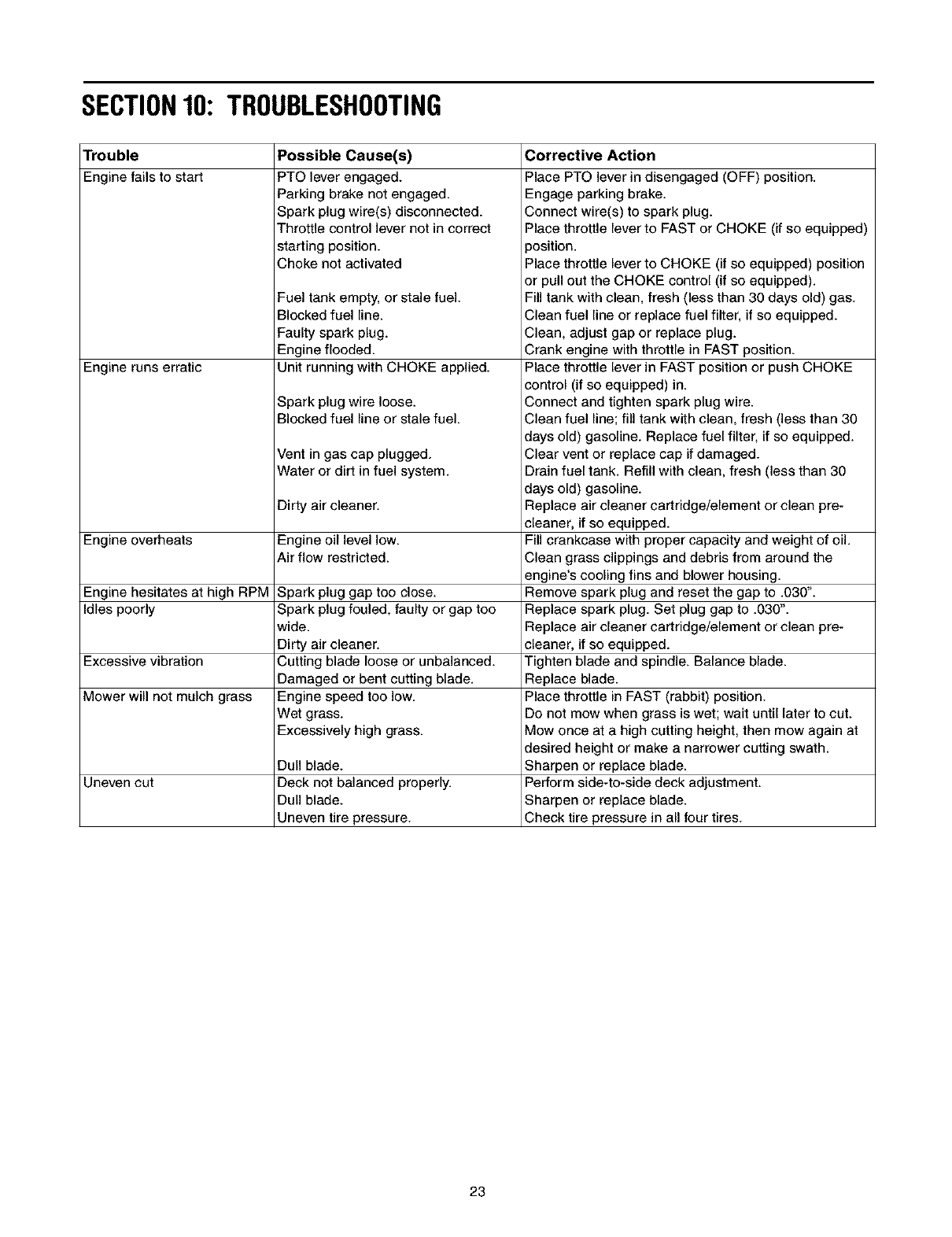

SECTION10: TROUBLESHOOTING

Trouble

Engine fails to start

Engine runs erratic

Possible Cause(s)

PTO lever engaged.

Parking brake not engaged.

Spark plug wire(s) disconnected.

Throttle control lever not in correct

starting position.

Choke not activated

Fuel tank empty, or stale fuel.

Blocked fuel line.

Faulty spark plug.

Engine flooded.

Unit running with CHOKE applied.

Spark plug wire loose.

Blocked fuel line or stale fuel.

Vent in gas cap plugged.

Water or dirt in fuel system.

Dirty air cleaner.

Engine overheats Engine oil level low.

Air flow restricted.

Engine hesitates at high RPM Spark plug gap too close.

Idles poorly Spark plug fouled, faulty or gap too

wide.

Dirty air cleaner.

Excessive vibration Cutting blade loose or unbalanced.

Damaged or bent cutting blade.

Mower will not mulch grass Engine speed too low.

Wet grass.

Excessively high grass.

Dull blade.

Uneven cut Deck not balanced properly.

Dull blade.

Uneven tire pressure.

Corrective Action

Place PTO lever in disengaged (OFF) position.

Engage parking brake.

Connect wire(s) to spark plug.

Place throttle lever to FAST or CHOKE (if so equipped)

position.

Place throttle lever to CHOKE (if so equipped) position

or pull out the CHOKE control (if so equipped).

Fill tank with clean, fresh (less than 30 days old) gas.

Clean fuel line or replace fuel filter, if so equipped.

Clean, adjust gap or replace plug.

Crank engine with throttle in FAST position.

Place throttle lever in FAST position or push CHOKE

control (if so equipped) in.

Connect and tighten spark plug wire.

Clean fuel line; fill tank with clean, fresh (less than 30

days old) gasoline. Replace fuel filter, if so equipped.

Clear vent or replace cap if damaged.

Drain fuel tank. Refill with clean, fresh (less than 30

days old) gasoline.

Replace air cleaner cartridge/element or clean pre-

cleaner, if so equipped.

Fill crankcase with proper capacity and weight of oil.

Clean grass clippings and debris from around the

engine's cooling fins and blower housing.

Remove spark plug and reset the gap to .030".

Replace spark plug. Set plug gap to .030".

Replace air cleaner cartridge/element or clean pre-

cleaner, if so equipped.

Tighten blade and spindle. Balance blade.

Replace blade.

Place throttle in FAST (rabbit) position.

Do not mow when grass is wet; wait until later to cut.

Mow once at a high cutting height, then mow again at

desired height or make a narrower cutting swath.

Sharpen or replace blade.

Perform side-to-side deck adjustment.

Sharpen or replace blade.

Check tire pressure in all four tires.

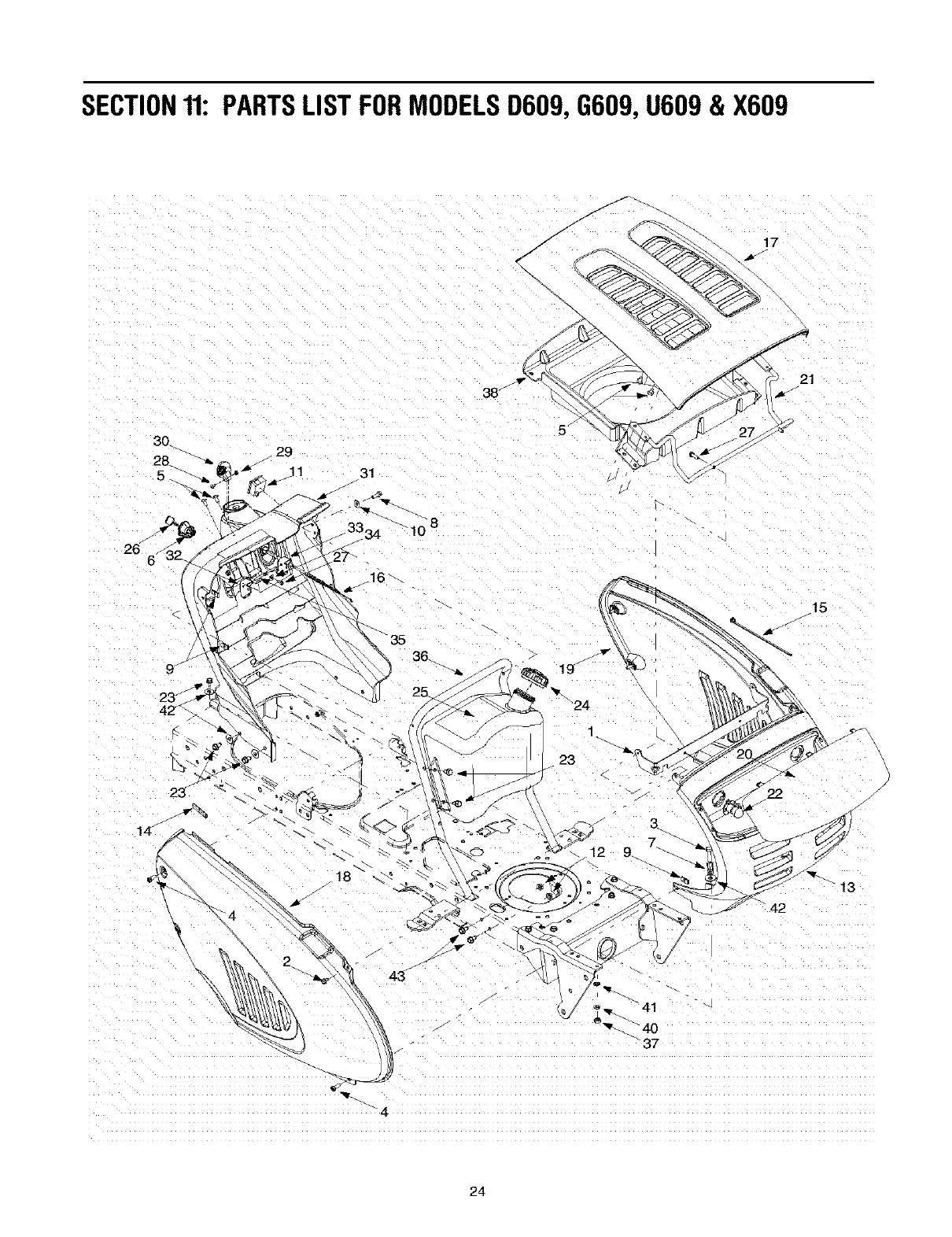

SECTION11:PARTSLISTFORMODELSD609,G609,U609& X609

30 29

28.

5_- 11 31

26 6 '

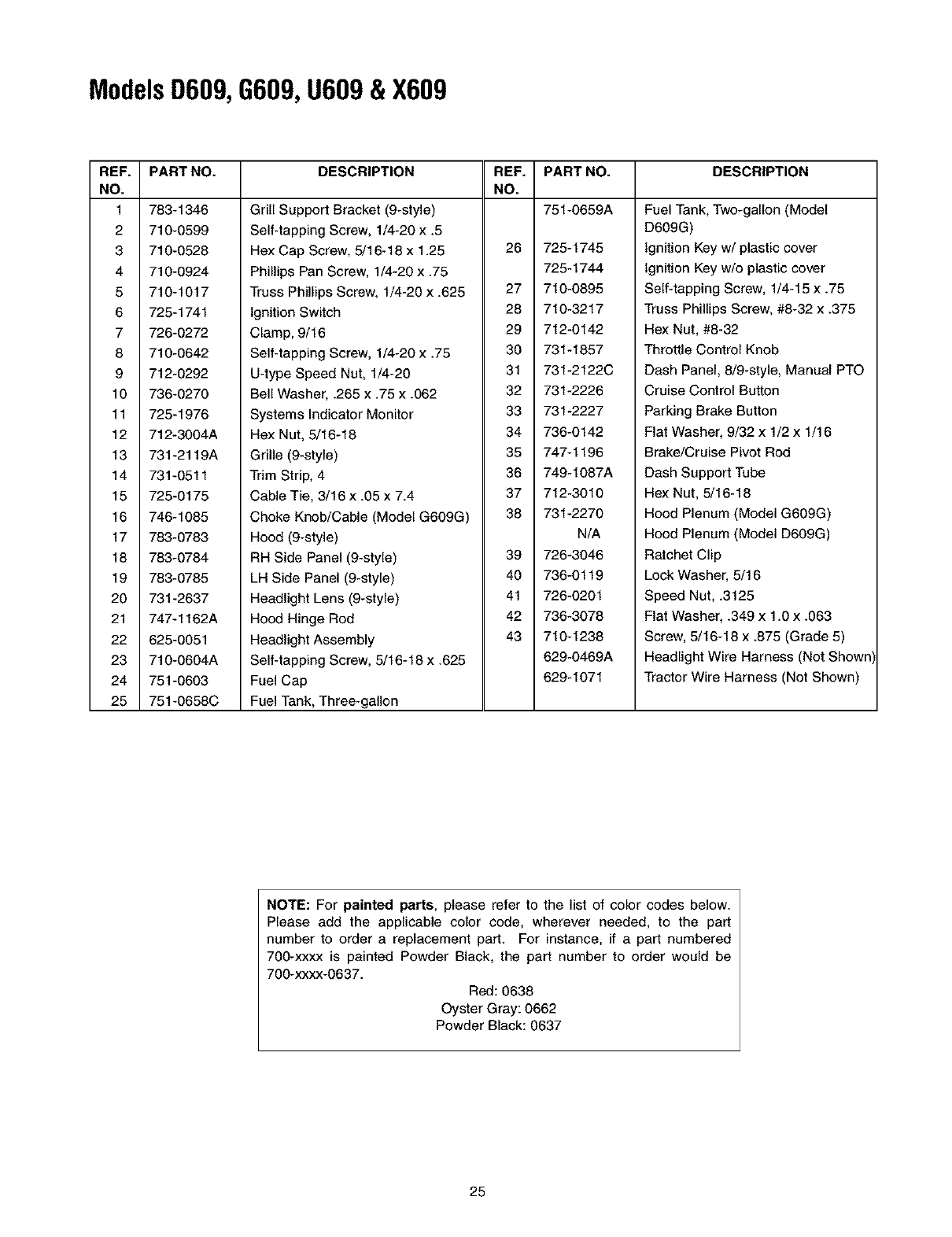

ModelsD609,G609,U609&X609

REF. PART NO.

NO.

1 783-1346

2 710-0599

3 710-0528

4 710-0924

5 710-1017

6 725-1741

7 726-0272

8 710-0642

9 712-0292

10 736-0270

11 725-1976

12 712-3004A

13 731-2119A

14 731-0511

15 725-0175

16 746-1085

17 783-0783

18 783-0784

19 783-0785

20 731-2637

21 747-1162A

22 625-0051

23 710-0604A

24 751-0603

25 751-0658C

DESCRIPTION REF. PART NO.

NO.

Grill Support Bracket (9-style) 751-0659A

Self-tapping Screw, 1/4-20 x .5

Hex Cap Screw, 5/16-18 x 1.25 26 725-1745

Phillips Pan Screw, 1/4-20 x .75 725-1744

Truss Phillips Screw, 1/4-20 x .625 27 710-0895

Ignition Switch 28 710-3217

Clamp, 9/16 29 712-0142

Self-tapping Screw, 1/4-20 x .75 30 731-1857

U4ype Speed Nut, 1/4-20 31 731-2122C

Bell Washer, .265 x .75 x .062 32 731-2226

Systems Indicator Monitor 33 731-2227

Hex Nut, 5/16-18 34 736-0142

Grille (9-style) 35 747-1196

Trim Strip, 4 36 749-1087A

Cable Tie, 3/16 x .05 x 7.4 37 712-3010

Choke Knob/Cable (Model G609G) 38 731-2270

Hood (9-style) N/A

RH Side Panel (9-style) 39 726-3046

LH Side Panel (9-style) 40 736-0119

Headlight Lens (9-style) 41 726-0201

Hood Hinge Rod 42 736-3078

Headlight Assembly 43 710-1238

Self-tapping Screw, 5/16-18 x .625 629-0469A

Fuel Cap 629-1071

Fuel Tank, Three-gallon

DESCRIPTION

Fuel Tank, Two-gallon (Model

D609G)

Ignition Key w/plastic cover

Ignition Key w/o plastic cover

Self-tapping Screw, 1/4-15 x .75

Truss Phillips Screw, #8-32 x .375

Hex Nut, #8-32

Throttle Control Knob

Dash Panel, 8/9-style, Manual PTO

Cruise Control Button

Parking Brake Button

Flat Washer, 9/32 x 1/2 x 1/16

Brake/Cruise Pivot Rod

Dash Support Tube

Hex Nut, 5/16-18

Hood Plenum (Model G609G)

Hood Plenum (Model D609G)

Ratchet Clip

Lock Washer, 5/16

Speed Nut, .3125

Flat Washer, .349 x 1.0 x .063

Screw, 5/16-18 x .875 (Grade 5)

Headlight Wire Harness (Not Shown

Tractor Wire Harness (Not Shown)

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

ModelsD609,G609,U609&X609

48. 37

-6

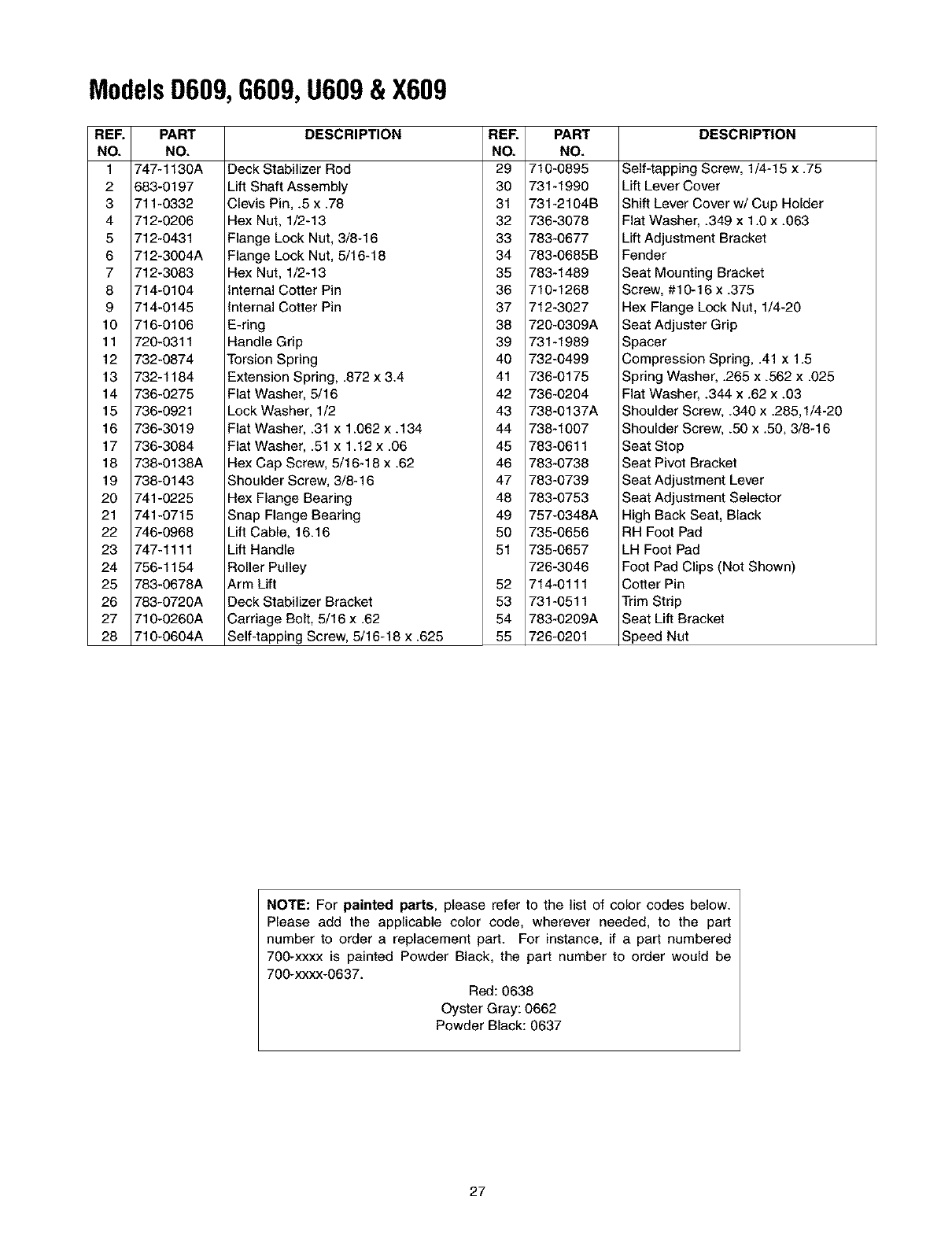

ModelsD609,G609,U609&X609

REE PART

NO. NO.

1 747-1130A

2 683-0197

3 711-0332

4 712-0206

5 712-0431

6 712-3004A

7 712-3083

8 714-0104

9 714-0145

10 716-0106

11 720-0311

12 732-0874

13 732-1184

14 736-0275

15 736-0921

16 736-3019

17 736-3084

18 738-0138A

19 738-0143

20 741-0225

21 741-0715

22 746-0968

23 747-1111

24 756-1154

25 783-0678A

26 783-0720A

27 710-0260A

28 710-0604A

DESCRIPTION REP. PART

NO. NO.

Deck Stabilizer Rod 29 710-0895

Lift Shaft Assembly 30 731-1990

Clevis Pin, .5 x .78 31 731-2104B

Hex Nut, 1/2-13 32 736-3078

Flange Lock Nut, 3/8-16 33 783-0677

Flange Lock Nut, 5/16-18 34 783-0685B

Hex Nut, 1/2-13 35 783-1489

Internal Cotter Pin 36 710-1268

Internal Cotter Pin 37 712-3027

E-ring 38 720-0309A

Handle Grip 39 731-1989

Torsion Spring 40 732-0499

Extension Spring, .872 x 3.4 41 736-0175

Flat Washer, 5/16 42 736-0204

Lock Washer, 1/2 43 738-0137A

Flat Washer, .31 x 1.062 x .134 44 738-1007

Flat Washer, .51 x 1.12 x .06 45 783-0611

Hex Cap Screw, 5/16-18 x .62 46 783-0738

Shoulder Screw, 3/8-16 47 783-0739

Hex Flange Bearing 48 783-0753

Snap Flange Bearing 49 757-0348A

Lift Cable, 16.16 50 735-0656

Lift Handle 51 735-0657

Roller Pulley 726-3046

Arm Lift 52 714-0111

Deck Stabilizer Bracket 53 731-0511

Carriage Bolt, 5/16 x .62 54 783-0209A

Self-tapping Screw, 5/16-18 x.625 55 726-0201

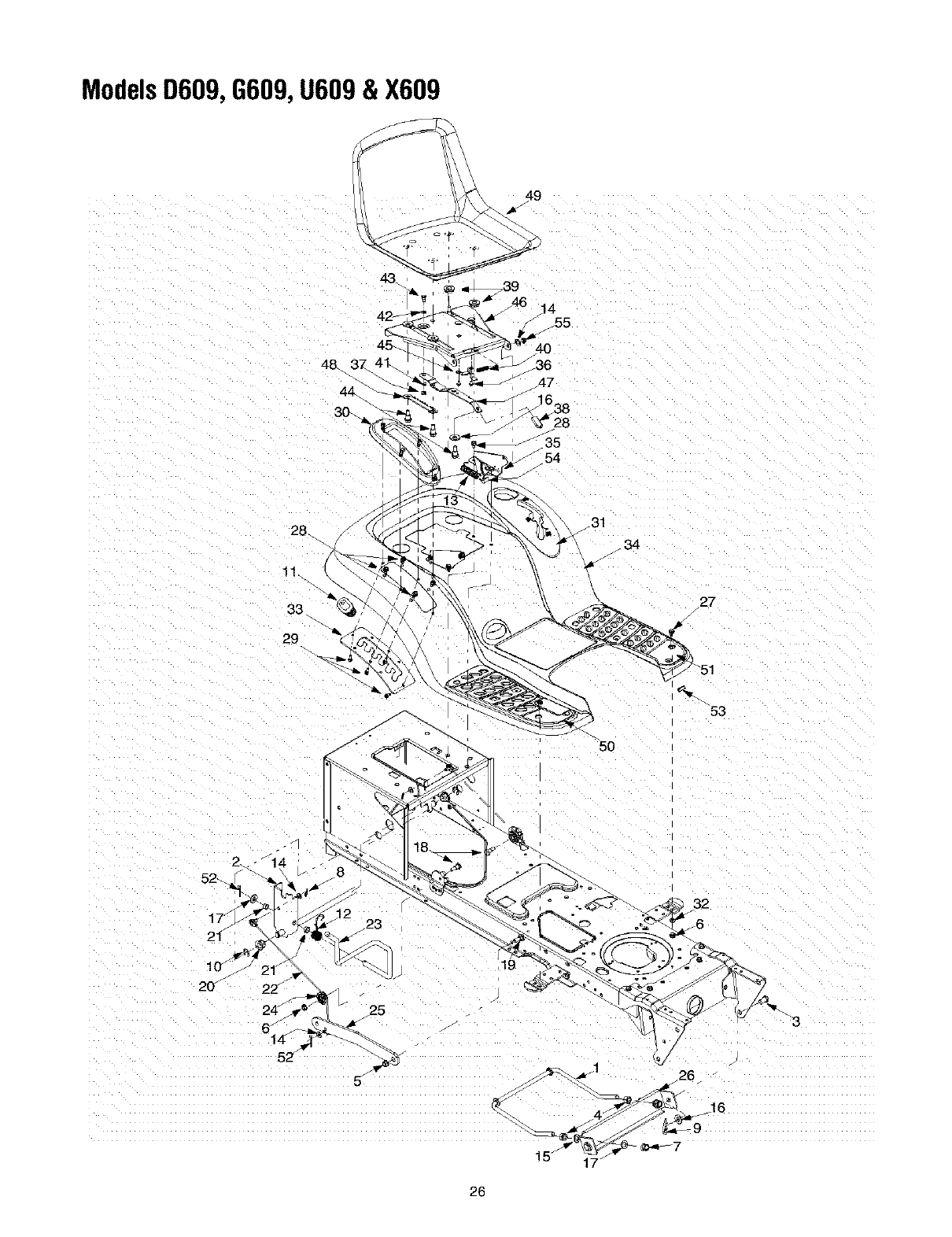

DESCRIPTION

Self-tapping Screw, 1/4-15 x .75

Lift Lever Cover

Shift Lever Cover w/Cup Holder

Flat Washer, .349 x 1.0 x .063

Lift Adjustment Bracket

Fender

Seat Mounting Bracket

Screw, #10-16 x .375

Hex Flange Lock Nut, 1/4-20

Seat Adjuster Grip

Spacer

Compression Spring, .41 x 1.5

Spring Washer, .265 x .562 x .025

Flat Washer, .344 x .62 x .03

Shoulder Screw, .340 x .285,1/4-20

Shoulder Screw, .50 x .50, 3/8-16

Seat Stop

Seat Pivot Bracket

Seat Adjustment Lever

Seat Adjustment Selector

High Back Seat, Black

RH Foot Pad

LH Foot Pad

Foot Pad Clips (Not Shown)

Cotter Pin

Trim Strip

Seat Lift Bracket

Speed Nut

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

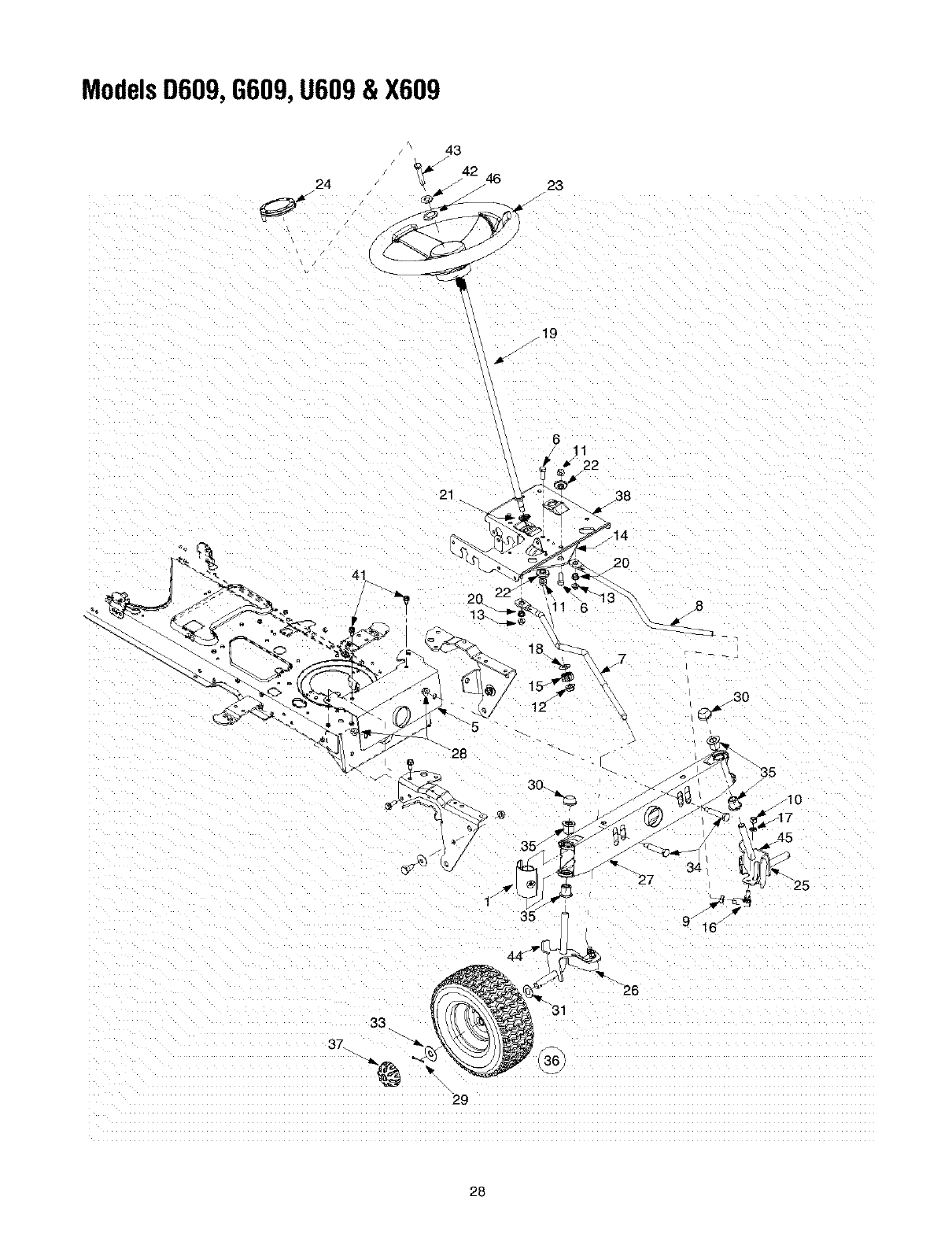

ModelsD609,G609,U609&X609

24 f

42 46 23

21 38

41 20

37,

.30

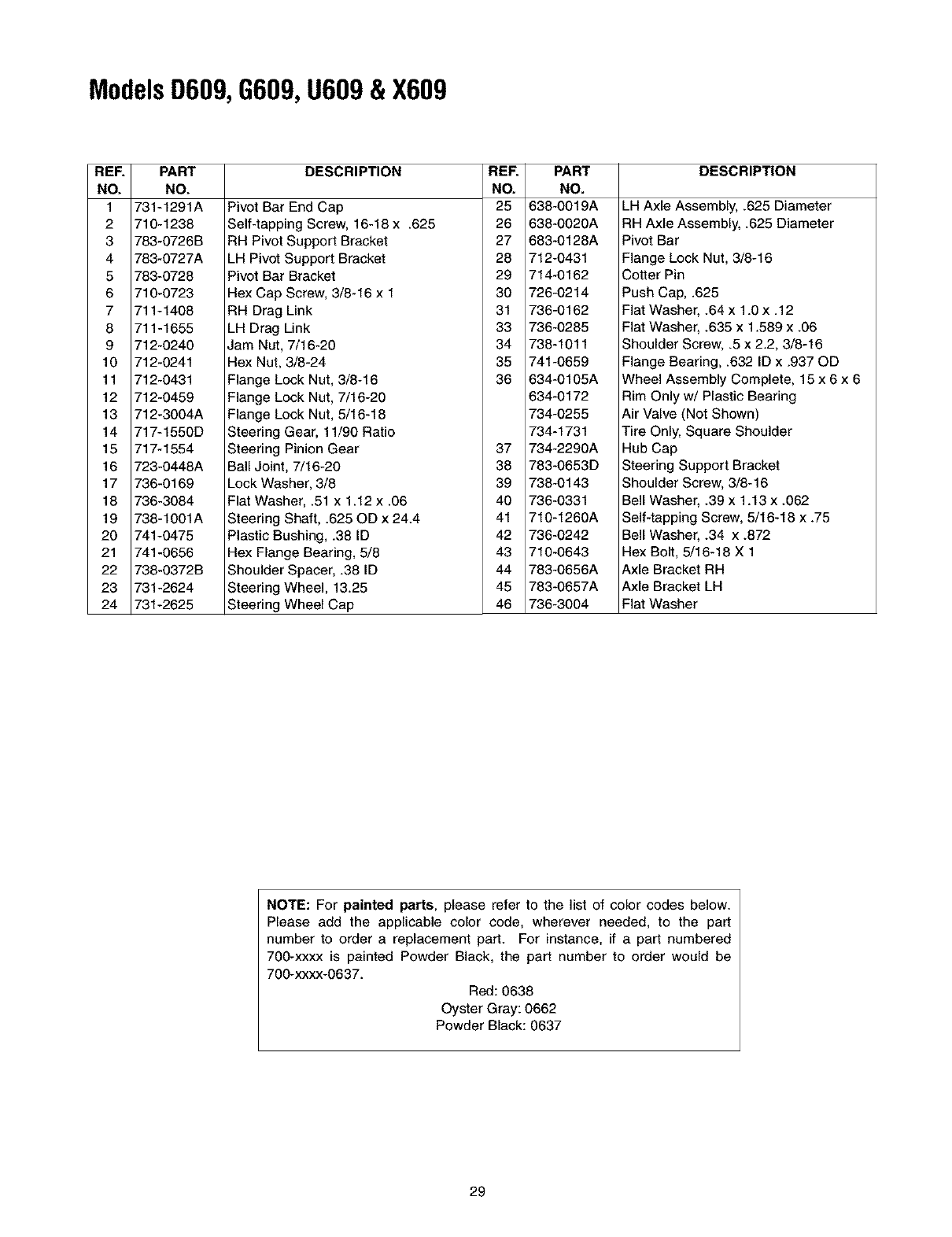

ModelsD609,G609,U609&X609

REF.

NO.

PART

NO.

731-1291A

710-1238

783-0726B

783-0727A

783-0728

710-0723

DESCRIPTION

Pivot Bar End Cap

Self4apping Screw, 16-18 x .625

RH Pivot Support Bracket

LH Pivot Support Bracket

Pivot Bar Bracket

Hex Cap Screw, 3/8-16 x 1

REE PART

NO. NO.

25 638-0019A

26 638-0020A

27 683-0128A

28 712-0431

29 714-0162

30 726-0214

DESCRIPTION

LH Axle Assembly, .625 Diameter

RH Axle Assembly, .625 Diameter

Pivot Bar

Flange Lock Nut, 3/8-16

Cotter Pin

Push Cap, .625

711-1408

711-1655

712-0240

712-0241

712-0431

712-0459

712-3004A

RH Drag Link

LH Drag Link

Jam Nut, 7/16-20

Hex Nut, 3/8-24

Flange Lock Nut, 3/8-16

Flange Lock Nut, 7/16-20

Flange Lock Nut, 5/16-18

31 736-0162

33 736-0285

34 738-1011

35 741-0659

36 634-0105A

634-0172

734-0255

Flat Washer, .64 x 1.0 x .12

Flat Washer, .635 x 1.589 x .06

Shoulder Screw, .5 x 2.2, 3/8-16

Flange Bearing, .632 ID x .937 OD

Wheel Assembly Complete, 15 x 6 x 6

Rim Only w/Plastic Bearing

Air Valve (Not Shown)

717-1550D

717-1554

723-0448A

736-0169

736-3084

738-1001A

741-0475

741-0656

738-0372B

731-2624

731-2625

Steering Gear, 11/90 Ratio

Steering Pinion Gear

Ball Joint, 7/16-20

Lock Washer, 3/8

Flat Washer, .51 x 1.12 x .06

Steering Shaft, .625 OD x 24.4

Plastic Bushing, .38 ID

Hex Flange Bearing, 5/8

Shoulder Spacer, .38 ID

Steering Wheel, 13.25

Steering Wheel Cap

734-1731

37 734-2290A

38 783-0653D

39 738-0143

40 736-0331

41 710-1260A

42 736-0242

43 710-0643

44 783-0656A

45 783-0657A

46 736-3004

Tire Only, Square Shoulder

Hub Cap

Steering Support Bracket

Shoulder Screw, 3/8-16

Bell Washer, .39 x 1.13 x .062

Self4apping Screw, 5/16-18 x .75

Bell Washer, .34 x.872

Hex Bolt, 5/16-18 X 1

Axle Bracket RH

Axle Bracket LH

Flat Washer

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

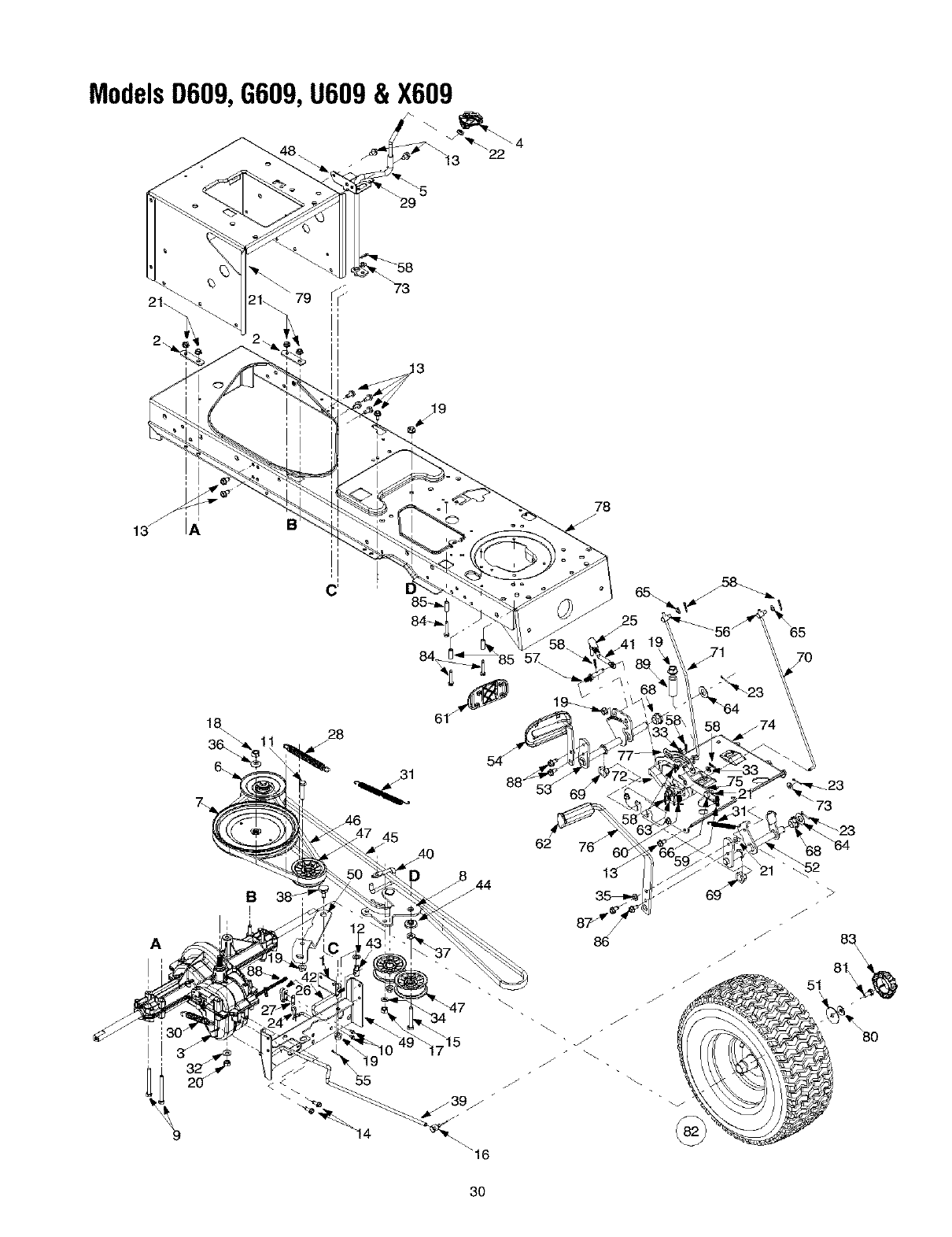

ModelsD609,G609,U609& X609

39j

_16

•73

_-23

8_\\

81\

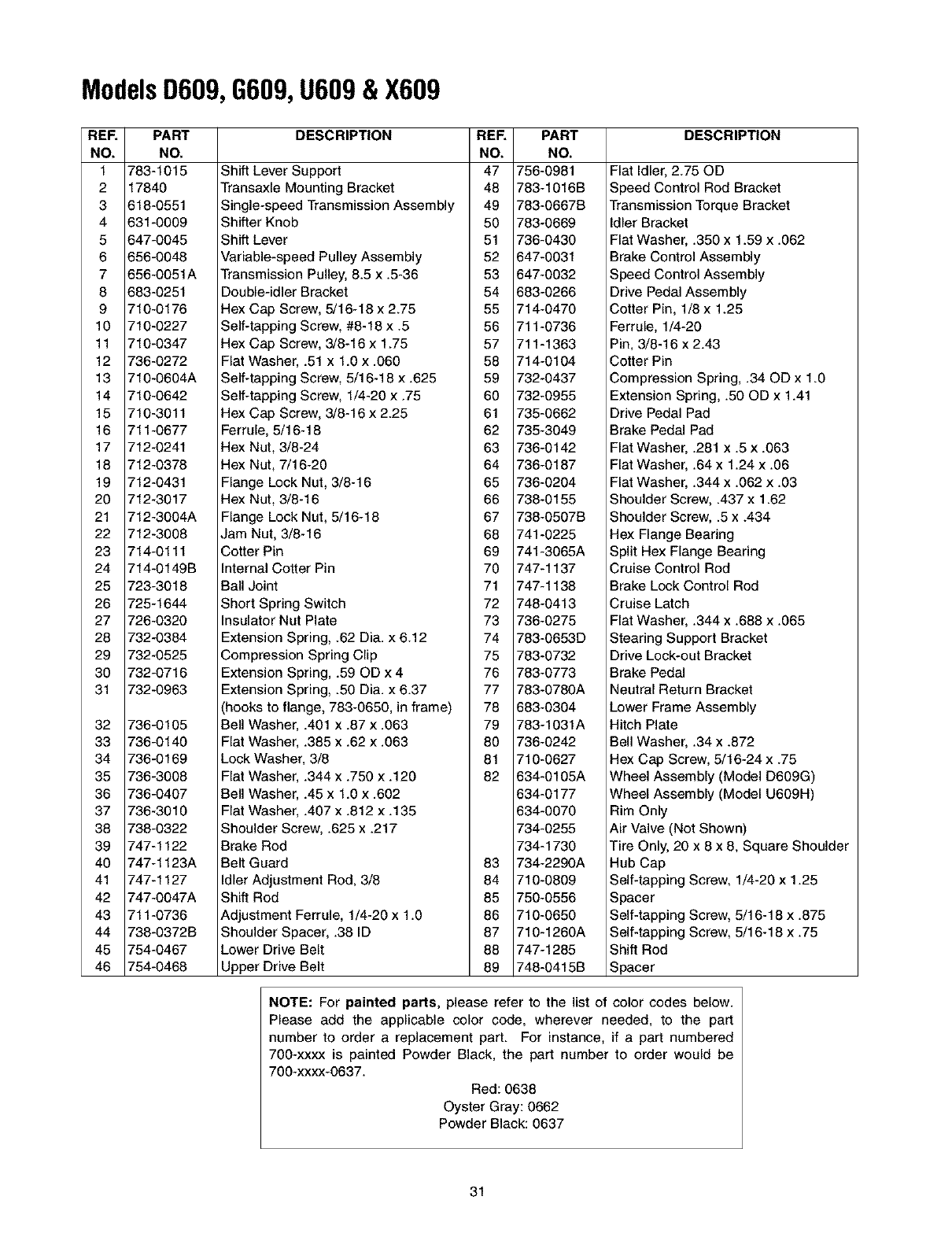

ModelsD609,G609,U609&X609

REE PART

NO. NO.

1 783-1015

2 17840

3 618-0551

4 631-0009

5 647-0045

6 656-0048

7 656-0051A

8 683-0251

9 710-0176

10 710-0227

11 710-0347

12 736-0272

13 710-0604A

14 710-0642

15 710-3011

16 711-0677

17 712-0241

18 712-0378

19 712-0431

20 712-3017

21 712-3004A

22 712-3008

23 714-0111

24 714-0149B

25 723-3018

26 725-1644

27 726-0320

28 732-0384

29 732-0525

30 732-0716

31 732-0963

32 736-0105

33 736-0140

34 736-0169

35 736-3OO8

36 736-0407

37 736-3010

38 738-0322

39 747-1122

40 747-1123A

41 747-1127

42 747-0047A

43 711-0736

44 738-0372B

45 754-0467

46 754-0468

DESCRIPTION

Shift Lever Support

Transaxle Mounting Bracket

Single-speed Transmission Assembly

Shifter Knob

Shift Lever

Variable-speed Pulley Assembly

Transmission Pulley, 8.5 x .5-36

Double-idler Bracket

Hex Cap Screw, 5/16-18 x 2.75

Self-tapping Screw, #8-18 x .5

Hex Cap Screw, 3/8-16 x 1.75

Flat Washer, .51 x 1.0 x .060

Self-tapping Screw, 5/16-18 x .625

Self-tapping Screw, 1/4-20 x .75

Hex Cap Screw, 3/8-16 x 2.25

Ferrule, 5/16-18

Hex Nut, 3/8-24

Hex Nut, 7/16-20

Flange Lock Nut, 3/8-16

Hex Nut, 3/8-16

Flange Lock Nut, 5/16-18

Jam Nut, 3/8-16

Cotter Pin

Internal Cotter Pin

Ball Joint

Short Spring Switch

Insulator Nut Plate

Extension Spring, .62 Dia. x 6.12

Compression Spring Clip

Extension Spring, .59 OD x 4

Extension Spring, .50 Dia. x 6.37

(hooks to flange, 783-0650, in frame)

Bell Washer, .401 x .87 x .063

Flat Washer, .385 x .62 x .063

Lock Washer, 3/8

Flat Washer, .344 x .760 x .120

Bell Washer, .46 x 1.0 x .602

Flat Washer, .407 x .812 x .136

Shoulder Screw, .625 x .217

Brake Rod

Belt Guard

Idler Adjustment Rod, 3/8

Shift Rod

Adjustment Ferrule, 1/4-20 x 1.0

Shoulder Spacer, .38 ID

Lower Drive Belt

Upper Drive Belt

REE PART

NO. NO.

47 756-0981

48 783-1016B

49 783-0667B

50 783-0669

51 736-0430

52 647-0031

53 647-0032

54 683-0266

55 714-0470

56 711-0736

57 711-1363

58 714-0104

59 732-0437

60 732-0955

61 735-0662

62 735-3049

63 736-0142

64 736-0187

65 736-0204

66 738-0155

67 738-0507B

68 741-0225

69 741-3065A

70 747-1137

71 747-1138

72 748-0413

73 736-0275

74 783-0653D

75 783-0732

76 783-0773

77 783-0780A

78 683-0304

79 783-1031A

80 736-0242

81 710-0627

82 634-0105A

634-0177

634-0070

734-0255

734-1730

83 734-2290A

84 710-0809

85 750-0556

86 710-0650

87 710-1260A

88 747-1285

89 748-0415B

DESCRIPTION

Flat Idler, 2.75 OD

Speed Control Rod Bracket

Transmission Torque Bracket

Idler Bracket

Flat Washer, .350 x 1.59 x .062

Brake Control Assembly

Speed Control Assembly

Drive Pedal Assembly

Cotter Pin, 1/8x 1.25

Ferrule, 1/4-20

Pin, 3/8-16 x 2.43

Cotter Pin

Compression Spring, .34 OD x 1.0

Extension Spring, .50 OD x 1.41

Drive Pedal Pad

Brake Pedal Pad

Flat Washer, .281 x .5 x .063

Flat Washer, .64 x 1.24 x .06

Flat Washer, .344 x .062 x .03

Shoulder Screw, .437 x 1.62

Shoulder Screw, .5 x .434

Hex Flange Bearing

Split Hex Flange Bearing

Cruise Control Rod

Brake Lock Control Rod

Cruise Latch

Flat Washer, .344 x .688 x .065

Stearing Support Bracket

Drive Lock-out Bracket

Brake Pedal

Neutral Return Bracket

Lower Frame Assembly

Hitch Plate

Bell Washer, .34 x .872

Hex Cap Screw, 5/16-24 x .75

Wheel Assembly (Model D609G)

Wheel Assembly (Model U609H)

Rim Only

Air Valve (Not Shown)

Tire Only, 20 x 8 x 8, Square Shoulder

Hub Cap

Self-tapping Screw, 1/4-20 x 1.25

Spacer

Self-tapping Screw, 5/16-18 x .875

Self-tapping Screw, 5/16-18 x .75

Shift Rod

Spacer

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

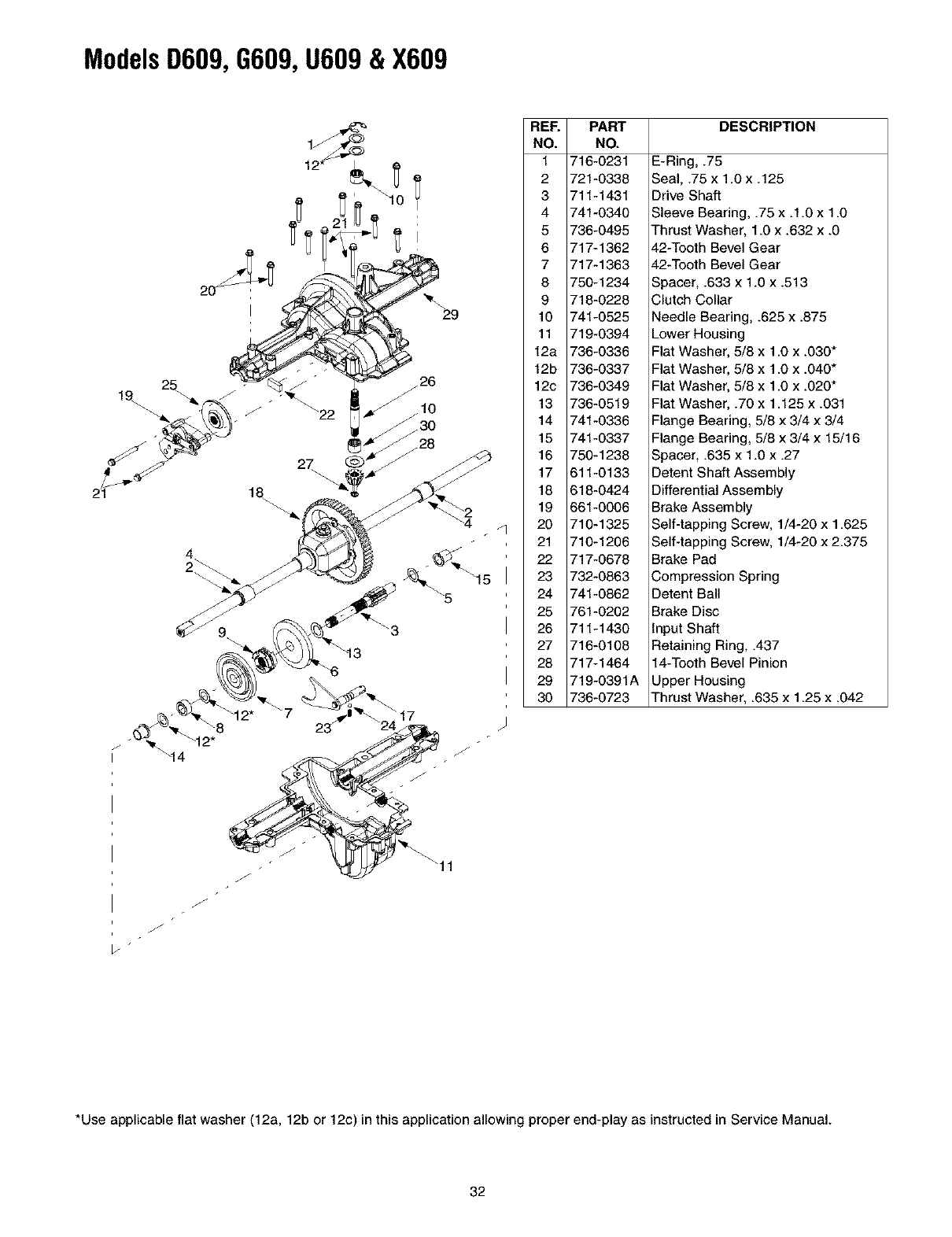

ModelsD609,G609,U609& X609

REE PART

NO. NO.

1 716-0231

2 721-0338

3 711-1431

4 741-0340

5 736-0495

6 717-1362

7 717-1363

8 750-1234

9 718-0228

10 741-0525

11 719-0394

12a 736-0336

12b 736-0337

12c 736-0349

13 736-0519

14 741-0336

15 741-0337

16 750-1238

17 611-0133

18 618-0424

19 661-0006

20 710-1325

21 710-1206

22 717-0678

23 732-0863

24 741-0862

25 761-0202

26 711-1430

27 716-0108

28 717-1464

29 719-0391A

30 736-0723

DESCRIPTION

E-Ring, .75

Seal, .75 x 1.0 x .125

Drive Shaft

Sleeve Bearing, .75 x .1.0 x 1.0

Thrust Washer, 1.0 x .632 x .0

42-Tooth Bevel Gear

Spacer, .633 x 1.0 x .513

Clutch Collar

Needle Bearing, .625 x .875

Lower Housing

Flat Washer, 5/8 x 1.0 x .030*

Flat Washer, 5/8 x 1.0 x .040*

Flat Washer, 5/8 x 1.0 x .020*

Flat Washer, .70 x 1.125 x .031

Flange Bearing, 5/8 x 3/4 x 3/4

Flange Bearing, 5/8 x 3/4 x 15/16

Spacer, .635 x 1.0 x .27

Detent Shaft Assembly

Differential Assembly

Brake Assembly

Self-tapping Screw, 1/4-20 x 1.625

Self-tapping Screw, 1/4-20 x 2.375

Brake Pad

Compression Spring

Detent Ball

Brake Disc

Input Shaft

Retaining Ring, .437

14-Tooth Bevel Pinion

Upper Housing

Thrust Washer, .635 x 1.25 x .042

j "

*Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in Service Manual.

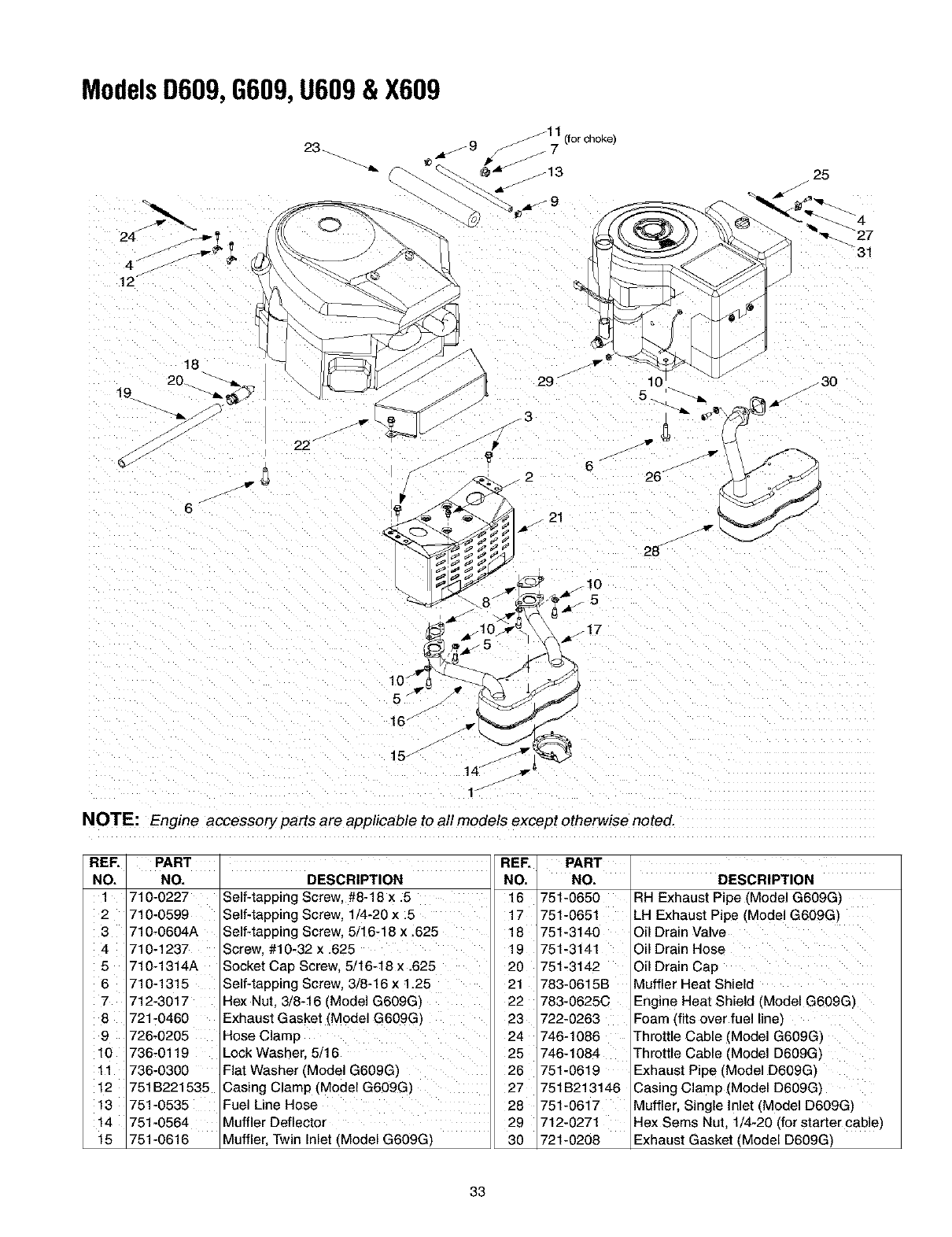

ModelsD609,G609,U609&X609

I (for choke)

_13

NOTE: Engine accessory parts are applicable to all models except otherwise noted.

REF.

NO.

PART

NO. DESCRIPTION

710-0227

710-0599

710-0604A

710-1237

710-1314A

710-1315

712-3017

721-0460

726-0205

736-0119

736-0300

751 B221535

751-0535

751-0564

751-0616

REP.

NO.

Self-tapping Screw, #8-18 x .5 16

Self-tapping Screw, 1/4-20 x .5 17

Self-tapping Screw, 5/16-18 x .625 18

Screw, #10-32 x .625 , 19

Socket Cap Screw, 5/16-18 x .625 20

Self-tapping Screw, 3/8-16 x 1.25 21

Hex Nut, 3/8-16 (Model G609G) 22

Exhaust Gasket (Model G609G) 23

Hose Clamp 24

Lock Washer, 5/16 25

Flat Washer (Model G609G) 26

Casing Clamp (Model G609G) 27

Fuel Line Hose 28

Muffler Deflector 29

Muffler, Twin Inlet (Model G609G) 30

751-0650

751-0651

751-3140

751-3141

751-3142

783-0615B

783-0625C

722-0263

746-1086

746-1084

751-0619

751B213146

751-0617

712-0271

721-0208

PART

NO. DESCRIPTION

RH Exhaust Pipe (Model G609G)

LH Exhaust Pipe (Model G609G)

Oil Drain Valve

Oil Drain Hose

Oil Drain Cap

Muffler Heat Shield

Engine Heat Shield (Model G609G)

Foam (fits over fuel line)

Throttle Cable (Model G609G)

Throttle Cable (Model D609G)

Exhaust Pipe (Model D609G)

Casing Clamp (Model D609G)

Muffler, Single Inlet (Model D609G)

Hex Sems Nut, 1/4-20 (for starter cable)

Exhaust Gasket (Model D609G)

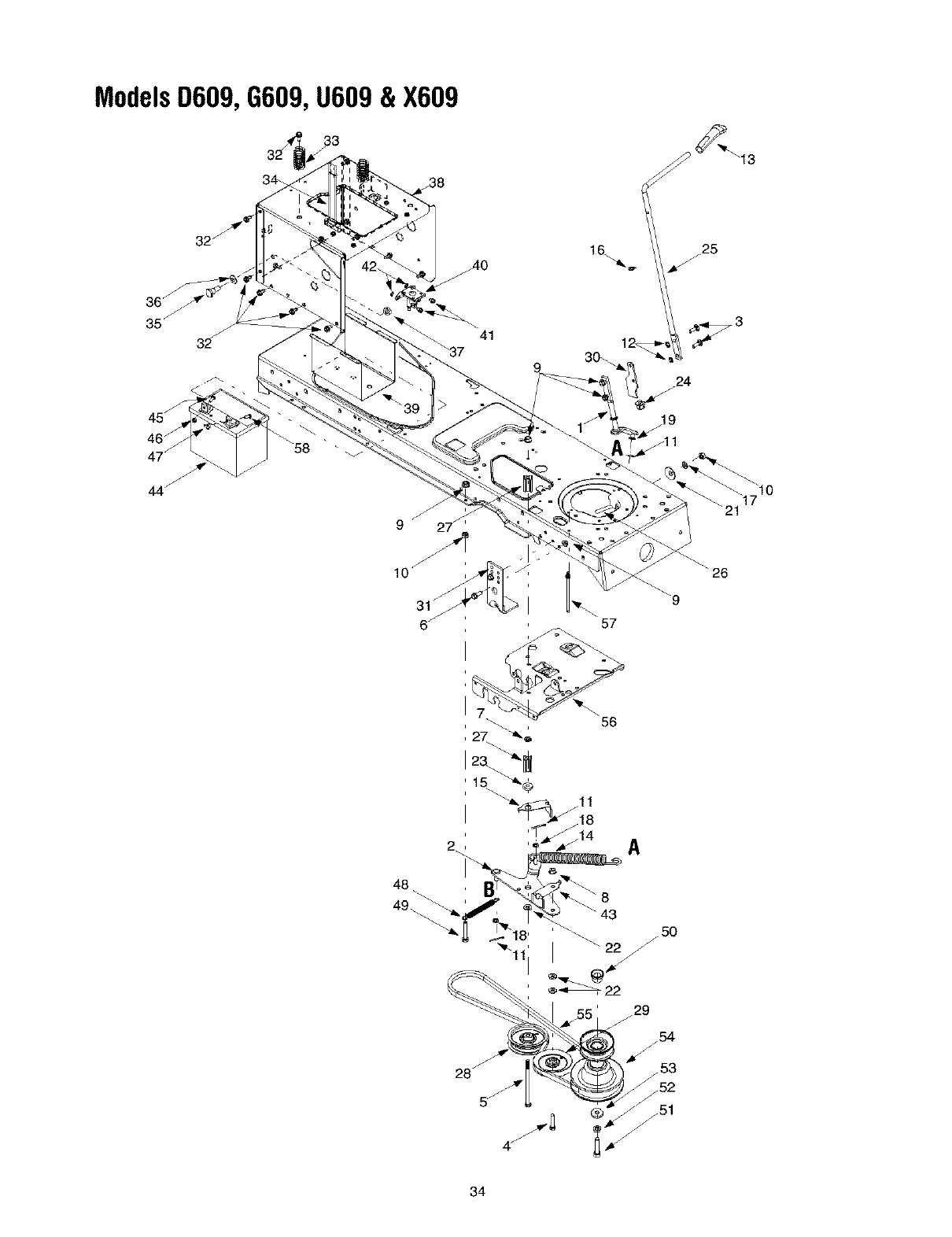

ModelsD609,G609,U609& X609

34_ _38

16. 25

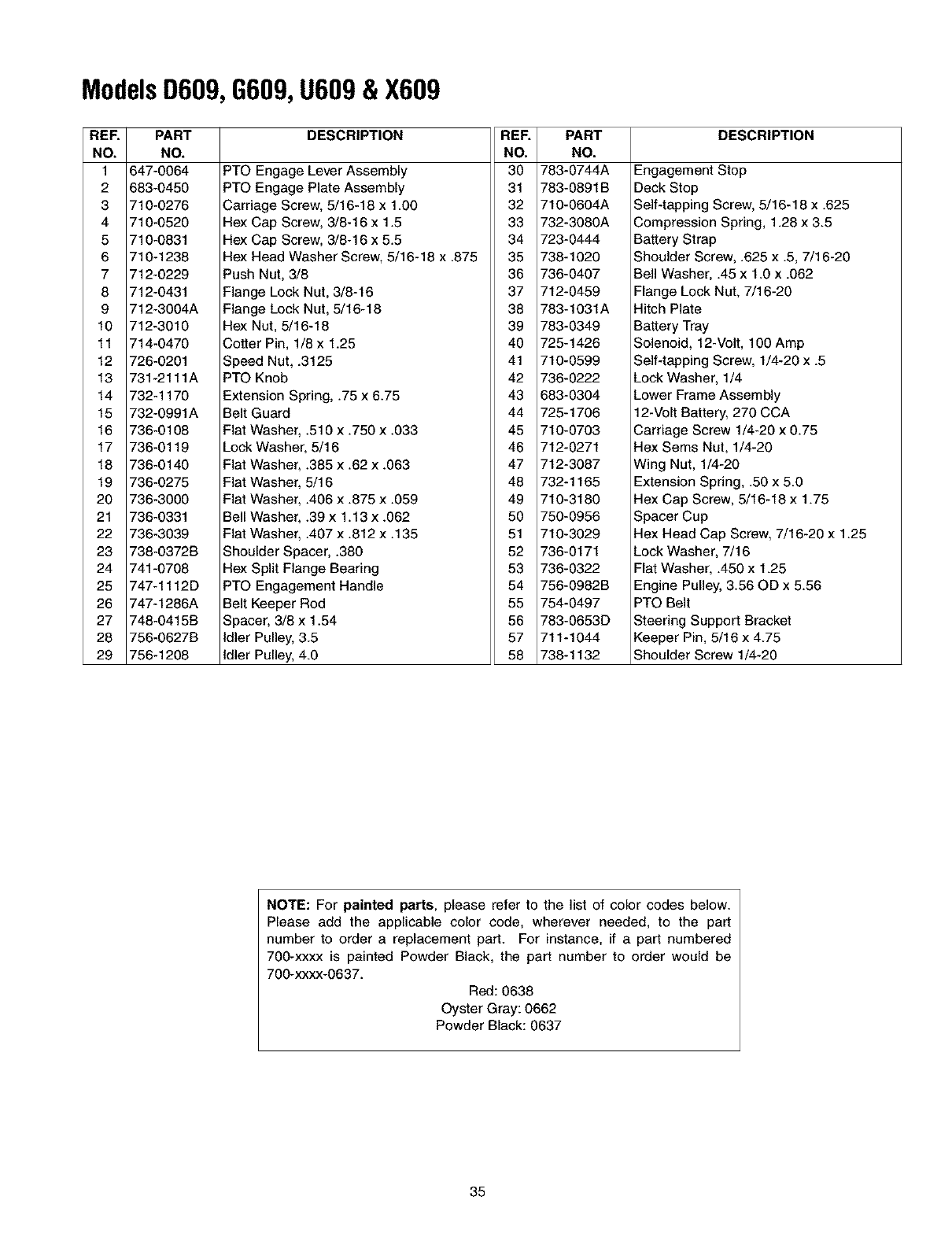

ModelsD609,G609,U609&X609

REE PART

NO. NO.

1 647-0064

2 683-0450

3 710-0276

4 710-0520

5 710-0831

6 710-1238

7 712-0229

8 712-0431

9 712-3004A

10 712-3010

11 714-0470

12 726-0201

13 731-2111A

14 732-1170

15 732-0991A

16 736-0108

17 736-0119

18 736-0140

19 736-0275

20 736-3000

21 736-0331

22 736-3039

23 738-0372B

24 741-0708

25 747-1112D

26 747-1286A

27 748-0415B

28 756-0627B

29 756-1208

DESCRIPTION REF. PART

NO. NO.

PTO Engage Lever Assembly 30 783-0744A

PTO Engage Plate Assembly 31 783-0891B

Carriage Screw, 5/16-18 x 1.00 32 710-0604A

Hex Cap Screw, 3/8-16 x 1.5 33 732-3080A

Hex Cap Screw, 3/8-16 x 5.5 34 723-0444

Hex Head Washer Screw, 5/16-18 x .875 35 738-1020

Push Nut, 3/8 36 736-0407

Flange Lock Nut, 3/8-16 37 712-0459

Flange Lock Nut, 5/16-18 38 783-1031A

Hex Nut, 5/16-18 39 783-0349

Cotter Pin, 1/8 x 1.25 40 725-1426

Speed Nut, .3125 41 710-0599

PTO Knob 42 736-0222

Extension Spring, .75 x 6.75 43 683-0304

Belt Guard 44 725-1706

Flat Washer, .510 x .750 x .033 45 710-0703

Lock Washer, 5/16 46 712-0271

Flat Washer, .385 x .62 x .063 47 712-3087

Flat Washer, 5/16 48 732-1165

Flat Washer, .406 x .875 x .059 49 710-3180

Bell Washer, .39 x 1.13 x .062 50 750-0956

Flat Washer, .407 x .812 x .135 51 710-3029

Shoulder Spacer, .380 52 736-0171

Hex Split Flange Bearing 53 736-0322

PTO Engagement Handle 54 756-0982B

Belt Keeper Rod 55 754-0497

Spacer, 3/8 x 1.54 56 783-0653D

Idler Pulley, 3.5 57 711-1044

Idler Pulley, 4.0 58 738-1132

DESCRIPTION

Engagement Stop

Deck Stop

Self-tapping Screw, 5/16-18 x .625

Compression Spring, 1.28 x 3.5

Battery Strap

Shoulder Screw, .625 x .5, 7/16-20

Bell Washer, .45 x 1.0 x .062

Flange Lock Nut, 7/16-20

Hitch Plate

Battery Tray

Solenoid, 12-Volt, 100 Amp

Self-tapping Screw, 1/4-20 x .5

Lock Washer, 1/4

Lower Frame Assembly

12-Volt Battery, 270 CCA

Carriage Screw 1/4-20 x 0.75

Hex Sems Nut, 1/4-20

Wing Nut, 1/4-20

Extension Spring, .50 x 5.0

Hex Cap Screw, 5/16-18 x 1.75

Spacer Cup

Hex Head Cap Screw, 7/16-20 x 1.25

Lock Washer, 7/16

Flat Washer, .450 x 1.25

Engine Pulley, 3.56 OD x 5.56

PTO Belt

Steering Support Bracket

Keeper Pin, 5/16 x 4.75

Shoulder Screw 1/4-20

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

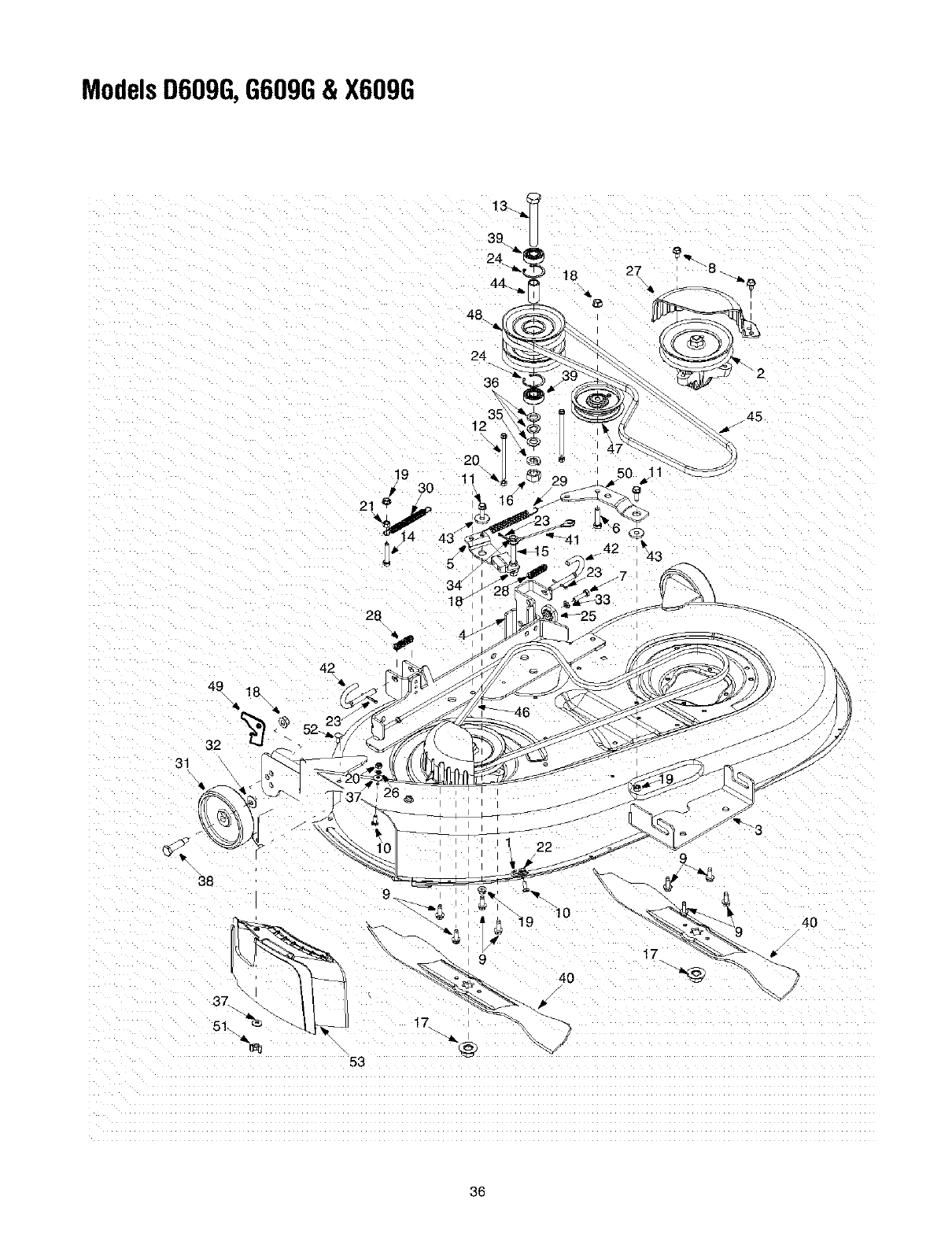

ModelsD609G,G609G& X609G

21 e

1235

29 50 11

51 17

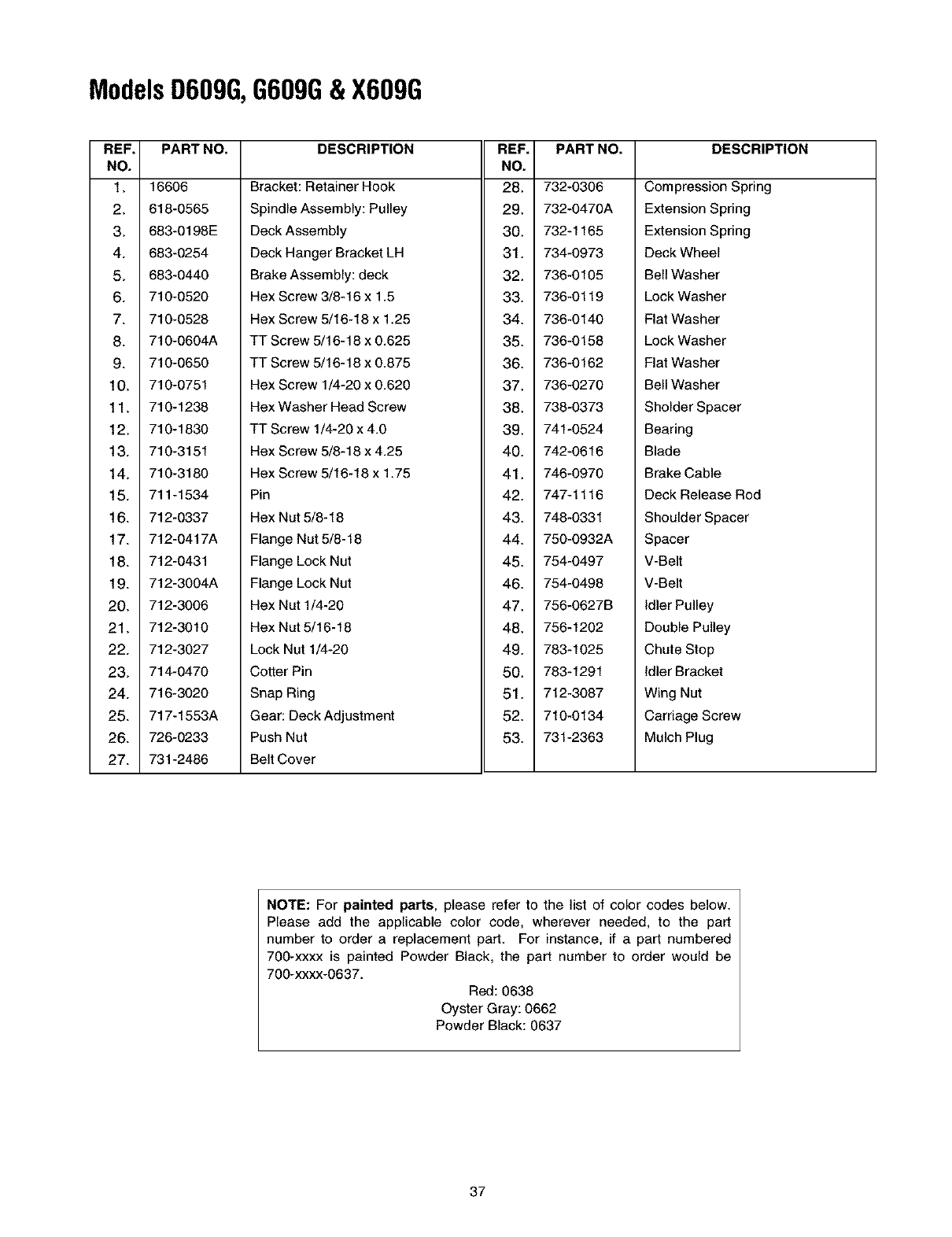

ModelsD609G,G609G&X609G

REF. PART NO.

NO.

1. 16606

2. 618-0565

3. 683-0198E

4. 683-0254

5. 683-0440

6. 710-0520

7. 710-0528

8. 710-0604A

9. 710-0650

10. 710-0751

11. 710-1238

12. 710-1830

13. 710-3151

14. 710-3180

15. 711-1534

16. 712-0337

17. 712-0417A

18. 712-0431

19. 712-3004A

20. 712-3006

21. 712-3010

22. 712-3027

23. 714-047O

24. 716-3020

25. 717-1553A

26. 726-O233

27. 731-2486

DESCRIPTION

Bracket: Retainer Hook

Spindle Assembly: Pulley

Deck Assembly

Deck Hanger Bracket LH

Brake Assembly: deck

Hex Screw 3/8-16 x 1.5

Hex Screw 5/16-18 x 1.25

TT Screw 5/16-18 x 0.625

TT Screw 5/16-18 x 0.875

Hex Screw 1/4-20 x 0.620

Hex Washer Head Screw

TT Screw 1/4-20 x 4.0

Hex Screw 5/8-18 x 4.25

Hex Screw 5/16-18 x 1.75

Hex Nut 5/8-18

Flange Nut 5/8-18

REF. PARTNO.

NO.

28. 732-O3O6

29. 732-0470A

30. 732-1165

31. 734-0973

32. 736-0105

33. 736-0119

34. 736-0140

35. 736-0158

36. 736-0162

37. 736-0270

38. 738-0373

39. 741-0524

40. 742-0616

41. 746-0970

42. 747-1116

43. 748-0331

44. 750-0932A

DESCRIPTION

Compression Spring

Extension Spring

Deck Wheel

Bell Washer

Lock Washer

Flat Washer

Lock Washer

Flat Washer

Bell Washer

Sholder Spacer

Bearing

Blade

Brake Cable

Deck Release Rod

Shoulder Spacer

Spacer

Flange Lock Nut

Hex Nut 1/4-20

Hex Nut 5/16-18

Lock Nut 1/4-20

Cotter Pin

Snap Ring

Gear: Deck Adjustment

Push Nut

Belt Cover

45. 754-O497

46. 754-O498

47. 756-0627B

48. 756-1202

49. 783-1025

50. 783-1291

51. 712-3087

52. 710-0134

53. 731-2363

V-Belt

Idler Pulley

Double Pulley

Chute Stop

Idler Bracket

Wing Nut

Carriage Screw

Mulch Plug

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

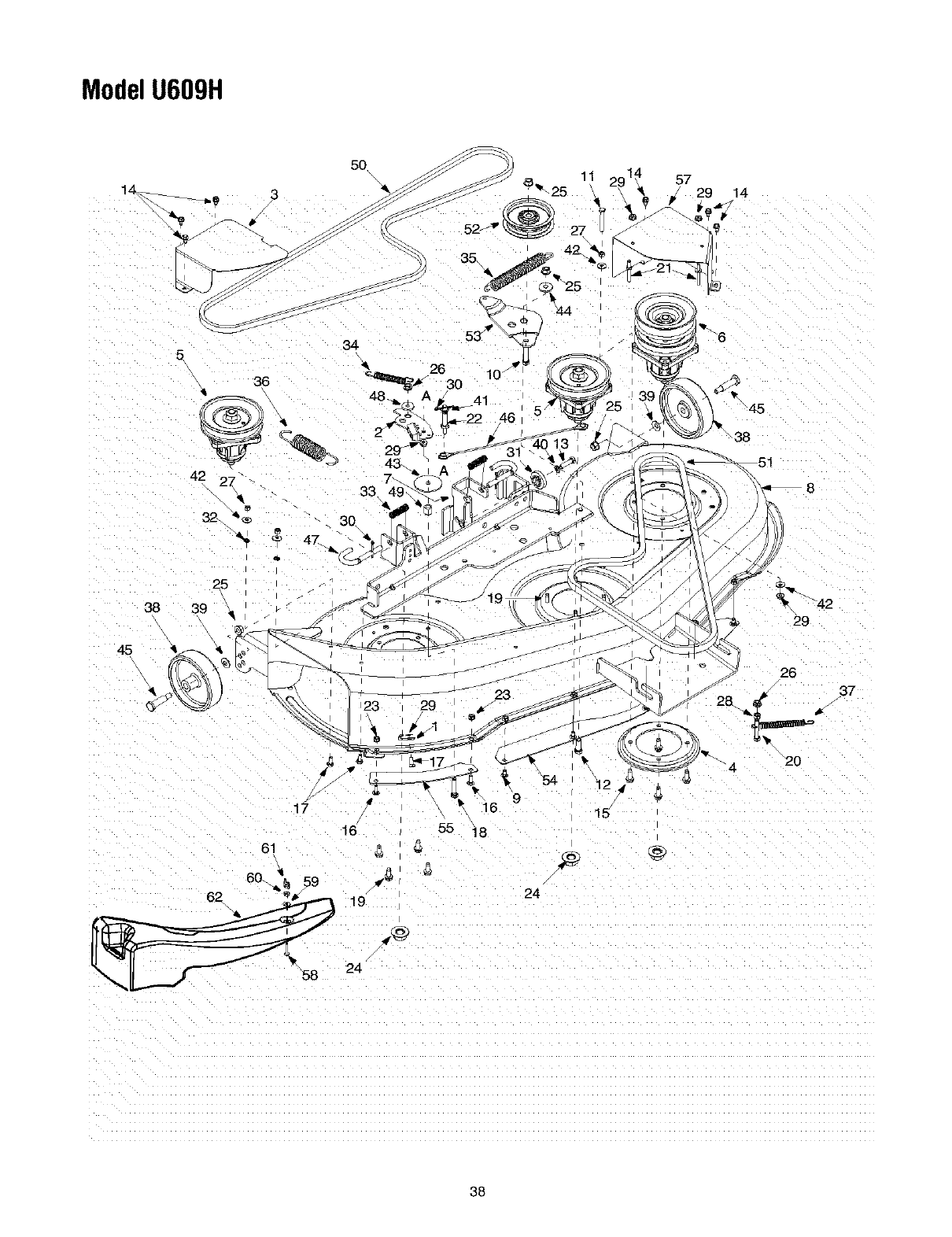

ModelU609H

50\ \\

534

11 57 29 14

25 2

38 39 • 9

1_ 4 16 9 15

16 55 18

60_ 59 _g g

62 _ 19 24

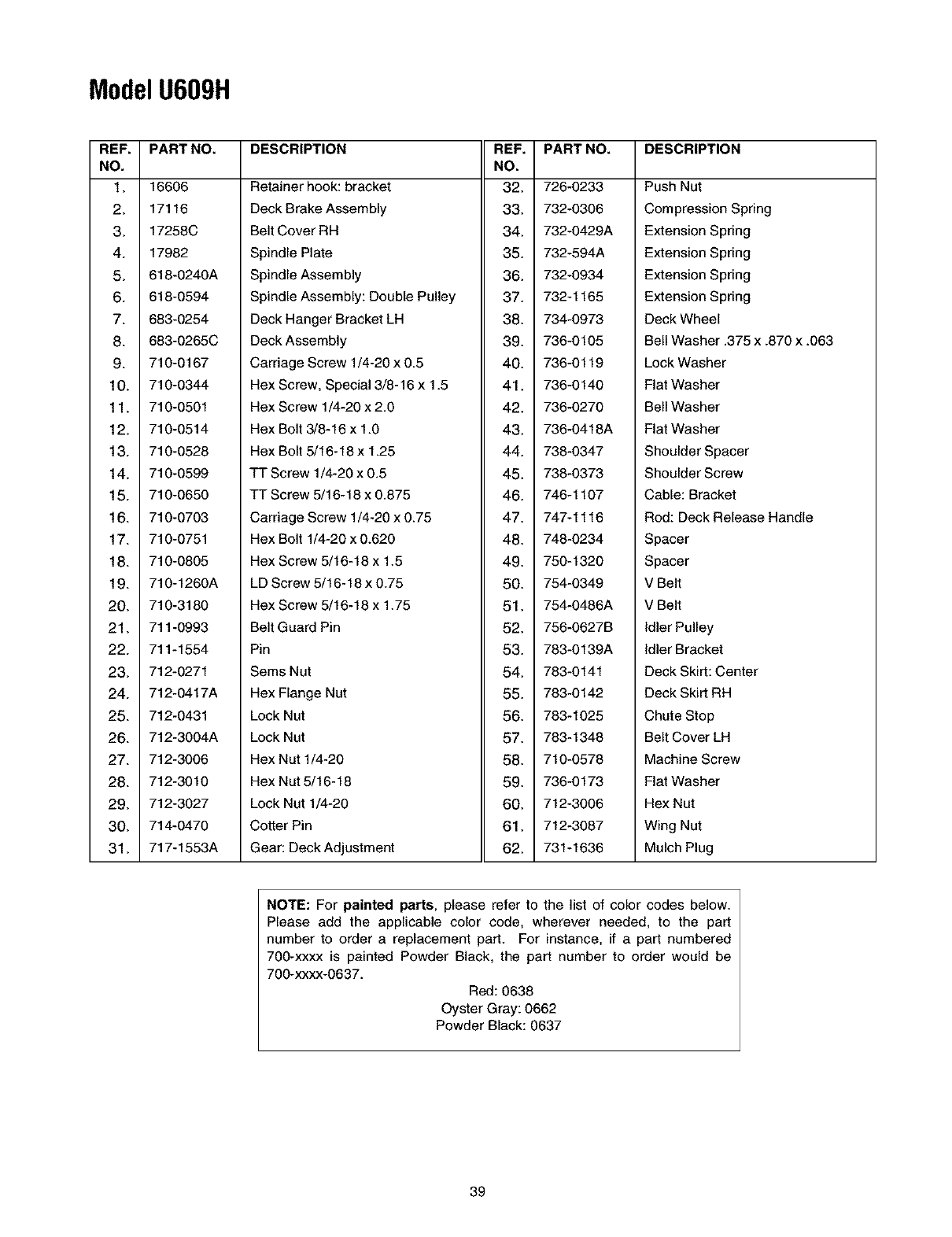

ModelU609H

REF. PART NO.

NO.

1. 16606

2. 17116

3. 17258C

4. 17982

5. 618-0240A

6. 618-0594

7. 683-0254

8. 683-0265C

9. 710-0167

10. 710-0344

11. 710-0501

12. 710-0514

13. 710-0528

14. 710-0599

15. 710-0650

16. 710-0703

17. 710-0751

18. 710-0805

19. 710-1260A

20. 710-3180

21. 711-0993

22. 711-1554

23. 712-0271

24. 712-0417A

25. 712-0431

26. 712-3004A

27. 712-3006

28. 712-3010

29. 712-3027

30. 714-0470

31. 717-1553A

DESCRIPTION

Retainer hook: bracket

Deck Brake Assembly

Belt Cover RH

Spindle Plate

Spindle Assembly

Spindle Assembly: Double Pulley

Deck Hanger Bracket LH

Deck Assembly

Carriage Screw 1/4-20 x 0.5

Hex Screw, Special 3/8-16 x 1.5

Hex Screw 1/4-20 x 2.0

Hex Bolt 3/8-16 x 1.0

Hex Bolt 5/16-18 x 1.25

TT Screw 1/4-20 x 0.5

TT Screw 5/16-18 x 0.875

Carriage Screw 1/4-20 x 0.75

Hex Bolt 1/4-20 x 0.620

Hex Screw 5/16-18 x 1.5

LD Screw 5/16-18 x 0.75

Hex Screw 5/16-18 x 1.75

REF. PART NO.

NO.

32. 726-0233

33. 732-0306

34. 732-0429A

35. 732-594A

36. 732-0934

37. 732-1165

38. 734-0973

39. 736-0105

40. 736-0119

41. 736-0140

42. 736-0270

43. 736-0418A

44. 738-0347

45. 738-0373

46. 746-1107

47. 747-1116

48. 748-0234

49. 750-1320

50. 754-0349

51. 754-0486A

DESCRIPTION

Push Nut

Compression Spring

Extension Spring

Deck Wheel

Bell Washer .375 x .870 x .063

Lock Washer

Flat Washer

Bell Washer

Flat Washer

Shoulder Spacer

Shoulder Screw

Cable: Bracket

Rod: Deck Release Handle

Spacer

V Belt

Belt Guard Pin 52. 756-0627B

Pin 53. 783-0139A

Sems Nut 54. 783-0141

Hex Flange Nut 55. 783-0142

Lock Nut 56. 783-1025

Lock Nut 57. 783-1348

Hex Nut 1/4-20 58. 710-0578

Hex Nut 5/16-18 59. 736-0173

Lock Nut 1/4-20 60. 712-3006

Cotter Pin 61. 712-3087

Gear: DeckAdjustment 62. 731-1636

Idler Pulley

Idler Bracket

Deck Skirt: Center

Deck Skirt RH

Chute Stop

Belt Cover LH

Machine Screw

Flat Washer

Hex Nut

Wing Nut

Mulch Plug

NOTE: For painted parts, please refer to the list of color codes below.

Please add the applicable color code, wherever needed, to the part

number to order a replacement part. For instance, if a part numbered

700-xxxx is painted Powder Black, the part number to order would be

700-xxxx-0637.

Red: 0638

Oyster Gray: 0662

Powder Black: 0637

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set fodh below is given by Troy-Bilt LLC

with respect to new merchandise purchased and used in the

United States, its possessions and territories.

Troy-Bilt LLC warrants this product against defects for a

period of two (2) years commencing on the date of original

purchase and will, at its option, repair or replace, free of

charge, any part found to be defective in materials or

workmanship. This limited warranty shall only apply if this

product has been operated and maintained in accordance

with the Operator's Manual furnished with the product, and

has net been subject to misuse, abuse, commercial use,

neglect, accident, improper maintenance, alteration,

vandalism, theft, fire, water, or damage because of other peril

or natural disaster. Damage resulting from the installation or

use of any accessory or attachment not approved by Trey-Bilt

LLC for use with the product(s) covered by this manual will

void your warranty as to any resulting damage.

Normal wear parts or components thereof are subject to

separate terms as follows: All normal wear parts or

component failures will be covered on the product for a period

of 90 days regardless of cause. After 90 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in materials or workmanship of

OTHER component parts. Normal wear parts and

components include, but are net limited to: batteries, belts,

blades, blade adapters, grass bags, rider deck wheels, seats,

snow thrower skid shoes, shave plates, auger spiral rubber,

and tires.

ROW TO OBTAIN SERVICE: Warranty service is available,

WiTH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-866-840-6483 or 1-

330-558-7220, or log on to our Web site at www.troybilt.cem.

This limited warranty does net provide coverage in the

following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer's warranty. Refer to

applicable manufacturer's warranty for terms and

conditions.

b. Log splitter pumps, valves, and cylinders have a sepa

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposure.

d. Troy-Bilt LLC does net extend any warranty for

products sold or exported outside of the United States,

its possesions and territories, except those sold

through Troy-Bilt LLC's authorized channels of export

distribution.

e. Parts that are net genuine Troy-Bilt parts are net

covered by this warranty.

f. Service completed by someone other than an

authorized service dealer is net covered by this

warranty.

g. Transportation charges and service calls are not

covered.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind Troy-Bilt LLC. During the period ofthe

warranty, the exclusive remedy is repair or replacement

of the product as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. Troy-

Biit LLC shall not be liable for incidental or consequential

loss or damage including, without limitation, expenses

incurred for substitute or replacement lawn care services

or for rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price ofthe product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for loss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased

as a gift.

ROW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

Troy-Bilt LLC,P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-866-840-6483,1-330-558-7220

MTD 13AG609G063 User Manual LAWN TRACTOR Manuals And Guides L0401103

TROYBILT Lawn, Tractor Manual L0401103 TROYBILT Lawn, Tractor Owner's Manual, TROYBILT Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
