Safety • Assembly •Operation •Tips & Techniques •Maintenance •Troubleshooting •Parts Lists •Warranty

O P RA-rO R'S MANUAL

Two-Stage Snow Thrower mE, F Style

IMPORTANT

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

Warning: Thisunit is equippedwithan internalcombustionengineandshouldnot beusedon or nearany uniiprovedforest-covered,brush-

coveredor grass-coveredlandunlesstheengine'sexhaustsystemisequippedwitha sparkattestermeetingapplicablelocalor statelaws(if any),

If a sparkarresteris used,it shouldbemaintainedineffectiveworkingorderby the operator,In theStateof Californiathe aboveis requiredbylaw

(Section4442of the CaliforniaPublicResourcesCode),Otherstatesmayhavesimilarlaws,Federallawsapplyonfederallands,A sparkattester

for the muffleris availablethroughyour nearestengineauthorizedservicedealeror contactthe servicedepartment,P.O,Box361131Cleveland,

Ohio44136-0019,

PRINTEDIN U,S,A MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORMNO.769-01275D

06/22/2006

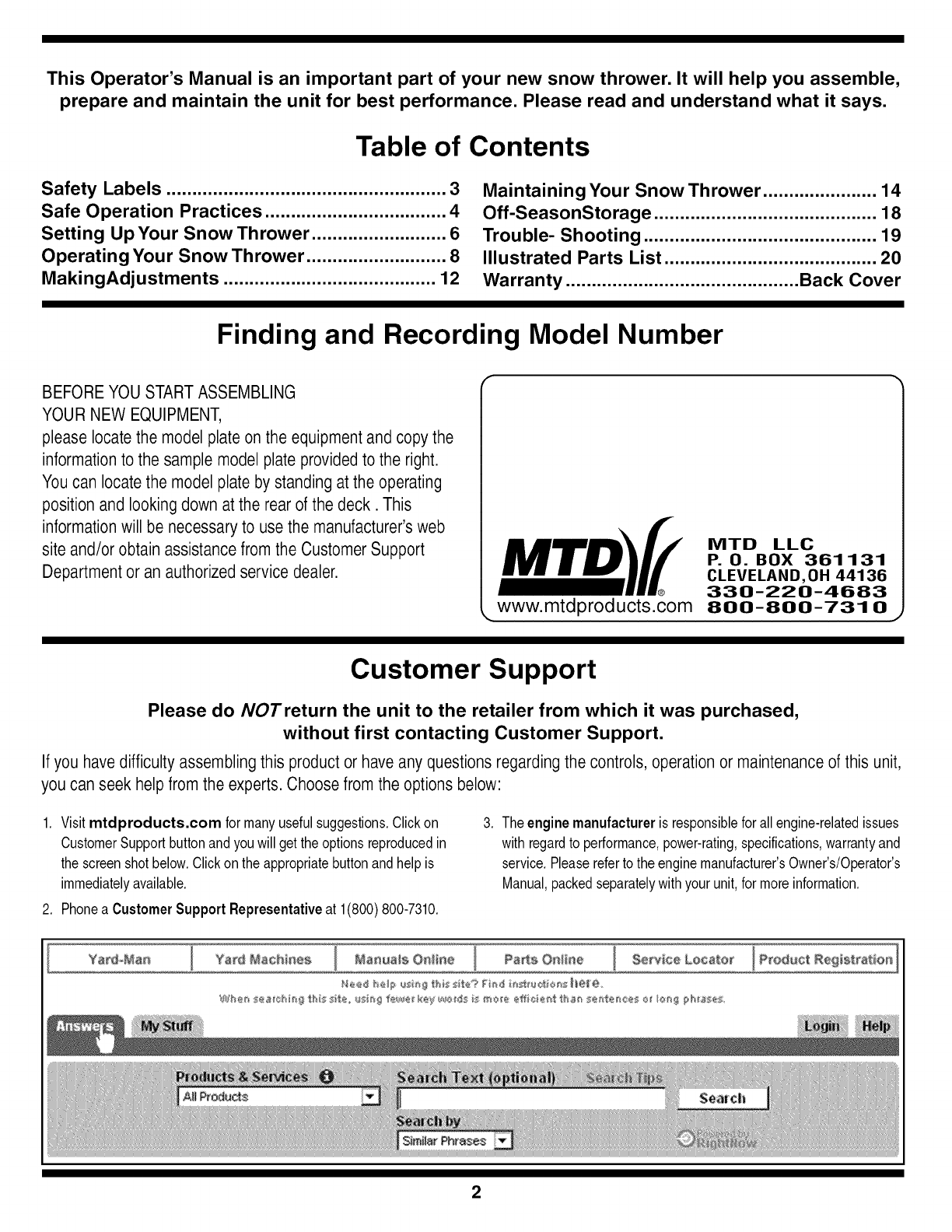

This Operator's Manual is an important part of your new snow thrower. It will help you assemble,

prepare and maintain the unit for best performance. Please read and understand what it says.

Table of Contents

Safety Labels ...................................................... 3

Safe Operation Practices ................................... 4

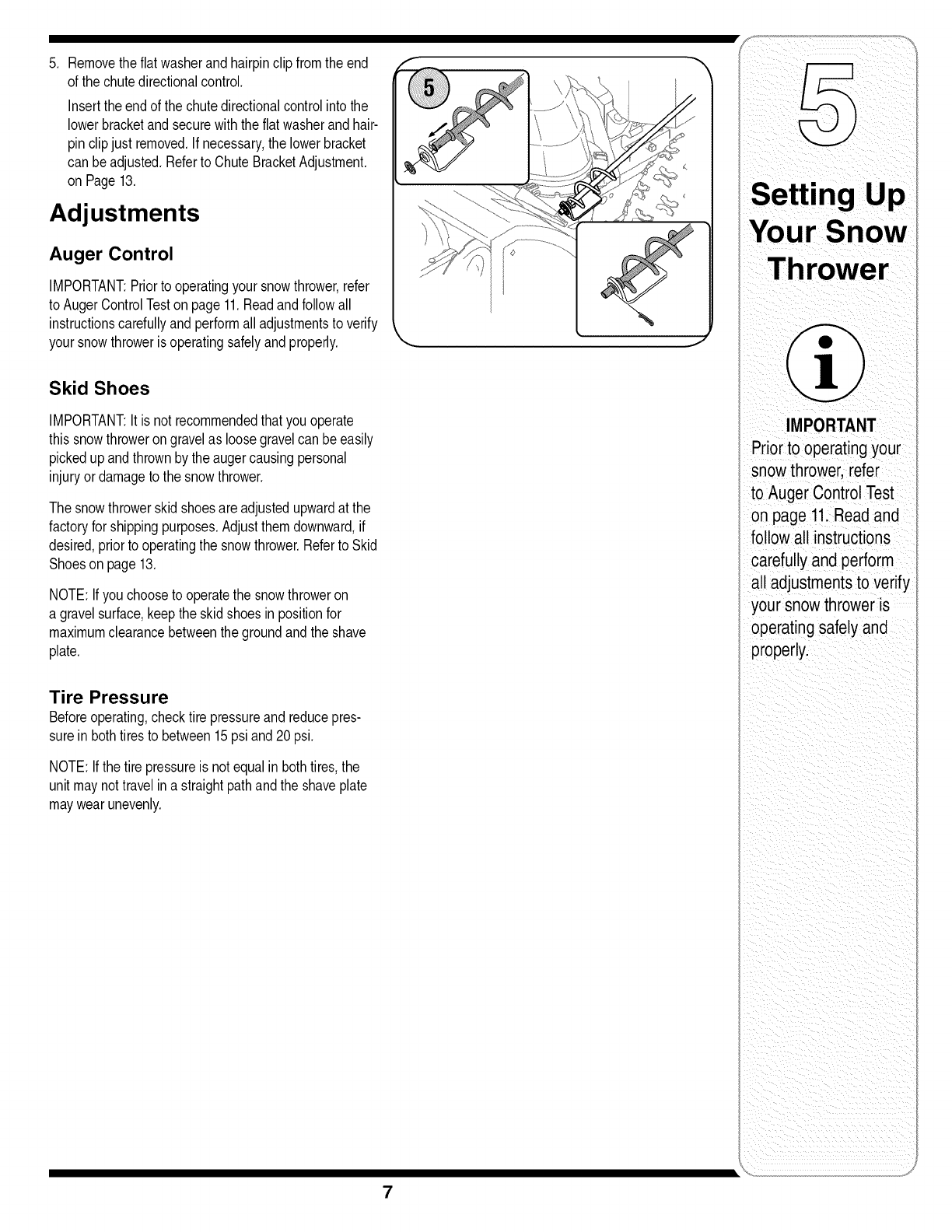

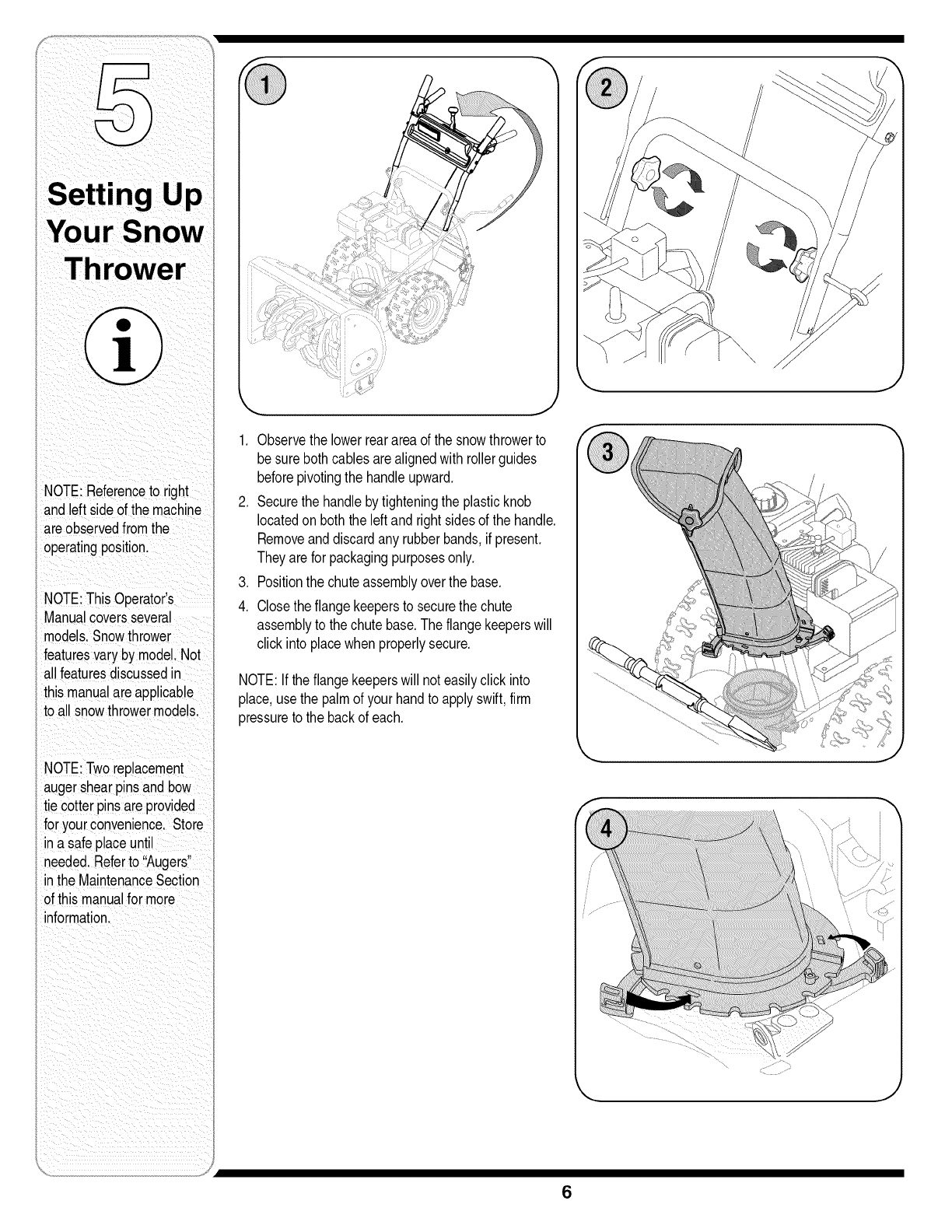

Setting Up Your Snow Thrower .......................... 6

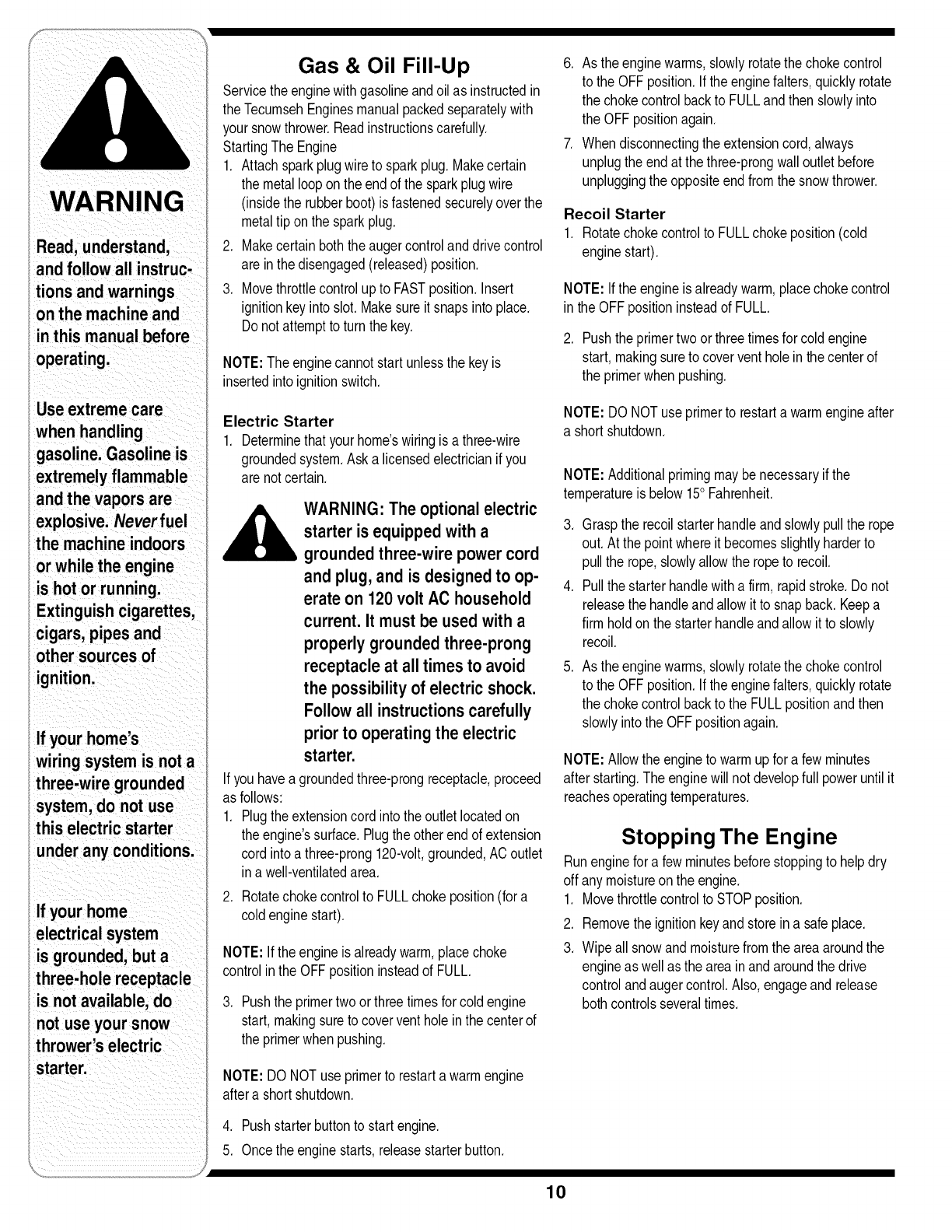

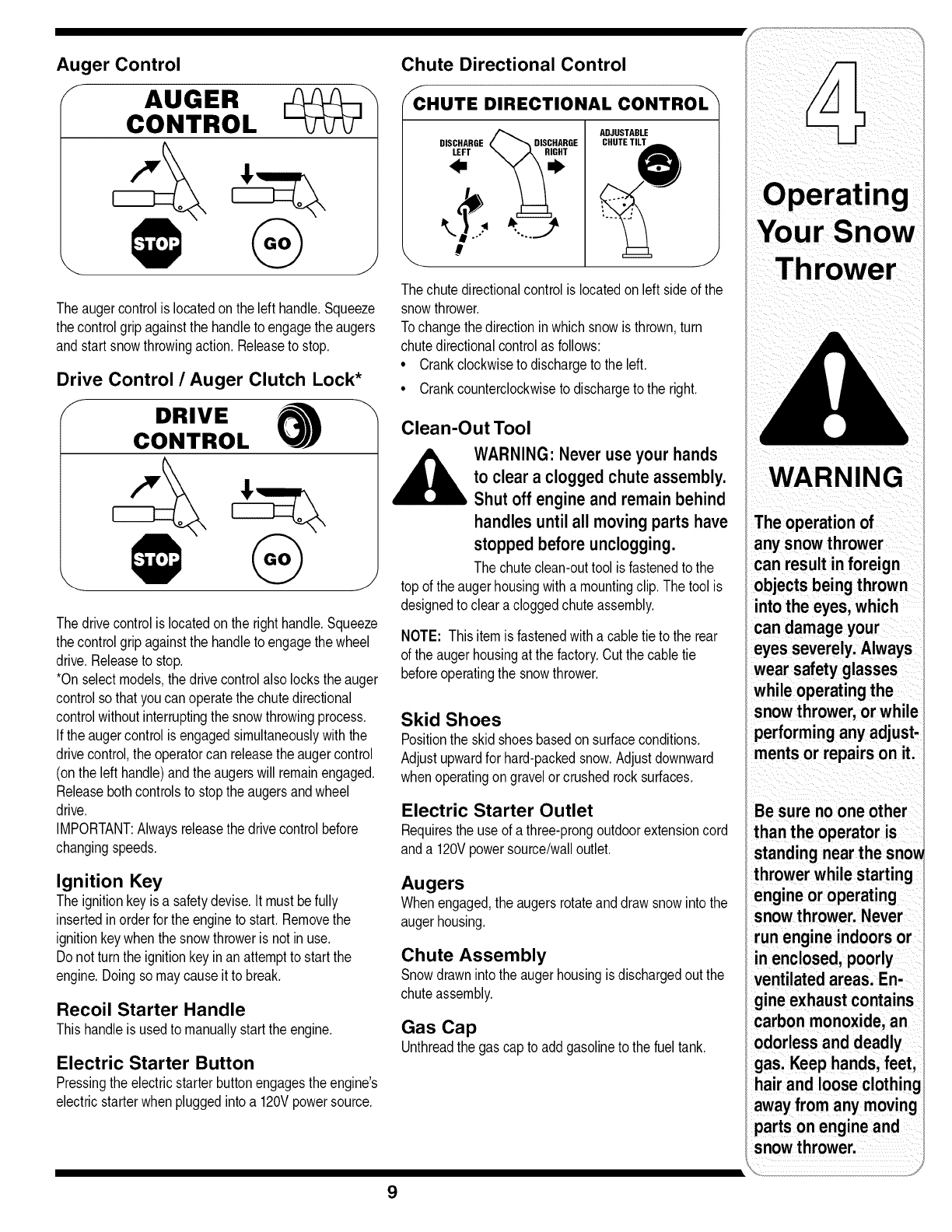

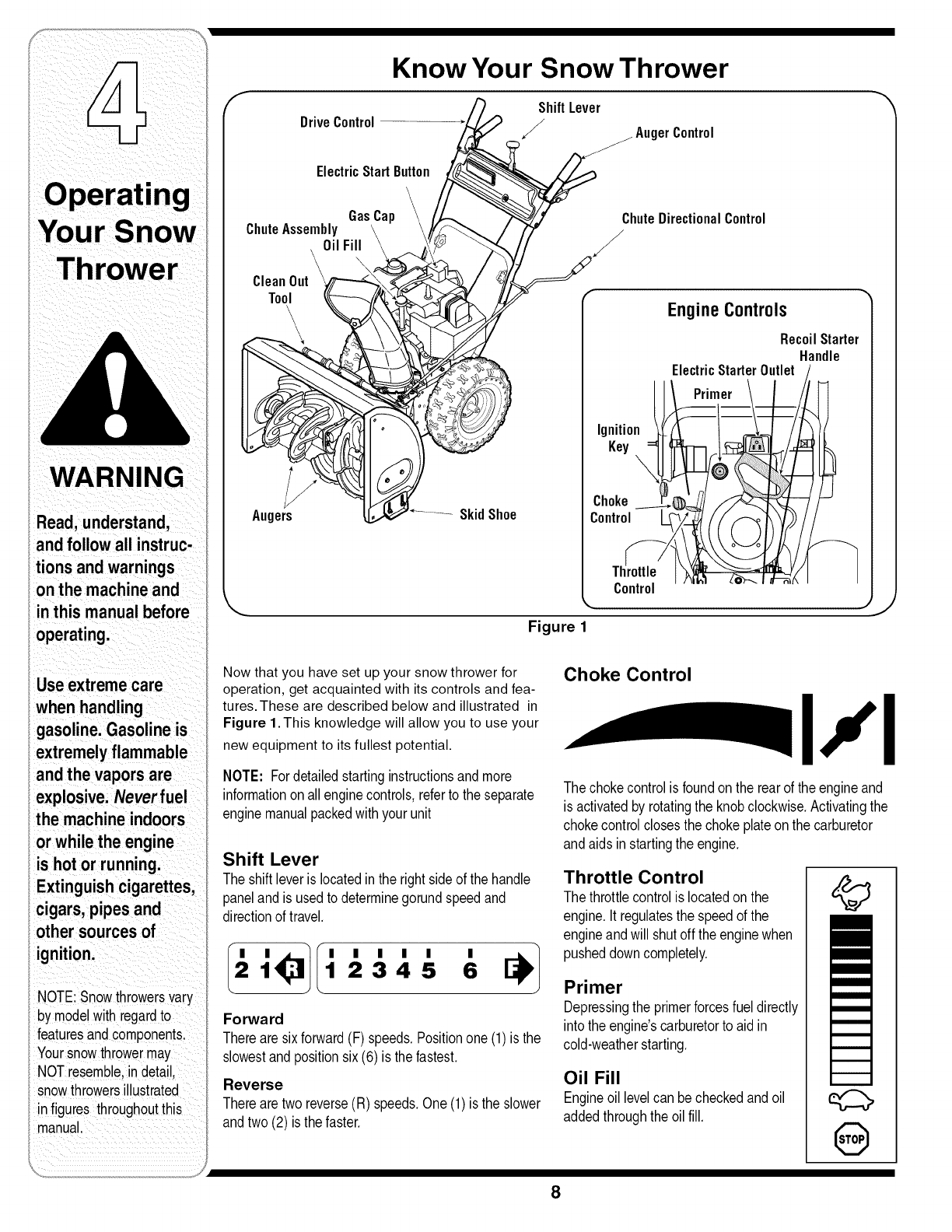

Operating Your Snow Thrower ........................... 8

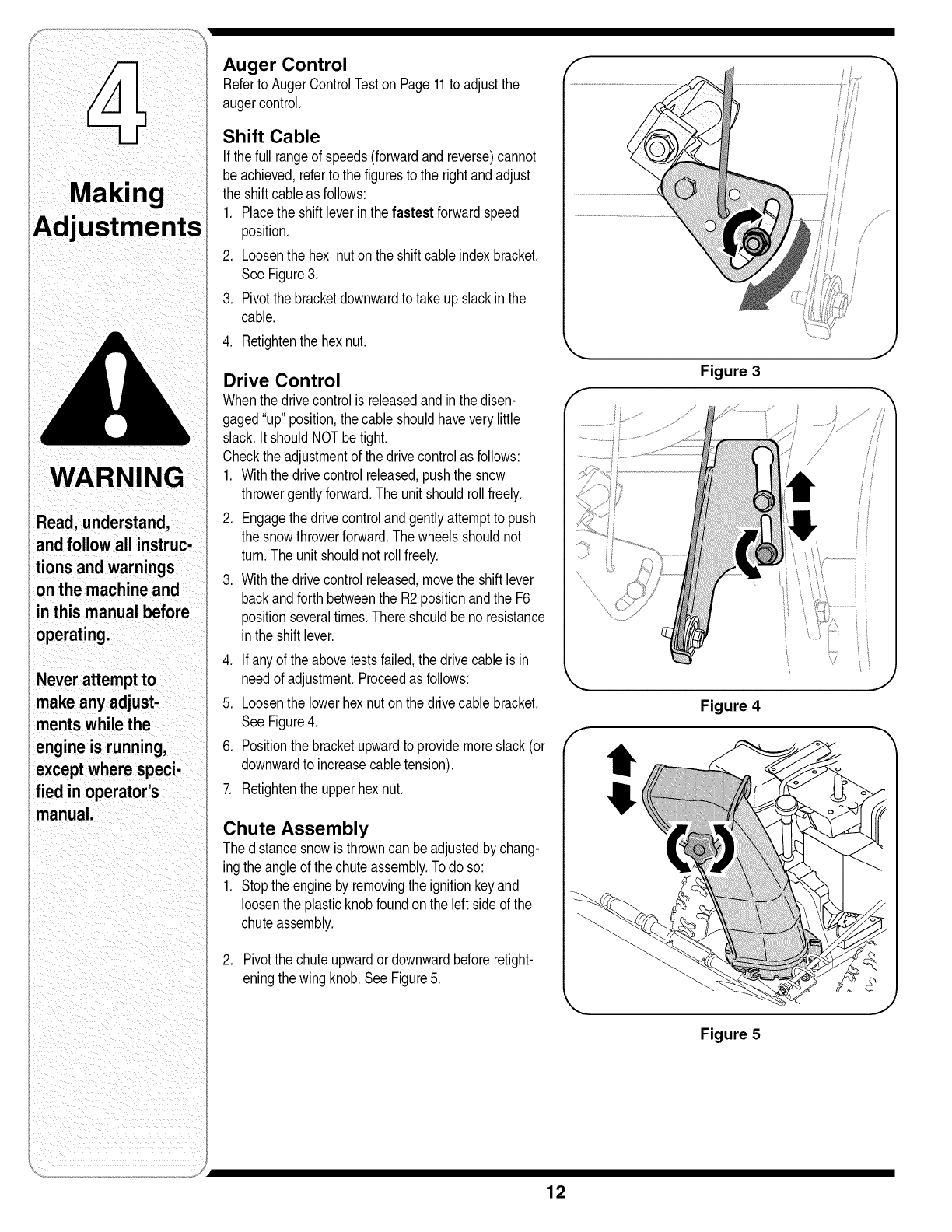

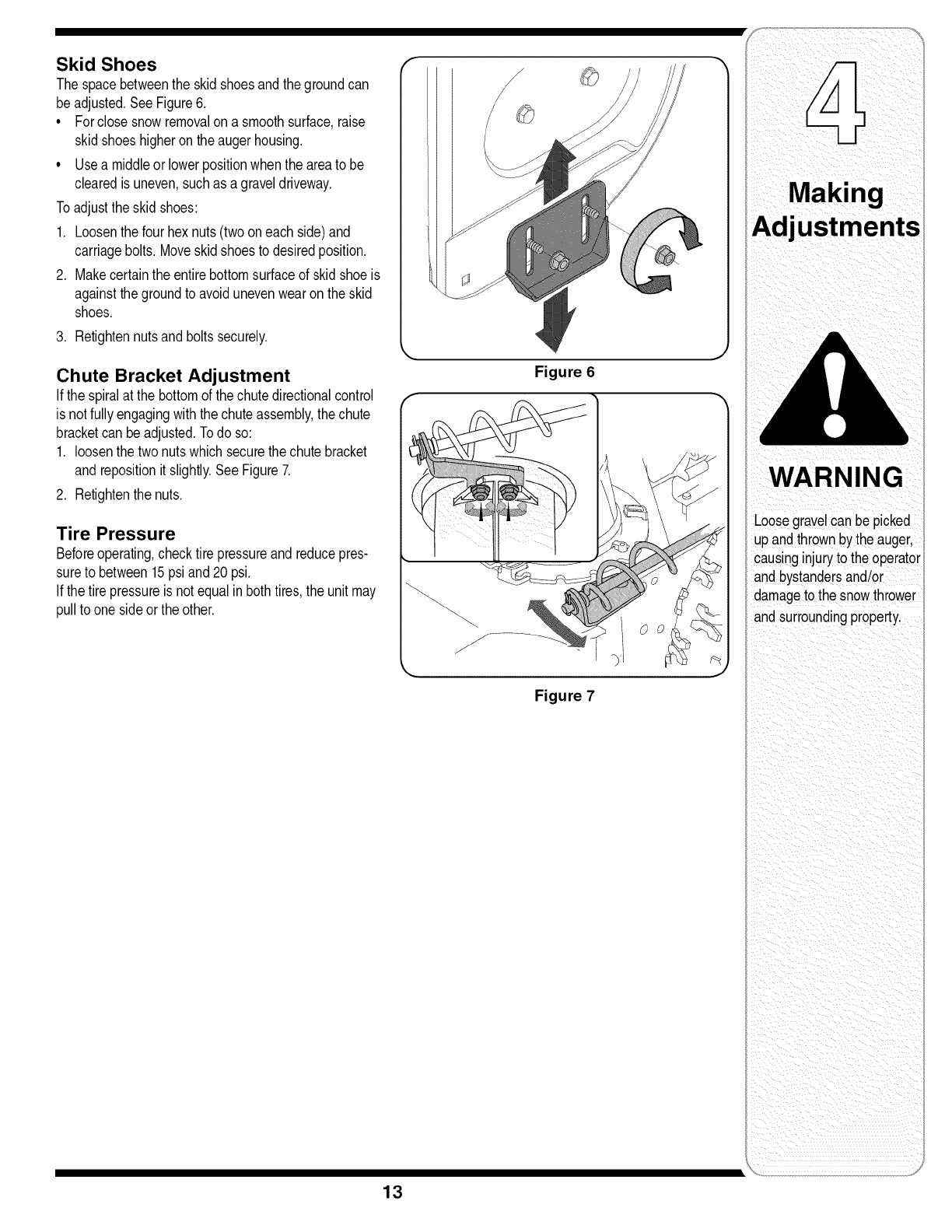

MakingAdjustments ......................................... 12

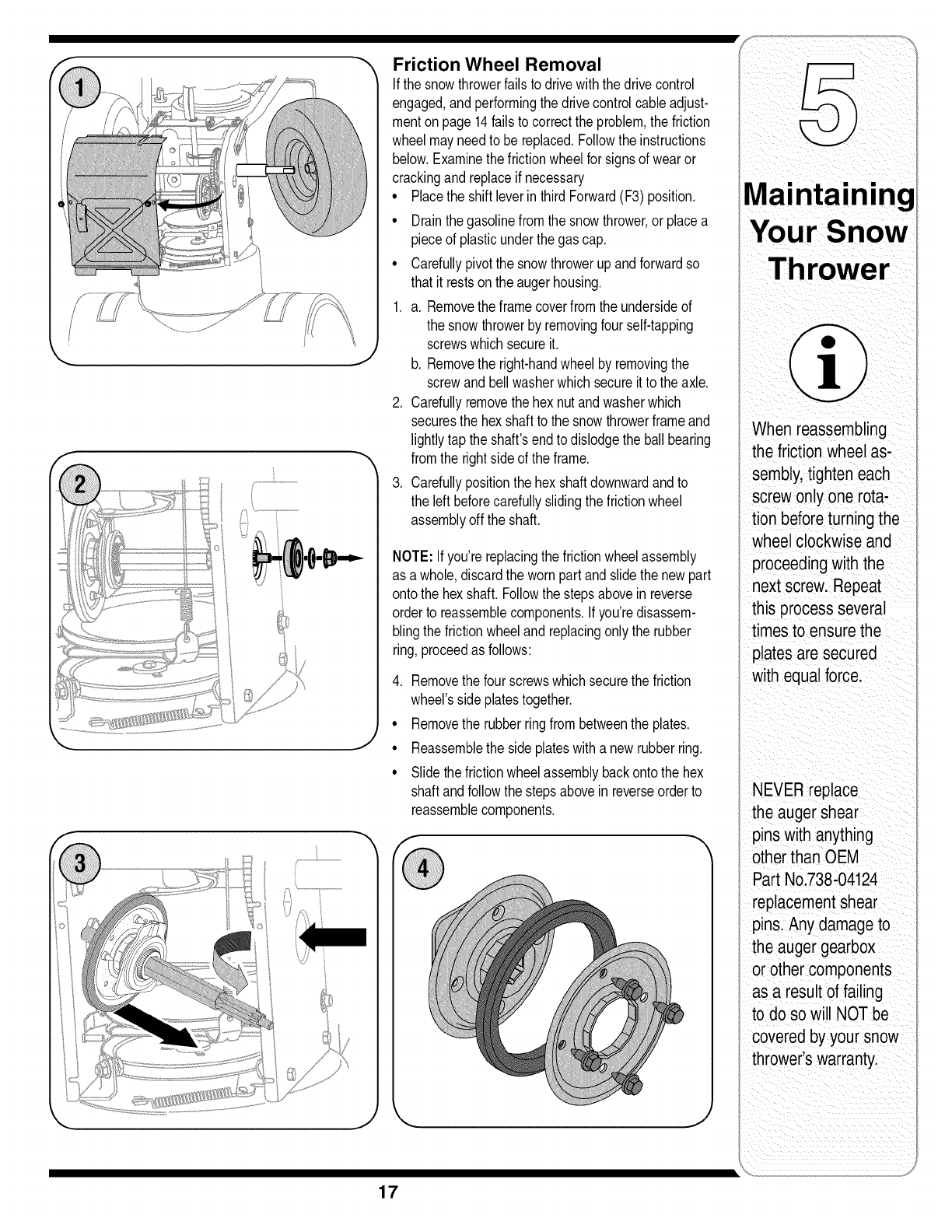

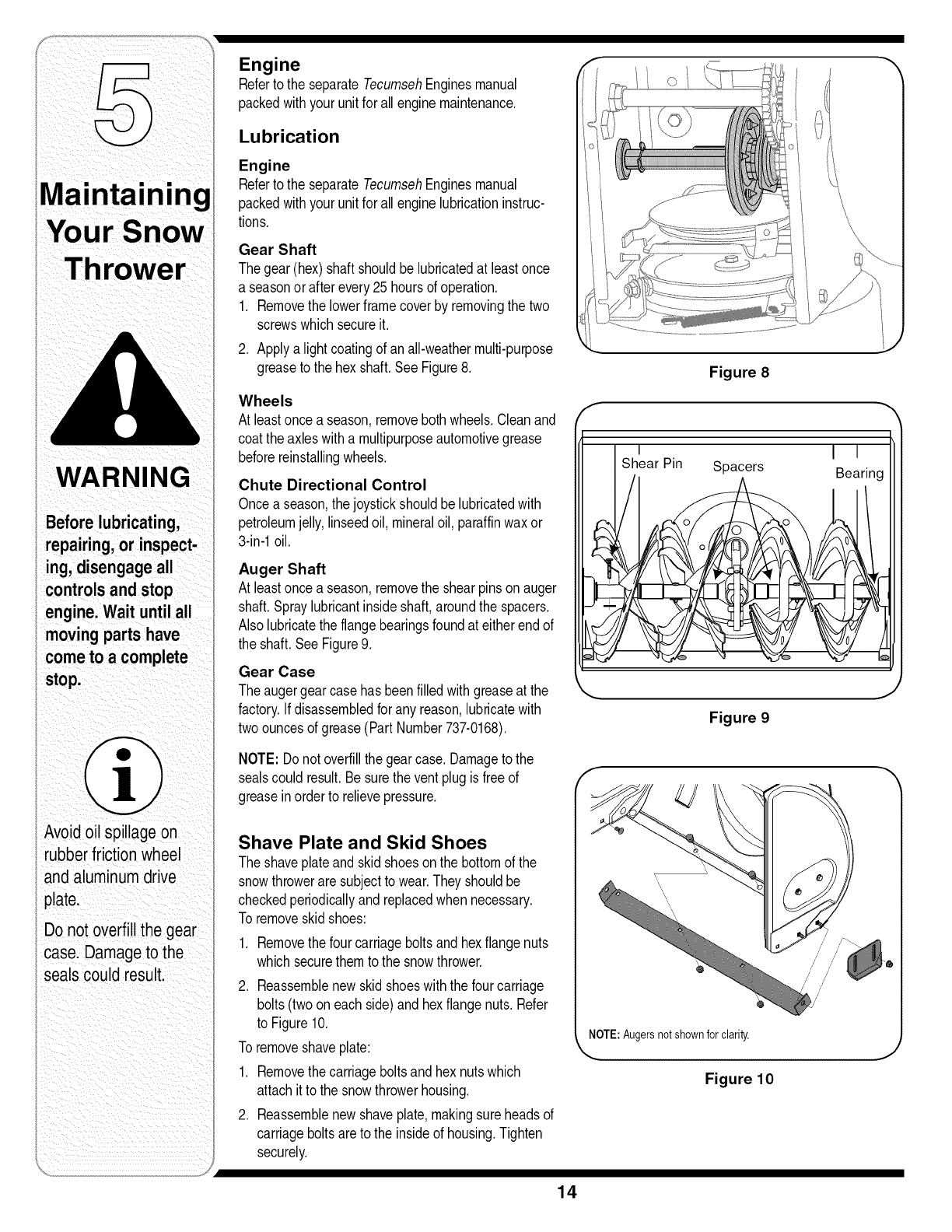

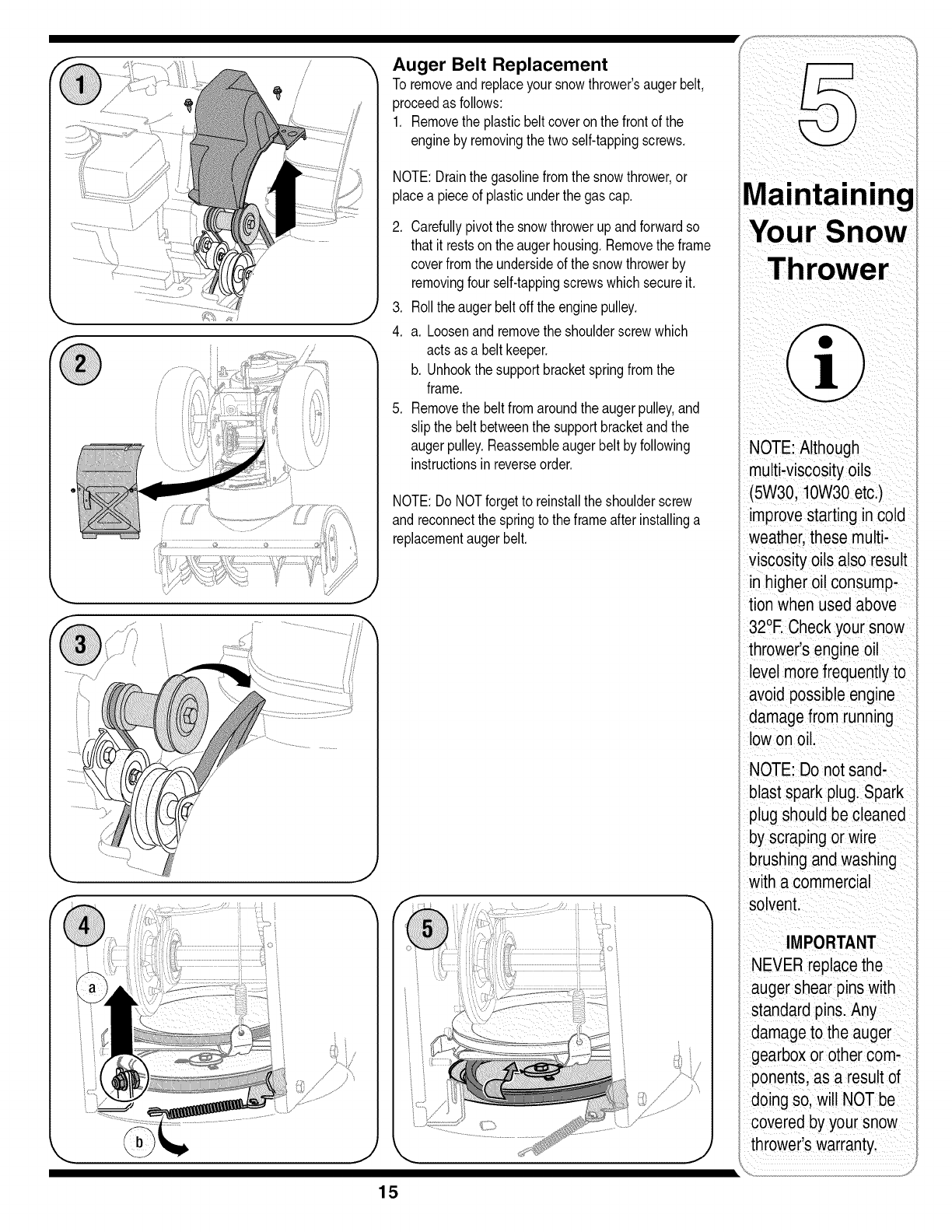

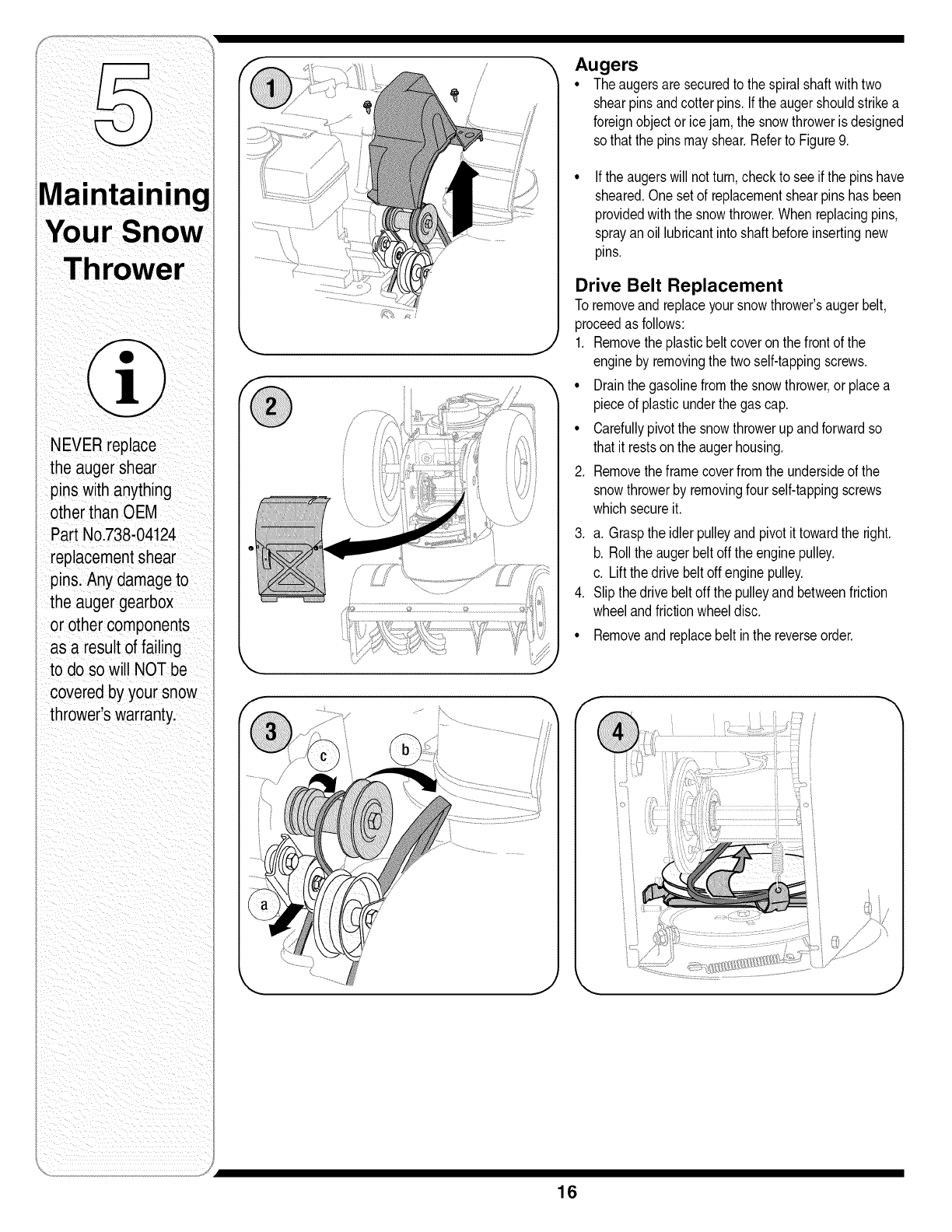

Maintaining Your Snow Thrower ...................... 14

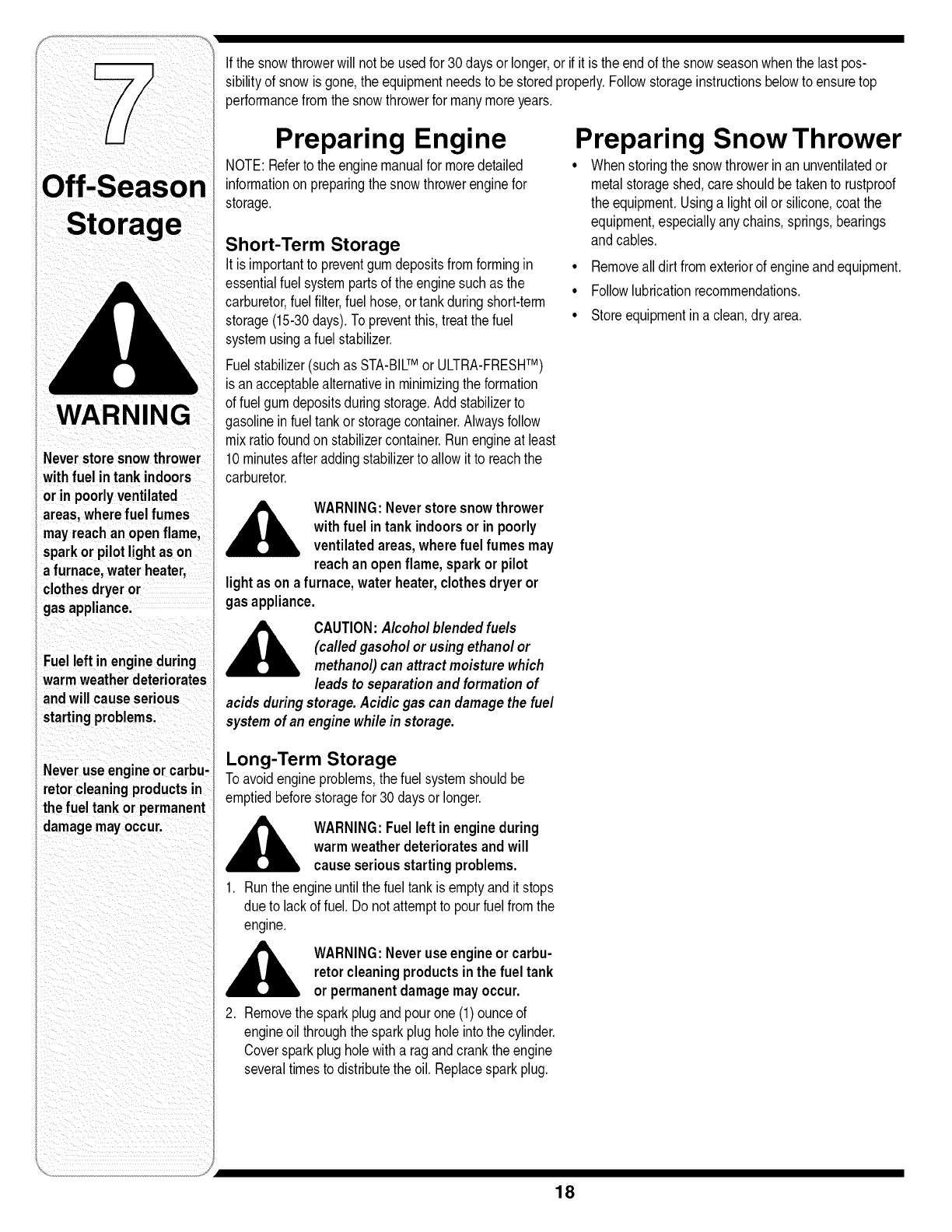

Off-SeasonStorage ........................................... 18

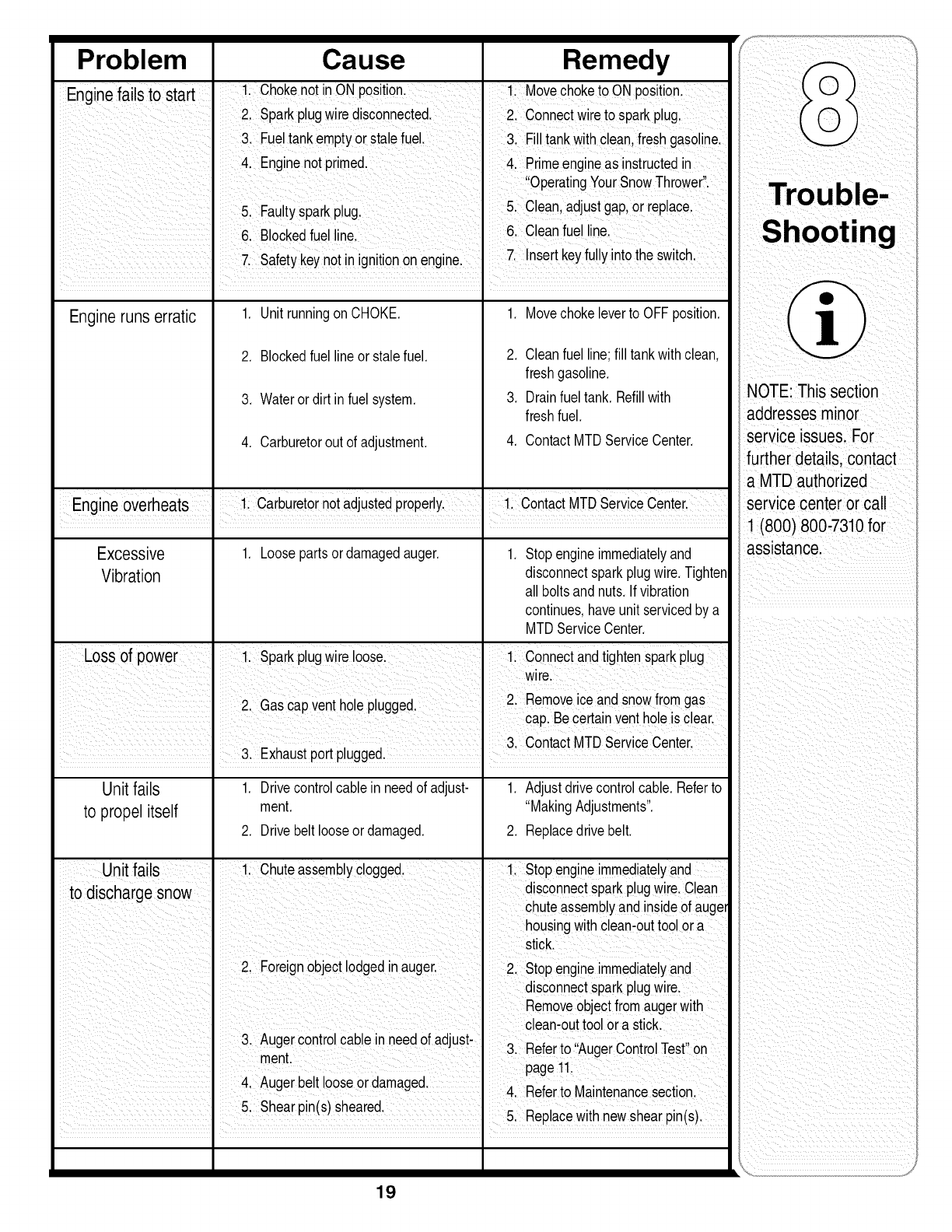

Trouble- Shooting ............................................. 19

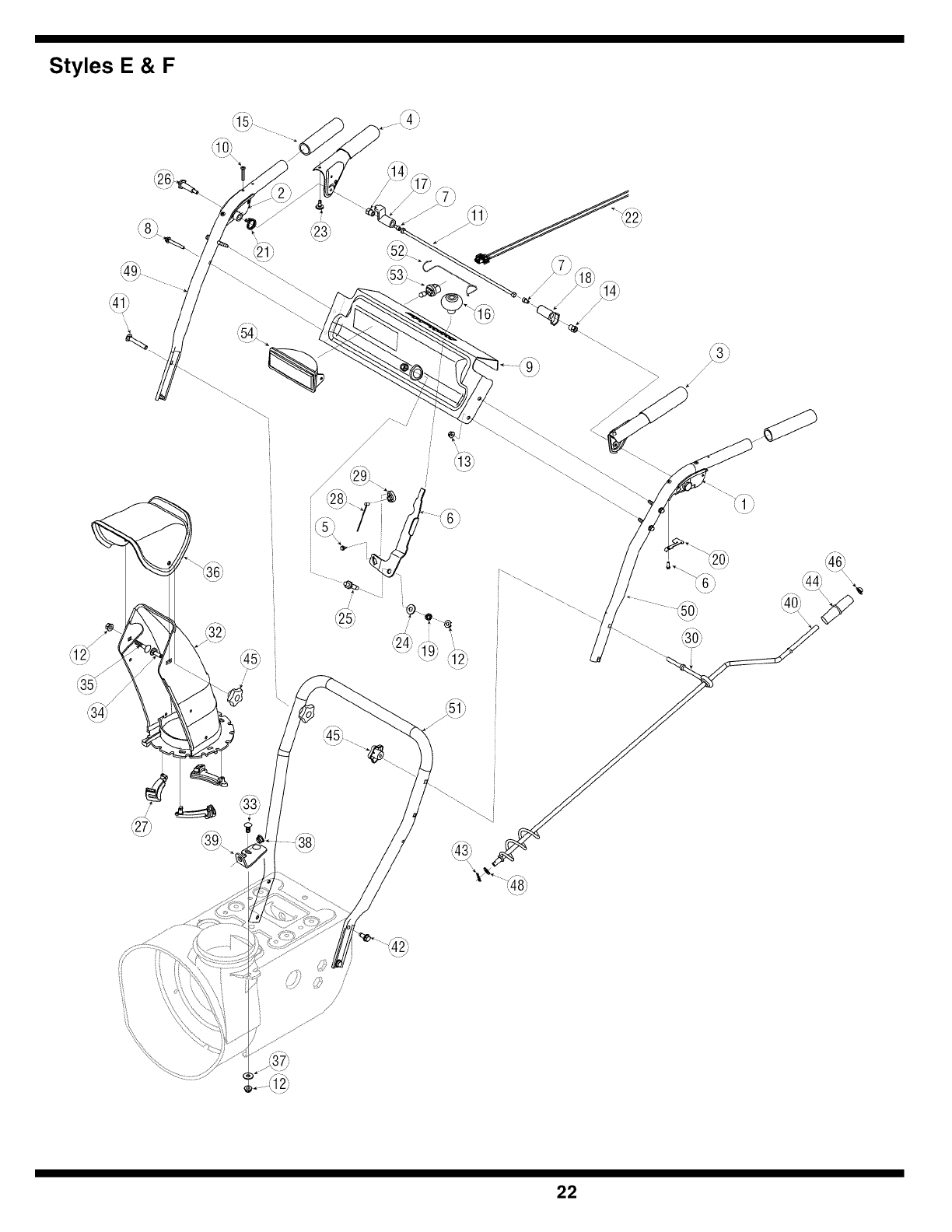

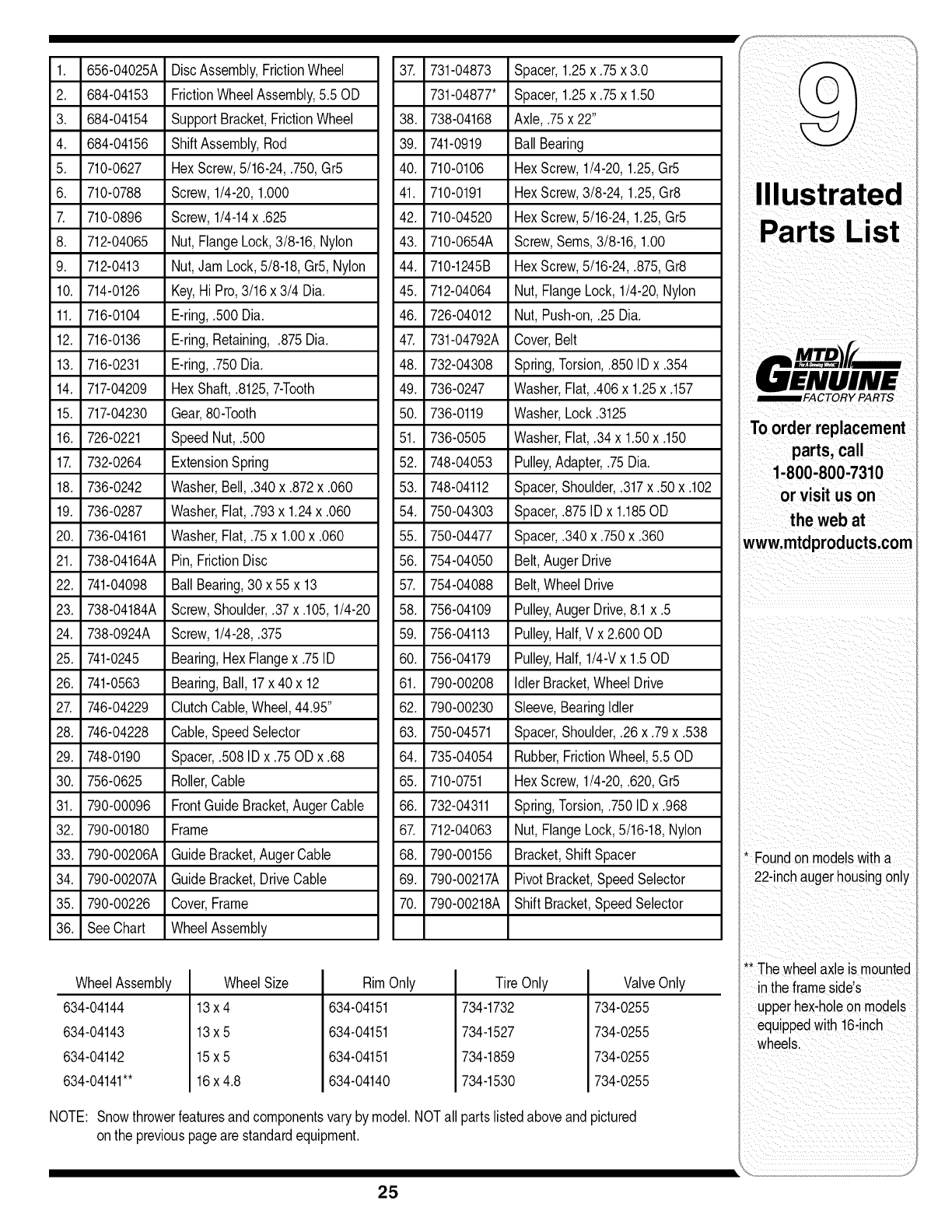

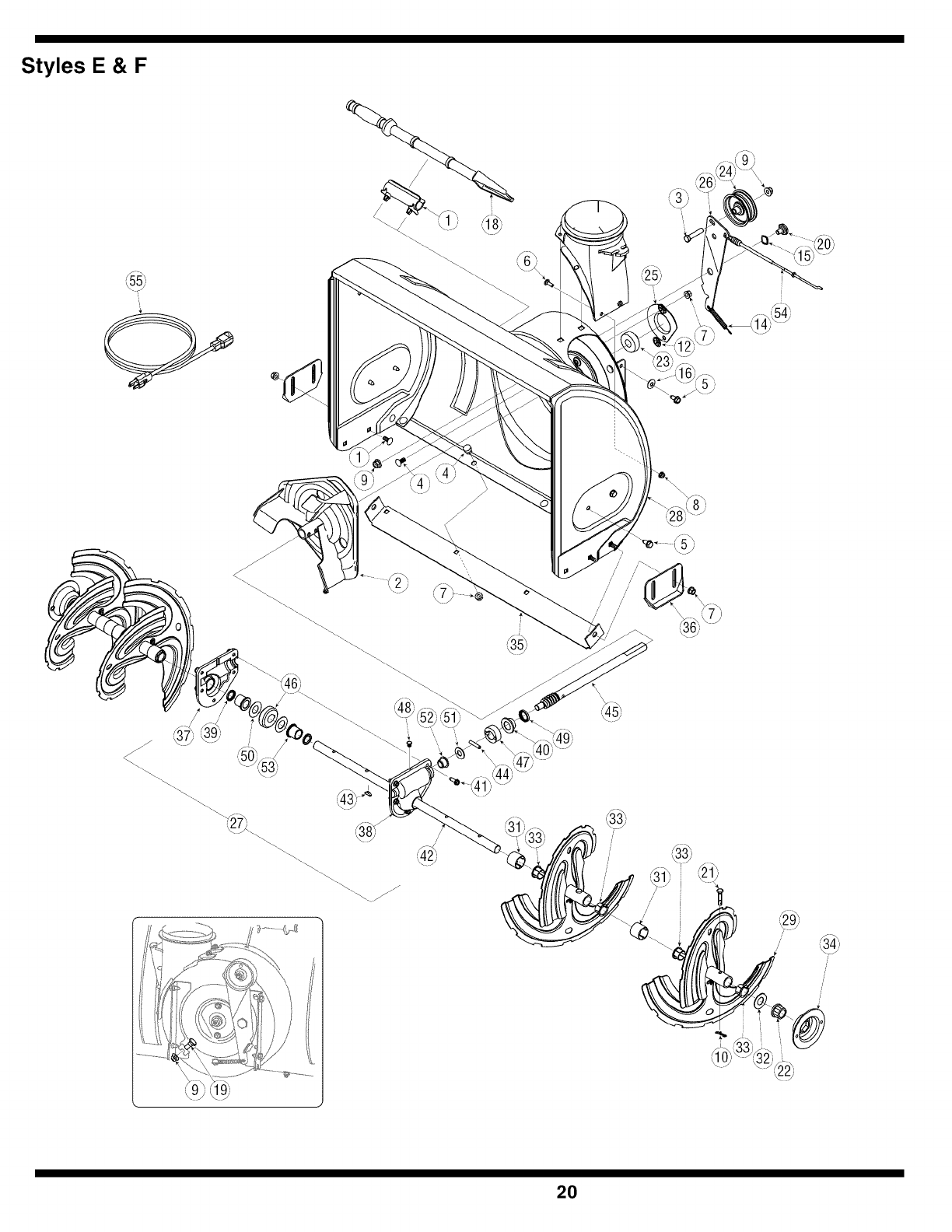

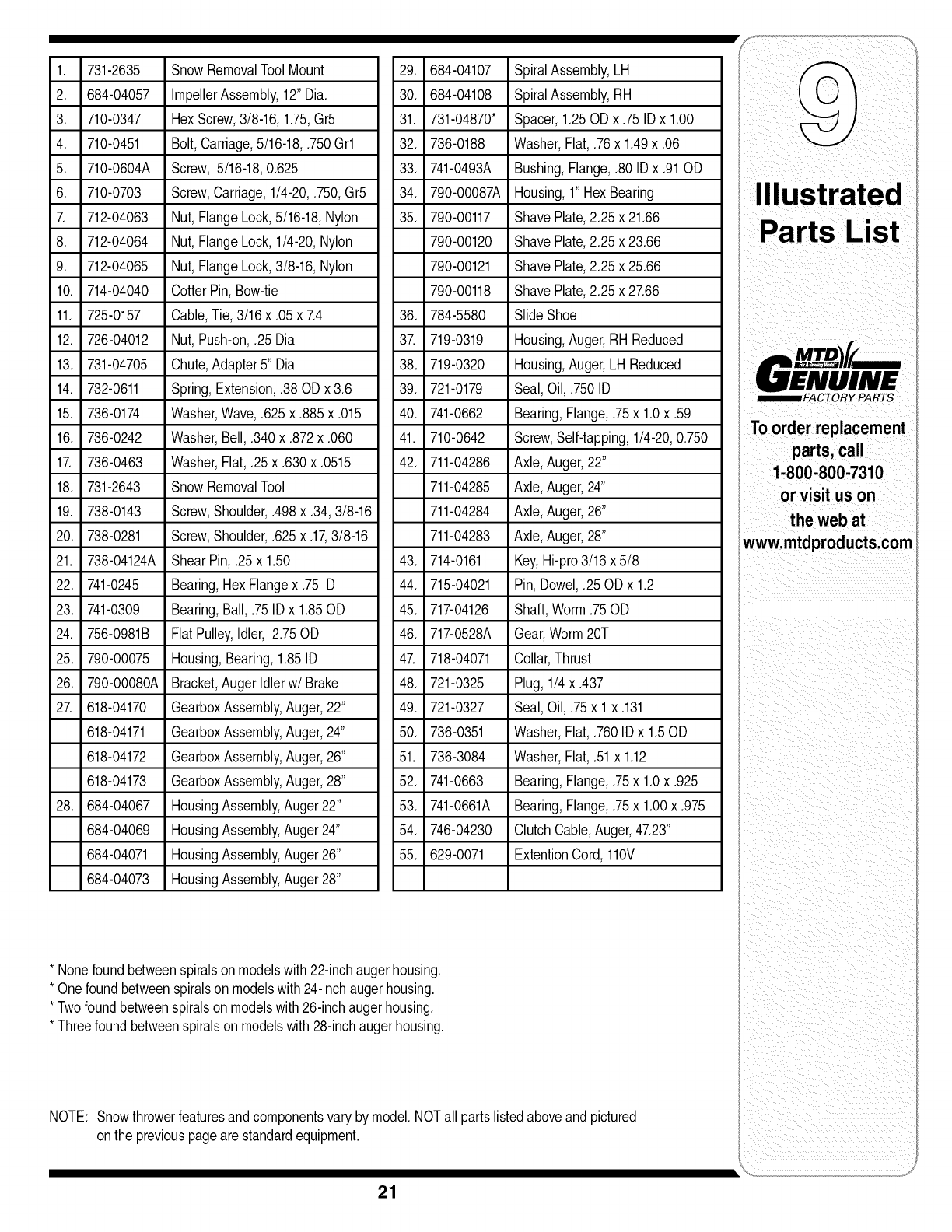

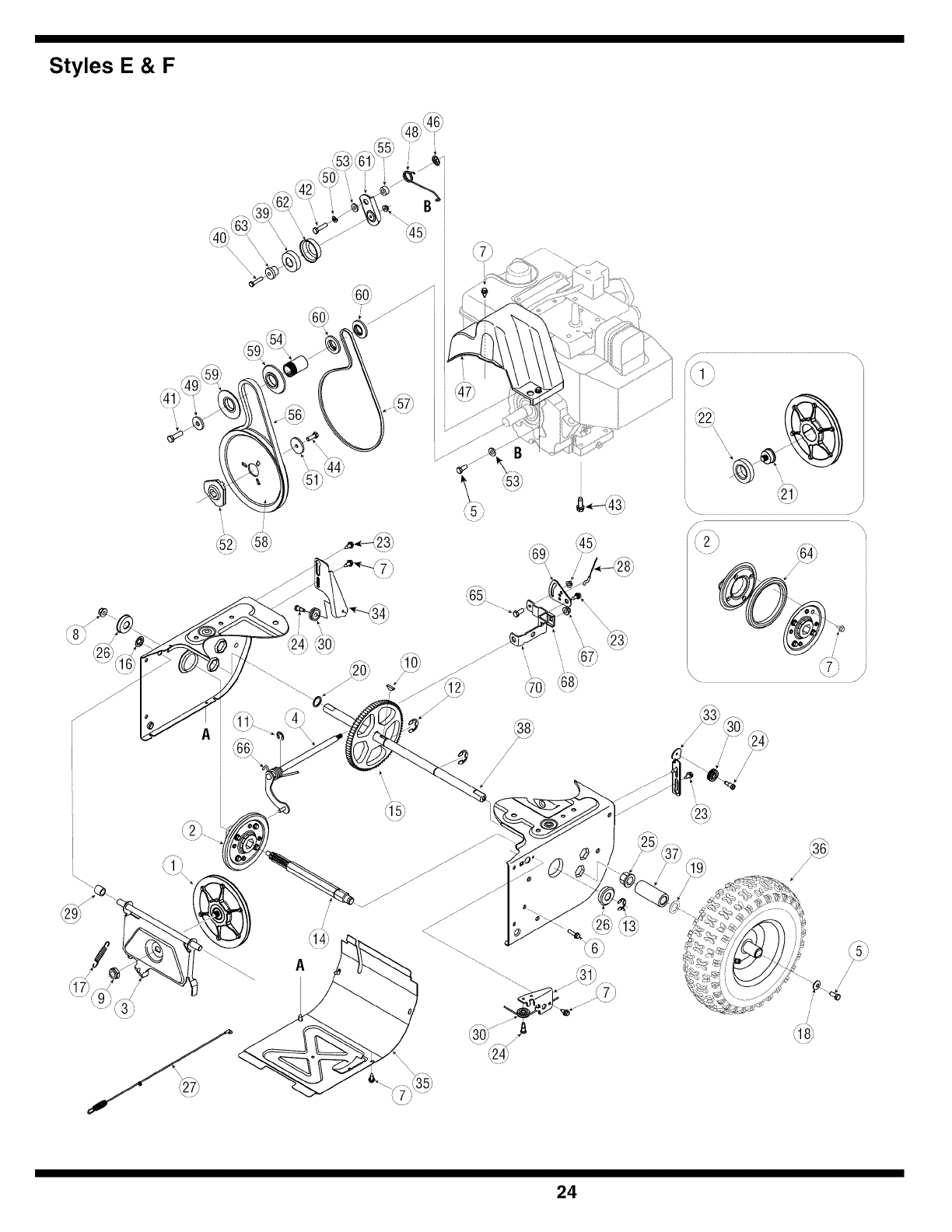

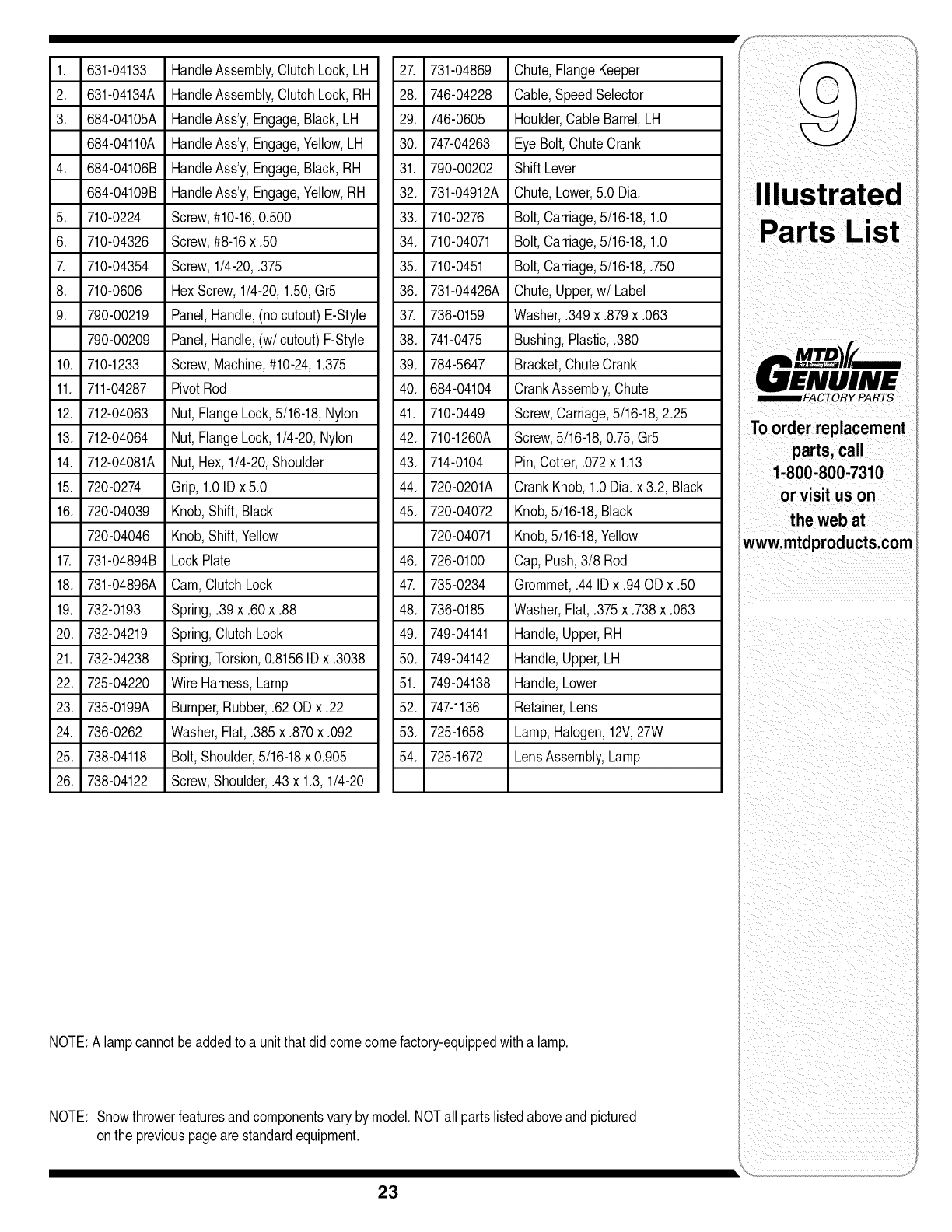

Illustrated Parts List ......................................... 20

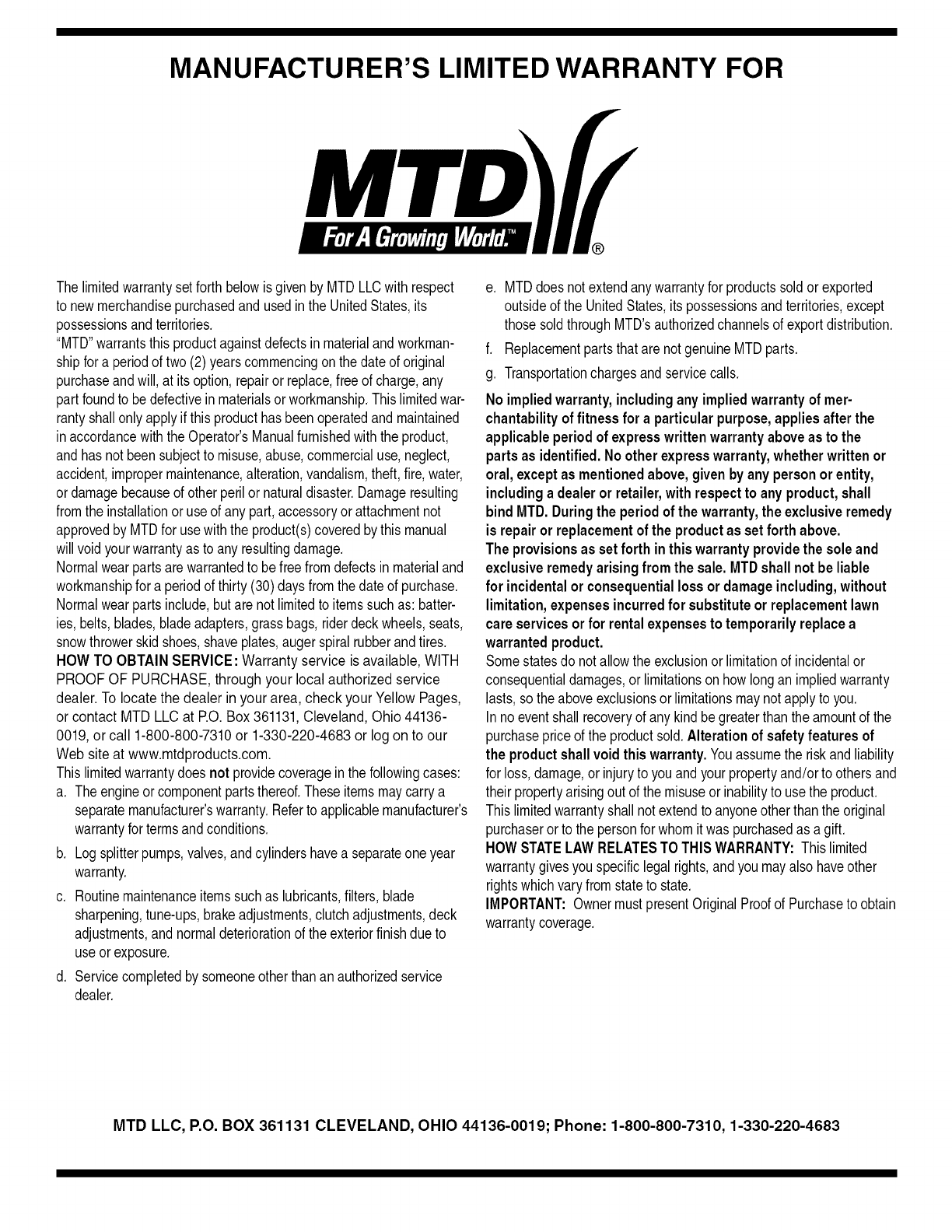

Warranty ............................................. Back Cover

Finding and Recording Model Number

BEFOREYOU STARTASSEMBLING

YOUR NEW EQUIPMENT,

please locatethe model plate on the equipmentand copy the

informationto the sample model plate providedto the right.

Youcan locatethe model plate by standing at the operating

position and lookingdown at the rear of the deck. This

informationwill be necessaryto use the manufacturer'sweb

site and/or obtain assistancefrom the Customer Support

Department or an authorizedservice dealer.

,, www.mtdproducts.com

IVITD LLC

P. O. BOX 361131

CLEVELAND,OH 44136

330-220-4683

800-800-731 0

Customer Support

Please do NOTreturn the unit to the retailer from which it was purchased,

without first contacting Customer Support.

Ifyou have difficulty assembling this product or have any questions regardingthe controls, operationor maintenance of this unit,

you can seek help from the experts.Choose from the options below:

1. Visitmtdproducts.com for manyusefulsuggestions.Clickon

CustomerSupportbuttonandyouwill get the optionsreproducedin

the screenshotbelow.Clickonthe appropriatebuttonandhelpis

immediatelyavailable.

2. Phonea Customer Support Representative at 1(800)800-7310.

,Theenginemanufactureris responsiblefor allengine-relatedissues

with regardto performance,power-rating,specifications,warrantyand

service.Pleasereferto theenginemanufacturer'sOwner's/Operator's

Manual,packedseparatelywithyourunit,for moreinformation.

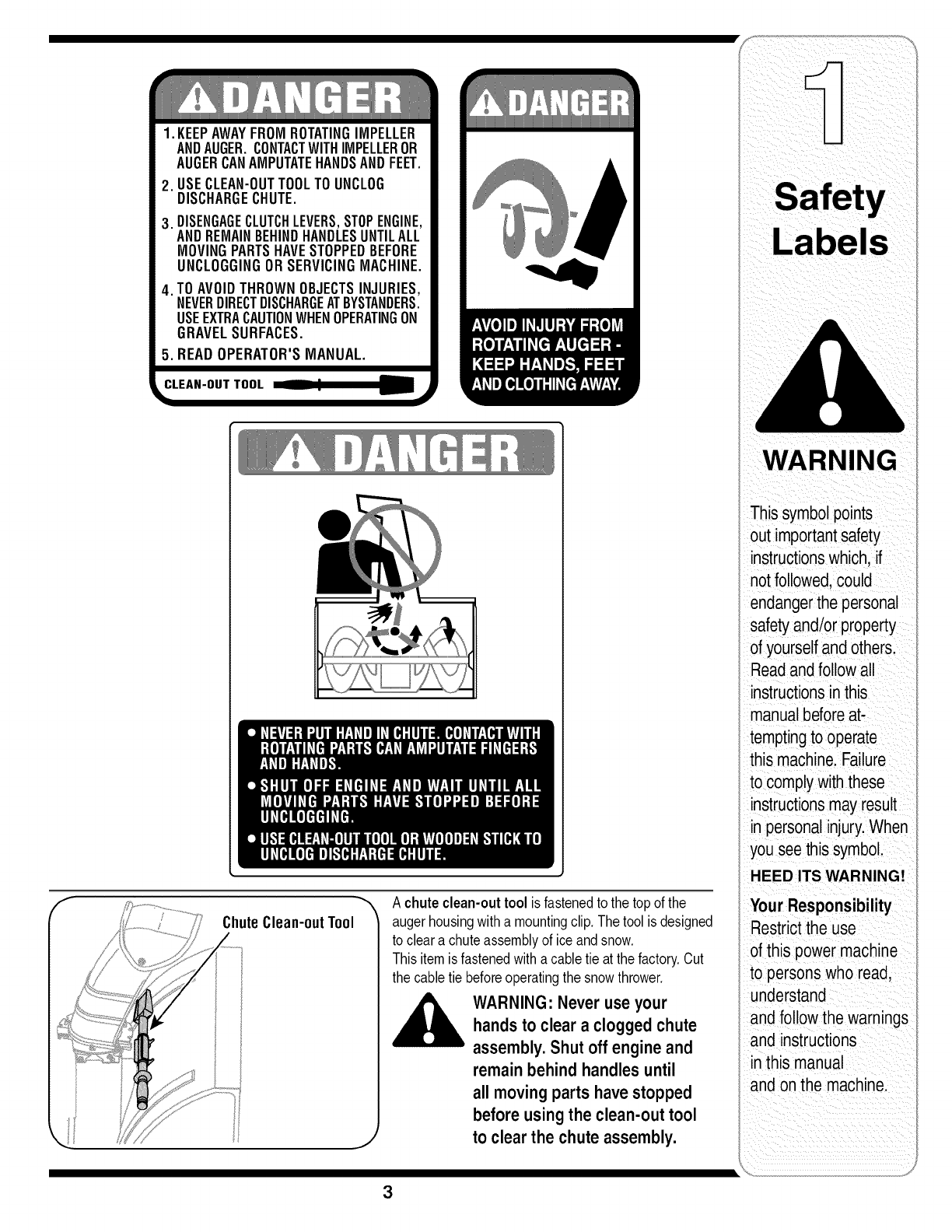

1. KEEPAWAYFROMROTATINGIMPELLER

ANDAUGER.CONTACTWITHIMPELLEROR

AUGERCANAMPUTATEHANDSANDFEET.

USECLEAN-OUTTOOLTOUNCLOG

DISCHARGECHUTE.

DISENGAGECLUTCHLEVERS,STOPENGINE,

ANDREMAINBEHINDHANDLESUNTILALL

MOVINGPARTSHAVESTOPPEDBEFORE

UNCLOGGINGORSERVICINGMACHINE.

TOAVOIDTHROWNOBJECTSINJURIES,

NEVERDIRECTDISCHARGEATBYSTANDERS.

USEEXTRACAUTIONWHENOPERATINGON

GRAVELSURFACES.

5. READOPERATOR'SMANUAL.

_CLEAN-OUT TOOL I1_,

ChuteClean-outTool

Achuteclean-outtool is fastenedto the top of the

augerhousingwitha mountingclip. Thetool is designed

to cleara chuteassemblyof ice andsnow,

Thisitemis fastenedwitha cabletie at the factory.Cut

the cabletie beforeoperatingthe snowthrower,

WARNING: Never use your

hands to clear a clogged chute

assembly. Shut off engine and

remain behind handles until

all moving parts have stopped

before using the clean-out tool

to clear the chute assembly.

WARNING

This symbolpoints

out importantsafety

instructionswhich, if

notfollowed,could

endangerthe personal

safetyand/or property

of yourselfandothers.

Readand followall

instructionsinthis

manualbeforeat-

temptingto operate

this machine.Failure

to complywith these

instructionsmay result

in personalinjury.When

you see thissymbol.

HEED ITS WARNING!

Your Responsibility

Restrictthe use

of this power machine

to personswho read,

understand

and follow the warnings

and instructions

inthis manual

and on the machine.

WARNING

Thissymbolpoints

out importantsafety

instructionswhich, if

notfollowed,could

endangerthe personal

i safetyand/or property

i ofyourselfand others.

Readandfollow all

instructionsinthis

manualbeforeat-

temptingto operate

this machine.Failure

to complywiththese

i instructionsmay result

i in personalinjury.When

you see this symbol.

iHEED ITS WARNING!

Your Responsibility

Restrictthe use

of this power machine

to personswho read,

understand

andfollowthe warnings

and instructions

i inthis manual

and onthe machine.

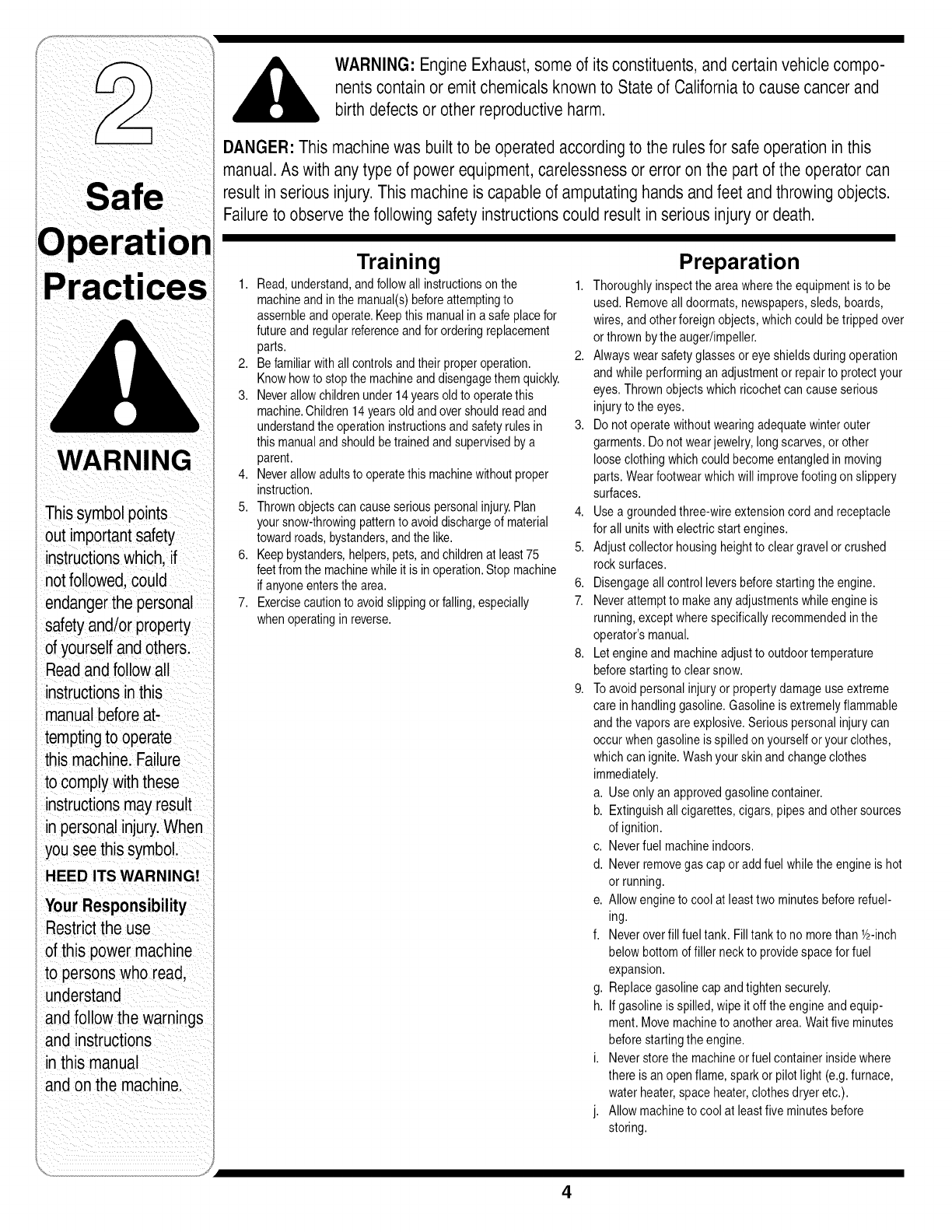

WARNING: Engine Exhaust,some of its constituents, andcertain vehicle compo-

nentscontain or emit chemicals knownto State of Californiato cause cancer and

birth defects or other reproductiveharm.

DANGER: This machinewas built to be operated according to the rulesfor safe operation in this

manual.As with any type of power equipment, carelessnessor error on the part of the operator can

result in serious injury.This machine is capable of amputating hands andfeet andthrowing objects.

Failureto observe the followingsafety instructions could result in serious injury or death.

Training

1. Read,understand,andfollowall instructionsonthe 1.

machineandin themanual(s)beforeattemptingto

assembleand operate.Keepthis manualina safe placefor

futureandregularreferenceandfor orderingreplacement

parts. 2.

2. Befamiliarwithall controlsandtheir properoperation.

Knowhowto stopthe machineanddisengagethem quickly.

3. Neverallowchildrenunder14yearsoldto operatethis

machine.Children14 yearsold andovershouldread and

understandtheoperationinstructionsand safetyrulesin 3.

this manualand shouldbetrainedand supervisedbya

parent.

4. Neverallowadultsto operatethis machinewithoutproper

instruction.

5. Thrownobjectscancauseseriouspersonalinjury.Plan 4.

yoursnow-throwingpatternto avoiddischargeof material

towardroads,bystanders,andthe like. 5.

6. Keepbystanders,helpers,pets,andchildrenat least 75

feetfromthe machinewhileit is in operation.Stop machine

ifanyoneentersthearea. 6.

7. Exercisecautionto avoidslippingor falling,especially 7.

whenoperatingin reverse.

Preparation

Thoroughlyinspectthe areawherethe equipmentis to be

used. Removeall doormats,newspapers,sleds,boards,

wires,and otherforeignobjects,whichcould betripped over

orthrownbythe auger/impeller.

Alwayswearsafetyglassesor eye shieldsduringoperation

andwhile performinganadjustmentorrepairto protectyour

eyes.Thrownobjectswhich ricochetcan cause serious

injuryto the eyes.

Do notoperatewithoutwearingadequatewinterouter

garments.Do notwearjewelry,longscarves,orother

looseclothingwhichcouldbecomeentangledin moving

parts.Wearfootwearwhich willimprovefootingon slippery

surfaces.

Usea groundedthree-wireextensioncordand receptacle

forall units withelectric startengines.

Adjustcollectorhousingheightto cleargravel orcrushed

rocksurfaces.

Disengageallcontrolleversbeforestartingthe engine.

Neverattemptto makeanyadjustmentswhileengineis

running,exceptwherespecificallyrecommendedinthe

operator'smanual.

Letengine andmachineadjustto outdoortemperature

beforestartingto clearsnow.

Toavoidpersonalinjuryor propertydamageuseextreme

care inhandlinggasoline.Gasolineis extremelyflammable

andthe vaporsare explosive.Seriouspersonalinjurycan

occurwhengasolineis spilledonyourselforyour clothes,

whichcan ignite.Washyour skinand changeclothes

immediately.

a. Useonly an approvedgasolinecontainer.

b. Extinguishallcigarettes,cigars, pipesandothersources

of ignition.

c. Neverfuel machineindoors.

d. Neverremovegascap oradd fuelwhilethe engineis hot

or running.

e. Allowengineto coolat leasttwo minutesbeforerefuel-

ing.

f. Neveroverfill fueltank. Filltankto nomorethan Y2-inch

belowbottomoffiller neckto providespacefor fuel

expansion.

g. Replacegasolinecap andtightensecurely.

h. If gasolineis spilled,wipe itoff theengineand equip-

ment.Movemachineto anotherarea.Wait fiveminutes

beforestartingtheengine.

i. Neverstorethe machineorfuel containerinsidewhere

there is an openflame,sparkor pilot light (e.g.furnace,

waterheater,spaceheater,clothesdryeretc.).

j. Allowmachineto cool at leastfive minutesbefore

storing.

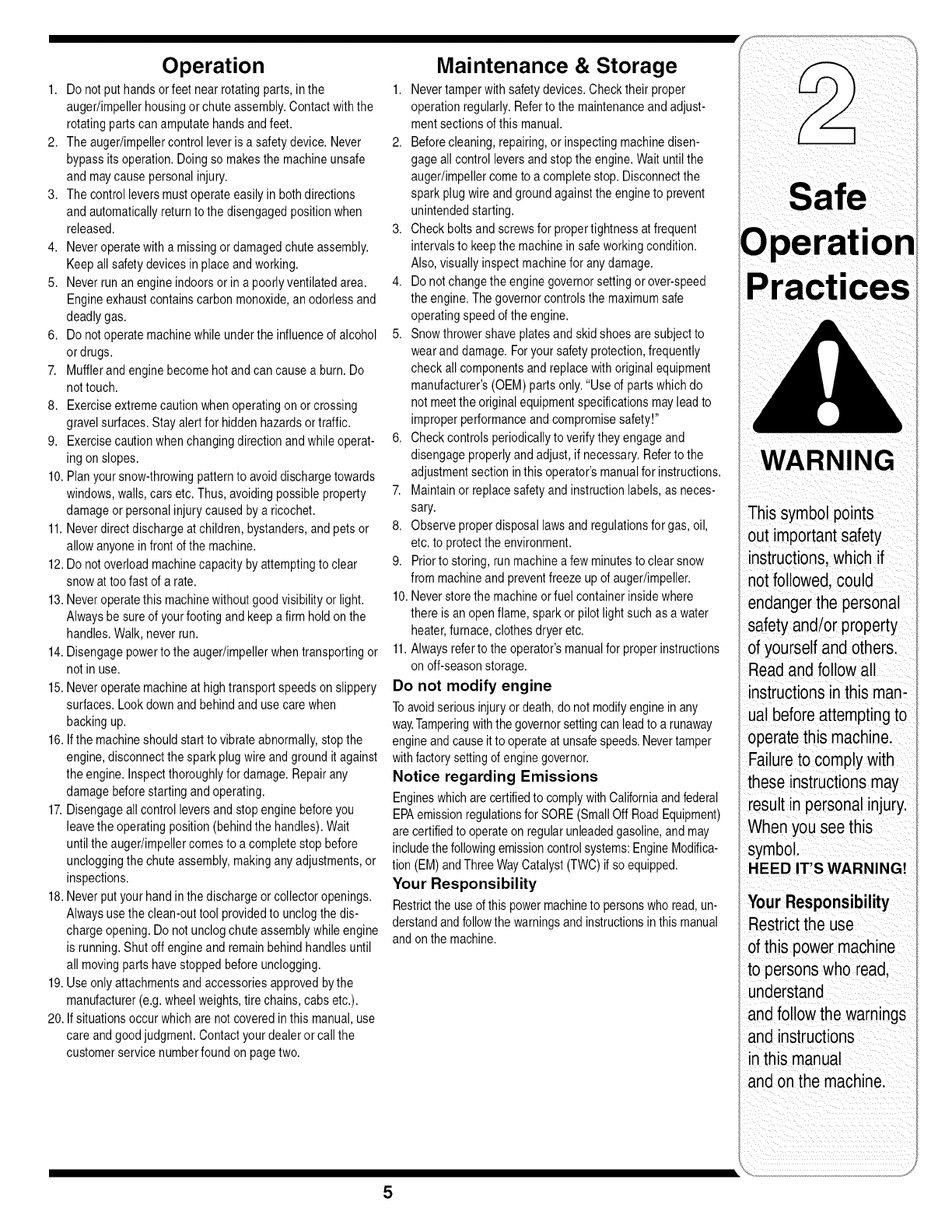

Operation

1. Donot puthands orfeet nearrotatingparts,inthe

auger/impellerhousingor chuteassembly.Contactwiththe

rotatingpartscanamputatehandsandfeet.

2. The auger/impellercontrolleveris a safetydevice.Never

bypassitsoperation.Doingso makesthe machineunsafe

and maycausepersonalinjury.

3. The controlleversmustoperateeasilyin bothdirections

and automaticallyreturnto the disengagedpositionwhen

released.

4. Neveroperatewitha missingor damagedchuteassembly.

Keepall safetydevicesin placeandworking.

5. Neverrunan engineindoorsor in a poorlyventilatedarea.

Engineexhaustcontainscarbonmonoxide,anodorlessand

deadly gas.

6. Donotoperatemachinewhile underthe influenceof alcohol

or drugs.

7. Mufflerandenginebecomehotandcan causea burn.Do

nottouch.

8. Exerciseextremecaution whenoperatingonor crossing

gravel surfaces.Stayalert for hiddenhazardsortraffic.

9. Exercisecautionwhenchangingdirectionandwhileoperat-

ing on slopes.

10.Planyoursnow-throwingpatternto avoiddischargetowards

windows,walls,carsetc.Thus,avoidingpossibleproperty

damageor personalinjury causedby a ricochet.

11.Neverdirect dischargeat children,bystanders,and petsor

allow anyonein frontof the machine.

12.Donotoverloadmachinecapacity byattemptingto clear

snow at toofast of a rate.

13.Neveroperatethis machinewithoutgoodvisibility or light.

Alwaysbe sure of yourfootingand keepa firm holdon the

handles.Walk,neverrun.

14.Disengagepowerto the auger/impellerwhentransportingor

notin use.

15.Neveroperatemachineat hightransport speedson slippery

surfaces. Lookdownand behindand usecare when

backingup.

16.Ifthe machineshouldstartto vibrateabnormally,stopthe

engine,disconnectthe sparkplugwire and groundit against

the engine.Inspectthoroughlyfor damage.Repairany

damagebeforestartingandoperating.

17.Disengageallcontrolleversandstopenginebeforeyou

leavethe operatingposition (behindthe handles).Wait

untilthe auger/impellercomesto a completestop before

uncloggingthe chuteassembly,makinganyadjustments,or

inspections.

18.Neverputyourhand in thedischargeor collectoropenings.

Alwaysuse the clean-outtoolprovidedto unclogthe dis-

charge opening.Donot unclogchuteassemblywhileengine

isrunning.Shut offengineand remainbehindhandlesuntil

all movingparts havestoppedbefore unclogging.

19.Useonly attachmentsandaccessoriesapprovedbythe

manufacturer(e.g.wheelweights,tire chains,cabs etc.).

20. If situationsoccurwhich are notcoveredin this manual,use

care and goodjudgment.Contactyourdealeror callthe

customerservice numberfoundon page two.

Maintenance & Storage

1. Nevertamperwithsafetydevices.Checktheir proper

operationregularly.Referto the maintenanceandadjust-

mentsectionsof this manual.

2. Beforecleaning,repairing,or inspectingmachinedisen-

gageall controlleversandstopthe engine.Wait untilthe

auger/impellercometo a completestop. Disconnectthe

sparkplugwire and groundagainstthe engineto prevent

unintendedstarting.

3. Checkbolts and screwsfor propertightnessat frequent

intervalsto keepthe machinein safeworkingcondition.

Also,visuallyinspectmachinefor anydamage.

4. Do notchangethe enginegovernorsettingor over-speed

theengine.The governorcontrolsthemaximumsafe

operatingspeed of theengine.

5. Snowthrowershaveplatesand skidshoesare subjectto

wearanddamage.Foryoursafetyprotection,frequently

checkallcomponentsand replacewith originalequipment

manufacturer's(OEM) partsonly."Useof partswhich do

notmeetthe originalequipmentspecificationsmayleadto

improperperformanceandcompromisesafety!"

6. Checkcontrols periodicallyto verify theyengageand

disengageproperlyandadjust, if necessary.Referto the

adjustmentsection inthis operator'smanualfor instructions.

7. Maintainor replacesafetyandinstructionlabels,as neces-

sary.

8. Observeproperdisposallawsandregulationsfor gas,oil,

etc. to protectthe environment.

9. Priorto storing,run machinea few minutesto clearsnow

frommachineand preventfreezeup of auger/impeller.

10.Neverstorethe machineorfuel containerinsidewhere

thereis an openflame,sparkor pilot lightsuch as a water

heater,furnace,clothesdryeretc.

11.Alwaysreferto theoperator'smanualfor properinstructions

onoff-seasonstorage.

Do not modify engine

Toavoidseriousinjuryordeath,do not modifyengineinany

way.Tamperingwiththegovernorsettingcan leadto a runaway

engineandcauseit to operateat unsafespeeds.Nevertamper

withfactorysettingof enginegovernor.

Notice regarding Emissions

Engineswhichare certifiedto complywithCaliforniaandfederal

EPAemissionregulationsfor SORE(SmallOff RoadEquipment)

arecertifiedto operateon regularunleadedgasoline,and may

includethefollowingemissioncontrolsystems:EngineModifica-

tion(EM)andThreeWayCatalyst(TWC)ifso equipped.

Your Responsibility

Restrictthe useof this powermachineto personswho read,un-

derstandand followthe warningsand instructionsin this manual

andon the machine.

Practices

WARNING

This symbol points

out importantsafety

instructions, which if

not followed,could

endanger the personal

safetyand/or property

of yourself and others.

Readand followall

instructions inthis man-

ual before attempting to

operate this machine.

Failureto comply with

these instructionsmay

result in personal injury.

When you see this

symbol.

HEED IT'S WARNING!

Your Responsibility

Restrictthe use

of this power machine

to personswho read,

understand

andfollow the warnings

and instructions

in this manual

andon the machine.

NOTE:Referenceto right

andleftside of the machine

areobservedfromthe

operatingposition.

NOTE:ThisOperator's

Manualcoversseveral

models.Snowthrower

featuresvaryby model.Not

allfeaturesdiscussedin

thismanualareapplicable

to all snowthrowermodels,

NOTE:Tworeplacement

augershearpinsand bow

' tie cotterpinsare provided

for yourconvenience.Store

i ina safeplaceuntil

i needed.Referto "Augers"

i inthe MaintenanceSection

ofthis manualfor more

information.

Observethe lowerrearareaof the snowthrowerto

besure bothcablesarealignedwith rollerguides

beforepivotingthe handleupward,

Securethe handleby tighteningthe plasticknob

locatedonboth the leftandright sidesof the handle,

Removeanddiscardanyrubberbands,if present,

Theyarefor packagingpurposesonly,

Positionthe chuteassemblyoverthe base,

Closethe flangekeepersto securethe chute

assemblyto the chutebase,Theflangekeeperswill

click intoplacewhenproperlysecure,

NOTE:Ifthe flangekeeperswill not easilyclick into

place,usethe palmof yourhandto applyswift,firm

pressureto the backof each,

5. Removethe flatwasherandhairpinclip fromtheend

of the chutedirectionalcontrol.

Insertthe endof the chutedirectionalcontrolinto the

lowerbracketand securewiththeflatwasherand hair-

pin clipjust removed.If necessary,the lowerbracket

can beadjusted.Referto ChuteBracketAdjustment.

on Page13.

Adjustments

Auger Control

IMPORTANT:Priorto operatingyoursnowthrower,refer

to AugerControlTeston page11.Readandfollowall

instructionscarefullyandperformalladjustmentsto verify

your snowthroweris operatingsafelyand properly.

Skid Shoes

IMPORTANT:Itis not recommendedthatyou operate

this snowthrowerongravelas loosegravelcan beeasily

pickedupandthrownby the augercausingpersonal

injury ordamageto the snowthrower.

The snowthrowerskidshoesareadjustedupwardat the

factoryfor shippingpurposes.Adjustthemdownward,if

desired,priorto operatingthe snowthrower.Referto Skid

Shoeson page13.

NOTE:If youchooseto operatethe snowthroweron

a gravelsurface,keepthe skidshoesin positionfor

maximumclearancebetweenthe groundandthe shave

plate.

Tire Pressure

Beforeoperating,checktire pressureand reducepres-

sure in bothtiresto between15psi and20 psi.

NOTE:If thetire pressureis not equalin bothtires,the

unit maynottravelina straightpathandthe shaveplate

maywearunevenly.

IMPORTANT

Priorto operatingyour

snow thrower, refer

to Auger Control Test

on page 11.Readand

fo low all instructions

carefully and perform

all adjustmentsto verify

your snow thrower is

operating safely and

properly.

WARN

Read, understand,

andfollow all instruc-

tions and warnings

on the machine and

in this manual before

operating.

Use extreme care

when handling

gasoline. Gasoline is

extremelyflammable

and the vapors are

explosive. Neverfuel

the machineindoors

or while the engine

is hot or running.

Extinguish cigarettes,

cigars, pipes and

other sources of

ignition.

NOTE:Snowthrowersvary

by modelwith regardto

featuresand components.

Yoursnowthrowermay

NOTresemble,indetail,

snowthrowersillustrated

infigures throughoutthis

manual,

fDriveControl

Know Your Snow Thrower

ShiftLever

/F er Control

ElectricStart Button

GasCap

Chute Assemh_IFill \\ \,

Clean 0ut _'---__

SkidShoe

ChuteDirectionalControl

EngineControls

Ignition

Key\

Choke

Control

RecoilStarter

Handle

ElectricStarterOutlet/i

__Primer

Figure 1

Now that you have set up your snow thrower for

operation, get acquainted with its controls and fea-

tures. These are described below and illustrated in

Figure 1. This knowledge will allow you to use your

new equipment to its fullest potential.

NOTE: Fordetailedstartinginstructionsandmore

informationonall enginecontrols,referto the separate

enginemanualpackedwithyour unit

Shift Lever

The shiftleveris locatedin the rightside of the handle

panelandis usedto determinegorundspeedand

directionof travel,

Forward

Therearesixforward(F) speeds,Positionone(1)is the

slowestandpositionsix(6) is the fastest,

Reverse

Therearetworeverse(R) speeds,One(1)is the slower

andtwo(2) is the faster.

Choke Control

Thechokecontrolis foundonthe rearof the engineand

is activatedby rotatingthe knobclockwise,Activatingthe

chokecontrolclosesthe chokeplateon thecarburetor

andaids instartingthe engine,

Throttle Control

Thethrottlecontrolis locatedon the

engine,Itregulatesthe speedof the

engineandwill shutoffthe enginewhen

pusheddowncompletely,

Primer

Depressingthe primerforcesfuel directly

intothe engine'scarburetorto aid in

cold-weatherstarting,

Oil Fill

Engineoil levelcan becheckedandoil

addedthroughthe oil fill,

Auger Control

AUGER

CONTROL

Theaugercontrolis locatedonthe left handle.Squeeze

thecontrolgripagainstthe handleto engagethe augers

andstart snowthrowingaction. Releaseto stop.

Drive Control /Auger Clutch Lock*

fDRIVE _

CONTROL

Thedrivecontrolis locatedonthe right handle.Squeeze

thecontrolgripagainstthe handleto engagethe wheel

drive.Releaseto stop.

*On selectmodels,thedrive controlalsolocksthe auger

controlso thatyoucan operatethe chutedirectional

controlwithoutinterruptingthe snowthrowingprocess.

If theaugercontrolis engagedsimultaneouslywiththe

drivecontrol,the operatorcan releasethe augercontrol

(onthe left handle)andtheaugerswill remainengaged.

Releasebothcontrolsto stopthe augersandwheel

drive.

IMPORTANT:Alwaysreleasethe drivecontrolbefore

changingspeeds.

Ignition Key

The ignitionkeyis a safetydevise.It mustbefully

insertedinorderfor the engineto start.Removethe

ignitionkeywhenthe snowthroweris notin use.

Do notturn the ignitionkeyin anattemptto start the

engine.Doingso maycauseit to break.

Recoil Starter Handle

Thishandleis usedto manuallystartthe engine.

Electric Starter Button

Pressingthe electricstarterbuttonengagesthe engine's

electricstarterwhen pluggedinto a 120Vpowersource.

Chute Directional Control

f \

CHUTE DIRECTIONAL CONTROL

DISCHARGE

LEFT

ADJUSTABLE

CHUTETILT

The chutedirectionalcontrolis locatedonleft sideof the

snowthrower.

Tochangethe directioninwhichsnowis thrown,turn

chutedirectionalcontrolas follows:

• Crankclockwiseto dischargeto the left.

• Crankcounterclockwiseto dischargeto the right.

Clean-Out Tool

WARNING: Never use your hands

to clear a clogged chute assembly.

Shut off engine and remain behind

handlesuntil all movingparts have

stopped before unclogging.

The chuteclean-outtool is fastenedto the

top of the augerhousingwith amountingclip. Thetool is

designedto clear acloggedchuteassembly.

NOTE: Thisitemis fastenedwitha cabletie to the rear

of the augerhousingat the factory.Cutthe cabletie

beforeoperatingthe snowthrower.

Skid Shoes

Positionthe skidshoesbasedonsurfaceconditions.

Adjustupwardfor hard-packedsnow.Adjustdownward

whenoperatingongravelorcrushedrocksurfaces.

Electric Starter Outlet

Requirestheuse of a three-prongoutdoorextensioncord

anda 120Vpowersource/walloutlet.

Augers

Whenengaged,the augersrotateanddraw snowinto the

augerhousing.

Chute Assembly

Snowdrawnintothe augerhousingis dischargedoutthe

chuteassembly.

Gas Cap

Unthreadthe gas capto addgasolineto the fueltank.

WARNING

The operation of

any snowthrower

can result inforeign

objects beingthrown

intothe eyes, which

can damage your

eyes severely.Always

wear safety glasses

while operatingthe

snowthrower,or while

performing any adjust-

ments or repairs on it.

Besure no one other

than the operator is

standing near the sno_

throwerwhile starting

engine or operating

snowthrower. Never

run engine indoors or

in enclosed, poorly

ventilated areas. En-

gine exhaustcontains

carbon monoxide,an

odorless and deadly

gas. Keep hands, feet,

hairand loose clothinc

awayfrom any moving

parts on engine and

snowthrower.

WARNING

Read, understand,

andfollow all instruc-

tions and warnings

on the machine and

in this manual before

operating.

Use extreme care

when handling

gasoline. Gasoline is

extremelyflammable

andthe vapors are

explosive. Neverfuel

the machineindoors

or while the engine

is hot or running.

Extinguish cigarettes,

cigars, pipes and

other sources of

ignition.

If your home's

wiringsystem is nota

three-wire grounded

system,do not use

this electric starter

under any conditions.

If your home

electrical system

is grounded, buta

three-hole receptacle

is not available,do

not use your snow

thrower'selectric

starter.

Gas & Oil Fill-Up

Servicethe enginewithgasolineandoil as instructedin

theTecurnsehEnginesmanualpackedseparatelywith

yoursnowthrower.Readinstructionscarefully,

StartingThe Engine

1, Attachsparkplugwireto sparkplug. Makecertain

the metalloopon theendof the sparkplugwire

(insidethe rubberboot)is fastenedsecurelyoverthe

metaltip on the sparkplug.

2, Makecertainboththe augercontrolanddrivecontrol

arein thedisengaged(released)position,

3, Movethrottlecontrolupto FASTposition.Insert

ignitionkeyinto slot. Makesureit snapsintoplace.

Do notattemptto turn the key.

NOTE:The enginecannotstart unlessthe keyis

insertedintoignitionswitch,

Electric Starter

1, Determinethatyourhome'swiringis a three-wire

groundedsystem,Ask a licensedelectricianif you

arenot certain.

WARNING: The optional electric

starter is equipped with a

grounded three-wire power cord

and plug, and is designed to op-

erate on 120 volt AC household

current. It must be used with a

properly grounded three-prong

receptacleat all times to avoid

the possibility of electric shock.

Followall instructions carefully

prior to operatingthe electric

starter.

If youhavea groundedthree-prongreceptacle,proceed

as follows:

1, Plugtheextensioncord intothe outletlocatedon

theengine'ssurface,Plugtheother endof extension

cord intoa three-prong120-volt,grounded,AC outlet

ina well-ventilatedarea.

2, Rotatechokecontrolto FULLchokeposition(for a

coldenginestart),

NOTE: Ifthe engineis alreadywarm,placechoke

controlin the OFFpositioninsteadof FULL.

3, Pushthe primertwoor threetimesfor coldengine

start,makingsureto coverventholein thecenterof

the primerwhenpushing,

NOTE: DONOTuseprimerto restartawarmengine

aftera shortshutdown.

4, Pushstarterbuttonto start engine.

5, Oncethe enginestarts,releasestarterbutton.

6, As theenginewarms,slowlyrotatethe chokecontrol

to the OFFposition.If theenginefalters,quickly rotate

the chokecontrolbackto FULLandthen slowlyinto

the OFFpositionagain.

7, Whendisconnectingthe extensioncord,always

unplugthe endat the three-prongwalloutletbefore

unpluggingthe oppositeendfrom the snowthrower.

Recoil Starter

1, Rotatechokecontrolto FULLchokeposition(cold

enginestart),

NOTE: Ifthe engineis alreadywarm,placechokecontrol

in theOFFpositioninsteadof FULL.

2, Pushthe primertwo orthreetimesfor cold engine

start,makingsureto coverventholein thecenterof

the primerwhen pushing,

NOTE:DONOTuseprimerto restarta warmengineafter

a shortshutdown.

NOTE:Additionalprimingmaybe necessaryif the

temperatureis below15oFahrenheit,

3, Graspthe recoilstarterhandleandslowlypullthe rope

out,At the pointwhereit becomesslightlyharderto

pullthe rope,slowlyallowthe ropeto recoil.

4, Pullthe starterhandlewith afirm, rapidstroke,Donot

releasethe handleandallowit to snapback, Keepa

firmholdonthe starterhandleandallowit to slowly

recoil,

,As theenginewarms,slowlyrotatethe chokecontrol

to the OFFposition.If theenginefalters,quickly rotate

the chokecontrolbackto the FULLpositionandthen

slowlyintothe OFFpositionagain.

NOTE:Allowthe engineto warmupfor a fewminutes

afterstarting.Theenginewill not developfull poweruntil it

reachesoperatingtemperatures.

Stopping The Engine

Runenginefor a fewminutesbeforestoppingto helpdry

offany moistureonthe engine.

1, Movethrottlecontrolto STOPposition.

2, Removetheignitionkeyandstoreina safeplace,

3, Wipeall snowandmoisturefromthe areaaroundthe

engineas wellas the areainand aroundthe drive

controlandaugercontrol,Also,engageand release

bothcontrolsseveraltimes.

Chute Clean-Out Tool

Thechuteclean-outtool is convenientlyfastenedto the

rearof the augerhousingwitha mountingclip.Should

snowandice becomelodgedin the chuteassembly

duringoperation,proceedas followsto safelycleanthe

chuteassemblyandchuteopening:

1. Releaseboththe AugerControlandthe Drive

Control.

2. Stopthe engineby removingthe ignitionkey.

3. Removethe clean-outtool fromthe clip which

securesit to the rearof the augerhousing.

4. Usethe shovel-shapedendof the clean-outtool to

dislodgeandscoopanysnowandicewhichhas

formedinand nearthe chuteassembly.

5. Refastenthe clean-outtool to the mountingclip on

the rearof theaugerhousing,reinsertthe ignitionkey

andstartthe snowthrower'sengine.

6. Whilestandinginthe operator'sposition(behindthe

snowthrower),engagethe augercontrolfor a few

secondsto clearany remainingsnowandice fromthe

chuteassembly.

To Engage Drive

Withthethrottlecontrolinthe Fast(rabbit)position,

moveshift leverintooneof the sixforward(F)

positionsortwo reverse(R) positions.Selecta speed

appropriatefor the snowconditionsanda paceyou're

comfortablewith.

2. Squeezetheaugercontrolagainstthe handleandthe

augerswill turn.Releaseit andthe augerswill stop.

3. Squeezethedrivecontrolagainstthehandlethe

snowthrowerwill move.Releaseit anddrivemotion

will stop.

To Engage Augers

1. Toengagethe augersandstartthrowingsnow,

squeezethe augercontrolagainstthe lefthandle.

Releaseto stoptheaugers.

Auger Control Test

Performthe followingtest beforeoperatingyoursnow

throwerfor thefirst timeandat the startof eachwinter.

Checkthe adjustmentof the augercontrolas follows:

1. Whenthe augercontrolis releasedandinthe

disengaged"up" )osition,thecable shouldhavevery

littleslack.ItshouldNOTbe tight.

2. Ina well-ventilatedarea,startthe snowthrower

engineas instructedonthe previouspage.Makesure

the throttleis setin the FASTposition.

3. Whilestandingin theoperator'sposition(behindthe

snowthrower),engagethe auger.

4. Allowthe augerto remainengagedfor approximately

ten (10)secondsbeforereleasingthe augercontrol.

Repeatthisseveraltimes.

5. Withthe throttlecontrolin the FAST(rabbit)position

andthe augercontrolinthe disengaged"up"position,

walkto the frontof the machine.

6. Confirmthatthe augerhascompletelystopped

rotatingandshowsNOsignsof motion.Ifthe auger

showsANYsignsof rotating,immediatelyreturnto

the operator'spositionandshutoffthe engine.Wait

for ALLmovingpartsto stopbeforere-adjustingthe

augercontrol.

7. To readjustthe controlcable,loosenthe upperhex

nutonthe augercable bracket.

8. Positionthe bracketupwardto providemoreslack(or

downwardto increasecabletension).See Figure2.

9. Retightenthe upperhex nut.

10.RepeatAuger Control Test to verifyproperadjust-

menthas beenachieved.

Figure 2

DriveSpeed, use the

slowerspeeds until

you are comfortable

and familiar with the

NEVER reposition the

shift lever (change

speeds or directior

of travel)without first

releasing the drive

controland bringing

the snowthrower

to a complete stop

Doing sowill result in

prematurewear to the

snowthrower'-sdrive i

system,

WARNING

Never use your hands

to clean snow and

assembly or auger

The muffler,engine

areas become hot

burn, Do not touch,

! !

WARNING

Read, understand,

andfollow all instruc-

tions and warnings

on the machine and

in this manual before

operating.

Never attempt to

makeany adjust-

mentswhile the

engine is running,

exceptwhere speci-

fied in operator's

manual.

Auger Control

Referto AugerControlTeston Page11to adjustthe

augercontrol.

Shift Cable

If thefull rangeof speeds(forwardandreverse)cannot

beachieved,referto the figuresto the rightandadjust

the shiftcableas follows:

1. Placethe shiftleverin the fastest forwardspeed

position.

2. Loosenthe hex nuton the shiftcable indexbracket.

SeeFigure3.

3. Pivotthe bracketdownwardto takeup slack inthe

cable.

4. Retightenthe hex nut.

Drive Control

Whenthedrivecontrolis releasedandin thedisen-

gaged"up" position,the cable shouldhaveverylittle

slack.It shouldNOTbetight.

Checkthe adjustmentof the drivecontrolas follows:

1. Withthedrive controlreleased,pushthe snow

throwergentlyforward.The unitshouldrollfreely.

2. Engagethedrivecontroland gentlyattemptto push

the snowthrowerforward.Thewheelsshouldnot

turn.Theunit shouldnotrollfreely.

3. Withthedrive controlreleased,movethe shift lever

backand forthbetweenthe R2positionandthe F6

positionseveraltimes.Thereshouldbe noresistance

inthe shiftlever.

4. If anyof the abovetestsfailed,thedrive cableis in

needof adjustment.Proceedas follows:

5. Loosenthe lowerhexnut onthe drivecable bracket.

SeeFigure4.

6. Positionthe bracketupwardto providemoreslack (or

downwardto increasecabletension).

7. Retightenthe upperhexnut.

Chute Assembly

Thedistancesnowis throwncan beadjustedby chang-

ingthe angleof thechuteassembly.Todo so:

1. Stopthe engineby removingthe ignitionkeyand

loosenthe plasticknobfoundon the leftside of the

chuteassembly.

2. Pivotthe chuteupwardor downwardbeforeretight-

eningthe wingknob.SeeFigure5.

Figure 3

Figure 4

Figure 5

Skid Shoes

The spacebetweenthe skidshoesandthe groundcan

beadjusted,SeeFigure6,

• Forclosesnowremovalona smoothsurface,raise

skidshoeshigheron the augerhousing,

° Usea middleor lowerpositionwhenthe areato be

clearedis uneven,suchas agraveldriveway,

Toadjustthe skidshoes:

1, Loosenthe four hexnuts(twooneach side)and

carriagebolts, Moveskidshoesto desiredposition,

2, Makecertainthe entirebottomsurfaceof skidshoeis

againstthegroundto avoidunevenwearon the skid

shoes,

3. Retightennutsand boltssecurely.

Chute Bracket Adjustment

If the spiralat the bottomof the chutedirectionalcontrol

is not fullyengagingwiththe chuteassembly,thechute

bracketcan beadjusted,Todo so:

1, loosenthe two nutswhichsecurethe chutebracket

andrepositionit slightly,See Figure7.

2. Retightenthe nuts.

Tire Pressure

Beforeoperating,checktire pressureandreducepres-

sureto between15psiand 20psi,

If thetire pressureis notequalin bothtires,the unit may

pullto oneside orthe other,

Figure 6

Figure 7

WARNING

_oosegravelcan be picked

Jp andthrownbythe auger,

causinginjuryto the operator

andbystandersand/or

dar_ageto the snowthrower

andsurroundingproperty,

WARNI NG

repairing, or inspect,

Avoidoil spillage on

rubber friction wheel

and aluminum drive

Platel

Engine

Referto the separateTecumsehEnginesmanual

packedwithyour unitfor all enginemaintenance.

Lubrication

Engine

Referto the separateTecumsehEnginesmanual

packedwithyour unitfor all enginelubricationinstruc-

tions.

Gear Shaft

Thegear(hex) shaftshouldbelubricatedat leastonce

a seasonor afterevery25 hoursof operation.

1. Removethelowerframecoverby removingthe two

screwswhichsecureit.

2. Applya lightcoatingof an all-weathermulti-purpose

greaseto the hex shaft.See Figure8.

Wheels

At leastonce a season,removeboth wheels.Cleanand

coattheaxleswitha multipurposeautomotivegrease

beforereinstallingwheels.

Chute Directional Control

Oncea season,thejoystickshouldbelubricatedwith

petroleumjelly,linseedoil, mineraloil, paraffinwaxor

3-in-1oil.

Auger Shaft

At leastonce a season,removethe shearpinson auger

shaft.Spraylubricantinsideshaft,aroundthe spacers.

Alsolubricatethe flangebearingsfoundat eitherendof

the shaft.SeeFigure9.

Gear Case

Theaugergearcasehas beenfilled withgreaseat the

factory.If disassembledfor any reason,lubricatewith

twoouncesof grease(Part Number737-0168).

NOTE: Donot overfillthe gearcase. Damageto the

sealscould result.Besurethe ventplugis freeof

greasein orderto relievepressure.

Shave Plate and Skid Shoes

Theshaveplateand skidshoesonthe bottomof the

snowthroweraresubjectto wear.Theyshouldbe

checkedperiodicallyandreplacedwhennecessary.

Toremoveskidshoes:

1. Removethefour carriageboltsandhexflangenuts

whichsecurethemto the snowthrower.

2. Reassemblenew skidshoeswiththe fourcarriage

bolts(twooneach side)andhexflange nuts.Refer

to Figure10.

Toremoveshaveplate:

1. Removethecarriageboltsand hexnutswhich

attachit to the snowthrowerhousing.

2. Reassemblenew shaveplate,makingsureheadsof

carriageboltsareto the insideof housing.Tighten

securely.

Figure 8

Spacers

Figure 9

NOTE:Augersnot shownfor clarity,

Figure 10

Auger Belt Replacement

To removeandreplaceyoursnowthrower'saugerbelt,

proceedas follows:

1. Removethe plasticbelt coveronthe frontof the

engineby removingthe twoself-tappingscrews.

NOTE:Drainthe gasolinefromthe snowthrower,or

placea pieceof plasticunderthe gas cap.

2. Carefullypivotthe snowthrowerup andforwardso

thatit restson the augerhousing.Removethe frame

coverfromthe undersideof the snowthrowerby

removingfour self-tappingscrewswhichsecureit.

3. Rollthe augerbeltoff the enginepulley.

4. a. Loosenand removethe shoulderscrewwhich

actsas a belt keeper.

b. Unhookthesupportbracketspringfromthe

frame.

5. Removethe beltfromaroundtheaugerpulley,and

slipthe beltbetweenthe supportbracketandthe

augerpulley.Reassembleaugerbelt by following

instructionsin reverseorder.

NOTE:Do NOTforgetto reinstallthe shoulderscrew

andreconnectthe springto the frameafterinstallinga

replacementaugerbelt.

ntaining

SnoW

iiii _i_i_I _i_ i_ i

NOTE: Although

multi-viscosity(

(5W30.10W30 etc:

improve startingin cold

weather,

viscosity oilsalso result

in higher oi!consumpi

tion when usedabove

32°ECheck your snow

thrower!s engine oil

levelmore frequentlyto

gine

amage from running

low on oil.

NOTE: Do not sand'

blast spark plug spark

plugshould becleaned

by scraping or wire

brushing and washing

with a commercial

NEVERreplace the

auger shear pins with

standard pins,

e to the auger

earboxor othercom-

ponent& as a result of

doing so, wil! NOTbe

covered byyour snow

throwerls Warranty,

NEVERreplace

theaugershear

pinswithanything

otherthanOEM

PartNo.738-04124

replacementshear

pins.Anydamageto

theaugergearbox

i orothercomponents

asa resultoffailing

to dosowillNOTbe

coveredbyyoursnow

thrower'swarranty.

Augers

• Theaugersare securedto the spiralshaftwithtwo

shearpinsandcotterpins,If the augershouldstrikea

foreignobjector icejam,the snowthroweris designed

so thatthe pinsmayshear,Referto Figure9,

If theaugerswill notturn,checkto seeif the pinshave

sheared,Onesetof replacementshearpins hasbeen

providedwith the snowthrower.When replacingpins,

sprayanoil lubricantintoshaft beforeinsertingnew

pins,

Drive Belt Replacement

Toremoveand replaceyoursnowthrower'saugerbelt,

proceedas follows:

1, Removetheplasticbelt coveron thefrontof the

engineby removingthe twoself-tappingscrews,

• Drainthe gasolinefromthe snowthrower,or placea

pieceof plasticunderthe gas cap,

• Carefullypivotthe snowthrowerupand forwardso

thatit restson the augerhousing,

2, Removetheframecoverfromthe undersideof the

snowthrowerby removingfour self-tappingscrews

whichsecureit,

3, a, Graspthe idlerpulleyandpivotit towardthe right,

b, Rollthe augerbeltoff the enginepulley,

c, Liftthe drivebelt offenginepulley,

4, Slipthe drivebeltoff the pulleyandbetweenfriction

wheelandfrictionwheeldisc,

• Removeandreplacebelt inthe reverseorder,

Friction Wheel Removal

If the snowthrowerfailsto drivewiththe drivecontrol

engaged,and performingthedrivecontrolcableadjust-

menton page14failsto correctthe problem,the friction

wheelmayneedto be replaced,Followthe instructions

below,Examinethe frictionwheelfor signsof wearor

crackingandreplaceif necessary

• Placethe shiftleverin third Forward(F3) position,

• Drainthe gasolinefromthe snowthrower,or placea

pieceof plasticunderthe gas cap,

• Carefullypivotthe snowthrowerup andforwardso

thatit restson the augerhousing,

1, a, Removethe framecoverfromthe undersideof

the snowthrowerby removingfourself-tapping

screwswhichsecureit,

b, Removethe right-handwheelby removingthe

screwandbellwasherwhichsecureit to the axle,

2, Carefullyremovethe hex nutandwasherwhich

securesthe hexshaft to the snowthrowerframeand

lightlytap the shaft'sendto dislodgethe ballbearing

fromthe rightsideof the frame,

3, Carefullypositionthehex shaftdownwardandto

the leftbeforecarefullyslidingthefrictionwheel

assemblyoff the shaft,

NOTE:Ifyou'rereplacingthe frictionwheelassembly

as a whole,discardthe wornpartand slidethe newpart

ontothe hex shaft,Followthe stepsabovein reverse

orderto reassemblecomponents.Ifyou'redisassem-

blingthe frictionwheeland replacingonly the rubber

ring,proceedas follows:

4, Removethe four screwswhichsecurethe friction

wheel'ssideplatestogether,

• Removethe rubberringfrombetweenthe plates,

• Reassemblethe side plateswitha newrubberring,

• Slidethefrictionwheelassemblybackontothe hex

shaftandfollowthestepsabovein reverseorderto

reassemblecomponents,

Maintaining

Your Snow

When reassembling

thefriction wheel as-

sembly,tighten each

screw only one rota-

tion beforeturning the

wheelclockwise and

proceedingwiththe

next screw. Repeat

this process several

timesto ensurethe

platesare secured

with equalforce.

NEVER replace

the auger shear

pins with anything

otherthan OEM

Part No.738-04124

replacementshear

pins. Any damageto

the auger gearbox

or other components

as a result of failing

to do so will NOT be

covered by your snow

thrower'swarranty.

WARNING

Neverstoresnowthrower

withfuel intank indoors

or in poorlyventilated

areas,wherefuel fumes

mayreachanopenflame,

sparkorpilotlightason

a furnace,water heater,

clothesdryer or

gas appliance.

,Fuelleft inengineduring

warmweatherdeteriorates

andwill causeserious

startingproblems.

iNeveruseengineorcarbu-

retorcleaningproductsin

the fueltankor permanent

damagemayoccur.

Ifthe snowthrowerwill not be usedfor30 daysor longer,or if it is the endof the snowseasonwhenthe lastpos-

sibilityof snowis gone,the equipmentneedsto be storedproperly,Followstorageinstructionsbelowto ensuretop

performancefromthe snowthrowerfor manymoreyears,

Preparing Engine

It is importantto preventgum depositsfromformingin

essentialfuelsystempartsof the enginesuchas the

carburetor,fuel filter,fuelhose,ortankduringshort-term

storage(15-30days),To preventthis,treatthe fuel

systemusinga fuelstabilizer.

Fuelstabilizer(suchas STA-BILTM or ULTRA-FRESHTM)

is anacceptablealternativein minimizingthe formation

of fuelgum depositsduringstorage,Addstabilizerto

gasolineinfuel tankor storagecontainer,Alwaysfollow

mixratiofoundon stabilizercontainer.Runengineat least

10minutesafteraddingstabilizerto allowit to reachthe

carburetor.

Preparing Snow Thrower

• Whenstoringthe snowthrowerinan unventilatedor

metalstorageshed,care shouldbe takento rustproof

the equipment,Usinga lightoil or silicone,coatthe

equipment,especiallyanychains,springs,bearings

and cables,

• Removeall dirt fromexteriorof engineandequipment,

• Followlubricationrecommendations,

• Storeequipmentina clean,dry area,

WARNING:Neverstoresnowthrower

withfuel in tank indoors or in poorly

ventilatedareas,wherefuel fumes may

reachan openflame, sparkor pilot

lightas ona furnace, water heater,clothesdryeror

gas appliance.

CAUTION:Alcoholblendedfuels

(calledgasoholor usingethanolor

methanol)can attractmoisturewhich

leads toseparationandformationof

acidsduringstorage.Acidicgas can damagethefuel

systemof an engine whileinstorage.

Long-Term Storage

To avoidengineproblems,the fuel systemshouldbe

emptiedbeforestoragefor 30daysorlonger.

WARNING:Fuelleft in engineduring

warmweatherdeterioratesandwill

causeseriousstartingproblems.

1, Runthe engineuntilthe fuel tankis emptyandit stops

due to lackof fuel,Do notattemptto pourfuel fromthe

engine,

WARNING:Neveruseengineor carbu-

retorcleaningproductsinthe fuel tank

or permanentdamagemayoccur.

2, Removethe sparkplugandpourone (1)ounceof

engineoilthroughthe sparkplugholeintothe cylinder,

Coversparkplugholewitha ragandcranktheengine

severaltimesto distributethe oil, Replacesparkplug,

Problem Cause Remedy

En n f r 1Chokenot nONposton 1 MovechoketoONposton

g e a stostat

2. Sparkplugwire disconnected. 2. Connectwire to sparkplug.

31Fuel tankemptyoi Stalefuel• 31 Filltankwithclean,freshgasolinel

Enginenot piirned. 41 Primeengineas instructed

OPeratingYou[SnowTh[ovver_

5 Fa it s k lu 5 Clean,adjustgap, orreplace

: u y par p g: •

6. Blockedfuel linel 6, Cleanfue!line,

7i Safetykeynotin ignitionon enginel ! 7: insertkeyfu!!yinto the swi!ch;

Engineruns erratic 1, UnitrunningonCHOKE, 1, Movechokeleverto OFFposition,

2, Blockedfuel lineor stalefuel,

3, Waterordirt infuel system,

4, Carburetoroutof adjustment,

2. Cleanfuel line;fill tankwithclean,

freshgasoline•

3. Drainfuel tank. Refillwith

freshfuel•

4. ContactMTDServiceCenter.

Engine oVerheats 1 carburetornotadjustedproperly 1 contact MTDservice center

Excessive 1. Loosepartsordamagedauger. 1. Stop engineimmediatelyand

Vibration disconnectsparkplugwire.Tighten

all boltsandnuts,If vibration

continues,haveunit servicedby a

MTDServiceCenter.

Loss of power 1• Sparkplugwire loose. 1• Connectandtightensparkplug

wire.

2 Gasca- venthole-lu--ed 2• Removeice andsnowfromgas

•_, v uu •I cap.Becertainventholeis clear.

I 3• ContactMTD ServiceCenter.

3, Exhaustport plugged,

Unitfails 1. Drivecontrolcablein needof adjust- 1. Adjustdrivecontrolcable.Referto

to propel itself ment. "MakingAdjustments".

2, Drivebeltlooseor damaged. 2. Replacedrivebelt.

Unitfails 1• Chuteassemblyclogged. 1• Stop engineimmediatelyand

to d scharclesnow I disconnectsparkplugWire.Clean

v I chuteassemby and ns deof auge

housingwith clean-outtool ora

stick

2• Foreignobjectlodgedin auger. 2, Stop engineimmediatelyand

disconnectsparkplugwire.

Removeobjectfromaugerwith

c ean-outtool ora stick.

3• Augercontrolcable inneedof adjust- ^ ..........

L_ Heferto Augerbontro lest on

ment• page11.

4 Augerbet looseor damaged

• • 4• Referto Maintenancesection.

5 Shearpin(s) sheared I 5. Repace w th newshearp n(s).

ili_iii/i_i/i!_i_/_ii/i i_i!/_ii_i_!!ii_

Shooting

NOTE:This section

addresses minor

service issues, For

further details,

a MTD authorized

service center or call

1 (800)800,7310 for

assistance.

Styles E & F

1. 731-2635 SnowRemovalToolMount

2. 684-04057 ImpellerAssembly,12"Dia.

3. 710-0347 HexScrew,3/846, 1.75,Gr5

4. 710-0451 Bolt,Carriage,5/16-18,.750Grl

5. 710-0604A Screw, 5/16-18,0.625

6. 710-0703 Screw,Carriage,1/4-20,.750,Gr5

7. 712-04063 Nut,FlangeLock,5/16-18,Nylon

8. 712-04064 Nut,FlangeLock,1/4-20,Nylon

9. 712-04065 Nut,FlangeLock,3/8-16,Nylon

10. 714-04040 CotterPin,Bow-tie

11. 725-0157 Cable,Tie,3/16x .05x 7.4

12. 726-04012 Nut,Push-on,.25 Dia

13. 731-04705 Chute,Adapter5" Dia

14. 732-0611 Spring,Extension,.38OD x 3.6

15. 736-0174 Washer,Wave,.625x.885x.015

16. 736-0242 Washer,Bell, .340x.872x.060

17. 736-0463 Washer,Flat, .25x.630x.0515

18. 731-2643 SnowRemovalTool

19. 738-0143 Screw,Shoulder,.498x.34,3/8-16

20. 738-0281 Screw,Shoulder,.625x.17,3/8-16

21. 738-04124A ShearPin, .25x 1.50

22. 741-0245 Bearing,HexFlangex .75ID

23. 741-0309 Bearing,Ball, .75IDx 1.85OD

24. 756-0981B FlatPulley,Idler, 2.75OD

25. 790-00075 Housing,Bearing,1.85ID

26. 790-00080A Bracket,Augerldlerw/ Brake

27. 618-04170 GearboxAssembly,Auger,22"

618-04171 GearboxAssembly,Auger,24"

618-04172 GearboxAssembly,Auger,26"

618-04173 GearboxAssembly,Auger,28"

28. 684-04067 HousingAssembly,Auger22"

684-04069 HousingAssembly,Auger24"

684-04071 HousingAssembly,Auger26"

684-04073 HousingAssembly,Auger28"

29. 684-04107 SpiralAssembly,LH

30. 684-04108 SpiralAssembly,RH

31. 731-04870" Spacer,1.25ODx.75 IDx 1.00

32. 736-0188 Washer,Flat,.76x 1.49x .06

33. 741-0493A Bushing,Flange,.80 IDx .91OD

34. 790-00087A Housing,1"HexBearing

35. 790-00117 ShavePlate,2.25 x 21.66

790-00120 ShavePlate,2.25 x 23.66

790-00121 ShavePlate,2.25 x 25.66

790-00118 ShavePlate,2.25 x 27.66

36. 784-5580 SlideShoe

37. 719-0319 Housing,Auger,RH Reduced

38. 719-0320 Housing,Auger,LH Reduced

39. 721-0179 Seal,Oil, .750ID

40. 741-0662 Bearing,Flange,.75x 1.0x .59

41. 710-0642 Screw,Self-tapping,1/4-20,0.750

42. 711-04286 Axle,Auger,22"

711-04285 Axle,Auger,24"

711-04284 Axle,Auger,26"

711-04283 Axle,Auger,28"

43. 714-0161 Key,Hi-pro3/16x 5/8

44. 715-04021 Pin, Dowel,.25 ODx 1.2

45. 717-04126 Shaft,Worm.75OD

46. 717-0528A Gear,Worm20T

47. 718-04071 Collar,Thrust

48. 721-0325 Plug, 1/4x.437

49. 721-0327 Seal,Oil, .75x1x.131

50. 736-0351 Washer,Flat,.760IDx 1.50D

51. 736-3084 Washer,Flat,.51x 1.12

52. 741-0663 Bearing,Flange,.75x 1.0x .925

53. 741-0661A Bearing,Flange,.75x 1.00x .975

54. 746-04230 ClutchCable,Auger,47.23"

55. 629-0071 ExtentionCord,110V

* Nonefoundbetweenspiralsonmodelswith22-inchaugerhousing.

* Onefoundbetweenspiralson modelswith24-inchaugerhousing.

* Twofoundbetweenspiralsonmodelswith26-inchaugerhousing.

* Threefound betweenspiralson modelswith28-inchaugerhousing.

NOTE: Snowthrowerfeaturesandcomponentsvaryby model.NOTall partslistedaboveandpictured

onthe previouspageare standardequipment.

Ilustra'

_FACTORY PARTS

the webat

ii i _iI_ ii

Styles E & F

×M

1. 631-04133 HandleAssembly,ClutchLock, LH

2. 631-04134A HandleAssembly,ClutchLock, RH

3. 684-04105A HandleAss'y,Engage,Black,LH

684-04110A HandleAss'y,Engage,Yellow,LH

4. 684-04106B HandleAss'y,Engage,Black,RH

684-04109B HandleAss'y,Engage,Yellow,RH

5. 710-0224 Screw,#10-16,0.500

6. 710-04326 Screw,#8-16x .50

7. 710-04354 Screw,1/4-20,.375

8. 710-0606 HexScrew,1/4-20,1.50,Gr5

9. 790-00219 Panel,Handle,(nocutout)E-Style

790-00209 Panel,Handle,(w/cutout) F-Style

10. 710-1233 Screw,Machine,#10-24,1.375

11. 711-04287 PivotRod

12. 712-04063 Nut,FlangeLock,5/16-18,Nylon

13. 712-04064 Nut,FlangeLock,1/4-20,Nylon

14. 712-04081A Nut,Hex, 1/4-20,Shoulder

15. 720-0274 Grip,1.0IDx 5.0

16. 720-04039 Knob,Shift,Black

720-04046 Knob,Shift,Yellow

17. 731-04894B LockPlate

18. 731-04896A Cam,ClutchLock

19. 732-0193 Spring,.39 x.60x.88

20. 732-04219 Spring,ClutchLock

21. 732-04238 Spring,Torsion,0.8156IDx .3038

22. 725-04220 WireHarness,Lamp

23. 735-0199A Bumper,Rubber,.62 ODx .22

24. 736-0262 Washer,Flat, .385x.870x.092

25. 738-04118 Bolt,Shoulder,5/16-18x 0.905

26. 738-04122 Screw,Shoulder,.43 x 1.3,1/4-20

27. 731-04869 Chute,FlangeKeeper

28. 746-04228 Cable,SpeedSelector

29. 746-0605 Houlder,Cable Barrel,LH

30. 747-04263 Eye Bolt,ChuteCrank

31. 790-00202 Shift Lever

32. 731-04912A Chute,Lower,5.0 Dia.

33. 710-0276 Bolt,Carriage,5/16-18,1.0

34. 710-04071 Bolt,Carriage,5/16-18,1.0

35. 710-0451 Bolt,Carriage,5/16-18,.750

36. 731-04426A Chute,Upper,w/Label

37. 736-0159 Washer,.349x.879x.063

38. 741-0475 Bushing,Plastic,.380

39. 784-5647 Bracket,ChuteCrank

40. 684-04104 CrankAssembly,Chute

41. 710-0449 Screw,Carriage,5/16-18,2.25

42. 710-1260A Screw,5/16-18,0.75,Gr5

43. 714-0104 Pin, Cotter,.072x 1.13

44. 720-0201A CrankKnob,1.0Dia.x 3.2, Black

45. 720-04072 Knob,5/16-18,Black

720-04071 Knob,5/16-18,Yellow

46. 726-0100 Cap,Push,3/8 Rod

47. 735-0234 Grommet,.44IDx .94 ODx .50

48. 736-0185 Washer,Flat,.375x.738x.063

49. 749-04141 Handle,Upper,RH

50. 749-04142 Handle,Upper,LH

51. 749-04138 Handle,Lower

52. 747-1136 Retainer,Lens

53. 725-1658 Lamp,Halogen,12V,27W

54. 725-1672 LensAssembly,Lamp

NOTE:A lampcannotbeaddedto a unitthatdidcomecomefactory-equippedwitha lamp.

NOTE: Snowthrowerfeaturesandcomponentsvaryby model.NOTall partslistedaboveandpictured

onthe previouspageare standardequipment.

Ilustra'

_FACTORY PARTS

the webat

ii i _iI_ ii

Styles E & F

_58_, _

__3;'

1. 656-04025A DiscAssembly,FrictionWheel

2. 684-04153 FrictionWheelAssembly,5.50D

3. 684-04154 SupportBracket,FrictionWheel

4. 684-04156 ShiftAssembly,Rod

5. 710-0627 HexScrew,5/16-24,.750,Gr5

6. 710-0788 Screw,1/4-20,1.000

7. 710-0896 Screw,1/4-14x .625

8. 712-04065 Nut,FlangeLock,3/8-16,Nylon

9. 712-0413 Nut,JamLock,5/8-18,Gr5, Nylon

10. 714-0126 Key,Hi Pro,3/16x 3/4 Dia.

11. 716-0104 E-ring,.500Dia.

12. 716-0136 E-ring,Retaining,.875Dia.

13. 716-0231 E-ring,.750Dia.

14. 717-04209 HexShaft,.8125,7-Tooth

15. 717-04230 Gear,80-Tooth

16. 726-0221 SpeedNut, .500

17. 732-0264 ExtensionSpring

18. 736-0242 Washer,Bell, .340x.872x.060

19. 736-0287 Washer,Flat, .793x 1.24x .060

20. 736-04161 Washer,Flat, .75x 1.00x .060

21. 738-04164A Pin,FrictionDisc

22. 741-04098 BallBearing,30x 55x 13

23. 738-04184A Screw,Shoulder,.37 x.105, 1/4-20

24. 738-0924A Screw,1/4-28,.375

25. 741-0245 Bearing,HexFlangex .75ID

26. 741-0563 Bearing,Ball, 17x 40 x 12

27. 746-04229 ClutchCable,Wheel,44.95"

28. 746-04228 Cable,SpeedSelector

29. 748-0190 Spacer,.508 IDx .75ODx .68

30. 756-0625 Roller,Cable

31. 790-00096 FrontGuideBracket,AugerCable

32. 790-00180 Frame

33. 790-00206A GuideBracket,AugerCable

34. 790-00207A GuideBracket,DriveCable

35. 790-00226 Cover,Frame

36. SeeChart WheelAssembly

37. 731-04873 Spacer,1.25x .75x 3.0

731-04877" Spacer,1.25x .75x 1.50

38. 738-04168 Axle,.75x 22"

39. 741-0919 Ball Bearing

40. 710-0106 HexScrew,1/4-20,1.25,Gr5

41. 710-0191 HexScrew,3/8-24,1.25,Gr8

42. 710-04520 HexScrew,5/16-24,1.25,Gr5

43. 710-0654A Screw,Seres,3/8-16,1.00

44. 710-1245B HexScrew,5/16-24,.875,Gr8

45. 712-04064 Nut, FlangeLock,1/4-20,Nylon

46. 726-04012 Nut, Push-on,.25Dia.

47. 731-04792A Cover,Belt

48. 732-04308 Spring,Torsion,.850 IDx .354

49. 736-0247 Washer,Flat,.406x 1.25x .157

50. 736-0119 Washer,Lock.3125

51. 736-0505 Washer,Flat,.34 x 1.50x .150

52. 748-04053 Pulley,Adapter,.75Dia.

53. 748-04112 Spacer,Shoulder,.317x.50x.102

54. 750-04303 Spacer,.875IDx 1.185OD

55. 750-04477 Spacer,.340x.750x.360

56. 754-04050 Belt,AugerDrive

57. 754-04088 Belt,WheelDrive

58. 756-04109 Pulley,AugerDrive,8.1x .5

59. 756-04113 Pulley,Half,Vx 2.600OD

60. 756-04179 Pulley,Half,1/4-Vx 1.50D

61. 790-00208 Idler Bracket,WheelDrive

62. 790-00230 Sleeve,BearingIdler

63. 750-04571 Spacer,Shoulder,.26 x.79x.538

64. 735-04054 Rubber,FrictionWheel,5.50D

65. 710-0751 HexScrew,1/4-20,.620,Gr5

66. 732-04311 Spring,Torsion,.750ID x .968

67. 712-04063 Nut, FlangeLock,5/16-18,Nylon

68. 790-00156 Bracket,ShiftSpacer

69. 790-00217A PivotBracket,SpeedSelector

70. 790-00218A Shift Bracket,SpeedSelector

Wheel Assembly

634-04144

634-04143

634-04142

634-04141**

Wheel Size

13x4

13x5

15x5

16x 4.8

RimOnly

634-04151

634-04140

Tin Only

734-1732

734-1527

734-1859

734-1530

ValveOnly

734-0255

NOTE: Snowthrowerfeaturesandcomponentsvaryby model.NOTall partslistedaboveandpictured

onthe previouspageare standardequipment.

Ilustra'

_FACTORY PARTS

the webat

ii i _iI_ ii

* Foundon modelswith a

22-inchaugerhousingonly

**The wheelaxle is mounted

in the frameside's

upperhex-holeon models

equippedwith 16-inch

wheels.

NOTES

MANUFACTURER'S LIMITED WARRANTY FOR

The limitedwarrantysetforthbelowis givenby MTDLLCwithrespect

to newmerchandisepurchasedandusedin the UnitedStates,its

possessionsandterritories.

"MTD"warrantsthisproductagainstdefectsin materialandworkman-

shipfor a periodof two (2)yearscommencingonthe date of original

purchaseandwill,at itsoption,repairor replace,freeof charge,any

part foundto bedefectiveinmaterialsorworkmanship.Thislimitedwar-

rantyshallonlyapply if thisproducthasbeenoperatedand maintained

inaccordancewiththe Operator'sManualfurnishedwiththe product,

andhas notbeensubjectto misuse,abuse,commercialuse,neglect,

accident,impropermaintenance,alteration,vandalism,theft,fire,water,

ordamagebecauseof otherperilor naturaldisaster.Damageresulting

fromthe installationor useof any part,accessoryor attachmentnot

approvedby MTDfor use withthe product(s)coveredbythis manual

willvoid yourwarrantyas to any resultingdamage.

Normalwearpartsarewarrantedto befree fromdefectsin materialand

workmanshipfor a periodof thirty (30)daysfromthe dateof purchase.

Normalwearpartsinclude,butare notlimitedto itemssuchas: batter-

ies,belts,blades,bladeadapters,grassbags,riderdeckwheels,seats,

snowthrowerskidshoes,shaveplates,augerspiralrubberandtires.

HOW TO OBTAIN SERVICE: Warranty service is available,WITH

PROOFOF PURCHASE, through your local authorized service

dealer. To locate the dealer in your area, check your Yellow Pages,

or contact MTD LLC at P.O.Box 361131,Cleveland, Ohio 44136-

0019, or call 1-800-800-7310or 1-330-220-4683 or log on to our

Web site at www.mtdproducts.com.

Thislimitedwarrantydoesnot providecoverageinthe followingcases:

a. Theengineor componentpartsthereof.Theseitemsmaycarrya

separatemanufacturer'swarranty.Referto applicablemanufacturer's

warrantyfor termsandconditions.

b. Logsplitterpumps,valves,andcylindershavea separateoneyear

warranty.

c. Routinemaintenanceitemssuchas lubricants,filters,blade

sharpening,tune-ups,brakeadjustments,clutchadjustments,deck

adjustments,andnormaldeteriorationof the exteriorfinishdueto

useor exposure.

d. Servicecompletedby someoneotherthananauthorizedservice

dealer.

e. MTDdoesnot extendanywarrantyfor productssoldor exported

outsideof the UnitedStates,its possessionsandterritories,except

thosesoldthroughMTD'sauthorizedchannelsof exportdistribution.

f. ReplacementpartsthatarenotgenuineMTDparts.

g. Transportationchargesandservicecalls.

Noimplied warranty,including any implied warrantyof mer-

chantabilityof fitness for a particularpurpose,appliesafter the

applicableperiodof expresswrittenwarrantyaboveasto the

partsasidentified.Nootherexpresswarranty,whetherwrittenor

oral,exceptas mentionedabove,givenby anypersonor entity,

includinga dealeror retailer,withrespectto any product,shall

bindMTD.Duringthe periodof the warranty,the exclusiveremedy

is repairor replacementof the productas setforth above.

Theprovisionsasset forth inthiswarrantyprovidethesoleand

exclusiveremedyarisingfrom the sale.MTDshallnotbe liable

for incidentalor consequentiallossordamageincluding,without

limitation,expensesincurredfor substituteor replacementlawn

careservicesor for rentalexpensesto temporarilyreplacea

warrantedproduct.

Somestatesdo notallowthe exclusionor limitationof incidentalor

consequentialdamages,or limitationsonhowlongan impliedwarranty

lasts,sothe aboveexclusionsor limitationsmaynot applyto you.

In noeventshallrecoveryof any kindbegreaterthanthe amountof the

purchasepriceof the productsold.Alteration of safety features of

the product shall void this warranty. Youassumethe risk andliability

for loss,damage,or injuryto you andyourpropertyand/orto othersand

theirpropertyarisingout of the misuseor inabilityto usethe product.

Thislimitedwarrantyshallnot extendto anyoneotherthan theoriginal

purchaserorto the personfor whomit was purchasedas a gift.

HOWSTATELAW RELATESTOTHIS WARRANTY:This limited

warrantygivesyou specificlegalrights,and youmayalsohaveother

rightswhichvaryfromstateto state.

IMPORTANT:OwnermustpresentOriginalProofof Purchaseto obtain

warrantycoverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683

MTD 31AE6FFF700 User Manual SNOW THROWER Manuals And Guides 1108687L

Navigation menu

Versions of this User Manual:

Views

Navigation
