MW McWong PSC-ID-M-FM400 5.8GHz Microwave Occupancy Sensor User Manual manual
MW McWong International Inc 5.8GHz Microwave Occupancy Sensor manual
User Manual
5.8Ghz Doppler Sensor User Manual
Operating voltage 120-277 VAC/60HZ
Maximum load
Incandescent:277VAC 1200W 4.3A
120VAC 800w 6.7A
Operating
Temperature -5ºC~+45ºC Fluorescent:277VAC 600w 2.2A
120VAC 400w 3.4A
Standby consumption <0.9w Duration time MIN：5S；MAX：30M
Light control level 2LUX—2000LUX Setting height Wall mounting 1.5-3M height
Ceiling mounting 3-4M height
Detection angle wall mounting 180°
ceiling mounting360°
Level of IP Indoor use
WARM UP TIME About 20s,then go into auto mode after the light off
Adjustabl detection
range
wall mounting: 2-12M
ceiling mounting: radius 2-7M

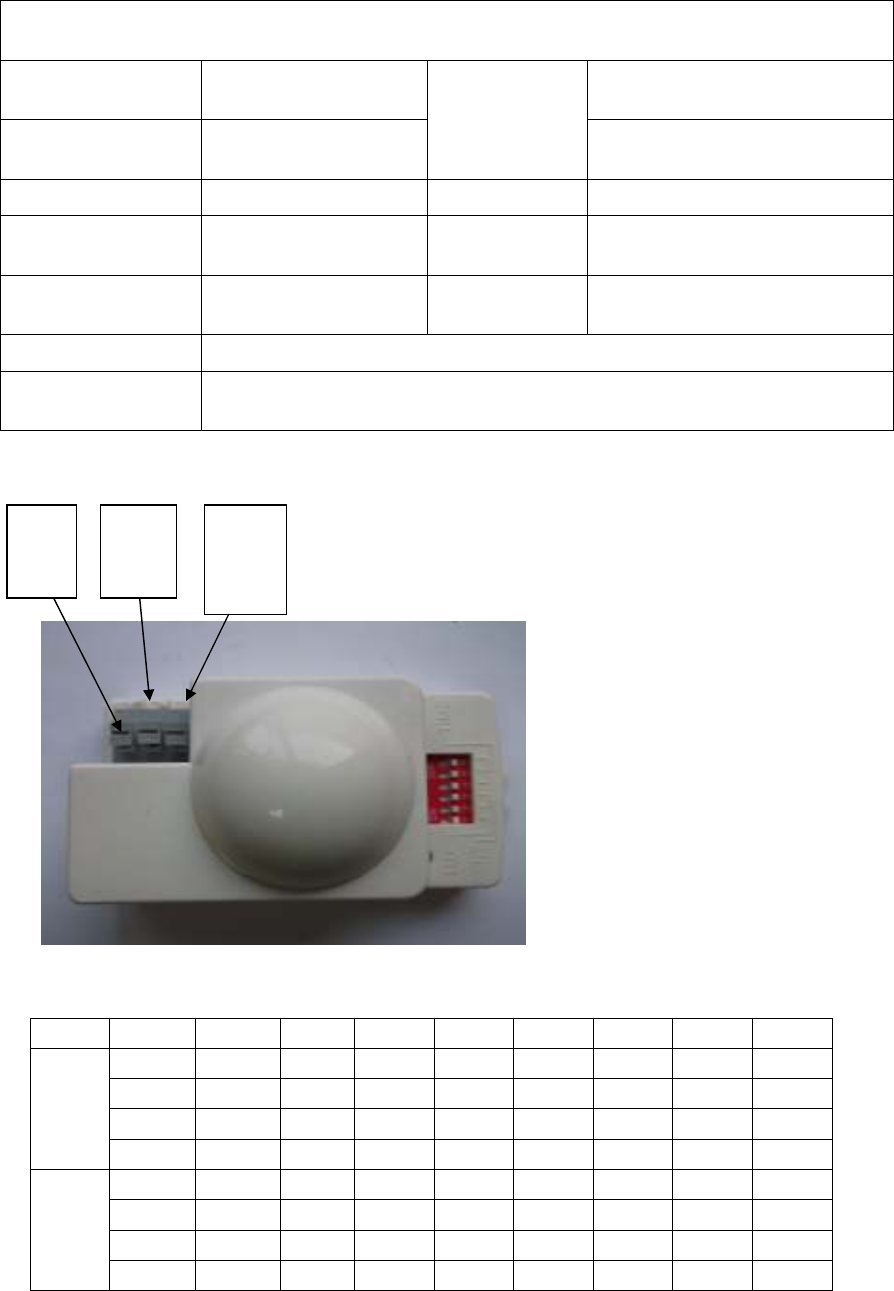

CONNECTION
DIP Switch FUNCTION
Lux 1
11
1
sense 2
22
2
3
33
3
time 4
44
4
5
55
5
6
66
6
On=1 Daylight
0 5-7M 0 0 5s(test)
0 0 0
Night 1 4-6M 0 1 30s 0 0 1
2-4M 1 0 1m 0 1 0
1-2M 1 1 3m 0 1 1
Off=0 5m 1 0 0
10m 1 0 1
20m 1 1 0
30m 1 1 1
Neutral
Out
Hot
5.8G microwave sensor test method
Test mode：
：：
：turn sensitivity knob to MAX，
，，
，turn time knob to MIN，
，，
，turn LUX knob to Sun
（
（（
（work at daylight）
））
）；
；；
；
Steps：
：：
：
1．
．．
． Put the sensor on wall at 1.5-3M height or on ceiling 3~4M height. Black wire
connect to Hot ,white wire connect to Neutral ,Load connect between Out and
Neutral..
2. confirm 120-277VAC；
；；
；than power on and light on；
；；
；
3. The light off automatically and go into auto mode, after power on about 20s.Than
you can start test。
。。
。
4. When someone walk across or turn around at proper distance in front of the
sensor,no matter it is transverse or longitudinal motion,the light will turn on.When the
motion stops,the light will turn off after duration time 5 seconds.(Locate sensor testing
area away from moving objects such as flapped curtain by wind).The data as
sensitivity,detected distance/angle can be measured in this testing.If the sensitivity is
too high,it can be adjusted by DIP switch and reduce the sensitivity.The sensitivity
setting can be from 1.5 m to 7 m (radius)for ceilling mounting.
User mode：
：：
：select sensitivity ,time, lux you need。
。。
。
Steps：
：：
：
1. Repeat 1,2,3, steps above。
。。
。
2. When someone walk across or turn around at proper distance in front of the
sensor,no matter it is transverse or longitudinal motion,the light will turn on.The
light will turn off in preset time after motion stops.
3. If there is a motion during light on,the time seting will be restart as your seting.

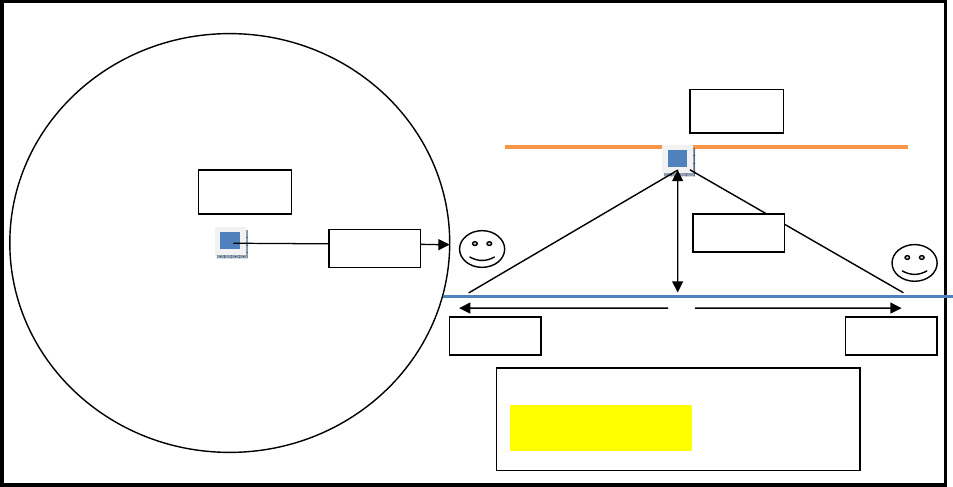

DETECTION RANGE DRAFT
6
-
8M
5.8Ghz microwave sensor range
Ceiling mounting
3-4M height
sensor
3
-
4M
6
-
8M
6
-
8M
sensor

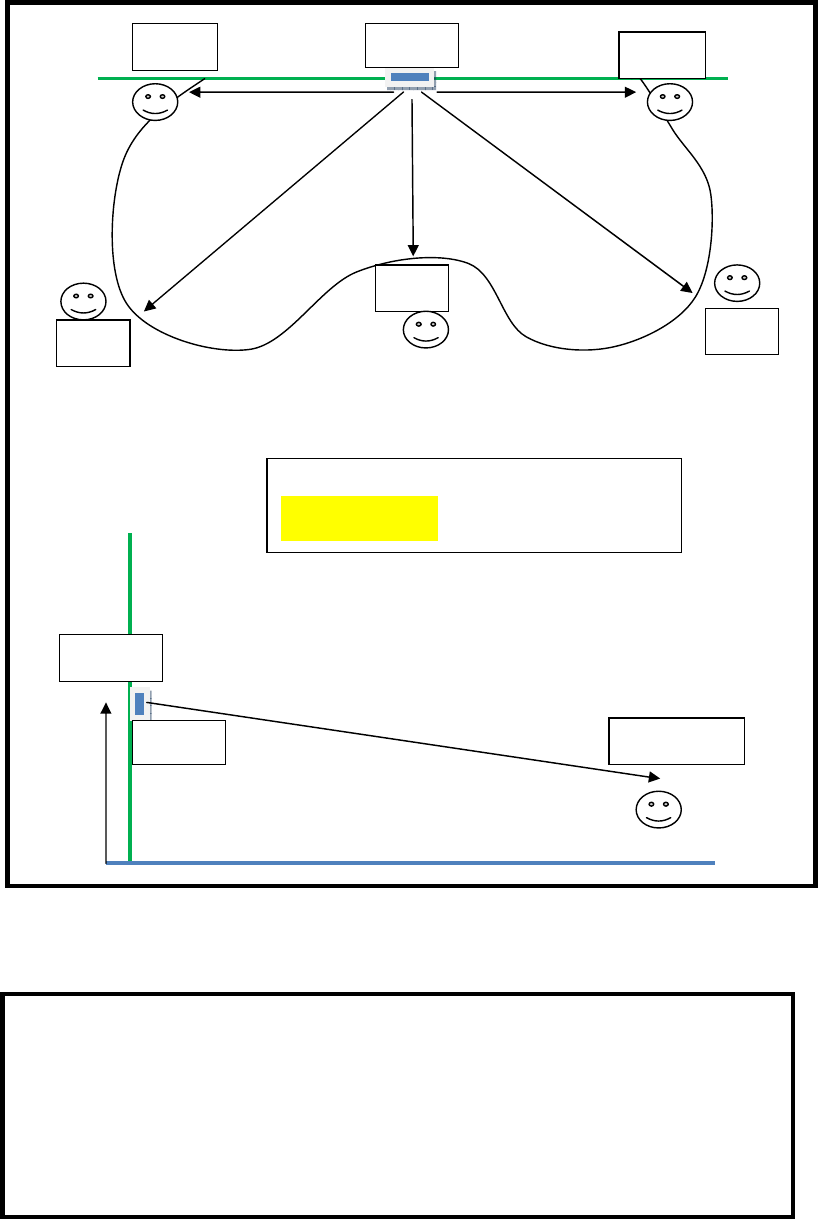

4-6M
5.8Ghz microwave sensor range
Wall mounting
2.5M height
12M
12M
6-8M
6-8M sensor
MAX 12M
2.5M
sensor
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void
your authority to operate this equipment.
