MXCHIP Information Technology EMW3162 Embedded WiFi module User Manual

Shanghai MXCHIP Information Technology Co.,Ltd. Embedded WiFi module

User Manual

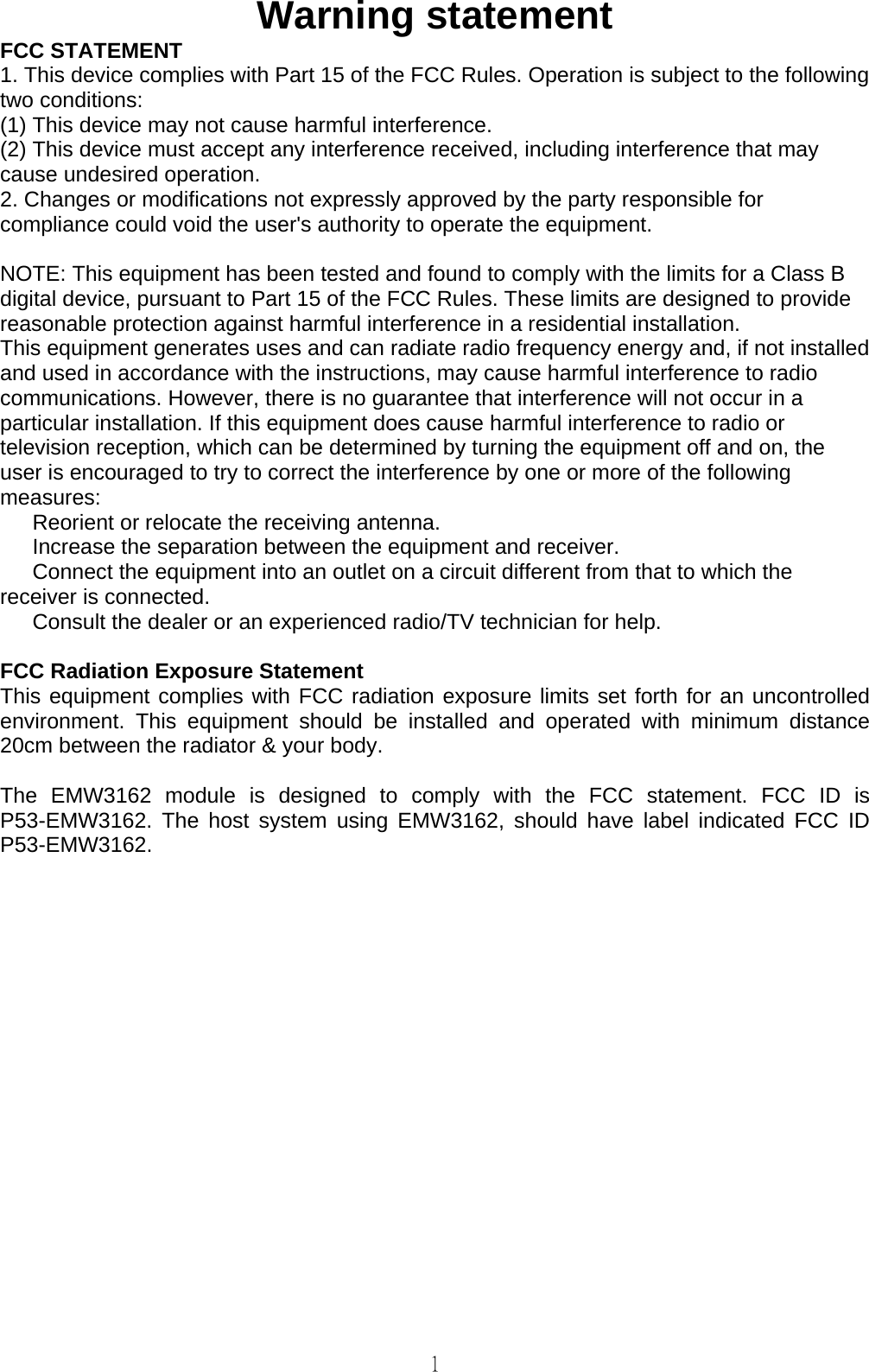

1 Warning statement FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The EMW3162 module is designed to comply with the FCC statement. FCC ID is P53-EMW3162. The host system using EMW3162, should have label indicated FCC ID P53-EMW3162.

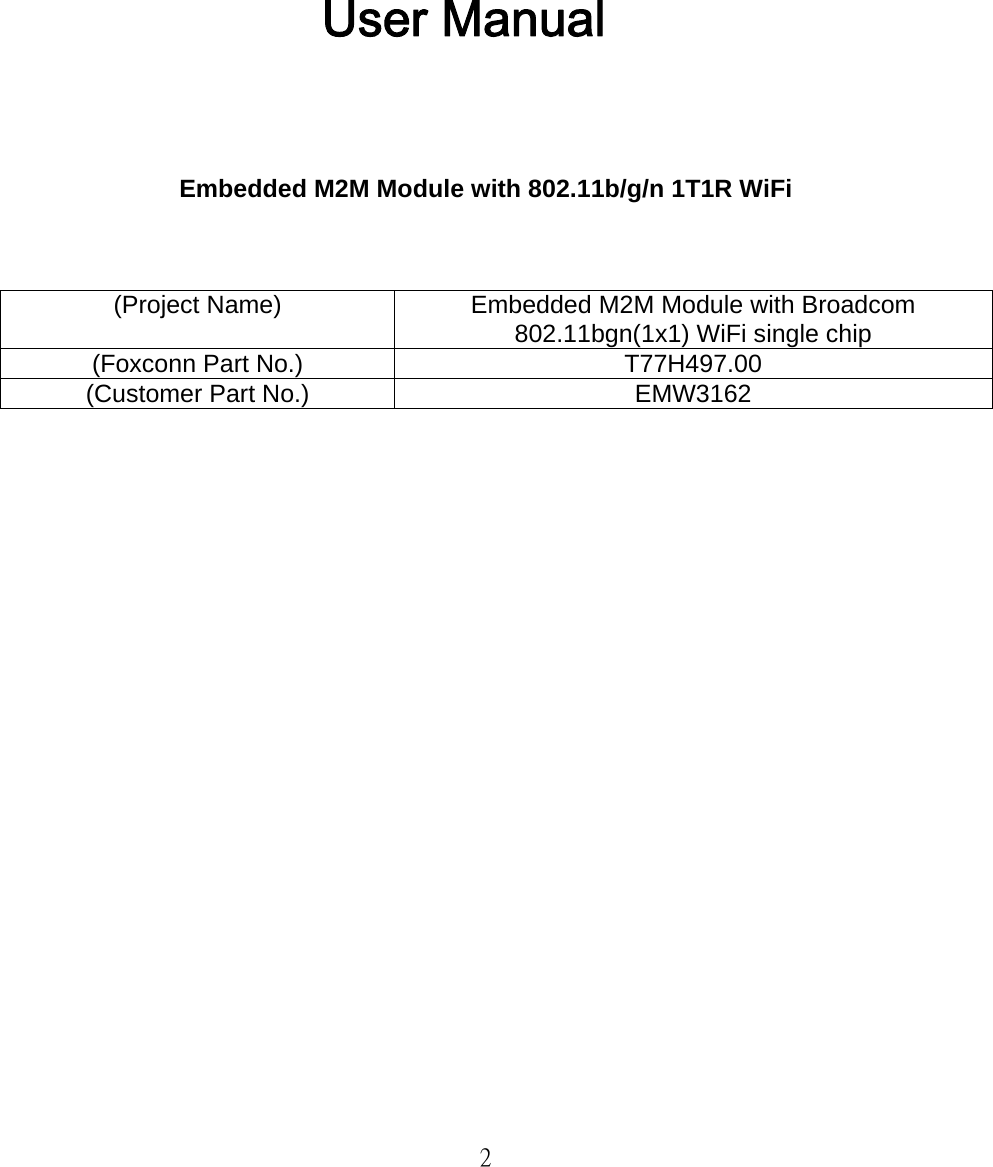

2 User Manual Embedded M2M Module with 802.11b/g/n 1T1R WiFi (Project Name) Embedded M2M Module with Broadcom 802.11bgn(1x1) WiFi single chip (Foxconn Part No.) T77H497.00 (Customer Part No.) EMW3162

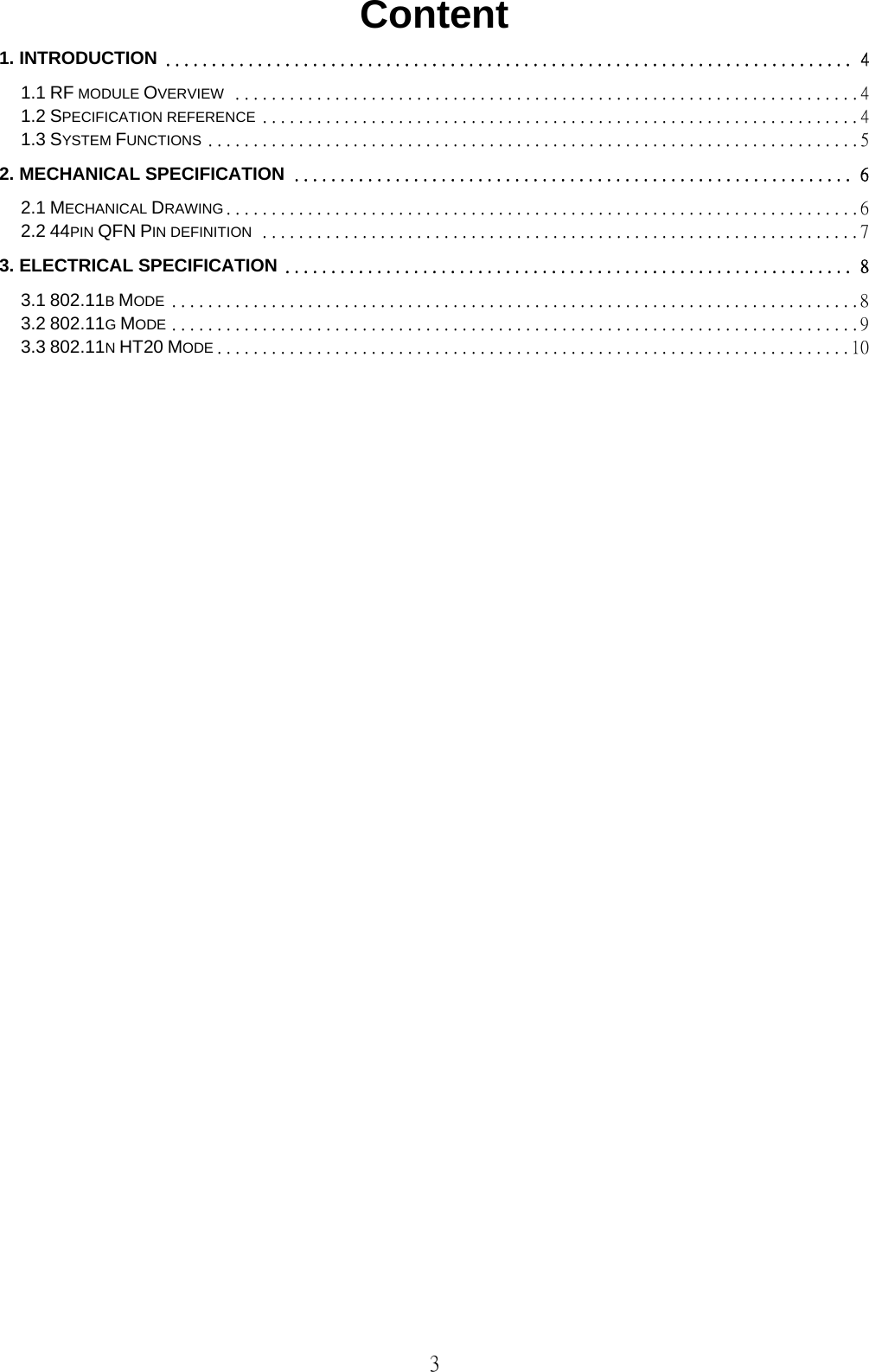

3 Content 1. INTRODUCTION ........................................................................... 4 1.1 RF MODULE OVERVIEW ..................................................................... 4 1.2 SPECIFICATION REFERENCE .................................................................. 4 1.3 SYSTEM FUNCTIONS ........................................................................ 5 2. MECHANICAL SPECIFICATION ............................................................. 6 2.1 MECHANICAL DRAWING ...................................................................... 6 2.2 44PIN QFN PIN DEFINITION .................................................................. 7 3. ELECTRICAL SPECIFICATION .............................................................. 8 3.1 802.11B MODE ............................................................................ 8 3.2 802.11G MODE ............................................................................ 9 3.3 802.11N HT20 MODE ...................................................................... 10

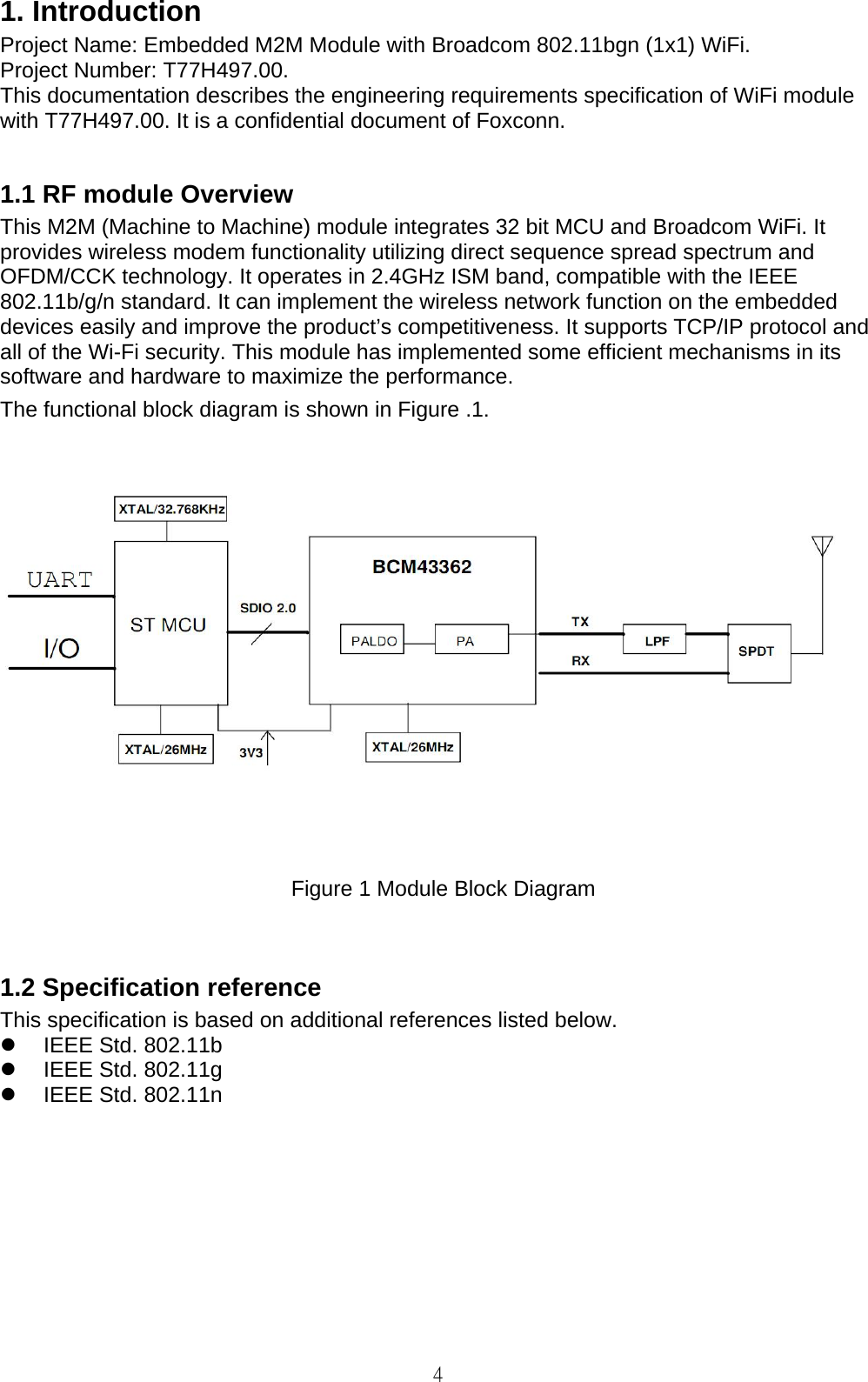

4 1. Introduction Project Name: Embedded M2M Module with Broadcom 802.11bgn (1x1) WiFi. Project Number: T77H497.00. This documentation describes the engineering requirements specification of WiFi module with T77H497.00. It is a confidential document of Foxconn. 1.1 RF module Overview This M2M (Machine to Machine) module integrates 32 bit MCU and Broadcom WiFi. It provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. It operates in 2.4GHz ISM band, compatible with the IEEE 802.11b/g/n standard. It can implement the wireless network function on the embedded devices easily and improve the product’s competitiveness. It supports TCP/IP protocol and all of the Wi-Fi security. This module has implemented some efficient mechanisms in its software and hardware to maximize the performance. The functional block diagram is shown in Figure .1. Figure 1 Module Block Diagram 1.2 Specification reference This specification is based on additional references listed below.  IEEE Std. 802.11b  IEEE Std. 802.11g  IEEE Std. 802.11n

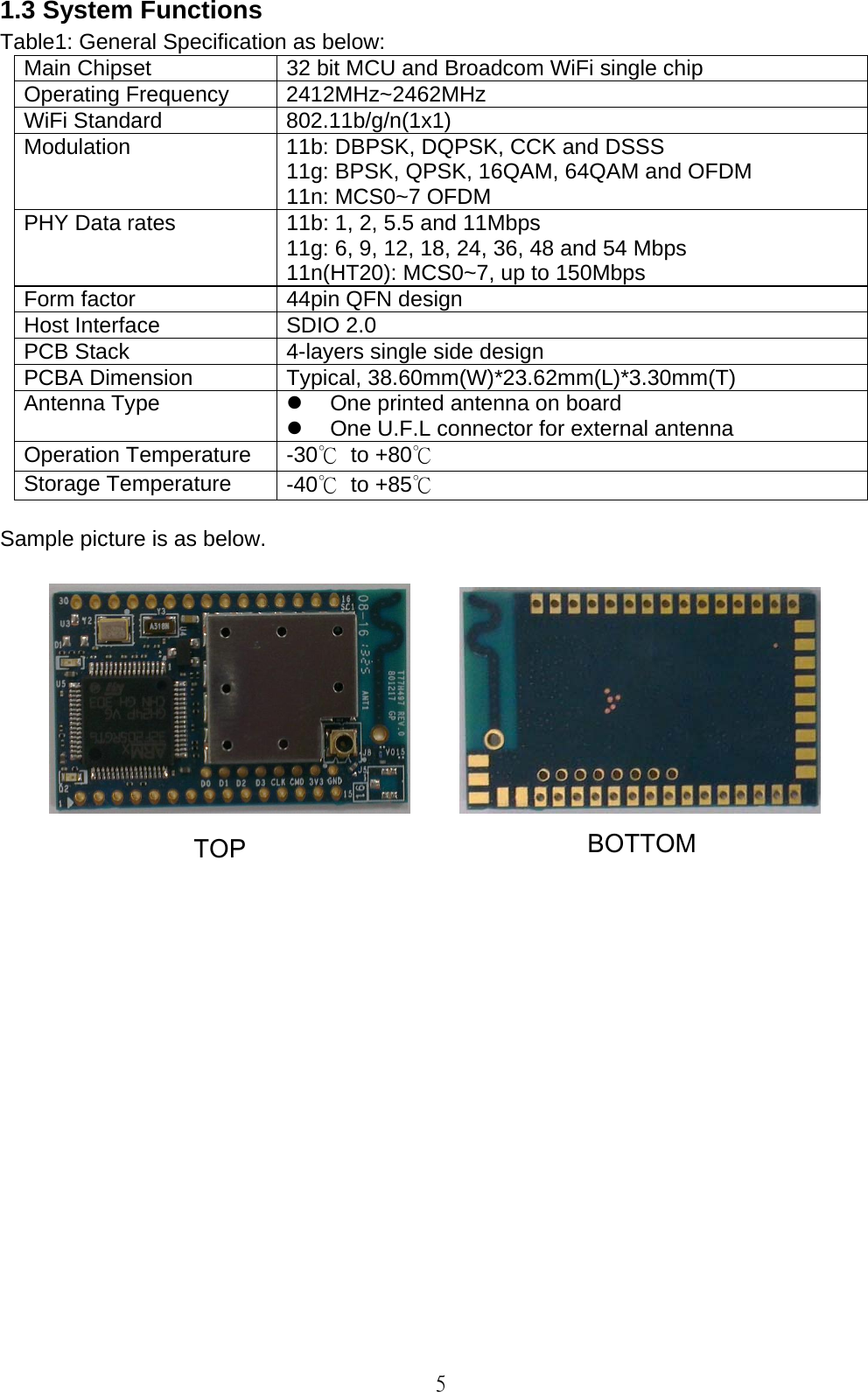

5 1.3 System Functions Table1: General Specification as below: Main Chipset 32 bit MCU and Broadcom WiFi single chip Operating Frequency 2412MHz~2462MHz WiFi Standard 802.11b/g/n(1x1) Modulation 11b: DBPSK, DQPSK, CCK and DSSS 11g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: MCS0~7 OFDM PHY Data rates 11b: 1, 2, 5.5 and 11Mbps 11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n(HT20): MCS0~7, up to 150Mbps Form factor 44pin QFN design Host Interface SDIO 2.0 PCB Stack 4-layers single side design PCBA Dimension Typical, 38.60mm(W)*23.62mm(L)*3.30mm(T) Antenna Type  One printed antenna on board  One U.F.L connector for external antenna Operation Temperature -30℃ to +80℃ Storage Temperature -40℃ to +85℃ Sample picture is as below. BOTTOM TOP
6 2. Mechanical Specification 2.1 Mechanical Drawing Typical Dimension (W x L x T ): 38.60x23.62x3.30 mm . TOP VIEWBOTTOM VIEW SIDE VIEW Unit: mm 31391 15404416 30

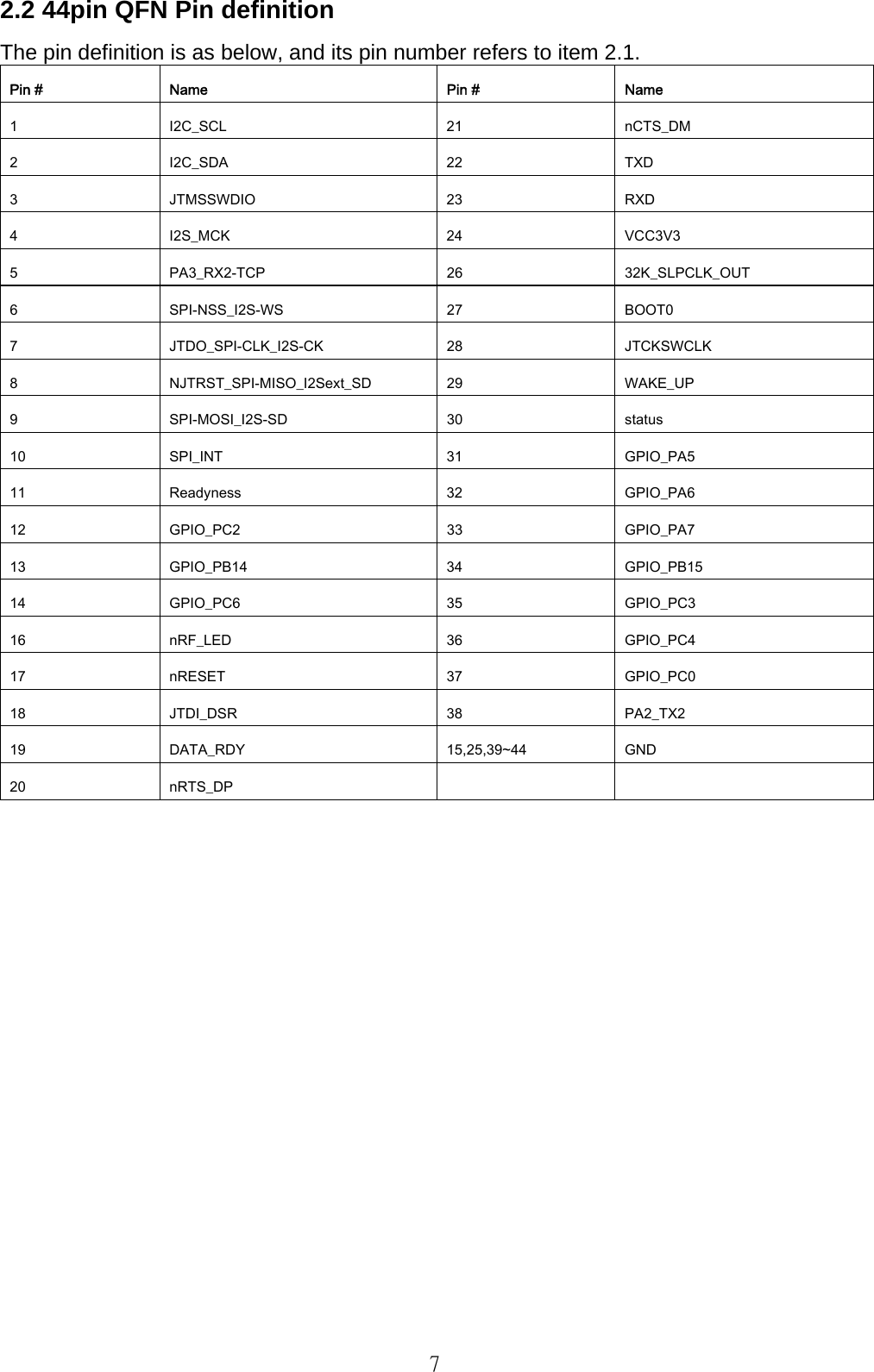

7 2.2 44pin QFN Pin definition The pin definition is as below, and its pin number refers to item 2.1. Pin # Name Pin # Name 1 I2C_SCL 21 nCTS_DM 2 I2C_SDA 22 TXD 3 JTMSSWDIO 23 RXD 4 I2S_MCK 24 VCC3V3 5 PA3_RX2-TCP 26 32K_SLPCLK_OUT 6 SPI-NSS_I2S-WS 27 BOOT0 7 JTDO_SPI-CLK_I2S-CK 28 JTCKSWCLK 8 NJTRST_SPI-MISO_I2Sext_SD 29 WAKE_UP 9 SPI-MOSI_I2S-SD 30 status 10 SPI_INT 31 GPIO_PA5 11 Readyness 32 GPIO_PA6 12 GPIO_PC2 33 GPIO_PA7 13 GPIO_PB14 34 GPIO_PB15 14 GPIO_PC6 35 GPIO_PC3 16 nRF_LED 36 GPIO_PC4 17 nRESET 37 GPIO_PC0 18 JTDI_DSR 38 PA2_TX2 19 DATA_RDY 15,25,39~44 GND 20 nRTS_DP

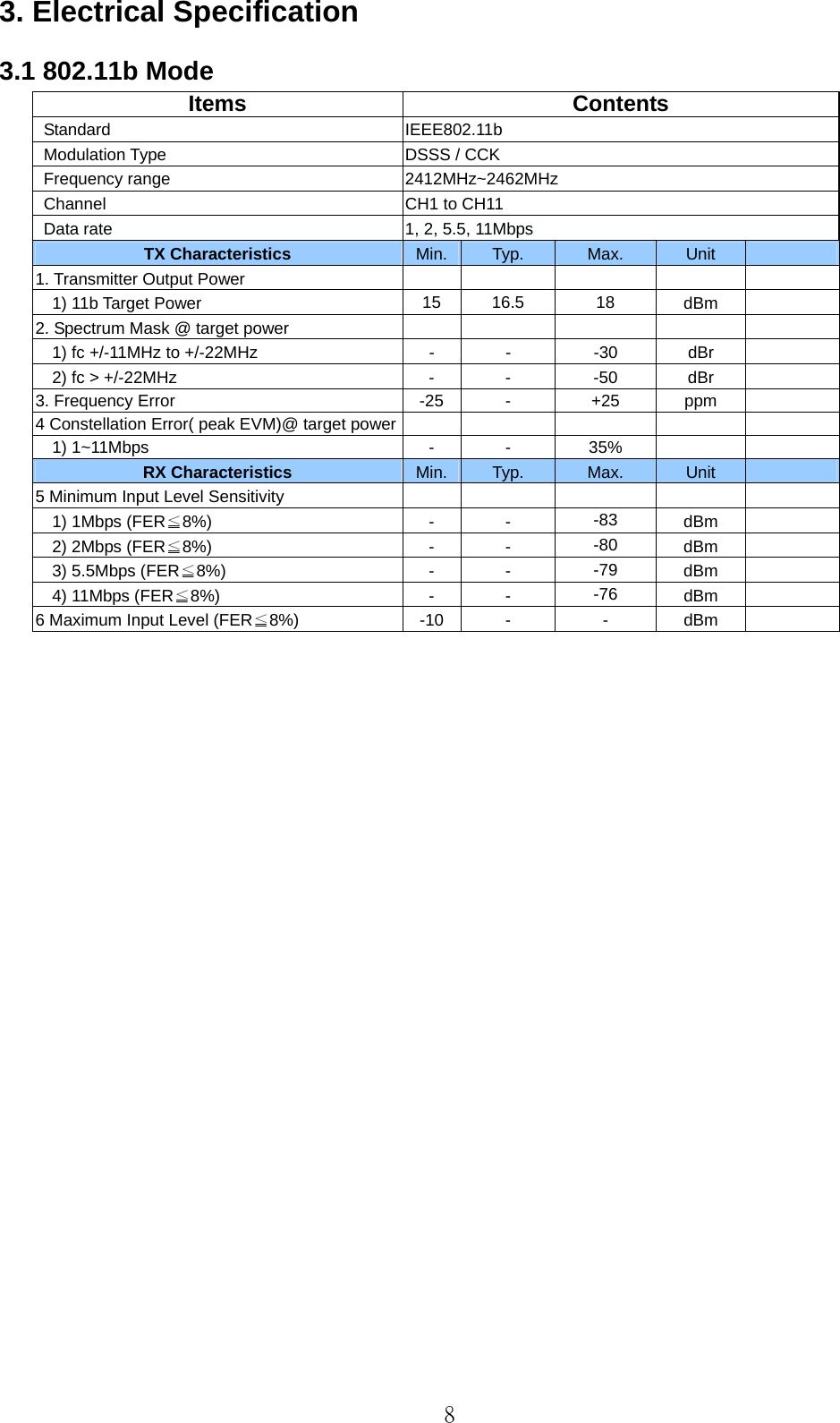

8 3. Electrical Specification 3.1 802.11b Mode Items Contents Standard IEEE802.11b Modulation Type DSSS / CCK Frequency range 2412MHz~2462MHz Channel CH1 to CH11 Data rate 1, 2, 5.5, 11Mbps TX Characteristics Min. Typ. Max. Unit 1. Transmitter Output Power 1) 11b Target Power 15 16.5 18 dBm 2. Spectrum Mask @ target power 1) fc +/-11MHz to +/-22MHz - - -30 dBr 2) fc > +/-22MHz - - -50 dBr 3. Frequency Error -25 - +25 ppm 4 Constellation Error( peak EVM)@ target power 1) 1~11Mbps - - 35% RX Characteristics Min. Typ. Max. Unit 5 Minimum Input Level Sensitivity 1) 1Mbps (FER≦8%) - - -83 dBm 2) 2Mbps (FER≦8%) - - -80 dBm 3) 5.5Mbps (FER≦8%) - - -79 dBm 4) 11Mbps (FER≦8%) - - -76 dBm 6 Maximum Input Level (FER≦8%) -10 - - dBm

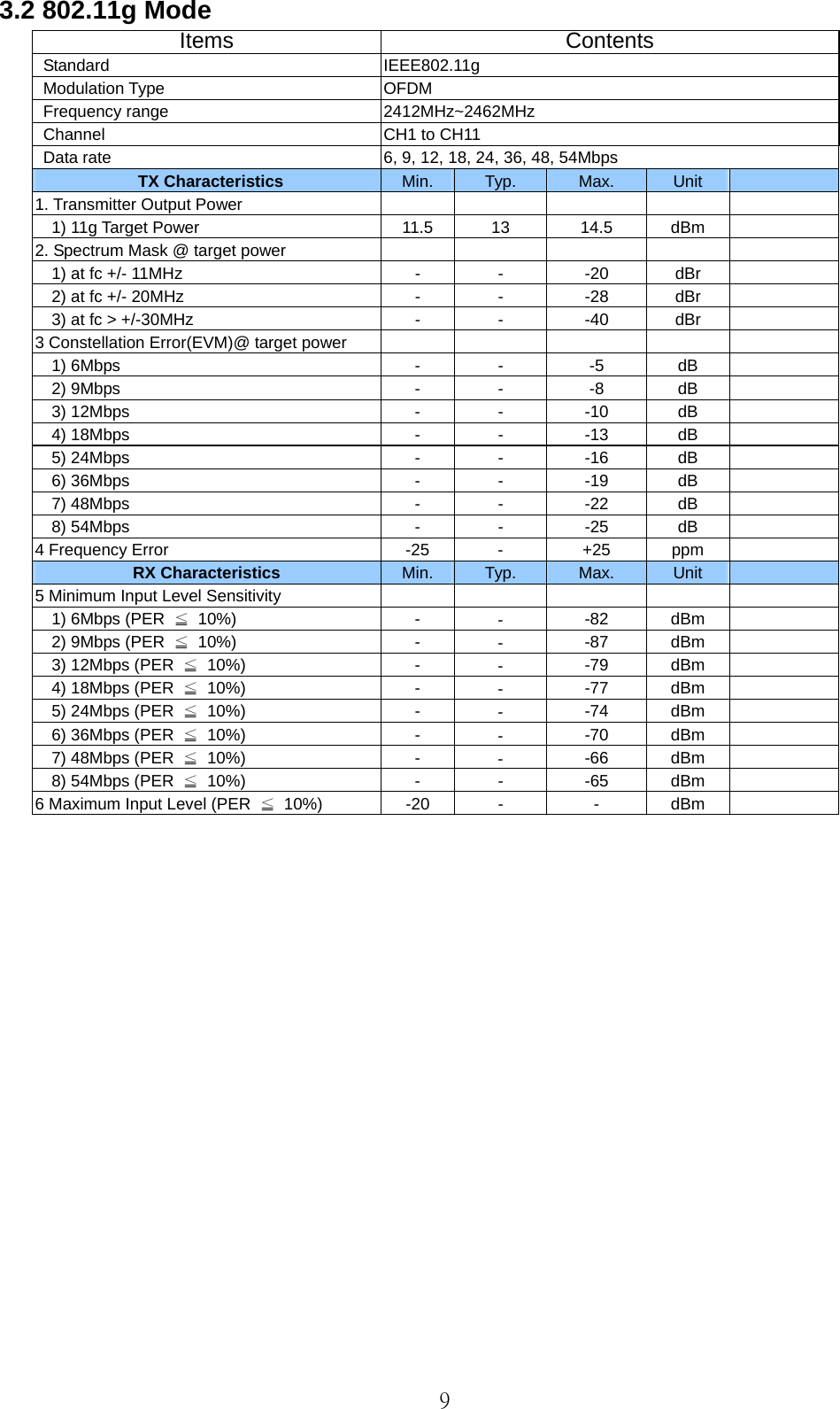

9 3.2 802.11g Mode Items ContentsStandard IEEE802.11g Modulation Type OFDM Frequency range 2412MHz~2462MHz Channel CH1 to CH11 Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps TX Characteristics Min. Typ. Max. Unit 1. Transmitter Output Power 1) 11g Target Power 11.5 13 14.5 dBm 2. Spectrum Mask @ target power 1) at fc +/- 11MHz - - -20 dBr 2) at fc +/- 20MHz - - -28 dBr 3) at fc > +/-30MHz - - -40 dBr 3 Constellation Error(EVM)@ target power 1) 6Mbps - - -5 dB 2) 9Mbps - - -8 dB 3) 12Mbps - - -10 dB 4) 18Mbps - - -13 dB 5) 24Mbps - - -16 dB 6) 36Mbps - - -19 dB 7) 48Mbps - - -22 dB 8) 54Mbps - - -25 dB 4 Frequency Error -25 - +25 ppm RX Characteristics Min. Typ. Max. Unit 5 Minimum Input Level Sensitivity 1) 6Mbps (PER ≦ 10%) - - -82 dBm 2) 9Mbps (PER ≦ 10%) - --87 dBm 3) 12Mbps (PER ≦ 10%) - - -79 dBm 4) 18Mbps (PER ≦ 10%) - - -77 dBm 5) 24Mbps (PER ≦ 10%) - --74 dBm 6) 36Mbps (PER ≦ 10%) - - -70 dBm 7) 48Mbps (PER ≦ 10%) - - -66 dBm 8) 54Mbps (PER ≦ 10%) - - -65 dBm 6 Maximum Input Level (PER ≦ 10%) -20 - - dBm
10 3.3 802.11n HT20 Mode Items ContentsStandard IEEE802.11n HT20 @ 2.4GHz Modulation type MIMO-OFDM Channel CH1 to CH11 Data rate (MCS index) MCS0/1/2/3/4/5/6/7 TX Characteristics Min. Typ. Max. Unit 1. Transmitter Output Power 1) 11n HT20 Target Power 10.5 12 13.5 dBm 2. Spectrum Mask @ target power 1) at fc +/- 11MHz ---20dBr 2) at fc +/- 20MHz - - -28 dBr 3) at fc > +/-30MHz - - -45 dBr 3. Constellation Error(EVM)@ target power 1) MCS0 - - -5 dB 2) MCS1 - - -10 dB 3) MCS2 ---13 dB 4) MCS3 - - -16 dB 5) MCS4 - - -19 dB 6) MCS5 ---22 dB 7) MCS6 - - -25 dB 8) MCS7 - - -27 dB 4. Frequency Error -25 - +25 ppm RX Characteristics Min. Typ. Max. Unit 5. Minimum Input Level Sensitivity 1) MCS0 (PER ≦ 10%) - - -82 dBm 2) MCS1 (PER ≦ 10%) - - -79 dBm 3) MCS2 (PER ≦ 10%) - - -77 dBm 4) MCS3 (PER ≦ 10%) - - -74 dBm 5) MCS4 (PER ≦ 10%) - - -70 dBm 6) MCS5 (PER ≦ 10%) - - -66 dBm 7) MCS6 (PER ≦ 10%) - - -65 dBm 8) MCS7 (PER ≦ 10%) - - -64 dBm 6. Maximum Input Level (PER ≦ 10%) -20 - - dBm
