MWT-S9
900MHz Single Channel Transmitter
Operation Manual
www.myeclubtv.com
manmwts9
![](/img.php?id=717062&img=bg2.png)
2
FCC COMPLIANCE STATEMENT………………………….…3
INDUSTRY CANADA COMPLIANCE…………………………3
MWT-S9 ORIENTATION………………………………….…….4
SAFETY PRECAUTIONS………………………………………5
SETTING THE TRANSMITTER CHANNEL………………….5
CONNECTING THE TRANSMITTER…………………………6
SPECIFICATIONS………………………………………………7
MWT-S9 MOUNTING BRACKET……………………..…..…..8
WARRANTY…………………………………………….…….…9
CONTENTS
![](/img.php?id=717062&img=bg3.png)
3
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been verified to comply with the limits for a Class B computing device, pursuant to
the FCC Rules. Operation with non-approved equipment is likely to result in interference to radio and
TV reception. The user is cautioned that changed and modifications made to the equipment without the
approval of the manufacturer could void the user’s authority to operate this equipment.
INDUSTRY CANADA COMPLIANCE STATEMENT
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
MYE Entertainment
25129 The Old Road
Suite 305
Stevenson Ranch, Ca. 91381
![](/img.php?id=717062&img=bg4.png)
4

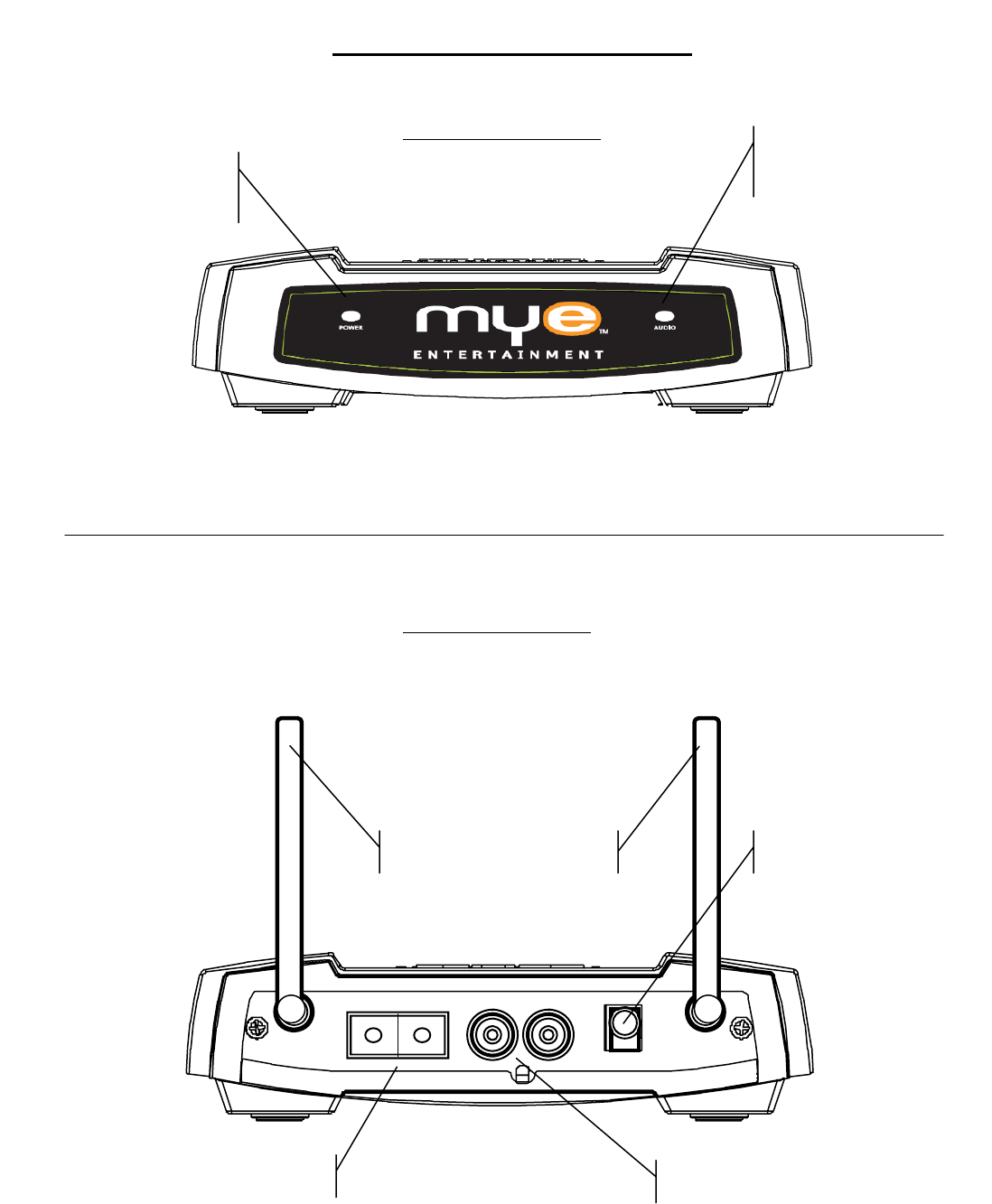

TRANSMITTER FRONT VIEW
TRANSMITTER REAR VIEW
MWT-S9 Orientation
AUDIO INDICATOR LIGHT
and ALC
POWER INDICATOR LIGHT
ROTARY TUNING SWITCHES AUDIO INPUT JACKS
DUAL DIVERSITY ANTENNAS POWER INPUT JACK
![](/img.php?id=717062&img=bg5.png)
5
Transmitter Left Dial Right Dial Transmitter Left Dial Right Dial
1 0 1 21 2 1
2 0 2 22 2 2
3 0 3 23 2 3
4 0 4 24 2 4
5 0 5 25 2 5
6 0 6 26 2 6
7 0 7 27 2 7
8 0 8 28 2 8
9 0 9 29 2 9
10 1 0 30 3 0
11 1 1 31 3 1
12 1 2 32 3 2
13 1 3 33 3 3
14 1 4 34 3 4
15 1 5 35 3 5
16 1 6 36 3 6
17 1 7 37 3 7
18 1 8
19 1 9
20 2 0

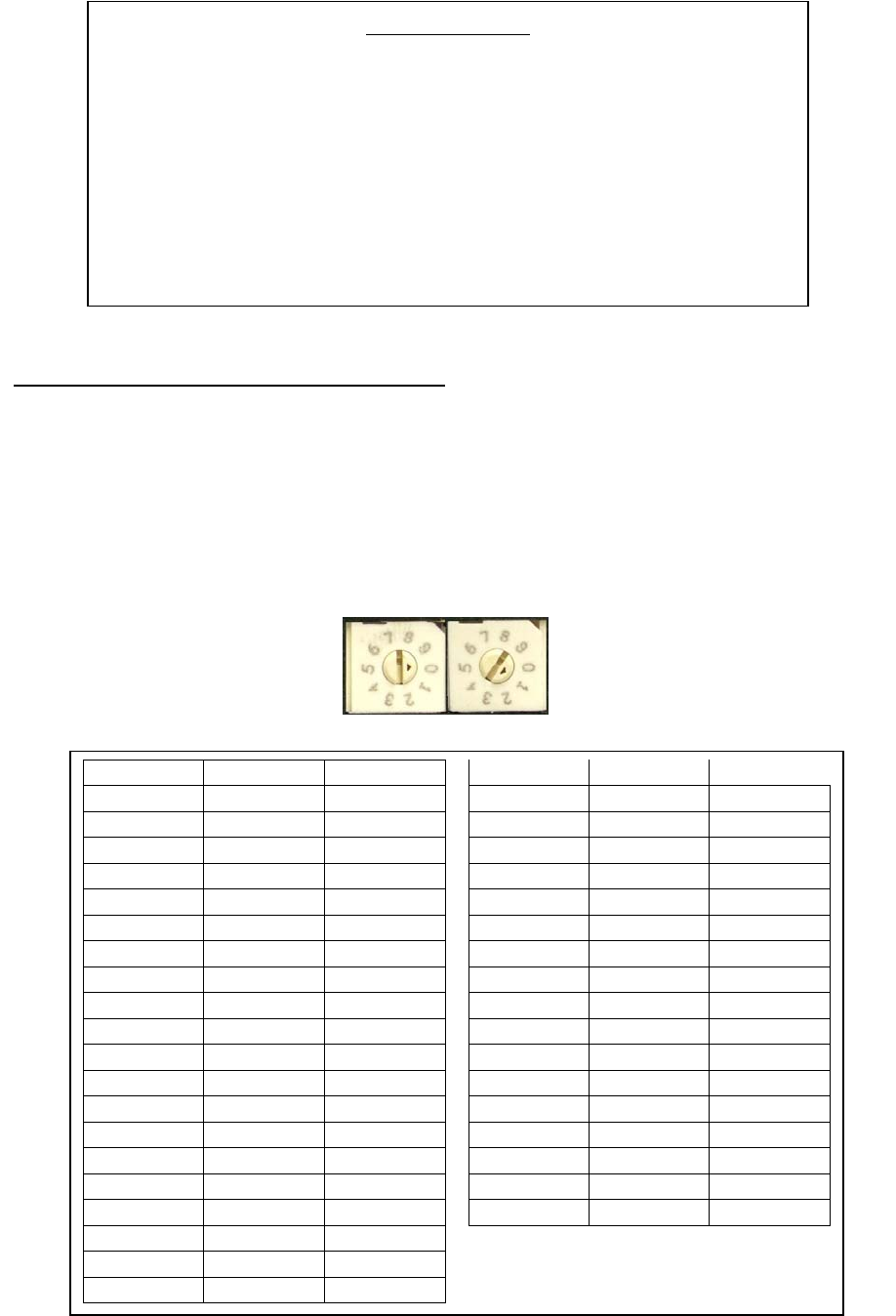

Using the Rotary Tuning Switches, set the left and right switches to correspond to the channel
number you need to transmit on. The MWT-S9 has 37 possible transmitting channels.
EXAMPLE: To set your transmitter to channel “1”, carefully turn the left Rotary Tuning Switch to the
number “0” and turn the right switch to the number “1”. Note: It is important to confirm the switch
“LOCKS” on the selected number.
SETTING the TRANSMITTER CHANNEL
Safety Precautions
• Read all instructions in this manual.
• Use the power adapter provided.
• Position cables safely.
• Keep the unit away from water and moisture.
• Keep the unit away from excessive heat.
• Do not drop.
• Do not open.
• Have all service performed by a qualified technician.
![](/img.php?id=717062&img=bg6.png)
6
INPUT OUTPUT
LEFT
RIGHT RIGHT
LEFT
VIDEO
Audio Output
TV’s, VCR’s CD players, DVD players, Satellite and Radio Tuners can be used as audio sources for
the MWT-S9. All will require stereo RCA style audio output jacks in order to use the supplied MYE
stereo audio cable. Audio sources that use different output jacks will require a different audio cable.
To use a TELEVISION as an audio source for the MWT-S9 transmitter, the TV must have “Audio
Output Jacks.” Televisions with this capability may come with either “Fixed” or “Variable” audio
output. Please consult your television Owner’s Manual as to their operation.
Connect the Transmitter
1. Using the stereo audio cable supplied, connect one end into the left and right audio
OUTPUT jacks of the audio source.
2. Plug the other end of the audio cable into the left and right audio INPUT jacks on the
3. MWT-S9 transmitter.

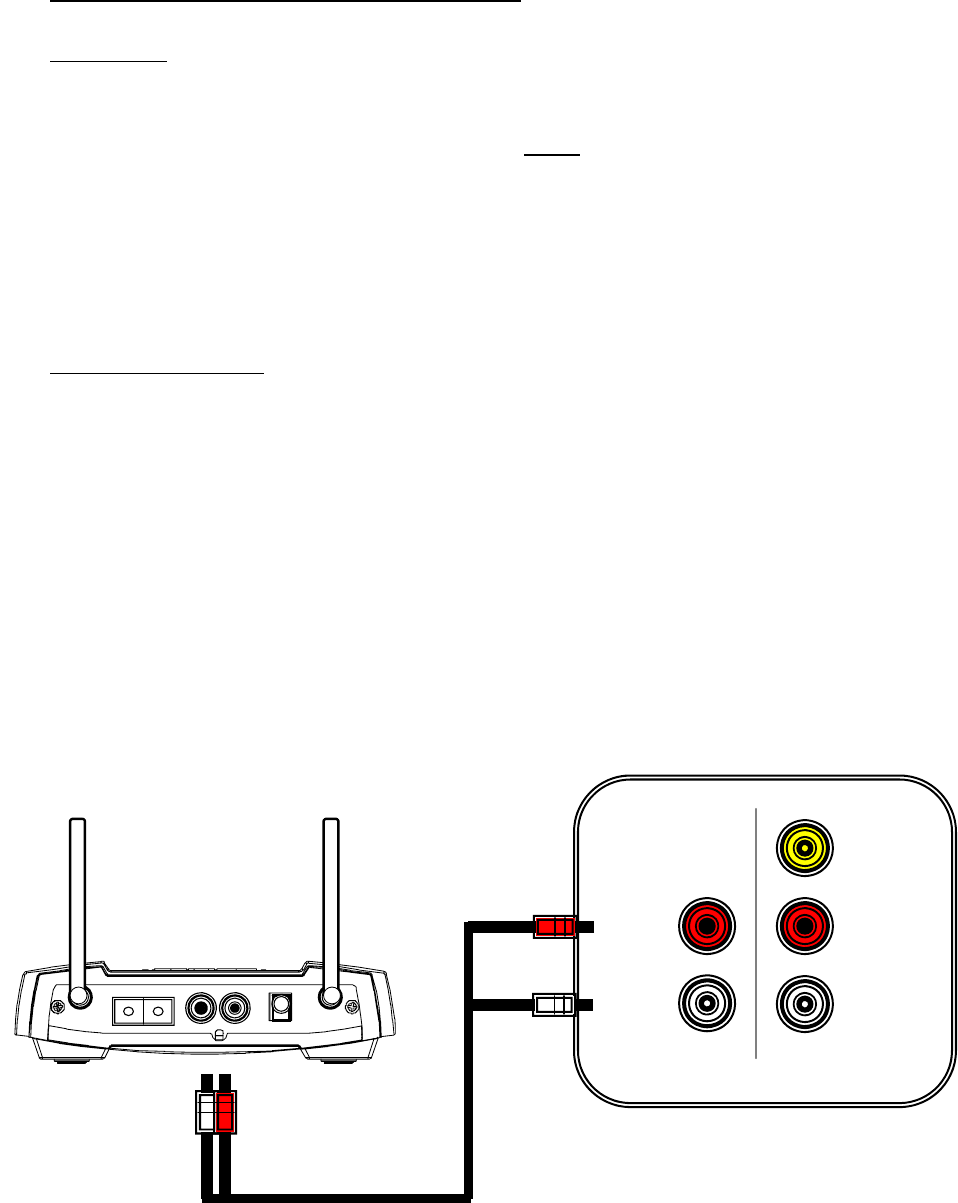

Connecting the MWT-S9 to an Audio Source
TV REAR JACK PANEL
EXAMPLE: TRANSMITTER TO TV CONNECTION
![](/img.php?id=717062&img=bg7.png)
7
3. The MWT-S9 Transmitter features an Automatic Level Control (ALC) to provide distortion
free sound without concern for loud commercials or audio track spikes.
4. Insert the DC power plug into the DC power jack on the MWT-S9
5. Plug the AC power adapter into an AC outlet.
6. The power light on the MWT-S9 will turn “GREEN”
7. Turn on your audio source and adjust audio level.
8. When using TV’s with audio output, turn the speakers down or off.
(Consult your TV’s Owner’s Manual for Fixed and Variable Audio Output operation.)
9. When the audio signal is being received by the MWT-S9 transmitter the audio indicator light
will turn GREEN.
10. When audio drops below a detectable level for the Automatic Level Control (ALC) the audio
light will turn RED. This light will stay RED for 30 seconds while the transmitter maintains its
current audio level. When an acceptable audio level is retuned to the unit, the light will turn
green again. This may happen between TV programs or songs when audio is low or not
present.
11. When the audio level is not present for longer than 30 seconds the audio indicator light will
turn OFF. (If no audio light is present, confirm all your audio cable connections or check the
audio source equipment.)
12. Use a MYE Entertainment 900MHz controller to verify audio transmission is complete.
Connecting the MWT-S9 to an Audio Source - cont
Audio Input Sensitivity 0.1 to 2 Volts peak-peak (ALC)
Audio Input Impedance 5K Ohms
Signal to Noise -70dBm ref .7 volts
RF Output 1 mW
Distortion < 2%
Audio Frequency Response 20Hz to 15 KHz
Separation >25dB
Weight 2 lbs.
Power Requirements 9 VDC 200 mA
SPECIFICATIONS
![](/img.php?id=717062&img=bg8.png)
8
Mounting Bracket

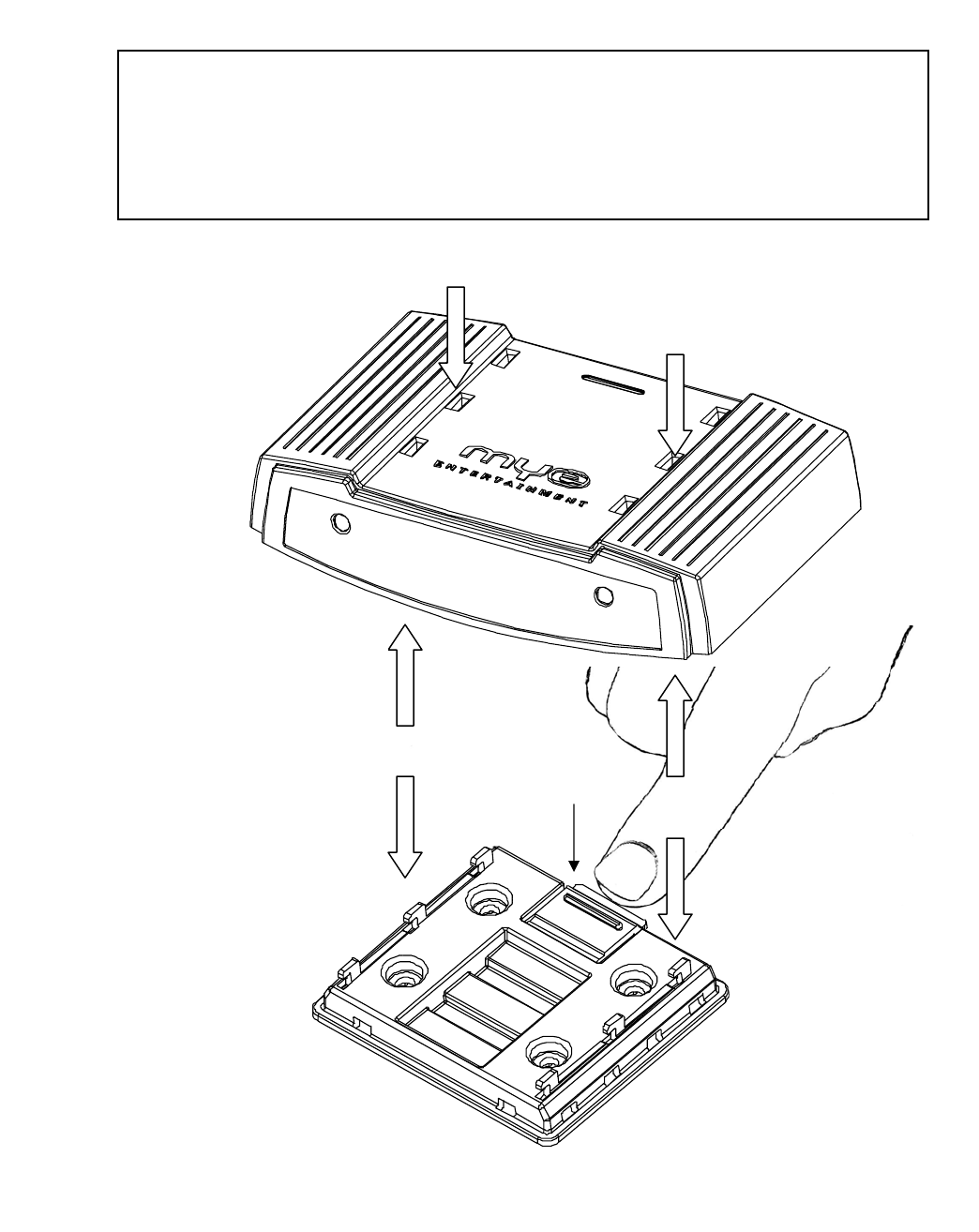

The MWT-S9 comes with a Mounting Bracket that allows for easy wall, ceiling or under-shelf
mounting of the transmitter. Four holes in the bracket give access for screws or nylon cable
ties. The mounting bracket SNAPS into either the TOP or BOTTOM of the
MWT-S9 giving the transmitter a high level of adaptability and solid positioning in nearly all
mounting scenarios.
MW
T
-S9 MOUNTING BRACKET
BRACKET MOUNTING - TOP
BRACKET MOUNTING - BOTTOM
RELEASE TAB
