SAFETY PRECAUTIONS
Always follow these basic safety precautions when using your
User Gide
MID
- 2 -
device. This will reduce the risk of fire, electric shock, product
damage and personal injury.
Warning: Do not expose the device to rain or moisture to prevent
fire or electric shock hazard.
Do not use the earphone at a high volume to prevent hearing
damages.
Do not expose the device to water (dripping or splashing) and no
objects filled with liquids can be placed on the unit, such as
vases.
Keep the device away from direct sunlight and heat source such
as radiators or stoves.
Do not place the device on unstable cart, stand, tripod, bracket or
table. The unit may fall, resulting in possible damage or injury.
Unplug Never place heavy or sharp objects on the LCD panel or
device.
Unplug the power from the outlet when the unit is not in use.
The battery (battery or batteries or battery pack) shall not be
exposed to excessive heat such as sunshine, fire or the like.
Correct Disposal of this product. This marking indicates that
this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
For indoor use only.
User Gide
MID
- 3 -
The maximum ambient temperature around the power supply is
30 C.
The direct plug-in adapter is used as disconnect device , the
disconnect device shall remain readily operable.
User Gide
MID
- 4 -

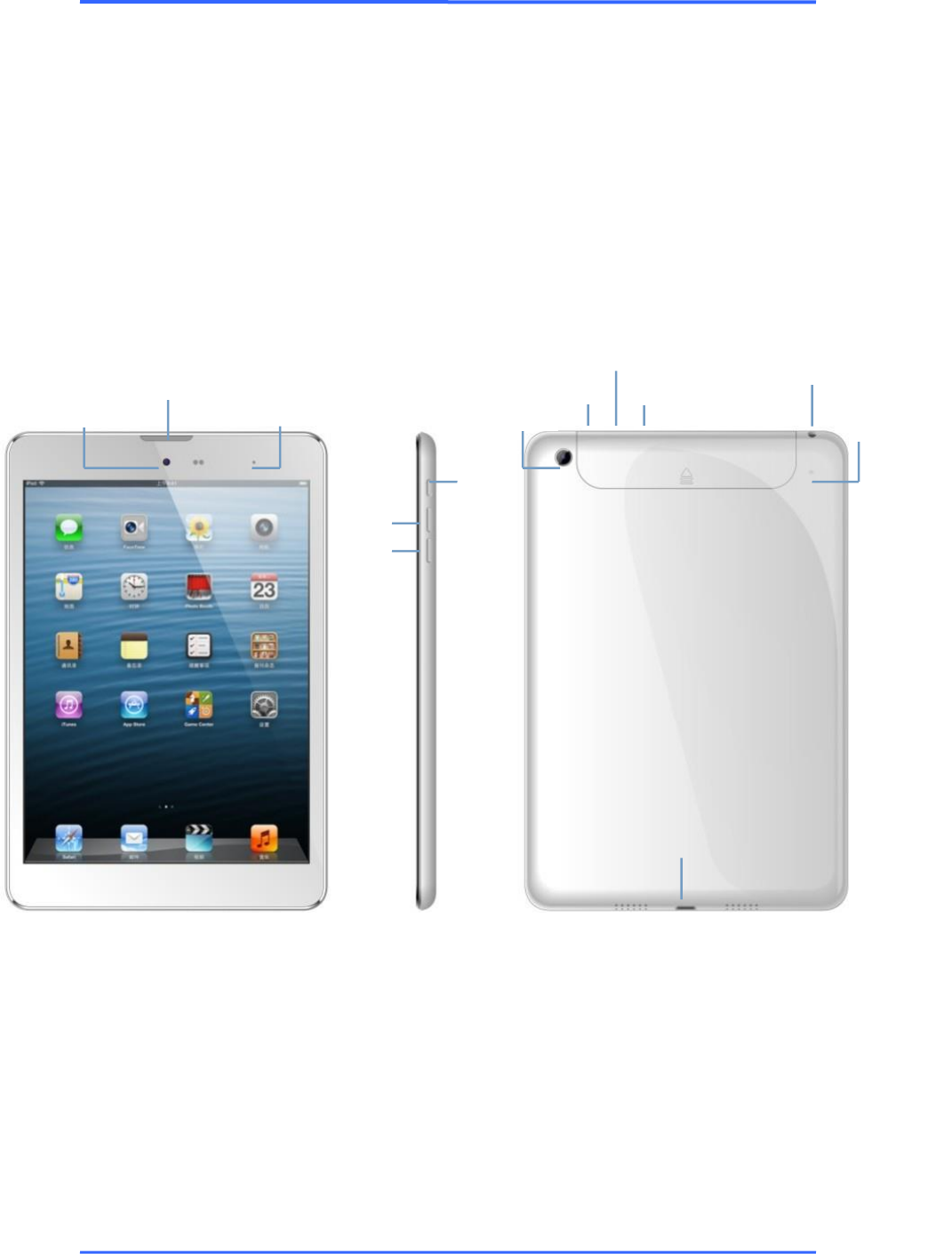

Know Your Product
Appearance
Charge
Light
Receiver
Front
Camera
Power
VOL +
VOL -
Rear
Camera
Sim
Slot
MIC
Headphone
Jack
Reset
Button
Speaker
Micro USB Slot
Micro USB Slot
User Gide
MID
- 5 -
Specifications
Specifications
Display
Screen Size
7.85 inch
Resolution
1024*768
Aspect Ratio
16:9
Type of Touch screen
5 POINT Capacitive
Processor / Memory
CPU
Media Tek 8389，Quad core
Processor clock speed in GHz
1.2GHz
GPU
PowerVR SGX544 MP3
RAM
1GB
ROM
16GB
Operating System
System
Android jelly bean 4.1.2
Connectivity
Wi-Fi
Support，802.11/b/g/n
USB Host
×1
Micro-SD Slot
×1
Bluetooth
Support
3.5mm Head Out
3.5mm
Power
Battery Type
Li-polymer
Battery Capacity in MAh
3500MAh
Stand by time in hours
TBA
Total time to charge internal battery fully
TBA
Dimensional Details
3D
200.5*135*8.4
Net weight
392g
Packaging List
Upon opening the package, you should find the following five components as
mentioned below.
1. Tablet x 1
2. Micro –USBOTG Cable x 1
User Gide
MID
- 6 -
3. Micro -USB data cable x 1
4. Headsetx1
5. Power adaptorx1
How To Use Your Product
Connector
Audio Jack：Headset is connected to this jack, you can make a call, or listen to music.
Micro USB Port：For charging and helps to connect your tablet to a PC to communicate.
It also helps to load the USB port devices, such as USB thumb drives, wireless keyboard,
etc., at the same time supports only one device available.
Micro SD Slot：Help install a Micro-SD card tablet. Tablet PC can detect TF card up to
32GB capacity.
Mic：Tablet PC comes with an integrated microphone, you can use it for voice chat.
Physical buttons
NO.
Name
Function
1
Power
Short Press：locking screen mode.
Long Press：（ 1）Turn on / off.
（2）Reboot.
（3）Airplane mode.
（4）Ring/Vibrate/Silent.
2
Volume
Short press，VOL+/-.
3
Press and hold the power key and the volume down button, you can operate on the
screen to screenshot.
Touch keys
NO.
Name
Function
1
Short Press
It indicates by less than 1.2 seconds which is mainly used in the
User Gide
MID
- 7 -
selection menu, the confirmation.
2
Long Press
This indicates that at longer than 1.2 seconds.
3
Drag
It belongs to recognize touch tracking direction. Mainly for picture /
page / drag, etc.
4
Virtual keys
It belongs to the virtual keyboard.

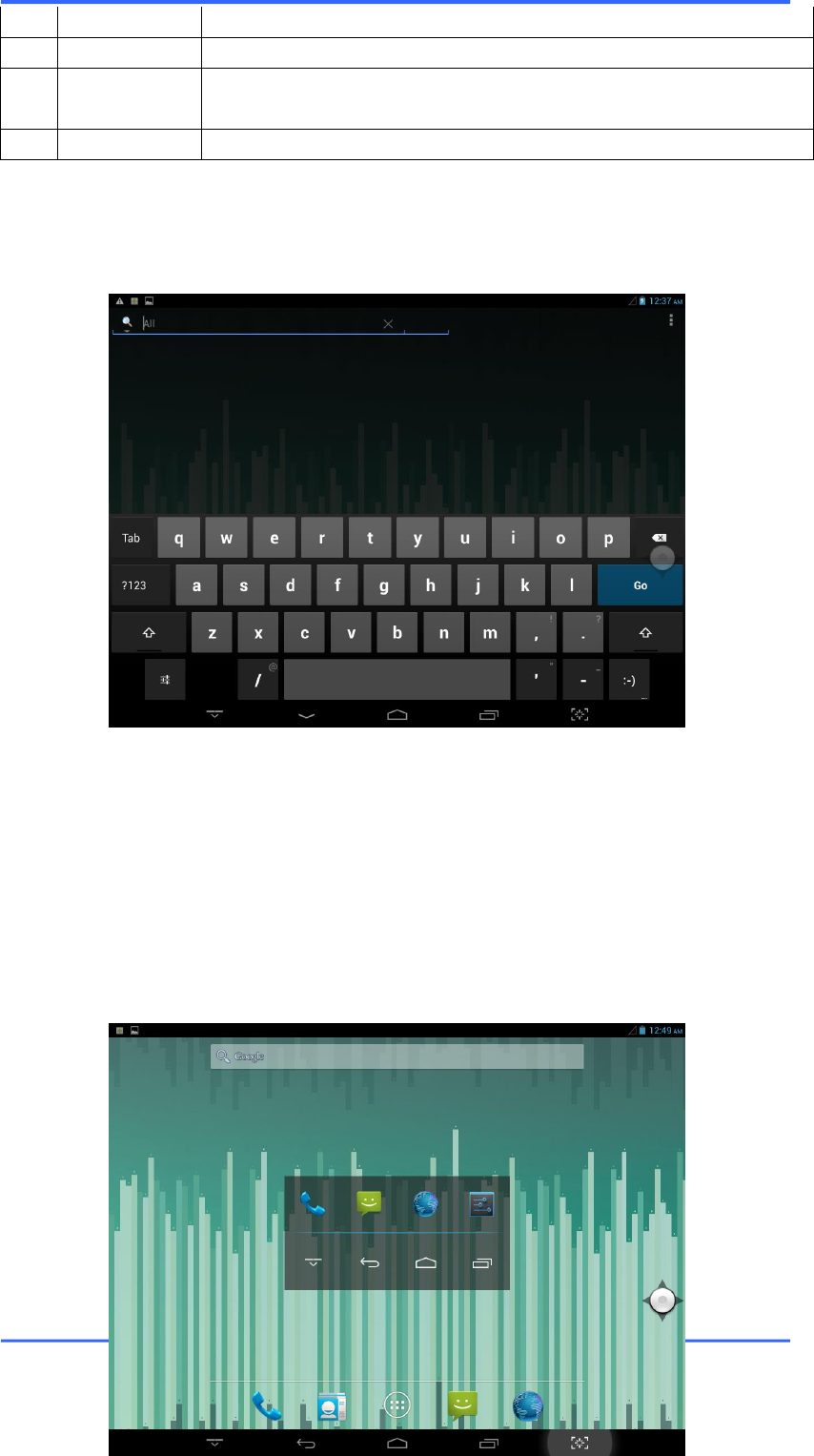

Virtual keyboard as shown below：

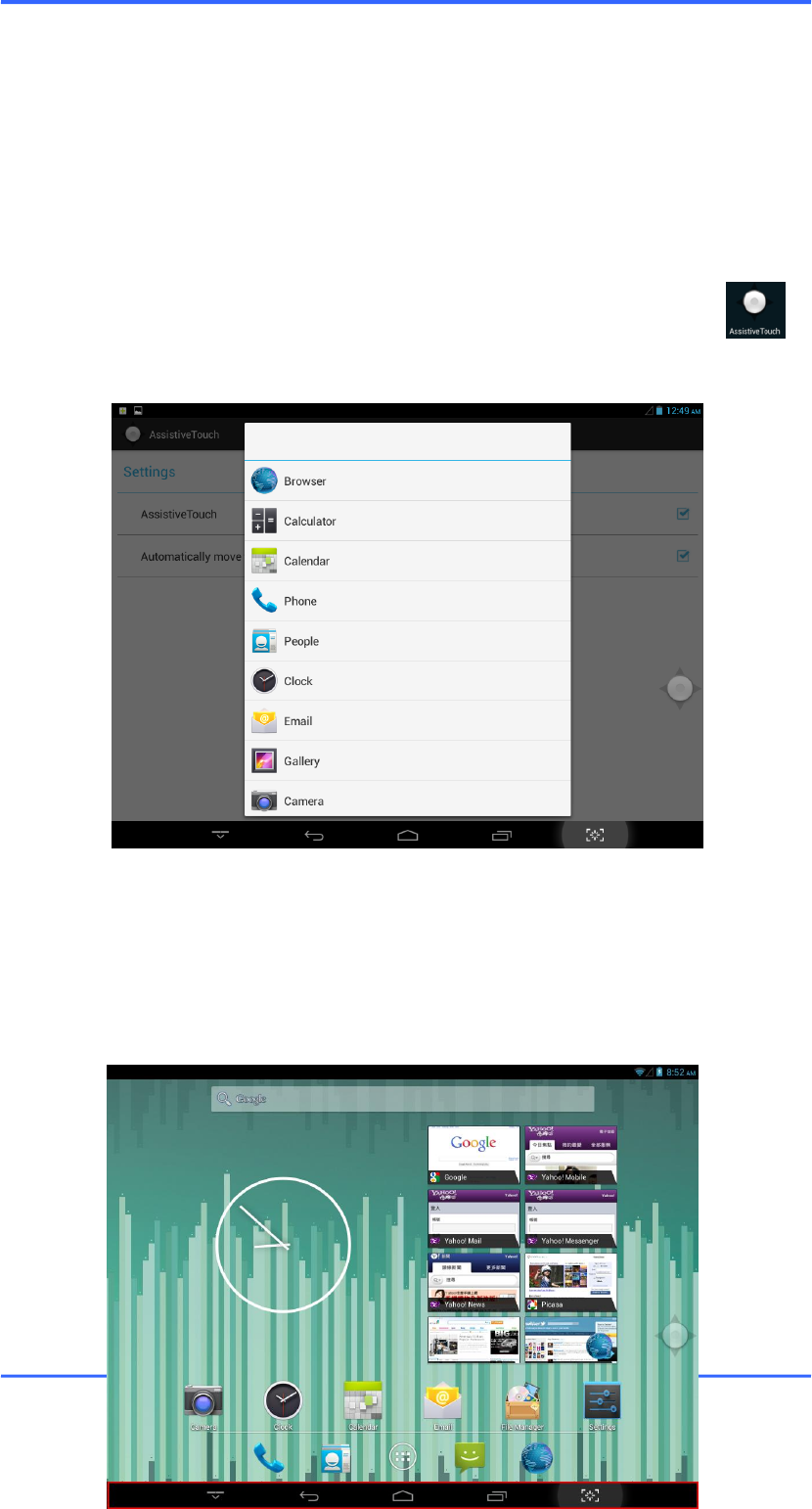

Suspended button
Add suspended button. Click the function keys, you can operate accordingly as shown
below:
User Gide
MID
- 8 -
Click the button after suspension, suspended for more than key box will appear, click on
the icon for the optional box, you can go directly to the corresponding application or
setting.
Suspension is a custom function button . In the main menu, click the button to
enter the settings for the suspension and a custom interface. Details as follows:
Shortcuts
Shortcuts picture as
below：
User Gide
MID
- 9 -
In the bottom of the screen, there are five shortcuts：

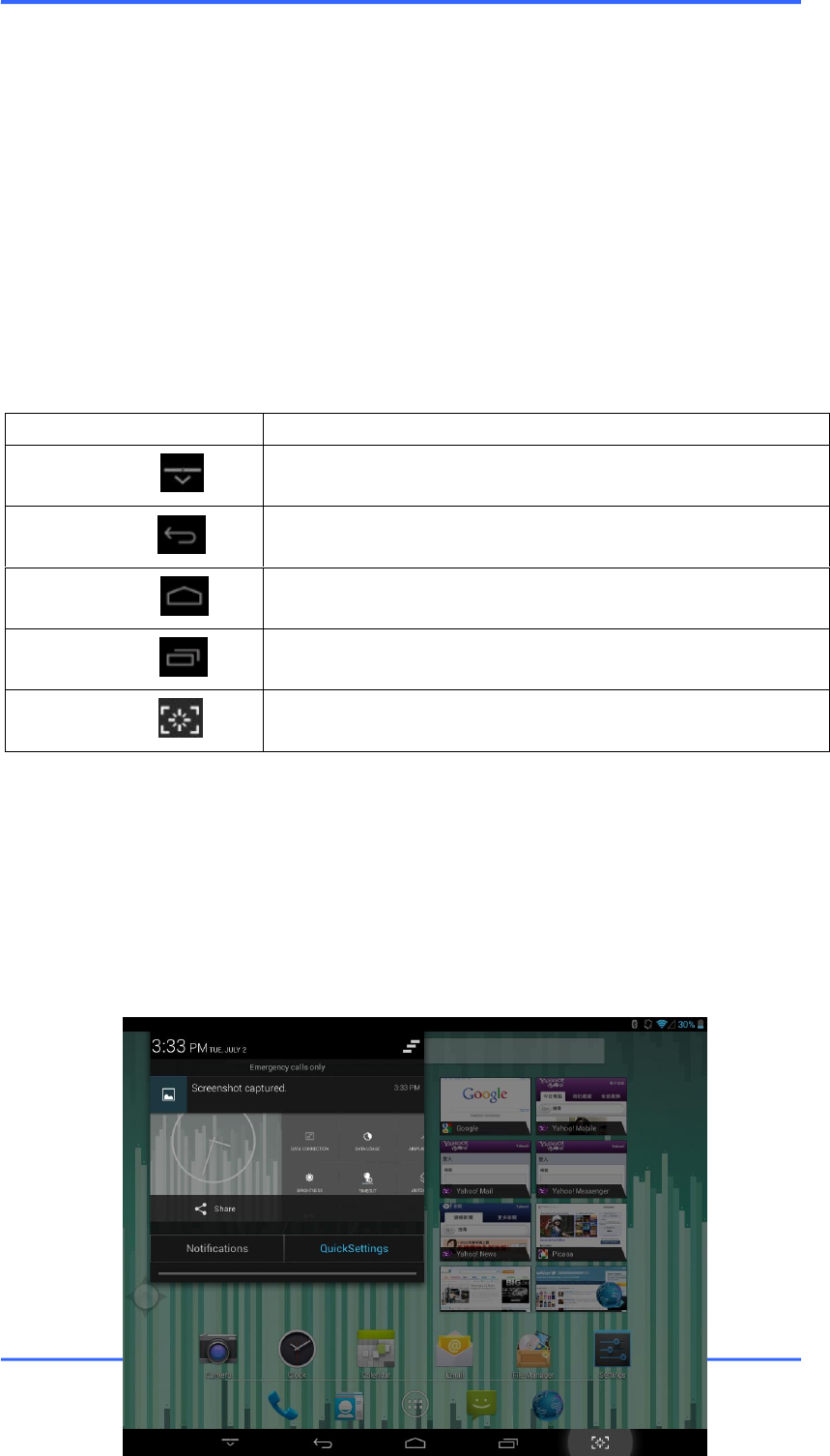

Notification Bar And The Quick Setup
Notification bar show as below：
Name
Function
Hidden
Hide the status bar.
Return
Return to the previous screen.
Home
Return to the main screen.
History
A list of open programs.

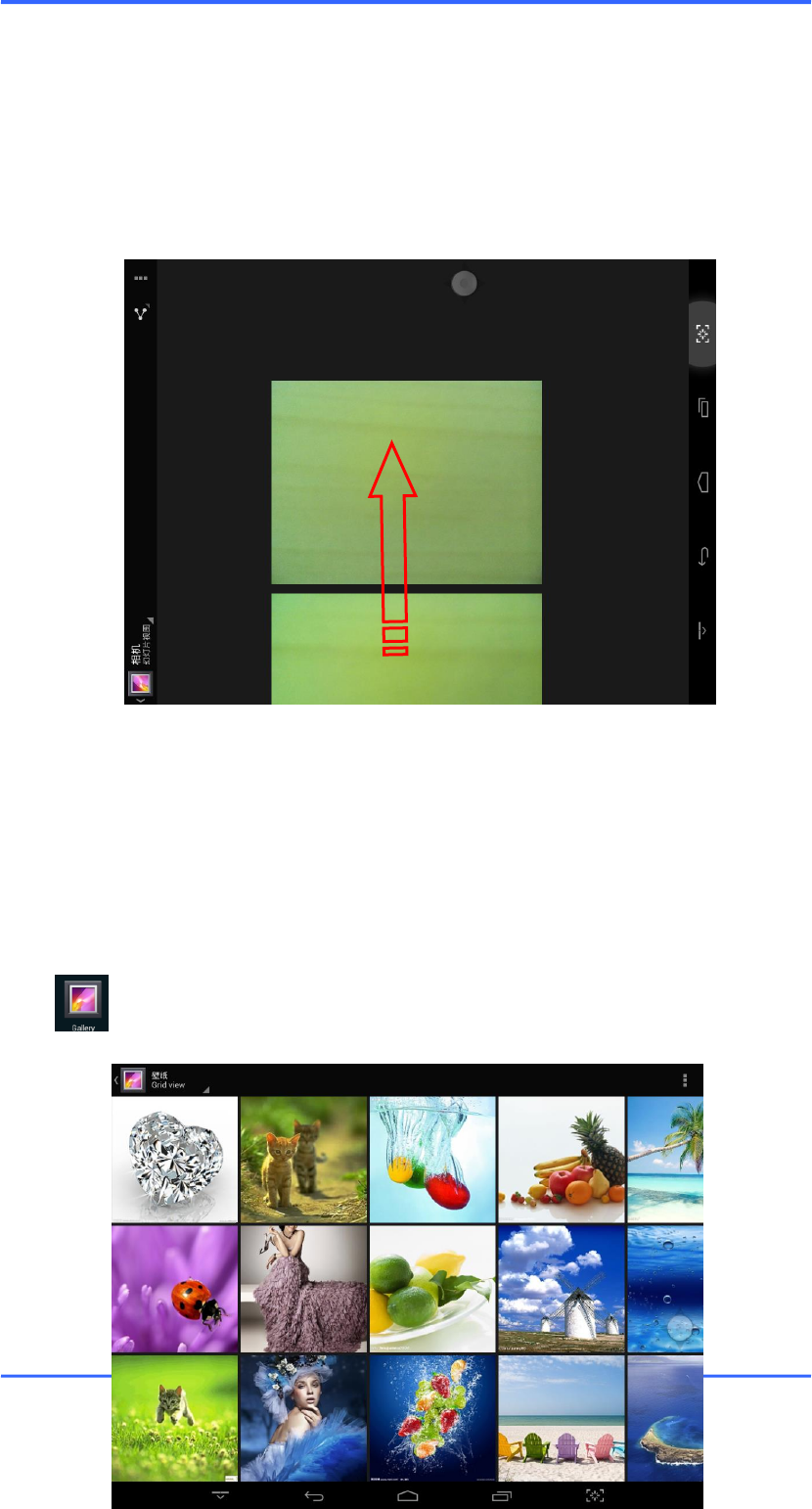

Screenshot
On the screen full shots.
User Gide
MID
- 10 -
Display the notification information of the tablet with real-time.
：Delete key. It is used to clear the system notification information。

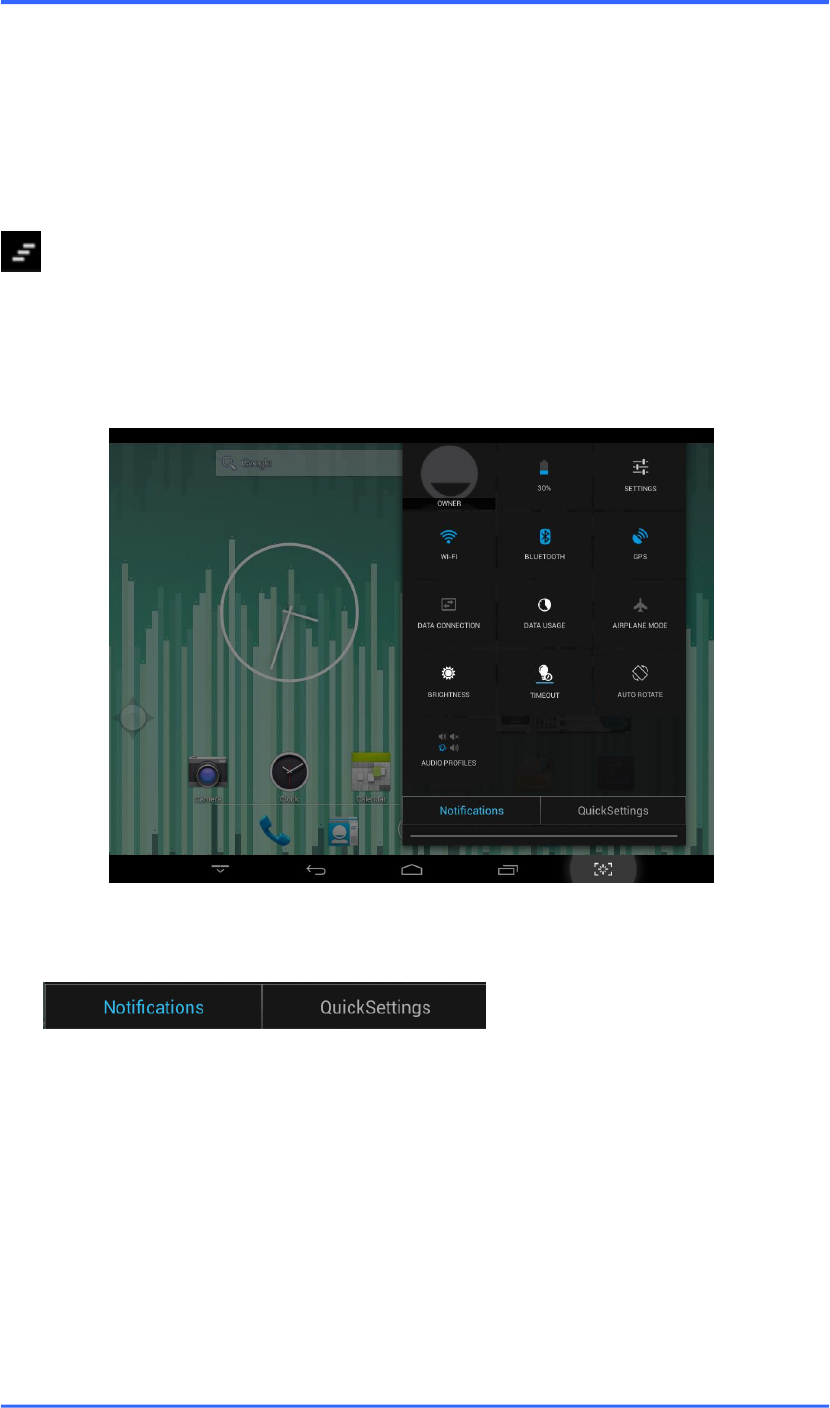

Quick Setup as shown below：
It is used to display some shortcuts. When you click on one of these icons, you can open
or close the application.
The figure shows two boxes, click the blue words, you can jump between the notification
bar and the quick setup bar .
Widgets

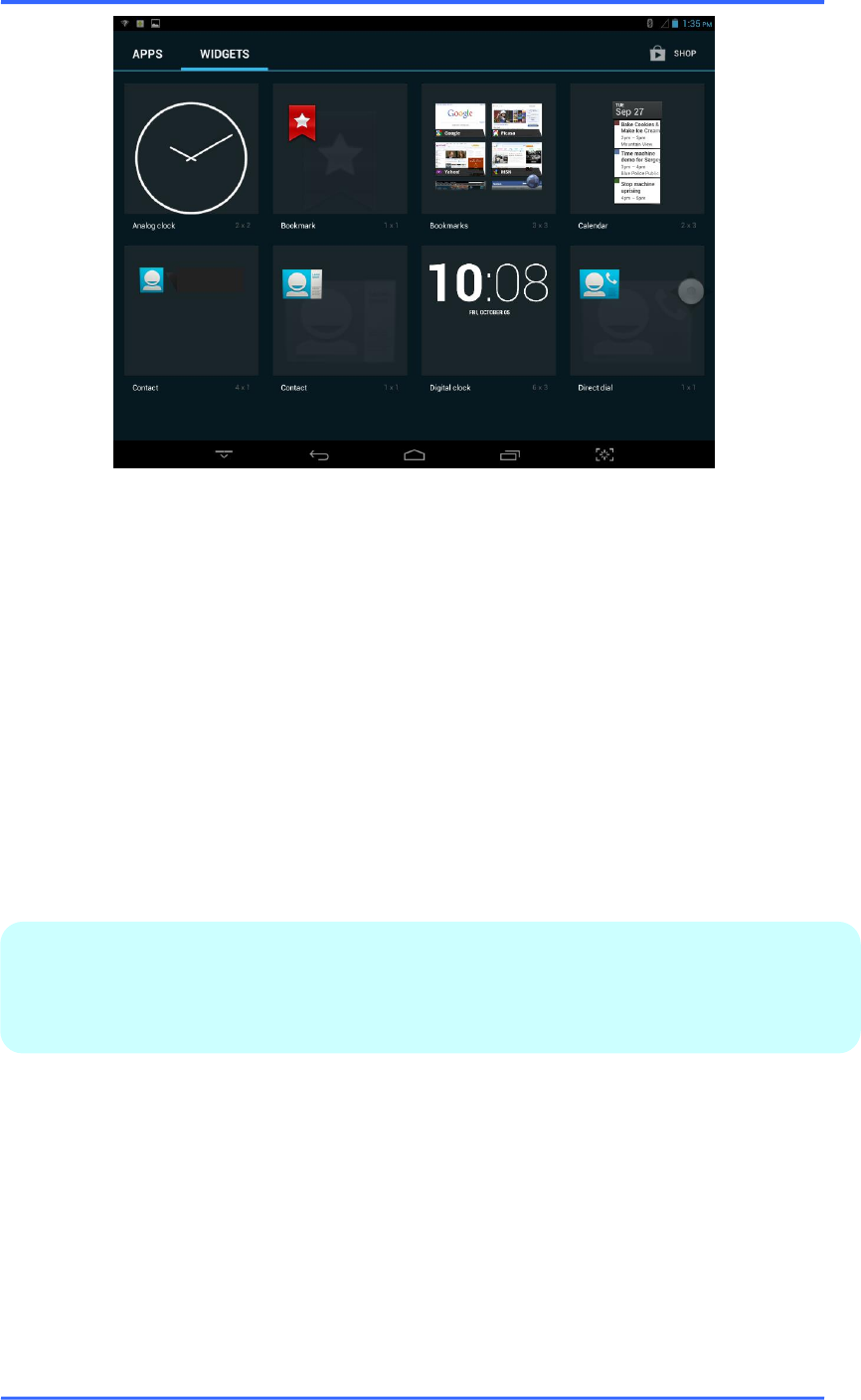

The following figure shows the various widgets. Widgets is actually a shortcut. Some
widgets belongs to the system.Install third-party APK also occurs widget.
You can long press the widget then drag it to one of the tabletops.
User Gide
MID
- 11 -
Charging the internal Battery
Your tablet has an integrated rechargeable lithium battery. Before using the product for the
first time, the battery should be charged fully to ensure proper working of the product.
If the tablet has not been put to use for some time, the battery needs to be charged
overnight (about 8 hours).
The battery used in this device may result in fire or chemical burn if it is misused. Do not
disassemble, incinerate, or heat the battery. Do not leave the battery in a place subject to
direct sunlight or in a car with its windows closed.
Do not connect the tablet to a power source other than that which is indicated here or on
the rating label as this may result in the risk of fire or electric shock and failure of the
product.
Turning the tablet“On/Off”
Turn On：To turn “ON” press and hold the <POWER> switch down until the screen turns
on. It takes approximately 8 Seconds for the system to boot.

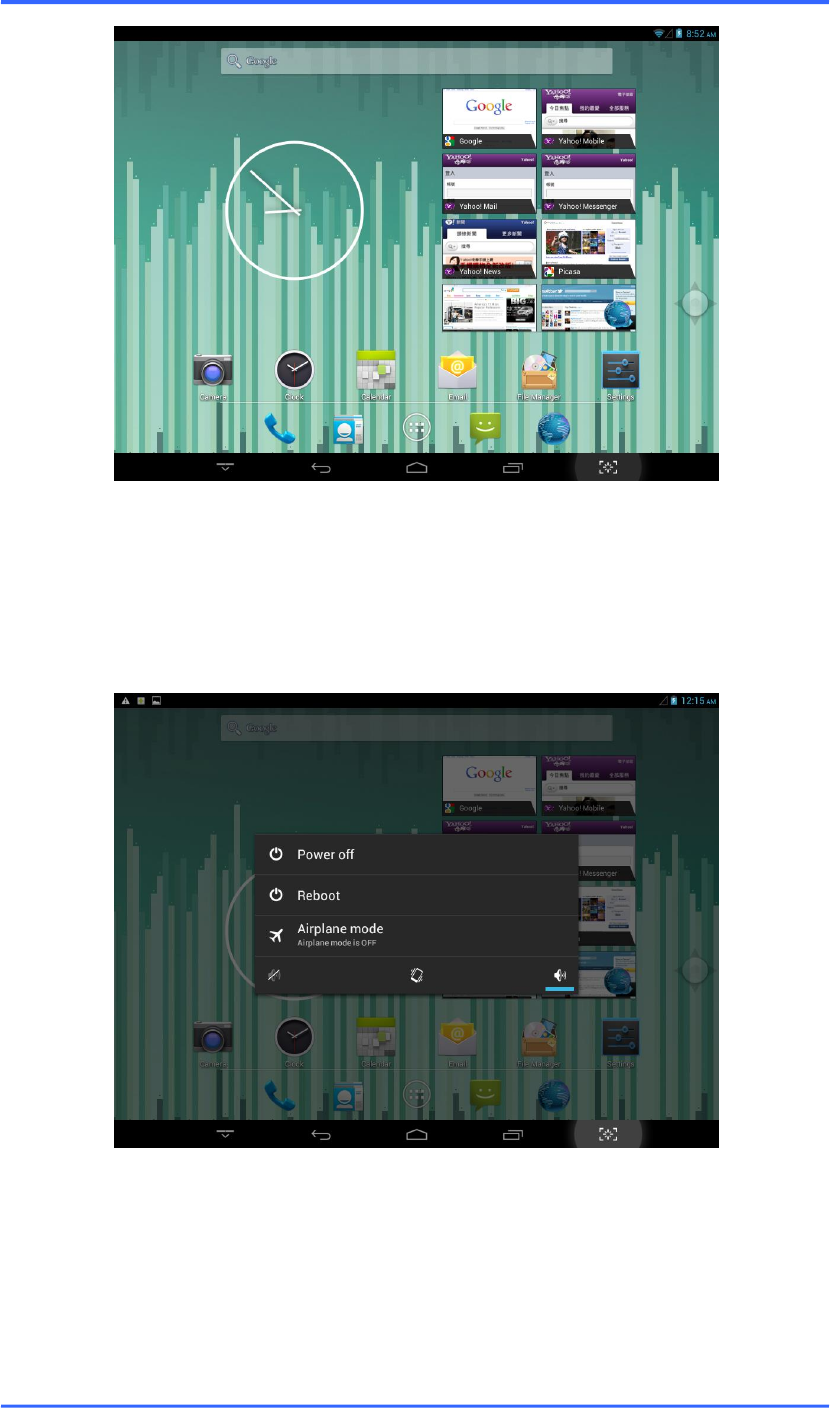

The following figure shows the screen after boot
NOTE:
Please use the electrical adaptor for charging, this adaptor is designed to charge the
tablet faster@2A
User Gide
MID
- 12 -
Turn Off：Long press the <POWER> switch in the unlock mode to display Power Off option and
navigation bar control option.
Standby：Short press to turn “OFF” the display, short press again to turn “ON” the display.
User Gide
MID
- 13 -
Reset
You can press the button on the back of it to reset your tablet. After reset, the machine will
automatically restart.
Connecting to the PC:
Connect the tablet to a PC with Windows XP/ Vista /7, Linux, MAC operating system. The
PC will automatically recognize the device.

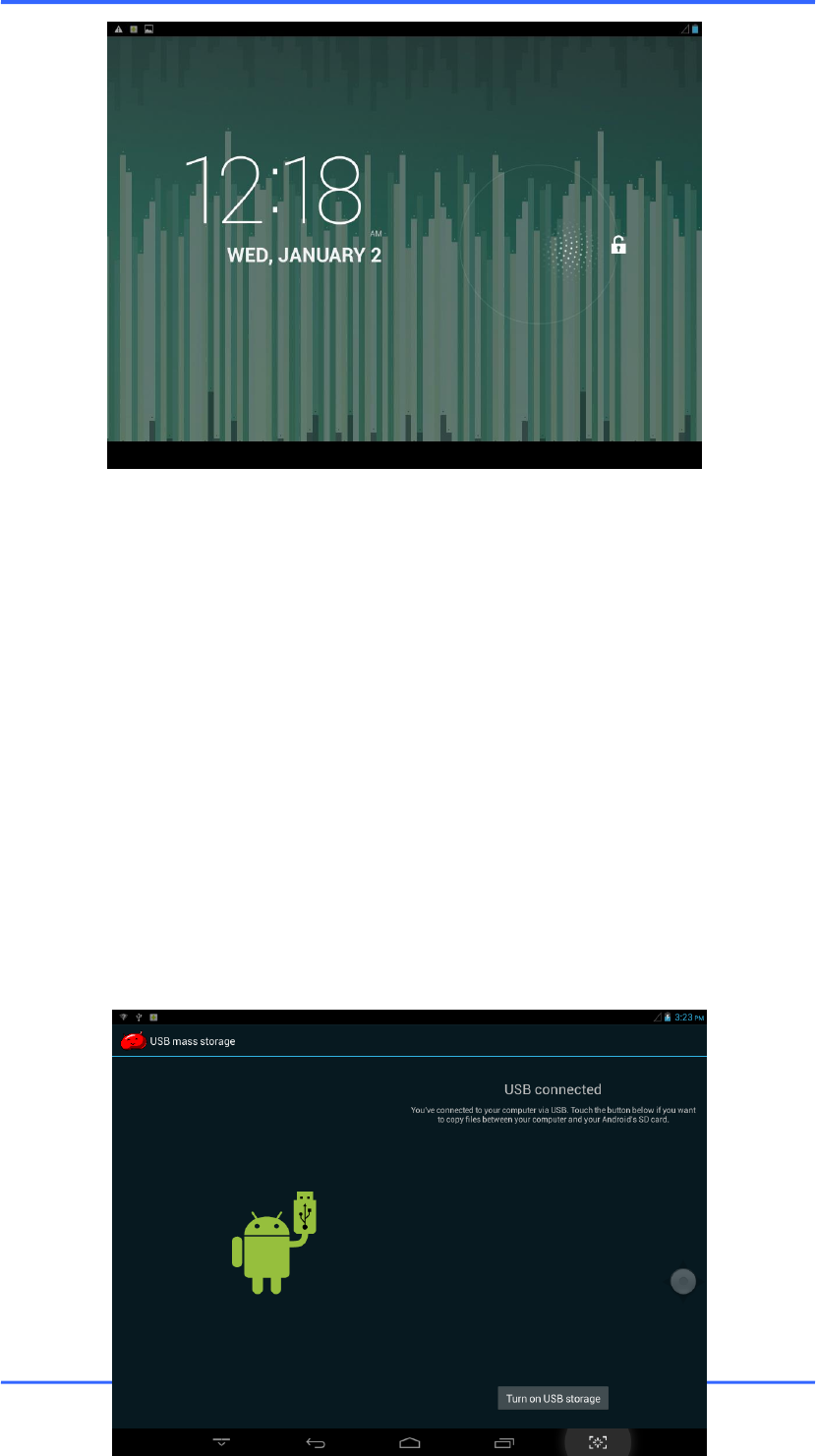

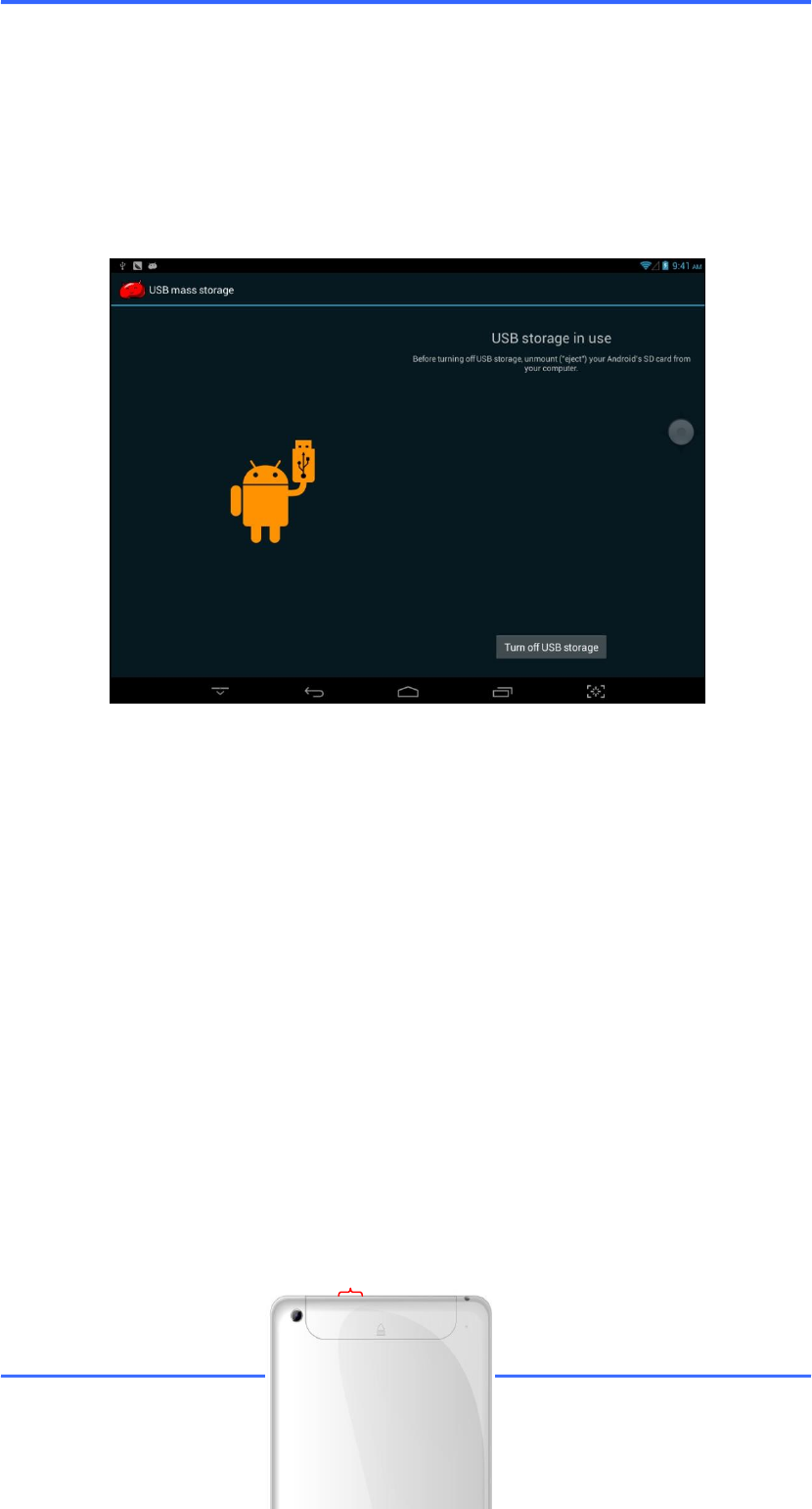

On the tablet you will see a connection screen. To correctly connect the device with the
computer, press “Turn on USB storage.”
User Gide
MID
- 14 -
When the tablet is connected to the computer, the user can do some operations, such as
copy, paste, delete, and installation.
User opens the USB device, the interface will change to the figure shown below.
Important Note:
1) Enable Auto Connect in “Connect to PC” in the setting menu, so that whenever you
plug the device to the PC the system will automatically get connected.
2) Don’t disconnect the device during the data copying or deleting process as this could
cause the unit to malfunction and damage the software. Disconnect it using the “Safely
remove hardware” icon at the bottom on the task bar.
3) The micro USB port on the tablet marked as Micro-USB is for loading your USB device
like pen drive. This port is also used for communicating with the PC via data cable.
Memory Card:
The Tablet is capable to recognize Micro –SD memory card up to 32GB. Gently press the
card in to the slot provided on the tablet. While inserting the card please ensure you hold
the label side facing downward.
Micro USB Slot
User Gide
MID
- 15 -

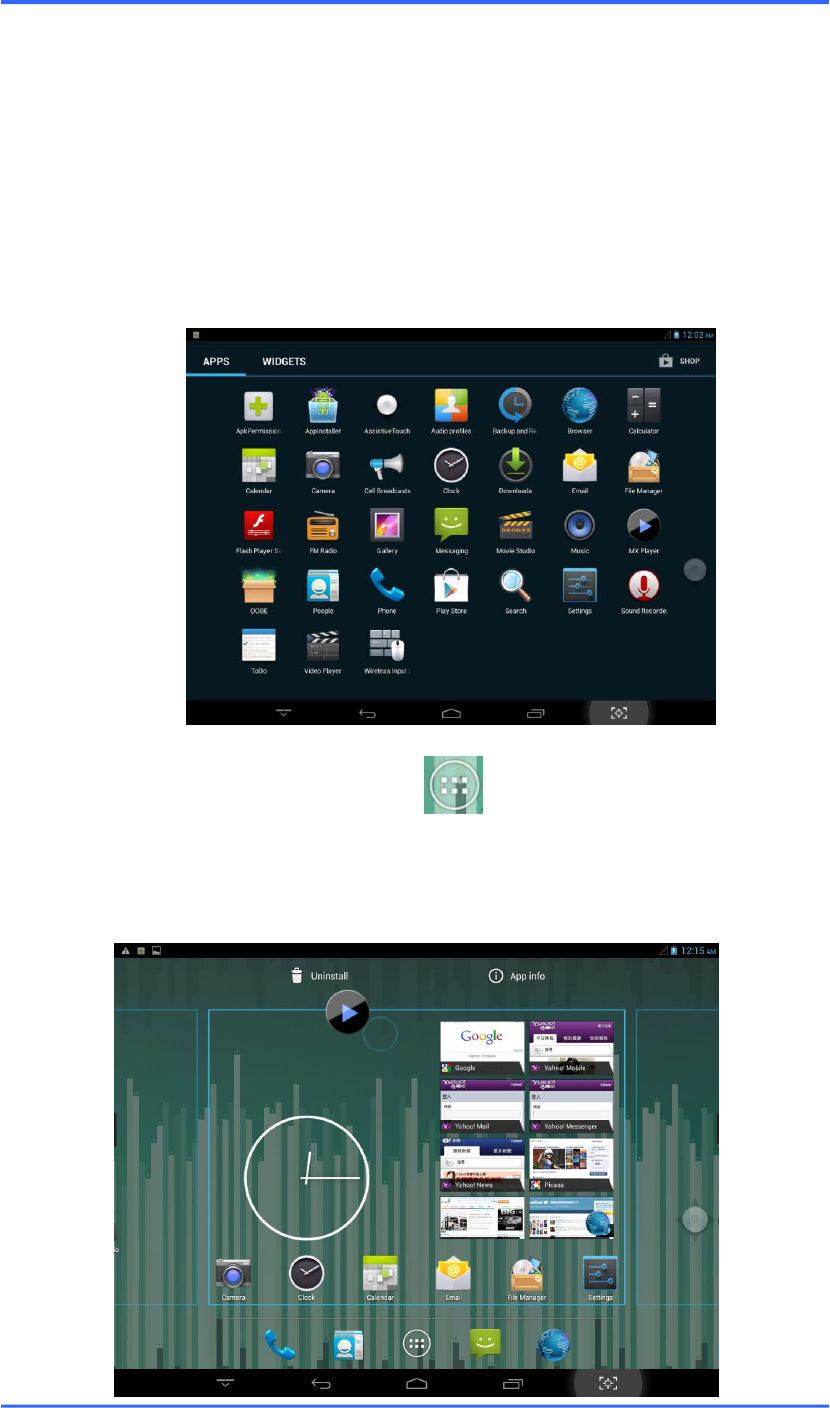

Desktop & Main Menu:
The desktop as picture 1 :
The user can drag and remove the icon on the desktop through long press and drag.
Desktop can be sliding around, as picture 2 :
The main menu as picture 3 :
Picture 1
Picture 2
User Gide
MID
- 16 -
You can enter in to main menu through click on the desktop. It shows all installed
in the machine apk. On the main menu, the user can uninstall the third-party applications.
Users can drag the icons in the main menu to the top of the desktop to uninstall the
corresponding application. Please refer figure below.
Picture 3
User Gide
MID
- 17 -
Open or switch applications
The user can click on the desktop icon or from the main menu to open the application.
Users can click the Back button to exit the application.Already open applications can click
to toggle.Please refer figure below.
Setting

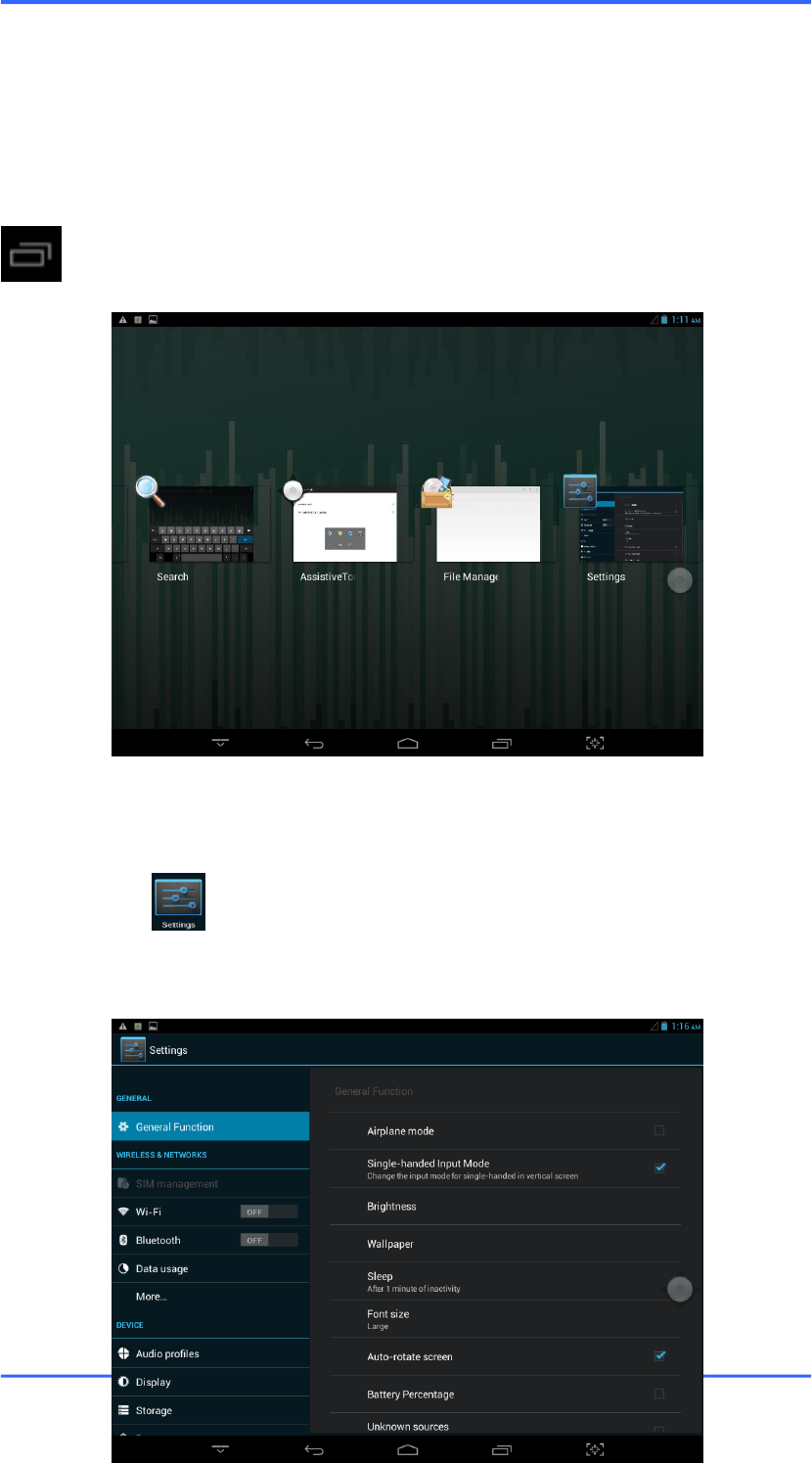

Click on the icon , you can enter the settings.
Users can set the various aspects of the machine, including the basic brightness, sleep
time, Wi-Fi, Bluetooth, display, memory, etc. Please refer figure below.
User Gide
MID
- 18 -
General Function

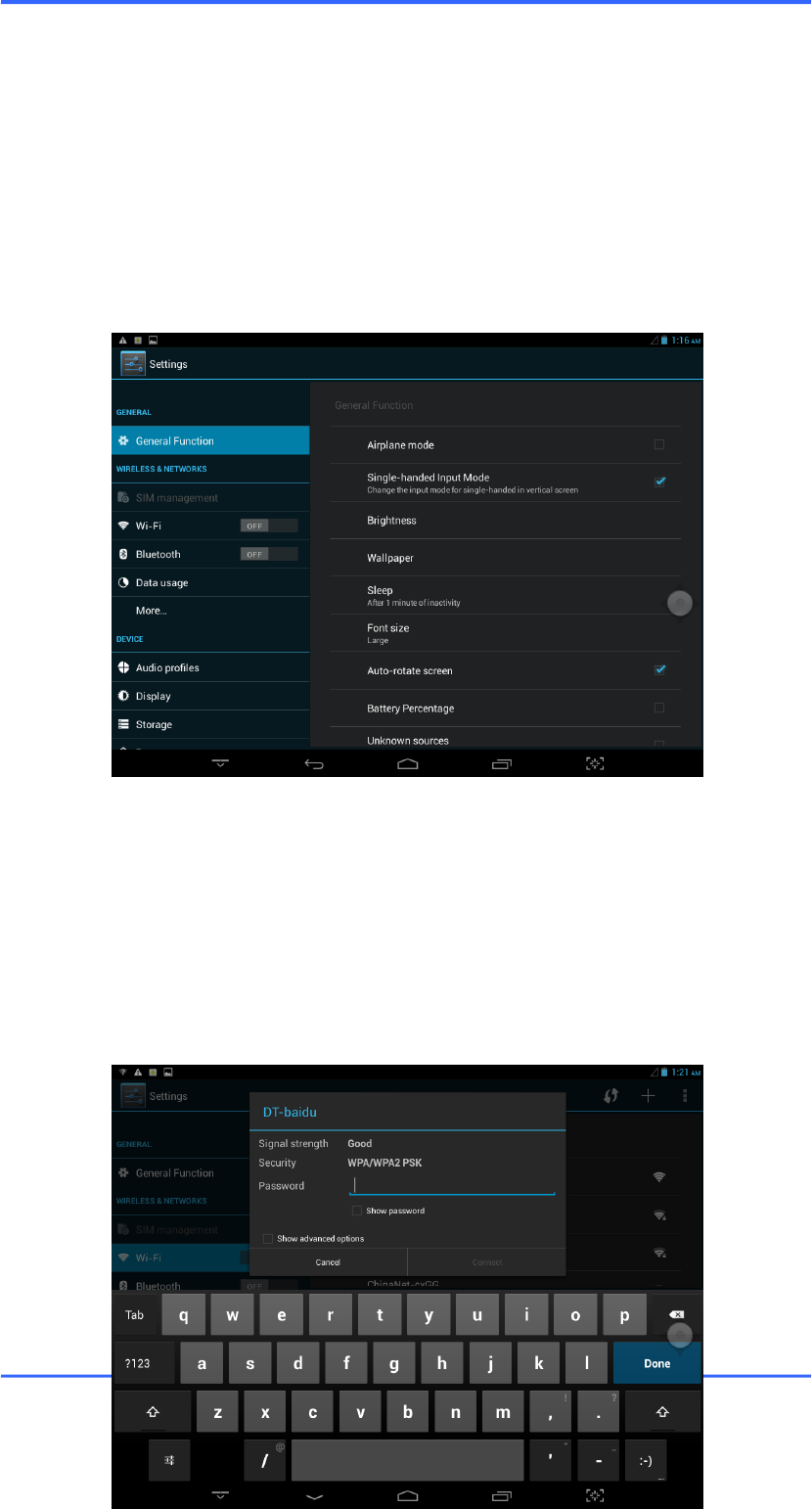

This function is for some commonly used functions, such as brightness, wallpaper, sleep
time were extracted. Please refer figure below.
Wireless Connection

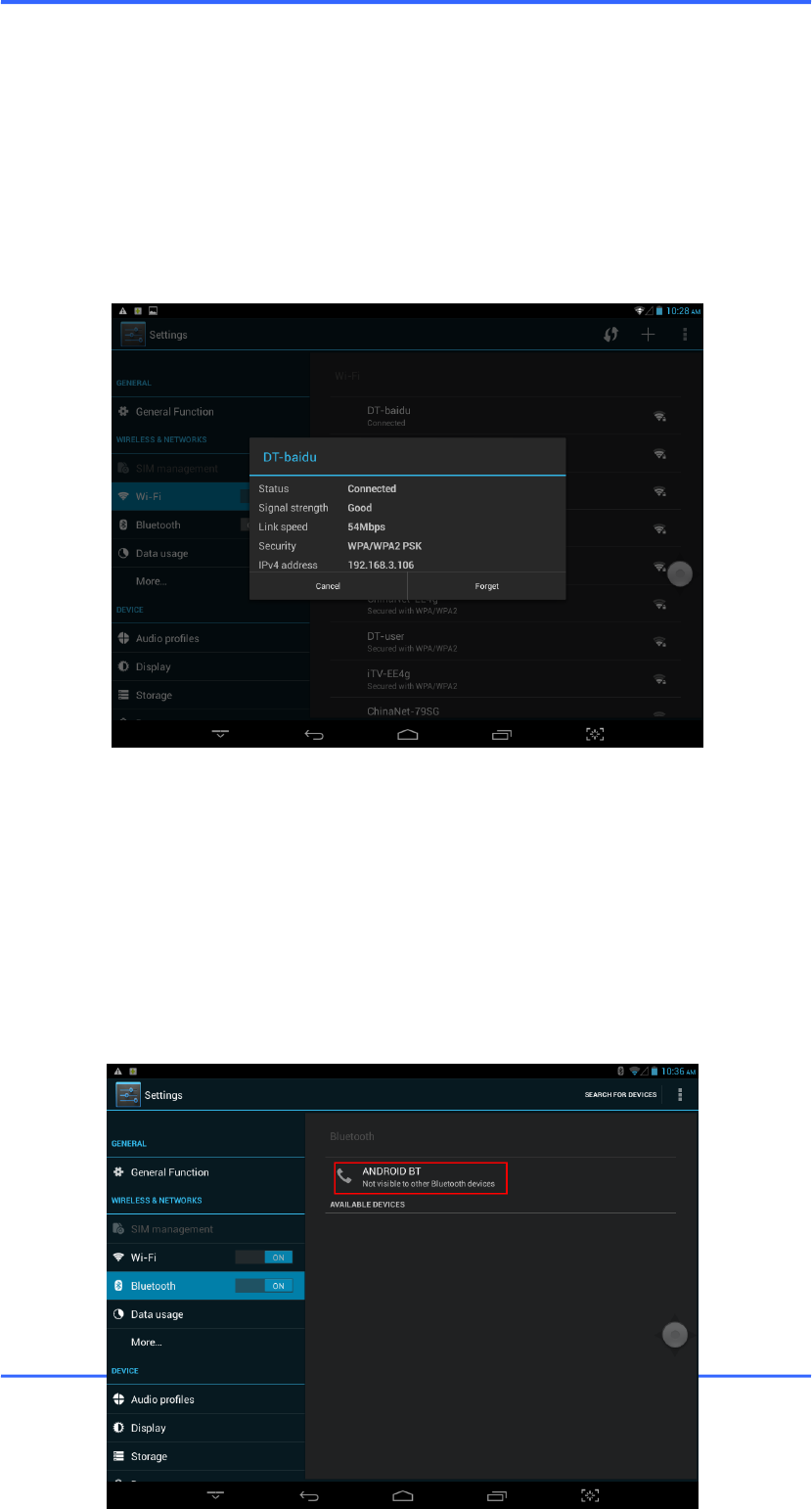

Click the main menu "Settings" icon, click on "Wi-Fi" , Turn on the Wi-Fi switch, the
Wi-Fi module will search AP lists automatically, please follow the prompts shown
below and input the required data to complete and register the WIFI network .
In an encrypted network, you need to enter a valid key (password) to connect to the
network. Please refer figure below.
User Gide
MID
- 19 -
When the network connection is completed, you can click the connected network, check
the network connection's specific circumstances. Please refer figure below.
Of course, you can also previously described "Quick Setup" or "floating button" to open
Wi-Fi network. However, the premise is that your Wi-Fi network in the area, and saved
appropriate network password.
Bluetooth
Enter the Bluetooth option, open the Bluetooth, then you can see the Bluetooth device
information. Users can click on "ANDROID BT" toggle Bluetooth device status. Please
refer figure below.
User Gide
MID
- 20 -
Storage

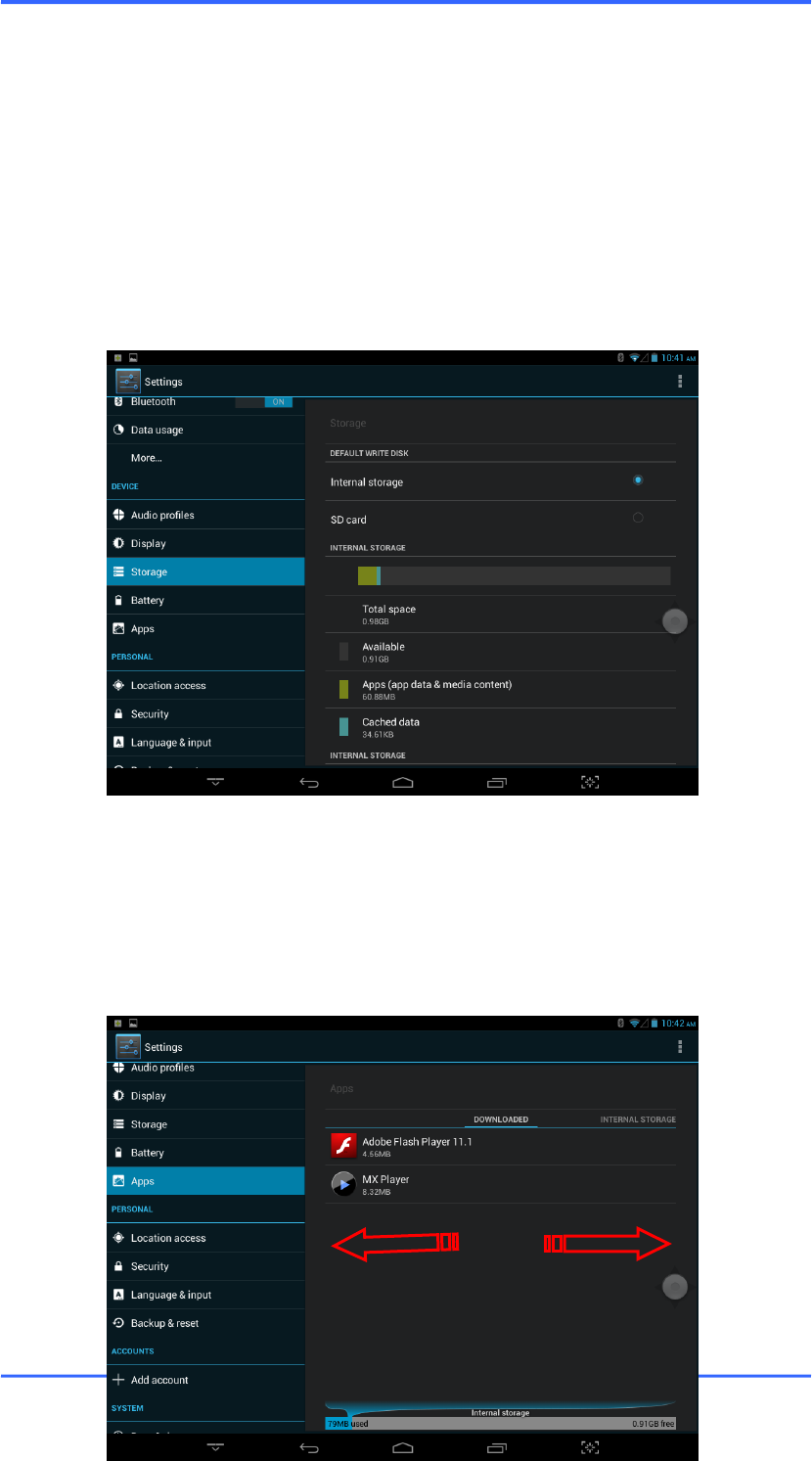

Users can view the device's stored information, including body capacity and external
Micro-SD card capacity and use. Please refer figure below.
Apps
Users can view the APP in each state. For example: the running, installed and so on.
Please refer figure below.
User Gide
MID
- 21 -

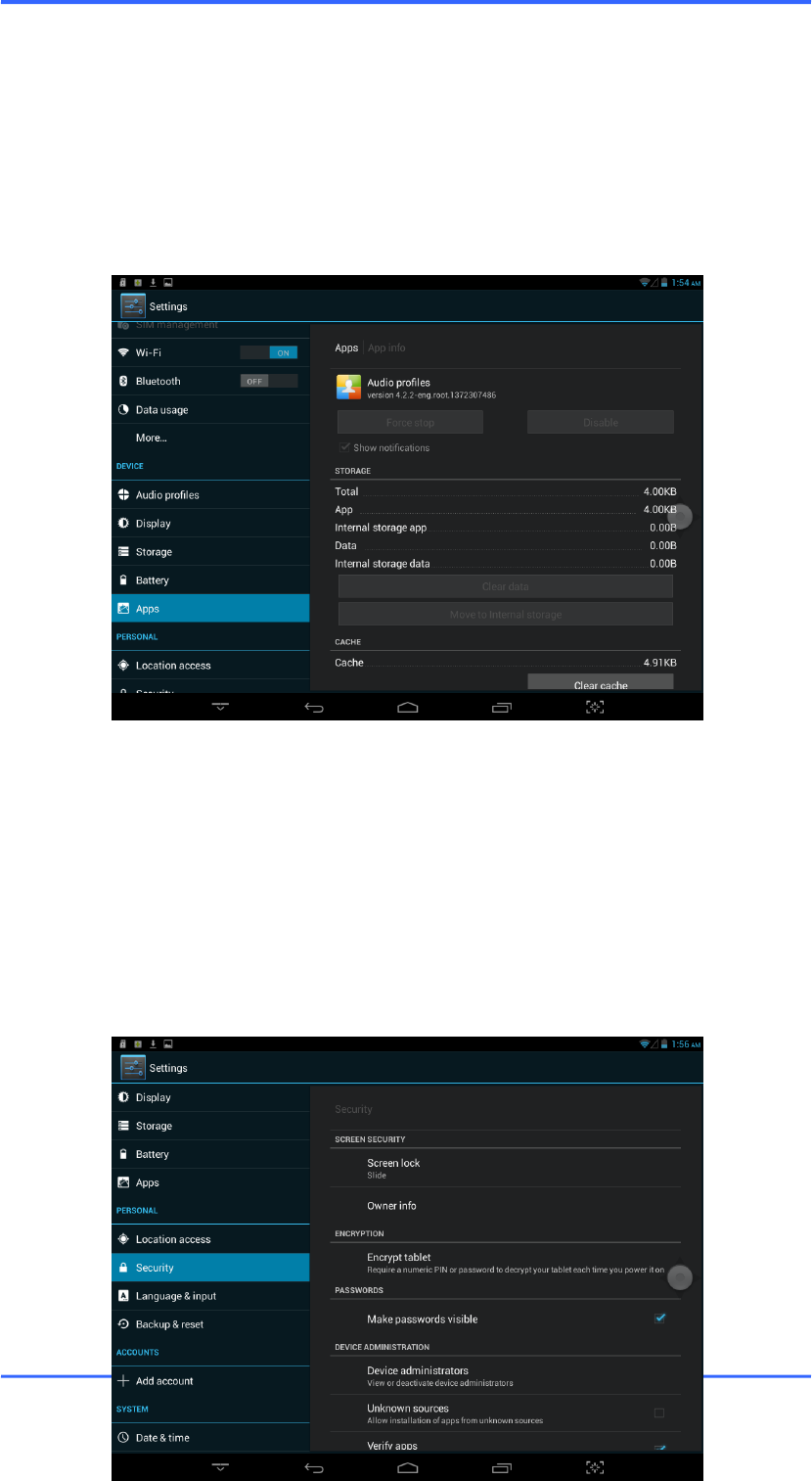

The user clicks on a single APP, can enter here for details. Users can perform the
corresponding APK forcibly stop, clear data, uninstall, move to SD card and other
operations. Please refer figure below.
Security
When the user enters the security options, you can set the machine security or set the
security password or security secret maps.Details as shown below, the user can
experience themselves.
User Gide
MID
- 22 -
Language & Input

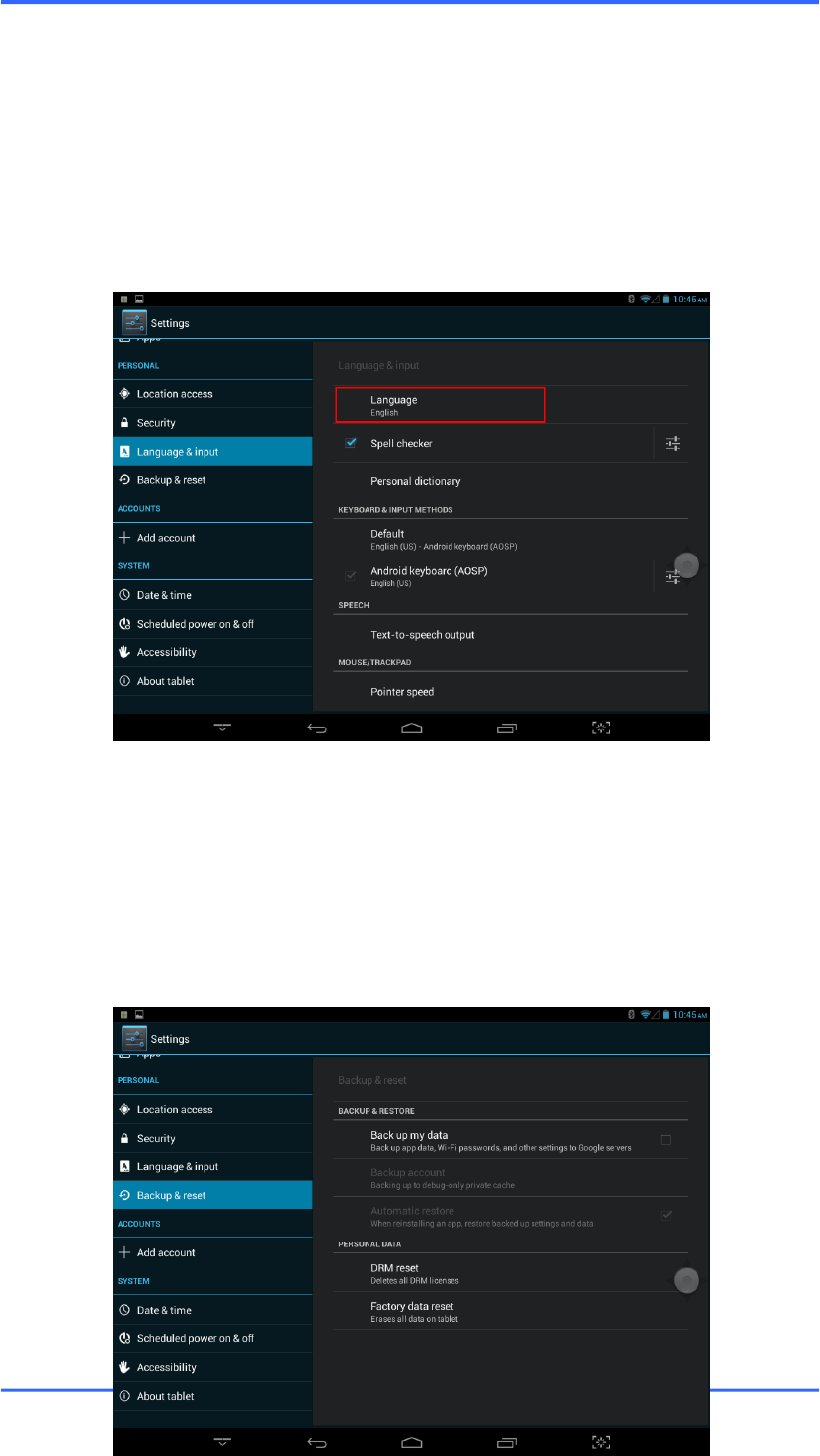

Users enter this option, the device’s language and input method can be set .
Backup & Reset
Users enter this option to back up the information on the device, to prevent loss.
Disclaimer: Please use caution reset function. Please be careful to use this feature.
User Gide
MID
- 23 -
Application
Here are some of the more frequently used applications.
Application Involving Privacy Permissions
This application can manage the privacy rights of third party applications.It can be forcibly
shut down third-party applications may relate to the background operation.

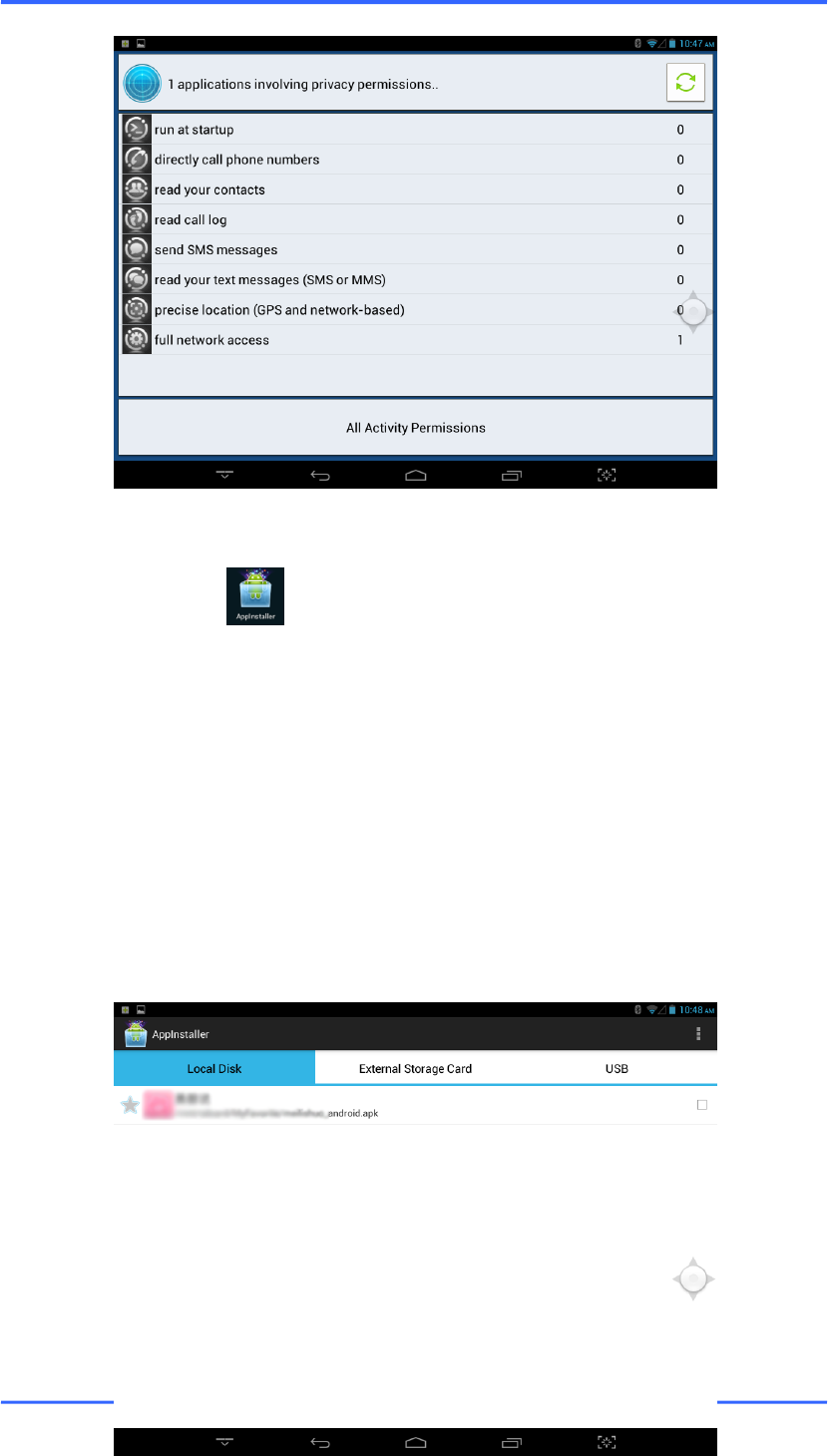

Users can enter it by clicking on , specific details as shown below:
User Gide
MID
- 24 -
APPInstall
User can through click to enter this application. This application can help users
scan device app installation package. Please refer figure below.
User Gide
MID
- 25 -
Audio Profiles

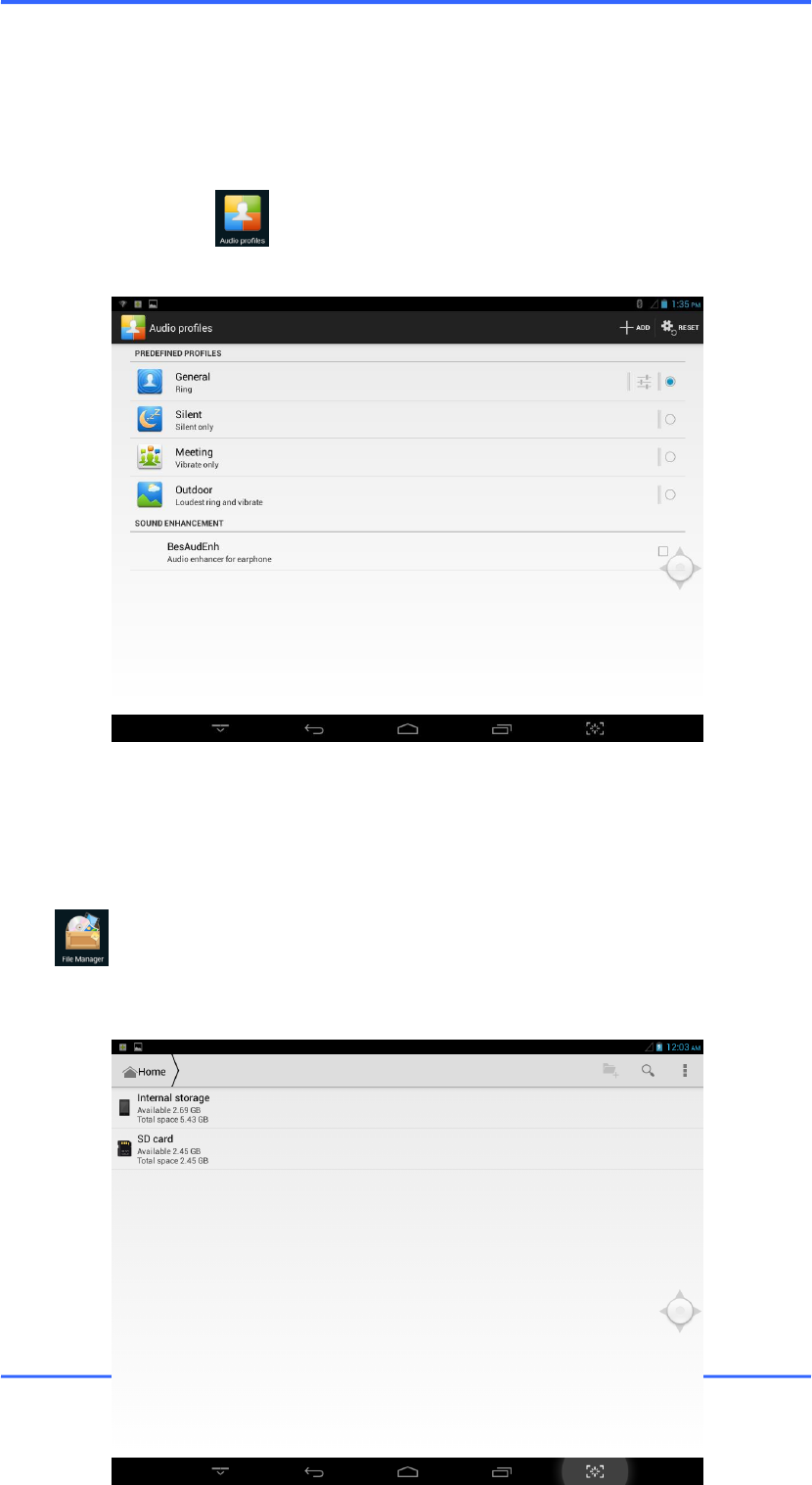

User can through click to enter this application. This application allows the user to
adjust the operating mode of the device. Please refer figure below.
FileManager
Click to enter file management application. In the File Manager, users can view all
files in the body memory and external Micro-SD card so files. The file can perform basic
New, copy, cut, paste, install, play and other operations. Detailed in the following figure.
User Gide
MID
- 26 -

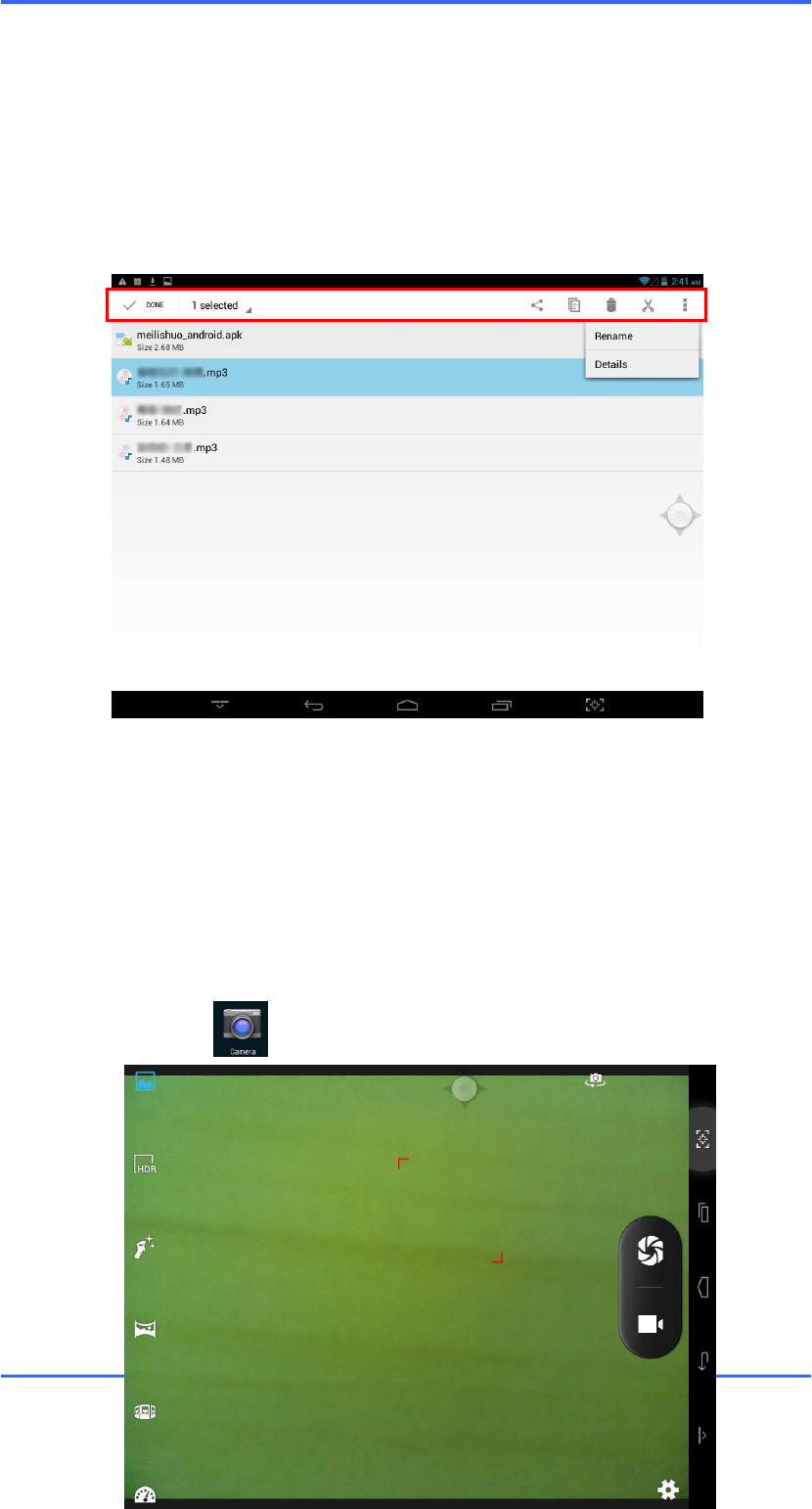

Select a single folder, the system will pop-up toolbar, the details as follows:
Camera
安卓 4.2.2 系统照相机相对 4.1.1 版本照相机有所更新。预览图片更大，可 2点放大缩
小。拍照完成后，预览图片后，轻轻滑动，即可再次进入照相界面。详情如图所示。
Click the camera icon in the applications menu, you will see the below given
figure.
User Gide
MID
- 27 -
Photo Browser
Click icon to get into the photo browser mode directly, there will be list of the
pictures files and
recorded- video files.
As shown below:
User Gide
MID
- 28 -
Video Play
Online video: the device supports HTML5 online video playback.
Local video: click the Video icon , the player can load new albums and photos
automatically which are stored in internal memory or micro SD card, select the
videos to start playback.
Music Play

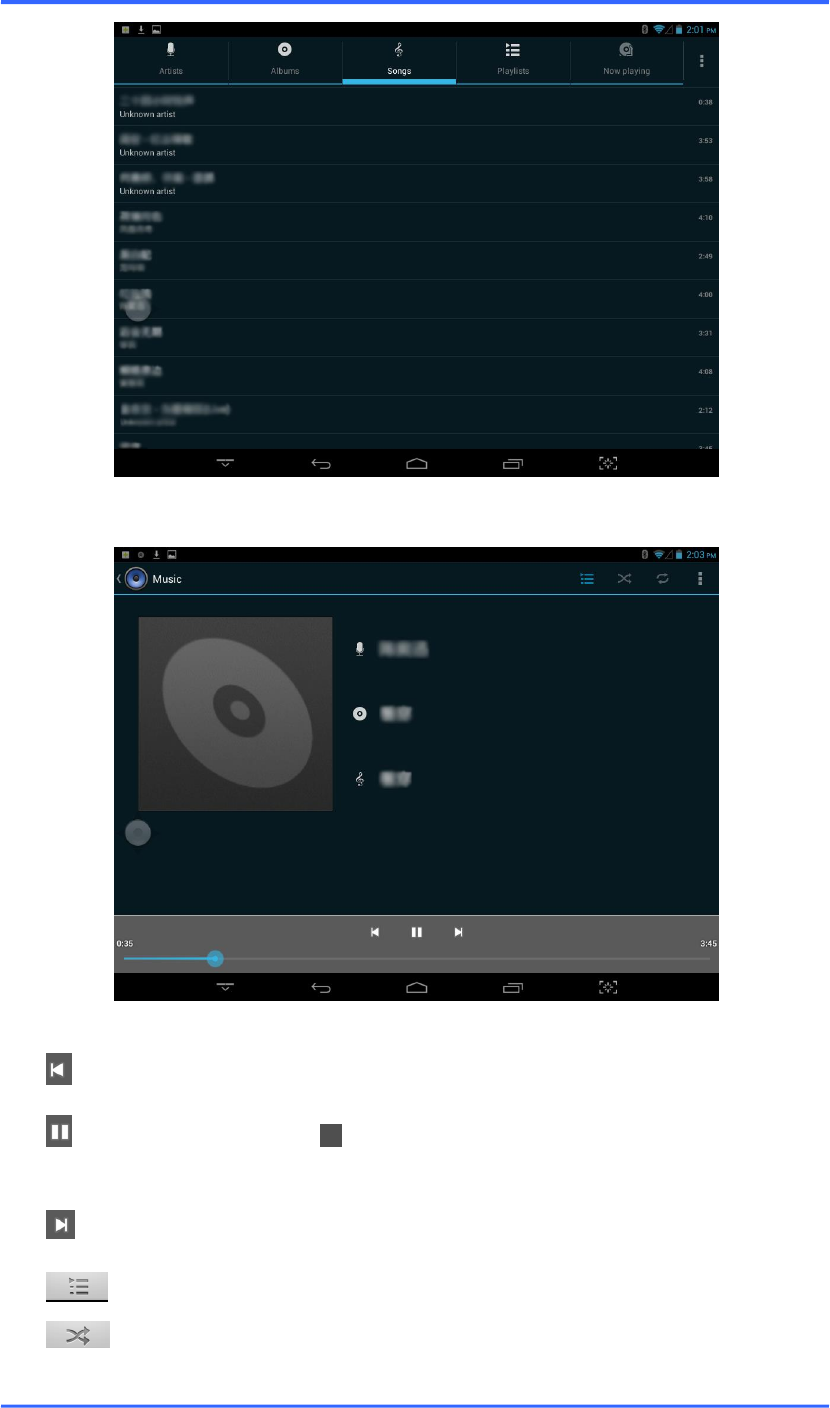

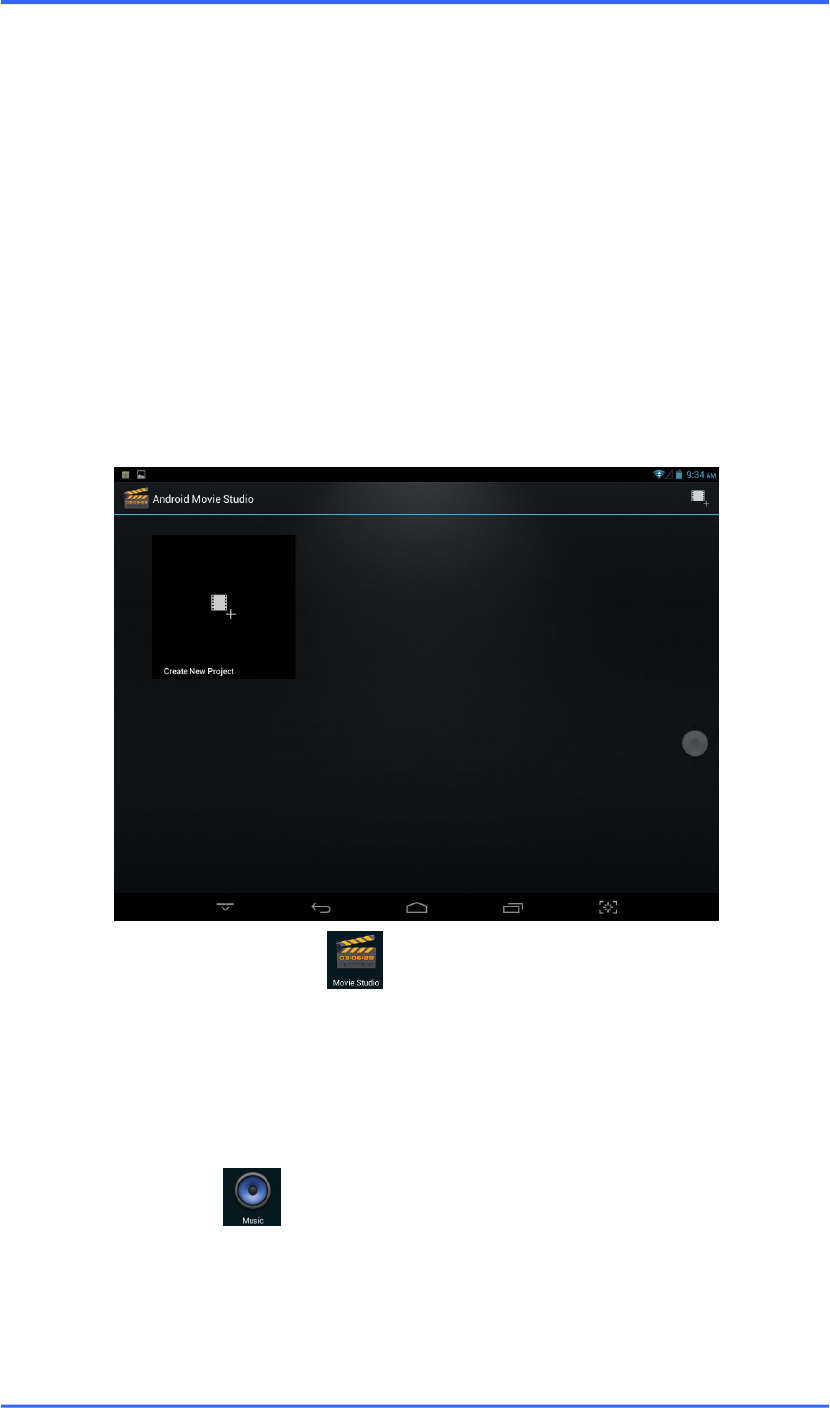

Click the music player icon to start the music player interface.
Clicking the music files will enable you to start playing a particular track.
User Gide
MID
- 29 -
Click : play the previous music, long press to fast reverse.
Click : click it to pause, click " " icon to stop the playback; click again to resume
normal play back.
Click : to play the next song, long press to fast forward
Click : to display the present playing list.
Click : to select the random playing mode.
User Gide
MID
- 30 -
Click : to select the repeat playing mode.
Click : to check the lyric.

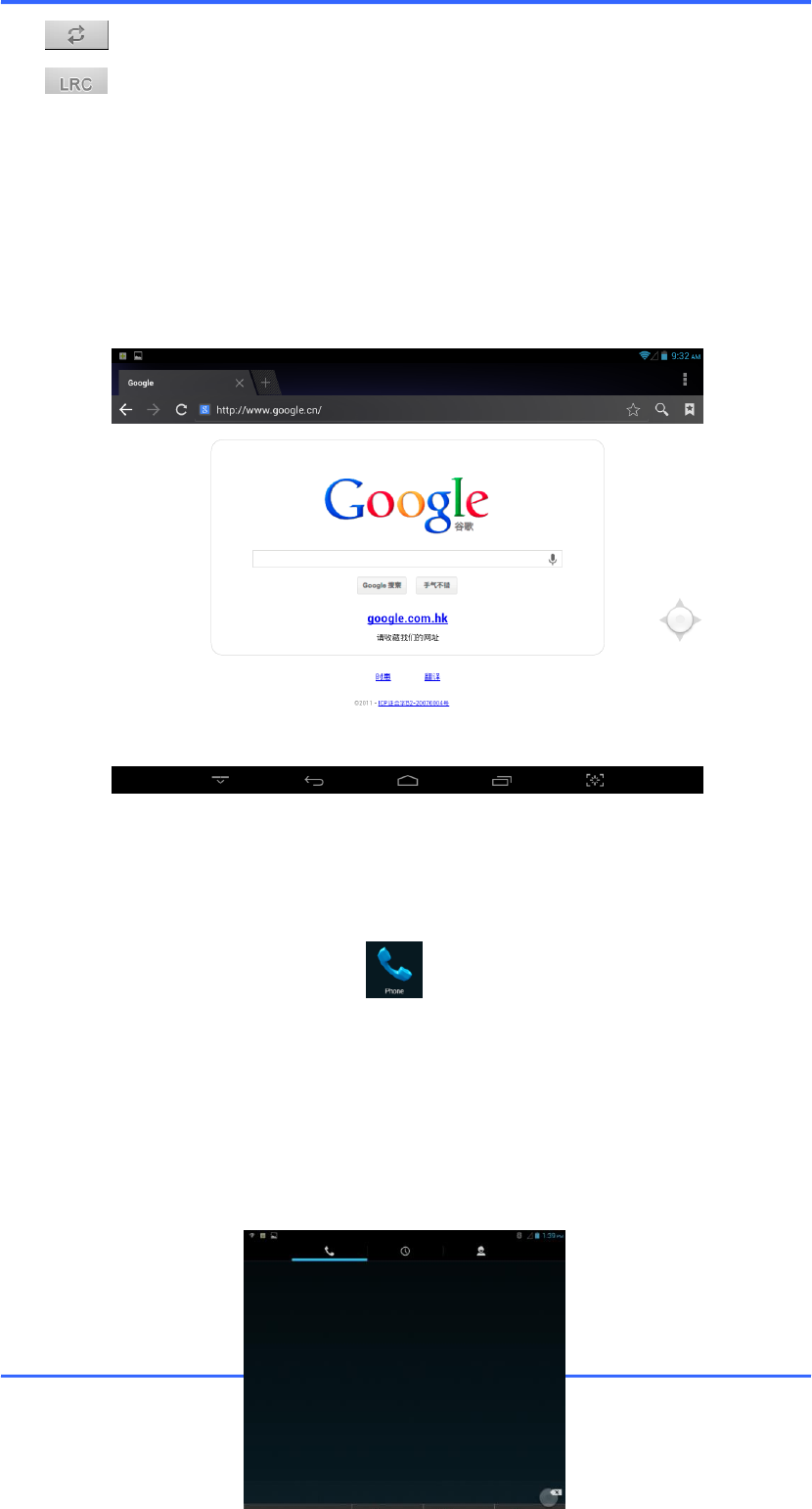

Browser
When the network is connected, open the Web browser enter the URL, you can
quickly browse the Web，or through the main desktop search bar enter the URL,
open the web page.
Phone
This machine with 2G/3G phone function, support for GSM, WCDMA standard bands.
Phone cards for the general card. Click to enter the phone application.
User Gide
MID
- 31 -
——It can adjust the number keypad bias.
——Can achieve keypad and full keyboard to switch between.

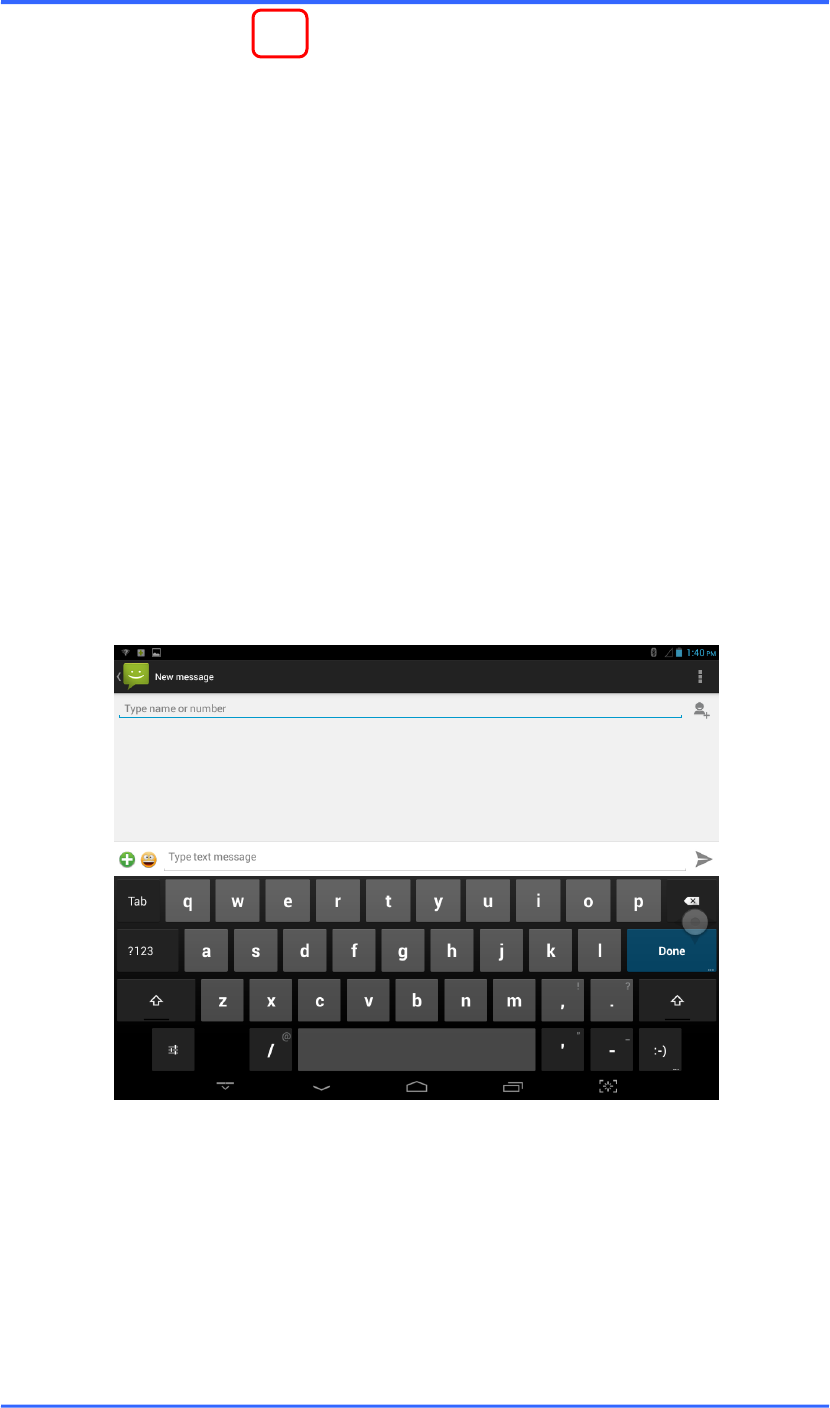

Message
Users can refer to SMS related operations to explore. Below the new text message
interface.
Troubleshooting Guide
If the user's device is experiencing dysfunction, please refer to the following table.
User Gide
MID
- 32 -
Problem
Solutions
The machine can not boot.
Ensure that the tablet is fully charged. Try charging
the Tablet overnight (8 hours).
Physical buttons do not
work.
Switch –off and switch on the tablet.
I cannot transfer files to
the tablet.
Ensure that your computer is running on a
supported operating system platform.
Check the USB extension cable, ensure that it is
securely attached to the tablet and the PC, or try
using another USB cable.
Ensure that the tablet’s memory capacity is not full.
There is no sound during
playback.
Check the volume level.
Ensure that the earphone is attached securely to
the tablet.
The sound quality of the
music is poor.
Try playing the file on your computer. If the sound
quality is still poor, try downloading the file again
or re-encode the file of your own
Ensure that the bit rate of the file is not too low.
The higher the bit rate of the file, the better it will
sound. The minimum recommended bitrates is
128kbps for MP3s and 96kbps for WMAs.
Try lowering the volume of the player.
Ensure that the earphone is attached securely to
the tablet.
