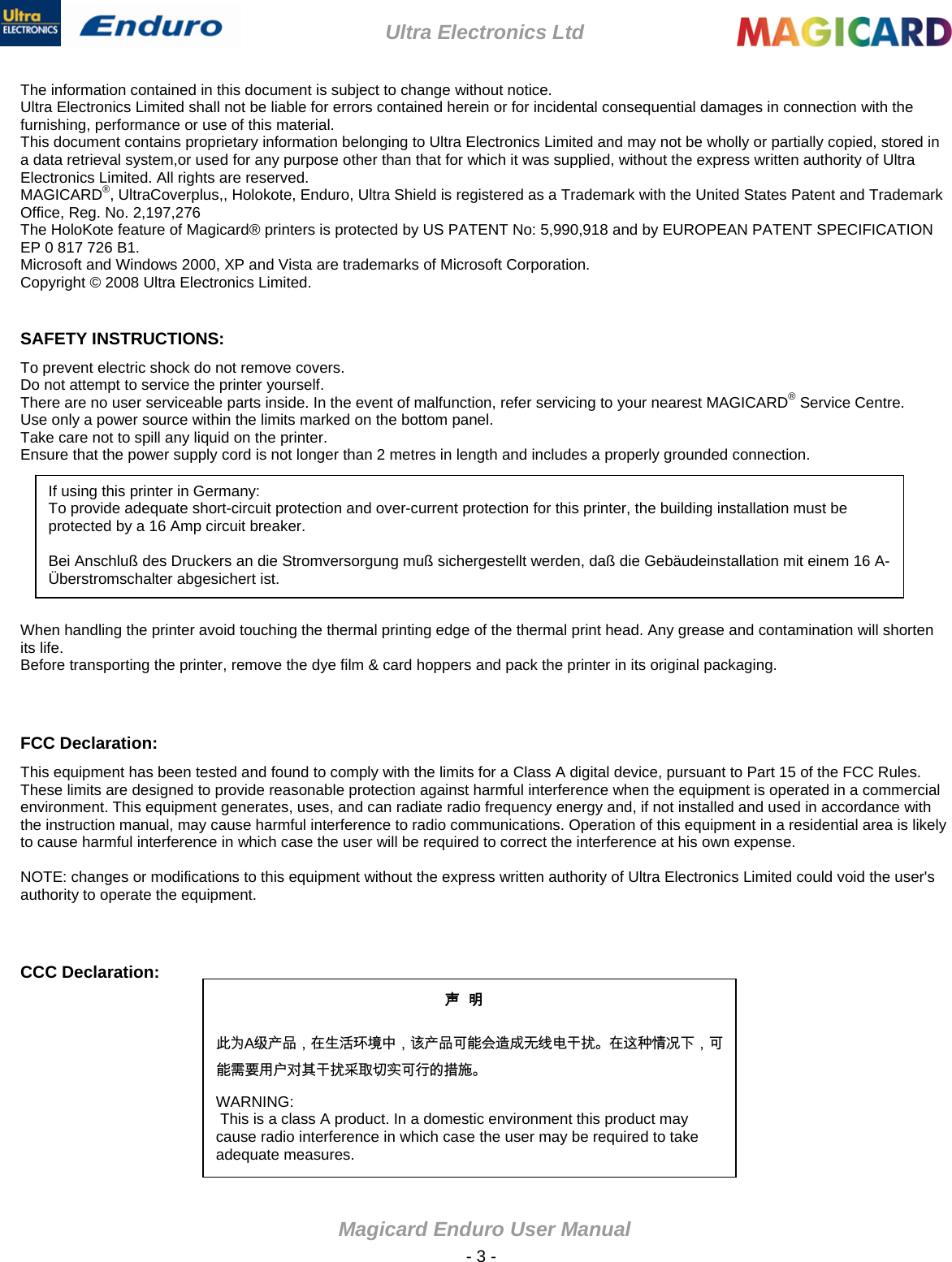

Ultra Electronics Ltd Magicard Enduro User Manual - 3 - The information contained in this document is subject to change without notice. Ultra Electronics Limited shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance or use of this material. This document contains proprietary information belonging to Ultra Electronics Limited and may not be wholly or partially copied, stored in a data retrieval system,or used for any purpose other than that for which it was supplied, without the express written authority of Ultra Electronics Limited. All rights are reserved. MAGICARD®, UltraCoverplus,, Holokote, Enduro, Ultra Shield is registered as a Trademark with the United States Patent and Trademark Office, Reg. No. 2,197,276 The HoloKote feature of Magicard® printers is protected by US PATENT No: 5,990,918 and by EUROPEAN PATENT SPECIFICATION EP 0 817 726 B1. Microsoft and Windows 2000, XP and Vista are trademarks of Microsoft Corporation. Copyright © 2008 Ultra Electronics Limited. SAFETY INSTRUCTIONS: To prevent electric shock do not remove covers. Do not attempt to service the printer yourself. There are no user serviceable parts inside. In the event of malfunction, refer servicing to your nearest MAGICARD® Service Centre. Use only a power source within the limits marked on the bottom panel. Take care not to spill any liquid on the printer. Ensure that the power supply cord is not longer than 2 metres in length and includes a properly grounded connection. If using this printer in Germany: To provide adequate short-circuit protection and over-current protection for this printer, the building installation must be protected by a 16 Amp circuit breaker. Bei Anschluß des Druckers an die Stromversorgung muß sichergestellt werden, daß die Gebäudeinstallation mit einem 16 A-Überstromschalter abgesichert ist. When handling the printer avoid touching the thermal printing edge of the thermal print head. Any grease and contamination will shorten its life. Before transporting the printer, remove the dye film & card hoppers and pack the printer in its original packaging. FCC Declaration: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NOTE: changes or modifications to this equipment without the express written authority of Ultra Electronics Limited could void the user's authority to operate the equipment. CCC Declaration: 声明此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用户对其干扰采取切实可行的措施。 WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

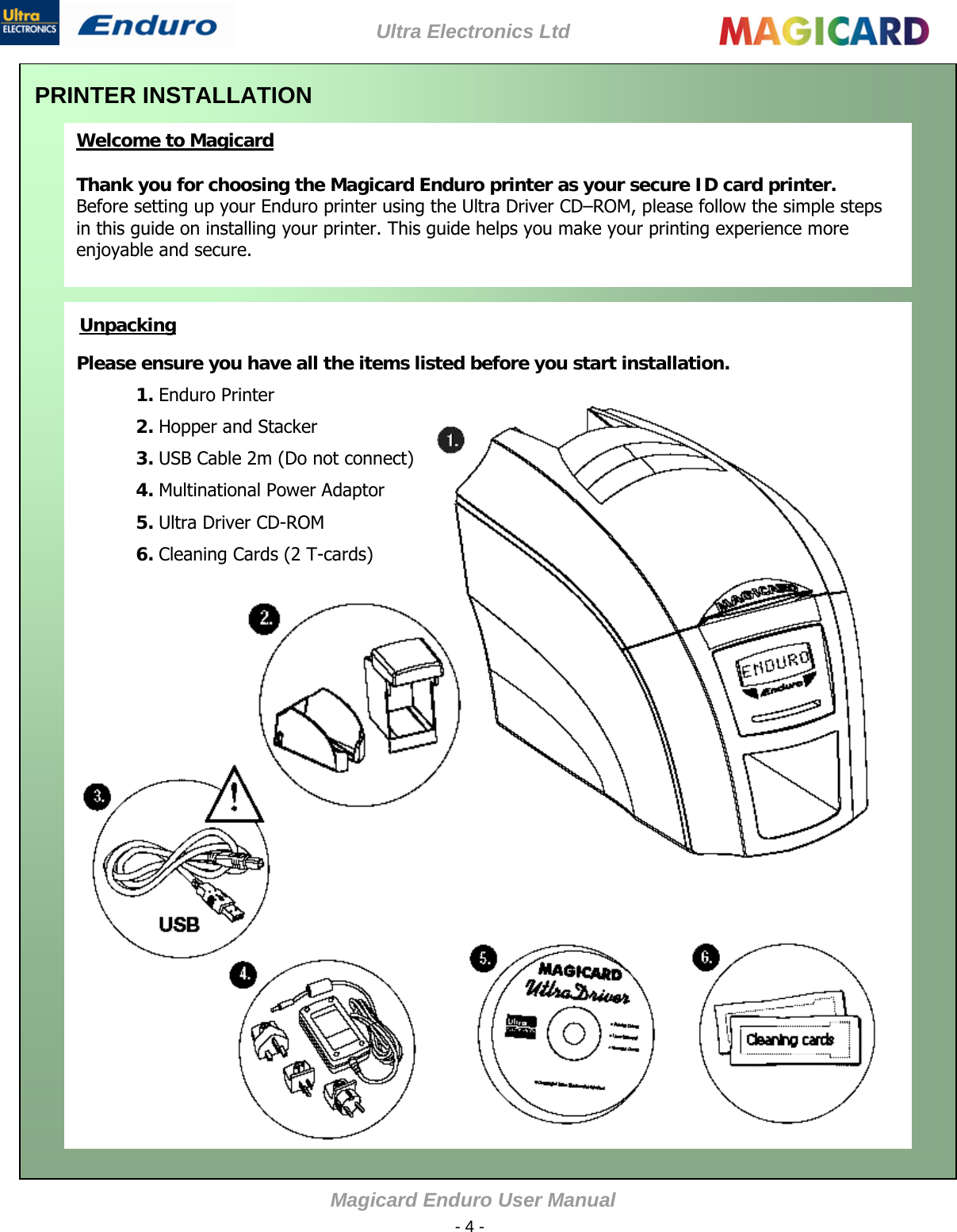

Ultra Electronics Ltd Magicard Enduro User Manual - 4 - PRINTER INSTALLATION Welcome to Magicard Thank you for choosing the Magicard Enduro printer as your secure ID card printer. Before setting up your Enduro printer using the Ultra Driver CD–ROM, please follow the simple steps in this guide on installing your printer. This guide helps you make your printing experience more enjoyable and secure. Unpacking Please ensure you have all the items listed before you start installation. 1. Enduro Printer 2. Hopper and Stacker 3. USB Cable 2m (Do not connect) 4. Multinational Power Adaptor 5. Ultra Driver CD-ROM 6. Cleaning Cards (2 T-cards)

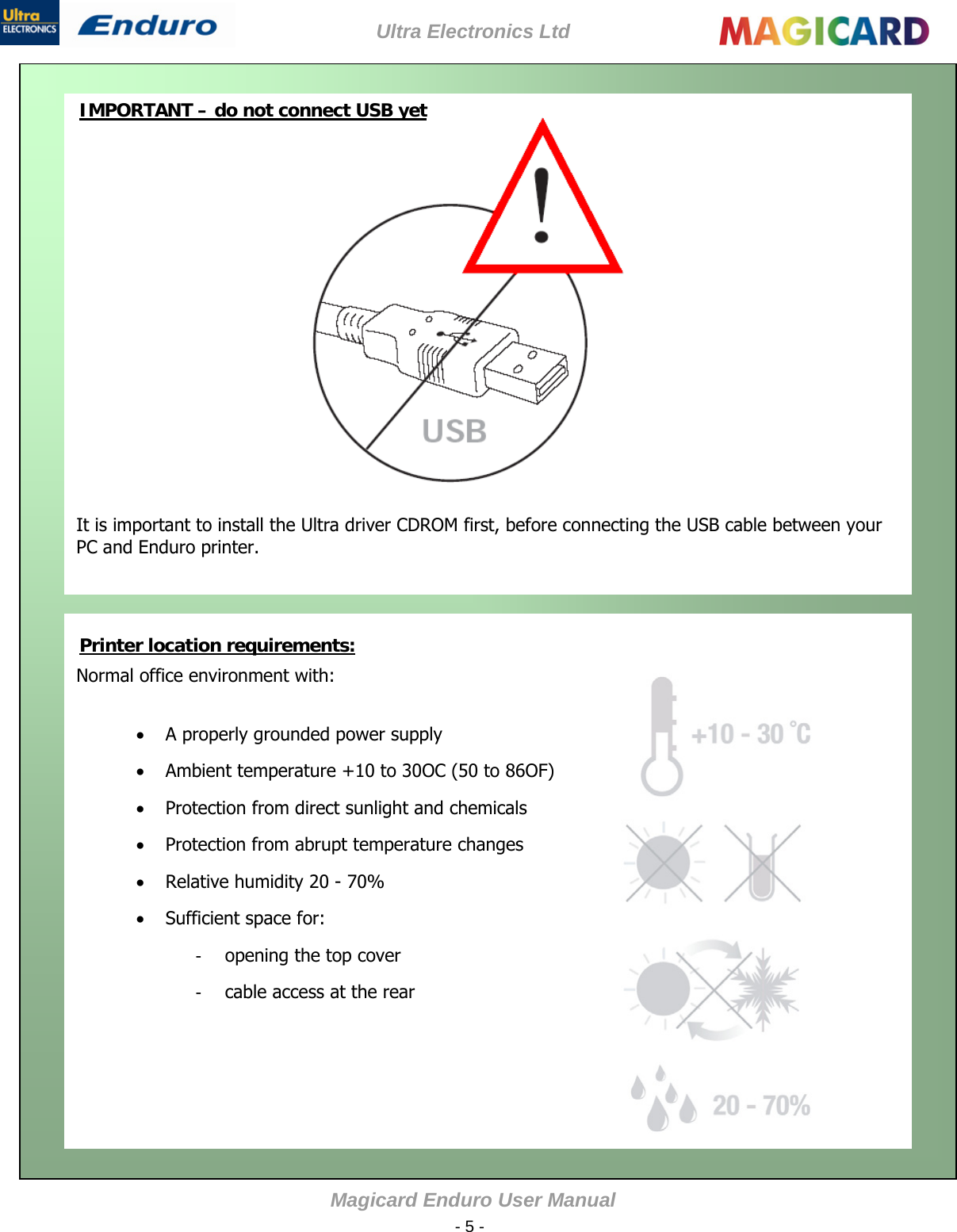

Ultra Electronics Ltd Magicard Enduro User Manual - 5 - It is important to install the Ultra driver CDROM first, before connecting the USB cable between your PC and Enduro printer. IMPORTANT – do not connect USB yet Normal office environment with:  A properly grounded power supply  Ambient temperature +10 to 30OC (50 to 86OF)  Protection from direct sunlight and chemicals  Protection from abrupt temperature changes  Relative humidity 20 - 70%  Sufficient space for: - opening the top cover - cable access at the rear Printer location requirements:

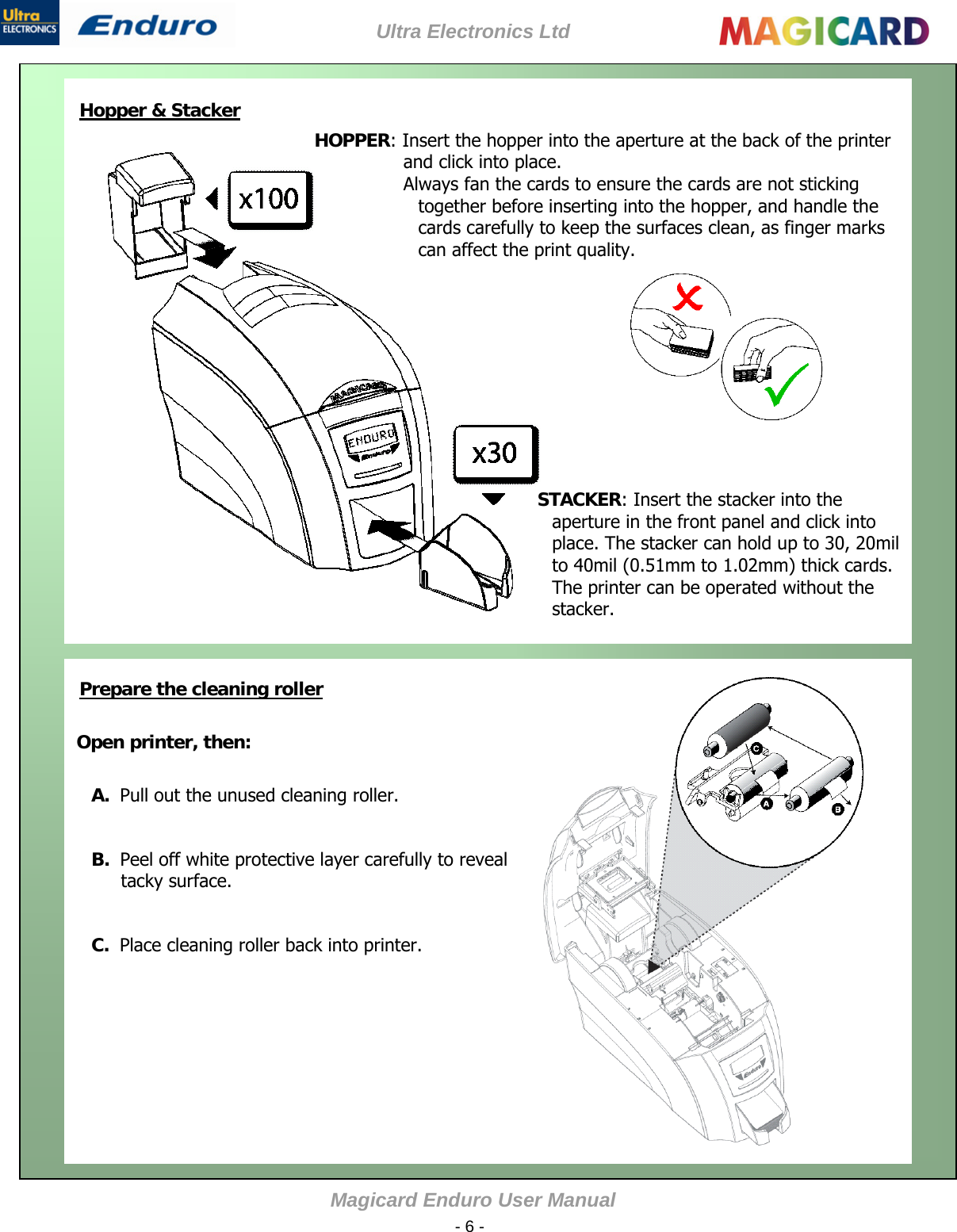

Ultra Electronics Ltd Magicard Enduro User Manual - 6 - Hopper & Stacker Open printer, then: A. Pull out the unused cleaning roller. B. Peel off white protective layer carefully to reveal tacky surface. C. Place cleaning roller back into printer. HOPPER: Insert the hopper into the aperture at the back of the printer and click into place. Always fan the cards to ensure the cards are not sticking together before inserting into the hopper, and handle the cards carefully to keep the surfaces clean, as finger marks can affect the print quality. STACKER: Insert the stacker into the aperture in the front panel and click into place. The stacker can hold up to 30, 20milto 40mil (0.51mm to 1.02mm) thick cards. The printer can be operated without the stacker. Prepare the cleaning roller

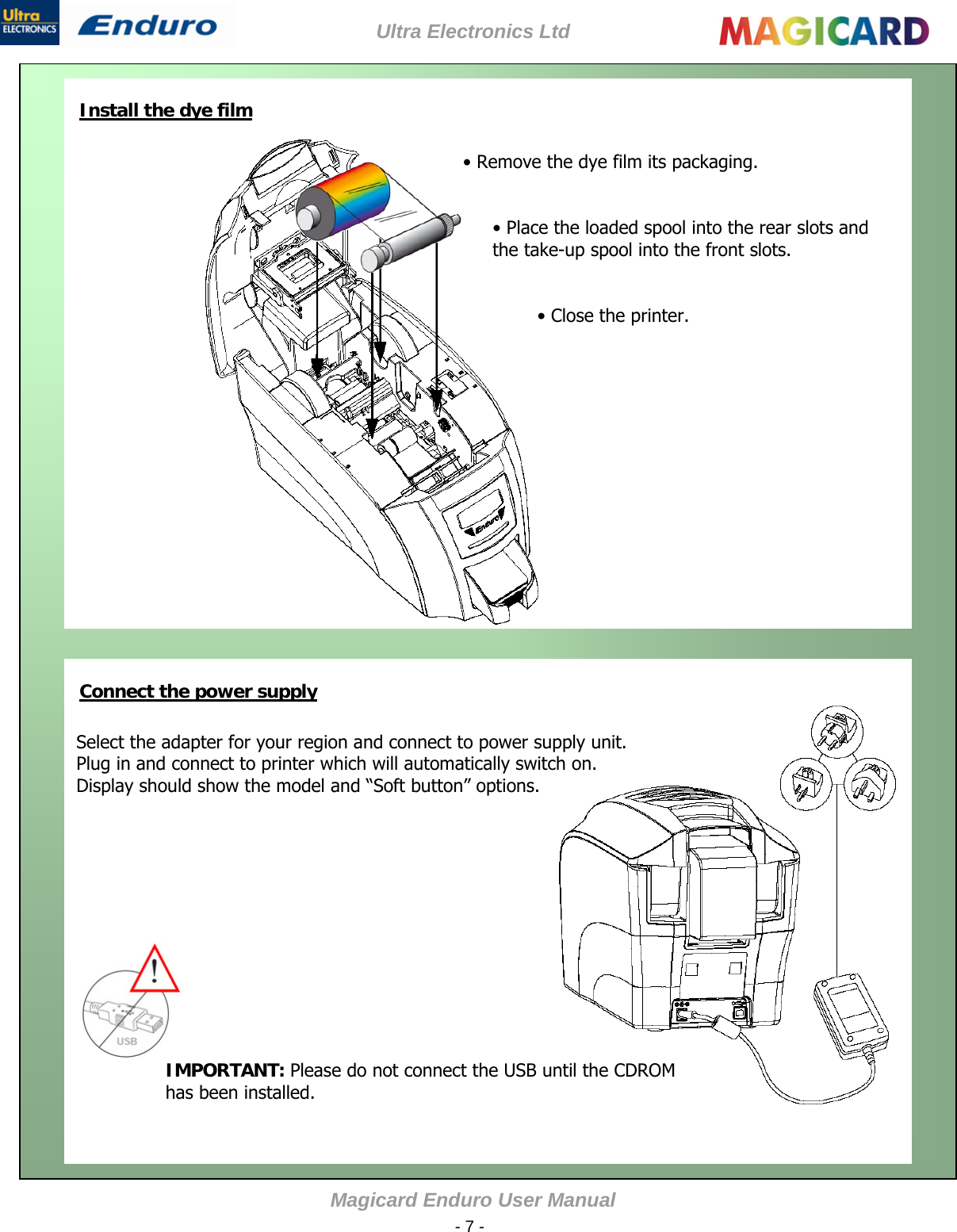

Ultra Electronics Ltd Magicard Enduro User Manual - 7 - Install the dye film • Remove the dye film its packaging. • Place the loaded spool into the rear slots and the take-up spool into the front slots. • Close the printer. Connect the power supply Select the adapter for your region and connect to power supply unit. Plug in and connect to printer which will automatically switch on. Display should show the model and “Soft button” options. IMPORTANT: Please do not connect the USB until the CDROM has been installed.

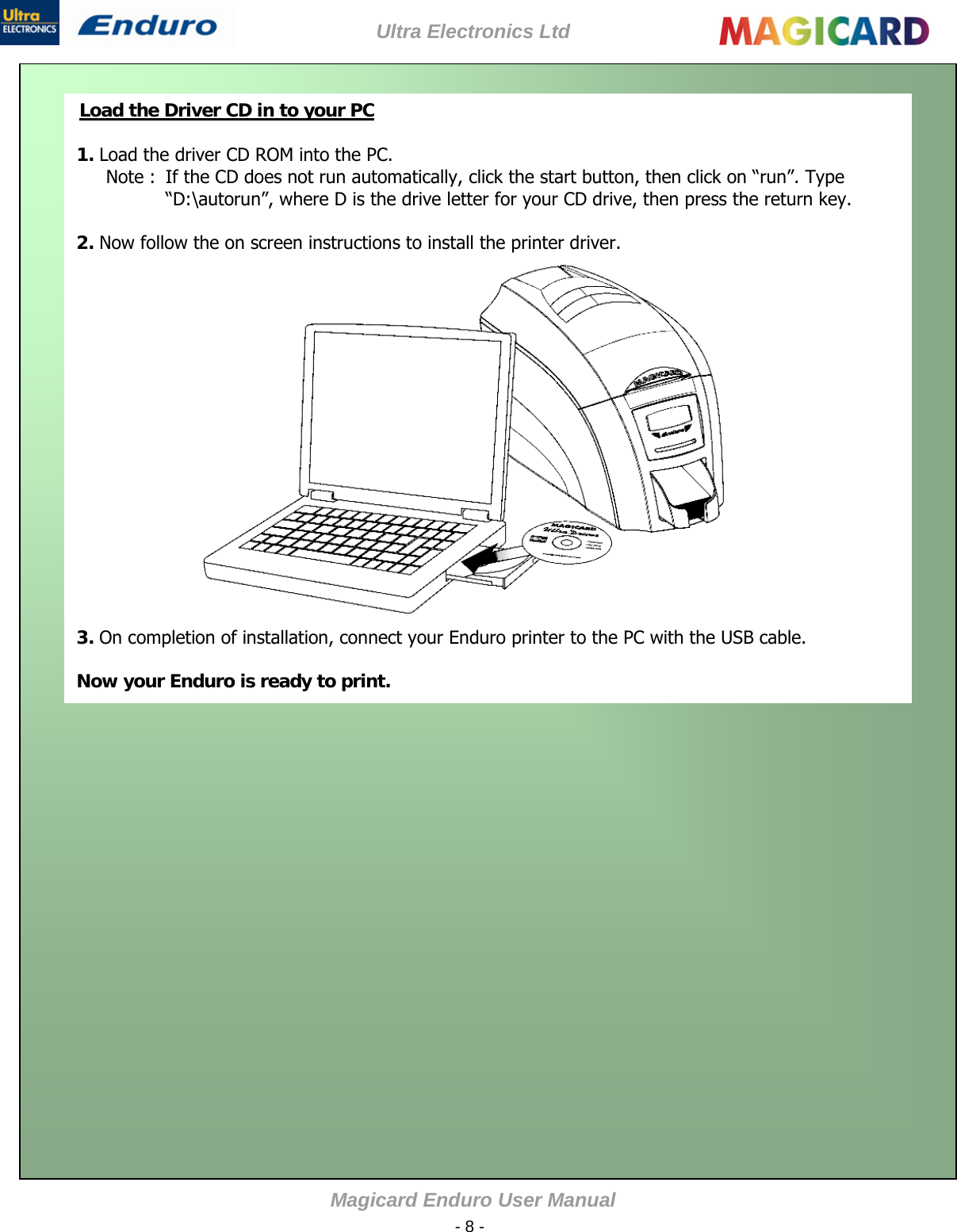

$Ultra Electronics Ltd Magicard Enduro User Manual - 8 - 1. Load the driver CD ROM into the PC. Note : If the CD does not run automatically, click the start button, then click on “run”. Type “D:\autorun”, where D is the drive letter for your CD drive, then press the return key. 2. Now follow the on screen instructions to install the printer driver. 3. On completion of installation, connect your Enduro printer to the PC with the USB cable. Now your Enduro is ready to print. Load the Driver CD in to your PC$

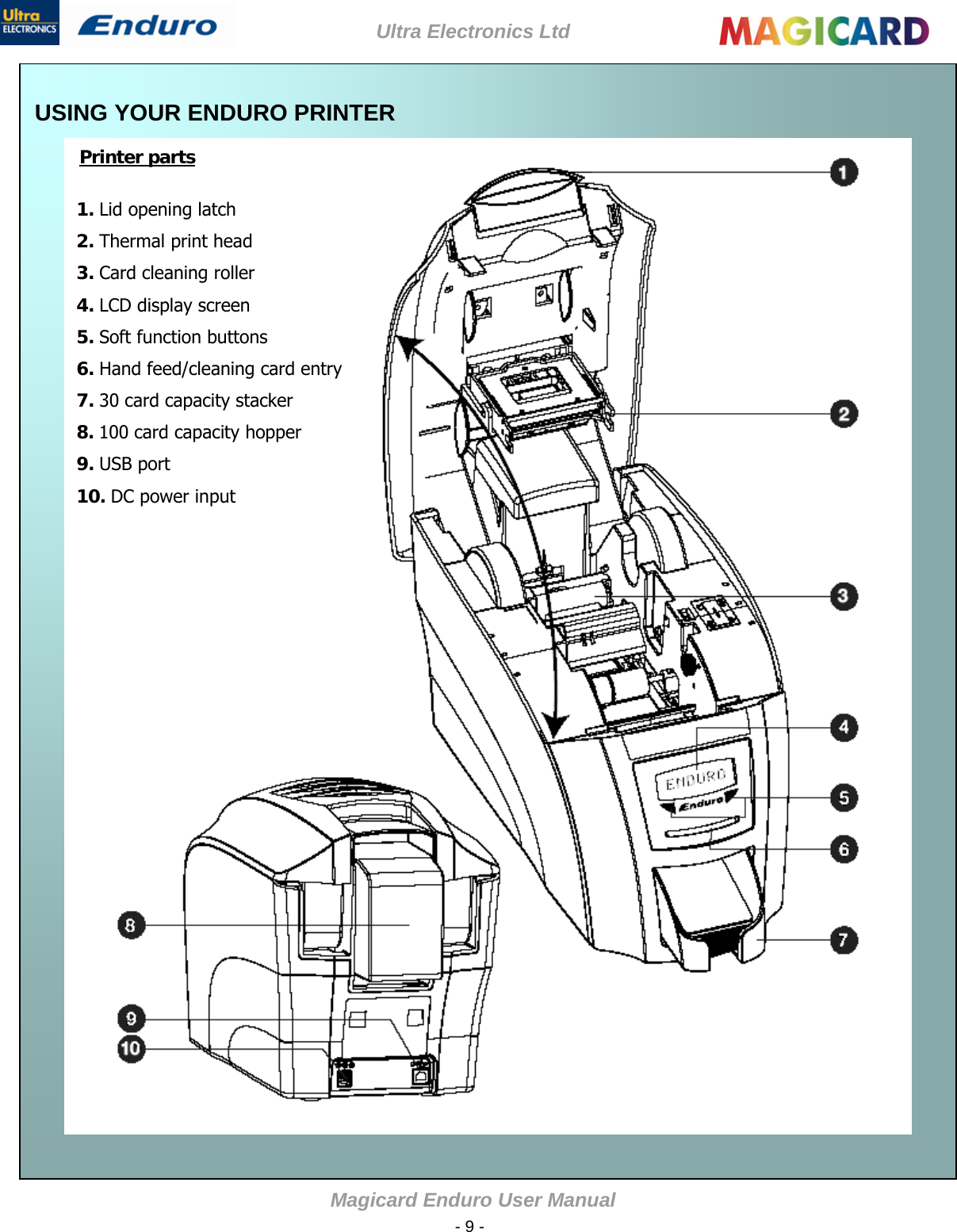

Ultra Electronics Ltd Magicard Enduro User Manual - 9 - USING YOUR ENDURO PRINTER Printer parts 1. Lid opening latch 2. Thermal print head 3. Card cleaning roller 4. LCD display screen 5. Soft function buttons 6. Hand feed/cleaning card entry 7. 30 card capacity stacker 8. 100 card capacity hopper 9. USB port 10. DC power input

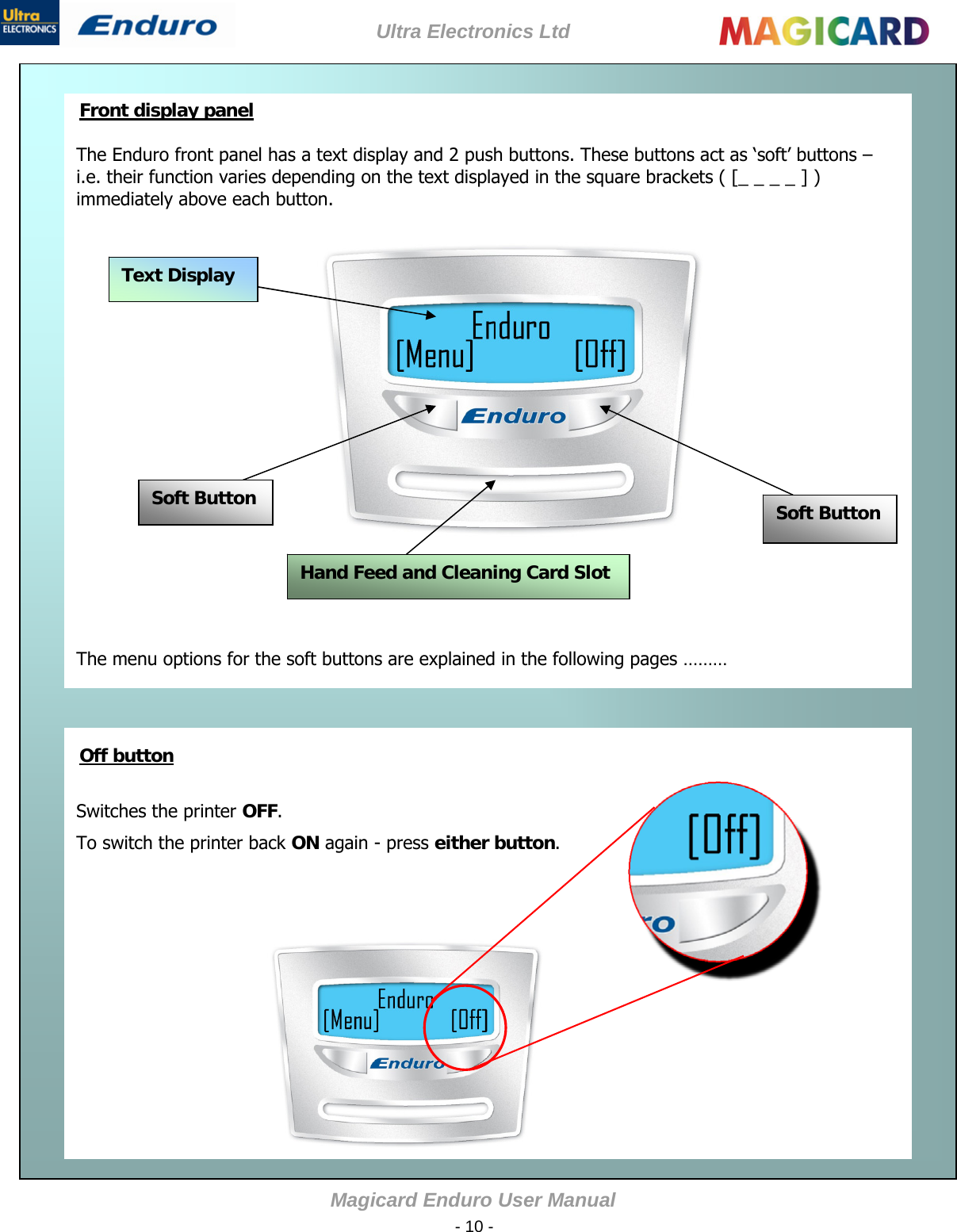

Ultra Electronics Ltd Magicard Enduro User Manual - 10 - The Enduro front panel has a text display and 2 push buttons. These buttons act as ‘soft’ buttons – i.e. their function varies depending on the text displayed in the square brackets ( [_ _ _ _ ] ) immediately above each button. The menu options for the soft buttons are explained in the following pages ……… Front display panel Text Display Switches the printer OFF. To switch the printer back ON again - press either button. Soft Button Soft Button Hand Feed and Cleaning Card Slot Off button

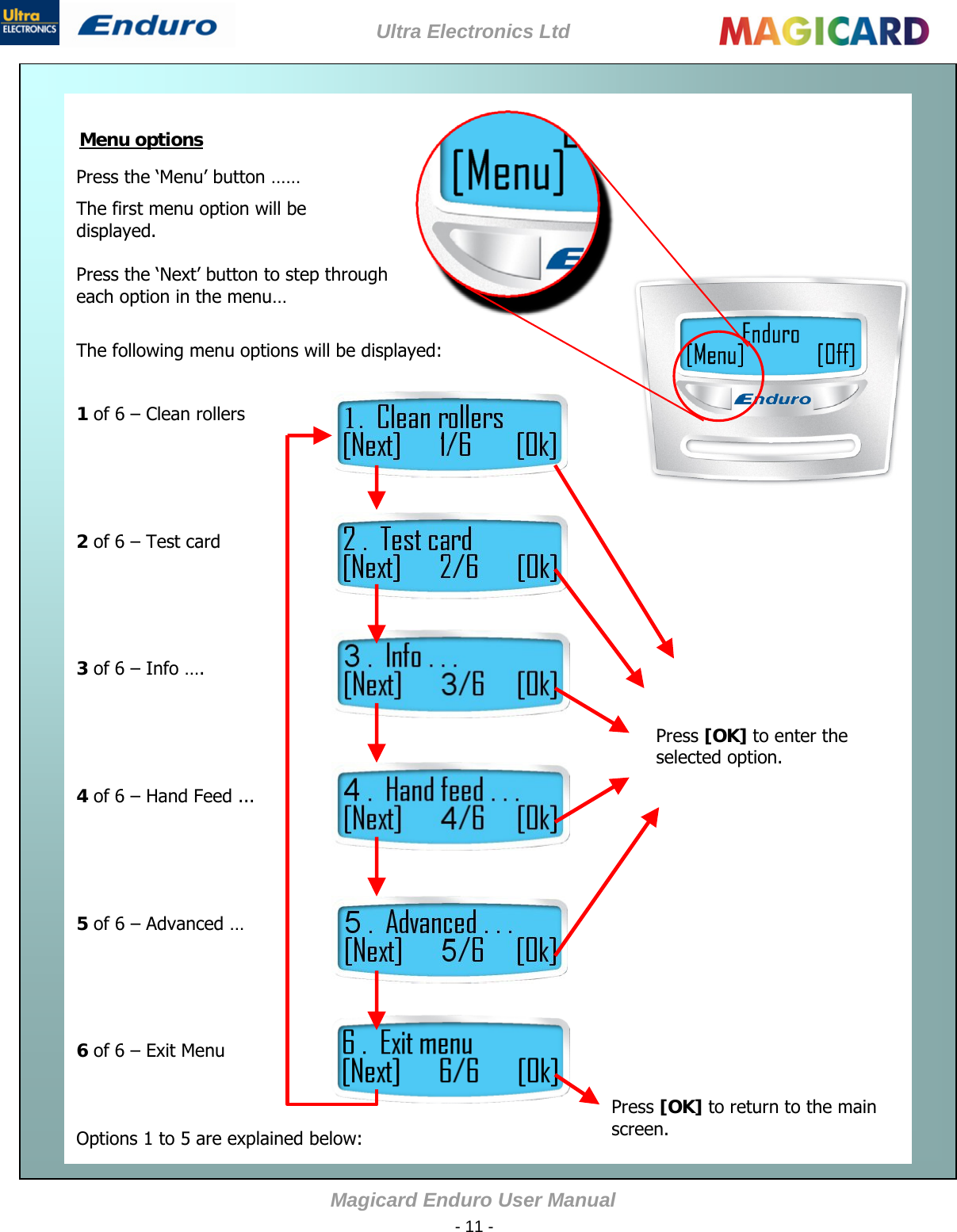

Ultra Electronics Ltd Magicard Enduro User Manual - 11 - Press the ‘Menu’ button …… The first menu option will be displayed. Press the ‘Next’ button to step through each option in the menu… The following menu options will be displayed: 1 of 6 – Clean rollers 2 of 6 – Test card 3 of 6 – Info …. 4 of 6 – Hand Feed ... 5 of 6 – Advanced … 6 of 6 – Exit Menu Options 1 to 5 are explained below: Press [OK] to return to the main screen. Press [OK] to enter the selected option. Menu options

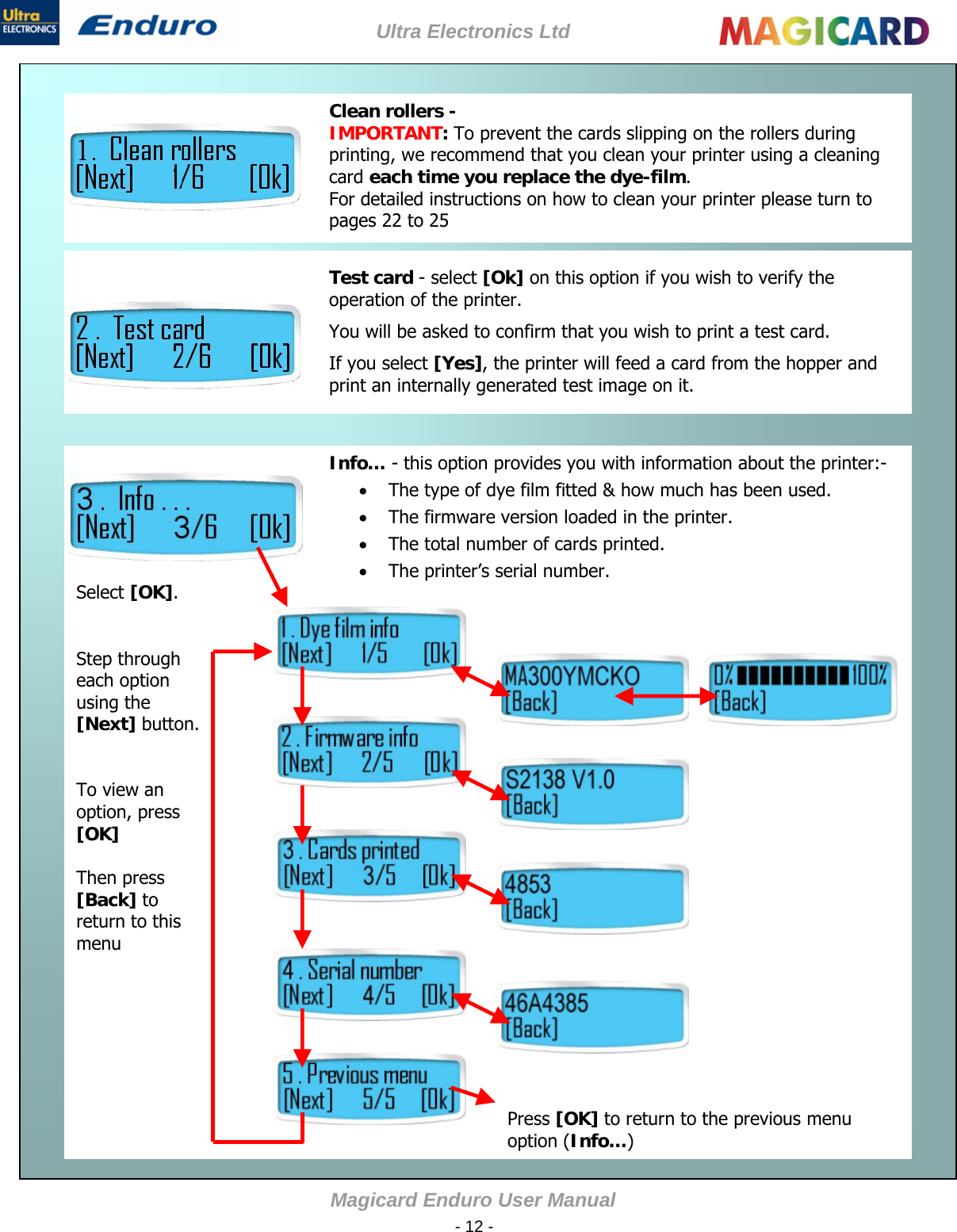

Ultra Electronics Ltd Magicard Enduro User Manual - 12 - Clean rollers - IMPORTANT: To prevent the cards slipping on the rollers during printing, we recommend that you clean your printer using a cleaning card each time you replace the dye-film. For detailed instructions on how to clean your printer please turn to pages 22 to 25 Cleaning the rollers Test card - select [Ok] on this option if you wish to verify the operation of the printer. You will be asked to confirm that you wish to print a test card. If you select [Yes], the printer will feed a card from the hopper and print an internally generated test image on it. Info… - this option provides you with information about the printer:-  The type of dye film fitted & how much has been used.  The firmware version loaded in the printer.  The total number of cards printed.  The printer’s serial number. Select [OK]. Step through each option using the [Next] button. To view an option, press [OK] Then press [Back] to return to this menu Press [OK] to return to the previous menu option (Info…) Test card Info

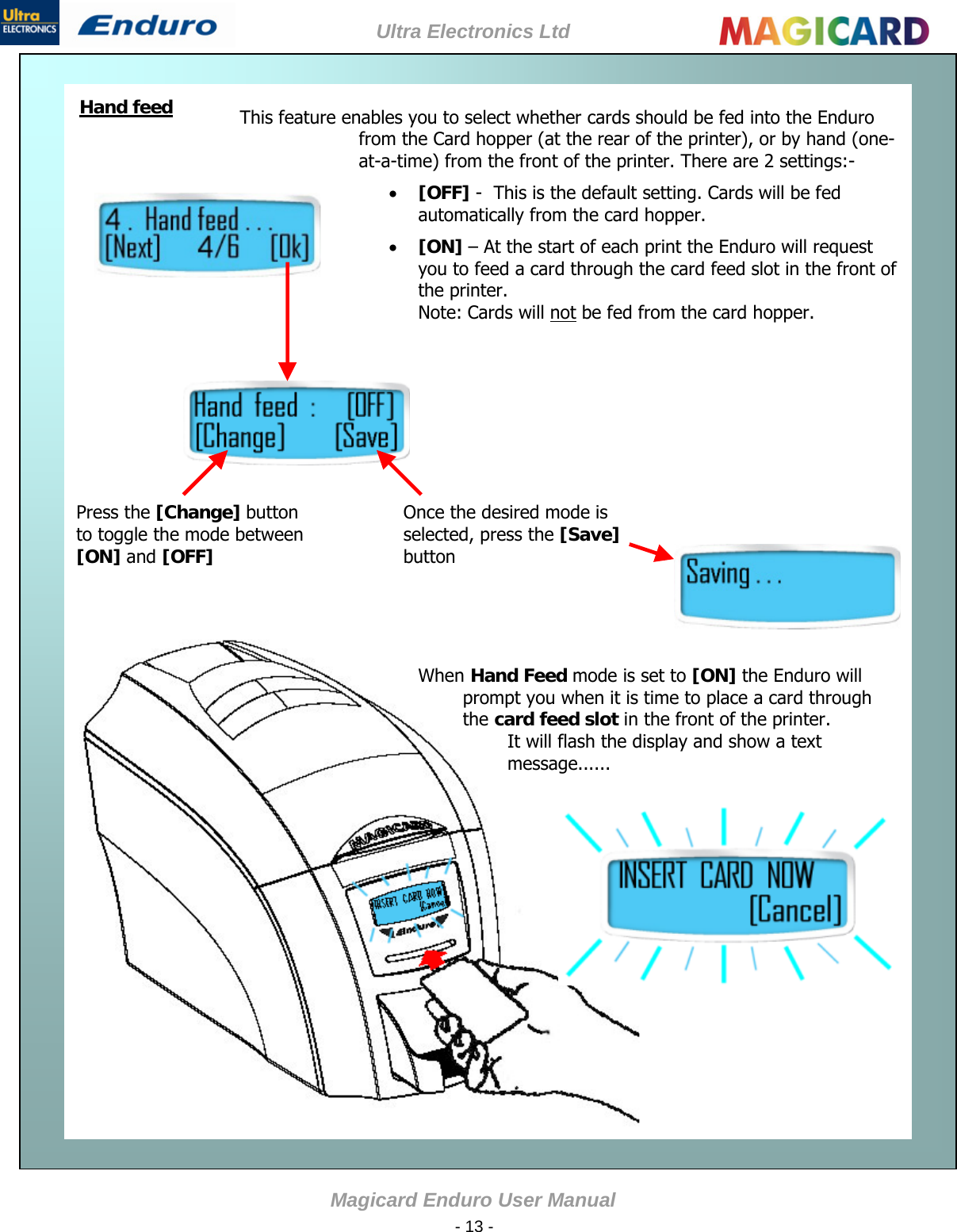

Ultra Electronics Ltd Magicard Enduro User Manual - 13 - Hand feed This feature enables you to select whether cards should be fed into the Enduro from the Card hopper (at the rear of the printer), or by hand (one-at-a-time) from the front of the printer. There are 2 settings:-  [OFF] - This is the default setting. Cards will be fed automatically from the card hopper.  [ON] – At the start of each print the Enduro will request you to feed a card through the card feed slot in the front of the printer. Note: Cards will not be fed from the card hopper. Once the desired mode is selected, press the [Save] button Press the [Change] button to toggle the mode between [ON] and [OFF] When Hand Feed mode is set to [ON] the Enduro will prompt you when it is time to place a card through the card feed slot in the front of the printer. It will flash the display and show a text message......

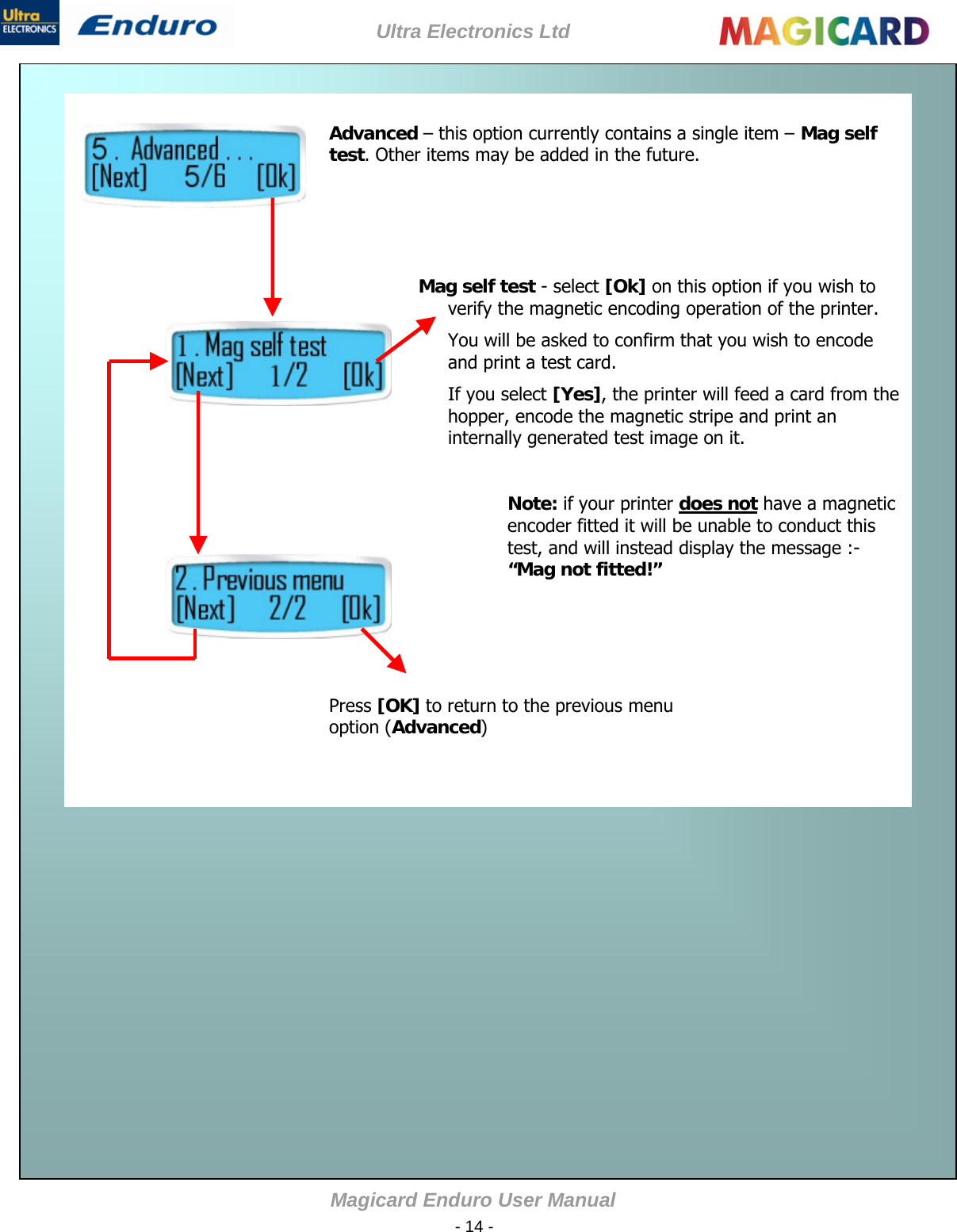

Ultra Electronics Ltd Magicard Enduro User Manual - 14 - Advanced – this option currently contains a single item – Mag self test. Other items may be added in the future. Mag self test - select [Ok] on this option if you wish to verify the magnetic encoding operation of the printer. You will be asked to confirm that you wish to encode and print a test card. If you select [Yes], the printer will feed a card from the hopper, encode the magnetic stripe and print an internally generated test image on it. Note: if your printer does not have a magnetic encoder fitted it will be unable to conduct this test, and will instead display the message :- “Mag not fitted!” Advanced Press [OK] to return to the previous menu option (Advanced)

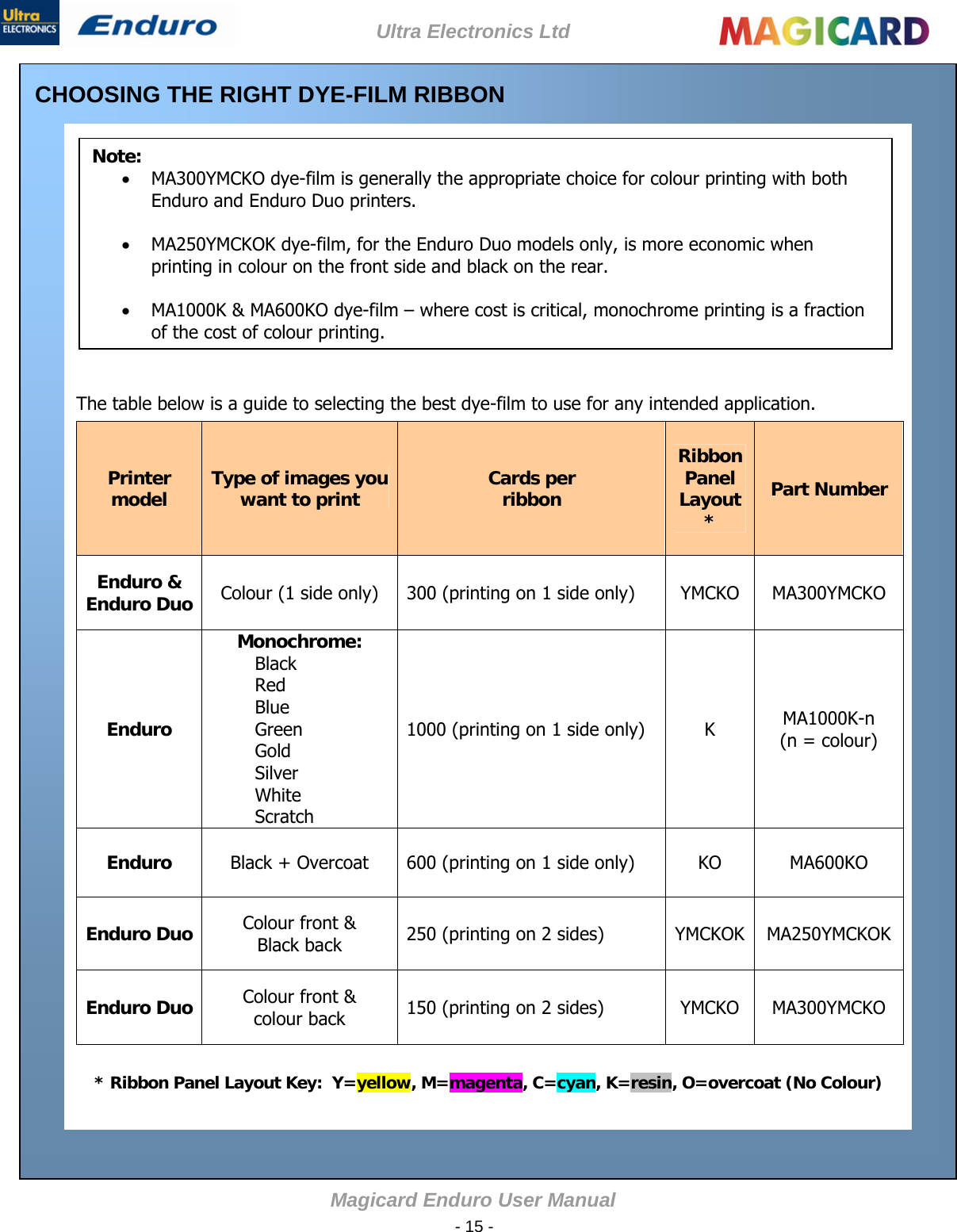

$Ultra Electronics Ltd Magicard Enduro User Manual - 15 - CHOOSING THE RIGHT DYE-FILM RIBBON The table below is a guide to selecting the best dye-film to use for any intended application. Note:  MA300YMCKO dye-film is generally the appropriate choice for colour printing with both Enduro and Enduro Duo printers.  MA250YMCKOK dye-film, for the Enduro Duo models only, is more economic when printing in colour on the front side and black on the rear.  MA1000K & MA600KO dye-film – where cost is critical, monochrome printing is a fraction of the cost of colour printing. Printer model Type of images you want to print Cards per ribbon Ribbon Panel Layout * Part Number Enduro & Enduro Duo Colour (1 side only) 300 (printing on 1 side only) YMCKO MA300YMCKO Enduro Monochrome: Black Red Blue Green Gold Silver White Scratch 1000 (printing on 1 side only) K MA1000K-n (n = colour) Enduro Black + Overcoat 600 (printing on 1 side only) KO MA600KO Enduro Duo Colour front & Black back 250 (printing on 2 sides) YMCKOK MA250YMCKOK Enduro Duo Colour front & colour back 150 (printing on 2 sides) YMCKO MA300YMCKO * Ribbon Panel Layout Key: Y=yellow, M=magenta, C=cyan, K=resin, O=overcoat (No Colour)$

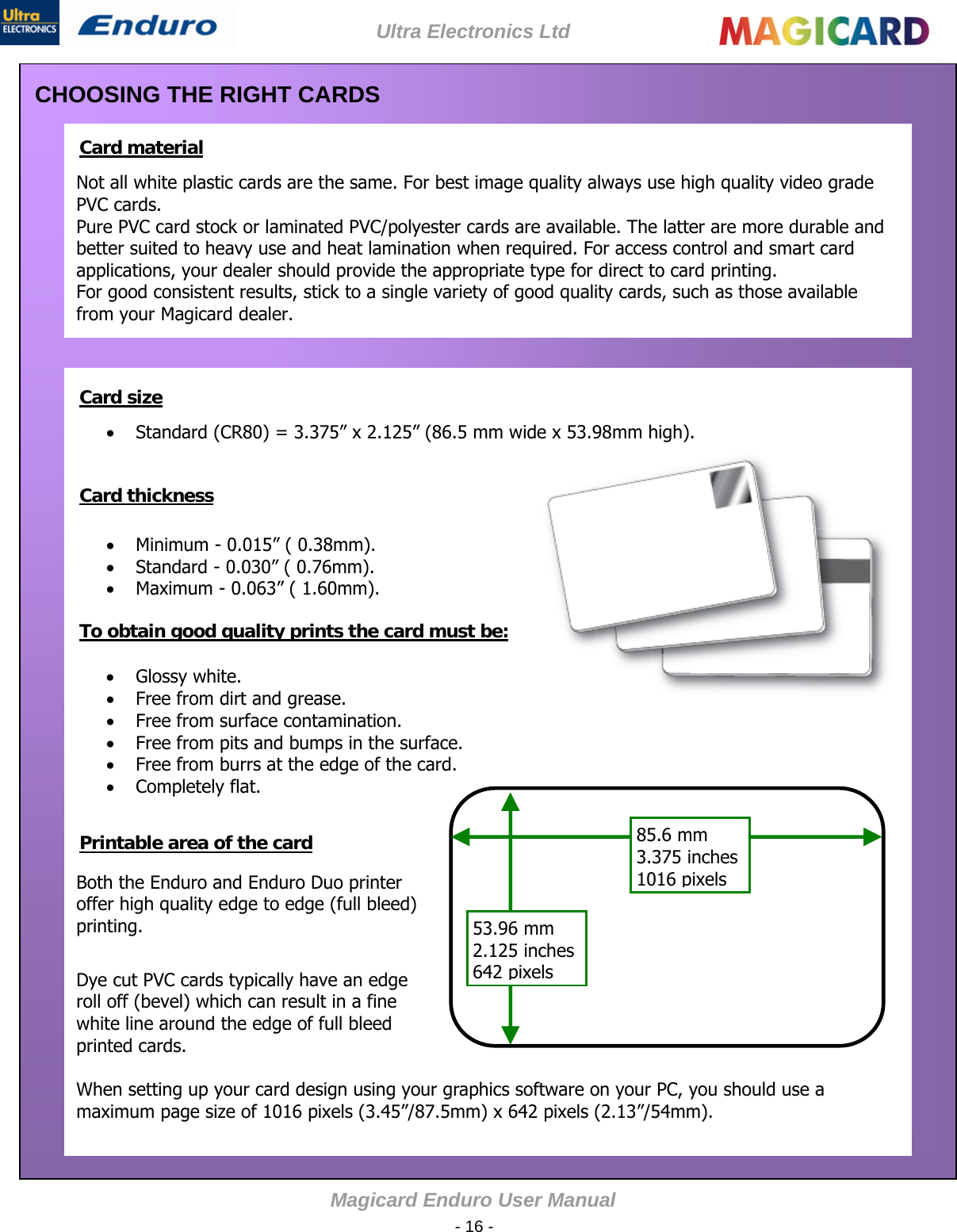

Ultra Electronics Ltd Magicard Enduro User M - 16 - CHOOSING THE RIGHT CARDS Card material Not all white plastic cards are the same. For best image quality always use high quality video grade PVC cards. Pure PVC card stock or laminated PVC/polyester cards are available. The latter are more durable and better suited to heavy use and heat lamination when required. For access control and smart card applications, your dealer should provide the appropriate type for direct to card printing. For good consistent results, stick to a single variety of good quality cards, such as those available from your Magicard dealer. Card size  Standard (CR80) = 3.375” x 2.125” (86.5 mm wide x 53.98mm high). Card thickness  Minimum - 0.015” ( 0.38mm).  Standard - 0.030” ( 0.76mm).  Maximum - 0.063” ( 1.60mm). To obtain good quality prints the card must be:  Glossy white.  Free from dirt and grease.  Free from surface contamination.  Free from pits and bumps in the surface.  Free from burrs at the edge of the card.  Completely flat. Both the Enduro and Enduro Duo printer offer high quality edge to edge (full bleed) printing. 85.6 mm 3.375 inches 1016pixels 53.96 mm 2.125 inches 642pixels Printable area of the card Dye cut PVC cards typically have an edge roll off (bevel) which can result in a fine white line around the edge of full bleed printed cards. When setting up your card design using your graphics software on your PC, you should use a maximum page size of 1016 pixels (3.45”/87.5mm) x 642 pixels (2.13”/54mm). anual

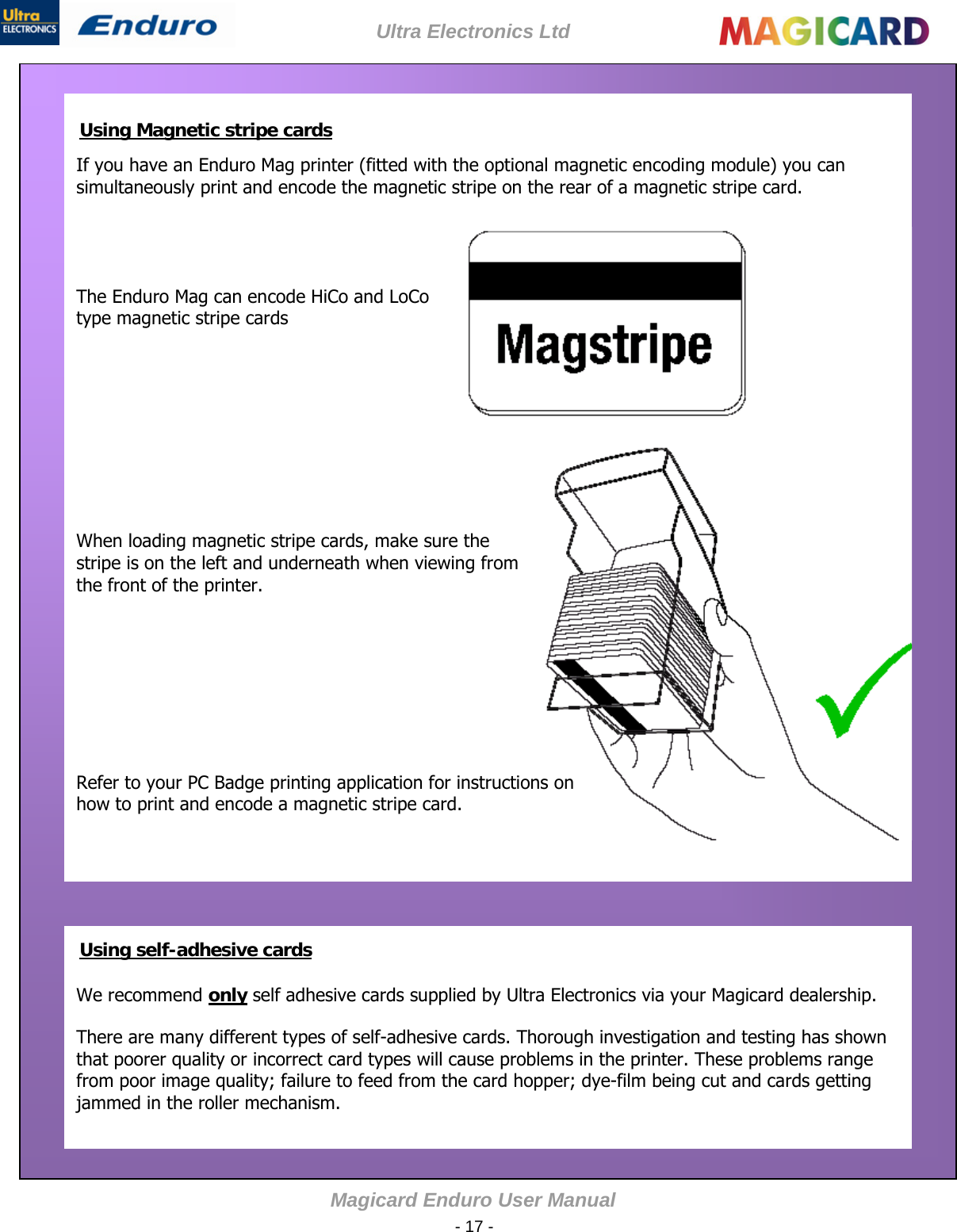

Ultra Electronics Ltd Magicard Enduro User Manual - 17 - If you have an Enduro Mag printer (fitted with the optional magnetic encoding module) you can simultaneously print and encode the magnetic stripe on the rear of a magnetic stripe card. Using Magnetic stripe cards The Enduro Mag can encode HiCo and LoCo type magnetic stripe cards When loading magnetic stripe cards, make sure the stripe is on the left and underneath when viewing from the front of the printer. Refer to your PC Badge printing application for instructions on how to print and encode a magnetic stripe card. Using self-adhesive cards We recommend only self adhesive cards supplied by Ultra Electronics via your Magicard dealership. There are many different types of self-adhesive cards. Thorough investigation and testing has shown that poorer quality or incorrect card types will cause problems in the printer. These problems range from poor image quality; failure to feed from the card hopper; dye-film being cut and cards getting jammed in the roller mechanism.

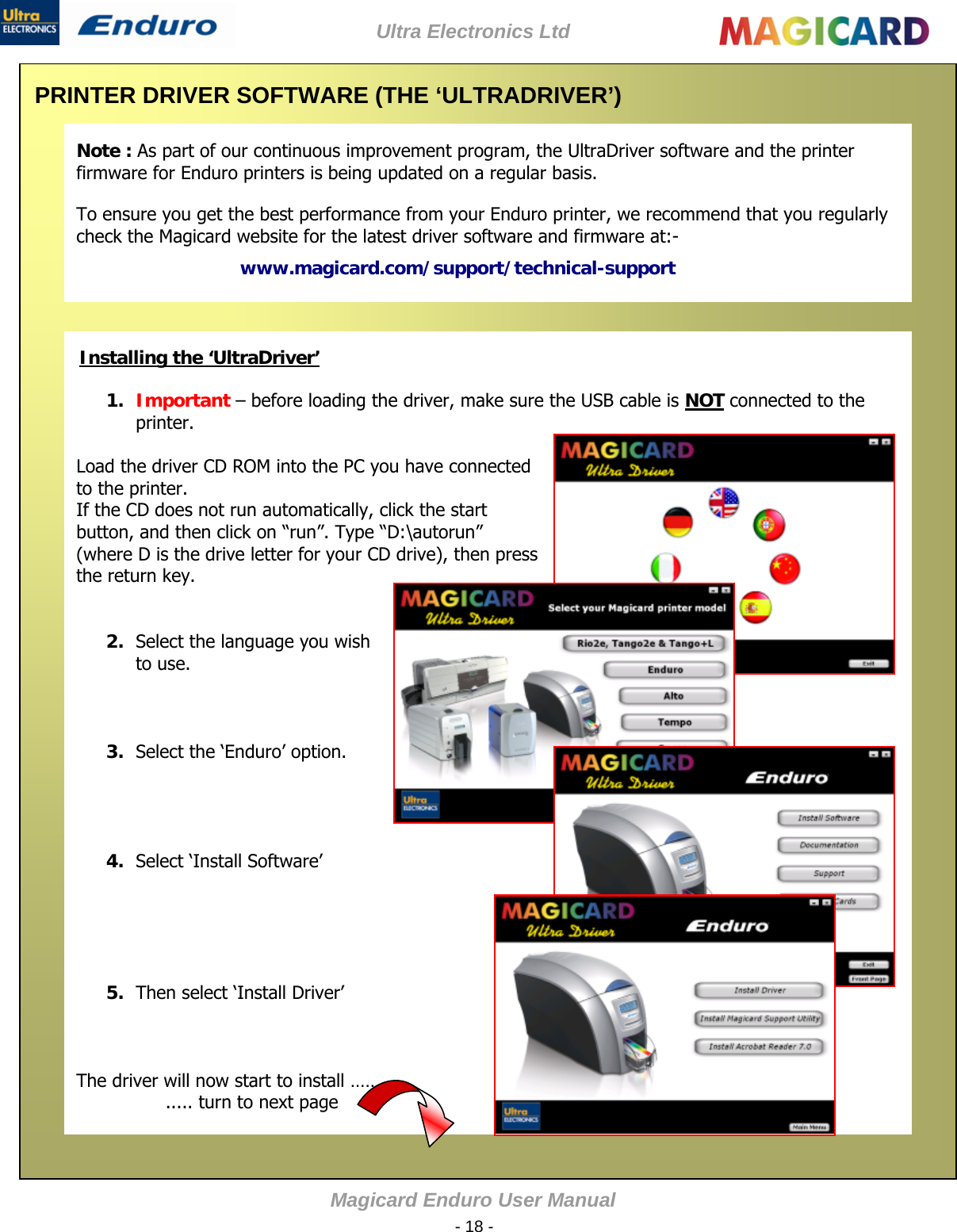

$Ultra Electronics Ltd Magicard Enduro User Manual - 18 - PRINTER DRIVER SOFTWARE (THE ‘ULTRADRIVER’) 1. Important – before loading the driver, make sure the USB cable is NOT connected to the printer. Load the driver CD ROM into the PC you have connected to the printer. If the CD does not run automatically, click the start button, and then click on “run”. Type “D:\autorun” (where D is the drive letter for your CD drive), then press the return key. 2. Select the language you wish to use. 3. Select the ‘Enduro’ option. 4. Select ‘Install Software’ 5. Then select ‘Install Driver’ The driver will now start to install …… ..... turn to next page Note : As part of our continuous improvement program, the UltraDriver software and the printer firmware for Enduro printers is being updated on a regular basis. To ensure you get the best performance from your Enduro printer, we recommend that you regularly check the Magicard website for the latest driver software and firmware at:- www.magicard.com/support/technical-support Installing the ‘UltraDriver’$

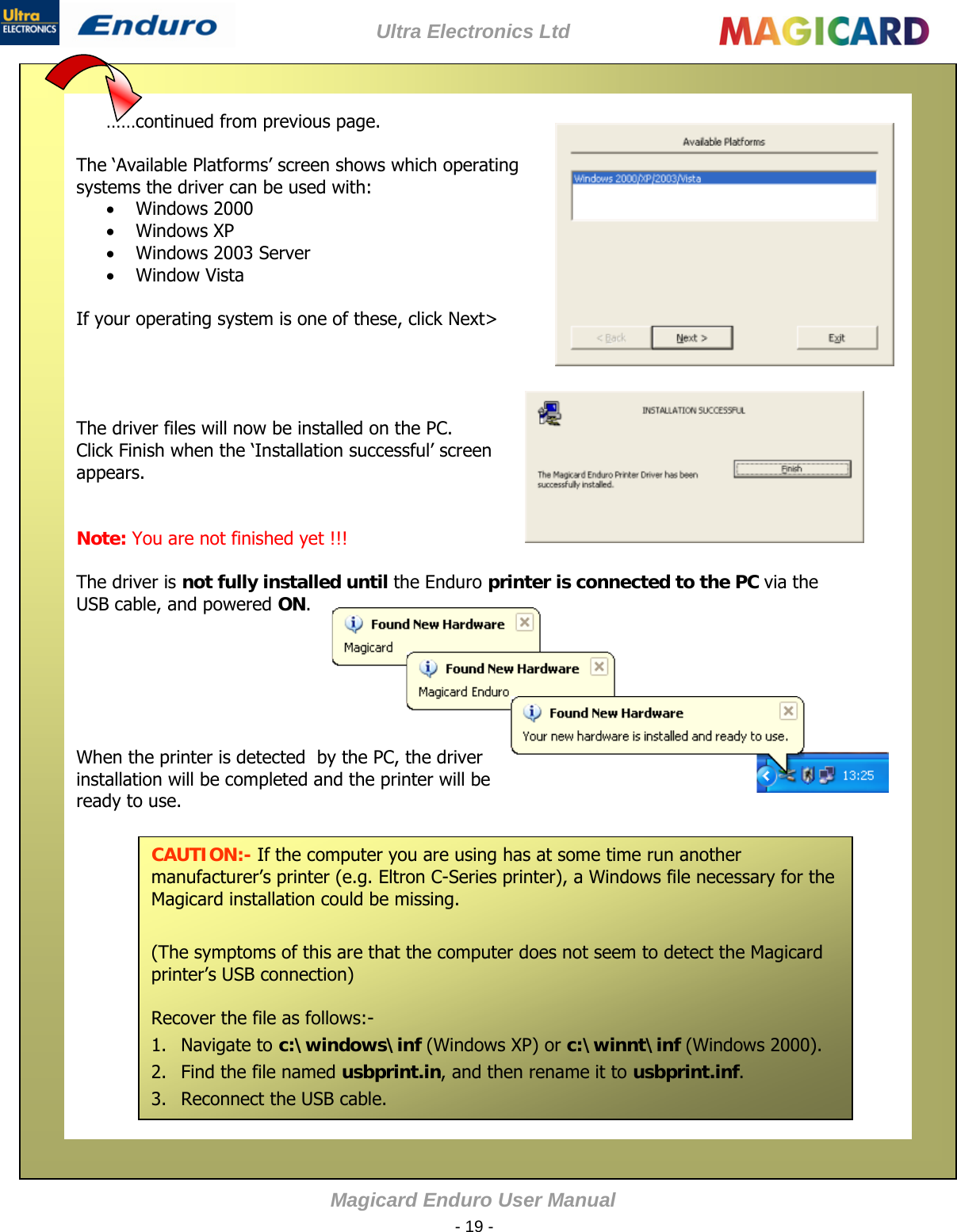

$Ultra Electronics Ltd Magicard Enduro User Manual - 19 - ……continued from previous page. The ‘Available Platforms’ screen shows which operating systems the driver can be used with:  Windows 2000  Windows XP  Windows 2003 Server  Window Vista If your operating system is one of these, click Next> The driver files will now be installed on the PC. Click Finish when the ‘Installation successful’ screen appears. Note: You are not finished yet !!! The driver is not fully installed until the Enduro printer is connected to the PC via the USB cable, and powered ON. When the printer is detected by the PC, the driver installation will be completed and the printer will be ready to use. CAUTION:- If the computer you are using has at some time run another manufacturer’s printer (e.g. Eltron C-Series printer), a Windows file necessary for the Magicard installation could be missing. (The symptoms of this are that the computer does not seem to detect the Magicard printer’s USB connection) Recover the file as follows:- 1. Navigate to c:\windows\inf (Windows XP) or c:\winnt\inf (Windows 2000). 2. Find the file named usbprint.in, and then rename it to usbprint.inf. 3. Reconnect the USB cable.$
