Mandolyn Electronic Technology TR430 Remote Control Transmitter User Manual TR430
Mandolyn Electronic Technology Inc. Remote Control Transmitter TR430
Users Manual
ON/OFF LEARN
UPM REMOTE CONTROL RECEIVER
TR430 remote control transmitter
OWNERS
MANUAL
Congratulations on your
purchase of a UPM slim
remote control transmitter.
This unit is specifically
designed to work with
UPM brand receivers.
Please take the time to
read and understand this
manual so you can begin
to enjoy the convenience
this product can offer.
FEATURES
!433 MHz RF technology
!Intelligent code learning
!Control up to 4 remote
receivers
!Ultra-slim design with
flush wall-mount
bracket
!Master On/Off
!Transmission range of
up to 40 meters in open
area

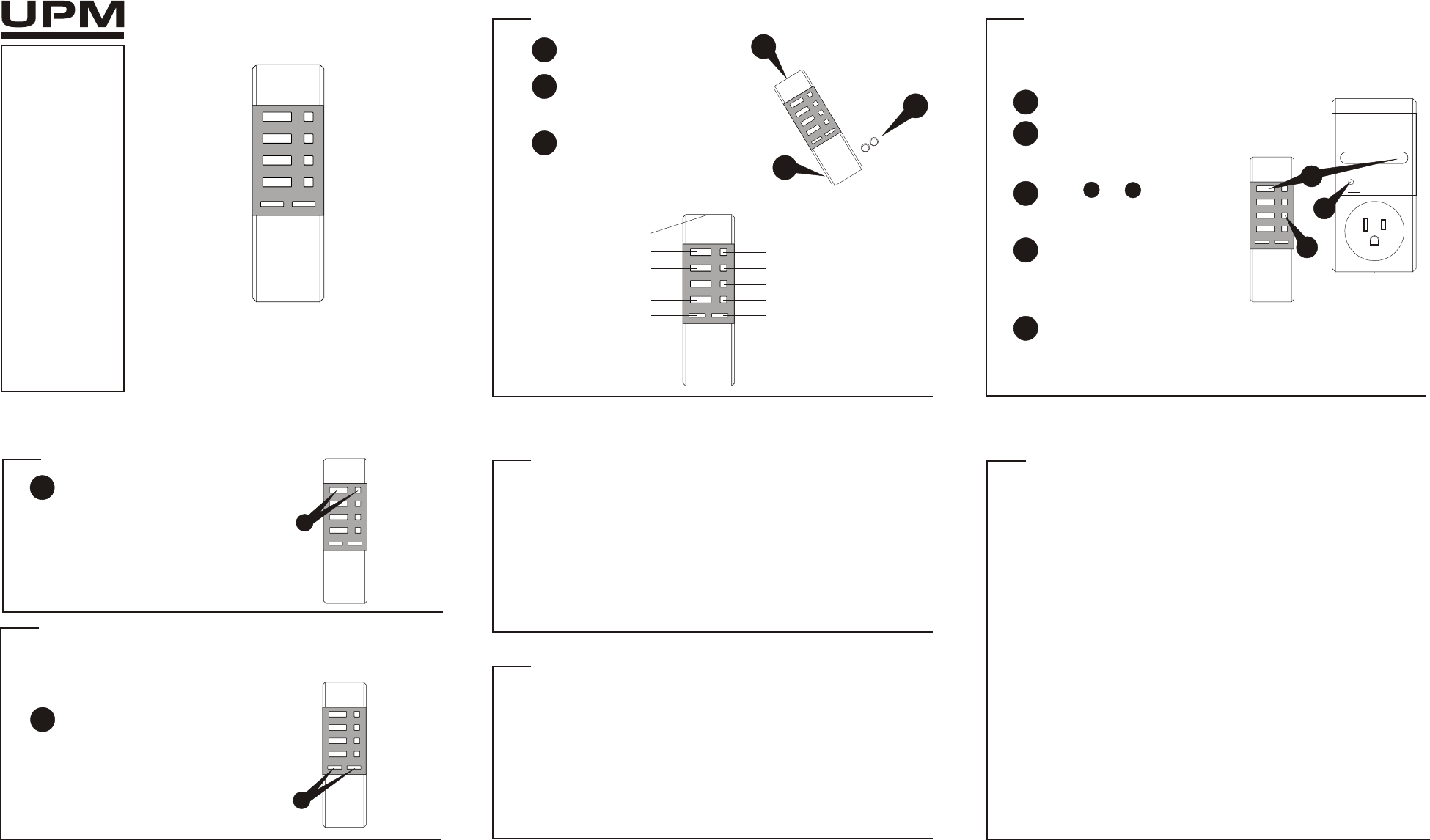

GETTING STARTED battery installation LEARN FUNCTION
TROUBLESHOOTING
1
2
1
2
remove the battery cover from
the back of the transmitter
place two button cell batteries
between terminals observing
proper polarity then replace
cover
Transmitter stops turning
receiver on and off.
Use the LEARN function to
reprogram the receiver
or
Check the battery
problem solution
TECHNICAL SPECIFICATIONS
Battery Type: 2 x 1.5V button cell
System Source: 4,096 code combinations
Transmission Frequency: 433 MHz
Transmission Range: up to 40 meters in open area
2
3Repeat and for any additional
receivers (available at your local
retailer) using available channels
Press LEARN on receiver while
simultaneously pressing the desired
channel button on the transmitter
TR430 Transmitter
3the green LED will light up
with any key press once the
battery is installed correctly
1
3
1Plug receiver into wall socket
4If LEARN completed successfully,
the LED on the receiver should
light up when ON is pressed
button descriptions
1Turn each receiver On/Off
individually by using the channel
On/Off keys on the transmitter
ON/OFF FUNCTION
3
4
1
2
2
MASTER ON/OFF
1Turn all receivers On or Off at
the same time by using the
ALL ON / ALL OFF button
If you have more than one receiver set up, you can use the Master On/Off
function to simultaneously turn ALL the receivers (of the same house code) On
and Off at the same time.
Channel 1 ON
ALL ON
Channel 4 ON
Channel 3 ON
Channel 2 ON
Channel 1 OFF
ALL OFF
Channel 4 OFF
Channel 3 OFF
Channel 2 OFF
LED Indicator
The learn function must be performed to allow the receivers in your system to
recognize the transmitter. More than 4,000 code combinations eliminate the
possibility of interference by other transmitters.
Note that a generic model of receiver is used for illustration here. Please
refer to the accompanying owners manual for the operations of your
specific receiver.
*
1
NOTICE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning:
Changes or modifications made to this equipment not expressly approved by
the manufacturer may void the FCC authorization to operate this equipment.
