Protel Schematic BIRD D515TZ Mainboard Schematics

User Manual: Manual Bird - Schematics & Service Manuals PDF

Open the PDF directly: View PDF PDF.
Page Count: 9

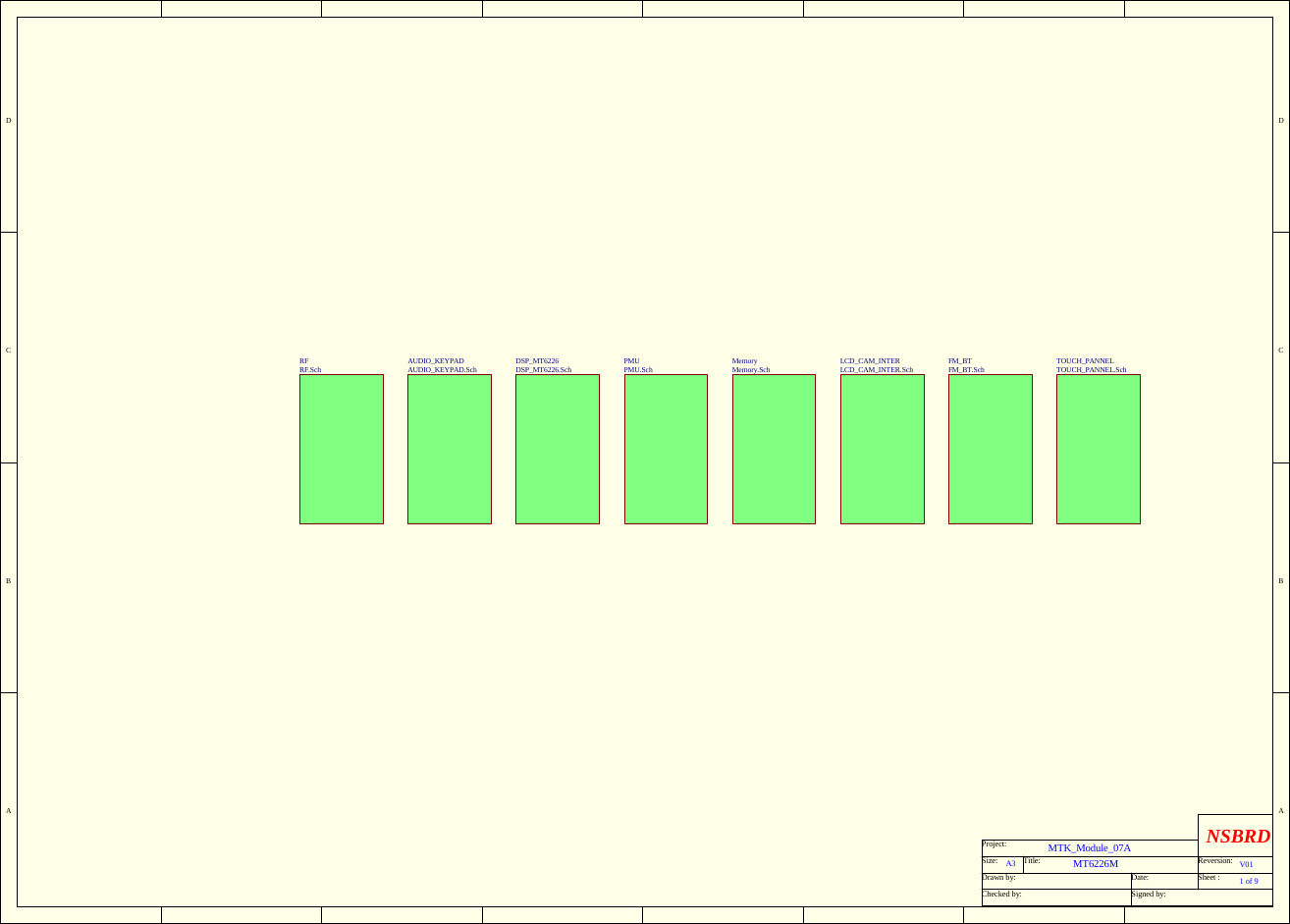

Page 1 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

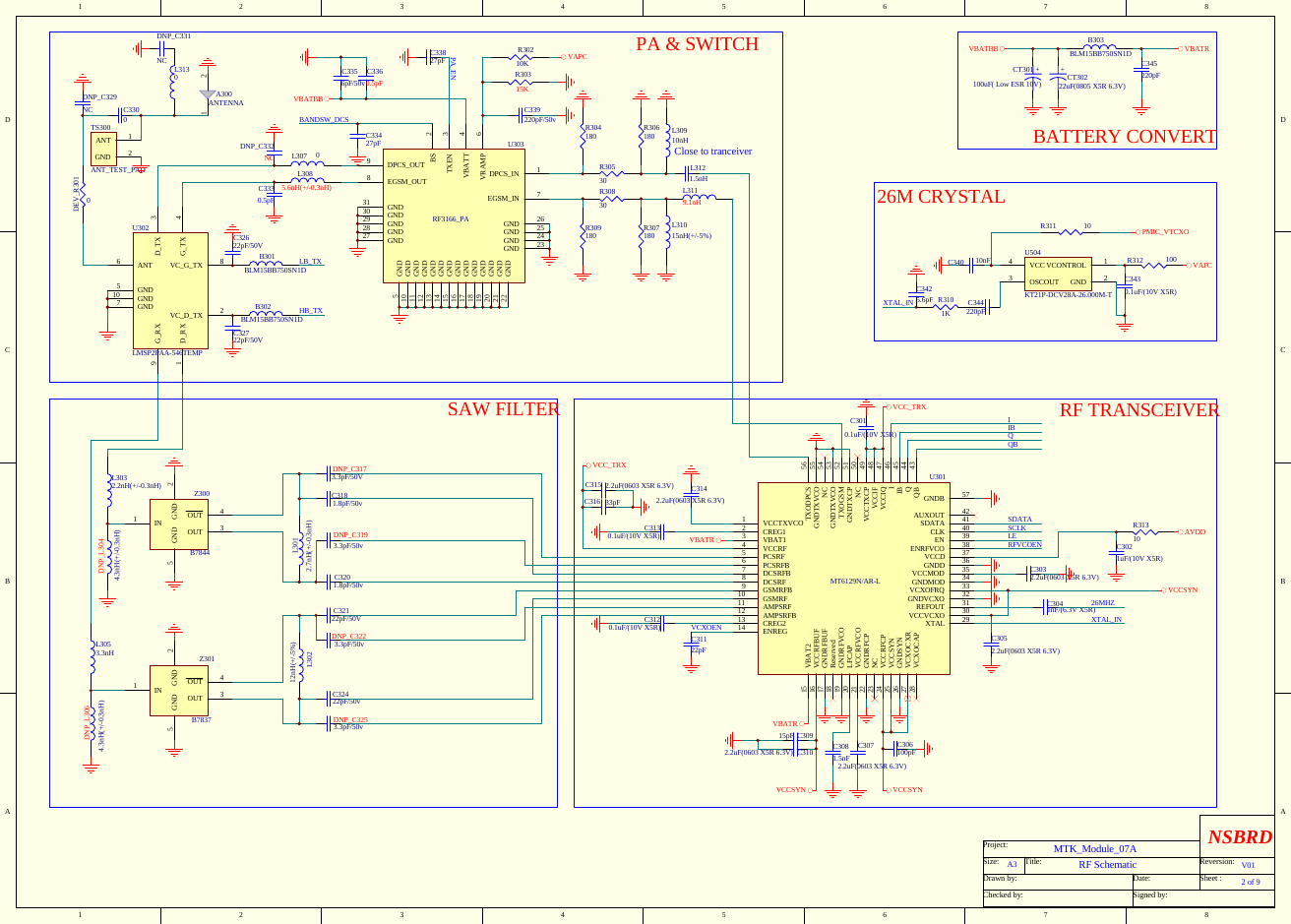

Page 2 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

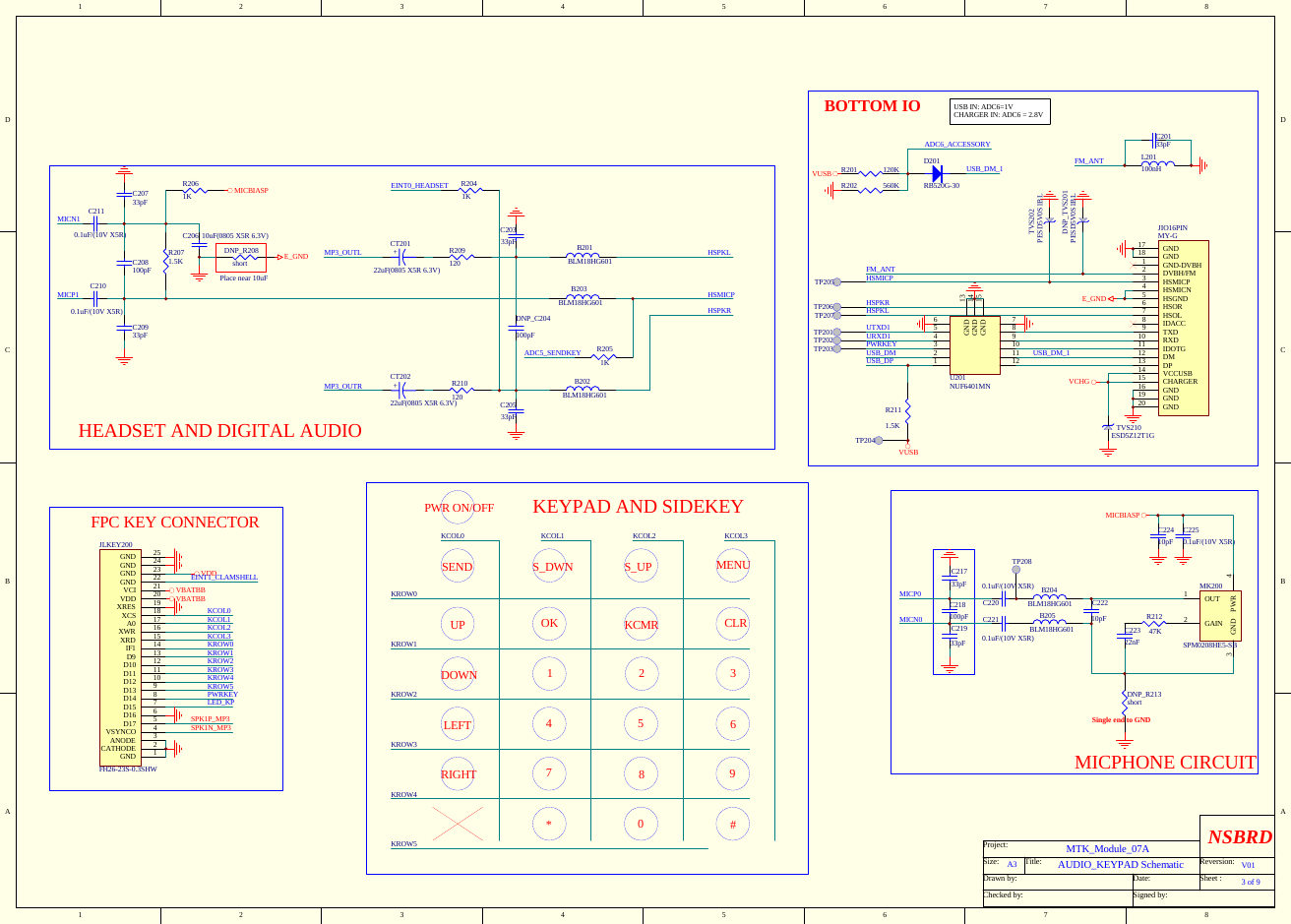

Page 3 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

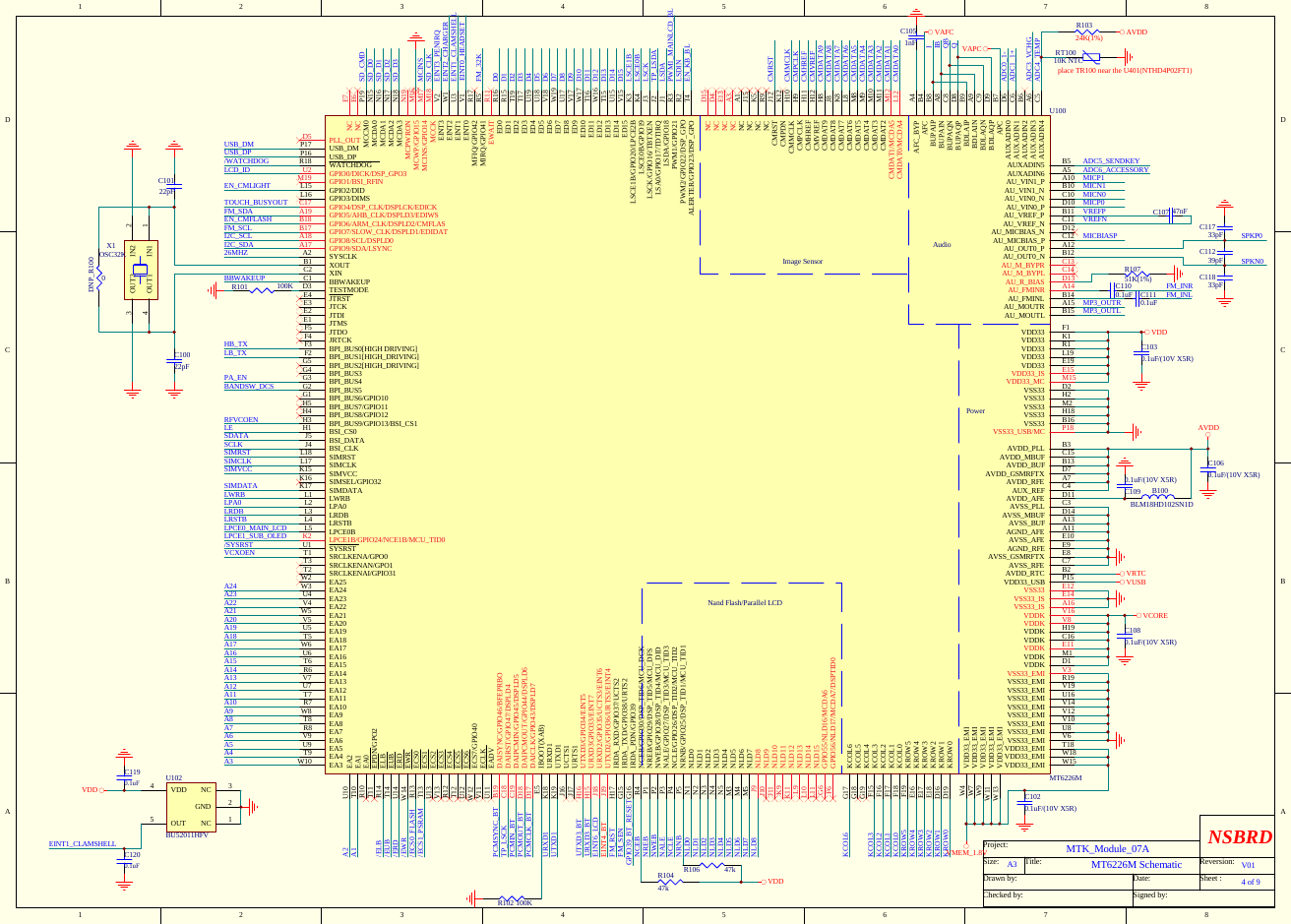

Page 4 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

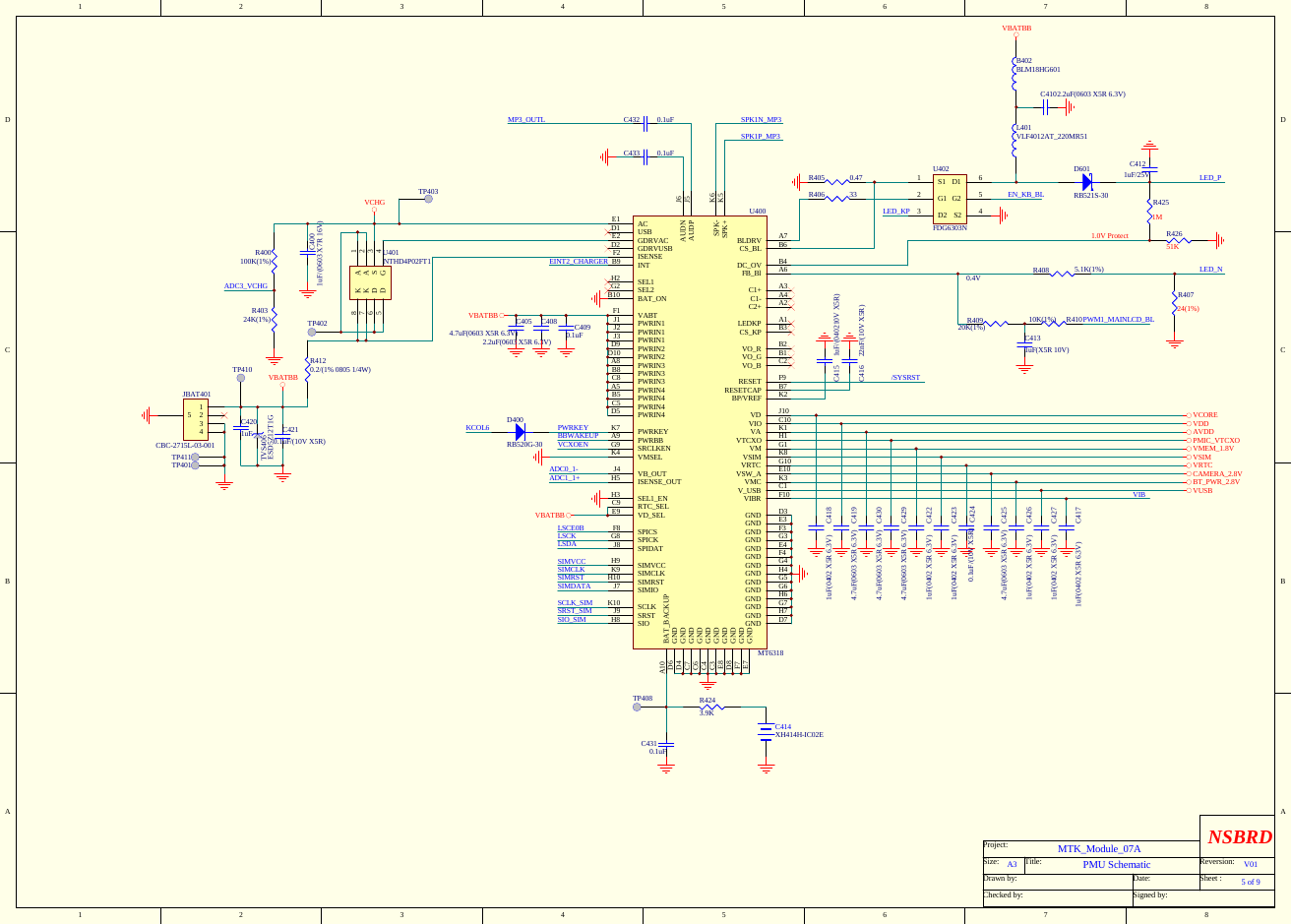

Page 5 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

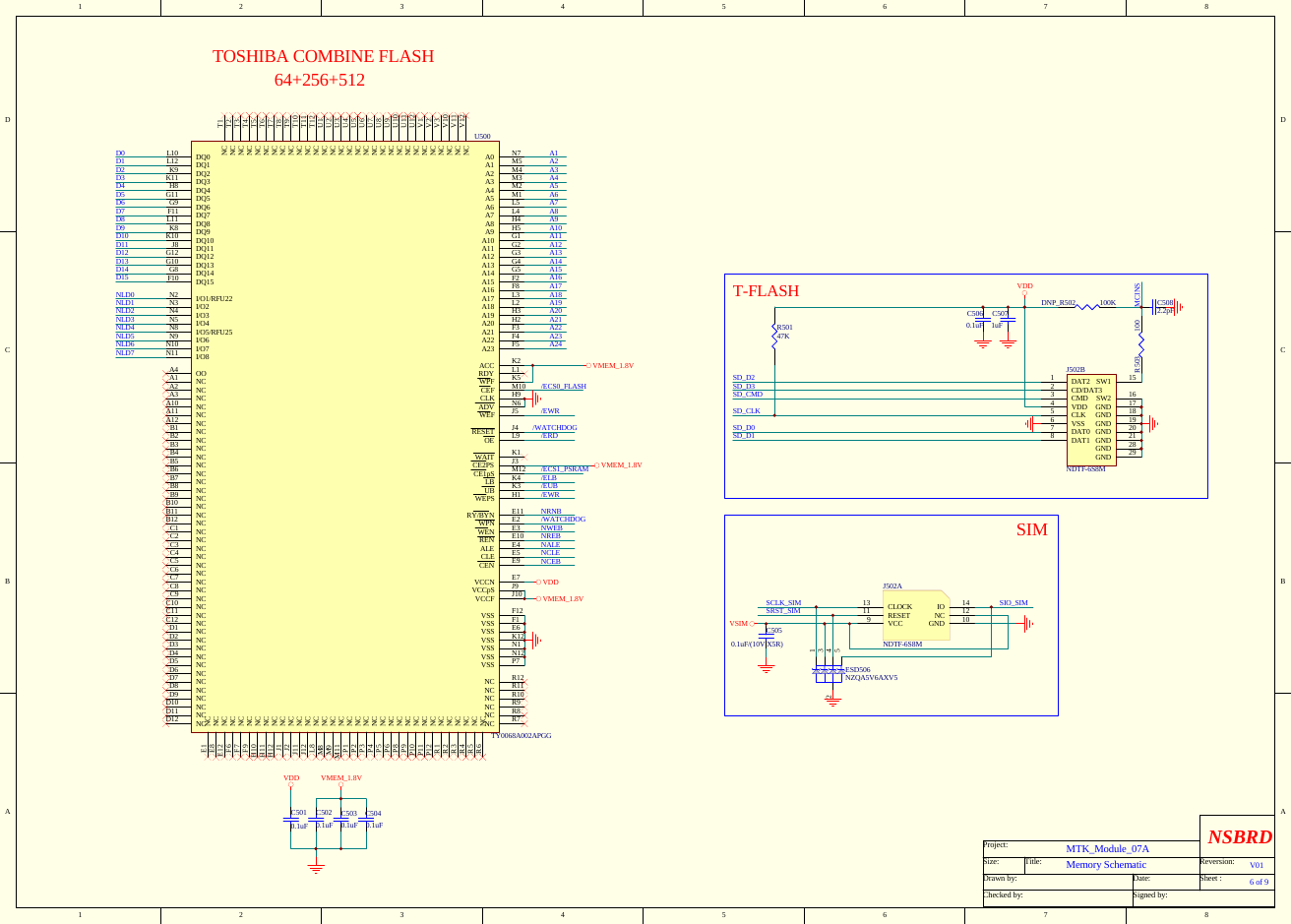

Page 6 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

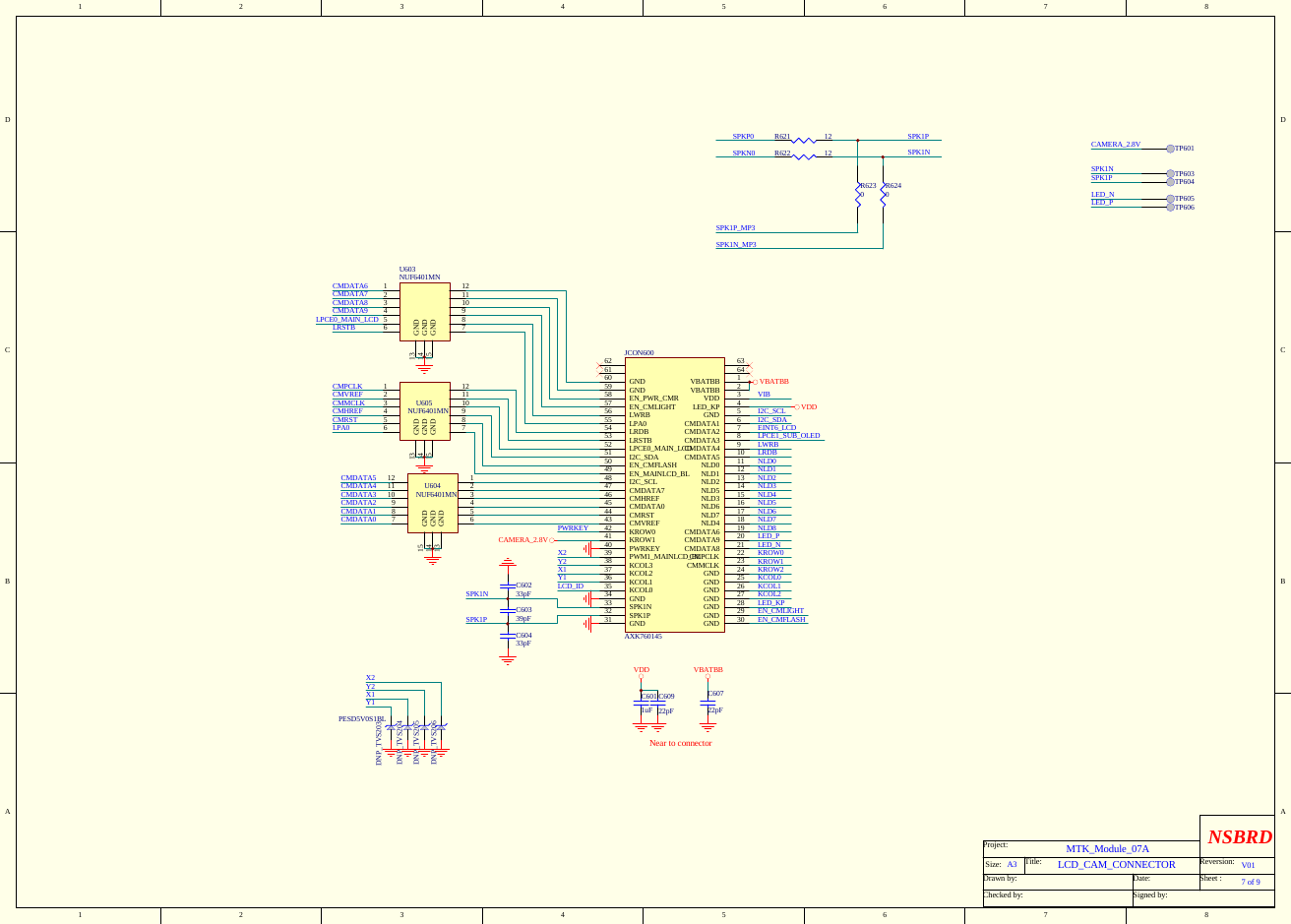

Page 7 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

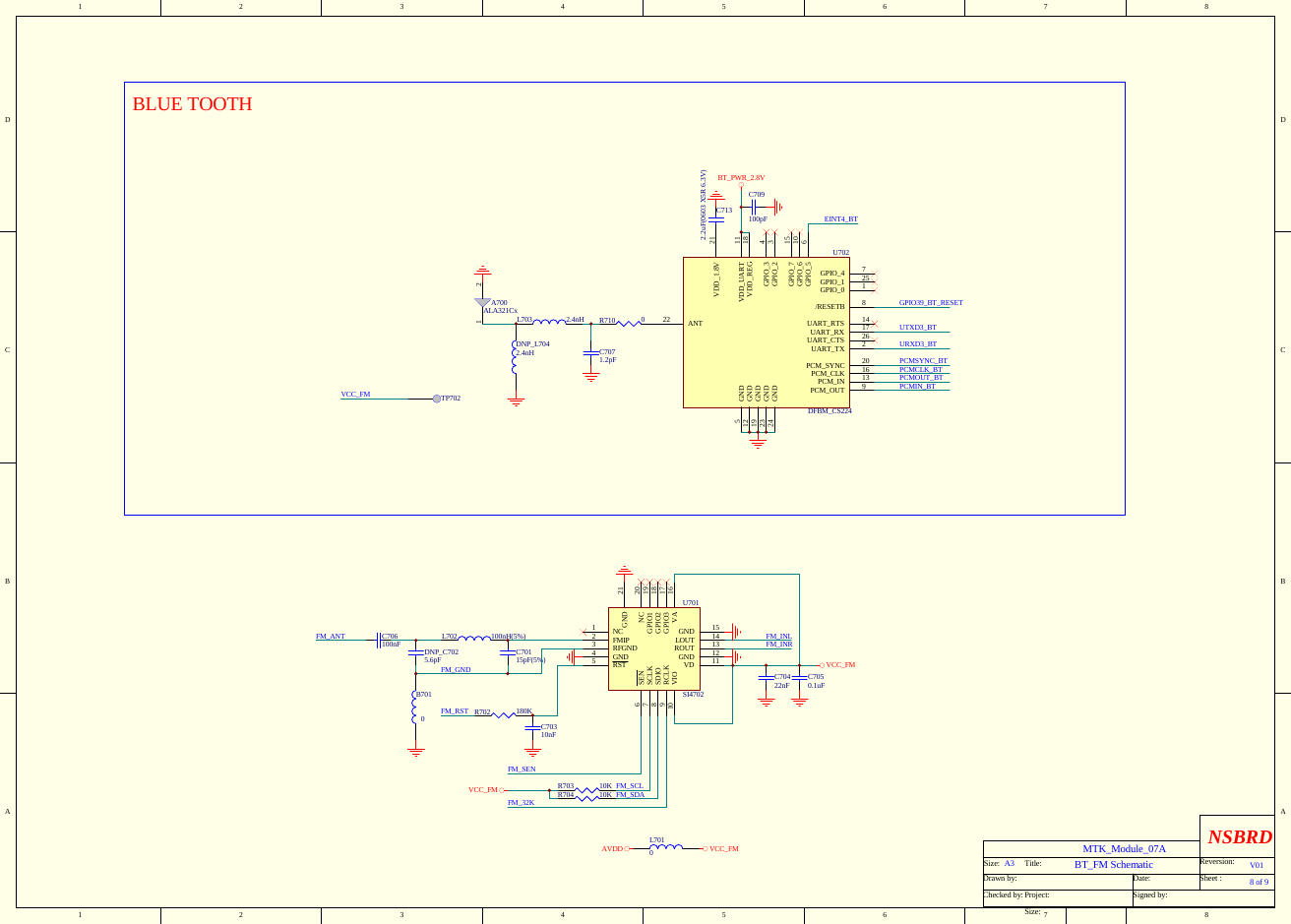

Page 8 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics

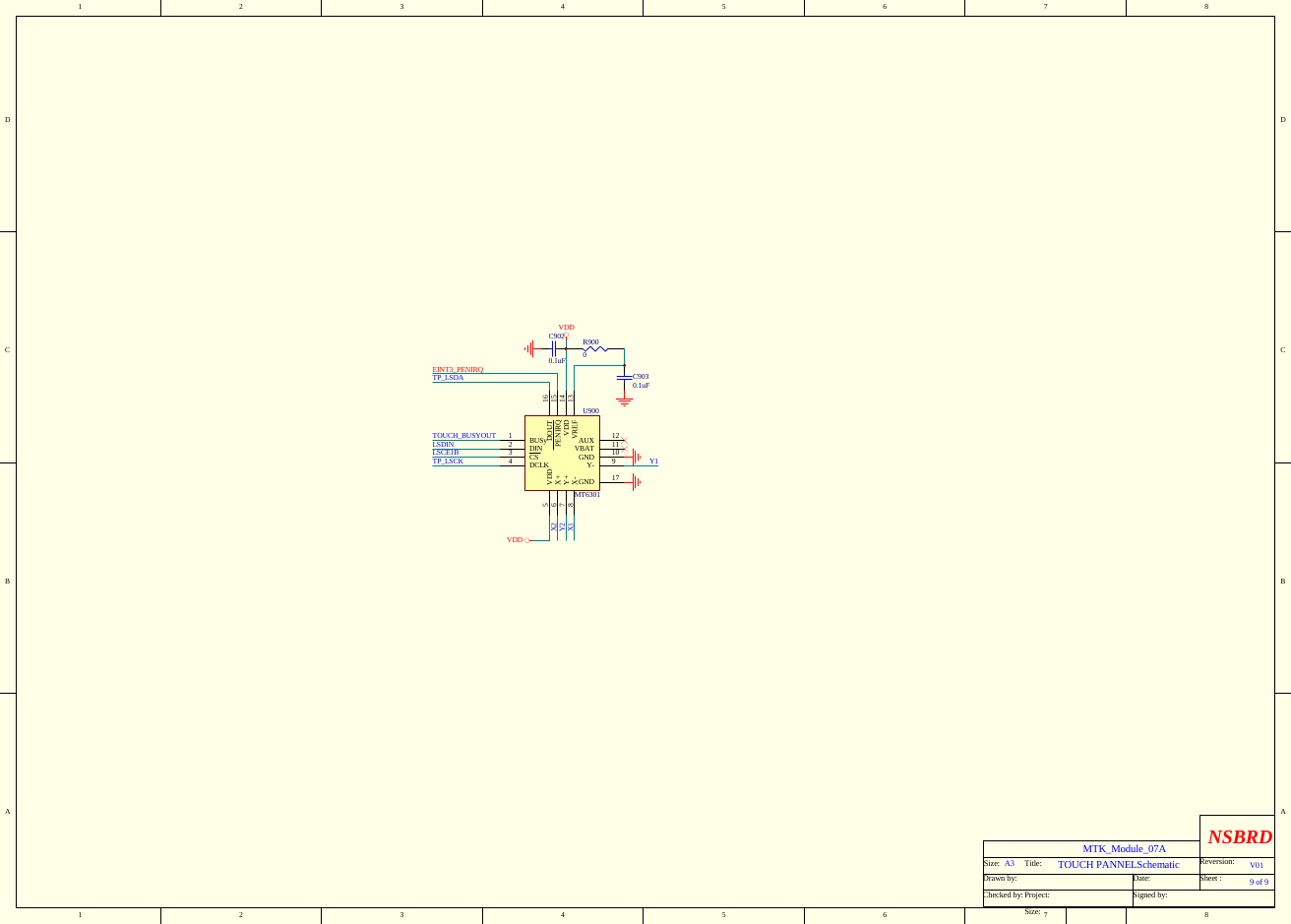

Page 9 of 9 - Protel Schematic BIRD D515TZ Mainboard Schematics
