Box Contents:

• Blade 450 X

• 3S 11.1V 2200mAh 30C Li-Po Battery

• DC Li-Po Balancing Charger

®

®

Airframe Blade® 450 X

Motor 440H Brushless Outrunner, 4200Kv

Receiver Spektrum™ AR7200BX with

BeastX® Technology

ESC 35-Amp Brushless ESC

Swash Servos Digital Cyclic Servo 12 g Metal Gear

Tail Servo Digital Tail Servo 12 g Metal Gear

Battery 3S 11.1V 2200mAh 30C Li-Po

Charger DC Li-Po Balancing Charger

Components

To register your product online, visit www.bladehelis.com

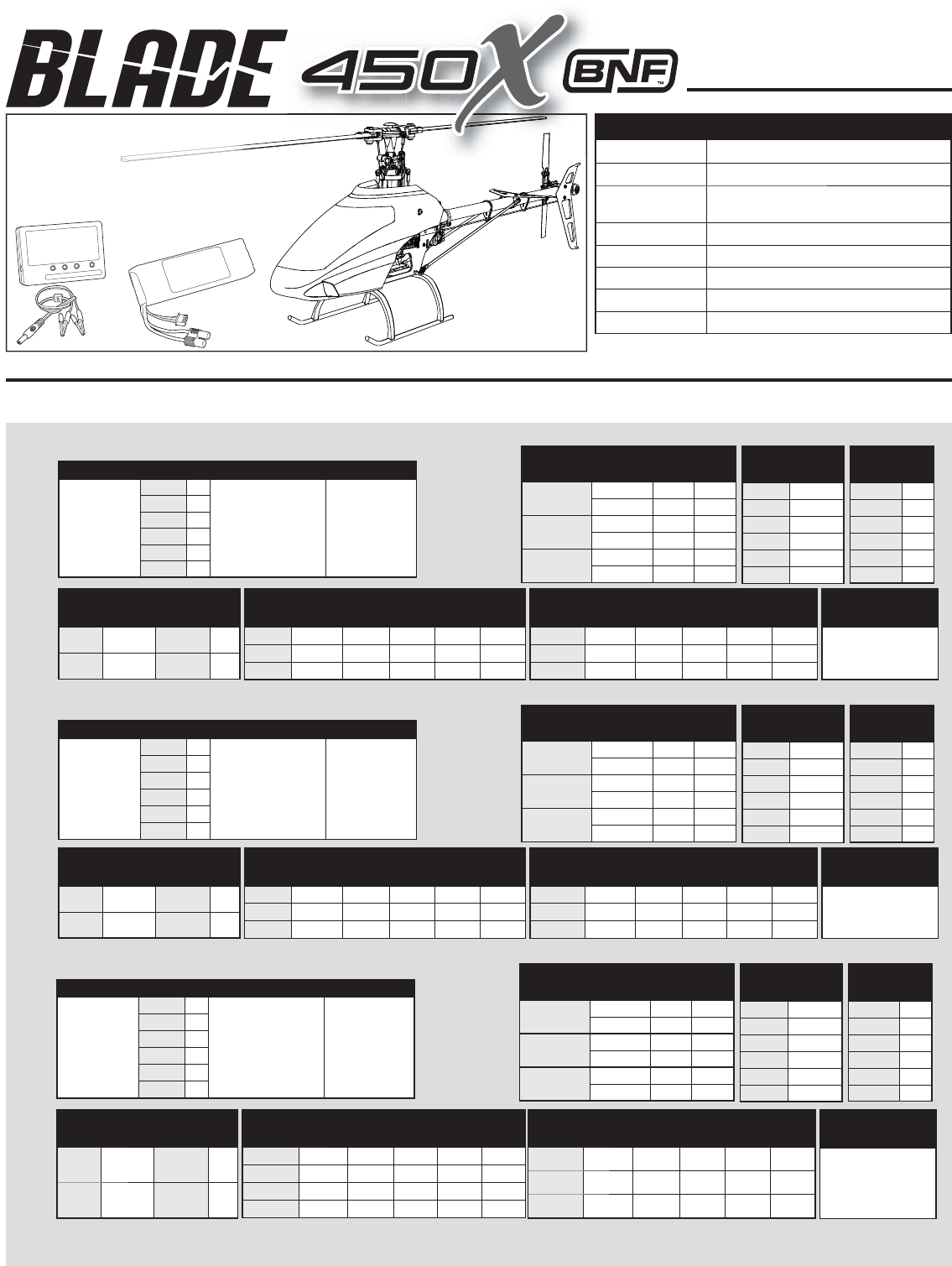

Transmitter SetupTransmitter Setup

Program your transmitter before attempting to bind or fl y the helicopter. Transmitter programming values are shown below for the Spektrum DX6i, DX6, DX7/DX7se, DX7s,

DX8, DX9 and DX18. The fi les for models using Spektrum TM transmitters with AirWare™ software are also available for download online in the Spektrum Community.

DX7/DX7se

DX6i SETUP LIST

SETUP LIST

ADJUST LIST

ADJUST LIST

Model Type Reverse Swash Type Timer

HELI

THRO N

1 Servo 90 Degree

Type: Down

Time: 4:00

Switch: Trainer

AILE N

ELEV N

RUDD R

GYRO N

PITC R

Model Type Reverse Swash Type Timer

HELI

THRO N

1 Servo 90 Degree

Type: Down

Time: 4:00

Switch: Trainer

AILE N

ELEV N

RUDD R

GYRO N

PITC N

Dual Rate / Expo

Switch Pos. D/R Expo

AILE 0 100% INH

1 85% INH

ELEV 0 100% INH

1 85% INH

RUDD 0 100% INH

1 85% INH

Dual Rate / Expo

Switch Pos. D/R Expo

AILE 0 100% INH

1 85% INH

ELEV 0 100% INH

1 85% INH

RUDD 0 100% INH

1 85% INH

Travel Adjust

THRO 100%

AILE 100%

ELEV 100%

RUDD 100%

GYRO 100%

PITC 100%

Travel Adjust

THRO 100%

AILE 100%

ELEV 100%

RUDD 100%

GYRO 100%

PITC 100%

Sub-Trim*

THRO 0

AILE 0*

ELEV 0*

RUDD 0*

GYRO 0

PITC 0

Sub-Trim*

THRO 0

AILE 0*

ELEV 0*

RUDD 0*

GYRO 0

PITC 0

Gyro

Pos. Rate SW-F. Mode

0 77.0% NORM 0

1 77.0% STUNT 0

Gyro

Pos. Rate SW-F. Mode

0 77.0% NORM 0

1 77.0% STUNT 0

Throttle Curve

L234H

NORM 0% 30% 60% 60% 60%

STUNT 75% 75% 75% 75% 75%

HOLD 10% 10% 10% 10% 10%

Throttle Curve

L234H

NORM 0% 30% 60% 60% 60%

STUNT 100% 100% 100% 100% 100%

HOLD 10% 10% 10% 10% 10%

Pitch Curve

L234H

NORM 30% 40% 50% 75% 100%

STUNT 0% 25% 50% 75% 100%

HOLD 0% 25% 50% 75% 100%

Pitch Curve

L234H

NORM 30% 40% 50% 75% 100%

STUNT 0% 25% 50% 75% 100%

HOLD 0% 25% 50% 75% 100%

Swash Mix

INHIBIT

Swash Mix

INHIBIT

* Never use sub-trims or trims on AILE, ELEV or RUDD channels with the AR7200BX.

BLH4380A

DX6/DX7s/DX8/DX9/DX18

SETUP LIST

ADJUST LIST

Model Type Reverse Swash Type Timer

HELI

THRO N

1 Servo 90 Degree

Type: Down

Time: 4:00

Switch: Trainer

AILE N

ELEV N

RUDD R

GYRO N

PITC N

Dual Rate / Expo

Switch Pos. D/R Expo

AILE 0 100% INH

1 85% INH

ELEV 0 100% INH

1 85% INH

RUDD 0 100% INH

1 85% INH

Travel Adjust

THRO 100%

AILE 100%

ELEV 100%

RUDD 100%

GYRO 100%

PITC 100%

Sub-Trim*

THRO 0

AILE 0*

ELEV 0*

RUDD 0*

GYRO 0

PITC 0

Gyro

Pos. Rate SW-F. Mode

0 54.0% NORM 0

1 54.0% STUNT 0

Throttle Curve

L234H

NORM 0% 30% 60% 60% 60%

STUNT 1 75% 75% 75% 75% 75%

STUNT 2 100% 100% 100% 100% 100%

HOLD 10% 10% 10% 10% 10%

Pitch Curve

L234H

NORM 30% 40% 50% 75% 100%

STUNT 0% 25% 50% 75% 100%

HOLD 0% 25% 50% 75% 100%

Swash Mix

INHIBIT

Binding Procedure

1. Program your transmitter using the Transmitter Setup found in this manual.

2. Insert the bind plug in the BND/DAT port on the receiver.

3. Connect the fl ight battery to the ESC. The H menu LED should be fl ashing, indicating the AR7200BX is in bind mode.

4. Move the throttle stick to the desired failsafe position (low throttle position in normal mode).

5. Follow the procedures of your specifi c transmitter to enter Bind Mode. The system will connect within a few seconds. Once connected, the H LED will turn off and

the AR7200BX will start the initialization process.

6. When the initialization process is complete, the Status LED light will come ON solid BLUE.

7. Disconnect the fl ight battery and remove the bind plug from the AR7200BX. Store the bind plug in a convenient place.

NOTICE: Remove the bind plug to prevent the system from entering bind mode the next time the power is turned on.

If you encounter problems, obey binding instructions and refer to transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon

Product Support offi ce. For a list of compatible DSM transmitters, please visit www.bindnfl y.com.

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ‘bind’ your chosen

Spektrum™ DSM2/DSMX technology equipped aircraft transmitter to the receiver for proper operation.

Transmitter and Receiver Binding
