Honeywell Gas Detection Tubes And Sampling Handbook
User Manual: Manual
Open the PDF directly: View PDF
.
Page Count: 124 [warning: Documents this large are best viewed by clicking the View PDF Link!]
Gas Detection
Tubes and Sampling
Handbook
For Sales & Service Contact
2650 E. 40th Ave. • Denver, CO 80205
Phone 303-320-4764 • Fax 303-322-7242
1-800-833-7958
www.geotechenv.com
TABLE OF CONTENTS
1
www.honeywellanalytics.com
Table Of Contents
1. INTRODUCTION .................................................................................... 3
2. QUALITY ASSURANCE PROCEDURES .................................. 5
3. OPERATION OF DETECTION TUBES AND PUMPS ........................... 7
3.1 Hand Pump Description .................................................................. 8
3.2 Tube Measurements…………………………………………... ........... 8
3.2.1 Tube Description and Packaging ..................................... 8
3.2.2 Testing Hand Pump for Leaks ....................................... 10
3.2.3 Measurement Procedure ............................................... 10
3.2.4 Reading Tubes…………………………………….. .......... 13
3.3 Maintenance of the LP-1200 Piston Hand Pump .......................... 14
3.4 Selection of Sampling Pump ......................................................... 15
3.5 Operation and Maintenance of Remote Sampler .......................... 15
4. TECHNICAL INFORMATION ............................................................... 19
4.1 Theory of Operation ......................................................................19

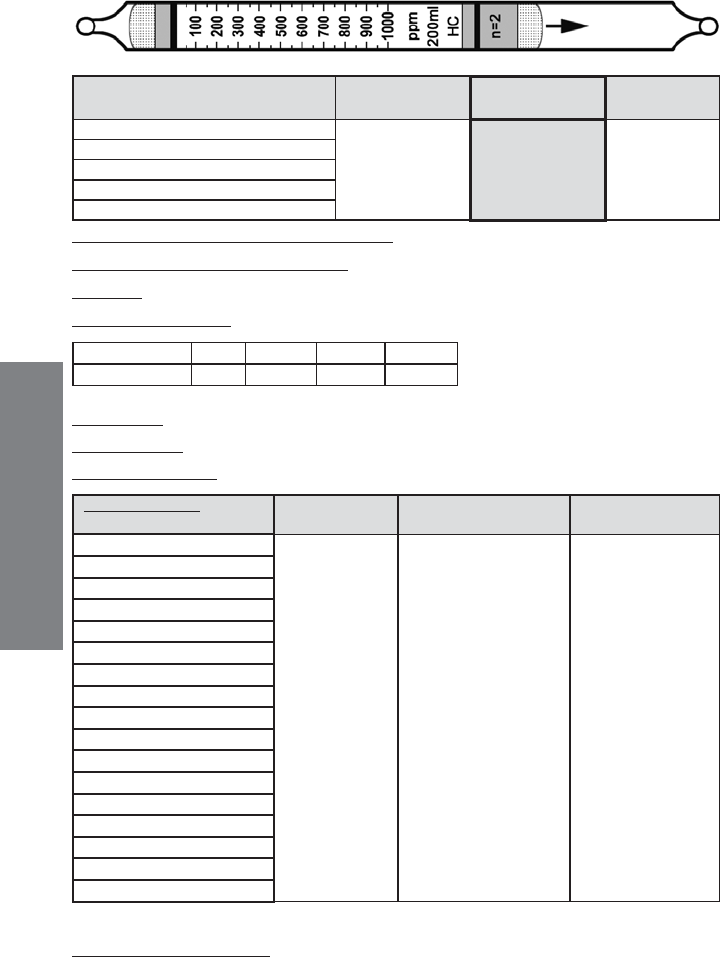

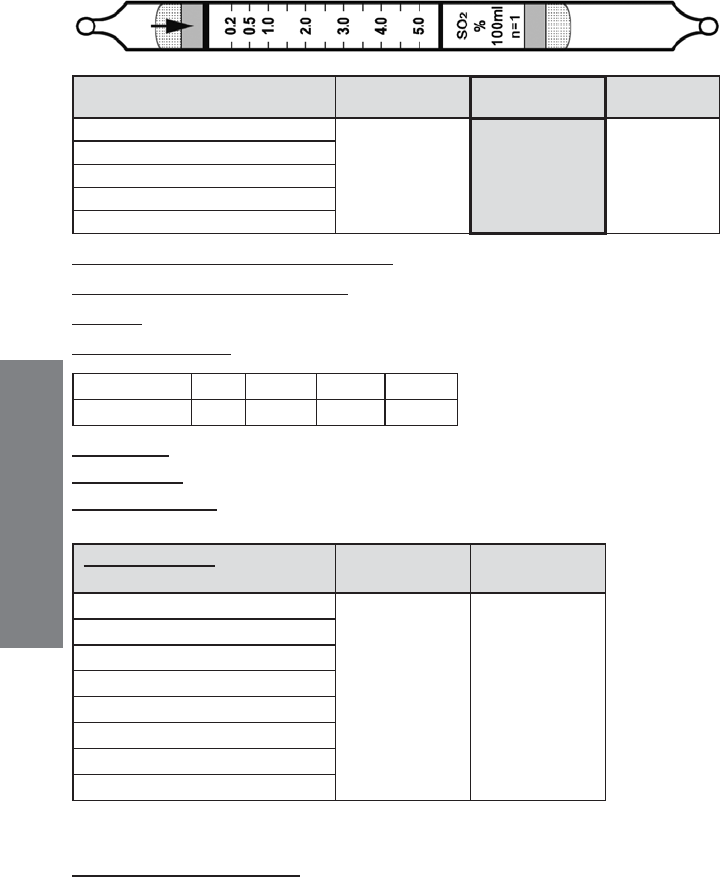

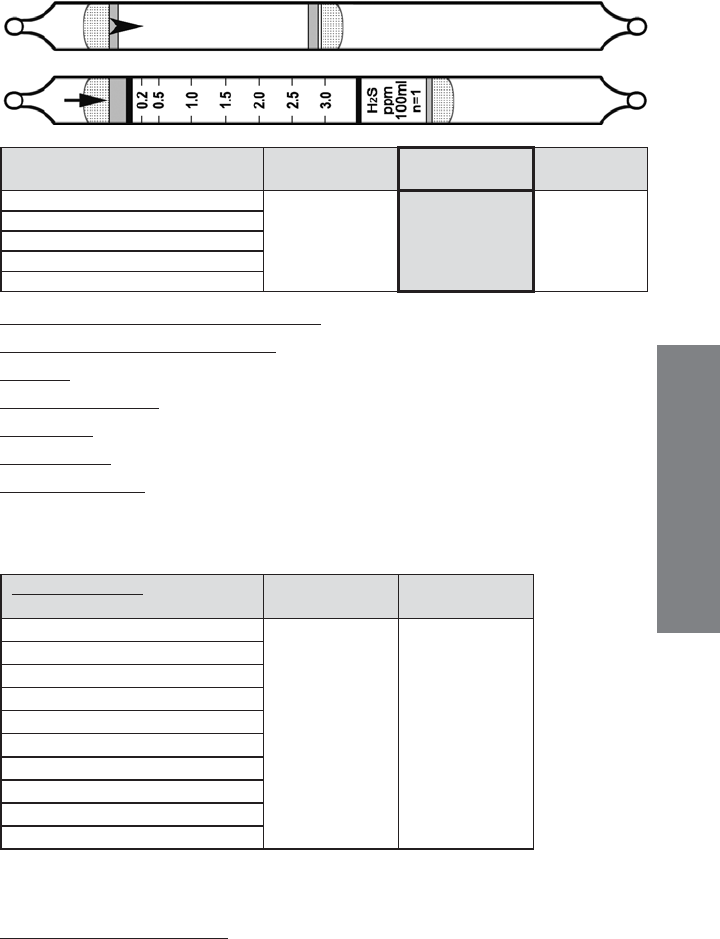

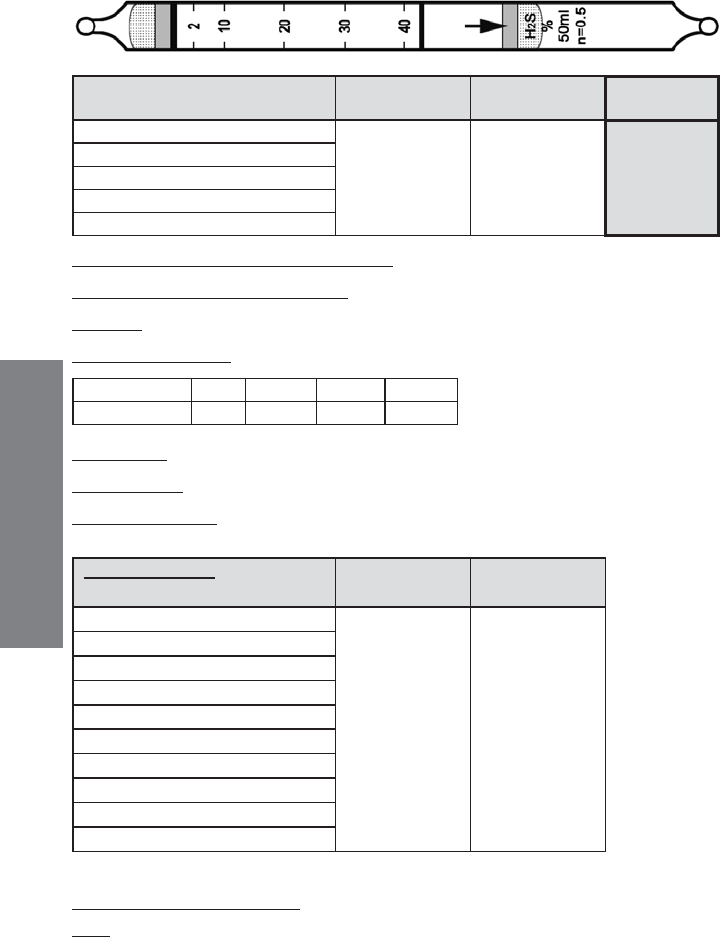

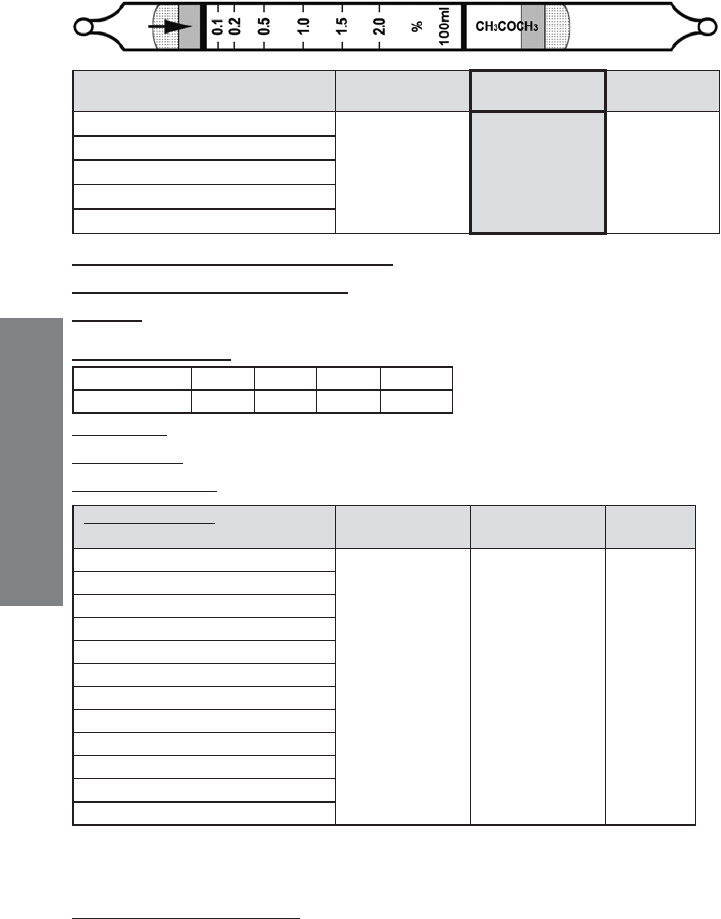

4.2 Explanation of Data Sheets .......................................................... 20
4.3 Humidity, Temperature, Pressure and Matrix Effects .................... 22
5. DATA SHEETS FOR GAS DETECTION TUBES ................................ 26
6. SPECIALTY TUBES ........................................................................... 103
6.1 Smoke Generating Tubes ........................................................... 103
7. APPENDICES .................................................................................... 105
7.1 Appendix 1. Alphabetical Tube List ............................................ 105
7.2 Appendix 2. Tube List by Part Number ...................................... 107
7.3 Appendix 3. Detectable Compounds .......................................... 109
7.4 Appendix 4. Equivalent Tubes of Other Manufacturers .............. 114
7.5 Appendix 5. Conversion Factors for Gas Concentrations .......... 117
7.6 Appendix 6. Humidity Conversion Tables ................................... 118
7.7 Appendix 7. Warranty ................................................................. 119
7.8 Appendix 8. Honeywell Analytics Contacts ................................ 120
INTRODUCTION
2www.honeywellanalytics.com
WARNING
The products described herein will perform as designed only if they are
used, maintained, and serviced in accordance with the manufacturer’s
instructions. Failure to use, maintain, and operate products properly can
result in dangerously inaccurate readings.
CAUTION: For safety reasons, the equipment described here-
in must be operated and serviced by qualied personnel only.
Read and understand this instruction manual completely before
operating or servicing.
ATTENTION: Pour des raisons de sécurité, ces équipments
Doivent être utilisés, entretenus et réparés uniquement par un
personnel qualié. Étudier le manuel d’instructions en entier
avant d’utiliser, d’entretenir ou de réparer l’équipement.
© 2014 by Honeywell International. This handbook is fully protected by
copyright, and no part of it may be reproduced in any form without the
express written consent of Honeywell, 3775 N. First St., San Jose, CA
95134-1708 USA.
Custom Tubes
Please contact Honeywell about the availability of custom tubes not
included in this handbook. Contact information is included on page 128.
Application & Technical Notes
Honeywell’s web site includes the Application Notes and Technical Notes
cited in this handbook, as well as many others. Visit our web site at: www.
honeywellanalytics.com.
INTRODUCTION
3
www.honeywellanalytics.com
This handbook describes the use and performance of gas detection
tubes and sampling pumps manufactured by Honeywell. Honeywell began
manufacturing gas detection tubes in 1997 and is adding many new tubes
to its product line each year. Modern production facilities and techniques
allow us to offer high-quality tubes at a highly competitive price.
Gas detection tubes operate in the following manner: An air sample
is drawn through a tube containing a reagent, causing a color change.
The concentration is then read from the length of the color stain in the
reagent. The advantages of detection tubes over other analytical methods
are simplicity of use, rapid response, low cost, and very low maintenance.
Because each batch of Honeywell tubes is pre-calibrated, no calibration
equipment is necessary. Errors are prevented by directly marking the
calibration information on each tube, and accuracy is further ensured by
controlling the volume of air sampled. Honeywell tubes are primarily of
the narrow bore type and are designed for use with a Honeywell hand-
operated piston pump.
Air sampling can also be performed using piston pumps, which latch
into a precisely dened position to x the volume. These pumps pull a
strong vacuum initially and thus create substantially higher owrate than
the bellows pumps. Piston pumps generate a high ow initially followed
by an approximately exponential decay, whereas bellows pumps provide a
more steady ow initially followed by the slow decay. The difference in ow
patterns means that the pumps cannot be interchanged between types.
For example, piston pumps sometime cause a smearing of the color stain
when used on tubes originally developed for bellows pumps. This occurs
because the higher ow rates do not allow enough contact time to give
sharp endpoints when a piston pump is used.
For a period of time, attempts were made to improve accuracy by
stabilizing the ow rate using rate-limiting orices. Some manufacturers
supplied as many as four different orice sizes to match the particular
tube being used. However, exchanging limiting orices proved to be
cumbersome and unnecessary as long as enough contact time was allowed
to avoid smearing the stain. Therefore, limiting orices have fallen out of
use and it has now become standard practice to build the ow restriction
into the tube itself. This is done by selecting the particle size of the support
material and type of end plug that give a sampling time appropriate for the
particular chemical reaction of the tube.
1. INTRODUCTION
INTRODUCTION
4www.honeywellanalytics.com
As a result of these developments, modern tube/pump systems have
stabilized into two categories: (1) low-vacuum bellows pumps with less
ow resistance in the tubes, by virtue of being wider (~7 mm o.d.) and
having larger particles, and (2) high-vacuum piston pumps with greater
resistance in the tubes by being narrower (~5 mm) and having smaller
particles. The bellows pump/tube systems tend to have faster sampling
but require more pump strokes to complete a measurement, whereas the
piston pump systems generally need fewer strokes but longer sampling
time per stroke. Honeywell tubes are primarily of the narrow-bore type and
are designed for use with a piston sampling pump.
QUALITY ASSURANCE
5
www.honeywellanalytics.com
2. QUALITY ASSURANCE PROCEDURES FOR
GAS DETECTION TUBE MANUFACTURE
All Honeywell gas detection tubes are developed in an ISO 9001 certied
facility and manufactured in an ISO 9001 certied factory. All procedures,
work instructions, and quality records are documented and maintained to
ensure tube quality. The procedures are outlined below.
A. Tube Selection. Glass tubing is selected to t a standard bore size to
ensure uniform length of color change.
B. Support Preparation. Silica, alumina, and other support materials
are chosen from the highest quality available and sieved to yield a
narrow particle size distribution. The supports are then further puried
as necessary and dried to well-dened levels depending on the
requirements of the tube reactions.
C. Reagent Loading. Chemicals are chosen according to strict purity
standards and loaded onto the support materials. Deposition of the
chemicals onto the support follows a protocol developed specically
for each tube type. The loaded support material is then dried as
needed for the reaction.
D. Tube Filling and Sealing. End plugs are selected of materials that
do not react with the reagent. The tubes are lled under conditions
that minimize exposure to air, water vapor, or other gases that may
affect the quality of the tubes. The tubes are then packed tightly by
a combination of shaking and physical compression. The ends of the
tubes are then melted closed using an automated ame sealer. Any
necessary inert atmosphere is maintained through the tube-sealing
process.
E. Calibration. Each batch of tubes is calibrated independently of other
batches. A series of standard gases are purchased or prepared by a
variety of methods, including ow dilution of gas primary standards,
permeation tubes, and diffusion tubes, or static dilution from liquid or
gas primary standards. Multiple tubes are used to determine each
calibration position, and these are then printed onto each tube in the
batch with an automated printing machine.
OPERATION
6www.honeywellanalytics.com
F. Packaging. The tubes and their technical data sheets are packed
into labeled boxes with protective corrugated cardboard.
G. Quality Control Sampling Plan. A portion of each batch is sent to
the Honeywell's Quality Assurance Laboratory for independent QA
testing. The most widely used tubes pass the accuracy criterion of
≤±15% of length of stain. A separate set of tubes is stored in the QA
laboratory and the manufacturing facility for evaluation at later dates,
if necessary.
H. Accuracy and Precision. The accuracy is measured by testing
at least ve tubes and calculating the average deviation from the
standard gas value. The precision is calculated as the standard
deviation from the average value of the ve measurements. All tubes
meet the accuracy and precision criteria listed in Table 2-1:
Table 2-1. Honeywell Tube Accuracy and Precision Specications
Tube Type
Conc.
Range Precision
Accuracy
>20-100%
Full Scale
≤20% Full
Scale
CO, CO2, H2O , H2S, NH3,
PH3, SO2
>50 ppm 10% 10% 12%
CO, H2O , H2S, NH3, PH3,
SO2
<50 ppm 12% 15% 20%
CO, Acetone, Benzene,
MEK, Toluene, Xylene
All 12% 15% 20%
Cl2, ClO2, HCN, HCl, HF,
NOx, NO2, RSH, RNH2,
Butane, Diesel, Ethanol,
Formaldehyde, Gasoline,
Methyl Bromide, Ozone,
Phenol, Trichloroethylene,
Vinyl Chloride, others
All 20% 20% 25%
I. Interim Storage. Only batches that pass all quality assurance
procedures are sent to interim storage, where they are maintained at
3-7°C (37 - 45°F) in darkness until shipment.
OPERATION
7
www.honeywellanalytics.com
3. OPERATION OF DETECTION TUBES & PUMPS
CAUTION:
Wear safety glasses and gloves when opening tubes
or handling open tubes with sharp edges. Failure to
wear protective equipment may lead to cuts and other
severe injuries to eyes and hands.
Always test the pump for leaks immediately before
using it for a series of measurements. Failure to
test the pump for leakage may lead to dangerously
inaccurate readings.
Avoid contact with tube contents in case of accidental
breakage. Exposure to tube contents can result in
signicant health hazards.
Dispose of spent tubes according to local regulations.
Review the reaction principle and other information
listed in the Gas Detection Tube Data Sheet supplied
to identify materials that may require special disposal
procedures. (Data Sheets for all currently available
Honeywell tubes are included in Chapter 5.)
OPERATION
8www.honeywellanalytics.com
3.1 Hand Pump Description
Figure 3-1. LP-1200 Hand Pump with tube inserted.
The LP-1200 is a piston-type hand pump that draws a xed volume of
gas, selectable at either 50 mL or 100 mL by rotating the handle. A tight
vacuum seal is formed by a greased plunger gasket. The tapered rubber
inlet accommodates a range of tube diameters for different types of tubes.
The inlet lter prevents glass pieces and dust from entering the shaft. An
end-of-ow indicator in the handle turns white when the gas sampling is
complete. A pump stroke counter is rotated to keep track of the number
of strokes completed.
3.2 Tube Measurements
3.2.1 Tube Description & Packaging

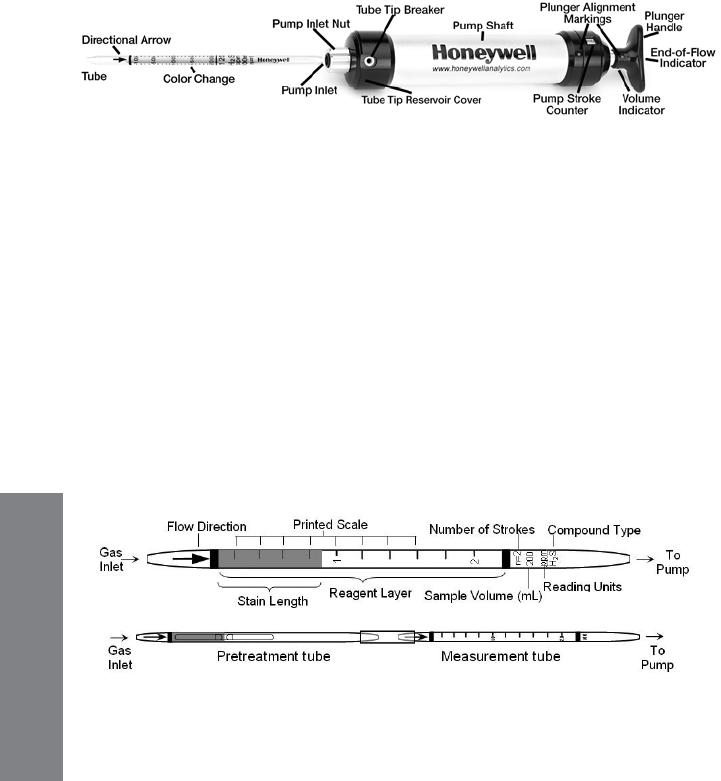

Figure 3-2. Gas detection tube parts description.
Top: Standard single tube. Bottom: Pretreatment tube
connected to measurement tube with rubber connector.
1. Tube and Box. Figure 3-2 shows the key components of a Honeywell
gas detection tube. The tubes are typically packaged in a box of 10
tubes. Each box has quick instructions on the back. Some tubes
require preconditioning of the gas and are packaged with 5 pretreatment
tubes and 5 measurement tubes for a total of 5 measurements. The
concentration scale is printed on the tube and an arrow indicates the
direction in which the gas must enter. The standard number of 100 mL
OPERATION
9
www.honeywellanalytics.com
strokes is indicated on one side, along with the total sample volume, the
unit of measure, the gas type, and the batch number.
2. Data Sheet. Each box is packaged with a Data Sheet that provides
detailed information on the tube performance. Figure 3-3 is an excerpt
of a typical data sheet. Complete data sheets are provided in Chapter
5 and discussed in detail in Chapters 4.2 and 4.3.

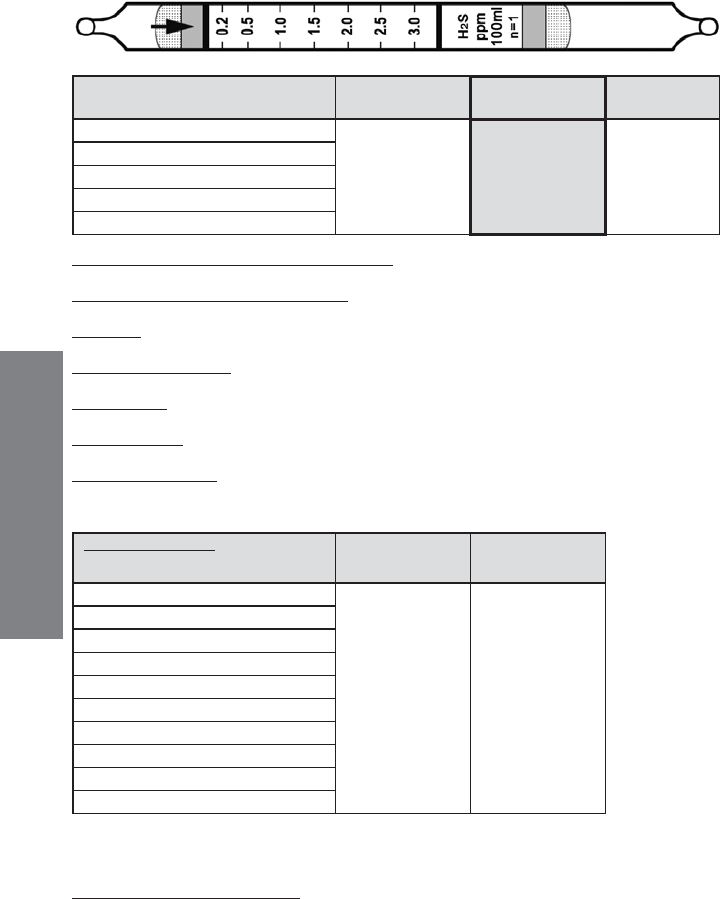

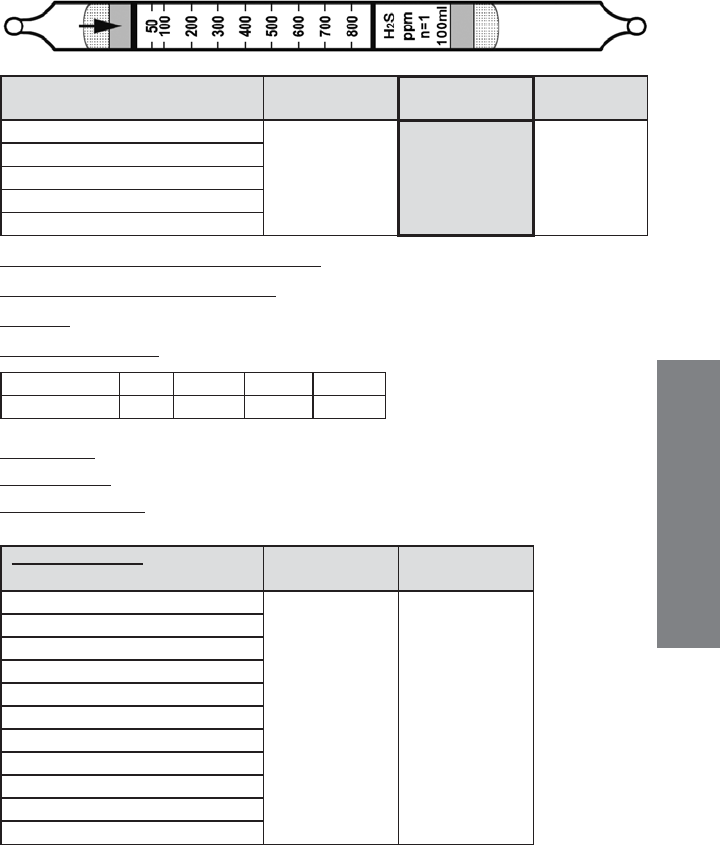

Gas Detection Tube Data Sheet
Hydrogen Sulde H2S No. H-10-103-18
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 12.5 - 125 25 - 250 50 - 500
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor (CF) 0.5 1 2
Figure 3-3. Excerpt of a Tube Data Sheet
3. Part Number. The 7-digit part number is indicated on the top right of
the data sheet. The second 3 digits indicate the tube chemical type,
and the last two digits number indicate the approximate range of the
tube. The higher the number, the higher the range.
4. Sampling Volume and Time. Using the standard number of pump
strokes, the concentration of the gas is read from stain length directly
matched to the printed scale after the listed sampling time has elapsed.
However, the range of the tube may be extended by using a smaller
or larger sample volume. In such cases, the scale reading must be
multiplied by a Correction Factor (CF) to adjust for the different sample
size. For example, the Honeywell H-10-103-18 hydrogen sulde tube
has a standard range of 25-250 ppm. When used with the standard
one stroke, the readings will correspond directly to the printed scale
on the tube. When used with half a stroke, a Correction Factor (CF)
of 2 is applied. An observed reading of 50 ppm then corresponds to
an actual concentration of:
50 x 2 = 100 ppm
OPERATION
10 www.honeywellanalytics.com
5. Cross-sensitivity. Gas detection tubes are generally quite selective,
but some compounds may interfere in the measurements. The Data
Sheet lists possible interfering compounds; others may also exist. In
most cases these compounds increase the stain length, but in some
cases they decrease the stain length. The user must be aware of
potential interferences, or incorrect readings may result.
3.2.2 Testing Hand Pump For Leaks
Before a series of measurements, the pump used must be tested for leaks.
Follow this procedure:
1. Insert an unopened tube snugly into the inlet of the aspirating pump.
2. Align the red dot on the plunger with the red dot on the pump shaft.
3. Pull the plunger one full stroke and wait 2 minutes.
4. Rotate the plunger dot away from the pump shaft alignment mark,
and allow the plunger to be drawn back into the pump shaft. Keep
your hand on the shaft to keep it from snapping back too suddenly.
There are no leaks if the plunger returns to within 3 mm of its original
position. If a leak is detected, refer to Section 3.3 for maintenance
procedures.

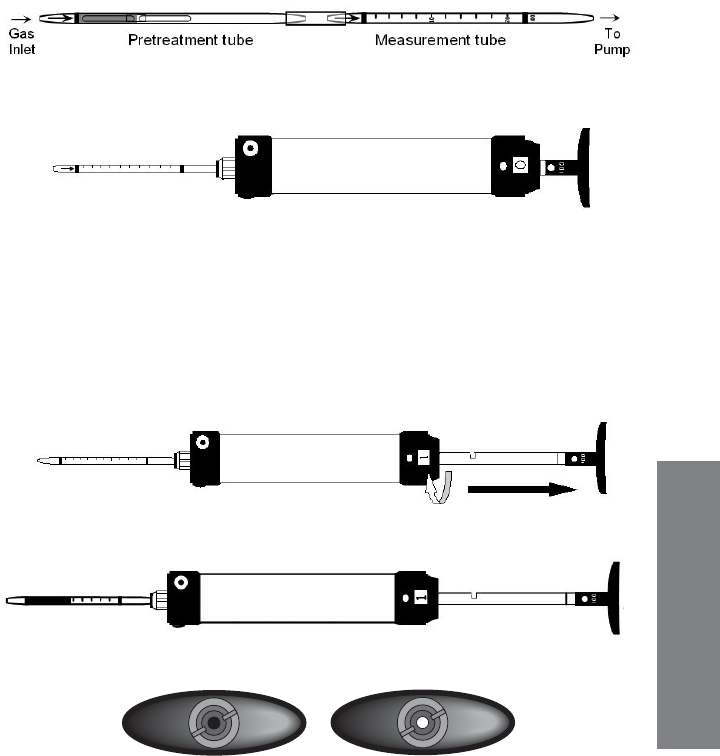

3.2.3 Measurement Procedure
1.

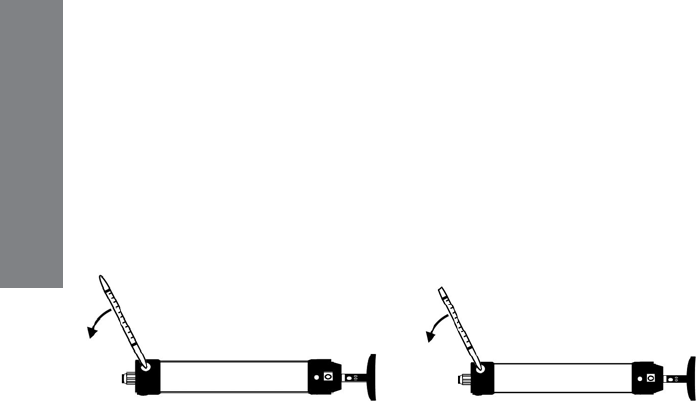

Break both ends of a new detection tube using the tip breaker on the
side of the pump. Insert the tube until it stops, and then back off about 1
mm before breaking off the tip. The latter procedure allows the tip to fall
into the tip reservoir at the end of the pump shaft. The reservoir can be
emptied by opening the rubber cover on the opposite side of the pump.
Break tube open at both ends.
OPERATION
11
www.honeywellanalytics.com
2. In cases where a pre-tube is provided (e.g., Benzene H-10-101-01
and NOx H-10-109-20), connect the pre-tube to the measurement tube
using the rubber connector in the direction indicated on the tube.
3. Insert the measurement tube securely into the rubber pump inlet. Point
the tube arrow towards the pump (see Figs. 3-1 and 3-2).
Insert open tube with arrow pointing towards pump.
4. Select the sample volume desired and align the red dot on the plunger
with the red dot on the pump shaft. Pull the handle quickly until it
latches at ½ or 1 full stroke (50 or 100 mL) and wait for the sampling
time indicated on the data sheet to allow the air to be drawn through
the tube. The end-of-ow indicator is dark during sampling. Flow is
complete when the end-of-ow indicator returns to its white color.
Withdraw plunger sharply until it locks in place, and rotate stroke counter.
Wait for indicated sampling time when end-of-ow indicator turns white.
End-of-ow indicator is dark when sampling (left) and white when
sampling is complete (right).
OPERATION
12 www.honeywellanalytics.com

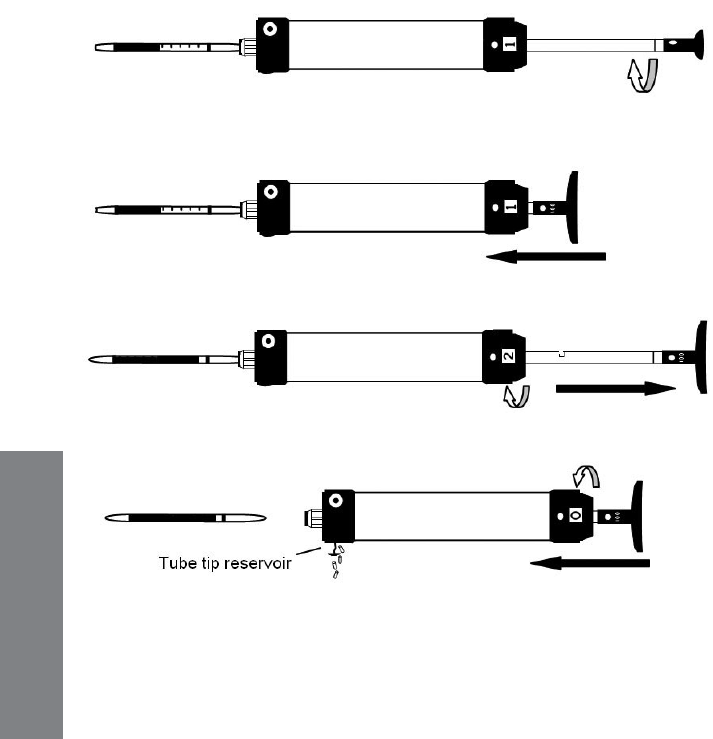

5. For additional pump strokes, rotate the handle ¼ turn clockwise or
counterclockwise and push it back fully without removing the tube from
the pump. Then repeat Step 4.
If additional strokes are needed, rotate plunger 90 degrees.
Push plunger back into pump shaft without removing tube.
Withdraw plunger for second stroke and repeat strokes as necessary.
Remove and read tube; return plunger and stroke counter to original position;
empty tube tip reservoir as necessary.
OPERATION
13
www.honeywellanalytics.com
3.2.4 Reading Tubes
1. The concentration of the compound being measured is read directly
from the scale printed on the tube.
2. The reading is taken as the furthest distance along the tube that the
color change just becomes visible. If the leading edge is diagonal
instead of perpendicular to the axis of the tube, use the average of the
minimum and maximum values. The three tubes shown in Figure 3-4
are all read as 0.9.

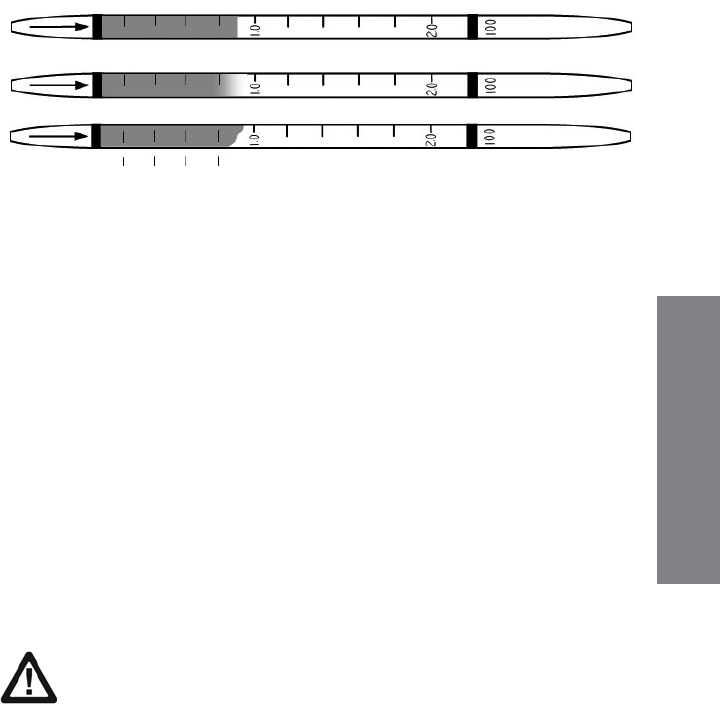

Figure 3-4. Reading of various types of endpoints after sampling.
3. Read the tube immediately after gas sampling, as colors may change,
fade, or disperse with time.
4. If a non-standard number of pump strokes was used for sampling,
multiply the reading by the Correction Factor given on the tube Data
Sheet (Chapter 5).
5. If humidity and temperature corrections are necessary as indicated on
the Data Sheets, multiply the observed readings by the given Correction
Factor(s) (CF) to obtain the true concentration. For more details and a
theoretical discussion, see Chapter 4.3 on the effects of humidity and
temperature.
6. The user must be aware of potential interfering compounds in the tube
measurements. Interferences can be either positive or negative.
CAUTION: Always examine the data sheet and other
available information for possible interferences. Failure to
consider interferences may lead to dangerously inaccurate
readings.
OPERATION
14 www.honeywellanalytics.com
3.3 Maintenance of the LP-1200 Piston Hand Pump

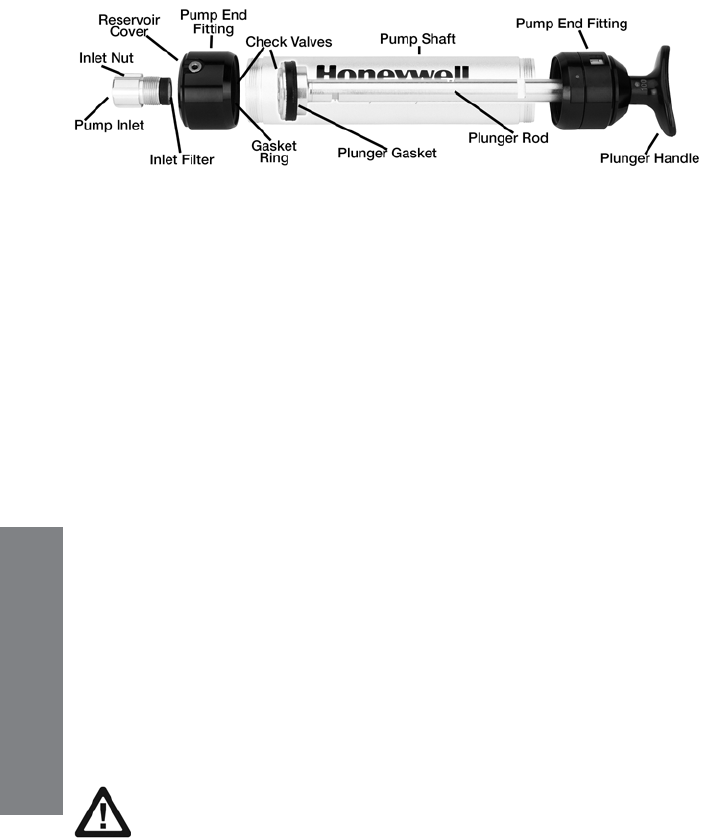

Figure 3-5. Transparent view of LP-1200 pump
showing internal parts.
1. Tube Tip Reservoir
Remove the tube tip reservoir cover as needed to empty the broken
glass reservoir that is in the pump end tting.
2. Pump Inlet and Filter
The rubber pump inlet can become worn with use and result in leaks.
Unscrew the pump inlet nut and replace the rubber inlet. If the inlet
is not replaced, inspect the inlet lter and replace or clean the lter
when it becomes visibly dirty or if the end-of-ow indicator on the pump
shows that the ow takes longer than recommended on the tube box.
3. Pump Mechanism
The plunger gasket may leak if it is worn or not well lubricated. To
replace the gasket:
1. Unscrew the pump end tting on the handle side.
2. Pull the plunger out of the pump shaft.
3. Replace the gasket.
4. Carefully push the plunger back into the shaft. Use a ne
screwdriver or tweezers to help ease the gasket into the shaft.
5. Lubricate the inside of the shaft with vacuum grease to ensure
a good seal.
Caution: Do not overtighten the plunger gasket. It could cause
a sudden loss of vacuum.
The inlet check valve may cause leaks if worn or not lubricated.
Unscrew the end tting on the inlet side and pull out the disk-shaped
rubber-inlet check valve. Replace as necessary, adding a light coat of
grease around the hole.
OPERATION
15
www.honeywellanalytics.com
Replace the outlet check valve gasket if there is resistance on the
return stroke. Using the special tool or needle-nose pliers, unscrew
the plunger tip from the plunger rod. Replace the O-ring, check valve
gasket as necessary, and reassemble. Inspect the gasket ring in the
inlet end tting. If it is damaged, replace before screwing the end tting
back on.
3.4 Selection Of Sampling Pump
Honeywell tubes are designed for operation with a Honeywell hand pump
for drawing samples through Honeywell tubes. Pumps from different
manufacturers may have different ow patterns or deliver different volumes,
which can cause signicant errors. For example, bellows hand pumps as
supplied by MSA and Draeger have substantially different ow patterns.
Caution: Use of a sampling pump other than a Honeywell
hand pump may cause serious errors. Always test any pump
for leaks before use.

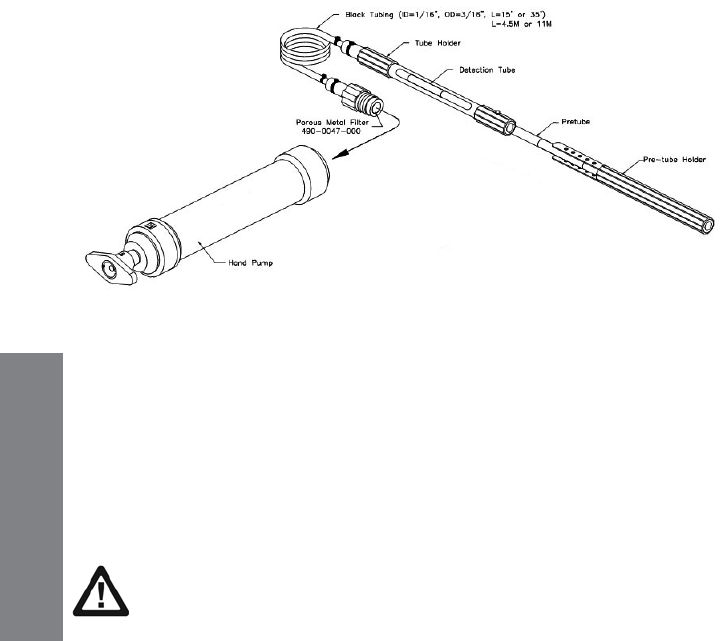

3.5 Operation And Maintenance Of Remote Sampler
The Detection Tube Remote Sampler is designed for use with Honeywell hand
pumps for gas-detection tubes and adsorption tubes. The exible Remote
Sampler allows gases to be sampled through narrow apertures, down holes,
or from other areas remotely located from the sampling pump. The sampler
is available in two lengths, 15 feet (4.5 meters), p/n H-010-3009-015, and 35
feet (11 meters), p/n H-010-3009-035.
1. Installation
Refer to Figure 3.7 for installation and part descriptions. Unscrew
the pump adapter nut and remove the standard rubber tube adapter
from the pump. Inspect the remote sampler to ensure that the porous
metal lter is in place, and screw the pump adapter nut attached to the
sampler into the pump. Store the standard nut and rubber adapter in a
safe place for later use.
OPERATION
16 www.honeywellanalytics.com
2. Operation
To ensure a good seal, insert the gas detection tube into the tube
holder and twist the tube while pushing in. If the tube uses a pre-tube,
insert the pre-tube into the pre-tube holder and push the pre-tube into
the end of the standard tube holder. Secure the pre-tube holder using
the rubber buckles. Lower the extension hose to the desired position.
Figure 3-6. Installation of the remote sampling probe into
the LP-1200 hand pump.
3. Correction
Caution: In order to obtain accurate readings, the following
corrective procedures must be employed when using the 35-foot
(11-meter) remote sampler.
The 35-foot (11-meter) remote sampler causes a slight delay and
reduced reading because of the extra volume in the extension
tubing. Increase the sample time by 30 seconds for a 2-minute tube,
20 seconds for a 1.5-minute tube, and by 15 seconds for a 1-minute
tube. Then multiply the reading by 1.08 to obtain the corrected value.
Corrections for the 15-foot (4.5-meter) remote sampler are unnecessary.
OPERATION
17
www.honeywellanalytics.com
4. Routine Maintenance
a. Porous Metal Filter: The metal frit lter should be replaced when it
becomes visibly dirty or if the end-of-ow indicator on the pump shows
that the ow takes longer than recommended on the tube box.
b. Leak Test: If a leak is discovered with either pump, rst remove the
probe and check the pump for leaks. Then examine the tubing and
connections for the leak source, as follows:
i. Hand Pump: Insert a sealed tube into the tube holder tightly. Pull
3 pump strokes to expel the air from inside the tubing. Pull a
fourth stroke and wait for 2 minutes. Rotate the plunger dot away
from the pump shaft alignment mark, and allow for the plunger
to be drawn back into the pump shaft. Keep your hand on the
shaft to prevent it from springing back too suddenly. If the plunger
returns to within 3 mm of its original position, there are no leaks.
OPERATION
18 www.honeywellanalytics.com
TECHNICAL INFORMATION
19
www.honeywellanalytics.com
4. TECHNICAL INFORMATION
4.1 Gas Detection Tube Theory Of Operation
Gas detection tubes operate on a chemical reaction between the vapor-
phase compound and a liquid or solid detecting reagent, which is supported
on an inert matrix. The most common types of reactions are the following:
• Acid-base reactions These include reactions of acidic gases like HCl
and HF with bases, and reaction of alkaline vapors such as ammonia
with an acid in the tube. A dye present in the tube changes color as
the pH changes on exposure to the vapors.
• Reduction-oxidation (Red-ox) reactions These generate an oxidized
or reduced compound, which has a different color. The chlorine tube
uses oxidative coupling of colorless o-toluidine to form an orange azo-
dye. White di-iodine pentoxide is reduced by CO and many organic
vapors to form deep brown-colored iodine. Orange chromium (VI) is
reduced by many organic compounds to form brown or green-colored
Cr(III) compounds.
• Ligand-exchange reactions These generate new complexes that
are more colored than the starting reagents. The most notable is the
conversion of white lead acetate to brown-black lead sulde in the
detection of H2S. In the case of phosphine, the exchange of PH3 for
the chlorine ligand of HgCl2 releases HCl, which then causes a pH-
dependent dye-color change.
•
Pre-layers or Pre-tubes These are used to condition the sample
by controlling humidity, removing interferences, or transforming the
analyte to another detectable compound. Examples include drying
agents in NH3 and HCl tubes, organic removal by charcoal or oxidation
in selective CO tubes, and oxidation of NO to NO2 in the nitrogen oxides
tube.
All Honeywell detection tubes are length-of-stain types. In these tubes,
the reaction of the gas with the supported reagent is fast, compared to
the transport of the bulk air sample through the tube. Therefore, all of
the detected vapors are reacted within the tube. As a result, there is
not a strong dependence of the readings on the rate at which the gas is
sampled. However, a very high ow rate can cause some smearing to a
high reading. Conversely, low ow rates are less likely to affect the stain
TECHNICAL INFORMATION
20 www.honeywellanalytics.com
length, but can give low readings by concentrating the colored products in
a shorter section of the tube. In cases of ow extremes, errors outside the
standard 25% accuracy can be produced.
Honeywell tubes are calibrated using Honeywell piston hand pumps. The
ow during a single pump stroke initially rises sharply and then decays
exponentially (see Figure 4-1). The best accuracy is therefore obtained
when the ow through the tube mimics this prole.

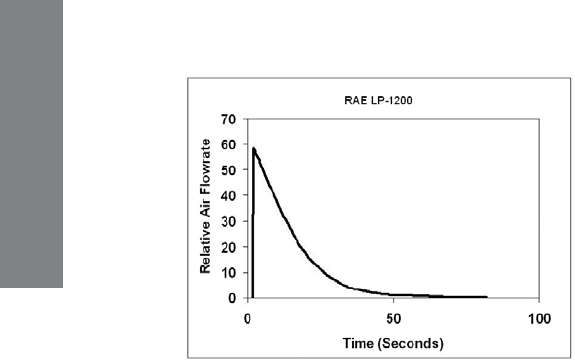

Figure 4-1. Piston pump internal pressure pattern. Data is offset
by 2 seconds.
4.2 Explanation Of Data Sheets

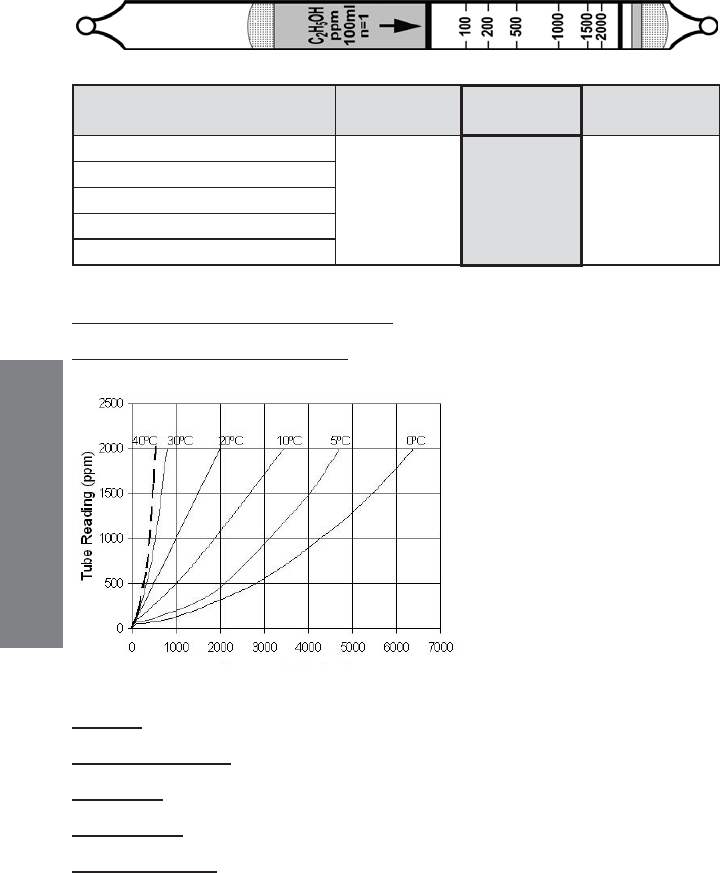

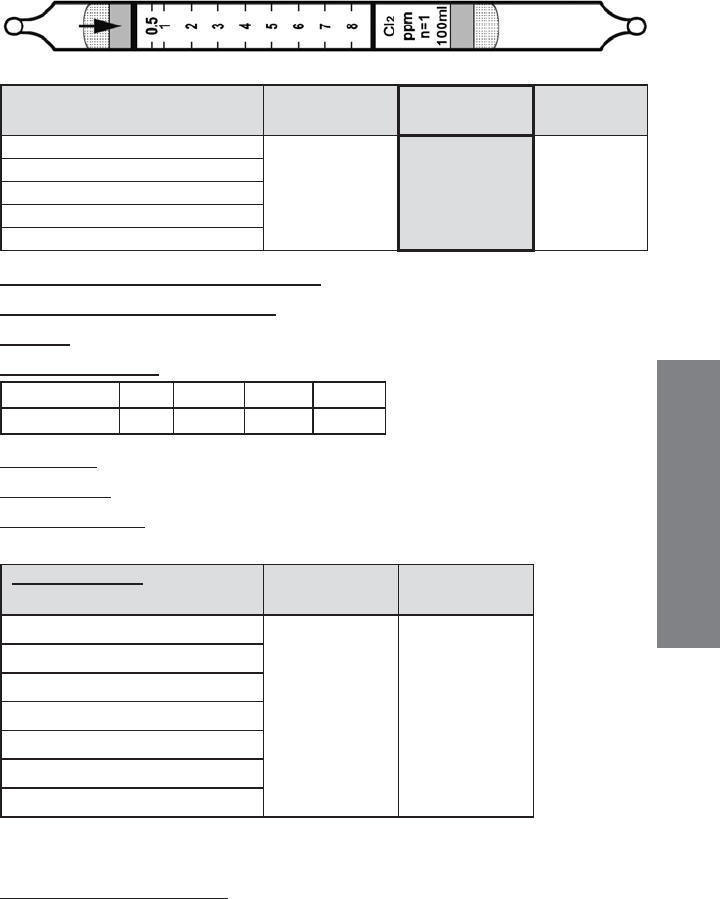

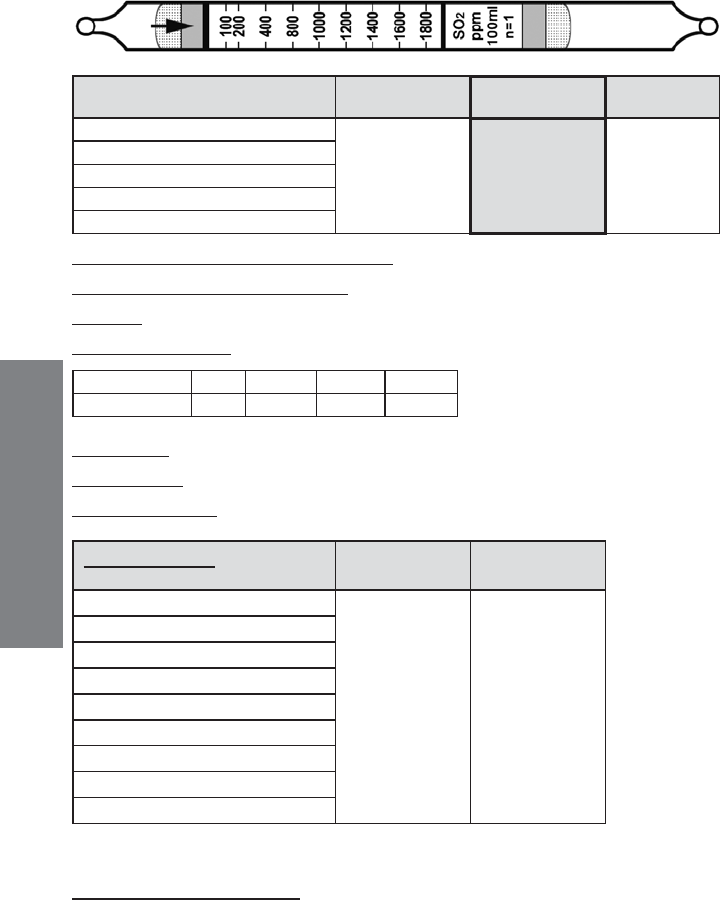

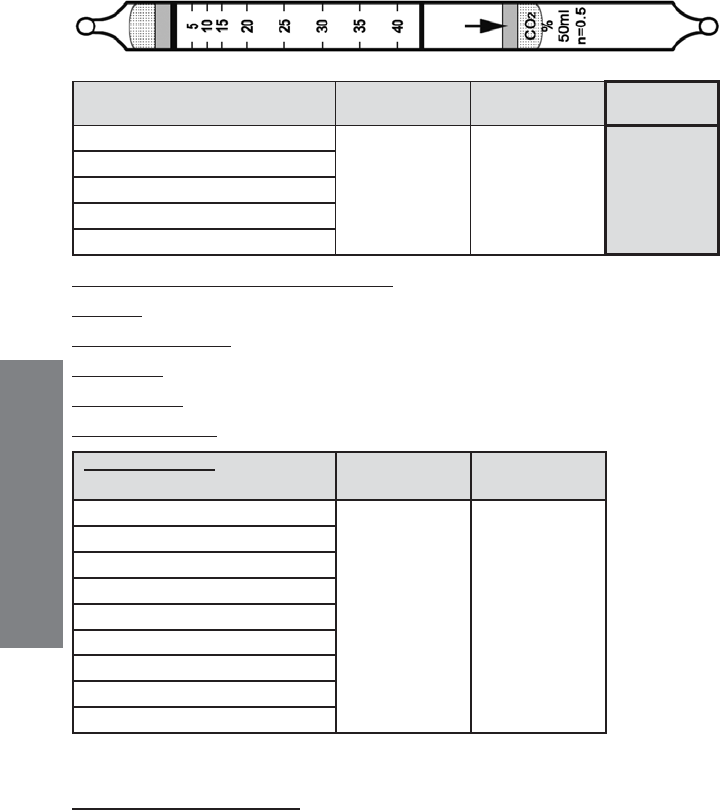

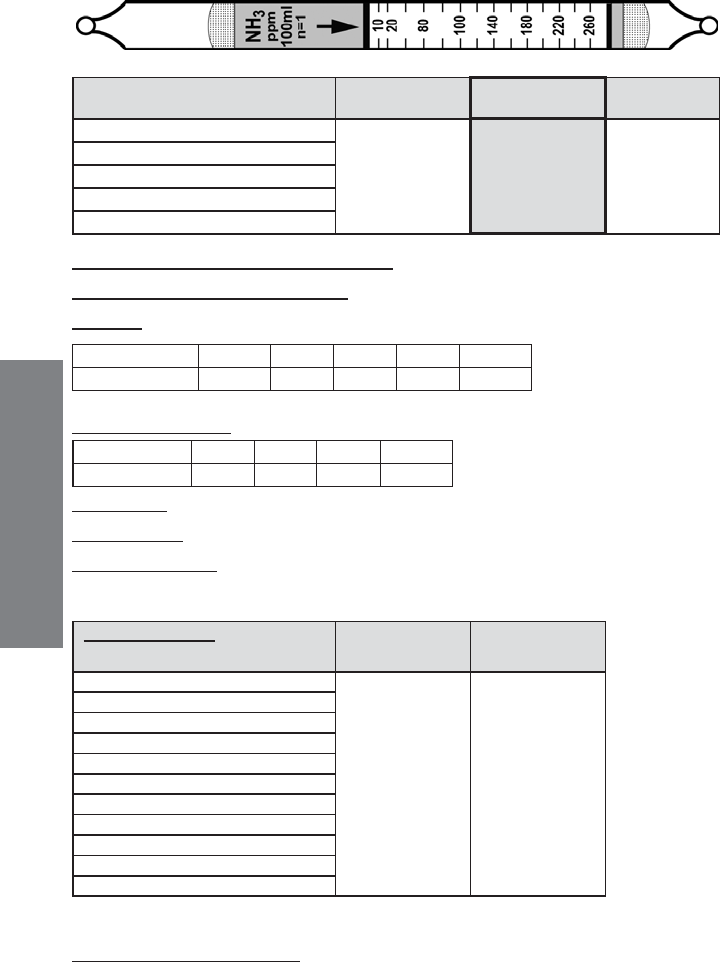

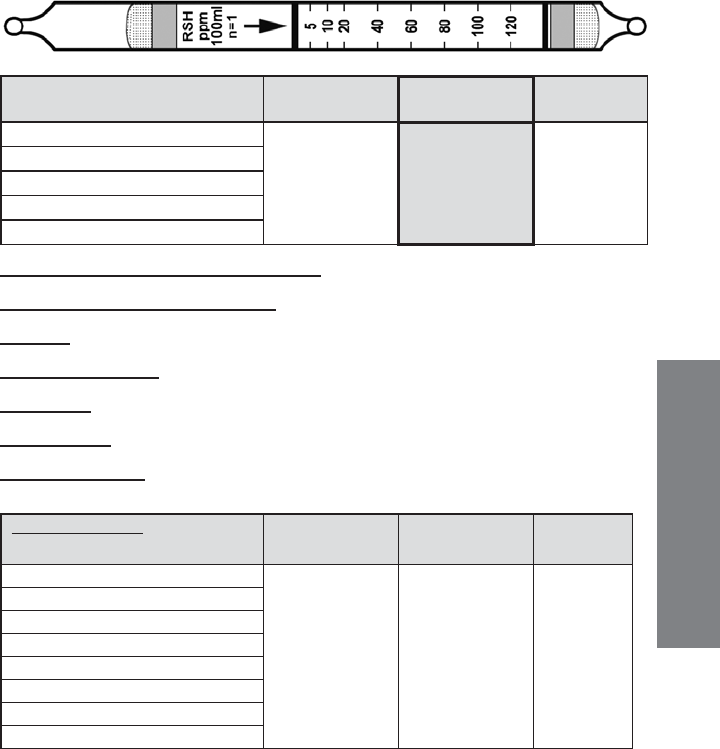

The Data Sheets supplied with each box of tubes give representative
information applying to all batches. The Data Sheets include:
1. Standard and extended measurement ranges, pump strokes
required, gas volumes required, sampling times, and the detection
limit. The standard range and strokes apply to the calibration scale
printed on the tubes. The range can usually be extended to higher
or lower concentrations by reducing or increasing, respectively, the
number of pump strokes.
2. Correction Factors (CF) for conditions of pump stroke, temperature,
humidity, or gas type other than the standard conditions. The
CF is multiplied by the observed reading to obtain the corrected
concentration.
TECHNICAL INFORMATION
21
www.honeywellanalytics.com
3. Precision. This value is determined by measuring a standard gas
sample with at least 5 randomly chosen tubes. Precision is reported
as the standard deviation from the average of the 5 measurements.
Precision is typically ≤±15%. (See Section 2 for complete table.)
4. Linearity with number of pump strokes. Multiple strokes are measured
with a gas standard with concentration at the low end of the tube.
Tubes must have correlation coefcients (r2) >0.95 to be considered
linear.
5.
Humidity. The effect on the reading as a function of humidity of the
standard gas is listed. Any required Correction Factors are tabulated.
6. Temperature. The effect of temperature is determined by equilibrating
the gas sample, tube, and pump to the test temperatures, typically 0°,
10°, 25°, and 40°C (32°, 50°, 77°, and 104°F). Any required Correction
Factors are tabulated. If humidity has a measurable effect on the gas
readings, the temperature tests are performed at constant relative
humidity (not absolute humidity). Any temperature corrections should
be multiplied by any humidity corrections to obtain true readings.
7. Storage Life. Samples of tubes are stored for extended periods to
evaluate their accuracy at dened time periods to determine their
storage life. The user should store tubes in darkness at 3° to 7°C (37°
to 45°F) to maximize their shelf life. Freezing tubes (storage below
0°C, or 32°F) can damage some types and is not recommended.
8. Cross-Sensitivity. Tubes are challenged with a variety of possible
interfering gases to quantitate their relative response. Although the
tubes are highly selective, compounds that are chemically similar to
a target compound sometimes show a positive interference. Others
interfere with the measurement gas without showing a response
on their own; for example, when acidic vapors coexist with basic
vapors. Such information is listed in a separate note or column titled
“Interferes in Mixtures.” The user should know as much about the
sample environment as possible in order to make sound judgments
regarding possible interferences; otherwise inaccurate readings may
result. In some cases, a different color or pattern of the stain can clue
the user to the presence of an interfering compound.
TECHNICAL INFORMATION
22 www.honeywellanalytics.com
4.3 Humidity, Temperature, Pressure, and Matrix Effects
1. Humidity
Humidity has little effect on most tubes either because the reaction is
insensitive to moisture or because drying agents are added to absorb
the moisture in a pre-layer (see Figure 4-2). Humidity tends to have
the greatest effect on compounds that are highly water-soluble, such
as acids and bases. HF (hydrouoric acid) is a notable example that
requires humidity corrections; water-adsorbing prelayers cannot be
used because they tend to be reactive with HF. The humidity effect
tends to be greater as the concentration range of the tube is lowered.
When correcting for humidity, the CF is multiplied by the reading in
addition to multiplying by any temperature correction. Any necessary
Correction Factors are listed in the individual tube data sheets. Note
that the relative humidity at the measurement temperature denes the
correction, rather than the absolute humidity.

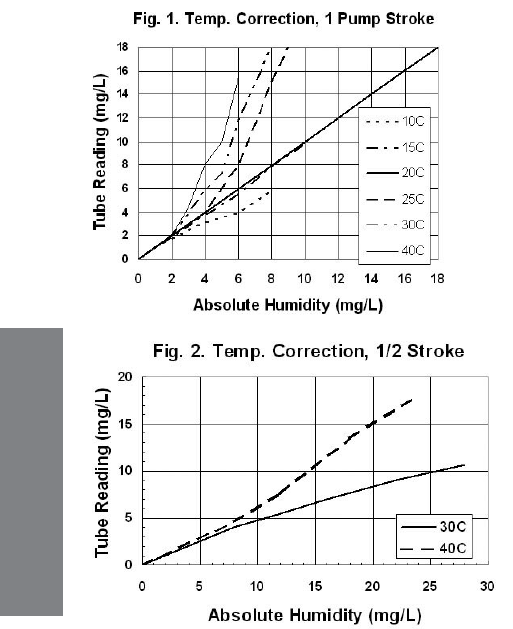

Figure 4-2. Effect of humidity on gas detection tube readings.
TECHNICAL INFORMATION
23
www.honeywellanalytics.com
2. Temperature
Temperature can affect gas tube readings in at least three ways. First,
as the temperature increases, the gas density decreases, causing a
tendency for the reading to decrease (see pressure effects described in
the next section). Second, as the temperature increases, the reaction
rate increases, causing the reading to be sharper and shorter. A third,
balancing effect is that adsorption is often a prerequisite for reaction.
Adsorption is weaker as temperature increases, and thus the reading
can become longer. The interplay of these competing effects results in
some stains that are longer with increasing temperature, and others
that are shorter.

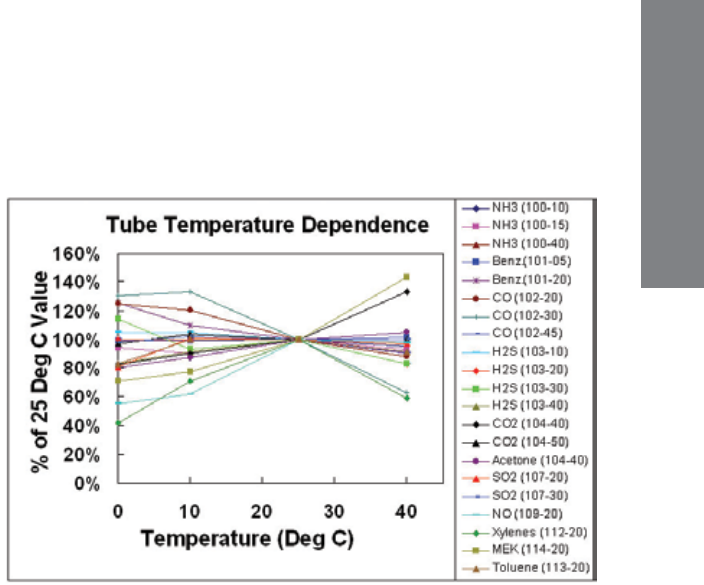

Figure 4-3. Effect of temperature on gas detection tube readings.
Additional factors occur in special cases. For example, pretube or prelayer
reactions are sometimes more complete at higher temperatures,
causing higher readings in the measurement layer. In some cases, the

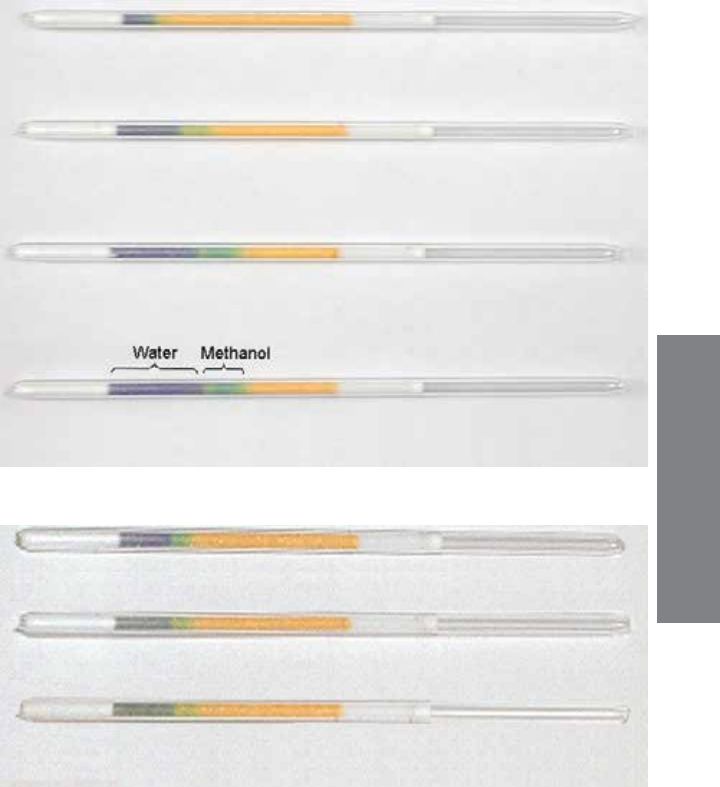

color of the stain can change. In the water vapor H-10-120-20 tube,
the color stain is green at room temperature and a more purple color
below room temperature.
TECHNICAL INFORMATION
24 www.honeywellanalytics.com
3. Pressure
Tubes change color in proportion to the mass of the compounds
reaching the reagent (i.e, the absolute concentration). Therefore, as
the pressure decreases at higher altitudes, the apparent response is
reduced because there are fewer molecules per unit volume sampled.
The conventional desired reading is in ppmv (parts per million by
volume), which is a relative concentration, such as a mole or volume
fraction (% of molecules of compound per molecules of total gas [air]),
rather than an absolute concentration.
All Honeywell tubes are calibrated at 1 atmosphere (760 mm Hg)
pressure at sea level.
• For tubes calibrated in absolute concentrations such as lbs./MMCF or
mg/m3, no pressure corrections are needed.
• For tubes calibrated in relative concentrations (e.g., ppm), correct for
pressure using one of the following equations:
Corrected reading = Observed Reading x 760 mm Hg
Pressure (mm Hg)
Corrected reading = Observed Reading x 101.3 kPa
Pressure (kPa)
Corrected reading = Observed Reading x 14.7 psia
Pressure (psia)
The pressure in mm Hg can be estimated as a function of altitude using
the following equation:
P (mm Hg) = 760exp(-0.1286[alt(km)]) below 2 km
Example Correction Factors are listed in the following table as a
function of altitude. Weather changes may also affect the atmospheric
pressure, but the necessary corrections are usually <10%.
TECHNICAL INFORMATION
25
www.honeywellanalytics.com
Example Location Altitude
(km) Altitude
(feet) Pressure,
(mm Hg) CF
San Francisco, CA 0 0 760 1.00
Atlanta, GA 0.3 1000 731 1.04
Spokane, WA 0.6 2000 703 1.08
Rapid City, SD 0.9 3000 676 1.12
Salt Lake City, UT 1.2 4000 650 1.17
Denver, CO 1.5 5000 625 1.22
Colo. Spgs., CO 1.8 6000 601 1.27
Santa Fe, NM 2.1 7000 578 1.32
Alta, UT 2.4 8000 555 1.37
Winter Park, CO 2.7 9000 534 1.42
Keystone, CO 3.0 10000 514 1.48
4. Matrix Gas
The matrix gas usually has little or no effect on the tube readings as long
as the gas does not chemically react with the tube reagents or measured
compound. Thus, readings in air, nitrogen, hydrogen, helium, or carbon
dioxide give essentially the same results. However, the viscosity of the
gas has a signicant effect on the sampling time. Thus, for example, the
sampling time of the CO H-10-102-18 tube is about half as long in pure
hydrogen (viscosity 9.0 μPa-s) as it is in air (viscosity 18.6 μPa-s).
Matrix Gas
Viscosity
@ 27°C
(μPa-s)
Sampling Time
Relative to Air
Sampling Time for
a 90 second Tube
(seconds)
Air 18.6 1.00 90
n-Butane 7.5 0.40 36
Propane 8.3 0.45 40
Hydrogen 9.0 0.48 44
Ethane 9.5 0.51 46
Acetylene 10.4 0.56 50
Methane 11.2 0.60 54
Carbon Dioxide 15.0 0.81 73
Nitrogen 17.9 0.96 87
Helium 20.0 1.08 97
Oxygen 20.8 1.12 101
Argon 22.9 1.23 111
Neon 32.1 1.73 155
At a given viscosity, higher ow rates tend to give longer stains. However,
this is often compensated by higher diffusion rates to the reactive surface
in the less viscous gases, resulting in no signicant effect on the readings.
DATA SHEETS
26 www.honeywellanalytics.com
5. DATA SHEETS FOR GAS DETECTION TUBES
Acetone C3H6O No. H-10-111-40
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.05 - 1% 0.1 - 2% 0.2 - 4%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ±12%
Linearity with No. of Pump Strokes: r2 = 0.992
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.25 1.15 1.0 0.95
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Orange → Black
Reaction Principle: CH3COCH3 + Cr(VI) + H2SO4 → Cr(III) + Oxidation Prods.
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Corr.
Factor
Methyl ethyl ketone 0.6% 0.55% 1.1
Methyl propyl ketone 1.0% 0.65% 1.5
Methyl isobutyl ketone 1.0% 0.40% 2.5
CO 1.5% 0 -
CO21.5% 0 -
CH42.5% 0 -
NH35.0% 1.4% brown 3.6
H2S300 0.5% diffuse#-
Ethyl Acetate 1.0% 0.85% diffuse#-
Hexane 0.24% entire tube#-
Isobutylene 0.20% entire tube#-
Toluene 400 0.3% diffuse#-
* Data based on Honeywell pumps and tubes used in standard range.
# Faint black color over entire stain length. Ketones can be distinguished by their
darker stains and sharp endpoints.
Other Possible Interferences: Other hydrocarbons.
DATA SHEETS
27
www.honeywellanalytics.com

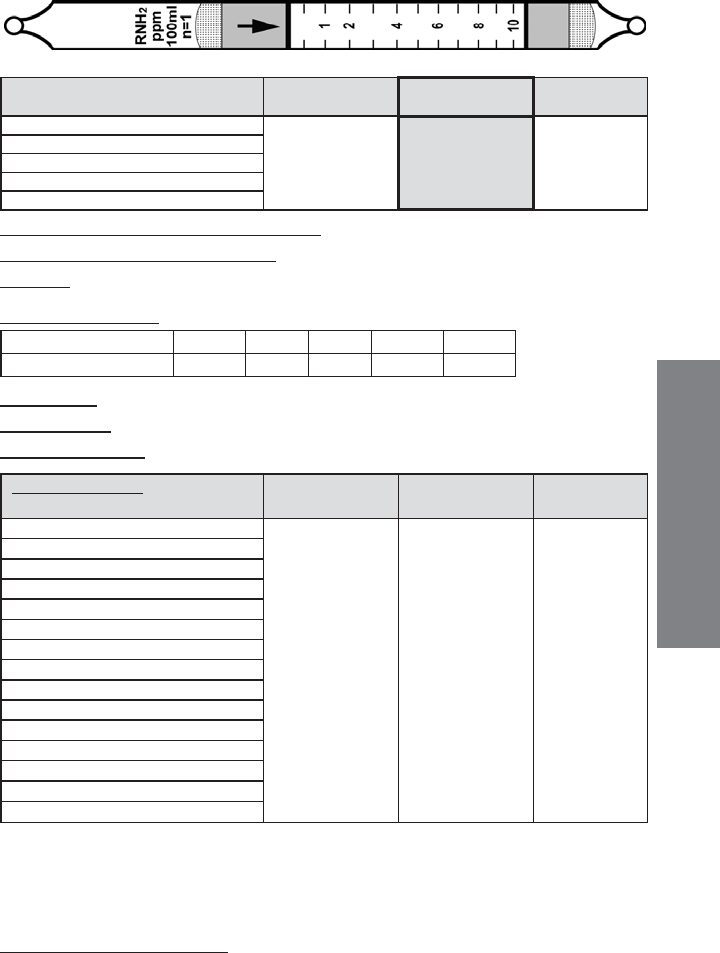

Amines RNH2 (CH3NH2) No. H-10-132-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.25 - 5 0.5 - 10 1.0 - 20
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor 0.5 1.0 2.0
Precision (Relative Standard Deviation)*: ≤ ±20%
Linearity with No. of Pump Strokes: r2 = 0.997
Humidity: No effect 0 - 90% RH
Temperature Range: 0 - 40°C (32 - 104°F) @ constant 50%RH.
Temp (°C/°F) 0/32 10/50 20/68 30/86 40/104
Corr. Factor 1.16 1.10 1.0 0.96 0.96
Storage Life: 1 year in darkness at 5-25°C (40-77°F). Refrigeration preferred.
Color Change: Pink → Yellow
Reaction Principle: 2RNH2 + H2SO4 → (RNH3)2SO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Correction
Factor
Ammonia 5 6.0 0.8
Methylamine 10 10* 1.0
Ethylamine 8 7.0 1.1
Allyamine 7.4 8.0 0.93
Diethylamine 5 6.3 0.79
Trimethylamine 4.5 9.8 0.46
Triethylamine 6 9.5 0.63
Methylaziridine (Propylene imine) 5 6.5 0.77
Ethylenediamine 7 2.0#3.5
Ethanolamine 36 4.1#8.8
Pyridine 10 Over range†-
H2S 100 0
CO 500 0
Isobutylene 100 0
HCl 1000 0£
* Data based on Honeywell pump and tubes used in standard range. This tube is
calibrated using methylamine.
# Deep purple with yellow stain at endpoint.
† Slight color change to light pink.
£ Interferes in mixtures.
Other Possible Interferences: Other bases.
DATA SHEETS
28 www.honeywellanalytics.com

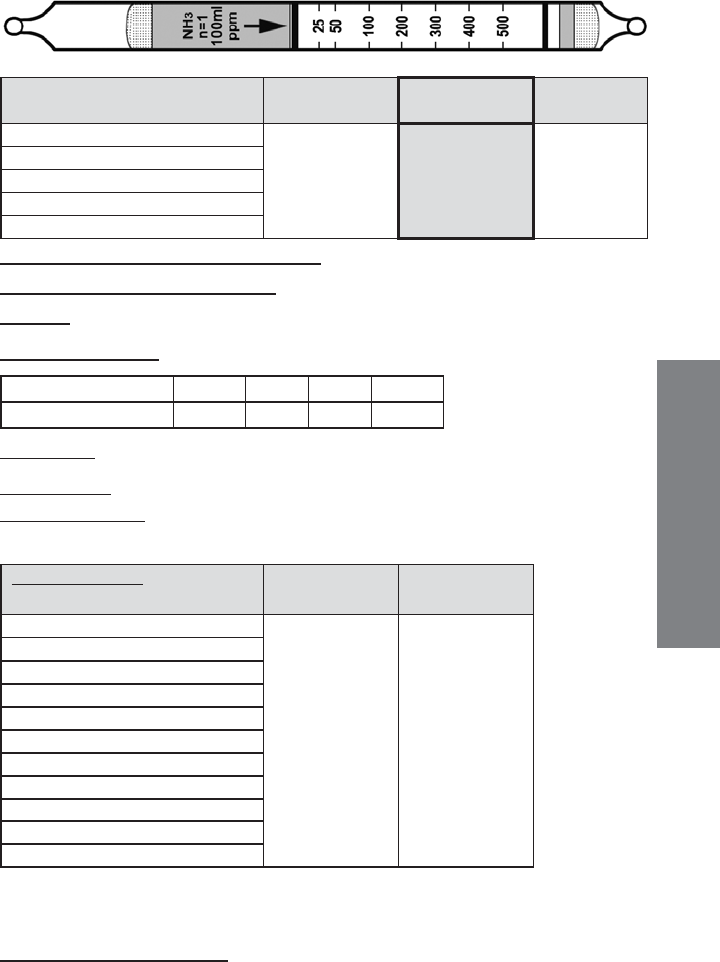

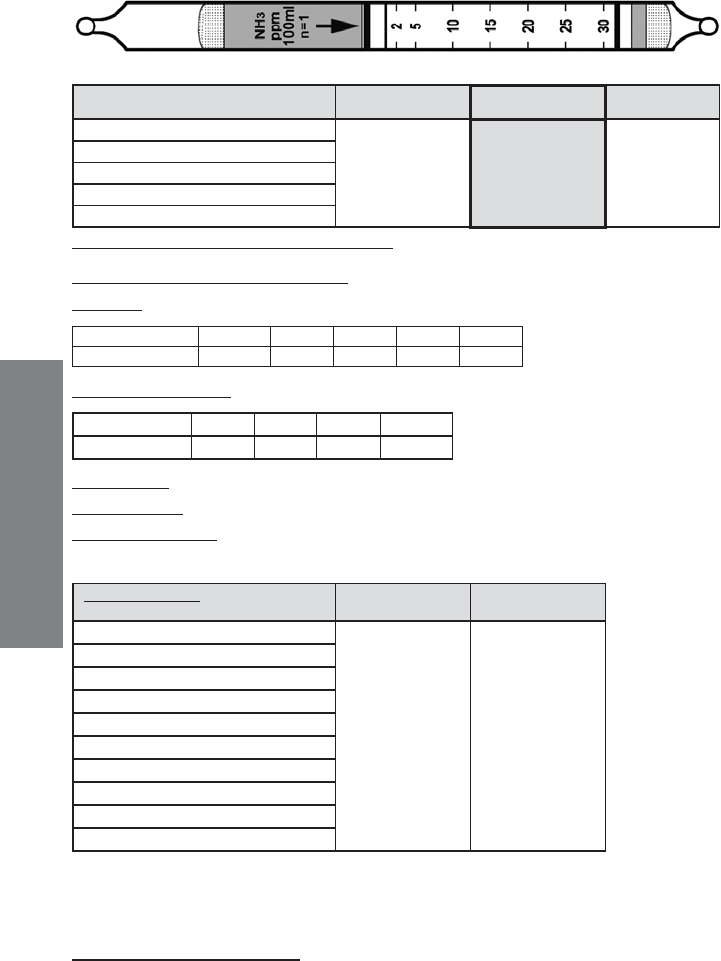

Ammonia NH3 No. H-10-100-05
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 15 1 - 30 2 – 60
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.55 1 2.4
Precision (Relative Standard Deviation)*: ≤ ± 12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: The tubes are calibrated at 50% RH @ 24 °C (75 °F)
% RH < 5% 10% 50% 80% 95%
Corr. Factor 0.8 0.85 1.0 1.0 1.0
Temperature Range: 0 - 40°C (32 - 104°F) @ constant 50%RH
Temp (°C/°F) 0/32 10/50 25/77 35/95
Corr. Factor 0.9 0.95 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40-77°F). Refrigeration preferred.
Color Change: Purple → Beige
Reaction Principle: Prelayer reduces humidity effects
3NH3 + H3PO4 → (NH4)3PO4
Cross-sensitivity:
Substance
Concentration
(ppmv) Apparent
Reading*
Pyridine 10 15
Diethylamine 20 18
Hydrazine 20 2**
Methylhydrazine 20 2.3**
CO 100 0
CO220000 0#
H2S200 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
** These hydrazines can be measured using 2 strokes with a CF of 5.
# 16000 ppm CO2 reduces the NH3 response by 30% in mixtures, 5000 ppm CO2 reduces
NH3 response by 10% in mixtures, and 1000 ppm CO2 has no effect.
Other Possible Interferences: Amines and other bases.
DATA SHEETS
29
www.honeywellanalytics.com

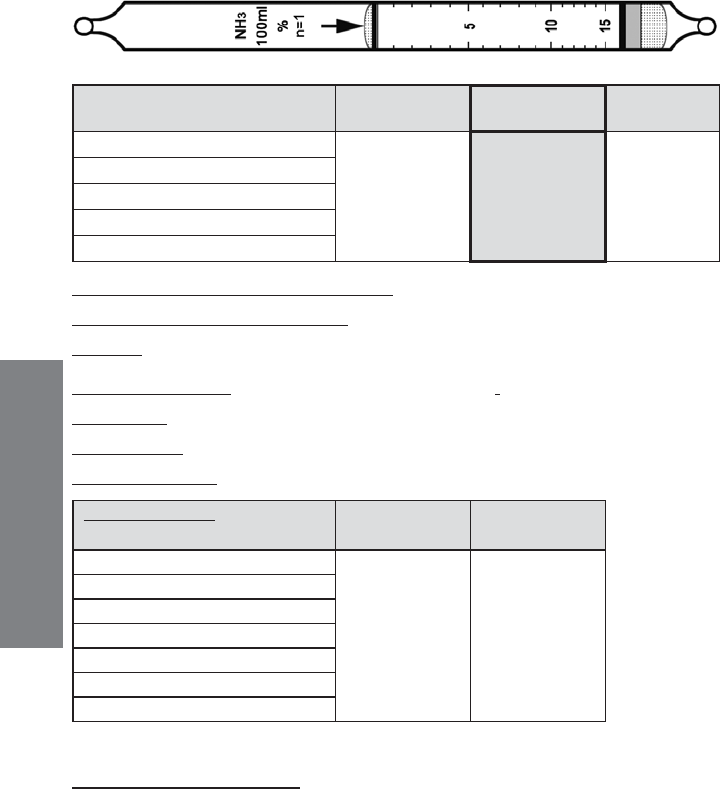

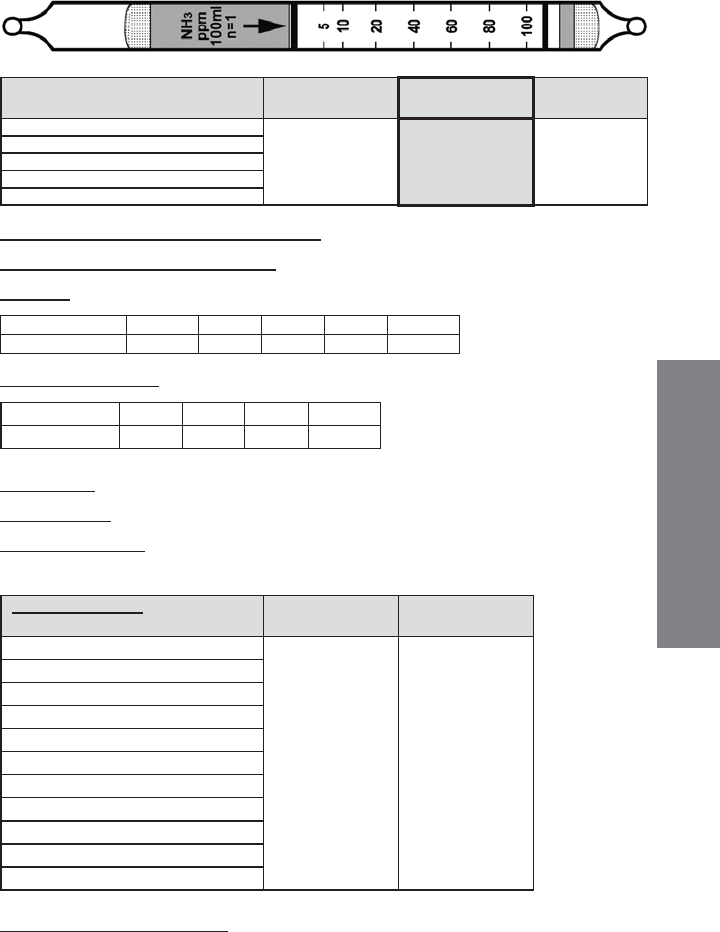

Ammonia NH3 No. H-10-100-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 – 200
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ± 12%
Linearity with No. of Pump Strokes: r2 = 1.000
Humidity: @ 24 °C (75 °F) The tubes are calibrated at 50% RH.
% RH < 5% 20% 50% 70% 90%
Corr. Factor 0.7 0.8 1.0 1.1 1.3
Temperature Range: 0 - 35°C (32 - 95°F) @ constant 50% RH
Temp (°C/°F) 0/32 10/50 24/75 34/93
Corr. Factor 0.8 1.0 1.0 1.0
Storage Life: 2 years in darkness at 3 - 10°C (37 - 50°F). Refrigeration required.
Color Change: Purple → Beige
Reaction Principle: Prelayer reduces humidity effects
3NH3 + H3PO4 → (NH4)3PO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Butylamine 100#45
Diethylamine 50#60
CO 250 0
H2S100#0
SO2100#0
CH450000 0
CO250000 0
NO2200 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range. # At 50% RH.
Other Possible Interferences: Amines and other bases.
DATA SHEETS
30 www.honeywellanalytics.com
Ammonia NH3 No. H-10-100-12
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 5 - 130 10-260 20 - 520
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ± 12%
Linearity with No. of Pump Strokes: r2 = 1.000
Humidity: @ 22 °C (72 °F) The tubes are calibrated at 50% RH.
% RH < 5% 10% 50% 70% 90%
Corr. Factor 0.8 0.9 1.0 1.0 1.0
Temperature Range: 0 - 40°C (32 - 104°F) @ constant 50%RH
Temp (°C/°F) 0/32 10/50 22/72 40/104
Corr. Factor 0.8 1.0 1.0 1.0
Storage Life: 2 years in darkness at 3 - 10°C (37 - 50°F). Refrigeration required.
Color Change: Purple → Beige
Reaction Principle: Prelayer reduces humidity effects
3NH3 + H3PO4 → (NH4)3PO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Butylamine 200#200
Diethylamine 200#260
CO 250 0
H2S100#0
SO2100#0
CH450000 0
CO250000 0
NO2200 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
# At 50% RH.
Other Possible Interferences: Amines and other bases.
DATA SHEETS
31
www.honeywellanalytics.com
Ammonia NH3 No. H-10-100-15
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 12 - 250 25 - 500 50 - 1000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor 0.56 1 2
Precision (Relative Standard Deviation)*: ≤ ± 12%
Linearity with No. of Pump Strokes: r2 = 0.998
Humidity: No effect at 10 - 90% RH. At <5% RH multiply the reading by 0.8.
Temperature Range: 0 - 40°C (32 - 104°F) @ constant 50%RH.
Temp (°C/°F) 0/32 10/50 24/75 40/104
Corr. Factor 1.3 1.0 1.0 1.2
Storage Life: 2 years in darkness at 3 - 10°C (37 - 50°F). Refrigeration required.
Color Change: Purple → Beige
Reaction Principle: Prelayer reduces humidity effects
3NH3 + H3PO4 → (NH4)3PO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Butylamine 300#200
Diethylamine 100#90
CO 250 0
CO250000 0
H2S250 0
SO2500#0‡
NO2 200 0
CH425000 0
Hexane 1500 0
Toluene 200 0
Isobutylene 5000 0
* Data based on Honeywell pumps and tubes used in standard range.
#At 50% RH. ‡Reduces reading in mixtures
Other Possible Interferences: Amines and other bases.
DATA SHEETS
32 www.honeywellanalytics.com
Ammonia NH3 No. H-10-100-40
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 7.5% 1 - 15% 2 - 30%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ± 10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: 85% RH reduces the reading by about 25% compared to dry air
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Orange → Deep Purple
Reaction Principle: 3NH3 + H3PO4 → (NH4)3PO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO2100000 0
SO2200 0
NO 100 0
Hexane 100 0
Isobutylene 1000 0
CH425000 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Amines and other bases
DATA SHEETS
33
www.honeywellanalytics.com

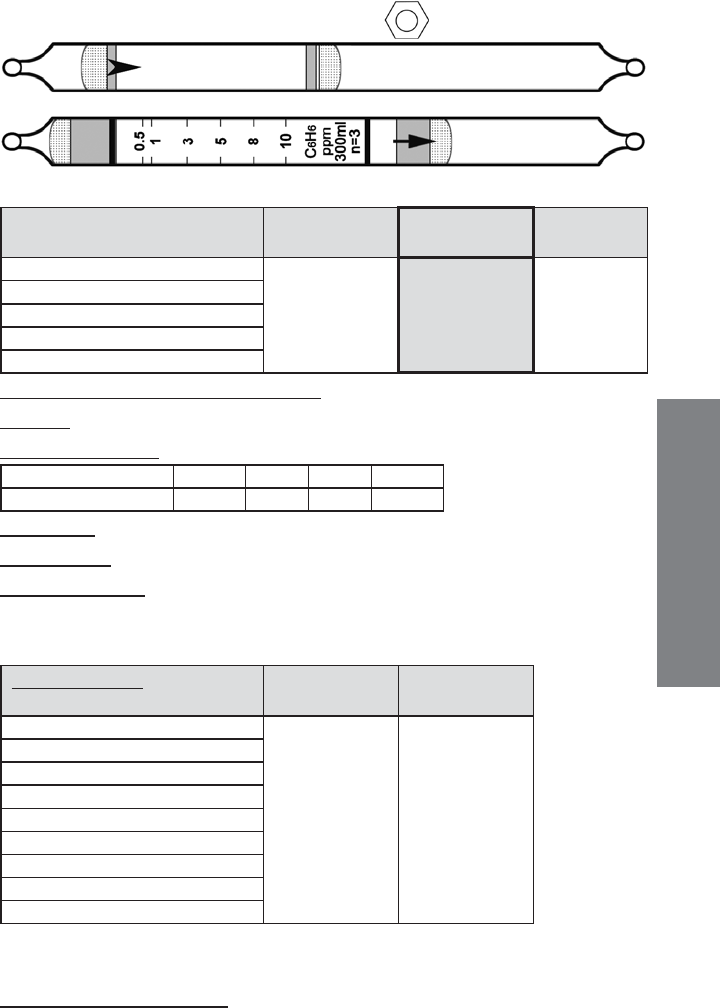

Benzene Specic C6H6 No. H-10-101-01
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.25 - 5 0.5-10 1.5 - 30
No. of Pump Strokes 6 3 1
Sample Volume (mL) 600 300 100
Sample Time (min) 6 x 3 3 x 3 3
Correction Factor 0.27 1 4
Precision (Relative Standard Deviation)*: ≤±12%
Humidity: No effect 0 - 95% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 2.7 1.6 1.0 0.6
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown
Reaction Principle: Pretube removes interferences
2C6H6 + CH2O → diphenylmethane + H2O
diphenylmethane + H2S2O7 → p-quinoid products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Isobutylene 100 0
n-Hexane 500#0
n-Heptane 100 0
Toluene 100 0
m-Xylene 50 0
m-Xylene 100 5
CH425000 0
CO 10 0
H2S 25 0
* Data based on Honeywell pumps and tubes used in standard range.
# Hexane above 100 ppm will reduce the benzene response.
Other Possible Interferences: Hydrocarbons and similar reducing gases.
DATA SHEETS
34 www.honeywellanalytics.com

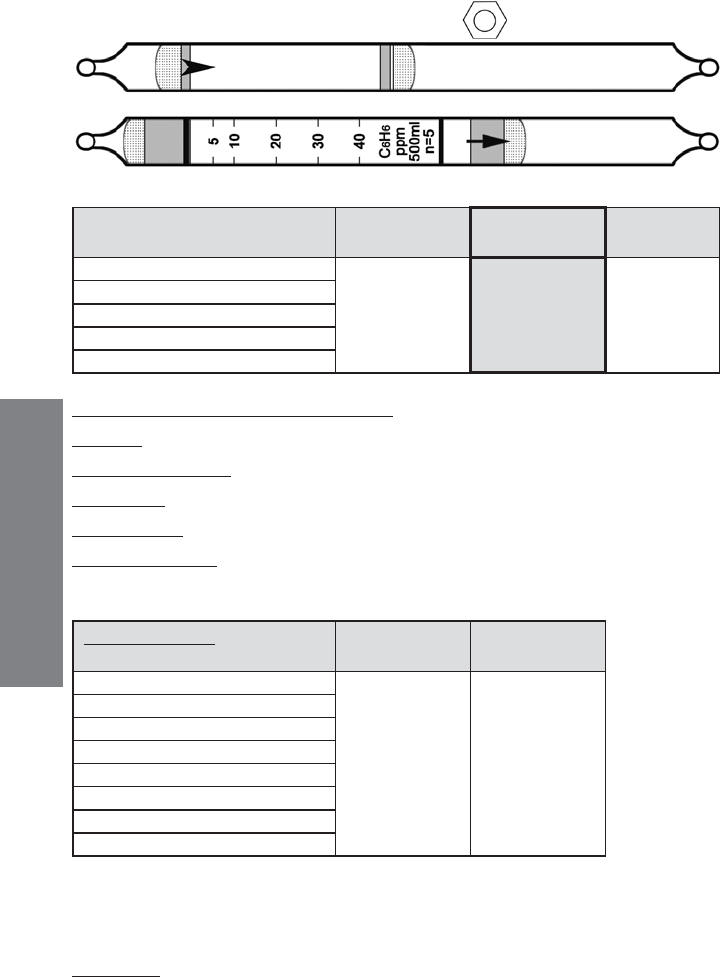

Benzene Specic C6H6 No. H-10-101-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 20 5 - 40 25 - 200
No. of Pump Strokes 10 5 1
Sample Volume (mL) 1000 500 100
Sample Time (min) 10 x 3 5 x 3 3
Correction Factor 0.5 1 5
Precision (Relative Standard Deviation)*: ≤ ± 12%
Humidity: No effect 5 - 100% RH
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown
Reaction Principle: Pretube removes interferences
C6H6 + I2O5 + H2S2O7 → I2 + oxidation products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Isobutylene 100 ~2 (faint)
n-Hexane 10 0
n-Octane 100 0
Toluene 35 0#
m-Xylene 50 0#
β-Pinene 50 ~2 (very faint)
CO 10 7
H2S25 0
* Data based on Honeywell pumps and tubes used in standard range.
#With 10 strokes, toluene and xylene at 50 ppm read 2 ppm and 100 ppm
octane reads ≤2 ppm.
Other Data: Without the pretube the readings are 30% higher.
DATA SHEETS
35
www.honeywellanalytics.com

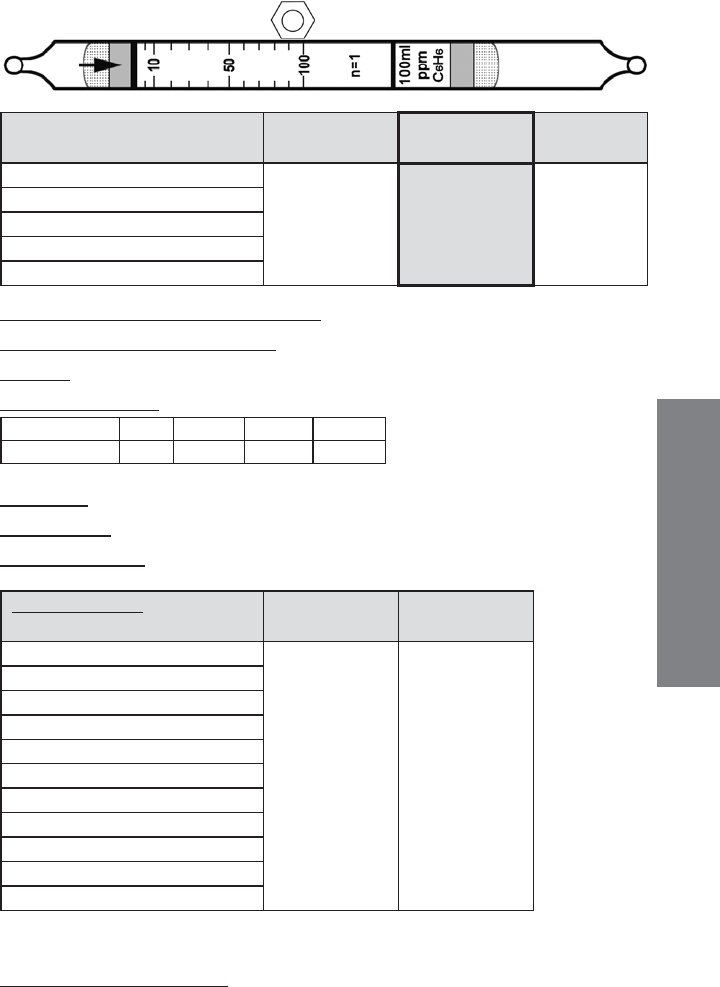

Benzene C6H6 No. H-10-101-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 - 200
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ± 12%
Linearity with No. of Pump Strokes: r2 = 0.992
Humidity: No effect 5 - 95% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 21/70 40/104
Corr. Factor 0.8 0.9 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown
Reaction Principle: C6H6 + I2O5 + H2S2O7 → I2 + oxidation products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 50 40
CO250000 0
H2S50 20
NO 100 40
NH3100 0
CH425000 0
SO210 0
Hexane 50 >100
Isobutylene 100 10
Toluene 100 20
o-Xylene 50 3
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Hydrocarbons and similar reducing gases.
DATA SHEETS
36 www.honeywellanalytics.com

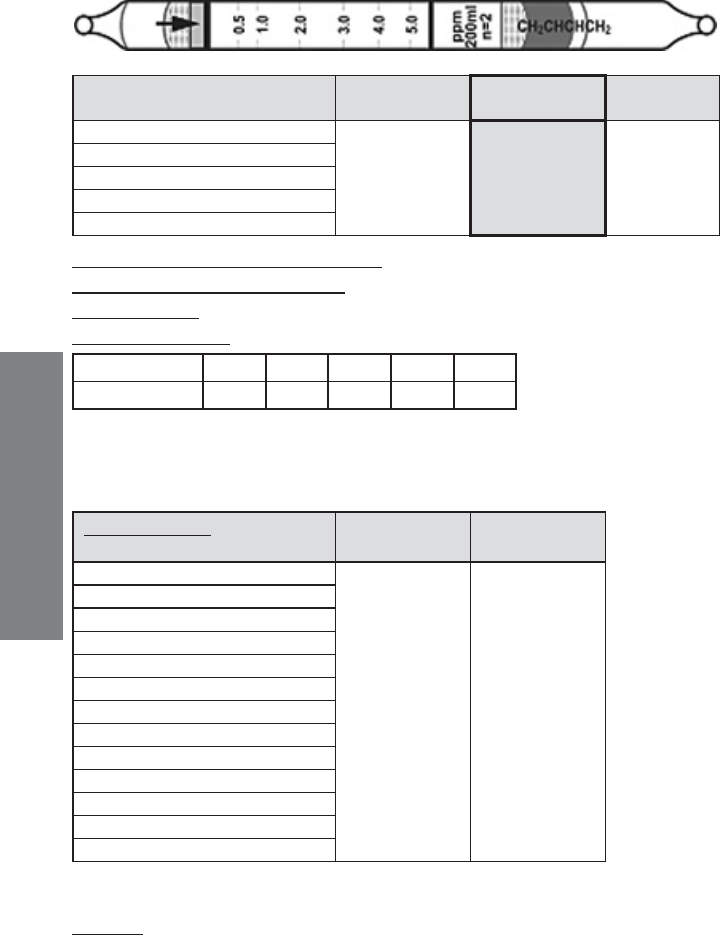

1,3-Butadiene CH2=CHCH=CH2 No. H-10-135-04
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.25-2.5 0.5-5 1-10
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2 2 x 2 2
Correction Factor 0.43 1 2.4
Precision (Relative Standard Deviation)*: ≤ ± 15%
Linearity with No. of Pump Strokes: r2 >0.998
Humidity Range: no effect 0 - 90% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 20/68 30/86 40/104
Corr. Factor 1.5 1.15 1.0 0.85 0.8
Storage Life: 2 years in darkness below 10°C (50°F). Refrigeration required.
Color Change: Pink → White
Reaction Principle: CH2=CHCH=CH2 + KMnO2 → Oxidation products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Isobutylene 54.4
Ethylene 10 0**
Hexane 100 0
Toluene 100 0
CH475000 0
CO24000 0
CO 400 0
H2S 30 0
SO250.5
NO 81.9
NO210 0.5
NH350 0
HCN 10 0
*Data based on Honeywell and tubes used in standard range.
** The entire tube changes to very light pink, no boundary.
Caution: Dispose of spent or expired tubes according to local regulations.
Possibly hazardous materials are given under the section Reaction Principle.
DATA SHEETS
37
www.honeywellanalytics.com

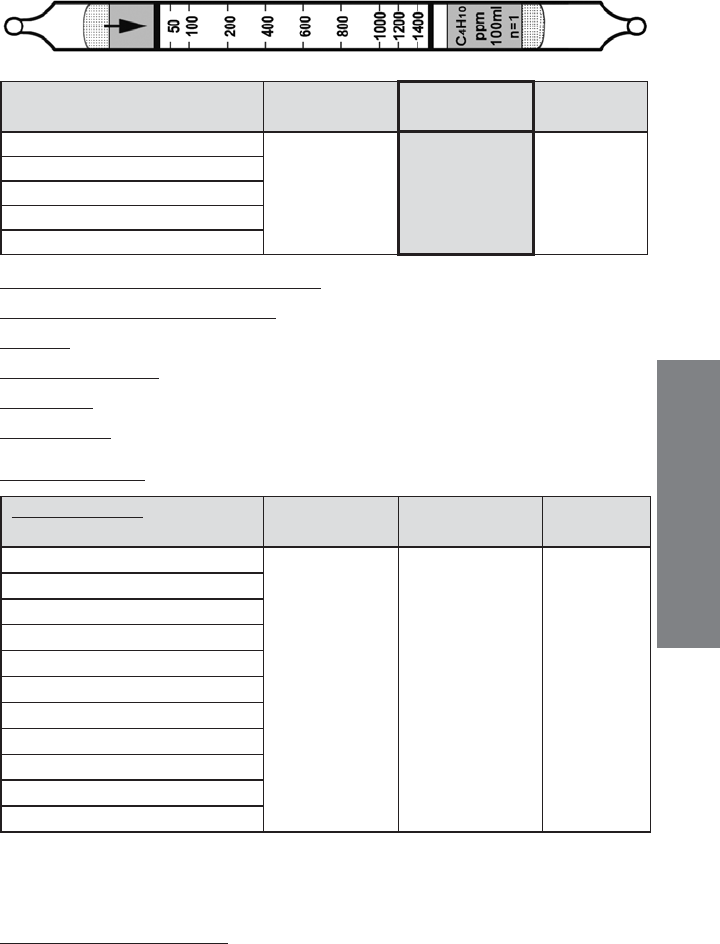

n-Butane n-C4H10 No. H-10-137-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 12.5– 700 25 - 1400 50 - 2800
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2.5 2.5 2
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤ ± 20%
Linearity with No. of Pump Strokes: r2 >0.999
Humidity: No effect 5 - 100% RH.
Temperature Range: No effect 0 - 40°C (32 - 104°F).
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow-Orange → Brown (greenish)
Reaction Principle: C
4H10 + K2Cr2O7 + H2SO4 → Cr(III) + Oxidation Products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Correction
Factor
CH425000 0 -
Propane 500 ~650 (l.brown)#~0.8
Isobutane 100 20 ~5
Isobutylene 1500 ~15 ~100
n-Pentane 200 80 (green)#2.5
n-Hexane 1500 530 (green)#2.8
CO 500 0 -
H2S 500 90 5.6
Ethanol 1000 ~3 >300
Acetone 1000 ~9 >100
Methyl Ethyl Ketone 1000 ~8 >100
* Data based on Honeywell pumps and tubes used in standard range.
# Propane gives light brown reading with very indistinct endpoint, butane gives moderately
sharp endpoint, and pentane and hexane give sharp endpoints.
Other Possible Interferences: Other hydrocarbons
DATA SHEETS
38 www.honeywellanalytics.com

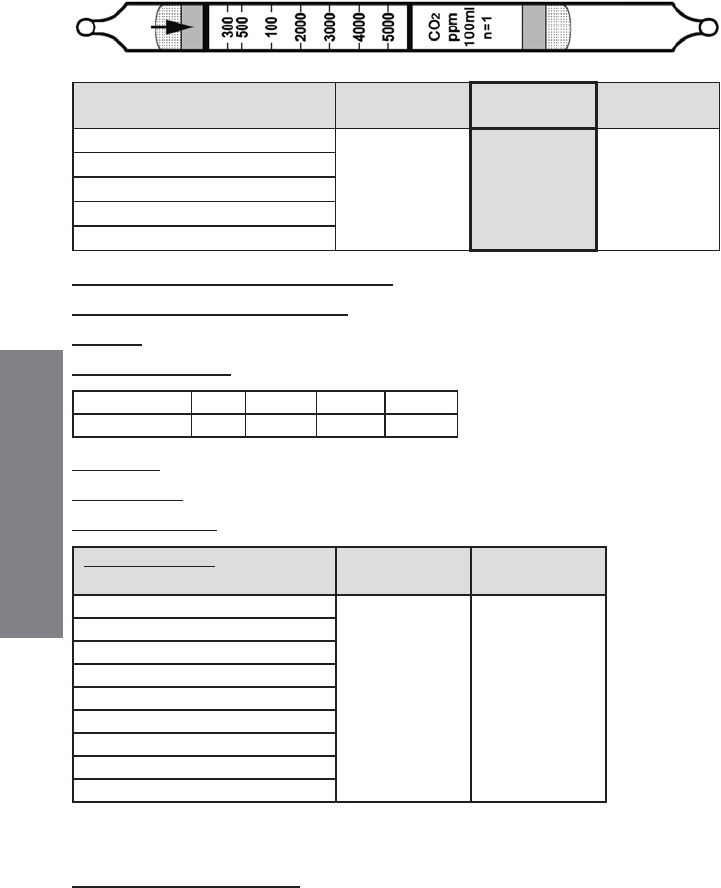

Carbon Dioxide CO2 No. H-10-104-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 150 - 2500 300 - 5000 600 - 10000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2.3
Precision (Relative Standard Deviation)*: ≤ ± 10%
Linearity with No. of Pump Strokes: r2 = 0.993
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 21/70 40/104
Corr. Factor 0.90 0.95 1.0 0.95
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Purple
Reaction Principle: CO2 + H2NNH2 → H2NNHCO2H (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
SO22050 500
SO2200 ~50
NO 100 0
NH350,000 0
H2S2000 0
Hexane 1500 0
Isobutylene 100 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases. Ammonia interferes in mixtures.
DATA SHEETS
39
www.honeywellanalytics.com

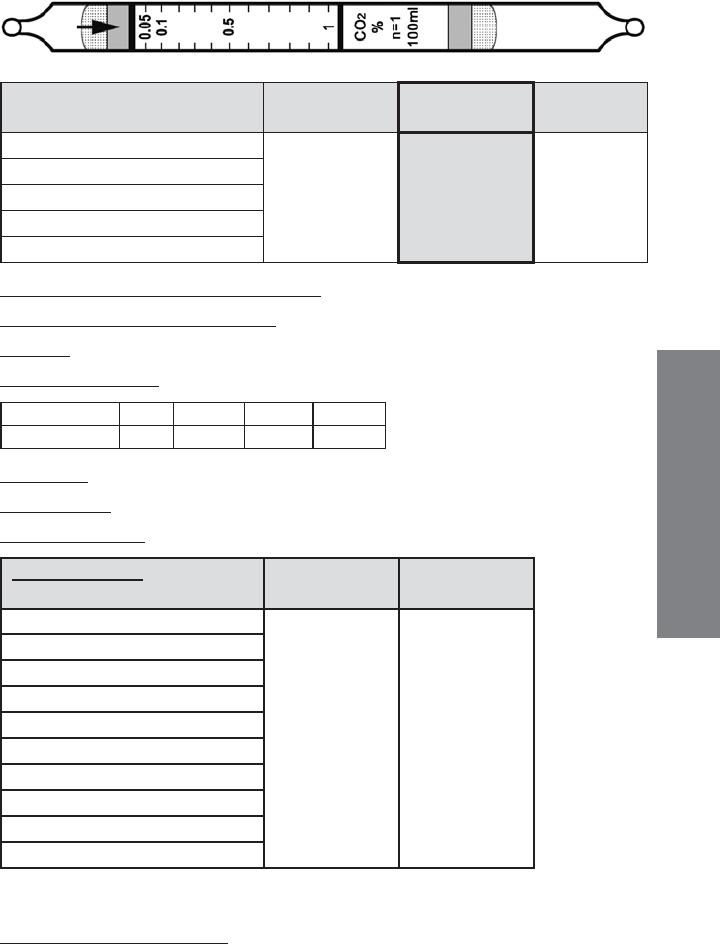

Carbon Dioxide CO2 No. H-10-104-40
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.025 - 0.5% 0.05 - 1% 0.1 - 2%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2.3
Precision (Relative Standard Deviation)*: ≤ ± 10%
Linearity with No. of Pump Strokes: r2 = 0.994
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 21/70 40/104
Corr. Factor 1.2 1.1 1.0 0.75
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Purple
Reaction Principle: CO2 + H2NNH2 → H2NNHCO2H (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
SO210 0.1%
NO 100 0
NH310% 0
CH42.5% 0
H2S 0.5% 0.1%
Hexane 1200 0
Isobutylene 100 0
Benzene 100 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases. Ammonia interferes in mixtures.
DATA SHEETS
40 www.honeywellanalytics.com

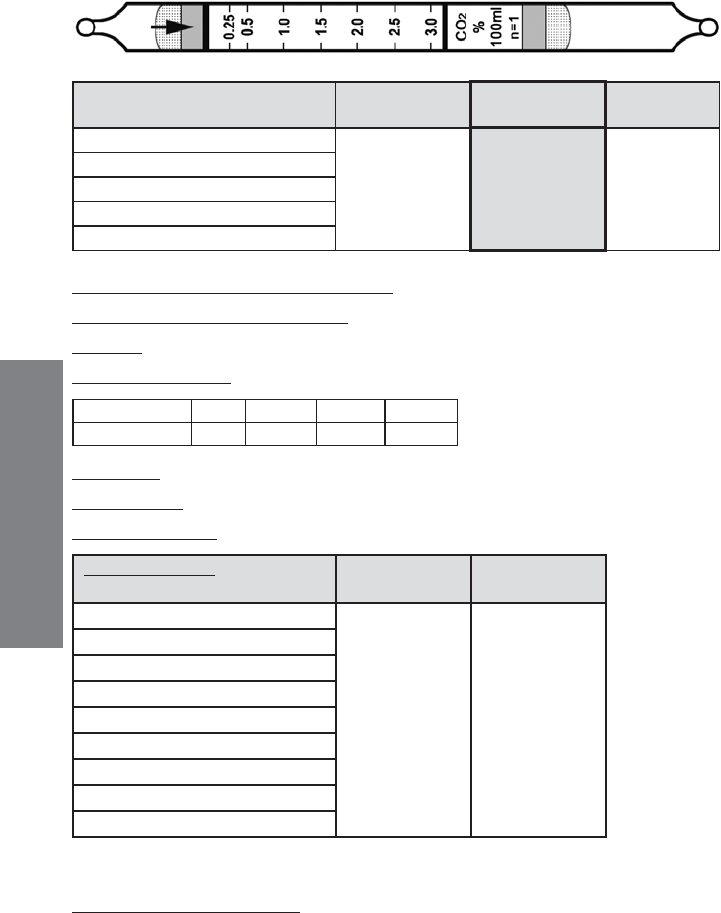

Carbon Dioxide CO2 No. H-10-104-45
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.125 - 1.5% 0.25 - 3% 0.5 - 6%
No. of Pump Strokes 21 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2.3
Precision (Relative Standard Deviation)*: ≤ ± 10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 23/73 40/104
Corr. Factor 0.85 0.95 1.0 1.05
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Purple
Reaction Principle: CO2 + H2NNH2 → H2NNHCO2H (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 1.5% 0
SO25% 2.5%
SO2200 0
NO 100 0
NH35% 0
CH42.5% 0
H2S2000 0
Hexane 1500 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases. Ammonia interferes in mixtures.
DATA SHEETS
41
www.honeywellanalytics.com

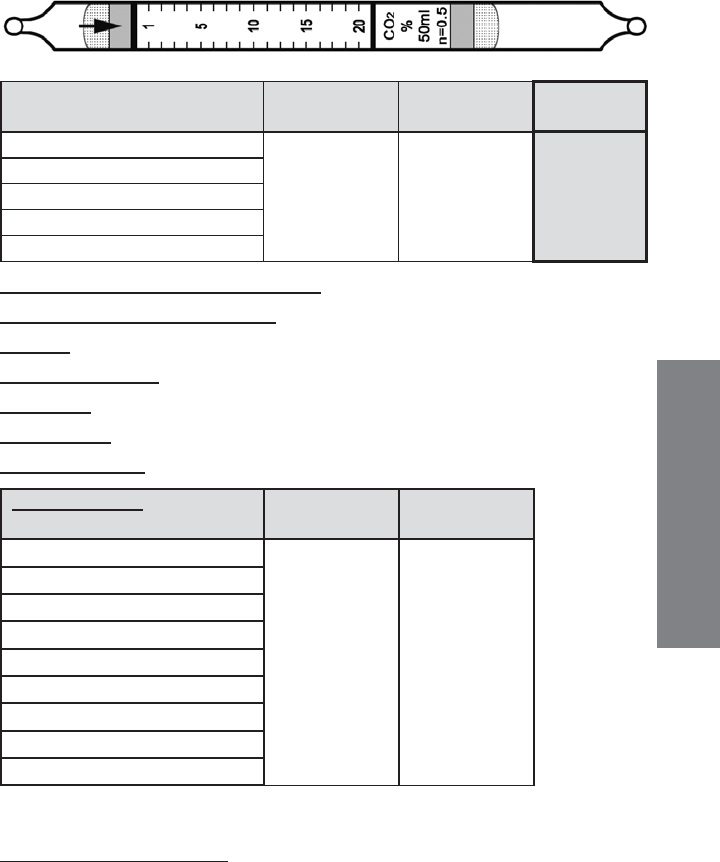

Carbon Dioxide CO2 No. H-10-104-50
Extended
Range
Extended
Range
Standard
Range
Range (%) 0.25 - 5% 0.5 - 10% 1 - 20%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.25 0.5 1
Precision (Relative Standard Deviation)*: ≤ ± 10%
Linearity with No. of Pump Strokes: r2 ≥ 0.999
Humidity: No effect 5 - 100% RH
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Purple
Reaction Principle: CO2 + H2NNH2 → H2NNHCO2H (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
SO2200 0
NO 100 0
NH3300 0
CH425000 0
H2S 100 0
Hexane 1200 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases
DATA SHEETS
42 www.honeywellanalytics.com
Carbon Dioxide CO2 No. H-10-104-60
Extended
Range
Extended
Range
Standard
Range
Range (%) 1.25 - 10% 2.5 - 20% 5 - 40%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.33 0.6 1
Precision (Relative Standard Deviation)*: ≤ ± 10%
Humidity: No effect 5 - 100% RH
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Purple
Reaction Principle: CO2 + H2NNH2 → H2NNHCO2H (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 40000 0
SO24000 0.5
NO 100 0
NH3500 0
CH425000 0
H2S10000 0
Hexane 1200 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases
DATA SHEETS
43
www.honeywellanalytics.com

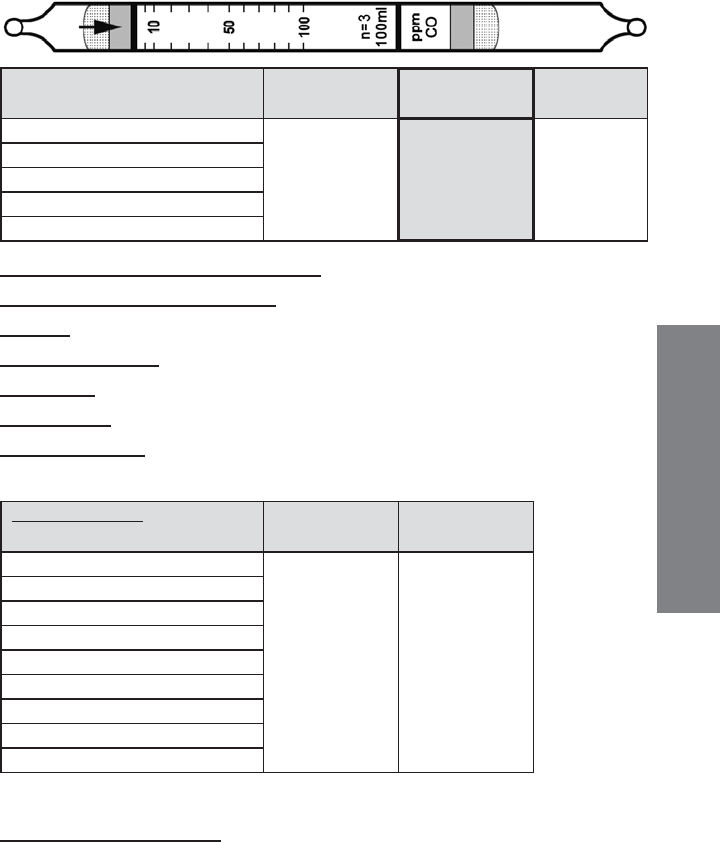

Carbon Monoxide CO No. H-10-102-18
(Selective)
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 15 - 300
No. of Pump Strokes 6 3 1
Sample Volume (mL) 600 300 100
Sample Time (min) 6 x 2 3 x 2 2
Correction Factor 0.5 1 3.0
Precision (Relative Standard Deviation)*: ≤±15%
Linearity with No. of Pump Strokes: r2 =0.999
Humidity: No effect 5 - 100% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown
Reaction Principle: Prelayer removes most interferences
5CO + I2O5 + H2S2O7 → I2 + CO2 + sulfur products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2100% 0
NO 100 0
H2S 50 0
NH3300 0
CH425000 0
Hexane 100 12
Isobutylene 100 0
Toluene 100 0
Trichloroethylene 25 16**
* Data based on Honeywell pumps and tubes used in standard range.
**Very light blue.
Other Possible Interferences: Other hydrocarbons; most organic vapor interferences
are eliminated by the pretreatment layer.
DATA SHEETS
44 www.honeywellanalytics.com

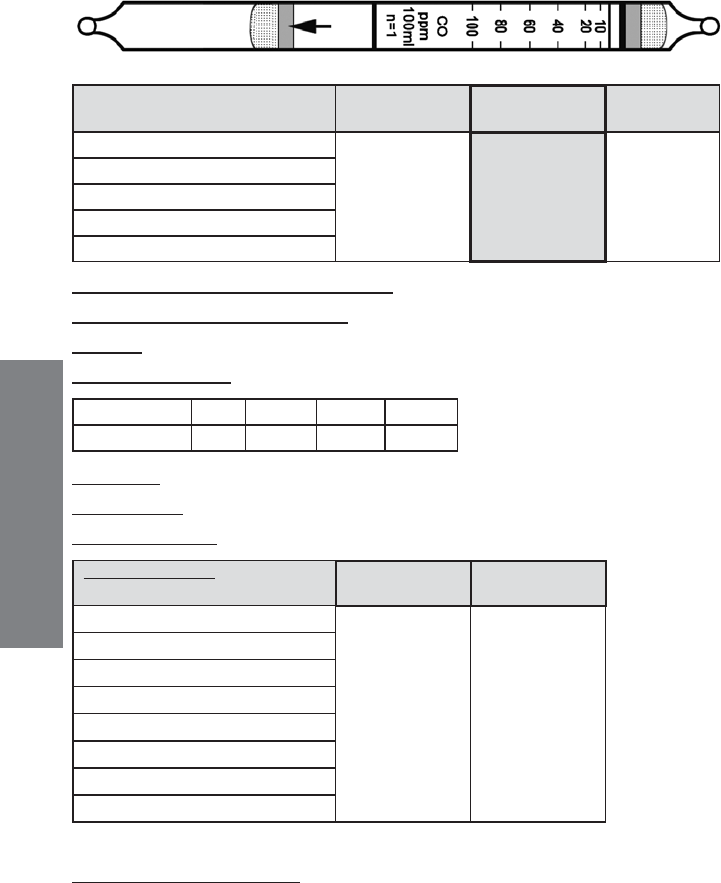

Carbon Monoxide CO No. H-10-102-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 - 200
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 >0.99
Humidity: No effect 5 - 100% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 0.80 0.83 1.0 1.15
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown Ring
Reaction Principle: 5CO + I2O5 + H2S2O7 → I2 + CO2 + sulfur products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
NO 200 0
H2S100 0
NH3300 0
CH425000 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
Trichloroethylene 25 20 (v faint)
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Most hydrocarbon interferences are eliminated in
the pretreatment layer. Can be used to measure CO in pure hydrogen.
DATA SHEETS
45
www.honeywellanalytics.com

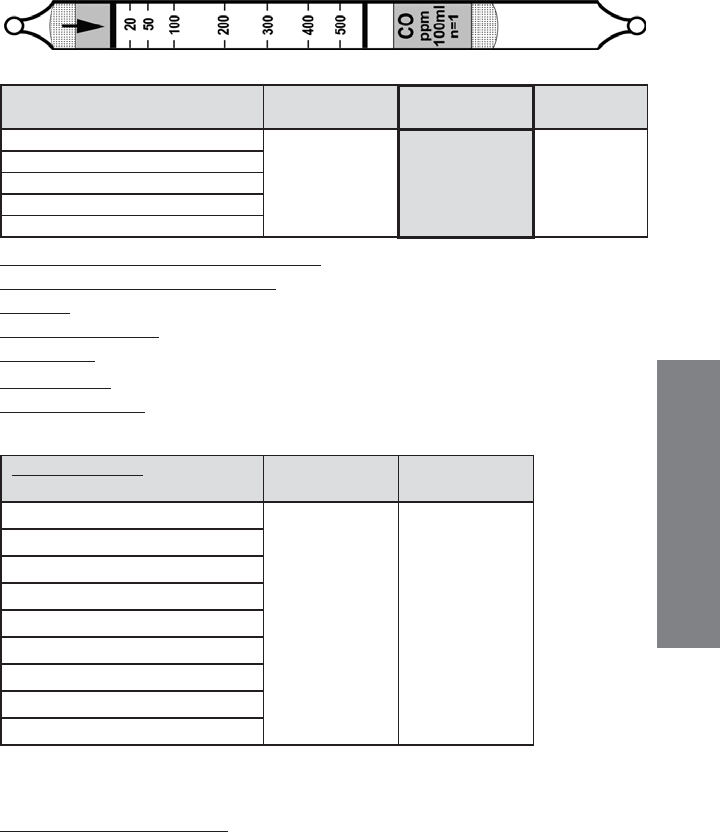

Carbon Monoxide CO No. H-10-102-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 10-250 20 - 500 40 - 1000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±15%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 95% RH.
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown
Reaction Principle: Prelayer removes most interferences
5CO + I2O5 + H2S2O7 → I2 + CO2 + sulfur products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
NO 200 0
H2S100 0
NH3300 0
CH425000 0
Hexane 100 0
Hexane 400 18
Isobutylene 100 0
Toluene 100 0
Trichloroethylene 25 15**
* Data based on Honeywell pumps and tubes used in standard range.
** Very light green.
Other Possible Interferences: Hydrocarbons and similar reducing gases.
DATA SHEETS
46 www.honeywellanalytics.com

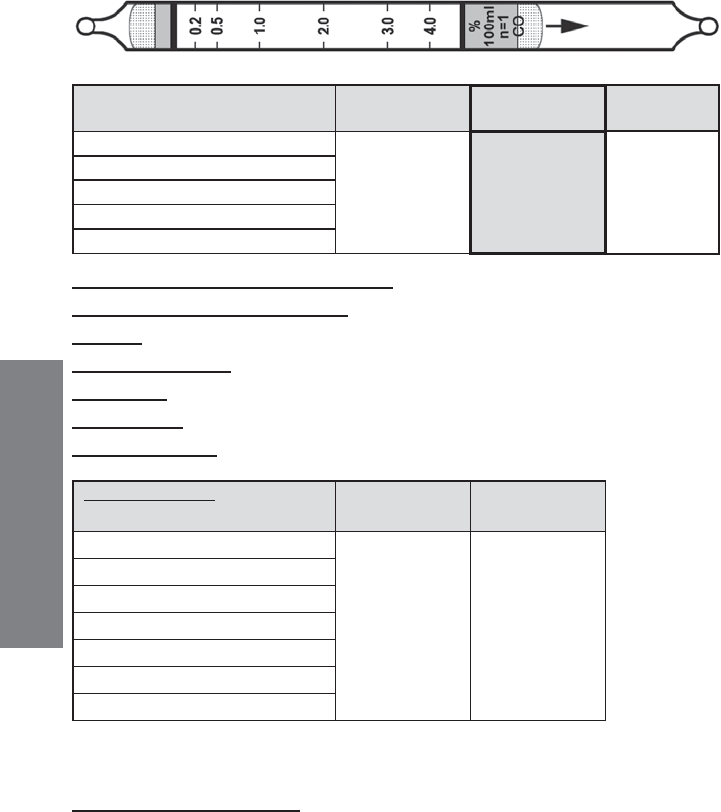

Carbon Monoxide CO No. H-10-102-45
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.1 - 2% 0.2 - 4% 0.4 - 8%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2.0
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 100% RH.
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Dark Brown
Reaction Principle: 5CO + I2O5 + H2S2O7 → I2 + CO2 + sulfur products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2S 100 0
NH3300 0
CH425000 0
Hexane 600 0.4%
Hexane 1200 1.2%
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Hydrocarbons and similar reducing gases.
DATA SHEETS
47
www.honeywellanalytics.com
Chlorine Cl2 No. H-10-106-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.25 - 4 0.5 - 8 1.0 - 16
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2.5 2.5 2
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.99
Humidity: No data
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 18/70 40/104
Corr. Factor ND ND 1.0 ND
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: Cl2 + o-Tolidine → Yellow colored product + HCl
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
ClO21 2
CO215000 0
NH350000 0#
NO25 7
CH425000 0
H2S250 0
Isobutylene 2000 0
* Data based on Honeywell pumps and tubes used in standard range.
# Interferes in mixtures.
Other Possible Interferences: Other oxidizing gases.
DATA SHEETS
48 www.honeywellanalytics.com

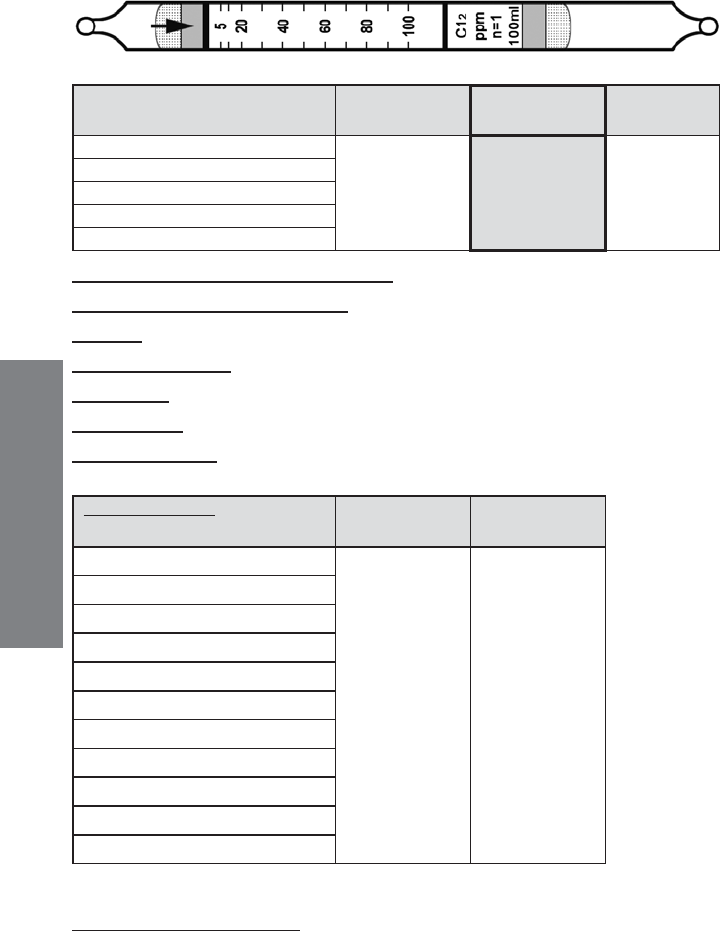

Chlorine Cl2 No. H-10-106-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 - 200
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 0-90% RH
Temperature Range: No effect between 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Orange
Reaction Principle: Cl2 + o-Tolidine → Orange colored product + HCl
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
ClO210 9
CO 250 0
CO250000 0
NO 100 5
NH3100 0
CH425000 0
H2S10 0
SO22000 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Other oxidizing gases.
DATA SHEETS
49
www.honeywellanalytics.com

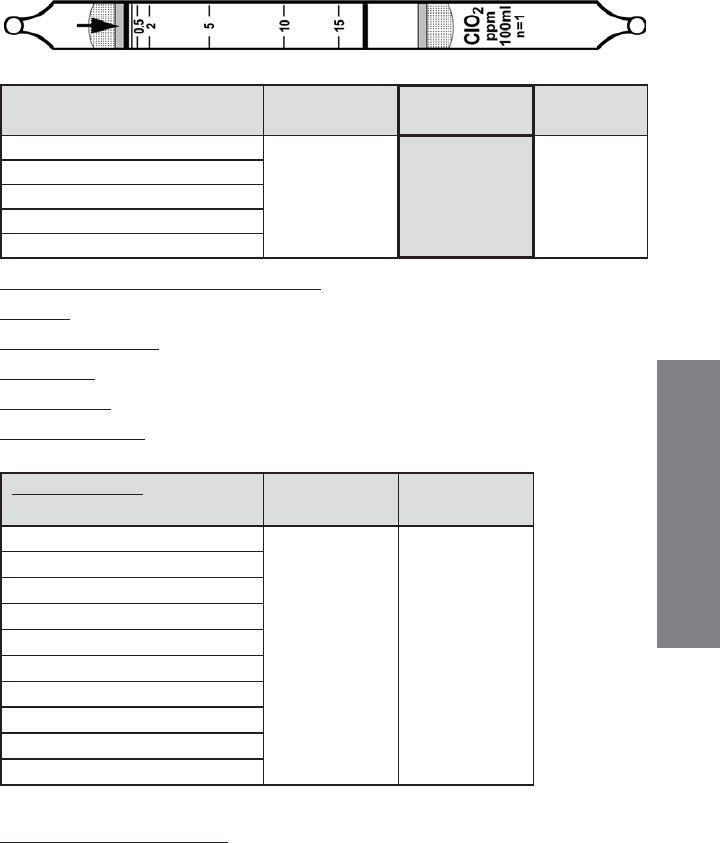

Chlorine Dioxide ClO2 No. H-10-130-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.05 - 2 0.25 - 15 0.5-30
No. of Pump Strokes 5 1 0.5
Sample Volume (mL) 500 100 50
Sample Time (min) 5 x 2 2 1
Correction Factor 0.19 1 2.1
Precision (Relative Standard Deviation)*: ≤±20%
Humidity: No effect 10-90% RH
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: ClO2 + o-Tolidine → Yellow colored product
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Cl210 6
NO 25 2
NO2511
NH350000 0
CH410000 0
HCl 1000 0
H2S 2000 0
CO 500 0
CO215000 0
Isobutylene 2000 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Bromine
DATA SHEETS
50 www.honeywellanalytics.com

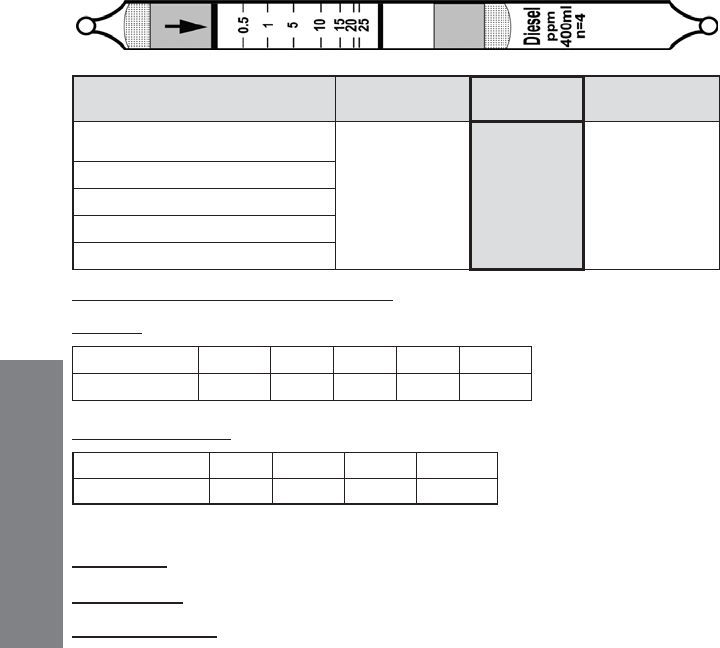

Diesel & Jet Fuel No. H-10-143-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 25
No. of Pump Strokes 4
Sample Volume (mL) Do not extend 400 Do not extend
Sample Time (min) 4 x 1.5
Correction Factor 1
Precision (Relative Standard Deviation)*: ≤±20% for undecane
Humidity: 0 - 95%RH
% RH <5% 30% 50% 80% 95%
Corr. Factor 1.0 0.8 0.7 0.7 0.7
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 20/68 40/104
Corr. Factor 1.9 1.3 1.0 0.8
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown-green Ring (Over-Range: White → Pale Yellow)
Reaction Principle: CnHm + I2O5 + H2S2O7 → I2 + Oxidation Products
Continued on next page
DATA SHEETS
51
www.honeywellanalytics.com
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Correction
Factor
Undecane (C11H24) 25 25 1.0#
Diesel, whole (Automotive or Marine) 50 20 2.5
Diesel vapors 10 ~20 ~0.4
JP-5, whole (kerosene) 25 22 1.1
JP-8, whole (kerosene) †10 11.5 0.87†
Gasoline, whole 25 10 2.5
CO210000 0 -
CO 10 10 1.0
CH4 25000 0 -
H2S60 0 -
Butane 25 0 -
Propane 100 0 -
Hexane 25 0.5** ~50
Octane 5 10 0.5
Benzene 25 1** ~25
Toluene 25 0.5** ~50
Xylene 25 0.5 ~50
Styrene 20 0.4 ~50
Ethanol 2000 0 -
Isopropanol 200 0 -
Acetone 50 0 -
* Data based on Honeywell pumps and tubes used in standard range.
# Calibrated to undecane.
** Very faint brown stain.
† Can use 1 stroke @ CF =7.2 or 2 strokes @ CF = 2.5.
Other Possible Interferences: No response to 50 ppm HCl, or 100 ppm SO2, NH3, or NO2.
Diesel & Jet Fuel (continued) No. H-10-143-10
DATA SHEETS
52 www.honeywellanalytics.com
Ethanol C2H5OH No. H-10-141-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 50-200#100 - 2000
No. of Pump Strokes 2 1
Sample Volume (mL) 200 100 Do not extend
Sample Time (min) 2 x 3 3
Correction Factor 0.5#1
# This CF only applies between 50-200 ppm; for higher concentrations use one stroke.
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.87
Humidity: No effect 0-95% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Orange Yellow → Pale Green
Reaction Principle: C2H5OH + Cr(VI) + H2SO4 → Cr(III) + Oxidation Products
Continued on next page
True concentration (ppm)
DATA SHEETS
53
www.honeywellanalytics.com
Ethanol C2H5OH (continued) No. H-10-141-30
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Correction
Factor
Methanol 1000 1000 1.0
Isopropanol 1000 750 1.3
tert-Butanol 1000 1300 0.77
Methyl mercaptan 500 300 1.7
H2S100 0 -
CH425000 0 -
CO25000 0 -
CO 1000 0 -
NH3400 0 -
NO 100 130 0.77
Benzene 100 0 -
n-Hexane 100 0 -
Ethyl acetate 1000 0** -
* Data based on Honeywell pumps and tubes used in standard range.
** Faint brown color over entire tube, but no effect on ethanol reading.
Other Possible Interferences: Other alcohols and mercaptans.
DATA SHEETS
54 www.honeywellanalytics.com

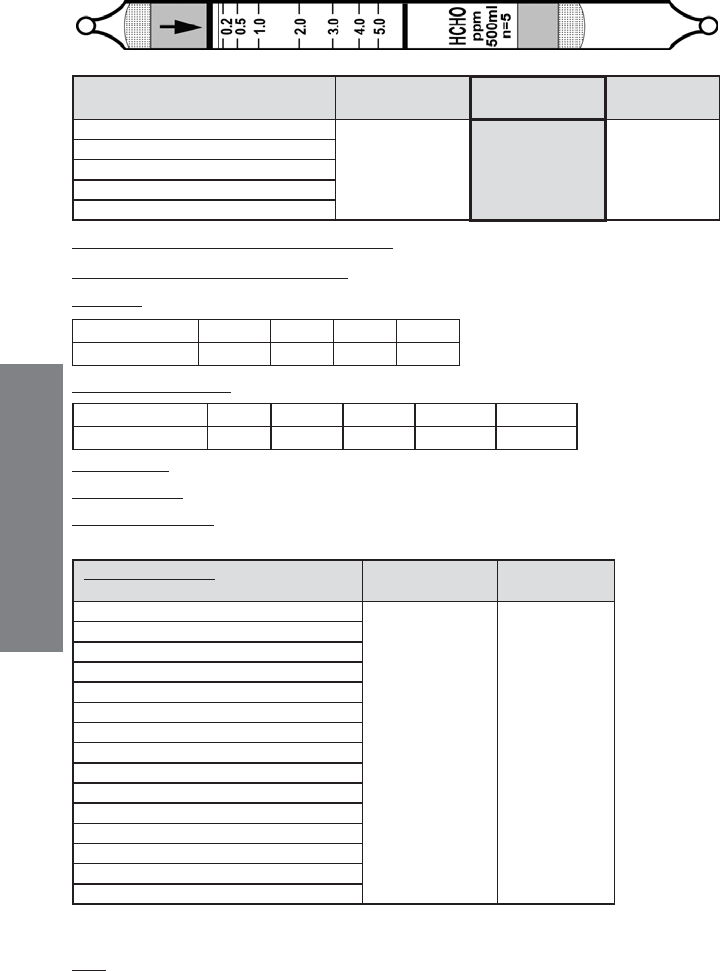

Formaldehyde HCHO No. H-10-121-05
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.1 - 5 0.8 - 40
No. of Pump Strokes 5 1
Sample Volume (mL) Do not extend 500 100
Sample Time (min) 5 x 2 2
Correction Factor 1 7.5
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 > 0.995
Humidity: 0 - 95% RH
% RH <5% 30% 50% 80%
Corr. Factor 1.0 0.85 0.8 0.75
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 20/68 30/86 40/104
Corr. Factor 1.3 1.1 1.0 0.9 0.8
Storage Life: 2 years in darkness at 5 °C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Reddish brown
Reaction Principle: 3HCHO + (NH2OH)3 • H3PO4 → H3PO4 + 3H2C=NOH + 3H2O
H3PO4 + Base → Phosphate (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Acetaldehyde 3 3
Propionaldehyde 3 3
Acetone 3 Entire tube#
Methyl ethyl ketone 3 Entire tube#
CH425000 0
CO 500 0
CO21000 0
H2S 100 0
SO2100 0
Hexane 2000 0
Toluene 100 0
Isobutylene 100 0.5
Isopropanol 2000 0
Phenol 25 0
Styrene 20 0
* Data based on Honeywell pumps and tubes used in standard range.
# Faint brown color over entire stain length. 100 ppm gives stronger color.
Note: In dry air the background color may change: read only reddish-brown color.
DATA SHEETS
55
www.honeywellanalytics.com

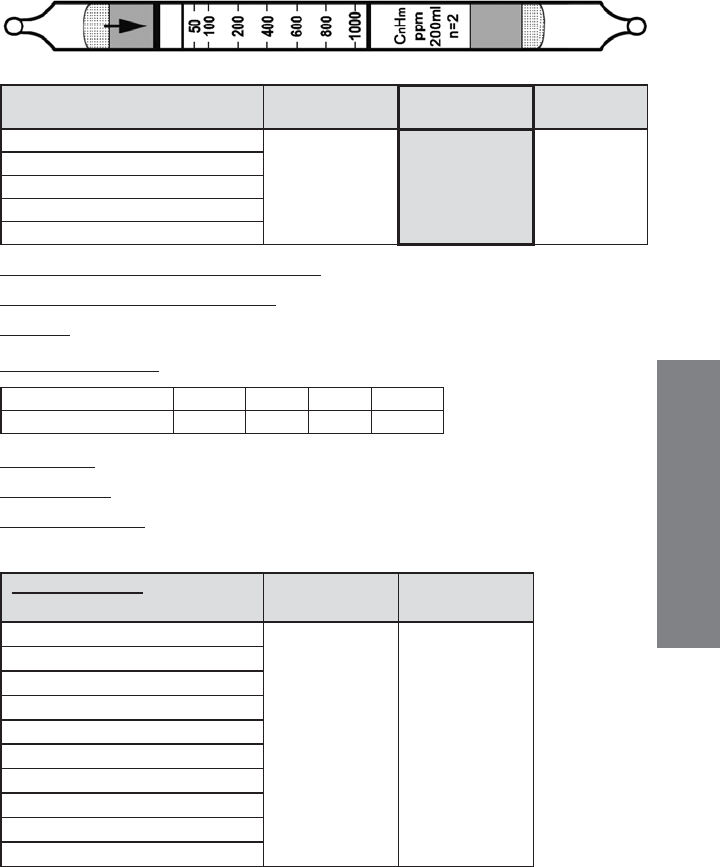

Gasoline CnHm No. H-10-138-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 15 - 500 30 - 1000 60 - 2000
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2 2 x 2 2
Correction Factor 0.45 1 2.5
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 95% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 22/72 40/104
Corr. Factor 1.6 1.24 1.0 0.83
Storage Life: 2 years in darkness at 5 - 25°C(40 - 77°F). Refrigeration preferred.
Color Change: Orange → Dark Green
Reaction Principle: Prelayer removes humidity
CnHm + K2Cr2O7 + H2SO4 → Cr3+ + Oxidation Products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CH425000 0
CO 500 0
H2S 100 30
SO2500 0
Acetone 1000 20
Ethanol 1000 20
Butane 1000 Entire tube
Isopar L 500 115
Toluene 200 80
Benzene 500 900
* Data based on Honeywell pumps and tubes used in standard range.
Note: The tube is calibrated using heptane as a standard for gasoline.
DATA SHEETS
56 www.honeywellanalytics.com
Total Hydrocarbons HC No. H-10-110-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 25 - 500 50 - 1000 100-2000
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2 2 x 2 2
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.994
Humidity: No effect 5 - 100% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.2 1.1 1.0 0.85
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow-Orange → Green
Reaction Principle: HC + Cr(VI) + H2SO4 → Cr(III) + Oxidation Products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent Reading* Corr.
Factor
Methane 25000 0 -
Ethylene 100 165 0.6
Propane 100 Entire tube faint -
Isobutane 100 100 1.0
n-Pentane 500 700 0.7
n-Hexane 1200 870 1.4
n-Heptane 1000 525 1.9
n-Octane 400 103 3.9
n-Decane 1000 500 2.0
Benzene 500 Unclear endpoint -
Toluene 1000 110 9
Xylene 1000 60 17
Isobutylene 1000 20 50
Acetone 10000 60 170
Isopropanol 1000 <20 >50
Ethyl Acetate 1000 <20 >50
H2S 1000 250 4.0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: No response to 3000 ppm CO, 300 ppm NH3, or 200 ppm SO2.
DATA SHEETS
57
www.honeywellanalytics.com

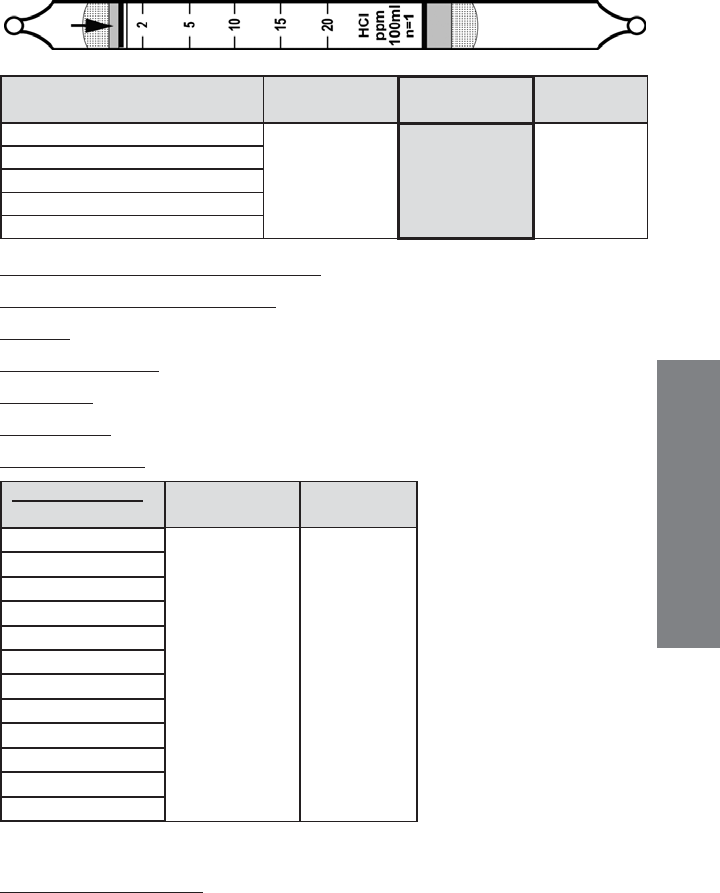

Hydrogen Chloride HCl No. H-10-108-09
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 10 1 - 20 2 - 40
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 0.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: Must be used @ <5% RH. Reading drops sharply above 5% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F) at <5%RH.
Storage Life: 2 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Pink
Reaction Principle: HCl + Base → Chloride Salt + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 15,000 0
CO28,000 0
H2S800 0
SO2200 0
NO 100 0
NO2200 20
NH3100 0
HF 25 15
Cl210 0
CH425,000 0
Hexane 2400 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Other acid vapors; amines and other bases.
DATA SHEETS
58 www.honeywellanalytics.com

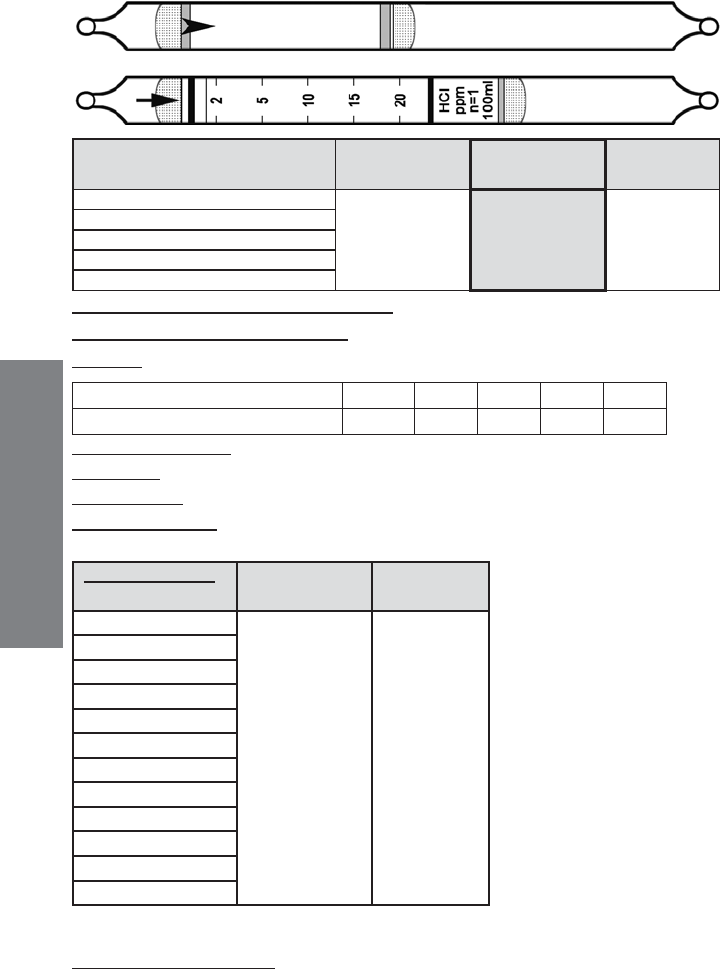

Hydrogen Chloride HCl No.10-108-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 10 1 - 20 2 - 40
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 0.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: Calibrated at 50% RH and 23 °C (73 °F).
% Relative Humidity < 5% 30% 50% 70% 90%
Correction Factor @ 10 ppmv 0.7 0.8 1.0 1.1 2.7
Temperature Range: No effect between 0 - 40°C (32 - 104°F) at <5% RH.
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Pink
Reaction Principle: Pretube reduces humidity
HCl + NaOH → NaCl + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 15,000 0
CO28,000 0
H2S 800 0
SO2200 0
NO 100 0
NO2200 20
NH3100 0^
HF 25 15
Cl210 >20
CH425,000 0
Hexane 2400 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
^Interferes in mixtures
Other Possible Interferences: Other acid vapors; amines and other bases.
DATA SHEETS
59
www.honeywellanalytics.com

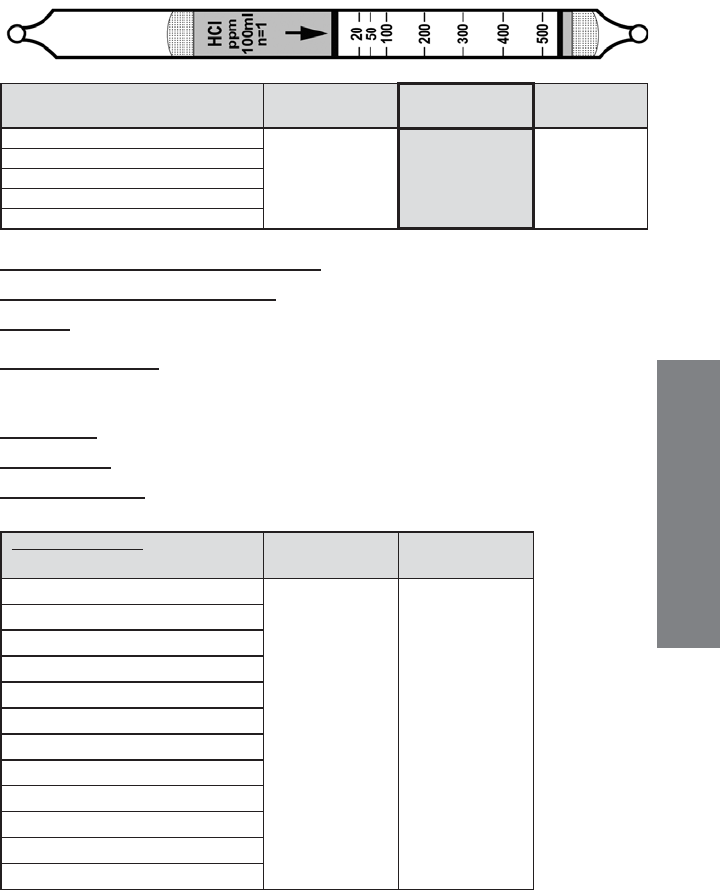

Hydrogen Chloride HCl No. H-10-108-22
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 10-250 20-500 40-1000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1.0
Correction Factor 0.5 1 2.0
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 > 0.995
Humidity: No effect 5-95% RH.
Temperature Range: No effect 0 - 40°C (32 - 104°F); at -20°C, the response
is reduced by about 5%.
Storage Life: 2 years in darkness at 5 °C (40°F). Refrigeration required.
Color Change: Yellow → Red
Reaction Principle: HCl + Base → Chloride (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CH425000 0
CO 500 0
CO21000 0
H2S 100 0
SO21000 0
NO 200 0
NO2100 0
NH3100 0
HF 100 0
Cl2200 0
Hexane 2000 0
Toluene 2000 0
* Data based on Honeywell pumps and tubes used in standard range.
DATA SHEETS
60 www.honeywellanalytics.com

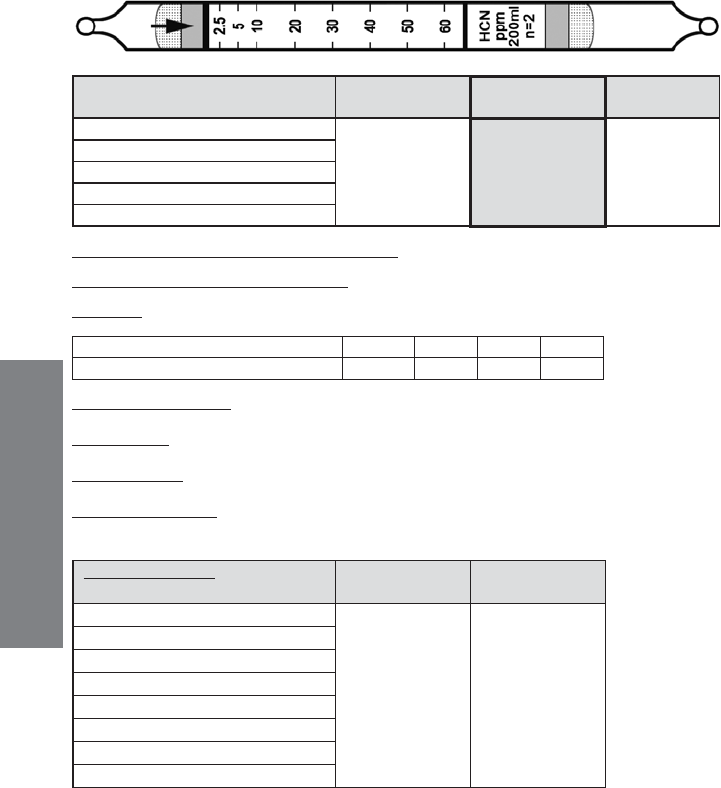

Hydrogen Cyanide HCN No. H-10-126-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 1.25 - 30 2.5 - 60 5 - 120
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2.5 2 x 2.5 2.5
Correction Factor 0.4 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 >0.999
Humidity: 5% - 95%RH
% Relative Humidity < 5% 10% 50% 95%
Correction Factor @ 10 ppmv 1.0 1.0 1.2 1.4
Temperature Range: No effect 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Red (ignore light orange color formed in clean air)
Reaction Principle: 2HCN + HgCl2 → Hg(CN)2 + 2HCl
HCl + Base → Chloride Salt + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H22000 0
CH425000 0
CO 300 0
H2S100 <1#
HCl 100 <1#
SO220 20#
NH350 0
CO25000 0
* Data based on Honeywell pumps and tubes used in standard range.
# Measured in dry gas; at >20% RH, no response is observed by these gases.
Note: A light orange color may form when drawing in air with no HCN present. This
color can be ignored and does not affect true HCN readings, which form a bright
pinkish-red color. The color boundary is sharp in ambient, humid air and somewhat
diffuse in very dry air.
DATA SHEETS
61
www.honeywellanalytics.com

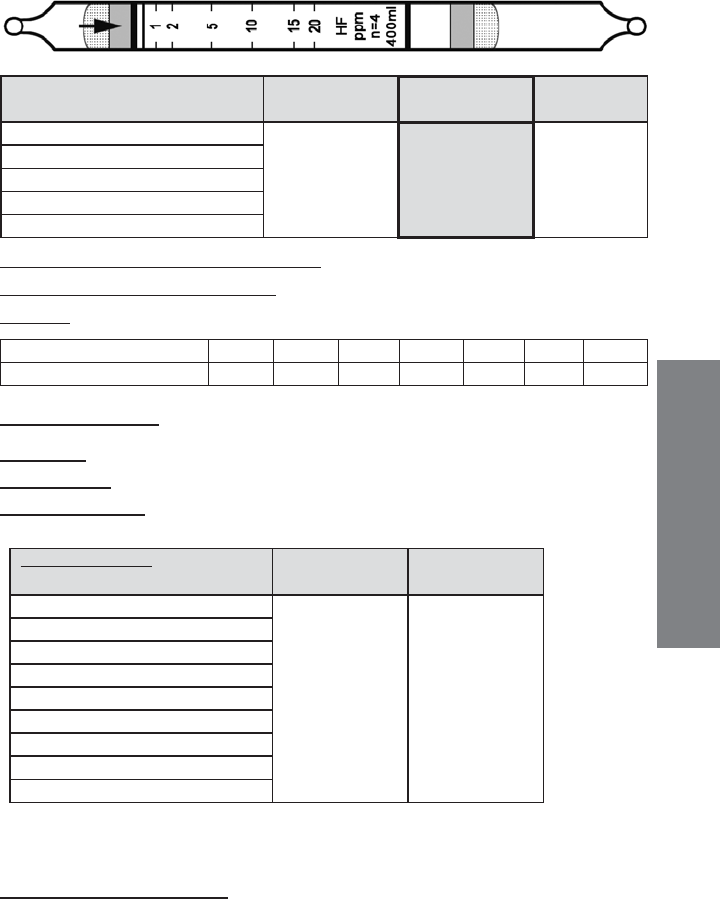

Hydrogen Fluoride HF No. H-10-105-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.25 - 10 0.5 - 20 1 - 40
No. of Pump Strokes 8 4 2
Sample Volume (mL) 800 400 200
Sample Time (min) 8 x 0.5 4 x 0.5 2 x 0.5
Correction Factor 0.4 1 1.6
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.98
Humidity: Calibrated at 50% RH and 23°C (73°F).
% Relative Humidity 30% 40% 50% 60% 70% 80% 90%
Correction Factor 0.3 0.4 1.0 1.3 1.6 2.0 2.6
Temperature Range: No effect 10 - 30°C (50 - 86°F) at constant 41% RH.
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration Preferred.
Color Change: Beige → Purple
Reaction Principle: HF + NaOH → NaF + H2O
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CO250000 0
NH3300 0^
NO 100 0
H2S800 0
SO2200 0
CH425000 0
HCl 4 entire tube#
Cl215 entire tube#
* Data based on Honeywell pumps and tubes used in standard range.
# Pink color over entire tube length.
^ May interfere in mixtures.
Other Possible Interferences: Other acid vapors; amines and other bases. No
effect of 100 ppm toluene or 2400 ppm hexane.
DATA SHEETS
62 www.honeywellanalytics.com
Hydrogen Sulde H2S No. H-10-103-04
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.1 - 1.5 0.2 - 3 0.4 - 6
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: Tubes must be used @ <5% RH. Reading drops sharply above 5% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F).
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Pale orange → Pink
Reaction Principle: H2S + HgCl2 → Mercury sulde product + HCl
HCl + Base → Chloride Salt + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Methyl mercaptan 2 0.4
Butyl mercaptan 2 0.3
NH3100 0
NO25 0
SO2100 0
CS2100 0
CO 250 0
Hexane 100 0
Isobutylene 100 0^
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
^ Reduces response when mixed with H2S.
Other Possible Interferences: HCl and other acids and bases.
DATA SHEETS
63
www.honeywellanalytics.com
Hydrogen Sulde H2S No. H-10-103-05
Extended
Range Standard
Range Extended
Range
Range (ppmv) 0.1 - 1.5 0.2 - 3 0.4 - 6
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect between 5 - 90% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F).
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Pale orange → Pink
Reaction Principle: Pretube eliminates humidity
H2S + HgCl2 → Mercury sulde product + HCl
HCl + Base → Chloride Salt + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Methyl mercaptan 3 0#
Butyl mercaptan 3 0#
NH3100 0
NO25 0
SO2100 0
CS2100 0
CO 250 0
Hexane 100 0
Isobutylene 100 0^
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
# Interferes at higher concentrations.
^ Reduces response when mixed with H2S.
Other Possible Interferences: Acids and bases.
DATA SHEETS
64 www.honeywellanalytics.com

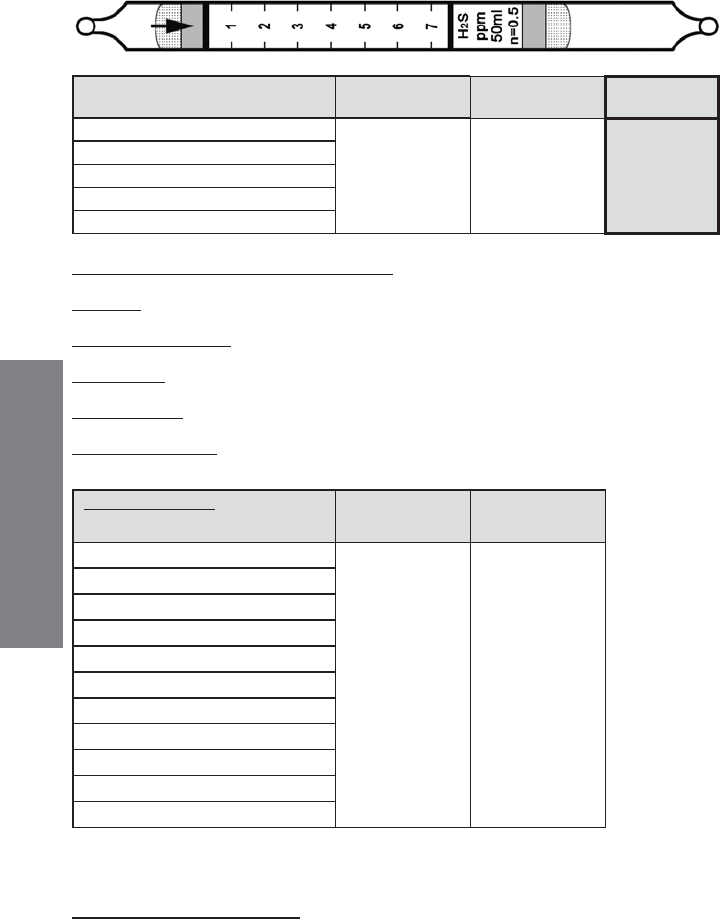

Hydrogen Sulde H2S No. H-10-103-06
Extended
Range
Extended
Range
Standard
Range
Range (ppmv) 0.25 – 1.75 0.5 – 3.5 1 - 7
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.25 0.5 1
Precision (Relative Standard Deviation)*: ≤±12%
Humidity: Tubes must be used @ <5% RH. Reading drops sharply above 5% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F).
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Pale orange → Pink
Reaction Principle: H2S + HgCl2 → Mercury sulde product + HCl
HCl + Base → Chloride Salt + H2O (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Methyl mercaptan 2 0.2
Butyl mercaptan 2 0.15
NH3100 0
NO25 0
SO2100 0
SO22000 0#
CS2100 0
CO 250 0
Hexane 100 0
Isobutylene 100 0^
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
# Forms orange color over entire tube but pink H2S reading is unaffected in mixtures.
^ Reduces response when mixed with H2S.
Other Possible Interferences: HCl and other acids and bases.
DATA SHEETS
65
www.honeywellanalytics.com

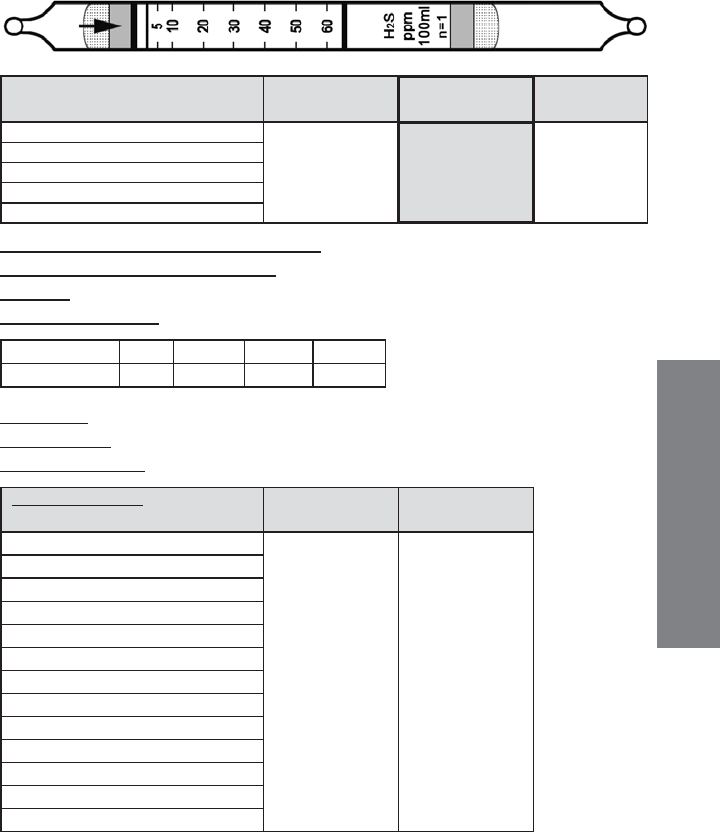

Hydrogen Sulde H2S No. H-10-103-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 1.25 - 30 2.5 - 60 5 - 120
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.998
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 0.95 0.95 1.0 1.2
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Light Brown
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv) Apparent
Reading*
H2100% 0^
CO 250 0
CH425000 0
NH3300 0
NO2200 0‡
SO220 0
SO21800 0†
CS2100 0
Methyl mercaptan 100 0#
Diethyl sulde 100 0
Hexane 100 0
Isobutylene 100 0^
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
^ No effect in mixtures.
‡ Interferes in mixtures; may result in transient light brown H2S response.
† Interferes in mixtures; high SO2 concentrations suppress H2S response.
# Concentrations in the high % range leave a yellow color over the entire tube.
DATA SHEETS
66 www.honeywellanalytics.com

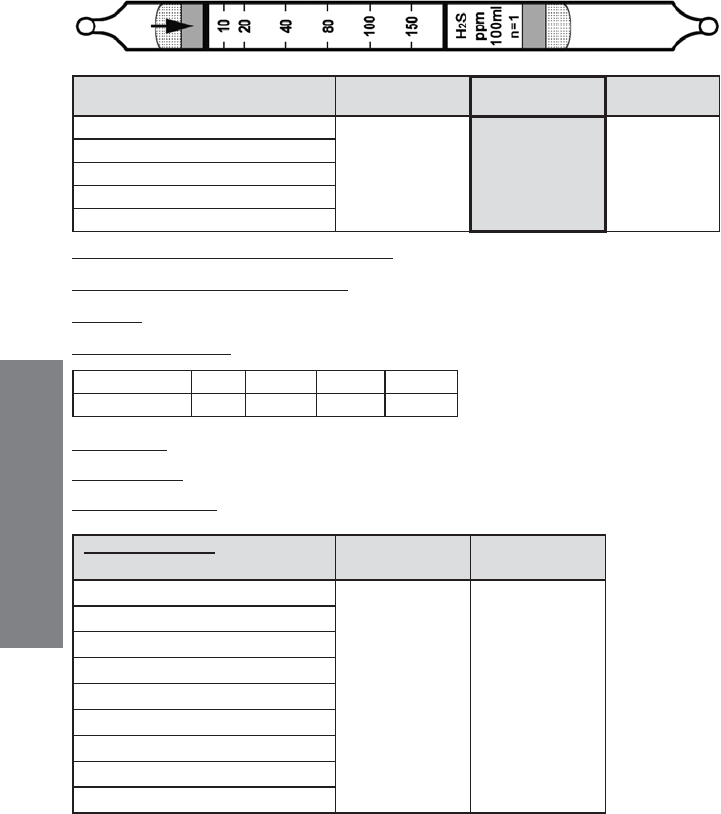

Hydrogen Sulde H2S No. H-10-103-12
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0 - 75 0 - 150 0 - 300
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 24/75 40/104
Corr. Factor 0.88 0.96 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CH425000 0
NH3100 0
NO2200 0‡
CS2100 0
Methyl mercaptan 1000 0#
Diethyl sulde 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient light brown H2S response.
# No effect in mixtures. Concentrations in the high % range leave a yellow color over the
entire tube.
DATA SHEETS
67
www.honeywellanalytics.com

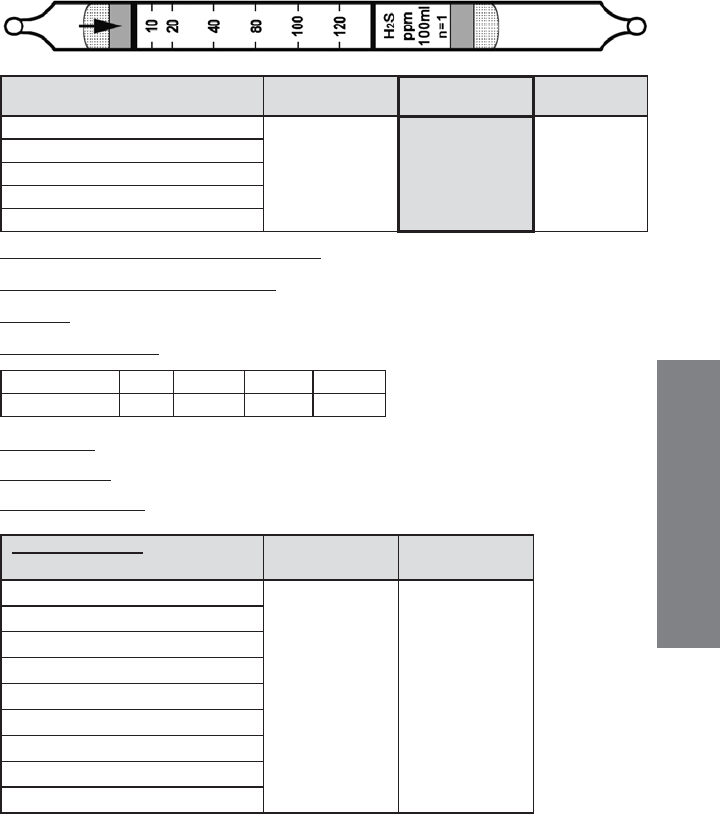

Hydrogen Sulde H2S No. H-10-103-15
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 5 - 60 10 - 120 20 - 240
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 24/75 40/104
Corr. Factor 0.88 0.96 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CH425000 0
NH3100 0
NO2200 0‡
CS2100 0
Methyl mercaptan 1000 0#
Diethyl sulde 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient light brown H2S response.
# No effect in mixtures. Concentrations in the high % range leave a yellow color over the
entire tube.
DATA SHEETS
68 www.honeywellanalytics.com

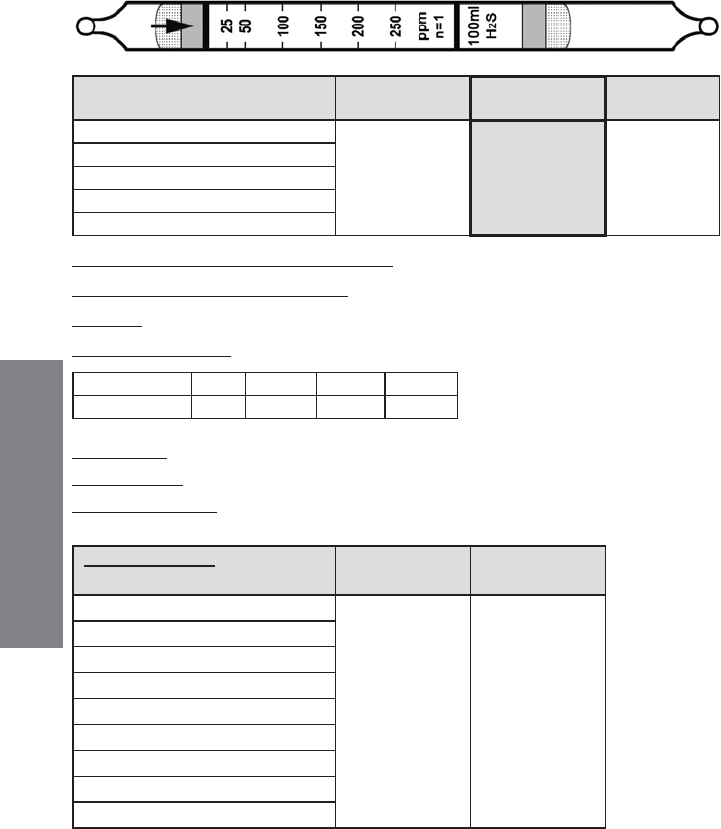

Hydrogen Sulde H2S No. H-10-103-18
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 12.5 - 125 25 - 250 50 - 500
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 23/73 40/104
Corr. Factor 0.9 0.9 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CH425000 0
NH3100 0
NO2200 0‡
CS2100 0
Methyl mercaptan 500 0#
Diethyl sulde 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient brown H2S response.
# Concentrations in the high % range leave a yellow color over the entire tube.
DATA SHEETS
69
www.honeywellanalytics.com
Hydrogen Sulde H2S No. H-10-103-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 25 - 400 50 - 800 100 - 1600
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.989
Humidity: 80% RH reduces the reading by about 10% compared to dry air
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.0 1.0 1.0 1.2
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Dark Brown
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CH425000 0
NH3300 0
NO2200 0‡
SO220 0
CS2100 0
Methyl mercaptan 500 <50
Diethyl sulde 1000 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient brown H2S response.
DATA SHEETS
70 www.honeywellanalytics.com

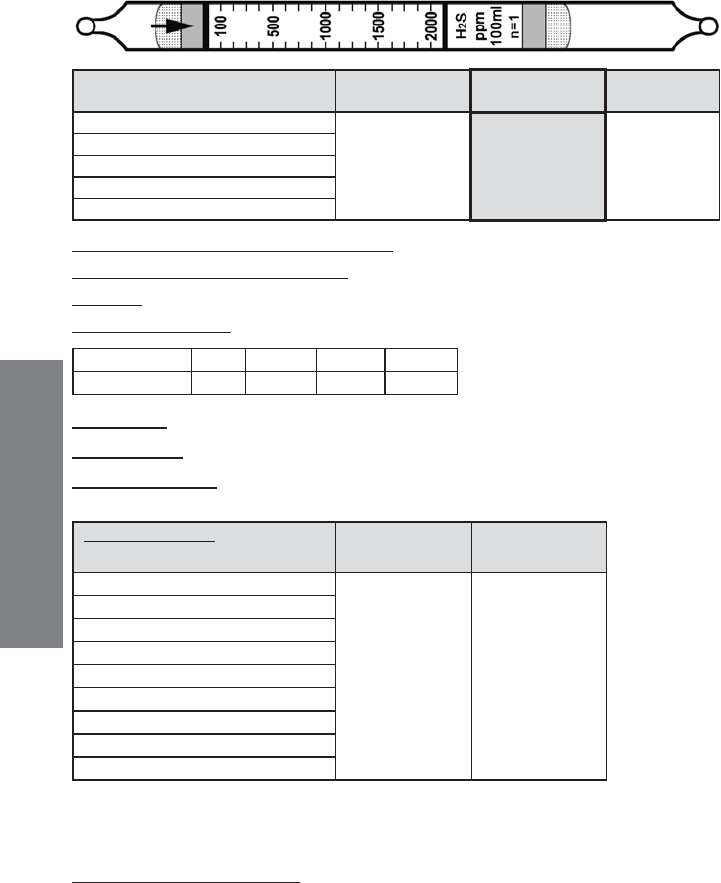

Hydrogen Sulde H2S No. H-10-103-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 50 - 1000 100 - 2000 200 - 4000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 0.88 0.93 1.0 1.2
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Black
Reaction Principle: H2S + Pb(OAc)2 → PbS + 2HOAc
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CH425000 0
NH3300 0
NO2200 0‡
SO220 0
CS2100 0
Hexane 100 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient brown H2S response.
Other Possible Interferences: No response to mercaptans and suldes.
DATA SHEETS
71
www.honeywellanalytics.com

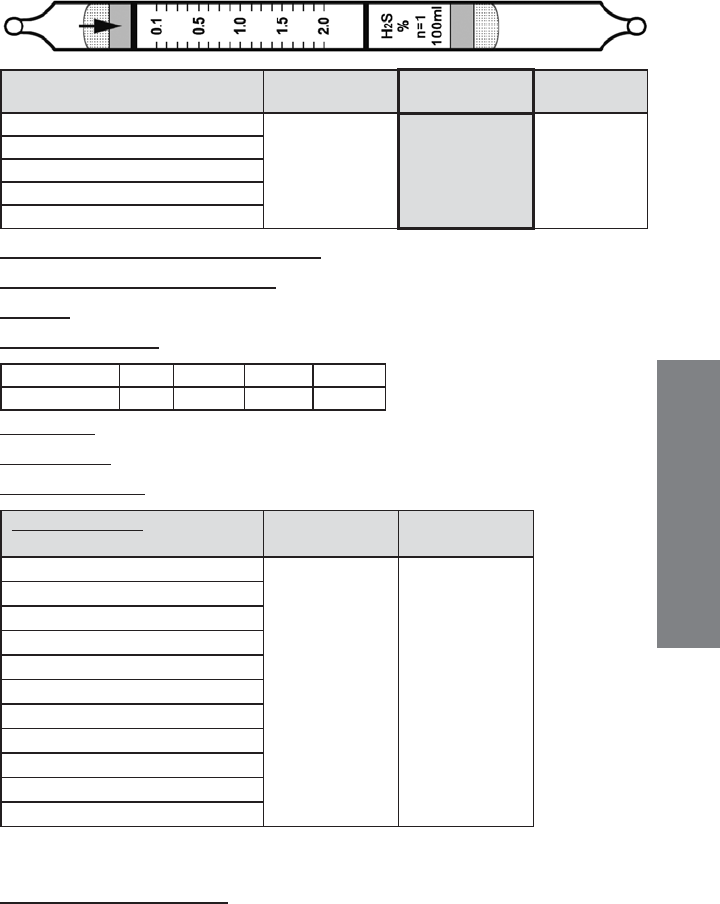

Hydrogen Sulde H2S No. H-10-103-40
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.05 - 1% 0.1 - 2% 0.2 - 4%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.998
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 18/64 25/77 40/104
Corr. Factor 1.2 1.1 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Light Blue → Black
Reaction Principle: H2S + CuSO4 → CuS + H2SO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CH425000 0
NO 100 0
NO2200 0
NH3300 0
SO220 0
Methyl mercaptan 0.1% 0.1%#
Diethyl sulde 1000 0
Isobutylene 100 0
Toluene 100 0
Hexane 1200 0
* Data based on Honeywell pumps and tubes used in standard range.
# Concentrations in the high % range leave a yellow color over the entire tube.
Other Possible Interferences: High Concentrations of ammonia; NO2 in mixtures.
No response to CS2.
DATA SHEETS
72 www.honeywellanalytics.com
Hydrogen Sulde H2S No. H-10-103-50
Extended
Range
Extended
Range
Standard
Range
Range (%) 0.5 - 10% 1 - 20% 2 - 40%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1.5
Correction Factor 0.25 0.5 1
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 18/64 40/104
Corr. Factor 0.75 1.0 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Light Blue → Black
Reaction Principle: H2S + CuSO4 → CuS + H2SO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 250 0
CO25% 0
NO 100 0
NH310% 3.5% (blue)
CH42.5% 0
SO210 0
Isobutylene 100 0
Hexane 100 0
Benzene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Mercaptans. No response to suldes.
Note: Time measurement to exactly 2 minutes for best accuracy.
DATA SHEETS
73
www.honeywellanalytics.com
Mercaptans RSH No. H-10-129-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 60 5 - 120 10 - 240
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2.0 2.0 1.0
Correction Factor 0.5 1 2.1
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect between 5 - 90% RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: 2RSH + PdSO4 → (RS)2Pd + H2SO4
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Corr.
Factor
H2S 500 01-
CO 500 02-
Diethyl sulde 5000 303-
Ethyl mercaptan 60 60 1.0
Propyl mercaptan 60 60 1.0
Butyl mercaptan 60 29 2.0
Acetylene 2000 04-
Ethylene 2000 05-
* Data based on Honeywell pumps and tubes used in standard range.
1 Up to 500 ppm H2S is trapped in the pretreatment layer.
2 Gray through the entire tube, will not affect RSH reading in mixtures.
3 Interferes in mixtures; may result in high response.
4 Pale brown through the entire tube, will not affect RSH reading in mixtures.
5 Light peach through the entire tube, will not affect RSH reading in mixtures.
DATA SHEETS
74 www.honeywellanalytics.com

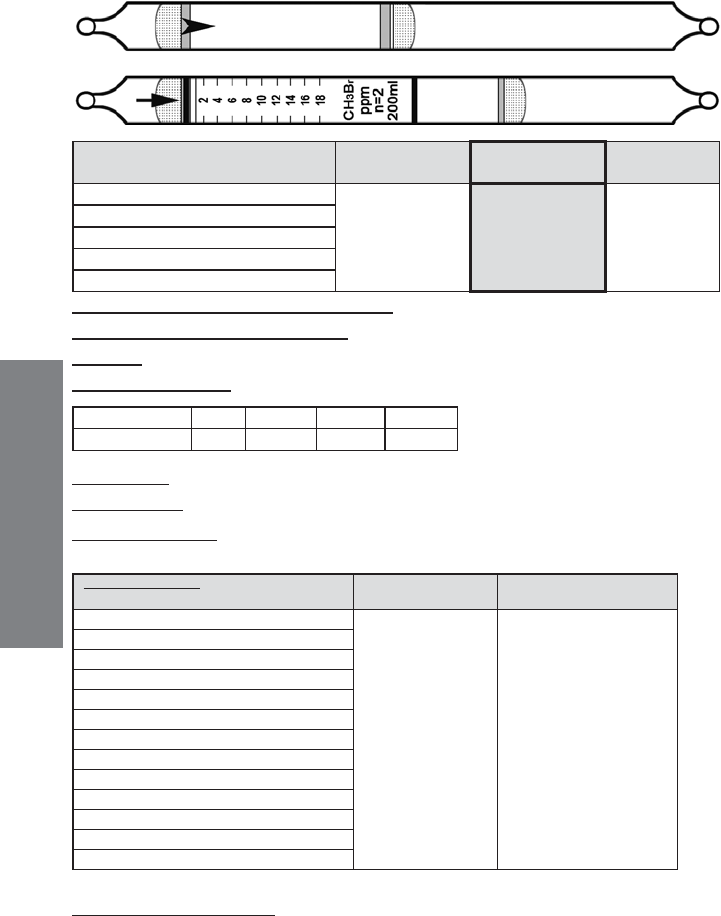

Methyl Bromide CH3Br No. H-10-131-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5-9 1-18 2-36
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 3 2 x 3 3
Correction Factor 0.48 1.0 2.1
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.997
Humidity: No effect 5 - 100% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/40 25/77 40/104
Corr. Factor 1.5 1.3 1.0 0.95
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Orange
Reaction Principle: Pre-tube : C H3Br + K2Cr2O7 + H2SO4 → Br2 + Other Prods
Measurement Tube: Br2 + indicator dye → Orange product
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent Reading*
Tetrachloroethylene 200 13
Trichloroethylene 100 4
Vinylidene Chloride 200 47
Vinyl Chloride 200 5
3-Chloro-2-Methylpropene 200 4
1,2-Dichloroethane 200 0
1,1,1- Trichloroethane 50 4.5
Cl210 21
NO 500 0.6
NO2570 1.0
CH425000 0
CO 500 0
CO25000 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: No response to 500 ppm propane, 100 ppm isobutylene or
1200 ppm hexane.
DATA SHEETS
75
www.honeywellanalytics.com

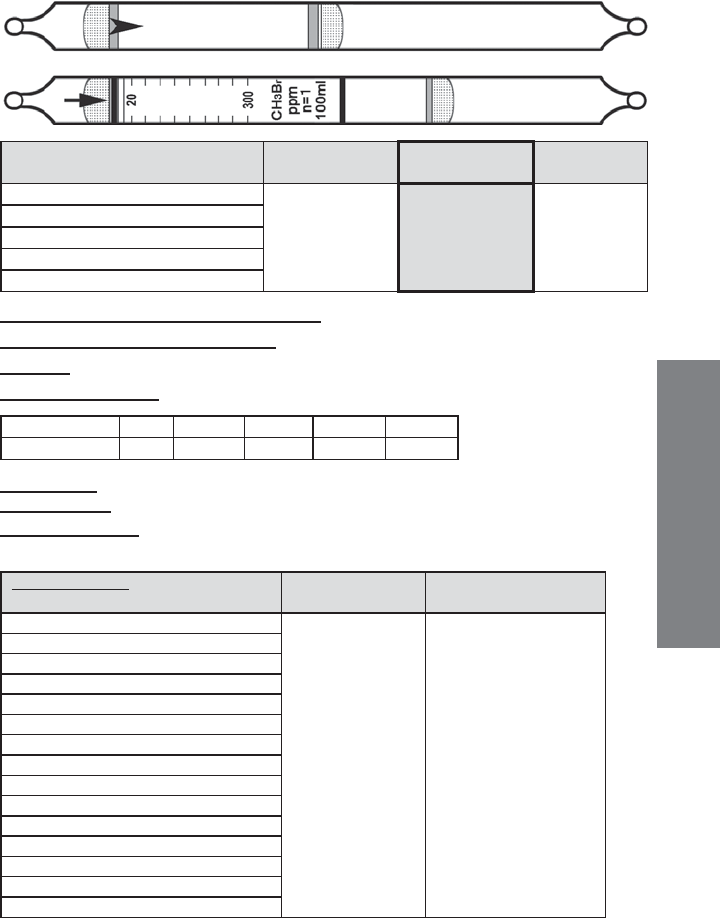

Methyl Bromide CH3Br No. H-10-131-30
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 10-150 20-300 40-600
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 2 x 0.5
Correction Factor 0.43 1 2.2
Precision (Relative Standard Deviation)*: ≤ ± 15%
Linearity with No. of Pump Strokes: 0.999
Humidity: No effect 0 - 90% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 20/68 30/86 40/104
Corr. Factor 1.7 1.3 1.0 0.8 0.7
Storage Life: 2 years in darkness at <10°C. Refrigeration preferred.
Color Change: White → Orange-yellow
Reaction Principle: Pretube: 2CH3Br + I2O5 + H2S2O7 → Br2
Measurement Tube: Br2 + o-Tolidine → Orange-yellow product
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent Reading*
1,2-Dibromoethane 300 600
1,3-Dibromopropane 600 700
1,1,1-Trichloroethane 300 30
Trichloroethylene 80 15
Cl280 63
Ethanol 10000 0
Ethyl acetate 10000 0
Acetone 10000 0
CH425000 0
CO25000 0
CO 500 0
H2S 500 0
SO2100 0
NO 460 0
NO2110 0
* Data based on Honeywell pumps and tubes used in standard range.
DATA SHEETS
76 www.honeywellanalytics.com

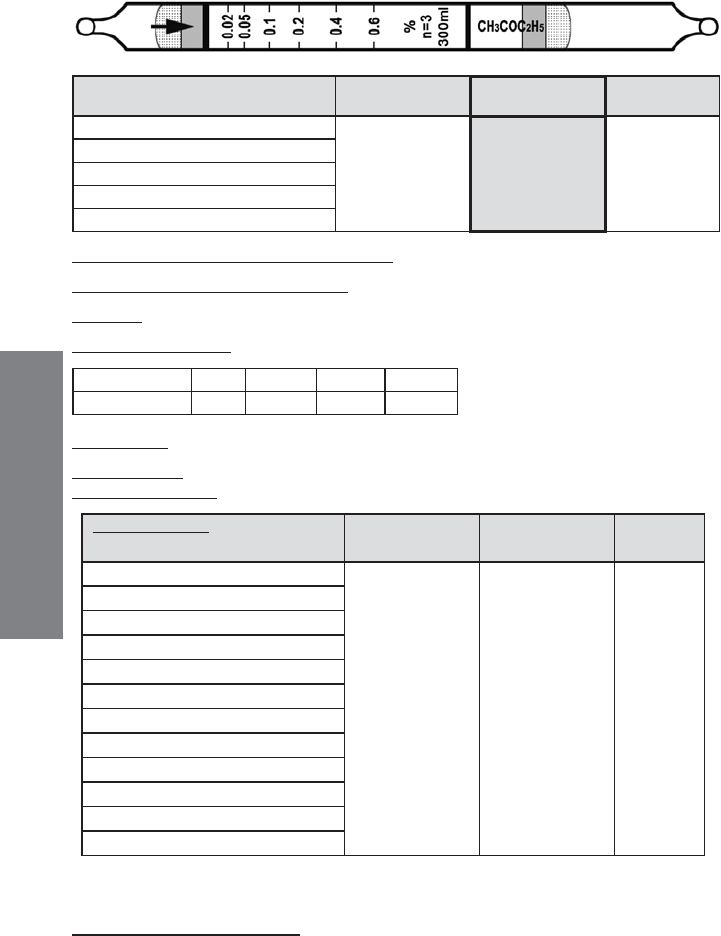

Methyl Ethyl Ketone C4H8O No. H-10-113-20
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.01 - 0.3% 0.02 - 0.6% 0.06 - 1.8%
No. of Pump Strokes 6 3 1
Sample Volume (mL) 600 300 100
Sample Time (min) 6 x 2 3 x 2 2
Correction Factor 0.5 1 3
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.996
Humidity: 85% RH increases the response by 15% compared to dry gas.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.4 1.3 1.0 0.7
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Orange → Black
Reaction Principle: CH3COCH2CH3 + Cr(VI) + H2SO4 → Cr(III) + Oxidation Prods.
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Corr.
Factor
Acetone 0.4% 0.5% 0.8
Methyl propyl ketone 1.0% 0.7% 1.4
Methyl isobutyl ketone 1.0% 0.49% 2.0
CO 1.5% 0 -
CO21.5% 0 -
CH42.5% 0 -
NH35.0% >0.3% brown -
H2S 250 0.2% diffuse#-
Ethyl Acetate 1.0% >0.3% diffuse#-
Hexane 0.24% entire tube#-
Isobutylene 0.20% 0.5% 0.4
Toluene 400 0.3% diffuse#-
* Data based on Honeywell pumps and tubes used in standard range.
# Faint black color. Ketones can be distinguished by their darker stains and sharp endpoints.
Other Possible Interferences: Other hydrocarbons.
DATA SHEETS
77
www.honeywellanalytics.com

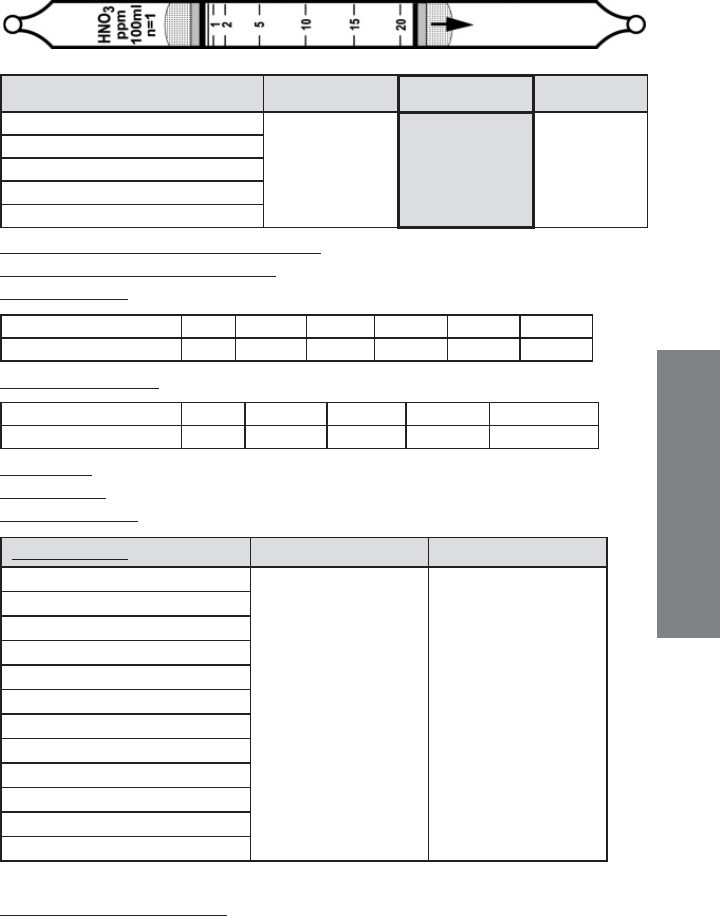

Nitric Acid HNO3 No. H-10-146-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5-10 1-20 2-40
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 10.5
Correction Factor 0.46 12.1
Precision (Relative Standard Deviation)*: ≤ ± 20%
Linearity with No. of Pump Strokes: r2 = 0.98
Humidity Range: 0 - 90% RH. Calibrated at 50% RH and 20°C (68°F)
% Relative Humidity 0% 30% 50% 70% 80% 90%
Correction Factor 0.7 0.8 1.0 1.3 1.8 1.9
Temperature Range: 0 - 40°C (32 - 104°F)
Temp(°C/°F) 0/32 10/50 20/68 30/86 40/104
Corr. Factor 1.3 1.2 1.0 0.9 0.8
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Purple
Reaction Principle: CH
3
HNO
3
+ Base → Dye color change
Cross-sensitivity: Substance Concentration (ppmv) Apparent Reading*
HCl 10 14
Cl2513
HF 10 7
Acetic Acid saturated ≤2 (v. pale)
CO 250 0
CO250000 0
CH425000 0
NO 100 0
NO260 0
H2S 60 0
SO2200 0
HCN 60 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Other acids may give a positive response and
bases may give a negative response in mixtures. Headspace from 85% H3PO4
and H2SO4 give ≤1 ppm response because of their low volatility.
DATA SHEETS
78 www.honeywellanalytics.com

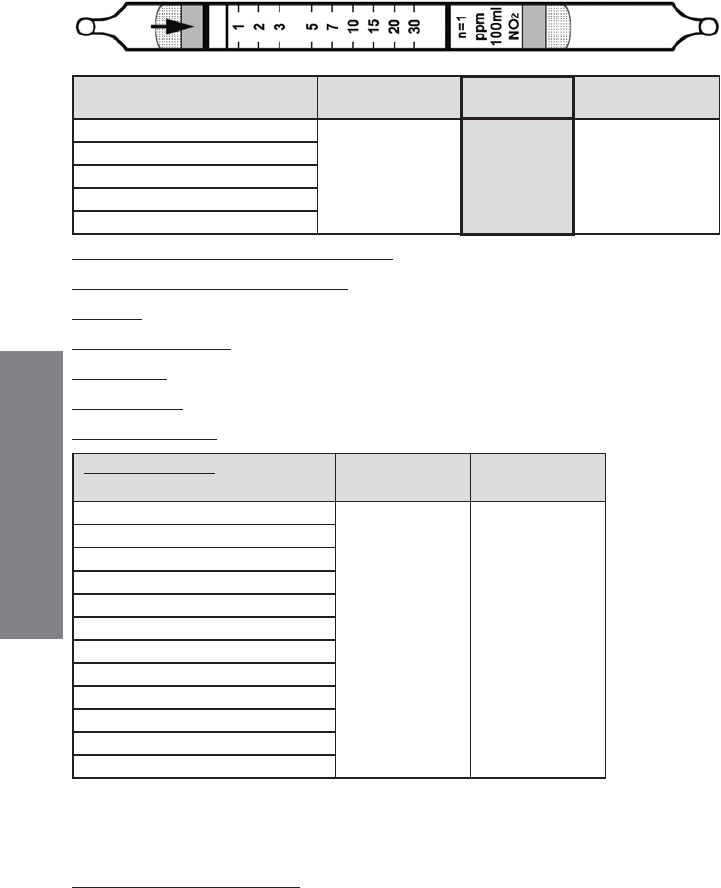

Nitrogen Dioxide NO2 No. H-10-117-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv)
Do Not Extend
0.5-30
Do Not Extend
No. of Pump Strokes 1
Sample Volume (mL) 100
Sample Time (min) 1.5
Correction Factor 1
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: Non-linear, do not extend
Humidity: No effect between 0-90%RH.
Temperature Range: No effect between 0 - 40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: NO2 + o-Tolidine → Nitrated yellow product
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO2200000 0
SO2200 0
CH425000 0
H2S100 0
Acetone 10000 0
Benzene 5 0
n-Hexane 100 0
Isobutylene 100 0
Toluene 100 0
Cl250 Entire tube˄
NO 500 1#
* Data based on Honeywell pumps and tubes used in standard range.
˄Cl2 results in light yellow stain.
# NO results in orange stain.
Other Possible Interferences: Reducing gases.
DATA SHEETS
79
www.honeywellanalytics.com

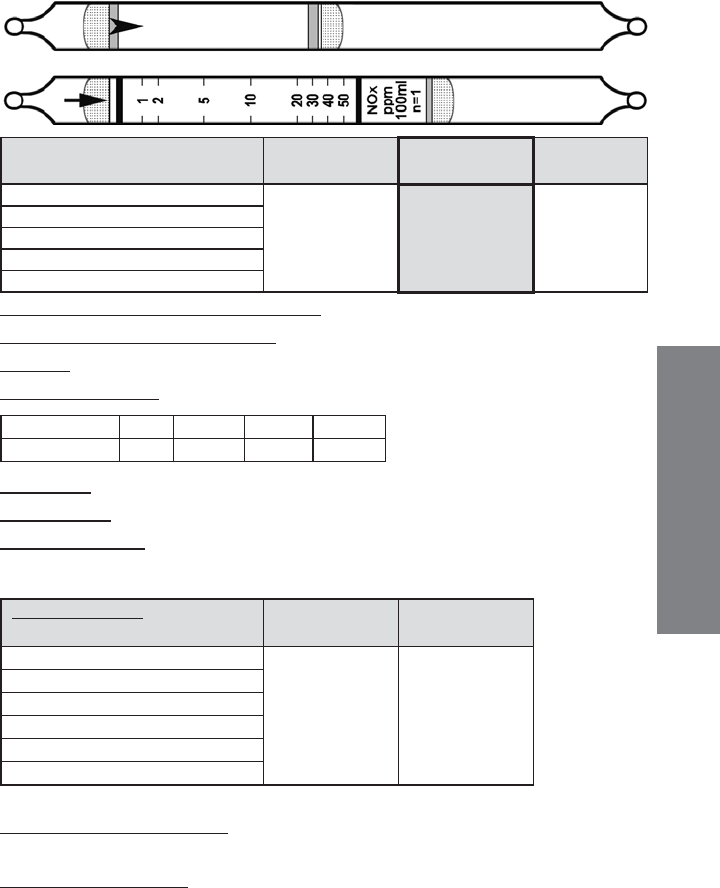

Nitrogen Oxides NOX No. H-10-109-20
(Separate Quantication)
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5 - 25 1-50 2-100
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 3 3 2.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.997
Humidity: 100% RH reduces the response by about 20% vs. dry air
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.8 1.6 1.0 1.0
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: NO + CrO3 + H2SO4 → NO2 Pre-tube
NO2 + o-Tolidine → Nitrated yellow product Meas. tube
Cross-sensitivity:
Substance
Concentration
(ppmv) Apparent
Reading*
CO 3000 0
CO210% 0
SO2200 0
CH425000 0
H2S100 0
Acetone 10000 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Reducing gases. No response to 5 ppm benzene.
No response to 1200 ppm hexane, 100 ppm isobutylene, or 100 ppm toluene.
Separate Quantication: Sampling without the pre-tube gives NO2 only. Using
the pre-tube gives the sum of NO + NO2. NO can be obtained by difference.
DATA SHEETS
80 www.honeywellanalytics.com

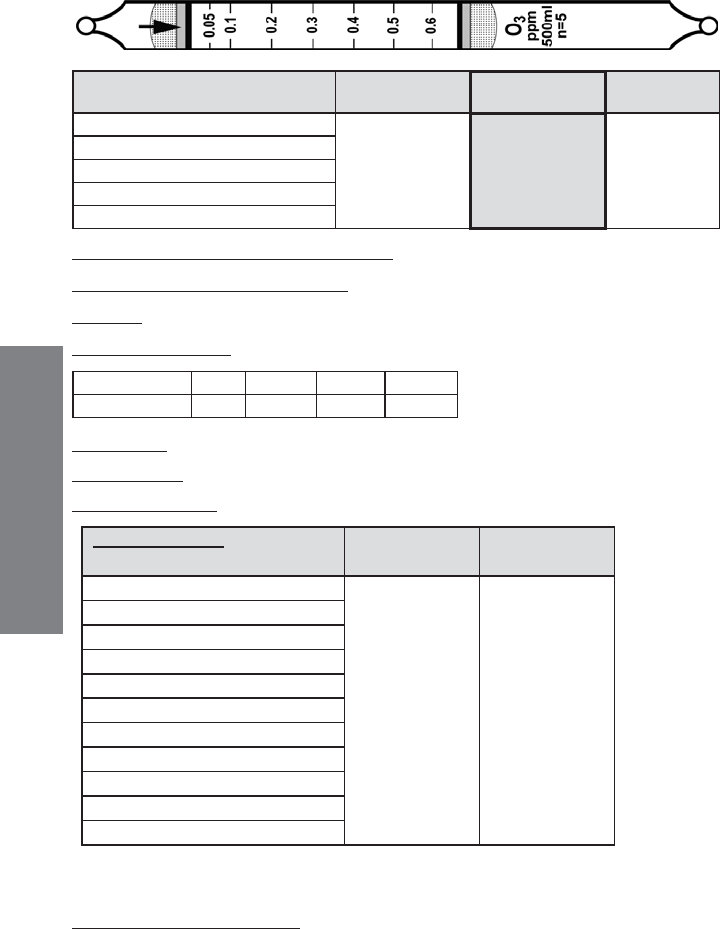

Ozone O3 No. H-10-133-03
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.05 – 0.6 0.15 – 1.8
No. of Pump Strokes 5 1
Sample Volume (mL) Do not extend 500 100
Sample Time (min) 5 x 2 2
Correction Factor 1 3
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.990
Humidity: Calibration is based on approximately 50% relative humidity.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 20/68 40/104
Corr. Factor 0.74 1.0 1.0 1.1
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Blue → White
Reaction Principle: 2O3 + C16H10N2O2 → 2C8H5NO2 + 2O2
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Cl2<10 0
Cl2≥10 ~0.1#
ClO21 entire tube#
CO 100 0
CO210,000 0
CH470,000 0
SO2100 0
H2S 120 0
NO 5 0
NO21 0
Isobutylene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
# Slight discoloration and unclear demarcation.
Other Possible Interferences: Bromine and other oxidants.
DATA SHEETS
81
www.honeywellanalytics.com

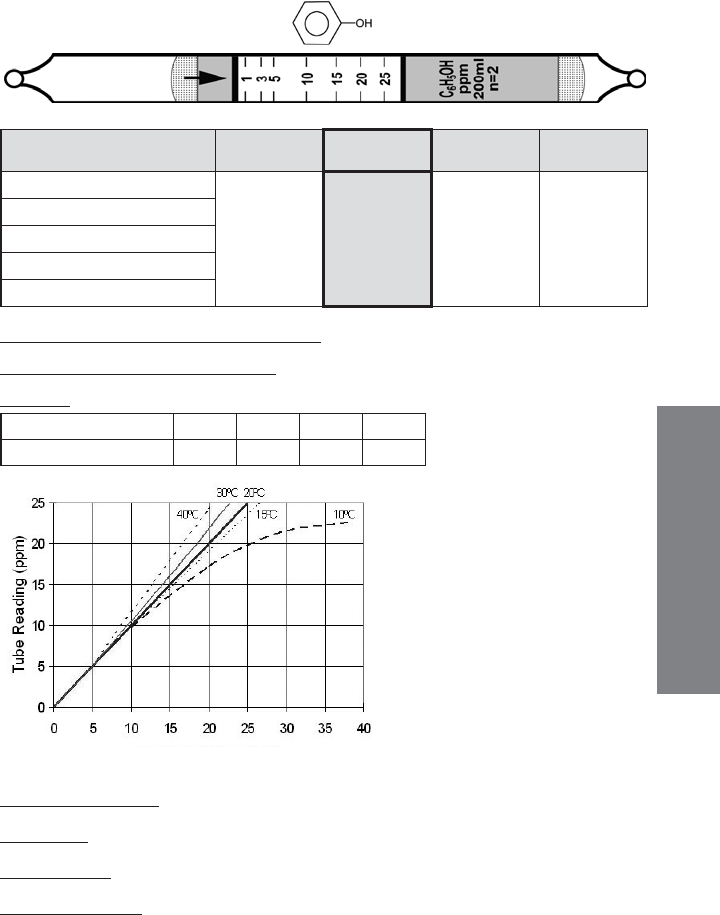

Phenol C6H5OH No. H-10-139-05
Extended
Range
Standard
Range
Extended
Range
Extended
Range
Range (ppmv) 0.5 - 11 1 - 25 2.4 - 60 7 - 180
No. of Pump Strokes 4 2 1 0.5
Sample Volume (mL) 400 200 100 50
Sample Time (min) 4 x 1.5 2 x 1.5 1.5 1.0
Correction Factor 0.45 1 2.4 7.2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.996
Humidity:
% Relative Humidity 10% 30% 50% 90%
Correction Factor 1.0 1.25 1.6 1.8
Temperature Range: 10 - 40°C (50 - 104°F)
Storage Life: 1.5 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Pale Yellow → Gray
Reaction Principle: C6H5OH + Ce(NH4)2(NO3)6 → Cerium-Phenol complex
Continued on next page
True concentration (ppm)
DATA SHEETS
82 www.honeywellanalytics.com
Phenol C6H5OH (continued) No. H-10-139-05
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2S 100 0
NH3500 0
NO 400 0
NO2400 0
SO2200 0
CH425000 0
CO25000 0
CO 500 0
Formaldehyde (HCHO) 500 0
Acetone 2000 0
Isopropanol 2000 0
Isobutylene 100 0
n-Hexane 2000 0
Benzene 2000 0
Toluene 2000 0
Styrene 2000 0
* Data based on Honeywell pumps and tubes used in standard range.
DATA SHEETS
83
www.honeywellanalytics.com

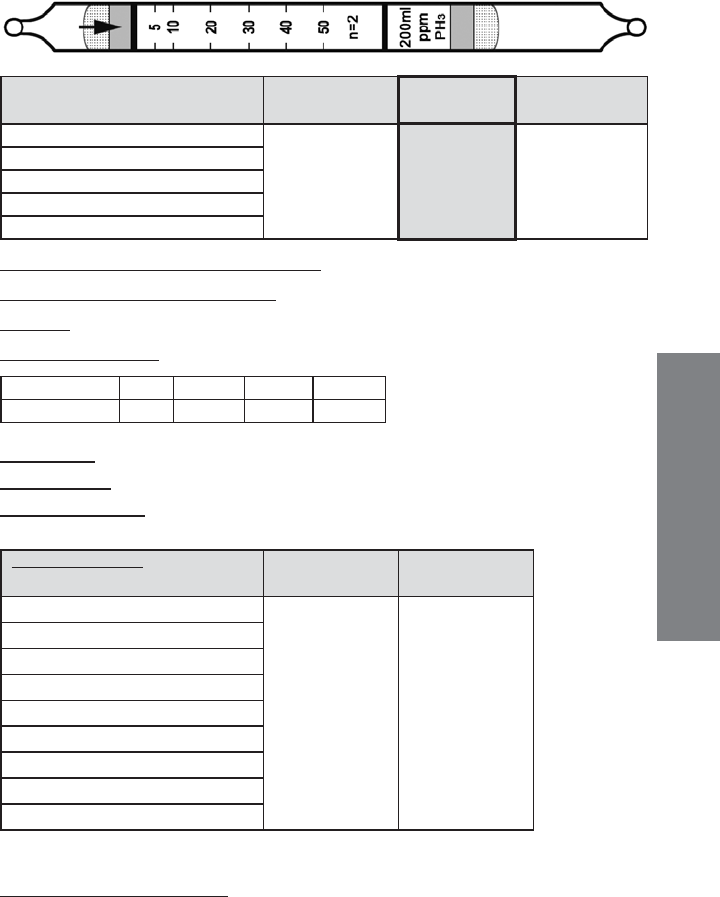

Phosphine PH3 No. H-10-116-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 25 5 - 50 10 - 100
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 1.5 2 x 1.5 1.5
Correction Factor 0.5 1 1.7
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.997
Humidity: No effect 5 - 90% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 0.85 0.90 1.0 1.0
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: 2PH3 + 6HgCl2 + 3H2O → Hg3P2•3HgCl2•3H2O + 6HCl
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2S 50 28 (l. brown)
SO2200 0
NO 100 0
NH3100 0
CO 100 0
CO250000 0
CH425000 0
Hexane 1500 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Strongly reducing gases.
DATA SHEETS
84 www.honeywellanalytics.com

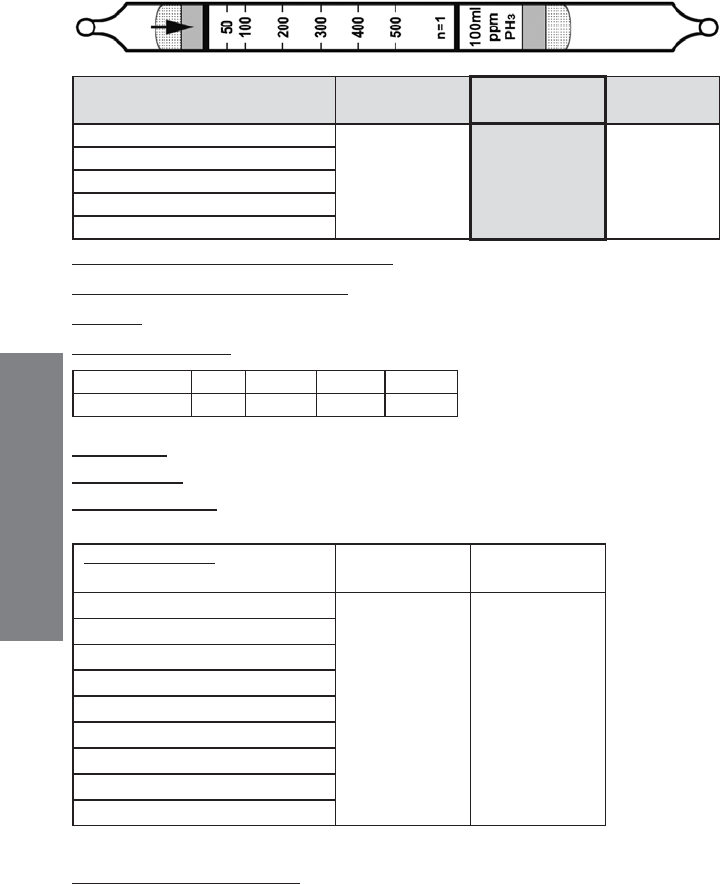

Phosphine PH3 No. H-10-116-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 12.5 - 250 25 - 500 50 - 1000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.99
Humidity: No effect 5 - 80% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 24/75 40/104
Corr. Factor 0.85 0.95 1.0 1.15
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: 2PH3 + 6HgCl2 + 3H2O → Hg3P2•3HgCl2•3H2O + 6HCl
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2S 50 35 (brown)
SO2200 0
NO 100 0
NH3100 0
CO 250 0
CO250000 0
CH425000 0
Hexane 1500 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Strongly reducing gases.
DATA SHEETS
85
www.honeywellanalytics.com

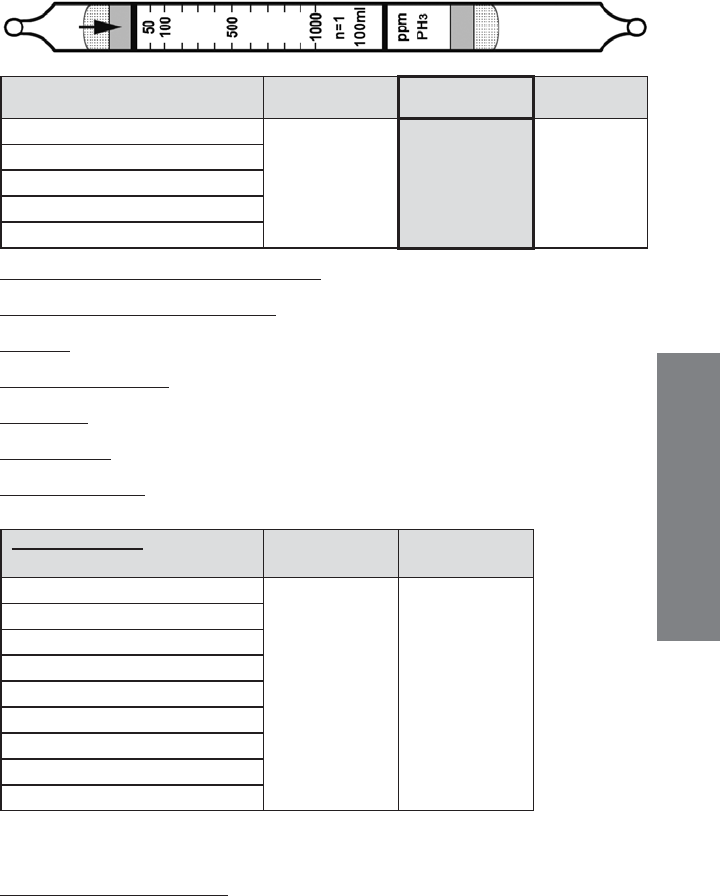

Phosphine PH3 No. H-10-116-25
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 25 - 500 50 - 1000 100 - 2000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 1.000
Humidity: No effect 5 - 80% RH.
Temperature Range: No effect between 0-40°C (32 - 104°F)
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Yellow
Reaction Principle: 2PH3 + 6HgCl2 + 3H2O → Hg3P2•3HgCl2•3H2O + 6HCl
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
H2S 200 140 ‡
SO23940 0
NO 100 0
NH3100 0
CO 250 0
CO250000 0
CH425000 0
Hexane 1500 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
‡ Interferes in mixtures; may result in transient light brown H2S response.
Other Possible Interferences: Strongly reducing gases.
DATA SHEETS
86 www.honeywellanalytics.com

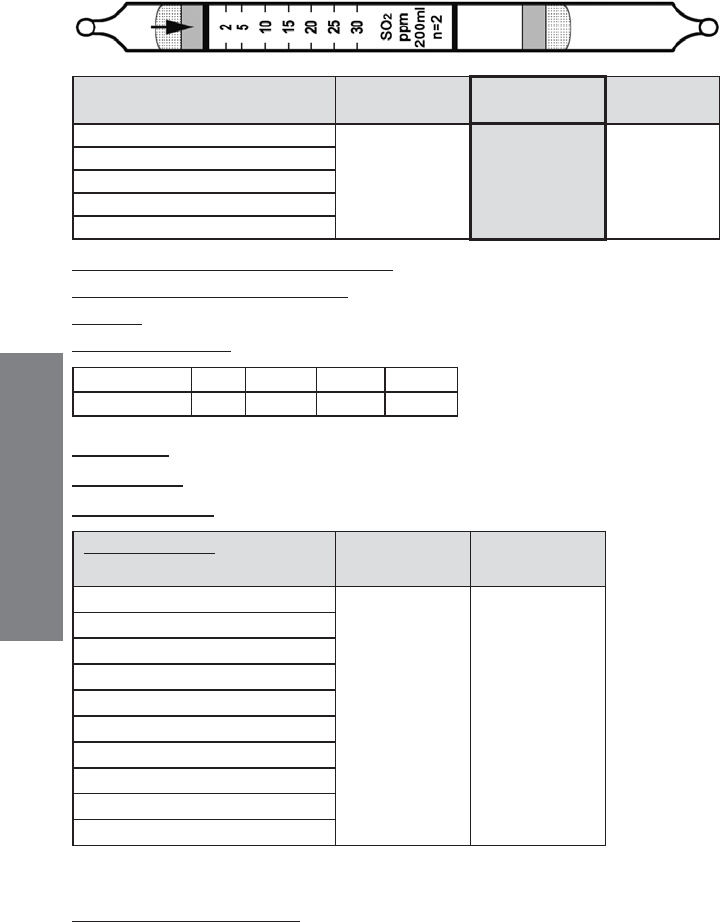

Sulfur Dioxide SO2 No. H-10-107-15
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 1 - 15 2 - 30 4 - 60
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2 2 x 2 2
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.991
Humidity: No effect 5 - 90% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 24/75 40/104
Corr. Factor 1.1 1.1 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Blue-green → Yellow
Reaction Principle: SO
2
+ 2NaOH → Na
2
SO
3
+ H
2
O (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 15000 0
CO250000 0
NO 100 0
NH3100 2 (blue)#
H2S2000 3 (blue)
PH330 0
HF 50 0.5
CH425000 0
Hexane 1500 0
Toluene 400 0
* Data based on Honeywell pumps and tubes used in standard range.
#Reduces reading in mixture.
Other Possible Interferences: Acid gases.
DATA SHEETS
87
www.honeywellanalytics.com

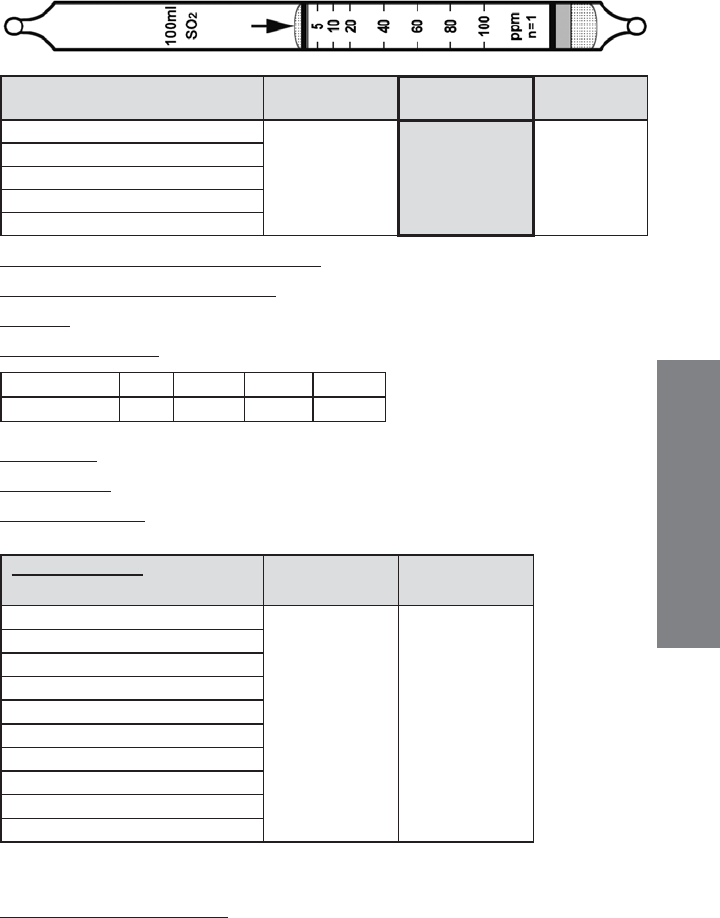

Sulfur Dioxide SO2 No. H-10-107-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 - 200
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 50% RH; 100% RH reduces the response by about 25%
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.2 1.0 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Blue → Yellow
Reaction Principle: SO2 + 2NaOH → Na2SO3 + H2O (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO210% 0
NO 100 0
NH3300 0#
CH425000 0
H2S100 0
Isobutylene 100 0
Hexane 1200 0
Toluene 100 0
Acetone 10000 0
* Data based on Honeywell pumps and tubes used in standard range.
#Reduces reading in mixture.
Other Possible Interferences: Acid gases.
DATA SHEETS
88 www.honeywellanalytics.com
Sulfur Dioxide SO2 No. H-10-107-25
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 50 - 900 100 - 1800 200 - 3600
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 85% RH.
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.1 1.0 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Blue → Yellow
Reaction Principle: SO2 + 2NaOH → Na2SO3 + H2O (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO210% 0
NO 100 0
NH3300 0#
CH425000 0
H2S100 0
Hexane 1200 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
#Reduces reading in mixture.
Other Possible Interferences: Acid gases.
DATA SHEETS
89
www.honeywellanalytics.com

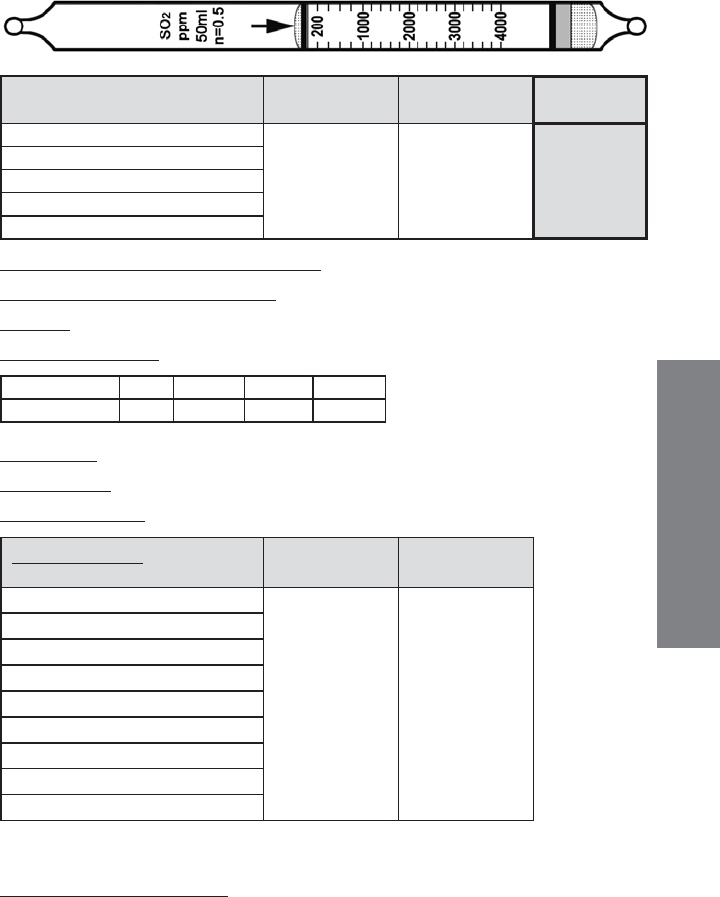

Sulfur Dioxide SO2 No. H-10-107-30
Extended
Range
Extended
Range
Standard
Range
Range (ppmv) 50 - 1000 100 - 2000 200 - 4000
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1 1 1
Correction Factor 0.25 0.5 1
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 50% RH; 100% RH reduces the response by about 40%
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.1 1.0 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Blue → Yellow
Reaction Principle: SO2 + 2NaOH → Na2SO3 + H2O (pH indicator change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO210% 0
NO 100 0
NH3300 0#
CH425000 0
H2S100 0
Hexane 1200 0
Isobutylene 100 0
Toluene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
#Reduces reading in mixture.
Other Possible Interferences: Acid gases.
DATA SHEETS
90 www.honeywellanalytics.com
Sulfur Dioxide SO2 No. H-10-107-40
Extended
Range
Standard
Range
Extended
Range
Range (%) 0.1 – 2.5% 0.2 - 5% 0.4 - 10%
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±10%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 5 - 90% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.15 1.0 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Green
Reaction Principle: SO2 + Cr(VI) + H2O → H2SO4 + Cr(III)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
CO 3000 0
CO25% 0
NH35% 2.3% #
CH42.5% 0
H2S50 0
Hexane 1500 0
Isobutylene 2000 0
Benzene 100 0
* Data based on Honeywell pumps and tubes used in standard range.
#Forms a bright yellow color and reduces reading in mixture.
Other Possible Interferences: Reducing gases.
DATA SHEETS
91
www.honeywellanalytics.com

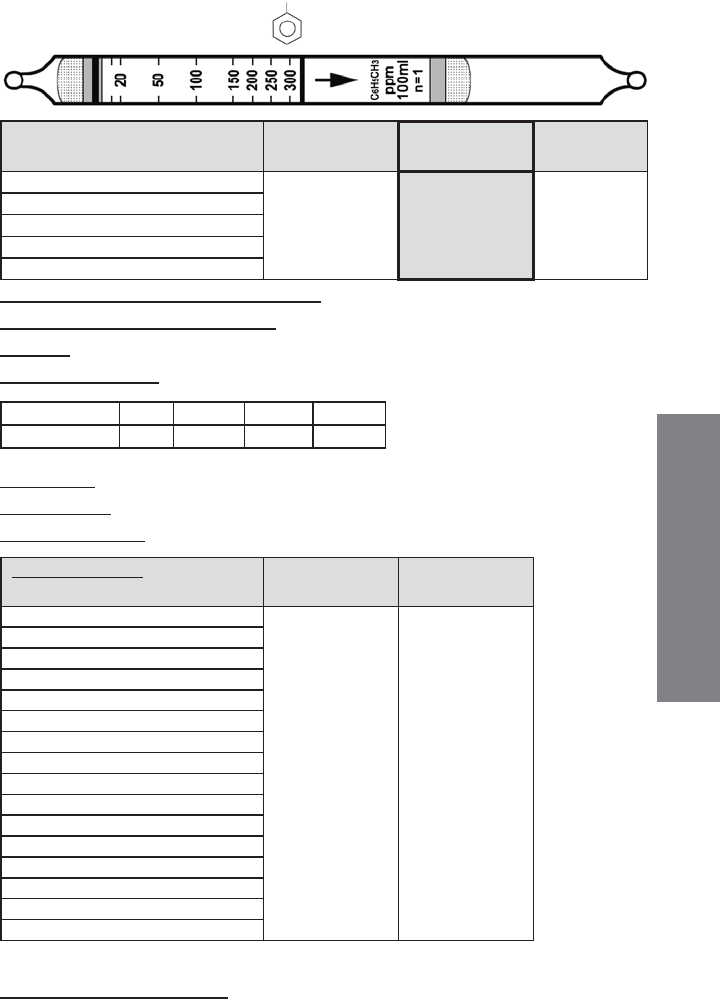

Toluene C7H8 No. H-10-114-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 5 - 150 10 - 300 20 - 600
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 2 2 1.5
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.994
Humidity: No effect 0 - 90% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.2 1.0 1.0 1.1
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Brown
Reaction Principle: C8H10 + I2O5 + H2SO4 → I2 + Oxidation Products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Benzene 95 110 green-brown
p-Xylene 100 40
o-Xylene 100 35
m-Xylene 100 30
Ethylbenzene 100 70
Styrene 100 10
Ethylene 100 0
Isobutylene 100 0
Isobutylene 2000 100 (faint)
Hexane 100 7 (faint)
CO 3000 0
CO215000 0
H2S50 55 (faint ring)
NH350000 0
CH425000 0
SO22050 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Other aromatics and reducing agents.
DATA SHEETS
92 www.honeywellanalytics.com

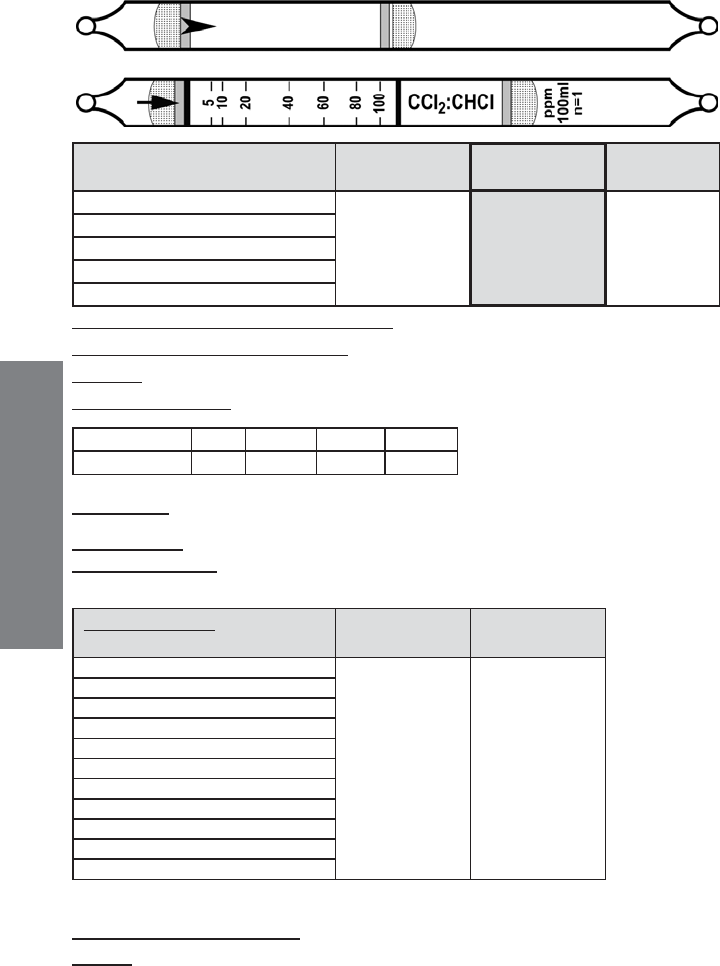

Trichloroethylene CHCl=CCl2 No. H-10-119-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 2.5 - 50 5 - 100 10 - 230
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 3 3 2
Correction Factor 0.5 1 2.3
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.999
Humidity: No effect 0 - 95% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.6 1.3 1.0 1.1
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Purple
Reaction Principle: Cl2C=CHCl + PbO2 + H2SO4 → HCl
HCl + Base → Chloride (dye color change)
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
Tetrachloroethylene 40 70
1,2-Dichloroethylene 100 20
Vinyl Chloride 100 10
1,1,2-Trichloroethane 100 <0.5
Acetone 1000 0
Toluene 1000 0
p-Xylene 1000 0
Cl2 10 10 (pale beige)
HCl 50 21
NO 500 0
NO2 500 60 (pale beige)
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: Acid gases. No response to H2S, CO or CH4.
Caution: Use of connector tubing other than that supplied may reduce response.
DATA SHEETS
93
www.honeywellanalytics.com

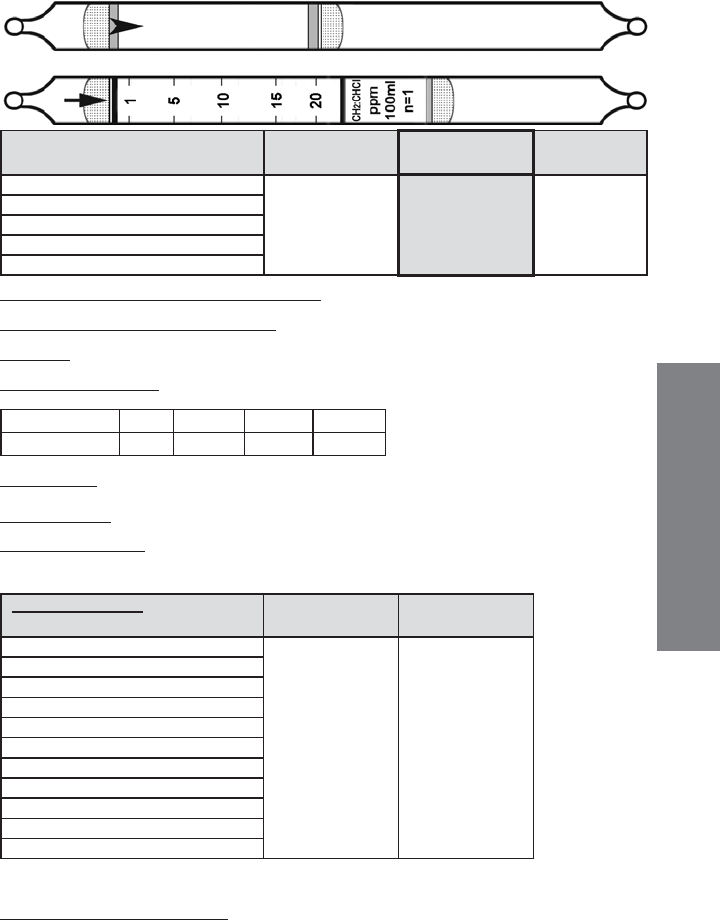

Vinyl Chloride CH2=CHCl No. H-10-128-10
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 0.5-10 1-20 2-40
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 3 3 3
Correction Factor 0.42 1.0 2.2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.991
Humidity: No effect 5 - 100% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 2.5 1.3 1.0 0.8
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow → Purple
Reaction Principle: Pretube: C 2H3Cl + K2Cr2O7 + H2SO4 → HCl + Other Prods
Measurement Tube: HCl + indicator dye → reddish purple color
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
1,3-Dichloropropylene 20 20
1,1-Dichloroethylene 10 16
Trichloroethylene 10 3.5
Tetrachloroethylene 60 1.5
Ethyl Chloroformate 40 0.4
Methyl Chloroformate 120 0.1
1,2-Dichloroethane 100 0
Methyl chloride 2000 0
Chloroform 100 0
Ethylene 1000 0
Benzene 600 0
* Data based on Honeywell pumps and tubes used in standard range.
Other Possible Interferences: HCl, chlorinated hydrocarbons. No response to
500 ppm CO, 5000 ppm CO2, or 600 ppm toluene.
DATA SHEETS
94 www.honeywellanalytics.com

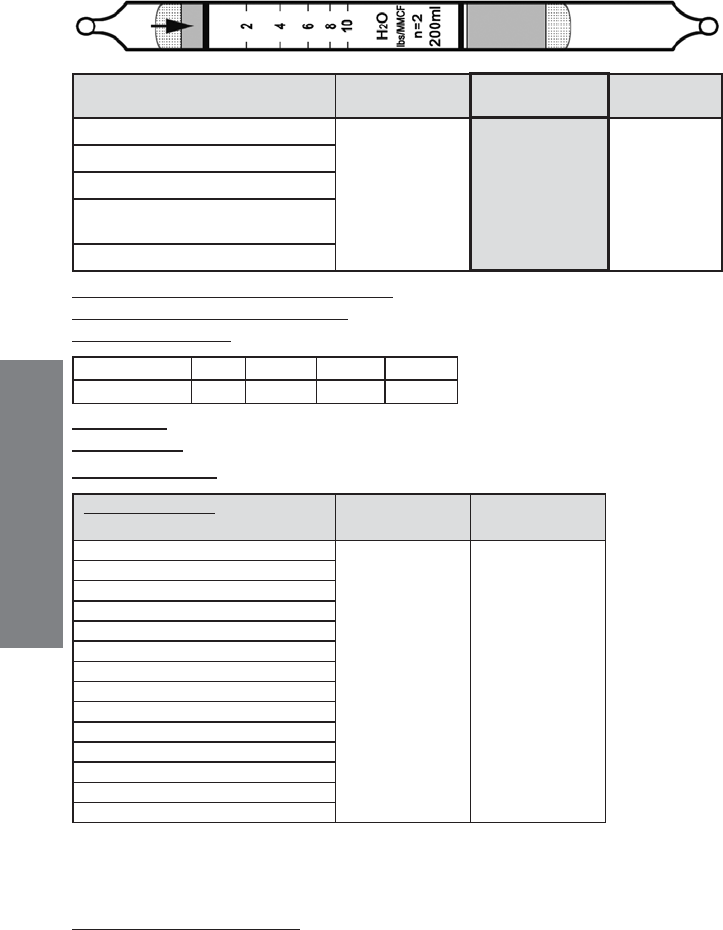

Water Vapor (Pipeline) H2O No. H-10-120-10
Extended
Range
Standard
Range
Extended
Range
Range (lbs/MMCF) 1 - 5 2 - 10 4 - 20
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) in air
(sec) in natural gas
4 x 1.5 min
4 x 45 sec
2 x 1.5 min
2 x 45 sec
1.5 min
45 sec
Correction Factor 0.51 1 2.22
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.99
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 23/73 40/104
Corr. Factor 1.1 1.0 1.0 0.9
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F) Refrigeration preferred.
Color Change: Yellow → Green
Reaction Principle: H2O + Mg(ClO4)2 → Mg(ClO4)2•H2O
Cross-sensitivity:
Substance
Concentration
(ppmv)
Reading* (lbs/
MMCF)
CH4100% 0
Propane (C3H8)10000 ≤2
Isobutylene 10000 0
Hexanes 3000 0
CO 200 0
CO23000 0
SO21500 0
H2S2000 ~1
NH3100 entire tube
HCl 300 0
Ethylene glycol saturated 0
Triethylene glycol saturated 0
Methanol 50 0‡
Toluene 400 ~1
* Data based on Honeywell pumps and tubes used in standard range.
‡ Forms light green stain when methanol is above 70 ppm. Water can be measured in
a mixture with methanol by reading the dark green stain only, ignoring the light green
methanol stain beyond dark green end point. See Technical Note on page 96 for pictures.
Other Possible Interferences: Amines, alcohols. No response to heptanes,
octanes as present in “rich” natural gas or commonly called “condensate.”
DATA SHEETS
95
www.honeywellanalytics.com

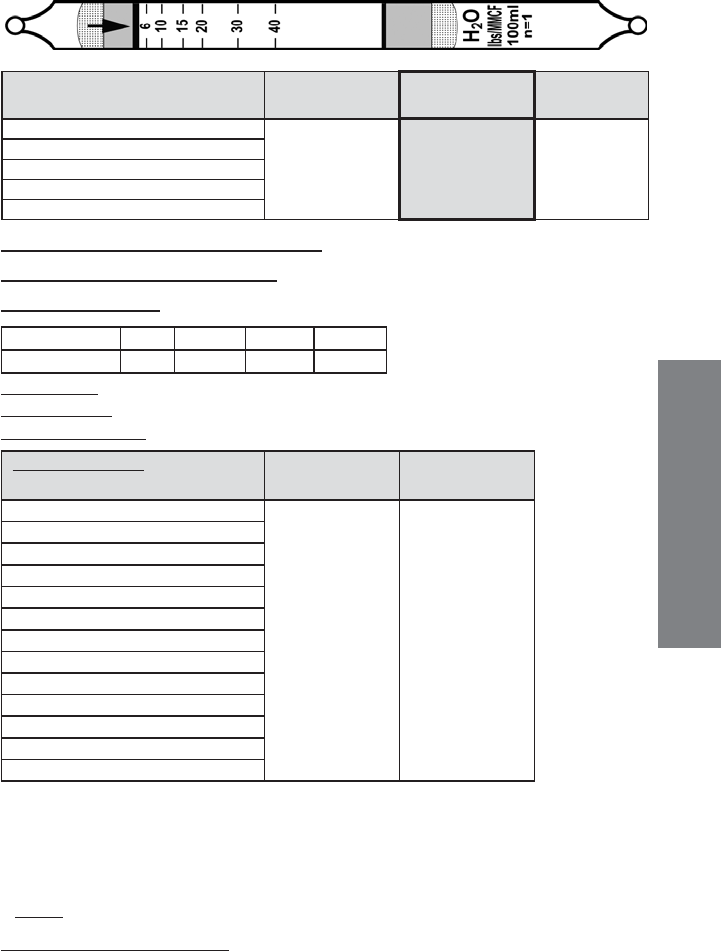

Water Vapor (Pipeline) H2O No. H-10-120-20
Extended
Range
Standard
Range
Extended
Range
Range (lbs/MMCF) 3 - 20 6 - 40 12 - 80
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.45 1 2.3
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.994
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 1.3 1.1 1.0 0.74
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F) Refrigeration preferred
Color Change: Yellow → Dark Green**
Reaction Principle: H2O + Mg(ClO4)2 → Mg(ClO4)2•H2O
Cross-sensitivity:
Substance
Concentration
(ppmv)
Reading* (lbs/
MMCF)
CH4100% 0
CO 200 0#
CO210% 0#
SO21500 0#
H2S2000 <3#
NH3250 35
HCl 300 0#
Methanol 80 0‡
Gasoline saturated 0
Heptane saturated 0
Ethylene glycol saturated 0
Triethylene glycol saturated 0
Toluene saturated 0
* Data based on Honeywell pumps and tubes used in standard range.
# No interference in mixtures with water vapor. ‡ No response below 80 ppm. Light green
stain when methanol is above 80 ppm, 340 ppm alone reads ~30 lbs/MMCF. Water can be
measured in a mixture with methanol by reading the dark green stain only, ignoring the light
green methanol stain beyond the dark green end point.
**Note: Color tends towards purple as temperature decreases.
Other Possible Interferences: Amines, alcohols; no effect of 500 ppm PH3.
DATA SHEETS
96 www.honeywellanalytics.com
Technical Note
Effect of Methanol & Glycols on Water Vapor Tubes
Introduction
Colorimetric tubes for water vapor are commonly used to measure the humidity of
natural gas because of their rapid response compared to instrumental methods.
To minimize corrosion and to obtain a better selling price for the gas, water vapor
levels are often reduced by passing the gas through a liquid scrubber containing
ethylene glycol or triethylene glycol. In addition, methanol is sometimes added to
the natural gas pipeline as an antifreeze so that ice does not accumulate during
cold weather. This technical note describes how to read water vapor tubes that
may have interference from these chemicals.
Resistance to Glycol Response and “Rich” Gas
Newer versions of Honeywell water vapor tubes have been improved to remove
any response to ethylene glycol or triethylene glycol. These changes were
implemented in the 6-40 lbs/MMCF tubes (p/n H-10-120-20) shipped after
November 2003 and in the 2-10 lbs/MMCF tubes (p/n H-10-120-10) shipped after
November 2004. Higher alkanes such as pentane, hexanes and octanes present
in "rich" natural gas also cause no response.
Effect of Methanol
Methanol alone causes a light green response in both H-10-120-10 and H-10-120-20
tubes when its concentration is above about 80 ppm. When water and methanol
are present together, a two-tone stain is seen. On the H-10-120-10 (2-10 lbs/MMCF)
tubes, the water forms a medium-dark green stain followed by a light green stain
for methanol (see Figure 1).

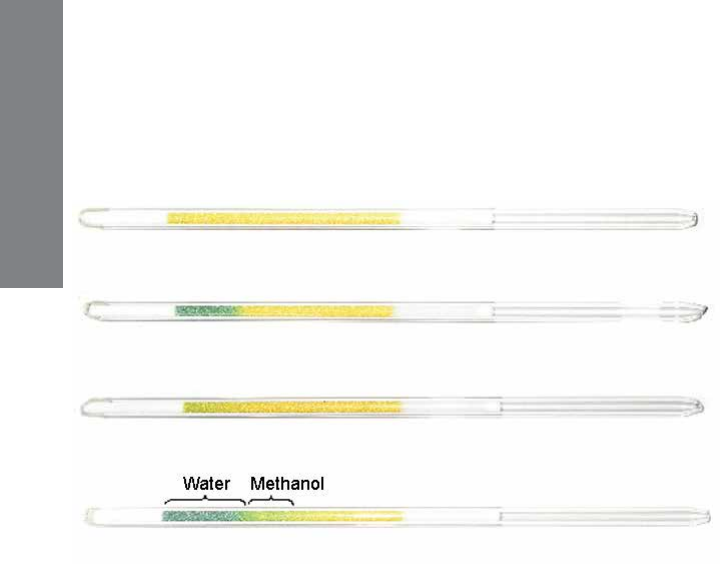

Figure 1. Methanol response on H-10-120-10 (2-10 lbs/MMCF) tube.
H2O: 0 Methanol: 60 ppm
H2O: 6 lbs/MMCF Methanol: 60 ppm
H2O: 0 Methanol: 100 ppm
H2O: 8 lbs/MMCF Methanol: 100 ppm
DATA SHEETS
97
www.honeywellanalytics.com
On the H-10-120-20 (6-40 lbs/MMCF) tubes, the water forms a purple stain followed
by a light green stain for methanol (see Figure 2). This light green color can be
ignored and only the darker stain read to obtain the water vapor concentration.
Figure 2. Methanol response on H-10-120-20 (6-40 lbs/MMCF) tube.
Figure 3. Effect of Temperature on H-10-120-20 tube.
Figure 3 shows that the color stain for water vapor is greener at higher temperatures
and tends towards purple as the temperature is lowered. Therefore the distinction
between methanol and water vapor response is clearer at lower temperatures.
H2O: 10 lbs/MMCF Methanol: 79 ppm
H2O: 20 lbs/MMCF Methanol: 158 ppm
H2O: 30 lbs/MMCF Methanol: 237 ppm
H2O: 40 lbs/MMCF Methanol: 316 ppm
0°C/32°F H2O: 20 lbs/MMCF Methanol: 100 ppm
20°C/68°F H2O: 20 lbs/MMCF Methanol: 100 ppm
30°C/86°F H2O: 20 lbs/MMCF Methanol: 100 ppm
DATA SHEETS
98 www.honeywellanalytics.com

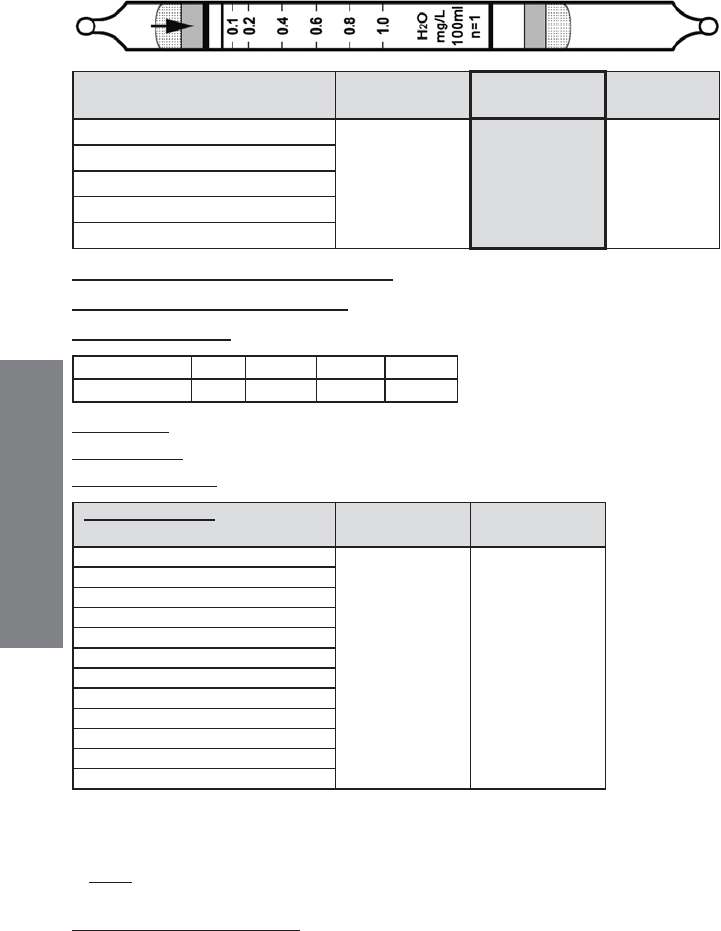

Water Vapor (Metric) H2O No. H-10-120-30
Extended
Range
Standard
Range
Extended
Range
Range (mg/L) 0.025 - 0.5 0.05 - 1.0 0.1 - 2.0
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.46 1 2.1
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.999
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 25/77 40/104
Corr. Factor 0.95 0.95 1.0 1.0
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F) Refrigeration preferred.
Color Change: Yellow → Dark Green**
Reaction Principle: H2O + Mg(ClO4)2 → Mg(ClO4)2•H2O
Cross-sensitivity:
Substance
Concentration
(ppmv)
Reading*
(mg/L)
CH4100% 0
Propane (C3H8)10000 0
CO 200 0#
CO210% 0#
SO21500 0#
H2S600 0#
NH3250 0.6
PH3500 0
HCl 300 0#
Methanol 100 ~0.02‡
Triethylene glycol Saturated ~0.05
Toluene 400 <0.1
* Data based on Honeywell pumps and tubes used in standard range.
# No interference in mixtures with water vapor.
‡ No response below 100 ppm. Positive interference when methanol is above 100 ppm.
250 ppm alone reads ~0.5 mg/L.
** Note: Read tube at end of dark green stain. Color tends towards purple as temperature
decreases.
Other Possible Interferences: Amines, alcohols.
DATA SHEETS
99
www.honeywellanalytics.com

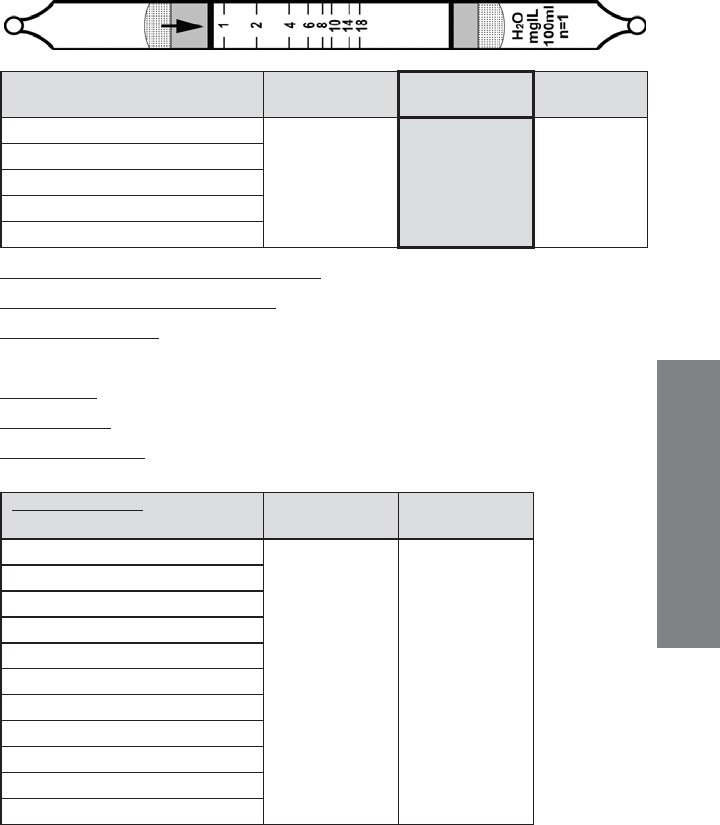

Water Vapor (Metric) H2O No. H-10-120-40
Extended
Range
Standard
Range
Extended
Range
Range (mg/L) 0.5 - 4 1 - 18 2 - 32
No. of Pump Strokes 2 1 0.5
Sample Volume (mL) 200 100 50
Sample Time (min) 2 x 1.5 1.5 1
Correction Factor 0.4 1 See Fig. 2
Precision (Relative Standard Deviation)*: ≤±20%
Linearity with No. of Pump Strokes: r2 = 0.959
Temperature Range: Refer to Figures 1 and 2. Requires accurate temperature
measurement.
Storage Life: 1 year in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: Yellow green → Purple
Reaction Principle: H2O + Mg(ClO4)2 → Mg(ClO4)2•H2O
Cross-sensitivity:
Substance
Concentration
(ppmv)
Reading*
(mg/L)
CH425000 0
CO2200000 0
CO 500 0
H2S 1000 0
SO23500 0
HCl 2000 0
NO2460 0
NH3460 1
PH340 0
Acetone 1000 1 (green)
Ethanol 2000 1.5
* Data based on Honeywell pumps and tubes used in standard range.
Continued on next page
DATA SHEETS
100 www.honeywellanalytics.com
Water Vapor H2O (Continued) No. H-10-120-40
DATA SHEETS
101
www.honeywellanalytics.com

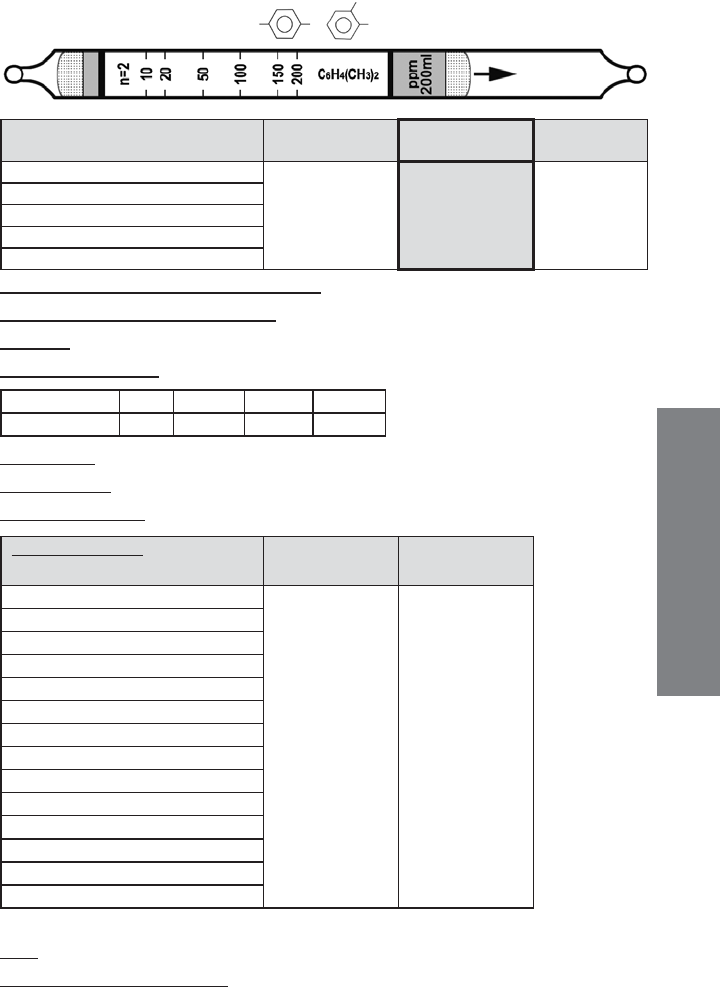

Xylenes C8H10 No. H-10-112-20
Extended
Range
Standard
Range
Extended
Range
Range (ppmv) 5 - 100 10 - 200 20 - 400
No. of Pump Strokes 4 2 1
Sample Volume (mL) 400 200 100
Sample Time (min) 4 x 2 2 x 2 2
Correction Factor 0.5 1 2
Precision (Relative Standard Deviation)*: ≤±12%
Linearity with No. of Pump Strokes: r2 = 0.991
Humidity: No effect 5 - 95% RH
Temperature Range: 0 - 40°C (32 - 104°F)
Temp (°C/°F) 0/32 10/50 21/70 40/104
Corr. Factor 2.4 1.4 1.0 1.7
Storage Life: 2 years in darkness at 5 - 25°C (40 - 77°F). Refrigeration preferred.
Color Change: White → Reddish Brown
Reaction Principle: C8H10 + I2O5 + H2SO4 → I2 + oxidation products
Cross-sensitivity:
Substance
Concentration
(ppmv)
Apparent
Reading*
p-Xylene 100 100
o-Xylene 100 40 (brown)
m-Xylene 100 20 (brown)
Toluene 20 50 (brown)
Benzene 10 10 (v.faint)
Hexane 100 0
Isobutylene 100 0
CO 250 0
CO250000 0
H2S5000 0
NO 100 3 (v.faint)
NH3100 0
CH425000 0
SO210 0
*Data based on Honeywell pumps and tubes used in standard range.
Note: The tube is calibrated to p-xylene.
Other Possible Interferences: Other aromatics.
DATA SHEETS
102 www.honeywellanalytics.com
SPECIALTY TUBES
103
www.honeywellanalytics.com
6. SPECIALTY TUBES
6.1 Smoke Generating Tubes
Smoke generating tubes are designed for use in respirator t tests. These
tubes are of the stannic chloride type required by OSHA for use in the
irritant smoke t test procedure. The tubes can also be used for visualizing
air currents, such as in testing the performance of fume hoods or in
detecting leaks from an air duct.
1. Operation
Smoke tubes are operated by simply breaking open each end and inserting
into a rubber squeeze bulb or other pump. Air pushed through the tube
releases the stannic chloride, which decomposes on contact with moisture
in the air to form a smoke. The tubes can be re-used until no more smoke
is evolved. Rubber caps are provided to seal the tubes between uses.
2. Smoke Tube Kit
The Smoke Tube Kit (Part no. H-010-0004-000) contains the following:
• Aspirator bulb
• Tube tip breaker
• 1 Box of 6 smoke tubes
• Soft carrying case

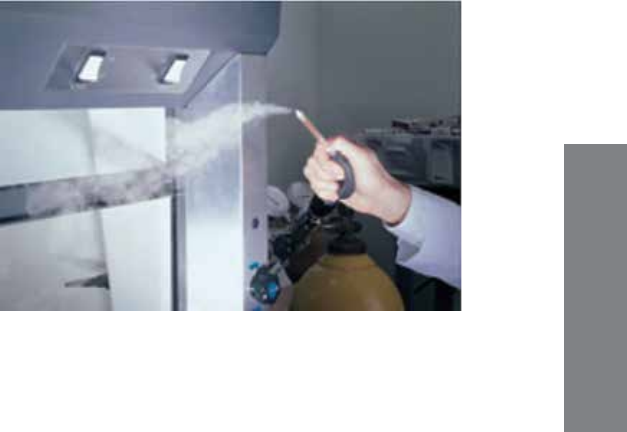

Figure 6.1. Use of smoke tube for visualizing fume hood air
currents.
SPECIALTY TUBES
104 www.honeywellanalytics.com
Gas Generation Tube Data Sheet
Irritant Smoke No. H-10-123-01
Color: A white smoke is generated. The tube changes from a dark reddish brown to a
lighter reddish brown. The tube can be used repeatedly until it is spent. Keep the tube
closed between uses with the supplied rubber caps.
Reagent Type: Stannic chloride
Reaction Principle: SnCl4 + H2O → stannic oxychlorides + 2HCl
Humidity Range: 10 - 95% RH. The smoke generating life increases about 10% at 20% RH
and decreases about 10% at 80% RH (incoming air humidity).
Temperature Range: 0 - 40°C (32 - 104°F). As temperature decreases the smoke lasts
longer and is less intense.
Storage Life and Conditions: 2 years in darkness at 5 - 25°C (40 - 77°F)
CAUTIONS ON USE:
• Read, understand and comply with all labels, warnings and instructions accompanying
these tubes before use. Failure to comply may cause serious injury or death.
• For use in respirator t testing according to OSHA 29 CFR 1910.134 (appendix A) and
OSHA 1910.139.
• Wear safety glasses and gloves to protect against chemical exposure and ying
glass. Wear a respirator when exposed to smoke. Vapors are corrosive to skin and
overexposure can result in serious injury or death.
• DO NOT inhale smoke directly. If inhaled enough to cause coughing, remove victim to
fresh air. If coughing persists, provide oxygen and contact a physician.
• Use only in a well-ventilated area. DO NOT use in a conned space.
• DO NOT use under a respirator t testing hood or other enclosed space because fume
concentrations may build up to levels that can cause serious injury or death.
• Avoid contact of smoke with skin. DO NOT direct smoke stream directly at the skin
during t testing. If smoke contacts skin for prolonged time, skin burns can result; ush
with copious amounts of water for 15 minutes and contact a physician.
• If smoke contacts eyes, immediately ush with water for 15 minutes and contact a
physician. Eyes should be kept tightly closed during t testing.
• Use only the pump(s) and ow rates specied in OSHA CFR 1910.134 and 29 CFR
1910.139. If the pump is operated at non-specied ow rates it could increase the smoke
and fume concentrations and cause serious injury or death.
• Do not use smoke tubes in areas that may contact food or food eating areas. Ingestion
of tube contents or fodd exposed to smoke may cause serious injury or death.
• Do not use for t testing on persons with pre-existing respiratory or related medical
conditions or are allergic to tin compounds or hydrochloric acid.
• When using for visualizing air currents, avoid exposure to persons downstream of the air ow.
Disposal: Dispose of spent or expired tubes according to local regulations. Each tube
contains 1.0 g of stannic chloride before use. Tube contents generate hydrochloric acid on
contact with water.
APPENDICES
105
www.honeywellanalytics.com
7 APPENDICES
7.1 Appendix 1. Alphabetical Tube List
Compound Tube
Number
Standard
Range
(ppmv unless
noted)
Total Meas.
Range
(ppmv unless
noted)
Standard Meas.
Time
(Strokes x min.
per stroke)
Acetone H-10-111-40 0.1- 2% 0.05 - 4% 1 x 2
Amines H-10-132-10 0.5 - 10 0.25 - 20 1 x 1
Ammonia H-10-100-05 1 - 30 0.5 - 60 1 x 1.5
H-10-100-10 5 - 100 2.5 - 200 1 x 1
H-10-100-12 10 - 260 5 - 520 1 x 1.5
H-10-100-15 25 - 500 12 - 1000 1 x 1
H-10-100-40 1 - 15% 0.5 - 30% 1 x 2
Benzene H-10-101-01 0.5 - 10 0.25 - 30 3 x 3
H-10-101-10 5 - 40 2.5 - 200 5 x 3
H-10-101-20 5 - 100 2.5 - 200 1 x 2
1,3-Butadiene H-10-135-04 0.5 - 5 0.25 - 10 2 x 2
n-Butane H-10-137-30 25 - 1400 12.5 - 2800 1 x 2.5
Carbon Dioxide H-10-104-30 300 - 5000 150 - 10000 1 x 2
H-10-104-40 0.05 - 1% 0.025 - 2% 1 x 2
H-10-104-45 0.25 - 3% 0.125 - 6% 1 x 2
H-10-104-50 1 - 20% 0.25 - 20% 0.5 x 1
H-10-104-60 5 - 40% 1.25 - 40% 0.5 x 1
Carbon Monoxide H-10-102-18 5 - 100 2.5 - 300 3 x 3
H-10-102-20 5 - 100 2.5 - 200 1 x 2
H-10-102-30 20 - 500 10 - 1000 1 x 1.5
H-10-102-45 0.2 - 4% 0.1 - 8% 0.5 x 1
Chlorine H-10-106-10 0.5 - 8 0.25 - 16 1 x 2.5
H-10-106-20 5 - 100 2.5 - 200 1 x 2
Chlorine Dioxide H-10-130-10 0.25 - 15 0.05 - 30 1 x 2
Diesel & Jet Fuel H-10-143-10 0.25 - 25 N/A 4 x 1.5
Ethanol H-10-141-30 100 - 2000 50 - 2000 1 x 3
Formaldehyde H-10-121-05 0.1 - 5 0.1 - 40 5 x 2
Gasoline H-10-138-30 30 - 1000 15 - 2000 2 x 2
Hydrocarbons H-10-110-30 50 - 1000 25 - 2000 2 x 2
Hydrogen Chloride H-10-108-09 1 - 20 0.5 - 40 1 x 1
H-10-108-10 1 - 20 0.5 - 40 1 x 1
H-10-108-22 20 - 500 10 - 1000 1 x 1.5
Hydrogen Cyanide H-10-126-10 2.5 - 60 1.25 - 120 2 x 2.5
Hydrogen Fluoride H-10-105-10 0.5 - 20 0.25 - 40 4 x 0.5
Hydrogen Sulde H-10-103-04 0.2 - 3 0.1 - 6 1 x 1.5
H-10-103-05 0.2 - 3 0.1 - 6 1 x 2
APPENDICES
106 www.honeywellanalytics.com
Appendix 1 (Continued). Alphabetical Tube List
Compound Tube
Number
Standard
Range
(ppmv unless
noted)
Total Meas.
Range
(ppmv unless
noted)
Standard
Meas. Time
(Strokes x min.
per stroke)
Hydrogen Sulde
(cont.)
H-10-103-06 1 - 7 0.25 - 7 0.5 x 1
H-10-103-10 2.5 - 60 1.25 - 120 1 x 1.5
H-10-103-12 0 - 150 0 - 300 1 x 1.5
H-10-103-15 10 - 120 5 - 240 1 x 1.5
H-10-103-18 25 - 250 12.5 - 500 1 x 1
H-10-103-20 50 - 800 25 - 1600 1 x 2
H-10-103-30 100 - 2000 50 - 4000 1 x 2
H-10-103-40 0.1 - 2% 0.05 - 4% 1 x 2
H-10-103-50 2 - 40% 0.5 - 40% 0.5 x 2
Mercaptans H-10-129-20 5 - 120 2.5 - 240 1 x 2
Methyl Bromide H-10-131-10 1 - 18 0.5 - 36 2 x 3
H-10-131-30 20 - 300 10 - 600 1 x 2
Methyl Ethyl Ketone H-10-113-20 0.02 - 0.6% 0.01 - 1.8% 3 x 2
Nitric Acid H-10-146-20 1 - 20 0.5 - 40 1 x 1
Nitrogen Dioxide H-10-117-10 0.5 - 30 N/A 1 x 1.5
Nitrogen Oxides H-10-109-20 1 - 50 0.5 - 100 1 x 3
Ozone H-10-133-03 0.05 - 0.6 0.05 - 1.8 5 x 2
Phenol H-10-139-05 1 - 25 0.5 - 180 2 x 1.5
Phosphine H-10-116-10 5 - 50 2.5 - 100 2 x 1.5
H-10-116-20 25 - 500 12.5 - 1000 1 x 1.5
H-10-116-25 50 - 1000 25 - 2000 1 x 1.5
Sulfur Dioxide H-10-107-15 2 - 30 1 - 60 2 x 2
H-10-107-20 5 - 100 2.5 - 200 1 x 2
H-10-107-25 100 - 1800 50 - 3600 1 x 2
H-10-107-30 200 - 4000 50 - 4000 0.5 x 1
H-10-107-40 0.2 - 5% 0.1 - 10% 1 x 2
Toluene H-10-114-20 10 - 300 5 - 600 1 x 2
Trichloroethylene H-10-119-20 5 - 100 2.5 - 230 1 x 3
Vinyl Chloride H-10-128-10 1 - 20 0.5 - 40 1 x 3
Water Vapor H-10-120-10 2-10 lbs/MMCF 1-20 lbs/MMCF 2 x 1.5
H-10-120-20 6-40 lbs/MMCF 3-80 lbs/MMCF 1 x 1.5
H-10-120-30 0.05 - 1 mg/L 0.025 - 2 mg/L 1 x 1.5
H-10-120-40 1 - 18 mg/L 0.5 - 32 mg/L 1 x 1.5
Xylenes H-10-112-20 10 - 200 5 - 400 2 x 2
APPENDICES
107
www.honeywellanalytics.com
7.2 Appendix 2. Tube List by Part Number
Tube Number Compound Standard Range
(ppmv unless noted)
Total Measurement
Range
(ppmv unless noted)
H-10-100-05 Ammonia 1 - 30 0.5 - 60
H-10-100-10 5 - 100 2.5 - 200
H-10-100-12 10 - 260 5 - 520
H-10-100-15 25 - 500 12 - 1000
H-10-100-40 1 - 15% 0.5 - 30%
H-10-101-01 Benzene 0.5 - 10 0.25 - 30
H-10-101-10 5 - 40 2.5 - 200
H-10-101-20 5 - 100 2.5 - 200
H-10-102-18 Carbon Monoxide 5 - 100 2.5 - 300
H-10-102-20 5 - 100 2.5 - 200
H-10-102-30 20 - 500 10 - 1000
H-10-102-45 0.2 - 4% 0.1 - 8%
H-10-103-04 Hydrogen Sulde 0.2 - 3 0.1 - 6
H-10-103-05 0.2 - 3 0.1 - 6
H-10-103-06 1 - 7 0.25 - 7
H-10-103-10 2.5 - 60 1.25 - 120
H-10-103-12 0 - 150 0 - 300
H-10-103-15 10 - 120 5 - 240
H-10-103-18 25 - 250 12.5 - 500
H-10-103-20 50 - 800 25 - 1600
H-10-103-30 100 - 2000 50 - 4000
H-10-103-40 0.1 - 2% 0.05 - 4%
H-10-103-50 2 - 40% 0.5 - 40%
H-10-104-30 Carbon Dioxide 300 - 5000 150 - 10000
H-10-104-40 0.05 - 1% 0.025 - 2%
H-10-104-45 0.25 - 3% 0.125 - 6%
H-10-104-50 1 - 20% 0.25 - 20%
H-10-104-60 5 - 40% 1.25 - 40%
H-10-105-10 Hydrogen Fluoride 0.5 - 20 0.25 - 40
H-10-106-10 Chlorine 0.5 - 8 0.25 - 16
H-10-106-20 5 - 100 2.5 - 200
H-10-107-15 Sulfur Dioxide 2 - 30 1 - 60
H-10-107-20 5 - 100 2.5 - 200
H-10-107-25 100 - 1800 50 - 3600
H-10-107-30 200 - 4000 50 - 4000
H-10-107-40 0.2 - 5% 0.1 - 10%
H-10-108-09 Hydrogen Chloride 1 - 20 0.5 - 40
H-10-108-10 1 - 20 0.5 - 40
H-10-108-22 20 - 500 10 - 1000
H-10-109-20 Nitrogen Oxides 1 - 50 0.5 - 100
H-10-110-30 Hydrocarbons 50 - 1000 25 - 2000
H-10-111-40 Acetone 0.1- 2% 0.05 - 4%
H-10-112-20 Xylenes 10 - 200 5 - 400
APPENDICES
108 www.honeywellanalytics.com
Appendix 2 (Continued). Tube List by Part Number
Tube Number Compound Standard Range
(ppmv unless noted)
Total Measurement
Range
(ppmv unless noted)
H-10-113-20 Methyl Ethyl Ketone 0.02 - 0.6% 0.01 - 1.8%
H-10-114-20 Toluene 10 - 300 5 - 600
H-10-116-10 Phosphine 5 - 50 2.5 - 100
H-10-116-20 25 - 500 12.5 - 1000
H-10-116-25 50 - 1000 25 - 2000
H-10-117-10 Nitrogen Dioxide 0.5 - 30 N/A
H-10-119-20 Trichloroethylene 5 - 100 2.5 - 230
H-10-120-10 Water Vapor 2-10 lbs/MMCF 1-20 lbs/MMCF
H-10-120-20 6-40 lbs/MMCF 3-80 lbs/MMCF
H-10-120-30 0.05 - 1 mg/L 0.025 - 2 mg/L
H-10-120-40 1 - 18 mg/L 0.5 - 32 mg/L
H-10-121-05 Formaldehyde 0.1 - 5 0.1 - 40
H-10-126-10 Hydrogen Cyanide 2.5 - 60 1.25 - 120
H-10-128-10 Vinyl Chloride 1 - 20 0.5 - 40
H-10-129-20 Mercaptans 5 - 120 2.5 - 240
H-10-130-10 Chlorine Dioxide 0.25 - 15 0.05 - 30
H-10-131-10 Methyl Bromide 1 - 18 0.5 - 36
H-10-131-30 20- 300 10 - 600
H-10-132-10 Amines 0.5 - 10 0.25 - 20
H-10-133-03 Ozone 0.05 - 0.6 0.05 - 1.8
H-10-135-04 1,3-Butadiene 0.5 - 5 0.25 - 10
H-10-137-30 n-Butane 25 - 1400 12.5 - 2800
H-10-138-30 Gasoline 30 - 1000 15 - 2000
H-10-139-05 Phenol 1 - 25 0.5 - 180
H-10-141-30 Ethanol 100 - 2000 50 - 2000
H-10-143-10 Diesel & Jet Fuel 0.25 - 25 N/A
H-10-146-20 Nitric Acid 1 - 20 0.5 - 40
APPENDICES
109
www.honeywellanalytics.com
7.3 Appendix 3. Detectable Compounds
Compound to be
Measured
Tube Used Tube Number Standard Range
(ppmv unless noted)
Acetaldehyde Formaldehyde H-10-121-05 0.1 - 5
Acetone Acetone H-10-111-40 0.1- 2%
Methyl Ethyl Ketone H-10-113-20
Ammonia Ammonia H-10-100-05 1 - 30
H-10-100-10 5 - 100
H-10-100-12 10 - 260
H-10-100-15 25 - 500
H-10-100-40 1 - 15%
Amines H-10-132-10
Hydrogen Sulde H-10-103-50
Sulfur Dioxide H-10-107-40
Allylamine Amines H-10-132-10
Benzene Benzene H-10-101-01 0.5 - 10
H-10-101-10 5 - 40
H-10-101-20 5 - 100
Toluene H-10-114-20
Gasoline H-10-138-30
1,3-Butadiene 1,3-Butadiene H-10-135-04 0.5 - 5
n-Butane n-Butane H-10-137-30 25 - 1400
Hydrocarbons H-10-110-30
t-Butanol Ethanol H-10-141-30
2-Butanone Methyl Ethyl Ketone H-10-113-20 0.02 - 0.6%
Butylamine Ammonia H-10-100-05
H-10-100-10
H-10-100-12
H-10-100-15
Butyl Mercaptan Mercaptans H-10-129-20
Hydrogen Sulde H-10-103-04
H-10-103-06
Carbon Dioxide Carbon Dioxide H-10-104-30 300 - 5000
H-10-104-40 0.05 - 1%
H-10-104-45 0.25 - 3%
H-10-104-50 1 - 20%
H-10-104-60 5 - 40%
Carbon Monoxide Carbon Monoxide H-10-102-18 5 - 100
H-10-102-20 5 - 100
H-10-102-30 20 - 500
H-10-102-45 0.2 - 4%
Benzene H-10-101-10
H-10-101-20
Diesel & Jet Fuel H-10-143-10
APPENDICES
110 www.honeywellanalytics.com
Appendix 3 (Continued). Detectable Compounds
Compound to be
Measured
Tube Used Tube Number Standard Range
(ppmv unless noted)
Chloride Methyl Bromide H-10-131-30 20- 300
Chlorine Chlorine H-10-106-10 0.5 - 8
H-10-106-20 5 - 100
Chlorine Dioxide H-10-130-10
Methyl Bromide H-10-131-10
Chlorine Dioxide Chlorine Dioxide H-10-130-10 0.25 - 15
Chlorine H-10-106-10
H-10-106-20
n-Decane Hydrocarbons H-10-110-30
1,2-Dibromoethane Methyl Bromide H-10-131-30 20- 300
1,3-Dibromopropane Methyl Bromide H-10-131-30 20- 300
Diesel Fuel Diesel & Jet Fuel H-10-143-10 0.5 - 25
Diethylamine Amines H-10-132-10 0.5 - 10
Ammonia H-10-100-05
H-10-100-10
H-10-100-12
H-10-100-15
1,1-Dichloroethylene Vinyl Chloride H-10-128-10
Methyl Bromide H-10-131-10
1,2- Dichloroethylene Trichloroethylene H-10-119-20
1,3-Dichloropropylene Vinyl Chloride H-10-128-10 1 - 20
Ethanol Ethanol H-10-141-30 100 - 2000
Ethanolamine Amines H-10-132-10
Ethylamine Amines H-10-132-10 0.5 - 10
Ethylbenzene Toluene H-10-114-20
Ethylene Hydrocarbons H-10-110-30
Ethylenediamine Amines H-10-132-10
Ethyl Mercaptan Mercaptans H-10-129-20 5 - 120
Formaldehyde Formaldehyde H-10-121-05 0.1 - 5
Gasoline Gasoline H-10-138-30 30 - 1000
Diesel & Jet Fuel H-10-143-10
n-Heptane Hydrocarbons H-10-110-30
n-Hexane Hydrocarbons H-10-110-30
Butane H-10-137-30
Carbon Monoxide H-10-102-30
Hydrocarbons Hydrocarbons H-10-110-30 50 - 1000
Hydrogen Chloride Hydrogen Chloride H-10-108-09 1 - 20
H-10-108-10 1 - 20
H-10-108-22 20 - 500
Nitric Acid H-10-146-20 1 - 20
Hydrogen Cyanide Hydrogen Cyanide H-10-126-10 2.5 - 60
APPENDICES
111
www.honeywellanalytics.com
Appendix 3 (Continued). Detectable Compounds
Compound to be
Measured
Tube Used Tube Number Standard Range
(ppmv unless noted)
Hydrogen Fluoride Hydrogen Fluoride H-10-105-10 0.5 - 20
Hydrogen Chloride H-10-108-09
Nitric Acid H-10-146-20 1 - 20
Hydrogen Sulde Hydrogen Sulde H-10-103-04 0.2 - 3
H-10-103-05 0.2 - 3
H-10-103-06 1 - 7
H-10-103-10 2.5 - 60
H-10-103-12 0 - 150
H-10-103-15 10 - 120
H-10-103-18 25 - 250
H-10-103-20 50 - 800
H-10-103-30 100 - 2000
H-10-103-40 0.1 – 2%
H-10-103-50 2 - 40%
Benzene H-10-101-20
Gasoline H-10-138-30
Hydrocarbons H-10-110-30
Phosphine H-10-116-10
H-10-116-20
H-10-116-25
Isobutane Hydrocarbons H-10-110-30 50 - 1000
Butane H-10-137-30
Isobutylene Methyl Ethyl Ketone H-10-113-20
1,3-Butadiene H-10-135-04 0.5 - 5
Isopar L Gasoline H-10-138-30
Isopropanol Ethanol H-10-141-30
Jet Fuel JP-5, JP-8 Diesel & Jet Fuel H-10-143-10 0.5 - 25
Methanol Ethanol H-10-141-30 100 - 2000
Methylamine Amines H-10-132-10 0.5 - 10
Methyl Bromide Methyl Bromide H-10-131-10 1 - 18
H-10-131-30 20- 300
Methyl Ethyl Ketone (MEK) Methyl Ethyl Ketone H-10-113-20 0.02 - 0.6%
Acetone H-10-111-40
Methyl Isobutyl Ketone Methyl Ethyl Ketone H-10-113-20
Acetone H-10-111-40
Methyl Mercaptan Mercaptans H-10-129-20 5 - 120
Ethanol H-10-141-30
Hydrogen Sulde H-10-103-04
Hydrogen Sulde H-10-103-06
Hydrogen Sulde H-10-103-40
Methyl Propyl Ketone Methyl Ethyl Ketone H-10-113-20
Acetone H-10-111-40
APPENDICES
112 www.honeywellanalytics.com
Appendix 3 (Continued). Detectable Compounds
Compound to be
Measured
Tube Used Tube Number Standard Range
(ppmv unless noted)
Nitric Acid Nitric Acid H-10-146-20 1 - 20
Nitric Oxide Nitrogen Oxides H-10-109-20
Benzene H-10-101-20
Carbon Monoxide H-10-102-20
Carbon Monoxide H-10-102-30
Ethanol H-10-141-30
Nitrogen Dioxide Nitrogen Dioxide H-10-117-10 0.5 - 30
Nitrogen Oxides H-10-109-20 1 - 50
Chlorine H-10-106-10
H-10-106-20
Chlorine Dioxide H-10-130-10
Nitrogen Oxides Nitrogen Oxides H-10-109-20 1 - 50
n-Octane Diesel & Jet Fuel H-10-143-10
Hydrocarbons H-10-110-30
Ozone Ozone H-10-133-03 0.05 – 0.6
n-Pentane Hydrocarbons H-10-110-30
Butane H-10-137-30
Perchloroethylene Trichloroethylene H-10-119-20
Petroleum Naphtha Hydrocarbons H-10-110-30
Phenol Phenol H-10-139-05 1 - 25
Phosphine Phosphine H-10-116-10 5 - 50
H-10-116-20 25 - 500
H-10-116-25 50 - 1000
Propionaldehyde Formaldehyde H-10-121-05 0.1 - 5
Propane Butane H-10-137-30
Propyleneimine Amines H-10-132-10
Propyl Mercaptan Mercaptans H-10-129-20 5 - 120
Sulfur Dioxide Sulfur Dioxide H-10-107-15 2 - 30
H-10-107-20 5 - 100
H-10-107-25 100 - 1800
H-10-107-30 200 - 4000
H-10-107-40 0.2 - 5%
Carbon Dioxide H-10-104-30
H-10-104-45
Hydrogen Cyanide H-10-126-10
Styrene Toluene H-10-114-20
Tetrachloroethylene Trichloroethylene H-10-119-20
Toluene Toluene H-10-114-20 10 - 300
Benzene H-10-101-20
Gasoline H-10-138-30
Hydrocarbons H-10-110-30
Xylenes H-10-112-20
APPENDICES
113
www.honeywellanalytics.com
Appendix 3 (Continued). Detectable Compounds
Compound to be
Measured
Tube Used Tube Number Standard Range
(ppmv unless noted)
1,1,1-Trichloroethane Methyl Bromide H-10-131-10
Trichloroethylene Trichloroethylene H-10-119-20 5 - 100
Carbon Monoxide H-10-102-20
Carbon Monoxide H-10-102-30
Vinyl Chloride H-10-128-10
Trimethylamine Amines H-10-132-10
Undecane Diesel & Jet Fuel H-10-143-10 0.5 - 25
Water Vapor Water Vapor H-10-120-10 2 - 10 lbs/MMCF
H-10-120-20 6 - 40 lbs/MMCF
H-10-120-30 0.05 - 1 mg/L
H-10-120-40 1 - 18 mg/L
m-Xylene Xylenes H-10-112-20
Toluene H-10-114-20
o-Xylene Xylenes H-10-112-20
Toluene H-10-114-20
p-Xylene Xylenes H-10-112-20 10 - 200
Toluene H-10-114-20
APPENDICES
114 www.honeywellanalytics.com
7.4 Appendix 4. Equivalent Tubes of Other Manufacturers
Honeywell Gastec Kitagawa Draeger MSA-AUER
Compound Tube # Range* Tube # Range* Tube # Range* Tube # Range* MSA # AUER # Range *
Acetone H-10-111-40 0.1-2% 151 0.01-0.8% 102SC 0.01-4% 804141 5086-829 0.01-1%
Amines H-10-132-10 0.5-10 180L 0.5-10 227S 1-20 6733231 2-30
Ammonia H-10-100-10 1-30 3L 1-30 105SD 1-20 6733231 2-30 804134 5086-816 4-55
H-10-100-10 5-100 3La 5-100 105SC 5-130 8101941 5-100 804405 5085-845 10-500
H-10-100-12 10-260 105SC 10-260
H-10-100-15 25-500 3M 25-500 105SB 50-900 800300 5085-814 20-1000
H-10-100-40 1-15% 3H 1-15% 105SA 0.5-10% CH31901 0.5-10% 804406 5085-815 0.5-10%
Benzene H-10-101-01 0.5-10 121SP 0.5-10 8101841 0.5-10 807024 5086-835 1-25
H-10-101-10 5-40 121SL 1-20 118SB 5-200 8101231 2-60
H-10-101-20 5-100 121 5-60 118SC 4-100 6728071 5-50 804411 5085-816 5-100
1,3-Butadiene H-10-135-04 0.5 - 5 174LL 0.5-5 168SE 0.1-2
n-Butane H-10-137-30 25-1400 104 25-1400 221SA 500-6000
2-Butanone (MEK) H-10-113-20 0.02-0.6% 152 0.02-0.6% 139SB 0.01-1.4% 813334 5086-837 0.005-0.4%
Carbon Dioxide H-10-104-30 300-5,000 2LL 300-5000 126SC 300-7000 8101811 100-3000 497606 5086-814 100-3000
H-10-104-40 0.05-1% 126SB 0.05-1.0%
H-10-104-45 0.25-3% 2L 0.25-3% 126SA 0.1 - 2.6% CH23501 0.5-6% 487333 5085-817 0.5-7%
H-10-104-50 1-20% 2H 1-10% 126SH 1-20% CH25101 1-20% 804419 5085-841 1-20%
H-10-104-60 5-40% 2HH 5-40% 126UH 5-50% CH20301 5-60%
Carbon Monoxide H-10-102-18 5-100 1LK 5-100 CH19701 8-150
H-10-102-20 5-100 1LL 5-50 106SB 5-50 6728511 5-150
H-10-102-30 20-500 1La 25-500 106S 10-250 803943 5085-836 50-1000
H-10-102-45 0.2-4% 1H 0.2-5% 106SH 0.1-2.0% 804423 5085-822 0.1-1.0%
Chlorine H-10-106-10 0.5-8 8La 0.5-8 109SB 0.5-10 6728411 0.3-5 803944 5085-801 2-30
H-10-106-20 5-100 8H 50-500 178S 50-140 CH20701 50-500
Chlorine Dioxide H-10-130-10 0.25-15 116 1-20 804133 5086-812 0.25-15
* Units are ppmv unless noted.
APPENDICES
115
www.honeywellanalytics.com
Appendix 4 (Continued). Equivalent Tubes of Other Manufacturers
Honeywell Gastec Kitagawa Draeger MSA-AUER
Compound Tube # Range* Tube # Range* Tube # Range* Tube # Range* MSA # AUER # Range *
Diesel & Jet Fuel
H-10-143-10 0.5-25
Ethanol H-10-141-30 100-2000 112L 100-2000 119U 20-1000 CH29701 100-3000 804136 5086-818 100-3000
Formaldehyde H-10-121-05 0.1-5 91L 0.1-5 171SC 0.1-4 6733081 0.5-5 497649 5086-813 1-10
Gasoline H-10-138-30 30-1000 101L 30-1000 110S 500-6000 492870 5085-898 30-600
Hydrocarbons H-10-110-30 50-1,000 105 200-3000 187S 50-1400
Hydrogen Chloride H-10-108-09 1-20
H-10-108-10 1-20 14L 1-20 173SB 2-20 CH29501 1-10 803948 5085-846 1-30
H-10-108-22 20-500 14M 20-500 173SA 20-600 6728181 50-500
Hydrogen Cyanide H-10-126-10 2.5-60 12L 2.5-60 112B 2-100 CH25701 2-30 803945 5085-824 5-50
Hydrogen Fluoride H-10-105-10 0.5-20 17 0.5-20 156S 1-30 CH30301 1.5-15 804142 5086-830 5-50
Hydrogen Sulde H-10-103-04 0.2-3 4LT 0.2-2 120UP 0.2-3 8101991 0.2-6
H-10-103-05 0.2-3 4LT 0.2-2 120U 0.2-3 8101991 0.2-6
H-10-103-06 1-7 8101991 0.2-6
H-10-103-10 2.5-60 4LL 2.5-60 120SD 5-60 CH29801 2-60
H-10-103-12 0 - 150 4L 10-120 120SB 10-200 6719001 3-150 487339 5085-826 10-200
H-10-103-15 10-120 4L 10-120 120SB 10-200 6719001 3-150 487339 5085-826 10-200
H-10-103-18 25-250 4M 25-250 6728821 20-200 487339 5085-826 10-200
H-10-103-20 50-800 4HM 50-800 120SC 5-1600
H-10-103-30 100-2000 4H 100-2000 120SA 100-2000 CH29101 100-2000 487340 5085-827 100-4000
H-10-103-40 0.1-2% 4HH 0.1-2% 120SH 0.2-7% CH28101 0.1-4.0%
H-10-103-50 2-40% 4HT 2-20% 120UH 2-40% 8101211 2-20%
Mercaptans H-10-129-20 5-120 70 5-120 164SA 5-140 8101871 20-100 804589 5086-815 10-80
Methyl Bromide H-10-131-10 1-18 136LA 1-18 157SC 1-10 8101671 0.5-5
H-10-131-30 20- 300 136H 20-300 157SA 10-500 CH27301 5-50 710391 5086-845 2-100
Nitric Acid H-10-146-20 1 - 20 15L 1 - 20 233S 2-20 6728311 1-50
* Units are ppmv unless noted.
APPENDICES
116 www.honeywellanalytics.com
Appendix 4 (Continued). Equivalent Tubes of Other Manufacturers
Honeywell Gastec Kitagawa Draeger MSA-AUER
Compound Tube # Range* Tube # Range* Tube # Range* Tube # Range* MSA # AUER # Range *
Nitrogen Dioxide H-10-117-10 0.5-30 9L 0.5-30 117SB 0.5-30 CH30001 0.5-10 487341 5085-805 0.5-50
Nitrogen Oxides H-10-109-20 Jan-50 10 5-200 175U Feb-50 CH31001 1.0-50 487341 5085-805 0.5-50
Ozone H-10-133-03 0.05-0.6 18L 0.05-0.6 182U 0.05-1 6733181 0.05-0.7 804140 5086-828 0.05-1
Phenol H-10-139-05 1-25 60 1-25 183U 0.5-25 8101641 1-20 813778 5086-838 1-25
Phosphine H-10-116-10 5-50 75-50 121SB 10-100 8101801 5-90 485680 5085-830 0.1-10
H-10-116-20 25-500 7J 25-500 121SC 20-700
H-10-116-25 50-1000 121SC 40-1400 CH21201 50-1000 489119 5085-831 50-2000
Sulfur Dioxide H-10-107-15 2-30 5La 2-30 103SD 1-25 6728491 1-60 487338 5085-803 1-25
H-10-107-20 5-100 5L 5-100 103SC 20-200 CH24201 20-300 497662 5085-813 5-120
H-10-107-25 100-1800 5M 100-1800
H-10-107-30 200-4000 103SB 400-8000 8101531 200-3000 497661 5085-825 500-4000
H-10-107-40 0.2-5% 5H 0.5-4% 103SA 0.1-3.0%
Toluene H-10-114-20 10-300 122 10-300 124SA 50-400 8101701 10-500 803947 5085-828 5-1000
Trichloroethylene H-10-119-20 5-100 132M 5-100 134SA 5-150 6728541 20-250 487342 5085-842 20-250
Vinyl Chloride H-10-128-10 1-20 131La 1-20 132SC 0.4-12 8101721 5-30 803950 5085-837 5-70
Water Vapor H-10-120-10 2-10 lbs/MMCF 6LLP 2-10 lbs/MMCF 177UR 2-12 lbs/
MMCF
6728531 488908 5085-851 1.4-9.1 lbs/MMCF‡
H-10-120-20 6-40 lbs/MMCF 6LP 6-40 lbs/MMCF 177UL 3-80 lbs/
MMCF
8101321 6.4-128 lbs/
MMCF‡
H-10-120-30 0.05-1 mg/L 6L 0.05-1 mg/L 177U 0.1-2 mg/L 8101321 0.1-1 mg/L
Xylenes H-10-112-20 10-200 123 10-250 143S 10-400 6733161 5-1000
* Units are ppmv unless noted.
‡Actual scale on tubes is in mg/L, but is converted here to lbs/MMCF for ease of comparison.
APPENDICES
117
www.honeywellanalytics.com
7.5 Appendix 5. Conversion Factors for Gas
Concentrations
To convert from the units on the left to the units on top, multiply by:
To:
From:
Vol. % ppmv ppbv mg/m3 mg/L
vol. % - 104 107 104(mw.P)
MV
10 (mw.P)
MV
ppmv 10-4 - 103 (mw.P)
MV
10-3(mw.P)
MV
ppbv 10-7 10-3 - 10-3(mw.P)
MV
10-6(mw.P)
MV
mg/m3 10-4MV
(mw.P)
MV
(mw.P)
103MV
(mw.P)
- 10-3
mg/L 0.1MV
(mw.P)
103MV
(mw.P)
106MV
(mw.P)
103 -
Key: P = pressure in atmospheres
MV = molar volume of gas (for air, see table below)
mw = molecular weight of compound in g/mole
1 Atmosphere
Equivalents
Temp.
(°C) Temp.
(°F) Air Molar
Volume (MV)
1013 hPa -10 14 21.59
101.3 kPa -5 23 22.00
1.013 bar 0 32 22.41
1013 mbar 5 41 22.82
760 mm Hg 10 50 23.23
29.9 in. Hg 15 59 23.64
33.9 ft. H2O 20 68 24.05
14.7 psia 25 77 24.46
30 86 24.87
35 95 25.28
40 104 25.69
45 113 26.10
50 122 26.51
APPENDICES
118 www.honeywellanalytics.com
7.6 Appendix 6. Humidity Conversion Tables
Dew Pt. or Temp. ppmv %RH %RH
°C°Fmg/L lbs/MMCF at 25°C at 25°C at 20°C
-85 -121 0.0005 0.03 0.7 0.002% 0.003%
-80 -112 0.0011 0.07 1.6 0.005% 0.007%
-75 -103 0.0025 0.15 3.4 0.011% 0.015%
-70 -94 0.005 0.31 6.9 0.02% 0.031%
-65 -85 0.010 0.62 13.5 0.04% 0.061%
-60 -76 0.019 1.17 25.6 0.08% 0.12%
-55 -67 0.034 2.14 46.8 0.15% 0.21%
-50 -58 0.061 3.80 82.8 0.26% 0.37%
-45 -49 0.10 6.52 142 0.45% 0.64%
-40 -40 0.17 10.9 238 0.76% 1.1%
-35 -31 0.29 17.8 388 1.2% 1.7%
-30 -22 0.45 28.3 617 2.0% 2.8%
-25 -13 0.71 44.0 960 3.1% 4.3%
-20 -4 1.1 67.1 1464 4.7% 6.6%
-15 5 1.6 100 2190 7.0% 9.9%
-10 14 2.4 148 3218 10% 14%
-5 23 3.4 213 4650 15% 21%
0 32 4.9 303 6615 21% 30%
5 41 6.8 425 9272 30% 42%
10 50 9.4 587 12816 41% 58%
15 59 12.9 801 17487 56% 79%
16 60.8 13.7 852 18581 59% 84%
17 62.6 14.5 904 19733 63% 89%
18 64.4 15.4 960 20947 67% 94%
19 66.2 16.3 1019 22225 71% 100%
20 68 17.3 1080 23569 75% 106%
21 69.8 18.4 1145 24984 80% 112%
22 71.6 19.5 1213 26471 84% 119%
23 73.4 20.6 1285 28034 89% 126%
24 75.2 21.8 1360 29677 95% 134%
25 77 23.1 1439 31401 100% 141%
26 78.8 24.4 1522 33211 106% 149%
27 80.6 25.8 1609 35111 112% 158%
28 82.4 27.3 1700 37103 118% 167%
29 84.2 28.8 1796 39192 125% 176%
30 86 30.4 1897 41381 132% 186%
31 87.8 32.1 2002 43674 139% 197%
32 89.6 33.9 2112 46075 147% 207%
33 91.4 35.7 2227 48589 155% 219%
34 93.2 37.7 2347 51219 163% 230%
35 95 39.7 2474 53971 172% 243%
40 104 51.3 3195 69707 222% 314%
45 113 65.6 4088 89203 284% 401%
50 122 83.2 5186 113153 360% 509%
APPENDICES
119
www.honeywellanalytics.com
7.7 Appendix 7. Limited Product Warranty
Honeywell warrants manual (hand-operated) pumps to be free of defects in
workmanship for the life of use by the original owner. All other consumable
items such as inlet lters, rubber inlets, plunger gaskets, which by their
nature are consumed or depleted during normal operation, are excluded
from this standard warranty.
Honeywell's obligation under this warranty is limited to replacing or
repairing, at Honeywell’s option, any defective or damaged part if returned
to a Honeywell authorized factory repair center, with shipping charges
prepaid by the buyer.
To maintain warranty, Purchaser must perform maintenance and calibration
as prescribed in the Operation and Maintenance manual. In the event of
a defect or damage, Purchaser will notify a Honeywell designated factory
repair center in advance and if trouble diagnosis procedures are unable
to determine and remedy the condition, a Return Material Authorization
(RMA) will be issued to assure proper repair and logistics tracking.
Honeywell neither assumes nor authorizes any other rm or person to
assume on Honeywell’s behalf any liability in any way connected with the
sale of Honeywell products.
Warranty does not extend to any equipment malfunction or damage that
results from alteration, theft, misuse, abuse, abnormal use, or improper or
unauthorized repairs.
This express warranty shall extend to buyer of record only and not to
sales made by buyer’s customers. Except for the warranty of title, the
foregoing express warranty is in lieu of any and all other warranties,
whether expressed or implied, including the implied warranties of tness
for a particular purpose and merchantability. Seller’s liability under the
warranty provided herein exclusive of insurance process shall be limited
to a refund of purchase price.
APPENDICES
120 www.honeywellanalytics.com
7.8 Appendix 8. Honeywell Analytics Contacts
North America and Latin America
Honeywell Analytics
405 Barclay Blvd.
Lincolnshire, IL USA 60069
Toll free: +1.888-749-8878
Fax: +1-817-274-8321
DetectGas@Honeywell.com
Technical Support: +1-847-955-8200
Europe, Middle East, Africa and India
Life Safety Distribution AG
Javastrasse 2
8604 Hegnau
Switzerland
Tel: +41 (0)44 943 4300
Fax: +41 (0)44 943 4398
GasDetection@Honeywell.com
Asia Pacic
Customer Business Centre
#701, Kolon Science Valley (1), 43 Digital-Ro
Guro-Gu, Seoul,
Korea
Tel: +82-2-69090300
Fax: +82-2-69090329
Analytics.ap@honeywell.com
Notes
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
______________________________________________________________________________________________________
Please Note:
While every effort has been made to ensure accuracy in this publication, no responsibility can be accepted for errors or omissions. Data may change, as well as legislation, and
you are strongly advised to obtain copies of the most recently issued regulations, standards, and guidelines. This publication is not intended to form the basis of a contract.
Honeywell Analytics
405 Barclay Blvd.
Lincolnshire, IL USA 60069
Toll free: +1 888 749 8878
Fax: +1 817 274 8321
DetectGas@honeywell.com
www.honeywellanalytics.com
H-010-4003-000
Rev: 03-2014
© 2014 Honeywell International
Honeywell Analytics Gas Detection Offerings
Honeywell Analytics gas detectors protect people, assets and environment from toxic and
combustible gas hazards, helping to create safer, more comfortable, secure and productive
environments. Our strength derives from Honeywell’s leadership in sensor technology; in fact
Honeywell operates four sensor manufacturing plants, supplying an entire industry with its core
detective element.
Portables
Single or multi-gas detectors ranging
from compact, lightweight designs for
personal protection to systems-based,
networkable instrumentation for
industrial hygiene.
Commercial
Gas detection from standalone units to
fully engineered, multi-point systems,
all offering cost-effective regulatory
compliance.
Industrial
Renowned Sieger and Manning gas
detection systems with advanced
electrochemical, infrared and open path
sensing technologies.
High Tech/Government
Reliable gas and chemical detection
including infrared spectroscopy (MST) with
no cross interference, to Chemcassette
paper-based solutions (MDA Scientific)
offering detection down to parts per billion.
