User Manual
Car Transmitter
Instructions for model: MV-0313

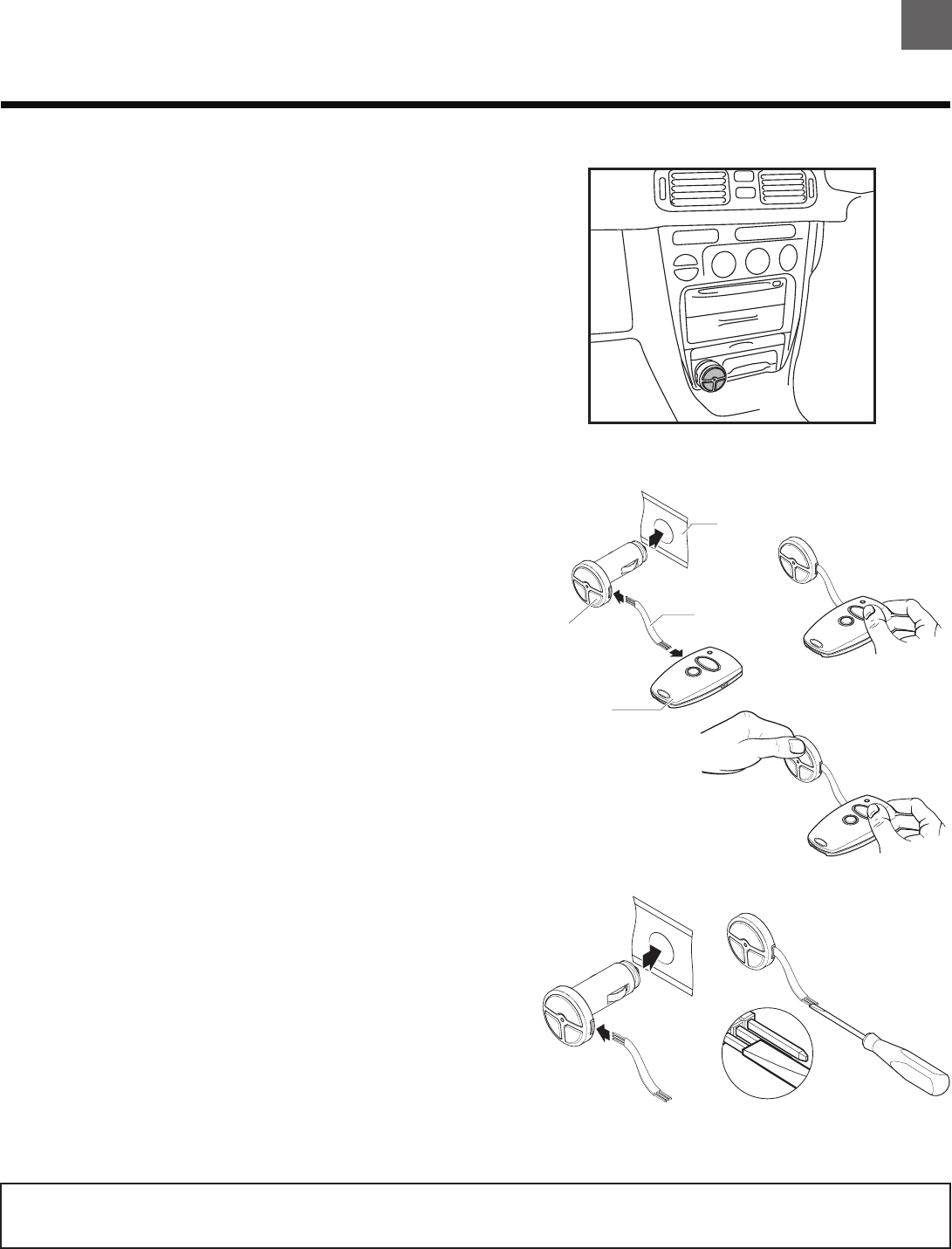

Figure 1. Using Transmitter
GB
Figure 2. Multiple Transmitters-Code Transfer
Figure 3. Code Changing
FEATURES
The 3-channel transmitter can be used problem-free over the 12 V
voltage supply of the cigarette lighter of each passenger car. The
transmitter is thereby at the same place and a battery change is no
longer necessary always.
Each transmitter is custom encoded and ergonomically designed to be
an integral part of your garage door opener system, with two styles to suit
your personal preference.
1. Using the transmitter
+
Put the transmitter into the cigarette lighter of your car (Figure 1). To
open or close garage door, press and hold the button (The transmitter
has indicator lights). When garage door begins to move release
button.
+
To stop the garage door during travel, press and hold button until door
stops, then release button.
+
To continue the garage door travel after stopping it, press and hold the
button. Press button once, the door will travel in the opposite direction.
Each car transmitter comes factory programmed with random codes.
The car transmitter code can be changed in order to match the code of
an "active" transmitter, which you are already using. Below are
instructions for transferring an active code from a button on one
transmitter to a button of your choice on the car transmitter.
+
Connect the transmitter with active code to the car transmitter using
the programming cable (fig. 2A).
+
Press and hold the selected channel button on the transmitter with the
active code (fig. 2B). The light in the transmitter illuminates.
+
Press and hold the respective channel button on the car transmitter
(fig. 2C). The light in the transmitter initially starts blinking and then
illuminates continuously after 1-2 sec. Code transfer is completed.
+
Programming cable can be removed and both transmitters can now be
used to operate the same door.
Note: For multi-button transmitters, be sure to carry out this procedure
for all the buttons you desire to use.
+
Connect the programming cable into the lateral socket of the car
transmitter to change the code.
+
Short one of the outer pins of the programming cable with the middle
pin.
+
Press and hold the respective channel button. The light will blink
rapidly for approx. 5 sec. Release the button after the light illuminates
continuously. Then remove the programming cable.
Note: Be sure to carry out this procedure for all the buttons you desire to
use.
2. Multiple Transmitters (Figure 2)
3. Changing the Code on Transmitters (Figure 3)
The transmitter factory preset code can be changes as follows:
Programming
cable
Cigarette
lighter
Transmitter
with active Code
fig. 2A fig. 2B
fig. 2C
Car
Transmitter
FCC Certified: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user´s authority to operate the equipment.
84574 2008 All rights reserved. 08/05 GB ©
GB
4. Multiple Transmitters (Figure 3)
Each transmitter comes factory programmed with random
codes. 2-channel transmitters have 2 different random codes,
one per button, 3-channel transmitters have 3 different random
codes and 4-channel transmitters have 4 different random
codes, one per button. Transmitters that are purchased
separately as accessories have random codes that must be
changed in order to match the code of the "active" transmitter,
which you are alredy using. Below are instructions for
transferring an active code from a button on one transmitter to a
button of your choice on another transmitter.
Connect the transmitter with active code to the new
transmitter using the programming connector (fig. 3A).
Press and hold the selected channel button on the transmitter
with the active code (fig. 3B). The light in the transmitter
illuminates.
Press and hold the respective channel button on the new
transmitter (fig. 3C). The light in the transmitter initially starts
blinking and then illuminates continuously after 1-2 sec. Code
transfer is completed.
Programming connector can be removed and both transmitters
can now be used to operate the same door.
Note: For multi-button transmitters, be sure to carry out this
procedure for all the buttons you desire to use.
5. Changing the Code on Transmitters (Figure 4)
The transmitter factory preset code can be changes as follows:
Connect the programming connector into the lateral socket of
the transmitter to change the code.
Short one of the outer pins of the programming connector with
the middle pin.
Press and hold the respective channel button. The light will blink
rapidly for approx. 5 sec. Release the button after the light
illuminates continuously. Then remove the programming
connector.
Note: For multi-button transmitters, be sure to carry out this
procedure for all the buttons you desire to use.

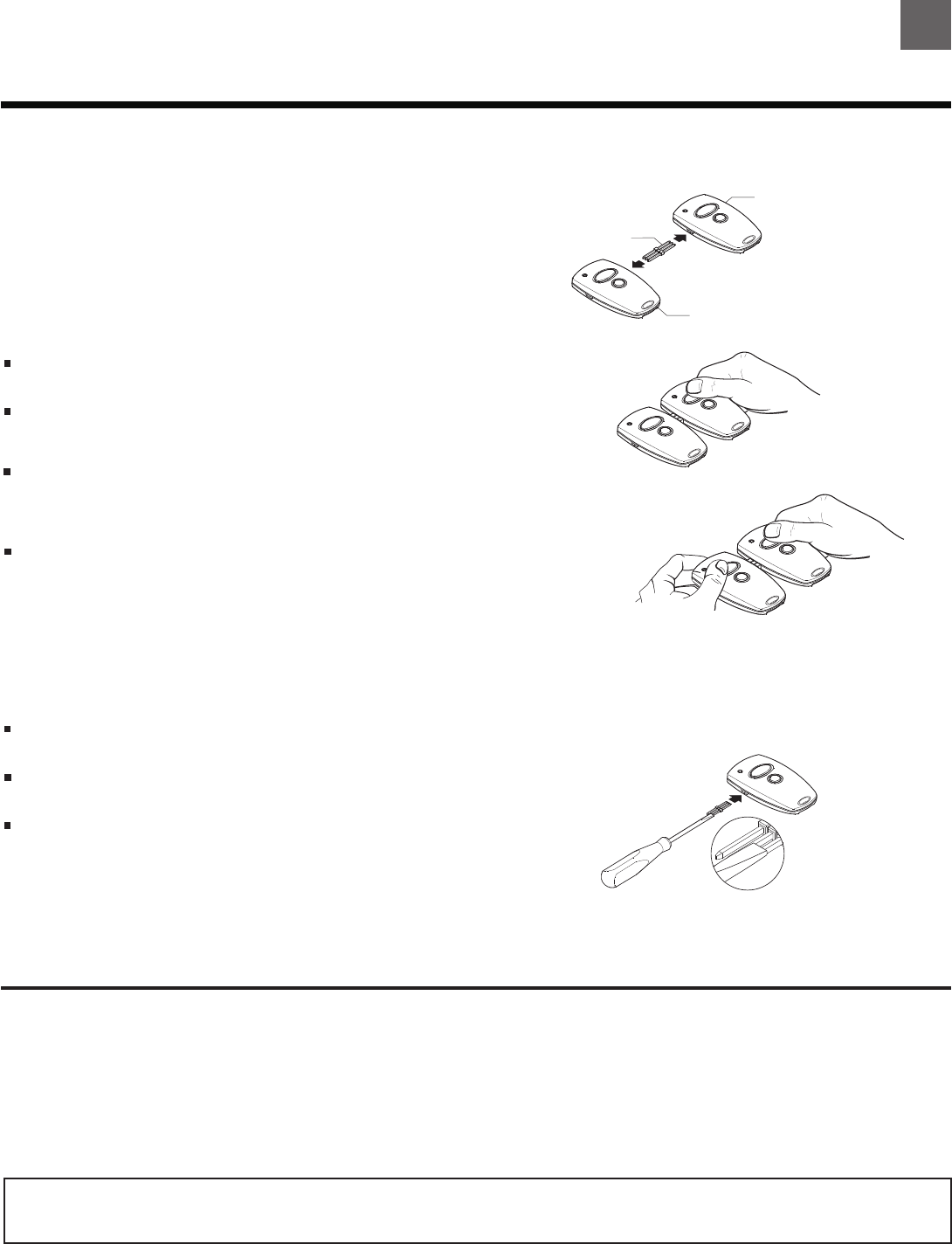

Figure 3. Multiple Transmitters-Code Transfer
