Bluetooth function
(optional)
The Multi Media System is equipped
with Bluetooth technology, which
allows connecting mobile phones
enabled for this technology.
Using this connectivity you can handle
calls (with the hands-free function)
and the telephone phonebook
through the Multi Media System.
The connection can be made in two
ways:
1. Pairing a telephone to the Multi
Media System.
2. Connecting a telephone stored in
the Multi Media System.
The pairing procedure with the Multi
Media System must be performed
only the fi rst time and only from
a compatible mobile phone to the
Multi Media System. It is not possible
to proceed from the Multi Media
System, as this system is not capable
of independently performing pairing
procedures to Bluetooth sources.
When connecting a telephone stored
in the Multi Media System, the system
will connect a telephone already
paired with the same system and
the procedure must be performed
each time you wish to connect a
Bluetooth mobile phone to the Multi
Media System (see page 56 “List of
connected peripherals”).
Unlike the pairing procedure, this
operation can be performed from
both a mobile phone and from the
Multi Media System.
Telephone pairing
WARNING: Before connecting a
mobile phone, it is advisable to read
the user’s manual of the mobile
phone to be paired with the Multi
Media System.
To pair a mobile phone with the
system, the Bluetooth feature must be
active on both the phone and Multi
Media System.
To set up the Multi Media System for
the pairing procedure, proceed as
described below:
- Check that the Bluetooth feature
on the mobile phone is active.
To activate the Bluetooth feature
on the mobile phone, refer to the
instructions provided by the phone
manufacturer.
- Turn the vehicle key to MAR
- Turn on Multi Media System by
pressing the knob (20);
During the paring stages,
the telephone will ask you to
enter a PIN code (see page 57
“Authentication code”).
If the code entered is correct, the
two devices start the connection
procedures.
Depending on the phonebook
synchronization mode set (see page
67 “Phonebook synchronization
mode”) the phonebooks stored
on the mobile phone will be
synchronized or not.
Once the connection procedure has
been completed, a message on the
Multi Media System display informs
the user that the devices have been
paired.
The Multi Media System can store up
to 10 paired devices.
Fig. 81
B
A
C D
E
Fig. 80
Fig. 82
3
64

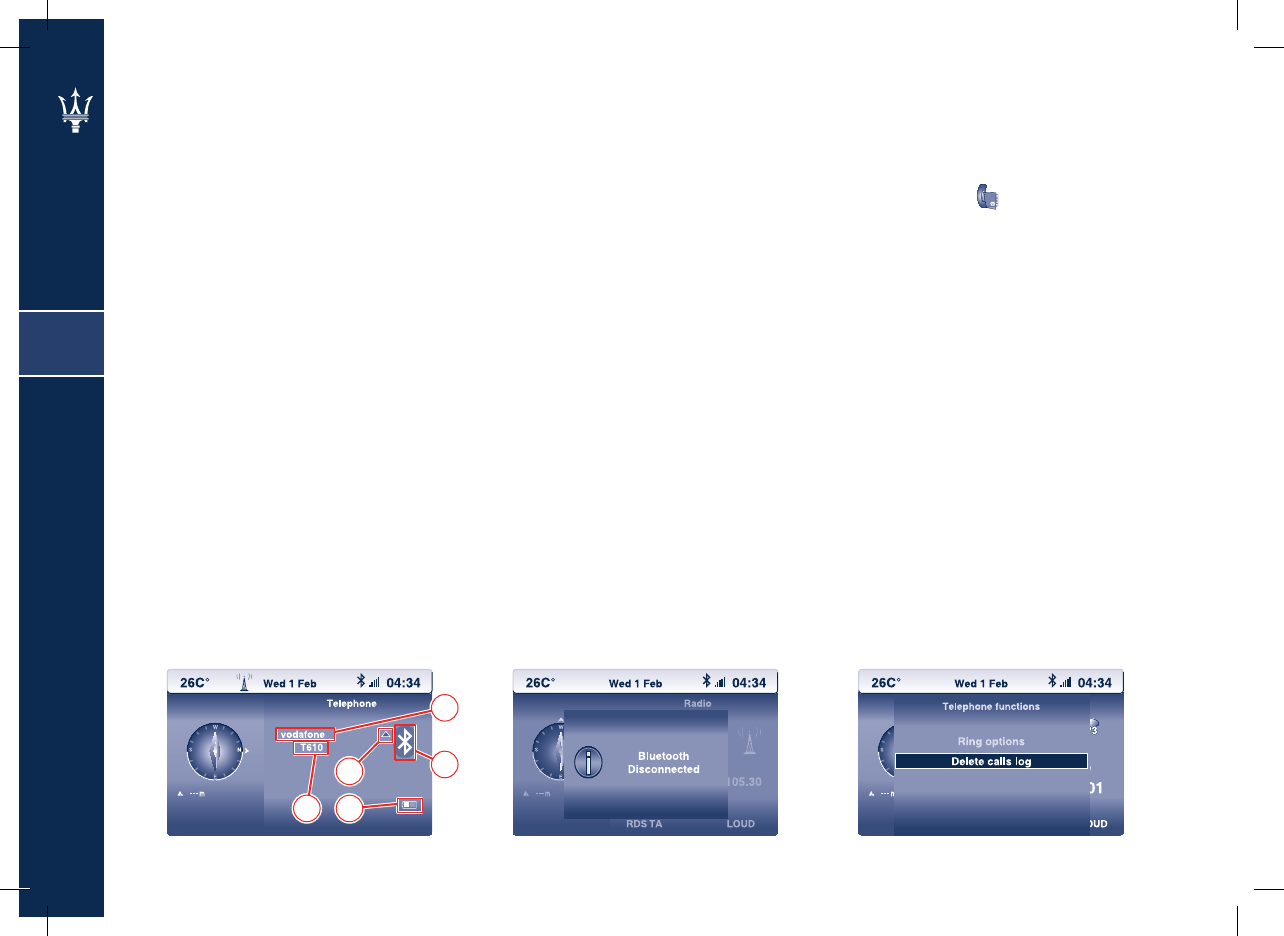

Main Bluetooth page
Press the MODE button to access the
Bluetooth page (see Fig. 80).
This page shows the following
parameters:
A - Telephone connection status
B - Telephone service provider
C - Name of the paired telephone
D - Battery charge status
E - Roaming (if active).
Note:
The data displayed depends on the
telephone connected.
Note: If the texts sent from the
telephone contain non-Latin
characters (e.g., Chinese, Arabic,
Cyrillic characters) the Multi Media
System will display them with
question marks “?”.
Disconnection
The Bluetooth feature can be
disconnected in three different ways:
1. Disconnecting from the mobile
phone, following the operations
described in the specifi c
instruction manual, or turning off
the phone
2. Through the Multi Media System
(see page 56 “List of connected
peripherals”;
3. Moving the Bluetooth telephone
away from the Multi Media
System, so that the telephone
signal is outside the reception
area of Multi Media System.
Disconnection is indicated by a
message on the display as shown in
Fig. 81.
Disconnecting the mobile phone does
not delete the call list; if you wish to
delete it, proceed as follows:
- Press the MENU button (15);
- Select the icon and confi rm by
pressing the knob (13),
- Select and confi rm, by pressing
the knob (13), the “Telephone
Functions” option
- Select and confi rm, by pressing the
knob (13), the “Delete call log”
option (see Fig. 82).
The deletion procedure starts only
after confi rming a second time.
Fig. 83
3
65
Turning on the Multi Media System
Each time the Multi Media System
is turned on and Bluetooth mode is
active, the system starts searching
for the already paired telephones
(contained in the stored list). The
search starts from the last telephone
paired and then chronologically runs
through the previous ones.
The search procedure ends when
Multi Media System fi nds an already
paired telephone and completes the
connection procedure, or when it
fi nds a telephone not yet paired, in
which case the telephone must fi rst
be paired to complete the connection
(see page 53 ”Telephone pairing”), or
if it does not fi nd any telephone and
does not use the Bluetooth function.
Handling calls
Calls can be handled from both the
mobile phone and the Multi Media
System.
Answering or making a call from the
telephone, the Multi Media System
display will always show the call
status.
To make a call the from Multi Media
System, open the “Call” menu as
follows:
- press button (4) or (33)
or
- In Telematics mode, press the RH
knob (13)
or
- In Telematics mode, use the RH
knob (13) to select and confi rm the
“Call” function.
The following functions are displayed:
- Call list
- Dial number
- Phone book
The menu and functions in Telematics
mode are the same as those used by
the Multi Media System to control the
telephone.
Bluetooth-related functions

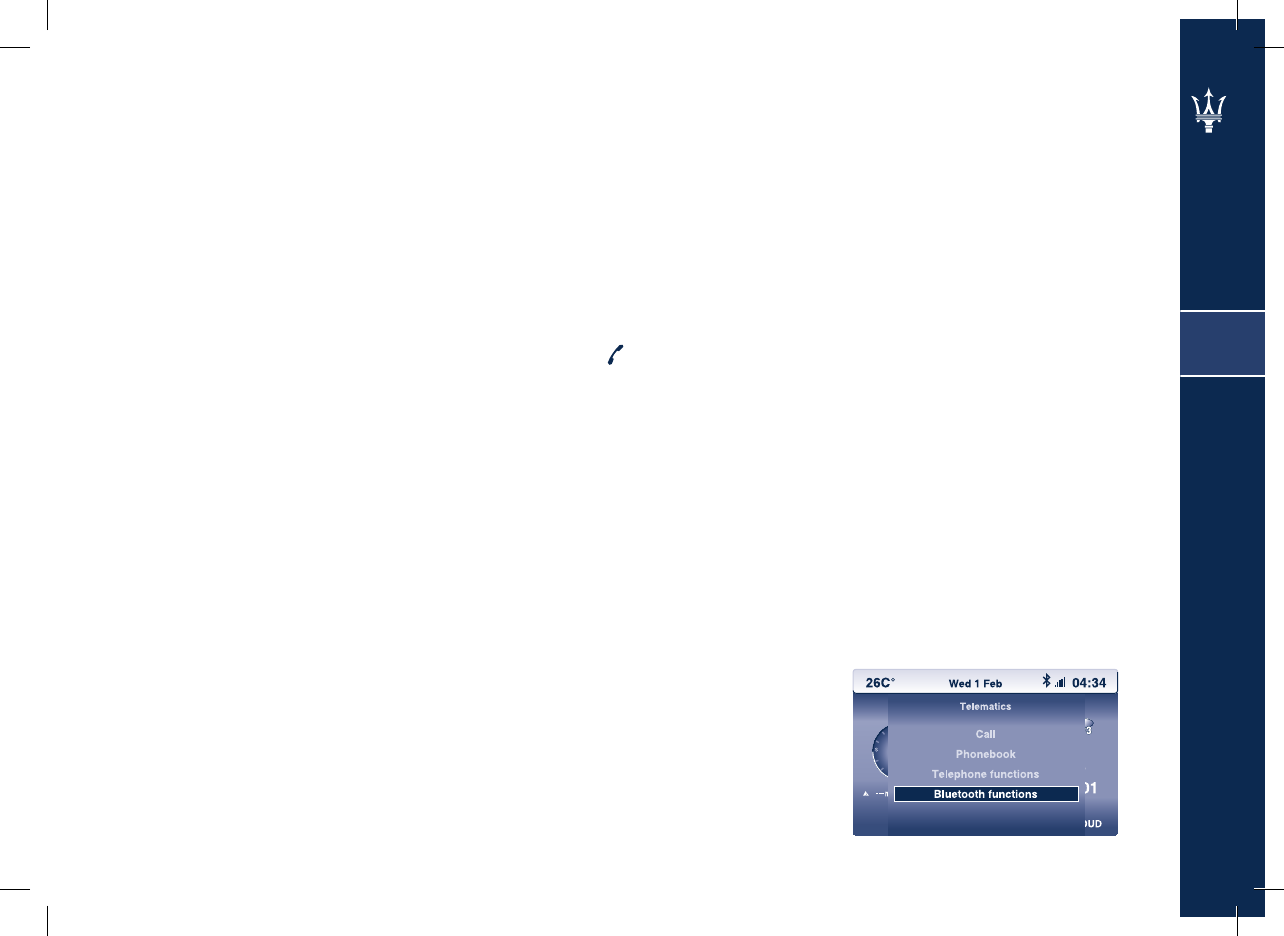

The “Bluetooth Functions” option has
been added to the Telematics menu
(see Fig. 83).
Fig. 84
Fig. 85
3
66
Bluetooth functions

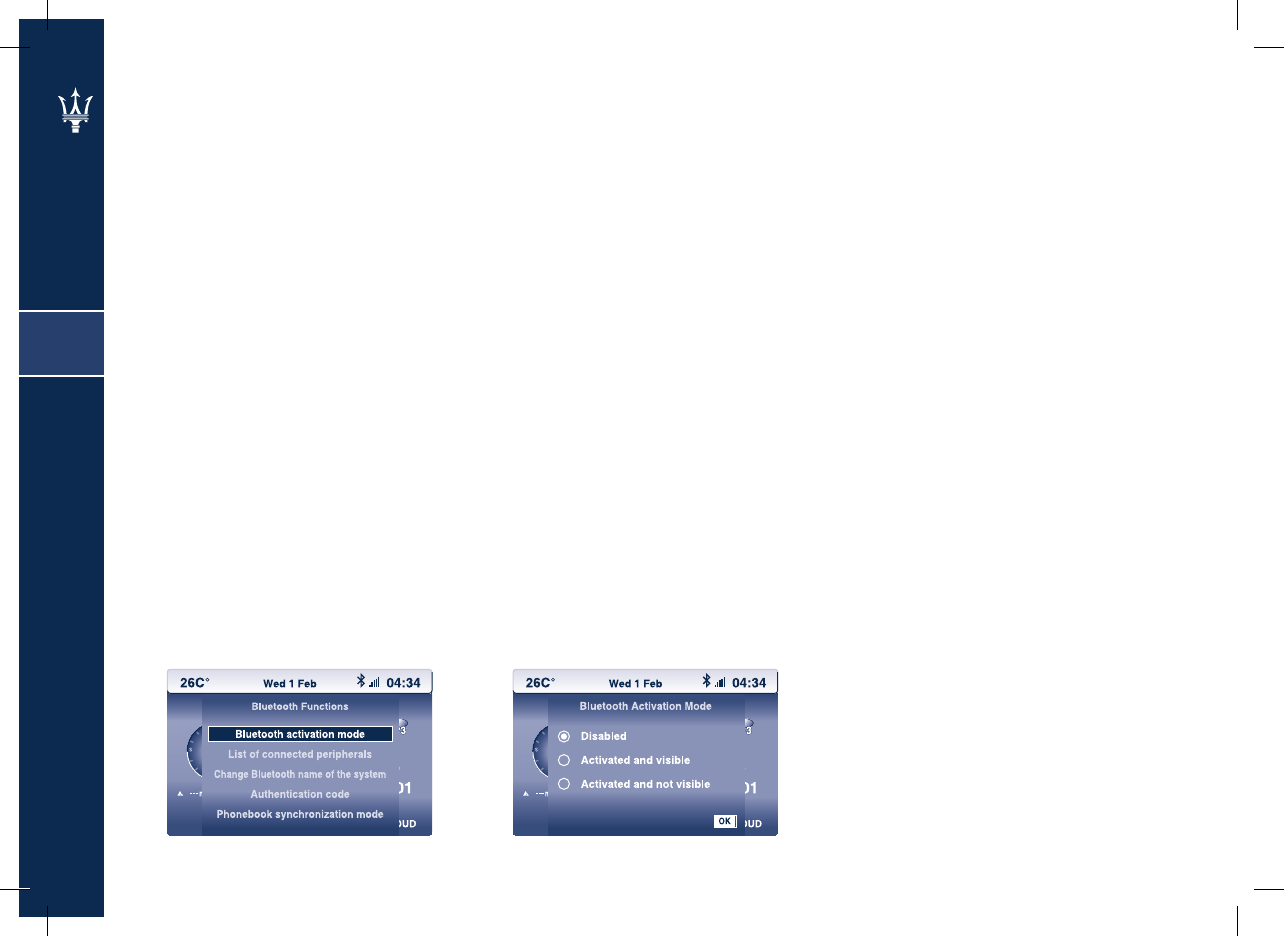

Select “Bluetooth functions” by
turning the knob (13), then press the
same knob to confi rm and access the
following functions (see Fig. 84):
- Bluetooth activation mode
- List of connected peripherals
- Change Bluetooth name for the
system
- Authentication code
- Phonebook synchronization mode
Bluetooth activation mode
This menu (see Fig. 85) allows you to
select the Bluetooth operating mode
with the following options:
- Disabled
- Active and visible
- Active and not visible
Disabled
When this function is selected, the
Bluetooth module is off, therefore
the system is unable to connect a
telephone.
Active and visible
The Multi Media System is ready
to be connected to already stored
telephones or to pair new ones.
Note: It is possible to pair new devices
to the Multi Media System only when
no telephone is connected.
The Multi Media System can be
connected to only one mobile phone
at a time; any further pairing request
will be ignored.
Active and not visible
The Multi Media System is ready
to be connected to already stored
telephones, but not to pair new ones.
List of connected peripherals
This menu allows you to view the list
of the mobile phones paired.
The list is displayed in chronological
order, therefore, the fi rst item
indicates the last telephone
connected.
If a telephone in the list is paired with
the system, the relative item will be
highlighted.
If a telephone is connected, a specifi c
icon will be shown on the display.

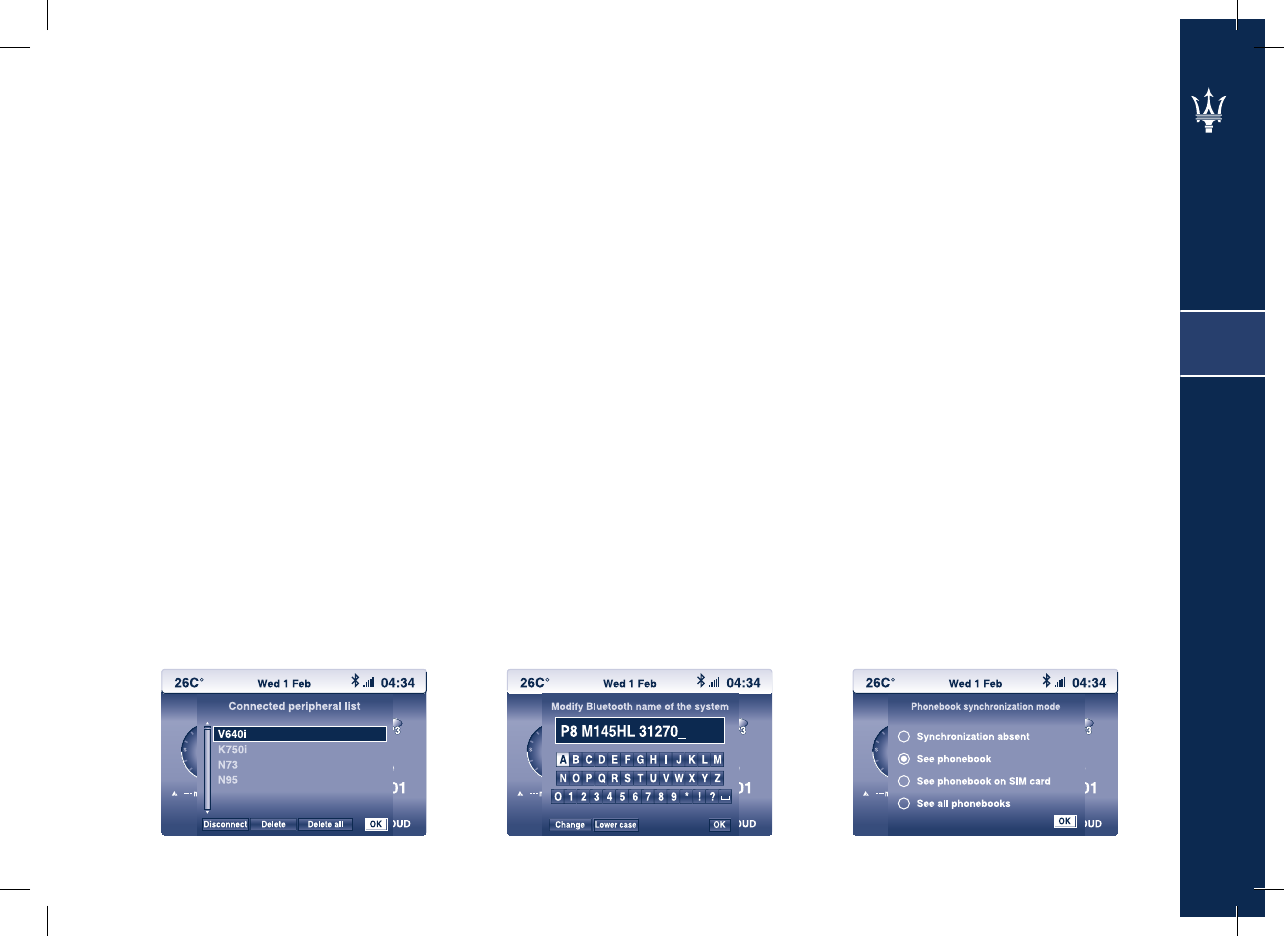

At the bottom of the page (see Fig.
86) there are four buttons:
- Connect/Disconnect
- Delete
- Delete all
- OK.
Fig. 86 Fig. 87
Fig. 88
3
67
Connect/Disconnect
Use the knob (13) to select the item
corresponding to the telephone you
wish to connect/disconnect.
This function allows you to start
the procedures for connecting or
disconnecting the telephone from the
Multi Media System.
Delete
This option allows you to delete
the selected item from the list of
telephones stored.
Delete all
This option allows you to delete the
entire list of telephones stored.
OK
This option closes the window
without making any change.
Change Bluetooth name for the
system
Selecting this function by turning and
pressing the knob (13) you can change
the name that the Multi Media System
transmits to the telephone during and
after the pairing procedure.
The buttons at the bottom of the
page are used to access the relative
functions.
The function page is shown in Fig. 87.
To exit the function and store the
new name, confi rm the selection with
“OK”.
Authentication code
Selecting this function by turning and
pressing the knob (13) you can change
the PIN code that must be entered in
the mobile phone when connecting to
the Multi Media System.
If you make a mistake when entering
the code, you can correct it using the
dedicated button on the same page.
To exit the function and store the new
code, confi rm the selection with OK.
Phonebook synchronization mode
This function allows you to select
the telephone phonebook that can
also be consulted from Multi Media
System.
The options on the dedicated page
(see Fig. 88) are:
- No synchronization
- See phonebook
- See phonebook on SIM card
- See all phonebooks
Depending on the function enabled
during the telephone pairing with the
Multi Media System, the telephone
phonebooks will be downloaded to
the Multi Media System or not.
Fig. 89
3
68
As a consequence, the phonebooks
downloaded can also be handled
from the Multi Media System, but not
the ones not downloaded.
Specifi c messages on the display will
indicate whether the phonebooks
have been successfully/unsuccessfully
downloaded.
Phonebook menu
An “Exchange with Bluetooth”
function has been added to the
phonebook menu (see Fig. 89)
which allows you to copy the data
downloaded from the telephone
phonebook to that of Multi Media
System.
Select and confi rm this function with
the knob (13) to display the following
options:
- Receive all cards
- Receive a card
Receive all cards
Select this option to copy all the
addresses and phone numbers in the
phonebook.
During the copying procedure, a
dedicated message will be displayed.
To cancel the copying procedure,
press the ESC button (6).
Receive a card
Select this option to copy a desired
item in the telephone phonebook to
the Multi Media System phonebook.
When you select this function, the
list of contacts in the telephone
phonebook will be displayed. Use the
right-hand knob (13) to select and
confi rm the desired contact to start
copying.
During the copying procedure,
the Multi Media System displays a
dedicated message.
Note: If the texts sent from the
telephone contain non-Latin
characters (e.g., Chinese, Arabic,
Cyrillic characters) the Multi Media
System will display them with
question marks “?”.

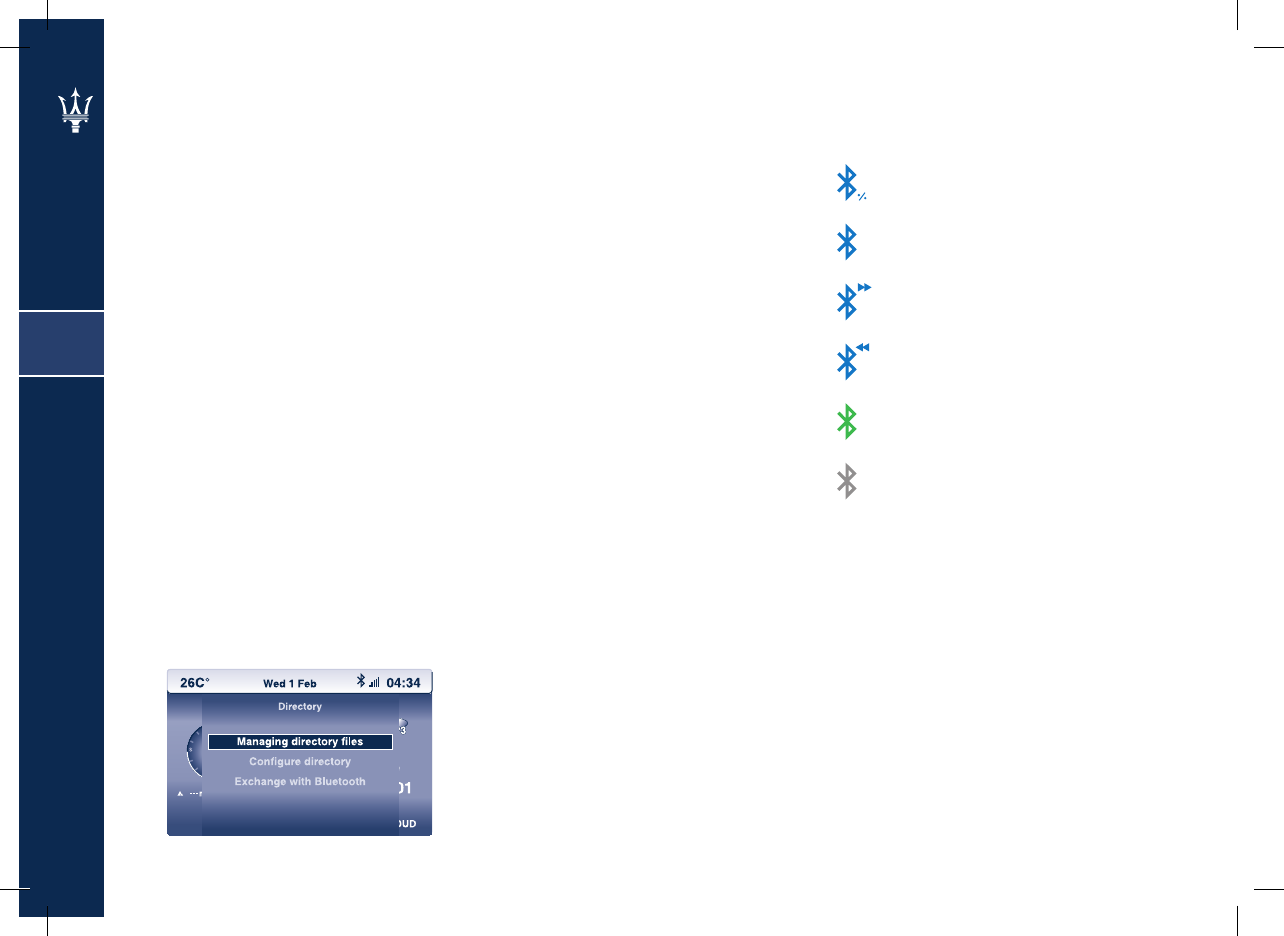

Connection status symbol
summary
Telephone disconnected
Telephone connected
Outgoing call
Incoming call
Ongoing call
Telephone disconnected and
Bluetooth disabled
110
LIMITED RIGHTS NOTICE (JUN 1987)
These data are submitted with limited rights under Government Contract No. _____________________
(and subcontract _________________, . if appropriate). These data may be reproduced and used by the Government
with the express limitation that they will not, without written permission of the Contractor, be used for purposes of
manufacture nor disclosed outside the Government; except that the Government may disclose these data outside
the Government for the following purposes, if any, provided that the Government makes such disclosure subject to
prohibition against further use and disclosure: There are no additional purposes permitting disclosure of such Data.
The manufacturer/supplier of the Data is Navigation Technologies Corporation, 10400 West Higgins Road, Rosemont,
Illinois 6001B.
Versione Usa e Canada con SIRIUS
IC : 4983A-N14509
This device complies with part 15 of the FCC Rules subject
to the following two conditions:
(1) This device may not cause harmful Interference.
(2) This device must accept any Interference recelved,
including Interference that any cause undesired
operation.
FCC ID: RX2N14509
Versione Usa e Canada senza SIRIUS
IC : XXXXX-N145
This device complies with part 15 of the FCC Rules subject
to the following two conditions:
(1) This device may not cause harmful Interference.
(2) This device must accept any Interference recelved,
including Interference that any cause undesired
operation.
FCC ID: XXXN145
Changes or modification not expressly approved by the
party responsable for compliance could void the user's
autority to operate the equipment

Navigation menu
