Chapter 4 : " Advanced Information "
This chapter describes more information about your Disk Array. The
following items are describes in detail.
Memory Expansion
RAID Controller
Updating Firmware
Capacity Expansion (On-Line Expand)
4-1

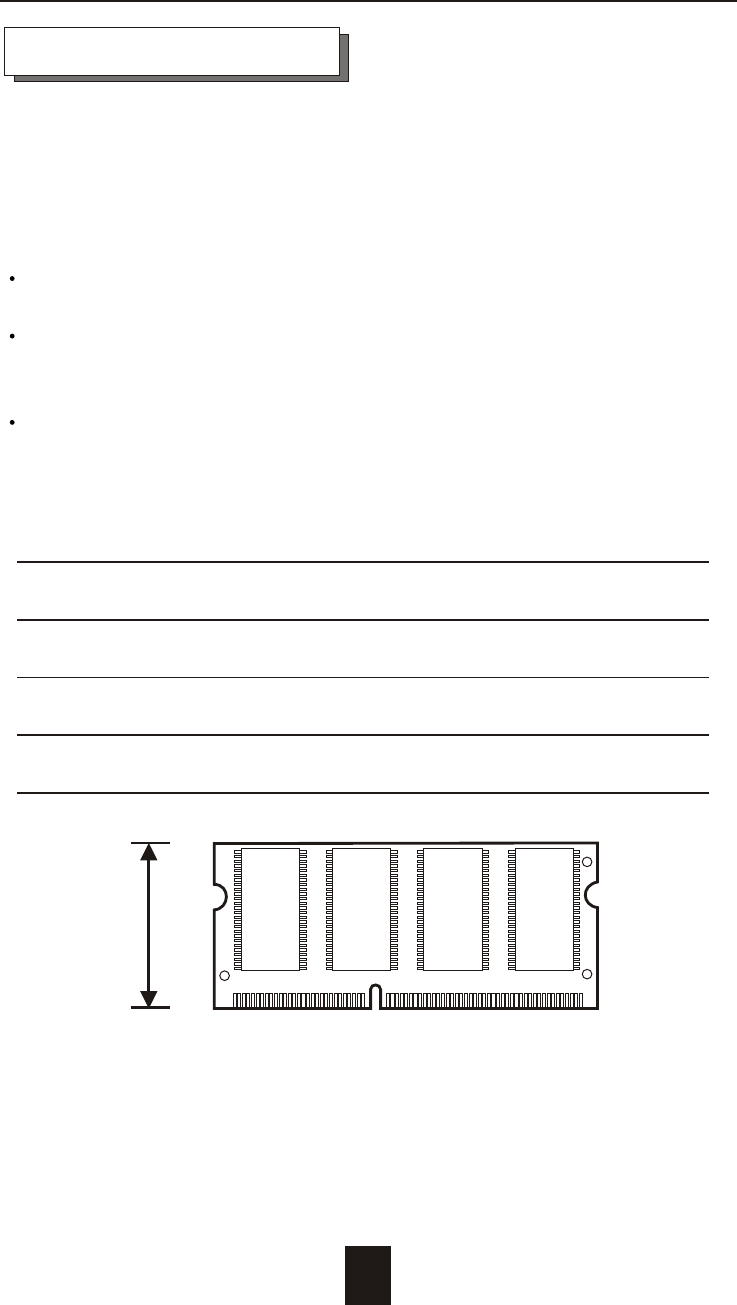

Memory Expansion
Your Disk Array comes with 64MB of memory that is expandable
to a maximum of 512MB.
These expansion memory module can be purchased from your
dealer.
Memory Type : 3.3V PC100/133 SDRAM 144pin DIMM.
Memory Size : Supports 144pin DIMMs of 64MB, 128MB, 256MB
or 512MB.
Height : 1.15 Inches ( 29.2 mm ).
4-2
Advanced Information
64MB 8(8Mx8), 8(4Mx16) or 4(8Mx16)
128MB 16(8Mx8), 8(16Mx8), 8(8Mx16) or 4(16Mx16)
256MB 16(16Mx8), 8(32Mx8) or 8(16Mx16)
512MB 16(32Mx8)
1.15"
(29.2mm)
Installing Memory Modules :

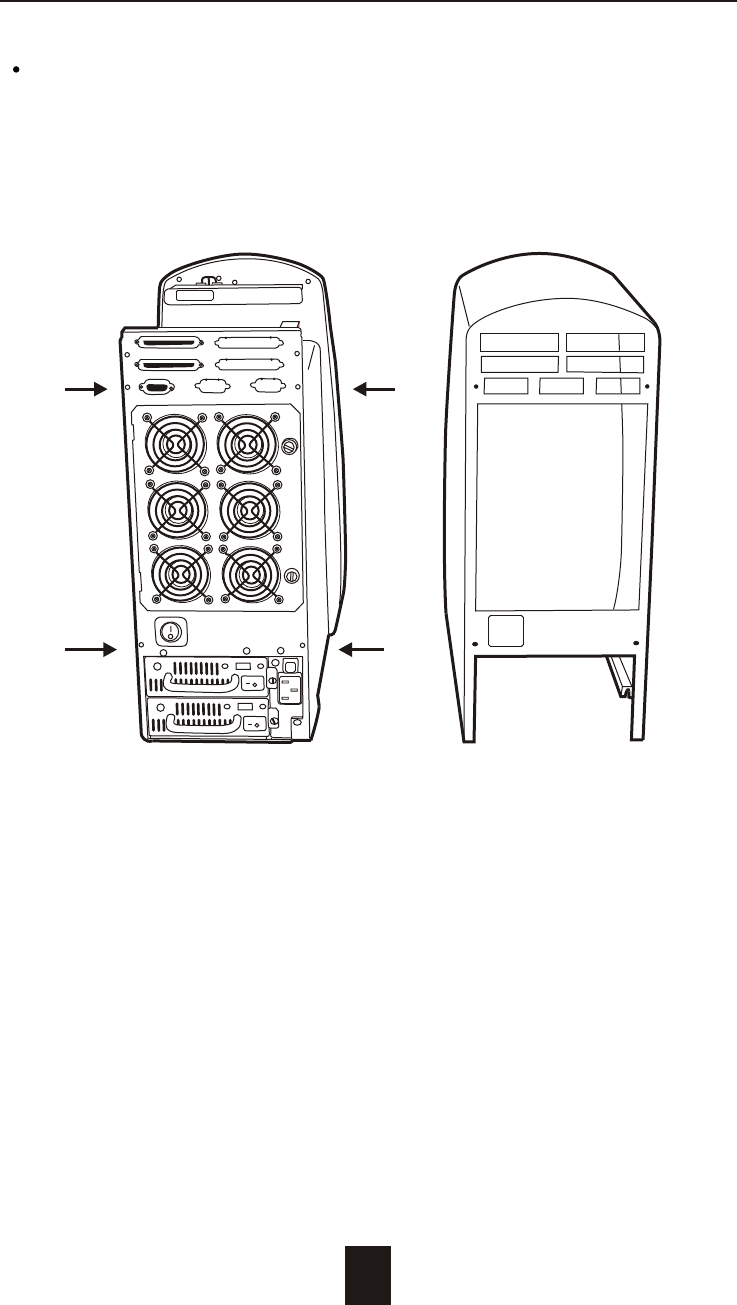

1. Unscrew & Remove cover
Figure : Remove Cover
4-3
Advanced Information
Unscrews

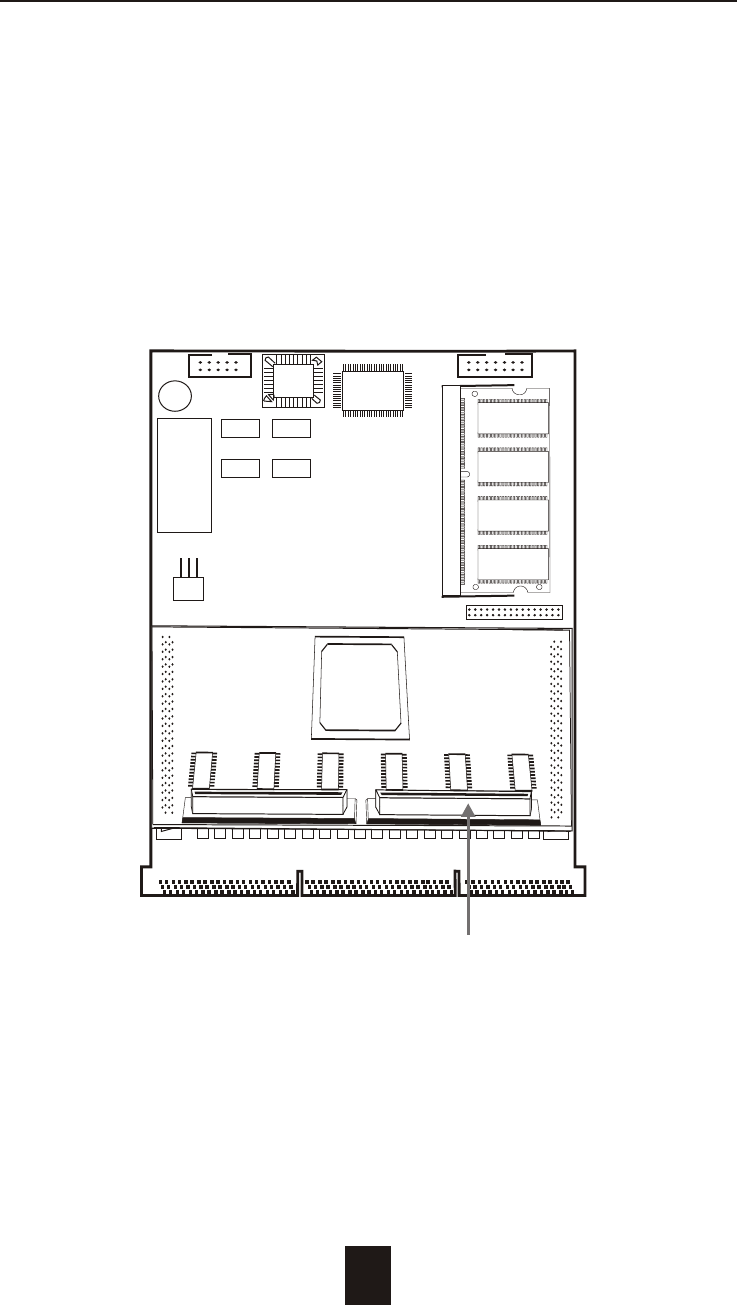

2. Install the memory
a. The DIMM memory modules will only fit in one orientation.
b. Press the memory module firmly into socket from a 45 degree
angle, make sure that all the contacts are aligned with the
socket.
c. Push the memory module forward to a horizontal position.
4-4
Advanced Information
Figure : Controller
Front Panel
Ultra 160 Host Channel
Host
channel
NVRAM LCD
Terminal
Port
PCI BUS
i80303 Local BUS
PCI
Bridge
Main
memory
i80303
RISC
Micro-
processor Flash
EPROM

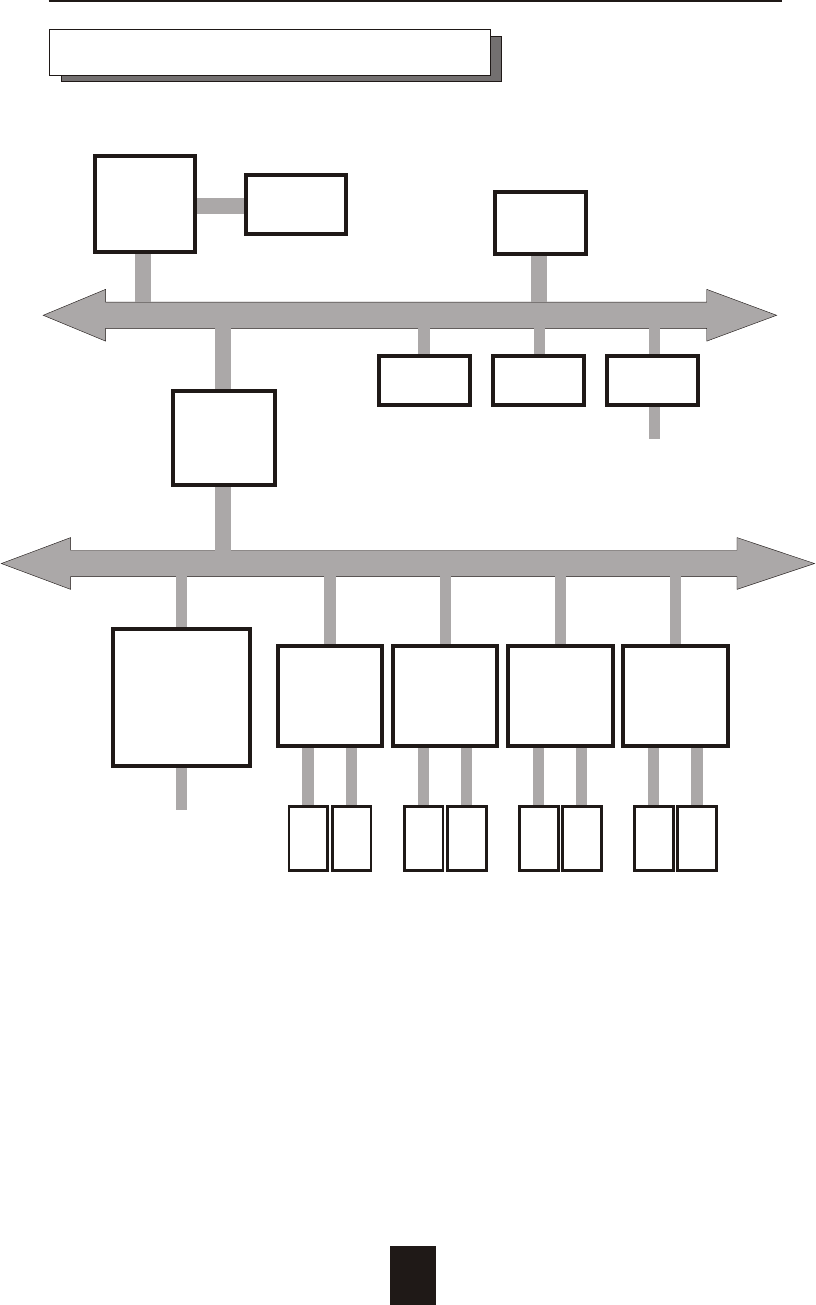

Disk Array Controller Block Diagram
Advanced Information
4-5
Dual
Channel
IDE
Controller
Dual
Channel
IDE
Controller
Dual
Channel
IDE
Controller
Dual
Channel
IDE
Controller
Disk
# 1
Disk
# 2
Disk
# 3
Disk
# 4
Disk
# 5
Disk
# 6
Disk
# 7
Disk
# 8
Ultra 160
Wide
SCSI
controller
RS232
4-6
Advanced Information
Updating Firmware
1. Setup your VT100 Terminal
Please configure the VT100 terminal setting to the values shown
below :
VT100 terminal ( or compatible ) set up
Connection Serial Port ( COM1 or COM2 )
Protocol RS232 ( Asynchronous )
Cabling Null-Modem cable
Baud Rate 115,200
Data Bits 8
Stop Bit 1
Parity None
Advanced Information
4-7

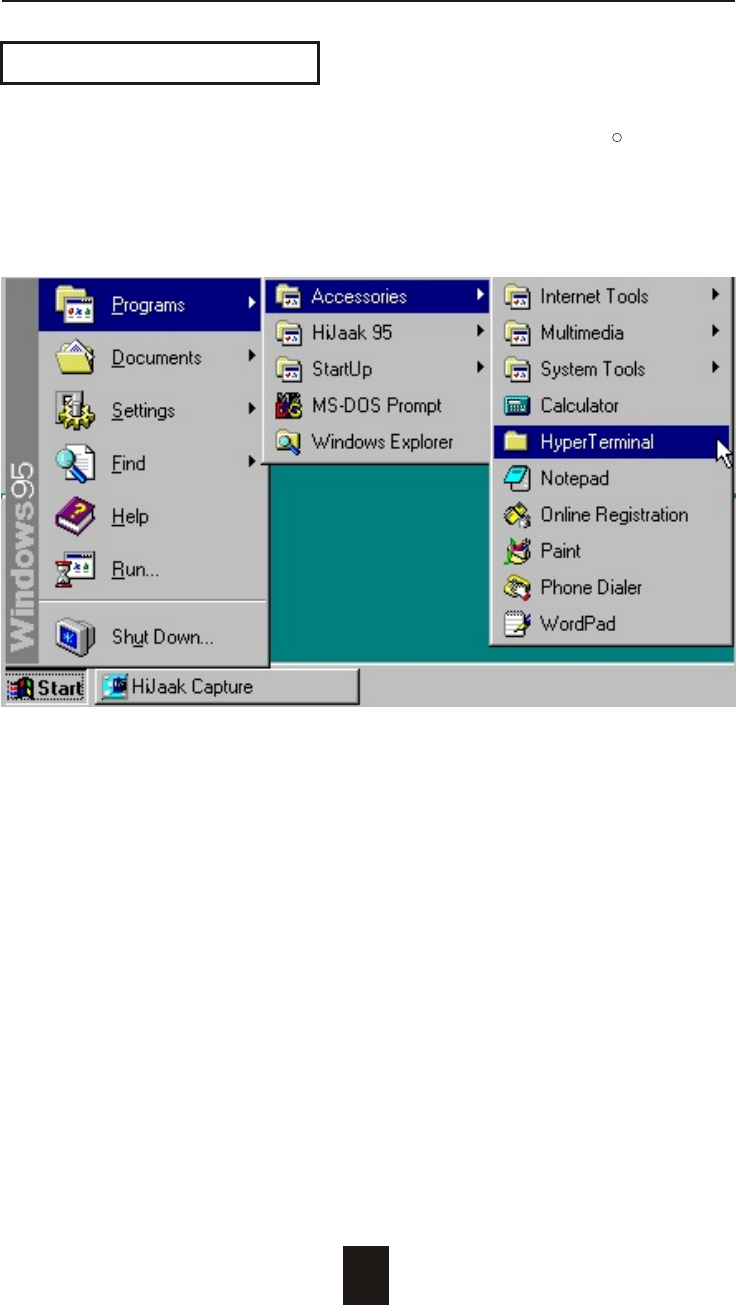

Example : Setup VT100 Terminal in Windows 95

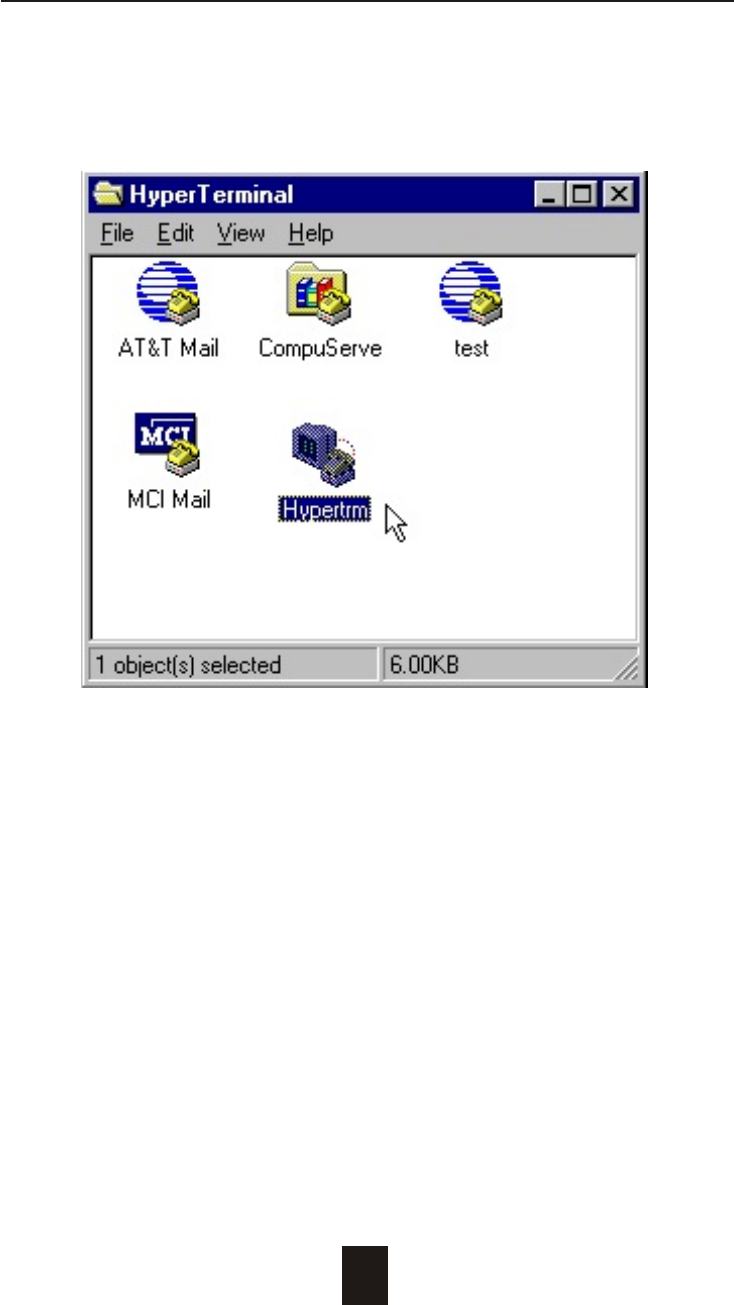

Step 1.
Setup VT100 Terminal
R
Advanced Information
4-8
Step 2.
Advanced Information
4-9

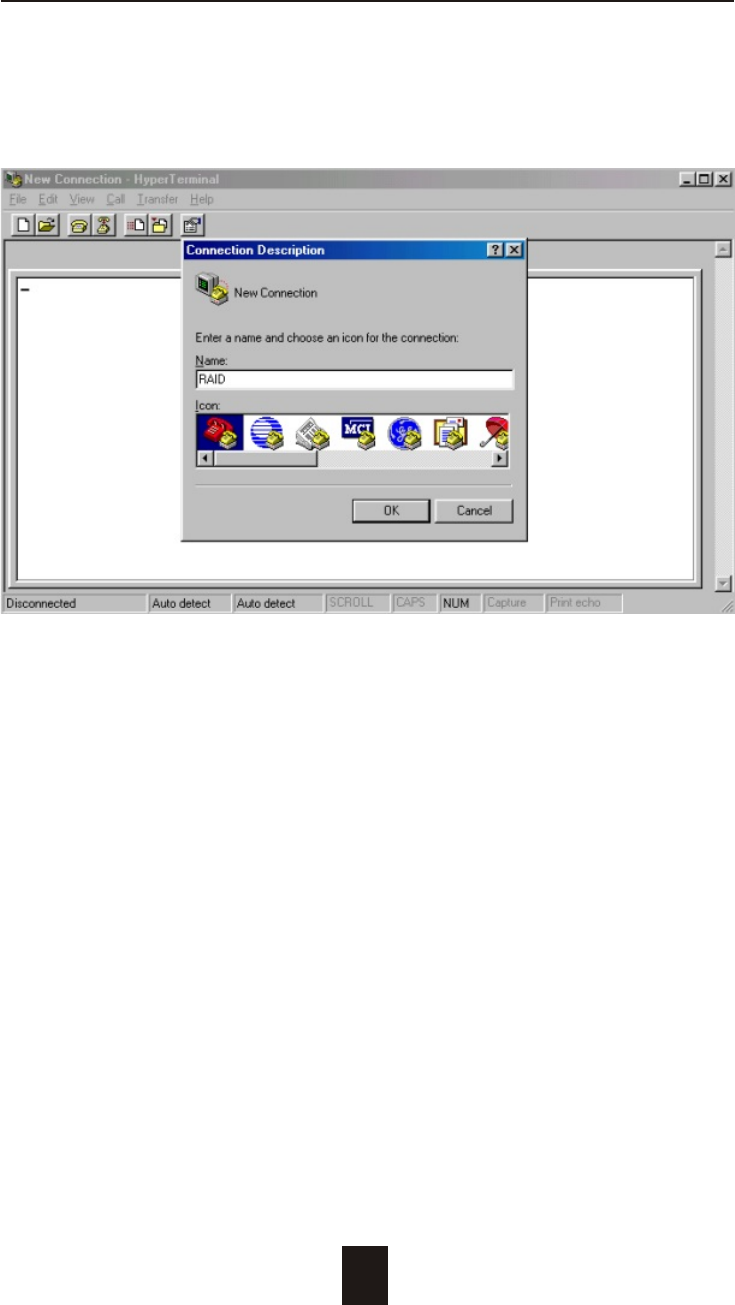

Step 3. Enter a name for your Terminal.
Advanced Information
4-10

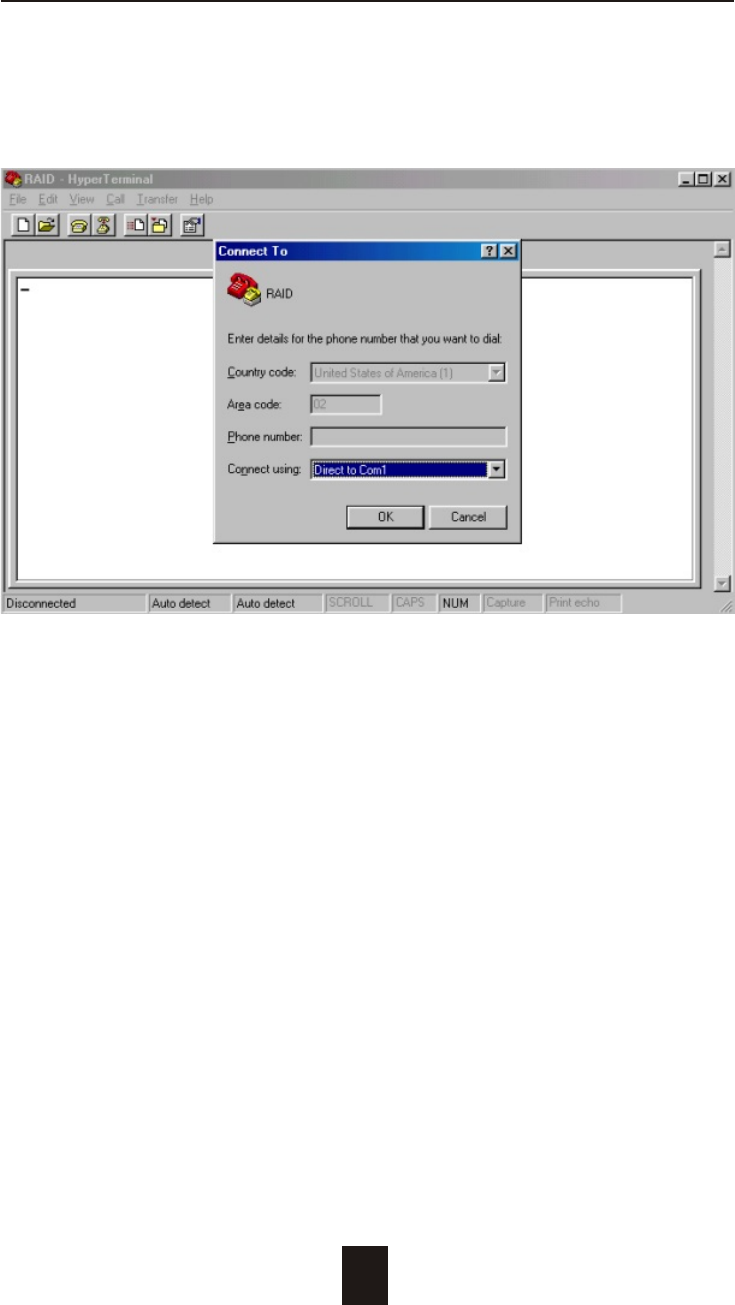

Step 4. Select a connecting port in your Terminal.
Advanced Information
4-11

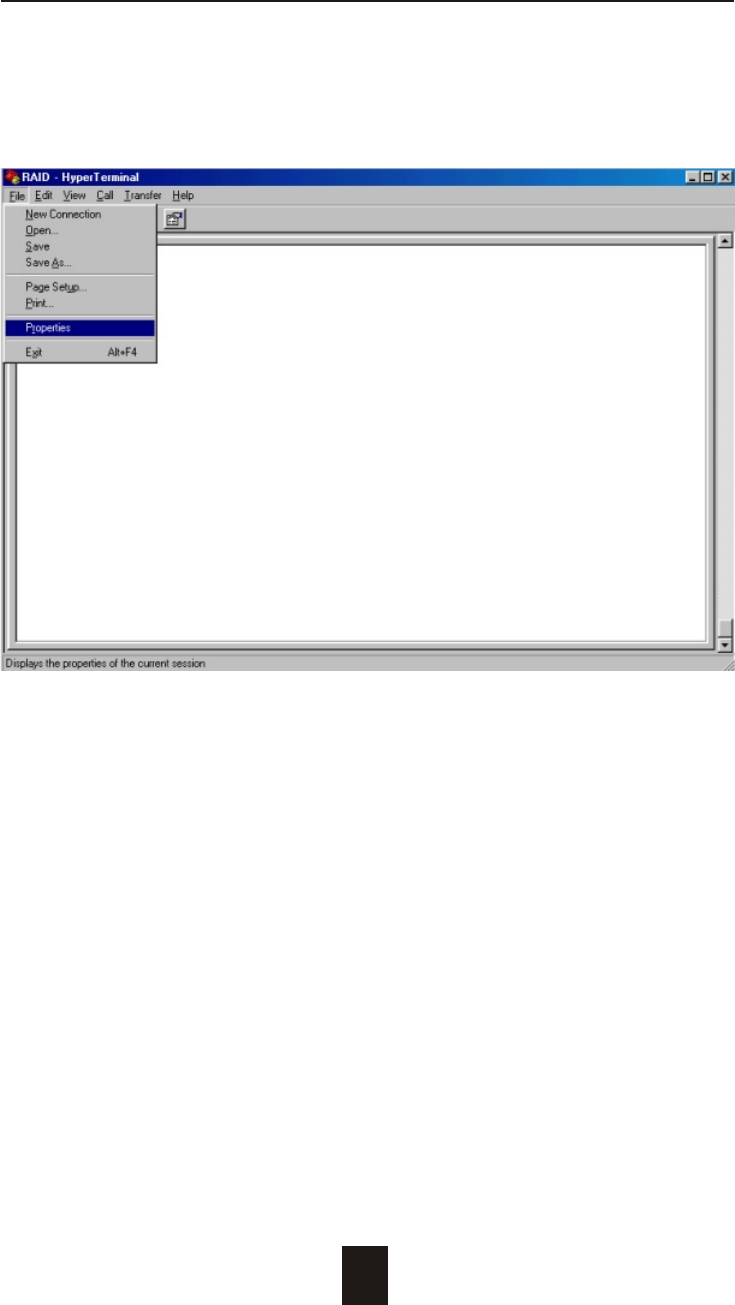

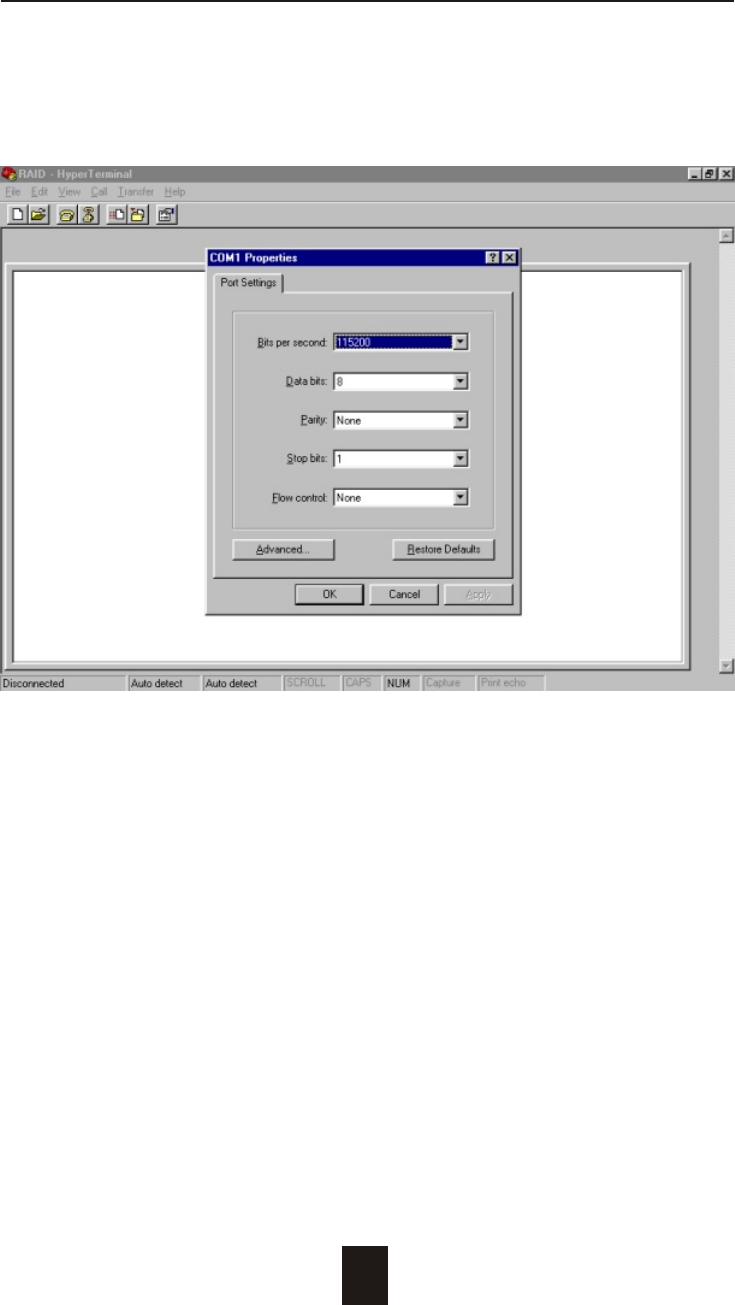

Step 5. Port parameter settings
Advanced Information
4-12
Step 6.
Advanced Information
4-13

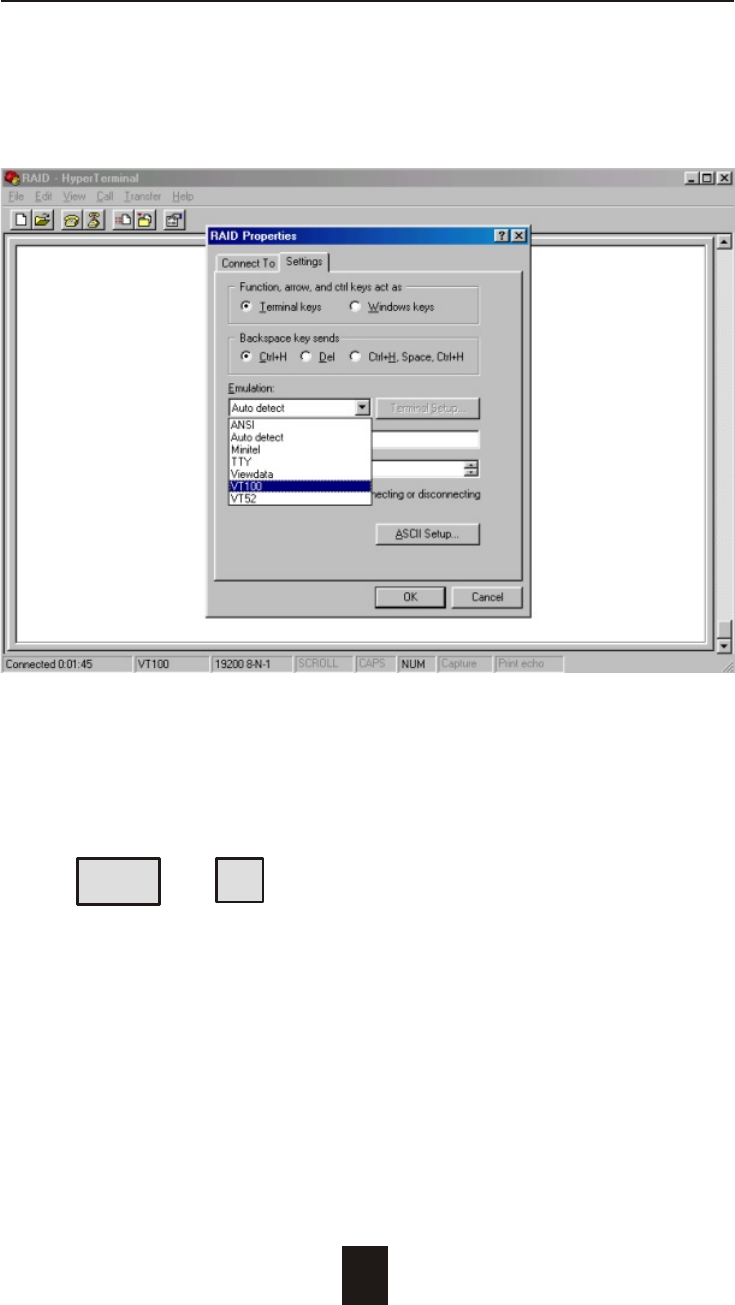

Step 7. Select emulate VT100 mode
After you have finished the VT100 Terminal setup, you may restart
your Disk Array and press " Ctrl + D " keys ( in your Terminal )to link
the Disk Array and Terminal together.
Press Ctrl + D to display the disk array Monitor Utility
screen on your VT100 Terminal.
Advanced Information
4-14

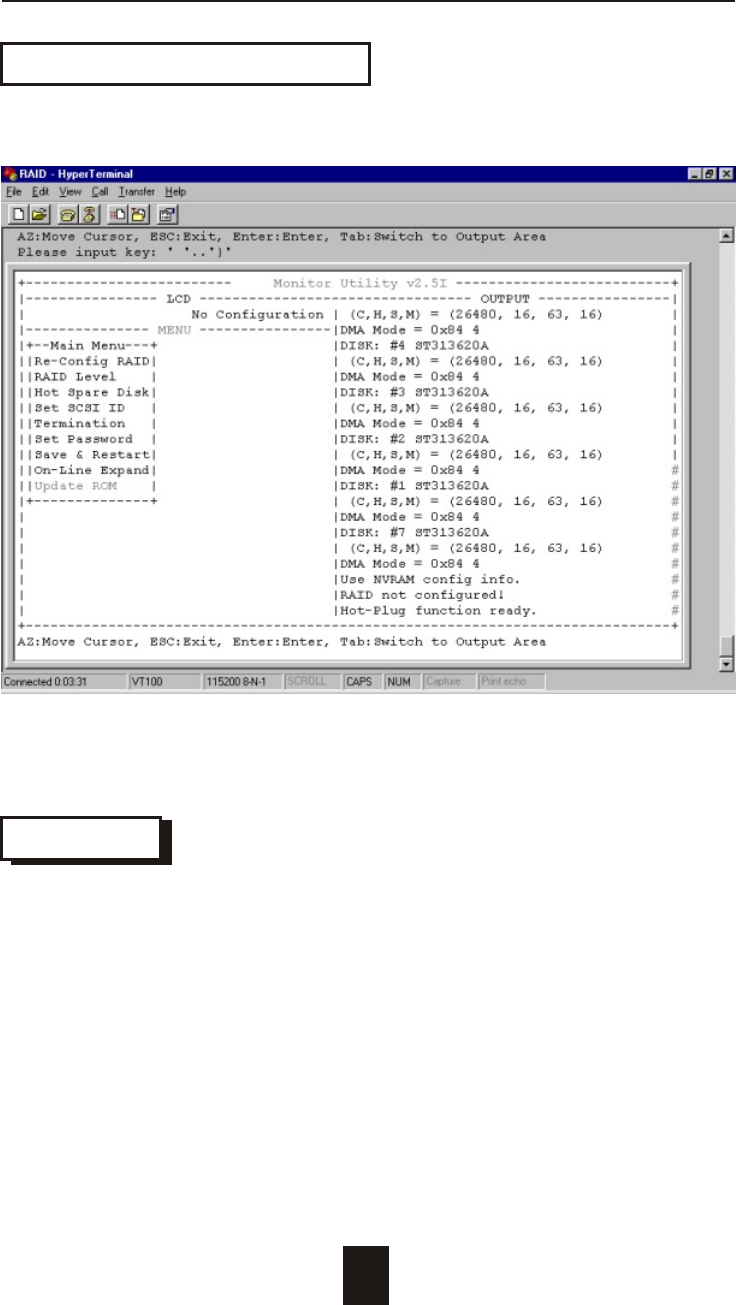

Start to Update Firmware
1. Move the cursor to " Update ROM " and press "Enter".
Warning !
Unpredictable results will occur if firmware update is attempted
during Host computer and Disk Array activity. All activity to the
controller should be stopped before updating firmware.
4-15
Advanced Information

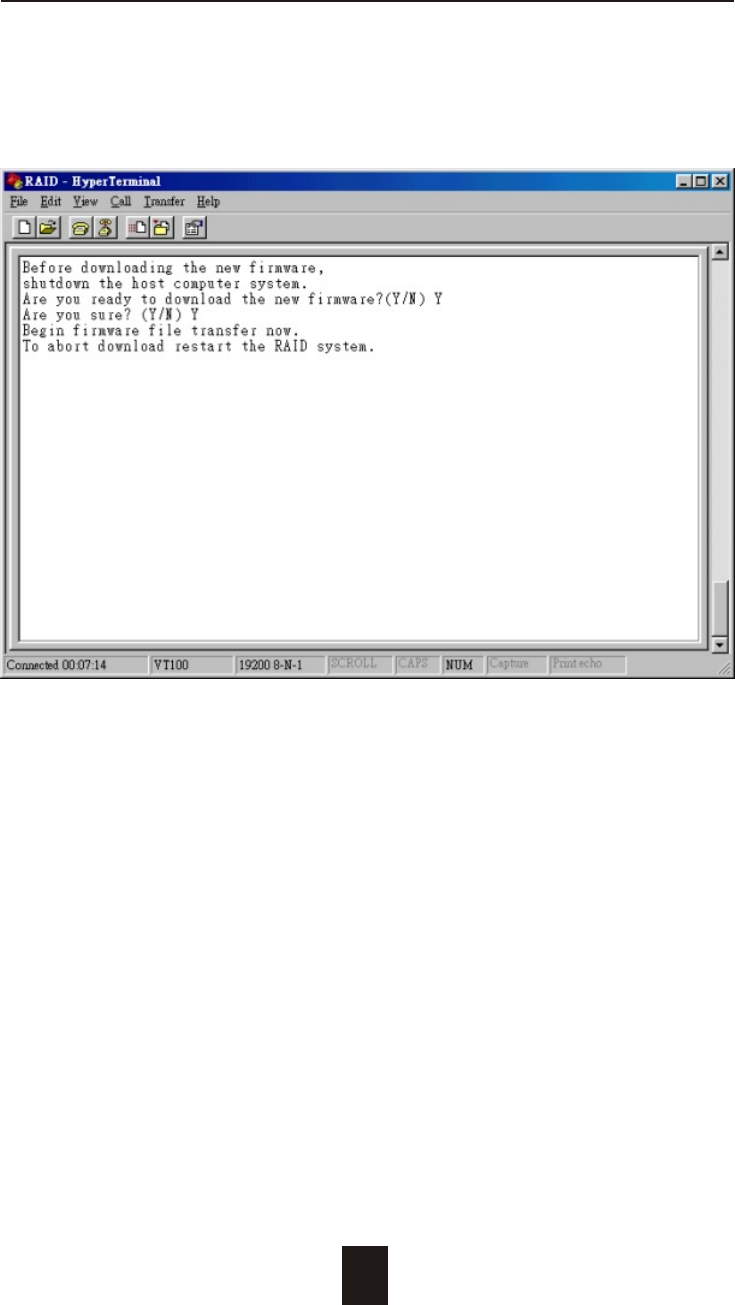

2. Press " Y " to download the new firmware and
press " Y " again to confirm the Update.
4-16
Advanced Information

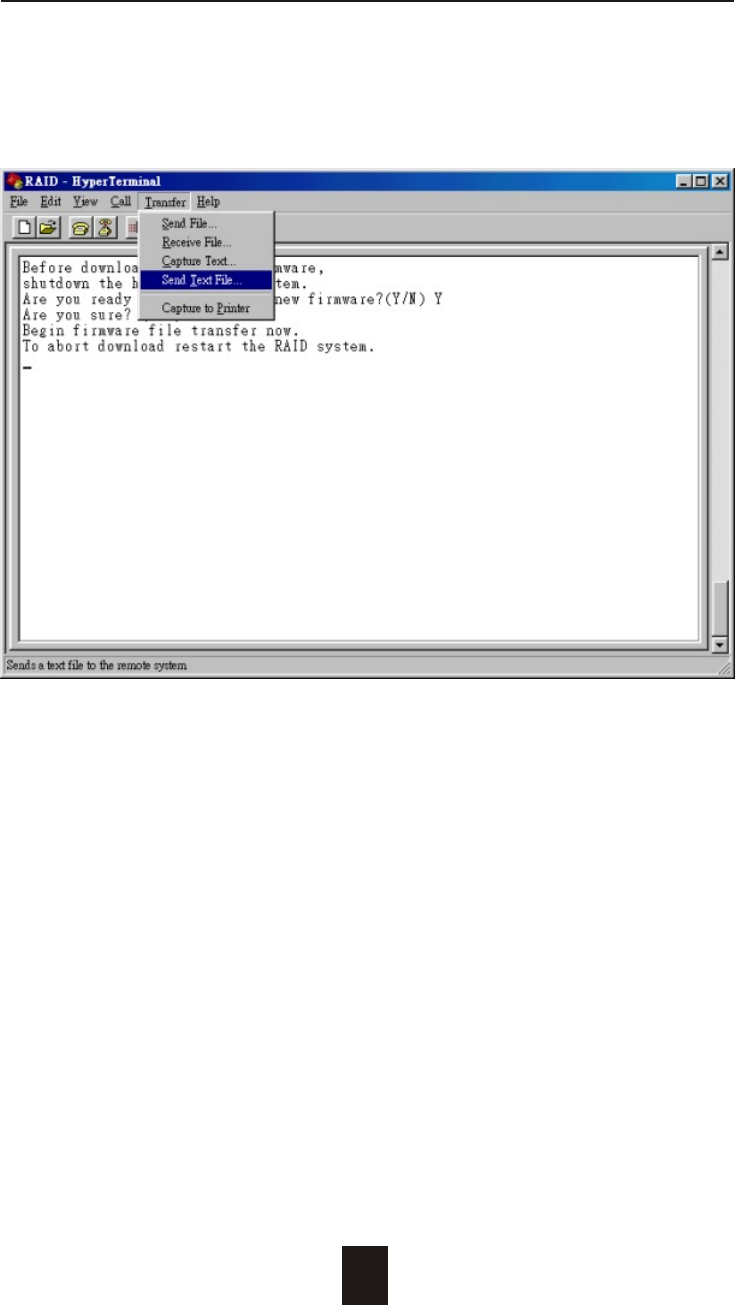

3. Select transfer " Send Text File " and press Enter.
4-17
Advanced Information

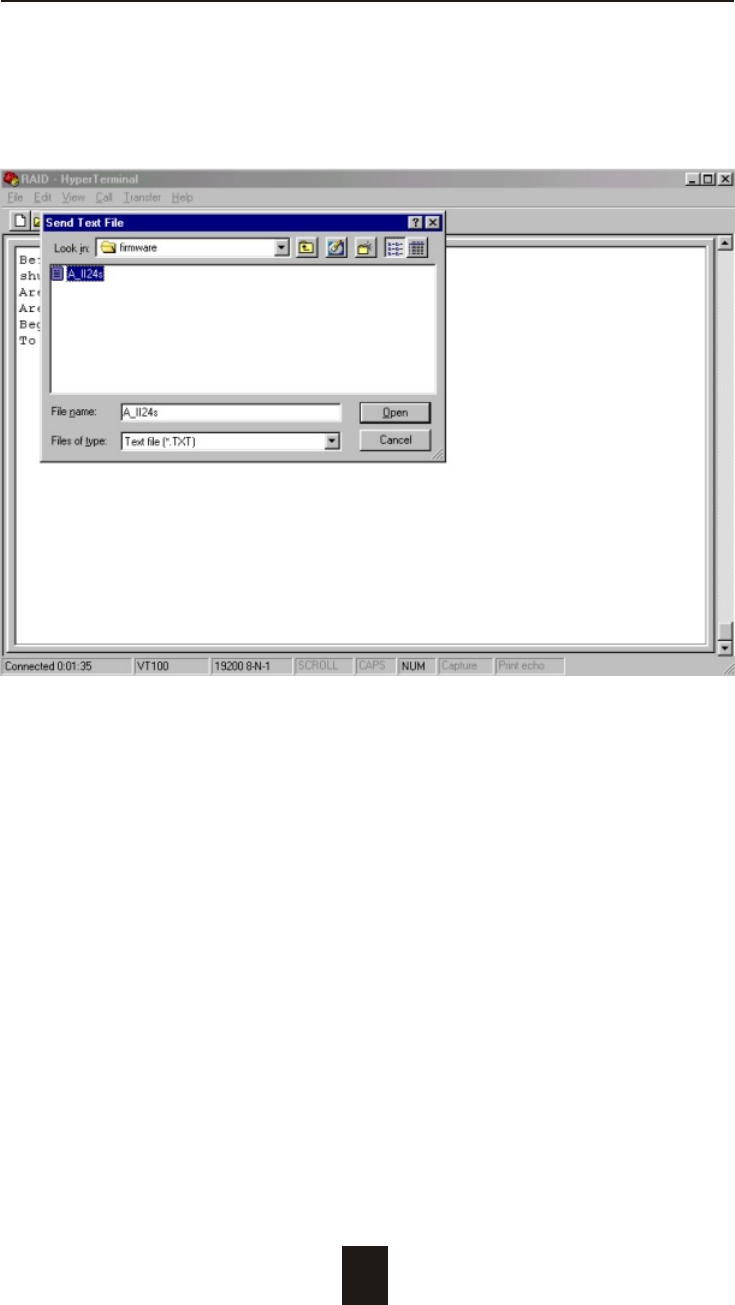

4. Locate the new Firmware file on your PC.
4-18
Advanced Information
5. Press " Go " to confirm to download the new firmware.
4-19
Advanced Information

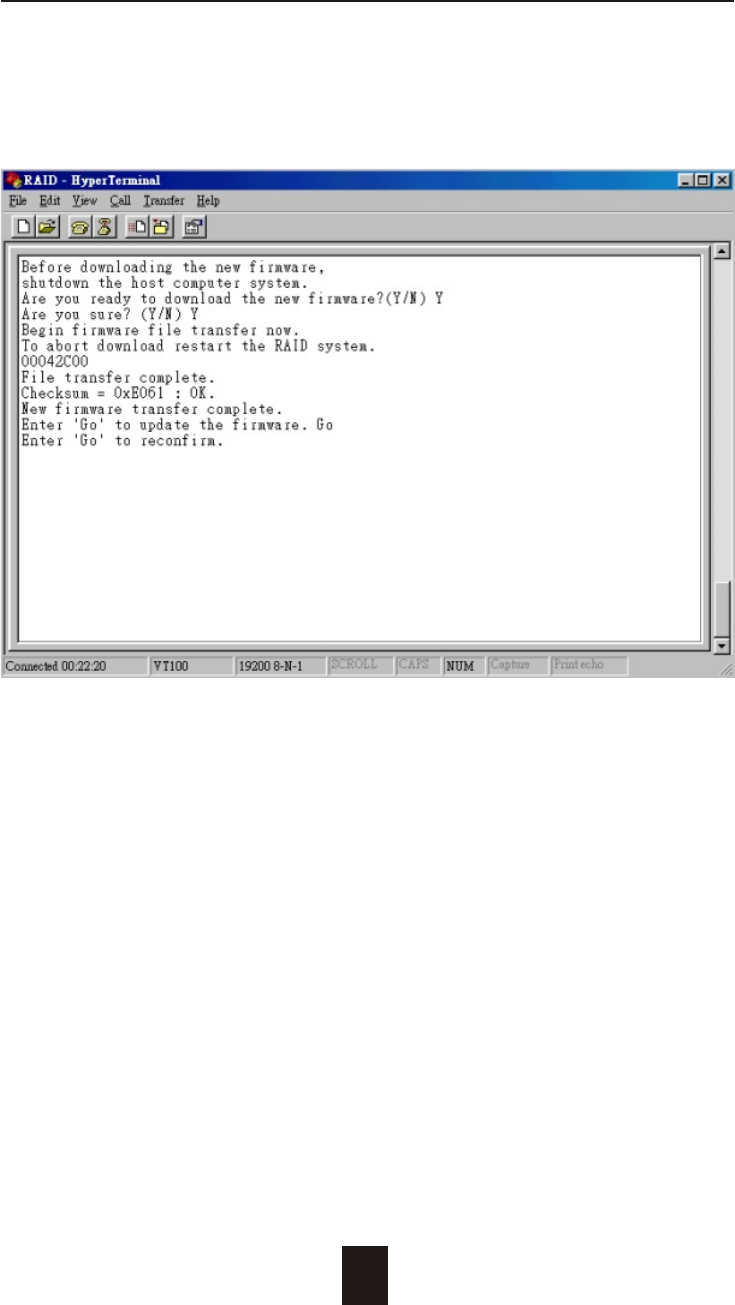

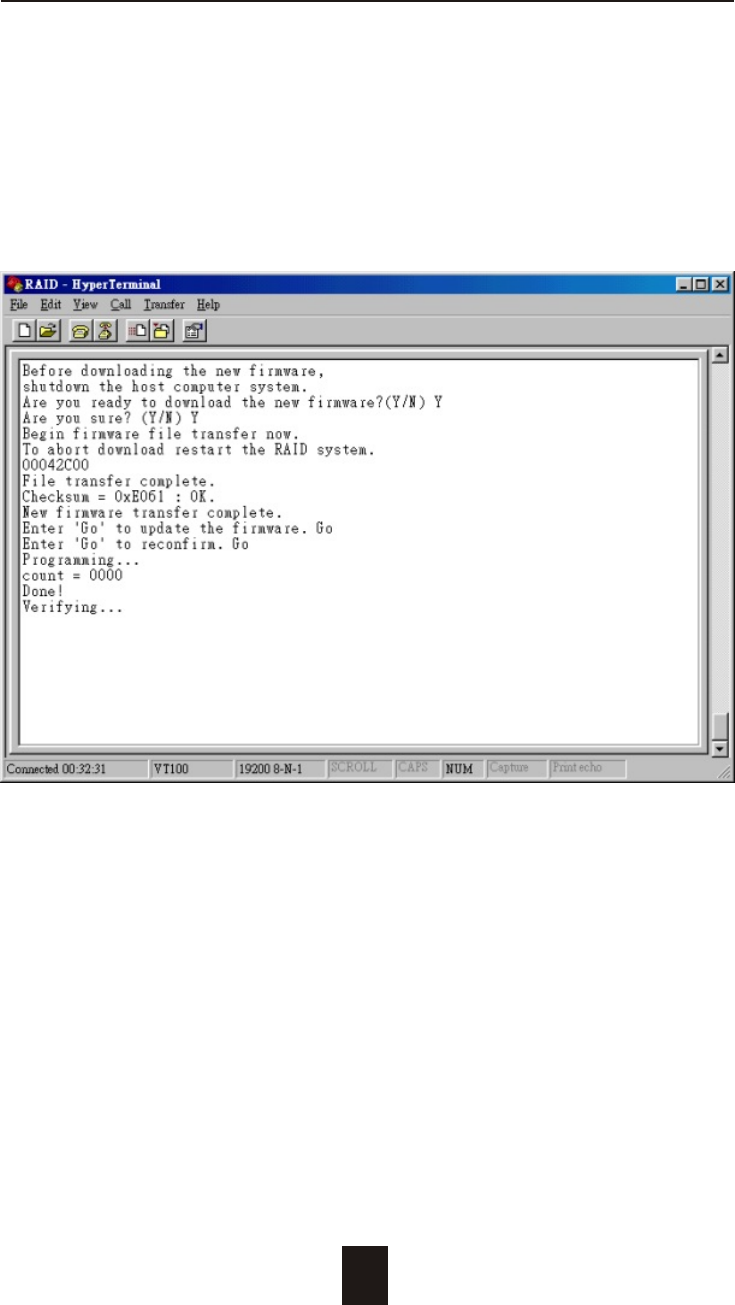

6. Type " Go " to reconfirm and the firmware will begin to be
reprogrammed.
7. After verifying, please restart the Disk Array to activate the
new firmware.
Advanced Information
4-20
Capacity Expansion
The RAID capacity can be expanded by add one or more Disk
Drive into the existing RAID group and properly setup procedures.
1. Add new HDD into the RAID system.

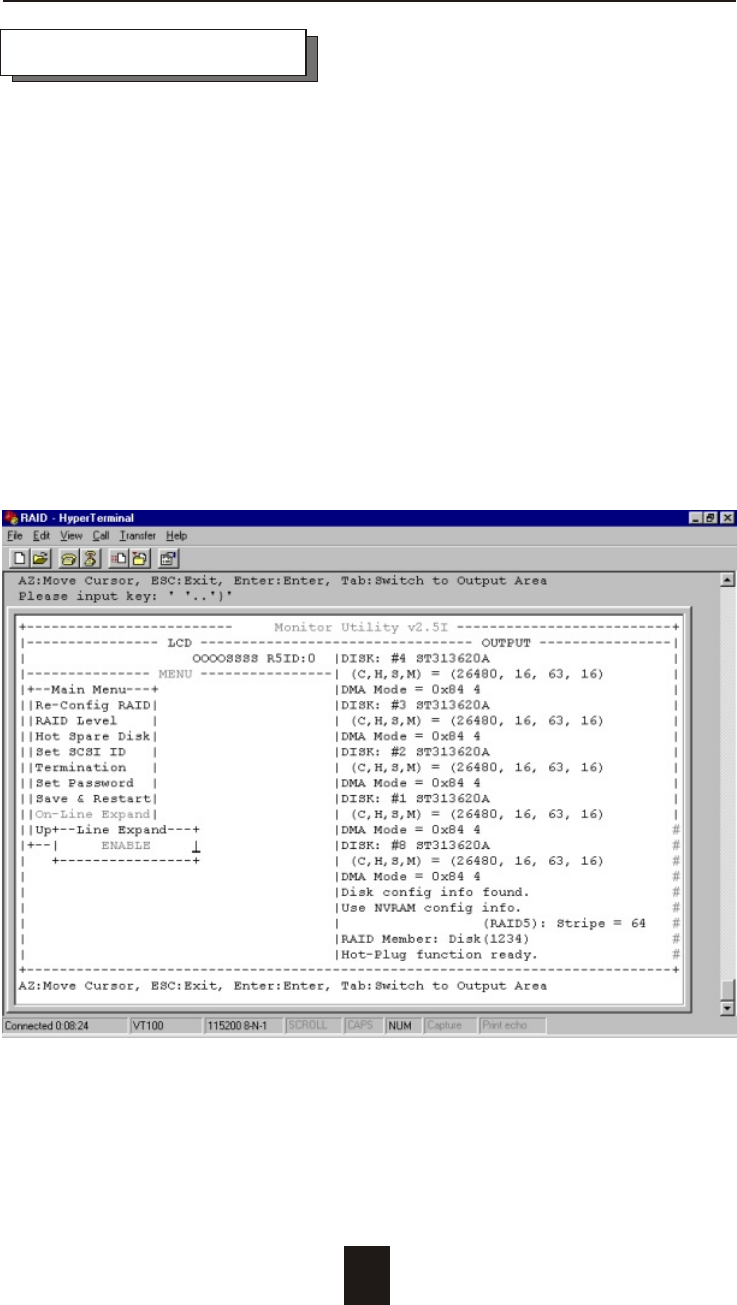

2. Configuration through the RS-232 Terminal mode, move the
cursor to " On-Line Expand " and " Enable " and press " Enter "
to confirm it.
( If you have not add any new HDD into the RAID group the
" Enable " item will not show up. )
