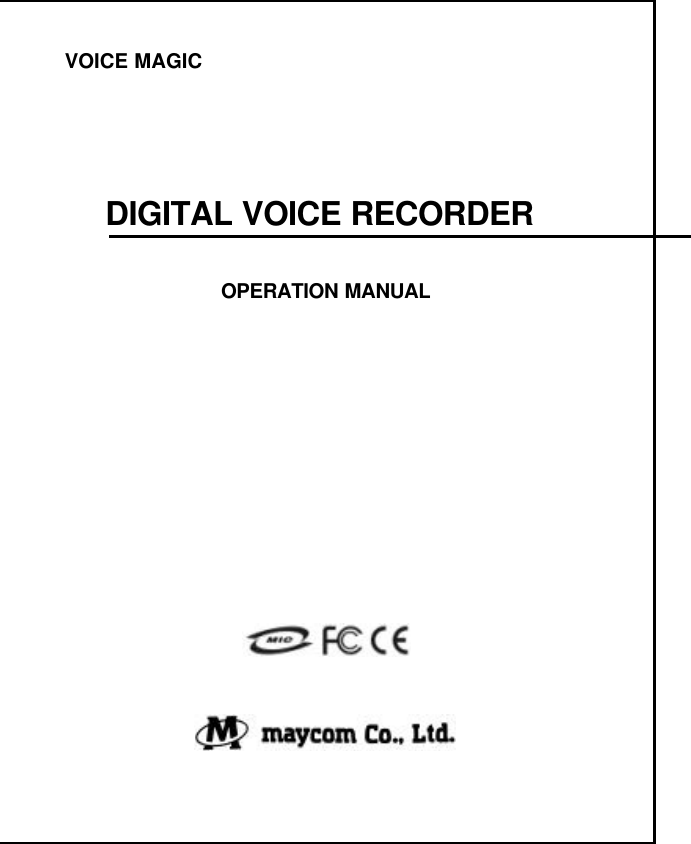

DIGITAL VOICE RECORDER VOICE MAGIC OPERATION MANUAL

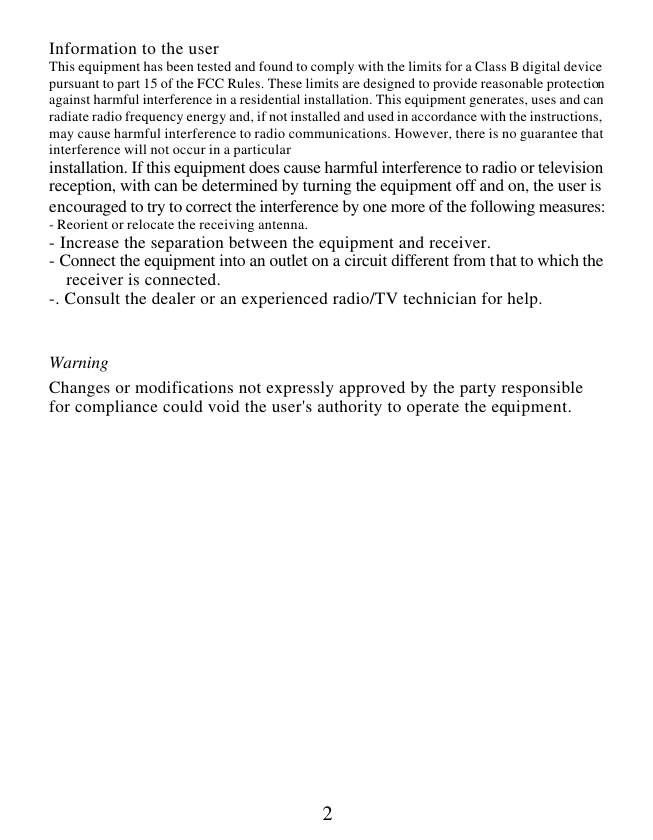

2Information to the user This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, with can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -. Consult the dealer or an experienced radio/TV technician for help. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

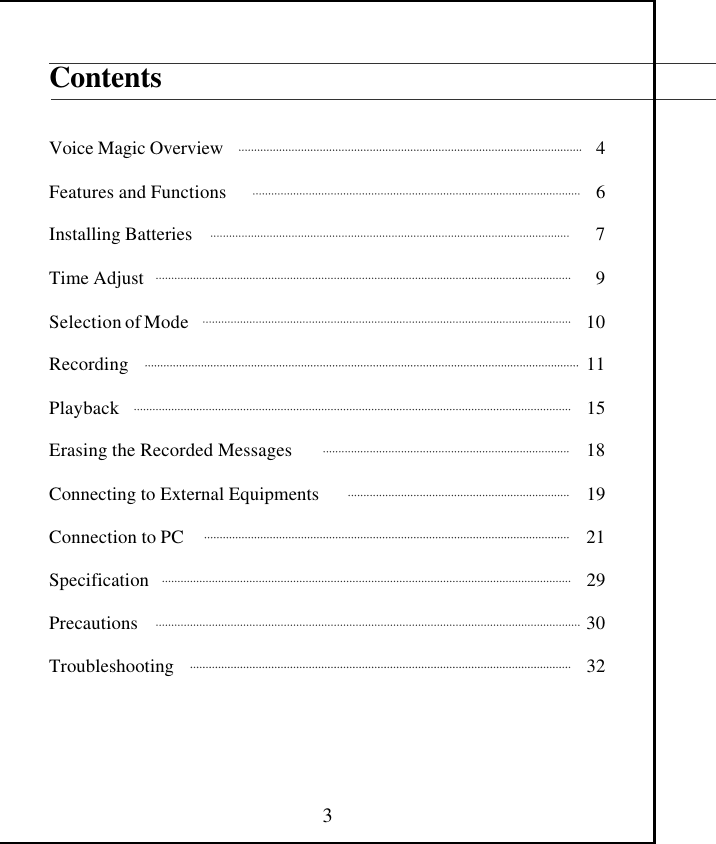

3 Contents Voice Magic Overview 4 Features and Functions 6 Installing Batteries 7 Time Adjust 9 Selection of Mode 10 Recording 11 Playback 15 Erasing the Recorded Messages 18 Connecting to External Equipments 19 Connection to PC 21 Specification 29 Precautions 30 Troubleshooting 32

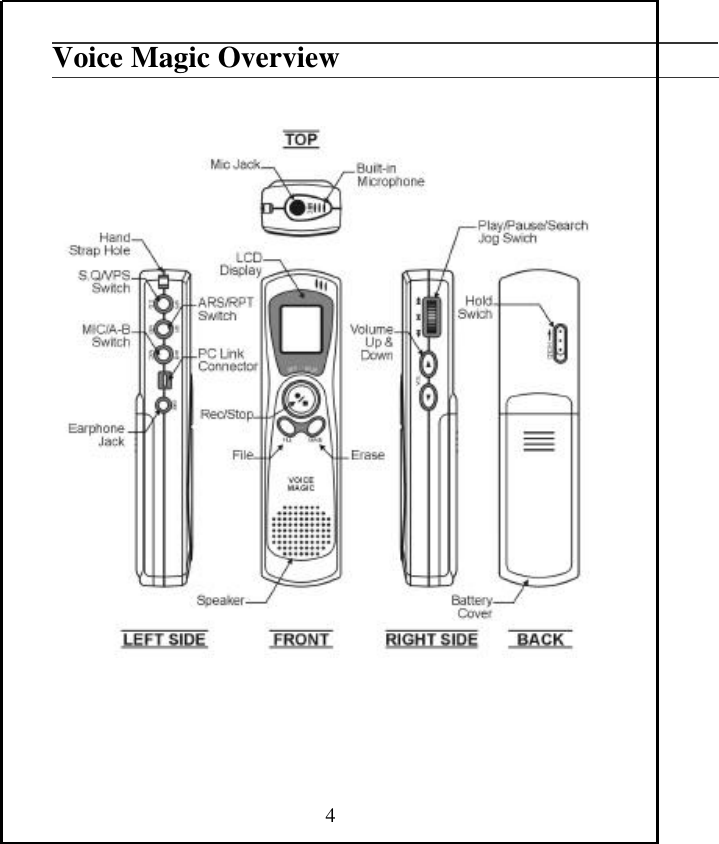

4Voice Magic Overview
5 DISPLAY

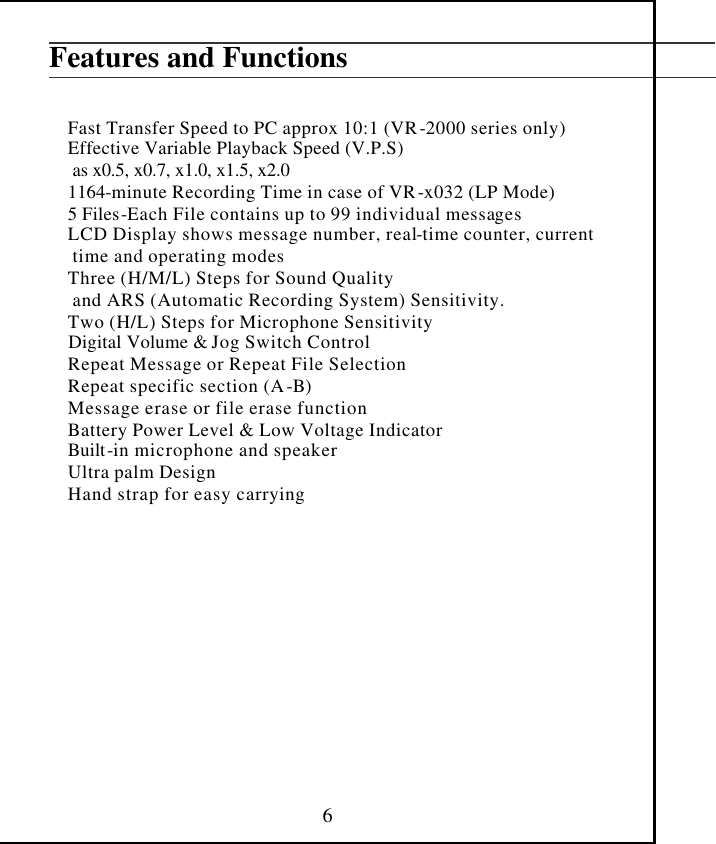

6Features and Functions  Fast Transfer Speed to PC approx 10:1 (VR-2000 series only)  Effective Variable Playback Speed (V.P.S) as x0.5, x0.7, x1.0, x1.5, x2.0  1164-minute Recording Time in case of VR-x032 (LP Mode)  5 Files-Each File contains up to 99 individual messages  LCD Display shows message number, real-time counter, current time and operating modes  Three (H/M/L) Steps for Sound Quality and ARS (Automatic Recording System) Sensitivity.  Two (H/L) Steps for Microphone Sensitivity  Digital Volume & Jog Switch Control  Repeat Message or Repeat File Selection  Repeat specific section (A-B)  Message erase or file erase function  Battery Power Level & Low Voltage Indicator  Built-in microphone and speaker  Ultra palm Design  Hand strap for easy carrying

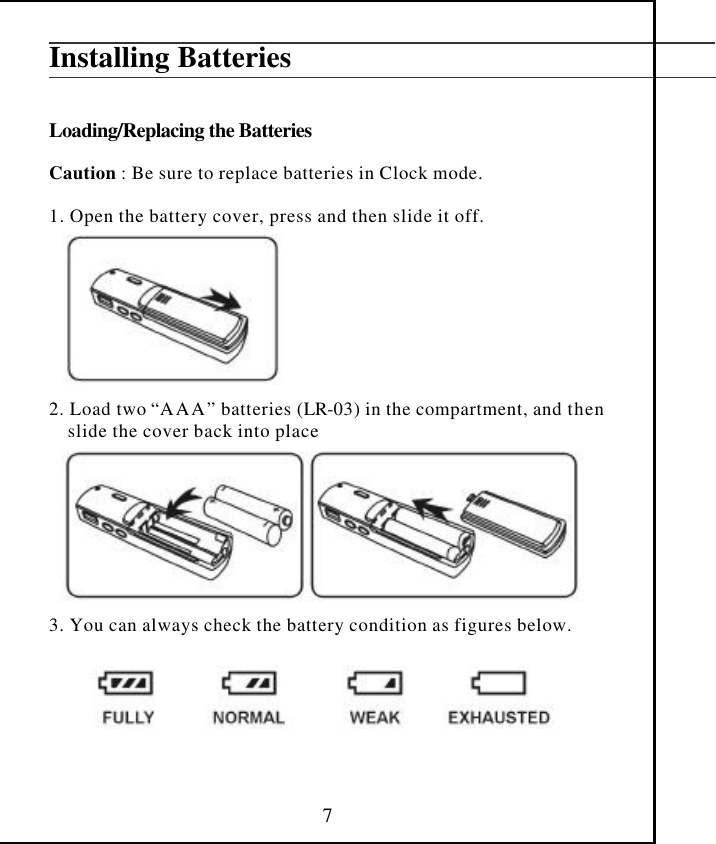

7Installing Batteries Loading/Replacing the Batteries Caution : Be sure to replace batteries in Clock mode. 1. Open the battery cover, press and then slide it off. 2. Load two “AAA” batteries (LR-03) in the compartment, and then slide the cover back into place 3. You can always check the battery condition as figures below.

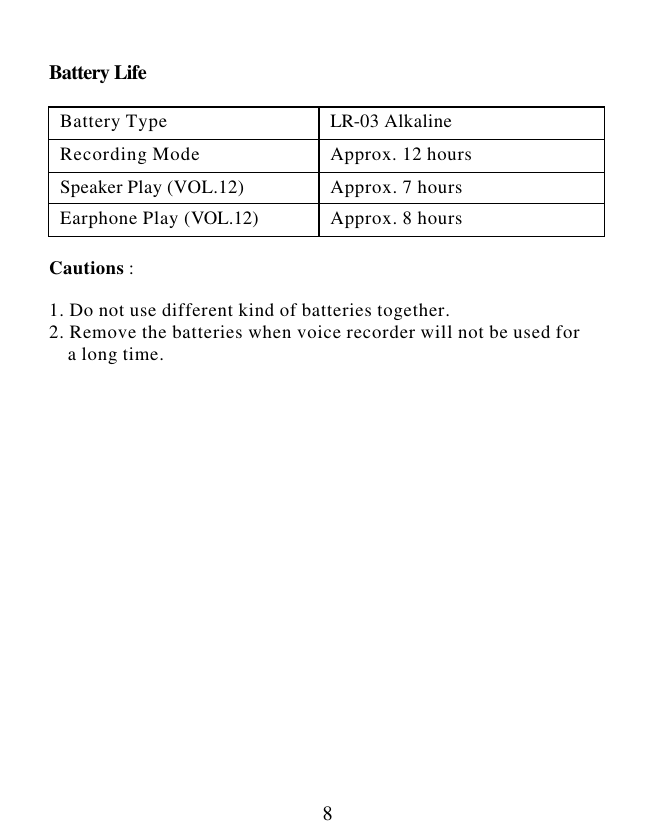

8 Battery Life Battery Type LR-03 Alkaline Recording Mode Approx. 12 hours Speaker Play (VOL.12) Approx. 7 hours Earphone Play (VOL.12) Approx. 8 hours Cautions : 1. Do not use different kind of batteries together. 2. Remove the batteries when voice recorder will not be used for a long time.

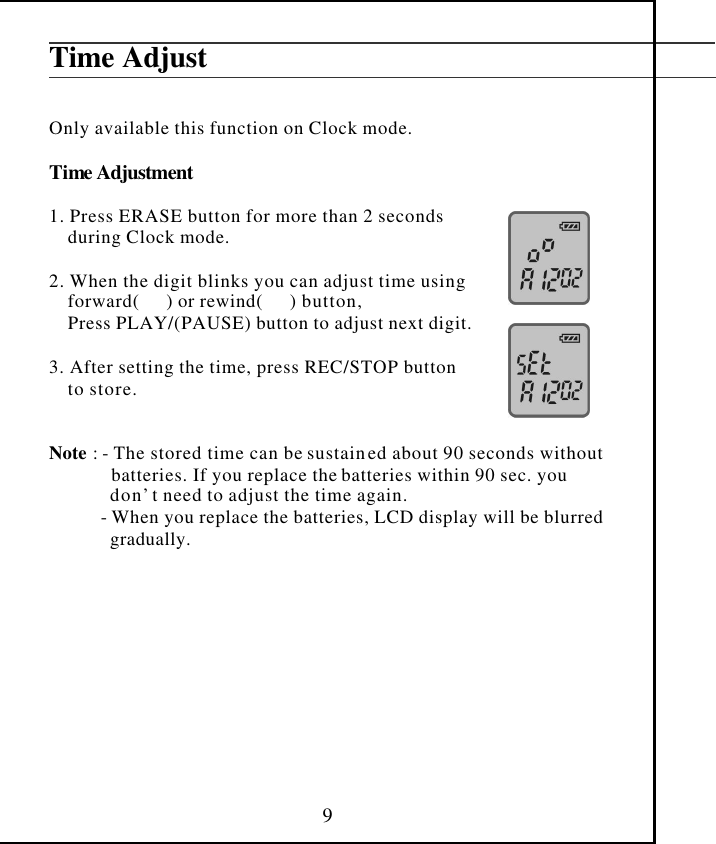

9Time Adjust Only available this function on Clock mode. Time Adjustment 1. Press ERASE button for more than 2 seconds during Clock mode. 2. When the digit blinks you can adjust time using forward() or rewind() button, Press PLAY/(PAUSE) button to adjust next digit. 3. After setting the time, press REC/STOP button to store. Note : - The stored time can be sustained about 90 seconds without batteries. If you replace the batteries within 90 sec. you don’t need to adjust the time again. - When you replace the batteries, LCD display will be blurred gradually.

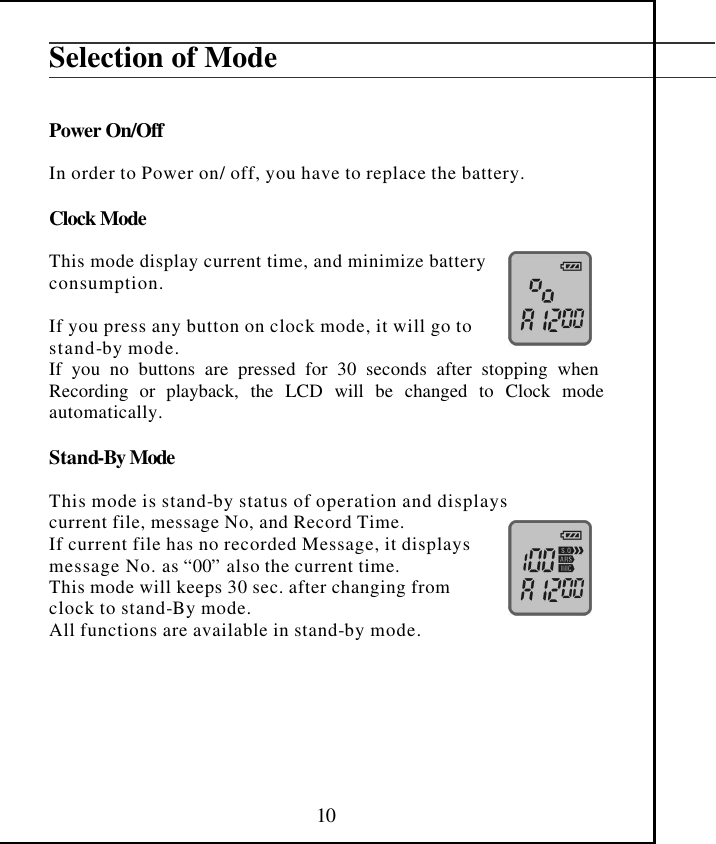

10 Selection of Mode Power On/Off In order to Power on/ off, you have to replace the battery. Clock Mode This mode display current time, and minimize battery consumption. If you press any button on clock mode, it will go to stand-by mode. If you no buttons are pressed for 30 seconds after stopping when Recording or playback, the LCD will be changed to Clock mode automatically. Stand-By Mode This mode is stand-by status of operation and displays current file, message No, and Record Time. If current file has no recorded Message, it displays message No. as “00” also the current time. This mode will keeps 30 sec. after changing from clock to stand-By mode. All functions are available in stand-by mode.

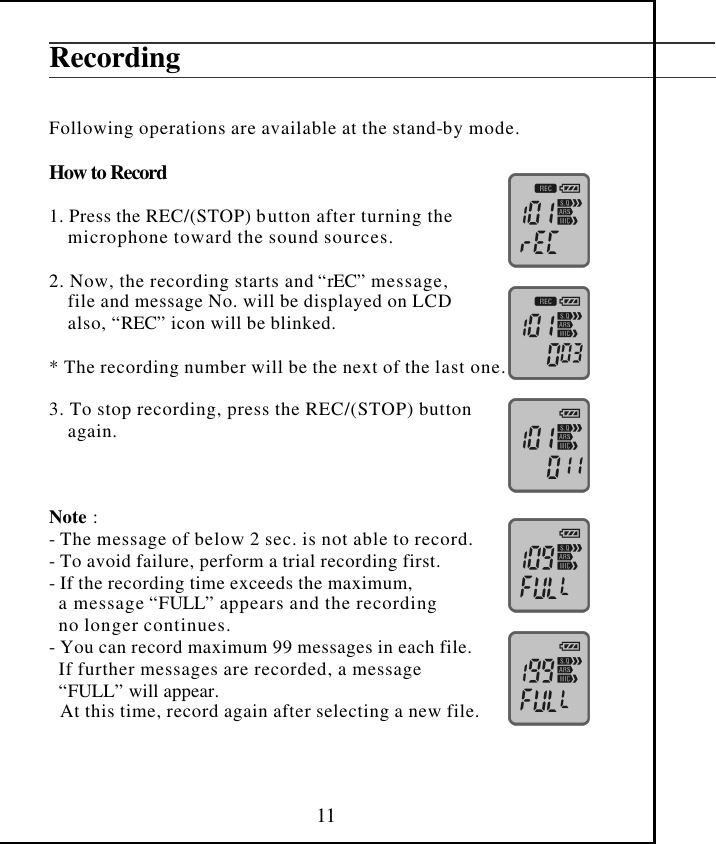

11 Recording Following operations are available at the stand-by mode. How to Record 1. Press the REC/(STOP) button after turning the microphone toward the sound sources. 2. Now, the recording starts and “rEC” message, file and message No. will be displayed on LCD also, “REC” icon will be blinked. * The recording number will be the next of the last one. 3. To stop recording, press the REC/(STOP) button again. Note : - The message of below 2 sec. is not able to record. - To avoid failure, perform a trial recording first. - If the recording time exceeds the maximum, a message “FULL” appears and the recording no longer continues. - You can record maximum 99 messages in each file. If further messages are recorded, a message “FULL” will appear. At this time, record again after selecting a new file.

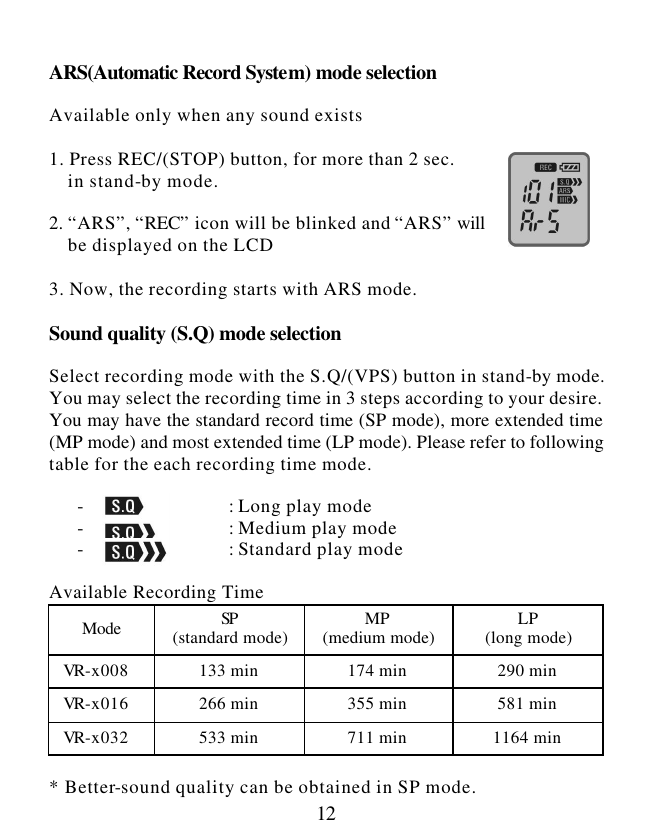

12 ARS(Automatic Record System) mode selection Available only when any sound exists 1. Press REC/(STOP) button, for more than 2 sec. in stand-by mode. 2. “ARS”, “REC” icon will be blinked and “ARS” will be displayed on the LCD 3. Now, the recording starts with ARS mode. Sound quality (S.Q) mode selection Select recording mode with the S.Q/(VPS) button in stand-by mode. You may select the recording time in 3 steps according to your desire. You may have the standard record time (SP mode), more extended time (MP mode) and most extended time (LP mode). Please refer to following table for the each recording time mode. - : Long play mode - : Medium play mode - : Standard play mode Available Recording Time Mode SP (standard mode) MP (medium mode) LP (long mode) VR-x008 133 min 174 min 290 min VR-x016 266 min 355 min 581 min VR-x032 533 min 711 min 1164 min * Better-sound quality can be obtained in SP mode.

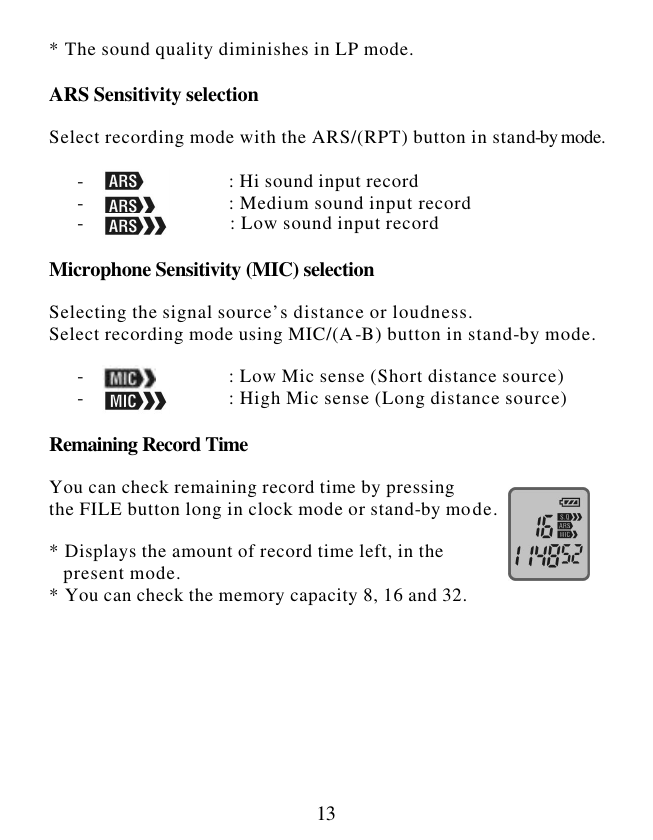

13 * The sound quality diminishes in LP mode. ARS Sensitivity selection Select recording mode with the ARS/(RPT) button in stand-by mode. - : Hi sound input record - : Medium sound input record - : Low sound input record Microphone Sensitivity (MIC) selection Selecting the signal source’s distance or loudness. Select recording mode using MIC/(A-B) button in stand-by mode. - : Low Mic sense (Short distance source) - : High Mic sense (Long distance source) Remaining Record Time You can check remaining record time by pressing the FILE button long in clock mode or stand-by mode. * Displays the amount of record time left, in the present mode. * You can check the memory capacity 8, 16 and 32.

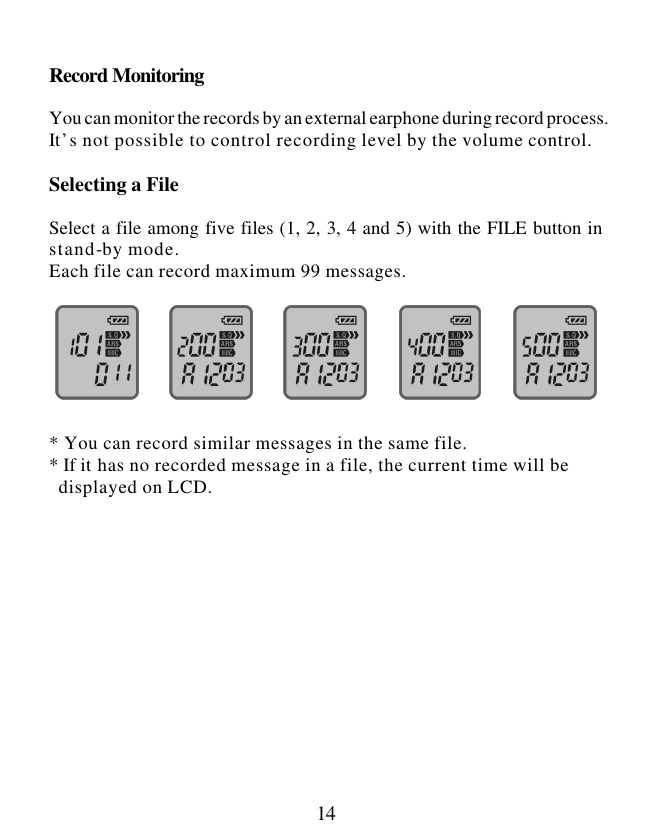

14 Record Monitoring You can monitor the records by an external earphone during record process. It’s not possible to control recording level by the volume control. Selecting a File Select a file among five files (1, 2, 3, 4 and 5) with the FILE button in stand-by mode. Each file can record maximum 99 messages. * You can record similar messages in the same file. * If it has no recorded message in a file, the current time will be displayed on LCD.

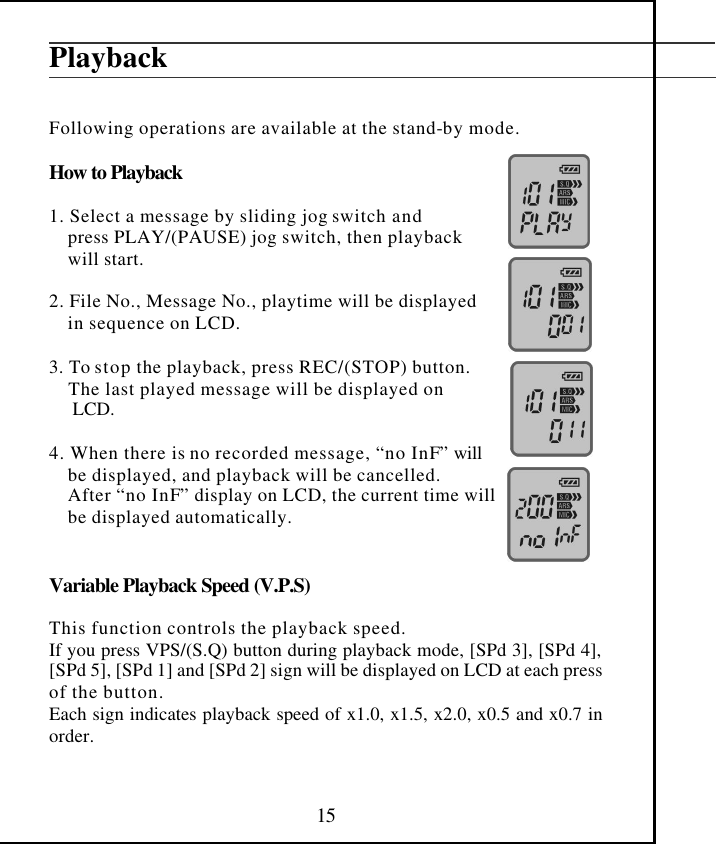

15 Playback Following operations are available at the stand-by mode. How to Playback 1. Select a message by sliding jog switch and press PLAY/(PAUSE) jog switch, then playback will start. 2. File No., Message No., playtime will be displayed in sequence on LCD. 3. To stop the playback, press REC/(STOP) button. The last played message will be displayed on LCD. 4. When there is no recorded message, “no InF” will be displayed, and playback will be cancelled. After “no InF” display on LCD, the current time will be displayed automatically. Variable Playback Speed (V.P.S) This function controls the playback speed. If you press VPS/(S.Q) button during playback mode, [SPd 3], [SPd 4], [SPd 5], [SPd 1] and [SPd 2] sign will be displayed on LCD at each press of the button. Each sign indicates playback speed of x1.0, x1.5, x2.0, x0.5 and x0.7 in order.

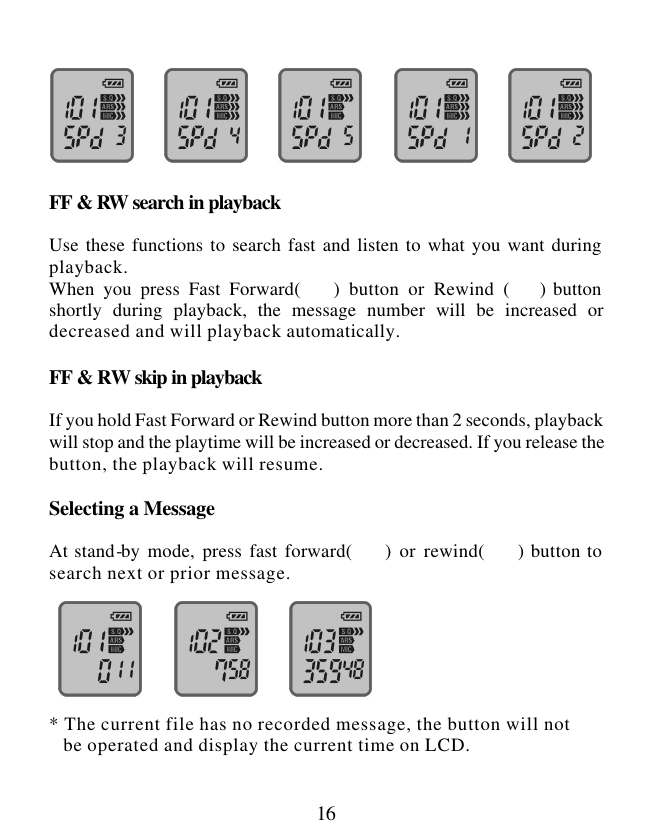

16 FF & RW search in playback Use these functions to search fast and listen to what you want during playback. When you press Fast Forward() button or Rewind () button shortly during playback, the message number will be increased or decreased and will playback automatically. FF & RW skip in playback If you hold Fast Forward or Rewind button more than 2 seconds, playback will stop and the playtime will be increased or decreased. If you release the button, the playback will resume. Selecting a Message At stand-by mode, press fast forward() or rewind() button to search next or prior message. * The current file has no recorded message, the button will not be operated and display the current time on LCD.
17 Repeat one message or All messages If you press RPT/(ARS) button during playback, it will be displayed on LCD as bellows. Repeating one message. If you press RPT/(ARS) button ones again, it will be displayed on LCD as bellows Repeating all messages in a file. * If you want to cancel repeating message, press RPT/(ARS) button once again. Repeat A to B In this function, playback repeats specific section of message continuously in a message. Press A-B/(MIC) button during playback to fix the point “A”. Then playtime sign will blink on LCD. Playback or seek in a message what you want, press A-B/(MIC) button again to fix the point “B”. And then the section “A” to “B” will playback over and over again. * If you want to cancel repeat A to B, press A-B/(MIC) button once again.

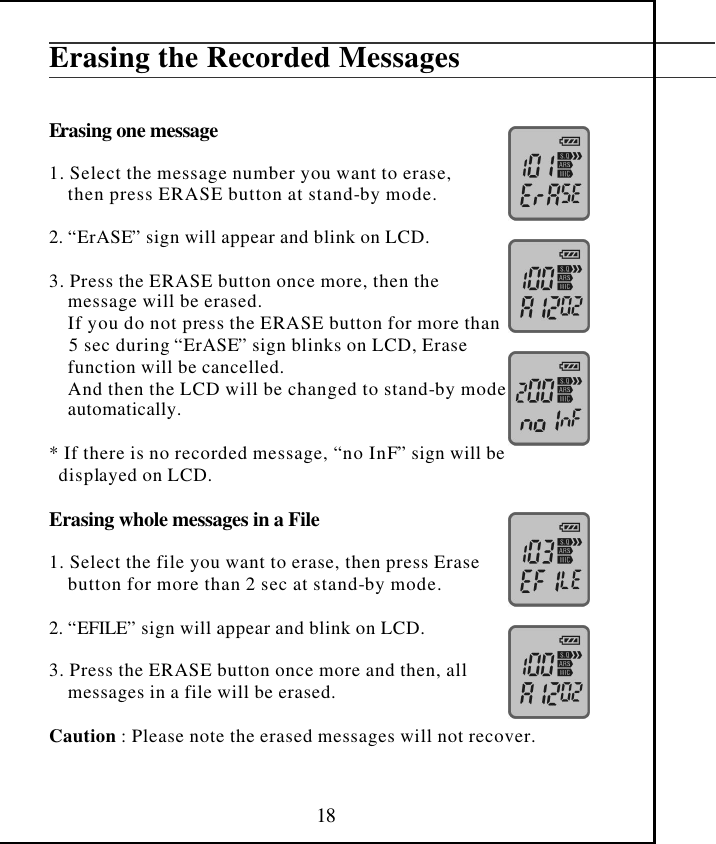

18 Erasing the Recorded Messages Erasing one message 1. Select the message number you want to erase, then press ERASE button at stand-by mode. 2. “ErASE” sign will appear and blink on LCD. 3. Press the ERASE button once more, then the message will be erased. If you do not press the ERASE button for more than 5 sec during “ErASE” sign blinks on LCD, Erase function will be cancelled. And then the LCD will be changed to stand-by mode automatically. * If there is no recorded message, “no InF” sign will be displayed on LCD. Erasing whole messages in a File 1. Select the file you want to erase, then press Erase button for more than 2 sec at stand-by mode. 2. “EFILE” sign will appear and blink on LCD. 3. Press the ERASE button once more and then, all messages in a file will be erased. Caution : Please note the erased messages will not recover.

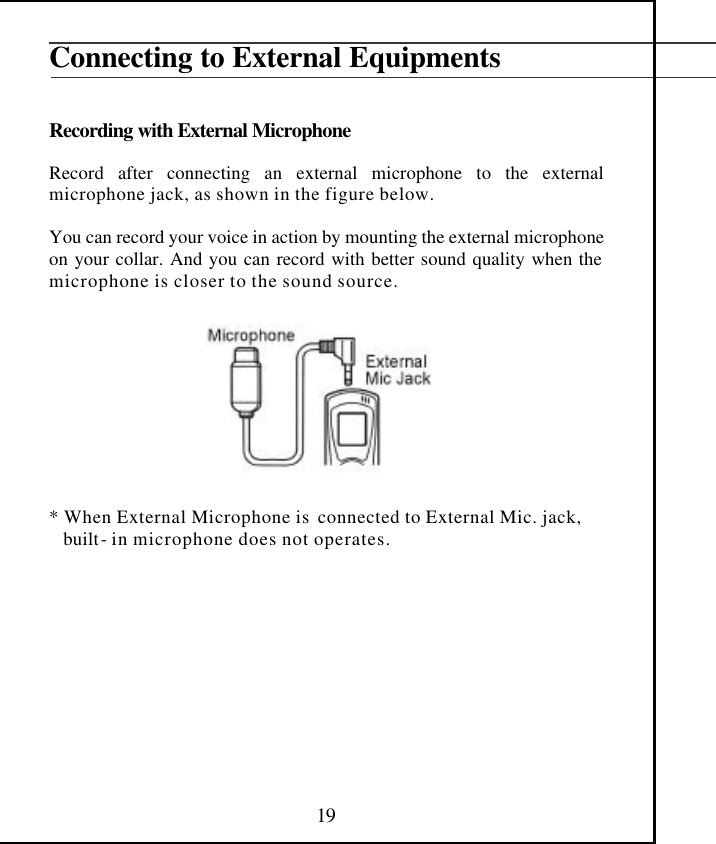

19 Connecting to External Equipments Recording with External Microphone Record after connecting an external microphone to the external microphone jack, as shown in the figure below. You can record your voice in action by mounting the external microphone on your collar. And you can record with better sound quality when the microphone is closer to the sound source. * When External Microphone is connected to External Mic. jack, built- in microphone does not operates.

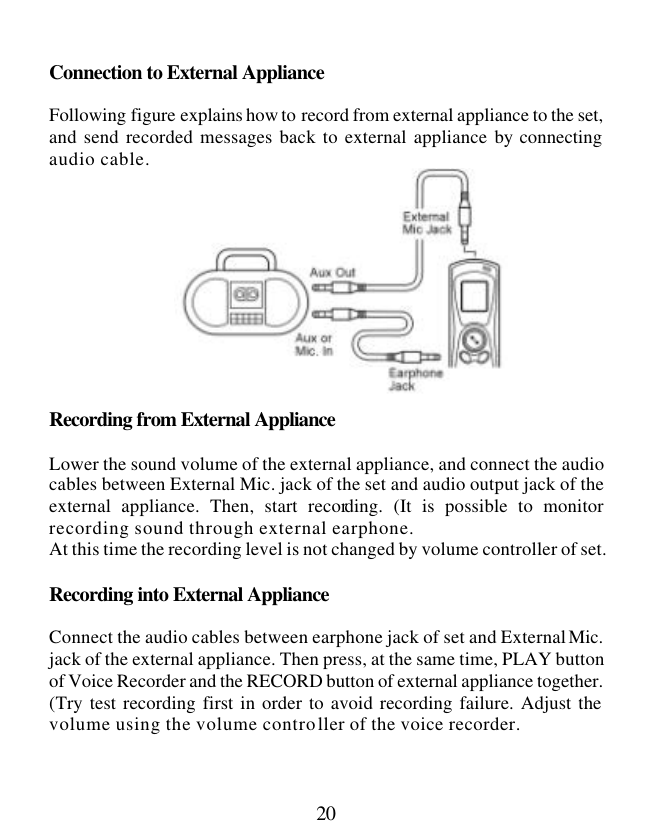

20 Connection to External Appliance Following figure explains how to record from external appliance to the set, and send recorded messages back to external appliance by connecting audio cable. Recording from External Appliance Lower the sound volume of the external appliance, and connect the audio cables between External Mic. jack of the set and audio output jack of the external appliance. Then, start recording. (It is possible to monitor recording sound through external earphone. At this time the recording level is not changed by volume controller of set. Recording into External Appliance Connect the audio cables between earphone jack of set and External Mic. jack of the external appliance. Then press, at the same time, PLAY button of Voice Recorder and the RECORD button of external appliance together. (Try test recording first in order to avoid recording failure. Adjust the volume using the volume controller of the voice recorder.

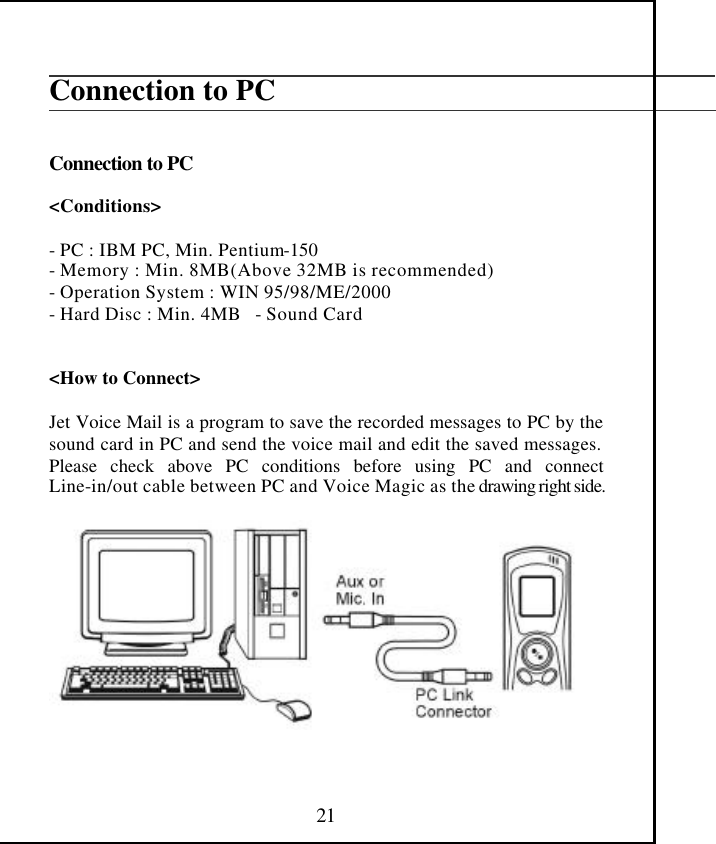

21 Connection to PC Connection to PC <Conditions> - PC : IBM PC, Min. Pentium-150 - Memory : Min. 8MB(Above 32MB is recommended) - Operation System : WIN 95/98/ME/2000 - Hard Disc : Min. 4MB - Sound Card <How to Connect> Jet Voice Mail is a program to save the recorded messages to PC by the sound card in PC and send the voice mail and edit the saved messages. Please check above PC conditions before using PC and connect Line-in/out cable between PC and Voice Magic as the drawing right side.

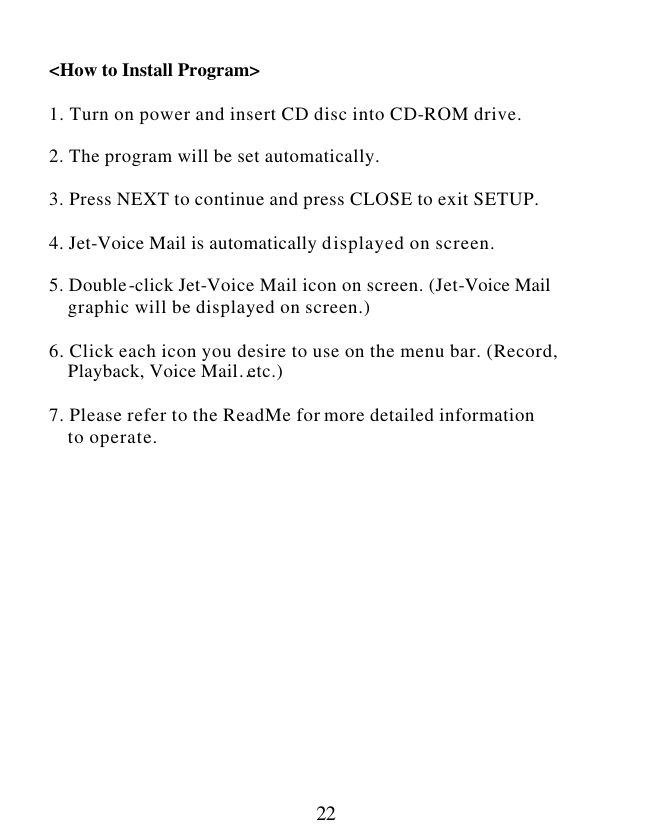

22 <How to Install Program> 1. Turn on power and insert CD disc into CD-ROM drive. 2. The program will be set automatically. 3. Press NEXT to continue and press CLOSE to exit SETUP. 4. Jet-Voice Mail is automatically displayed on screen. 5. Double-click Jet-Voice Mail icon on screen. (Jet-Voice Mail graphic will be displayed on screen.) 6. Click each icon you desire to use on the menu bar. (Record, Playback, Voice Mail…etc.) 7. Please refer to the ReadMe for more detailed information to operate.
23 <Trouble/Solution> 1. Question : During recording/playback is not activated after installation. Answer : Sound card is not inserted Check if sound card is properly inserted in PC. 2. Question : No sound during playback after recording. Answer : 1) Check if cord is properly connected into mic-in of sound card. 2) Check if recording sound is too small. 3) Check if volume level of Mic-in set 0 on window box. 3. Question : Too much noise during playback. Answer : 1) Check if volume level of Mic-in on which box is too big. If so, set the volume level in appropriate position. 2) If there is still noise after volume control, it could be problem with sound card. 4. Question : Poor sound quality or volume is too small. Answer : 1) Click option menu on the upper side of graphic, then sound quality control button will be displayed. 2) Set Mic-input level to appropriate position throughout several tests.

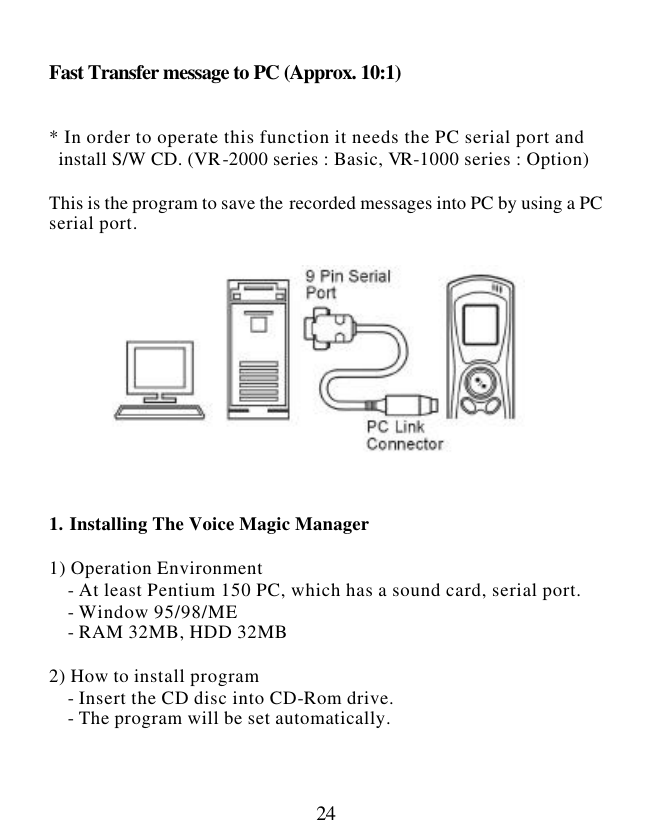

24 Fast Transfer message to PC (Approx. 10:1) * In order to operate this function it needs the PC serial port and install S/W CD. (VR-2000 series : Basic, VR-1000 series : Option) This is the program to save the recorded messages into PC by using a PC serial port. 1. Installing The Voice Magic Manager 1) Operation Environment - At least Pentium 150 PC, which has a sound card, serial port. - Window 95/98/ME - RAM 32MB, HDD 32MB 2) How to install program - Insert the CD disc into CD-Rom drive. - The program will be set automatically.

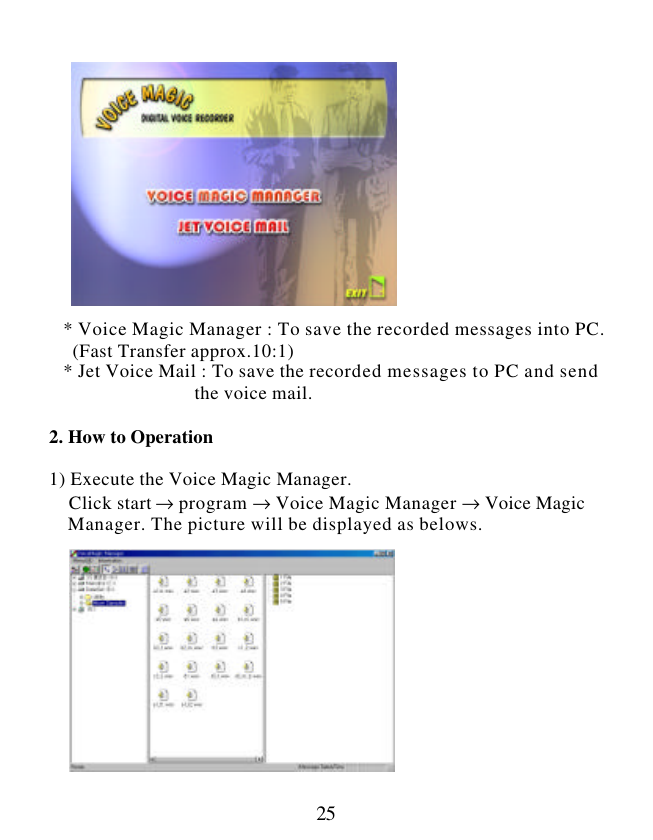

25 * Voice Magic Manager : To save the recorded messages into PC. (Fast Transfer approx.10:1) * Jet Voice Mail : To save the recorded messages to PC and send the voice mail. 2. How to Operation 1) Execute the Voice Magic Manager. Click start → program → Voice Magic Manager → Voice Magic Manager. The picture will be displayed as belows.
26 2) Selection of Com Port. Please select the serial port in PC before operating and connecting cable to serial port. MENU(M) → PORT → COM1 or COM2 * Cautions : It causes electric shock when connect cable to non-serial port. 3) Connection of Cable If you connect cable to Voice Recorder, the Voice Recorder will be able to correspond. And, the LCD will be displayed as like belows.

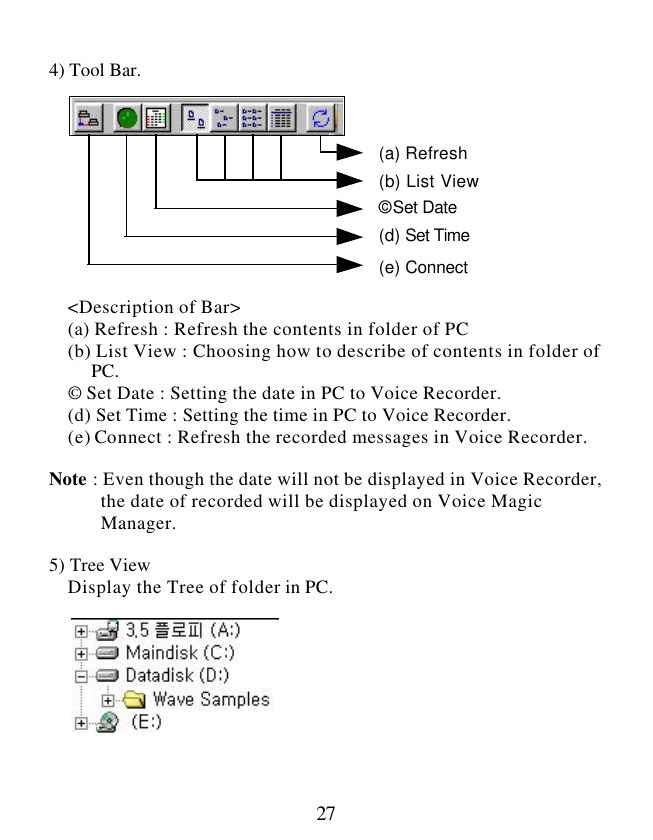

27 (a) Refresh (b) List View © Set Date (d) Set Time (e) Connect 4) Tool Bar. <Description of Bar> (a) Refresh : Refresh the contents in folder of PC (b) List View : Choosing how to describe of contents in folder of PC. © Set Date : Setting the date in PC to Voice Recorder. (d) Set Time : Setting the time in PC to Voice Recorder. (e) Connect : Refresh the recorded messages in Voice Recorder. Note : Even though the date will not be displayed in Voice Recorder, the date of recorded will be displayed on Voice Magic Manager. 5) Tree View Display the Tree of folder in PC.
28 6) File List View Display the recorded Wave file in PC. 7) Messages View Display the recorded message in voice recorder. Press right button on mouse and then, it can be changed to play or upload the recorded messages. Note : We would like to recommend choose the “C:\WINDOWS\SNDREC32.EXE” to set the default Wave file player.

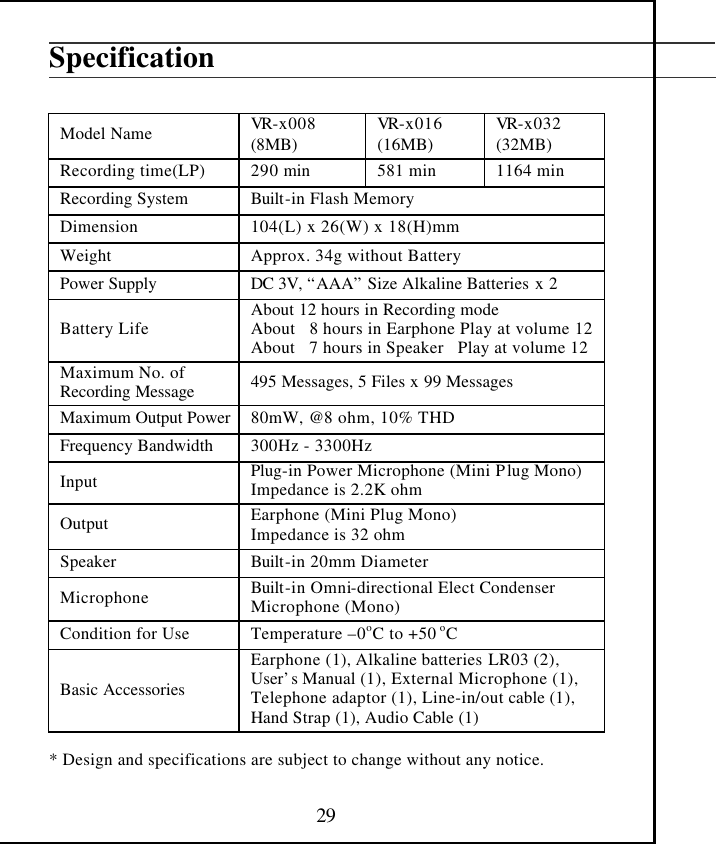

29 Specification Model Name VR-x008 (8MB) VR-x016 (16MB) VR-x032 (32MB) Recording time(LP) 290 min 581 min 1164 min Recording System Built-in Flash Memory Dimension 104(L) x 26(W) x 18(H)mm Weight Approx. 34g without Battery Power Supply DC 3V, “AAA” Size Alkaline Batteries x 2 Battery Life About 12 hours in Recording mode About 8 hours in Earphone Play at volume 12 About 7 hours in Speaker Play at volume 12 Maximum No. of Recording Message 495 Messages, 5 Files x 99 Messages Maximum Output Power 80mW, @8 ohm, 10% THD Frequency Bandwidth 300Hz - 3300Hz Input Plug-in Power Microphone (Mini Plug Mono) Impedance is 2.2K ohm Output Earphone (Mini Plug Mono) Impedance is 32 ohm Speaker Built-in 20mm Diameter Microphone Built-in Omni-directional Elect Condenser Microphone (Mono) Condition for Use Temperature –0oC to +50 oC Basic Accessories Earphone (1), Alkaline batteries LR03 (2), User’s Manual (1), External Microphone (1), Telephone adaptor (1), Line-in/out cable (1), Hand Strap (1), Audio Cable (1) * Design and specifications are subject to change without any notice.

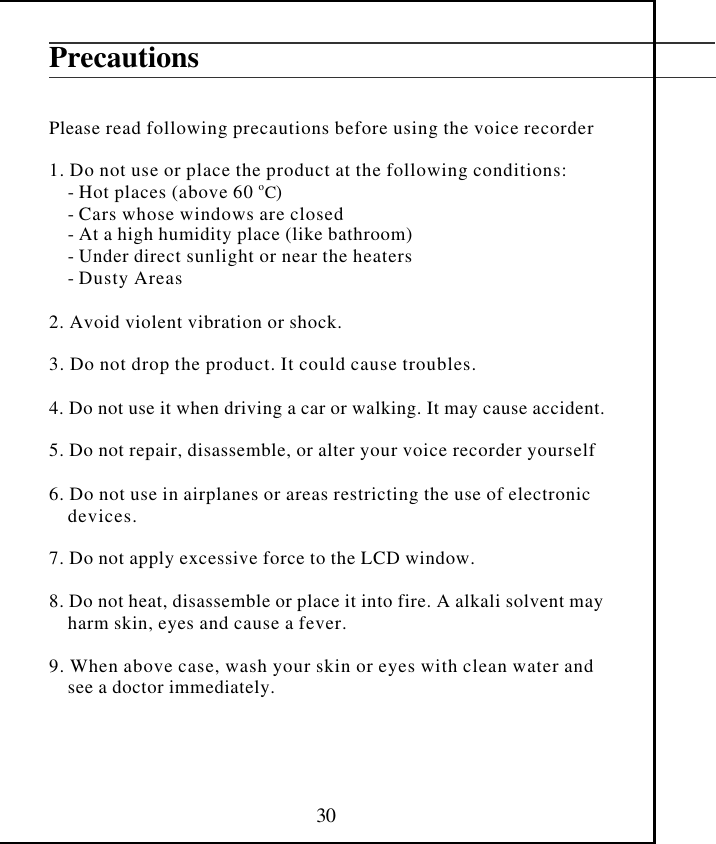

30 Precautions Please read following precautions before using the voice recorder 1. Do not use or place the product at the following conditions: - Hot places (above 60 oC) - Cars whose windows are closed - At a high humidity place (like bathroom) - Under direct sunlight or near the heaters - Dusty Areas 2. Avoid violent vibration or shock. 3. Do not drop the product. It could cause troubles. 4. Do not use it when driving a car or walking. It may cause accident. 5. Do not repair, disassemble, or alter your voice recorder yourself 6. Do not use in airplanes or areas restricting the use of electronic devices. 7. Do not apply excessive force to the LCD window. 8. Do not heat, disassemble or place it into fire. A alkali solvent may harm skin, eyes and cause a fever. 9. When above case, wash your skin or eyes with clean water and see a doctor immediately.

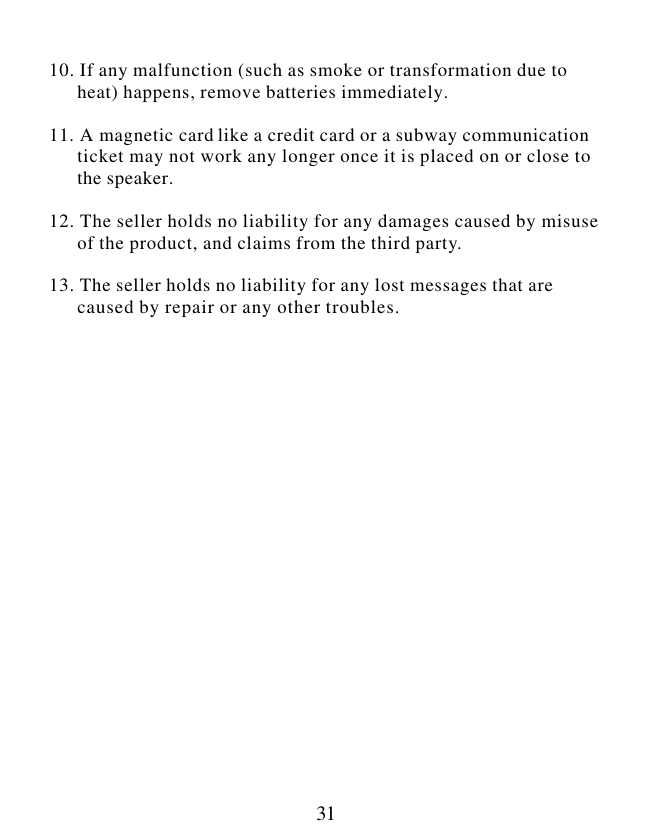

31 10. If any malfunction (such as smoke or transformation due to heat) happens, remove batteries immediately. 11. A magnetic card like a credit card or a subway communication ticket may not work any longer once it is placed on or close to the speaker. 12. The seller holds no liability for any damages caused by misuse of the product, and claims from the third party. 13. The seller holds no liability for any lost messages that are caused by repair or any other troubles.

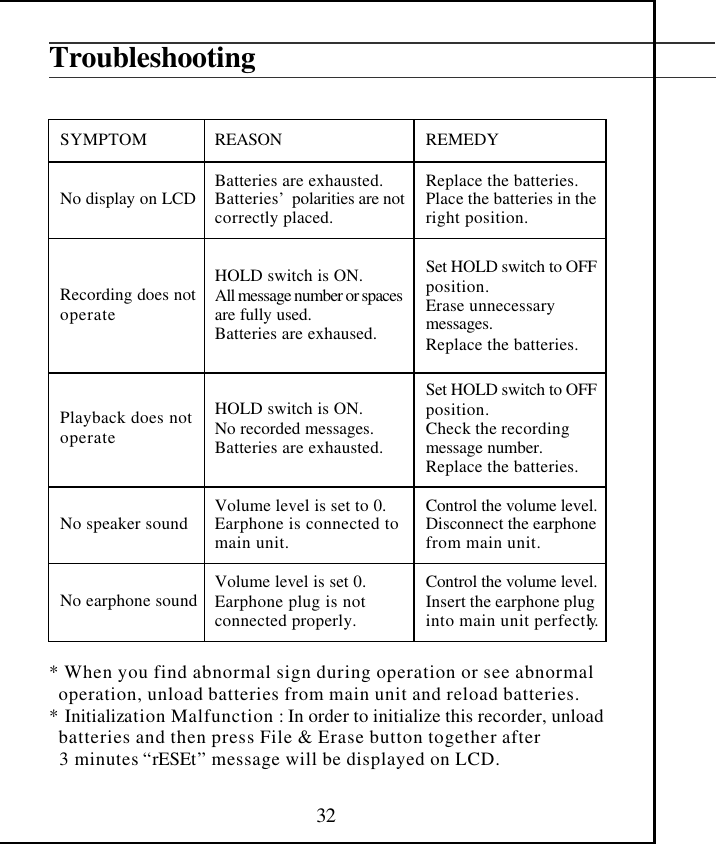

32 Troubleshooting SYMPTOM REASON REMEDY No display on LCD Batteries are exhausted. Batteries’ polarities are not correctly placed. Replace the batteries. Place the batteries in the right position. Recording does not operate HOLD switch is ON. All message number or spaces are fully used. Batteries are exhaused. Set HOLD switch to OFF position. Erase unnecessary messages. Replace the batteries. Playback does not operate HOLD switch is ON. No recorded messages. Batteries are exhausted. Set HOLD switch to OFF position. Check the recording message number. Replace the batteries. No speaker sound Volume level is set to 0. Earphone is connected to main unit. Control the volume level. Disconnect the earphone from main unit. No earphone sound Volume level is set 0. Earphone plug is not connected properly. Control the volume level. Insert the earphone plug into main unit perfectly. * When you find abnormal sign during operation or see abnormal operation, unload batteries from main unit and reload batteries. * Initialization Malfunction : In order to initialize this recorder, unload batteries and then press File & Erase button together after 3 minutes “rESEt” message will be displayed on LCD.
33 Maycom B/D, 280-5, Seoksu 2-Dong, Manan-Gu, Anyang-City, Kyoungki-Do, Korea Office) Tel : 82 31 470-7700 Fax : 82 31 470-7799 Factory) Tel : 82 31 470-7740 Fax : 82 31 470-7798 http://www.emaycom.com e-mail : maycom@emaycom.com Printed in Korea
