Maytel MTT-T Multi Tour Guide (Digital Intercom) User Manual

Maytel Co., Ltd Multi Tour Guide (Digital Intercom) Users Manual

Users Manual

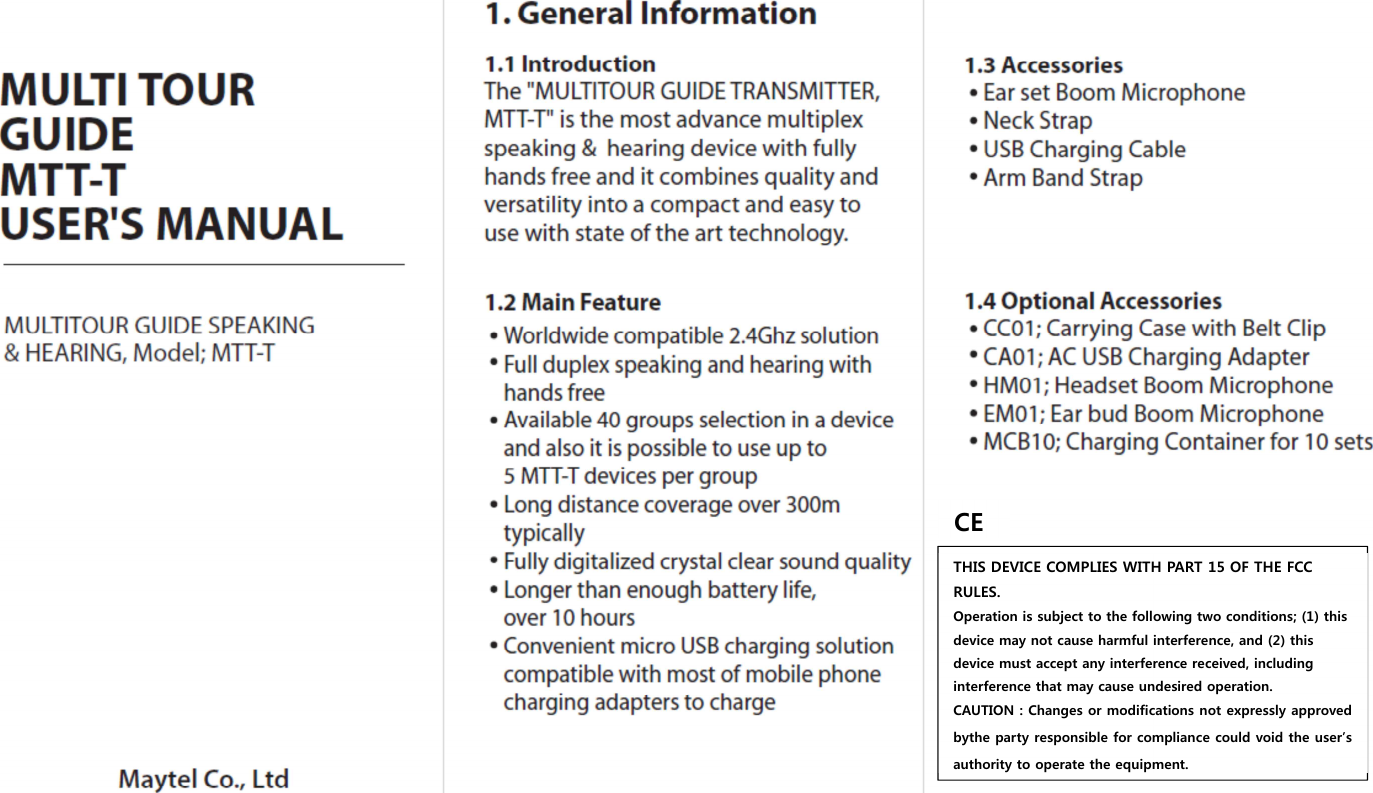

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved bythe party responsible for compliance could void the user’s authority to operate the equipment. CE

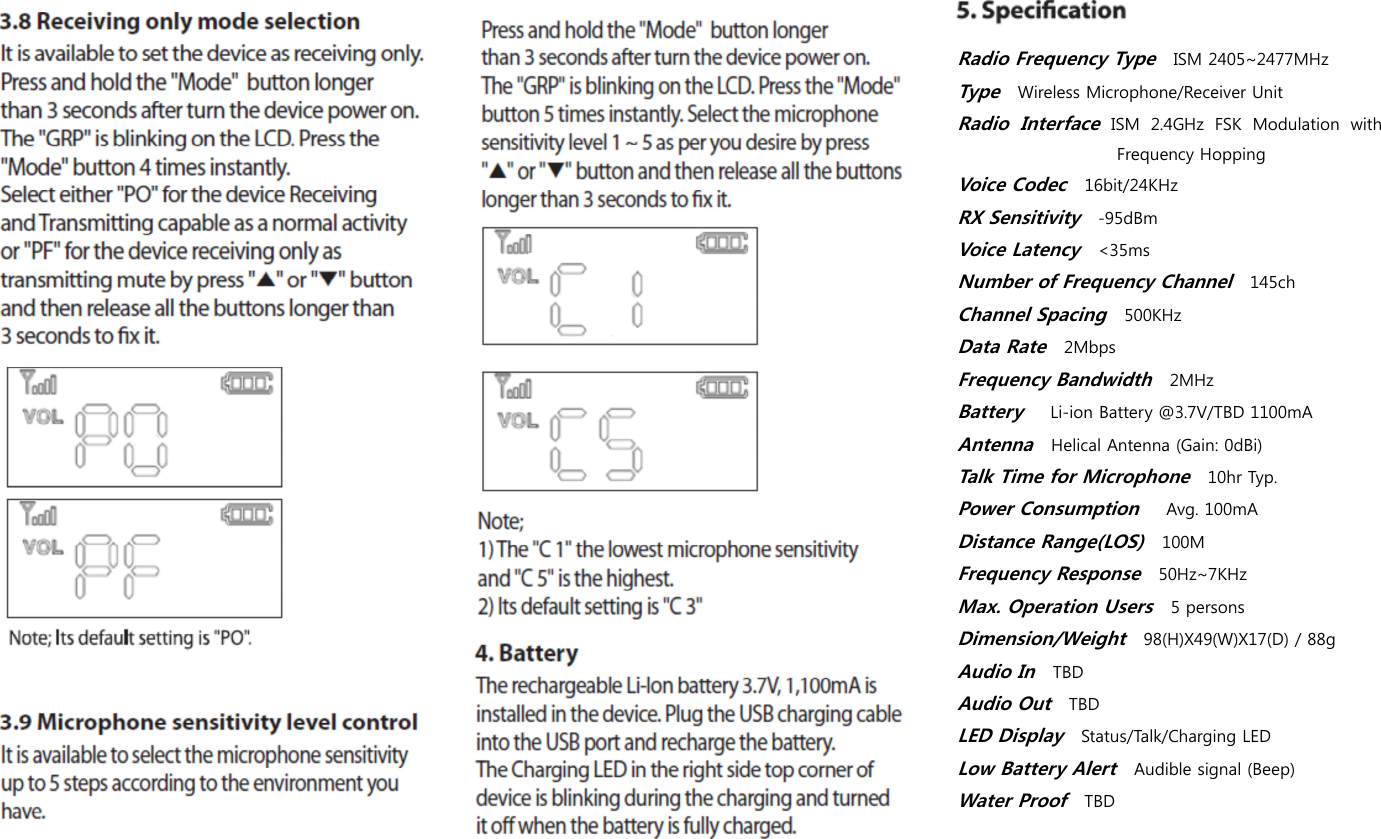

Radio Frequency Type ISM 2405~2477MHz Type Wireless Microphone/Receiver Unit Radio Interface ISM 2.4GHz FSK Modulation with Frequency Hopping Voice Codec 16bit/24KHz RX Sensitivity -95dBm Voice Latency <35ms Number of Frequency Channel 145ch Channel Spacing 500KHz Data Rate 2Mbps Frequency Bandwidth 2MHz Battery Li-ion Battery @3.7V/TBD 1100mA Antenna Helical Antenna (Gain: 0dBi) Talk Time for Microphone 10hr Typ. Power Consumption Avg. 100mA Distance Range(LOS) 100M Frequency Response 50Hz~7KHz Max. Operation Users 5 persons Dimension/Weight 98(H)X49(W)X17(D) / 88g Audio In TBD Audio Out TBD LED Display Status/Talk/Charging LED Low Battery Alert Audible signal (Beep) Water Proof TBD
FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antennas used for this transmitter must be installed to provide a separation distance of at least 5mm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

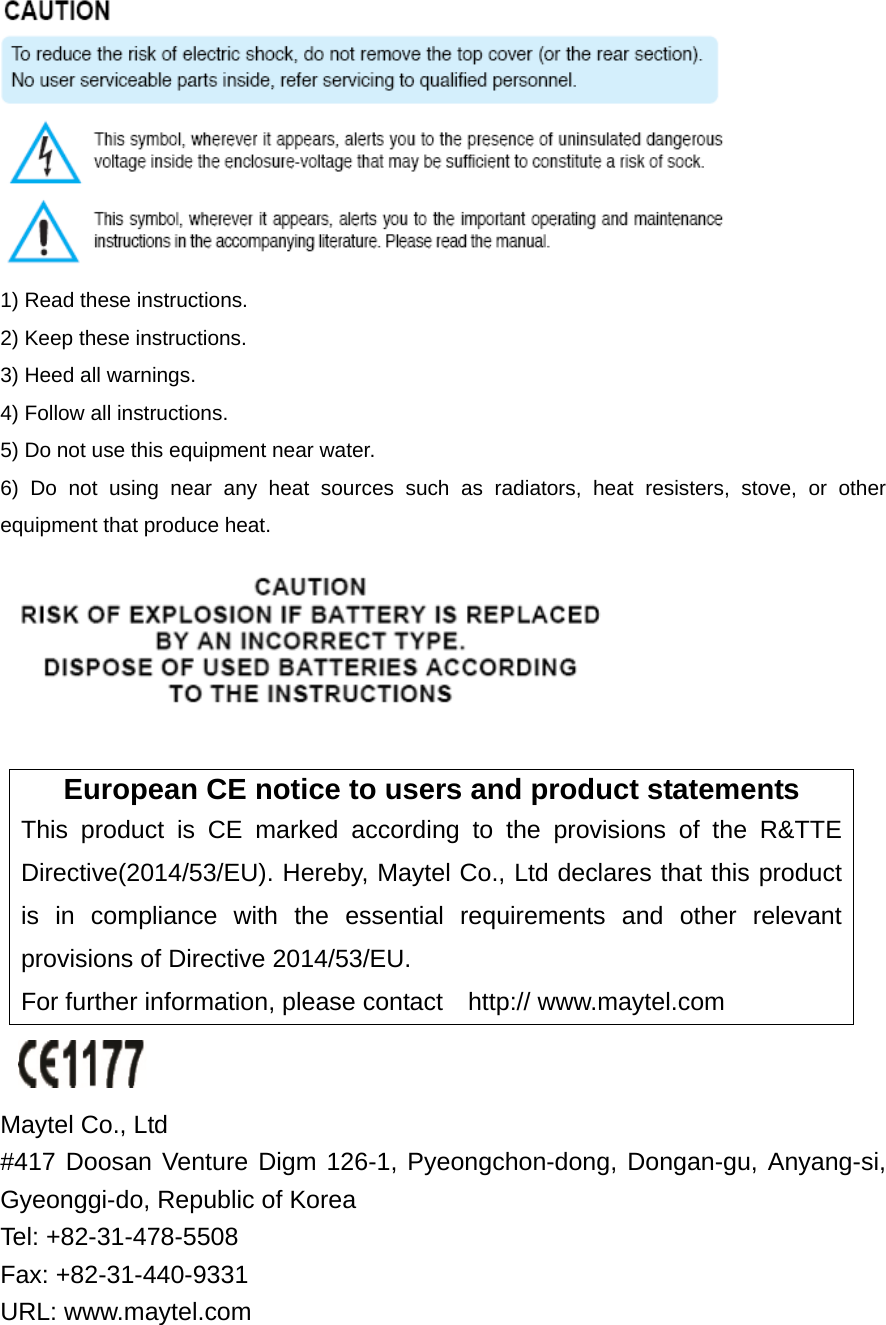

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat. European CE notice to users and product statements This product is CE marked according to the provisions of the R&TTE Directive(2014/53/EU). Hereby, Maytel Co., Ltd declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For further information, please contact http:// www.maytel.com Maytel Co., Ltd #417 Doosan Venture Digm 126-1, Pyeongchon-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea Tel: +82-31-478-5508 Fax: +82-31-440-9331 URL: www.maytel.com

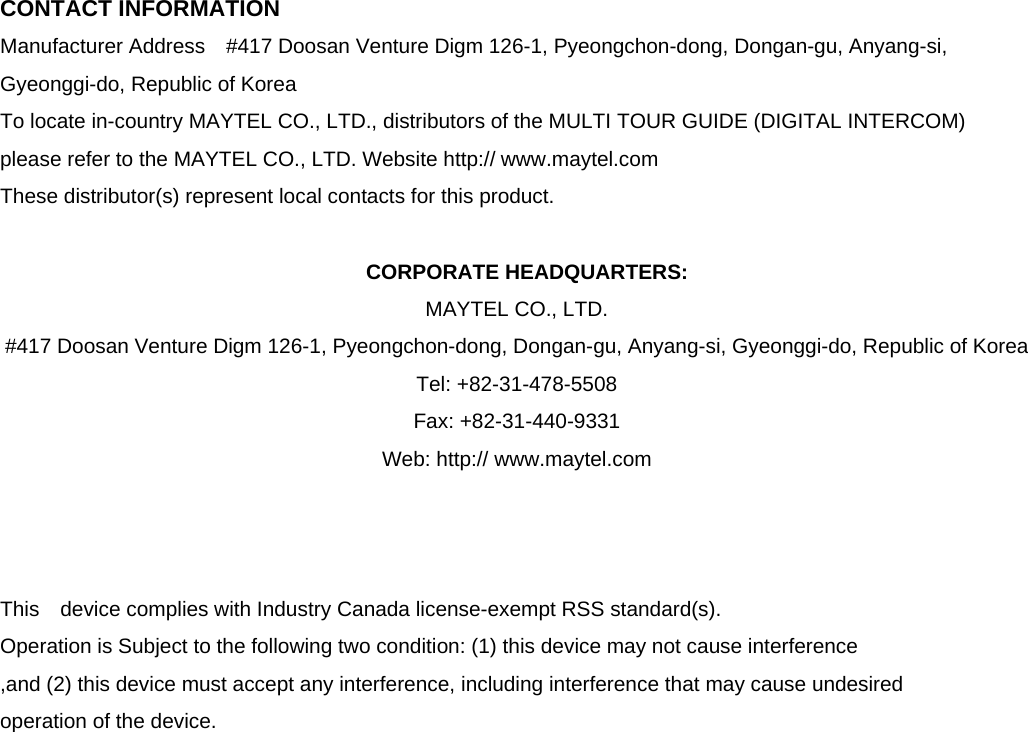

CONTACT INFORMATION Manufacturer Address #417 Doosan Venture Digm 126-1, Pyeongchon-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea To locate in-country MAYTEL CO., LTD., distributors of the MULTI TOUR GUIDE (DIGITAL INTERCOM) please refer to the MAYTEL CO., LTD. Website http:// www.maytel.com These distributor(s) represent local contacts for this product. CORPORATE HEADQUARTERS: MAYTEL CO., LTD. #417 Doosan Venture Digm 126-1, Pyeongchon-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea Tel: +82-31-478-5508 Fax: +82-31-440-9331 Web: http:// www.maytel.com This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two condition: (1) this device may not cause interference ,and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
EUROPEAN UNION “DECLARATION OF CONFORMITY” DECLARATION OF CONFORMITY MAYTEL CO., LTD. #417 Doosan Venture Digm 126-1, Pyeongchon-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea declare under our sole responsibility that the product(s) MULTI TOUR GUIDE (DIGITAL INTERCOM) – MTT-T to which this declaration relate(s) is in conformance with the following standards: EN 301 489-1 V1.9.2:2011 EN 301 489-17 V2.2.1:2012 EN 60950-1:2006/A2:2013 EN 300 328 V1.9.1:2015 following the provisions of the 2014/53/EU Directives.
