Maytel TELME-XT Wireless Digital Intercom User Manual

Maytel Co., Ltd Wireless Digital Intercom Users Manual

User Manual

Copyright ⓒ 2017. Lab-T, Inc.
User Manual
TelMe-XT (SP-100M);
Wireless Digital Intercom
Its user’s manual has been provided in
Its package separately
●77 channels selection and 9 steps
audio output control

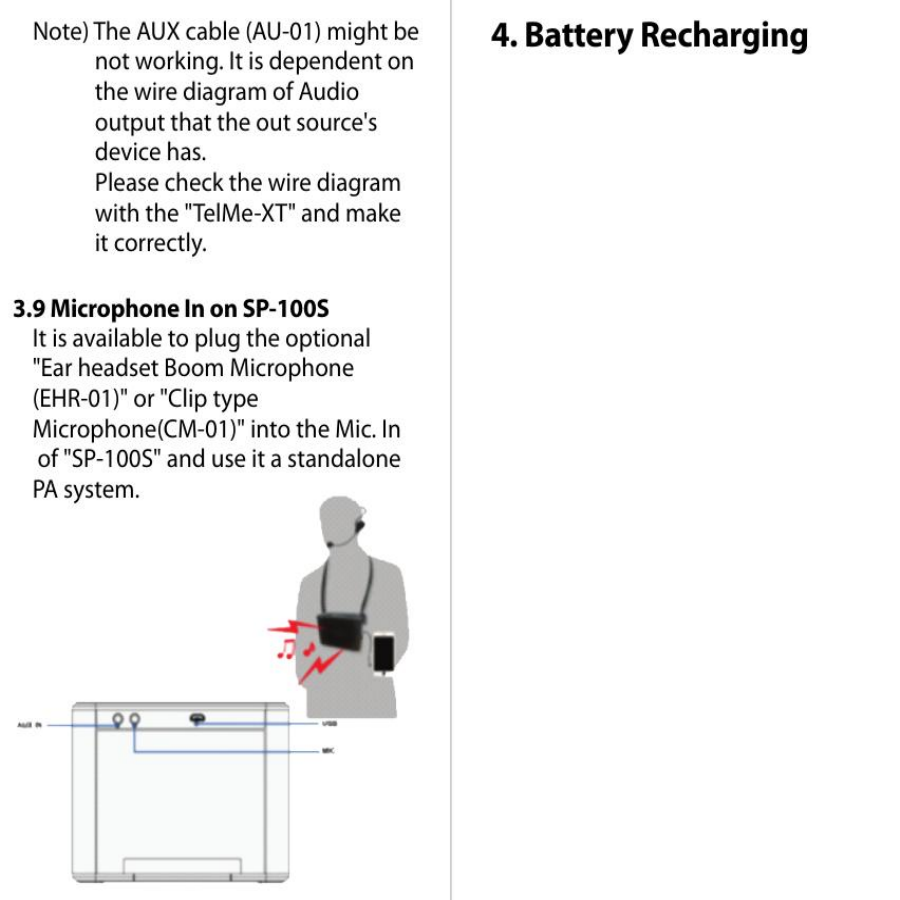

Plug the USB charging cable into the
USB port and recharge the battery.
The Red color LED in the right side
top corner of device is turned on
during the charging and turned off
when the battery is fully charged.
For functional quality, this device is not
operate when the battery is charging.
Compliance Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment complies with the essential requirements of EC
Directive 2014/35/EU, 2014/30/EC and 2014/53/EU, as applicable.
Declarations are available fr
om your local representative.
77ch
ISM 2403MHz~2479MHz
6.5dBm
±
0.5dB
1MHz
2Mbps
2
MHz
TelMe-XT : 60g typ.
SP-100S : 385g typ.
Li-ion Battery@3.7V 800mA for
TelMe-XT and @7.4V 1700mA for
SP
-
100S
For TelMe-XT : 10Hr typ.
For SP
-
100S : 6Hr typ.
TelMe-XT : 50mm X 88mm X 15mm
SP
-
100S : 130mm X 96mm X 61mm
Replaceable battery
If an equipment is provided with a replaceable battery, and if replacement by an
incorrect type could result in an explosion (for example, with some lithium batteries),
the following:
- if the battery is placed in an OPERATOR ACCESS AREA, there shall be a marking
close to the battery or a statement in both the operating and the servicing instructions;
- if the battery is placed elsewhere in the equipment, there shall be a marking close to
the battery or a statement in the servicing instructions.
This marking or statement shall include the following or similar text:
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Type of Modulation
ISM 2.4GHz: GFSK Modulation with
Frequency Hopping / F1E
