MediaTek MT7630E 802.11B/G/N 1T1R COMBO CARD User Manual USERS MANUAL
MediaTek Inc. 802.11B/G/N 1T1R COMBO CARD USERS MANUAL
MediaTek >
Contents
USERS MANUAL
User Guide
© Copyright 2013 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Second Edition: August 2013
First Edition: July 2013
Document Part Number: 726517-002
Product notice
This guide describes features that are
common to most models. Some features may
not be available on your computer.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole remedy
is to return the entire unused product
(hardware and software) within 14 days for
a refund subject to the refund policy of your
place of purchase.
For any further information or to request a
full refund of the computer, please contact
your local point of sale (the seller).
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation.
The computer and the AC adapter comply with the user-accessible surface temperature limits defined by
the International Standard for Safety of Information Technology Equipment (IEC 60950).
ENWW iii
iv Safety warning notice ENWW
Table of contents
1 Starting right .................................................................................................................... 1
HP Quick Start ......................................................................................................................... 1
Best practices .......................................................................................................................... 1
Fun things to do ....................................................................................................................... 1
More HP resources ................................................................................................................... 3
2 Getting to know your computer ........................................................................................ 5
Finding your hardware and software information ......................................................................... 5
Locating hardware .................................................................................................... 5
Locating software ...................................................................................................... 5

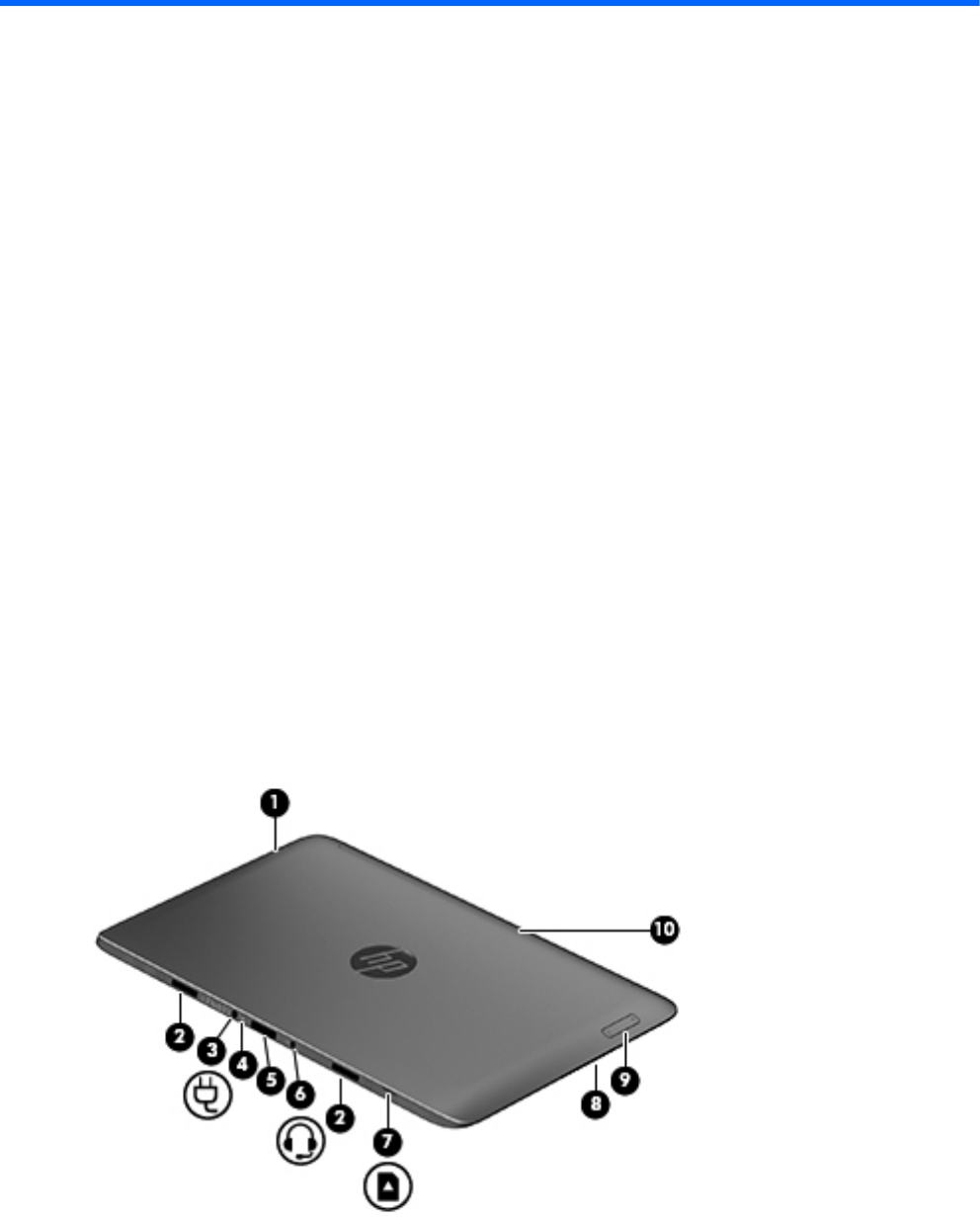

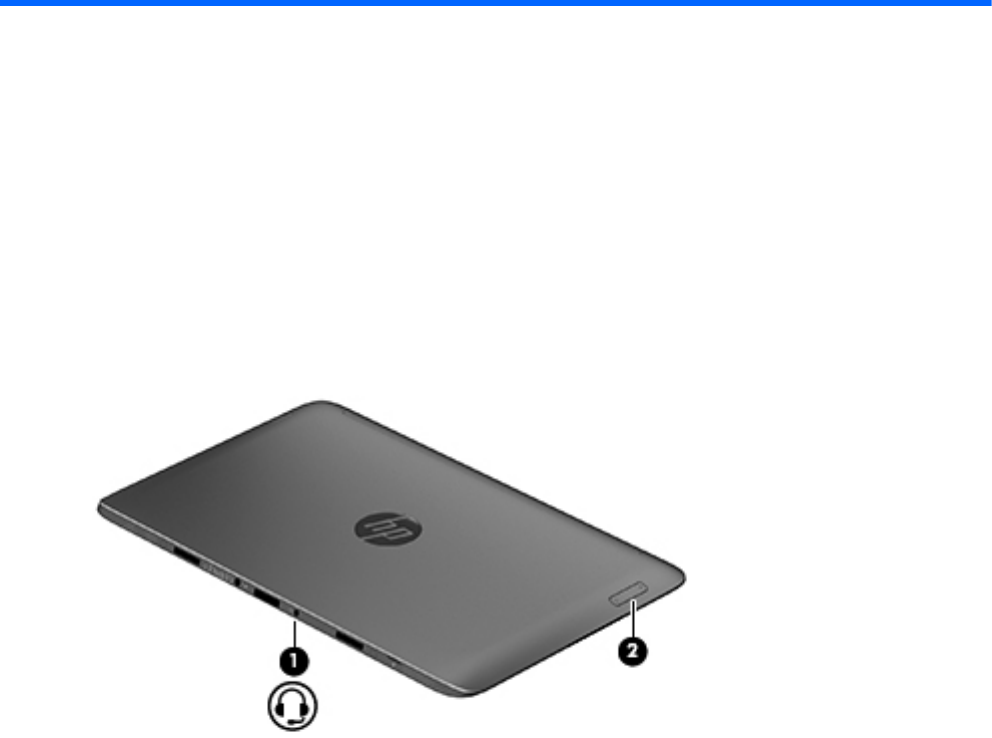

Tablet edge components ........................................................................................................... 5
Display ................................................................................................................................... 8
Keyboard dock ...................................................................................................................... 10
Top ....................................................................................................................... 10
TouchPad ............................................................................................................... 11
Lights ..................................................................................................................... 12
Keys ...................................................................................................................... 13
Right side ............................................................................................................... 14
Left side ................................................................................................................. 15

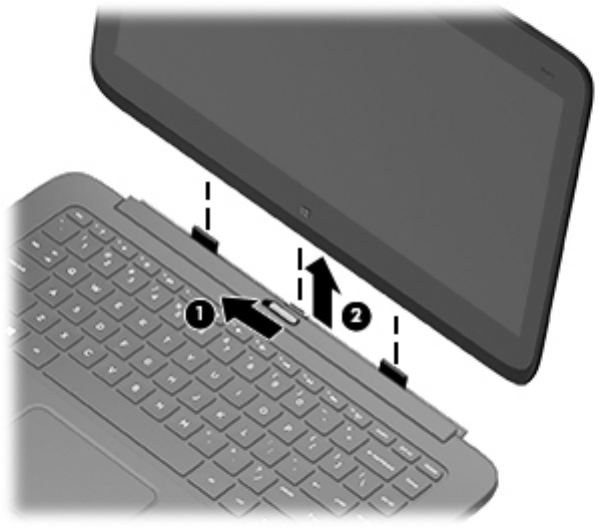

Releasing the tablet from the keyboard dock ............................................................... 16
Locating system information ..................................................................................................... 16
Changing your tablet's settings ................................................................................................ 17
Changing your tablet's view ..................................................................................... 17
Adjusting your tablet's autorotate lock ......................................................... 17
Adjusting your tablet's screen brightness ..................................................... 17

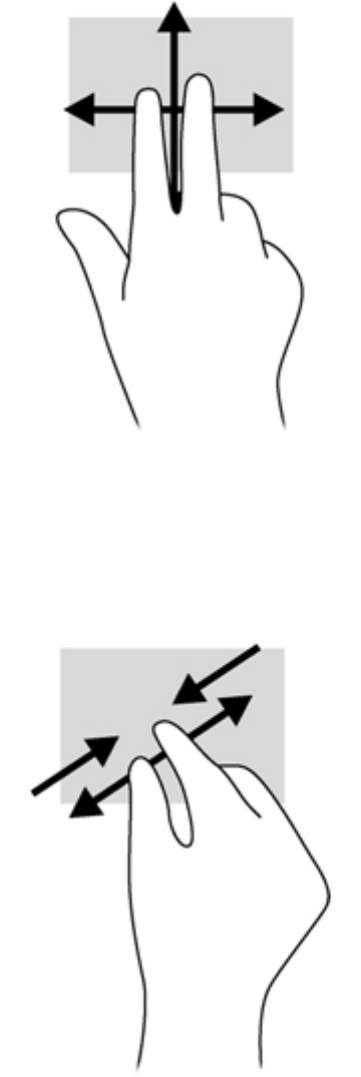

Using touch screen gestures ..................................................................................................... 18
One-finger slide ...................................................................................................... 18
Tapping ................................................................................................................. 19
Scrolling ................................................................................................................ 20
Pinching/stretching ................................................................................................. 20
Rotating (select models only) ..................................................................................... 21

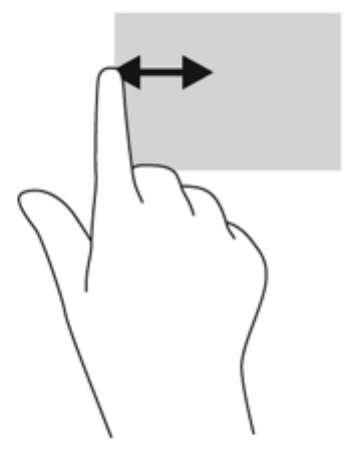

Edge swipes ........................................................................................................... 21
Right-edge swipe ...................................................................................... 21
Left-edge swipe ........................................................................................ 22
Top-edge swipe and bottom-edge swipe ..................................................... 22
Setting touch screen preferences .............................................................................................. 23
ENWW v
Using the on-screen keyboard .................................................................................................. 23
3 Connecting to a network ................................................................................................ 25
Connecting to a wireless network ............................................................................................. 25
Using the wireless controls ........................................................................................ 25
Using the wireless button ........................................................................... 25
Using operating system controls ................................................................. 26
Using a WLAN ....................................................................................................... 26
Using an Internet service provider .............................................................. 26
Setting up a WLAN .................................................................................. 27
Configuring a wireless router ..................................................................... 27
Protecting your WLAN .............................................................................. 27
Connecting to a WLAN ............................................................................ 28
Using Bluetooth wireless devices ............................................................................... 28
4 Enjoying entertainment features ..................................................................................... 29
Multimedia features ................................................................................................................ 29
Using the webcam ................................................................................................................. 33
Using audio .......................................................................................................................... 33
Connecting speakers .............................................................................................................. 33
Using Beats Audio .................................................................................................................. 33
Accessing Beats Audio Control Panel ......................................................................... 33
Enabling and disabling Beats Audio .......................................................................... 34
Checking the sound ................................................................................................................ 34
Using video ........................................................................................................................... 35
Connecting an HDMI device ..................................................................................... 35
Configuring HDMI audio settings ............................................................... 36
Camera ................................................................................................................. 37
5 Navigating using the keyboard, touch gestures and pointing devices ............................. 38
Using the TouchPad ................................................................................................................ 38
Using TouchPad gestures ......................................................................................................... 38
Tapping ................................................................................................................. 39

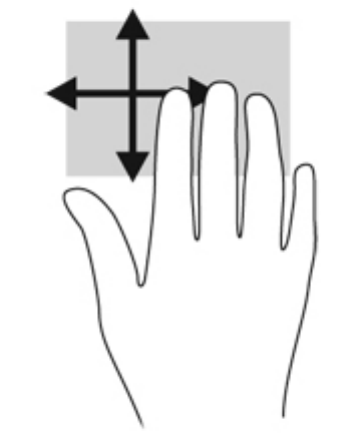

Scrolling ................................................................................................................ 39
Pinching/zooming ................................................................................................... 40
Rotating (select models only) ..................................................................................... 40
Flicking (select models only) ...................................................................................... 41
Edge swipes ........................................................................................................... 41
Right-edge swipe ...................................................................................... 42
Top-edge swipe ....................................................................................... 42
vi ENWW
Left-edge swipe ........................................................................................ 43
Using the keyboard and mouse ................................................................................................ 43
Using the keys ........................................................................................................ 43
Using the action keys ................................................................................ 43
Using Microsoft Windows 8 shortcut keys ................................................... 45
Using the hot keys .................................................................................... 46
6 Managing power ............................................................................................................ 47
Initiating Sleep and Hibernation ............................................................................................... 47
Initiating and exiting Sleep ....................................................................................... 47
Enabling and exiting Hibernation (select models only) ................................................. 48
Setting password protection on wakeup .................................................................................... 48
Using the power meter and power settings ................................................................................ 49
Running on battery power ....................................................................................................... 49
Factory-sealed battery .............................................................................................. 49
Finding battery information ....................................................................................... 49
Conserving battery power ........................................................................................ 50
Identifying low battery levels ..................................................................................... 50
Resolving a low battery level .................................................................................... 50
Resolving a low battery level when external power is available ...................... 50
Resolving a low battery level when no power source is available ................... 50
Resolving a low battery level when the computer cannot exit Hibernation ........ 51
Running on external AC power ................................................................................................ 51
Shutting down (turning off) the computer ................................................................................... 51
7 Managing and sharing information ................................................................................ 53
Using a USB device ................................................................................................................ 53

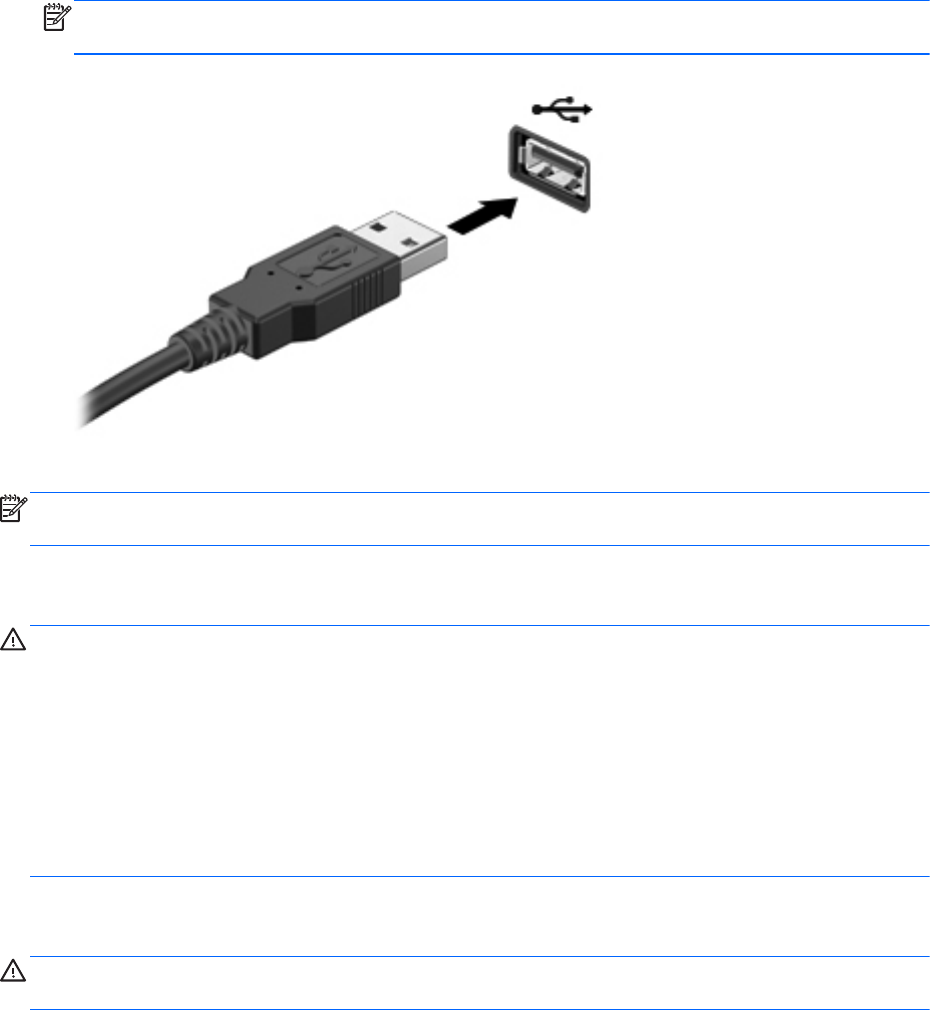

Connecting a USB device ......................................................................................... 53
Removing a USB device ........................................................................................... 54
Connecting a powered USB device ........................................................................... 54

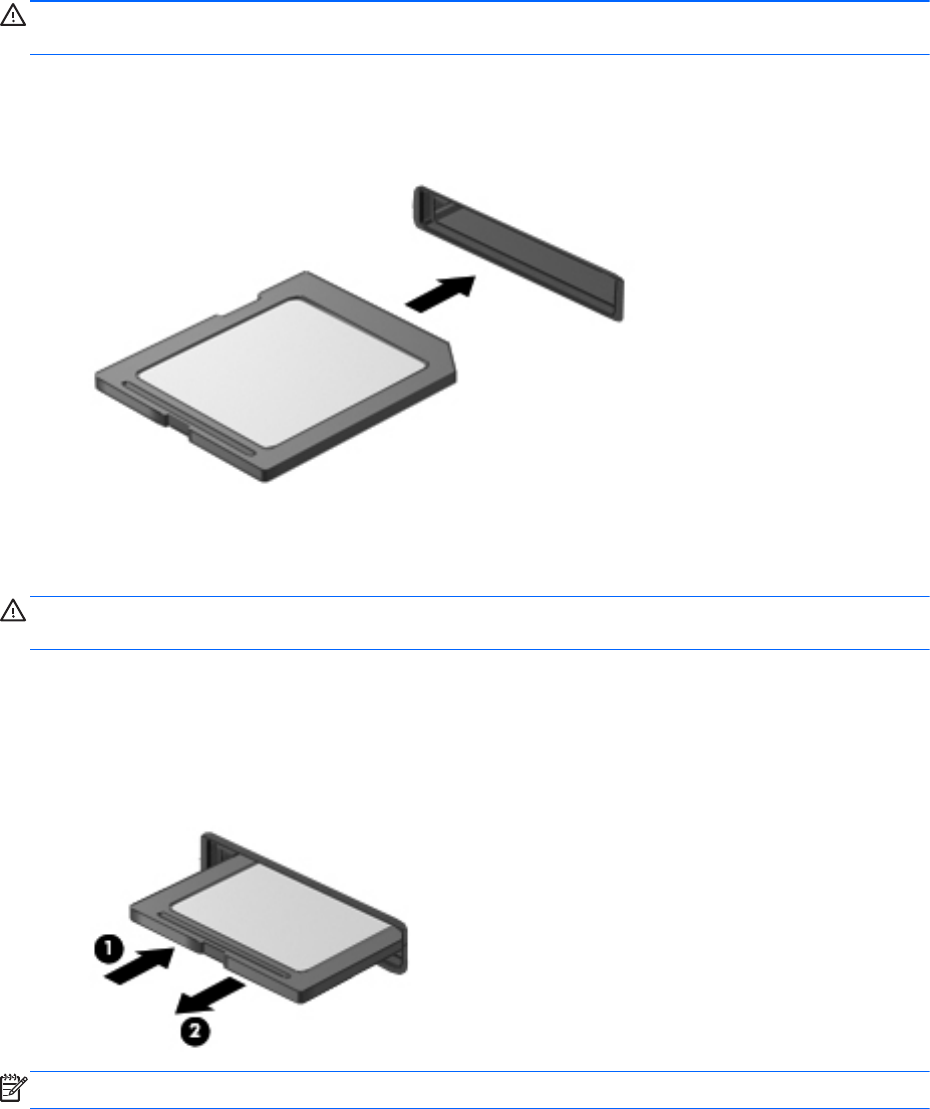

Inserting and removing a memory card ..................................................................................... 55
8 Maintaining your computer ............................................................................................ 56
Improving performance ........................................................................................................... 56
Using Disk Cleanup ................................................................................................. 56
Updating programs and drivers ............................................................................................... 56
Cleaning your computer .......................................................................................................... 56
Cleaning products ................................................................................................... 56
Cleaning procedures ............................................................................................... 57
Cleaning the display ................................................................................. 57
ENWW vii
Cleaning the sides and cover ..................................................................... 57
Cleaning the TouchPad, keyboard, or mouse ............................................... 57
Traveling with or shipping your computer .................................................................................. 58
9 Securing your computer and information ........................................................................ 59
Using passwords .................................................................................................................... 59
Setting Windows passwords ..................................................................................... 60
Setting Setup Utility (BIOS) passwords ....................................................................... 60
Using Internet security software ................................................................................................ 61
Using antivirus software ........................................................................................... 61
Using firewall software ............................................................................................ 61
Installing software updates ...................................................................................................... 61
Installing Windows updates ...................................................................................... 61
Installing HP and third-party software updates ............................................................. 62
Securing your wireless network ................................................................................................ 62
Backing up your software applications and information .............................................................. 62
10 Using Setup Utility (BIOS) and System Diagnostics ......................................................... 63
Starting Setup Utility (BIOS) ..................................................................................................... 63
Updating the BIOS ................................................................................................................. 63
Determining the BIOS version ................................................................................... 63
Downloading a BIOS update .................................................................................... 64
Using HP PC Hardware Diagnostics (UEFI) ................................................................................ 64
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 65
11 Backing up, restoring, and recovering .......................................................................... 66
Creating recovery media and backups ..................................................................................... 66
Creating HP Recovery media .................................................................................... 67
Restore and recovery .............................................................................................................. 68
Using Windows Refresh for quick and easy recovery ................................................... 69
Remove everything and reinstall Windows ................................................................. 69
Recovering using HP Recovery Manager .................................................................... 70
What you need to know ............................................................................ 70
Using the HP Recovery partition ................................................................. 71
Using HP Recovery media to recover .......................................................... 71
Changing the computer boot order ............................................................. 71
Removing the HP Recovery partition .......................................................................... 72
12 Specifications ............................................................................................................... 73
Input power ........................................................................................................................... 73
viii ENWW
Operating environment ........................................................................................................... 73
13 Electrostatic Discharge .................................................................................................. 75
Index ................................................................................................................................. 76
ENWW ix
xENWW
1 Starting right
This computer is a powerful tool designed to enhance your work and entertainment. Read this chapter
to learn about best practices after setup, fun things to do with your computer, and where to get more
HP resources.
HP Quick Start
HP Quick Start gives you the option to use the familiar Start menu from the Windows desktop. Quick
Start functions like the traditional Windows Start menu and enables you to conveniently open files and
programs using the Windows desktop.
●To open HP Quick Start from the Windows desktop, click the HP Quick Start icon on the
taskbar.
Best practices
To get the most out of your smart investment, after you set up and register the computer, we recommend
the following steps:
●Take a minute to browse the printed Windows 8 Basics guide to explore the new Windows®
features.
●If you haven’t already done so, connect to a wired or wireless network. See details in Connecting
to a network on page 25.
●Become familiar with the computer hardware and software. Go to Getting to know your computer
on page 5 and Finding your hardware and software information on page 5 for
information.
●Back up your computer. See Backing up, restoring, and recovering on page 66.
Fun things to do
●You know that you can watch a YouTube video on the computer. But did you know that you can
also connect your computer to a television or gaming console? For more information, see
Connecting an HDMI device on page 35.
●You know you can listen to music on the computer. But did you know that you can also stream live
radio to the computer and listen to music or talk radio from all over the world? See Using audio
on page 33.
ENWW HP Quick Start 1
●Experience music the way the artist intended, with deep, controlled bass and clear, pure sound.
See Using Beats Audio on page 33.
●Use the TouchPad and the new Windows 8 touch gestures for smooth control of images and
pages of text. See Using TouchPad gestures on page 38 and Using touch screen gestures
on page 18.
2 Chapter 1 Starting right ENWW
More HP resources
You have already used Setup Instructions to turn on the computer and locate this guide. To locate
resources that provide product details, how-to information, and more, use the information in this table.
Resource Contents
Setup Instructions ●Overview of computer setup and features
Windows 8 Basics guide ●Overview of using and navigating with Windows 8
Help and Support
To access Help and Support, from the Start screen, type
h, and then select Help and Support. For U.S.
support, go to http://www.hp.com/go/contactHP. For
worldwide support, go to http://welcome.hp.com/
country/us/en/wwcontact_us.html.
●A broad range of how-to information and troubleshooting tips
Safety & Comfort Guide
To access this guide, from the Start screen, type
support, select the HP Support Assistant app,
select My computer, and then select User guides,
or go to http://www.hp.com/ergo.
●Proper workstation setup
●Guidelines for posture and work habits that increase your
comfort and decrease your risk of injury
●Electrical and mechanical safety information
Worldwide support web page
To get support in your language, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.
●Online chat with an HP technician
●Email support
●Support telephone numbers
●Locate HP service center locations
Regulatory, Safety and Environmental Notices
To access this guide, from the Start screen, type
support, select the HP Support Assistant app,
select My computer, and then select User guides.
●Important regulatory notices
ENWW More HP resources 3
Resource Contents
Limited Warranty*
To access this guide, from the Start screen, type
support, select the HP Support Assistant app,
select My computer, and then select Warranty
and services, or go to http://www.hp.com/go/
orderdocuments.
●Specific warranty information about this computer
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For countries/regions where the warranty is not provided in printed format, you may request a printed
copy from http://www.hp.com/go/orderdocuments or write to:
●North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA
●Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.
IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to http://www.hp.com/go/
contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
4 Chapter 1 Starting right ENWW
2 Getting to know your computer
Finding your hardware and software information
Locating hardware
To find out what hardware is installed on your computer:
1. From the Start screen, type c, and then select Control Panel.
2. Select System and Security, and then in the System area, click Device Manager.
A list reveals all the devices installed on your computer.
Locating software
To find out what software is installed on your computer:
1. From the Start screen, right-click using the mouse
– or –
Swipe from the top of the TouchPad to reveal all apps.
2. Select the All apps icon.
Tablet edge components
ENWW Finding your hardware and software information 5
Components Description
(1) Power button ●When the computer is off, press the button to turn on
the tablet.
●When the computer is on, press the button briefly to
initiate Sleep.
●When the computer is in the Sleep state, press the
button briefly to exit Sleep.
CAUTION: Pressing and holding down the power button
results in the loss of unsaved information.
NOTE: If the computer has stopped responding and
Microsoft® Windows shutdown procedures are ineffective,
press and hold the power button down for at least 5
seconds to turn off the tablet.
Swipe from the right edge of the TouchPad or
touch screen to display the charms, tap Search, and then
tap the search box. In the search box, type power, tap
Settings, and then tap Power options, or see
Managing power on page 47.
– or –
To learn more about your power settings, on the
Start screen, type p. In the search box, type power, select
Settings, and then select Power options, or see
Managing power on page 47.
(2) Alignment post connectors (2) Align and attach the tablet to the keyboard dock.
(3) Power connector Connects an AC adapter.
(4) AC adapter/Battery light ●White: The AC adapter is connected and the battery is
charged.
●Blinking white: The battery has reached a low battery
level.
●Amber: The AC adapter is connected and the battery
is charging.
●Off: The computer is using DC power.
(5) Docking port Connects the tablet to the keyboard dock.
6 Chapter 2 Getting to know your computer ENWW
Components Description
(6) Audio-out (headphone) jack/Audio-in
(microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable.
WARNING! To reduce the risk of personal injury, adjust
the volume before using headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety and Environmental Notices.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
NOTE: Stand-alone microphones and headphones with
separate microphone jacks are not supported.
(7) Micro SD memory card reader Supports micro Secure Digital (SD) memory cards.
(8) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(9) Volume button Controls speaker volume on the tablet.
●To increase speaker volume, press the + edge of the
button.
●To decrease speaker volume, press the – edge of the
button.
(10) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
ENWW Tablet edge components 7
Display
Component Description
(1) Internal microphones (2) Record audio, automatically filtering out the noise around you and
cancelling echoes.
(2) Webcam light On: The webcam is on.
(3) HP TrueVision Full HD Webcam Records video, captures still photographs, and provides access to
video conferences and online chat by means of streaming video.
Swipe from the right edge of the TouchPad or touch screen
to display the charms, tap Search, and then tap the search box. Type
c, and then tap CyberLink YouCam from the list of applications.
– or –
From the Start screen, type c, and then select CyberLink
YouCam from the list of applications.
(4) Ambient light sensor Automatically adjusts the display brightness based on the lighting
conditions in your environment.
(5) WLAN antenna* Send and receive wireless signals.
(6) Speakers (2) Produce sound.
8 Chapter 2 Getting to know your computer ENWW
Component
Description
(7) Windows button Returns you to the Start screen from an open app or the Windows
desktop.
NOTE: Pressing the Windows button again returns you to the
previous screen.
*The antenna is not visible from the outside of the computer. For optimal transmission, keep the area immediately around the antenna free
from obstructions. For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to
your country or region.
ENWW
Display
9
Keyboard dock
Top
Component Description
(1) Alignment posts Align and attach the tablet to the keyboard dock.
(2) Release latch Releases the tablet from the keyboard dock. To release
the tablet, slide the release latch to the left.
(3) Docking connector Connects the tablet to the keyboard dock.
10 Chapter 2 Getting to know your computer ENWW
TouchPad
Component Description
(1) TouchPad zone Reads your finger gesture to move the pointer or activate items
on the screen.
(2) Left TouchPad button Functions like the left button of an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
ENWW Keyboard dock 11
Lights
Component Description
(1) Caps lock light ●White: Caps lock is on.
●Off: Caps lock is off.
(2) Mute light ●Amber: Computer sound is off.
●Off: Computer sound is on.
(3) Wireless light ●White: An integrated wireless device, such as a wireless
local area network (WLAN) device and/or a Bluetooth®
device, is on.
●Amber: All wireless devices are off.
12 Chapter 2 Getting to know your computer ENWW
Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Displays system information when pressed in combination with the
esc key, and enables or disables Beats Audio when pressed in
combination with the fn key.
(3) Windows key Returns you to the Start screen from an open app or the Windows
desktop.
NOTE: Pressing the Windows key again returns you to the
previous screen.
(4) b key Enables or disables Beats Audio when pressed in combination with
the fn key.
(5) Action keys Execute frequently used system functions.
NOTE: Action keys do not display or function from the on-screen
tablet keyboard.
ENWW Keyboard dock 13
Right side
Component Description
(1) USB 3.0 port Connects an optional USB device.
NOTE: For details about different types of USB ports, see Using a
USB device on page 53.
(1) HDMI port Connects an optional video or audio device, such as a high-
definition television, any compatible digital or audio component, or
a high-speed HDMI device.
(3) Power connector Connects an AC adapter.
(4) AC adapter/Battery light ●White: The AC adapter is connected and the battery is
charged.
●Blinking white: The battery has reached a low battery level.
●Amber: The AC adapter is connected and the battery is
charging.
●Off: The computer is using battery power.
14 Chapter 2 Getting to know your computer ENWW
Left side
Component Description
(1) USB 2.0 port Connects an optional USB device.
NOTE: For details about different types of USB ports, see
Using a USB device on page 53.
(2) Audio-out (headphone) jack/Audio-in
(microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects
an optional headset microphone.
WARNING! To reduce the risk of personal injury, adjust the
volume before using headphones, earbuds, or a headset. For
additional safety information, see the Regulatory, Safety and
Environmental Notices.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and audio-
in (microphone).
NOTE: Stand-alone microphones and headphones with
separate microphone jacks are not supported.
(3) Memory card reader Reads data from and writes data to memory cards such as SD.
ENWW Keyboard dock 15
Releasing the tablet from the keyboard dock
To release the tablet from the keyboard dock, follow these steps:
1. Slide the release latch on the keyboard dock to the left (1).
2. Lift and remove the tablet (2).
Locating system information
Important system information is located on the bottom edge of the tablet. You may need the information
when travelling internationally or when you contact support:
●Serial number
●Product number
●Warranty period
●Regulatory and wireless certification information
Using Windows, briefly press the fn+esc key combination to display the System Information screen,
which provides the product name and serial number of your computer, as well as information about the
memory, processor, BIOS, and keyboard.
16 Chapter 2 Getting to know your computer ENWW
Changing your tablet's settings
You can change view and screen brightness.
Changing your tablet's view
Your tablet's orientation, or view, changes automatically from landscape to portrait view, or from
portrait to landscape view.
1. To change the view of your tablet from landscape view to portrait view:
Hold the tablet vertically, and then turn it 90 degrees to the right (in a clockwise direction).
2. To change the view of your tablet from portrait view to landscape view:
Hold the tablet vertically, and then turn it 90 degrees to the left (in a counter-clockwise direction).
Adjusting your tablet's autorotate lock
To adjust your tablet's autorotate lock when the tablet is undocked:
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. Tap the Autorotate Lock icon to lock your current
tablet screen in place and to prevent rotation. The icon displays a lock symbol when autorotate
lock is active. To turn off the autorotate lock, tap the Autorotate Lock icon again.
Adjusting your tablet's screen brightness
To adjust the screen brightness:
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. A vertical slider displays that controls the screen
brightness.
NOTE: From the Windows desktop, you can also tap the Power Meter icon in the notification area
at the far right of the taskbar, tap Adjust screen brightness, and then move the slider next to
Screen brightness at the bottom of the screen.
ENWW Changing your tablet's settings 17
Using touch screen gestures
A touch screen computer allows you to control items on the screen directly with your fingers.
TIP: On touch screen computers, you can perform the gestures on the screen or on the TouchPad. You
can also perform on-screen actions with the keyboard and mouse.
One-finger slide
The one-finger slide is mostly used to pan or scroll through lists and pages, but you can use it for other
interactions, too, such as moving an object.
●To scroll across the screen, lightly slide one finger across the screen in the direction you want to
move.
NOTE: When many apps are displayed on the Start screen, you can slide your finger to move
the screen left or right.
●To drag, press and hold an object, and then drag the object to move it.
18 Chapter 2 Getting to know your computer ENWW
Tapping
To make an on-screen selection, use the tap function.
●Use one finger to tap an object on the screen to make a selection. Double-tap an item to open it.
NOTE: Press and hold your finger on an object to open a help screen that provides information
about the object.
ENWW Using touch screen gestures 19
Scrolling
Scrolling is useful for moving the pointer up, down, left, or right on a page or image.
●Place two fingers on the screen and then drag them in an up, down, left, or right motion.
Pinching/stretching
Pinching and stretching allows you to zoom out or in on images or text.
●Zoom in by placing two fingers together on the display and then move your fingers apart.
●Zoom out by placing two fingers apart on the display and then move your fingers together.
20 Chapter 2 Getting to know your computer ENWW
Rotating (select models only)
Rotating allows you to turn items such as photos.
●Anchor the forefinger of your left hand on the object you want to rotate. Using your right hand,
slide your forefinger around in a sweeping motion from 12 o’clock to 3 o’clock. To reverse the
rotation, move your forefinger from 3 o’clock to 12 o’clock.
NOTE: Rotate is intended for specific apps where you can manipulate an object or image. Rotate
may not be functional for all apps.
Edge swipes
With edge swipes you can perform tasks such as changing settings and finding or using apps.
Right-edge swipe
The right-edge swipe reveals the charms, which let you search, share, start apps, access devices, or
change settings.
●Gently swipe your finger inward from the right edge of the display bezel onto the screen to
display the charms.
ENWW Using touch screen gestures 21
Left-edge swipe
The left-edge swipe accesses your recently opened apps so that you can switch between them quickly.
●Gently swipe your finger inward from the left edge of the display bezel to switch between recently-
opened apps.
●Without lifting your finger, swipe back toward the left edge to display all recently opened apps.
Top-edge swipe and bottom-edge swipe
The top-edge swipe or bottom-edge swipe allows you to open a list of apps available on your
computer.
1. Gently swipe finger from the top edge or the bottom edge of the display bezel onto the screen.
22 Chapter 2 Getting to know your computer ENWW
2. Tap All apps to view available apps.
Setting touch screen preferences
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, tap Pen and Touch, and then
follow the on-screen instructions.
1. On the Start screen, type c, and then select Control Panel.
2. Select Hardware and Sound, select Pen and Touch, and then follow the on-screen
instructions.
These preferences are specific to the touch screen and the computer.
Using the on-screen keyboard
You may want to enter data into a data field. This may be required when you set up a wireless network
configuration or a weather reporting location, or when you access user accounts on Internet sites. The
computer has an on-screen keyboard that is displayed when you need to enter such information.
1. To display the keyboard, tap in the first data field. Tap the small keyboard icon that is displayed.
– or –
Tap the keyboard icon on the right side of the notification area.
2. To enlarge the size of the on-screen keyboard, tap the lower-right corner and drag it to the desired
size.
ENWW Setting touch screen preferences 23
3. Tap each character, continuing until you have spelled out the name or word that you are entering
into the data field.
NOTE: Action keys do not display or function on the on-screen keyboard.
NOTE: Suggested words may be displayed at the top of the on-screen keyboard. If an
appropriate word is displayed, tap it to select it.
4. Tap enter on the keyboard.
24 Chapter 2 Getting to know your computer ENWW
3 Connecting to a network
Your computer can travel with you wherever you go. But even at home, you can explore the globe and
access information from millions of websites using your computer and a wired or wireless network
connection. This chapter will help you get connected to that world.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
●Wireless local area network (WLAN) device—Connects the computer to wireless local area
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate offices,
your home, and public places such as airports, restaurants, coffee shops, hotels, and universities.
In a WLAN, the mobile wireless device in your computer communicates with a wireless router or a
wireless access point.
●Bluetooth device—Creates a personal area network (PAN) to connect to other Bluetooth-enabled
devices such as computers, phones, printers, headsets, speakers, and cameras. In a PAN, each
device communicates directly with other devices, and devices must be relatively close together—
typically within 10 meters (approximately 33 feet) of each other.
For more information about wireless technology, see the information and website links provided in Help
and Support. From the Start screen, type h, and then select Help and Support.
Using the wireless controls
You can control the wireless devices in your computer using these features:
●Wireless button, wireless switch, or wireless key (referred to in this chapter as the wireless button)
(select models only)
●Operating system controls
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so
the wireless light is on (white) when you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of individual
devices. If the wireless light is white, at least one wireless device is on. If the wireless light is off, all
wireless devices are off.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.
ENWW Connecting to a wireless network 25
Using operating system controls
The Network and Sharing Center allows you to set up a connection or network, connect to a network,
and diagnose and repair network problems.
To use operating system controls:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type network and sharing in the search box, and then tap Settings.
3. Tap Network and Sharing Center.
1. From the Start screen, type network and sharing, and then select Settings.
2. Select Network and Sharing Center.
For more information, from the Start screen, type h, and then select Help and Support.
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other devices and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms wireless router and wireless access point are often used interchangeably.
●A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
that can accommodate a large number of devices and accessories and can separate critical
network functions.
●A home or small office WLAN typically uses a wireless router, which allows several wireless and
wired devices to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).
Using an Internet service provider
When you are setting up Internet access in your home, you must establish an account with an Internet
service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The ISP will help
set up the modem, install a network cable to connect your wireless router to the modem, and test the
Internet service.
NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this
information and store it in a safe place.
26 Chapter 3 Connecting to a network ENWW
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
●A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from an
Internet service provider
●A wireless router (2) (purchased separately)
●A wireless computer (3)
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type of
modem you have.
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired devices can be connected to the network to
access the Internet.
For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.
Configuring a wireless router
For help in setting up a WLAN, see the information provided by your router manufacturer or your ISP.
NOTE: It is recommended that you initially connect your new wireless device to the router by using
the network cable provided with the router. When the device successfully connects to the Internet,
disconnect the cable, and access the Internet through your wireless network.
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your device when
connected to a hotspot, limit your network activities to email that is not confidential and basic Internet
surfing.
Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. Take the following precautions to protect your WLAN:
●Use a firewall.
A firewall checks both data and requests for data that are sent to your network, and discards any
suspicious items. Firewalls are available in both software and hardware. Some networks use a
combination of both types.
●Use wireless encryption.
ENWW Connecting to a wireless network 27
Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over the
network. For more information, from the Start screen, type h, and then select Help and
Support.
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on.
2. From the Windows desktop, tap or click the network status icon in the notification area, at the far
right of the taskbar.
3. Select your WLAN from the list.
4. Click Connect.
5. If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.
NOTE: If you do not see the WLAN you want to connect to, from the Windows desktop, right-
click the network status icon, and then select Open Network and Sharing Center. Click Set
up a new connection or network. A list of options is displayed, allowing you to manually
search for and connect to a network or to create a new network connection.
After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN
implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.
Using Bluetooth wireless devices
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
●Computers (desktop, notebook, PDA)
●Phones (cellular, cordless, smart phone)
●Imaging devices (printer, camera)
●Audio devices (headset, speakers)
●Mouse
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information about configuring and using Bluetooth devices, see the
Bluetooth software Help.
28 Chapter 3 Connecting to a network ENWW
4 Enjoying entertainment features
Use your HP computer as an entertainment hub to socialize via the webcam, enjoy and manage your
music, and download and watch movies. Or, to make your computer an even more powerful
entertainment center, connect external devices like a monitor, projector, or television, or speakers and
headphones.
Multimedia features
Here are some of the entertainment features on your computer.
ENWW Multimedia features 29
Component Description
(1) Audio-out (headphone) jack/Audio-in
(microphone) jack
Connects optional powered stereo
speakers, headphones, earbuds, a
headset, or a television audio cable. Also
connects an optional headset
microphone.
WARNING! To reduce the risk of
personal injury, adjust the volume before
using headphones, earbuds, or a
headset. For additional safety
information, see the Regulatory, Safety
and Environmental Notices.
NOTE: When a device is connected to
the jack, the computer speakers are
disabled.
NOTE: Be sure that the device cable
has a 4-conductor connector that supports
both audio-out (headphone) and audio-in
(microphone).
NOTE: Stand-alone microphones and
headphones with separate microphone
jacks are not supported.
(2) Volume button Controls speaker volume.
●To increase speaker volume, press
the + edge of the button.
●To decrease speaker volume, press
the – edge of the button.
30 Chapter 4 Enjoying entertainment features ENWW
Component Description
(1) Internal microphones (2) Record sound.
(2) Webcam light On: The webcam is in use.
(3) HP TrueVision Full HD Webcam Records video, captures still photographs,
allows you to video conference and chat
online using streaming video.
Swipe from the right edge of the
TouchPad or touch screen to display the
charms, tap Search, and then tap the
search box. type c, and then tap
CyberLink YouCam from the list of
applications.
– or –
From the Start screen, type c, and
then select CyberLink YouCam from the
list of applications.
(4) Ambient light sensor Automatically adjusts the display brightness
based on the lighting conditions in your
environment.
(5) Speakers (2) Produce sound.
ENWW Multimedia features 31
Component Description
(6) HDMI port Connects an optional video or audio device,
such as a high-definition television, any
compatible digital or audio component, or a
high-speed HDMI device.
(7) USB 3.0 port Connects an optional USB device.
NOTE: For details about different types of
USB ports, see Using a USB device
on page 53.
(8) b key Enables or disables Beats Audio when
pressed in combination with the fn key.
Beats Audio is an enhanced audio feature
that provides a deep, controlled bass while
maintaining a clear sound. Beats Audio is
enabled by default.
You can also view and control the bass
settings through the Windows operating
system. To view and control the bass
properties, open the Beats Audio Control
Panel.
To open Beats Audio Control Panel, from the
Start screen on the keyboard dock, type c,
select Control Panel, select Hardware
and Sound, and then select Beats Audio
Control Panel.
(9) Audio-out (headphone) jack/Audio-in
(microphone) jack
Connects optional powered stereo speakers,
headphones, earbuds, a headset, or a
television audio cable. Also connects an
optional headset microphone.
WARNING! To reduce the risk of personal
injury, adjust the volume before using
headphones, earbuds, or a headset. For
additional safety information, see the
Regulatory, Safety and Environmental
Notices.
NOTE: When a device is connected to the
jack, the computer speakers are disabled.
NOTE: Be sure that the device cable has a
4-conductor connector that supports both
audio-out (headphone) and audio-in
(microphone).
NOTE: Stand-alone microphones and
headphones with separate microphone jacks
are not supported.
(10) USB 2.0 port Connects an optional USB device.
32 Chapter 4 Enjoying entertainment features ENWW
Using the webcam
The computer has an integrated HP TrueVision Full HD Webcam, a powerful social networking tool that
allows you to communicate up close with friends and colleagues, whether they are next door or on the
other side of the world. With the webcam, you can stream video with your instant messaging software,
capture and share video, and take still photos.
To start the webcam:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type c, and then tap CyberLink YouCam from the list of applications.
From the Start screen, type c, and then select CyberLink YouCam from the list of applications.
For details about using the webcam, go to Help and Support. From the Start screen, type h, and then
select Help and Support.
Using audio
On your computer, you can play music CDs, download and listen to music, stream audio content from
the web (including radio), record audio, or mix audio and video to create multimedia. To enhance your
listening enjoyment, attach external audio devices such as speakers or headphones.
Connecting speakers
You can attach wired speakers to your computer by connecting them to a USB port (or to the audio-out
jack) on your computer or on a docking station.
To connect wireless speakers to your computer, follow the device manufacturer's instructions. To
connect high-definition speakers to the computer, see Configuring HDMI audio settings on page 36.
Before connecting speakers, lower the volume setting.
Using Beats Audio
Beats Audio is an enhanced audio feature that provides a deep, controlled bass while maintaining a
clear sound. You can experience Beats Audio through the computer's internal speakers, through
external speakers connected to a USB port, or through Beats Audio headphones connected to the
headphone jack.
Accessing Beats Audio Control Panel
Use Beats Audio Control Panel to view and manually control audio and bass settings.
To open Beats Audio Control Panel:
ENWW Using the webcam 33
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search, and
then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, and then tap Beats Audio Control
Panel.
From the Start screen, type c, select Control Panel, select Hardware and Sound, and then select
Beats Audio Control Panel.
Enabling and disabling Beats Audio
To enable or disable Beats Audio:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search, and
then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, and then tap Beats Audio Control
Panel.
3. Follow the on-screen instructions
1. From the Start screen, type c, select Control Panel, select Hardware and Sound, and then
select Beats Audio Control Panel.
2. Follow the on-screen instructions.
Checking the sound
To check the audio functions on your computer, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, and then tap Sound.
3. When the Sound window opens, tap the Sounds tab. Under Program Events, tap any sound
event, such as a beep or alarm, and then tap Test.
1. On the Start screen, type c, and then select Control Panel from the list of applications.
2. Select Hardware and Sound, and then select Sound.
3. When the Sound window opens, select the Sounds tab. Under Program Events, select any
sound event, such as a beep or alarm, and then click Test.
You should hear sound through the speakers or through connected headphones.
To check the recording functions on your computer, follow these steps:
34 Chapter 4 Enjoying entertainment features ENWW
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type s, and then tap Sound Recorder.
3. Tap Start Recording and speak into the microphone. Save the file to your desktop.
4. Open a multimedia program and play the recording.
1. From the Start screen, type s, and then select Sound Recorder.
2. Click Start Recording and speak into the microphone. Save the file to your desktop.
3. Open a multimedia program and play the recording.
To confirm or change the audio settings on your computer:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type c, and then tap Control Panel from the list of applications.
3. Tap Hardware and Sound, and then tap Sound.
1. From the Start screen, type c, and then select Control Panel from the list of applications.
2. Select Hardware and Sound, and then select Sound.
Using video
Your HP computer is a powerful video device that enables you to watch streaming video from your
favorite websites and download video and movies to watch on your computer without needing to
connect to a network.
To enhance your viewing enjoyment, use one of the video ports on the keyboard dock to connect an
external monitor, projector, or television. Your computer has a high-definition multimedia interface
(HDMI) port, which allows you to connect a high-definition monitor or television.
IMPORTANT: Be sure that the external device is connected to the correct port on the computer,
using the correct cable. Check the device manufacturer's instructions if you have questions.
Connecting an HDMI device
NOTE: To connect an HDMI device to your keyboard dock, you need an HDMI cable, sold
separately.
ENWW Using video 35
To see the computer screen image on a high-definition television or monitor, connect the high-definition
device according to the following instructions.
1. Connect one end of the HDMI cable to the HDMI port on the computer.
2. Connect the other end of the cable to the high-definition television or monitor.
3. Press f4 on the computer to alternate the computer screen image between 4 display states:
●PC screen only: View the screen image on the computer only.
●Duplicate: View the screen image simultaneously on both the computer and external device.
●Extend: View the screen image extended across both the computer and external device.
●Second screen only: View the screen image on the external device only.
Each time you press f4 on the computer, the display state changes.
NOTE: Adjust the screen resolution of the external device, especially if you choose the “Extend”
option. From the Start screen on the keyboard dock, type c, and then select Control Panel from
the list of applications. Select Appearance and Personalization. Under Display, select
Adjust screen resolution for best results.
Configuring HDMI audio settings
HDMI is the only video interface that supports high-definition video and audio. After you connect an
HDMI television to the computer, you can then turn on HDMI audio by following these steps:
1. From the Windows desktop, right-click the Speakers icon in the notification area, at the far right
of the taskbar, and then select Playback devices.
2. On the Playback tab, select the name of the digital output device.
3. Click Set Default, and then click OK.
36 Chapter 4 Enjoying entertainment features ENWW
To return the audio stream to the computer speakers:
1. From the Windows desktop, right-click the Speakers icon in the notification area, at the far right
of the taskbar, and then click Playback devices.
2. On the Playback tab, click Speakers and Headphones.
3. Click Set Default, and then click OK.
Camera
Your tablet includes an integrated HP TrueVision Full HD Webcam which is an input device that allows
you to record video and take photos.
ENWW Using video 37
5 Navigating using the keyboard,
touch gestures and pointing devices
Your computer allows navigation using touch gestures in addition to the keyboard and mouse. Touch
gestures can be used on your computer's TouchPad or on a touch screen.
NOTE: An external USB mouse (purchased separately) can be connected to one of the USB ports on
the keyboard dock.
Review the Windows 8 Basics guide included with your computer. The guide provides information on
common tasks using the TouchPad, touch screen, or the keyboard.
Action keys do not display or function on the on-screen keyboard of the tablet. Tablet models have
special hot key functions on the keyboard to perform routine tasks.
Using the TouchPad
The TouchPad allows you to navigate the computer screen by using simple finger movements.
You can customize the touch gestures by changing settings, button configurations, click speed, and
pointer options. From the Start screen, type c, select Control Panel, and then select Hardware
and Sound. Under Devices and Printers, select Mouse.
Using TouchPad gestures
NOTE: TouchPad gestures are not supported in all apps.
38 Chapter 5 Navigating using the keyboard, touch gestures and pointing devices ENWW
Tapping
To make an on-screen selection, use the Tap function on the TouchPad.
●Point to an item on the screen, and then tap one finger on the TouchPad zone to make a selection.
Double-tap an item to open it.
NOTE: Press and hold on the TouchPad to open a help screen that provides information about the
selected item.
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image.
●Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or right.
ENWW Using TouchPad gestures 39
Pinching/zooming
Pinching and zooming allow you to zoom out or in on images or text.
●Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers
apart.
●Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers
together.
Rotating (select models only)
Rotating allows you to turn items such as photos.
●Point to an object, then anchor the forefinger of your left hand in the TouchPad zone. Using your
right hand, slide your forefinger in a sweeping motion from 12 o’clock to 3 o’clock. To reverse the
rotation, move your forefinger from 3 o’clock to 12 o’clock.
NOTE: Rotate is intended for specific apps where you can manipulate an object or image. It may not
be functional for all apps.
40 Chapter 5 Navigating using the keyboard, touch gestures and pointing devices ENWW
Flicking (select models only)
Flicking allows you to navigate through screens or quickly scroll through documents.
●Place three fingers on the TouchPad zone and flick your fingers in a light, quick motion up, down,
left or right.
Edge swipes
Edge swipes allow you to access toolbars on your computer for tasks such as changing settings and
finding or using apps.
ENWW Using TouchPad gestures 41
Right-edge swipe
The right-edge swipe accesses the charms, which let you search, share, start apps, access devices, or
change settings.
●Swipe your finger gently from the right edge to display the charms.
Top-edge swipe
The top-edge swipe allows you to open apps available on the Start screen.
IMPORTANT: When an app is active, the top-edge gesture varies depending on the app.
●Swipe your finger gently from the top edge to display available apps.
42 Chapter 5 Navigating using the keyboard, touch gestures and pointing devices ENWW
Left-edge swipe
The left-edge swipe accesses your recently opened apps so that you can switch between them quickly.
●Swipe your finger gently from the left edge of the TouchPad to switch between recently opened
apps.
Using the keyboard and mouse
The keyboard and mouse allow you to type, select items, scroll and perform the same functions as using
touch gestures. The keyboard dock allows you to use special action keys and hot keys to perform
specific functions.
NOTE: Action keys do not display or function on the on-screen keyboard of the tablet.
TIP: The Windows key on the keyboard allows you to quickly return to the Start screen from an
open app or the Windows desktop. Pressing the Windows key again returns you to the previous
screen.
NOTE: Depending on the country or region, your keyboard may have different keys and keyboard
functions than those discussed in this section.
Using the keys
Your computer has different ways to quickly access information or perform functions with certain key
combinations.
Using the action keys
NOTE: Action keys do not display or function on the on-screen keyboard of the tablet.
ENWW Using the keyboard and mouse 43
An action key on the keyboard dock performs an assigned function. The icon on each of the f1 through
f4 and f6 through f12 keys illustrates the assigned function for that key.
To use an action key function, press and hold the key.
The keyboard dock action key feature is enabled at the factory. You can disable this feature in Setup
Utility (BIOS). See Using Setup Utility (BIOS) and System Diagnostics on page 63 for instructions on
opening Setup Utility (BIOS), and then follow the instructions at the bottom of the screen.
To activate the assigned function after disabling the action key feature on the keyboard dock, you must
press the fn key in combination with the appropriate action key.
CAUTION: Use extreme care when making changes in Setup Utility. Errors can prevent the computer
from operating properly.
Icon Key Description
f1 Opens Help and Support, which provides tutorials, information about the Windows
operating system and your computer, answers to questions, and updates to your
computer.
Help and Support also provides automated troubleshooting tools and access to support.
f2 Decreases the screen brightness incrementally as long as you hold down the key.
f3 Increases the screen brightness incrementally as long as you hold down the key.
f4 Switches the screen image between display devices connected to the system. For
example, if a monitor is connected to the computer, pressing this key alternates the
screen image from the computer display to the monitor display to a simultaneous
display on both the computer and the monitor.
This action key can also alternate images among other devices that are receiving video
information from the computer.
f6 Mutes or restores speaker sound.
f7 Decreases speaker volume incrementally as long as you hold down the key.
f8 Increases speaker volume incrementally as long as you hold down the key.
f9 Plays the previous track of an audio CD or the previous section of a DVD or a BD.
f10 Begins, pauses, or resumes playback of an audio CD, a DVD, or a BD.
f11 Plays the next track of an audio CD or the next section of a DVD or a BD.
f12 Turns the wireless feature on or off.
NOTE: A wireless network must be set up before a wireless connection is possible.
44 Chapter 5 Navigating using the keyboard, touch gestures and pointing devices ENWW
Using Microsoft Windows 8 shortcut keys
Microsoft Windows 8 provides shortcuts to perform actions quickly. Press the Windows key in
combination with the key to perform the action.
NOTE: Action keys do not display or function from the on-screen keyboard of the tablet.
For additional information on Windows 8 shortcut keys go to HP Support Assistant. To access HP
Support Assistant, on the Start screen, select the HP Support Assistant app.
Shortcut
key
Key Description
Opens the Start screen.
+cOpens the charms.
+dOpens the Windows desktop.
+qOpens the All Apps screen.
+tab Switches between open apps.
NOTE: Continue to press this key combination until the app you
want opens.
alt +f4 Closes an active app.
NOTE: Action keys do not display or function on the on-screen
keyboard of the tablet.
ENWW Using the keyboard and mouse 45
Using the hot keys
A hot key is a combination of the fn key and either the esc key or the b key.
To use a hot key:
▲Briefly press the fn key, and then briefly press the second key of the combination.
Function Hot key Description
Display system information. fn+esc Displays information about system hardware components and the
system BIOS version number.
Control the bass settings. fn+bEnables or disables the Beats Audio bass settings.
Beats Audio is an enhanced audio feature that provides a deep,
controlled bass while maintaining a clear sound. Beats Audio is
enabled by default.
You can also view and control the bass settings through the Windows
operating system. To view and control the bass properties, open the
Beats Audio Control Panel.
To open Beats Audio Control Panel, from the Start screen on the
keyboard dock, type c, select Control Panel, select Hardware
and Sound, and then select Beats Audio Control Panel.
46 Chapter 5 Navigating using the keyboard, touch gestures and pointing devices ENWW
6 Managing power
Your computer can operate on either battery power or external power. When the computer is only
running on battery power and an AC power source is not available to charge the battery, it is
important to monitor and conserve the battery charge. Your computer supports an optimal power plan
to manage how your computer uses and conserves power so that computer performance can be
balanced with power conservation.
Initiating Sleep and Hibernation
Microsoft Windows has two power-saving states, Sleep and Hibernation.
●Sleep–The Sleep state is automatically initiated after a period of inactivity when running on battery
power or on external power. Your work is saved to memory, allowing you to resume your work
very quickly. You can also initiate Sleep manually. For more information, see Initiating and exiting
Sleep on page 47.
●Hibernation–The Hibernation state is automatically initiated if the battery reaches a critical level. In
the Hibernation state, your work is saved to a hibernation file and the computer powers down.
NOTE: If you want to initiate Hibernation manually, you can enable Hibernation using Power
Options. For more information, see Enabling and exiting Hibernation (select models only)
on page 48.
CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video
playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external media card.
NOTE: You cannot initiate any type of networking connection or perform any computer functions
while the computer is in the Sleep state or in Hibernation.
Initiating and exiting Sleep
With the computer on, you can initiate Sleep in the following ways:
●Briefly press the power button.
●
Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Settings, tap the Power icon, and then tap Sleep.
– or –
From the Start screen, point to the upper-right or lower-right corner of the screen. When
the charms list opens, select Settings, select the Power icon, and then select Sleep.
ENWW Initiating Sleep and Hibernation 47
To exit Sleep:
●Press the Windows key.
●Briefly press the power button.
●If the display is closed, and the tablet is connected to the keyboard dock, open the display.
●Press a key on the keyboard.
●Tap or swipe the TouchPad.
When the computer exits Sleep, the power lights turn on and the computer returns to the screen where
you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before the computer will return to the screen.
Enabling and exiting Hibernation (select models only)
You can enable user-initiated Hibernation and change other power settings and timeouts using Power
Options:
1. From the Start screen, type power, select Settings, and then select Power Options from the list
of applications.
2. In the left pane, click Choose what the power button does.
3. Click Change Settings that are currently unavailable.
4. In the When I press the power button area, select Hibernate.
5. Click Save changes.
When the computer exits Hibernation, the power lights turn on and your work returns to the screen.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before your work will return to the screen.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. From the Start screen, type power, select Settings, and then select Power Options from the list
of applications.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
NOTE: If you need to create a user account password or change your current user account
password, click Create or change your user account password, and then follow the on-
screen instructions. If you do not need to create or change a user account password, go to step 5.
5. Click Save changes.
48 Chapter 6 Managing power ENWW
Using the power meter and power settings
The power meter is located on the Windows desktop. The power meter allows you to quickly access
power settings and view the remaining battery charge.
●To display the percentage of remaining battery charge and the current power plan, on the
Windows desktop, point over the power meter icon.
●To use Power Options, click the power meter icon and select an item from the list. From the Start
screen, type power, select Settings, and then select Power Options.
Different power meter icons indicate whether the computer is running on battery or external power. The
icon also displays a message if the battery has reached a low or critical battery level.
Running on battery power
When a charged battery is in the tablet and the tablet is not plugged into external power, the tablet
runs on battery power. If the tablet has a charged battery installed and the AC adapter is disconnected
from the tablet, the tablet automatically switches to battery power and the display brightness decreases
to conserve battery life. The battery in the tablet slowly discharges when the tablet is off and unplugged
from external power. When the tablet is attached to the keyboard dock, the system is powered by the
keyboard dock’s battery until the battery reaches a critical level in the keyboard dock. At that time, the
system switches to the tablet’s battery.
Computer battery life varies, depending on power management settings, programs running on the
computer, display brightness, external devices connected to the tablet, and other factors.
NOTE: There is a secondary battery in the keyboard dock. When the tablet is attached to the
keyboard dock, the system is powered by the keyboard dock's battery.
Factory-sealed battery
To monitor the status of your battery, or if the battery is no longer holding a charge, run Battery Check
in HP Support Assistant. To access battery information, from the Start screen, type support, select the
HP Support Assistant app, and then select Battery and performance. If Battery Check
indicates that your battery should be replaced, contact support.
Finding battery information
To monitor the status of your battery, or if the battery is no longer holding a charge, run Battery Check
in HP Support Assistant. To access battery information, from the Start screen, type support, select the
HP Support Assistant app, and then select Battery and performance.
HP Support Assistant provides the following tools and information about the battery:
●Battery test
●Information on battery types, specifications, life cycles, and capacity
ENWW Using the power meter and power settings 49
Conserving battery power
Tips for conserving battery power and maximizing battery life:
●Lower the brightness on the display.
●Select the Power saver setting in Power Options.
●Turn off wireless when you are not using them.
●Disconnect unused external devices that are not plugged into an external power source, such as
an external hard drive connected to a USB port.
●Stop, disable, or remove any external media cards that you are not using.
●Before you leave your work, initiate Sleep or shut down the computer.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:
●The battery light (select models only) indicates a low or critical battery level.
– or –
●The power meter icon on the Windows desktop shows a low or critical battery notification.
NOTE: For additional information about the power meter, see Using the power meter and
power settings on page 49.
The computer takes the following actions for a critical battery level:
●If Hibernation is disabled and the computer is on or in the Sleep state, the computer remains
briefly in the Sleep state, and then shuts down and loses any unsaved information.
●If Hibernation is enabled and the computer is on or in the Sleep state, the computer initiates
Hibernation.
Resolving a low battery level
Resolving a low battery level when external power is available
●Connect an AC adapter.
●Connect the keyboard dock to the tablet.
●Connect an optional power adapter purchased as an accessory from HP.
Resolving a low battery level when no power source is available
●Initiate Hibernation (see Enabling and exiting Hibernation (select models only) on page 48).
●Save your work and shut down the computer.
50 Chapter 6 Managing power ENWW
Resolving a low battery level when the computer cannot exit Hibernation
When the computer lacks sufficient power to exit Hibernation, follow these steps:
1. Connect the AC adapter to the computer and to external power.
2. Exit Hibernation by pressing the power button.
Running on external AC power
For information on connecting to AC power, refer to the Setup Instructions poster provided in the
computer box.
The computer does not use battery power when the computer is connected to AC external power with
an approved AC adapter or an optional docking/expansion device.
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP
specifically for this system.
CAUTION: To prevent damage to your system, do not use AC adapters from other tablets or
computers.
Connect the computer to external AC power under any of the following conditions:
WARNING! Do not charge the computer battery while you are onboard aircraft.
●When charging or calibrating a battery
●When installing or modifying system software
●When writing information to a disc (select models only)
●When performing a backup or recovery
When you connect the computer to external AC power:
●The battery begins to charge.
●The display brightness increases.
●The power meter icon on the Windows desktop changes appearance.
When you disconnect external AC power, the following events occur:
●The computer switches to battery power.
●The display brightness automatically decreases to save battery life.
●The power meter icon on the Windows desktop changes appearance.
Shutting down (turning off) the computer
CAUTION: Unsaved information is lost when the computer shuts down. Be sure to save your work
before shutting down the computer.
The Shut down command closes all open programs, including the operating system, and then turns off
the display and computer.
ENWW Running on external AC power 51
Shut down the computer under any of the following conditions:
●When you are connecting an external hardware device that does not connect to a USB or video
port
●When the computer will be unused and disconnected from external power for an extended period
To shut down the tablet when it is not connected to the keyboard dock:
▲Press the Windows key and the power button at the same time, and then tap Shut down.
Although you can turn off the computer by holding down the power button, the recommended
procedure to shut down computer is to use the Windows Shut down command.
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or Hibernation
before shutdown is possible by briefly pressing the power button.
1. Save your work and close all open programs.
2. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Settings,
tap the Power icon, and then tap Shut down.
– or –
From the Start screen, point to the upper-right or lower-right corner of the screen.
3. When the charms list opens, click Settings, click the Power icon, and then click Shut down.
If the computer is unresponsive and you are unable to use the preceding shutdown procedures, try the
following emergency procedures in the sequence provided:
To shut down the unresponsive tablet:
▲Press both the Windows key and the power button at the same time.
To shut down the unresponsive tablet when it is connected to the keyboard dock:
●Press ctrl+alt+delete, click the Power icon, and then select Shut down.
●Press and hold the power button for at least 5 seconds.
●Disconnect the computer from external power.
52 Chapter 6 Managing power ENWW
7 Managing and sharing information
Drives are digital storage devices that help you store, manage, share, and access information. Your
computer has a solid state drive that stores your computer's software, operating system, and also
provides storage for all of your personal files.
For added capacity or functionality, connect an external drive (purchased separately), such as an
optical drive or hard drive, or insert a memory card directly from your phone or camera. A USB flash
drive, connected to the Universal Serial Bus (USB) port on your computer, also allows quick data
transfer. Some devices use the computer's power to run; others have their own power source. Some
devices come with software that must be installed.
NOTE: For information about connecting external wireless devices, see Connecting to a network
on page 25.
NOTE: For more information about required software and drivers, or to learn which computer port to
use, see the manufacturer's instructions.
Using a USB device
Most computers have more than one USB port, because this versatile interface allows you to connect
numerous kinds of external devices—such as a USB keyboard, mouse, external drive, printer, scanner,
or USB hub—to your computer.
NOTE: Some USB devices may not be supported when the computer is running on AC or battery
power if they do not have their own AC adapters. More than one USB device may not be supported
simultaneously when the computer is running on AC or battery power.
Type Description
USB 2.0 Transfers data at 60 MB/s.
USB 3.0 Transfers data at 640 MB/s. USB 3.0 ports, also known as
SuperSpeed ports, are also compatible with USB 1.0 and 2.0
devices.
Connecting a USB device
CAUTION: To reduce the risk of damage to a USB connector, use minimal force to connect the
device.
ENWW Using a USB device 53
▲Connect the USB cable for the device to the USB port.
NOTE: The USB port on your computer may look slightly different from the illustration in this
section.
A sound indicates that the device has been detected.
NOTE: The first time you connect a USB device, a message displays on the Windows desktop and an
icon appears in the notification area, letting you know that the device is recognized by the computer.
Removing a USB device
CAUTION: To reduce the risk of damage to a USB connector, do not pull on the cable to remove the
USB device.
CAUTION: To reduce the risk of loss of information or an unresponsive system, use the following
procedure to safely remove the USB device.
1. Save your information and close all programs associated with the device.
2. From the Windows desktop, tap or click the hardware icon in the notification area, at the far right of
the taskbar. A message, Safely remove hardware and eject media is revealed. Follow the on-
screen instructions.
Connecting a powered USB device
CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be
sure that the device is turned off and its AC power cord is unplugged.
1. Connect the device to the computer.
2. Plug the device power cord into a grounded AC outlet.
3. Turn on the device.
To disconnect an unpowered external device, stop the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the
computer, and then unplug the AC power cord.
54 Chapter 7 Managing and sharing information ENWW
Inserting and removing a memory card
To insert a memory card:
CAUTION: To reduce the risk of damage to the memory card connectors, use minimal force to insert
a memory card.
1. Hold the card label-side up, with the connectors facing the computer.
2. Insert the card into the memory card reader, and then press in on the card until it is firmly seated.
A sound indicates that the device has been detected.
To remove a memory card:
CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following procedure
to safely remove the memory card.
1. Save your information and close all programs associated with the memory card.
2. From the Windows desktop, tap or click the remove hardware icon in the notification area, at the
far right of the taskbar. Then, follow the on-screen instructions.
3. Press in on the card (1), and then remove it from the slot (2).
NOTE: If the card is not ejected, pull the card out of the slot.
ENWW Inserting and removing a memory card 55
8 Maintaining your computer
It is important to perform regular maintenance to keep your computer in optimal condition. This chapter
provides information about improving the performance of your computer by running tools such as Disk
Defragmenter and Disk Cleanup. It also provides information about updating your programs and
drivers, instructions for cleaning your computer, and tips for traveling with your computer.
Improving performance
Everyone wants a fast computer and by performing regular maintenance tasks, using tools such as Disk
Defragmenter and Disk Cleanup, you can drastically improve the performance of your computer. Also,
as your computer gets older, you might consider installing larger drives and adding more memory.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer run more efficiently.
To run Disk Cleanup:
1. From the Start screen, type disk, select Settings, and then select Free up disk space by
deleting unnecessary files.
2. Follow the on-screen instructions.
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis to the latest versions.
Updates can resolve issues and bring new features and options to your computer. Technology is always
changing, and updating programs and drivers allows your computer to run the latest technology
available. For example, older graphics components might not work well with the most recent gaming
software. Without the latest driver, you would not be getting the most out of your equipment.
Cleaning your computer
Cleaning products
Use the following products to safely clean your computer:
●Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (For example:
disposable wipes. These wipes come in a variety of brand names.)
●Alcohol-free glass cleaning fluid
●Water with mild soap solution
56 Chapter 8 Maintaining your computer ENWW
●Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)
●Static-free cloth wipes
CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are
not sure that a cleaning product is safe for your computer, check the product contents to make sure that
ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons are
not included in the product.
Fibrous materials, such as paper towels, which can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.
Cleaning procedures
Follow the procedures in this section to safely clean your computer.
WARNING! To prevent electric shock or damage to components, do not attempt to clean your
computer while it is turned on:
Turn off the computer.
Disconnect external power.
Disconnect all powered external devices.
CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids
directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.
Cleaning the display
Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be sure
that the display is dry before closing the display.
Cleaning the sides and cover
To clean the sides and cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.
NOTE: When cleaning the cover of the computer, use a circular motion to aid in removing dirt and
debris.
Cleaning the TouchPad, keyboard, or mouse
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris on
the keyboard surface.
CAUTION: To prevent damage to internal components, do not allow liquids to drip between the
keys.
●To clean the TouchPad, keyboard. or mouse, use a soft microfiber cloth or chamois moistened with
one of the cleaning solutions listed previously or use an acceptable disposable wipe.
●To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a can
of compressed air with a straw extension.
ENWW Cleaning your computer 57
Traveling with or shipping your computer
If you have to travel with or ship your computer, here are some tips to keep in mind to keep your
equipment safe.
●Prepare the computer for traveling or shipping:
◦Attach the tablet to the keyboard dock to protect the tablet screen.
◦Back up your information to an external drive.
◦Remove all discs and all external media cards, such as memory cards, from the computer.
◦Turn off, and then disconnect all external devices.
◦Shut down the computer.
●Take along a backup of your information. Keep the backup separate from the computer.
●When traveling by air, carry the computer as hand luggage; do not check it in with the rest of
your luggage.
CAUTION: Avoid exposing a drive to magnetic fields. Security devices with magnetic fields
include airport walk-through devices and security wands. Airport conveyer belts and similar
security devices that check carry-on baggage use X-rays instead of magnetism and do not damage
drives.
●If you plan to use the computer during a flight, listen for the in-flight announcement that tells you
when you are allowed to use your computer. In-flight computer use is at the discretion of the
airline.
●If you are shipping the computer or a drive, use suitable protective packaging and label the
package “FRAGILE.”
●If the computer has a wireless device installed, the use of these devices may be restricted in some
environments. Such restrictions may apply onboard aircraft, in hospitals, near explosives, and in
hazardous locations. If you are uncertain of the policy that applies to the use of a particular
device, ask for authorization to use your computer before you turn it on.
●If you are traveling internationally, follow these suggestions:
◦Check the computer-related customs regulations for each country or region on your itinerary.
◦Check the power cord and adapter requirements for each location in which you plan to use
the computer. Voltage, frequency, and plug configurations vary.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not
attempt to power the computer with a voltage converter kit sold for appliances.
58 Chapter 8 Maintaining your computer ENWW
9 Securing your computer and
information
Tablet security is essential for protecting the confidentiality, integrity, and availability of your
information. Standard security solutions provided by the Windows operating system, HP applications,
the non-Windows Setup Utility (BIOS), and other third-party software can help protect your computer
from a variety of risks, such as viruses, worms, and other types of malicious code.
IMPORTANT: Some security features listed in this chapter may not be available on your computer.
Tablet risk Security feature
Unauthorized use of the computer Power-on password
Computer viruses Antivirus software
Unauthorized access to data Firewall software
Unauthorized access to Setup Utility (BIOS) settings and other
system identification information
Administrator password
Ongoing or future threats to the computer Software updates
Unauthorized access to a Windows user account User password
Using passwords
A password is a group of characters that you choose to secure your computer information and to
protect online transactions. Several types of passwords can be set. For example, when you set up your
computer for the first time, you were asked to create a user password to secure your computer.
Additional passwords can be set in Windows or in the HP Setup Utility (BIOS) that is preinstalled on
your computer.
You may find it helpful to use the same password for a Setup Utility (BIOS) feature and for a Windows
security feature.
Use the following tips for creating and saving passwords:
●To reduce the risk of being locked out of the computer, record each password and store it in a
secure place away from the computer. Do not store passwords in a file on the computer.
●When creating passwords, follow requirements set by the program.
●Change your passwords at least every three months.
●An ideal password is long and has letters, punctuation, symbols, and numbers.
●Before you send your computer for service, back up your files, delete confidential files, and then
remove all password settings.
ENWW Using passwords 59
For additional information about Windows passwords, such as screen-saver passwords, from the Start
screen, type support, and then select the HP Support Assistant app.
Setting Windows passwords
Password Function
User password Protects access to a Windows user account. You may also set
up your computer to require the user password to exit Sleep.
See Setting password protection on wakeup on page 48 for
more information.
Administrator password Protects administrator-level access to computer contents.
NOTE: This password cannot be used to access Setup Utility
(BIOS) contents.
Setting Setup Utility (BIOS) passwords
Password Function
Administrator password ●Must be entered each time you access Setup Utility
(BIOS).
●If you forget your administrator password, you cannot
access Setup Utility (BIOS).
NOTE: The administrator password can be used in place of
the power-on password.
NOTE: Your administrator password is not interchangeable
with an administrator password set in Windows, nor is it
displayed as it is set, entered, changed, or deleted.
NOTE: If you enter the power-on password at the first
password check before the “Press the ESC key for Startup
Menu” message is displayed, you must enter the administrator
password to access Setup Utility (BIOS).
Power-on password ●Must be entered each time you turn on or restart the
computer.
●If you forget your power-on password, you cannot turn
on or restart the computer.
NOTE: The administrator password can be used in place of
the power-on password.
NOTE: A power-on password is not displayed as it is set,
entered, changed, or deleted.
To set, change, or delete an administrator or power-on password in Setup Utility (BIOS):
1. To start Setup Utility (BIOS), turn on or restart the computer, quickly press esc, and then press f10.
2. Use the arrow keys to select Security, and then follow the on-screen instructions.
Your changes take effect when the computer restarts.
60 Chapter 9 Securing your computer and information ENWW
Using Internet security software
When you use your computer to access email, a network, or the Internet, you potentially expose your
computer to computer viruses, spyware, and other online threats. An antivirus program may be
preinstalled on your computer. It is strongly recommended that you use an antivirus program of your
choice in order to fully protect your computer.
Using antivirus software
Computer viruses can disable programs, utilities, or the operating system, or cause them to function
abnormally. Antivirus software can detect most viruses, destroy them, and in most cases, repair any
damage they have caused.
To provide ongoing protection against newly discovered viruses, antivirus software must be kept up to
date.
An antivirus program may be preinstalled on your computer. It is strongly recommended that you use
the antivirus program of your choice in order to fully protect your computer.
For more information about computer viruses, from the Start screen, type support, and then select the
HP Support Assistant app.
Using firewall software
Firewalls are designed to prevent unauthorized access to a system or network. A firewall can be
software you install on your computer and/or network, or it can be a combination of both hardware
and software.
There are two types of firewalls to consider:
●Host-based firewalls—Software that protects only the computer it is installed on.
●Network-based firewalls—Installed between your DSL or cable modem and your home network to
protect all the computers on the network.
When a firewall is installed on a system, all data sent to and from the system is monitored and
compared with a set of user-defined security criteria. Any data that does not meet those criteria is
blocked.
Installing software updates
HP, Microsoft Windows, and third-party software installed on your computer should be regularly
updated to correct security problems and improve software performance. For more information, see
Updating programs and drivers on page 56.
Installing Windows updates
Updates to the operating system and other software may have become available after the computer left
the factory. Microsoft sends out alerts regarding critical updates. To protect the computer from security
breaches and viruses, install all critical updates from Microsoft as soon as you receive an alert.
ENWW Using Internet security software 61
To be sure that all available updates are installed on the computer, observe these guidelines:
●Run Windows Update as soon as possible after you set up your computer. From the Start screen,
type w, select Settings, and then select Windows Update.
●Run Windows Update monthly thereafter.
●Obtain updates to Windows and other Microsoft programs, as they are released, from the
Microsoft website and through the updates link in Help and Support.
Installing HP and third-party software updates
HP recommends that you regularly update the software and drivers that were originally installed on
your computer. To download the latest versions, go to http://www.hp.com/support. At this location,
you can also register to receive automatic update notifications when they become available.
If you have installed third-party software after you purchased your computer, regularly update the
software. Software companies provide software updates to their products to correct security problems
and improve functionality of the software.
Securing your wireless network
When you set up your wireless network, always enable security features. For more information, see
Protecting your WLAN on page 27.
Backing up your software applications and
information
Regularly back up your software applications and information to protect them from being permanently
lost or damaged through a virus attack or a software or hardware failure. For more information, see
Backing up, restoring, and recovering on page 66.
62 Chapter 9 Securing your computer and information ENWW
10 Using Setup Utility (BIOS) and
System Diagnostics
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility
(BIOS) includes settings for the types of devices installed, the startup sequence of the computer, and the
amount of system and extended memory.
Starting Setup Utility (BIOS)
To start Setup Utility (BIOS), turn on or restart the computer, quickly press esc, and then press f10.
Information about how to navigate in Setup Utility (BIOS) is located at the bottom of the screen.
NOTE: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the
computer from operating properly.
Updating the BIOS
Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed files called SoftPaqs.
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently installed
on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as ROM date and System BIOS) can be displayed by pressing fn
+esc (if you are already in Windows) or by using Setup Utility (BIOS).
1. Start Setup Utility (BIOS) see Starting Setup Utility (BIOS) on page 63.
2. Use the arrow keys to select Main.
3. To exit Setup Utility (BIOS) without saving your changes, use the arrow keys to select Exit, select
Exit Discarding Changes, and then press enter.
4. Click Yes.
ENWW Starting Setup Utility (BIOS) 63
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the AC
adapter. Do not download or install a BIOS update while the computer is running on battery power or
connected to an optional power source. During the download and installation, follow these instructions:
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1. From the Start screen, type support, and then select the HP Support Assistant app.
2. Click Updates and tune-ups, and then click Check for HP updates now.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on
your computer. If the update is more recent than your BIOS, make a note of the date, name,
or other identifier. You may need this information to locate the update later, after it has been
downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
If the update is more recent than your BIOS, make a note of the path to the location on your
hard drive where the BIOS update is downloaded. You will need to access this path when
you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete. If no instructions are displayed, follow these steps:
1. From the Start screen, type e, and then select File Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4. Double-click the file that has an .exe extension (for example, filename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run
diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs
64 Chapter 10 Using Setup Utility (BIOS) and System Diagnostics ENWW
outside the operating system so that it can isolate hardware failures from issues that are caused by the
operating system or other software components.
To start HP PC Hardware Diagnostics UEFI:
1. Turn on or restart the computer, quickly press esc, and then press f2.
The BIOS searches three places for the HP PC Hardware Diagnostics (UEFI) tools in the following
order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device on page 65.
b. Hard drive
c. BIOS
2. Click the type of diagnostic test you want to run, and then follow the on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only.
1. Go to http://www.hp.com.
2. Click Support & Drivers, and then click the Drivers & Software tab.
3. Enter the product name in the text box, and then click Search.
4. Select your computer model, and then select your operating system.
5. In the Diagnostic section, click HP UEFI Support Environment.
– or –
Click Download, and then select Run.
ENWW Using HP PC Hardware Diagnostics (UEFI) 65
11 Backing up, restoring, and
recovering
Your computer includes tools provided by HP and Windows to help you safeguard your information
and retrieve it if you ever need to. These tools will help you return your computer to a proper working
state or even back to the original factory state, all with simple steps.
This chapter provides information about the following processes:
●Creating recovery media and backups
●Restoring and recovering your system
NOTE: This guide describes an overview of backing up, restoring and recovering options. For more
details about the tools provided, see Help and Support. From the Start screen, type h, and then select
Help and Support.
Creating recovery media and backups
Recovery after a system failure is only as good as your most recent backup.
1. After you successfully set up the computer, create HP Recovery media. This step creates a backup
of the HP Recovery partition on the computer. The backup can be used to reinstall the original
operating system in cases where the hard drive is corrupted or has been replaced.
HP Recovery media you create will provide the following recovery options:
●System Recovery—Reinstalls the original operating system and the programs that were
installed at the factory.
●Minimized Image Recovery—Reinstalls the operating system and all hardware-related drivers
and software, but not other software applications.
●Factory Reset—Restores the computer to its original factory state by deleting all information
from the hard drive and re-creating the partitions. Then it reinstalls the operating system and
the software that was installed at the factory.
See Creating HP Recovery media on page 67.
2. As you add hardware and software programs, create system restore points. A system restore point
is a snapshot of certain hard drive contents saved by Windows System Restore at a specific time.
A system restore point contains information that Windows uses, such as registry settings. Windows
creates a system restore point for you automatically during a Windows update and during other
system maintenance (such as a software update, security scanning, or system diagnostics). You
can also manually create a system restore point at any time. For more information and steps for
creating specific system restore points, see Help and Support. From the Start screen, type h, and
then select Help and Support.
3. As you add photos, video, music, and other personal files, create a backup of your personal
information. Windows File History can be set to regularly and automatically back up files from
66 Chapter 11 Backing up, restoring, and recovering ENWW
libraries, desktop, contacts, and favorites. If files are accidentally deleted from the hard drive and
they can no longer be restored from the Recycle Bin, or if files become corrupted, you can restore
the files that you backed up using File History. Restoring files is also useful if you ever choose to
reset the computer by reinstalling Windows or choose to recover using HP Recovery Manager.
NOTE: File History is not enabled by default, so you must turn it on.
For more information and steps for enabling Windows File History, see Help and Support. From
the Start screen, type h, and then select Help and Support.
Creating HP Recovery media
HP Recovery Manager is a software program that offers a way to create recovery media after you
successfully set up the computer. HP Recovery media can be used to perform system recovery if the
hard drive becomes corrupted. System recovery reinstalls the original operating system and the
software programs installed at the factory, and then configures the settings for the programs. HP
Recovery media can also be used to customize the system or restore the factory image if you replace a
hard drive.
●Only one set of HP Recovery media can be created. Handle these recovery tools carefully, and
keep them in a safe place.
●HP Recovery Manager examines the computer and determines the required storage capacity for
the blank USB flash drive or the number of blank DVD discs that will be required.
●To create recovery discs, your computer must have an optical drive with DVD writer capability,
and you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not
use rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-
ray) discs; they are not compatible with HP Recovery Manager software. Or instead you can use a
high-quality blank USB flash drive.
●If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased
separately) to create recovery discs, or you can obtain recovery discs for your computer from the
HP website. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide support,
go to http://welcome.hp.com/country/us/en/wwcontact_us.html. If you use an external optical
drive, it must be connected directly to a USB port on the computer; the drive cannot be connected
to a USB port on an external device, such as a USB hub.
●Be sure that the computer is connected to AC power before you begin creating the recovery
media.
●The creation process can take up to an hour or more. Do not interrupt the creation process.
●If necessary, you can exit the program before you have finished creating all of the recovery DVDs.
HP Recovery Manager will finish burning the current DVD. The next time you start HP Recovery
Manager, you will be prompted to continue, and the remaining discs will be burned.
ENWW Creating recovery media and backups 67
To create HP Recovery media:
1. Connect the tablet to the keyboard dock.
2. From the Start screen, type recovery, and then select HP Recovery Manager.
3. Select Recovery Media Creation, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 70.
Restore and recovery
There are several options for recovering your system. Choose the method that best matches your
situation and level of expertise:
●If you need to restore your personal files and data, you can use Windows File History to restore
your information from the backups you created. For more information and steps for using File
History, see Help and Support. From the Start screen, type h, and then select Help and
Support.
●If you need to correct a problem with a preinstalled application or driver, use the Drivers and
Applications Reinstall option of HP Recovery Manager to reinstall the individual application or
driver.
From the Start screen, type recovery, select HP Recovery Manager, select Drivers and
Applications Reinstall, and then follow the on-screen instructions.
●If you want to restore the system to a previous state without losing any personal information,
Windows System Restore is an option. System Restore allows you to restore without the
requirements of Windows Refresh or a reinstallation. Windows creates system restore points
automatically during a Windows update and other system maintenance events. Even if you did not
manually create a restore point, you can choose to restore to an automatically created restore
point. For more information and steps for using Windows System Restore, see Help and Support.
From the Start screen, type h, and then select Help and Support.
●If you want a quick and easy way to recover the system without losing your personal information,
settings, or apps that came preinstalled on your computer or were purchased from the Windows
Store, consider using Windows Refresh. This option does not require backing up data to another
drive. See Using Windows Refresh for quick and easy recovery on page 69.
●If you want to reset your computer to its original state, Windows provides an easy way to remove
all personal data, apps, and settings, and reinstall Windows.
For more information, see Remove everything and reinstall Windows on page 69.
●If you want to reset your computer using a minimized image, you can choose the HP Minimized
Image Recovery option from the HP Recovery partition (select models only) or HP Recovery media.
Minimized Image Recovery installs only drivers and hardware-enabling applications. Other
applications included in the image continue to be available for installation through the Drivers and
Applications Reinstall option in HP Recovery Manager.
For more information, see Recovering using HP Recovery Manager on page 70.
●If you want to recover the computer's original factory partitioning and content, you can choose the
System Recovery option from the HP Recovery partition or the HP Recovery media that you have
created. For more information, see Recovering using HP Recovery Manager on page 70.
68 Chapter 11 Backing up, restoring, and recovering ENWW
●If you have replaced the hard drive, you can use the Factory Reset option of HP Recovery media to
restore the factory image to the replacement drive. For more information, see Recovering using HP
Recovery Manager on page 70.
●If you wish to remove the recovery partition to reclaim hard drive space, HP Recovery Manager
offers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition on page 72.
Using Windows Refresh for quick and easy recovery
When your computer is not working properly and you need to regain system stability, the Windows
Refresh option allows you to start fresh and keep what is important to you.
IMPORTANT: Refresh removes any traditional applications that were not originally installed on the
system at the factory. Any Windows 8 apps that came preinstalled on your computer or were
purchased from the Windows Store will be saved.
NOTE: During Refresh, a list of removed traditional applications will be saved so that you have a
quick way to see what you might need to reinstall. See Help and Support for instructions on reinstalling
traditional applications. From the Start screen, type h, and then select Help and Support.
NOTE: You may be prompted for your permission or password when using Refresh. See Help and
Support for more information. From the Start screen, type h, and then select Help and Support.
To start Refresh:
1. Connect the tablet to the keyboard dock.
2. From the Start screen, point to the upper-right or lower-right corner of the screen to reveal the
charms.
3. Click Settings.
4. Click Change PC settings in the bottom-right corner of the screen, and then select General
from the PC settings screen.
5. Scroll the right-side choices down to display Refresh your PC without affecting your files.
6. Under Refresh your PC without affecting your files, select Get started, and then follow
the on-screen instructions.
Remove everything and reinstall Windows
Sometimes you want to perform detailed reformatting of your computer, or you want to remove
personal information before you give away or recycle your computer. The process described in this
section provides a speedy, simple way to return the computer to its original state. This option removes
all personal data, apps, and settings from your computer, and reinstalls Windows.
IMPORTANT: This option does not provide backups of your information. Before using this option,
back up any personal information you wish to retain.
You can initiate this option by using the f11 key or from the Start screen.
ENWW Restore and recovery 69
To use the f11 key:
1. Connect the tablet to the keyboard dock.
2. Press f11 while the computer boots.
– or –
Press and hold f11 as you press the power button.
3. Select Troubleshoot from the boot options menu.
4. Select Reset your PC, and then follow the on-screen instructions.
To use the Start screen:
1. Connect the tablet to the keyboard dock.
2. From the Start screen, point to the upper-right or lower-right corner of the screen to reveal the
charms.
3. Click Settings.
4. Click Change PC settings in the bottom-right corner of the screen, and then select General
from the PC settings screen.
5. Scroll the right-side choices down to display Remove everything and reinstall Windows.
6. Under Remove everything and reinstall Windows, select Get started, and follow the
on-screen instructions.
Recovering using HP Recovery Manager
HP Recovery Manager software allows you to recover the computer to its original factory state by using
the HP Recovery media you created or by using the HP Recovery partition. You can choose from one of
the following recovery options:
●System Recovery—Reinstalls the original operating system, and then configures the settings for the
programs that were installed at the factory.
●Minimized Image Recovery—Reinstalls the operating system and all hardware-related drivers and
software, but not other software applications.
●Factory Reset—Restores the computer to its original factory state by deleting all information from
the hard drive and re-creating the partitions. Then it reinstalls the operating system and the
software that was installed at the factory.
The HP Recovery partition allows Minimized Image Recovery and System Recovery.
What you need to know
●HP Recovery Manager recovers only software that was installed at the factory. For software not
provided with this computer, you must either download the software from the manufacturer's
website or reinstall the software from the media provided by the manufacturer.
●Recovery through HP Recovery Manager should be used as a final attempt to correct computer
issues.
70 Chapter 11 Backing up, restoring, and recovering ENWW
●HP Recovery media must be used if the computer hard drive fails. If you have not already created
recovery media, see Creating HP Recovery media on page 67.
●To use the Factory Reset option, you must use HP Recovery media. If you have not already created
recovery media, see Creating HP Recovery media on page 67.
●If the HP Recovery media do not work, you can obtain recovery media for your system from the HP
website. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide support, go
to http://welcome.hp.com/country/us/en/wwcontact_us.html.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data.
Before beginning recovery, back up any personal data you wish to retain.
Using the HP Recovery partition
The HP Recovery partition (select models only) allows you to perform a minimized image recovery
without the need for recovery discs or a recovery USB flash drive. This type of recovery can only be
used if the hard drive is still working.
To start HP Recovery Manager from the HP Recovery partition:
1. Connect the tablet to the keyboard dock.
2. Press f11 while the computer boots.
– or –
Press and hold f11 as you press the power button.
3. Select Troubleshoot from the boot options menu.
4. Select HP Recovery Manager, and follow the on-screen instructions.
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your system
does not have an HP Recovery partition or if the hard drive is not working properly.
1. If possible, back up all personal files.
2. Insert the first HP Recovery disc you created into the optical drive on your computer or into an
optional external optical drive, and then restart the computer.
– or –
Insert the HP Recovery USB flash drive you created into a USB port on your computer, and then
restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the
computer boot order. See Changing the computer boot order on page 71.
3. Follow the on-screen instructions.
Changing the computer boot order
If computer does not restart in HP Recovery Manager, you can change the computer boot order, which
is the order of devices listed in BIOS where the computer looks for startup information. You can change
the selection for an optical drive or a USB flash drive.
ENWW Restore and recovery 71
To change the boot order:
1. Insert the HP Recovery media you created.
2. Restart the computer.
3. Press and hold esc while the computer is restarting, and then press f9 for boot options.
4. Select the optical drive or USB flash drive you want to boot from.
5. Follow the on-screen instructions.
Removing the HP Recovery partition
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive
space.
IMPORTANT: After you remove the HP Recovery partition, you can no longer use the Windows
Refresh option, the Windows option to remove everything and reinstall Windows, or the HP Recovery
Manager option. So before you remove the Recovery partition, create HP Recovery media; see
Creating HP Recovery media on page 67.
Follow these steps to remove the HP Recovery partition:
1. From the Start screen, type recovery, and then select HP Recovery Manager.
2. Select Remove Recovery Partition, and then follow the on-screen instructions.
72 Chapter 11 Backing up, restoring, and recovering ENWW
12 Specifications
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The AC
power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered from a
standalone DC power source, it should be powered only with an AC adapter or a DC power source
supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications. Operating voltage and
current varies by platform.
Input power Rating
Operating voltage and current 19.5 V dc @ 2.31 A - 45 W
DC plug of external HP power supply
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE: The computer operating voltage and current can be found on the system regulatory label.
Operating environment
Factor Metric U.S.
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
ENWW Input power 73
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
74 Chapter 12 Specifications ENWW
13 Electrostatic Discharge
Electrostatic discharge is the release of static electricity when two objects come into contact—for
example, the shock you receive when you walk across the carpet and touch a metal door knob.
A discharge of static electricity from fingers or other electrostatic conductors may damage electronic
components. To prevent damage to the computer, damage to a drive, or loss of information, observe
these precautions:
●If removal or installation instructions direct you to unplug the computer, first make sure that it is
properly grounded, and then remove the cover.
●Keep components in their electrostatic-safe containers until you are ready to install them.
●Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
●Use nonmagnetic tools.
●Before handling components, discharge static electricity by touching an unpainted metal surface of
the component.
●If you remove a component, place it in an electrostatic-safe container.
If you need more information about static electricity or assistance with component removal or
installation, contact support.
ENWW 75
Index
A
AC adapter light 6, 14
action keys
decrease screen brightness 44
Help and Support 44
identifying 13
increase screen brightness 44
next track or section 44
play, pause, resume 44
previous track or section 44
switch screen image 44
volume down 44
volume mute 44
volume up 44
alignment post connectors,
identifying 6
alignment posts, identifying 10
ambient light sensor, identifying
8, 31
antivirus software, using 61
audio functions, checking 34
audio-out (headphone) jacks 7,
15, 30, 32
autorotate lock
adjusting 17
B
backing up
personal files 67
backing up software and
information 62
backups 66
bass settings hot key 46
battery
discharging 50
low battery levels 50
battery information, finding 49
battery light 6, 14
battery power 49
Beats Audio
Control Panel 32, 33
enabling and disabling 34
hot key 13, 32, 46
using 33
best practices 1
BIOS
determining version 63
downloading an update 64
updating 63
Bluetooth device 25, 28
boot order
changing HP Recovery
Manager 71
bottom-edge swipe
Touch screen 22
brightness
adjusting 17
buttons
left TouchPad 11
power 6
right TouchPad 11
volume 7, 30
Windows 9
C
cables
USB 54
caps lock light, identifying 12
caring for your computer 56
checking audio functions 34
cleaning your computer 56
components
display 8
left-side 15
right-side 14
top 10
computer reset 69
configuring audio for HDMI 36
connecting to a WLAN 28
connector
alignment post 6
power 6, 14
corporate WLAN connection 28
critical battery level 50
D
deleted files, restoring 68
Disk Cleanup software 56
docking connector, identifying 10
docking port, identifying 6
E
edge swipe gestures 21
bottom-edge swipe 22
left-edge swipe 22, 43
right-edge swipe 21, 42
top-edge swipe 22, 42
electrostatic discharge 75
esc key, identifying 13
external AC power, using 51
external devices 54
F
firewall software 61
flicking TouchPad gesture 41
fn key, identifying 13, 46
fun things to do 1
H
HDMI
configuring audio 36
HDMI port
connecting 35
identifying 14, 32
Hibernation
exiting 48
initiated during critical battery
level 50
initiating 48
high-definition devices,
connecting 35
hot keys
bass settings 46
Beats Audio 13
description 46
display system information 46
using 46
HP and third-party software
updates, installing 62
HP PC Hardware Diagnostics (UEFI)
using 64
HP Quick Start 1
HP Recovery Manager 70
correcting boot problems 71
starting 71
76 Index ENWW
HP Recovery media
creating 67
recovery 71
HP Recovery partition 71
recovery 71
removing 72
HP TrueVision Full HD Webcam
identifying 8, 31
using 33
hubs 53
I
input power 73
installing
critical updates 61
internal microphones, identifying
8, 31
Internet connection setup 27
Internet security software, using
61
J
jacks
audio-out (headphone) 7, 15,
30, 32
K
keyboard dock
identifying 10
releasing the tablet 16
keyboard hot keys, identifying 46
keys
action 13
esc 13
fn 13
Windows 13
L
labels
serial number 16
left-edge swipe
Touch screen 22
TouchPad 43
lights
AC adapter 6, 14
battery 6, 14
caps lock 12
mute 12
wireless 12
low battery level 50
M
maintenance
Disk Cleanup 56
memory card
inserting 55
memory card reader, identifying
15
micro SD memory card reader,
identifying 7
minimized image
creating 70
recovery 71
mouse, external
setting preferences 38
mute light, identifying 12
O
operating environment 73
optional external devices, using
54
original system recovery 70
P
passwords
Setup Utility (BIOS) 60
Windows 60
pinching
Touch screen 20
TouchPad 40
ports
HDMI 14, 32, 35
USB 14, 15, 32
power
battery 49
power button, identifying 6
power connector, identifying 6,
14
product name and number,
computer 16
public WLAN connection 28
R
recovery 68, 69
discs 67, 71
HP Recovery Manager 70
media 71
starting 71
supported discs 67
system 70
USB flash drive 71
using HP Recovery media 68
recovery media
creating 67
creating using HP Recovery
Manager 68
recovery partition 71
removing 72
recycle
computer 68, 69
refresh 69
computer 68
regulatory information 16
release latch, identifying 10
remove everything and reinstall
Windows 69
reset
computer 68, 69
steps 69
restore, Windows File History 68
right-edge swipe
Touch screen 21
TouchPad 42
rotating
Touch screen 21
TouchPad 40
S
scrolling
Touch screen 20
TouchPad 39
security, wireless 27
serial number 16
serial number, computer 16
setting password protection on
wakeup 48
settings
autorotate lock 17
brightness 17
changing 17
landscape view 17
portrait view 17
tablet orientation 17
setup of WLAN 27
Setup Utility (BIOS) passwords 60
shipping the computer 58
shutdown 52
Sleep
exiting 47
initiating 47
slots
memory card reader 15
ENWW Index 77
software
Disk Cleanup 56
software updates, installing 61
speakers
connecting 33
identifying 8, 31
stretching
Touch screen 20
supported discs, recovery 67
system information
hot key 46
locating 16
system recovery 70, 71
system restore point
creating 66
restoring 68
T
tapping
Touch screen 19
TouchPad 39
top-edge swipe
Touch screen 22
TouchPad 42
Touch screen gestures 21
edge swipe gestures 21, 22
one-finger slide 18
pinching 20
rotating 21
scrolling 20
stretching 20
tapping 19
using 18
TouchPad
buttons 11
identifying 11
TouchPad gestures
edge swipe gestures 41, 42,
43
flicking 41
pinching 40
rotating 40
scrolling 39
tapping 39
using 38
zooming 40
TouchPad zone, identifying 11
traveling with the computer 58
turning off the computer 52
U
unresponsive system 52
USB cable, connecting 54
USB devices
connecting 53
description 53
removing 54
USB hubs 53
USB ports, identifying 14, 15,
32
using external AC power 51
using passwords 59
V
vent, identifying 7
video 35
volume button, identifying 7, 30
W
warranty period 16
Webcam
identifying 8, 31
webcam
using 33
webcam light, identifying 8, 31
Windows
backup 67
File History 67, 68
Refresh 68, 69
reinstall 68, 69
remove everything and reinstall
option 69
reset 69
restoring files 68
system restore point 66, 68
Windows button, identifying 9
Windows key, identifying 13
Windows passwords 60
Windows updates, installing 61
wireless certification information
16
wireless controls
operating system 25
wireless light 12
wireless network (WLAN)
connecting 28
corporate WLAN connection
28
equipment needed 27
functional range 28
public WLAN connection 28
securing 62
security 27
using 26
WLAN antenna, identifying 8
WLAN device 26
Z
zooming
TouchPad 40
78 Index ENWW
