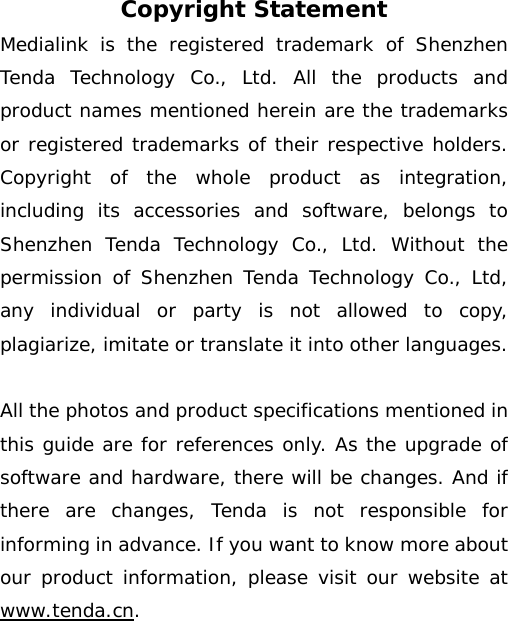

Copyright Statement Medialink is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without the permission of Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages. All the photos and product specifications mentioned in this guide are for references only. As the upgrade of software and hardware, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our product information, please visit our website at www.tenda.cn.

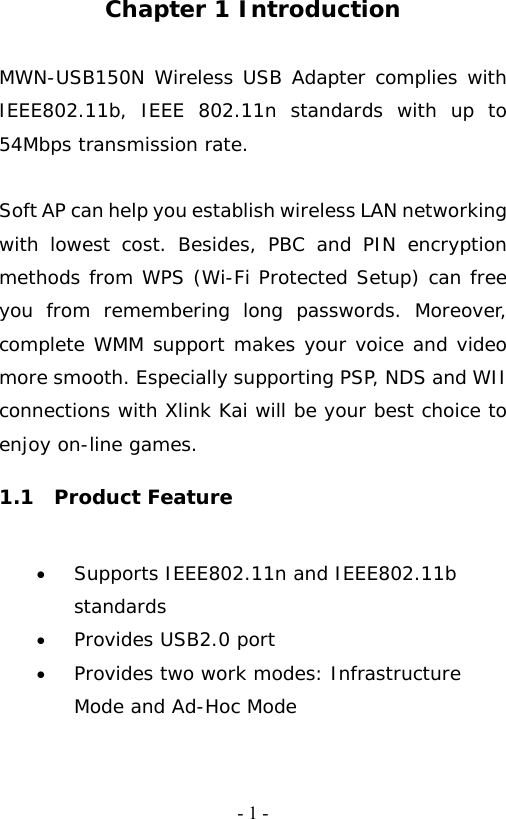

- 1 -Chapter 1 Introduction MWN-USB150N Wireless USB Adapter complies with IEEE802.11b, IEEE 802.11n standards with up to 54Mbps transmission rate. Soft AP can help you establish wireless LAN networking with lowest cost. Besides, PBC and PIN encryption methods from WPS (Wi-Fi Protected Setup) can free you from remembering long passwords. Moreover, complete WMM support makes your voice and video more smooth. Especially supporting PSP, NDS and WII connections with Xlink Kai will be your best choice to enjoy on-line games. 1.1 Product Feature • Supports IEEE802.11n and IEEE802.11b standards • Provides USB2.0 port • Provides two work modes: Infrastructure Mode and Ad-Hoc Mode

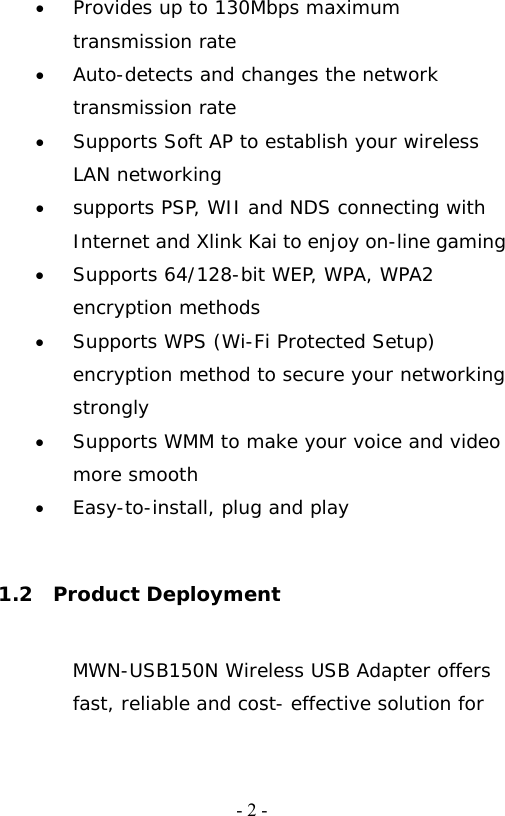

- 2 -• Provides up to 130Mbps maximum transmission rate • Auto-detects and changes the network transmission rate • Supports Soft AP to establish your wireless LAN networking • supports PSP, WII and NDS connecting with Internet and Xlink Kai to enjoy on-line gaming • Supports 64/128-bit WEP, WPA, WPA2 encryption methods • Supports WPS (Wi-Fi Protected Setup) encryption method to secure your networking strongly • Supports WMM to make your voice and video more smooth • Easy-to-install, plug and play 1.2 Product Deployment MWN-USB150N Wireless USB Adapter offers fast, reliable and cost- effective solution for

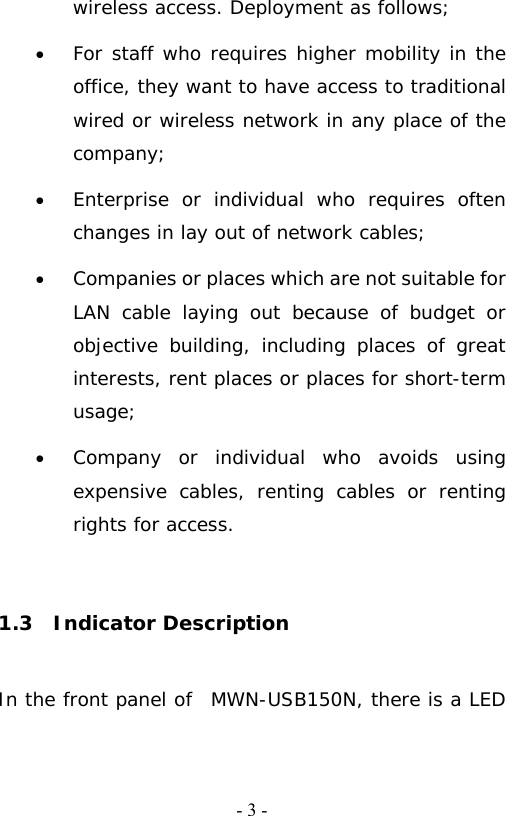

- 3 -wireless access. Deployment as follows; • For staff who requires higher mobility in the office, they want to have access to traditional wired or wireless network in any place of the company; • Enterprise or individual who requires often changes in lay out of network cables; • Companies or places which are not suitable for LAN cable laying out because of budget or objective building, including places of great interests, rent places or places for short-term usage; • Company or individual who avoids using expensive cables, renting cables or renting rights for access. 1.3 Indicator Description In the front panel of MWN-USB150N, there is a LED

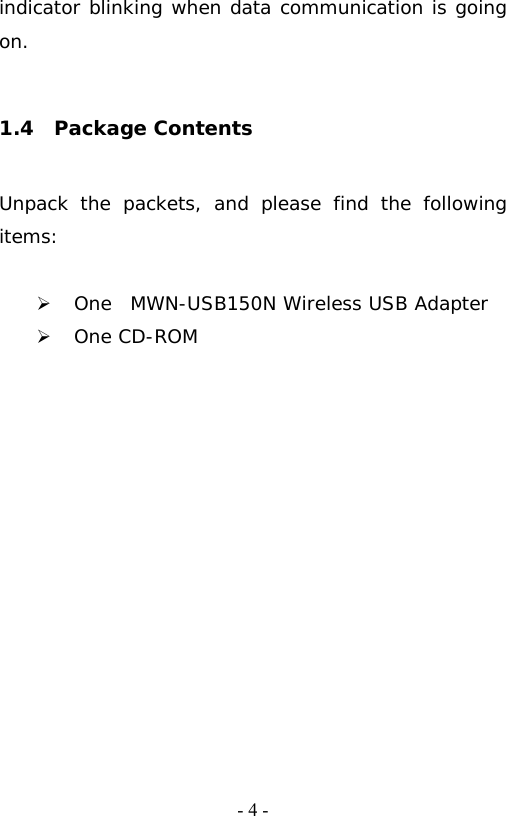

- 4 -indicator blinking when data communication is going on. 1.4 Package Contents Unpack the packets, and please find the following items: ¾ One MWN-USB150N Wireless USB Adapter ¾ One CD-ROM

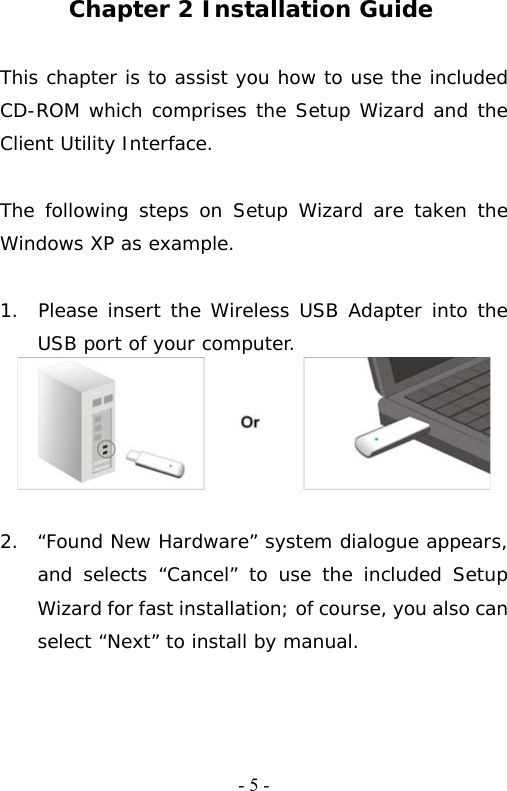

- 5 - Chapter 2 Installation Guide This chapter is to assist you how to use the included CD-ROM which comprises the Setup Wizard and the Client Utility Interface. The following steps on Setup Wizard are taken the Windows XP as example. 1. Please insert the Wireless USB Adapter into the USB port of your computer. 2. “Found New Hardware” system dialogue appears, and selects “Cancel” to use the included Setup Wizard for fast installation; of course, you also can select “Next” to install by manual.

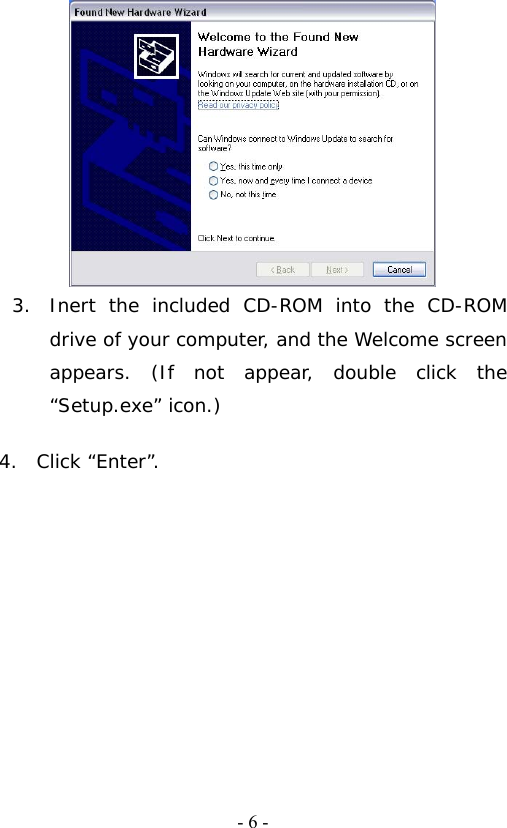

- 6 - 3. Inert the included CD-ROM into the CD-ROM drive of your computer, and the Welcome screen appears. (If not appear, double click the “Setup.exe” icon.) 4. Click “Enter”.

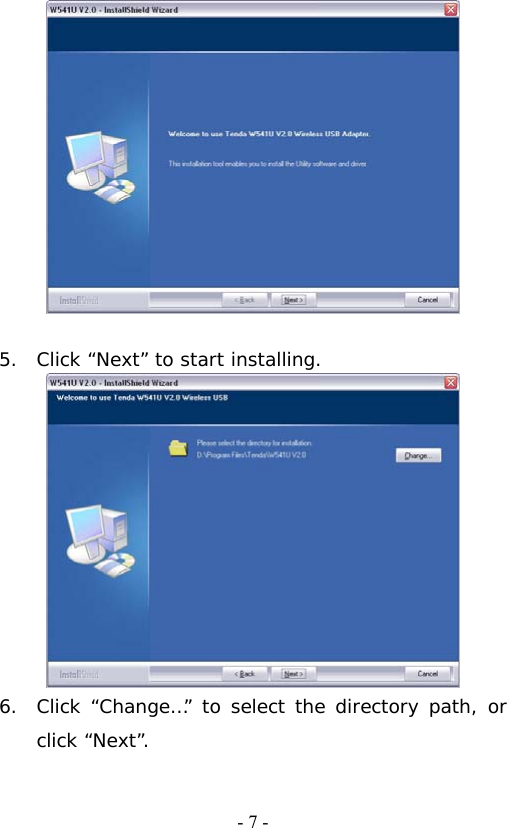

- 7 - 5. Click “Next” to start installing. 6. Click “Change…” to select the directory path, or click “Next”.

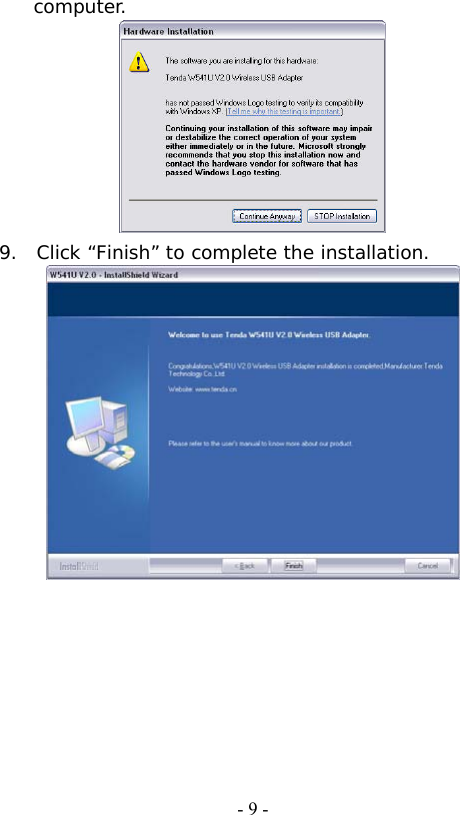

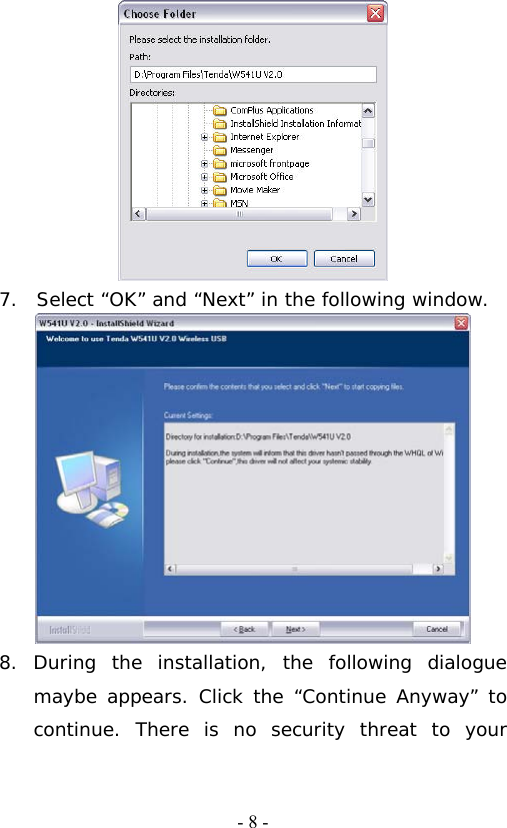

- 8 - 7. Select “OK” and “Next” in the following window. 8. During the installation, the following dialogue maybe appears. Click the “Continue Anyway” to continue. There is no security threat to your

- 9 -computer. 9. Click “Finish” to complete the installation.

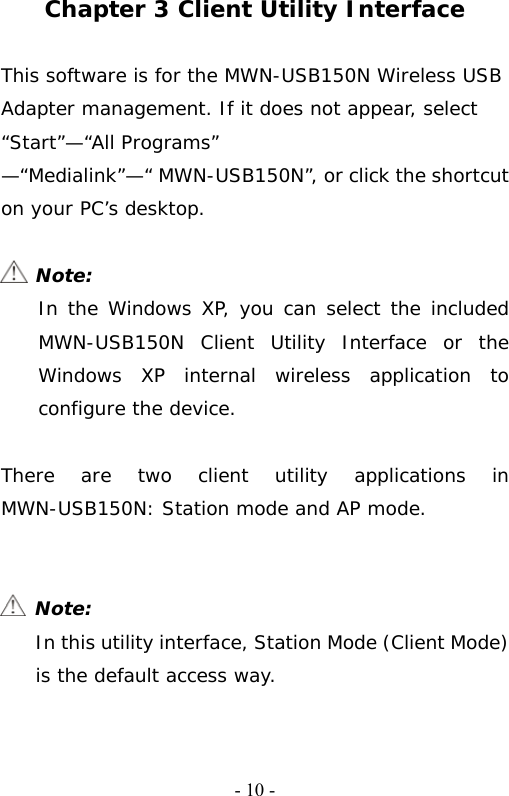

- 10 - Chapter 3 Client Utility Interface This software is for the MWN-USB150N Wireless USB Adapter management. If it does not appear, select “Start”—“All Programs” —“Medialink”—“ MWN-USB150N”, or click the shortcut on your PC’s desktop. Note: In the Windows XP, you can select the included MWN-USB150N Client Utility Interface or the Windows XP internal wireless application to configure the device. There are two client utility applications in MWN-USB150N: Station mode and AP mode. Note: In this utility interface, Station Mode (Client Mode) is the default access way.

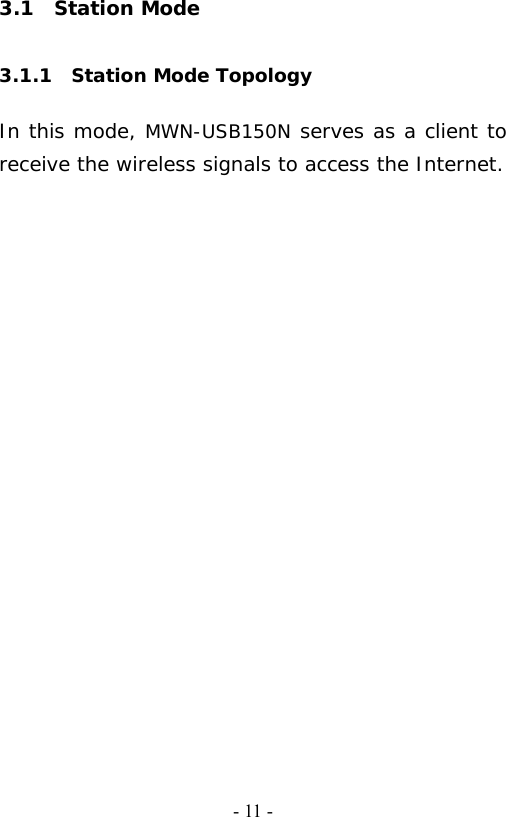

- 11 -3.1 Station Mode 3.1.1 Station Mode Topology In this mode, MWN-USB150N serves as a client to receive the wireless signals to access the Internet.

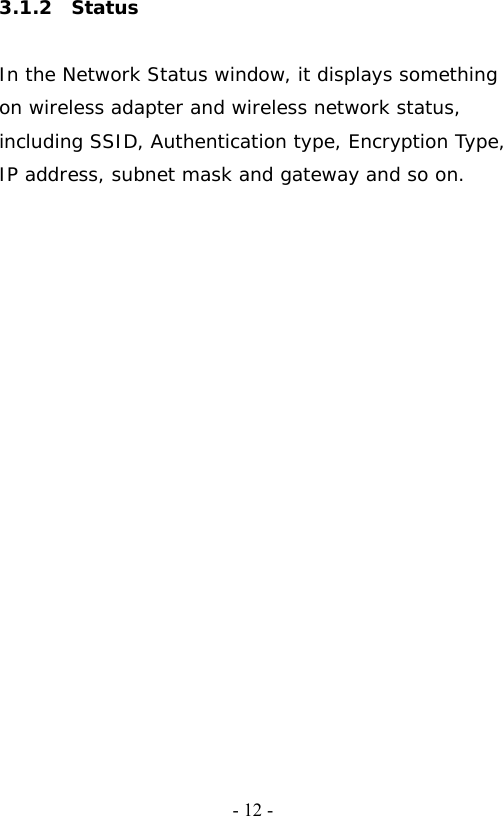

- 12 -3.1.2 Status In the Network Status window, it displays something on wireless adapter and wireless network status, including SSID, Authentication type, Encryption Type, IP address, subnet mask and gateway and so on.

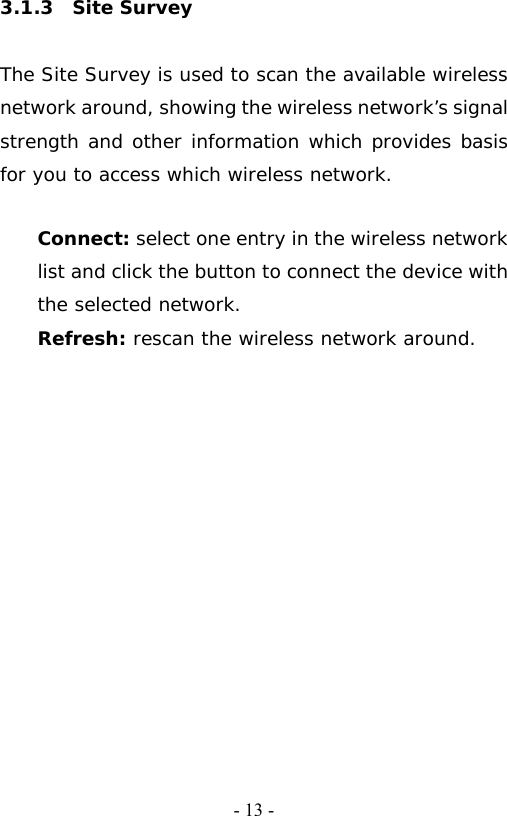

- 13 -3.1.3 Site Survey The Site Survey is used to scan the available wireless network around, showing the wireless network’s signal strength and other information which provides basis for you to access which wireless network. Connect: select one entry in the wireless network list and click the button to connect the device with the selected network. Refresh: rescan the wireless network around.

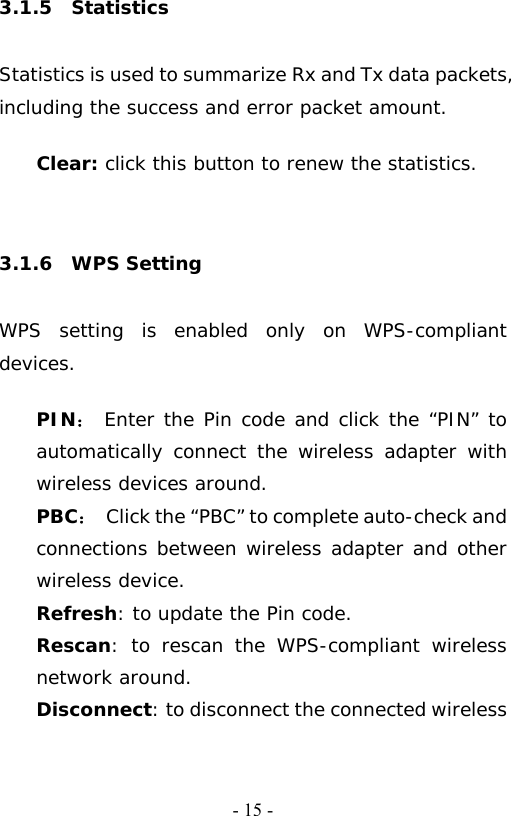

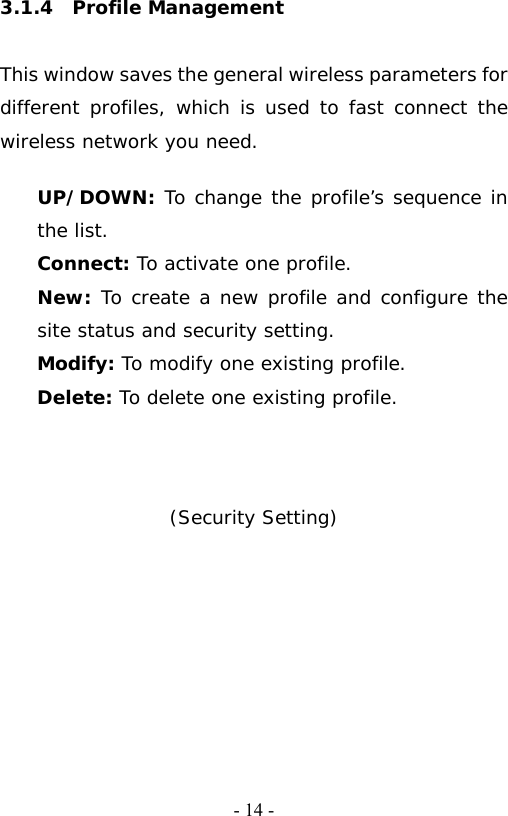

- 15 -3.1.5 Statistics Statistics is used to summarize Rx and Tx data packets, including the success and error packet amount. Clear: click this button to renew the statistics. 3.1.6 WPS Setting WPS setting is enabled only on WPS-compliant devices. PIN： Enter the Pin code and click the “PIN” to automatically connect the wireless adapter with wireless devices around. PBC： Click the “PBC” to complete auto-check and connections between wireless adapter and other wireless device. Refresh: to update the Pin code. Rescan: to rescan the WPS-compliant wireless network around. Disconnect: to disconnect the connected wireless

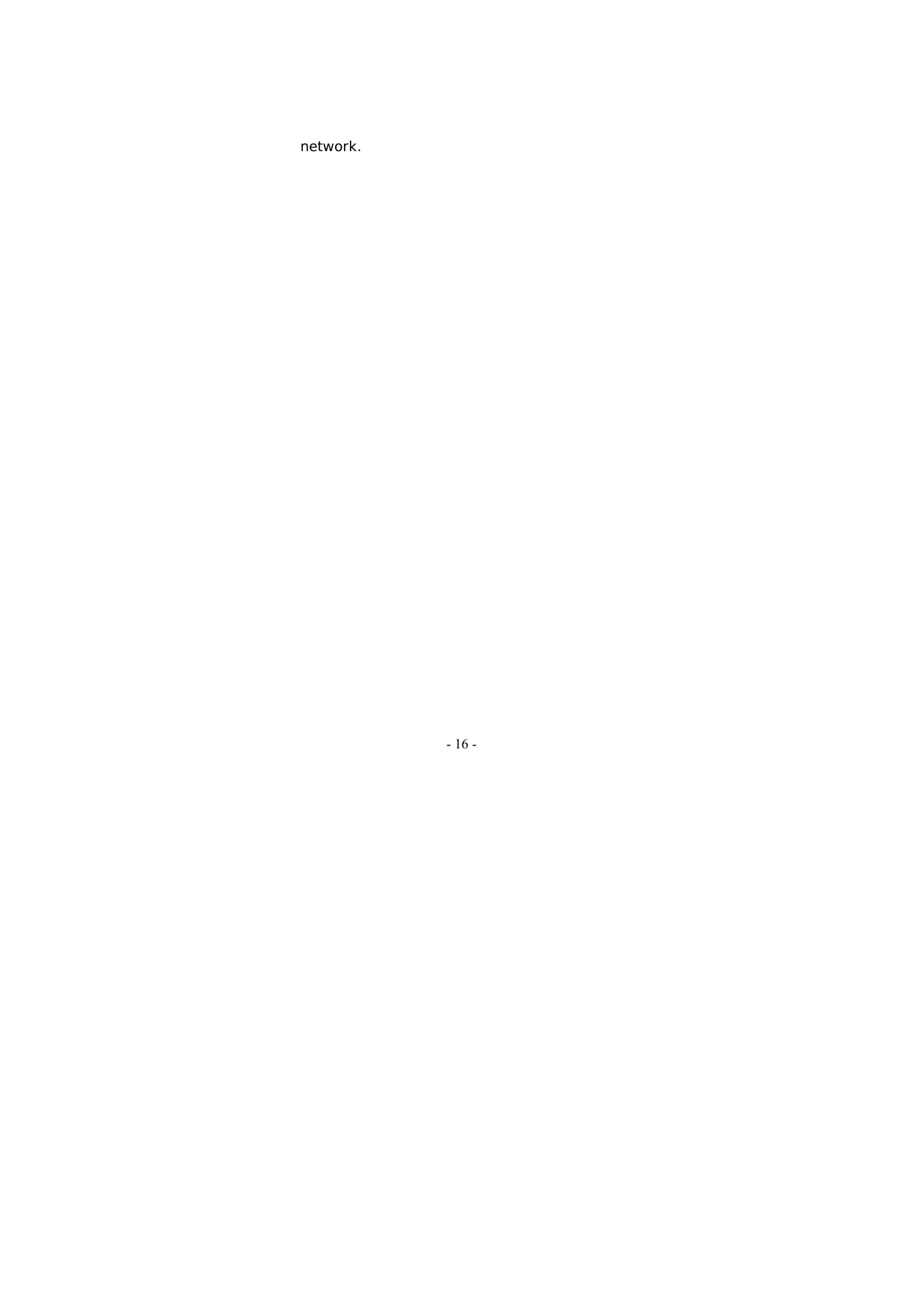

- 16 -network.

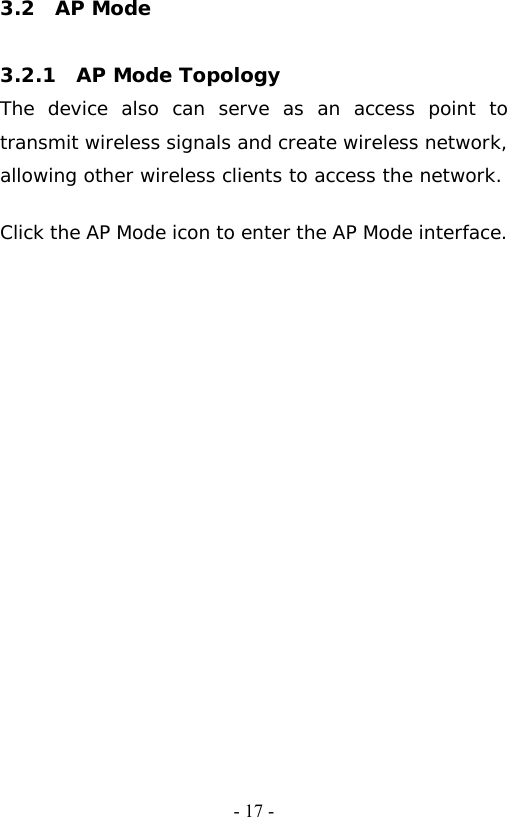

- 17 -3.2 AP Mode 3.2.1 AP Mode Topology The device also can serve as an access point to transmit wireless signals and create wireless network, allowing other wireless clients to access the network. Click the AP Mode icon to enter the AP Mode interface.

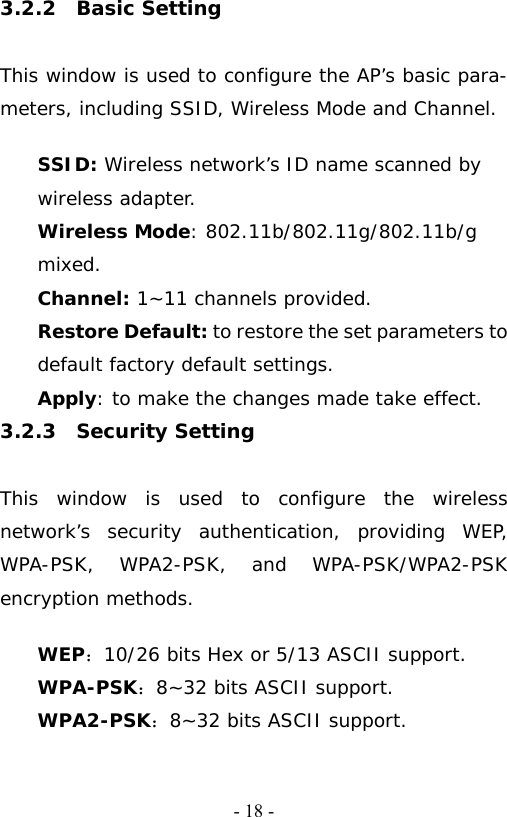

- 18 -3.2.2 Basic Setting This window is used to configure the AP’s basic para- meters, including SSID, Wireless Mode and Channel. SSID: Wireless network’s ID name scanned by wireless adapter. Wireless Mode: 802.11b/802.11g/802.11b/g mixed. Channel: 1~11 channels provided. Restore Default: to restore the set parameters to default factory default settings. Apply: to make the changes made take effect. 3.2.3 Security Setting This window is used to configure the wireless network’s security authentication, providing WEP, WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK encryption methods. WEP：10/26 bits Hex or 5/13 ASCII support. WPA-PSK：8~32 bits ASCII support. WPA2-PSK：8~32 bits ASCII support.

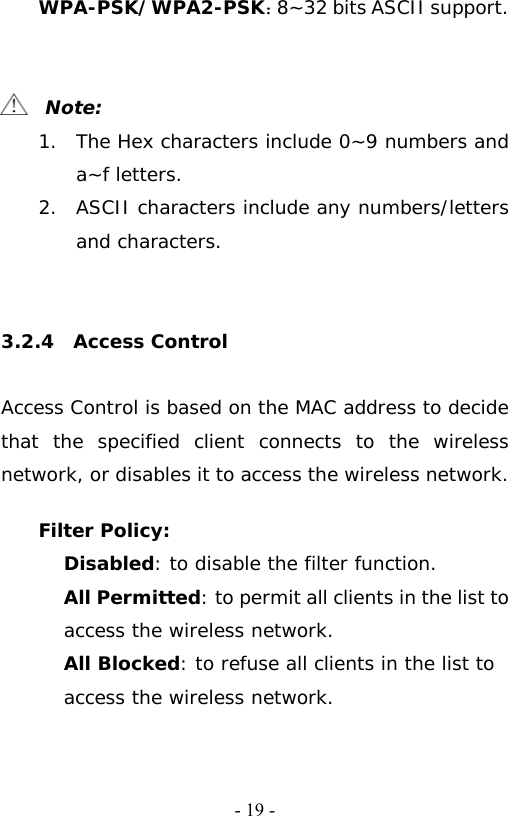

- 19 -WPA-PSK/WPA2-PSK：8~32 bits ASCII support. Note: 1. The Hex characters include 0~9 numbers and a~f letters. 2. ASCII characters include any numbers/letters and characters. 3.2.4 Access Control Access Control is based on the MAC address to decide that the specified client connects to the wireless network, or disables it to access the wireless network. Filter Policy: Disabled: to disable the filter function. All Permitted: to permit all clients in the list to access the wireless network. All Blocked: to refuse all clients in the list to access the wireless network.

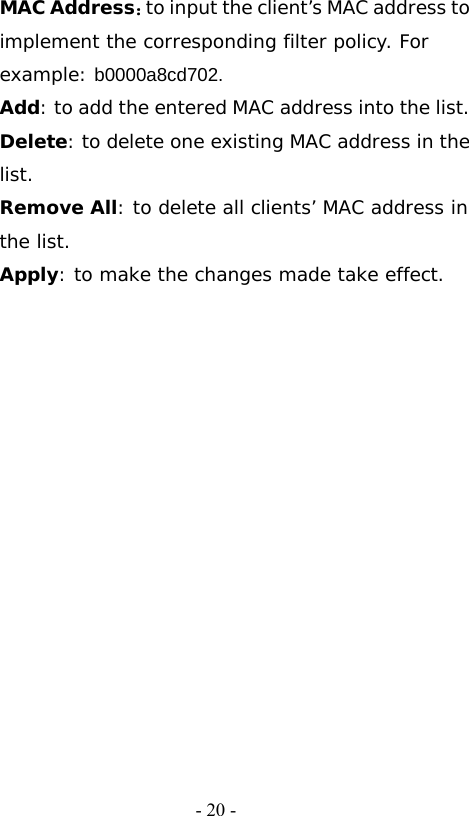

- 20 -MAC Address：to input the client’s MAC address to implement the corresponding filter policy. For example: b0000a8cd702. Add: to add the entered MAC address into the list. Delete: to delete one existing MAC address in the list. Remove All: to delete all clients’ MAC address in the list. Apply: to make the changes made take effect.

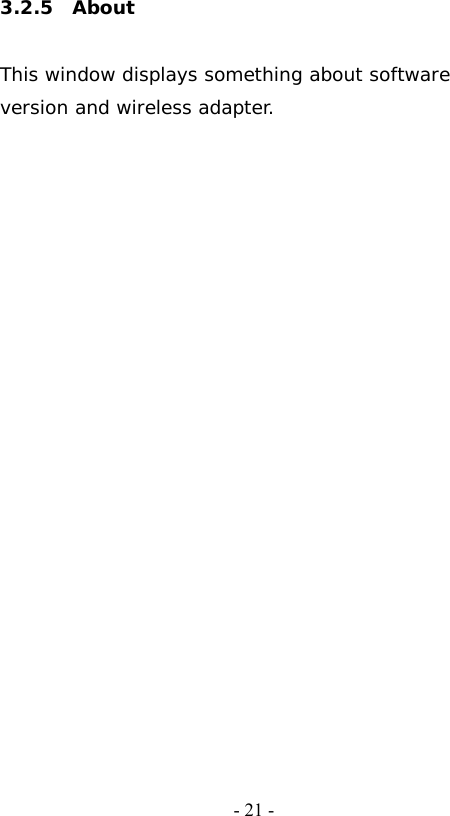

- 21 -3.2.5 About This window displays something about software version and wireless adapter.

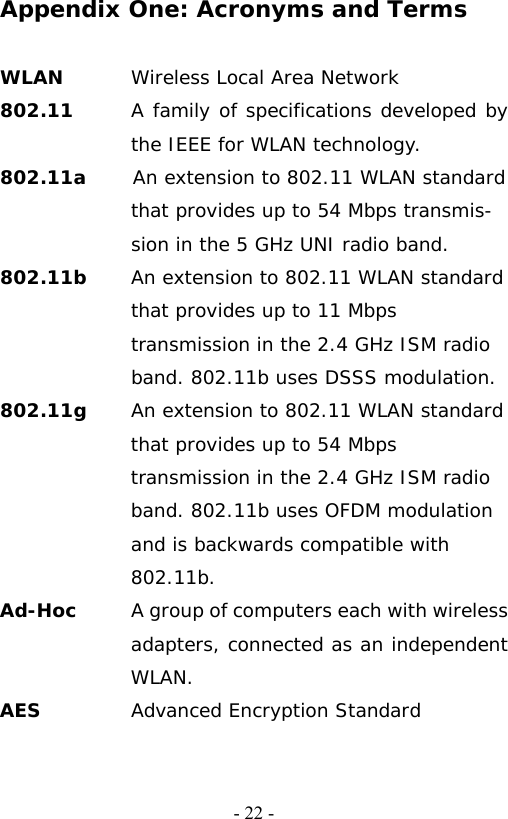

- 22 -Appendix One: Acronyms and Terms WLAN Wireless Local Area Network 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11a An extension to 802.11 WLAN standard that provides up to 54 Mbps transmis- sion in the 5 GHz UNI radio band. 802.11b An extension to 802.11 WLAN standard that provides up to 11 Mbps transmission in the 2.4 GHz ISM radio band. 802.11b uses DSSS modulation. 802.11g An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in the 2.4 GHz ISM radio band. 802.11b uses OFDM modulation and is backwards compatible with 802.11b. Ad-Hoc A group of computers each with wireless adapters, connected as an independent WLAN. AES Advanced Encryption Standard

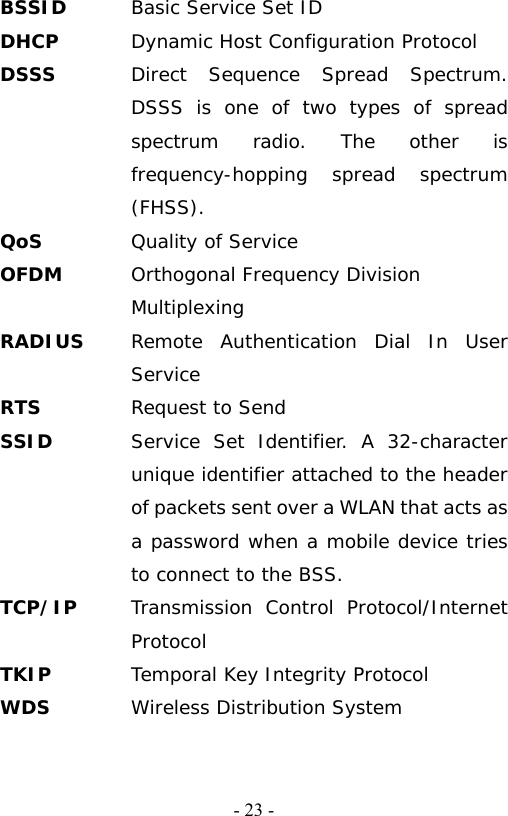

- 23 -BSSID Basic Service Set ID DHCP Dynamic Host Configuration Protocol DSSS Direct Sequence Spread Spectrum. DSSS is one of two types of spread spectrum radio. The other is frequency-hopping spread spectrum (FHSS). QoS Quality of Service OFDM Orthogonal Frequency Division Multiplexing RADIUS Remote Authentication Dial In User Service RTS Request to Send SSID Service Set Identifier. A 32-character unique identifier attached to the header of packets sent over a WLAN that acts as a password when a mobile device tries to connect to the BSS. TCP/IP Transmission Control Protocol/Internet Protocol TKIP Temporal Key Integrity Protocol WDS Wireless Distribution System

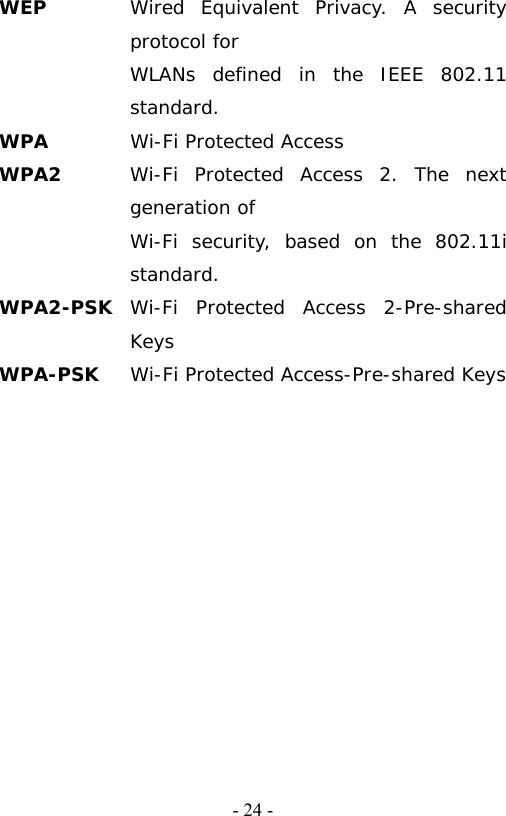

- 24 -WEP Wired Equivalent Privacy. A security protocol for WLANs defined in the IEEE 802.11 standard. WPA Wi-Fi Protected Access WPA2 Wi-Fi Protected Access 2. The next generation of Wi-Fi security, based on the 802.11i standard. WPA2-PSK Wi-Fi Protected Access 2-Pre-shared Keys WPA-PSK Wi-Fi Protected Access-Pre-shared Keys

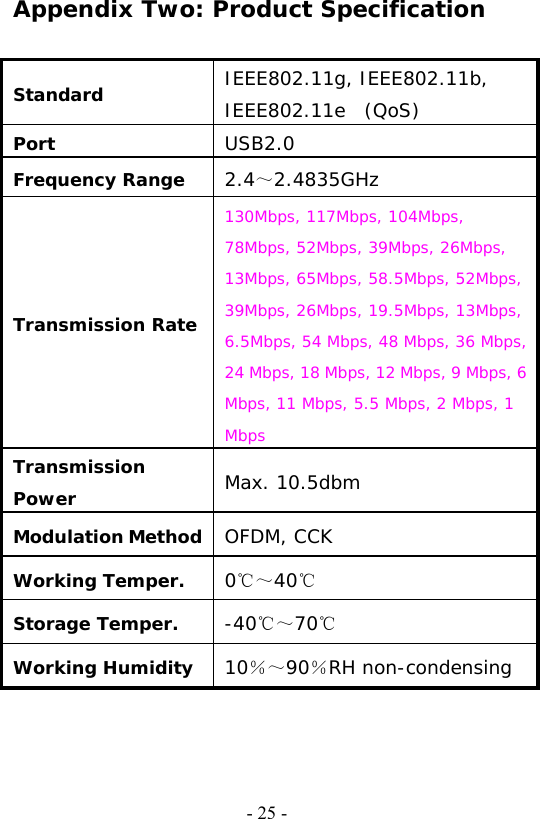

- 25 -Appendix Two: Product Specification Standard IEEE802.11g, IEEE802.11b, IEEE802.11e (QoS) Port USB2.0 Frequency Range 2.4～2.4835GHz Transmission Rate 130Mbps, 117Mbps, 104Mbps, 78Mbps, 52Mbps, 39Mbps, 26Mbps, 13Mbps, 65Mbps, 58.5Mbps, 52Mbps, 39Mbps, 26Mbps, 19.5Mbps, 13Mbps, 6.5Mbps, 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps Transmission Power Max. 10.5dbm Modulation Method OFDM, CCK Working Temper. 0℃～40℃ Storage Temper. -40℃～70℃ Working Humidity 10％～90％RH non-condensing

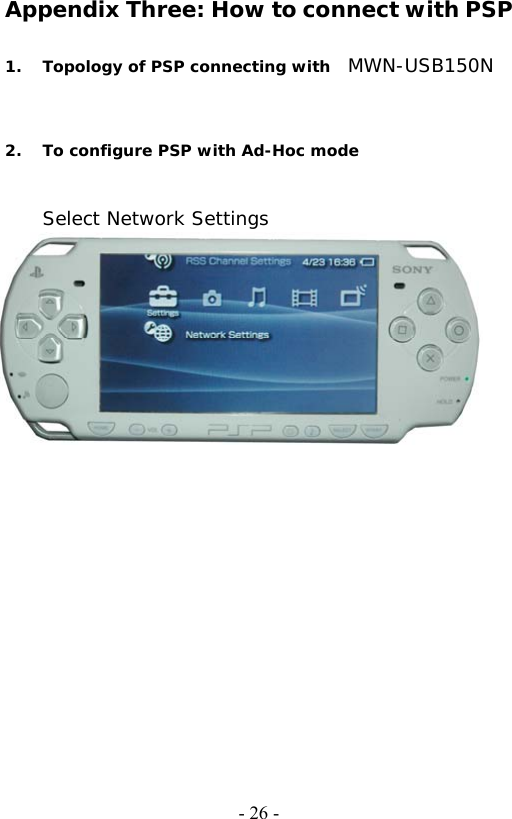

- 26 -Appendix Three: How to connect with PSP 1. Topology of PSP connecting with MWN-USB150N 2. To configure PSP with Ad-Hoc mode Select Network Settings

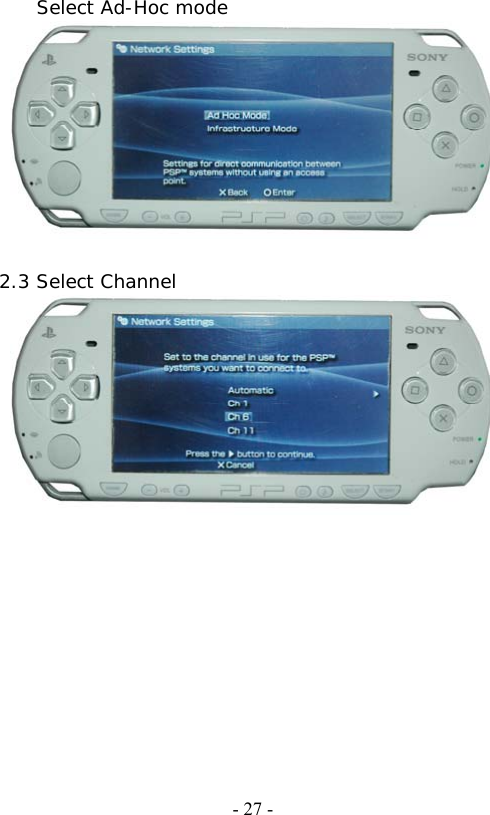

- 27 - Select Ad-Hoc mode 2.3 Select Channel

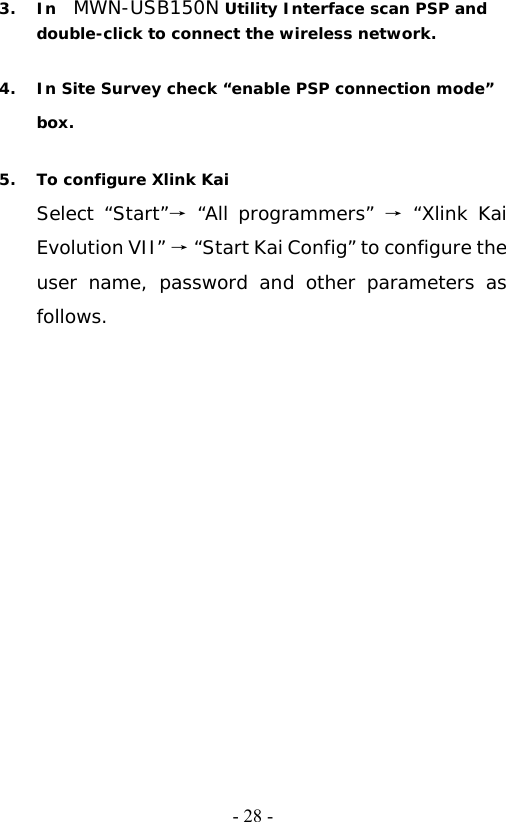

- 28 -3. In MWN-USB150N Utility Interface scan PSP and double-click to connect the wireless network. 4. In Site Survey check “enable PSP connection mode” box. 5. To configure Xlink Kai Select “Start”→ “All programmers” → “Xlink Kai Evolution VII” → “Start Kai Config” to configure the user name, password and other parameters as follows.

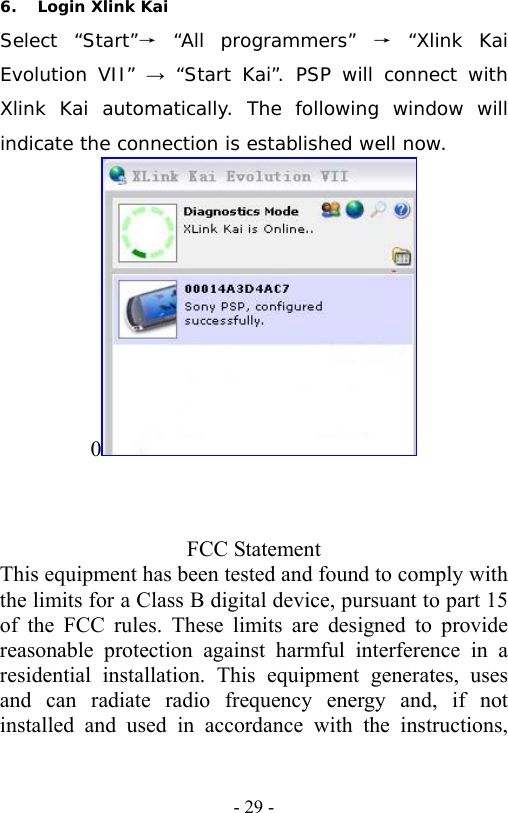

- 29 -6. Login Xlink Kai Select “Start”→ “All programmers” → “Xlink Kai Evolution VII” → “Start Kai”. PSP will connect with Xlink Kai automatically. The following window will indicate the connection is established well now. 0 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

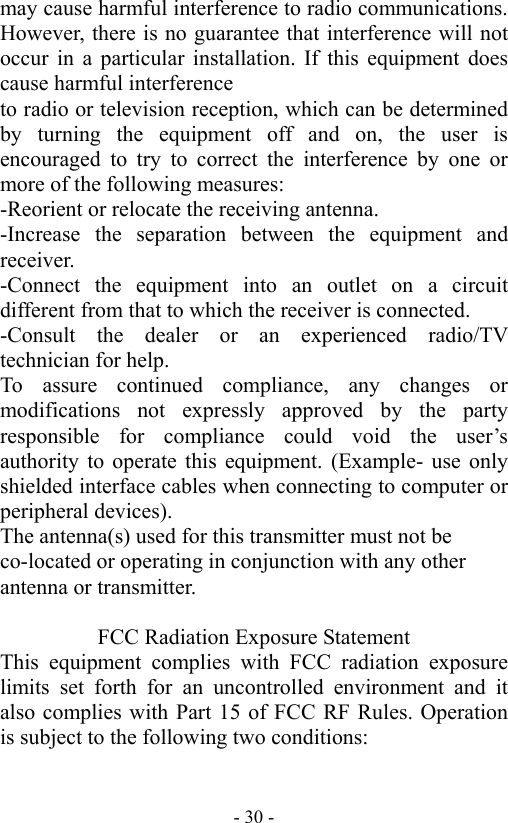

- 30 -may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions:

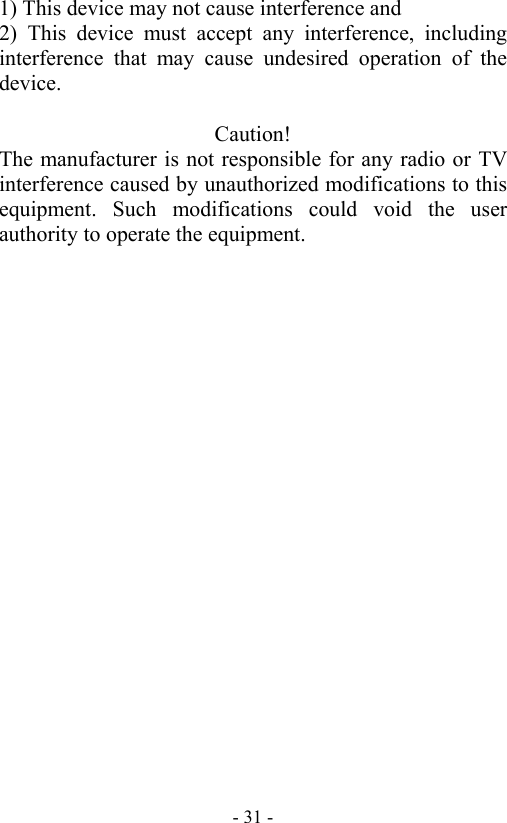

- 31 -1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
