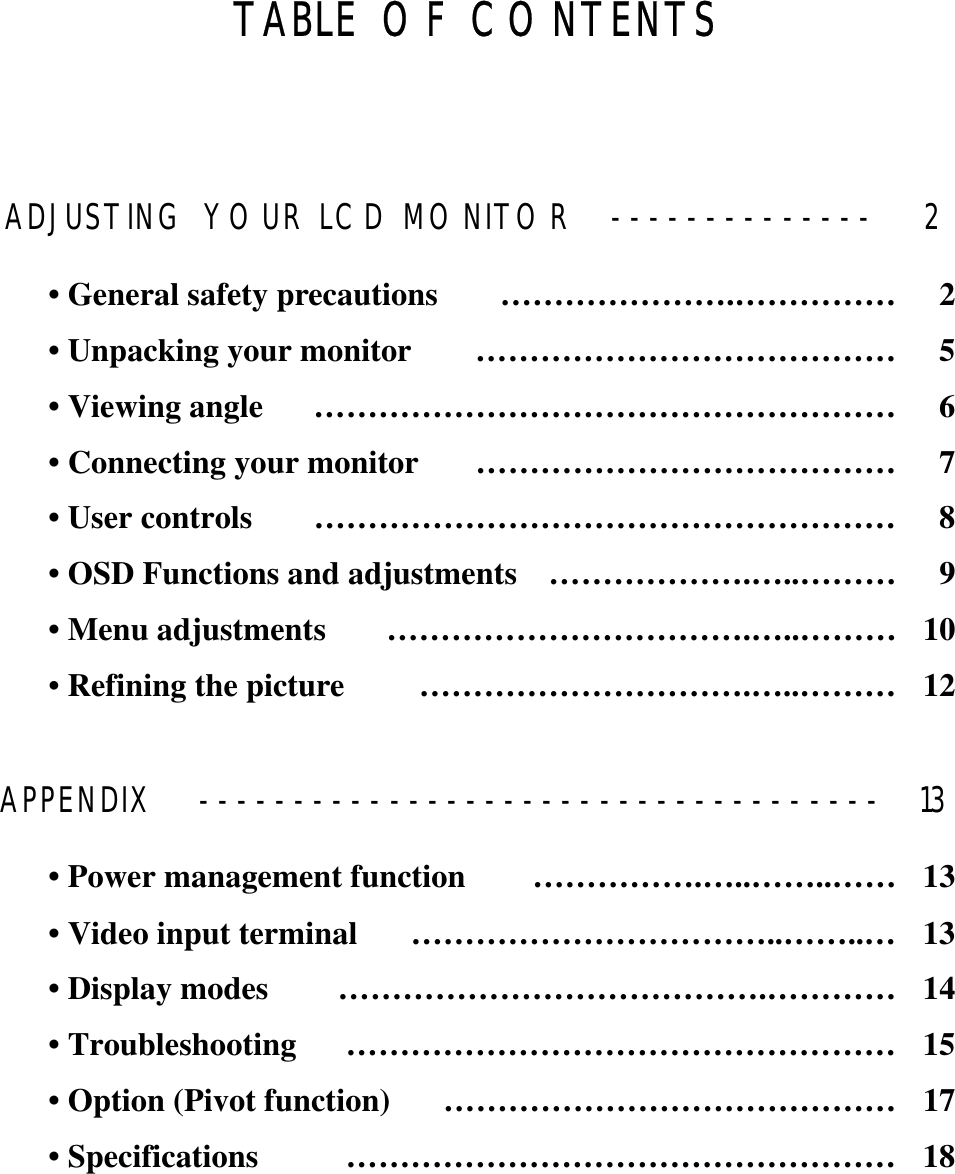

GGGGTABLE OF CONTENTS ADJUSTING YOUR LCD MONITOR -------------- 2 • General safety precautions ………………….…………… 2 • Unpacking your monitor ………………………………… 5 • Viewing angle ……………………………………………… 6 • Connecting your monitor ………………………………… 7 • User controls ……………………………………………… 8 • OSD Functions and adjustments ……………….…..……… 9 • Menu adjustments …………………………….…..……… 10 •Refining the picture ………………………….…..……… 12 APPENDIX ------------------------------------ 13 • Power management function …………….…..……..…… 13 • Video input terminal ……………………………..……..… 13 • Display modes ………………………………….………… 14 • Troubleshooting …………………………………………… 15 • Option (Pivot function) …………………………………… 17 • Specifications …………………………………………… 18

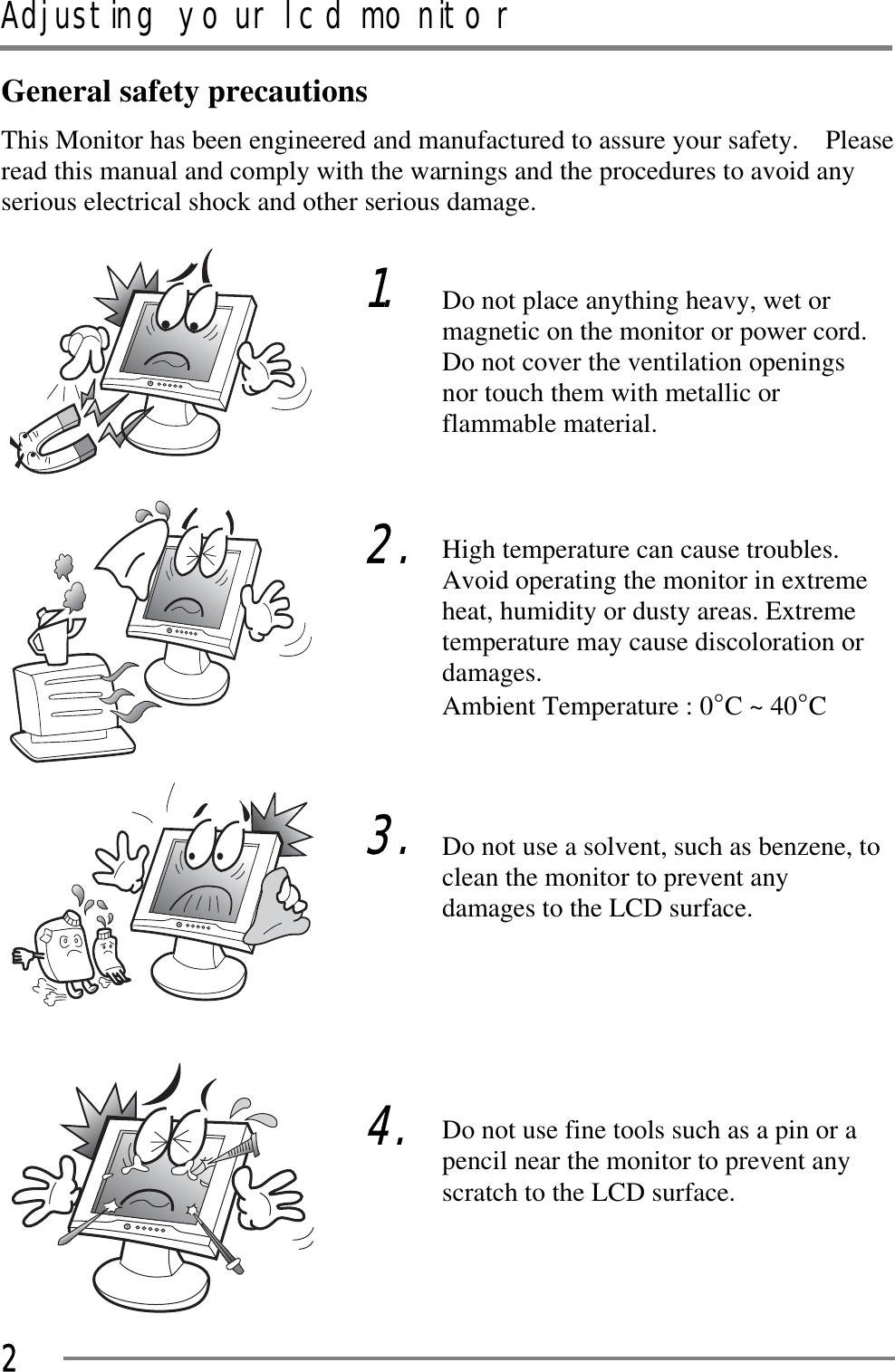

Adjusting your lcd monitorGGG2General safety precautions This Monitor has been engineered and manufactured to assure your safety. Please read this manual and comply with the warnings and the procedures to avoid any serious electrical shock and other serious damage. GGGGGGGGGGGGGGGGGGGGGGGGGGGGG1.GG2.GGG3.GGG4.Do not place anything heavy, wet or magnetic on the monitor or power cord. Do not cover the ventilation openings nor touch them with metallic or flammable material. GHigh temperature can cause troubles. Avoid operating the monitor in extreme heat, humidity or dusty areas. Extreme temperature may cause discoloration or damages. Ambient Temperature : 0¶C ~ 40¶CGGDo not use a solvent, such as benzene, to clean the monitor to prevent any damages to the LCD surface. GGGGDo not use fine tools such as a pin or a pencil near the monitor to prevent any scratch to the LCD surface.

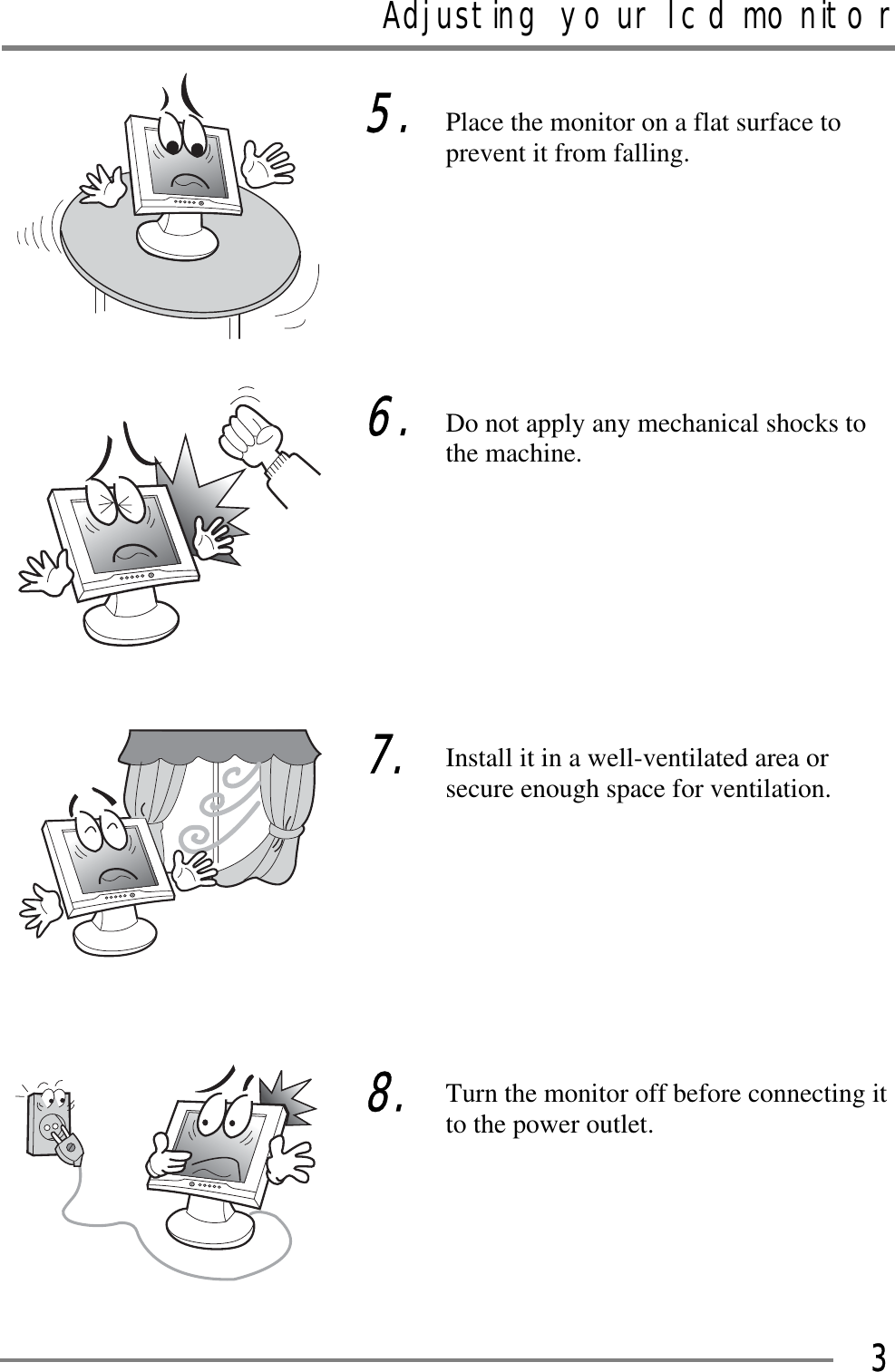

Adjusting your lcd monitorGGG3GGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGG5.GGGGGG6.GGGGGGG7.GGGGGGG8.Place the monitor on a flat surface to prevent it from falling. GGGGGGDo not apply any mechanical shocks to the machine. GGGGGGGInstall it in a well-ventilated area or secure enough space for ventilation. GGGGGGGTurn the monitor off before connecting itto the power outlet. G

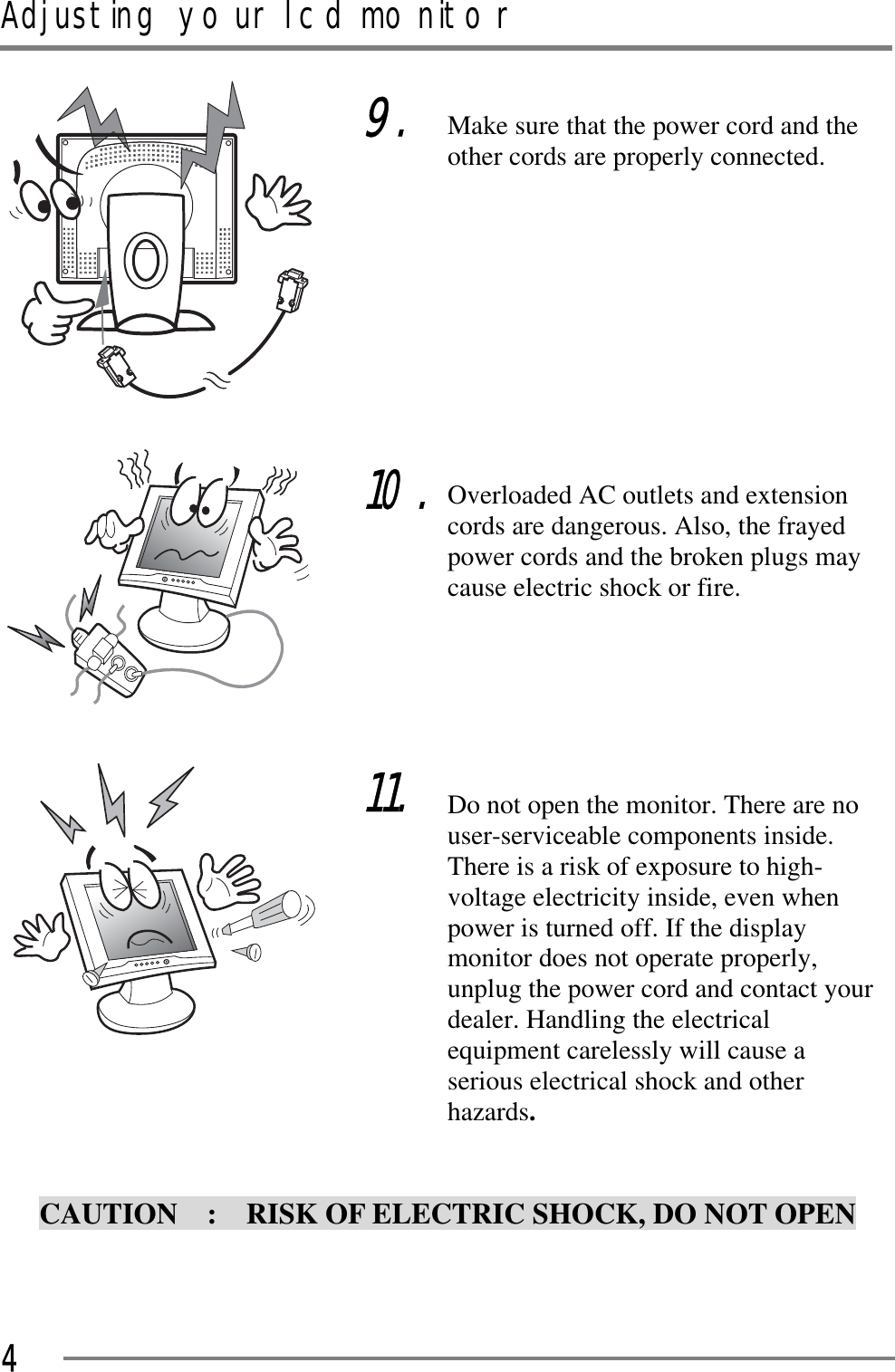

Adjusting your lcd monitorGGG4GGGGGCAUTION : RISK OF ELECTRIC SHOCK, DO NOT OPEN G9.GGGGGGGG10.GGGGGG11.Make sure that the power cord and the other cords are properly connected. GGGGGGGGOverloaded AC outlets and extension cords are dangerous. Also, the frayed power cords and the broken plugs may cause electric shock or fire. GGGGDo not open the monitor. There are no user-serviceable components inside. There is a risk of exposure to high-voltage electricity inside, even when power is turned off. If the display monitor does not operate properly, unplug the power cord and contact your dealer. Handling the electrical equipment carelessly will cause a serious electrical shock and otherGhazards.

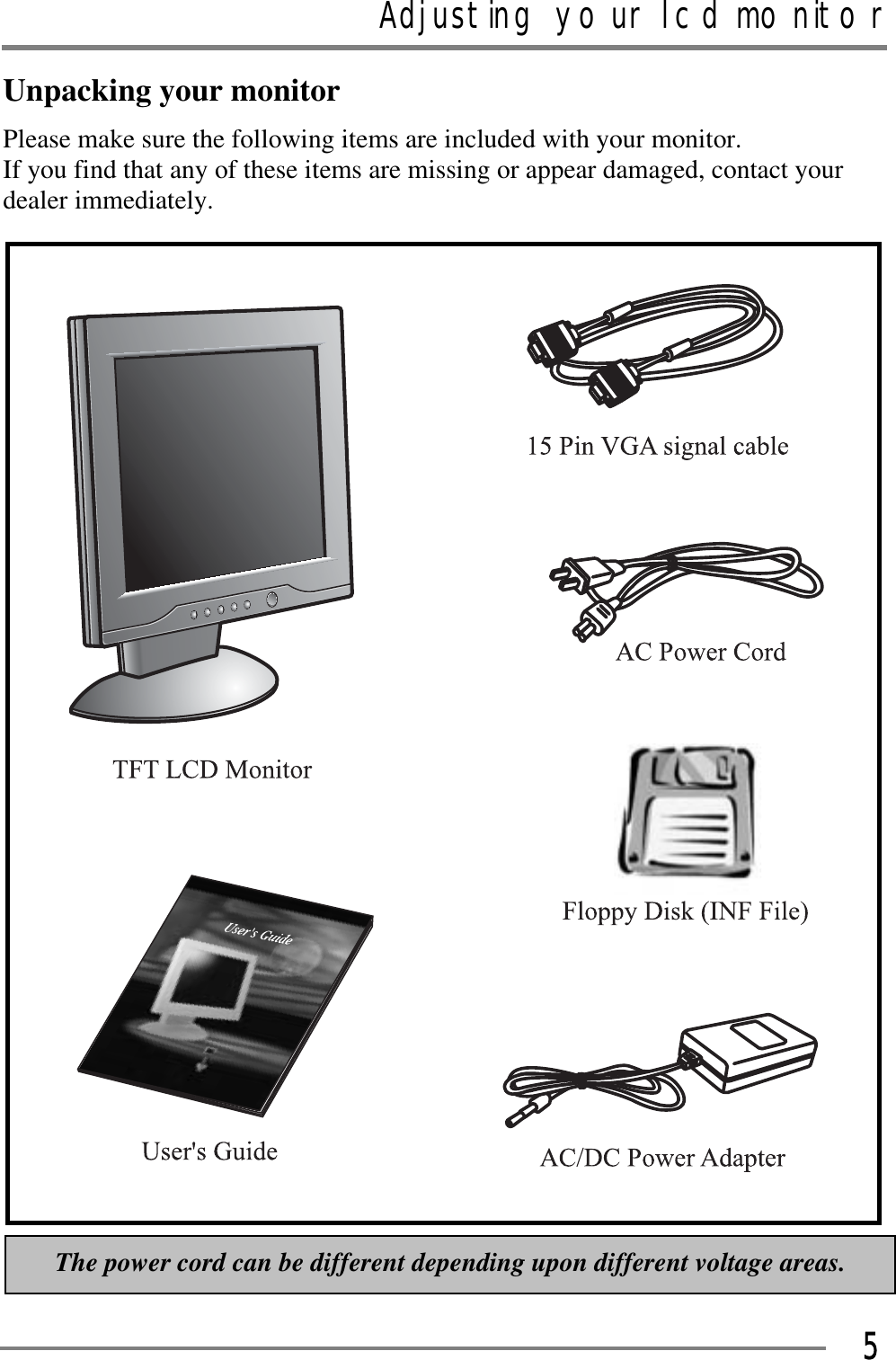

Adjusting your lcd monitorGGG5Unpacking your monitor Please make sure the following items are included with your monitor. If you find that any of these items are missing or appear damaged, contact your dealer immediately. GGGGGThe power cord can be different depending upon different voltage areas.

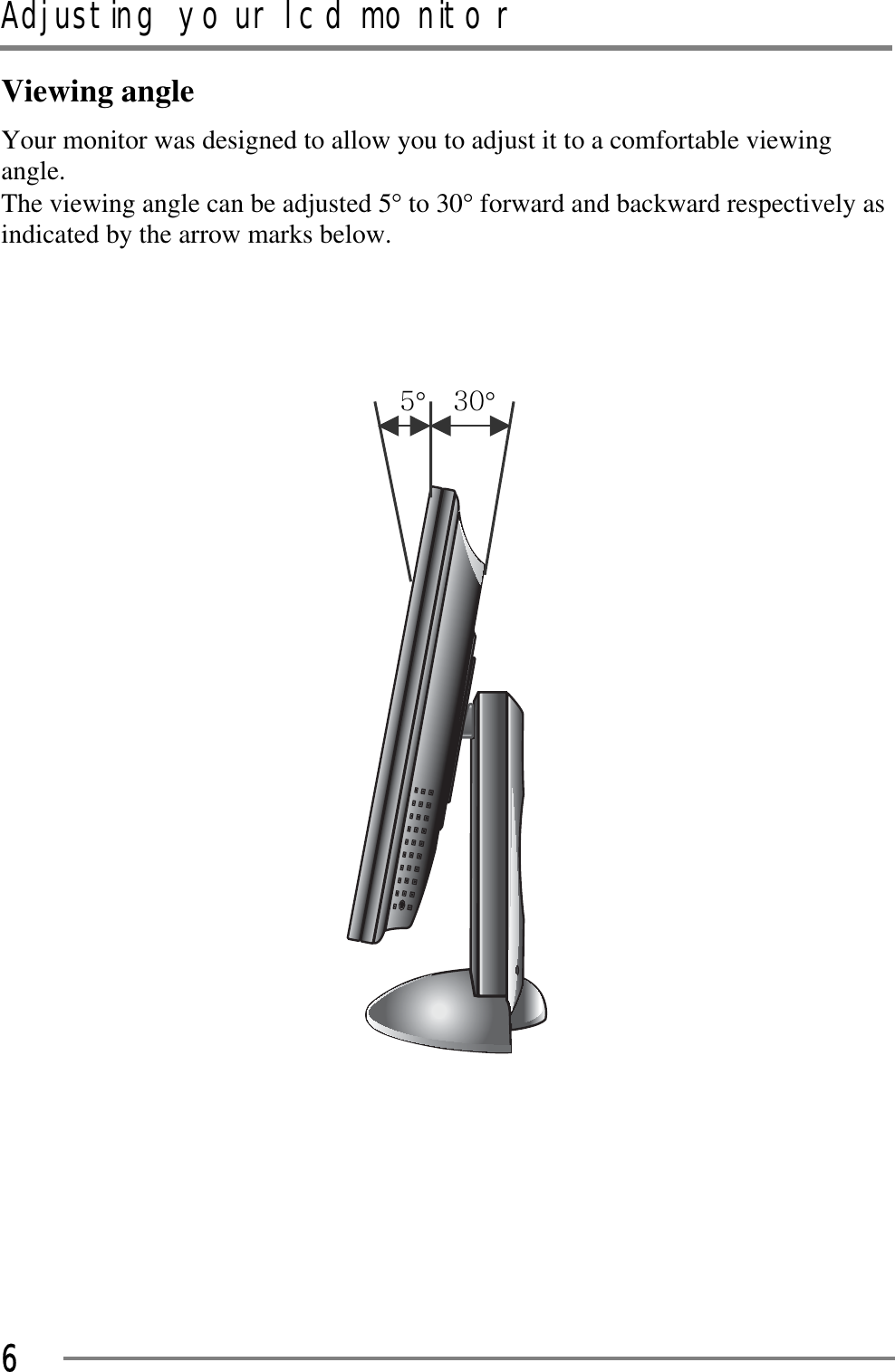

$Adjusting your lcd monitorGGG6Viewing angle Your monitor was designed to allow you to adjust it to a comfortable viewing angle. The viewing angle can be adjusted 5q to 30q forward and backward respectively as indicated by the arrow marks below. GGG\qGGZWqGGGGGGGGG$

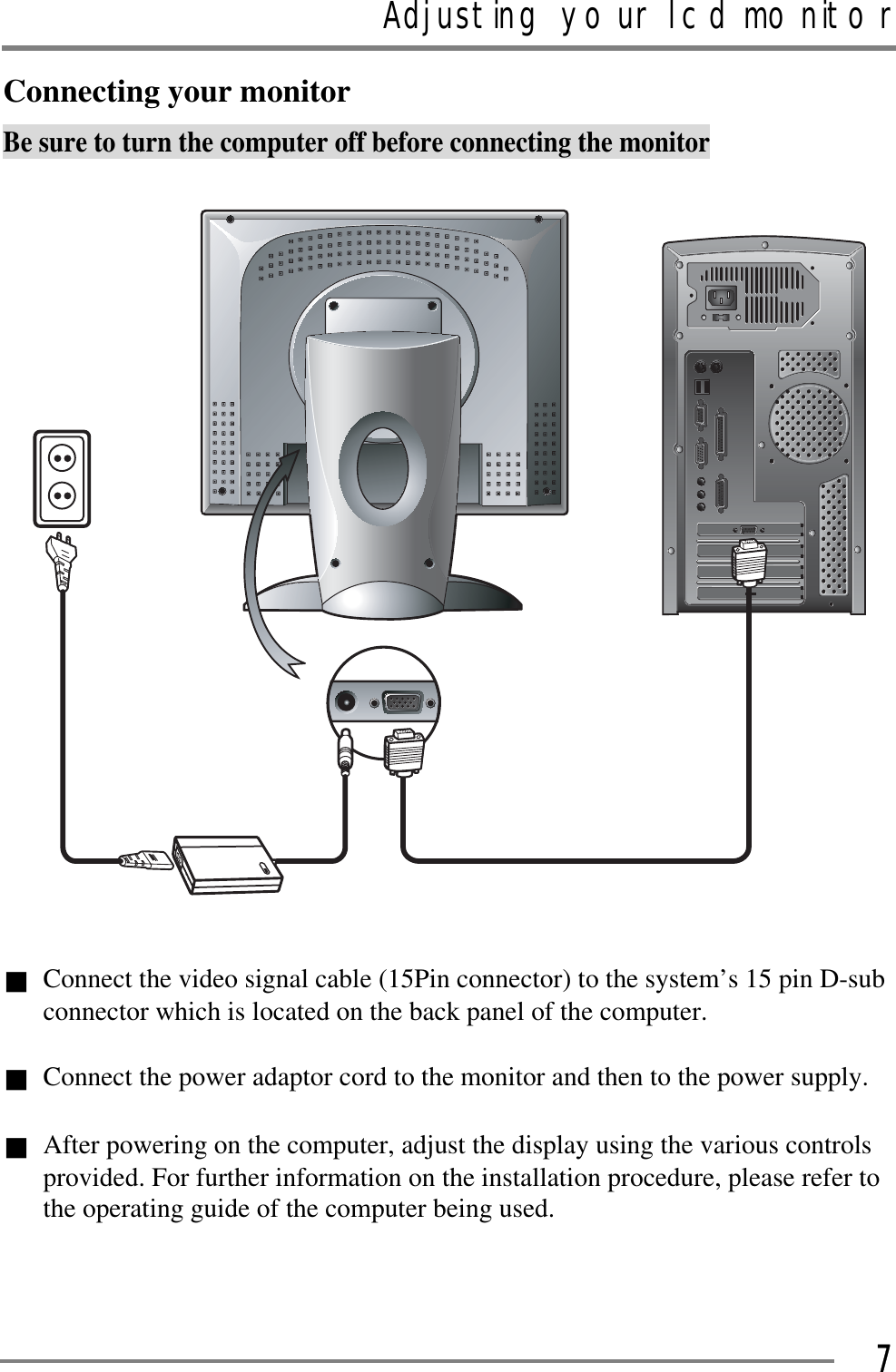

Adjusting your lcd monitorGGG7Connecting your monitor Be sure to turn the computer off before connecting the monitor Connect the video signal cable (15Pin connector) to the system’s 15 pin D-sub connector which is located on the back panel of the computer. GConnect the power adaptor cord to the monitor and then to the power supply. GAfter powering on the computer, adjust the display using the various controls provided. For further information on the installation procedure, please refer to the operating guide of the computer being used.

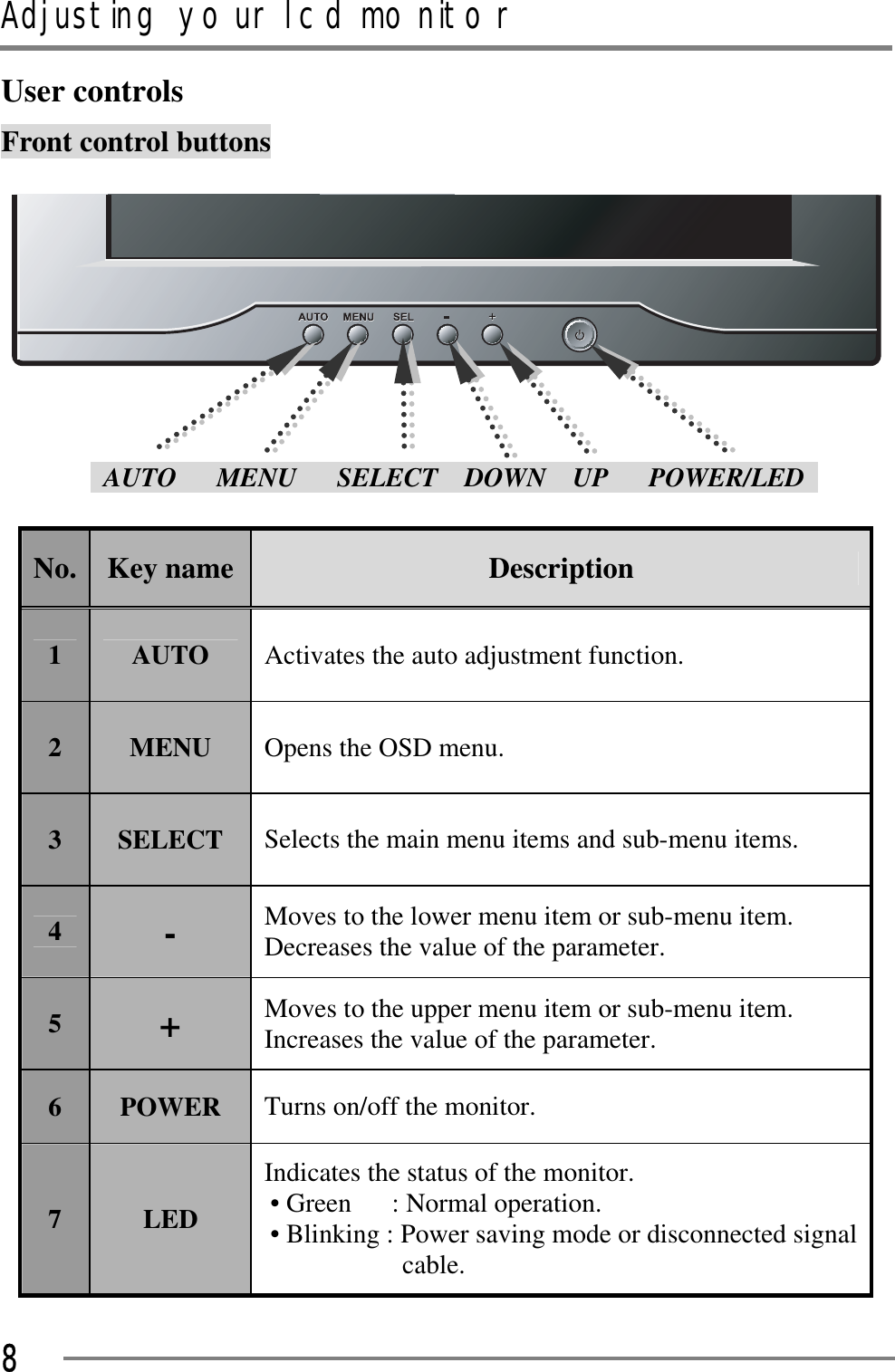

Adjusting your lcd monitorGGG8User controls Front control buttons AUTO MENU SELECT DOWN UP POWER/LED No. Key name Description1AUTO Activates the auto adjustment function. 2MENU Opens the OSD menu. 3SELECT Selects the main menu items and sub-menu items. 4-Moves to the lower menu item or sub-menu item. Decreases the value of the parameter. 5+Moves to the upper menu item or sub-menu item. Increases the value of the parameter. 6POWER Turns on/off the monitor. 7LEDIndicates the status of the monitor. • Green : Normal operation. • Blinking : Power saving mode or disconnected signal cable.G

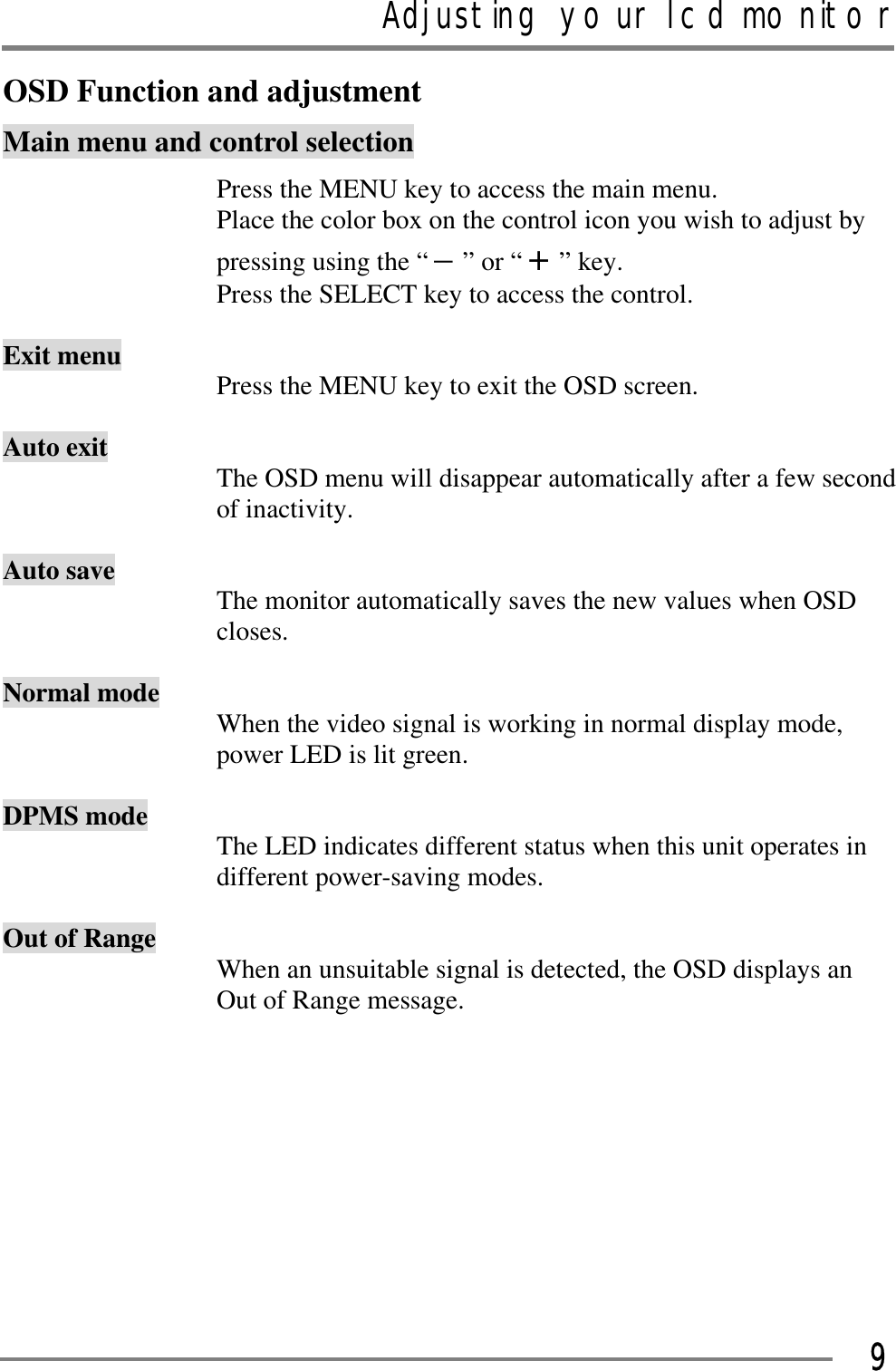

Adjusting your lcd monitorGGG9OSD Function and adjustment Main menu and control selection Press the MENU key to access the main menu. Place the color box on the control icon you wish to adjust by pressing using the “ –” or “ +” key. Press the SELECT key to access the control. Exit menu Press the MENU key to exit the OSD screen. Auto exit The OSD menu will disappear automatically after a few second of inactivity. Auto save The monitor automatically saves the new values when OSD closes. Normal mode When the video signal is working in normal display mode, power LED is lit green. DPMS mode The LED indicates different status when this unit operates in different power-saving modes. Out of Range When an unsuitable signal is detected, the OSD displays an Out of Range message. GGGGG

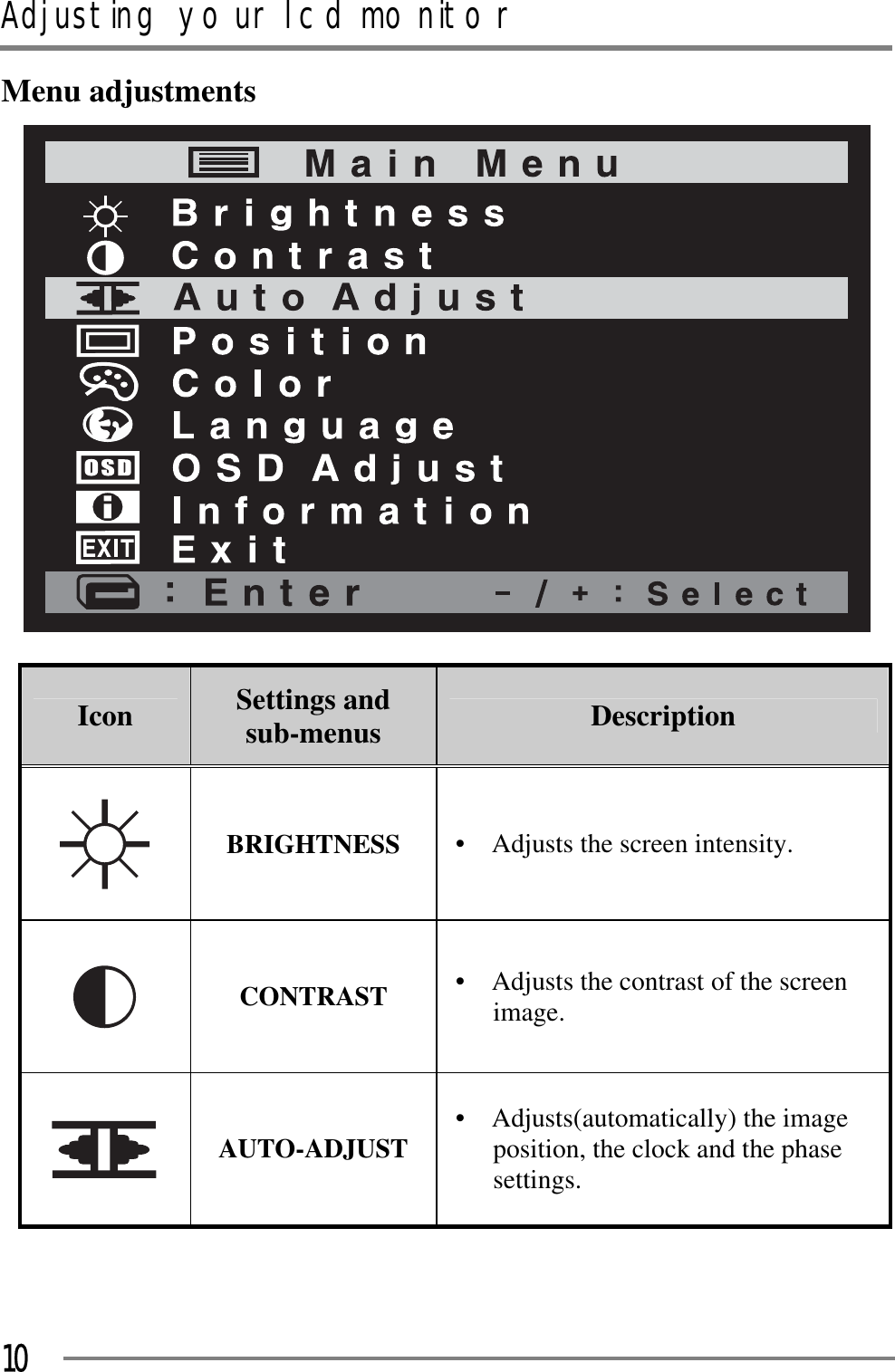

Adjusting your lcd monitorGGG10Menu adjustments GIcon Settings and sub-menus Description BRIGHTNESS • Adjusts the screen intensity. CONTRAST • Adjusts the contrast of the screen image. AUTO-ADJUST • Adjusts(automatically) the image position, the clock and the phase settings. G

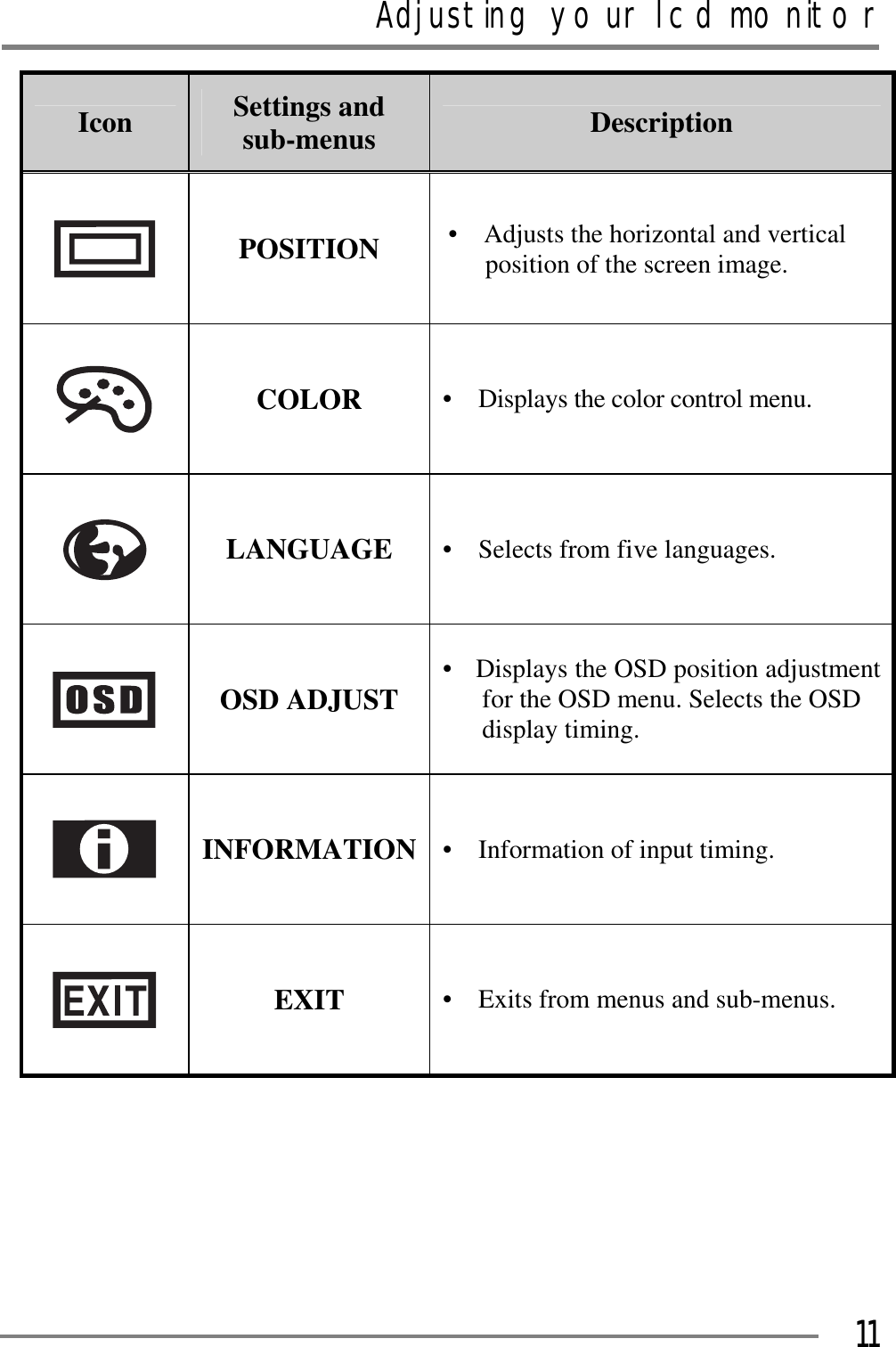

Adjusting your lcd monitorGGG11Icon Settings and sub-menus DescriptionPOSITION • Adjusts the horizontal and vertical position of the screen image. GCOLOR • Displays the color control menu. GLANGUAGE • Selects from five languages. OSD ADJUST • Displays the OSD position adjustment for the OSD menu. Selects the OSD display timing. INFORMATION • Information of input timing. EXIT • Exits from menus and sub-menus. G

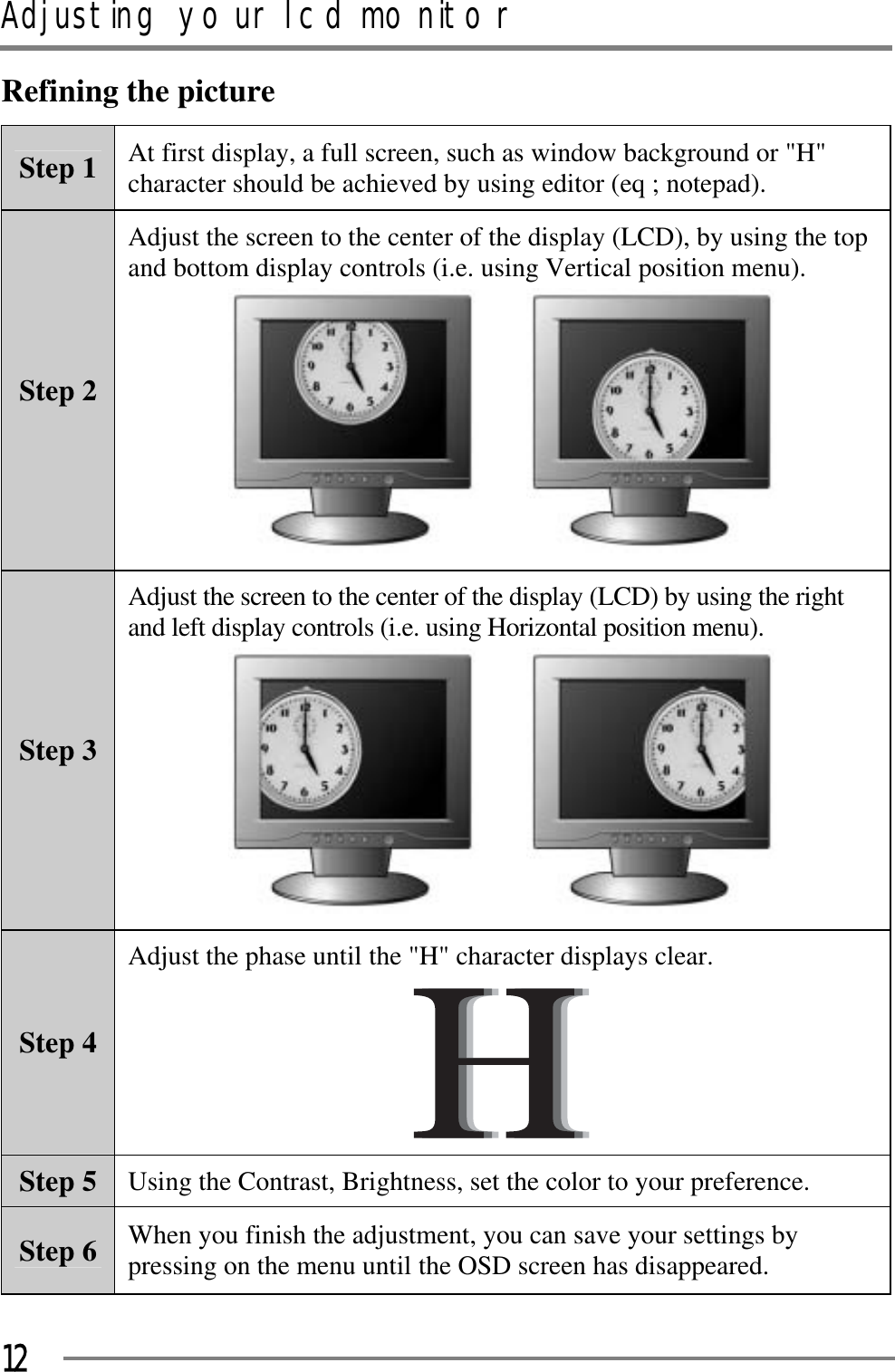

Adjusting your lcd monitorGGG12Refining the pictureStep 1 At first display, a full screen, such as window background or "H" character should be achieved by using editor (eq ; notepad). Step 2 Adjust the screen to the center of the display (LCD), by using the top and bottom display controls (i.e. using Vertical position menu). GG GStep 3 Adjust the screen to the center of the display (LCD) by using the right and left display controls (i.e. using Horizontal position menu). GG GStep 4 Adjust the phase until the "H" character displays clear. GStep 5 Using the Contrast, Brightness, set the color to your preference. Step 6 When you finish the adjustment, you can save your settings by pressing on the menu until the OSD screen has disappeared.

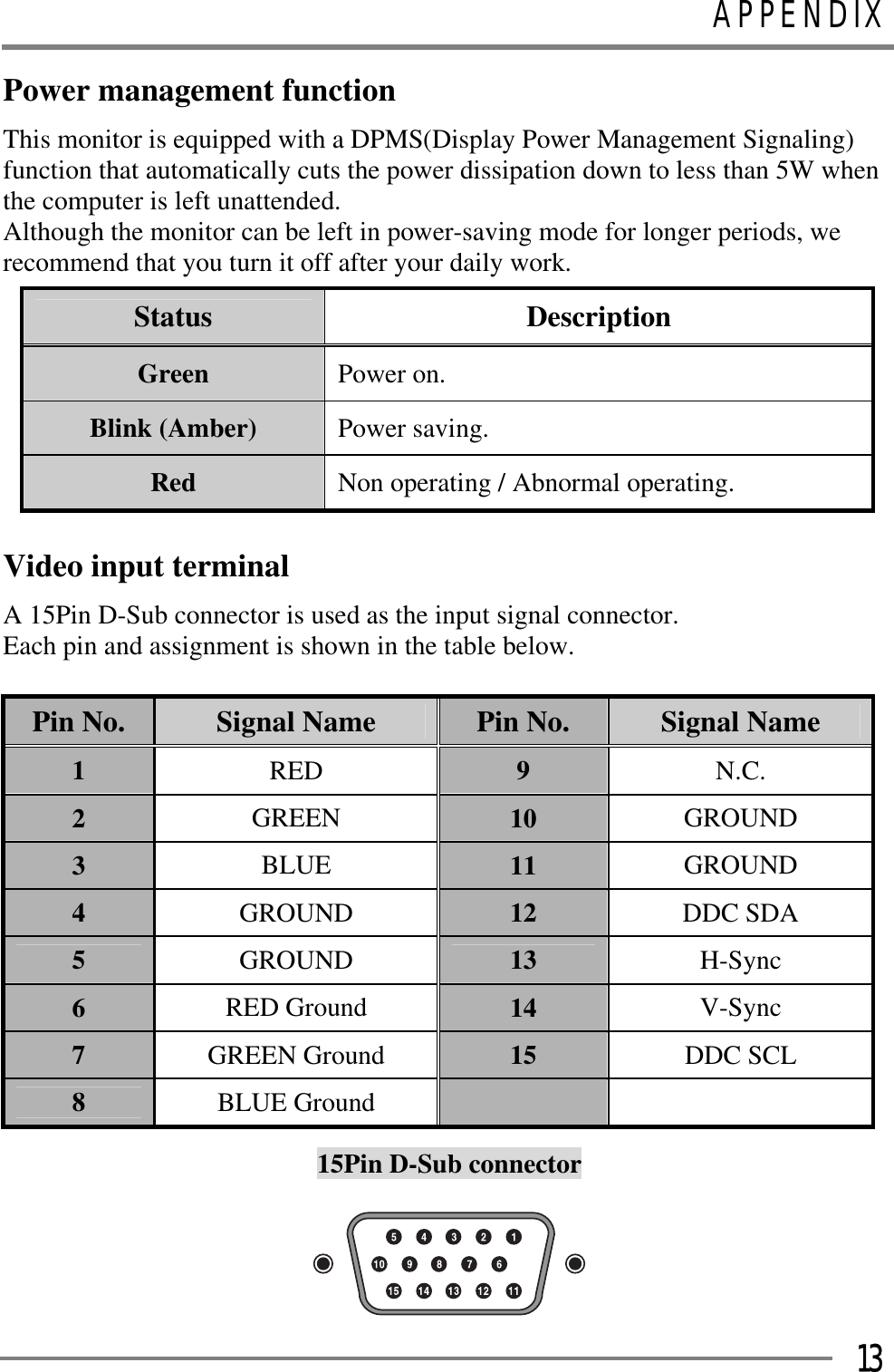

APPENDIXGGG13Power management function This monitor is equipped with a DPMS(Display Power Management Signaling) function that automatically cuts the power dissipation down to less than 5W when the computer is left unattended. Although the monitor can be left in power-saving mode for longer periods, we recommend that you turn it off after your daily work. GStatus Description Green Power on. Blink (Amber) Power saving. Red Non operating / Abnormal operating. Video input terminal A 15Pin D-Sub connector is used as the input signal connector. Each pin and assignment is shown in the table below. Pin No. Signal Name Pin No. Signal Name 1RED 9N.C. 2GREEN 10 GROUND3BLUE 11 GROUND4GROUND 12 DDC SDA 5GROUND 13 H-Sync 6RED Ground 14 V-Sync 7GREEN Ground 15 DDC SCL 8BLUE Ground 15Pin D-Sub connector

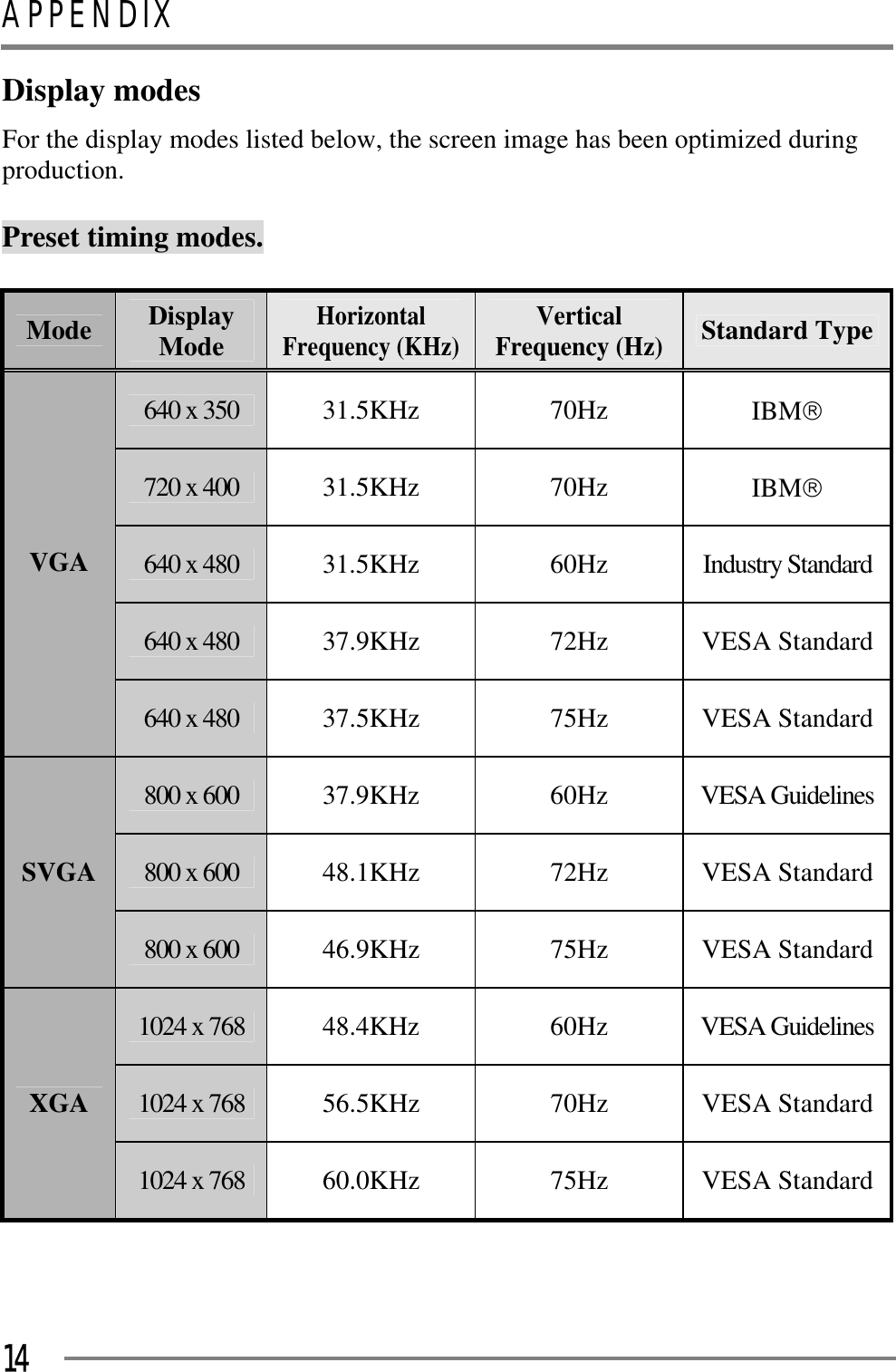

APPENDIXGGG14Display modes For the display modes listed below, the screen image has been optimized during production. GPreset timing modes. GMode Display ModeHorizontal Frequency (KHz)Vertical Frequency (Hz)Standard Type640 x 350 31.5KHz 70Hz IBM£720 x 400 31.5KHz 70Hz IBM£640 x 480 31.5KHz 60Hz Industry Standard640 x 480 37.9KHz 72Hz VESA StandardVGA640 x 480 37.5KHz 75Hz VESA Standard800 x 600 37.9KHz 60Hz VESA Guidelines800 x 600 48.1KHz 72Hz VESA StandardSVGA 800 x 600 46.9KHz 75Hz VESA Standard1024 x 768 48.4KHz 60Hz VESA Guidelines1024 x 768 56.5KHz 70Hz VESA StandardXGA1024 x 768 60.0KHz 75Hz VESA Standard

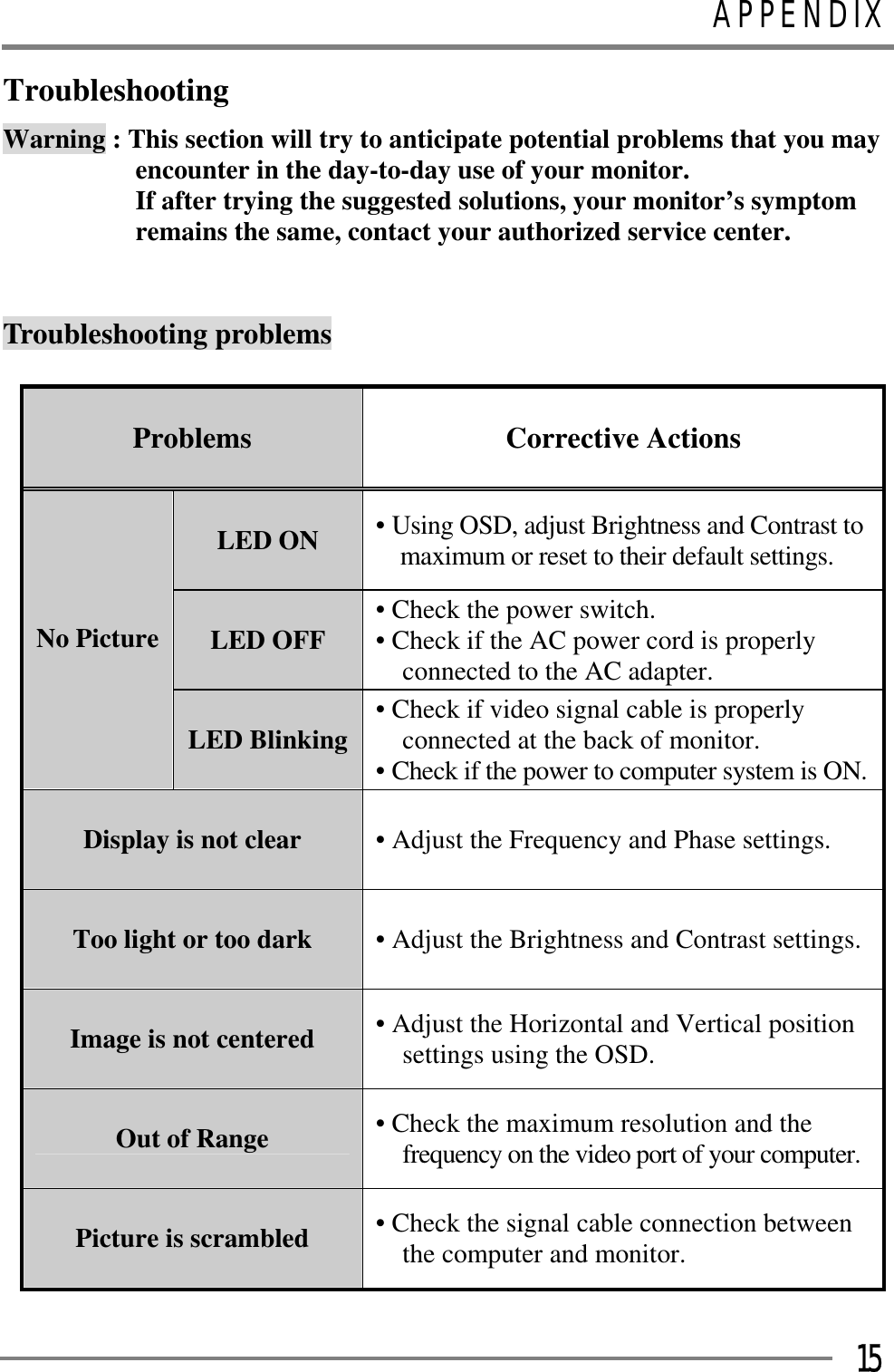

APPENDIXGGG15Troubleshooting Warning : This section will try to anticipate potential problems that you may encounter in the day-to-day use of your monitor. If after trying the suggested solutions, your monitor’s symptom remains the same, contact your authorized service center. GGTroubleshooting problems GProblems Corrective Actions LED ON • Using OSD, adjust Brightness and Contrast to maximum or reset to their default settings. LED OFF • Check the power switch. • Check if the AC power cord is properly connected to the AC adapter. No Picture LED Blinking • Check if video signal cable is properly connected at the back of monitor. • Check if the power to computer system is ON.Display is not clear • Adjust the Frequency and Phase settings. Too light or too dark • Adjust the Brightness and Contrast settings.Image is not centered • Adjust the Horizontal and Vertical position settings using the OSD. Out of Range • Check the maximum resolution and the frequency on the video port of your computer.Picture is scrambled • Check the signal cable connection between the computer and monitor. G

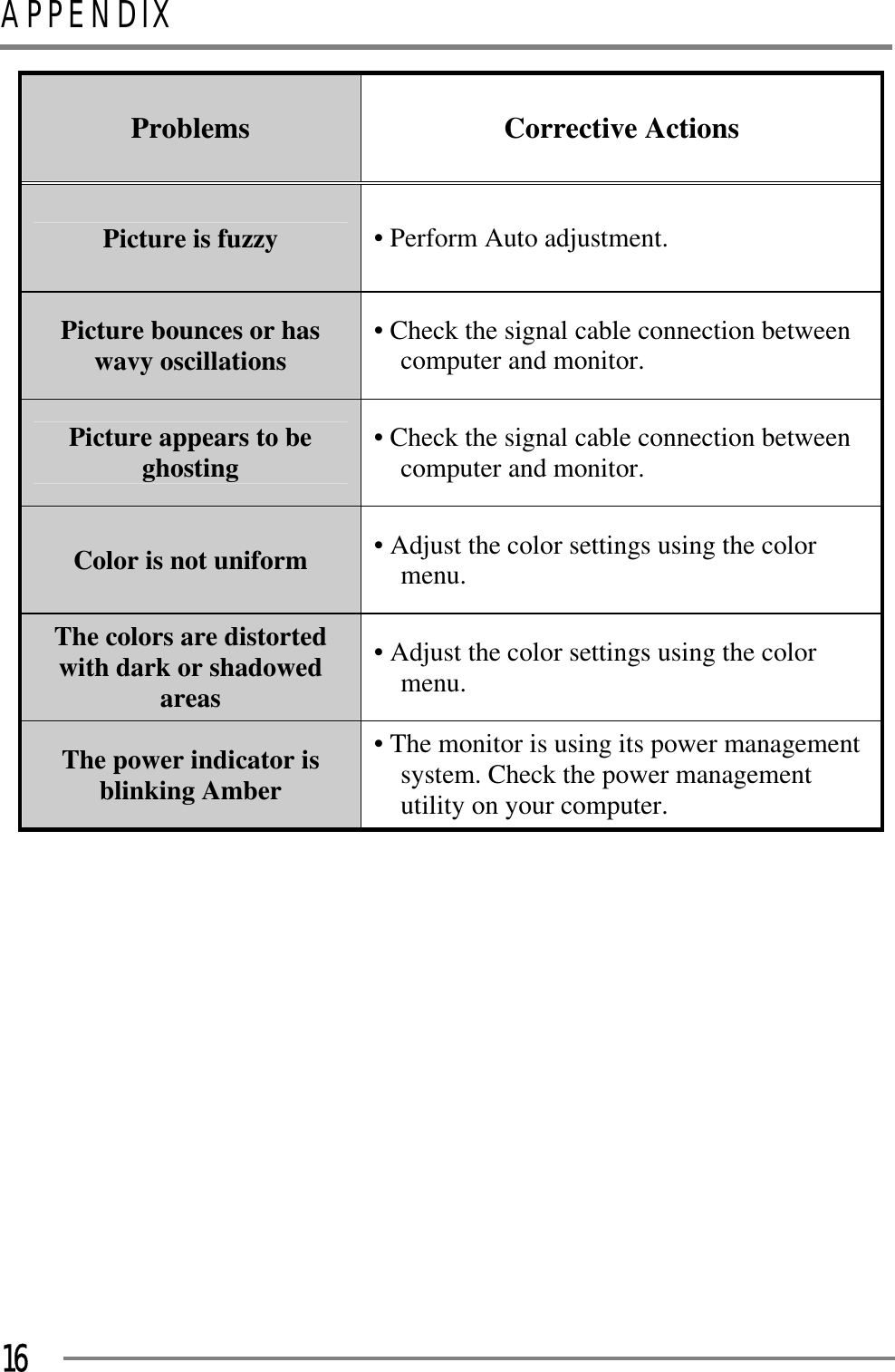

APPENDIXGGG16Problems Corrective Actions Picture is fuzzy • Perform Auto adjustment. Picture bounces or has wavy oscillations • Check the signal cable connection between computer and monitor. Picture appears to be ghosting • Check the signal cable connection between computer and monitor. Color is not uniform • Adjust the color settings using the color menu. The colors are distorted with dark or shadowed areas • Adjust the color settings using the color menu. The power indicator is blinking Amber • The monitor is using its power management system. Check the power management utility on your computer. GGGGGGGGGGGGG

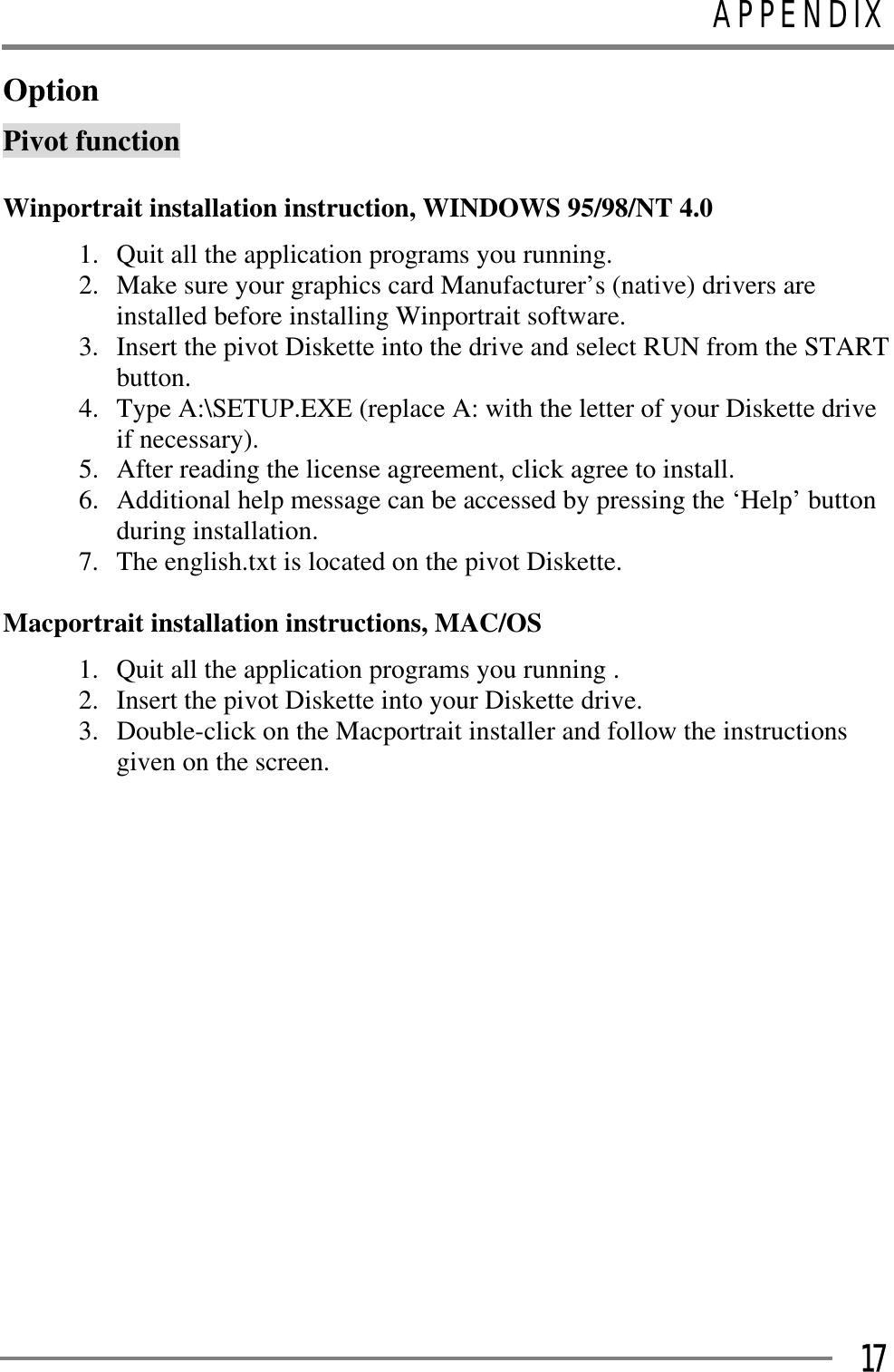

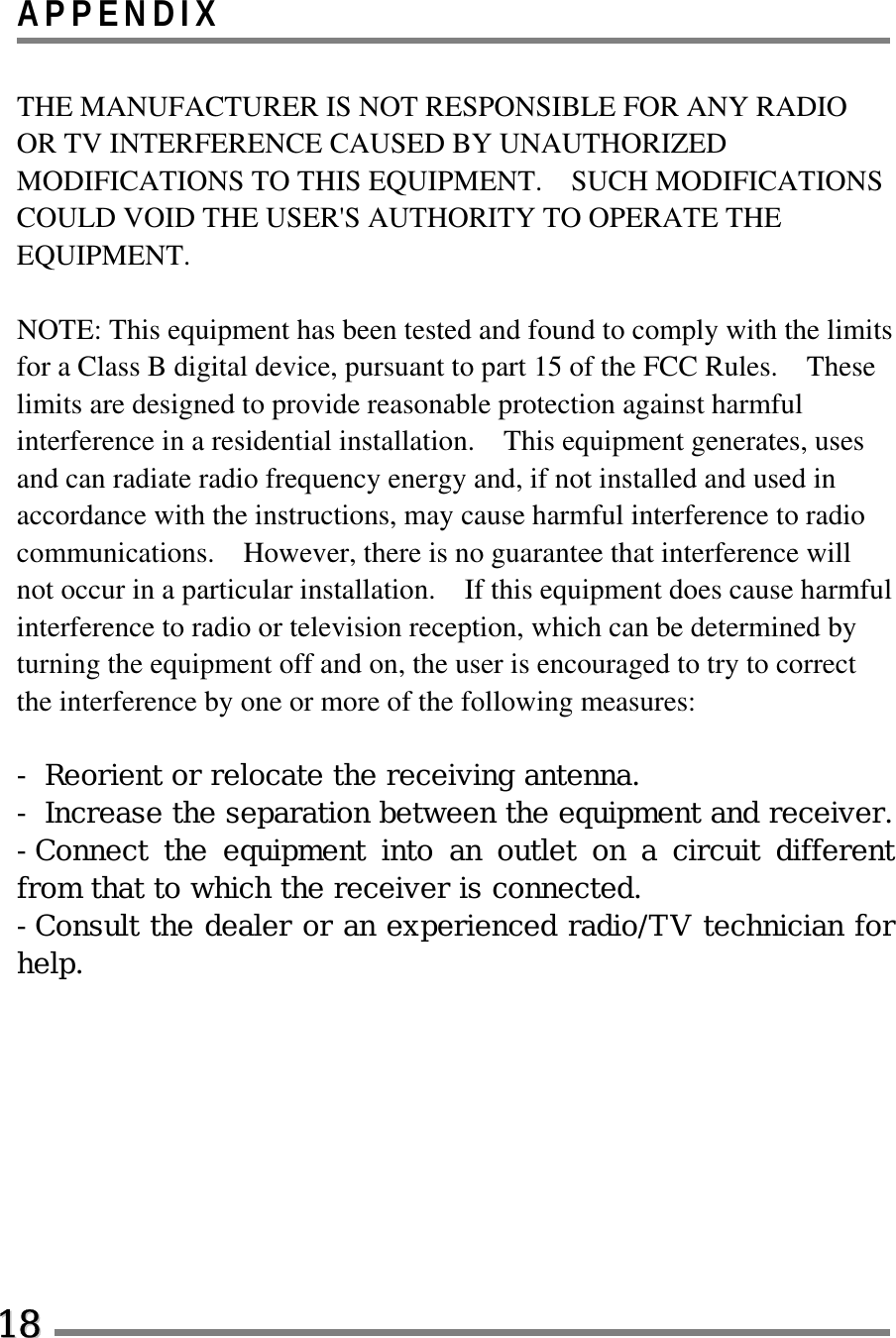

$APPENDIXGGG17OptionPivot function GWinportrait installation instruction, WINDOWS 95/98/NT 4.0 1. Quit all the application programs you running. 2. Make sure your graphics card Manufacturer’s (native) drivers are installed before installing Winportrait software. 3. Insert the pivot Diskette into the drive and select RUN from the START button. 4. Type A:\SETUP.EXE (replace A: with the letter of your Diskette drive if necessary). 5. After reading the license agreement, click agree to install. 6. Additional help message can be accessed by pressing the ‘Help’ button during installation. 7. The english.txt is located on the pivot Diskette. Macportrait installation instructions, MAC/OS 1. Quit all the application programs you running . 2. Insert the pivot Diskette into your Diskette drive. 3. Double-click on the Macportrait installer and follow the instructions given on the screen. GGGGGGGGGGGGGGGG$
