Please read the following safety warning and precaution before using your device.
1. Introduction
2. Battery Precaution
3. Getting Started
4. Cable Connection
5. Bluetooth Connection and disconnection
6. NFC Connection
7. Microphone usage
8. LED Display Status
9. Battery Charging
10. Product Care
-1-
Diamond
Output Power:
Battery Capacity:
S/N:
Frequency range:
Power supply:
Audio source:
Function spec:
Size:
Rechargeable battery can be charged by USB cable
Operating range up to 20 meters
1. Introduction
Thank you for purchasing the Diamond Audio system-a music
player, an innovative portable Bluetooth speaker with built-in
battery. This device can be easily connected with audio or
video devices for your traveling and daily needs. The BT
Speaker supports both Bluetooth and Aux-in function.
Specification
10W
1300mAh
>75dB
40Hz-20KHz
Lithium battery or USB cable
iPhone, iPad, Smartphone, Notebook, MP3, MP4, etc
Bluetooth, Microphone, Line-in
120mm x 70mm x 56mm
-2-
2. Battery Precautions
The device can be powered by built-in rechargeable lithium
battery. Please charge the battery for at least 8 hours before
your first use of device.
If the device is not used for a long period of time, the battery
may be out of power. Please charge the battery.
Rechargeable batteries are only to be charged under adult
supervision.
Use only the supplied USB micro cable to recharge the
battery. Improper charging may damage the battery and the
device.
Do not attempt to open the rechargeable battery or battery
pack. There are no serviceable parts inside.
Should a battery leak, the device may become damaged.
Clean the battery compartment immediately, avoiding
touching your skin.
Keep the battery out of reach of children. If swallowed,
consult a physician immediately.
Avoid storing the battery in extremely hot or cold
environment. A device with a hot or cold battery may not
work temporarily, even when the battery is fully charged.
Do not dispose batteries in a fire as they may explode.
Batteries may also explode if damaged. Please dispose
them according to local regulation. Do not dispose them as
household waste.
-3-
3. Getting Started
General controls
-4-
Micro USB/Only for Charging.
Power switch
AUX
Volume UPVolume Down
Bluetooth pairing key
Previous Next
Play/Pause
MIC
Pairing Diamond with your smartphone ( should be within 20
meters)
a. Activate pairing mode on Diamond by switching “ON/OFF”
button to “ON”. The LED will flash in red and blue color.
b. On your speaker, navigate to the Bluetooth function (refer
to the tablet owner’s manual to locate Bluetooth function).
c. Select “Set Up” Bluetooth or turn “ON” Bluetooth.
d. Select “Search” or “Discover” devices.
e. Select “Bluetooth”.
f. If requested, type the password or PIN 0000
g. Press the Enter key.

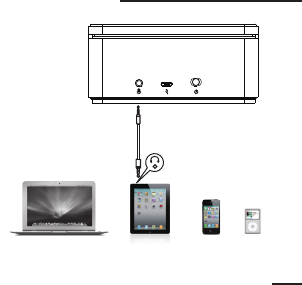

4. Cable Connection
5. Bluetooth Connection and disconnection
3.5mm stereo jack
-5-
-6-
After completing the steps above, a message on your
smartphone will appear cofirming that your device is now .
paired/connected. then you will see the blue LED light stay
solid, which means that this speaker pairs with your
smartphone succeessfully.
In case of unsuccessfully pairing, push this speaker to
“OFF” and restart it to “ON”
Notice:
1. If you turn off the speaker but the Bluetooth on your
smartphone remains open, when you restart it, the Bluetooth
will be connected automatically.
2. When your smartphone and this speaker beyond the
Bluetooth receiving range. This speaker will diconnect with your
smartphone and turn into paring mode. If within 10 minutes
your smartphone is back, will connect with this speaker
automatically.
3. If long press “ ”，the speaker will be disconnected and
ready to pair with other smartphones.
NFC: Near Field
Communication, is a set of
standard for Smartphone and
this speaker to establish
Bluetooth radio communication
with each other by touching
them together or bringing them into close proximity, usually
no more than a few centimeters.
Please activate the NFC function (subjects to tablets own
setting) of your Bluetooth device. Bring your Bluetooth device
close to speaker, as above picture.
Your Bluetooth device will ask you whether you want to pair
the speaker, confirm “Yes” or “OK”, then the pairing process
is completed.
When a phone call comes in, you could talk through the
microphone on speaker.
6. NFC Connection
7. Microphone usage
8. LED Display Status
stay solid charging
Low battery
Flash
off Full charged
LED Display
LED color Light indication
Green Light
Red/
Blue light
Blue light stay solid
stay solid
paired
Line-in
Red & Blue flash
alternatively ready to pair
Red
Light
-7-
10. Product care
9. Battery Charging
Your device is designed be portable, as an electronic device
and it must be treated carefully. Putting unnecessary
pressure on it or striking the device against other objects may
cause damage.
The device has built-in rechargeable lithium battery that can
be charged by connecting to the USB port of your computer
or into an AC adapter with USB port. When charging is
completed, the red light will go off.
Do not drop, crush, or apply excessive force to the device.
Do not expose your device to moisture, extreme or
prolonged heat, cold, humidity, or other adverse
conditions. Avoid storing it in damp, humid or wet places.
As it is not waterproof.
Clean the unit with a soft cloth or damp chamois leather.
Never use solvents.
The unit can only be opened by qualified person.
This device contains magnets. Keep magnetic field such
as credit cards and video screen away from this device to
avoid damage or malfunction.
-8-
