MeiDong Acoustics E-2 Bluetooth Headphone User Manual E 2

Shenzhen MeiDong Acoustics Co., LTD Bluetooth Headphone E 2

User Manual

User’s Guide
Please read the following safety warnings and precaution before using your device.
2
3
4
5
6
6
7
8
8
8
10. Product care
Contents
-1-
1. Introduction
2. Battery Precautions
3. Getting Started
4. Installation Operation
5. Cable Connection
6. Bluetooth Connection
7. Function Guidance
8. LED Display Status
9. Battery Charging
E-2
Thank you for purchasing our Bluetooth headphone: E-2. This device can
be easily connected with Smartphone, tablet PC and other devices via
Bluetooth during your traveling and daily usage. It will bring you an easy
lifestyle.
Load impedance: 32Ω
S/N: ≥85dB
Frequency range: 20Hz-20KHz
Power supply: Lithium battery or USB cable
Audio source: iPhone, iPad, Smartphone, Notebook, MP3, MP4, etc
Function spec: Bluetooth, Microphone,
Size: 156x73x97mm
Operating range up to 10 meters.
-2-
1. Introduction
Specification
The device is powered by a built-in rechargeable lithium battery. If the
device is not used for a long period, the battery may be out of power. Please
charge the battery before using.
Rechargeable batteries are only to be charged under adult supervision.
Use only the supplied cable to charge the battery. Improper charging may
damage the battery and the device.
Do not attempt to open the rechargeable battery or battery pack. There
are no serviceable parts inside.
Should a battery leak, the device may become damaged. Clean the battery
compartment immediately, avoiding touching your skin.
Keep the battery out of reach from children. If swallowed, consult a
physician immediately.
Don't dispose battery in fire as it may explode. Battery may also explode if
damaged. Please dispose it according to local regulation, don't dispose it
as household waste.
-3-
2. Battery Precaution
General controls
Charge
MIC
ON/OFF
Volume Up/Next
Play/Pause, Answer call
Volume Down/Previous
-4-
3. Getting Started

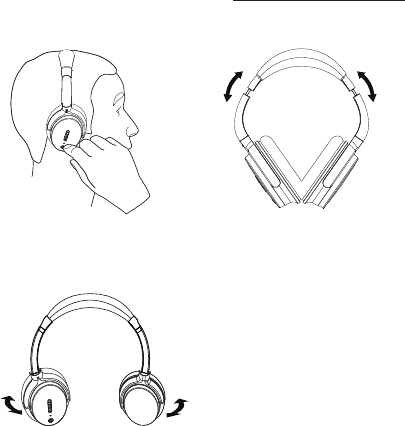

Step . 1 Step . 2
Step . 3
It can be adjusted To be fit by
twisting the left and right ear muffs.
Adjustable lengthput on this headphone
Adjustable angle
-5-
4. Installation Operation
USB
After completing the steps above, a message on your Smart device will
appear confirming that your device is now paired/ connected.
In case of unsuccessful pairing, turn off it and restart it, then do as steps
above. If you turn off the device, but the Bluetooth on your tablet remains
open, when you restart the device, the Bluetooth will be connected
automatically.
for power
2. Turn on your device, navigate to the Bluetooth function (refer to the device
owner’s manual to locate Bluetooth function).
3. Select “Set Up” Bluetooth or turn “ON” Bluetooth.
4. Select “Search” or “Discover” devices.
5. Select “Bluetooth”.
6. If requested, type the password or PIN 0000
7. Press the Enter key.
6. Bluetooth Connection
Pairing headphone to your Smart device (Smart device should be within 10
meters of your headphone).
1. Activate pairing mode on headphone by long pressing” ON/OFF” button
until you hear two kinds of short music. The LED will flash in blue and red.
-6-
5. Cable Connection
Answer /end a call
Press “ ” (the middle button)to answer or end a call.
7. Function Guidance
Button Operation Function
Long Press Volume up
Short Press Next song
Long Press Volume down
Short Press Previous song
Short Press Play/Pause, Answer/End a call
Long press Ready for pairing
Play music from your phone
-7-
LED Display
Flash quickly
Flash twice
Alternatively
Stay solid
OFF
Light indication
Power ON
Paired
Ready to pair
Charging in process
Fully charged
Blue Light
Blue/Red
Red Light
8. LED Display Status
10. Product care
Your device is designed to be light, compact and durable. As an electronic
device it must be treated carefully. Putting unnecessary pressure on it or
striking the device against other objects may cause damage. To avoid damage
to your device, please
Do not drop, crush, bend or apply excessive force to the device.
Do not expose your device to moisture, extreme or prolonged heat, cold,
humidity, or other adverse conditions. Avoid storing it in damp, humid or
wet places, as it is not waterproof.
Clean the unit with a soft cloth or damp chamois leather. Never use
solvents.
This device contains magnets. Keep magnetic field sensitive products such
as credit cards and video screen away from this device to avoid damage or
malfunction.
9. Battery Charging

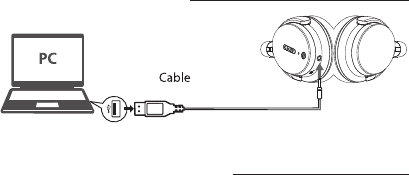

The device has a built-in rechargeable battery. This can be charged by USB
cable connected with your computer. When it’s charging, the light below the
left button will turn to red
After charging, the device can be used without the power connection. Charge
the device again when you hear the headphone make successive beep sound.
-8-
The Unit can only be opened by qualified personnel.
