Mercury Innovations Science and Technology A10 Bluetooth Speaker User Manual Users manual
Shenzhen Mercury Innovations Science and Technology Ltd Bluetooth Speaker Users manual
Users manual
Bluetooth Speaker
A10
USER MANUAL
LISTEN.MIFA
THE MUSIC POWER TO
YOUR DEEP HEART!
MIFA W ECH AT
MIFA A PP
MIFA 电台/音乐/资讯 MIFA 官方微信
www.mifa.net
Table of Contents
01 - 09 English
Warnings
01
◆To ensure proper use and trouble-free operation, please carefully read this user manual first.
◆For the first use, a full charge is recommended.
◆Please use and store the product at room temperature.
◆Do not throw and drop the product to avoid damages.
◆Do not expose the product to fire, high temperature, direct sunlight, etc.
◆Do not use organic solvents or other chemicals to clean the product.
◆Do not allow small particles to get into the product.
◆Please contact the seller if the cable is not matched.
◆Please keep volumes of the speaker moderate to avoid temporary or permanent hearing impairment.
◆Do not dissemble the product, or make any modifications to the structure or any parts of it.
◆Keep the product out of children’s reach.
English
Product Features
02
◎Wireless Bluetooth music playback
◎Impressively clear and full-range sound
◎Automatically connects to the last-connected device
◎Aux-in jack and 3.5mm audio cable for non-Bluetooth devices
◎Built-in Mic for hands-free calls
◎Supports up to 32 GB Micro-SD card
◎Supports MP3, WMA,WAV, FLAC, APE
◎Automatically turns off after 10 minutes if there is no manual operation and no device connected
◎Supports ring tong playing under IOS system ,others are default tone
English

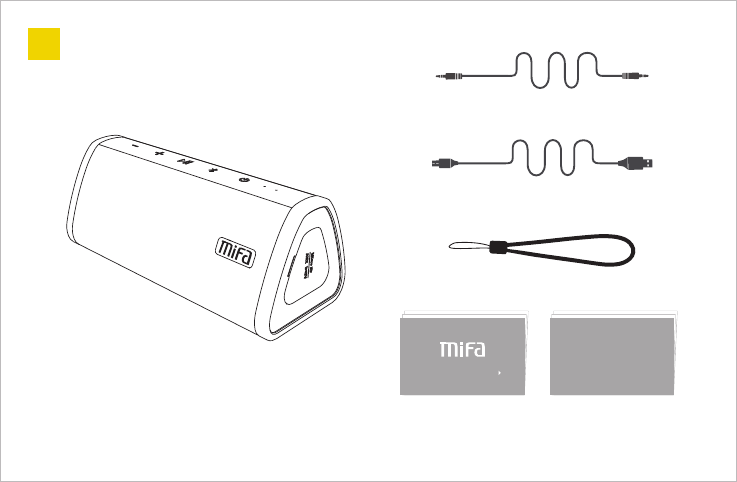

1 × 3.5 mm Audio Cable
1 × Micro USB Cable
1 × A10 Bluetooth Speaker
Packing Contents
03
1 × User Manual
1 × Detachable Strap
English
User Manual
Warranty Card
1 x Warranty card
Keys Functions
04
Volume Down Button
Short press to decrease the volume
Long press to play the previous song
Volume Up Button
Short press to increase the volume
Long press to play the next song
Play / Pause Button
Short press to pause or play
Bluetooth Button
• When a call coming, short press to answer or hang up; long press to reject
• Press and hold the button for 2 seconds to disconnect the paired device. The
speaker enters pairing mode. To reconnect it to the last-connected device, short
press it.
English
Keys Functions
05
LED Indicator
Power Button
• Press and hold the button for 2 seconds to turn on or turn off
• Short press to switch the mode in the powered-on status
• • If it is inserted with a Micro SD card or an audio cable, modes switch in turns: Bluetooth mode
→ Micro SD card mode or Aux-in mode
• • If it is inserted with a Micro-SD card and an audio cable, modes switch in turns: Bluetooth
mode → Micro SD card mode → Aux-in mode
White light flashes after powered on
White light stays on after connected to a device
White light stays on while playing
White light flashes slowly when playing is paused
White light flashes rapidly at the max / min volume
Red light stays on while charging; when fully charged, red light goes off
Built-in Mic
English
Ports Functions
06
MICRO
SDMicro SD Card Slot
In the powered-on state, insert a Micro-SD card
into the slot. It will play the music stored in the
card automatically after two beeps.
Aux-in jack
• In the powered-on state, insert an audio cable.
It will beep to indicate a successful connection.
• To reset the speaker, press the reset button in
the jack with a needle.
Micro USB port
• Charging: use a DC 5V / 1A adaptor or connect it to a computer to charge the speaker
• Data transmission: in the powered-off state, insert a Micro-SD card and connect it to a computer. Press
and hold the power button for 2 seconds to turn it on. Then you can manage music files in the card on the
computer.
English

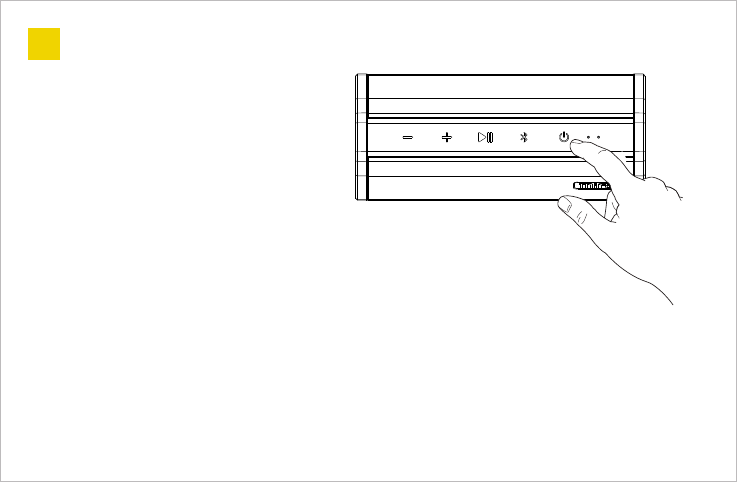

Bluetooth Connection
07
1. Turn on the speaker
Press and hold the power button for more than 2
seconds until it issues a sound of DingDong and
then a sound of Ding with a flashing white LED
light. It enters the pairing mode.
2. Connect it to your device
Turn on the Bluetooth of your device and select
Mifa_A10. Once the connection is completed, it
will beep and the white LED light will stay on.
The speaker will connect to the last-connected •
device automatically once the device's
Bluetooth is turned on.
Other Instructions
To connect to another device, press and hold the •
Bluetooth button for 2 seconds. The paired one will be
disconnected and the speaker will enter the .pairing mode
To reconnect it to the last used device, short press the •
Bluetooth button.
English
Specifications
08
Size: 6.0 × 2.6 × 2.5 in / 152 × 66 × 64 mm
Weight: 12 oz / 341g
(including the built-in Lithium battery)
6.0 in
2.5 in
2.6 in
Basic Parameters
Speaker Type Portable Bluetooth Speaker
Speaker System Dual-channel + Bass
Active / Passive Active
Battery Built-in 2200 mAh Lithium battery
Input 5V / 1A
Supported Storage
Up to 32 GB Micro SD card (FAT32)
About 3 hours with 1A output adapter
Charging Time
Suppor ted Media Type
APE\FLAC\WAV\WMA\MP3
Bit Rate
Playing Parameters
MP3: 8Kbps-320Kbps
WMA: 5Kbps-384Kbps
Output Power 2 × 5W, THD=3%
Technical Parameters
Loudspeaker
Frequency Response
50 Hz - 20 KHz
USB Standard USB 2.0 (compatible with U SB 1.1)
APE: 100Kbps-1200Kbps
FLAC: 100Kbps-1200Kbps
WAV: 32Kbps-384Kbps
Dual 1.5 inches internal magnetic
speakers + Low frequency amplifier
English
Trouble Shooting
09
Copyright © MIFA. All rights reserved.
MIFA, the MIFA logo and other MIFA marks are all owned and registered by MIFA INNOVATIONS LLC. All other
trademarks are the property of their respective owners. The information contained here is subject to change
without prior notice.
MIFA INNOVATIONS LLC
www.mifa.net Designed in USMade in China
Not able to connect
to your device
FAQ Solutions
1. Restart the speaker and try again
2. If your device requires a Pin Code, please enter 0000
1. Please ensure the format of the Micro SD card is FAT32. It only
supports FAT32 Micro SD card
2. Please ensure the formats of the music files are APE, FLAC, WAV, WMA
or MP3
No sound when playing
1. Please adjust the volume of the speaker
2. Please adjust the volume of your device
3. Please check if the speaker is paused
Keeps cutting out when playing Please ensure the speaker is within the operating range and there
are no obstacles between the speaker and the device
Not able to play the music in
Micro SD card
No sound in AUX-in mode Please ensure the audio cable is connected well
Not able to turn on Please try to charge the speaker for about 3 hours
No respond to any operation Please try to reset the speaker by pressing the reset
button in the AUX-in jack
English
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction
FCC ID: 2AF7A-A10
