Meru Networks AP310M MULTI RADIO 802.11a/b/g/n WIRELESS LAN ACCESS POINT User Manual AP Install

Meru Networks Inc. MULTI RADIO 802.11a/b/g/n WIRELESS LAN ACCESS POINT AP Install

UserManual.wiki >

Meru Networks >

AP310M User Manual HTML Version

Users Manual

Meru Access Point

Installation Guide

Other names and brands may be claimed as the property of others.

June 2010

Document Number: 882-70037 Rev A Rel 4.0 Ver 20 Access Point Installation Guide

iii

MERU NETWORKS, INC.

Limited Product Warranty

This Limited Product Warranty applies to the original end-user customer of the Meru

product which you purchased for your own use, and not for resale (“Product”), from

Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”).

Limited Warranties

—One-year limited hardware warranty: Meru warrants to you that Meru

hardware (other than Third Party Products as described below) will be

free from defects in materials and workmanship for a one-year period

after the date of delivery of the applicable product to you from Meru or

its Reseller (the “Hardware Warranty Period”). If Meru receives written

notice from you of such defects during the Hardware Warranty Period,

Meru will, at its option, either repair or replace Meru hardware that

Meru determines to be defective. Replacement products may be

remanufactured units, and will be warranted for the remainder of the

original Hardware Warranty Period, or if greater, for thirty days from

delivery of such replacement. Should Meru be unable to repair or

replace the Meru hardware, Meru (or its Reseller, as applicable) will

refund to you the purchase price of the Product.

—90-Day Limited Software Warranty: Meru warrants to you that, for a 90-

day period after the date of delivery of the applicable product to you

from Meru or its Reseller (the “Software Warranty Period”), when

properly installed and used, (a) the media on which the Meru software

is provided will be free from defects in materials or workmanship; and

(b) the Meru software will substantially conform to the functional

specifications in the applicable documentation. If Meru receives

written notice from you of a breach of this warranty during the Software

Warranty Period and is able to reproduce the defect, Meru will, at its

option, either repair or replace the defective Meru software. Should

Meru be unable to repair or replace the Meru software, Meru (or its

Reseller, as applicable) will refund to you the purchase price of the

Product.

Exclusions

The warranty on the Product shall not apply to defects resulting from the following:

iv Meru Access Point Installation Guide

—Alteration or modification of the Product in any way, including without

limitation configuration with software or components other than those

supplied by Meru or integration with parts other than those supplied by

Meru.

—Abuse, damage or otherwise being subjected to problems caused by

negligence or misapplication (including without limitation improper or

inadequate maintenance or calibration), relocation of the products

(including without limitation damage caused by use of other than Meru

shipping containers), or use of the products other than as specified in

the applicable Meru product documentation (including without

limitation incompatible operating environments and systems), or

improper site preparation or maintenance.

—Damage as a result of accidents, extreme power surge, extreme

electromagnetic field, acts of nature or other causes beyond the control

of Meru.

—Use of the Product with software, interfacing, parts or supplies not

supplied by Meru.

The warranty on the Product does not apply if the Product is sold, or in the case of

software, licensed, for free for evaluation or demonstration purposes.

Meru expressly disclaims any warranty or obligation to support the Product for all

operating environments – for example, as illustration and not limitation, Meru does

not warrant or ensure interoperability of the Product with future telecommunica-

tion systems or other future software or hardware.

You understand and acknowledge that the Products may generate, use or radiate

radio frequency energy and may interfere with radio communications and/or radio

and television receptions if is not used and/or installed in accordance with the

documentation for such products. WHILE MERU USES COMMERCIALLY REASONABLE

EFFORTS TO ENSURE COMPLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED

STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL

INTERFERENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH

RADIO COMMUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR

AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED

ON SUCH INTERFERENCES.

Third Party Products - The above Limited Warranties are exclusive of products

manufactured by third parties (“Third Party Products”). If such third party manu-

facturer provides a separate warranty with respect to the Third Party Product, Meru

will include such warranty in the packaging of the Meru Product.

Return procedures

To obtain warranty service you must: (a) obtain a return materials authorization

number (“RMA#”) from Meru by contacting rmaadmin@merunetworks.com, and (b)

deliver the Product, in accordance with the instructions provided by Meru, along

with proof of purchase in the form of a copy of the bill of sale including the

Product’s serial number, contact information, RMA# and detailed description of the

defect, in either its original package or packaging providing the Product with a

degree of protection equivalent to that of the original packaging, to Meru at the

address below. You agree to obtain adequate insurance to cover loss or damage to

the Product during shipment.

If you obtain an RMA# and return the defective Product as described above, Meru

will pay the cost of returning the Product to Meru. Otherwise, you agree to bear

such cost, and prior to receipt by Meru, you assume risk of any loss or damage to

the Product. Meru is responsible for the cost of return shipment to you if the Meru

Product is defective.

Returned products which are found by Meru to be not defective, returned out-of-

warranty or otherwise ineligible for warranty service will be repaired or replaced

at Meru’s standard charges and shipped back to you at your expense.

At Meru’s sole option, Meru may perform repair service on the Product at your

facility, and you agree to provide Meru with all reasonable access to such facility

and the Product, as required by Meru. On-site repair service may be available and

is governed by the specific terms of your purchase.

All replaced parts, whether under warranty or not, are the property of Meru.

Warranty limitations

THE WARRANTIES SET FORTH ABOVE ARE EXCLUSIVE AND NO OTHER WARRANTY,

WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED BY MERU, TO THE MAXIMUM

EXTENT PERMITTED BY LAW. THERE ARE NO OTHER WARRANTIES RESPECTING THE

PRODUCT AND DOCUMENTATION AND SERVICES PROVIDED UNDER THIS AGREEMENT,

INCLUDING WITHOUT LIMITATION ANY WARRANTY OF DESIGN, MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE (EVEN IF MERU HAS BEEN INFORMED OF SUCH

PURPOSE), TITLE OR AGAINST INFRINGEMENT OF THIRD PARTY RIGHTS. IF ANY

IMPLIED WARRANTY CANNOT BE DISCLAIMED UNDER APPLICABLE LAW, THEN SUCH

IMPLIED WARRANTY SHALL BE LIMITED IN DURATION TO THE HARDWARE AND SOFT-

WARE WARRANTY PERIODS DESCRIBED ABOVE.

NO AGENT OF MERU IS AUTHORIZED TO ALTER OR EXCEED THE WARRANTY OBLIGA-

TIONS OF MERU.

MERU SPECIFICALLY DOES NOT WARRANT THAT THE MERU SOFTWARE WILL BE ERROR

FREE OR OPERATE WITHOUT INTERRUPTION.

THE REMEDIES IN THIS LIMITED PRODUCT WARRANTY ARE YOUR SOLE AND EXCLUSIVE

REMEDIES, AND MERU’S SOLE AND EXCLUSIVE LIABILITY, FOR BREACH OF THE HARD-

WARE OR SOFTWARE WARRANTY SET FORTH ABOVE.

Limitations of Liability

You acknowledge and agree that the consideration which you paid to Meru does not

include any consideration by Meru of the risk of consequential, indirect or inci-

dental damages which may arise in connection with your use of, or inability to use,

the Product. THUS, MERU AND ITS RESELLER WILL NOT BE LIABLE FOR ANY INDI-

RECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING

WITHOUT LIMITATION LOST PROFITS, LOST BUSINESS, LOST DATA, LOSS OF USE, OR

vi Meru Access Point Installation Guide

COST OF COVER INCURRED BY YOU ARISING OUT OF OR RELATED TO YOUR PURCHASE

OR USE OF, OR INABILITY TO USE, THIS PRODUCT OR THE SERVICES, UNDER ANY

THEORY OF LIABILITY, WHETHER IN AN ACTION IN CONTRACT, STRICT LIABILITY,

TORT (INCLUDING NEGLIGENCE) OR OTHER LEGAL OR EQUITABLE THEORY, EVEN IF

MERU OR ITS RESELLER KNEW OR SHOULD HAVE KNOWN OF THE POSSIBILITY OF

SUCH DAMAGES. IN ANY EVENT, THE CUMULATIVE LIABILITY OF MERU OR ITS

RESELLER FOR ALL CLAIMS WHATSOEVER RELATED TO THE PRODUCT OR THE SERVICE

WILL NOT EXCEED THE PRICE YOU PAID FOR THE PRODUCT OR SERVICES GIVING RISE

TO SUCH CLAIMS.

THE LIMITATIONS SET FORTH HEREIN ARE INTENDED TO LIMIT THE LIABILITY OF MERU

AND ITS RESELLERS AND SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ESSEN-

TIAL PURPOSE OF ANY LIMITED REMEDY.

The jurisdiction applicable to you may not allow the limitations of liability or

damages set forth above, in which case such limitation shall only apply to you to

the extent permitted in such jurisdiction.

Additional Information

This Limited Product Warranty shall be governed by and construed in accordance

with the laws of the State of California, U.S.A., exclusive of its conflict of laws prin-

ciples. The U.N. Convention on Contracts for the International Sale of Goods shall

not apply.

This Limited Product Warranty is the entire and exclusive agreement between you

and Meru with respect to its subject matter, and any modification or waiver of any

provision of this statement is not effective unless expressly set forth in writing by

an authorized representative of Meru.

All inquiries or claims made under this Limited Product Warranty must be sent to

Meru at the following address:

Meru Networks Inc.,

894 Ross Drive, CA 94087, USA

Tel: 408-215-5300

Fax: 408-215-5301

Email: support@merunetworks.com

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . xi

Audience . . . . . . . . . . . . . . . . . . . . . . . . . xi

Other Sources of Information . . . . . . . . . . . . . . . . . . xi

Meru Publications . . . . . . . . . . . . . . . . . . . . . xi

Website Resources . . . . . . . . . . . . . . . . . . . . xi

External References . . . . . . . . . . . . . . . . . . . . xii

Typographic Conventions . . . . . . . . . . . . . . . . . . . xii

Contacting Meru . . . . . . . . . . . . . . . . . . . . . . xiii

Customer Services and Support . . . . . . . . . . . . . . . . xiii

How to Get Help . . . . . . . . . . . . . . . . . . . . . . xiii

Web Access . . . . . . . . . . . . . . . . . . . . . . . xiii

Email Access. . . . . . . . . . . . . . . . . . . . . . . xiv

Telephone Access . . . . . . . . . . . . . . . . . . . . . xiv

Warranty Coverage . . . . . . . . . . . . . . . . . . . . . xiv

Chapter 1

Access Points. . . . . . . . . . . . . . . . . . . . . . . . . 1

AP300 . . . . . . . . . . . . . . . . . . . . . . . . . . 2

AP320i . . . . . . . . . . . . . . . . . . . . . . . . . . 4

AP200 . . . . . . . . . . . . . . . . . . . . . . . . . . 6

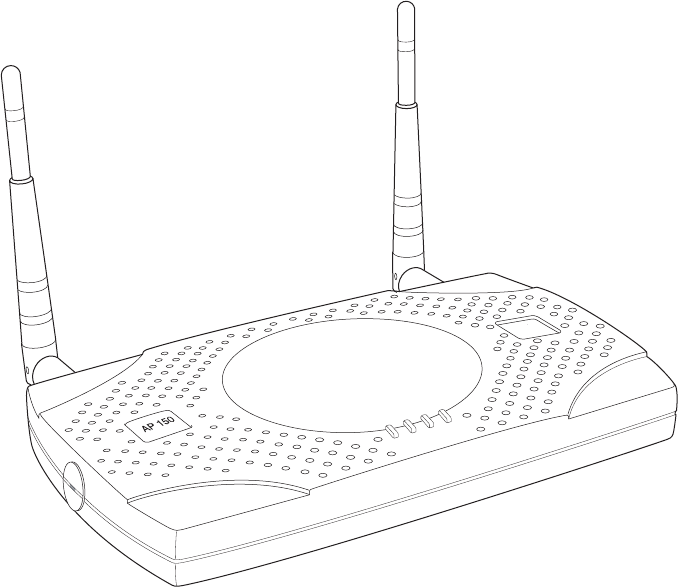

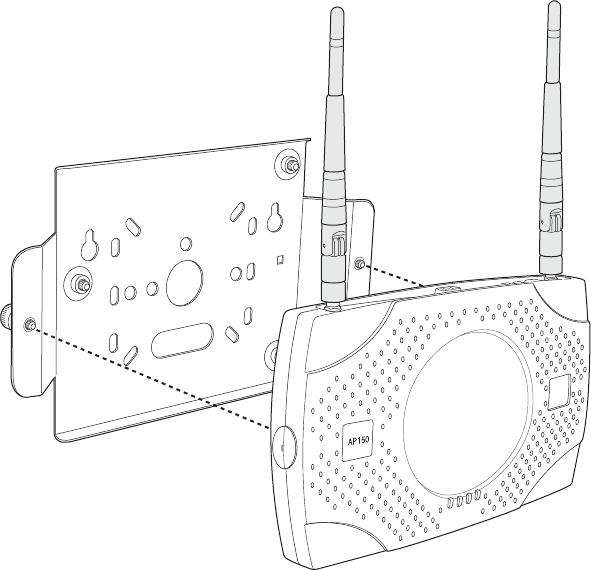

AP150 . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OAP180. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2

Installing AP300 . . . . . . . . . . . . . . . . . . . . . . 11

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . 11

Best Practices for an AP300/AP200 Network . . . . . . . . . . . . . 12

Unpack the AP300 . . . . . . . . . . . . . . . . . . . . . . 13

Determine Power Requirements . . . . . . . . . . . . . . . . . 14

802.af PoE Usage . . . . . . . . . . . . . . . . . . . . . 14

802.3at PoE Usage. . . . . . . . . . . . . . . . . . . . . 14

Installation Requirements . . . . . . . . . . . . . . . . . . . 15

Additional Equipment . . . . . . . . . . . . . . . . . . . 16

Install the AP300 . . . . . . . . . . . . . . . . . . . . . . 16

Select a Location . . . . . . . . . . . . . . . . . . . . . 16

Attach the Provided Antennas. . . . . . . . . . . . . . . . . 17

Install the Remote Antenna Mount (optional) . . . . . . . . . . . 19

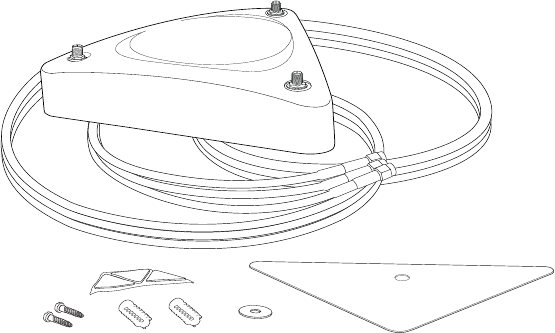

Install External ACC-ANT-MIMO-MNT Antenna with Three Connectors (optional)22

Install Remote ACC-ANT-6ABGN-24 Antenna with Six Connectors (optional). 24

Install Antennas With One Connector (optional) . . . . . . . . . . 25

Install the Access Point . . . . . . . . . . . . . . . . . . . 27

Check AP300 LED Activity . . . . . . . . . . . . . . . . . . . 34

Where to Go From Here . . . . . . . . . . . . . . . . . . . 36

Chapter 3

Installing AP320i . . . . . . . . . . . . . . . . . . . . . . . 37

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 37

Best Practices for an AP320i/AP200 Network . . . . . . . . . . . . 38

Unpack the AP320i . . . . . . . . . . . . . . . . . . . . . 39

Determine Power Requirements . . . . . . . . . . . . . . . . 39

802.af PoE Usage . . . . . . . . . . . . . . . . . . . . 39

802.3at Usage . . . . . . . . . . . . . . . . . . . . . 40

Installation Requirements. . . . . . . . . . . . . . . . . . . 40

Additional Equipment . . . . . . . . . . . . . . . . . . . 40

Installing AP320i . . . . . . . . . . . . . . . . . . . . . . 41

Select a Location . . . . . . . . . . . . . . . . . . . . 41

Install the Access Point . . . . . . . . . . . . . . . . . . 41

Check AP320i LED Activity . . . . . . . . . . . . . . . . . . 48

Where to Go From Here . . . . . . . . . . . . . . . . . . . 51

Chapter 4

Installing AP200 . . . . . . . . . . . . . . . . . . . . . . . 53

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 53

Unpacking the AP200 . . . . . . . . . . . . . . . . . . . . 53

Installation Requirements. . . . . . . . . . . . . . . . . . . 54

Installing the Access Points . . . . . . . . . . . . . . . . . . 56

Selecting a Location . . . . . . . . . . . . . . . . . . . 56

Attaching the AP200 Antennas . . . . . . . . . . . . . . . . 57

Mounting the Access Point . . . . . . . . . . . . . . . . . 57

Where to Go From Here . . . . . . . . . . . . . . . . . . . 66

Checking LED Activity . . . . . . . . . . . . . . . . . . . . 67

Ethernet Connector LEDs . . . . . . . . . . . . . . . . . . 67

AP200 Status LEDs . . . . . . . . . . . . . . . . . . . . 67

Chapter 5

Installing AP150 . . . . . . . . . . . . . . . . . . . . . . . 71

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 71

Unpacking the AP150 . . . . . . . . . . . . . . . . . . . . 71

Installation Requirements. . . . . . . . . . . . . . . . . . . 72

Installing the Access Points . . . . . . . . . . . . . . . . . . 75

Selecting a Location . . . . . . . . . . . . . . . . . . . 75

Attaching the AP150 Antennas . . . . . . . . . . . . . . . . 76

Mounting the Access Point . . . . . . . . . . . . . . . . . 76

Checking LED Activity . . . . . . . . . . . . . . . . . . . . 83

AP150 Status LEDs . . . . . . . . . . . . . . . . . . . . 83

Where to Go From Here . . . . . . . . . . . . . . . . . . . 85

Chapter 6

Installing OAP180 . . . . . . . . . . . . . . . . . . . . . . 87

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . 87

Unpacking the OAP180 . . . . . . . . . . . . . . . . . . . . 88

Installation Requirements . . . . . . . . . . . . . . . . . . . 88

Installing the Access Points . . . . . . . . . . . . . . . . . . . 89

Selecting a Location . . . . . . . . . . . . . . . . . . . . 89

Test Basic Link Operation . . . . . . . . . . . . . . . . . . 91

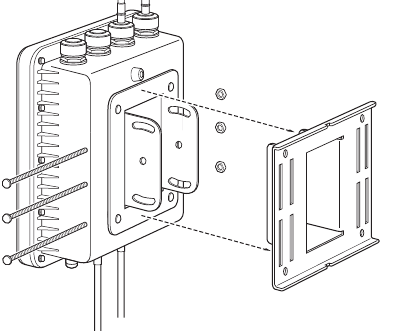

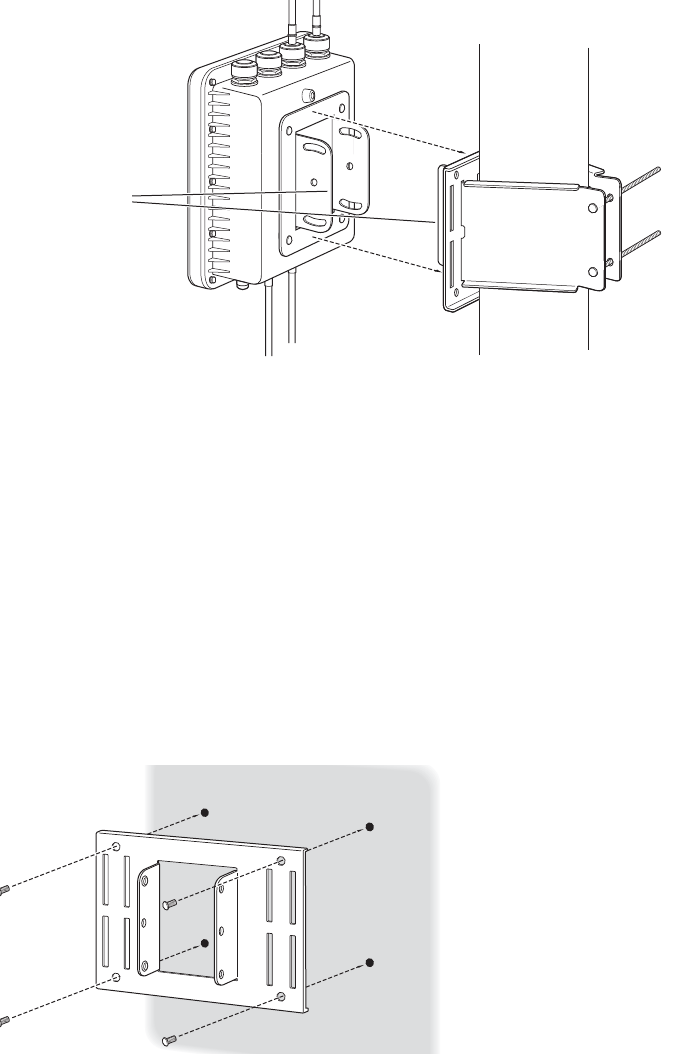

Mounting the Access Point . . . . . . . . . . . . . . . . . . 91

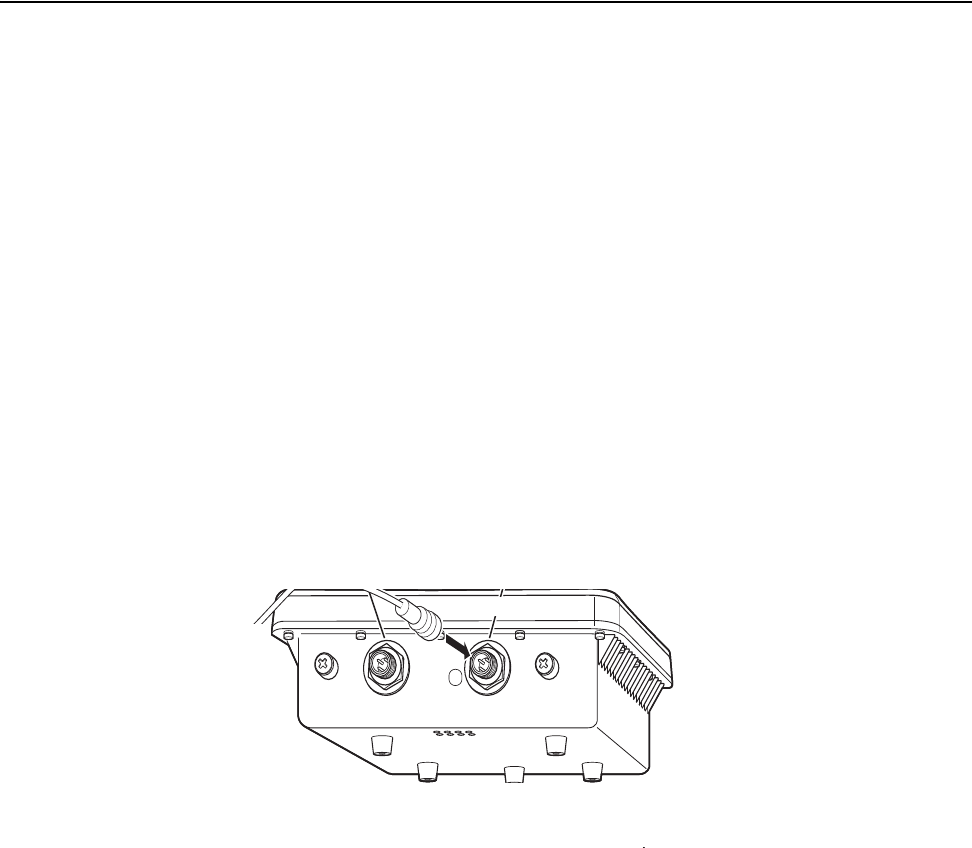

Connect Antennas and Ground Wire to OAP180 . . . . . . . . . . . 93

Align Antenna . . . . . . . . . . . . . . . . . . . . . . 96

Checking LED Activity. . . . . . . . . . . . . . . . . . . . . 97

Antenna Gain Recommendations . . . . . . . . . . . . . . . . 98

Where to Go From Here . . . . . . . . . . . . . . . . . . . . 99

Cautions and Warnings . . . . . . . . . . . . . . . . . . . 101

Cautions . . . . . . . . . . . . . . . . . . . . . . . . 101

Warnings . . . . . . . . . . . . . . . . . . . . . . . . 103

Regulatory Information . . . . . . . . . . . . . . . . . . . 109

For OAP180 . . . . . . . . . . . . . . . . . . . . . . . 109

Radio . . . . . . . . . . . . . . . . . . . . . . . . 109

EMC. . . . . . . . . . . . . . . . . . . . . . . . . 109

Safety . . . . . . . . . . . . . . . . . . . . . . . . 109

USA . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Underwriters Laboratories . . . . . . . . . . . . . . . . . 111

FCC Radiation Exposure Statement . . . . . . . . . . . . . . 111

Radio Frequency Interference Requirements . . . . . . . . . . 111

Canada. Industry Canada (IC) . . . . . . . . . . . . . . . . . 113

Europe—EU Declaration of Conformity and Restrictions . . . . . . . . 115

IEEE 802.11a Restrictions . . . . . . . . . . . . . . . . . 117

EEE 802.11b/g Restrictions. . . . . . . . . . . . . . . . . 117

Japan . . . . . . . . . . . . . . . . . . . . . . . . . 118

Singapore. . . . . . . . . . . . . . . . . . . . . . . 119

Manufacturing Information . . . . . . . . . . . . . . . . . . 119

AP300 Plenum Requirements . . . . . . . . . . . . . . . . . 120

About This Guide

This guide provides installation instructions for the Meru Access Points, which

includes the AP300, AP300i, AP1000, AP200, OAP180, and AP150 models. The term

access point is used interchangeably throughout this document to apply to any model

when there are no differences among the models.

Audience

This guide is intended for anyone installing Meru Wireless LAN System Access Points

(APs).

Other Sources of Information

Additional information is available in the following Meru publications, Web site, and

external references.

Meru Publications

Mer u Syst em Direct or Release Not es

Mer u Syst em Direct or Get t i ng St ar t ed Gui de

Mer u Cont rol l er Inst all at ion Guide

Mer u Syst em Di r ect or Command Ref erence

Mer u Syst em Direct or Conf igurat ion Guide

Website Resources

For the first 90 days after you buy a Meru controller, you have access to online

support. If you have a support contract, you have access for the length of the

contract. See this web site for information such as:

Mer u Syst em Direct or Release Not es

Knowledge Base (Q&A)

Downloads

Open a ticket or check an existing one

Customer Discussion Forum

The URL is: http:/ / support. merunetworks. com

Mer u Syst em Direct or Get t i ng St ar t ed Gui de

Mer u Cont rol l er Inst all at ion Guide

Mer u Syst em Direct or Release Not es

Mer u Syst em Direct or Conf igurat ion Guide

Mer u Syst em Di r ect or Command Ref erence

External References

Stevens, W. R. 1994. TCP/ IP Il lust rat ed, Vol ume 1, The Pr ot ocol s. Addison-Wesley,

Reading, Mass.

Gast, M.S. 2002. 802. 11 Wir eless Net wor ks, The Def init ive Guide. O’Reilly and

Associates, Sebastopol, Calif.

Typographic Conve nt ions

This document uses the following typographic conventions to help you locate and

identify information:

Note:

Provides extra information, tips, and hints regarding the topic.

Caution!

Identifies important information about actions that could result in

damage to or loss of data, or could cause the application to behave in

unexpected ways.

Warning!

Identifies critical information about actions that could result in

equipment failure or bodily harm.

Contacting Meru

You can visit Meru Networks, Inc. on the Internet at this URL:

ht tp:/ / www. merunetworks. com

Customer Services and Support

For assistance, contact Meru Customer Services and Support 24 hours a day at

+1-888-637-8952 (+1-888-Meru-WLA(N)) or +1-408-215-5305. Email can be sent to

support@merunetworks.com.

Meru Networks, Inc. Customer Services and Support provide end users and channel

partners with the following:

Telephone technical support

Software update support

Spare parts and repair service

RMA Procedures

Contact Meru Customer Services and Support for a Return Material Authorization

(RMA) for any Meru equipment.

Please have the following available when making a call:

Company and contact information

Equipment model and serial numbers

Meru software release and revision numbers (for example, 3.0.0-35)

A description of the symptoms the problem is manifesting

Network configuration

How to Get Help

Foundry Networks technical support will ensure that the fast and easy access that

you have come to expect from your Foundry Networks products will be maintained.

Web Access

https://kp.foundrynet.com

Email Access

Technical requests can also be sent to support@foundrynet.com

Telephone Access

United States: 1.877.TURBOCALL (887.2622)

Outside the United States: 1.408.207.1600

Warrant y Coverage

Contact Foundry Networks using any of the methods listed above for information

about the standard and extended warranties.

Chapter 1

Access Points

Access Points contain radio devices that communicate with the Meru Controller and

form the wireless LAN (WLAN). The Meru Controller and Access Points connect to the

site’s wired LAN through wired switches. Wireless clients associate with the Access

Points as they roam throughout the WLAN. As such, they are an extension of the wired

LAN, providing the wireless benefits of client mobility, enhanced access, and

dynamic network configuration.

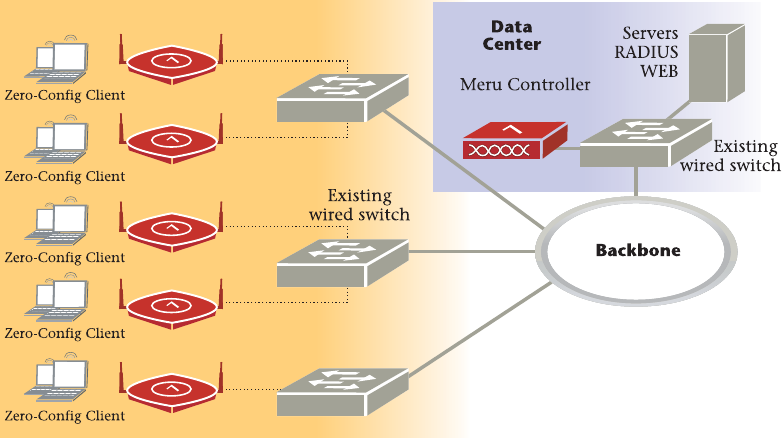

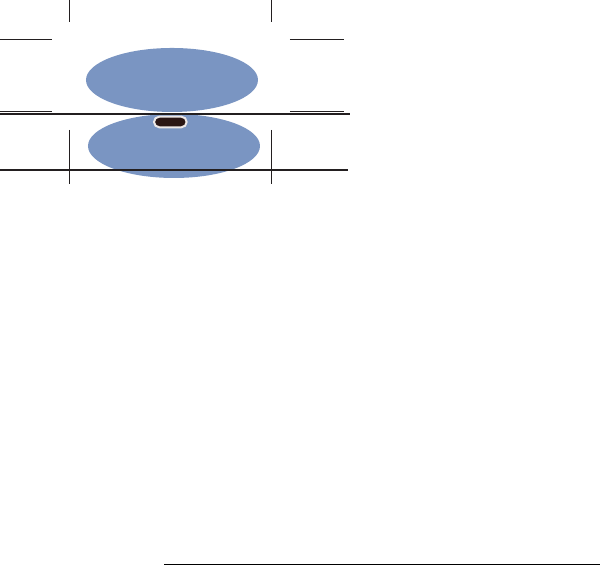

Figure 1: Wireless LAN Connected to Network

Meru AP

AP300

The AP300 Access Point series delivers high performance, full-speed, Wi-Fi certified

802.11n based on draft 2.0 connectivity while simultaneously supporting legacy

802.11a/b/g devices. AP300 is available in the configurations shown below.

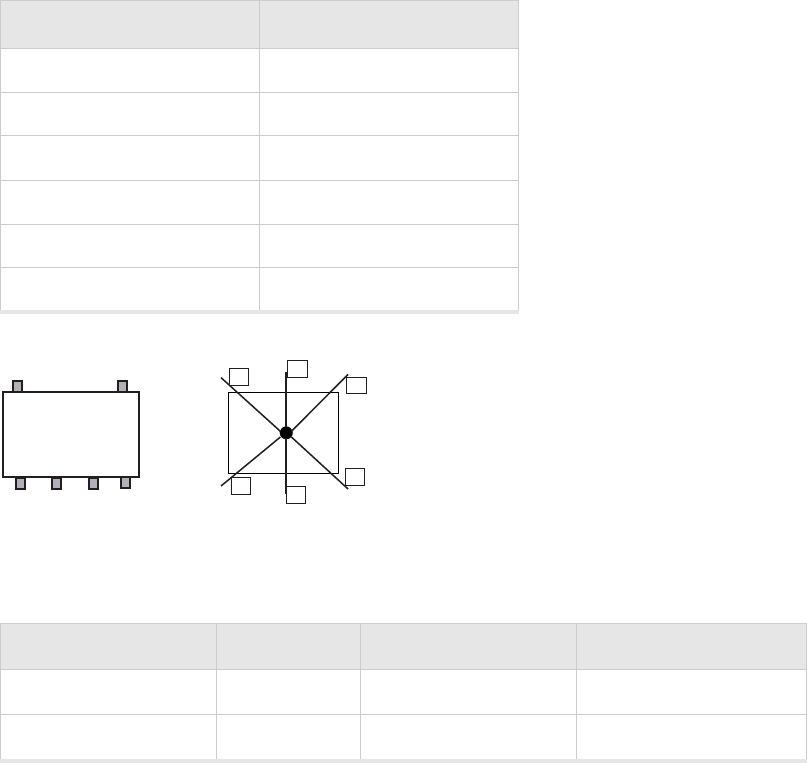

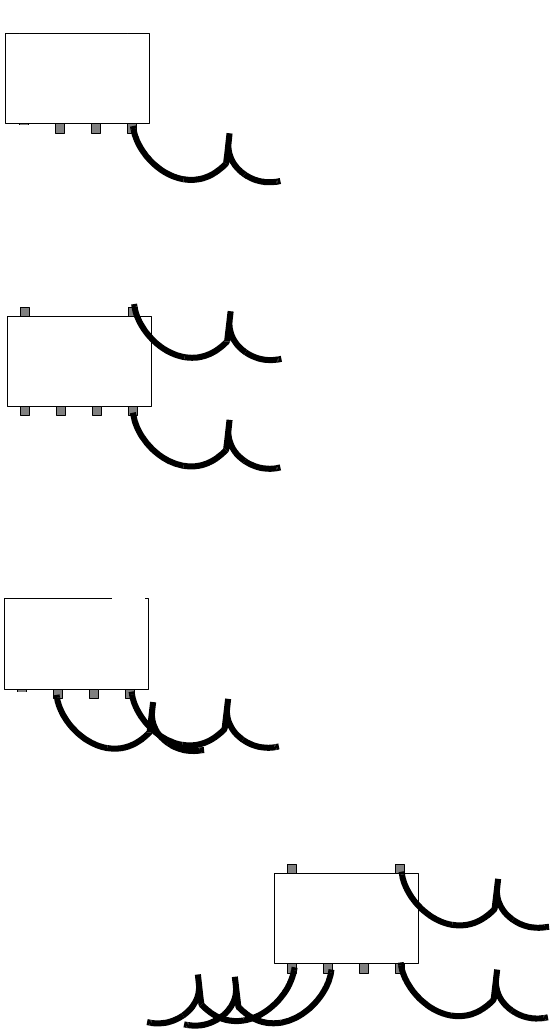

AP300 Configurations

Features for the AP300 include:

802.11n support with channel bonding in both 2.4GHz and 5GHz frequency bands.

Channel bonding combines two 20Mhz channels into a single-wide 40Mhz channel

for increased throughput.

Dual-band external antenna options optimized for MIMO mode

Plug and Play deployment using centralized controller platforms

Multi-layered security including standard WPA2, 802.11i security such as

automatic traffic inspection

Each of these Access points may be powered by a standard 802.3af PoE device.

Air Traffic Control technology for 802.11n devices and legacy a/b/g devices

3x3 MIMO with 3 chains and 3 receive chains, delivering two spatial streams

For AP302 and AP311, the a/b/g radio software upgrades to 802.11n for maximum

investment protection.

Channel span architecture which requires no channel planning or configuration

Six standard multiband, omni-directional antennas for AP302, AP320 and AP311.

Three standard multiband, omni-directional antennas for AP310/AP310-M and AP301.

Model Configuration

AP320iTwo dual-band 802.11n radios with 3x3 MIMO and internal

antennas

AP320Two dual-band 802.11n radios with 3x3 MIMO and external

antennas

AP310/AP310-M Single dual-band 802.11n radio with 3x3 MIMO and external

antennas

AP311Single dual-band 802.11n radio and single 802.11a/b/g

radio (AP320 upgradable) with external antennas

AP302Two dual-band 802.11a/b/g radios (AP320 upgrade able)

with external antennas

AP301Single dual-band 802.11a/b/g radio (AP310 up-gradeable)

with external antennas

AP300

Powered by 5 volt DC input, 802.3af compliant PoE device, or draft 802.3at

compliant PoE device.

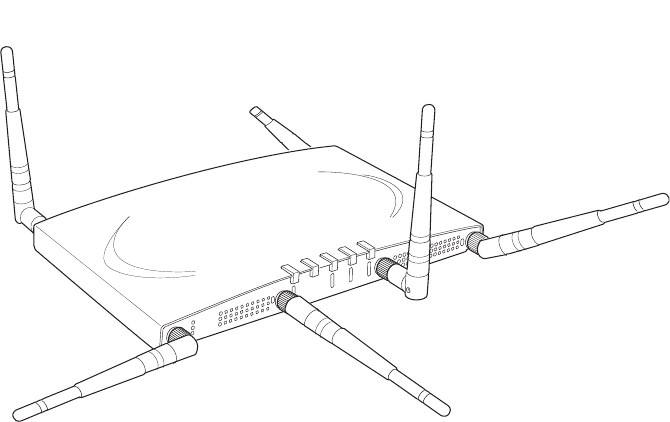

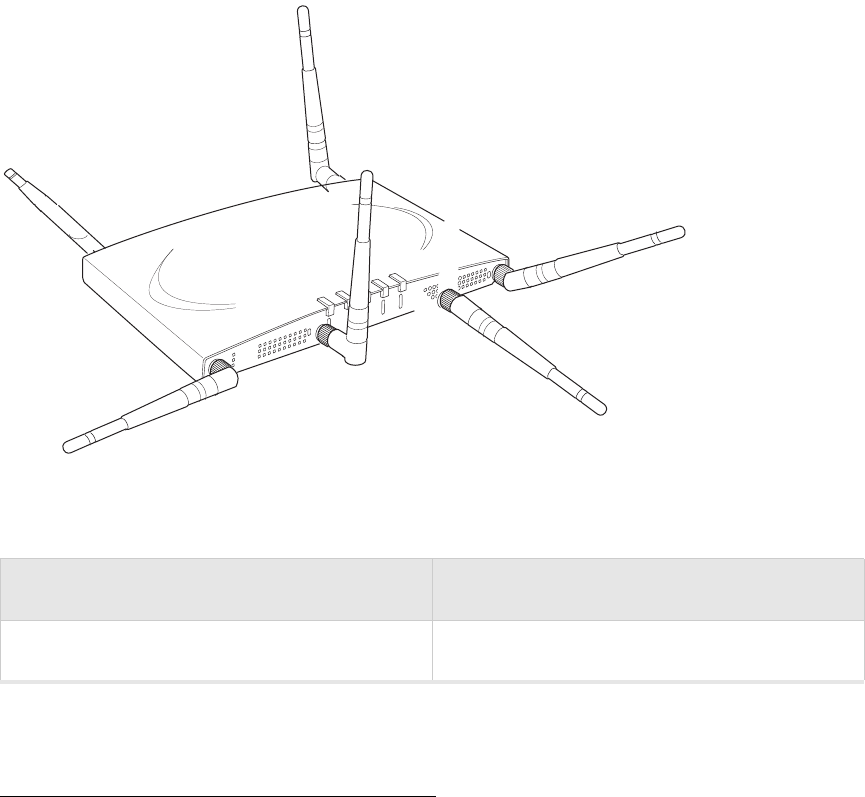

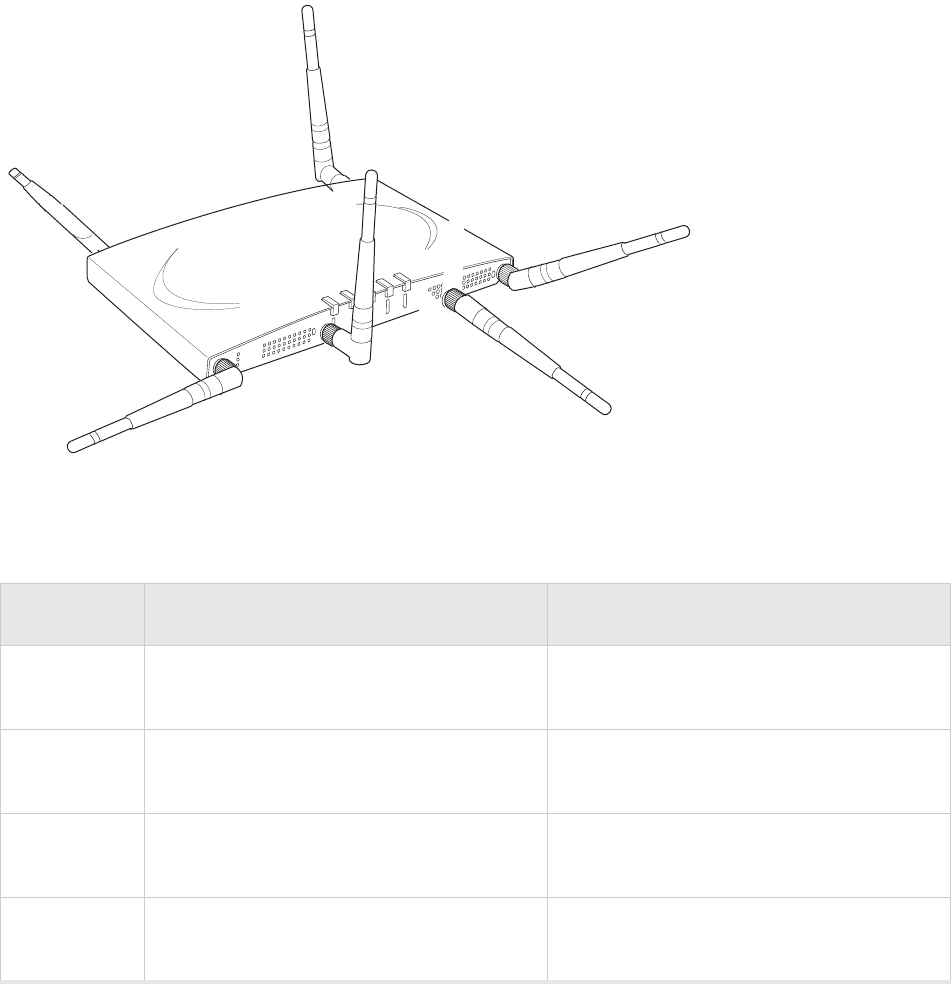

Figure 2: AP300

AP320i

The AP320i Access Point is an internal-antenna AP with two dual-band 802.11n radios

and 3x3 MIMO and internal antennas.

Features for the AP320i include:

Internal antennas

802.11n support with channel bonding in both 2.4GHz and 5GHz frequency bands.

Channel bonding combines two 20Mhz channels into a single-wide 40Mhz channel

for increased throughput.

Plug and Play deployment using centralized controller platforms

Multi-layered security including standard WPA2 features such as automatic traffic

inspection

Standard 802.3af PoE support and support for many 802.3at devices

Air Traffic Control technology for 802.11n devices and legacy a/b/g devices

Channel span architecture that requires no channel planning or configuration

Figure 3: AP320i

00241

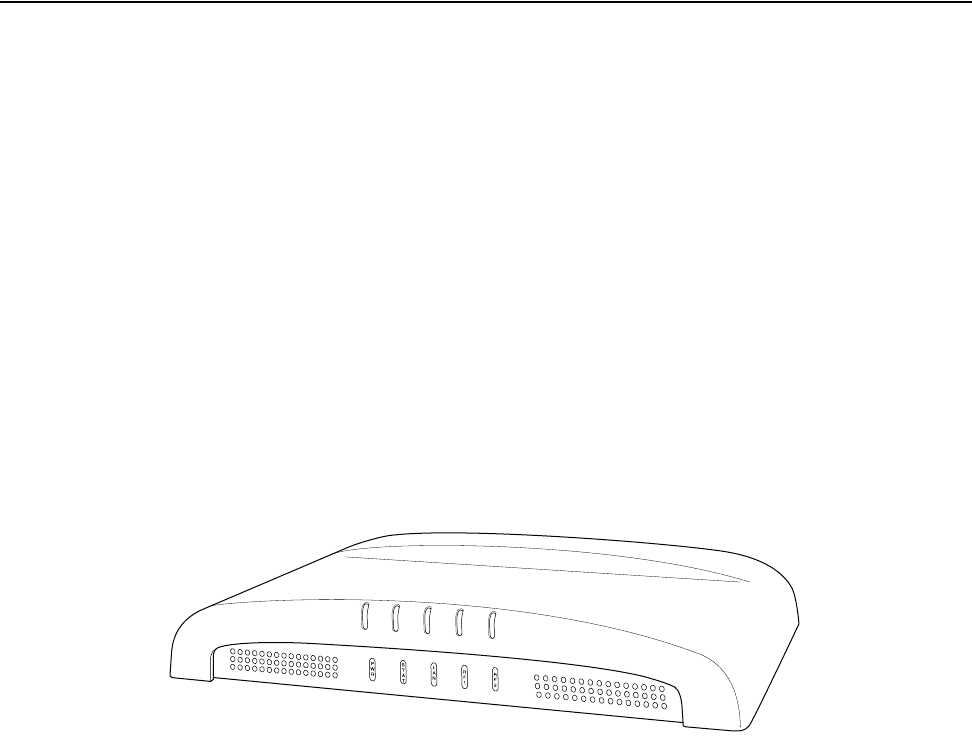

AP200

The AP200 series provides two models that conform to the specifications provided by

the IEEE 802.11a and 802.11g protocols and provide backward compatibility for the

802.11b protocol. An AP200 works with most standard Wi-Fi clients.

The AP201 houses a single 802.11a/b/g radio device.

The AP208 supports a maximum of two radio devices that can simultaneously run

two protocols (802.11b, g or b/g on interface 1 and 802.11a on interface 2).

Alternately the second radio can be configured to run as an RF monitor to a Meru

Controller, providing real-time status of RF activity to optimize the wireless

network.

The AP200 series (referred hereafter as the AP200, unless specifically referring to the

AP201 or AP208) is housed in a metal case with a plastic removable cover. As such, it

can be used for plenum installations when the plastic cover is removed.

Figure 4: AP200

AP200

00109

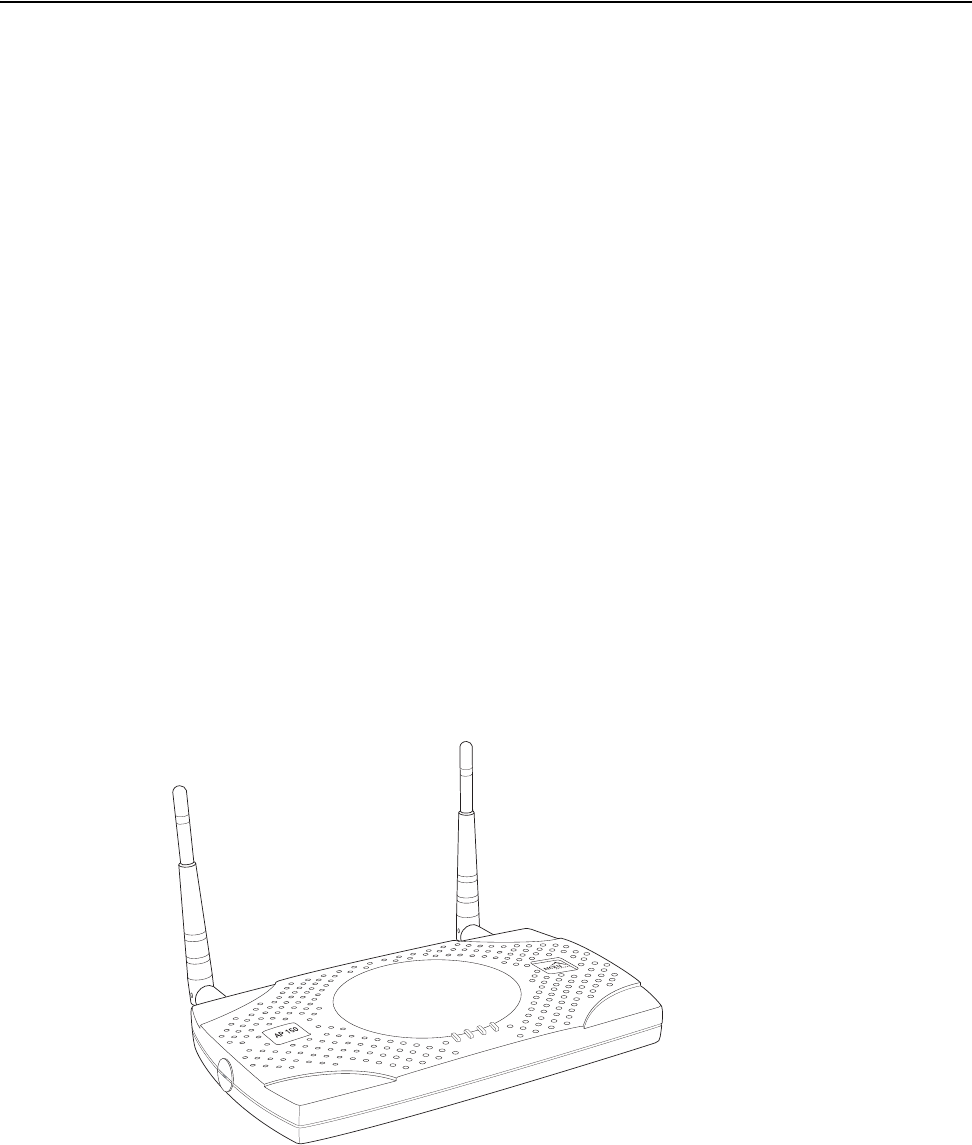

AP150

The AP150 has two 802.11 radios for simultaneous 802.11a and 802.11b/g WLAN

access. It is an ideal option for enterprise-wide data-only WLAN implementations and

small-sized converged data and voice WLAN implementations. The AP150 works in

conjunction with Meru Controller products and can be easily integrated into existing

Layer 2 and Layer 3 wired network environments to provide enterprise-grade Wi-Fi

access with multi-layered security options, basic VoWLAN support, centralized

configuration, troubleshooting tools, remote management and RF visualization capa-

bilities.

The AP150 has the following features:

Dual 802.11b/g and 802.11a radios

Simultaneously support for 802.11b, 802.11g, and 802.11a clients

Contention Management for high density of data clients

Basic VoWLAN QoS support for small density of voice clients

Multiple ESSIDs with individual security policies to ensure separation of different

user groups or dynamic VLAN assignment per user based on RADIUS credentials

Zero configuration required at the access point; the installation procedure is a

simple plug-n-play

Automatic AP discovery, configuration

Intelligent load balancing of clients

Layer 2 or 3 connectivity for flexible deployment options

Locking mechanism secures access point when mounted in public areas

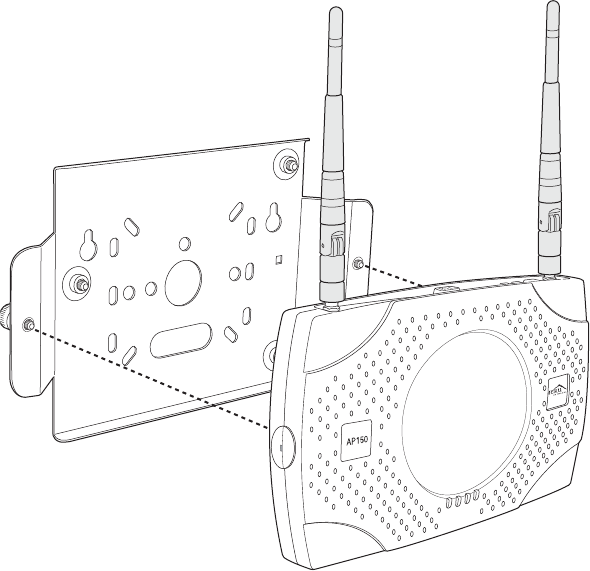

Figure 5: AP150

PWR

LAN

RADIO2

RADIO1

00175

AP150

PWR

LAN

RADIO 2

RADIO 1

00175

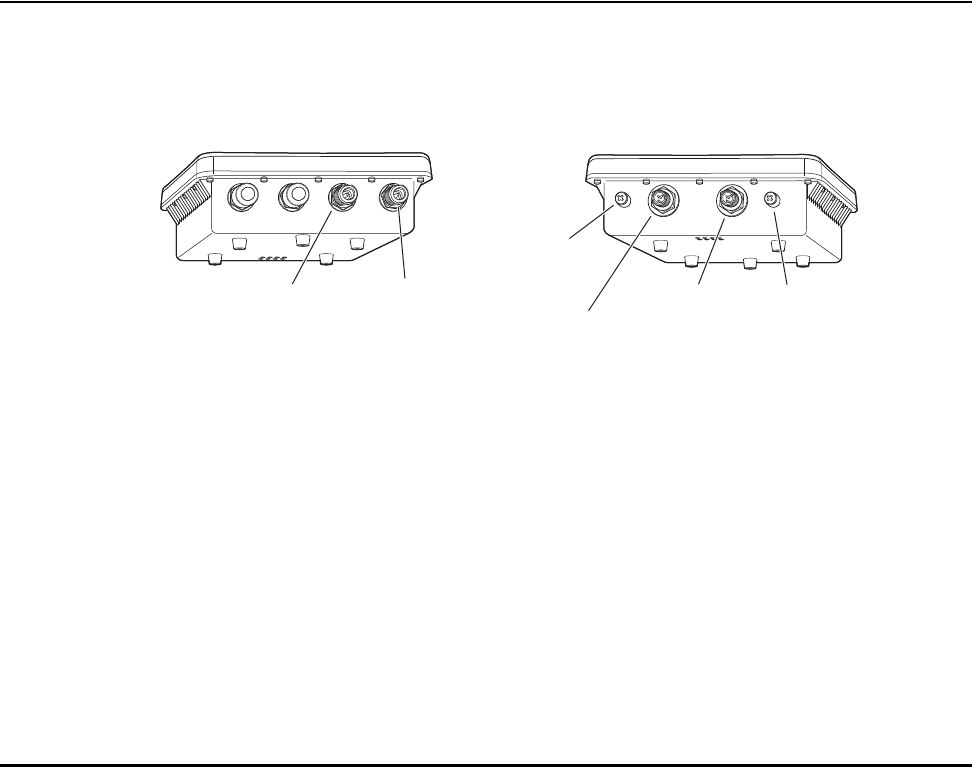

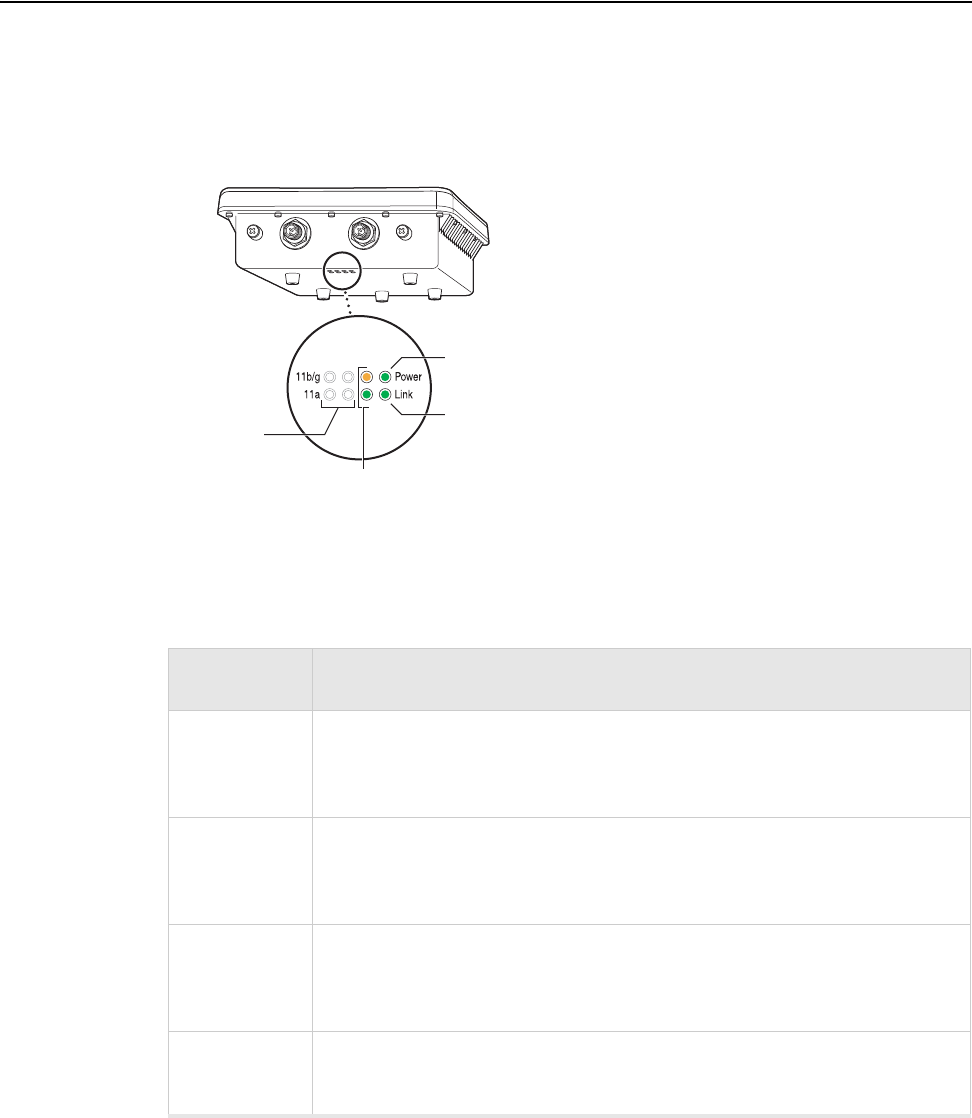

OAP180

The OAP180 Rugged Access Point with dual 802.11a/bg radios is designed to provide

secure Wi-Fi connectivity to outdoor locations such as campuses, parking lots, and

pole tops, or to harsh indoor locations such as breweries, food processing plants or

warehouses. The OAP180 supports the following features:

Simultaneous support for 802.11a, 802.11b, and 802.11g clients using dual

802.11a and 802.11b/g radios

Full support of System Director features

Automatic AP discovery and configuration

No channel planning required with single channel installations

Intelligent load balancing of clients

PoE (Power over Ethernet) support

RoHS compliant

Locking mechanism for security when mounted in public areas

Figure 6: Rugged OAP180 Access Point

Console PoE

Console Port PoE (Ethernet) Port

Ethernet

Cable

OAP180

Safety Precautions

Chapter 2

Installing AP300

This chapter describes how to install and configure an AP300. It contains the following sections:

Safety Precautions

Unpack the AP300

Determine Power Requirements

Installation Requirements

Install the AP300

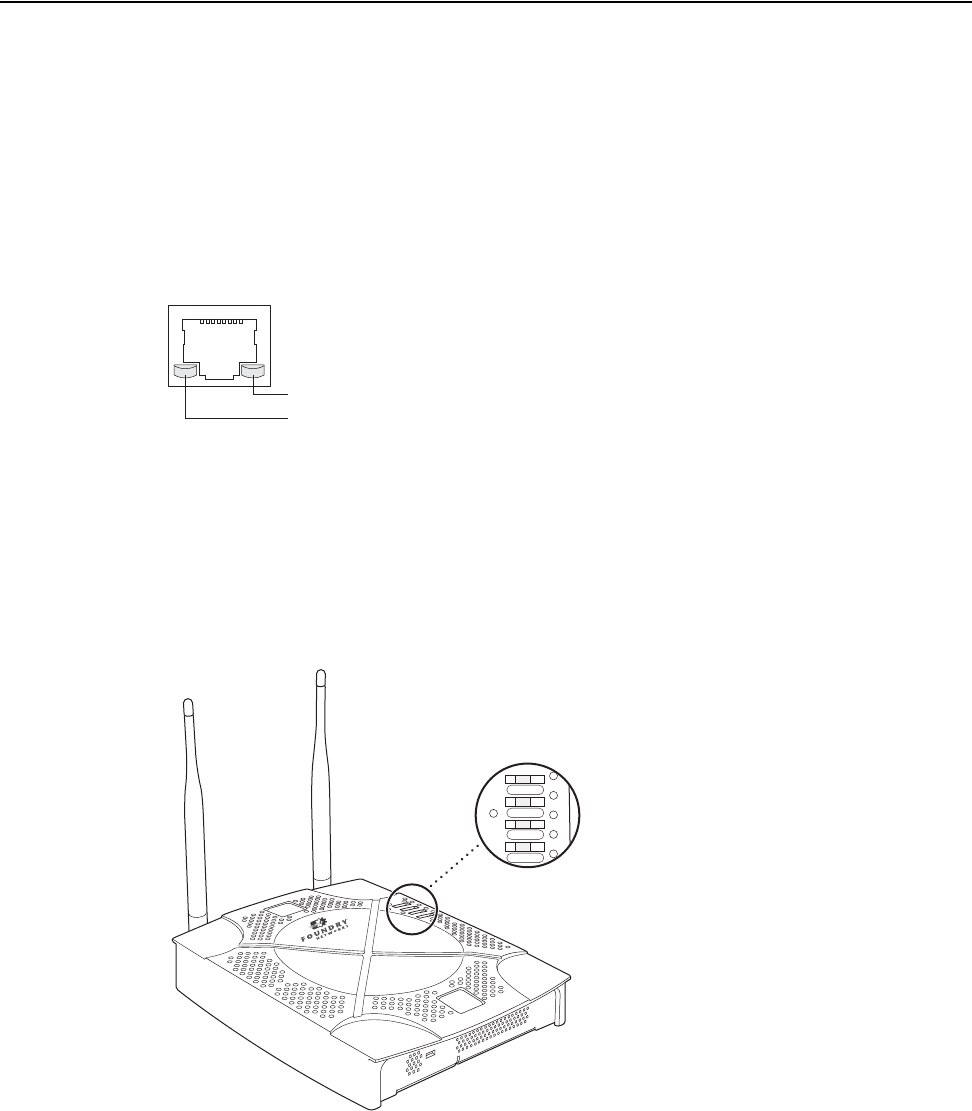

Check AP300 LED Activity

Where to Go From Here

Safety Precautions

IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating

this product.

If an optional power supply is used, it must be one supplied by Meru Networks.

The AP300 is intended only for installation in Environment A as defined in IEEE 802.3af. All intercon-

nected equipment must be contained within the same building, including the interconnected equip-

ment's associated LAN connection.

Best Practices for an AP300/AP200 Network

Best Practices for an AP300/ AP200 Network

Read this section if you have both AP200 and AP300 active simultaneously on the same network with ABG

legacy clients. The following best practices should be followed to get optimal performance from such a mixed

network.

Do not deploy AP200 and AP300 at the same physical location; we recommend no overlapping

coverage between AP200 and AP300.

If AP200 and AP300 must have overlapping coverage, make sure the ESS profiles on both AP types

are unique. The chart below shows two scenarios, one supported, one not supported.

AP300i and AP300 are interchangeable and fully compatible to share a virtual cell. It's like having

two AP300s with different antennas. The only difference is that AP300i is detected as a such in the

UI of the controller.

Assumptions for the above best practices include:

AP200 is using Virtual Port and BSSID Virtual Cell (AP200 could also be using Shared BSSID Virtual

Cell.)

AP300 is using Virtual Port BSSID Virtual Cell.

AP200s and AP300s are on the same channel. (AP200 and AP300 could also be on different channels.)

AP200s and AP300s are on the same controller. (AP200 and AP300 could also be on different

controllers as long as each controller has a unique controller index.)

Supported Scenario AP200 Configuration AP300 Configuration

Two Unique ESS profiles ESS Profile name in

controller is UniqueName1

ESS Profile name in

controller is UniqueName2

AP200 and AP300 SSID string

over the air Meru Meru

Unsupported Scenario AP200 Configuration AP300 Configuration

Same ESS profiles ESS Profile name in

controller is same name

ESS Profile name in

controller is same name

AP200 and AP300 SSID string

over the air Meru Meru

Unpack the AP300

The AP300 series has five models as shown below.

Confirm that the AP300 shipping package contains these items:

AP300 with attached mounting bracket

Six antennas

Screws for the mounting bracket

Model Radios

AP320 Two a/b/g/n

AP311 One a/b/g/n, one a/b/g

AP310/AP310-M

AP302 One a/b/g

One a/b/g/n

Determine Power Requirements

Power requirements vary, depending on which AP300 radios are deployed and what MIMO mode is used.

See the chart below for supported power sources for different radio configurations.

802.af PoE Usage

When using System Director 3.6/4.0 and 802.3af PoE, Meru supports radios set to any MIMO settings

except 3x3 on dual radios. This is because two radios set to 3x3 MIMO using an 802.3af switch may not

have enough power if the cable is too long. Shorter cables frequently work, however. Meru supports:

Single 3x3 radio

Dual 2 x 2 radios

Dual radio with one set to 2x2 and the other one set to 3x3

When using System Director 4.0 and 802.3af, the AP300 MIMO configuration is limited to the following:

3x3 for the 5 GHz radio

2x2 for the 2.4 GHz radio

802.3at PoE Usage

When using System Director 3.6/4.0 and 802.3at, the following radio combinations are recommended:

Single 3x3 radio

Dual 2 x 2 radios

Dual radio with one set to 2x2 and the other one set to 3x3

Dual 3x3 radios are recommended with a limitation. Use 802.3at power for two 3x3 MIMO radios

when the switch has a high enough power output to support all devices on the PoE. Calculate the

amount of power needed by each AP300/AP300i in 3x3 mode (13 watts), add that to power required

by other PoE devices on the switch and compare that value to the total power output from the

switch.

Radio 1 MIMO Radio 2 MIMO 802. 3af PoE 802. 3at PoE DC Power

2x2 2x2 

2x2 3x3 

3x3 2x2 

3x3 3x3 Do not

recommend

Recommend

with caution 

Installation Requirements

The calculation for 802.3at PoE use looks something like this:

(Number of AP300s * 13watts) + (sum of all other PoE devices power requirements) <= switch

power provided

Installation Requirements

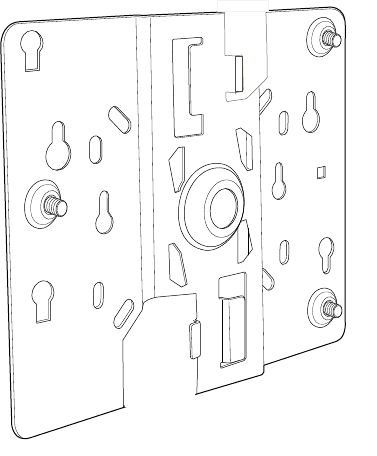

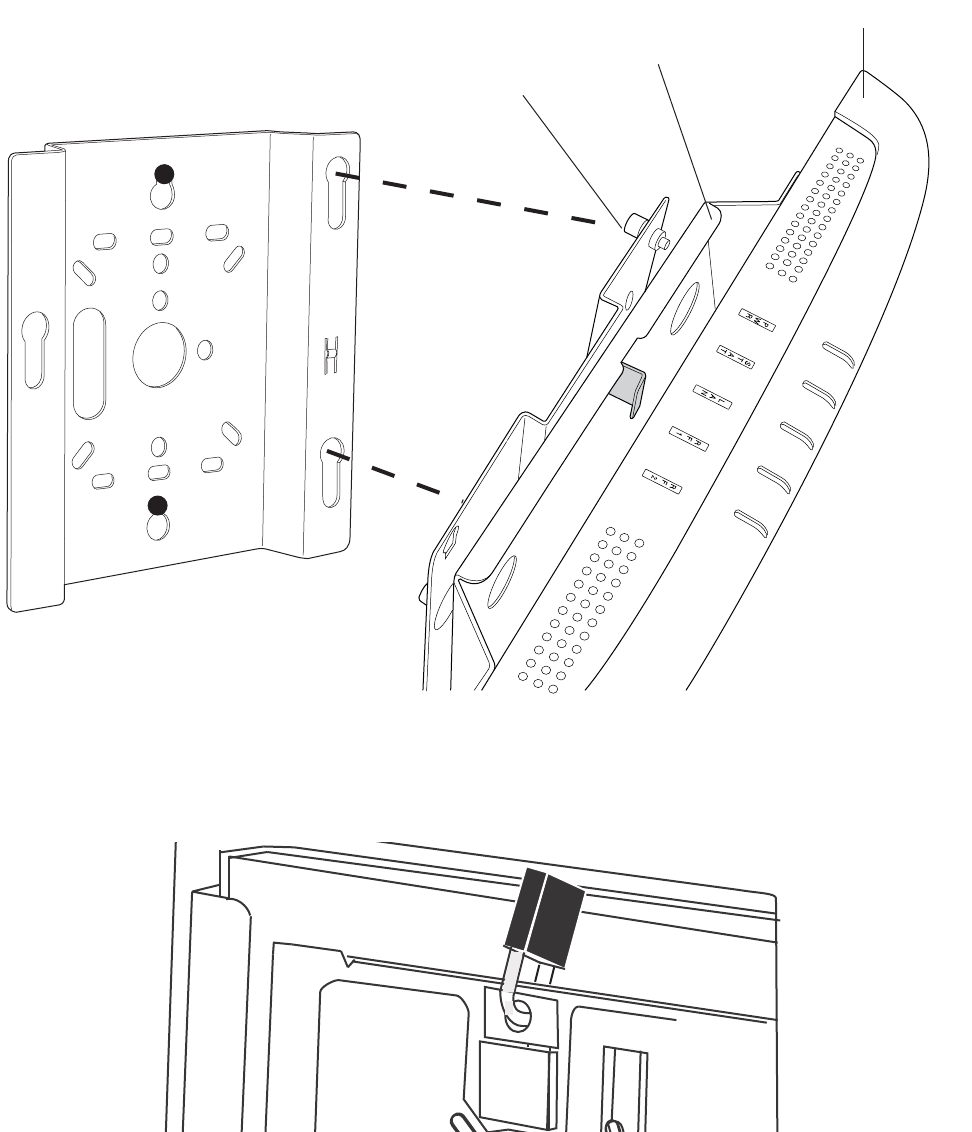

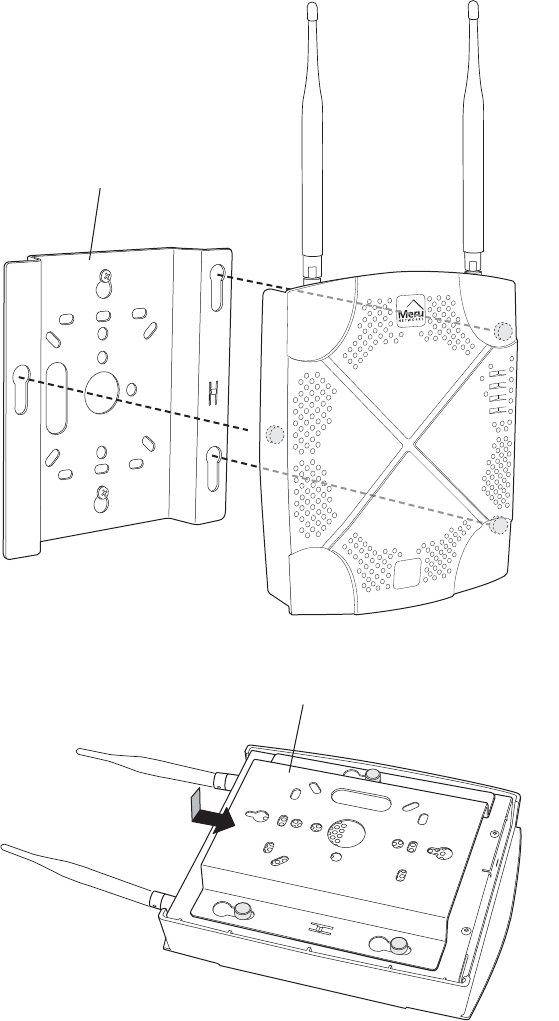

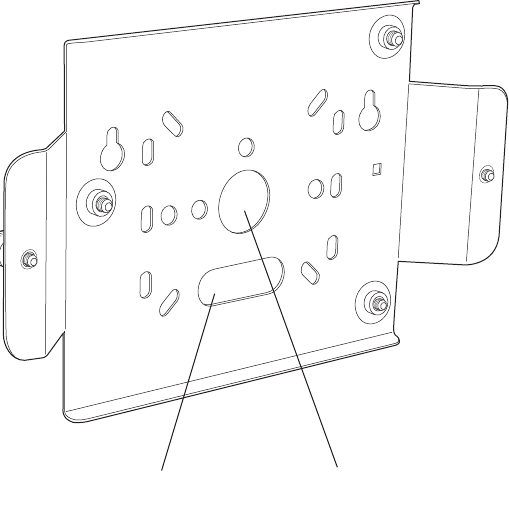

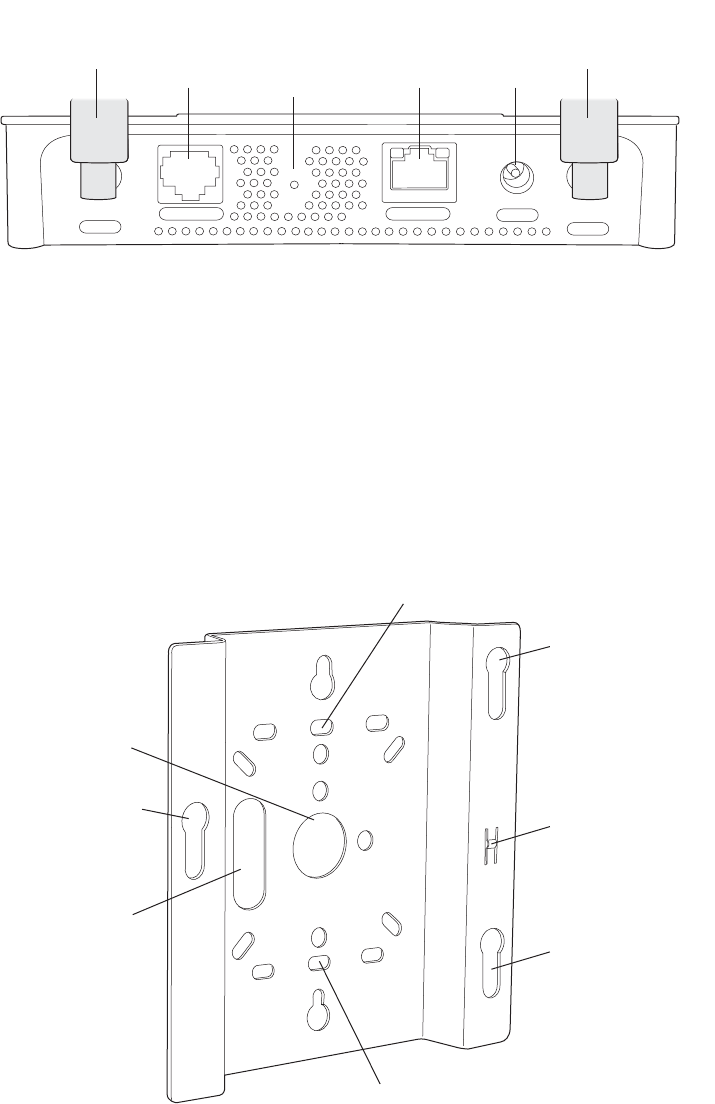

An array of holes on the mounting bracket allows the AP300 to be mounted on the wall and over junc-

tion boxes or molly bolts. There are holes for passing the PoE Ethernet or external power supply cable

through the bracket if the bracket is mounted on a junction box. A template of this bracket is included

in Appendix E of this guide.

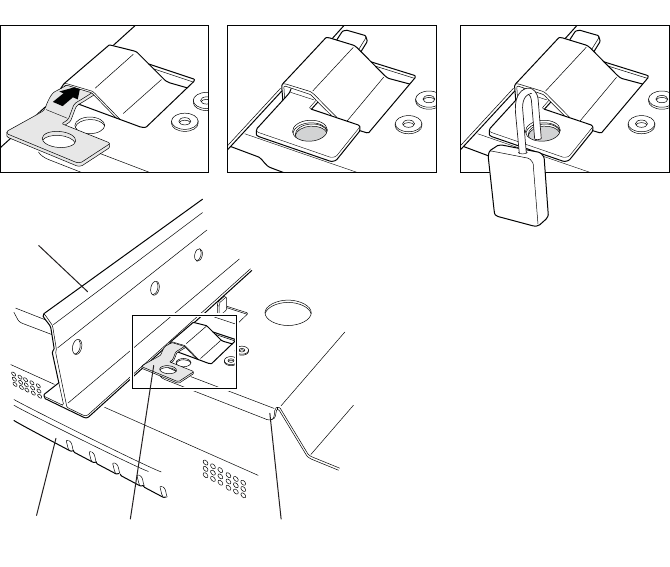

The AP300 has a security cable slot so you can lock the AP300 with a standard security cable, such as

those used to secure laptop computers.

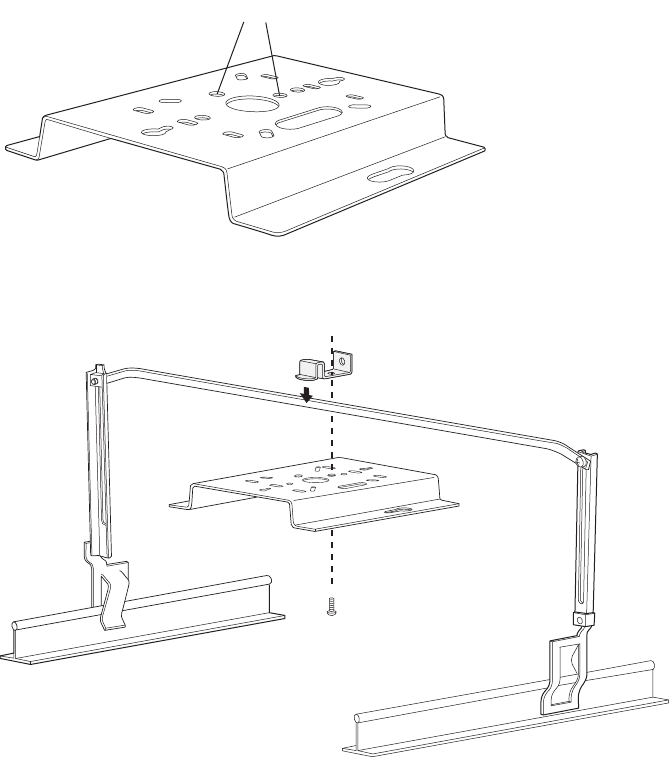

Purchase optional mounting kits to mount the AP300 either from the ceiling or inside an enclosure:

Suspended Ceiling Rail Mounting Kit: ACC-MNT-SCRMKIT

Above Suspended Ceiling Mounting Kit (T-Bar Hanger): ACC-MNT-ASCMKIT

Inside a Hoffman Enclosure using Hoffman compatible mounting bracket: ACC-AP300-BHE (enclosure

not provided)

Above hanging ceiling tiles. Suitable for use in environmental air space in accordance with the

Section 300-22(c) of the National Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the

Canadian Electrical Code. Part 1. C22. 1.

To complete AP300 installation, you need the items listed below.

Installation Type Items Required

Horizontal mounting None

Vertical mounting over a wall

stud

Two #6 x 2" wood screws for a wood stud; or

Two #6 x 1½” metal screws for a metal stud

Mounting bracket

Vertical mounting on sheetrock

Two #6 x 1" screws

Two #4-6 x 7/8” ribbed plastic wall anchors

Mounting bracket

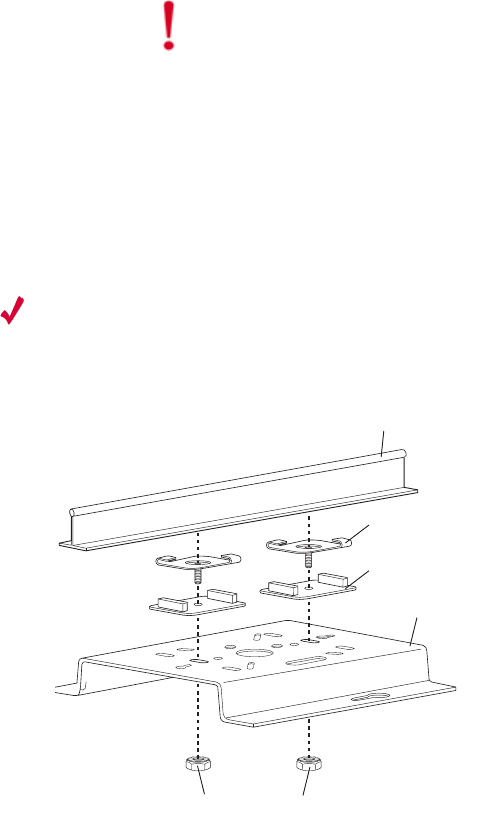

Horizontal mounting below a

hanging ceiling

Two caddy fasteners

Two plastic spacers

Two keps nuts (with attached lock washer)

Mounting bracket

Install the AP300

Additional Equipment

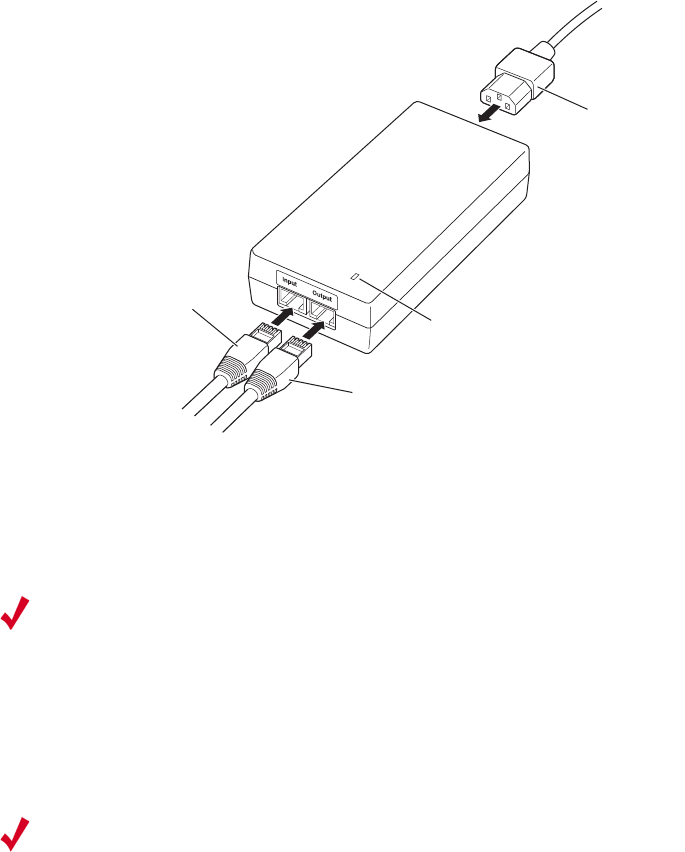

A power source is needed to power the AP300. See Determine Power Requirements.

Install the AP300

Select a Location

Attach the Provided Antennas

Install the Remote Antenna Mount (optional)

Install External ACC-ANT-MIMO-MNT Antenna with Three Connectors (optional)

Install Remote ACC-ANT-6ABGN-24 Antenna with Six Connectors (optional)

Install Antennas With One Connector (optional)

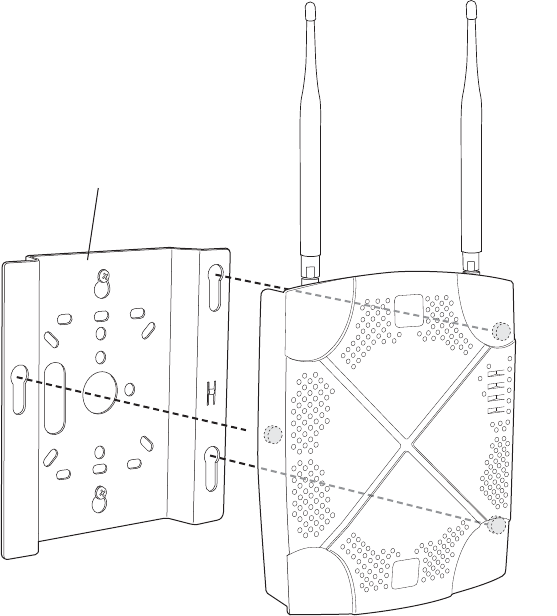

Install the Access Point

Select a Location

All AP300 interconnected equipment, including the associated LAN connection, must be contained

within the same building. In addition, the AP300 location should meet the following conditions:

Relatively unobstructed access to the stations the AP serves. Select a location with minimal physical

obstructions between the AP and the wireless stations. In an office with cubicles, mounting the APs

below a hanging ceiling (plenum is supported) or the wall near the ceiling provides the least

obstructed communications path. On a wall, orient the AP300 horizontally so that you can read the

Meru logo without tilting your head at 90 degrees - this orientation provides optimum MIMO

performance.

Access to wall outlet or a to a

Power over Ethernet (PoE) connection to the network switch servicing

the controller.

AP300 is designed to provide 360 degree omni-directional coverage as illustrated below.

Using existing third party

brackets

Use included shoulder screws

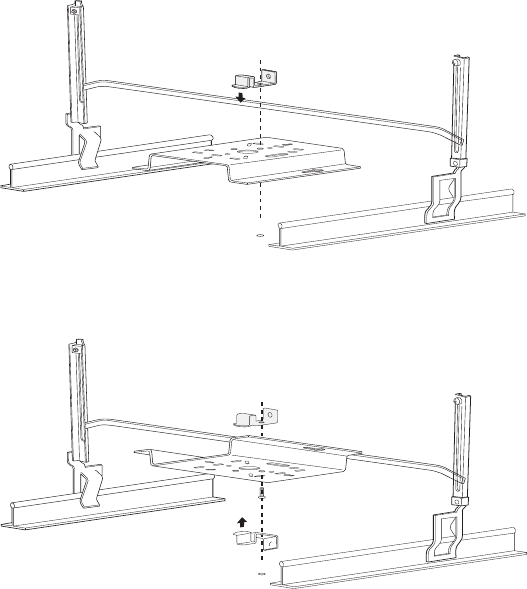

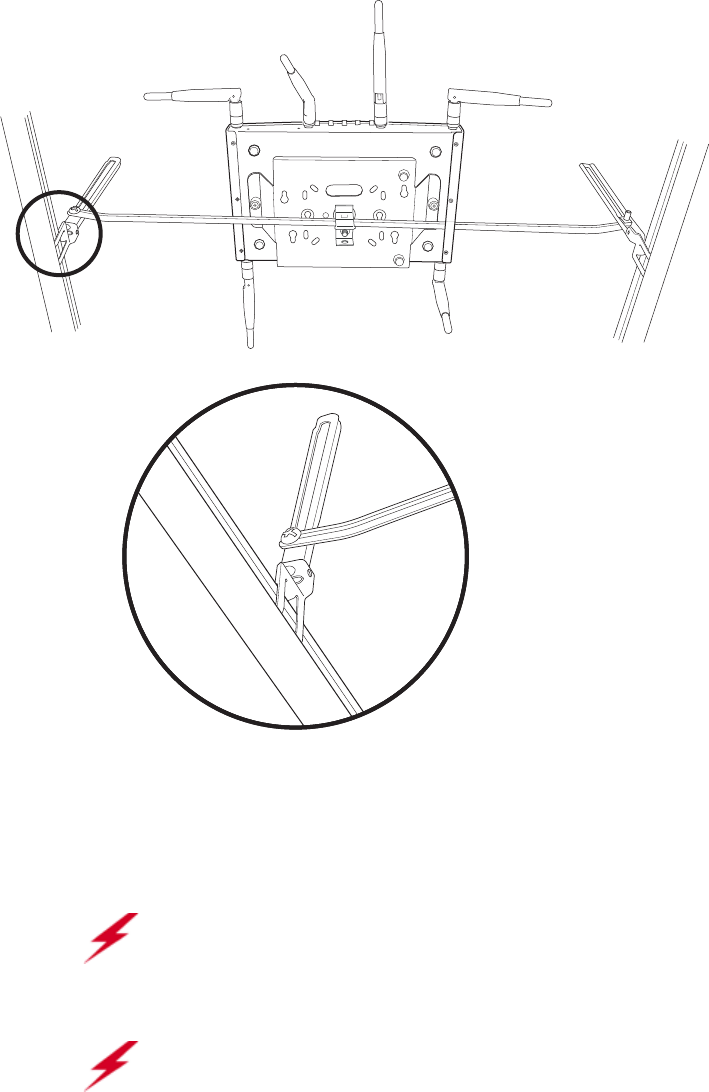

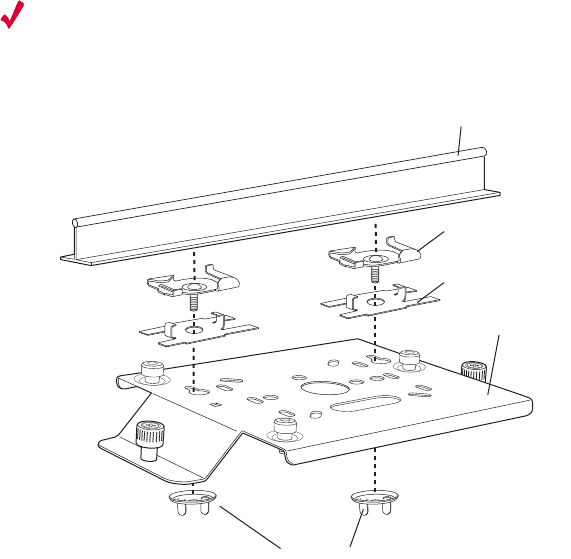

Mounting above a ceiling tile

Two T -r ai l cl ips

One T-box hanger

One bracket mounting clip

Mounting bracket

Installation Type Items Required

Install the AP300

Figure 8: Coverage Pattern for AP300 When Ceiling Mounted

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

Place APs about 80 feet apart.

Do not install APs near metal objects, such as heating ducts, metal doors, or electric service panels.

For best coverage, orient antennas as shown in Figure 6.

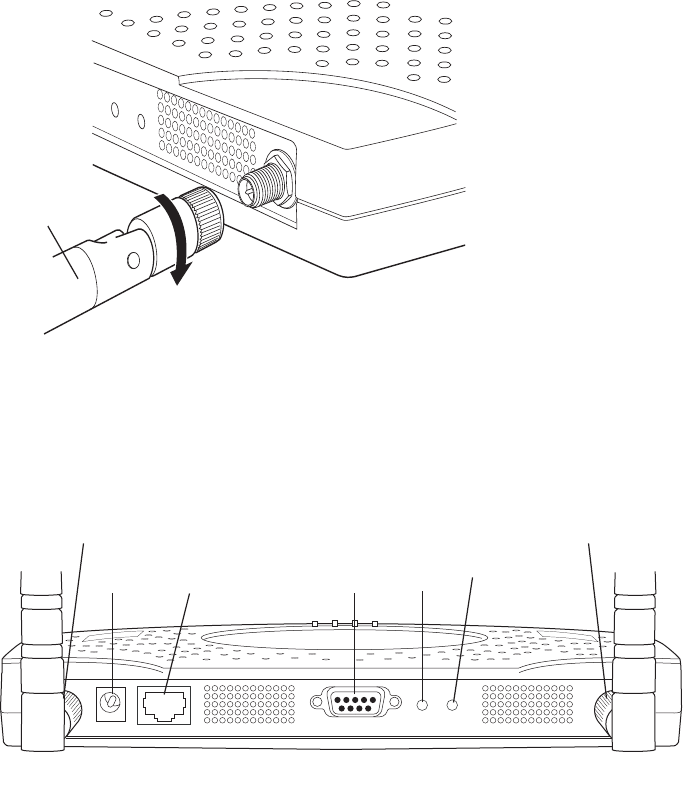

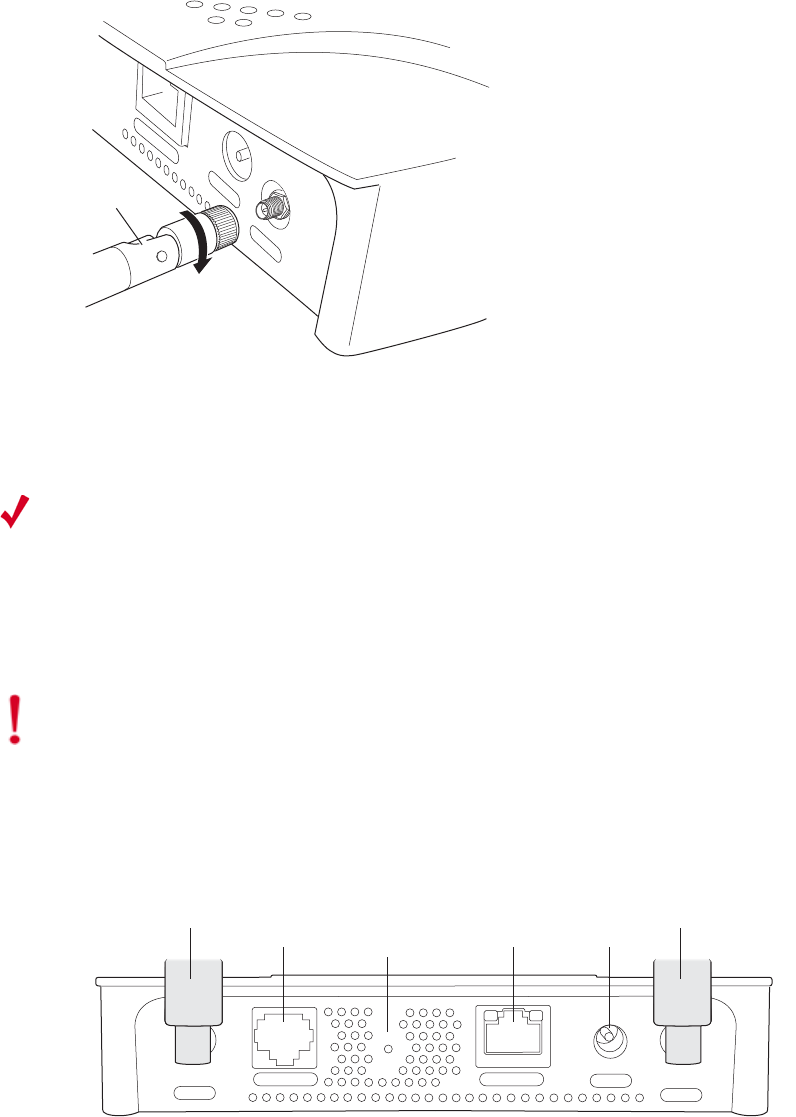

Attach the Provided Antennas

All AP300s have six external antenna ports, labeled 1 - 6. These units operate with six antennas

attached, even though some configurations don’t use all six. Instead of attaching an antenna, you can

cap unused antenna connectors with 50 ohm Reverse Polarity SMA terminators. (For a list of approved

terminators, see http://www.merunetworks.com/merusupport.) Meru supplied antennas are suitable

only for indoor use unless they are mounted in an outdoor enclosure (see Mount AP300 in a Hoffman

Enclosure). To achieve the best performance from your AP300, position antennas at a 90 degree angle

relative to each other as shown in Figure 6. The antennas do not have to be oriented exactly as shown

in the figure, but it is important to maintain the relative angles. If for some reason you are unable to

maintain those angles, the network still operates, but you may experience up to 20% drop in throughput

depending on the antenna orientation.

ceiling

floor

Install the AP300

Figure 6: AP320, AP311 or AP302 Antennas 1-6 in Ceiling and Wall Mount Configuration

The following antenna connections are used during operation of the AP320, AP311, and AP302.

Table 1: AP300 Radios and Corresponding Antennas

The AP310/AP310-M has six external antenna ports labeled 1 - 6. However, AP310/AP310-M uses only

three of those antennas and the unused antenna connectors are blocked.

Figure 7 illustrates the recommended antenna configuration for the AP310/AP310-M.

Model Radio 1 (Ant4, Ant5, Ant6)Radio 2 (Ant1, Ant2, Ant3)

AP320a/b/g/n with 3 dual band omni-directional

antennas

a/b/g/n with 3 dual band omni-directional

antennas

AP311a/b/g/n with 3 dual band omni-directional

antennas

a/b/g with 3 dual band omni-directional

antennas

AP310/AP310-M a/b/g/n with 3 dual band omni-directional

antennasNA

AP302a/b/g with 3 dual band omni-directional

antennas

a/b/g with 3 dual band omni-directional

antennas

1 (horizontal)

6 (vertical)

2 (horizontal)

4 (horizontal)

3 (vertical)

5 (horizontal)

Install the AP300

Figure 7: AP310/AP310-M Antennas 1-3

The following antenna connections are used during operation of the AP310/AP310-M.

Do not leave any antenna connectors unterminated. All connectors on the AP must be terminated with

antennas or with 50 ohm Reverse Polarity SMA terminators. (For a list of approved terminators, see

http://www.merunetworks.com/merusupport.

The attached antennas must be the same model; if you replace one antenna, replace them all.

Install the Remote Antenna Mount (optional)

Use the optional Meru Remote Antenna Mount (ACC-ANT-MIMO-MNT) for one or both AP300 radios to

remotely connect the AP300 antennas. The Remote Antenna Mount allows you to relocate either your

current antennas or the optional high-gain dipole antennas to a location with clearer signal paths to

the other wireless devices in your network. The Remote Antenna Mount can be installed either below

the ceiling tile or on the wall. The default orientation for the mount is suitable for a ceiling mount,

but you can attach the mount to a wall with some modifications.

Use one mount per radio; for example AP310/AP310-M needs one unit, and AP320 needs two units.

The Remote Antenna Mount uses low-loss plenum rated LMR195 cable and SMA connectors.

To order this unit, contact your Meru sales representative and refer to part number ACC-ANT-MIMO-MNT.

Radio 1 Antenna Connectors for AP310/AP310-M Radio2 Antenna Connectors for AP310/AP310-M

Ant1, Ant2, Ant3 NA

1 (horizontal)

2 (horizontal)

3 (vertical)

does not matter

Install the AP300

Figure 8: Remote Antenna Mount

The remote antenna mount kit includes:

Antenna stand with attached cable. The three antenna SMA female connectors on the Antenna

Mount support AP300 antenna diversity. This feature gives the client the ability to automatically

choose the antenna receiving the strongest signal.

Triangular ceiling mount clip for attaching to hanging ceiling (includes bolt assembly)

Three self-adhesive pads for the bottom of the unit (over the screws)

Two wall mount screws with anchors

Ceiling Mount Template

Installation diagram

Install the Remote Antenna Mount on the Ceiling

To connect the Remote Antenna Mount to the ceiling, refer to the installation diagram from the ship-

ping box while following these steps:

1. Attach the shorter end of the screw to the center hole on the back of the Antenna Mount.

2. Remove the designated ceiling tile.

3. Using the template, drill holes in the ceiling tile.

4. Replace the ceiling tile.

5. Remove a ceiling tile adjacent to the newly drilled tile for access purposes.

6. Feed the Antenna Mount cable through the larger hole in the ceiling tile until the Antenna Mount

is flush with the ceiling. The screw should now be visible above the ceiling tile (through the second

hole).

7. Place the triangular plate above the ceiling tile with the screw aligned through the plate.

8. Drop the washer onto the screw and tighten the bolt.

The Antenna Mount is now connected to the ceiling.

9. Replace the adjacent tile.

00224

Install the AP300

10. Connect the three Remote Antenna Mount cables to the appropriate connectors on the AP300. Be

sure to connect the three antennas that correspond to one radio. Radio 1 uses A1, A2, A3 and Radio

2 uses A4, A5, A6.

11. Attach three antennas that shipped with AP300 to the three connectors on the triangular remote

device. See Figure 8.

Meru

A5 A6

A4 A3 A2

Install the AP300

Install the Remote Antenna Mount on a Wall

1. Reorient the cable on the Remote Antenna Mount by removing the three screws on the back,

removing the small cover, reorienting the cable and then replacing the three screws. Discard the

small cover.

2. Connect the three Remote Antenna Mount cables to the appropriate ports on the AP300. Be sure to

connect the three antennas that correspond to one radio. With dual radio, Radio 1 uses A4, A5, A6

and Radio 2 uses A1, A2, A3. For AP310/AP310-M, the single radio uses A1, A2, A3.

3. Attach three of the antennas that shipped with AP300 to the three ports on the triangular remote

device.

4. Orient the connected AP300 horizontally so that you can read the Meru logo without tilting your

head at 90 degrees - this orientation provides optimum MIMO performance.

Install External ACC-ANT-MIMO-MNT Antenna with Three Connectors

(optional)

You can optionally use an external antenna setup with your AP300 if the controller and APs are running

System Director 3.6.1MR4 and later. Meru supports this antenna for use on one radio using 802.11n

MIMO. An AP300 with one radio, for example AP310/AP310-M, needs one antenna. An AP300 with two

enO oidaR .sannetna owt sdeen ,023PA elpmaxe cables connect to ports A1, A2, and A3. Radio

Two cables connect to ports A4, A5, and A6. There is no preferred cabling connection; all three cables

are the same.

Calculate the antenna gain for the ACC-ANT-MIMO-MNT antenna by referring to the next three charts:

Band of Operation Gain Vertical Beamwidth Horizontal Beamwidth

2.40-2.483 GHz 2.5dB 55 degrees 360 degrees

5.15-5.85 GHz 4dB 60 degrees 360 degrees

Meru

A5 A6

A4 A3 A2

radios, for

Install the AP300

Using This Cable Type with 2. 4 GHz Calculate This Loss per Foot

RG174 0.60 dB

RG316 0.48 dB

LMR100 0.39 dB

LMR200 0.17 dB

LMR240 0.13 dB

LMR400 0.066 dB

LMR600 0.043 dB

Using This Cable Type with 5 GHz Calculate This Loss per Foot

RG174 1.02

RG316 0.76

LMR100 0.59 dB

LMR200 0.24 dB

LMR240 0.19 dB

LMR400 0.100 dB

LMR600 0.066 dB

Install the AP300

Install Remote ACC-ANT-6ABGN-24 Antenna with Six Connectors

(optional)

You can optionally use an external antenna setup with your AP300 if the controller and APs are running

System Director 3.6.1MR4 and later. Meru supports this antenna for use on AP300s with two radios, for

example AP320. This antenna has six connectors to connect to both radios to a dual-radio AP300 and

it supports 802.11n MIMO operation.

The six cables on the ACC-ANT-6ABGN-24 antenna are already tagged with the numbers 1 - 6. Connect

the antenna cables to the AP antenna ports as shown here:

Calculate the antenna gain for the ACC-ANT-6ABGN-24 antenna by referring to the next three charts:

Meru AP300 Antenna

Connector

Antenna Cable Numbered

A1 6

A2 5

A3 4

A4 3

A5 2

A6 1

Band of Operation Gain Vertical Beamwidth Horizontal Beamwidth

2.40-2.483 GHz 2.5dB 55 degrees 360 degrees

5.15-5.85 GHz 4dB 60 degrees 360 degrees

123

antenna

AP300

A3A4 A2 A1

Install the AP300

Install Antennas With One Connector (optional)

You can optionally use an external antenna setup with your AP300 if the controller and APs are running

System Director 3.6.1MR4 or 4.0.

When deploying an AP300 with only one antenna per radio, AP300 cannot support 802.11n MIMO oper-

ation. Also, any antenna ports that are not used to connect to an antenna must be terminated with 50

ohm Reverse Polarity SMA terminators. (For a list of approved terminators, see http://www.merunet-

works.com/merusupport.) Connect the antenna using one cable per radio as described in the table

below. These instructions can be used to replace an AP200 existing antenna configuration with an

AP300. For these instructions, each port on the AP300 is identified by a label A1 to A6.

Using This Cable Type with 2. 4 GHz Calculate This Loss per Foot

RG174 0.60 dB

RG316 0.48 dB

LMR100 0.39 dB

LMR200 0.17 dB

LMR240 0.13 dB

LMR400 0.066 dB

LMR600 0.043 dB

Using This Cable Type with 5 GHz Calculate This Loss per Foot

RG174 1.02

RG316 0.76

LMR100 0.59 dB

LMR200 0.24 dB

LMR240 0.19 dB

LMR400 0.100 dB

LMR600 0.066 dB

Install the AP300

AP Has One BG or A Radio, One Antenna

AP Has Two Radios (BG and A), One Antenna For Each

AP Has One Radio, Two Antennas

AP Has Two Radios, Four Antennas

Meru

A5 A6

A4 A3 A2

(BG or A radio antenna)

Meru

A5 A6

A4 A3 A2

(BG radio antenna)

(A radio antenna)

Meru

A5 A6

A4 A3 A2

(BG or A radio antenna)

Meru

A5 A6

A4 A3 A2

(BG radio antenna)

(A radio antenna)

(BG radio antenna)

Install the AP300

Install the Access Point

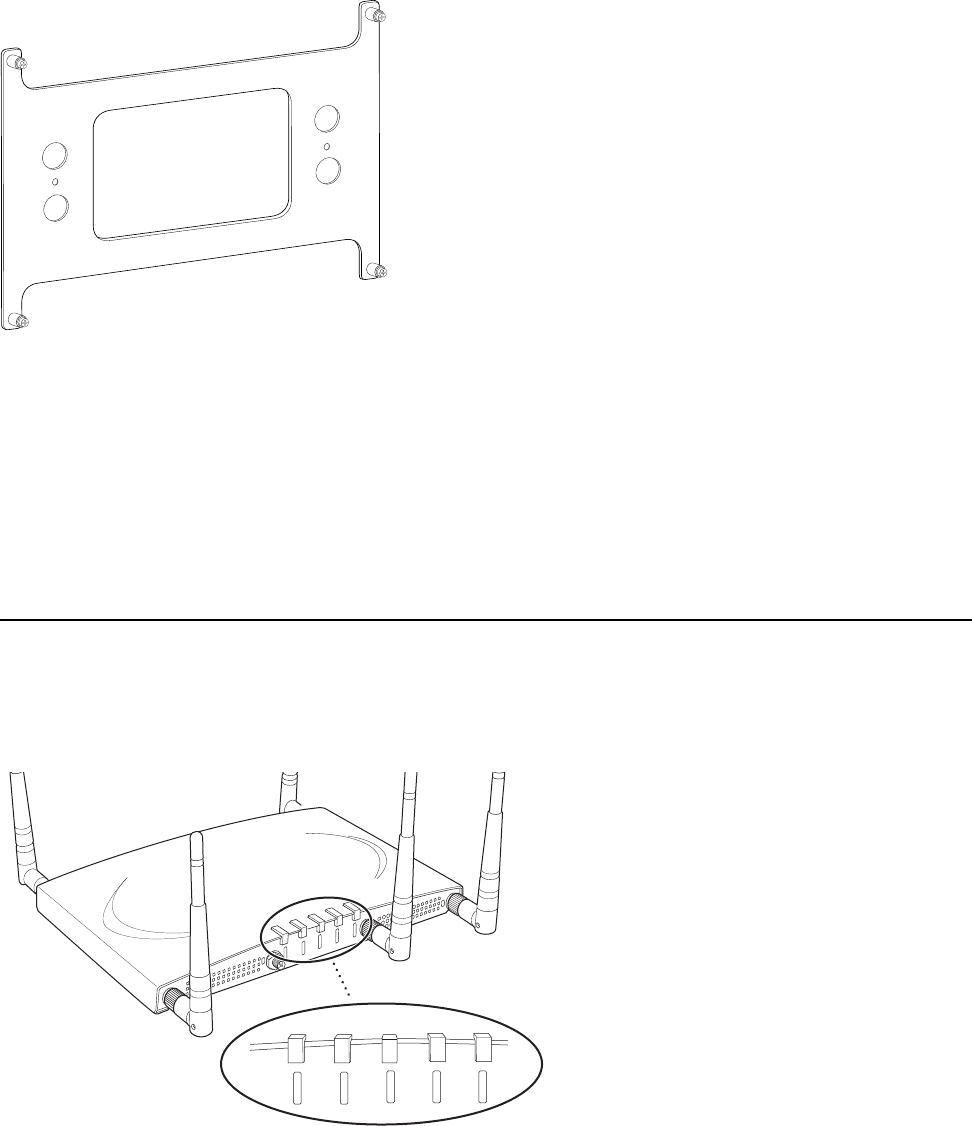

AP300 ships with a detachable mounting bracket. The AP300 is designed to be compatible with brackets

supplied by Meru and by other vendors as follows. The AP300 mounts directly on the AP150 mounting

bracket. If you are replacing AP200s/AP300s, the AP300 bracket can be mounted on the old

AP200s/AP300s bracket with included shoulder screws; you don’t need to remove the old brackets.

AP300 can also be directly mounted on third-party brackets such as Proxim AP4000 and Cisco standard

brackets.

You can mount an AP300 in the following ways:

Mount AP300 Horizontally on a Shelf

Mount AP300 Vertically on a Wall

Mount AP300 Below a Suspended Ceiling

Mount AP300 Above a Suspended Ceiling (Plenum)

Mount AP300 in a Hoffman Enclosure

Mount AP300 Horizontally on a Shelf

When mounting an AP300 horizontally, remove the mounting bracket. Be sure to position the antennas

vertically when an AP300 sits on a surface.

Mount AP300 Vertically on a Wall

Note:

If you are replacing AP150s, you can use the existing brackets: the AP150 and AP300 use the

same bracket. If you are replacing AP300s, the AP300 bracket can be attached to the old bracket with

included shoulder screws; you don’t have to remove the old brackets. This bracket will also mount

seamlessly into the Proxim AP4000 bracket and standard Cisco brackets.

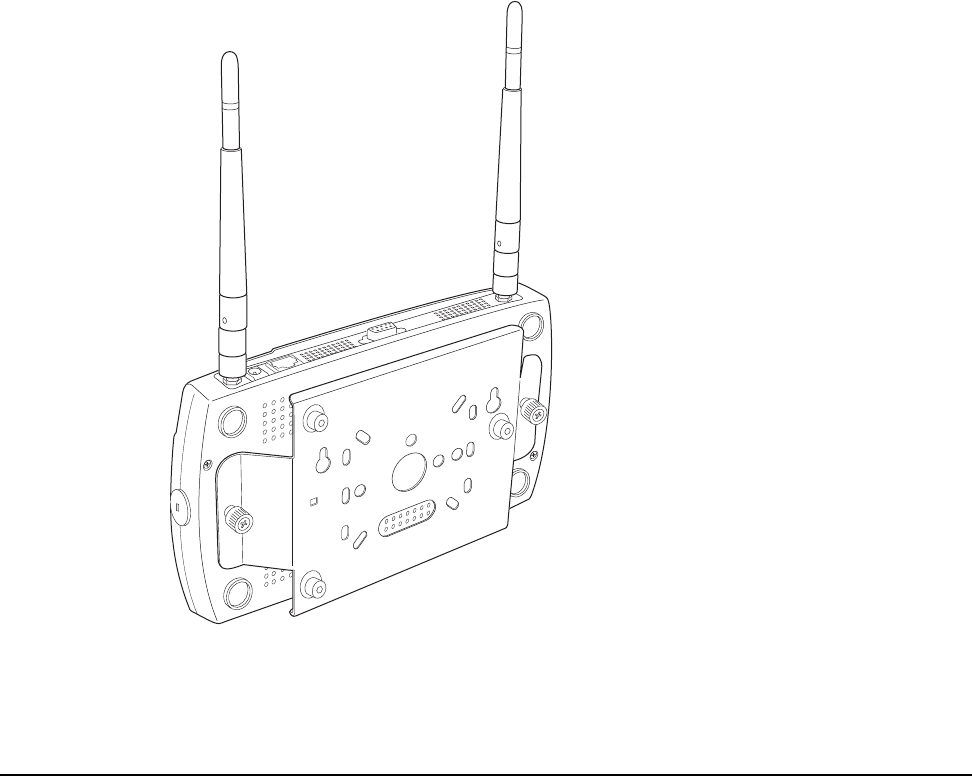

To mount an AP300 on a wall:

1. Using the bracket holes as a guide, mark the location on the wall for the two AP bracket mounting

screws. If possible, center the mounting screws on a wall stud. If you do not center the mounting

screws on a wall stud, use plastic wall anchors. Orient the AP300 horizontally so that you can read

the Meru logo without tilting your head at 90 degrees - this orientation provides optimum MIMO

performance.

2. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

3. If you are using plastic anchors, install them in the holes.

4. Screw in the screws most of the way.

5. Mount the bracket on the screws, placing the circular portion of the keyhole mounts over the screw

heads and sliding the bracket down.

6. Connect one end of the Ethernet cable to the switch and the other end to the AP300 Ethernet port.

Install the AP300

7. If you are not using a PoE device, connect an external power supply to the power connector and

plug it into the wall.

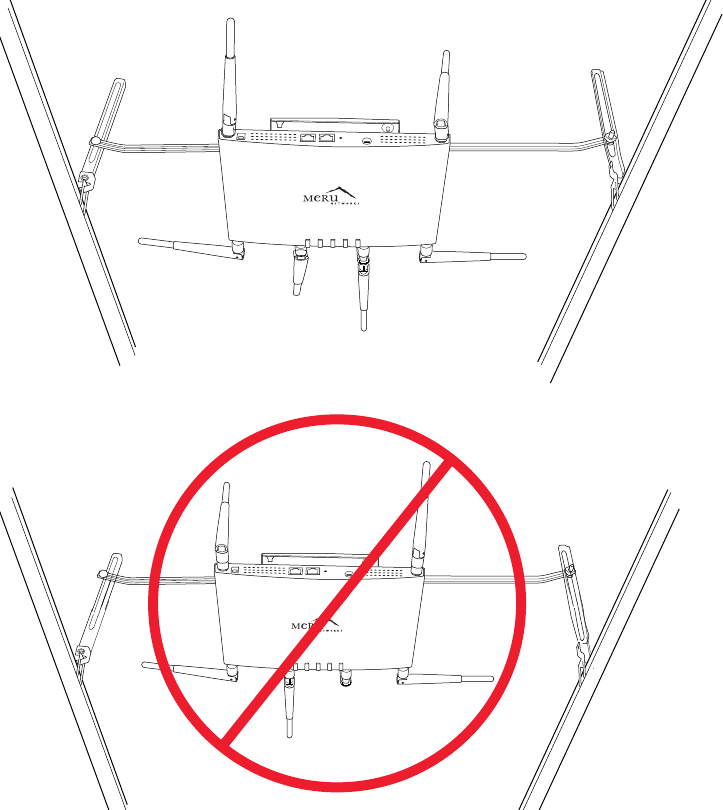

Mount AP300 Below a Suspended Ceiling

The optional suspended ceiling mounting kit (ACC-MNT-SCRMKIT) allows the AP300 mounting bracket

to attach to suspended ceiling T-rails (see Figure 9).

Note:

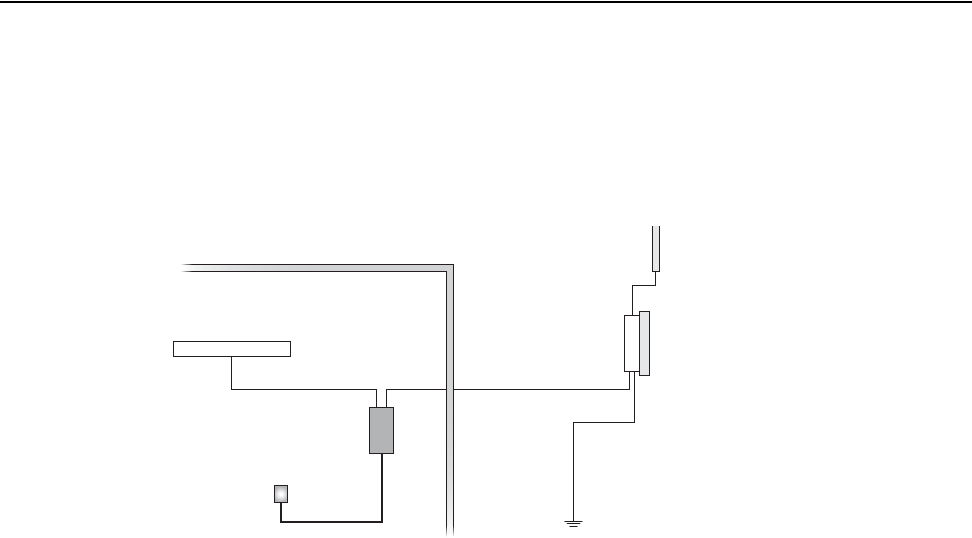

To comply with NEC code, attach a grounding wire to any of the screws used to attach the AP300

to the mounting bracket.

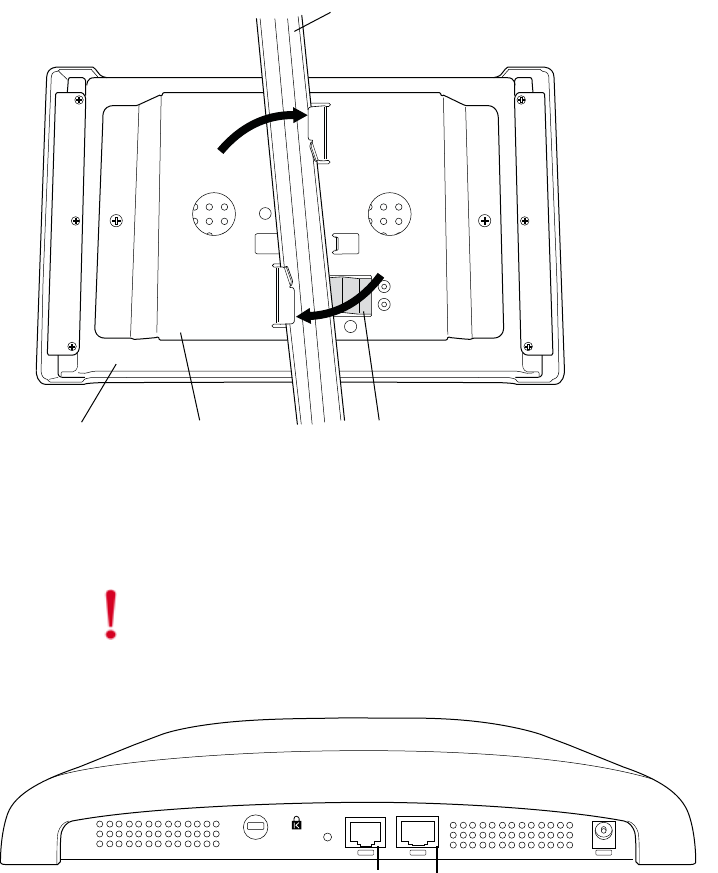

Figure 9: Mounting any AP to a Suspended Ceiling Rail using ACC-MNT-SCRMKIT

To mount an AP300 below a suspended ceiling:

1. Determine the location on the ceiling rail where the AP will be mounted and remove the ceiling

tiles.

2. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to the rail.

3. Adjust the distance between the caddy fasteners by using the mounting bracket holes as a guide.

4. Tighten the caddy fasteners in place using a standard screwdriver. Do not overtighten.

5. Place each spacer on the caddy fastener stud. The spacer legs should contact the ceiling T-rail.

6. Align the mounting bracket keyholes with the caddy fastener studs and slide the AP300 to the

narrow end of the hole.

7. Attach a keps nut to each caddy fastener stud and hand tighten. Do not overtighten.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port. If you do this, the AP won’t power up.

Suspended ceiling T-rail

Mounting bracket

Keps nuts with attached

locking washer

Caddy fastener(s)

Plastic spacer(s)

00102

Install the AP300

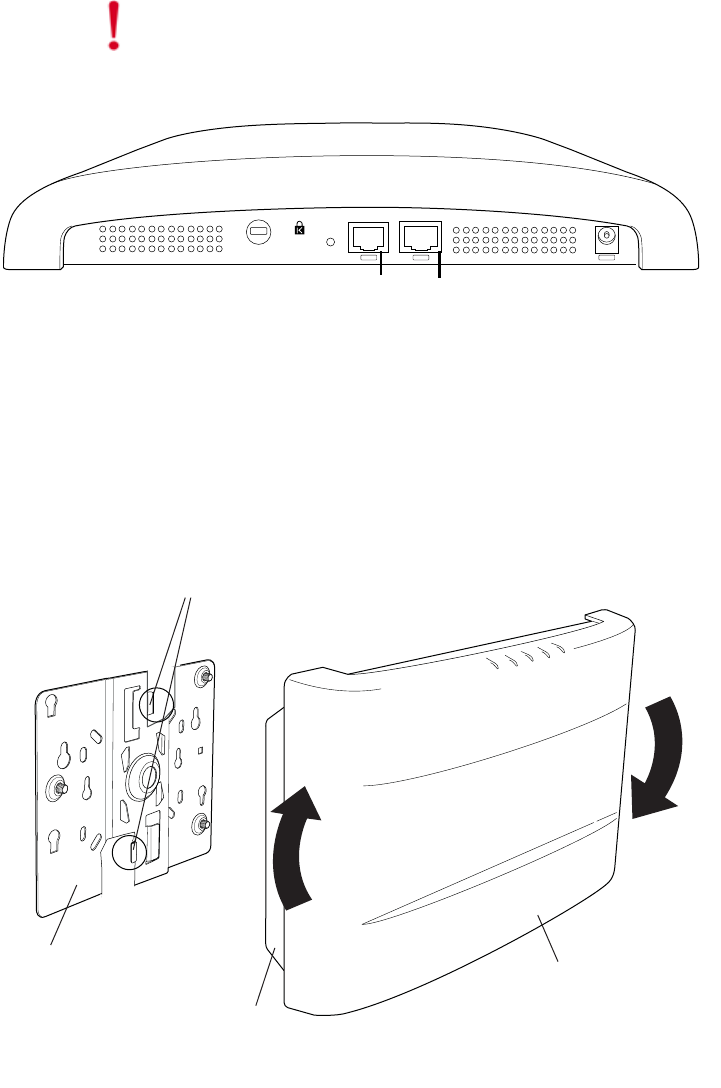

8. Align the AP300 mounting posts over the circular portion of the keyhole mounts, push the AP in and

slide the AP down until it engages with the locking detents (see Figure 9). You should hear it snap

in place.

9. For each antenna, loosen the knurled ring at the base of the antenna, orient the antenna and then

retighten the ring.

10. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet connector.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port. If you do this. the AP won’t power up.

Install the AP300

Mount AP300 Above a Suspended Ceiling (Plenum)

Use the optional T-bar box hanger mounting kit (see Mounting Brackets for the part number) to mount

AP300 above suspended ceiling T-rails (see Figure 10 and Figure 11). The installation attaches the T-

bar box hanger to the ceiling rails and then the AP300 attaches to the T-bar box hanger. We recommend

that you mount the AP300 no more than half way up the supports as shown in both Figure 10 and

Figure 11. Also note that AP300 mounted above the ceiling has about 2-3 dBm less RF coverage than

AP300 mounted under the ceiling.

Figure 10: AP300 Mounted Above a Suspended Ceiling Face Down

The second example above is mounted too high on the support rails, which could cause the rails to

bend.

00243

00233

Install the AP300

Figure 11: AP300 Mounted Above a Suspended Ceiling Face Up

The AP300 with the metal enclosure exposed meets the requirements for fire resistance and low

smoke-generating characteristics required by Section 300-22(C) of the National Electrical Code (NEC)

for installation in a building’s environmental air space.

You may need to modify thicker tiles to support this installation.

Warning!

When installed in air-handling spaces, such as above a suspended ceiling,

power the AP300 only with a PoE, not a power supply. See Power Supplies for part

numbers.

Warning!

Any Fast Ethernet (FE) cables installed in air-handling spaces should be

suitable under NEC Article 800.50 and marked accordingly for use in plenums and air-

handling spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi

Purpose Plenum), or CMP (Communications Plenum). Use Ethernet cable that meets

the requirements for operating in plenums and environmental air space in

accordance with Section 300-22(C) of the NEC.

00232

Install the AP300

To mount an AP300 above the ceiling with the optional T-bar kit, follow these steps:

1. Determine the location on the ceiling rails where the AP will be mounted and remove the ceiling

tile.

2. Unpack the T-bar hanger kit and unfold the legs of the T-bar hanger.

3. Locate the bracket mounting clip holes on the mounting bracket (see

Figure 10). One hole attaches

the bracket perpendicular to the box hanger; the other mounts the bracket parallel to the box

hanger.

4. Attach the U-joint of the clip to the T-bar and snap in place (see Figure 12).

Figure 12: Attaching the Mounting Bracket to the Box Hanger for Face Up Orientation

Figure 13: Attaching the Mounting Bracket to the Box Hanger for Face Down Orientation

5. Pass the long end clip through the large center hole to the underside of the mounting bracket clip

and then attach the bracket to the clip using the supplied screw (see Figure 12 for orientation).

00104

Install the AP300

6. Hold the AP300 next to the mounting bracket to estimate the height of the T-bar box hanger. You

need to provide enough clearance for the external antennas that point down, while mounting the

T-bar on the lower half of the support rails for stability.

7. Adjust the height of the box hanger using the height adjusting screws (see Figure 9).

8. Clip the box hanger T-rail clips to the ceiling rails, making sure they are securely attached.

9. Connect a drop wire to a building structural element and through the hole provided in the bracket

mounting clip. The U.S. National Electrical Safety Code requires this additional support.

10. Connect the posts of the AP300 to the three keyholes of the mounting bracket and slide into the

keyhole, ensuring the locking detent is engaged. You will hear a click.

11. For each antenna, loosen the knurled ring at the base of the antenna, point the antenna down, then

retighten the ring.

12. Connect one end of the PoE Ethernet cable to the Ethernet connector.

13. Check that the AP300 is operating correctly before replacing the ceiling tile to the ceiling. Verify

correct operating using the LEDs, as shown in Check AP300 LED Activity.

Mount AP300 in a Hoffman Enclosure

Meru has designed a custom mounting bracket compatible with a Hoffman enclosure (www.hoffmanon-

line. com). This bracket is available exclusively through Meru and orderable as part number ACC-AP300-

BHE. To mount an AP300 in a Hoffman enclosure, follow these steps:

1. Place AP300 upside down on a soft flat surface.

2. Remove and discard the wall/ceiling mounting bracket.

3. Attach either the provided antennas or an external antenna.

4. Remove and discard the four rubber feet.

5. Position the Hoffman bracket (ACC-AP300-BHE) onto the back of the AP300 with the four Hoffman

mounting screws facing downwards.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port. If you do this. the AP won’t power up.

Note:

Use a shielded Cat 5e (or greater) Ethernet cable in order to comply with

international electromagnetic emissions limits.

Check AP300 LED Activity

Figure 14: Hoffman Bracket ACC-AP300 -BHE

6. Using a Phillips screw driver, attach the bracket using the two supplied 6-32 3/16 SEMS screws.

7. Flip the assembly over and mount into the Hoffman enclosure, attach the Ethernet cable to the

AP300 rotating the assembly to place the Ethernet cable within the enclosure.

8. Using a Phillips screw driver, tighten the four bracket screws to the enclosure.

9. Adjust the antennas as needed.

Check AP300 LED Activity

When AP300 first connects to the controller (and any time the access point is rebooted), the AP initial-

izes and is then programmed by the controller. When the AP first powers up, all LEDs are green.

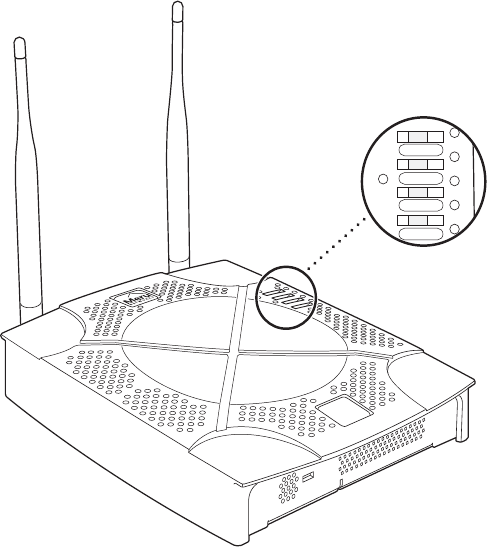

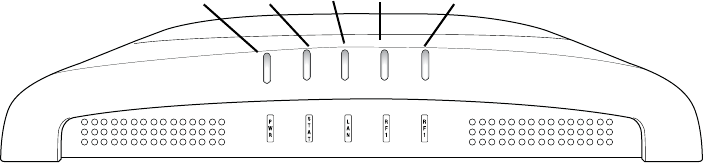

Figure 15: AP300 Status LEDs

After the AP300 is connected, check the status of the LEDs. The functions of the five LEDs are described

below.

00230

00217

Check AP300 LED Activity

AP300/ AP300i LED Descriptions

LED Funct ion Troubleshooting

Power off—no power

green—presence of power

Status

off—no power

green—booting stage 1

blinking green and off—booting stage 2

blinking green and white—discovering the

controller

blinking green and blue—downloading a

configuration from the controller

blinking blue and off—AP is online and

enabled, working state

blinking red and yellow—failure; consult

controller for alarm state

If the status LED is blinking red and

yellow, there is an alarm on the AP.

Determine what the alarm is by

clicking Monitor > Dashboard >

Alarms and looking at the AP alarms.

You can also use the CLI commands

show alarm and show log.

LAN

off—no power or no link

green—link status OK (at any speed)

green/blinking—activity (at any speed)

red—auto negotiation failure

If the LAN LED is red, auto

negotiation failed. This means that

you have a problem with cabling or

with the AP’s switch.

Radio 1

Radio 2

off—no radio present

green—radio enabled

green blinking—data activity

yellow—disabled or in scanning mode

red—failure

If one of the radio LEDs is yellow, it is

either disabled or in scanning mode.

To see if the AP is disabled, click

Configuration > Wireless > Radio >

select a radio and then look at

Administrative Status, which should

be set to Up. To see if the AP is in

Scanning Mode, click Configuration >

Wireless > Radio > select a radio and

look at AP Modes, which should be set

to Normal Mode.

If one of the radio LEDs is red, the

radio failed. Check the alarms

(Monitor > Dashboard > Alarms),

diagnostics (Monitor > Diagnostics >

Radio), and statistics (Monitor >

Dashboard > Radio) on the AP’s

controller to determine the cause.

Where to Go From Here

Now that the AP300 is installed, refer to the Meru Syst em Dir ect or Get t i ng St ar t ed Gui de for instruc-

tions on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN

is operational.

Safety Precautions

Chapter 3

Installing AP320i

AP320i is supported by System Director versions 3.6.1 and greater, but full support begins with System

Director release 4.0. Because of this, when using AP320i with System Director 3.6.1, the unit shows as

an AP300, for example AP320 instead of AP320i. All AP320i units still function correctly, they just

display as AP300 because AP320i did not exist when System Director 3.6.1 was released.

This chapter describes how to install and configure an AP320i. It contains the following sections:

Safety Precautions

Unpack the AP320i

Determine Power Requirements

Installation Requirements

Installing AP320i

Check AP320i LED Activity

Where to Go From Here

Safety Precautions

IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating

this product.

If an optional power supply is used, it must be one supplied by Meru Networks.

The AP320i is only intended for installation in Environment A as defined in IEEE 802.3af. All intercon-

nected equipment must be contained within the same building, including the interconnected equip-

ment's associated LAN connection.

Best Practices for an AP320i/AP200 Network

Best Practices for an AP320i/ AP200 Network

Read this section if you have both AP200 and AP320i active simultaneously on the same network. The

following best practices should be followed to get optimal performance from such a mixed network.

Do not deploy AP200 and AP300/AP320i at the same physical location; we recommend that there be

no overlapping coverage between AP200 and AP300.

If AP200 and AP300/AP320i do have overlapping coverage, make sure the ESS profiles on both AP

types are unique. The chart below shows two scenarios, one supported, one not supported.

AP320i and AP300 are interchangeable and fully compatible to share a virtual cell. It's like having

two AP300s with different antennas. The only difference is that AP320i is detected as a such in the

UI of the controller.

Assumptions for the above best practices include:

AP200 is using Virtual Port with BSSID Virtual Cell (AP200 could also be using Shared BSSID Virtual

Cell.)

AP320i is using Virtual Port with BSSID Virtual Cell.

AP200s and AP300s are on the same channel. (AP200 and AP320i could also be on different

channels.)

AP200s and AP320i is are on the same controller. (AP200 and AP320i could also be on different

controllers as long as each controller has a unique controller index.)

Supported Scenario AP200 Configuration AP320i Configuration

Two Unique ESS profiles ESS Profile name in

controller is UniqueName1

ESS Profile name in

controller is UniqueName2

AP200 and AP320i SSID string

over the air Meru Meru

Unsupported Scenario AP200 Configuration AP320i Configuration

Same ESS profiles ESS Profile name in

controller is same name

ESS Profile name in

controller is same name

AP200 and AP320i SSID string

over the air Meru Meru

Unpack the AP320i

Confirm that the shipping box contains the following:

AP320i with an attached ceiling mounting bracket

Wall mount bracket with screws

Small locking key for ceiling or wall mount locking

Determine Power Requirements

Power requirements vary, depending on which AP300 radios are deployed and what MIMO mode is used.

See the chart below for supported power sources for different radio configurations.

802.af PoE Usage

When using System Director 3.6/4.0 and 802.3af PoE, Meru supports radios set to any MIMO settings

except 3x3 on dual radios. This is because two radios set to 3x3 MIMO using an 802.3af switch may not

have enough power if the cable is too long. Shorter cables frequently work, however. Meru supports:

Single 3x3 radio

Dual 2 x 2 radios

Dual radio with one set to 2x2 and the other one set to 3x3

When using System Director 4.0 and 802.3af, the AP300 MIMO configuration is limited to the following:

3x3 for the 5 GHz radio

2x2 for the 2.4 GHz radio

Radio 1 MIMO Radio 2 MIMO 802. 3af PoE 802. 3at PoE DC Power

2x2 2x2 

2x2 3x3 

3x3 2x2 

3x3 3x3 Do not

recommend

Recommend

with caution 

Installation Requirements

802.3at Usage

When using System Director 3.6/4.0 and 802.3at, the following radio combinations are recommended:

Single 3x3 radio

Dual 2 x 2 radios

Dual radio with one set to 2x2 and the other one set to 3x3

Dual 3x3 radios are recommended with a limitation. Use 802.3at power for two 3x3 MIMO radios

when the switch has a high enough power output to support all devices on the PoE. Calculate the

amount of power needed by each AP300/AP320i in 3x3 mode (13 watts), add that to power required

by other PoE devices on the switch and compare that value to the total power output from the

switch. The calculation for 802.3at PoE use looks something like this:

(Number of AP300s * 13watts) + (sum of all other PoE devices power requirements) <= switch

power provided

Installation Requirements

Additional Equipment

A power source is needed to power the AP300. See Determine Power Requirements. If you want to lock

an AP320i to the ceiling or wall, you need a small key like the ones used to lock suitcases.

Installation Type Order These Additional Items

Horizontal mounting None

Vertical mounting over a wall

stud None

Vertical mounting on sheetrock None

Horizontal mounting below a

hanging ceiling None

Reusing an existing bracket from

another AP

For connection to Meru AP200 or AP150 only, order shoulder screws,

Meru part number 665-00012 (SCR, PIC.1/4*1/8 10-32 SKT SHLDR

SCR 303 STNLS). Connection to other brackets does not require this.

Installing AP320i

Select a Location

All AP320i interconnected equipment must be contained within the same building, including the inter-

connected equipment's associated LAN connection. Ceiling mounting is recommended but wall

mounting is also supported. In addition, the AP320i should be mounted in a location that meets the

following conditions:

Relatively unobstructed access to the stations the AP serves. Select a location with minimal physical

obstructions between the AP and the wireless stations. In an office with cubicles, mounting the APs

below a hanging ceiling (plenum is supported) or the wall near the ceiling provides the least

obstructed communications path. On a wall, orient the AP300 horizontally so that you can read the

Meru logo without tilting your head at 90 degrees - this orientation provides optimum MIMO

performance.

Access to wall outlet or a to a

Power over Ethernet (PoE) connection to the network switch servicing

the controller.

AP320i is designed to provide 180 degree omni-directional coverage as illustrated below. Plan place-

ment with this pattern in mind.

Figure 16: Coverage Pattern for AP320i When Ceiling Mounted

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

Place APs about 80 feet apart.

Do not install APs near metal objects, such as heating ducts, metal doors, or electric service panels.

If you install AP320i on a pole, keep in mind that coverage will be 180 degrees. Do not mount two

AP320is back to back on a pole to achieve 360 degree coverage, however, because the two units

could interfere with each other.

Install the Access Point

The AP320i ships with a detachable ceiling mounting bracket, making the unit ready for ceiling

mounting. You can also remove the ceiling-mount bracket and use the included wall-mount bracket.

The wall mount bracket can be attached to sheetrock, wall studs, or another wall bracket supplied by

Meru and by other vendors. If you are replacing AP200s/AP300 wall brackets, the AP320i bracket can

be mounted on top of the old AP200/AP300 bracket using shoulder screws (not included); you don’t

need to remove the old brackets. AP320i can also be directly mounted on standard third-party wall

ceiling

floor

Installing AP320i

brackets such as the Proxim AP4000 bracket and standard Cisco brackets. You cannot, however, mount

AP320i directly on an AP150 wall-mount bracket; in this case, you must remove and replace the AP150

bracket. Installation directions are provided below.

Mount AP320i in any of the following ways:

Mount AP320i On a Suspended Ceiling

Mount AP320i Above a Suspended Ceiling (Plenum)

Mount AP320i Vertically on a Wall

Set AP320i on a Shelf

Mount AP320i Below a Recessed Ceiling

Installing AP320i

Mount AP320i On a Suspended Ceiling

AP320i ships ready to mount on a suspended ceiling; the attached bracket clips to a ceiling rail.

To mount an AP320i below a suspended ceiling, follow these steps:

1. Determine the location on the ceiling rail where the AP will be mounted and remove the ceiling

tiles.

2. Align the mounting bracket with the slots indicated in Figure 17 below.

Figure 17: Install AP320i Below a Suspended Ceiling

3. Press down on the tab indicated in Figure 17 and rotate the AP320i into place.

4. Connect one end of the CAT5 (or greater) Ethernet cable to the 100/1000 Ethernet connector.

Figure 18: AP320i Ethernet Port on the Right

Caution!

Be sure to connect the Ethernet cable to the Ethernet port. The cable can

mistakenly be plugged into the Console port; if you do this, the AP won’t power up.

T-bar

(in ceiling)

Mounting bracket Press this tab down

with T-bar.

AP300i

00235

g00240

LAN 5V DCCON

console Ethernet

Installing AP320i

5. Optionally install a small lock (not supplied) to secure the AP320i to the ceiling rail. See Figure 19.

To do this, you need the security key that shipped with the AP320i.

Figure 19: Optionally Install Your Own Lock on AP320i

Mount AP320i Above a Suspended Ceiling (Plenum)

AP320i is not plenum rated.

T-bar

(in ceiling)

Mounting bracket

AP300i Security

clip

Lock security clip.Security clip fully inserted.

Insert security clip.

00236

Installing AP320i

Mount AP320i Vertically on a Wall

The AP320i ships with a ceiling mount bracket already connected to the unit and an additional separate

wall bracket. When wall mounting a unit, you will attach the wall mount bracket to the wall, then

attach the ceiling bracket (including AP320i) to the wall bracket. If you are replacing an AP200 or

AP150, the AP320i wall bracket can be mounted on top of the old bracket using shoulder screws (not

included - see Installation Requirements); you don’t need to remove the old brackets.If you are

replacing an AP300 or third-party brackets such as the Proxim AP4000 bracket and standard Cisco

brackets, the AP320i wall bracket can also be mounted on top of the old bracket (no additional screws

required).

To mount an AP320i on sheetrock or wall studs, follow these steps:

1. Using the wall bracket holes as a guide, mark the location on the wall for two AP bracket mounting

screws. Orient the connected AP300 horizontally so that you can read the Meru logo without tilting

your head at 90 degrees - this orientation provides optimum MIMO performance.

Figure 20: AP320i Wall Bracket

If possible, center the mounting screws on a wall stud. If you do not center the mounting screws on a

wall stud, use plastic wall anchors.

2. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

3. If you are using plastic anchors, install them in the holes.

4. Screw in the screws most of the way.

5. Mount the bracket on the screws, placing the circular portion of the keyhole mounts over the screw

heads and sliding the bracket down.

00234

Installing AP320i

6. Connect one end of the Ethernet cable to the switch and the other end to the AP320i Ethernet port.

Figure 21: AP320i Ethernet Port on the Right

7. If you are not using a PoE device, connect an external power supply to the power connector and

plug it into the wall.

8. Align the tabs on the wall bracket with the tabs on the ceiling bracket and then rotate the AP320i

clockwise to secure it to the wall. See Figure 22 below.

Figure 22: Mount AP320i on a Wall

Caution!

Be sure to connect the Ethernet cable to the Ethernet port. The cable can

mistakenly be plugged into the Console port; if you do this. the AP won’t power up.

g00240

LAN 5V DCCON

console Ethernet

Wall bracket

(mounted

on wall)

Mounting

bracket

(attached)

AP300i

Tabs

Align tabs on Wall bracket

with tabs on the Mounting

bracket.

Twist to secure the

AP300i to the wall.

00237

Installing AP320i

Figure 23: Mount AP320i on an AP200 Wall Bracket

9. Optionally, lock the AP320i bracket by inserting the provided locking key and applying a small lock.

Figure 24: AP320i Locked to a Wall

wall mount bracket

ceiling mount

bracket

AP300i

AP200 bracket on a wall

optional shoulder screw

Check AP320i LED Activity

Set AP320i on a Shelf

You can remove the mounting bracket(s) before setting AP320i on a shelf - see Figure 25.

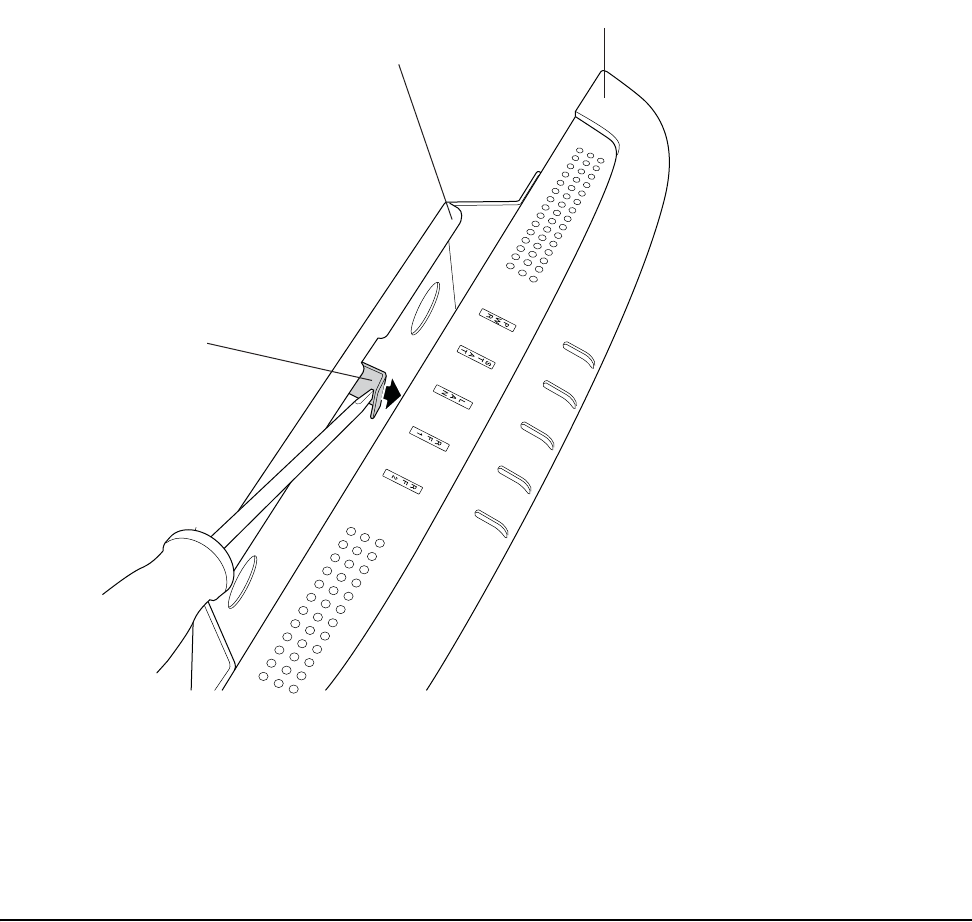

Figure 25: Remove the AP320i Ceiling Mount Bracket

Mount AP320i Below a Recessed Ceiling

RECESSED CEILING MOUNT KIT???

Check AP320i LED Activity

When AP320i first connects to the controller (and any time the access point is rebooted), the AP initial-

izes and then is programmed by the controller. When the AP first powers up, all LEDs are green. There-

after, the Status LED color reflects the various operating states.

Push clip toward AP300i

to release the unit from

the wall bracket.

Mounting

bracket

AP300i

00238

Check AP320i LED Activity

Figure 26: AP320i Status LEDs

After the AP320i is connected, check the status of the LEDs. The functions of the five LEDs are

described below.

00239

power status LAN Radio 1 Radio 2

Check AP320i LED Activity

AP300/ AP320i LED Descriptions

LED Funct ion Troubleshooting

Power off—no power

green—presence of power

Status

off—no power

green—booting stage 1

blinking green and off—booting stage 2

blinking green and white—discovering the

controller

blinking green and blue—downloading a

configuration from the controller

blinking blue and off—AP is online and

enabled, working state

blinking red and yellow—failure; consult

controller for alarm state

If the status LED is blinking red and

yellow, there is an alarm on the AP.

Determine what the alarm is by

clicking Monitor > Dashboard >

Alarms and looking at the AP alarms.

You can also use the CLI commands

show alarm and show log.

LAN

off—no power or no link

green—link status OK (at any speed)

green/blinking—activity (at any speed)

red—auto negotiation failure

If the LAN LED is red, auto

negotiation failed. This means that

you have a problem with cabling or

with the AP’s switch.

Radio 1

Radio 2

off—no radio present

green—radio enabled

green blinking—data activity

yellow—disabled or in scanning mode

red—failure

If one of the radio LEDs is yellow, it is

either disabled or in scanning mode.

To see if the AP is disabled, click

Configuration > Wireless > Radio >

select a radio and then look at

Administrative Status, which should

be set to Up. To see if the AP is in

Scanning Mode, click Configuration >

Wireless > Radio > select a radio and

look at AP Modes, which should be set

to Normal Mode.

If one of the radio LEDs is red, the

radio failed. Check the alarms

(Monitor > Dashboard > Alarms),

diagnostics (Monitor > Diagnostics >

Radio), and statistics (Monitor >

Dashboard > Radio) on the AP’s

controller to determine the cause.

Where to Go From Here

Now that the AP320i is installed, go to the Meru Syst em Dir ect or Get t ing St art ed Guide for instructions

on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN is

operational.

Where to Go From Here

Safety Precautions

Chapter 4

Installing AP200

This chapter describes how to physically install an AP200. It contains the following

sections:

Safety Precautions

Unpacking the AP200

Installation Requirements

Installing the Access Points

Where to Go From Here

Checking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in “Regulatory Information” on

page 109 before installing and operating this product.

Unpacking the AP200

As you unpack the AP200, confirm that the AP200 shipping package contains the items

listed on your packing list.

Shipments of the AP200 include a mounting bracket and mounting hardware for stan-

dard wall mounting. Optional mounting kits are available for mounting the AP200

above or below a hanging ceiling. The AP200 mounting studs are placed so they can

be used with brackets supplied by other vendors or to replace an AP100.

Note:

The AP200 has a security cable slot so you can secure the AP200 with a

standard security cable, such as those used to secure laptop computers.

Installation Requirements

An array of holes on the mounting bracket (see

Figure 15) allows it to be mounted on

the wall and over junction boxes or molly bolts. There are also holes for passing the

PoE Ethernet or external power supply cable through the bracket if the bracket is

mounted on a junction box or over the ceiling T-bar box hanger.

Figure 15: AP200 Mounting Bracket

Installation Requirements

The following recommended mounting locations provide the best reception for the

AP200:

On a horizontal surface, such as a table or a desk

On a vertical surface, usually a wall

Below a hanging ceiling

Above a hanging ceiling tiles (this installation is supported only for the AP200 with

the plastic enclosure removed)

Access point mount

Ceiling mount hole

Access point mount

Locking detent

Wall cable access

Suspended ceiling

cable access

00100

Warning!

With plastic covers removed, this product is suitable for use in

environmental air space in accordance with the Section 300-22(c) of the National

Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the Canadian Electrical

Code. Part 1. C22. 1. For other countries, consult local authorities for regulations.

Installation Requirements

To complete this installation, you need the items listed below.

You need the tools listed below.

Installation Type Consumable Items Required

Horizontal mounting None

Vertical mounting over a wall

stud

Two #6 x 2" wood screws for a wood stud; or

Two #6 x 1½" metal screws for a metal stud

Mounting bracket

Vertical mounting on sheetrock

Tw o # 6 x 1" s c re w s

Two #4-6 x 7/8" ribbed plastic wall anchors

Mounting bracket

Horizontal mounting below a

hanging ceiling

Two caddy fasteners

Two plastic spacers

Tw o k e ps n u ts ( w it h a t tached lock washer)

Mounting bracket

Mounting above a ceiling tile

(AP200 metal enclosure only)

Tw o T - ra il c l ip s

One T-box hanger

One bracket mounting clip

Mounting bracket

Installing the Access Points

AP200 Installation Tools

Installing the Access Points

Selecting a Location

The AP200 requires a location that meets the following:

Relatively unobstructed access to the stations the AP serves

Power over Ethernet (PoE) connection to the network switch servicing the

controller.

APs can obtain their power from 802.3af standard Power over Ethernet (PoE)-compat-

ible network switch or PoE power injector installed between the switch and the

AP200.

Select a location with minimal physical obstructions between the AP and the wireless

stations. In an office with cubicles, mounting the APs below a hanging ceiling or the

wall near the ceiling provides the least obstructed communications path. For an

external power supply connection, ensure the power source is near to where the

AP200 will be mounted.

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

Installation Type Tools Required

Horizontal mounting None

Vertical mounting over a wall stud

Drill

1/8"drill bit

Screwdriver

Vertical mounting on sheetrock

Drill

3/16" drill bit

Screwdriver

Horizontal mounting below a hanging ceiling Screwdriver

Wrench or pliers

Mounting above a hanging ceiling (AP200 metal

enclosure only)

Wrench or pliers

Screwdriver

Installing the Access Points

Do not install APs near metal objects, such as heating ducts, metal doors, or

electric service panels.

Relative to the ground, orient the antenna up or down, not sideways.

The AP200 is only intended for installation in Environment A as defined in IEEE

802.3af. All interconnected equipment must be contained within the same building,

including the interconnected equipment's associated LAN connection.

Attaching the AP200 Antennas

The AP200 is provided with external antenna ports. Make sure that all external

antennas and their associated wiring are located entirely indoors. The external

antennas are not suitable for outside use.

If the AP200 does not have external antennas, attach the antennas to the connectors

on the AP200 (see Figure 16). Rotate the knurled ring at the base of the antenna

clockwise to attach the antenna. The ring should be finger-tight.

Mounting the Access Point

You can mount an AP200 in the following ways:

Horizontally, as described in the “Horizontal Mounting” section.

Vertically, as described in the “Vertical Mounting” section.

Below a hanging ceiling, as described in the “Mounting Below a Suspended

Ceiling” section.

Above a tiled hanging ceiling, as described in the “Mounting Above a Suspended

Ceiling” section.

Horizontal Mounting

To horizontally mount an AP200:

1. Place the AP200 flat on the horizontal surface.

2. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 16), point the antenna straight up, then retighten the ring.

Note:

The previous guidelines are general guidelines. Each site has its own unique

environment. Place access points accordingly.

Caution!

When changing the orientation of the antennas, be sure to slightly loosen the

knurled ring before moving the antenna. Retighten the ring afterward. Otherwise, you

might damage the internal cabling in the AP.

Installing the Access Points

Figure 16: AP200 Antenna Connection

3. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 17.

Turn clockwise

to tighten

ntenna

ETHERNET

3.3 VDC

ANT 2

00110

Note:

For the AP201 and AP208 access points, a shielded Cat 5e (or greater)

Ethernet cable must be used in order to comply with international

electromagnetic emissions limits.

If it is not practical to use shielded cables, contact Support for a line filter,

available at no charge, that may also be used to ensure compliance.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port (see Figure 17).

CONSOLE

ANT 1 ANT 2

3.3 VDC

ETHERNET

0108

100/1000

Ethernet

(Reserved)

Console

port

Antenna 1 Antenna 2

Power

inlet

Reset

(Push to restore

default settings)

(Currently

unsupported)

Installing the Access Points

Figure 17: AP200 Connector Panel

Ver t ical Mount ing

To vertically mount an AP:

1. Using the bracket holes as a template, mark the location on the wall for the two

AP bracket mounting screws. They are placed 4 ½ inches apart, center-to-center,

one above the other. If you are not using plastic wall anchors, you must center

the mounting screws on a wall stud. If you do not center the mounting screws on

a wall stud, you must use plastic wall anchors.

Figure 18: AP200 Bracket

CONSOLE

ANT 1 ANT 2

3.3 VDC

ETHERNET

00108

100/1000

Ethernet

(Reserved)

Console

port

Antenna 1 Antenna 2

Power

inlet

Reset

(Push to restore

default settings)

(Currently

unsupported)

Access point mount

Ceiling mount hole

ccess point mount

Access point mount

Locking detent

all cable access

uspended ceiling

able access

00100

Installing the Access Points

2. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

3. If you are using plastic anchors, install them in the holes.

4. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

5. Mount the bracket on the screws, placing the circular portion of the keyhole

mounts over the screw heads and sliding the bracket down.

6. Tighten the screws to secure the bracket.

7. Align the AP200 mounting posts over the circular portion of the keyhole mounts,

push the AP in and slide the AP down until it engages with the locking detents.

You should hear it snap in place.

00115

M ou nting b racket attached to w all

AP200

Installing the Access Points

Figure 19: Aligning the AP200 with the Bracket

Figure 20: Sliding the AP200 into the Bracket

8. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 16), point the antenna straight up, then retighten the ring.

9. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 17.

00115

Mounting bracket attached to wall

AP200

00112

Mounting bracket

Installing the Access Points

Mounting Below a Suspended Ceiling

The optional suspended ceiling mounting kit allows the AP200 mounting bracket to

attach to suspended ceiling T-rails (see Figure 21).

Note:

To comply with NEC code, attach a grounding wire to any of the screws used

to attach the AP200 to the mounting bracket.

Figure 21: Mounting the AP200 to a Suspended Ceiling Rail

To mount an AP200 below a suspended ceiling:

1. Determine the location on the ceiling rail where the AP will be mounted and

remove the ceiling tiles.

2. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to

the rail.

3. Adjust the distance between the caddy fasteners by using the mounting bracket

holes as a guide.

Note:

For the AP201 and AP208 access point, a shielded Cat 5e (or greater) Ethernet

cable must be used in order to comply with international electromagnetic

emissions limits.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Suspended ceiling T-rail

Mounting bracket

Keps nuts with attached

locking washer

Caddy fastener(s)

Plastic spacer(s)

00102

Installing the Access Points

4. Tighten the caddy fasteners in place using a standard screwdriver. Do not

overtighten.

5. Place each spacer on the caddy fastener stud. The spacer legs should contact the

ceiling

T-rail.

6. Align the mounting bracket keyholes with the caddy fastener studs and slide the

AP200 to the narrow end of the hole.

7. Attach a keps nut to each caddy fastener stud and hand tighten. Do not

overtighten.

8. Align the AP200 mounting posts over the circular portion of the keyhole mounts,

push the AP in and slide the AP down until it engages with the locking detents

(see Figure 20). You should hear it snap in place.

9. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 16), point the antenna straight down, then retighten the ring.

10. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in (see Figure 17).

Mounting Above a Suspended Ceiling

The optional T-bar box hanger mounting kit allows the AP200 to be mounted above

suspended ceiling T-rails (see Figure 22). The installation attaches the T-bar box

hanger to the ceiling rails using clips. The AP200 attaches to the mounting bracket

that is attached to the T-bar box hanger.

The AP200 antennas should point straight down for this type of installation. You may

need to modify thicker tiles to support this installation.

Note:

For the AP201 and AP208 access points, a shielded Cat 5e (or greater)

Ethernet cable must be used in order to comply with international

electromagnetic emissions limits.

If it is not practical to use shielded cables, contact Support for a line filter,

available at no charge, that may also be used to ensure compliance.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Warning!

When installed in air-handling spaces, such as above a suspended ceiling,

the AP200 is to be powered via PoE only (PoE is required).

Installing the Access Points

Figure 22: Mounting the AP200 Above a Suspended Ceiling

To mount an AP200 above suspended ceiling rails:

1. Determine the location on the ceiling rails where the AP will be mounted and

remove the ceiling tile.

2. Unpack the T-bar hanger kit and unfold the legs of the T-bar hanger.

3. Locate the bracket mounting clip holes on the mounting bracket (see Figure 23).

One hole attaches the bracket perpendicular to the box hanger; the other mounts

the bracket parallel to the box hanger.

Warning!

The AP200 with the metal enclosure exposed meets the requirements for

fire resistance and low smoke-generating characteristics required by Section 300-

22(C) of the National Electrical Code (NEC) for installation in a building’s

environmental air space. You must remove the plastic enclosure to reveal the

plenum-rated AP200 metal case for installations above a suspended ceiling.

Additionally, you must use Ethernet cable that meets the requirements for operating

in plenums and environmental air space (in accordance with Section 300-22(C) of the

NEC).

Warning!

Any Fast Ethernet (FE) cables installed in air-handling spaces should be

suitable under NEC Article 800.50 and marked accordingly for use in plenums and air-

handling spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi

Purpose Plenum), or CMP (Communications Plenum).

Bracket mounting clip

Mounting bracket

T-bar hanger

Height adjustment screw

Suspended ceiling T-rail

T-rail clips

Access Point

00103

Installing the Access Points

Figure 23: Box Hanger Mounting Bracket Holes

4. Attach the U-joint of the clip to the T-bar and snap in place (see Figure 24).

Figure 24: Attaching the Mounting Bracket to the Box Hanger

5. Pass the long end clip through the large center hole to the underside of the

mounting bracket clip and then attach the bracket to the clip using the supplied

screw (see Figure 24 for orientation).

Mounting bracket holes

00101

00104

Where to Go From Here

6. Hold the AP200 next to the mounting bracket to estimate the height of the T-bar

box hanger to provide enough clearance for the external antennas, which should

be pointing down.

7. Adjust the height of the box hanger using the height adjusting screws (see

Figure 21).

8. Clip the box hanger T-rail clips to the ceiling rails, making sure they are securely

attached.

9. Connect a drop wire to a building structural element and through the hole

provided in the bracket mounting clip. The U.S. National Electrical Safety Code

requires this additional support.

10. Connect the posts of the AP200 to the three keyholes of the mounting bracket and

slide into the keyhole (see

Figure 20), ensuring the locking detent is engaged. You

will hear a click.

11. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 16), point the antenna down, then retighten the ring.

12. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 17.

13. Check that the AP200 is operating correctly before replacing the ceiling tile to

the ceiling. Verify correct operating using the LEDs, as shown in Checking LED

Activity.

Where to Go From Here

Now that the AP200 is installed, go to the Mer u Syst em Dir ect or Get t i ng St ar t ed

Guide for instructions on initializing the hardware. Return to this chapter to check

the status of the LEDs once the WLAN is operational.

Note:

For the AP201 and AP208 access points, a shielded Cat 5e (or greater)

Ethernet cable must be used in order to comply with international

electromagnetic emissions limits.If it is not practical to use shielded cables,

contact Support for a line filter, available at no charge, that may also be used

to ensure compliance.

Note:

For the AP201 and AP208 access points, a shielded Cat 5e (or greater)

Ethernet cable must be used in order to comply with international

electromagnetic emissions limits.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Checking LED Activity

Access point status LEDs are provided on the Ethernet connector and on the face of

the AP200.

Ethernet Connector LEDs

After the AP200 is connected, the LEDs near the RJ-45 connector should light, as

shown in Figure 25.

Figure 25: RJ-45 LEDs

The green LED on the left blinks if any Ethernet activity is taking place. If there is

no Ethernet activity, the LED is off. The LED on the right is solid green if an Ethernet

link is present. If no Ethernet link is present or connectivity is lost, the LED is off.

AP200 Status LEDs

Four status LEDs on the f ace of the AP200 also light, as shown in Figure 26.

Ethernet activity

Link present

00129

AP200

RF2

RF1

STATUS

POWER

00113

Checking LED Activity

Figure 26: AP200 Status LEDs

. .

The functions of the status LEDs are described below.

When the AP200 is first connected to the controller and any time the access point is

rebooted thereafter, the AP initializes with and then is programmed by the

controller. When the AP is first powered up, all LEDs are green. Thereafter, the

Status LED (see Figure 26) color reflects the various operating states as described in

the second table below.

AP200

RF2

RF1

STATUS

POWER

00113

Checking LED Activity

AP200 LED Descriptions

AP200 Controller Status Information

LED Funct ion

RF 2

The status LED for Radio 2 is a follows:

off—no radio present

yellow—radio initializing

red—radio failure

solid green—radio OK

blinking green—radio activity

RF 1

The status LED for Radio 1 is a follows:

off—no radio present

yellow—radio initializing

red—radio failure

solid green—radio OK

blinking green—radio activity

Status AP-Controller operational status (see Ta b l e )

Power green—presence of power

State Interpretation AP200 LED Cycle

Attempting to

discover Controller

In the process of discovering the

controller. The AP is connected but not

associated with the controller. If the AP

does not associate with the controller

after a period of time, verify that the

connection between the AP and the

switch or the switch and the controller

is unbroken.

Green/Red/Blue/R

Connected Normal operation without security.

Blue/Blue/Blue/Re

d, for 2 seconds.

Authenticated Normal operation with security. Blue blinka

Checking LED Activity

Disconnected

Access point was once connected to a

controller and configured by the

controller, but can no longer find that

controller

Green/Purple/

Green/Purple

Standalone Remote Access point is operating in a

standalone mode Purple blink

Downloading Downloading image or configuration

from the controller

Green/Blue

Error State Access point is in an error state.

Call Meru technical support

Red (blinking or

solid)

a. The AP200 LEDs cycle from bright to dim for each “blink.”

State Interpretation AP200 LED Cycle

Safety Precautions

Chapter 5

Installing AP150

This chapter describes how to physically install an AP150. It contains the following

sections:

Safety Precautions

Unpacking the AP150

Installation Requirements

Installing the Access Points

Where to Go From Here

Checking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in Appendix , “Regulatory Information”

on page 109 before installing and operating this product.

This product is intended to be supplied by a UL Listed power supply, marked Class 2

or LPS, and rated minimum 5 Vdc, 3A.

Unpacking the AP150

Confirm that the AP150 shipping package contains the AP150 access point with

attached mounting bracket.

Caution!

The AP150 is not certified for plenum installations, and should not be installed

in the plenum space.

Installation Requirements

Figure 27: AP150 with Mounting Bracket

Installation Requirements

If you choose not to use the AP150 mounting bracket, the backside of the AP150

contains two keyholes to accommodate a simple wall mount.

A mounting bracket can be used for many wall mounting configurations. The AP150

bracket mounting studs are placed so they can be used with brackets supplied by

other vendors or to replace an AP100. An array of holes on the mounting bracket (see

Figure 27) allow it to be mounted on the wall and over junction boxes or molly bolts.

There are also holes for passing the PoE Ethernet or external power supply cable

through the bracket if the bracket is mounted on a junction box.

Additional optional mounting kits are available for mounting the AP150 above or

below a hanging ceiling, using the mounting bracket.

00177

Installation Requirements

Note:

The AP150 has two security cable slots (one on each side of the AP150) so you

can secure the AP150 with a standard security cable, such as those used to secure

laptop computers.

The following recommended mounting locations provide the best reception for the

AP150:

On a horizontal surface, such as a table or a desk

On a vertical surface, usually a wall

Below a hanging ceiling

Above hanging ceiling tiles

Suit able f or use in environment al ai r space in accordance wit h t he Sect ion 300-

22(c) of t he Nat ional El ect r ic Code and Sect ions 2- 128. 12 - 010 (3) and 12 - 100

of t he Canadian El ect r ical Code. Par t 1. C22. 1.

To complete this installation, you need the items listed in Ta b l e .

Caution!

The AP150 is not certified for plenum installations, and should not be installed

in the plenum space.

Installation Requirements

AP150 Installation Items

You need the tools listed below.

Installation Type Consumable Items Required

Horizontal mounting None

Vertical mounting over a wall stud

Two #6 x 2" wood screws for a wood stud; or

Two #6 x 1½” metal screws for a metal stud

Mounting bracket

Vertical mounting on sheetrock

Two #6 x 1" screws

Two #4-6 x 7/8” ribbed plastic wall anchors

Mounting bracket

Horizontal mounting below a

hanging ceiling

Two caddy fasteners

Two plastic spacers

Two keps nuts (with attached lock washer)

Mounting bracket

Mounting above a ceiling tile

Tw o T - ra il c l ip s

One T-box hanger

One bracket mounting clip

Mounting bracket

Installing the Access Points

AP150 Required Tools

Installing the Access Points

Selecting a Location

The AP150 requires a location that meets the following criteria:

Relatively unobstructed access to the stations the AP serves

Power over Ethernet (PoE) connection to the network switch servicing the

controller.

APs can obtain their power from 802.3af standard Power over Ethernet (PoE)-compat-

ible network switch or PoE power injector installed between the switch and the

AP150. AP150 and AP300 work with all switches that support STANDARD 802.3af.

Installation Type Tools Required

Horizontal mounting None

Vertical mounting over a wall stud

Drill

1/8”drill bit

Screwdriver

1/8”Allen wrench

Vertical mounting on sheetrock

Drill

3/16” drill bit

Screwdriver

1/8”Allen wrench

Horizontal mounting below a

hanging ceiling

Screwdriver

Wrench or pliers

1/8”Allen wrench

Mounting above a hanging ceiling

Wrench or pliers

Screwdriver

1/8”Allen wrench

Installing the Access Points

Select a location with minimal physical obstructions between the AP and the wireless

stations. In an office with cubicles, mounting the APs below a hanging ceiling or the

wall near the ceiling provides the least obstructed communications path. For an

external power supply connection, ensure the power source is near to where the

AP150 will be mounted.

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

Do not install APs near metal objects, such as heating ducts, metal doors, or

electric service panels.

Relative to the ground, orient the antenna up or down, not sideways.

The AP150 is only intended for installation in Environment A as defined in IEEE

802.3af. All interconnected equipment must be contained within the same building,

including the interconnected equipment's associated LAN connection.

Attaching the AP150 Antennas

The AP150 is provided with external antenna ports. Make sure that all external

antennas and their associated wiring are located entirely indoors. The external

antennas are not suitable for outside use.

If the AP150 does not have external antennas, attach the antennas to the connectors

on the AP150 (see Figure 28). Rotate the knurled ring at the base of the antenna

clockwise to attach the antenna. The ring should be finger-tight.

Mounting the Access Point

You can mount an AP150 in the following ways:

Horizontally, as described in the “Horizontal Mounting” section.

Vertically, as described in the “Vertical Mounting with the Mounting Bracket”

section.

Below a hanging ceiling, as described in the “Mounting Below a Suspended

Ceiling” section.

Note that the AP300 Power Adaptor can also be used for AP150.

Above a tiled hanging ceiling with the optional ceiling mounting kit.

Note:

The previous guidelines are general guidelines. Each site has its own unique

environment. Place access points accordingly. Note that the AP300 Power Adaptor

can also be used for AP150.

Caution!

When changing the orientation of the antennas, be sure to slightly loosen the

knurled ring before moving the antenna. Retighten the ring afterward. Otherwise, you

might damage the internal cabling in the AP.

Installing the Access Points

Horizontal Mounting

To horizontally mount an AP150:

1. Place the AP150 flat on the horizontal surface.

2. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 28), point the antenna straight up, then retighten the ring.

Figure 28: AP150 Antenna Connection

3. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 29.

Figure 29: AP150 Connector Panel

Vertical Mounting the AP150

To perform a simple wall mount using the keyholes on the back of the AP150:

1. Remove the attached mounting bracket from the back of the AP150.

00172

ANT 2

RELOAD

RESET

Turn clockwise

to tighten

Antenna

ANT1 ANT2

LAN

DC 5V CONSOLE RESET RELOAD

0173

Power Ethernet

connection

Console

port Reset

button

Reload

Antenna 1 Antenna 2

(reserved) (reserved)

Installing the Access Points

2. Mark the location on the wall for two mounting screws. They are placed 4.3"

apart, center-to-center, or one above the other. If you are not using plastic wall

anchors, you must either center the mounting screws on a wall stud or use plastic

wall anchors.

3. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

4. If you are using plastic anchors, install them in the holes.

5. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

6. Align the AP150 keyholes over the mounting screws and slightly pull down (or

across, if mounting sideways).

7. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 28), point the antenna straight up, then retighten the ring.

8. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 29.

Vertical Mounting with the Mounting Bracket

The AP150 uses thumbscrews to attach to the mounting bracket or mounting plate

that allows the access point to be mounted on a vertical surface. Additionally, three

shoulder screws may be installed on the mounting bracket to allow the AP150 and

attached bracket to mount over a previously installed Cisco mounting bracket or

Proxim AP4000 bracket.

To vertically mount an AP:

1. If not mounting the AP150 to a previously third-party installed mounting bracket,

use a 1/8” Allen wrench to remove the shoulder screws from the mounting

bracket, if already attached.

2. Using the bracket holes as a template, remove the bracket from the AP150 (or use

the stencil in Appendix , “Mounting Bracket Stencils”) to mark the location on the

wall for the two AP bracket mounting screws. They are placed 4.3 inches apart,

center-to-center. If you are not using plastic wall anchors, you must center the

mounting screws on a wall stud. If you do not center the mounting screws on a

wall stud, you must use plastic wall anchors.

Installing the Access Points

Figure 30: AP150 Bracket

3. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

4. If you are using plastic anchors, install them in the holes.

5. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

6. Mount the bracket on the screws, placing the circular portion of the keyhole

mounts over the screw heads and sliding the bracket down.

7. Tighten the screws to secure the bracket.

8. Align the AP150 with the bracket thumbscrews (see Figure 31) and tighten the

thumbscrews to attach the bracket.

00167

Suspended ceiling

cable access

Wall cable access

Installing the Access Points

Figure 31: Aligning the AP150 with the Bracket

00169

Installing the Access Points

9. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 28), point the antenna straight up, then retighten the ring.

10. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 29.

Mounting Below a Suspended Ceiling

The optional suspended ceiling mounting kit allows the AP150 mounting bracket to

attach to suspended ceiling T-rails (see Figure 32).

00169

Installing the Access Points

Note:

To comply with NEC code, attach a grounding wire to any of the screws used

to attach the AP150 to the mounting bracket.

Figure 32: Mounting the AP150 to a Suspended Ceiling Rail

To mount an AP150 below a suspended ceiling:

1. Using a 1/8” Allen wrench, remove the shoulder screws from the mounting

bracket, if already attached.

2. Determine the location on the ceiling rail where the AP will be mounted and

remove the ceiling tiles.

3. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to

the rail.

4. Adjust the distance between the caddy fasteners by using the mounting bracket

holes as a guide.

5. Tighten the caddy fasteners in place using a standard screwdriver. Do not

overtighten.

6. Place each spacer on the caddy fastener stud. The spacer legs should contact the

ceiling T-rail.

7. Align the mounting bracket keyholes with the caddy fastener studs and slide the

AP150 to the narrow end of the hole.

8. Attach a keps nut to each caddy fastener stud and hand tighten. Do not

overtighten.

9. Align the AP150 with the bracket thumbscrews (see Figure 31) and tighten the

thumbscrews to attach the bracket.

00170

Washers

Suspended ceiling T-rail

Mounting bracket

Caddy fastener(s)

Spacer(s)

Checking LED Activity

10. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 28), point the antenna straight down, then retighten the ring.

11. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in (see Figure 29).

Checking LED Activity

Access point status LEDs are provided on the Ethernet connector and on the face of

the AP150.

AP150 Status LEDs

Four status LEDs on the f ace of the AP150 also light, as shown in Figure 33.

PWR

LAN

RADIO 2

RADIO 1

Status LEDs

00166

Checking LED Activity

Figure 33: AP150 Status LEDs

When the AP150 is first connected to the controller and any time the access point is

rebooted thereafter, the AP initializes with and then is programmed by the

controller. The Status LED (see

Figure 33) color reflects the various operating states

(Ta bl e ).

PWR

LAN

RADIO 2

RADIO 1

Status LEDs

00166

Where to Go From Here

AP150 LED Descriptions

Where to Go From Here

Now that the AP150 is installed, go to the Meru Syst em Direct or Get t i ng St art ed

Guide for instructions on initializing the hardware. Return to this chapter to check

the status of the LEDs once the WLAN is operational.

LED Funct i on

Power

The Power status LED status is as follows:

off—power is off

solid red—when power is applied, system initializes for 40 seconds and then

the LED turns amber; after discovering the controller the LED turns green.

Otherwise, the system is in an abnormal state (notify Customer Support).

solid amber—at any time, if this LED state persists longer than 40 seconds,

notify Customer Support

solid green—system is fully operational

Radio I The Radio I LED is lit when radio packets are being transmitted and when

the radio is beaconing.

Radio II The Radio II LED is lit when radio packets are being transmitted and

when the radio is beaconing.

Ethernet

The Ethernet LED status is as follows:

off—no link

solid green—100Mbps connection

blinking green—transmit or receive activity at 100Mbps

solid amber—10Mbps connection

blinking amber—transmit or receive activity at 10Mbps

Where to Go From Here

Safety Precautions

Chapter 6

Installing OAP180

This chapter describes how to physically install an OAP180. It contains the following

sections:

Safety Precautions

Unpacking the OAP180

Installation Requirements

Installing the Access Points

Where to Go From Here

Checking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in Appendix , “Regulatory Information”

on page 109 before installing and operating this product.

This product is intended to be powered by a UL Listed power supply, marked Class 2

or LPS, and rated minimum 5 Vdc, 3A.

If the installation requires a different supply than the one supplied, make sure you

use a supply displaying the mark of the safety agency that defines the regulations of

the supply in your country.

Caution!

The OAP180 is not certified for plenum installations, and should not be

installed in the plenum space.

Unpacking the OAP180

Figure 34: OAP180 Outdoor Access Point

Confirm that the OAP180 shipping boxes contain the following items:

OAP180 Outdoor Access Point

Wall/Pole Mount Hardware Kit for mounting OAP180 to a 2” to 3” diameter steel

pole or tube or as part of a radio or tower structure

N-Type Female connectors for external antennas

Outdoor CAT5 Ethernet cable—100 feet. Be sure to include this (maximum) 100

foot cable in link path calculation; the PoE does not resend the traffic, it only

provides power.

Power injector with power cord

Installation Requirements

In addition to the hardware supplied by Meru Networks, you need the following:

Required

Standard Ethernet cable to connect the power injector to a switch or controller

Antennas (sold separately)

Ground wire for the OAP180 Optional

RF coaxial cable to connect the antenna to the OAP180

00195

Top panel view Bottom panel view

Console

Port

Console

Port Cover

Attachment

Ethernet/PoE

Connector

2.4G 2.4G5G 5G

N-Type External

Antenna Connector

(5 GHz)

N-Type External

Antenna Connector

(2.4 GHz)

Console PoE

Water-Tight

Test Point

Installing the Access Points

Selecting a Location

When you plan the OAP180 physical configuration, include the elements shown in this

drawing:

Figure 35: Sample Physical Layout

Radio Position Planning

Never construct a radio mast, pole, or tower near overhead power lines. In addition,

local regulations may limit or prevent construction of a high radio mast or tower. If

your OAP180 link requires a high radio mast or tower, consult a professional

contractor for advice. Once the required antenna height has been determined, other

factors affecting the precise position of the OAP180 must be considered.

Be sure there are no other radio antennas within 2 m (6 ft.) of the OAP180.

Place the OAP180 away from power and telephone lines.

Avoid placing the OAP180 too close to any metallic, reflective surfaces, such as

roof-installed air-conditioning equipment, tinted windows, wire fences, or water

pipes.

OAP180 has two radios with one antenna per radio, so there is no diversity.

Radio Interference

Avoiding radio interference is an important part of wireless planning. Interference is

caused by other radio transmissions using the same or an adjacent channel frequency.

You should first scan your proposed site using a spectrum analyzer to determine if

there are any strong radio signals using the 802.11a or 802.11bg channel frequencies.

Always use a channel frequency that is furthest away from another signal.

LAN Switch

Indoor Outdoor

Ethernet Cable

External Antenna

RF Coaxial Cable

OAP 180

Ground Wire

Power Injector

AC Power

00196

Installing the Access Points

Weather Conditions

Take into account any extreme weather conditions that are known to affect your

location. Consider these factors:

Te m p e r a t u r e — The OAP180 is tested for normal operation in temperatures from

- 40°F to 140°F. Operating in temperatures outside of this range may cause the

unit to fail.

Wind Velocity — The OAP180 can operate in winds up to 44 m/s and survive higher

wind speeds up to 66 m/s. You must consider the known maximum wind velocity

and direction at the site and be sure that any supporting structure, such as a pole,

mast, or tower, is built to withstand this force.

Lightning — The OAP180 includes its own built-in lightning surge protection.

However, you should make sure that the unit, any supporting structure, and cables

are all properly grounded. Additional protection using lightning rods, lightning

arrestors, or surge suppressors may also be employed. Antenna sockets should

point upwards in a vertical manner

Rain — The OAP180 is weatherproofed against rain. Also, prolonged heavy rain has

no significant effect on the radio signal. However, it is recommended to apply

weatherproof sealing tape around the Ethernet port and antenna connectors for

extra protection. If moisture enters a connector, it may cause a degradation in

performance or even a complete failure of the link.

Snow and Ice — Falling snow, like rain, has no significant effect on the radio

signal. However, a build up of snow or ice on antennas may cause the link to fail.

In this case, the snow or ice has to be cleared from the antennas to restore

operation of the link.

Ethernet Cabling

When a suitable antenna location has been determined, plan a cable route from the

OAP180 outdoors to the power injector module indoors. Consider these points:

The Ethernet cable length should never be longer than 100 ft.

Determine a building entry point for the cable.

Determine if conduits, bracing, or other structures are required for safety or

protection of the cable.

For lightning protection at the power injector end of the cable, consider using a

lightning arrestor immediately before the cable enters the building.

The shield of the ethernet cable needs to be grounded at the lightning arrestor.

If, by design, the lightning arrestor cannot provide this ground, the shield of the

ethernet cable will need to be grounded by the installer.

Grounding

It is important that the OAP180, cables, and any supporting structures are properly

grounded. The OAP180 unit includes a grounding screw to attach a ground wire. Be

sure that grounding is available and that it meets local and national electrical codes.

Installing the Access Points

Test Basic Link Operation

Set up the OAP180 on the ground, either outdoors or indoors. Connect the unit as

indicated in this document and perform the basic configuration tasks outlined below.

When you are satisfied that the OAP180 is operating correctly, proceed to mounting

the unit in the intended location.

Mounting the Access Point

The OAP180 can be mounted on the following (brackets are included):

2 to 3 inch diameter pole

Wall

Mounting OAP180 with the Pole-Mounting Bracket

Be sure to attach antennas (see Connect Antennas and Ground Wire to OAP180)

before mounting an OAP180 on a pole. Follow these steps to mount the unit to a 2 to

3 inch diameter steel pole or tube using the mounting bracket:

1. Attach the OAP180 to the mounting bracket.

Figure 36: Square Mounting Bracket Attaches to Bottom of OAP180

2. Place the V-shaped part of the bracket around the pole and tighten the securing

nuts just enough to hold the bracket to the pole. (The bracket may need to be

rotated around the pole during the alignment process.)

00199

Attach the adjustable

rectangular plate to

the bridge with

supplied screws

Note:

Always attach the bracket to a pole with the open end of the mounting

grooves facing up.

Installing the Access Points

Figure 37: Brackets Attached to a Pole

3. Use the included nuts to tightly secure the wireless OAP180 to the bracket.

4. Connect the OAP180 bracket and the pole bracket.

Mounting OAP180 with the Wall-Mounting Bracket

Attach the bracket to a wall with the flat side flush against the wall. Follow these

steps to mount the unit to a wall using the wall-mounting bracket:

1. Position the bracket in the intended location and mark the position of the four

mounting screw holes.

2. Drill holes in the wall that match the screws and wall plugs included in the

bracket kit, and then secure the bracket to the wall.

Figure 38: Mount OAP180 Bracket on Wall

3. Use the included nuts to tightly secure the OAP180 to the bracket.

4. Connect the two brackets as shown below.

00201

Attach the bridge

with bracket to

affixed plate on pole

Installing the Access Points

Figure 39: Mount OAP180 on Wall Bracket

Connect Antennas and Ground Wire to OAP180

OAP180 does not ship with any antenna by default. Since customers have different

outdoor applications, we suggest that you choose from the various antenna options

offered by Meru. See the list in Appendix , “AP Accessories” on page 89.

Four antennas are required if diversity is required. You can also use two antennas and

terminate the other two. The OAP180 works both with antennas that attach directly

to the unit and remote antennas. When using antennas that attach to the unit, attach

the antennas before installing the unit. Use the two connectors on the right (5G-1

and 2.4G-1) as indicated in Figure 8. When deploying an OAP180 with a remote

antenna, first mount remote antennas and then connect them to the OAP180.

Follow these steps:

1. Remove the two right-most antenna covers indicated in Figure 8.

2. Mount the external antenna on the same supporting structure as you did the

OAP180, within 3 m (10 ft.) of it, using the bracket supplied in the antenna

package.

3. Connect the antenna to the OAP180’s N-type connector (5G-1 and 2.4G-1) using

the RF coaxial cable provided in the antenna box.

00203

Installing the Access Points

Figure 40: Connect OAP180 Antenna Cables

4. Apply weatherproofing tape to the antenna connectors to help prevent water

entering the connectors.

Follow these steps to attach the Ethernet cable and ground wire:

1. Using the included cable, attach the Ethernet cable to the Ethernet port on the

OAP180.

Figure 41: Attach Ethernet Cable to OAP180

2.4G-2 2.4G-15G-2 5G-1

RF Coaxial

Cable

00204

5 GHz External

High-gain Panel

Antenna

2.4 GHz External

Omnidirectional

Antenna

5 GHz N-type

Connector (5G-1)

2.4 GHz N-type

Connector (2.4G-1)

Note:

When not using antenna connectors on the OAP180, keep the covers securely

attached for weather protection.

Note:

Use only the provided Ethernet cable. Do not shorten this cable as the path

loss is needed. During periods of lightning activity, do not connect or disconnect

cables or otherwise work with the OAP180.

Console PoE

Console Port PoE (Ethernet) Port

00205

Ethernet

Cable

Ground Wire

Installing the Access Points

2. For extra protection against rain or moisture, apply weatherproofing tape (not

included) around the Ethernet connector.

3. Ground the unit with an appropriate grounding wire (not included) by attaching

it to the grounding screw on the unit. See above.

Follow these steps to connect the power injector:

1. Connect the other end of the provided Ethernet cable (already connected to the

OAP180) to the RJ-45 port labeled Out put on the power injector.

Caution!

Equipment shall be installed in accordance with the National Electrical Code

ANSI/NFPA 70 and the Canadian Electrical Code, Part 1, and when applicable, the National

Electrical Safety Code, IEEE C2.

Equipment shall be properly grounded according to Chapter 8 of ANSI/NFPA 70, the

National Electrical Code (NEC) and the Cable distribution system should be grounded

(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in

particular Section 820.93, Grounding of the Outer Conductive Shield of a Coaxial Cable.

The separate protective earthing terminal provided on this product shall be permanently

connected to earth.

Caution!

Do not locate the power injector outdoors. The unit is for indoor use only.

Note:

The wireless Ethernet port does not support Power over Ethernet (PoE) based

on the IEEE 802.3af standard. Do not try to power the unit by connecting it directly

to a network switch that provides IEEE 802.3af PoE. Always connect the unit to the

included power injector module to maintain the warranty.

Note:

Each AC power injector requires 1.5 amps of power at 100-240 volts. When

connecting multiple devices to one outlet, be sure to allow 1.5 amps for each AC

power adapter.

Installing the Access Points

Figure 42: Connect OAP180 to Power Injector

2. Connect a straight-through unshielded twisted-pair (UTP) cable (not included)

from a local LAN switch to the RJ-45 port labeled Input on the power injector. See

the illustration above. Use Category 5e or better UTP cable for 10/100BASE-TX

connections.

3. Insert the power cable plug directly into the standard AC receptacle on the power

injector. See the illustration above.

4. Plug the other end of the power cable into a grounded, 3-pin socket, AC power

source.

5. Check the LED on top of the power injector to be sure that power is being supplied

to the OAP180 through the Ethernet connection.

Align Antenna

After the OAP180 unit is mounted, connected, and the radios are operating, the

antennas must be accurately aligned to ensure optimum performance of the OAP180

links. In this point-to-multipoint configuration all OAP180 nodes must be aligned

with the root OAP180 antenna.

AC power

Power LED indicator

Ethernet cable

from LAN switch

Ethernet cable to

wireless bridge

00206

Note:

The RJ-45 port on the power injector is an MDI port. If connecting directly to

a computer for testing the link, use a crossover cable.

Note:

For International use, you may need to change the AC line cord. You must use

a line cord set that has been approved for the receptacle type in your country.

Checking LED Activity

Check the OAP180 LEDs for activity. Four of the eight LEDs on the bottom of the

OAP180 indicate activity; four LEDs are not used at this time. Check the four active

LEDs to determine if the AP is working.

Figure 43: OAP180 LEDs

The grey LEDs in the illustration are not currently used. The following chart explains

the meanings for the remaining LEDs.

LED Funct ion

Power

When power is applied, this LED initially turns amber, then blinks green

when the system power check is applied, and then is a steady green

when power is on.

Radio 1

802.11bg

The 11bg connection LED blinks amber when radio packets are being

transmitted and when the radio is beaconing. If there is traffic over the

air on this radio, the blinking rate increases.

Radio 2

802.11a

The 11a connection LED blinks green when radio packets are being

transmitted and when the radio is beaconing. If there is traffic over the

air on this radio, the blinking rate increases.

Ethernet The Ethernet Link LED blinks green when a link has been detected and

is in use.

00194

Console PoE

Ethernet link

LED

Power On

LED

These 4 LEDs

are not used

Transmission LEDs

(radio packets transmitting)

Checking LED Activity

Antenna Gain Recommendations

The OAP180 auto-adjusts the power level sent from the radio to the antenna, so that

the EIRP emitted from the antenna is the value defined by the controller (100mW by

default). You can increase this setting if you are compensating for signal loss from

long inexpensive cables connecting external antennas. (Configure a false/low dBi

antenna gain to trick the radio into supplying more transmit power to that antenna,

which would then make up for the cable loss.) You may also need to decrease the

EIRP from 100mW to 30mW for a device that only transmits at 30mW. The Antenna

Gain values can be changed from the Web UI Configuration>APs>Antenna Properties

view, or from the CLI using the antenna-property command. Determine the appro-

priate gain for your antenna by checking the following chart.

Antenna Gain

MN-ACC-ANT-BG08O-NM 802.11 b/g 8 dBi Omni-

Directional Antenna, 2400 - 2500GHz (N Male)

MN-ACC-ANT-BG08O-NF 802.11 b/g 8 dBi Omni-

Directional Antenna, 2400 - 2500GHz (N Female) 8

MN-ACC-ANT-BG18P-NF 802.11 b/g 18 dBi High Gain

Panel Directional Antenna, 2400 - 2500GHz (N Female) 18

MN-ACC-ANT-BG10S-NF 802.11 b/g 10 dBi High Gain

Sector Antenna, 2400 - 2500GHz (N Female) 10

MN-ACC-ANT-A08O-NM-1 802.11a 8 dBi Omni-

Directional Antenna, 5150 - 5350GHz (N Male) 8

MN-ACC-ANT-A08O-NM-2 802.11a 8 dBi Omni-

Directional Antenna, 5470 - 5875GHz (N Male) 8

MN-ACC-ANT-A08O-NF 802.11a 8 dBi Omni-Directional

Antenna, 4900 - 5350GHz (N Female) 8

MN-ACC-ANT-A23P-NF 802.11a 23 dBi High Gain

Directional Panel, 5150 - 5875GHz (N Female) 23

MN-ACC-ANT-A13S-NF 802.11a 13 dBi High Gain 120-

degree Sector Antenna, 4900-5150/5150-5875GHz (N

Female)

12.5/13.5

Where to Go From Here

Now that the AP300 is installed, go to the Meru Syst em Direct or Get t i ng St art ed

Guide for instructions on initializing the hardware. Return to this chapter to check

the status of the LEDs once the WLAN is operational.

As well, check the AP chapter in the Mer u Syst em Dir ect or Conf igurat ion Guide for

instructions on configuring radio band, dual radio, and external antenna operation.

Where to Go From Here

Cautions

Appendix A

Cautions and Warnings

The cautions and warnings that appear in this manual are listed below in English,

German, French, and Spanish.

Cautions

A Caution calls your attention to a possible hazard that can damage equipment.

"Vorsicht” weist auf die Gefahr einer möglichen Beschädigung des Gerätes in.

Une mise en garde attire votre attention sur un risque possible d'endommagement de

l'équipement. Ci-dessous, vous trouverez les mises en garde utilisées dans ce manuel.

Un mensaje de precaución le advierte sobre un posible peligro que pueda dañar el

equipo. Las siguientes son precauciones utilizadas en este manual.

Caution!

When changing the orientation of the antennas, be sure to slightly loosen the

knurled ring before moving the antenna. Retighten the ring afterward. Otherwise, you

might damage the internal cabling in the AP.

Vorsicht!

Bei einer Neuausrichtung der Antennen muss vor Bewegung der Antenne der

Rändelring leicht gelockert werden. Anschließend den Ring wieder festziehen.

Anderenfalls können die internen Kabel im AP beschädigt werden.

Mise en garde

En cas de modification d’orientation des antennes, veiller à desserrer

légèrement la bague moletée avant de réorienter l’antenne. Resserrer ensuite la bague,

faute de quoi le câblage interne du point d’accès pourrait être endommagé.

Precaución!

Al cambiar la orientación de las antenas, asegúrese de aflojar ligeramente

el anillo estriado antes de mover la antena. Luego vuelva a apretar el anillo. De otro modo,

podría dañar el cableado interno del punto de acceso.

Cautions

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Vorsicht!

Darauf achten, dass das Ethernetkabel am Ethernetanschluss und nicht

versehentlich am Konsolenanschluss angeschlossen wird.

Mise en garde

Veiller à bien connecter le câble Ethernet au port Ethernet et non pas au

port Console.

Precaución!

Asegúrese de conectar el cable Ethernet al puerto Ethernet, porque por

error se puede enchufar en el puerto de la consola.

Caution!

The radiated output power of the access points is well below the FCC radio

frequency exposure limits. However, the Meru Access Point should be used in such a

manner that the potential for human contact during normal operation is minimized. To

avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep

a distance of at least 20 cm between you (or any other person in the vicinity) and the

Access Point antennas.

Vorsicht!

Die abgestrahlte Ausgangsleistung von Geräten von Meru Networks, Inc. liegt

weit unter den Hochfrequenz-Expositionsgrenzwerten der FCC. Die Meru Access Point

Zugangspunkte von Meru Networks, Inc. sollten jedoch so verwendet werden, dass das

Potenzial für Kontakt mit Menschen während des normalen Betriebs auf ein Mindestmaß

beschränkt wird. Um die Möglichkeit einer Überschreitung der FCC-Hochfrequenz-

Expositionsgrenzwerte zu vermeiden, ist ein Abstand von mindestens 20 cm zwischen Ihnen

(bzw. einer anderen Person in der Nähe) und den Zugangspunkt-Antennen zu wahren.

Mise en garde

La puissance de rayonnement émise par les équipements Meru Networks,

Inc. est très inférieure aux limites d'exposition aux fréquences radio définies par la FCC.

Toutefois, les points d'accès de la série Meru Access Point de Meru Networks, Inc. doivent

être utilisés de façon à éliminer tout risque de contact humain en fonctionnement normal.

Pour éviter de dépasser les limites d'exposition aux fréquences radio définies par la FCC,

il est impératif de préserver en permanence une distance supérieure ou égale à 20 cm

entre l'utilisateur (ou toute personne se trouvant à proximité) et les antennes du point

d'accès.

Precaución!

La potencia de radiación de los dispositivos de Meru Networks, Inc. está

muy por debajo de los límites de exposición a radiofrecuencia estipulados por la FCC. No

obstante, los puntos de acceso de la serie Meru Access Point de Meru Networks, Inc. deben

usarse de tal manera que se minimice la posibilidad de contacto para el usuario durante la

operación normal. Para evitar la posibilidad de exceder los límites de exposición a

radiofrecuencia establecidos por la FCC, el usuario (o cualquier otra persona en torno)

debe mantenerse a una distancia de al menos 20 cm respecto a las antenas del punto de

acceso.

Warnings

A warning calls your attention to a possible hazard that can cause injury or death.

The following are the warnings used in this manual.

"Achtung" weist auf eine mögliche Gefährdung hin, die zu Verletzungen oder Tod

führen können. Sie finden die folgenden Warnhinweise in diesem Handbuch:

Un avertissement attire votre attention sur un risque possible de blessure ou de

décès. Ci-dessous, vous trouverez les avertissements utilisés dans ce manuel.

Una advertencia le llama la atención sobre cualquier posible peligro que pueda

ocasionar daños personales o la muerte. A continuación se dan las advertencias

utilizadas en este manual.

Caution!

Exposure to Radio Frequency Radiation.

The installer of this radio equipment must ensure that the antenna is located or pointed

such that it does not emit an RF field in excess of Health Canada limits for the general

population; consult Safety Code 6, obtainable from Health Canada’s website

http://www.hc-sc.gc.ca/rpb.

Vorsicht!

Exposure to Radio Frequency Radiation.

The installer of this radio equipment must ensure that the antenna is located or pointed

such that it does not emit an RF field in excess of Health Canada limits for the general

population; consult Safety Code 6, obtainable from Health Canada's website

http://www.hc-sc.gc.ca/rpb.

Mise en garde

Exposition aux rayonnements à fréquence radioélectrique

L'installateur de cet équipement radio doit veiller à positionner et orienter l'antenne

de telle sorte qu'elle n'émette pas un champ radioélectrique supérieur aux limites

définies par Santé Canada pour la population générale. Consulter le Code de sécurité

n° 6, disponible sur le site Web de Santé Canada à l'adresse http://www.hc-

sc.gc.ca/rpb.

Precaución!

Exposición a la radiación de radiofrecuencia.

El instalador de este equipo de radio debe cerciorarse de que la antena está local-

izada u orientada de tal manera que no emita un campo de radiofrecuencia superior

a los límites estipulados por Health Canada para la población; consulte el Código de

Seguridad 6 que podrá encontrar en el página web de Health Canada, http://www.hc-

sc.gc.ca/rpb.

Warnings

Warning!

With plastic covers removed, this product is suitable for use in

environmental air space in accordance with the Section 300-22(c) of the National

Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the Canadian Electrical

Code. Part 1. C22. 1. For other countries, consult local authorities for regulations.

Achtung!

Bei abgenommener Kunststoffabdeckung ist dieses Produkt zur Verwendung

in einem Umgebungsluftraum gemäß Abschnitt 300-22(c) des National Electric Code

und Abschnitt 2- 128.12 - 010 (3) und 12 - 100 des Canadian Electrical Code Teil 1.

C22.1 geeignet. Die Vorschriften für andere Länder sind bei den örtlichen Behörden

erhältlich.

Avertissement

Sous réserve que ses couvercles de plastique soient déposés, cet

appareil est adapté à une utilisation dans les vides de construction des bâtiments

selon la section 300-22(c) du code NEC (National Electric Code) et les sections 2-

128.12 - 010 (3) et 12 - 100 du Code électrique du Canada, partie 1. C22. 1. Pour tous

les autres pays, consulter les organismes de réglementation locaux.

Advertencia

Una vez desprendidas las cubiertas de plástico, este producto es

adecuado para su uso en el espacio aéreo circundante en conformidad con la sección

300-22(c) del National Electric Code (Código Eléctrico Nacional de EE.UU.) y las

secciones 2- 128.12 - 010 (3) y 12 - 100 del Código Eléctrico de Canadá. Parte 1. C22.

1. En otros países, consulte a las autoridades locales competentes para informarse

acerca de las normativas vigentes.

Warnings

Warning!

The AP200 with the metal enclosure exposed meets the requirements for

fire resistance and low smoke-generating characteristics required by Section 300-

22(C) of the National Electrical Code (NEC) for installation in a building’s

environmental air space. You must remove the plastic enclosure to reveal the

plenum-rated AP200 metal case for installations above a suspended ceiling.

Additionally, you must use Ethernet cable that meets the requirements for operating

in plenums and environmental air space (in accordance with Section 300-22(C) of the

NEC).

Achtung!

Das AP200 mit exponiertem Metallgehäuse erfüllt die Anforderungen für

Feuerbeständigkeit und Kenndaten für geringe Raucherzeugung, die gemäß Abschnitt

300-22(C) des National Electrical Code (NEC) zur Installation im Umgebungsluftraum

eines Gebäudes vorgeschrieben sind. Bei Installationen über einem Hängeboden muss

das Kunststoffgehäuse abgenommen werden, um das flammwidrige (plenum-rated)

AP200 Metallgehäuse freizulegen.

Außerdem muss ein Ethernetkabel, das die Anforderungen zum Betrieb in einem

Umgebungsluftraum erfüllt, verwendet werden (gemäß Abschnitt 300-22(C) des

NEC).

Avertissement

L’équipement AP200 en boîtier métallique à nu est conforme aux

critères de résistance au feu et de faible génération de fumées de la section 300-

22(C) du code NEC (National Electrical Code) pour installation dans le vide de

construction d’un bâtiment. Il est nécessaire de déposer le boîtier de plastique pour

mettre à nu le boîtier métallique du AP200 en vue de son installation au-dessus d’un

faux plafond.

De plus, selon la section 300-22(C) du code NEC, le câble Ethernet doit répondre aux

critères de fonctionnement en vide de construction.

Advertencia

La unidad AP200 con la carcasa de metal expuesta cumple los

requisitos de resistencia al fuego y de generación de humo especificados en la

sección 300-22(C) del National Electrical Code (NEC, Código Eléctrico Nacional de

EE.UU.) para la instalación en el espacio aéreo circundante del edificio. Es necesario

desprender la cubierta de plástico con el fin de exponer la carcasa metálica de la

unidad AP200 plenum para su instalación encima de techos falsos.

Por otra parte, es necesario utilizar cable Ethernet que cumpla los requisitos de func-

ionamiento en el espacio aéreo circundante (en conformidad con la sección 300-22(C)

del NEC).

Warnings

Warning!

Any Fast Ethernet (FE) cables installed in air-handling spaces should be

suitable under NEC Article 800.50 and marked accordingly for use in plenums and air-

handling spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi

Purpose Plenum), or CMP (Communications Plenum).

Achtung!

Alle Fast-Ethernet (FE)-Kabel, die in Lüftungsräumen installiert werden,

sollten gemäß NEC Artikel 800.50 geeignet sein und entsprechend zur Verwendung in

Hohlräumen (Plenum) und Lüftungsräumen im Hinblick auf Rauchausbreitung

gekennzeichnet sein, z.B. CL2-P, CL3-P, MPP (Multi Purpose Plenum) oder CMP

(Communications Plenum).

Avertissement

Les câbles Fast Ethernet (FE) installés dans un vide d’air doivent

correspondre aux critères de l’article 800.50 du code NEC et identifiés en

conséquence comme adaptés à une utilisation dans les vides de construction des

bâtiments en matière de propagation de la fumée (marquages CL2-P, CL3-P, MPP

(Multi Purpose Plenum) ou CMP (Communications Plenum)).

Advertencia

Todos los cables Fast Ethernet (FE) instalados en espacios aéreos

deben cumplir con el artículo 800.50 del NEC y estar marcados adecuadamente para

su uso en espacios aéreos y plenums en lo concerniente a la propagación de humo,

tales como CL2-P, CL3-P, MPP (Plenum multifuncional), o CMP (Plenum de

comunicaciones).

Warnings

Warning!

Inside antennas must be positioned to observe minimum separation of 20

cm. (~ 8 in.) from all users and bystanders. For the protection of personnel working

in the vicinity of inside (downlink) antennas, the following guidelines for minimum

distances between the human body and the antenna must be observed.

The installation of the indoor antenna must be such that, under normal conditions,

all personnel cannot come within 20 cm. (~ 8.0 in.) from any inside antenna.

Exceeding this minimum separation will ensure that the employee or bystander does

not receive RF-exposure beyond the Maximum Permissible Exposure according to FCC

CFR 47, section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.

Achtung!

Innenantennen müssen so positioniert werden, dass ein Mindestabstand von

20 cm (ca. 8 Zoll) zu allen Benutzern und anderen Personen gewahrt wird. Zum Schutz

von Personal, das in der Nähe von Innenantennen (Downlink) arbeitet, sind die

folgenden Richtlinien für Mindestabstand zwischen dem menschlichen Körper und der

Antenne zu beachten.

Die Innenantenne muss so installiert werden, dass sich unter normalen Bedingungen

kein Personal bis auf weniger als 20 cm (ca. 8 Zoll) an eine Innenantenne annähern

kann. Durch Überschreitung dieses Mindestabstands wird sichergestellt, dass Mitar-

beiter oder andere Personen keiner RF-Exposition über die maximal zulässige Expo-

sition (MPE; Maximum Permissible Exposure) gemäß FCC CFR 47, Abschnitt 1.1310

(Grenzwerte für die allgemeine Bevölkerung/unkontrollierte Exposition) ausgesetzt

werden.

Avertissement

Les antennes intérieures doivent être positionnées de façon à

respecter une distance minimum de 20 cm par rapport aux utilisateurs et aux tiers.

Pour la protection du personnel travaillant à proximité des antennes intérieures

(liaison descendante), respecter les directives suivantes pour assurer des distances

minimales entre les êtres humains et les antennes.

Toute antenne intérieure doit être installée de telle sorte que, dans des conditions

normales, le personnel ne puisse s'en approcher à moins de 20 cm. Cette distance

minimale est destinée à garantir qu'un employé ou un tiers ne sera pas exposé à un

rayonnement radioélectrique supérieur à la valeur maximale autorisée, telle qu'elle

est définie dans les limites d'exposition non contrôlées pour la population par la

réglementation de la FCC CFR 47, section 1.1310.

Advertencia

Las antenas interiores deben colocarse de manera que se observe una

separación mínima de 20 cm. (~ 8 pulg.) respecto a todos los usuarios y circunstantes.

Para la protección del personal que trabaje en las inmediaciones de las antenas

interiores (receptoras), deben observarse las siguientes directrices relativas a la

distancia mínima entre el cuerpo humano y la antena.

La instalación de la antena interior debe efectuarse de tal modo que, en condiciones

normales, ningún miembro del personal pueda acercarse a menos de 20 cm. (~ 8,0

pulg.) de cualquier antena interior. El cumplimiento de este mínimo de separación

asegura que el empleado o circunstante no recibirá exposición a radiofrecuencia por

encima de la Exposición Máxima Permisible conforme a la normativa FCC CFR 47,

sección 1.1310, es decir, los límites asignados a la Exposición Incontrolada/Población

Civil.

Warnings

For OAP180

Appendix B

Regulatory Information

The Meru Access Point (APs) must be installed and used in strict accordance with the

manufacturer’s instructions as described in the user documentation that comes with

the product. For country-specific approvals, see below. Meru Networks, Inc. is not

responsible for any radio or television interference caused by unauthorized modifi-

cation of APs, or the substitution or attachment of connecting cables and equipment

other than that specified by Meru Networks, Inc. The correction of interference

caused by such unauthorized modification, substitution or attachment is the respon-

sibility of the user. Meru Networks, Inc. and its authorized resellers or distributors

are not liable for any damage or violation of government regulations that may arise

from the user failing to comply with these guidelines.

For OAP180

Radio

FCC Part 15

Canada RSS210

EN 300 328 V1.6.1 (11/2004)

EN 301 893 V1.3.1 (08/2005)

Japan Technical Regulations

EMC

FCC Part 15

EN 301 489-17 V1.2.1 (08/2002)

Japan VCCI

Safety

Prolonged exposure to RF radiation can be hazardous. Switch off unit power before

service or installation procedures.

For OAP180

Limits for Occupational/ Controlled Exposure

Limits for General Population/ Uncontrolled Exposure

Frequencies Blocked for Regulatory Compliance

802.11a frequencies 5.25-5.35 GHz and 5.47-5.725 GHz have been blocked for DFS

compliance.

Frequency

Range (MHz)

Electric Field

Strength (E)

(V/ m)

Magnetic

Field Strength

(H) (A/m)

Pow e r De nsit y

(S) (mW/ cm2)

Averaging

Time | E| 2,

| H| 2 or S

(minutes)

1500-100,000 5 6

Frequency

Range (MHz)

Electric Field

Strength (E)

(V/ m)

Magnetic

Field Strength

(H) (A/m)

Pow e r De nsit y

(S) (mW/ cm2)

Averaging

Time | E| 2,

| H| 2 or S

(minutes)

1500-100,000 1.0 30

Note:

Occupational/controlled limits apply in situations in which persons are exposed as a

consequence of their employment provided those persons are fully aware of the potential

for exposure and can exercise control over their exposure. Limits for

occupational/controlled exposure also apply in situations when an individual is transient

through a location where occupational/controlled limits apply provided he or she is made

aware of the potential for exposure.

Note:

General population/uncontrolled exposures apply in situations in which the general

public may be exposed, or in which persons that are exposed as a consequence of their

employment may not be fully aware of the potential for exposure or can not exercise

control over their exposure.

USA

Underwriters Laboratories

For the AP150 series, the AP300 series, AP200 series, and the OAP180, the following

statement and notices are applicable:

Use only with Listed I.T.E. equipment.

Notices

The unit is intended for installation in Environment A as defined in IEEE 802.3.af. All

interconnected equipment must be contained within the same building, including the

interconnected equipment's associated LAN connection.

Suitable for use in environmental air space in accordance with Section 300-22(c) of

the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Cana-

dian Electrical Code, Part 1, C22.1.

FCC Radiation Exposure Statement

Radio Frequency Interference Requirements

The Interference Statement applies to the following APs:

AP150

OAP180

AP201 Rev 2, AP208 Rev 2

FCC Part 15 Statement

This is to certify that the above models are shielded against the generation of

radio interference. Compliance is dependent upon the use of Cat 5e shielded

data cables or a Meru-supplied line filter. Contact Meru Support to obtain a line

filter, free of charge.

AP300 series

Caution!

The radiated output power of the Meru Networks devices is well below the FCC

radio frequency exposure limits. However, the Access Point should be used in

such a manner that the potential for human contact during normal operation is

minimized. When installing and operating these devices, keep a minimum

distance of 20 cm (8 inches) between the antennas and any persons/users in the

vicinity.

USA

Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio frequency energy. If the

equipment is not installed and used in accordance with the instructions, the equip-

ment may cause harmful interference to radio communications. There is no guar-

antee, however, that such interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception

(which can be determined by turning the equipment off and on), the user is encour-

aged to try to correct the interference by taking one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

For products available in the USA and Canadian markets, only channels 1 through 11

can be operated. Selection of other channels is not authorized.

Note:

Meru Access Points

All devices except the OAP180 are indoor devices. The FCC requires indoor use for

the frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful

interference to co-channel Mobile Satellite systems.

High-power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65

to 5.85 GHz bands. These radar stations can cause interference with or damage to

these devices, or both.

Note:

The Meru Access Point must be installed and used in strict accordance with the

manufacturer’s instructions as described in the user documentation that comes

with the product. Any other installation or use may violate FCC Part 15

regulations. Modifications not expressly approved by Meru Networks, Inc. could

void your authority to operate the equipment.

Canada. Industry Canada (IC)

The Class B digital portion of this apparatus complies with Canadian standard ICES-003.

These devices comply with RSS210 of Industry Canada.

Per RSS 210 A9.5 point 7:

(i) the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for

harmful interference to co-channel mobile satellite systems;

(ii) the maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-

5725 MHz) to comply with the e.i.r.p. limit; and

(iii) the maximum antenna gain permitted (for devices in the band 5725-5825 MHz) to comply

with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appro-

priate, as stated in section A9.2(3).

In addition, users should also be cautioned to take note that high-power radars are allocated as

primary users (meaning they have priority) of the bands 5250-5350 MHz and 5650-5850 MHz

and these radars could cause interference and/or damage to LE-LAN devices.

(iv) These devices are not permitted to operate in the 5600 - 5650 MHz band.

For products available in the USA and Canadian markets, only channels 1 through 11 can be

operated. Selection of other channels is not authorized.

Operation is subject to the following two conditions: (1) this device may not cause interfer-

ence, and (2) this device must accept any interference, including interference that may cause

undesired operation of this device.

This device and its listed antenna(s) must not be co-located or operated in conjunction with any

other antenna or transmitter

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas

produire de brouillage et (2) l’utilisateur du dispositif doit étre prêt à accepter tout brouillage

radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement

du dispositif.

The term "IC" before the equipment certification number only signifies that the Industry

Canada technical specifications were met.

To reduce the potential radio interference to other users, the antenna type and gain should be

chosen so that the equivalent isotropically radiated power (EIRP) is not more than that required

for successful communication.

To prevent radio interference to the licensed service, this device is intended to be operated

indoors and away from windows to provide maximum shielding. Equipment (or its transmit

antenna) that is installed outdoors is subject to licensing.

Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il

doit etre utilze a l’interieur et devrait etre place lin des fenetres afin de Fournier un ecram de

blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit

faire l’objet d’une licence.

Canada. Industry Canada (IC)

Access Points have been designed to operate with the antennas listed below. Antennas not

included in this list are strictly prohibited for use with these devices. The required antenna

impedance is 50 ohms.

AP Antennas with Gain

To reduce potential radio interference to other users, the antenna type and its gain should be

chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not more than that

permitted for successful communication.

Caution!

Exposure to Radio Frequency Radiation.

The installer of this radio equipment must ensure that the antenna is located or

pointed such that it does not emit an RF field in excess of Health Canada limits

for the general population; consult Safety Code 6, obtainable from Health

Canada’s website http://www.hc-sc.gc.ca/rpb.

This equipment complies with IC RSS-102 radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and operated

with a minimum distance of 20cm between the antennas and any persons/users

in the vicinity.

Note:

Meru Access Points

These devices are restricted to indoor use because they operate in the 5.15 to

5.25 GHz frequency range. Industry Canada requires such products to be used

indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the potential

for harmful interference to co-channel Mobile Satellite systems.

AP Model Antenna Type Gain (2.4 GHz) Gain (5 GHz)

AP300 Dual-Band Omni-Directional

MN-ACC-ANTabg-W 2 dBi 3 dBi

AP300 Dual-Band Omni-Directional

ACC-ANT-ABGN-23 2 dBi 3 dBi

AP300 High-Gain Dipole Omni-Directional

ACC-ANT-ABGN47O 4.7dBi 4.7dBi

AP200 Dual-Band Omni-Directional

SAA04-220050 2 dBi 3 dBi

AP200 Dual-Band Omni-Directional

TWX-614XRSXX 4 dBi 5 dBi

AP150 Dual-Band Omni-Directional

SAA04-220050 2 dBi 3 dBi

Europe—EU Declaration of Conformity and Restrictions

Europe—EU Declaration of Conformity and

Restrictions

EN 300 328. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).

Wideband transmission systems, data transmission equipment operating in the 2.4

GHz ISM (Industrial, Scientific, and Medical frequency bands in the range of 902–928

MHz, 2.4–2.485 GHz, and 5.15–5.25 GHz) band and using spread spectrum modulation

techniques, harmonized EN standards covering essential requirements under article

3.2 of the R&TTE directive.

EN 301 893. Broadband Radio Access Networks (BRAN). 5 GHz high-performance

RLAN, harmonized EN standards covering essential requirements of article 3.2 of the

R&TTE directive.

EN 301 489-17. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).

Electromagnetic Compatibility (EMC) Standard for Radio Equipment and Services,

Part 17 Specific Conditions for Wideband Data and HIPERLAN Equipment.

EN 55022 Statement (applicable to AP201 Rev 2, AP208 Rev 2 only).This is to certify

that the above models are shielded against the generation of radio interference in

accordance with the application of Council Directive 2004/108/EC, Annex I, 1a.

Conformity is declared by the application of EN 55 022 Class B (CISPR 22). Compliance

is dependent upon the use of Cat 5e shielded data cables.

EN 60950-1. Safety of Information Technology Equipment.

EN 50385. Product standard to demonstrate the compliances of radio base stations and fixed

terminal stations for wireless telecommunication systems with the basic restrictions or the

reference levels related to human exposure to radio frequency electromagnetic fields.

This equipment is marked with either the CE Mark, the alert symbol, and the notified body's

number and can be used throughout the European Community. This mark indicates compliance

with the R&TTE Directive 1999/5/EC and the relevant parts of the following technical speci-

fications.

This equipment is marked with either the CE Mark, the alert symbol, and the notified body's

number and can be used throughout the European Community. This mark indicates compliance

with the R&TTE Directive 1999/5/EC and the relevant parts of the following technical speci-

fications.

Marking by the alert symbol indicates that usage restrictions apply.

Europe—EU Declaration of Conformity and Restrictions

Meru Networks, Inc. declares that their Access Points comply with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

Meru Networks, Inc. vakuuttaa täten että Access Points tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

Hierbij verklaart Meru Networks, Inc. dat het toestel Access Points in overeenstem-

ming is met de essentiële eisen en de andere relevante bepalingen van richtlijn

1999/5/EG.

Bij deze verklaart Meru Networks, Inc. dat deze Access Points voldoet aan de essen-

tiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

Par la présente, Meru Networks, Inc. déclare que l’appareil Access Points est

conforme aux exigences essentielles et aux autres dispositions pertinentes de la

directive 1999/5/CE.

Par la présente, Meru Networks, Inc. déclare que ce Access Points est conforme aux

exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui

sont applicables.

Härmed intygar Meru Networks, Inc. att denna Access Points står I överensstämmelse

med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av

direktiv 1999/5/EG.

Undertegnede Meru Networks, Inc. erklærer herved, at følgende udstyr Access Points

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hiermit erklärt Meru Networks, Inc. dass sich dieser/diese/dieses Access Points in

Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten

Vorschriften der Richtlinie 1999/5/EG befindet.

Hiermit erklärt Meru Networks, Inc. die Übereinstimmung des Gerätes Access Points

mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der

Richtlinie 1999/5/EG.

Con la presente Meru Networks, Inc. dichiara che questo Access Points è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva

1999/5/CE.

Por medio de la presente Meru Networks, Inc. declara que el Access Points cumple

con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles

de la Directiva 1999/5/CE.

Marking by the alert symbol indicates that usage restrictions apply.

Europe—EU Declaration of Conformity and Restrictions

Meru Networks, Inc. declara que este Access Points está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Hawnhekk, Meru Networks, Inc. jiddikjara li dan Access Points jikkonforma mal-htigi-

jiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva

1999/5/EC.

Käesolevaga kinnitab Meru Networks, Inc. seadme Access Points vastavust direktiivi

1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjako-

hastele sätetele.

Alulírott, Meru Networks, Inc. nyilatkozom, hogy a Access Points megfelel a vonat-

kozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Meru Networks, Inc. týmto vyhlasuje, e Access Points splna základné poiadavky a

všetky príslušné ustanovenia Smernice 1999/5/ES.

Meru Networks, Inc. tímto prohlašuje, e tento Access Points je ve shode se základními

poadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.

Šiuo Meru Networks, Inc. deklaruoja, kad šis Access Points atitinka esminius reikala-

vimus ir kitas 1999/5/EB Direktyvos nuostatas.

Ar šo Meru Networks, Inc. deklare, ka Access Points atbilst Direktivas 1999/5/EK

butiskajam prasibam un citiem ar to saistitajiem noteikumiem.

Niniejszym, Meru Networks, Inc., deklaruje, ze Access Points spelnia wymagania

zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC.

These products are intended to be used in all countries of the European Economic

Area with the following restrictions:

IEEE 802.11a Restrictions

These products are for indoor use only (5150–5250 MHz).

To ensure compliance with local regulations, be sure to set your Access Point to

the country in which you are using the Access Point.

The Meru Access Point products can be used only indoors in the following countries:

Austria, Belgium, Bulgaria, Czech Republic, Germany, Cyprus, Denmark, Estonia,

Finland, France, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, The Netherlands, Norway, Portugal, Poland, Romania, Spain,

Slovak Republic, Slovenia, Sweden, Switzerland, Turkey, and United Kingdom.

EEE 802.11b/g Restrictions

France—In all Metropolitan départements, wireless LAN frequencies can be used

under the following conditions, either for public or private use:

Indoor use: maximum power (EIRP) of 100 mW for the entire 2400–2483.5 MHz

frequency band.

Japan

EN 55022 Statement (applicable to AP201 Rev 2, AP208 Rev 2 only).This is to certify

that the above models are shielded against the generation of radio interference in

accordance with the application of Council Directive 2004/108/EC, Annex I, 1a.

Conformity is declared by the application of EN 55022 Class B (CISPR 22). Compliance

is dependent upon the use of shielded data cables.

Model AP300

Model 208

Model 208 Rev 2 Module

Model AP208 Rev 2

Model 201

Model AP300 module rev 1

003WWA080094 003GZA080095 003XWA080096

003NY06089 0000 003GZ06018 0000 003WY06035 0000

003NY07014 0000 003GZ07002 0000 003WY07004 0000

003NY070390000 003GZ070080000 003WY070100000

003NY07015 0000 003GZ07003 0000 003WY07005 0000

003NY070380000 003GZ070070000 003WY070090000

003NY06117 0000 003GZ06026 0000 003WY06043 0000

Manufacturing Information

Model AP201 Rev 2

Model AP150

Singapore

For the AP201 Rev 2, AP208 Rev 2, and OAP180, the following approval information applies:

For the AP300 series, the following approval information applies:

Manufacturing Information

The AP150, AP200, and AP300 are built in Taiwan. Factory information is provided under

NDA and upon request.

003NY07015 0000 003GZ07003 0000 003WY07005 0000

003NY070380000 003GZ070070000 003WY070090000

003NY06122 0000 003GZ06030 0000 003WY06046 0000

DA103798

IDA Standards

Complies with

DB102245

IDA Standards

Complies with

AP300 Plenum Requirements

When installing the product in an air-handling space, as described in Article

300.22(C) of the NEC (2005), the unit should only be powered by the Ethernet port

(PoE), not by the AC-powered power supply.

When the product is installed in air-handling spaces, the cables employed should be

suitable under NEC Articles 300.22 and 725 and marked accordingly, for use in

plenums and air-handling spaces with regard to smoke propagation, such as CL2-P,

C L 3 - P, M P P o r C M P.

The products should be installed in accordance with all applicable, local regulations

and practices.

Meru Networks, Inc.

894 Ross Drive

Sunnyvale, CA 94087

408-215-5300
